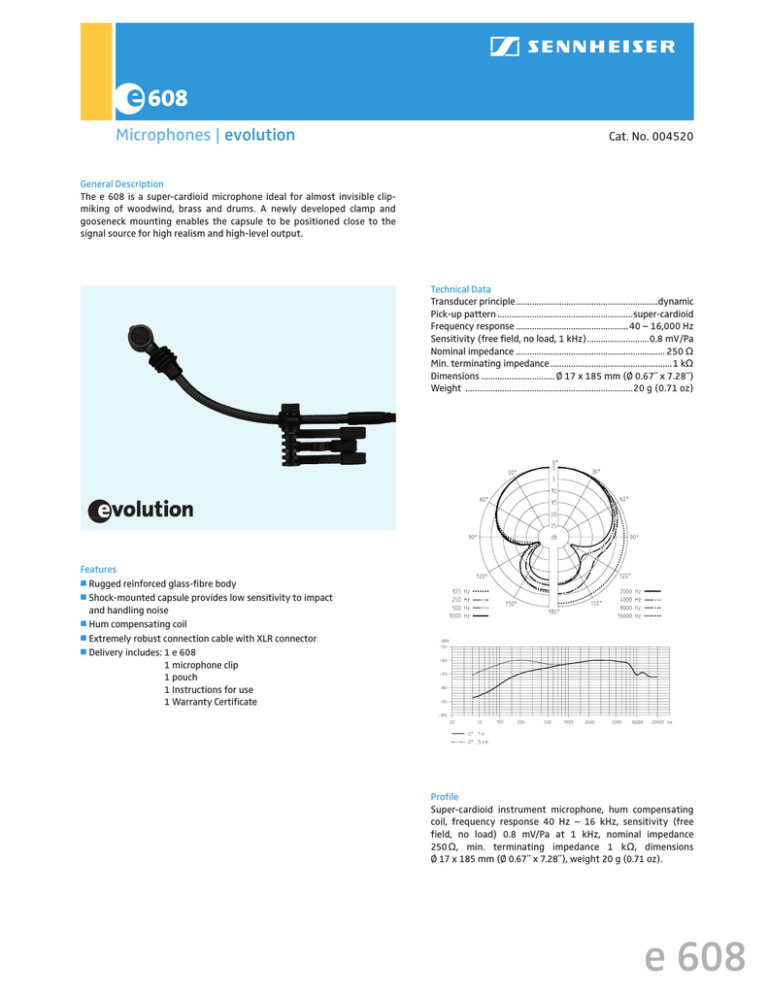

Sennheiser 004520 Microphone User Manual
Microphones | evolution
Cat. No. 004520
General Description
The e 608 is a super-cardioid microphone ideal for almost invisible clipmiking of woodwind, brass and drums. A newly developed clamp and
gooseneck mounting enables the capsule to be positioned close to the
signal source for high realism and high-level output.
Technical Data
Transducer principle ..............................................................dynamic
Pick-up pattern ...........................................................super-cardioid
Frequency response ................................................. 40 – 16,000 Hz
Sensitivity (free field, no load, 1 kHz) ...........................0.8 mV/Pa
Nominal impedance ................................................................. 250 Min. terminating impedance ..................................................... 1 k
Dimensions ................................ Ø 17 x 185 mm (Ø 0.67˝ x 7.28˝)
Weight .........................................................................20 g (0.71 oz)
Features
J Rugged reinforced glass-fibre body
J Shock-mounted capsule provides low sensitivity to impact
and handling noise
J Hum compensating coil
J Extremely robust connection cable with XLR connector
J Delivery includes: 1 e 608
1 microphone clip
1 pouch
1 Instructions for use
1 Warranty Certificate
Profile
Super-cardioid instrument microphone, hum compensating
coil, frequency response 40 Hz – 16 kHz, sensitivity (free
field, no load) 0.8 mV/Pa at 1 kHz, nominal impedance
250 , min. terminating impedance 1 k, dimensions
Ø 17 x 185 mm (Ø 0.67˝ x 7.28˝), weight 20 g (0.71 oz).
e 608
