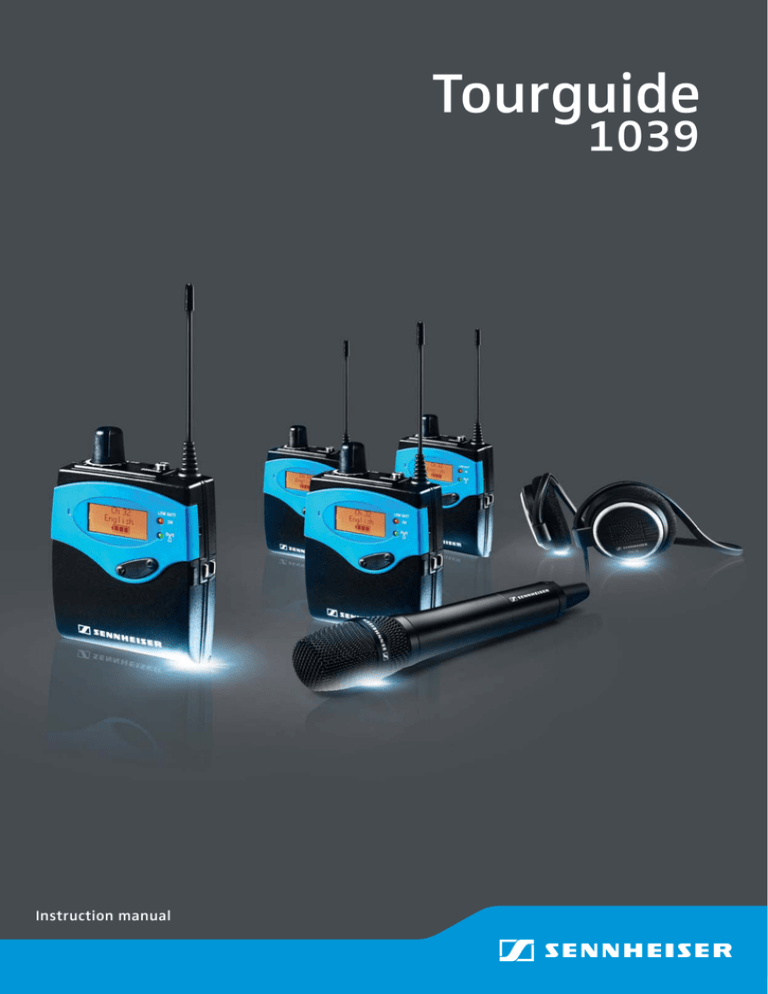

Tourguide
1039
Instruction manual
Contents
Contents
Important safety instructions .................................................................................... 2
The Tourguide 1039 system ....................................................................................... 4
Frequency ranges ........................................................................................................... 4
Features of the EK 1039 receiver ................................................................................ 4
Suitable transmitters for your Tourguide application ............................................ 5
Charger for your Tourguide application ..................................................................... 7
Product overview of the EK 1039 receiver ............................................................... 8
Putting the receiver into operation ......................................................................... 10
Inserting the batteries or the accupack ................................................................... 10
Charging the accupack ................................................................................................ 10
Connecting headphones .............................................................................................. 10
Using the receiver ...................................................................................................... 11
Switching the diversity receiver on/off and adjusting the volume ................... 11
Deactivating the lock mode temporarily ................................................................. 12
Setting the receiving channel .................................................................................... 12
Attaching the receiver to clothing ............................................................................ 13
Configuring the receiver ............................................................................................ 14
Calling up/ending the menu ....................................................................................... 14
Overview of the menu ................................................................................................. 15
The buttons ................................................................................................................... 15
Working with the menu .............................................................................................. 16
The “Setup” menu ........................................................................................................ 17
The “Channels” menu .................................................................................................. 19
The “Setup Ch 1” ... “Setup Ch 32” menu ................................................................ 19
Cleaning and maintaining the receiver ................................................................... 21
Configuring the transmitters for your Tourguide application ............................. 22
Matching the transmitter to the receiver ................................................................ 22
Configuring the mobile SK, SKM and SKP transmitters ........................................ 22
Configuring the stationary SR monitoring transmitter ........................................ 22
If a problem occurs ... ................................................................................................. 23
Recommendations and tips ...................................................................................... 24
Specifications .............................................................................................................. 25
Appendix ..................................................................................................................... 27
Manufacturer Declarations ....................................................................................... 28
Tourguide 1039 | 1
Important safety instructions
Important safety instructions
•
Read this instruction manual.
•
Keep this instruction manual. Always include this instruction manual when
passing the product on to third parties.
•
Heed all warnings and follow all instructions.
•
Only clean the product with a dry cloth.
•
Do not place the product near any heat sources such as radiators, stoves, or
other devices (including amplifiers) that produce heat.
•
Only use attachments/accessories specified by Sennheiser.
•
Refer all servicing to qualified service personnel.
Servicing is required if the device has been damaged in any way, liquid has
been spilled, objects have fallen inside, the product has been exposed to rain or
moisture, does not operate properly or has been dropped.
•
WARNING: To reduce the risk of short circuits, do not use the product near water
and do not expose it to rain or moisture.
Danger of hearing damage due to high volumes
This is a professional receiver. Commercial use is subject to the rules and regulations of the trade association responsible. Sennheiser, as the manufacturer, is
therefore obliged to expressly point out possible health risks arising from use.
The EK 1039 receiver is capable of producing sound pressure levels exceeding
85 dB (A). 85 dB (A) is the sound pressure corresponding to the maximum permissible volume which is by law (in some countries) allowed to affect your hearing for
the duration of a working day. It is used as a basis according to the specifications
of industrial medicine. Higher volumes or longer durations can damage your
hearing. At higher volumes, the duration must be shortened in order to prevent
hearing damage. The following are sure signs that you have been subjected to
excessive noise for too long a time:
•
You can hear ringing or whistling sounds in your ears.
•
You have the impression (even for a short time only) that you can no longer
hear high notes.
Inform the users of your Tourguide application about these facts and, if necessary,
ask them to set the volume to a medium level.
2 | Tourguide 1039
Important safety instructions
Safety instructions for NiMH rechargeable batteries
If abused or misused, rechargeable batteries may leak. In extreme cases, they may
even present
•
•
•
•
a heat hazard,
a fire hazard,
an explosion hazard,
a smoke or gas hazard.
Sennheiser does not accept any liability for damage arising from abuse or misuse.
Keep away from children.
Only use rechargeable batteries
recommended by Sennheiser.
Observe correct polarity.
Do not short-circuit.
Do not expose to moisture.
Switch rechargeable batterypowered products off after use.
Do not pack charged batteries loose – danger of
shorting out/fire hazard.
When not using rechargeable batteries for extended periods of time,
charge them regularly (about every
three months).
Only charge rechargeable
batteries at ambient
temperatures between
10°C/50°F and
40°C/104°F.
Do not heat above 70°C/158°F,
e.g. do not expose to sunlight or
throw into a fire.
Do not mutilate or
dismantle.
Do not continue to use defective
rechargeable batteries.
Immediately remove
rechargeable batteries
from an obviously defective product.
Dispose of rechargeable batteries
at special collection points or
return them to your specialist
dealer.
Store the product in
a cool and dry place at
room temperature
(approx. 20°C/68°F).
Only charge rechargeable batteries
with a charger recommended by
Sennheiser.
Remove the rechargeable batteries if the product will not be used for
extended periods of time.
Intended use
Intended use includes:
•
using the products for professional purposes,
•
having read and understood this instruction manual, especially the chapter
“Important safety instructions” on page 2,
•
using the products within the operating conditions and limitations described in
this instruction manual.
“Improper use” means using the products other than as described in this instruction manual, or under operating conditions which differ from those described
herein.
Tourguide 1039 | 3
The Tourguide 1039 system
The Tourguide 1039 system
The Tourguide 1039 system consists of the EK 1039 receiver and a suitable transmitter of the evolution wireless G3 or 2000 series.
The system offers optimum speech transmission for guided tours, small conferences and interpretation applications with one or several speakers.
The use of RF transmission allows freedom of movement for all members of the
group. Due to the possibility of combining the EK 1039 receiver with different
transmitters, the system can be optimally adapted to your individual needs.
Frequency ranges
evolution wireless G3
incl. IEM
B
626-668 MHz
C
734-776 MHz
D
780-822 MHz
863-865
854-862
846-854
838-846
830-838
822-830
814-822
806-814
798-806
790-798
782-790
774-782
766-774
758-766
750-758
742-750
734-742
726-734
718-726
710-718
702-710
694-702
686-694
678-686
670-678
662-670
654-662
646-654
638-646
MHz
630-638
622-630
The EK 1039 receiver is available in the frequency ranges Bw, Cw and Dw. The following diagram shows an overview of compatible frequency ranges. For setting up
a transmission link, the evolution wireless G3 or 2000 (including IEM) series transmitter used must operate in a matching frequency range and must be set to the
same frequency as the receiver.
E
823-865 MHz
2000 series
incl. IEM
Bw
626-698 MHz
Cw
718-790 MHz
Dw
790-865 MHz
Tourguide 1039
EK 1039 receiver
Bw
626-698 MHz
Cw
718-790 MHz
Dw
790-865 MHz
32 factory-preset frequencies that are intermodulation-free allow you to operate
up to 32 transmission links simultaneously.
You can change the factory-preset frequencies to suit your needs. In this case, however, it might be that the frequencies are not intermodulation-free.
Features of the EK 1039 receiver
The EK 1039 is a small, rugged bodypack receiver that can easily be attached to
clothing by means of a belt clip. The receiver allows you to connect any headphones
(min. 8 Ω) and to individually adjust the volume. 32 UHF receiving frequencies
(preset but changeable) offer high flexibility and adaptability.
Ch 4
English
EK 1039
4 | Tourguide 1039
Features of the receiver:
•
Easy and comfortable use
•
Channel indication with individual channel name via display
•
Channel adjustment via rocker button
•
Operation and reception indication via LED
•
“LowBattery” indication via LED and display
The Tourguide 1039 system
Suitable transmitters for your Tourguide application
The following table will help you to select a suitable transmitter for your Tourguide
application.
Receiver
Transmitters
Mobile use
Tourguide 1039:
• EK 1039
Stationary use
evolution wireless G3 series:
• SK 100/300/500
• SKM 100/300
• SKP 100/300
evolution wireless G3 series:
• SR 300 IEM G3
2000 series:
• SK 2000
• SKM 2000
• SKP 2000
2000 series:
• SR 2000 IEM
• SR 2050 IEM
-30
-40
SR 300 IEM
SR
Stereo Transmitter
PEAK
0
-10
-20
-30
-40
AFI
AF
B.Ch: 20.24 ew300IEM
531.375 MHz
AF
AFIIII
EQ
Standard -18dB
SKM
Stereo Transmitter SR 2000 IEM
PEAK PEAK
0
0
-10 -10
-20 -20
-30 -30
-40 -40
AF I AF II
B.Ch:
1 1
**2000**
516.000 MHz
EQ
Standard -18dB
Ch 4
English
PEAK PEAK
0
0
-10 -10
-20 -20
-30 -30
-40 -40
AF I AF II
B.Ch:
1 1
**2050**
516.000 MHz
EQ
Standard -18dB
Stereo Transmitter SR 2050 IEM
PEAK PEAK
0
0
-10 -10
-20 -20
-30 -30
-40 -40
AF I AF II
B.Ch:
1 1
**2050**
516.000 MHz
EQ
Standard -18dB
SKP
EK 1039
SK
All mentioned transmitters of the evolution wireless G3 or 2000 series are available in frequency ranges that are compatible with the frequency ranges of the
EK 1039 receivers (see page 4).
Mobile use of the transmitters
SK bodypack transmitter
A portable bodypack transmitter allows the connection of a clip-on microphone or
a headmic so that the tour guide has both hands free and complete freedom of
movement while guiding the group.
e.g.
SK 300
SKM radio microphone
EK 1039
A radio microphone can be passed on from the tour guide to members of the group,
e.g. when questions arise during the guided tour.
e.g. SKM 300
EK 1039
Tourguide 1039 | 5
The Tourguide 1039 system
SKP plug-on transmitter
A plug-on transmitter converts a wired microphone into a radio microphone,
allowing e.g. to use an existing microphone for your mobile Tourguide application.
e.g. SKP 300
with ME 36
EK 1039
Stationary use of the transmitters
SR monitoring transmitter
You can use a stationary transmitter for e.g. running a small conference or for
offering a translation of the audio channel. The transmitter can be connected to
a mixing console and to other audio sources.
-30
-40
SR 300 IEM
Stereo Transmitter
PEAK
0
-10
-20
-30
-40
AFI
AF
B.Ch: 20.24 ew300IEM
531.375 MHz
AF
AFIIII
EQ
Standard -18dB
SR 300 IEM
Stereo Transmitter SR 2000 IEM
PEAK PEAK
0
0
-10 -10
-20 -20
-30 -30
-40 -40
AF I AF II
B.Ch:
1 1
**2000**
516.000 MHz
EQ
Standard -18dB
SR 2000 IEM
PEAK PEAK
0
0
-10 -10
-20 -20
-30 -30
-40 -40
AF I AF II
B.Ch:
1 1
**2050**
516.000 MHz
EQ
Standard -18dB
Stereo Transmitter SR 2050 IEM
PEAK PEAK
0
0
-10 -10
-20 -20
-30 -30
-40 -40
AF I AF II
B.Ch:
1 1
**2050**
516.000 MHz
EQ
Standard -18dB
SR 2050 IEM
EK 1039
6 | Tourguide 1039
The Tourguide 1039 system
Charger for your Tourguide application
BA 2015 accupack
For daily use, we recommend using the supplied BA 2015 accupack. The accupack
can be charged in the L 2015 charger without having to be removed from the
device.
BA 2015
L 2015 charger
The L 2015 charger can charge up to two BA 2015 accupacks. The accupacks can be
charged separately or when installed in the receiver.
L 2015
Tourguide 1039 | 7
Product overview of the EK 1039 receiver
Product overview of the EK 1039
receiver
1 On/off/volume control
7 SET button
2 3.5 mm jack socket for headphones, 8
lockable
9
3 Receiving antenna
0
4 Operation and battery status
A
indicator “LOW BATT/ON”,
B
red LED:
lit = ON
C
flashing = LOW BATT
D
5 RF signal indication, green LED
6 Charging contacts
8 | Tourguide 1039
왖/왔 button (UP/DOWN)
Battery compartment
Battery compartment cover (metal)
Battery compartment catches
Infra-red interface
ESC button
Display panel, backlit in orange
Product overview of the EK 1039 receiver
Overview of the displays
After switch-on, the receiver displays the standard display:
Ch 4
English
The display backlighting is automatically reduced after approx. 20 seconds.
Display
Meaning
E Receiving channel
Current receiving channel “Ch 1” ... “Ch 32”
F Channel name
Name of the receiving channel, individually adjustable;
can consist of 8 characters max., e.g. “English”
G Lock mode icon
Lock mode is activated (see page 12)
H Charge status
Charge status:
of the BA 2015
approx. 100%
accupack/batteries
approx. 70%
approx. 30%
critical charge status,
the red LOW BATT LED 4 is flashing:
Ch 4
English
When you call up the menu for configuring the receiver (see page 14), the
receiver’s display panel shows the Setup display:
Setup
Tourguide 1039 | 9
Putting the receiver into operation
Putting the receiver into operation
Inserting the batteries or the accupack
For powering the diversity receiver, you can either use two 1.5 V AA size batteries
or the rechargeable Sennheiser BA 2015 accupack.
For daily use, we recommend using the supplied BA 2015 accupack. The accupack
can be charged in the L 2015 charger without having to be removed from the
device.
왘 Open the battery compartment by pushing the two catches A in the direction
of the arrows and open the cover 0.
왘 Insert the BA 2015 accupack or the two batteries as shown above. Please
observe correct polarity when inserting the accupack/batteries.
왘 Close the battery compartment by pressing on the center of the cover 0. The
battery compartment cover 0 locks into place with an audible click.
Charging the accupack
To charge the BA 2015 accupack installed in the receiver:
왘 Insert the diversity receiver into the L 2015 charger.
The receiver switches off and the accupack is being charged.
For more information on charging the BA 2015 accupack, refer to the instruction
manual for the L 2015 charger.
Never switch on the receiver during charging because otherwise the accupack will not be charged correctly.
The L 2015 charger can only charge the BA 2015 accupack. Standard batteries (primary cells) installed in the receiver or individual rechargeable
battery cells cannot be charged.
Connecting headphones
Ch 4
English
10 | Tourguide 1039
왘 Connect headphones with an impedance of at least 8 Ω to the 3.5 mm jack
socket 2.
Using the receiver
Using the receiver
To establish a transmission link between the configured transmitter and receiver,
proceed as follows:
1. Switch the receiver on (see next section).
2. Switch the transmitter on (see the instruction manual for the transmitter).
The transmission link is established and the receiver’s RF signal indication 5
lights up green.
For information on how to configure the receiver, read the chapter “Configuring the receiver” on page 14.
For information on how to configure the transmitter, read the chapter
“Configuring the transmitters for your Tourguide application” on page 22
and the instruction manual for the transmitter used.
If you cannot establish a transmission link between transmitter and receiver, read
the chapter “If a problem occurs ...” on page 23.
Switching the diversity receiver on/off and
adjusting the volume
After switch-on, the receiver displays the standard display which allows the user to
switch between the receiving channels (see page 12).
You can configure the receiver via the Setup menu which you can access using
a special key combination during switch-on (see page 14).
To switch the receiver on:
왘 Turn the volume control 1 clockwise until it clicks.
The red LED ON 4 lights up. The standard display appears on the display panel.
Ch 4
English
To switch the receiver off:
왘 Turn the volume control 1 counterclockwise until it clicks.
The red LED ON 4 goes off and the receiver switches off.
When not using the receiver for extended periods of time, remove the
accupack/batteries.
When you insert a switched-on receiver into the L 2015 charger, the
receiver automatically switches off. The receiver remains switched off
when you take it from the charger after charging. You first have to turn
the volume control 1 counterclockwise until it clicks to be able to switch
the receiver on (turn the volume control 1 clockwise until it clicks).
Tourguide 1039 | 11
Using the receiver
To adjust the volume:
WARNING
Hearing damage due to high volumes!
Listening at high volume levels for long periods can lead to permanent hearing defects.
왘 Set the volume to a low level before using the product.
왘 Do not continuously expose yourself to high volumes.
왘 Turn the volume control 1
– clockwise to increase the volume
– counterclockwise to reduce the volume.
Using the “Limiter” function, you can reduce the audio level of the headphone output (see page 18).
Deactivating the lock mode temporarily
Ch 4
English
If the automatic lock mode “Auto Lock” is activated (see page 17), you have to
temporarily deactivate it in order to be able to operate the receiver:
SET
왘 Press the SET button.
“Locked” appears on the display pane.
왘 Press the rocker button.
“Unlock?” appears on the display panel.
SET
왘 Press the SET button.
The lock mode is deactivated.
The lock mode icon G flashes prior to the lock mode being activated again (if no
button has been pressed for approx. 10 seconds).
Setting the receiving channel
If several guided tours take place within a building at the same time, i.e. several
transmission links are operated simultaneously, the user can switch the channel of
the receiver to the channel that is stated by the tour guide.
To switch between the receiving channels:
왘 Press the rocker button.
The receiver immediately switches to the new receiving channel. If the
receiver receives a transmitter on the new channel, the green LED 5
lights up.
The “Active” function allows you to show or hide the receiving channels
from the standard display (see page 20).
12 | Tourguide 1039
Using the receiver
Attaching the receiver to clothing
You can use the belt clip E to attach the diversity receiver to clothing (e.g. belt,
waistband).
The belt clip is detachable so that you can also attach the receiver with the antenna
pointing downwards. To do so, withdraw the belt clip from its fixing points and
attach it the other way round. The belt clip is secured so that it cannot slide out of
its fixing points accidentally.
To detach the belt clip:
왘 Lift one side of the belt clip as shown in the diagram.
왘 Press down the belt clip at one fixing point and pull it out of the receiver
housing.
왘 Repeat for the other side.
Tourguide 1039 | 13
Configuring the receiver
Configuring the receiver
Calling up/ending the menu
You can only call up the menu when the receiver is switched off.
왘 Press the ESC button C and keep it pressed.
왘 Turn the volume control 1 clockwise until it clicks to switch the receiver on.
The Setup display appears on the display panel.
To end the menu:
왘 Switch the receiver off (see page 11).
When switching the receiver on again, the standard display will be shown.
14 | Tourguide 1039
Configuring the receiver
Overview of the menu
”Setup“ menu
Display
”Channels“ menu
”Setup Ch 1“ …
“Setup Ch 32“ menu
Setup Ch 1
Setup Ch 2
Name
Tune
Active
Exit
...
Auto Lock
Channels
Squelch
Limiter
LCD Contrast
Software Revision
Copy
Exit
Setup Ch 32
Function of the menu item
Page
“Setup” menu
Auto Lock
Activates the automatic lock mode
17
Channels
Call up the “Channels” menu
19
Squelch
Adjusts the squelch threshold
17
Limiter
Activating the limiter of the headphone output
18
LCD Contrast
Adjusts the contrast of the display panel
18
Software Revision
Displays the current software version
18
Copy
Copies receiver settings to additional receivers
18
Exit
Exits the menu and returns to the Setup display
–
Calls up the “Setup Ch 1” ... “Setup Ch 32” menu
19
“Channels” menu
Setup Ch 1 ...
Setup Ch 32
“Setup Ch 1” ... “Setup Ch 32” menu
Name
Enters a freely selectable name for the channel
19
Tune
Changes the receiving frequencies of the channels
20
Active
Hides the receiving channel for the user
20
Exit
Exits the “Setup Ch 1” ... “Setup Ch 32” menu and
returns to the “Channels” menu
–
The buttons
Button
Function of the button
Press the • Cancels the entry and returns to the Setup display (ESC function)
ESC button
ESC
Press the • Changes from the Setup display to the menu
SET button • Calls up a menu item
SET
• Enters a submenu
• Stores the settings
Press the
rocker
button
• Changes to the next/previous menu item
• Changes the setting of a menu item
Tourguide 1039 | 15
Configuring the receiver
Working with the menu
By way of example of the “Limiter” menu item, this section describes how to use
the menu.
Calling up the menu
SET
왘 Press the SET button.
You call up the menu.
Selecting a menu item
왘 Press the rocker button to change to the “Limiter” menu item.
The current setting of the menu item is displayed:
Setup
Limiter
Off
Calling up a menu item and adjusting and storing it
SET
Off
Off
Call up “Limiter”
Limiter
Limiter
Setup
Limiter
Select the desired
setting
On
Store the setting
SET
“Stored”
SET
왘 Press the SET button to call up the menu item.
왘 Press the rocker button to adjust the “Limiter” setting.
SET
왘 Press the SET button to store the setting.
Canceling an entry
ESC
왘 Press the ESC button to cancel the entry.
The Setup display appears on the display panel.
To subsequently return to the last edited menu item:
SET
왘 Press the SET button repeatedly until the last edited menu item
appears.
Returning to the next higher menu level or exiting the menu
To return to the next higher menu level:
왘 Change to the “Exit” menu item.
Setup Ch 4
Exit
SET
왘 Confirm your selection.
You return to the next higher menu level or exit the menu.
To directly return to the Setup display:
ESC
16 | Tourguide 1039
왘 Press the ESC button.
Configuring the receiver
The “Setup” menu
Activating the automatic lock mode – “Auto Lock”
Setup
Auto Lock
Inactive
SET
Call up
“Auto Lock”
Auto Lock
I na c t i v e
Select the desired
setting
Auto Lock
Active
Store the setting
SET
“Stored”
Possible settings: “Active”, “Inactive”
Ch 4
English
The automatic lock mode prevents that the receiving channel is accidentally
changed on the receiver. The lock mode icon G on the standard display indicates that the lock mode is activated.
For information on how to deactivate the lock mode, refer to page 12.
Adjusting the squelch threshold – “Squelch”
SET
Setup
Squelch
Squelch
Low
Squelch
High
Low
Call up “Squelch”
Select the desired
setting
Store the setting
SET
“Stored”
Possible settings: “Low”, “Middle”, “High”, “Off”
The squelch eliminates annoying noise when the transmitter is switched off or
when there is no longer sufficient transmitter power received by the receiver.
WARNING
Danger of hearing damage!
If you switch the squelch off or adjust the squelch threshold to a very
low value, loud hissing noise can occur in the receiver. The hissing
noise can be loud enough to cause hearing damage!
왘 Always make sure that the squelch is switched on.
왘 Before adjusting the squelch threshold, set the volume of the
headphone output to the minimum (see page 11).
왘 Never change the squelch threshold during a guided tour.
왘 Only switch off the squelch for servicing or test purposes.
왘 Adjust the squelch threshold – with the transmitter switched off – to the
lowest possible setting that suppresses hissing noise.
A high squelch threshold reduces the transmission range.
The squelch should only be switched off for servicing or test purposes. With the
squelch threshold set to “Low”, you switch the squelch off by keeping the DOWN
rocker button pressed for 3 seconds.
Tourguide 1039 | 17
Configuring the receiver
Activating the limiter of the headphone output – “Limiter”
SET
Setup
Limiter
Limiter
Limiter
Off
Off
Call up “Limiter”
Select the desired
setting
On
Store the setting
SET
“Stored”
Possible settings: “On”, “Off”
The limiter reduces the maximum volume at the headphone output by –12 dB.
Upon delivery, the “Limiter” function is switched on. We recommend to
keep this function switched on at all times.
Adjusting the contrast of the display panel – “LCD Contrast”
Setup
Name
LCD Contrast
7
Call up
“LCD Contrast”
LCD Contrast
7
LCD Contrast
10
Select the desired
setting
Store the setting
“Stored”
You can adjust the contrast of the display panel in 16 steps.
Displaying the software version – “Software Revision”
You can display the current software version of the receiver.
왘 For information on software updates, visit the EK 1039 product page at
www.sennheiser.com.
Copying the receiver settings to additional receivers – “Copy”
Setup
Copy
SET
Copy
Call up “Copy”
Data transfer function
“Copy” is active
SET
Deactivates the function
Via the “Copy” menu item, you can copy all settings of one receiver (A) to an arbitrary number of other EK 1039 receivers (B). This allows you to quickly and easily
transfer e.g. a new receiving channel to all other receivers in the system.
To prepare the receiver (A) to transfer the settings:
왘 Select a receiver.
왘 Set the desired receiving channel, the name, the squelch threshold, etc.
왘 Change to the “Copy” menu item.
All settings of this receiver (A) will be transferred to the other receivers (B).
To prepare the receivers (B) to receive the settings:
왘 Open the battery compartment cover of all receivers (B) to which you want to
transfer the settings.
왘 Switch on all receivers.
18 | Tourguide 1039
Configuring the receiver
To copy the settings:
햾
B
A
Copy
왘 Place the receiver (A) above the infra-red interfaces B of the other receivers
(B), one after the other. The distance between the infra-red interfaces must not
exceed 10 cm.
The settings are copied and “Copy” briefly appears on the display panels of the
receivers (B). If data transfer was successful, the receiver (B) switches off
automatically.
Strong extraneous light may interfere with the data transfer via the
infra-red interface. Therefore, position the receivers so that any possible
interference caused by extraneous light is avoided. The blue line between
the infra-red interfaces B in the diagram on the left indicates the direction from which the IR radiation must impinge upon the receiver.
max. 10 cm
If you are using receivers from different frequency ranges and if you have
set a frequency that is not available in the frequency range of the receiver
(B), “Incompatible Frequency” appears on the display panel.
왘 Use receivers from the same frequency range or set a frequency that
is available in both frequency ranges.
The “Channels” menu
Calling up the “Setup Ch 1” ... “Setup Ch 32” menu
Channels
Setup Ch 2
Setup
Channels
Call up
“Channels”
Select and call up
channel “1“ ... “32“
Setup Ch 2
Name
“Setup Ch 1” ...
“Setup Ch 32” menu
is reached
Via the “Channels” menu, you can call up the “Setup Ch 1” ... “Setup Ch 32”
submenu.
The “Setup Ch 1” ... “Setup Ch 32” menu
Entering a name – “Name”
Setup Ch 2
Name
Wnglish
Name
Wnglish
Call up “Name”
Enter a character
and confirm
Name
English
Enter a character;
store the setting
“Stored”
Via the “Name” menu, you can enter a freely selectable name for the receiving
channel (e.g. the language of the guided tour). The name is displayed on the standard display and can consist of up to 8 characters such as:
•
letters (without pronounciation marks),
•
numbers from 0 to 9,
•
special characters and spaces.
To enter a name, proceed as follows:
왘 Press the rocker button to select a character.
SET
왘 Press the SET button to change to the next segment/character or to
store the complete entry.
Tourguide 1039 | 19
Configuring the receiver
Changing the receiving frequencies of the channels – “Tune”
Setup Ch 2
Tune
863.500 MHz
SET
Tu n e
864.500 MHz
Select the MHz
value and confirm
Call up “Tune”
SET
Tu n e
864.300 MHz
Select the kHz value;
store the setting
SET
“Stored”
It is vital to observe the notes on frequency selection in the chapter
“Matching the transmitter to the receiver” on page 22.
Via the “Tune” menu item, you can change the receiving frequency of a channel.
The receiver’s channels have been factory-preset to receiving frequencies that
are intermodulation-free. However, you can change the factory-preset frequencies.
Within one frequency range, up to 32 transmission links can be operated
simultaneously.
To change the receiving frequency of the channel:
왘 Press the rocker button to adjust the frequency in MHz steps.
SET
왘 Press the SET button to confirm the MHz setting of the frequency.
The kHz section of the frequency is highlighted.
왘 Press the rocker button to adjust the frequency in 25 kHz steps.
SET
왘 Press the SET button to store the setting.
“Stored” appears on the display panel.
Adjusting the visibility of the receiving channel – “Active”
SET
Setup Ch 2
Active
Active
On
SET
Active
Off
On
Call up “Active”
Adjust the visibility
and confirm
“Stored”
Store the setting
SET
Possible settings: activated and visible “On”, deactivated and hidden “Off”
Via the “Active” menu item, you can show or hide the receiving channel. An activated channel is visible on the standard display and can be selected. A deactivated
channel is invisible on the standard display and cannot be selected.
20 | Tourguide 1039
Cleaning and maintaining the receiver
Cleaning and maintaining the receiver
CAUTION
Liquids can damage the electronics of the product!
Liquids entering the housing of the product can cause a short-circuit and damage
the electronics. Solvents or cleansing agents can damage the surface of the
product.
왘 Keep all liquids away from the product.
왘 Do not use any solvents or cleansing agents.
왘 Use a dry cloth to clean the product from time to time.
Tourguide 1039 | 21
Configuring the transmitters for your Tourguide application
Configuring the transmitters for your
Tourguide application
Please also read the instruction manual for your transmitter. It provides important
information that ensures safe and optimum operation of the transmitter in your
Tourguide application.
Matching the transmitter to the receiver
To be able to establish a transmission link, the transmitter and receiver
used must operate in compatible frequency ranges (see page 4) and must
be set to the same frequency.
Make sure that the desired frequencies are approved and legal in your
country and, if necessary, apply for an operating license.
You can contact your Sennheiser partner who will be pleased to calculate
intermodulation-free frequencies for you or to help you apply for an operating license.
The receiver’s channels have been factory-preset to receiving frequencies that are
intermodulation-free (see frequency table on page 27). However, you can change
the factory-preset frequencies. Within one frequency range, up to 32 transmission
links can be operated simultaneously.
왘 Make sure to set the transmitter of the evolution wireless G3 or 2000 series to
the same frequency as the receiver.
If you still cannot establish a transmission link between transmitter and receiver,
read the chapter “If a problem occurs ...” on page 23.
Configuring the mobile SK, SKM and SKP transmitters
1. Set the frequency that you want to use for your Tourguide application (“Tune”
menu item).
SKM
2. Adjust the input sensitivity of the microphone (“Sensitivity” menu item; for
presentation applications, the guide values range from approx. –21 dB to
0 dB).
SKP
SK
Configuring the stationary SR monitoring transmitter
1. Set the frequency that you want to use for your Tourguide application (“Tune”
menu item).
-30
-40
SR 300 IEM
SR
Stereo Transmitter
PEAK
0
-10
-20
-30
-40
AFI
AF
B.Ch: 20.24 ew300IEM
531.375 MHz
AF
AFIIII
EQ
Standard -18dB
Stereo Transmitter SR 2000 IEM
PEAK PEAK
0
0
-10 -10
-20 -20
-30 -30
-40 -40
AF I AF II
B.Ch:
1 1
**2050**
516.000 MHz
EQ
Standard -18dB
22 | Tourguide 1039
Stereo Transmitter SR 2050 IEM
PEAK PEAK
0
0
-10 -10
-20 -20
-30 -30
-40 -40
AF I AF II
PEAK PEAK
0
0
-10 -10
-20 -20
-30 -30
-40 -40
AF I AF II
B.Ch:
1 1
**2000**
516.000 MHz
EQ
Standard -18dB
B.Ch:
1 1
**2050**
516.000 MHz
EQ
Standard -18dB
2. Set the transmitter to mono operation to avoid interference during RF transmission (“Mode” menu item).
3. Adjust the input sensitivity of the transmitter (“Sensitivity” menu item; for
presentation applications, the guide values range from approx. –21 dB to
0 dB).
If a problem occurs ...
If a problem occurs ...
Problem
Possible cause
Possible solution
Receiver cannot be operated,
“Locked” appears on the display
panel
Lock mode is activated
Deactivate the lock mode (see page 12).
No operation indication
Batteries are flat or
accupack is flat
Replace the batteries or recharge the accupack
(see page 10).
Batteries are inserted the wrong
way round
Observe correct polarity when inserting the
batteries (see page 10).
No RF signal
Transmitter and receiver are not on Set the receiver and transmitter to the same
the same channel
channel.
Transmission range is exceeded
Reduce the distance between receiver and
transmitter.
Check the squelch threshold setting and,
if necessary, reduce it (see page 17).
Increase the transmitter’s transmission power
(see the instruction manual for the
transmitter).
Transmitter’s RF signal is deactivated (“RF Mute”)
Activate the RF signal
(see the instruction manual for the
transmitter).
Transmitter is muted (MUTE)
Cancel the muting (see the instruction manual
for the transmitter).
Receiver’s squelch threshold is
adjusted too high
Reduce the squelch threshold setting
(see page 17).
Microphone is defective
Replace the microphone.
Headphones are defective
Replace the headphones.
Audio signal has a high level of
background noise
Transmitter sensitivity is adjusted
too low
Adjust the transmitter sensitivity correctly
(see the instruction manual for the
transmitter).
Audio signal is distorted
Transmitter sensitivity is adjusted
too high
Adjust the transmitter sensitivity correctly
(see the instruction manual for the
transmitter).
Receiver’s audio output level is
adjusted too high
Reduce the audio output level (see page 18).
RF signal available, no audio signal
No access to a certain receiving
channel
Receiving channel is hidden for the Activate the visibility of the receiving channel
user
(“Active”, see page 20).
During copying, “Incompatible
Frequency” appears on the display
panel
You are using receivers from different frequency ranges and you
have set a frequency that is not
available in the frequency range
of one of the receivers.
Use a receiver from the same frequency range.
Set a frequency that is available in both
frequency ranges.
Please also read the chapter “If a problem occurs ...” in the instruction manual for your transmitter.
If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please
contact your local Sennheiser partner for assistance.
To find a Sennheiser partner in your country, search at www.sennheiser.com under “Service & Support”.
Tourguide 1039 | 23
Recommendations and tips
Recommendations and tips
General information
• Transmission range depends to a large extent on location and can vary from
about 10 m to about 150 m. There should be a “free line of sight” between
transmitter and receiver.
• For best sound quality, make sure that the transmitter sensitivity is correctly
adjusted (see the instruction manual for the transmitter).
… for SKM radio microphones and SKP plug-on transmitters
• Hold the radio microphone in the middle of the microphone body. Holding it
close to the sound inlet basket will influence the radio microphone’s pick-up
pattern, holding it at the lower part of the microphone body will reduce the
radiated transmission power and thus the transmission range.
• You can vary the bass reproduction by increasing/decreasing the talking
distance.
• For best sound quality, make sure that the transmitter sensitivity is correctly
adjusted (see the instruction manual for the transmitter).
• The plug-on transmitter uses the microphone body as an antenna – therefore
microphones with a metal casing should be used for best signal transmission.
… for SK bodypack transmitters
• Make sure that the antenna and the microphone cable do not cross.
• The antenna should hang or stand freely and be at least 1 cm away from the
body. The antenna must not be in direct contact with the skin.
• For best sound quality, make sure that the transmitter sensitivity is correctly
adjusted (see the instruction manual for the transmitter).
… for stationary SR monitoring transmitters
• Only use the monitoring transmitter in mono operation.
• For optimum RF operation, use suitable antennas from the Sennheiser accessory range. For more information on suitable accessories, visit the corresponding product pages at www.sennheiser.com.
24 | Tourguide 1039
Specifications
Specifications
The specifications of the transmitter can be found in the instruction
manual for the transmitter.
EK 1039 receiver
RF characteristics
Modulation
wideband FM
Frequency ranges
626-698, 718-790, 790-865 MHz
(Bw, Cw, Dw see page 4)
Receiving frequencies
max. 32, tuneable in steps of 25 kHz
Switching bandwidth
≤ 75 MHz
Nominal/peak deviation
±24 kHz / ±48 kHz
Receiver principle
adaptive diversity
Sensitivity
(with HDX, peak deviation)
< 4 μV, typ. < 1.6 μV for 52 dBArms S/N
Adjacent channel rejection
typ. 80 dB
Intermodulation attenuation
typ. 78 dB
Blocking
≥ 80 dB
Squelch
Low: 5 dBμV, Middle: 15 dBμV, High: 25 dBμV
AF characteristics for headphone output
Compander system
Sennheiser HDX
AF frequency response
40–15,000 Hz
S/N ratio
(1 mVRF, peak deviation)
approx. 90 dBArms
THD
≤ 0.9%
Headphone output
3.5 mm jack socket (mono, 2-pin,
for headphones with at least 8 Ω)
Output power at 2.4 V, 5% THD
and nominal deviation
Adjustment range
100 mW at 32 Ω
42 dB (6 dB steps)
via potentiometer (+17 dBu reserve)
Overall device
Temperature range
–10°C to +55°C
Power supply
2 AA size batteries, 1.5 V
or BA 2015 accupack
Nominal voltage
2.4 V
Power consumption:
at nominal voltage
with switched-off receiver
typ. 140 mA (±5%)
≤ 25 μA
Operating time with BA 2015 or approx. 8 hrs
batteries
(depending on the volume set)
Dimensions
approx. 81 x 65 x 23 mm
Weight (incl. batteries)
approx. 200 g
Tourguide 1039 | 25
Specifications
In compliance with
Europe
Canada
26 | Tourguide 1039
EMC:
Radio:
Safety:
EN 301489-1/-9
EN 300422-1/-2
EN 60065
Industry Canada RSS-123
IC 2099A-EK1039
limited to 698 MHz
Appendix
Appendix
Radio frequencies
Frequency range
Channel
Bw (MHz)
Cw (MHz)
Dw (MHz)
1
630.100
718.100
863.100
2
630.500
718.500
863.500
3
633.600
721.600
864.300
4
635.900
723.900
864.900
5
636.500
724.500
823.000
6
637.700
725.700
823.450
7
631.000
719.000
824.000
8
632.000
720.000
824.700
9
646.100
734.100
825.550
10
646.500
734.500
826.050
11
649.600
737.600
827.550
12
651.900
739.900
828.450
13
652.500
740.500
829.200
14
653.700
741.700
830.300
15
647.000
735.000
830.950
16
648.000
736.000
831.900
17
662.200
750.200
...
18
662.600
750.600
...
19
665.700
753.700
...
20
668.000
756.000
...
21
668.600
756.600
...
22
669.800
757.800
...
23
663.100
751.100
...
24
664.100
752.100
...
25
678.100
766.100
...
26
678.500
766.500
...
27
681.600
769.600
...
28
683.900
771.900
...
29
684.500
772.500
...
30
685.700
773.700
...
31
679.000
767.000
...
32
680.000
768.000
...
Tourguide 1039 | 27
Manufacturer Declarations
Manufacturer Declarations
Warranty
Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product.
For the current warranty conditions, please visit our website at
www.sennheiser.com or contact your Sennheiser partner.
In compliance with the following requirements
•
RoHS Directive (2002/95/EC)
•
WEEE Directive (2002/96/EC)
Please dispose of the receiver at the end of its operational lifetime by taking it
to your local collection point or recycling center for such equipment.
•
Battery Directive (2006/66/EC)
In order to protect the environment, the supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return them
to your specialist dealer.
CE Declaration of Conformity
•
0682
•
R&TTE Directive (1999/5/EC)
•
EMC Directive (2004/108/EC)
•
Low Voltage Directive (2006/95/EC)
The declaration is available at www.sennheiser.com.
Before putting the product into operation, please observe the respective countryspecific regulations.
Statements regarding FCC and Industry Canada
This device complies with Part 15 of the FCC Rules and with RSS-123 of Industry
Canada. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
This class B digital device complies with the Canadian ICES-003.
Changes or modifications made to this equipment not expressly approved by
Sennheiser electronic Corp. may void the FCC authorization to operate this
equipment.
28 | Tourguide 1039
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Publ. 01/12
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
