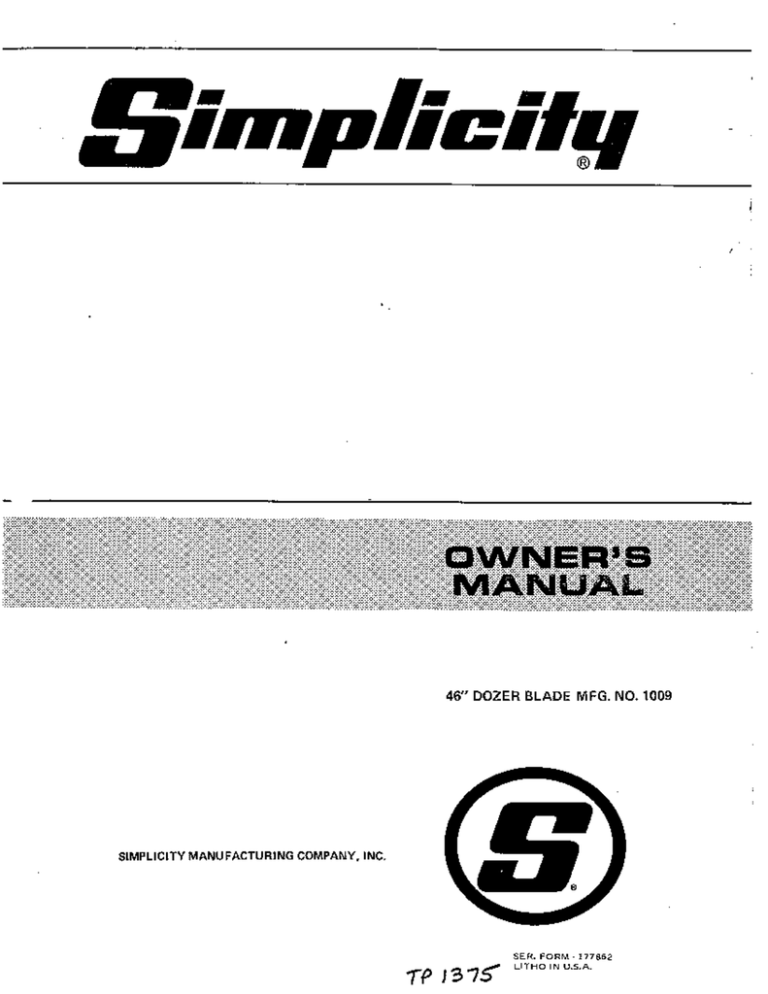

46” DOZER BLADE MFG. NO. 10089
SIMPLICITY MANUFACTURING COMPANY, INC.
SEM. FORM - 177862
LITHO IM WLS. A
TO 1375
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
51 3
47
45 WASHER
916960
105051
Spacer
— + 560
Ref. Part Cty. |
| No. Mo. Req. | Description
1 107096 | 1 | Blade Assy.
2 197105 | 1 Wear Plate
3 702002 | 7 Carriage Bolt, 3/816 = 1"
4 720002 | 7 Lock Washer, 3/8"
5 717003 | 7 Hex Nut, Full Z/8"-16
5 107106 | 2 Shoé Assy,
7 719001 | 4 Flat Washer, 3/8"
& 720002 | 4 Lock Washer, 3/8"
9 705004 | 4 Hex. Cap Screw,
2/8"-16 x za"
10 174054 | 1 Pivot Frame Assy,
11 715100 | 2 Hex Capscrew, 1/2"-13 x 1-1/2"
12 717518 | 2 Hex Nut, 1772.13
13 107116 | 1 Fivot Plate Assy. —
14 722006 | 2 Cotter Pin 1/8" x 1"
15 107118 1 Fivat Rod
16 722001 | 2 Cotter Pin, 3/327 x 3/4"
17 107119 1 Pivot Arm
18 156150 | 1 Spacer
19 705007 ] 1 Fiex Capstrew, 516.18 x 1"
20 715002 | 1 Plain Washer, 5/16"
21 720001 | 1 Lock Washer, 5/16"
22 717001 | 1 Hex Mut, Full, 5/16".18
23 107120 | 1 Fivot Stud
24 720001 | 1 Lock Washer, 5/16"
| 25 717001 | 1 Hex Tut, Full, 5/16"-18
28 107121 | 2 Eyebolt
27 717001 | 4 Hex Nut, Full, 5/16-18
28 101126 | à Spring
25 1607913] 1 | Push Bar Assy.
¡ 30 174066 | 1 | Pivot Pin
Part | Oty.
No. ] Reg. Description
31 722003 | 2 Cotter Pin, 3/16" x 1.1/4"
sa 174073 1 Latch
33 725002 | 2 Roll Pin, 7/32" x 17
34 107135 | 1 Latch Spring
55 107136 1 Latch Rod
56 722001 | 2 | Cotter Pin, 3/32" x 3/4"
37 118053 | 2 | (Hitch) Pin
33 106788 | 2 7] Нара Clip
39 1508023) 1 Front Lift Rod
40 8031007] > Collar
| 41 713006 | 2 Set Screw 9/16-18 x 177"
da 171011 1 Spring
43 171679 | 1 Rod Guide
de 106768 | 2 Hairpin Clip
45 106131 1 Fork Assy.
46 106788 | 1 Hairpin Clip
47 1607472] 1 Rod Assy.
45 705018 1 Hex Capscrew,
5°16-18 x 1-1/2"
49 F17511 Full Lock Hex Nut 5/1618
50 1608075 Bracket
51 106687 1 Bracket
| 52 705004 | 1 Hex Capscrew, 3/8"-16 x 3/4"
53 720002 | 1 Lock Washer, 3/8"
54 717003 | 1 Hex Hut, Full 3/8"-16
55 172162 | 1 Eyebolt
56 720005 1 | Lock Washer, 1/4"
57 717005 1 Hex Mut, Full, 1/4-20
58 106719 1 Film, Simplicity
54 103005 1 Model No. Plate
60 172432 | 1 Fuel Tank Cap (Winterized)
Él 177075 1 Transport Chain Assy.
The 46" Snow plow and Dozer blade can be used without
any weights or chains. HOWEVER, by солим these ems,
plowing and dozing will be done more effectively and effi-
ciantly.
Using the rear counter weight (Mig. No. 182 with No. 045
will ease lifting of the front mounted attachments. This is
mounted on the rear Lift assy. Using wheel weights {1 or 2
on either side) will provide more traction. By adding
chains with the wheel weights additional traction will be
experienced, Loose mounting of the chains will assist in
their self cleaning.
OPERATION
Thete are five operating positions for this blade. The pos:
tion can be changed by the operator without leaving the
seat. Turn the control rod clockwise to unlatch the blade.
Push or pull rod to the desired position. For ease of chang
ing positions, raise blade slightly from the ground.
By adjusting the shoe assembly, various blade heights can
be achieved. Incieased height adjustment can be done by
adjusting the stop pin in the lift lever quadrant.
When the blade 15 used with the manual lift, the float cam
can be placed in the float position so the Blade will follow
the contour of the ground without any downward pressure
weept the weight of the blade. The manual lift and the
power lift can be used to lock the blade in any position de-
dred. The spring on the lift arm allows the blade to lift
aver hard objects when downward pressure is maintained:
on the blade.
The wear plate on the blade is reversible. When one edge
becomes worn, remove the bolts, turn the blade around,
and reinstall it so the unused edge is at the bottom.
1 19371 MODELS
N
"COUNTERWEIGHT
| Tons BRACKET ATTACHES HERE
a CHAINS
If it is desired to use a tiller or other attachment when the
blade is mounted, the transport hook which is boited to
the frame at the front of the tractor should be used. With
the blade hooked in the transport position, the lift arm
can be removed from the tractor, The Lift can then bo used
to raise or lower another attachment,
LUBRICATION
Lubricate all joints where rods enter holes. Also lubricate
pivot points. Periodic lubrication will assist in ease of op-
eration.
PACKING
The 45" Snow Flow and Dozer Blade comes in one carton
with all necessary hardware.
ASSEMBLY
Attach hitch assembly to blade assembly, using the two
yoke pins and côtier pins provided. Using thé two eve
bolts, attach spring from hitch to blade. Allow 1/2" of
thread to show through nuts. Attach to tractor as indicated
in Fig. 1 with the two pins and spnng clips. Attach blade di-
rection rod bracket at the frame hole on right hand side of
the Fuel Tank & Steering Fost Support Assembly. Ses Fig.
1. (If this bracket has been installed for usage with another
implement, it need not be removed). Attach lift rod to
tractor lift lever and to plow. Fig, 1, Insert blade direction
rod through bracket and attach to blade. Secure in place
with spring clips.
MODELS PRIOR TO
1971
DIRECTION ROD —
ATTACH BLADE HITCH
HERE
FIGURE 1
177973 Transport Chain
From Previous Page
Install the deflector as lustrated. If the unit is equip
ped with lights the deflector is mounted using the same
hardware that secures the headlight.
Ref, Oty.
Mo. Part No. | Req. Description
1 705008 | 1 Hex Capscrew,
5/8 -16 x 1-1/2"
2 154177 | 1 | Spacer
= 719001 1 Plain Washer, 3/8"
4 720002 | 1 Lock Washer, 3/8"
5 717003 | 1 Hex Nut, Full, 2/8 -16
f 174438 7 1 Deflector
7 745002 | 2 „Hex Capscrew,
14720 x 1/27
8 720003 2 Lock Washer, 1/4"
9 2
717005 |
Hex Nut, 1/4-20
170252
177048
HOOD
FILM SHIELD
CARB SHIELD
DEFLECTOR
MOUNTS INSIDE
