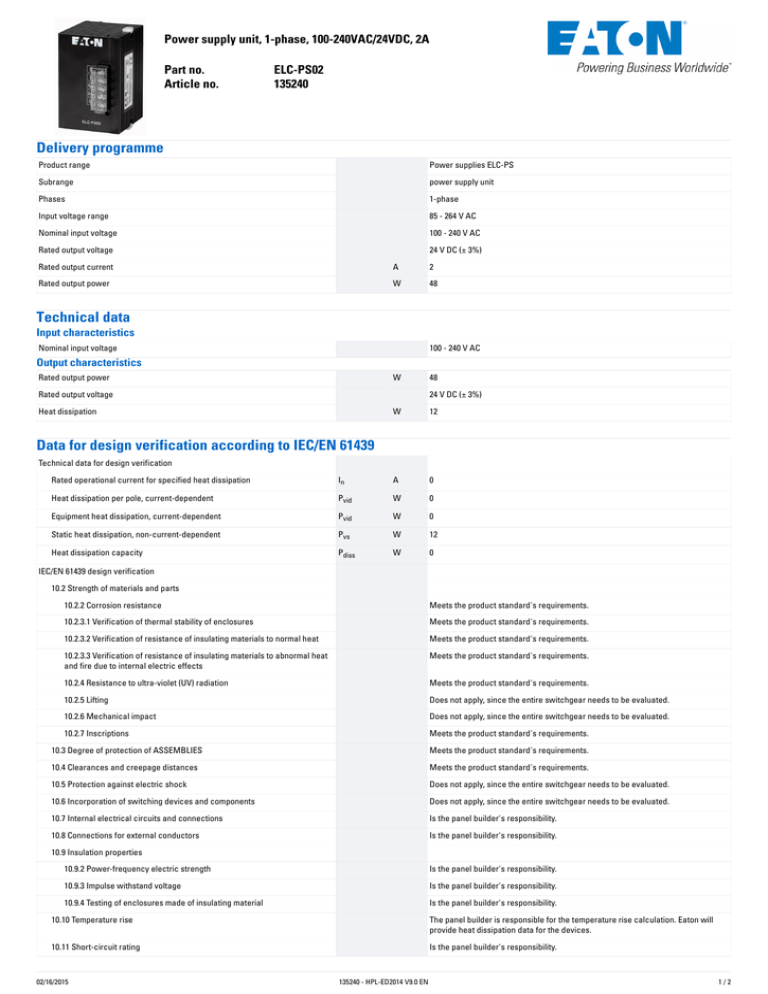

Delivery�programme Power�supply�unit,�1-phase,�100-240VAC/24VDC,�2A Part�no.  ELC-PS02

Delivery�programme Power�supply�unit,�1-phase,�100-240VAC/24VDC,�2A Part�no.  ELC-PS02
Power�supply�unit,�1-phase,�100-240VAC/24VDC,�2A
Part�no. Article�no. ELC-PS02
135240
Delivery�programme
Product range
Power supplies ELC-PS
Subrange
power supply unit
Phases
1-phase
Input voltage range
85 - 264 V AC
Nominal input voltage
100 - 240 V AC
Rated output voltage
24 V DC (± 3%)
Rated output current
A
2
Rated output power
W
48
Nominal input voltage
100 - 240 V AC
Rated output power
W
48
Rated output voltage
24 V DC (± 3%)
Heat dissipation
W
12
Rated operational current for specified heat dissipation
In
A
0
Heat dissipation per pole, current-dependent
Pvid
W
0
Equipment heat dissipation, current-dependent
Pvid
W
0
Static heat dissipation, non-current-dependent
Pvs
W
12
Heat dissipation capacity
Pdiss
W
0
10.2 Strength of materials and parts
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat
and fire due to internal electric effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties
Technical�data
Input�characteristics
Output�characteristics
Data�for�design�verification�according�to�IEC/EN�61439
Technical data for design verification
IEC/EN 61439 design verification
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will
provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
02/16/2015
135240 - HPL-ED2014 V9.0 EN
1/2
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction
leaflet (IL) is observed.
Dimensions
Additional�product�information�(links)
IL05003007E
IL05003007E
02/16/2015
ftp://ftp.moeller.net/DOCUMENTATION/AWA_INSTRUCTIONS/IL05003007E2005_01.pdf
Eaton Industries GmbH
http://www.eaton.eu
© 12/2014 by Eaton Industries GmbH
135240 - HPL-ED2014 V9.0 EN
2/2
