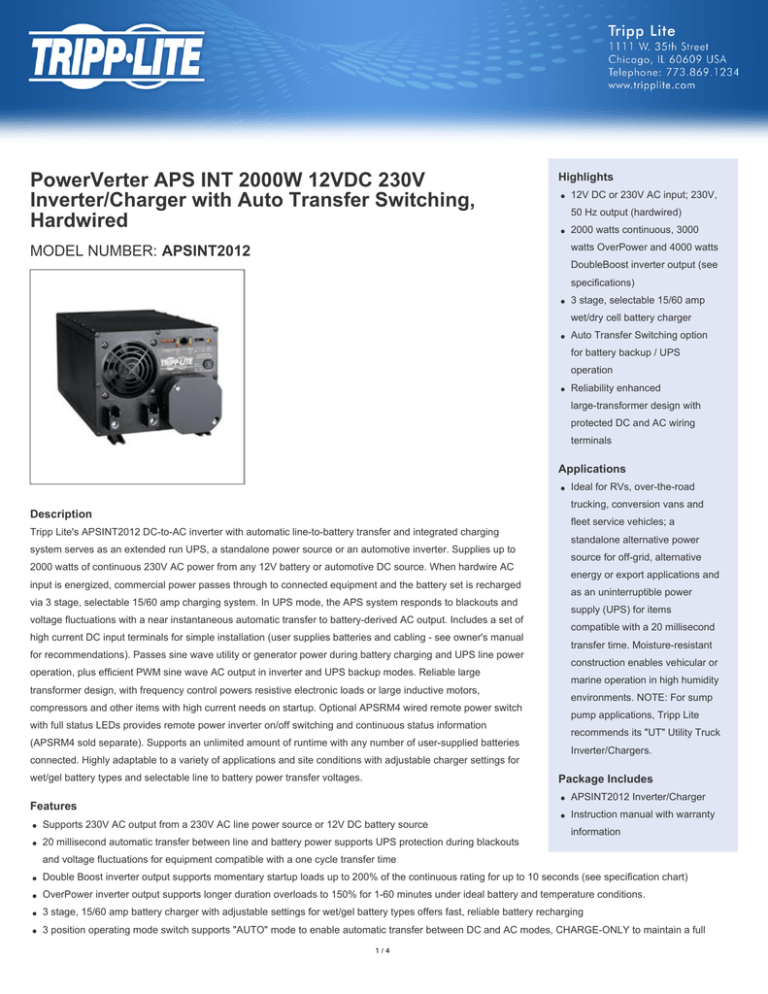

PowerVerter APS INT 2000W 12VDC 230V Inverter/Charger with Auto Transfer Switching, Hardwired

PowerVerter APS INT 2000W 12VDC 230V Inverter/Charger with Auto Transfer Switching, Hardwired
PowerVerter APS INT 2000W 12VDC 230V
Inverter/Charger with Auto Transfer Switching,
Hardwired
Highlights
12V DC or 230V AC input; 230V,
50 Hz output (hardwired)
2000 watts continuous, 3000
watts OverPower and 4000 watts
MODEL NUMBER: APSINT2012
DoubleBoost inverter output (see
specifications)
3 stage, selectable 15/60 amp
wet/dry cell battery charger
Auto Transfer Switching option
for battery backup / UPS
operation
Reliability enhanced
large-transformer design with
protected DC and AC wiring
terminals
Applications
Ideal for RVs, over-the-road
trucking, conversion vans and
Description
fleet service vehicles; a
Tripp Lite's APSINT2012 DC-to-AC inverter with automatic line-to-battery transfer and integrated charging
system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to
2000 watts of continuous 230V AC power from any 12V battery or automotive DC source. When hardwire AC
input is energized, commercial power passes through to connected equipment and the battery set is recharged
via 3 stage, selectable 15/60 amp charging system. In UPS mode, the APS system responds to blackouts and
voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of
high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual
for recommendations). Passes sine wave utility or generator power during battery charging and UPS line power
operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large
transformer design, with frequency control powers resistive electronic loads or large inductive motors,
compressors and other items with high current needs on startup. Optional APSRM4 wired remote power switch
with full status LEDs provides remote power inverter on/off switching and continuous status information
(APSRM4 sold separate). Supports an unlimited amount of runtime with any number of user-supplied batteries
standalone alternative power
source for off-grid, alternative
energy or export applications and
as an uninterruptible power
supply (UPS) for items
compatible with a 20 millisecond
transfer time. Moisture-resistant
construction enables vehicular or
marine operation in high humidity
environments. NOTE: For sump
pump applications, Tripp Lite
recommends its "UT" Utility Truck
Inverter/Chargers.
connected. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for
wet/gel battery types and selectable line to battery power transfer voltages.
Package Includes
APSINT2012 Inverter/Charger
Features
Instruction manual with warranty
Supports 230V AC output from a 230V AC line power source or 12V DC battery source
information
20 millisecond automatic transfer between line and battery power supports UPS protection during blackouts
and voltage fluctuations for equipment compatible with a one cycle transfer time
Double Boost inverter output supports momentary startup loads up to 200% of the continuous rating for up to 10 seconds (see specification chart)
OverPower inverter output supports longer duration overloads to 150% for 1-60 minutes under ideal battery and temperature conditions.
3 stage, 15/60 amp battery charger with adjustable settings for wet/gel battery types offers fast, reliable battery recharging
3 position operating mode switch supports "AUTO" mode to enable automatic transfer between DC and AC modes, CHARGE-ONLY to maintain a full
1/4
battery charge when AC is present without auto transfer and SYSTEM OFF settings
Set of six front panel LEDs display AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status
Set of 4 configuration dipswitches support wet/gel battery charging profiles, adjustable 259/264V high voltage auto transfer during overvoltages and
selectable 144/163/182/201V AC low voltage auto transfer during brownouts
Set of 4 additional configuration dip switches support 4 levels of charger limiting relative to output load size
Resettable 10A charger AC input breaker and resettable 15A AC output breaker and automatic 2 speed cooling fan protect the inverter from load and
temperature related failures
Automatic overload and thermal shutoff safely turns off inverter as excessive loads or overheating conditions develop
Front panel remote control connector enables remote off/on switching (requires APSRM4 switch accessory)
Specifications
OVERVIEW
Style
Heavy-duty with built-in battery charger
OUTPUT
Frequency Compatibility
50 Hz
Output Receptacles
Hardwire
Output (Watts)
2000
Continuous Output Capacity (Watts)
2000
Peak Output Capacity (Watts)
4000
Output Nominal Voltage
230V
Output Voltage Regulation
LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC):
Maintains PWM sine wave output voltage of 230 VAC (+/-5%).
Output Frequency Regulation
50 Hz (+/- 0.3 Hz)
Overload Protection
Includes 10A input breaker dedicated to the charging system and 15A output breaker for AC output loads
INPUT
Nominal Input Voltage(s) Supported
230V AC
Recommended Electrical Service
DC INPUT: Requires 12VDC input source capable of delivering 192A for the required duration (when used at full
continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive
applications, professional hardwire installation with 400A minimum battery system fusing is recommended.
Maximum Input Amps / Watts
DC INPUT: Full continuous load - 192A at 12VDC. AC INPUT: 17 amps at 230VAC with full inverter and charger
load (8.7A max charger-only / combined input load to support charger and AC output is automatically controllable to
66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions)
Input Connection Type
DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: Hardwire via built in junction box with cover plate
Voltage Compatibility (VAC)
230
Voltage Compatibility (VDC)
12
Input Frequency
50Hz
2/4
BATTERY
Expandable Battery Runtime
Runtime is expandable with any number of user supplied wet or gel type batteries
DC System Voltage (VDC)
12
Battery Pack Accessory (Optional)
98-121 sealed lead acid battery (optional)
Battery Charge
Selectable 15 / 60 amp
LEDS ALARMS & SWITCHES
Switches
3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant
on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in
inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power
to battery power - to maintain continuous AC power to connected loads.
Front Panel LEDs
Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7
levels reported). See manual for sequences.
PHYSICAL
Shipping Dimensions (hwd / in.)
13.25 x 15 x 21.13
Shipping Dimensions (hwd / cm)
33.66 x 38.1 x 53.66
Shipping Weight (lbs.)
46
Shipping Weight (kg)
20.9
Unit Dimensions (hwd / in.)
7 x 8.5 x 14
Unit Dimensions (hwd / cm)
17.78 x 21.59 x 35.56
Unit Weight (lbs.)
42
Unit Weight (kg)
19.1
Cooling Method
Multi-speed fan
Material of Construction
Polycarbonate
Form Factors Supported
Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional
mounting information)
ENVIRONMENTAL
Relative Humidity
0-95% non-condensing
LINE / BATTERY TRANSFER
Transfer Time (Line Power to
Battery Mode)
20 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time
compatibility of loads for UPS applications)
Low Voltage Transfer to Battery
Power
In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 144V (user adjustable to 163,
182, 201V - see manual)
High Voltage Transfer to Battery
Power
In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 259V (user adjustable to
264 - see manual)
SPECIAL FEATURES
3/4
Load Sensing
Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off
and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of
any level, up to 150 watts.
Remote Control Capability
Yes
WARRANTY
Product Warranty Period (U.S. &
Canada)
1-year limited warranty
Product Warranty Period
(International)
2-year limited warranty
Product Warranty Period (Mexico)
2-year limited warranty
Product Warranty Period (Puerto
Rico)
1-year limited warranty
© 2015 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
4/4
