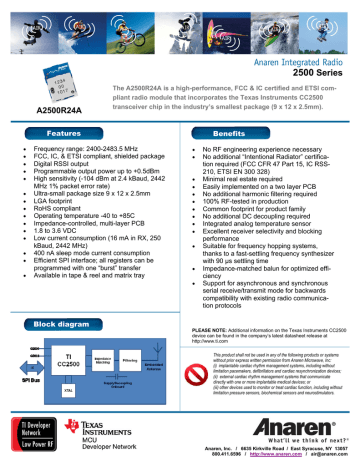

A2500R24A
The A2500R24A is a high-performance, FCC & IC certified and ETSI compliant radio module that incorporates the Texas Instruments CC2500
transceiver chip in the industry’s smallest package (9 x 12 x 2.5mm).
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Frequency range: 2400-2483.5 MHz
FCC, IC, & ETSI compliant, shielded package
Digital RSSI output
Programmable output power up to +0.5dBm
High sensitivity (-104 dBm at 2.4 kBaud, 2442
MHz 1% packet error rate)
Ultra-small package size 9 x 12 x 2.5mm
LGA footprint
RoHS compliant
Operating temperature -40 to +85C
Impedance-controlled, multi-layer PCB
1.8 to 3.6 VDC
Low current consumption (16 mA in RX, 250
kBaud, 2442 MHz)
400 nA sleep mode current consumption
Efficient SPI interface; all registers can be
programmed with one “burst” transfer
Available in tape & reel and matrix tray
Benefits
•
•
•
•
•
•
•
•
•
•
•
•
•
Block diagram
No RF engineering experience necessary
No additional “Intentional Radiator” certification required (FCC CFR 47 Part 15, IC RSS210, ETSI EN 300 328)
Minimal real estate required
Easily implemented on a two layer PCB
No additional harmonic filtering required
100% RF-tested in production
Common footprint for product family
No additional DC decoupling required
Integrated analog temperature sensor
Excellent receiver selectivity and blocking
performance
Suitable for frequency hopping systems,
thanks to a fast-settling frequency synthesizer
with 90 µs settling time
Impedance-matched balun for optimized efficiency
Support for asynchronous and synchronous
serial receive/transmit mode for backwards
compatibility with existing radio communication protocols
PLEASE NOTE: Additional information on the Texas Instruments CC2500
device can be found in the company’s latest datasheet release at
http://www.ti.com
This product shall not be used in any of the following products or systems
without prior express written permission from Anaren Microwave, Inc:
(i) implantable cardiac rhythm management systems, including without
limitation pacemakers, defibrillators and cardiac resynchronization devices;
(ii) external cardiac rhythm management systems that communicate
directly with one or more implantable medical devices; or
(iii) other devices used to monitor or treat cardiac function, including without
limitation pressure sensors, biochemical sensors and neurostimulators.
Anaren, Inc. / 6635 Kirkville Road / East Syracuse, NY 13057
800.411.6596 / http://www.anaren.com / [email protected]
Footprint
Product overview
The A2500R24A is a high-performance, FCC & IC
certified and ETSI compliant radio module that
incorporates the Texas Instruments CC2500
transceiver chip in the industry’s smallest package
(9 x 12 x 2.5mm) and is compatible with all TIapproved software stacks.
Top 2 pads optional for compatibility with other modules. Refer to
User’s Manual for additional layout guidelines. Dimensions in mm.
With an LGA pad footprint, this module is designed to effortlessly integrate into a wide range
of applications, including: industrial control, building automation, low-power wireless sensor networks, lighting control, and automated meter
reading.
The A2500R24A has an RoHS-compliant ENIG
finish and is packaged on tape and reel for highvolume automated manufacturing.
Pin diagram
Nomenclature
DNC = Do Not Connect
A
1
2
3
4
5
6
7
Chip series
Function
Frequency band
Form factor
Design ID
Application
Packaging
(Anaren)
(1101, 2500)
(R = radio only)
(x100MHz)
(A = Internal Antenna, C = Connector)
(00 = Default)
(G = General)
(R = Tape/Reel, M = Matrix Tray)
Caution! ESD sensitive device. Precautions
should be used when handling the device in
order to prevent permanent damage.
Anaren, Inc. / 6635 Kirkville Road / East Syracuse, NY 13057
800.411.6596 / http://www.anaren.com / [email protected]
1104a
