Sony LCD Compatible Installation
Configuration and Connections
xi

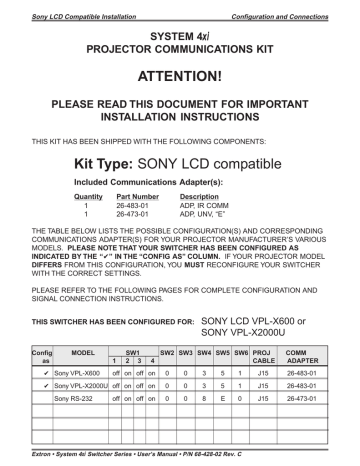

SYSTEM 4xi
PROJECTOR COMMUNICATIONS KIT
ATTENTION!
PLEASE READ THIS DOCUMENT FOR IMPORTANT
INSTALLATION INSTRUCTIONS
THIS KIT HAS BEEN SHIPPED WITH THE FOLLOWING COMPONENTS:
Kit Type: SONY LCD compatible
Included Communications Adapter(s):
Quantity
1
1
Part Number
26-483-01
26-473-01
Description
ADP, IR COMM
ADP, UNV, “E”
THE TABLE BELOW LISTS THE POSSIBLE CONFIGURATION(S) AND CORRESPONDING
COMMUNICATIONS ADAPTER(S) FOR YOUR PROJECTOR MANUFACTURER’S VARIOUS
MODELS. PLEASE NOTE THAT YOUR SWITCHER HAS BEEN CONFIGURED AS
INDICATED BY THE “✔” IN THE “CONFIG AS” COLUMN. IF YOUR PROJECTOR MODEL
DIFFERS FROM THIS CONFIGURATION, YOU MUST RECONFIGURE YOUR SWITCHER
WITH THE CORRECT SETTINGS.
PLEASE REFER TO THE FOLLOWING PAGES FOR COMPLETE CONFIGURATION AND
SIGNAL CONNECTION INSTRUCTIONS.
THIS SWITCHER HAS BEEN CONFIGURED FOR:
Config
as
MODEL
1
✔ Sony VPL-X600
SW1
2 3
4
SONY LCD VPL-X600 or
SONY VPL-X2000U
SW2 SW3 SW4 SW5 SW6 PROJ
CABLE
COMM
ADAPTER
off on off on
0
0
3
5
1
J15
26-483-01
✔ Sony VPL-X2000U off on off on
0
0
3
5
1
J15
26-483-01
0
0
8
E
0
J15
26-473-01
Sony RS-232
off on off on
Extron • System 4xi Switcher Series • User’s Manual • P/N 68-428-02 Rev. C
Sony LCD Compatible Installation
Configuration and Connections
xi to Sony VPL-X600
Connecting System 4xi
If the System 4xi is already configured for a Sony LCD VPL-X600 projector, go
to step 4. If it is not set up correctly, it will be necessary to change switch
settings on the System 4xi ’s Main Controller Board. Begin at Step 1 to verify the
correct configuration.
1. Use the Front Panel to display the Information Menu to verify that the System 4xi
is already set up for the Sony LCD projector. Apply power to the System 4xi and
do the following:
a. Press
b. Press
[System 4xi model and software
version displayed here]
(See note.)
(See note.)
(See note.)
(See note.)
(Note: Information depends on
System 4xi setup.)
}
c. Press
to display the MENU SELECT on the LCD screen.
or
to step to Menu 8.
to select this menu.
or
to display the configuration. The example to the left is general,
d. Press
yours will show the System 4xi model name, the software version and the
following information:
PRJ = SONY
PRJ BAUD = 9600
UNIT No. = 000
HST BAUD = 9600 (value depends upon setup Menu 3)
2. Go to the procedure on page 2-3 of the System 4xi User’s Manual to remove the
System 4xi cover. Then go to page 2-4 and refer to the configuration below to
set up the Main Controller board. Continue with Step 3 (below) when the
configuration is correct.
Config
as
✔
SW1
SW2 SW3 SW4 SW5 SW6
Model
1 2 3 4
Sony LCD VPL-X600
off on off on
SW2
0
0
3
5
PROJ Comm
CABLE Adapter
1
J15
26-483-01
SW3
SW5
SW6
J15
SW1
1
2
3
SW4
4
ON
3. Double-check your work and be sure the System 4xi cover is on securely.
4. Install the System 4xi in its place of operation (i.e. rack), but not powered on.
__________ Changes in some switch configurations are not detected until the power is
removed at the AC cord, and then restored.
Refer to the following connection diagram and continue.
Extron • System 4xi Switcher Series • User’s Manual • P/N 68-428-02 Rev. C
Page 1
Sony LCD Compatible Installation
Configuration and Connections
5. Verify that the IR Comm Adapter is configured correctly (refer to the IR Comm
Adapter User’s Guide). Connect the 3.5 mm male plug end of the supplied
cable into the “OUT” jack of the IR Comm Adapter. Connect the other end of the
cable into the “CONTROL S IN” port of the projector. If a hardwired remote or
host controller is being implemented, connect that device to the “IN” jack of the
IR Comm Adapter.
6. Plug the 15-pin HD connector of the Projector Communications Extension cable
into the PJ Comm port on the System 4xi. Connect the other end of the cable
into the IR Comm Adapter’s “PROJECTOR CONTROL” port.
______ Secure all of the connector screws.
7. Plug the (4 or 5) BNC connectors from one end of the (user-supplied) RGBS/HV
cable into the System 4xi output Connect the 15-pin male end of the RGBS/HV
cable into “INPUT A” of the projector.
Use the illustration below as a guide when connecting the System 4xi to a Sony
LCD projector. Refer to Sony documentation to continue the installation.
○
○
○
○
○
○
○
○
○
○
○
○
○
Hardwired remote/
host controller
○
○
○
○
○
○
○
○
○
IR Comm Adapter
26-483-01
○
○
○
○
○
○
○
Cable
26-485-01
Female
9-pin
15-pin
CC 50'
15-pin
____________ In a rack mount, do NOT allow the weight of the cables to be supported by the
System 4xi. See page 2-5 for cabling guidelines.
Extron • System 4xi Switcher Series • User’s Manual • P/N 68-428-02 Rev. C
Page 2
Sony LCD Compatible Installation
Configuration and Connections
xi to Sony VPL-X2000U
Connecting System 4xi
If the System 4xi is already configured for a Sony LCD VPL-X2000U projector,
go to step 4. If it is not set up correctly, it will be necessary to change switch
settings on the System 4xi ’s Main Controller Board. Begin at Step 1 to verify the
correct configuration.
1. Use the Front Panel to display the Information Menu to verify that the System 4xi
is already set up for the Sony LCD projector. Apply power to the System 4xi and
do the following:
a. Press
to display the MENU SELECT on the LCD screen.
b. Press
or
to step to Menu 8.
c. Press
[System 4xi model and software
version displayed here]
(See note.)
(See note.)
(See note.)
(See note.)
(Note: Information depends on
System 4xi setup.)
to select this menu.
}
or
to display the configuration. The example to the left is general,
d. Press
yours will show the System 4xi model name, the software version and the
following information:
PRJ = SONY
PRJ BAUD = 9600
UNIT No. = 000
HST BAUD = 9600 (value depends upon setup Menu 3)
2. Go to the procedure on page 2-3 of the System 4xi User’s Manual to remove the
System 4xi cover. Then go to page 2-4 and refer to the configuration below to
set up the Main Controller board. Continue with Step 3 (below) when the
configuration is correct.
SW2 SW3 SW4 SW5 SW6
SW1
Config
as
Model
√
Sony LCD VPL-X2000U
1 2
3
4
off on off on
SW2
PROJ Comm
CABLE Adapter
0
0
3
5
1
J15
26-483-01
SW3
SW5
SW6
J15
SW1
1
2
3
SW4
4
ON
3. Double-check your work and be sure the System 4xi cover is on securely.
4. Install the System 4xi in its place of operation (i.e. rack), but not powered on.
__________ Changes in some switch configurations are not detected until the power is
removed at the AC cord, and then restored.
Refer to the following connection diagram and continue.
Extron • System 4xi Switcher Series • User’s Manual • P/N 68-428-02 Rev. C
Page 3
Sony LCD Compatible Installation
Configuration and Connections
5. Verify that the IR Comm Adapter is configured correctly (refer to the IR Comm
Adapter User’s Guide). Connect the 3.5 mm male plug end of the supplied
cable into the “OUT” jack of the IR Comm Adapter. Connect the other end of the
cable into the “CONTROL S IN” port of the projector. If a hardwired remote or
host controller is being implemented, connect that device to the “IN” jack of the
IR Comm Adapter.
6. Plug the 15-pin HD connector of the Projector Communications Extension cable
into the PJ Comm port on the System 4xi. Connect the other end of the cable
into the IR Comm Adapter’s “PROJECTOR CONTROL” port.
______ Secure all of the connector screws.
7. Plug the (4 or 5) BNC connectors from one end of the (user-supplied) RGBS/HV
cable into the System 4xi output Connect the other end of the cable into the
“INPUT A” BNC connectors of the projector.
Use the illustration below as a guide when connecting the System 4xi to a Sony
X2000U projector. Refer to Sony documentation to continue the installation.
○
○
○
○
○
Hardwired remote/
host controller
Cable
26-485-01○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
IR Comm Adapter
26-483-01
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
Female
9-pin
CC 50'
15-pin
____________ In a rack mount, do NOT allow the weight of the cables to be supported by the
System 4xi. See page 2-5 for cabling guidelines.
Extron • System 4xi Switcher Series • User’s Manual • P/N 68-428-02 Rev. C
Page 4
Sony LCD Compatible Installation
Configuration and Connections
xi to Sony Projector under RS-232 Control
Connecting System 4xi
If the System 4xi is already configured for a Sony RS-232 projector, go to step
4. If it is not set up correctly, it will be necessary to change switch settings on the
System 4xi ’s Main Controller Board. Begin at Step 1 to verify the correct
configuration.
1. Use the Front Panel to display the Information Menu to verify that the System 4xi
is already set up for the Sony RS-232 projector. Apply power to the System 4xi
and do the following:
a. Press
to display the MENU SELECT on the LCD screen.
b. Press
or
to step to Menu 8.
c. Press
[System 4xi model and software
version displayed here]
(See note.)
(See note.)
(See note.)
(See note.)
(Note: Information depends on
System 4xi setup.)
to select this menu.
}
or
to display the configuration. The example to the left is general,
d. Press
yours will show the System 4xi model name, the software version and the
following information:
PRJ = SONY
PRJ BAUD = 38400
UNIT No. = 000
HST BAUD = 9600 (value depends upon setup Menu 3)
2. Go to the procedure on page 2-3 of the System 4xi User’s Manual to remove the
System 4xi cover. Then go to page 2-4 and refer to the configuration below to
set up the Main Controller board. Continue with Step 3 (below) when the
configuration is correct.
Config
as
SW1
Model
1
2
3
SW2 SW3 SW4 SW5 SW6 PROJ Comm
CABLE Adapter
4
off on off on
Sony RS-232
SW2
0
0
8
E
0
J15
26-473-01
SW3
SW5
SW6
J15
SW1
1
2
3
SW4
4
ON
3. Double-check your work and be sure the System 4xi cover is on securely.
4. Install the System 4xi in its place of operation (i.e. rack), but not powered on.
__________ Changes in some switch configurations are not detected until the power is
removed at the AC cord, and then restored.
Refer to the following connection diagram and continue.
Extron • System 4xi Switcher Series • User’s Manual • P/N 68-428-02 Rev. C
Page 5
Sony LCD Compatible Installation
Configuration and Connections
5. Connect the Comm Adapter to the “RS-232C/422A” port on the projector.
6. Connect the CC-50’ or (CC-100’) cable from the 9-pin male connector of the
Comm Adapter to the 15-pin HD “PJ COMM” port on the rear panel of the
System 4xi.
______ Secure all of the connector screws.
7. Ensure the projector’s RS-232C/RS-422A switch is in the RS-232C position.
8. Plug the (4 or 5) BNC connectors from one end of the (user-supplied) RGBS/HV
cable into the System 4xi output Connect the other end of the cable into the
“INPUT A” BNC connectors of the projector.
Use the illustration below as a guide when connecting the System 4xi to a Sony
RS-232 projector. Refer to Sony documentation to continue the installation.
0
1
9-pin
Comm Adapter
26-473-01
Female
E
Male
Male
9-pin
CC 50'
15-pin
____________ In a rack mount, do NOT allow the weight of the cables to be supported by the
System 4xi. See page 2-5 for cabling guidelines.
____________ Ensure the projector’s INDEX and PERIPHERAL dials are set to 01.
Extron • System 4xi Switcher Series • User’s Manual • P/N 68-428-02 Rev. C
