On safety
•Should any solid objects or liquid fall into the CD
player, unplug it and have it checked by qualified
personnel before operating it any further.
•Do not put any foreign objects in the DC IN 4.5 V
(external power input) jack.
On power sources
•When you are not using the CD player for a long
time, disconnect all power sources from the CD
On the AC power adaptor
•Use only the AC power adaptor
Polarity of the
supplied. If your player is not
supplied with an AC power adaptor,
use a commercially-available AC
power adaptor* (rated output
voltage/current: 4.5 V DC/700 mA).
Do not use any other AC power
adaptor. It may cause a malfunction.
*The voltage of power supply is
different depending on the country.
Please buy an AC power adaptor in
the country where the product is to
be used.
•Depending on the AC power adaptor, noise may be
heard while using the system. Refer to the operating
instructions of the AC power adaptor.
•Do not touch the AC power adaptor with wet hands.
•Connect the AC power adaptor to an easily
accessible AC outlet. Should you notice an
abnormality in the AC power adaptor, disconnect it
from the AC outlet immediately.
On dry batteries
•Do not throw the batteries into fire.
•Do not carry the batteries with coins or other metallic
objects. It can generate heat if the positive and
negative terminals of the battery are accidentally
contacted by a metallic object.
•Do not mix new batteries with old ones.
•Do not use different types of batteries together.
•When the batteries are not to be used for a long
time, remove them.
•If battery leakage occurs, wipe off any deposit in
the battery compartment, and install new batteries.
In case the deposit adheres to you, wash it off
On the CD player
•Keep the lens on the CD player clean and do not
touch it. If you do so, the lens may be damaged and
the CD player will not operate properly.
•Do not put any heavy object on top of the CD player.
The CD player and the CD may be damaged.
•Do not leave the CD player in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust or sand, moisture, rain, mechanical
shock, unleveled surface, or in a car with its
windows closed.
•If the CD player causes interference to the radio or
television reception, turn off the CD player or move it
away from the radio or television.
•Discs with non-standard shapes (e.g., heart, square,
star) cannot be played on this CD player. Attempting
to do so may damage the CD player. Do not use
such discs.
On headphones
Road safety
Do not use headphones while driving, cycling, or
operating any motorized vehicle. It may create a
traffic hazard and is illegal in some areas. It can also
be potentially dangerous to play your headsets at
high volume while walking, especially at pedestrian
crossings. You should exercise extreme caution or
discontinue use in potentially hazardous situations.
Preventing hearing damage

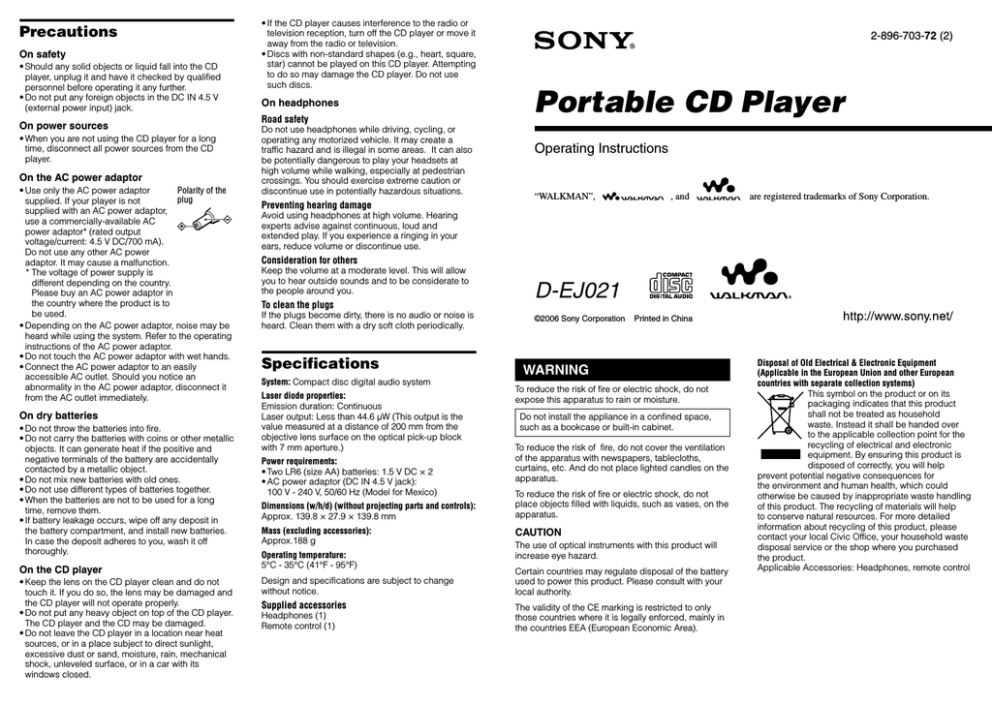

2-896-703-72 (2)
Portable CD Player
Operating Instructions
, and
are registered trademarks of Sony Corporation.
Avoid using headphones at high volume. Hearing
experts advise against continuous, loud and
extended play. If you experience a ringing in your
ears, reduce volume or discontinue use.
Consideration for others
Keep the volume at a moderate level. This will allow
you to hear outside sounds and to be considerate to
the people around you.
To clean the plugs
If the plugs become dirty, there is no audio or noise is
heard. Clean them with a dry soft cloth periodically.
System: Compact disc digital audio system
Laser diode properties:
Emission duration: Continuous
Laser output: Less than 44.6 µW (This output is the
value measured at a distance of 200 mm from the
objective lens surface on the optical pick-up block
with 7 mm aperture.)
Power requirements:
•Two LR6 (size AA) batteries: 1.5 V DC × 2
•AC power adaptor (DC IN 4.5 V jack):
100 V - 240 V, 50/60 Hz (Model for Mexico)
Dimensions (w/h/d) (without projecting parts and controls):
Approx. 139.8 × 27.9 × 139.8 mm
Mass (excluding accessories):
Approx.188 g
Operating temperature:
5°C ‑ 35°C (41°F ‑ 95°F)
Design and specifications are subject to change
without notice.
Supplied accessories
Headphones (1)
Remote control (1)
©2006 Sony Corporation
Printed in China
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
Do not install the appliance in a confined space,
such as a bookcase or built-in cabinet.
To reduce the risk of fire, do not cover the ventilation
of the apparatus with newspapers, tablecloths,
curtains, etc. And do not place lighted candles on the
To reduce the risk of fire or electric shock, do not
place objects filled with liquids, such as vases, on the
The use of optical instruments with this product will
increase eye hazard.
Certain countries may regulate disposal of the battery
used to power this product. Please consult with your
local authority.
The validity of the CE marking is restricted to only
those countries where it is legally enforced, mainly in
the countries EEA (European Economic Area).
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European
countries with separate collection systems)
This symbol on the product or on its
packaging indicates that this product
shall not be treated as household
waste. Instead it shall be handed over
to the applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative consequences for
the environment and human health, which could
otherwise be caused by inappropriate waste handling
of this product. The recycling of materials will help
to conserve natural resources. For more detailed
information about recycling of this product, please
contact your local Civic Office, your household waste
disposal service or the shop where you purchased
the product.
Applicable Accessories: Headphones, remote control
Playing a CD
DC IN 4.5 V
 (headphones) jack
1 Slide OPEN to open the lid and fit the CD to the
pivot, then close the lid.
2 Press .
To play from the first track, press  for 2 seconds
or more while the CD player is stopped.
•This CD player can play CD-Rs/CD-RWs recorded
in the Compact Disc Digital Audio (Audio
CD) format, but playback capability may vary
depending on the quality of the disc and the
condition of the recording device.
•This product is designed to play back discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with
copyright protection technologies are marketed
by some record companies. Please be aware
that among those discs, there are some that do
not conform to the CD standard and may not be
playable by this product.
to an AC outlet
VOL –/+*
AC power adaptor
 (stop)
HOLD (rear)
Play mode
Remaining battery power
Track number
Sound mode
Playing time
Note on DualDiscs
A DualDisc is a two sided disc product which mates
DVD recorded material on one side with digital
audio material on the other side. However, since the
audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not
Headphone jack (rear)
Connect your headphones to the remote
Digital MEGA BASS function
During play, press SOUND/AVLS repeatedly to select
“SND 1” or “SND 2.”
If the sound is distorted, turn down the volume.
 (stop)
VOL +*/–
AVLS* function
*Automatic Volume Limiter System
Press and hold SOUND/AVLS.
If “AVLS” flashes three times, the function is enabled.
If “AVLS” flashes once, the function is disabled.
Use only the supplied remote. You cannot
operate this player with any other remote.
AMS* / search function
*The button has a tactile dot.
Power Sources
To use the batteries (not supplied)
1 Slide OPEN to open the player lid and open the
battery compartment lid inside the CD player.
2 Insert two LR6 (size AA) alkaline batteries by
matching the  to the diagram inside the CD
player and close the lid until it clicks into place.
Insert the  end first (for both batteries).
Battery life* (approx. hours)
(When the CD player is used on a flat and stable
Playing time varies depending on how the CD player
is used.
Two Sony alkaline batteries LR6 (SG)
(produced in Japan)
*Measured value by the standard of JEITA (Japan
Electronics and Information Technology Industries
roughly show the
•The indicator sections of
remaining battery power. One section does not
always indicate one-fourth of the battery power.
To use the AC power adaptor (not supplied)
Connect the AC power adaptor as illustrated.
*Automatic Music Sensor
To find the beginning of the previous/current/next/
succeeding track(s): Press / repeatedly.
To go backward/forward quickly: Press and hold
Play mode function
During play, press P MODE/
No indication (normal play)  “1”(single track play)
 “SHUF”(shuffle play)  “ ”(Bookmark play)
To repeat the play mode you selected, press and hold
until “ ” appears.
The function provides protection against sound
skipping during many active uses.*
The default setting is “G-on.” To select “G-off,” press
 while you keep pressing  during stop. To
enjoy high quality CD sound, select “G-off”.
*Sound may skip: if the CD player receives stronger
continuous shock than expected / if a dirty or
scratched CD is played / when using poor-quality
CD-Rs/CD-RWs or if there is a problem with the
recording device or application software.
Bookmark play
If you add bookmarks to your favorite tracks, you
can listen to these tracks only from the track with the
lowest number.
1 During playback of the track where you want to
add a Bookmark, press and hold  until “
(Bookmark)” flashes on the display.
2 Repeat step 1 to add Bookmarks to the tracks you
3 Press P MODE/
repeatedly until “ ” flashes.
4 Press .
To remove the Bookmarks
During playback of the track with a Bookmark, press
and hold  until “ ” disappears from the display.
If you change CDs and start playing, all the
bookmarks added for the previous CD will be erased.
Should any problem persist after you have made
these checks, consult your nearest Sony dealer.
“Hold” appears in the display when you press a button,
and the CD does not play.
The buttons are locked. Slide HOLD back.
The volume does not increase even if you press VOL +
Press and hold SOUND/AVLS until “AVLS” flashes
once so that you can cancel the AVLS function.
The CD player does not operate properly.
Moisture condensation has occurred. Leave the
player aside for several hours until the moisture
