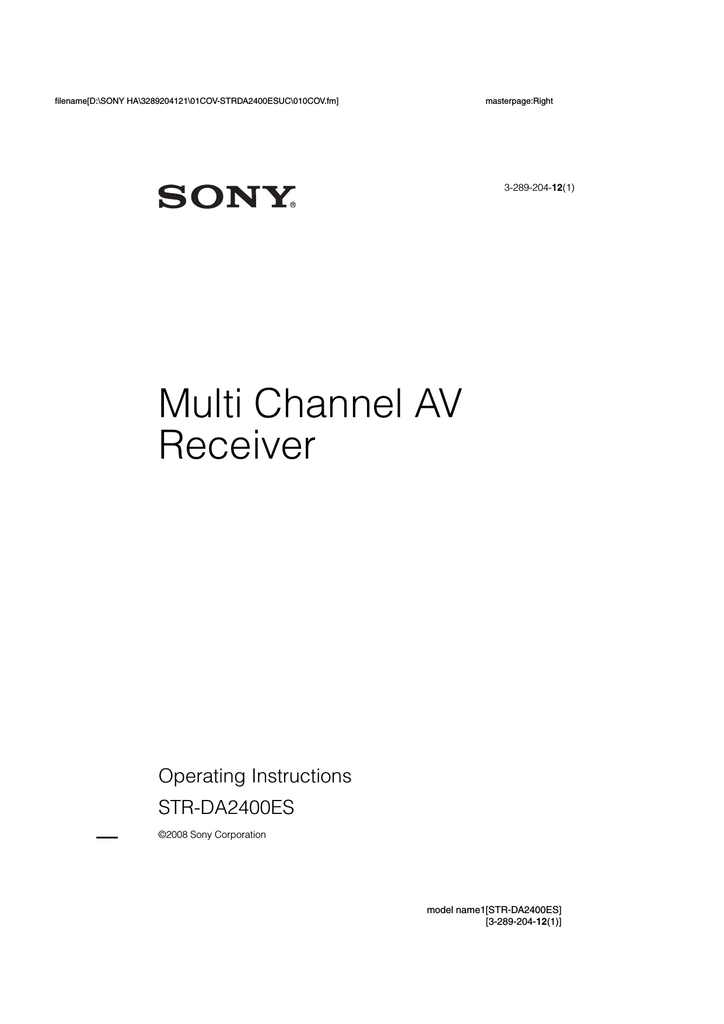

Multi Channel AV
Receiver
Operating Instructions
STR-DA2400ES
©2008 Sony Corporation
model name1[STR-DA2400ES]
[3-289-204-12(1)]
D:\SONY HA\3289204121\01US-STRDA2400ESUC\020REG.fm3-289-204-12(1)
masterpage: Left
Owner’s Record
The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.
Model No.___________________________
Serial No. ___________________________
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
To prevent fire, do not cover the ventilation of the apparatus with newspapers, table-cloths, curtains, etc. And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Install this system so that the power cord can be unplugged from the wall socket immediately in the event of trouble.
Batteries or batteries installed apparatus shall not be exposed to excessive heat such as sunshine, fire or the like.
For customers in the United
States
WARNING
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION
You are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment.
Note to CATV system installer:
This reminder is provided to call CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
This symbol is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
2
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\020REG.fm
masterpage: Right
About This Manual
• The instructions in this manual are for model
STR-DA2400ES. Check your model number by looking at the lower right corner of the front panel.
• The instructions in this manual describe the controls on the supplied remote. You can also use the controls on the receiver if they have the same or similar names as those on the remote.
• “Neural-THX” and “neural THX” introduced in the Operating Instructions and displayed in the display window and on the GUI menu screen mean
Neural-THX Surround.
This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic, Surround Ex, and the double-D symbol are trademarks of
Dolby Laboratories.
** Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos,
Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. © 1996-2007 DTS,
Inc. All Rights Reserved.
This receiver incorporates High-Definition
Multimedia Interface (HDMI™) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
XM Ready
®
is a registered trademark of XM
Satellite Radio Inc. All rights reserved.
©2008 SIRIUS Satellite Radio Inc. “SIRIUS” and the SIRIUS dog logo are registered trademarks of
SIRIUS Satellite Radio Inc.
This product is manufactured under license from
Neural Audio Corporation and THX Ltd. Sony
Corporation hereby grants the user a non-exclusive, non-transferable, limited right of use to this product under USA and foreign patent, patent pending and other technology or trademarks owned by Neural
Audio Corporation and THX Ltd. “Neural
Surround”, “Neural Audio”, “Neural” and “NRL” are trademarks and logos owned by Neural Audio
Corporation, THX is a trademark of THX Ltd., which may be registered in some jurisdictions. All rights reserved.
The font type (Shin Go R) installed in this receiver is provided by MORISAWA & COMPANY LTD.
These names are the trademarks of MORISAWA &
COMPANY LTD., and the copyright of the font also belongs to MORISAWA & COMPANY LTD.
iPod is a trademark of Apple Inc., registered in the
U.S. and other countries.
All other trademarks and registered trademarks are of their respective holders. In this manual, ™ and ® marks are not specified.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license.
Other trademarks and trade names are those of their respective owners.
“M-crew Server” is a trademark of Sony
Corporation.
“x.v.Color” and “x.v.Color” logo are trademarks of
Sony Corporation.
“BRAVIA” and
Corporation.
are trademarks of Sony
3
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\010COVTOC.fm
masterpage: Left
Table of Contents
Getting Started
Description and location of parts ..................6
1: Installing the speakers ............................14
2: Connecting speakers ...............................16
3: Connecting the TV .................................18
4a: Connecting the audio components ........19
4b: Connecting the video components .......24
5: Connecting the antennas (aerials) ...........35
6: Preparing the receiver and the remote ....36
7: Operating the receiver using the GUI
(Graphical User Interface) .....................39
8: Setting the speakers ................................42
9: Calibrating the appropriate speaker settings automatically (Auto Calibration) ...........44
Enjoying Surround Sound
Enjoying a pre-programmed sound field ... 59
Resetting sound fields to the initial settings .................................................. 65
Enjoying the surround effect at low volume levels (NIGHT MODE) ........................ 66
Advanced Speakers Setting
Up
Adjusting the speaker settings manually .... 66
Adjusting the equalizer .............................. 72
Tuner Operations
Listening to FM/AM radio ......................... 73
Listening to satellite radio .......................... 76
Playback
Selecting a component ................................50
Listening to a Super Audio CD/CD ............52
Watching a DVD/Blu-ray Disc ...................53
Enjoying video games ................................54
Watching video ...........................................55
Amplifier Operations
(Audio settings menu) ...........................56
(Video settings menu) ............................57
(HDMI settings menu) ...........................57
(System settings menu) .........................58
Control for HDMI
Using the Control for HDMI function for
“BRAVIA” Sync ................................... 87
Preparing Control for HDMI function ....... 89
Watching a DVD (One-Touch Play) .......... 90
Enjoying the TV sound from the speakers connected to the receiver
(System Audio Control) ........................ 91
Turning off the receiver with the TV
(System Power Off) .............................. 91
4
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\010COVTOC.fm
Other Operations
Converting analog video input signals ....... 92
Enjoying the DIGITAL MEDIA PORT adapter (DMPORT) ............................... 92
Naming inputs ............................................ 96
Switching between digital and analog audio
(INPUT MODE) ................................... 97
Enjoying the sound/images from other inputs ............................................ 98
Changing the display ................................ 100
Using the sleep timer ................................ 104
Recording using the receiver .................... 104
Using a bi-amplifier connection ............... 105
Operating without connecting to the TV .. 106
Using the Remote
Operating each component using the remote ............................................ 118
Programming the remote .......................... 120
Clearing all the contents of the remote’s memory ............................................... 124
Additional Information
Glossary ................................................... 125
Precautions ............................................... 128
Troubleshooting ....................................... 129
Specifications ........................................... 135
Index ......................................................... 137
masterpage: Right
5
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
Getting Started
Description and location of parts
Front panel
masterpage: Left
To remove the cover
Press PUSH.
When you remove the cover, keep it out of reach from children.
Status of the POWER button
x (Off)
The receiver is turned off (initial setting).
The ON/STANDBY lamp lights off.
Press POWER to turn the receiver on. You cannot turn the receiver on using the remote.
x
(On/Standby)
Press ?
/1 on the remote to turn the receiver on or set it to the standby mode.
When you press POWER on the receiver, the receiver will be turned off.
6
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
Name
A POWER
Function
Press to turn the receiver on or off.
ON/STANDBY lamp
Lights up in green when the receiver is turned on. Lights up in red when the receiver is set to standby mode.
B TONE MODE
Adjusts the tonal
TONE +/–
quality (bass/treble level) of the front, center and surround speakers. Press TONE
MODE repeatedly to select bass or treble level, then turn TONE
+/– to adjust the level
C TUNING MODE Press to select the tuning mode
D TUNING +/–
Turn to scan a station
E Remote
sensor
Receives signals from remote commander.
F MULTI
CHANNEL
DECODING lamp
Lights up when multi channel audio signals are decoded.
G Display
window
The current status of the selected component or a list of selectable items appears here
H Digital Cinema
Sound lamp
Lights up when a sound field with DCS is
I DISPLAY
Press repeatedly to select information displayed on the display.
Name Function
J INPUT MODE
Press to select the input mode when the same components are connected to both digital and analog jacks.
K MASTER
VOLUME
Turn to adjust the volume level of all speakers at the same time.
L INPUT
SELECTOR
Turn to select the input source to play back.
M 2CH/A.DIRECT Press to select sound
A.F.D.
MOVIE
MUSIC
N DIMMER
Press repeatedly to adjust brightness of the display.
O MEMORY/
ENTER
Press to store a station or enter the selection when selecting the settings.
P AUTO CAL MIC
jack
Connects to the supplied optimizer microphone for the
Digital Cinema Auto
Calibration function
Q VIDEO 2 IN/
PORTABLE AV
IN jacks
Connect to a portable audio/video component such as a camcorder or video game.
R SPEAKERS
(OFF/A/B/A+B)
Press to select the speaker system
S PHONES jack
Connects to headphones.
7
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
Rear panel
masterpage: Left
A DIGITAL INPUT/OUTPUT section
OPTICAL IN/
OUT jacks
COAXIAL IN jacks
Connect to a DVD player, etc. The
COAXIAL jack provides a better sound quality (page
HDMI IN/
OUT* jacks
Connect to a DVD player, Blu-ray Disc
Player, or a satellite tuner. The image is output to a TV or a projector while the sound can be output from a TV or/and speakers connected to this receiver (page
B ANTENNA section
FM ANTENNA jack
Connects to the FM wire antenna (aerial) supplied with this
AM
ANTENNA jack
Connects to the AM loop antenna (aerial) supplied with this
XM jack Connects to the XM
Mini Tuner and
Home Dock (not
SIRIUS jack Connects to a
SiriusConnect Home tuner (not supplied)
C RS-232C port
Used for maintenance and service.
8
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
D AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jacks
Connect to a Super
Audio CD player, etc
MULTI
CHANNEL
INPUT jacks
PRE OUT jacks
Connect to a Super
Audio CD player, etc. with an analog audio jack for 7.1 channel or 5.1 channel sound (page
Connect to an external power amplifier.
E SPEAKERS section
Connects to speakers
Remote commander
You can use the supplied remote to operate the receiver and to control the Sony audio/video components that the remote is assigned to operate.
You can also program the remote to control non-Sony audio/video components. For details, see “Programming the remote”
RM-AAP025
THEATER
SHIFT TV AMP
1
VIDEO 1
4
DVD
7
MD/
TAPE
-/--
PHONO
CLEAR/>10
XM
2
VIDEO 2
5
SAT
3
BD
6
TV
8
SA-CD/
CD
9
TUNER
0/10
ENT/MEM
MULTI IN DMPORT
2CH/
A.DIRECT
A.F.D.
RESOLUTION
INPUT
MODE
SIRIUS
MOVIE
SLEEP
MUSIC
NIGHT
MODE
GUI
MODE
F COMPONENT VIDEO INPUT/
OUTPUT section
Y, P
B
C
R jacks
/C
B
, P
R
/
IN/OUT*
Connect to a DVD player, TV, or a satellite tuner etc.
G VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks
Connect to a VCR or a DVD player etc.
VIDEO IN/
OUT* jacks
H DMPORT
Connects to a
DIGITAL MEDIA
PORT adapter
* You can watch the selected input image when you connect the MONITOR OUT or HDMI OUT jack
to a TV (page 18). You can operate this receiver
using a GUI (Graphical User Interface) (page 39).
HOME
CATEGORY
TUNING CATEGORY MODE TUNING
DISC SKIP D.TUNING
BD/DVD
TOP MENU MENU
TV INPUT WIDE
F1 F2
continued
9
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
Name Function
A AV ?/1
(on/standby)
Press to turn on or off the audio/ video components that the remote is programmed to operate.
To turn the TV on or off, press
TV (X) and then press AV
?/1.
If you press ?/1 (B) at the same time, it will turn off the receiver and other components
(SYSTEM STANDBY).
Note
The function of the AV ?/1 switch changes automatically each time you press the input buttons (D).
B ?/1
(on/standby)
Press to turn the receiver on or set it to standby mode.
To turn off all components, press ?/1 and AV ?/1 (A) at the same time (SYSTEM
STANDBY).
C AMP
D Input
buttons
Saving the power in standby mode.
When “Control for HDMI”
“OFF”.
Press to enable the receiver
Press one of the buttons to select the component you want to use. When you press any of the input buttons, the receiver turns on. The buttons are factory assigned to control Sony
program the remote to control non-Sony components following the steps in
“Programming the remote” on
Name Function
Numeric buttons
(number 5 a)
)
Press SHIFT (W) and then press numeric buttons to
– preset/tune to preset stations.
– select track numbers of the
CD player, VCD player, LD player, DVD player, MD deck, DAT deck, or tape deck. Press 0/10 to select track number 10.
– select channel numbers of the VCR, satellite tuner, Bluray disc player, PSX, DVD/
VHS COMBO, or DVD/
HDD COMBO.
Press TV (X), and then press the numeric buttons to select the
TV channels.
ENT/MEM
CLEAR
-/--
Press SHIFT (W) and then press ENT/MEM to
– enter the value after selecting a channel, disc or track using the numeric buttons of the
VCR, CD player, VCD player, LD player, MD deck,
DAT deck, tape deck, satellite tuner, Blu-ray disc player, or PSX.
– store a station during tuner operation.
To enter the value of Sony TV, press TV (X) and then press
ENT/MEM.
Press SHIFT (W) and then press CLEAR to
– clear a mistake when you press the incorrect numeric button of the DVD player,
Blu-ray disc player, PSX, satellite tuner, DVD/VHS
COMBO, or DVD/HDD
COMBO.
– return to continuous playback, etc. of the satellite tuner or DVD player.
Press SHIFT (W) and then press -/-- to select the channel entry mode, either one or two digit of the VCR or satellite tuner.
To select the channel entry mode of the TV, press TV (X) and then press -/--.
10
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
Name Function
>10
Press SHIFT (W) and then press >10 to
– select track numbers over 10 of the CD player, VCD player, LD player, MD deck, tape deck, TV, VCR, or satellite tuner.
– select channel numbers of the Digital CATV terminal.
Press to select a sound field
E 2CH/
A.DIRECT
A.F.D.
MOVIE
MUSIC
F SLEEP
I
,
V/v/B/b
Press to activate the Sleep
Timer function and the duration which the receiver turns off automatically.
G NIGHT
MODE
Press to activate the Night
H GUI MODE
Press to display the GUI menu on the TV screen.
After pressing AMP (C), press
HOME/MENU (K) for receiver operation, then press V/ v/B/b to select the settings.
After pressing BD/DVD TOP
MENU (O) or BD/DVD
MENU (O), press V/v/B/b to select the settings, and then press to enter the selection.
Press also to enter the selection of the receiver, VCR, satellite tuner, DVD player,
Blu-ray disc player, PSX, DVD/
VHS COMBO, or DVD/HDD
COMBO.
J OPTIONS
TOOLS
Press to display and select items from the option menus for receiver, DVD player, Blu-ray
Disc Player, Satellite tuner and
PSX.
Press TV (X) and then press TOOLS to display the options of Sony TV.
Name
K HOME/
MENU
L ./>
b)
m/M
b)
N
a)b)
X
b)
x
b)
Function
Press to display the menus of the receiver, VCR, DVD player, satellite tuner, Blu-ray disc player, PSX, DVD/VHS
COMBO, or DVD/HDD
COMBO on the TV screen.
Then, use V/v/B/b and to perform menu operations.
To display the menus of Sony
TV, press TV (X) and then press HOME/MENU.
Press to skip tracks of the VCR,
CD player, VCD player, LD player, DVD player, MD deck,
DAT deck, tape deck, Blu-ray disc player, PSX, DVD/VHS
COMBO, or DVD/HDD
COMBO.
Press to
– search tracks in the forward/ backward direction of the CD player, VCD player, DVD player, LD player, MD deck,
Blu-ray disc player, PSX,
DVD/VHS COMBO, or
DVD/HDD COMBO.
– fast forward/rewind of the
VCR, DAT deck, or tape deck.
Press to start playback of the
VCR, CD player, VCD player,
LD player, DVD player, MD deck, DAT deck, tape deck,
Blu-ray disc player, PSX, DVD/
VHS COMBO, or DVD/HDD
COMBO.
Press to pause playback or recording of the VCR, CD player, VCD player, LD player,
DVD player, MD deck, DAT deck, tape deck, Blu-ray disc player, PSX, DVD/VHS
COMBO, or DVD/HDD
COMBO. (Also starts recording with components in recording standby.)
Press to stop playback of the
VCR, CD player, VCD player,
LD player, DVD player, MD deck, DAT deck, tape deck,
Blu-ray disc player, PSX, DVD/
VHS COMBO, or DVD/HDD
COMBO.
continued
11
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
Name Function
TUNING +/–
Press to scan a station.
D.TUNING
Press to enter direct tuning mode.
B•/•b Press to replay the previous scene or fast forward the current scene of the DVD player, Bluray disc player, DVD/VHS
COMBO, or DVD/HDD
COMBO.
CATEGORY
+/–
Press to select a category for
CATEGORY
MODE
Press to select the category mode for satellite tuner
M TV CH +
a)
/–
Press TV (X) and then press
TV CH +/– to select preset TV channels.
PRESET
+
a)
/–
N F1, F2
Press to
– select preset stations.
– select preset channels of the
VCR, satellite tuner, Blu-ray disc player, DVD player,
DVD/VHS COMBO, or
DVD/HDD COMBO.
Press F1 or F2 to select a component.
• DVD/HDD COMBO
F1: HDD mode
F2: DVD mode
• DVD/VHS COMBO
F1: DVD mode
F2: VHS mode
O BD/DVD
TOP MENU
BD/DVD
MENU
Press to display the menu or onscreen guide of the DVD or
Blu-ray disc on the TV screen.
Then, use V/v/B/b and to perform menu operations.
Press to display the menu of the
DVD or Blu-ray disc on the TV screen. Then, use
V/v/B/b and
to perform menu operations.
TV INPUT
WIDE
Press TV (X) and then press
TV INPUT to select the input signal (TV input or video input).
Press TV (X) and then press
WIDE to select the wide picture mode.
Name Function
P TV VOL +/–
Press TV (X) and then press
TV VOL +/– to adjust the TV volume level.
MASTER
VOL +/–
Q MUTING
Press to adjust the volume level of all speakers at the same time.
Press to turn off the sound temporarily. Press MUTING again to restore the sound.
Press TV (X), and then press
MUTING to activate the TV’s muting function.
R DISC SKIP
Press to skip disc of the CD player, VCD player, DVD player, or MD deck (multi-disc changer only).
S RETURN/
EXIT O
Press to
– return to the previous menu.
– exit the menu while the menu or on-screen guide of the
VCD player, LD player,
DVD player, Blu-ray disc player, PSX, DVD/VHS
COMBO, or satellite tuner is displayed on the TV screen.
To return to the previous menu of Sony TV, press TV (X) and then press RETURN/EXIT O.
T DISPLAY
Press to select information displayed on the display window or TV screen of the
VCR, VCD player, LD player,
DVD player, CD player, MD deck, Blu-ray disc player, PSX, satellite tuner, DVD/ VHS
COMBO, or DVD/HDD
COMBO.
To select information of Sony
TV, press TV (X) and then press DISPLAY.
U RESOLUTION Press repeatedly to change the resolution of signals output from the HDMI OUT or
COMPONENT VIDEO
MONITOR OUT jack
V INPUT
MODE
Press to select the input mode when the same components are connected to both digital and
12
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
Name Function
W SHIFT
Press to light up the buttons. It changes the remote button function to activate the buttons with pink printing.
X TV
Press to light up the button. It changes the remote key function to activate the buttons with yellow printing. It also activate the DISPLAY (T),
OPTIONS TOOLS (J),
HOME/MENU (K),
RETURN/EXIT O (S),
(I), and
V/v/B/b (I) buttons to perform menu operations for
Sony TVs only.
Y THEATER
Press to enjoy optimal image suited for movies and to output the sound from the speakers connected to this receiver automatically.
Note
This button will only function if your TV is compatible with
Theater Mode. For details, refer to the operating instructions supplied with the TV.
Z RM SET UP Press to set up the remote.
a)
The number 5, TV CH +, PRESET + and N buttons have tactile dots. Use the tactile dots as references when operating the receiver.
b)
See the table on page 119 for information on the
buttons that you can use to control each component.
Notes
• Some functions explained in this section may not work depending on the model.
• The above explanation is intended to serve as an example only. Therefore, depending on the component, the above operation may not be possible or may operate differently than described.
RM-AAU039
This remote can only be used to operate the receiver. You can control the main functions of the receiver with simple operations using this remote.
SLEEP
DISPLAY GUI MODE
Name
A ?/1 (on/
standby)
B 2CH/
A.DIRECT
Function
Press to turn a receiver on or off.
Press to select sound field
A.F.D.
MOVIE
MUSIC
C GUI MODE
Press to display the GUI menu on the TV screen.
D
V/v/B/b
After pressing GUI MODE
(3), press
V/v/B/b to select the menu items. Then press to enter the selection.
E OPTIONS
Press to display and select items from option menus.
continued
13
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
Name
F MENU
G DMPORT
Function
Press to display the menu to operate the receiver.
Press to operate component connected to the DIGITAL
MEDIA PORT adapter
N x
Starts play.
Stops play.
./> Skips tracks.
H INPUT
SELECTOR
Press to select the input source to play back.
I MASTER
VOLUME +/–
Press to adjust the volume level.
J MUTING
Press to turn off the sound temporarily. Press the button again to restore the sound.
K RETURN/
EXIT O
L DISPLAY
Press to return to the previous menu or exit the menu.
Press to select information displayed in the display window.
M SLEEP
Press to activate the sleep timer function and the duration which the receiver turns off
1: Installing the speakers
This receiver allows you to use a 7.1 channel system (7 speakers and one subwoofer).
Enjoying a 5.1/7.1 channel system
To fully enjoy theater-like multi channel surround sound requires five speakers (two front speakers, a center speaker, and two surround speakers) and a subwoofer (5.1 channel system).
Example of a 5.1 channel speaker system configuration
AFront speaker (left)
BFront speaker (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
HSubwoofer
14
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
You can enjoy high fidelity reproduction of
DVD software recorded sound in the Surround
EX format if you connect one additional surround back speaker (6.1 channel system) or two surround back speakers (7.1 channel system.)
Example of a 7.1 channel speaker system configuration
Tips
• The angle A should be the same.
masterpage: Right
• When you connect a 6.1 channel speaker system, place the surround back speaker behind the listening position.
AFront speaker (left)
BFront speaker (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
FSurround back speaker (left)
GSurround back speaker (right)
HSubwoofer
• Since the subwoofer does not emit highly directional signals, you can place it wherever you want.
15
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
2: Connecting speakers
Before connecting cords, make sure to disconnect the AC power cord (mains lead).
H
(10 mm)
G
B A
F
SPEAKERS FRONT
B terminals a)
A A A
E D
A
Speaker cords (not supplied)
B
Monaural audio cord (not supplied)
AFront speaker A (left)
BFront speaker A (right)
CCenter speaker
DSurround speaker (left)
B A C
ESurround speaker (right)
FSurround back speaker (left) b)
GSurround back speaker (right) b)
HSubwoofer c)
16
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
a)
If you have an additional front speaker system, connect them to the SPEAKERS
FRONT B terminals. You can select the front speaker system you want to use with the
SPEAKERS switch (OFF/A/B/A+B) on the
b)
If you connect only one surround back speaker, connect it to the SPEAKERS
SURROUND BACK L terminals.
c)
When you connect a subwoofer with an auto standby function, turn off the function when watching movies. If the auto standby function is set to on, it turns to standby mode automatically based on the level of the input signal to a subwoofer, then sound may not be output.
Notes
• When you connect all the speakers with a nominal impedance of 8 ohms or higher, set “Speaker
Impedance” in the Speaker settings menu to “8 ohms”. In other connections, set it to “4 ohms”. For
details, see “8: Setting the speakers” (page 42).
• Before connecting the AC power cord (mains lead), make sure that metallic wires of the speaker cords are not touching each other between the
SPEAKERS terminals.
Tip
To connect certain speakers to another power amplifier, use the PRE OUT jacks. The same signal is output from both the SPEAKERS terminals and the PRE OUT jacks. For example, if you want to connect just the front speakers to another amplifier, connect that amplifier to the PRE OUT FRONT L and R jacks.
masterpage: Right
17
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
3: Connecting the TV
You can watch the selected input image when you connect the MONITOR OUT or HDMI
OUT jack to a TV. You can operate this receiver using a GUI (Graphical User
Interface).
It is not necessary to connect all the cables.
Connect audio and video cords according to the jacks of your components.
Before connecting cords, make sure to disconnect the AC power cord (mains lead).
TV
Audio signals Video signals Audio/ Video signals
A B C D E
18
US
A Optical digital cord (not supplied)
B
Audio cord (not supplied)
C
Video cord (not supplied)
D Component video cord (not supplied)
E HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
Notes
• Be sure to turn on the receiver when the video and audio signals of a playback component are being output to a TV via the receiver. If the power supply of the receiver is not turned on, neither video nor audio signals will be transmitted.
• When connecting optical digital cords, insert the plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
• Depending on the status of the connection between the TV and the antenna (aerial), the image on the
TV screen may be distorted. In this case, place the antenna (aerial) farther away from the receiver.
Tips
• The receiver has a video conversion function. For
details, see “Notes on converting video signals”
• The sound of the TV is output from the speakers connected to the receiver if you connect the audio output jack of the TV to the TV IN jacks of the receiver. In this configuration, set the sound output jack of the TV to “Fixed” if it can be switched between either “Fixed” or “Variable”.
• All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling frequencies.
4a: Connecting the audio components
How to hook up your components
This section describes how to hook up your components to this receiver. Before you begin,
refer to “Component to be connected” below
for the pages which describe how to connect each component.
After hooking up all your components,
proceed to “5: Connecting the antennas
Component to be connected
Super Audio CD player, CD player
With digital audio output
With multi channel audio output
MD deck, Tape deck,
Analog disc turntable
With analog audio output only
With analog audio output only
DIGITAL MEDIA PORT adapter
Page
Notes
• Before connecting cords, make sure to disconnect the AC power cord (mains lead).
• When connecting optical digital cords, insert the plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling frequencies.
19
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
Connecting components with digital audio output jacks
The following illustration shows how to connect a Super Audio CD player, CD player and DIGITAL MEDIA PORT adapter.
DIGITAL MEDIA PORT adapter
Super Audio CD player, CD player
masterpage: Left
A B
A
Audio cord (not supplied)
B Coaxial digital cord (not supplied)
20
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
Notes on connecting DIGITAL
MEDIA PORT adapter
• When connecting the DIGITAL MEDIA
PORT adapter, be sure the connector is inserted with the arrow mark facing towards the arrow mark on the DMPORT jack.
• Be sure to make DMPORT connections firmly, insert the connector straight in.
• As the connector of the DIGITAL MEDIA
PORT adapter is fragile, be sure to handle with care when placing or moving the receiver.
• To disconnect the DIGITAL MEDIA PORT adapter, squeeze the sides of the connector, since the connector is locked in place.
Notes on playing a Super Audio
CD on a Super Audio CD player
• When you play a Super Audio CD, connect the player to the MULTI CHANNEL INPUT or SA-CD/CD IN jacks (analog input jack) on this receiver. Refer to the operating instructions supplied with the Super Audio
CD player.
• You cannot make digital recordings of a
Super Audio CD.
If you want to connect several digital components, but cannot find an unused input
See “Enjoying the sound/images from other inputs” (page 98).
masterpage: Right
21
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
Connecting components with multi channel output jacks
If your DVD or Super Audio CD player is equipped with multi channel output jacks, you can connect them to the MULTI CHANNEL
INPUT jacks of this receiver to enjoy multi channel sound. Alternatively, the multi channel input jacks can be used to connect an external multi channel decoder.
DVD player,
Super Audio CD player, etc.
masterpage: Left
A
B
A
Audio cord (not supplied)
B Monaural audio cord (not supplied)
Note
Audio signals input from MULTI CHANNEL
INPUT jacks are not output to other audio output jacks. The signals cannot be recorded.
22
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
Connecting components with analog audio jacks
The following illustration shows how to connect a component with analog jacks, such as tape deck, turntable, etc.
Turntable
MD deck, Tape deck
A A
masterpage: Right
A
Super
Audio CD player, CD player
A
Audio cord (not supplied)
Note
If your turntable has a ground (earth) wire, connect it to the U SIGNAL GND terminal.
23
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
4b: Connecting the video components
How to hook up your components
This section describes how to hook up your components to this receiver. Before you begin,
refer to “Component to be connected” below
for the pages which describe how to connect each component.
After hooking up all your components,
proceed to “5: Connecting the antennas
Component to be connected
TV
With HDMI jack
Blu-ray disc player
DVD player
Satellite tuner, Set-top box
DVD recorder, VCR
Camcorder, video game, etc.
Page
Video input/output jacks to be connected
The image quality depends on the connecting jack. Refer to the illustration that follows.
Select the connection according to the jacks on your components.
Digital Analog
High quality image
Notes
• Before connecting cords, be sure to disconnect the
AC power cord.
• Be sure to turn on the receiver when the video and audio signals of a playback component are being output to a TV via the receiver. If the power supply of the receiver is not turned on, neither video nor audio is transmitted.
Converting video signals
This receiver is equipped with a function for up-
converting video signals. For details, see page 32.
24
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
Connecting components with
HDMI jacks
HDMI is the abbreviated name for High-
Definition Multimedia Interface. It is an interface which transmits video and audio signals in digital format.
HDMI features
• A digital audio signals transmitted by HDMI can be output from the speakers and the PRE
OUT jacks on this receiver. This signal supports Dolby Digital, DTS and linear
PCM.
• This receiver can receive Multi Linear PCM
(up to 8 channels) with a sampling frequency of 192 kHz or less with an HDMI connection.
• Analog video signals input to the VIDEO jack or COMPONENT VIDEO jacks can be up-converted as HDMI signals. Audio signals are not output from an HDMI OUT jack when the image is converted.
• This receiver supports High Bitrate Audio
(DTS-HD Master Audio, Dolby TrueHD),
Deep Color and xvYCC transmission, extended by HDMI ver1.3.
• This receiver supports the Control for HDMI
function. For details, see “Control for
masterpage: Right
continued
25
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
Satellite tuner, Set-top box
Audio/video signals
Blu-ray disc player
Audio/video signals
A A
DVD player
Audio/video signals
A
masterpage: Left
Audio/video signals
TV, projector, etc.
A
HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
A
26
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
Notes on connecting cables
• We recommend that you use a Sony HDMI cable.
• We recommend that you use an HDMI cable with the HDMI logo (made by Sony) for the
HDMI jack corresponding to high speed (an
HDMI version1.3a, category 2 cable) when you view images or listen to sound during a
Deep Color transmission or when you watch a video image of 1080p or higher.
• We do not recommend using an HDMI-DVI conversion cable. When you connect an
HDMI-DVI conversion cable to a DVI-D component, the sound and/or the image may not be output. Connect other audio cords or digital connecting cords, then set “Input
Assign” in the Input Option menu when the sound is not output correctly.
Notes on HDMI connections
• Check the setup of the connected component if an image is poor or the sound does not come out of a component connected via the
HDMI cable.
• An audio signal input to the HDMI IN jack is output from the speaker output jacks,
HDMI OUT jack and PRE OUT jacks. It is not output from any other audio jacks.
• A video signal input to the HDMI IN jack can only be output from the HDMI OUT jack. The video input cannot be output from the VIDEO OUT jacks or MONITOR
VIDEO OUT jacks.
• The audio and video signals of HDMI input are not output from the HDMI OUT jack while the receiver menu is displayed.
• When you want to listen to the sound from the TV speaker, set “Audio Out” to
“TV+AMP” in the HDMI settings menu
(page 57). If you cannot play back multi
channel audio source, set to “AMP”.
However, the sound will not output from the
TV speaker.
• DSD signals of Super Audio CD are not input and output.
• Be sure to turn on the receiver when the video and audio of a playback component are being output to a TV via the receiver. If the power supply of the receiver is not turned on, neither video nor audio is transmitted.
• Audio signals (sampling frequency, bit length, etc.) transmitted from an HDMI jack may be suppressed by the connected component. Check the setup of the connected component if an image is poor or the sound does not come out of a component connected via the HDMI cable.
• Sound may be interrupted when the sampling frequency, the number of channels or audio format of audio output signals from the playback component is switched.
• When the connected component is not compatible with copyright protection technology (HDCP), the image and/or the sound from the HDMI OUT jack may be distorted or may not be output.
In this case, check the specification of the connected component.
• You can enjoy High Bitrate Audio (DTS-HD
Master Audio, Dolby TrueHD), multi channel Linear PCM only with an HDMI connection.
• Set the image resolution of the playback component to more than 720p to enjoy High
Bitrate Audio (DTS-HD Master Audio,
Dolby TrueHD).
• The image resolution of playback component may need certain settings be made before you can enjoy multi channel
Linear PCM. Refer to the operating instructions of the player.
• Not every HDMI component supports all functions that are defined by the specified
HDMI version. For example, components that support HDMI, ver. 1.3a, may not support Deep Color.
• Refer to the operating instructions of each component connected for details.
27
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
Connecting a Blu-ray Disc
Player
The following illustration shows how to connect a Blu-ray Disc Player.
It is not necessary to connect all the cables.
Connect audio and video cords according to the jacks of your components.
Audio signals
Note
To input multi channel digital audio from the Bluray Disc Player, set the digital audio output setting on the Blu-ray Disc Player. Refer to the operating instructions supplied with the Blu-ray Disc Player.
Blu-ray Disc Player
Video signals
A B C
A
Audio cord (not supplied)
B Component video cord (not supplied)
C
Video cord (not supplied)
Tip
The COMPONENT VIDEO COMPO 1 IN jacks have been assigned to the Blu-ray Disc player. If you connect your Blu-ray Disc player to the
COMPONENT VIDEO COMPO 2 or
COMPONENT VIDEO COMPO 3 IN jacks, set
“Input Assign” in the Input menu.
28
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
Connecting a DVD player
The following illustration shows how to connect a DVD player.
It is not necessary to connect all the cables.
Connect audio and video cords according to the jacks of your components.
Audio signals
Note
To input multi channel digital audio from the DVD player, set the digital audio output setting on the
DVD player. Refer to the operating instructions supplied with the DVD player.
DVD player
Video signals
A B C D
A
Coaxial digital cord (not supplied)
B
Audio cord (not supplied)
C
Component video cord (not supplied)
D Video cord (not supplied)
Tips
• All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling frequencies.
• The COMPONENT VIDEO COMPO 2 IN jacks have been assigned to the DVD player. If you connect your DVD player to the COMPONENT
VIDEO COMPO 1 or COMPONENT VIDEO
COMPO 3 IN jacks, set “Input Assign” in the Input menu.
29
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
Connecting a satellite tuner,
Set-top box
The following illustration shows how to connect a satellite tuner, Set-top box.
It is not necessary to connect all the cables.
Connect audio and video cords according to the jacks of your components.
Audio signals
Notes
• When connecting optical digital cords, insert the plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Satellite tuner, Set-top box
Video signals
A B C D
A
Optical digital cord (not supplied)
B Audio cord (not supplied)
C Component video cord (not supplied)
D
Video cord (not supplied)
Tips
• All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling frequencies.
• The COMPONENT VIDEO COMPO 3 IN jacks have been assigned to the satellite tuner. If you connect your satellite tuner to the COMPONENT
VIDEO COMPO 1 or COMPONENT VIDEO
COMPO 2 IN jacks, set “Input Assign” in the Input menu.
30
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
Connecting components with analog video and audio jack
The following illustration shows how to connect a component which has analog jacks such as a DVD recorder or VCR, etc.
It is not necessary to connect all the cables.
Connect audio and video cords according to the jacks of your components.
Notes
• Be sure to change the factory setting of the VIDEO 1 input button on the remote so that you can use the button to control your DVD recorder. For details, see
“Programming the remote” (page 120).
• You can also rename the VIDEO 1 input so that it can be displayed on the TV screen and display
window. For details, see “Naming inputs”
Audio signals
DVD recorder, VCR
Video signals
A B
Camcorder, video game
A Audio cord (not supplied)
B
Video cord (not supplied)
C
Audio/video cord (not supplied)
To the VIDEO 2 IN/PORTABLE
AV IN jacks (on the front panel)
C
31
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
Function for conversion of video signals
This receiver is equipped with a function for converting video signals. You can output the video signal after connecting this receiver via the MONITOR OUT or HDMI OUT jack as shown in the illustration.
• Video signals can be output as HDMI video and component video signals.
• Component video signals can be output as
HDMI video and video signals.
For details on the video converting function,
see “In the video input/output conversion table classified by the menu settings” (page 34).
In the video input/output conversion table of the receiver
Refer to “In the video input/output conversion table classified by the menu settings” (page 34) on
the conversion function of images.
Output Signals
Input Signals
OUTPUT jack
INPUT jack
HDMI IN A
COMPONENT
VIDEO IN B
VIDEO IN C
HDMI OUT
f a a
COMPONENT VIDEO
MONITOR OUT
X a/f a
MONITOR VIDEO
OUT
X
X f a : Video signals are up-converted and output through the video converter.
f : The same type of signal as that of the input signal is output. Video signals are not converted.
X : Video signals are not output.
32
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
Notes on converting video signals
• When video signals from a VCR, etc., are converted on this receiver and then output to your TV, depending on the status of the video signal output, the image on the TV screen may appear distorted horizontally or no image may be output.
• HDMI video signals cannot be converted to component video signals and video signals.
• When you play a VCR with an image improvement circuit, such as TBC, the images may be distorted or may not be output. In this case, set the image improvement circuit function to off.
• The resolution of the signals output to the
COMPONENT VIDEO MONITOR OUT jacks is converted up to 1080i. The resolution of the signals output to the HDMI
OUT jack is converted up to 1080p.
• COMPONENT VIDEO MONITOR OUT jacks have restrictions on resolution when the resolution of video signals protected by copyright technology is converted.
Resolution of up to 480p can be output to the
COMPONENT VIDEO MONITOR OUT jacks. The HDMI OUT jack has no restriction on resolution.
• Set “Resolution” to “AUTO” or “480/576i” in the Video settings menu to output the video signals from the MONITOR VIDEO
OUT and COMPONENT VIDEO
MONITOR OUT jack when both are connected.
To display Closed Caption
Set “Resolution” to “DIRECT” in the Video settings menu when receiving a signal that supports Closed Captions.
Use the same kind of cords for the input/output signals.
continued
33
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
In the video input/output conversion table classified by the menu settings
For details on “Resolution” menu setting, see “Settings for the video (Video settings menu)”
(page 57) and on operating, see “Converting analog video input signals” (page 92).
“Resolution” menu setting
Output from
DIRECT
Input signals
Component video
Video
AUTO (initial setting) Component video
480/576i
480/576p
Video
Component video
Video
Component video
720p, 1080i
1080p
Video
Component video
Video
Component video
Video
HDMI OUT jack
X
X a a) a a) a c) a c)
COMPONENT
VIDEO MONITOR
OUT jacks
MONITOR VIDEO
OUT jack
f X f X a b) a b)
X f a a a a a a a a a d) a d)
X f
X f a a f
X
X f
X f a : Video signals are up-converted and output through the video converter.
f : The same type of signal as that of the input signal is output. Video signals are not converted.
X : Video signals are not output.
a)
The resolution is set automatically, depending on the connected TV.
b)
When the TV is connected to jacks other than the HDMI jacks, 480/576i signals are output when “Resolution” is set to “AUTO”.
c)
480/576p signals are output even if 480/576i is set.
d)
Video signals without copyright protection are output based on the settings menu. Video signals with copyright protection are output as 480p.
Notes
• Video signals are not output from the COMPONENT VIDEO MONITOR OUT jacks when the monitor, etc., is connected to the HDMI OUT jack.
• If you select a resolution that the connected TV does not support in the “Resolution” menu, the images from the TV cannot be output correctly.
• Converted HDMI image output signals do not support “x.v.Color”.
• Converted HDMI image output signals do not support Deep Color.
• When HDMI OUT jack is connected, there is no up-converted video signal output from COMPONENT
VIDEO MONITOR OUT jacks. The COMPONENT VIDEO MONITOR OUT jacks have component signal direct output only.
34
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
5: Connecting the antennas (aerials)
Connect the supplied AM loop antenna
(aerial) and FM wire antenna (aerial).
Before connecting antennas, be sure to disconnect the power cord.
AM loop antenna (aerial)
(supplied)
FM wire antenna (aerial) (supplied)
masterpage: Right
* The shape of the connector varies depending on the area.
Notes
• To prevent noise pickup, keep the AM loop antenna
(aerial) away from the receiver and other components.
• Be sure to fully extend the FM wire antenna
(aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
35
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
6: Preparing the receiver and the remote
Connecting the AC power cord
(mains lead)
Connect the supplied AC power cord (mains lead) to the AC INLET terminal on the receiver, then connect the AC power cord
(mains lead) to a wall outlet.
Notes
• Before connecting the AC power cord (mains lead), make sure that metallic wires of the speaker cords are not touching each other between the
SPEAKERS terminals.
• Connect the AC power cord (mains lead) firmly.
AC INLET terminal
Performing initial setup operations
Before using the receiver for the first time, initialize the receiver by performing the following procedure. This procedure can also be used to return settings you have made to their factory defaults.
Be sure to use the buttons on the receiver for this operation.
1,2 2,3 2,3
To the wall outlet
AC power cord
(mains lead)
(supplied)
1
Press POWER to turn off the receiver.
2
While holding down TONE
MODE and 2CH/A.DIRECT, press POWER to turn on the receiver.
3
Release TONE MODE and 2CH/
A.DIRECT after a few seconds.
After “CLEARING” appears on the display for a while, “CLEARED !” appears.
All the settings you have changed or adjusted are reset to the initial settings.
A several space is left between the plug and the rear panel even when the power cord (mains lead) is inserted firmly. The cord is supposed to be connected this way. This is not malfunction.
36
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
Inserting batteries into the remote
Insert two R6 (size-AA) batteries in the RM-
AAP025 remote commander.
Insert two R6 (size-AA) batteries in the RM-
AAU039 remote control.
Observe the correct polarity when installing batteries.
RM-AAP025 RM-AAU039
Notes
• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with old ones.
• Do not mix manganese batteries and other kinds of batteries.
• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.
• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.
• When you replace the batteries, the programmed remote codes may be cleared. If this happens,
program the remote codes again (page 120).
Tip
When the remote no longer operates the receiver, replace all the batteries with new ones.
About the command mode
The receiver and the remote use the same command mode.
If the command modes of the receiver and the remote are different, you cannot use the remote to operate the receiver.
If the command modes of both the receiver and the remote are those of the initial setting (AV
SYSTEM 2), it is not necessary to reset them.
You can switch the command mode (AV
SYSTEM 1 or AV SYSTEM 2) of the receiver and the remote. If both the receiver and the other Sony component respond to the same remote command, switch the command mode of either the component or the receiver to another command mode so that the component does not respond to the same remote command as the receiver.
To switch the command mode of the receiver
2CH/A.DIRECT
Turn on the receiver while pressing
2CH/A.DIRECT.
When the command mode is set to “AV2”,
“C. MODE AV2” appears on the display.
When the command mode is set to “AV1”,
“C. MODE AV1” appears on the display.
continued
37
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
To switch the command mode of the RM-AAP025 remote
1 THEATER
SHIFT TV AMP
1
VIDEO 1
4
DVD
7
MD/
TAPE
-/--
PHONO
CLEAR/>10
XM
2
VIDEO 2
3
BD
5
SAT
6
TV
8
SA-CD/
CD
9
TUNER
0/10
ENT/MEM
MULTI IN DMPORT
SIRIUS
1
2
3
1
Press ?/1 while pressing RM SET UP.
The RM SET UP button flashes and the
SHIFT button indicator lights up.
2
Press 1 or 2 while the RM SET UP button is flashing.
When you press 1, the command mode is set to AV SYSTEM 1. When you press 2, the command mode is set to AV SYSTEM
2.
3
Press ENT/MEM when the RM SET UP button lights up.
The RM SET UP button flashes twice, then the command mode setting process is completed.
To switch the command mode of the RM-AAU039 remote
DISPLAY
MUTING
SLEEP
DISPLAY GUI MODE
Press and hold DISPLAY, then press
MUTING and at the same time.
38
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
7: Operating the receiver using the GUI
(Graphical User
Interface)
You can change the display mode of the receiver menu to the screen mode using the following procedures. In the screen mode,
“GUI MODE” appears in the display window of the receiver.
By using the GUI menu, you can make various settings and adjustments.
For details, see “Operating without connecting to the TV” (page 106) if you are not going to
use a GUI menu.
Note
GUI menu does not appear on the TV screen when you have connected your TV to MONITOR VIDEO
OUT jack.
1
Connect a TV to this receiver.
For details, see “3: Connecting the TV”
2
Turn on the TV.
3
Press ?/1 to turn on the
receiver.
4
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the TV screen.
5
Press
V/v repeatedly to select a
menu you want, then press or
b.
Displaying the GUI menu on the
TV screen
THEATER
SHIFT TV AMP
1
VIDEO 1
4
DVD
7
MD/
TAPE
-/--
PHONO
CLEAR/>10
XM
2
VIDEO 2
5
SAT
3
BD
6
TV
8
SA-CD/
CD
9
TUNER
0/10
ENT/MEM
MULTI IN
DMPORT
2CH/
A.DIRECT
A.F.D.
RESOLUTION
INPUT
MODE
SIRIUS
MOVIE
SLEEP
MUSIC
NIGHT
MODE
GUI
MODE
3
HOME
CATEGORY
4
5
MENU
39
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
Overview of the menus
The following menu items are available in each settings menu.
Input
Selects the input to the receiver.
For details on each input, see “Selecting a component” (page 50).
Music
You can enjoy sound and image from component connected the DIGITAL MEDIA
PORT adapter.
FM/AM/XM/SIRIUS
You can listen to the radio using the receiver.
For details on Tuner operation, see “Tuner
Settings
You can use Settings menu to set and adjust this receiver.
Auto Calibration
You can use the Auto Calibration settings menu to adjust the speakers automatically.
For details, see “9: Calibrating the appropriate speaker settings automatically
(Auto Calibration)” (page 44).
Speaker
You can use the Speaker settings menu to adjust the speakers manually for the current position, and to set the speaker impedance.
For details, see “Setting the speaker
impedances” (page 42) and “Adjusting the speaker settings manually” (page 66).
Surround
You can use the Surround settings menu to select the sound field you want for your listening pleasure. For details on adjusting
the parameters, see “Enjoying a preprogrammed sound field” (page 59).
EQ
You can use the EQ settings menu to adjust
the equalizer. For details, see “Adjusting the equalizer” (page 72).
Audio
For details on adjusting the audio using the
Audio settings menu, see “Settings for the audio (Audio settings menu)” (page 56).
Video
For details on adjusting the video using the
Video settings menu, see “Settings for the video (Video settings menu)” (page 57).
HDMI
You can use the HDMI settings menu to operate components connected to the HDMI jacks. For details on adjusting the relevant
parameters, see “Settings for HDMI (HDMI settings menu)” (page 57).
System
For details on adjusting the system using the
System settings menu, see “Settings for the system (System settings menu)” (page 58).
40
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
Navigating through GUI menus
2CH/
A.DIRECT
A.F.D.
RESOLUTION
INPUT
MODE
MOVIE MUSIC
SLEEP
NIGHT
MODE
GUI
MODE
1
2-9
RETURN/
EXIT O
HOME
CATEGORY
MENU
3
Press menu.
The menu item list appears on the TV screen.
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the TV screen.
2
Press
V/v repeatedly to select a
menu you want.
4
Press
V/v repeatedly to select
the menu item you want to adjust.
5
Press item.
6
Press
V/v repeatedly to select
the parameter you want to adjust.
continued
41
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
7
Press parameter.
8
Press
V/v repeatedly to select
the setting you want.
9
Press to enter the setting.
10
Repeat steps 2 to 9 to make other settings.
To return to the previous screen
Press RETURN/EXIT O.
To exit the menu
Press MENU.
To exit “GUI MODE”
Press GUI MODE repeatedly to select “GUI
OFF”.
8: Setting the speakers
Setting the speaker impedances
Set the appropriate speaker impedance for the speakers you are using.
2CH/
A.DIRECT
A.F.D.
RESOLUTION
INPUT
MODE
MOVIE MUSIC
SLEEP
NIGHT
MODE
GUI
MODE
1
2-5
HOME
CATEGORY
MENU
1
Press GUI MODE to select “GUI
ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the
TV screen.
2
Press
V/v repeatedly to select
“Settings”, then press or
b.
The Settings menu list appears on the TV screen.
3
Press
V/v repeatedly to select
“Speaker”, then press or
b.
42
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
4
Press
V/v repeatedly to select
“Speaker Impedance”, then press
b.
5
Press
V/v repeatedly to select
“4 ohms” or “8 ohms” depending on the speakers you are using, then press .
Notes
• If you are not sure of the impedances of the speakers, refer to the operating instructions supplied with your speakers. (This information is often on the back of the speaker.)
• When you connect all speakers with a normal impedance of 8 ohms or higher, set “Speaker
Impedance” to “8 ohms”. When connecting other types of speakers, set it to “4 ohms”.
• When you connect front speakers to both the
SPEAKERS A and B terminals, connect the speakers with a normal impedance of 8 ohms or higher.
– When you connect speakers with impedance of
16 ohms or higher in both “A” and “B” configuration:
Set “Speaker Impedance” to “8 ohms” in the
Speaker settings menu.
– For other types of speakers in other configurations:
Set “Speaker Impedance” to “4 ohms” in the
Speaker settings menu.
43
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
Selecting the front speakers
You can select the front speakers you want to drive.
Be sure to use the buttons on the receiver for this operation.
SPEAKERS (OFF/A/B/A+B)
9: Calibrating the appropriate speaker settings automatically
(Auto Calibration)
The DCAC (Digital Cinema Auto Calibration) function allows you to perform automatic calibration, such as checking the connection between each speaker and the receiver, adjusting the speaker level, and measuring the distance of each speaker from your seating position automatically. Refer also to “Quick
Setup Guide” supplied with the receiver.
Press SPEAKERS (OFF/A/B/A+B) repeatedly to select the front speaker system you want to drive.
To select
The speakers connected to the
SPEAKERS FRONT A terminals.
Light up
SP A
The speakers connected to the
SPEAKERS FRONT B terminals.
SP B
The speakers connected to both SP A + B the SPEAKERS FRONT A and
B terminals (parallel connection).
To turn off the speaker output
Press SPEAKERS (OFF/A/B/A+B) repeatedly until the “SP A”, “SP B” and
“SP A + B” indicators on the display window do not light up.
“ALL OFF” appears in the display window for a while. No audio signals are output from any speaker terminals.
Note
You cannot switch the front speaker system by pressing SPEAKERS (OFF/A/B/A+B) when the headphones are connected.
Before you perform the Auto
Calibration
Before you perform the Auto Calibration, set
up and connect the speakers (page 14).
• The AUTO CAL MIC jack is used for the supplied optimizer microphone only. Do not connect other microphones. Doing so may damage the receiver and the microphone.
• During the measurement, the sound that comes out of the speakers is very loud. The volume of the sound cannot be adjusted. Pay attention to the presence of children or to the effect on your neighborhood.
• Perform the measurement in a quiet environment to avoid the effect of noise and get a more accurate measurement.
• If there are any obstacles in the path between the optimizer microphone and the speakers, the calibration cannot be performed correctly. Remove any obstacle from the measurement area to avoid measurement error.
• When you use a bi-amplifier connection, set
“BI-AMP Speaker” to “ON” in the Speaker settings menu before you perform Auto
Calibration.
44
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
Notes
• The Auto Calibration function does not work if
– SPEAKERS (OFF/A/B/A+B) is set to off.
– headphones are connected.
• If the muting function has been activated before you perform Auto Calibration, the muting function will be set to off automatically.
Optimizer microphone
On setting up the active subwoofer
• When a subwoofer is connected, turn on the subwoofer and turn up the volume beforehand. Turn the MASTER VOLUME knob to just before the mid-point.
• If you connect a subwoofer with the crossover frequency function, set the value to maximum.
• If you connect a subwoofer with an auto standby function, set subwoofer to off
(deactivated).
1
Connect the supplied optimizer microphone to the AUTO CAL
MIC jack.
2
Set up the optimizer microphone.
Place the optimizer microphone at your seating position. Use a stool or tripod so that the optimizer microphone remains at the same height as your ears.
Note
Depending on the characteristics of the subwoofer you are using, the setup distance value may be further away from the actual position.
Using the receiver as a preamplifier
You can use the Auto Calibration function when you use the receiver as a pre-amplifier.
In this case, the distance value shown on the display may differ from the actual distance value. However, there will be no problems even if you continue to use the receiver with that value.
45
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Left
Performing Auto Calibration
The Auto Calibration function allows you to measure the following:
• Speaker connections a)
• Speaker polarity
• Speaker distance a)
• Speaker size a)
• Speaker level
• Frequency characteristics a)b) a)
The measurement result is not utilized in the following cases.
–The multi channel input is selected.
–“Analog Direct” is being used.
b)
The measurement result is not utilized in the following cases.
–Dolby TrueHD signals with a sampling frequency of more than 96 kHz are being received.
–PCM signals with a sampling frequency of more than 96 kHz are being received.
2CH/
A.DIRECT
A.F.D.
RESOLUTION
INPUT
MODE
MOVIE MUSIC
SLEEP
NIGHT
MODE
GUI
MODE 1
2-5
HOME
CATEGORY
MENU
1
Press GUI MODE to select “GUI
ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the
TV screen.
2
Press
V/v repeatedly to select
“Settings”, then press or
b.
The Settings menu list appears on the TV screen.
3
Press
V/v repeatedly to select
“Auto Calibration”, then press
or
b.
4
Press
V/v repeatedly to select
“Auto Calibration Start”, then press
b.
5
Press to select “START”.
6
The measurement starts in five seconds.
7
Measurement starts.
The measurement process will take approximately 30 seconds with a test tone. Wait until the measurement process completes.
Tip
The measurements may not be performed correctly or Auto Calibration cannot be performed when special speakers, such as dipole speakers are used.
46
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
To cancel the measurement
The measurement will be canceled when you do the following:
– Press ?/1, input buttons or MUTING.
– Press SPEAKERS (OFF/A/B/A+B) on the receiver.
– Change the volume level.
– Connect the headphones.
Confirming/saving the measurement results
1
Confirm the measurement result.
When the measurement ends, a beep sounds.
2
Press
V/v to select the item you
want, then press .
Item
Retry
Save
Warning
Phase*
Distance
Level
Exit
Explanation
Performs the Auto
Calibration again.
Saves the measurement results and exits the setting process.
Displays warning concerning the measurement results. See
Displays the phase of each speaker (in phase/out of phase).
Displays the measurement result for speaker distance.
Displays the measurement result for speaker level.
Exits the setting process without saving the measurement results.
* When the speaker(s) is (are) out of the phase,
“OUT” is displayed on the TV screen. The
“+” and “–” terminals of the speaker may be connected the other way around. However, depending on the speakers, “OUT” appears on the TV screen even though the speakers are connected properly. This is because of the speakers’ specifications. In this case, you can continue to use the receiver.
3
Select “Save” in step 2, then press to save the measurement result.
continued
47
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
4
Press
V/v repeatedly to select
the Auto Calibration Type, then press .
masterpage: Left
Parameter
Full Flat
Explanation
Makes the measurement of frequency from each speaker flat.
Engineer Sets the frequency to one that matches that of the
Sony listening room standard.
Front Reference Adjusts the characteristics of all the speakers to match the characteristics of the front speaker.
Off Sets the Auto Calibration
EQ to off.
Tip
The size of a speaker (LARGE/SMALL) is determined by the low characteristics. The measurement results may vary, depending on the position of the optimizer microphone and speakers, and the shape of the room. It is recommended that you follow the measurement results. However, you can change those settings in the Speaker settings menu. Save the measurement results first, then try to change the settings if you want.
48
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\030CON.fm
masterpage: Right
Message list after Auto Calibration measurement
Error and warning code
Explanation
Error Code 31 SPEAKERS (OFF/A/B/A+B) is set to off. Set it to others and re-perform the measurement.
Error Code 32 None of the speakers were detected. Make sure that the optimizer microphone is connected properly and reperform the measurement.
If the optimizer microphone is connected properly but the error code appears, the optimizer microphone cable may be damaged or improperly connected.
Error Code 33 • None of the front speakers are connected or only one front speaker is connected.
• The optimizer microphone is not connected.
• Either the left or right surround speakers is not connected.
• Surround back speakers are connected even though surround speakers are not connected.
Connect the surround speaker(s) to the SURROUND terminals.
• The surround back speaker is connected only to the SPEAKERS SURROUND BACK R terminals. When you connect only one surround back speaker, connect it to the SPEAKERS
SURROUND BACK L terminals.
Warning 40
Warning 41
The measurement has completed. However, the noise level is high. You may be able to perform the measurement properly if you try it again, even though the measurement cannot be performed in all environments. Try to perform the measurement in a quiet environment.
The input from the microphone is too big.
• It may be too close the distance between the speaker and the microphone. Retry the measurement after setting apart from each other.
• It may be that the volume is too big when you use the receiver as a preamp.
Warning 42 The input from the microphone is too big.
• It may be too close the distance between the speaker and the microphone. Retry the measurement after setting apart from each other.
• It may be that the volume is too big when you use the receiver as a preamp.
Warning 43 The distance and position of a subwoofer cannot be detected. This may be caused by noise.
Try to perform the measurement in a quiet environment.
NO WARNING There is no warning information.
•Error Code 31, 32, 33
1
When you press , “RETRY?” appears.
2
Press B/b to select “YES”.
3
Press , then follow the instructions from
step 1 of “Performing Auto Calibration”.
When a warning code appears
If a warning on the measurement result is present, detailed information is displayed.
Press to return to step 1 of
“Confirming/saving the measurement results” (page 47).
Tip
Depending on the position of the subwoofer, the measurement results for polarity may vary.
However, there will be no problems even if you continue to use the receiver with that value.
To set Auto Calibration items more precisely
On the Auto Calibration setting menu, press .
• Position
You can register three patterns as Position 1,
2, and 3, depending on the seating position, listening environment, and measurement conditions.
• Auto Calibration Type
You can select this parameter only when you have performed the Auto Calibration and saved the measurement result.
For details, see the table on page 48.
• Name Input
You can rename the position number. For
details, refer to “Naming inputs” (page 96).
49
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\040PLA.fm
masterpage: Left
Playback
Selecting a component
3
MD/
TAPE
SA-CD/
CD
0/10
ENT/MEM
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
1
MUTING
BD/DVD
TOP MENU MENU
1
Press one of the input buttons to select the component you want.
You can also use INPUT SELECTOR on the receiver or the RM-AAU039 remote.
The selected input appears on the display.
Selected input
VIDEO 1
VIDEO 2
BD
DVD
SAT
TV
MD/TAPE
SA-CD/CD
TUNER
PHONO
MULTI IN
DMPORT
XM
Components that can be played back
VCR, etc., connected to the
VIDEO 1 jack.
Video camera and TV game, etc., connected to the VIDEO
2 IN/PORTABLE AV IN jack.
Blu-ray disc player, etc., connected to the BD jack.
DVD player, etc., connected to the DVD jack.
Satellite tuner, etc., connected to the SAT jack.
TV connected to the TV jack.
MD or Tape deck, etc., connected to the MD/TAPE jack.
Super Audio CD or CD player, etc., connected to the
SA-CD/CD jack.
Built-in radio tuner.
Turntable, etc., connected to the PHONO jack.
Component connected to the
MULTI CHANNEL INPUT jack.
Portable audio, etc., connected to the DIGITAL
MEDIA PORT adapter connected to the receiver.
XM Mini-Tuner and Home
Dock connected to the XM jack.
SIRIUS SiriusConnect Home tuner connected to the SIRIUS jack.
2
Turn on the component and start playback.
3
Press MASTER VOL +/– to adjust the volume.
You can also use MASTER VOLUME on the receiver.
50
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\040PLA.fm
Tips
• You can adjust the volume differently depending on the speed with which you turn the MASTER
VOLUME on the receiver.
To turn the volume up or down quickly: turn the knob quickly.
To make fine adjustment: turn the knob slowly.
• You can adjust the volume differently depending on the length of time you press and hold the
MASTER VOL +/– button on the remote.
To turn the volume up or down quickly: press and hold the button.
To make a fine adjustment: press the button and release it immediately.
To activate the muting function
Press MUTING.
The muting function will be canceled when you do the following.
• Press MUTING again.
• Increase the volume.
• Turn off the receiver.
To avoid damaging your speakers
Before you turn off the receiver, be sure to turn down the volume level.
masterpage: Right
51
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\040PLA.fm
masterpage: L-2
Listening to a Super Audio CD/CD
SLEEP
DISPLAY GUI MODE
2
3
5
5
3
• The operation is described for a
Sony Super Audio CD player.
• Refer to the operating instructions supplied with the
Super Audio CD player or CD player.
z
You can select the sound field to
suit the music. Refer to page 64
for details.
1
Turn on the Super Audio CD player or CD player, then place the disc in the tray.
2
Turn on the receiver.
3
Press INPUT SELECTOR to select “SA-CD/
CD”.
You can also use INPUT SELECTOR on this receiver to select “SA-CD/CD”.
4
Play back the disc.
5
Adjust to a suitable volume.
6
After you have finished listening to a Super
Audio CD or CD, eject the disc and turn off the receiver and the Super Audio CD player or CD player.
52
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\040PLA.fm
masterpage: R-2
Watching a DVD/Blu-ray Disc
SLEEP
DISPLAY GUI MODE
2
3
6
6
3
MULTI CHANNEL DECODING lamp
• Refer to the operating instructions supplied with the
TV and DVD player or Blu-ray
Disc Player.
z
Select the audio format of the disc to be played, if necessary.
z
You can select the sound field to suit the movie or the music. Refer
Check the following if you cannot listen to the multi channel sound.
• Be sure the sound source corresponds to the multi channel format (the MULTI CHANNEL
DECODING lamp on the front panel lights up during playback).
• Be sure this receiver is connected to the DVD player or
Blu-ray Disc Player via a digital connection.
• Be sure the digital audio output of the DVD player or Blu-ray
Disc Player is set up properly.
1
Turn on the TV and DVD player or Blu-ray
Disc Player.
2
Turn on the receiver.
3
Press INPUT SELECTOR to select “DVD” or
“BD”.
You can also use INPUT SELECTOR on this receiver to select “DVD” or “BD”.
4
Switch the input of the TV so that an image of the DVD or Blu-ray Disc is displayed.
5
Play back the disc.
6
Adjust to a suitable volume.
7
After you have finished watching a DVD or
Blu-ray Disc, eject the disc and turn off the receiver, the TV, and the DVD player or Bluray Disc Player.
53
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\040PLA.fm
masterpage: L-2
Enjoying video games
SLEEP
DISPLAY GUI MODE
2
3
6
6
3
• Refer to the operating instructions supplied with the
TV and video game.
VIDEO 2 IN/PORTABLE AV IN
1
Turn on the TV and video game.
2
Turn on the receiver.
3
Press INPUT SELECTOR to select “VIDEO
2*”.
You can also use INPUT SELECTOR on this receiver to select “VIDEO 2*”.
* When you connect a video game to the VIDEO 2 IN/
PORTABLE AV IN jack on the front panel.
4
Switch the input of the TV so that an image of the video game is displayed.
5
Place the disc in the tray and play it back on the video game.
6
Adjust to a suitable volume.
7
After you have finished playing a game, eject the disc and turn off the receiver, the TV and the video game.
54
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\040PLA.fm
masterpage: R-2
Watching video
SLEEP
DISPLAY GUI MODE
2
3
6
6
3
• Refer to the operating instructions supplied with the
TV and VCR.
1
Turn on the VCR.
2
Turn on the receiver.
3
Press INPUT SELECTOR to select “VIDEO
1*”.
You can also use INPUT SELECTOR on this receiver to select “VIDEO 1*”.
* When you connect VCR to the VIDEO 1 jack.
4
Switch the input of the TV so that an image of the VCR is displayed.
5
Play back the tape on the VCR.
6
Adjust to a suitable volume.
7
After you have finished watching a video, eject the tape and turn off the receiver, the
TV and the VCR.
55
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\050AMP.fm
masterpage: Left
Amplifier Operations
Settings for the audio
(Audio settings menu)
You can use the Audio settings menu to make settings for the audio to suit your preference.
Select “Audio” in the Settings menu. For
details on adjusting the parameters, see “7:
Operating the receiver using the GUI
(Graphical User Interface)” (page 39).
Audio settings menu parameters
x A/V Sync
(Synchronizes audio and video output)
Lets you delay the output of audio to minimize the time gap between audio output and visual display. You can adjust the delay from 0 ms to
300 ms in 10 ms steps.
Notes
• This parameter is useful when you use a large LCD or plasma monitor or a projector.
• This parameter is not valid when
– the multi channel input is selected.
– “Analog Direct” is being used.
x Dual Mono
(Digital broadcast language selection)
Lets you select the language you want to listen to during a digital broadcast. This feature only functions for Dolby Digital sources.
• Main/Sub
Sound of the main language will be output through the front left speaker, and sound of the sub language will be output through the front right speaker simultaneously.
• Main
Sound of the main language will be output.
• Sub
Sound of the sub language will be output.
x Decode Priority
(Digital audio input decoding priority)
Lets you specify the input mode for the digital signal input to the HDMI IN jacks.
• PCM
When signals from the HDMI IN jack are selected, only PCM signals are output from the connected player. To prevent interruption when playback starts, set to “PCM”. When signals in any other format are received, set this item to “AUTO”.
• AUTO
Automatically switches the input mode between Dolby Digital, DTS or PCM.
Note
Even when “Decode Priority” is set to “PCM”, the sound may be interrupted at the very beginning of the first track depending on the CD being played back.
56
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\050AMP.fm
masterpage: Right
Settings for the video
(Video settings menu)
You can use the Video settings menu to make settings for video. Select “Video” in the
Settings menu. For details on adjusting the
parameters, see “7: Operating the receiver using the GUI (Graphical User Interface)”
Video settings menu parameters
x Resolution
(Converting Video signals)
Lets you convert the resolution of analog video input signals.
• DIRECT
• AUTO
• 480/576i
• 480/576p
• 720p
• 1080i
• 1080p
Settings for HDMI
(HDMI settings menu)
You can use the HDMI menu to make the required settings for components connected to the HDMI jack. Select “HDMI” in the Settings menu. For details on adjusting the parameters,
see “7: Operating the receiver using the GUI
(Graphical User Interface)” (page 39).
HDMI settings menu parameters
x Control for HDMI
Lets you turn the Control for HDMI function
on or off. For details, see “Control for HDMI”
x Audio Out
(Setting HDMI audio input)
Lets you set the HDMI audio signals output from the playback component connected to the receiver via an HDMI connection.
• TV+AMP
The sound is output from TV’s speaker and the speakers connected to the receiver.
Notes
• The sound quality of the playback component depends on the TV’s sound quality, such as the number of channels, and the sampling frequency, etc. When the TV has stereo speakers, the sound output from the receiver is also stereo as that of the TV, even if you play back multi channel source.
• When you connect the receiver to an image display component (projector, etc.), sound may not be output from the receiver. In this case, select “AMP”.
• AMP
The HDMI audio signals from the playback component is only output to speakers connected to the receiver. The multi channel sound can be played back as it is.
Note
Audio signals are not output from the TV speakers when “Audio Out” is set to “AMP”.
continued
57
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\050AMP.fm
masterpage: Left
x SW Level (Subwoofer level for
HDMI)
Lets you set the level of the subwoofer to 0 dB or +10 dB when PCM signals are input via an
HDMI connection. You can set the level for each HDMI input independently.
• AUTO
The subwoofer level is automatically set to 0 dB or +10 dB depending on the sampling frequency.
• +10 dB
• 0 dB
Settings for the system
(System settings menu)
You can use the System settings menu to customize the settings of the receiver. Select
“System” in the Settings menus. For details on
adjusting the parameters, see “7: Operating the receiver using the GUI (Graphical User
System settings menu parameters
x RS-232C Control
• ON
The receiver can receive commands from the
RS-232C port.
• OFF
The receiver does not receive commands from the RS-232C port.
58
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\060SUR.fm
masterpage: Right
Enjoying Surround Sound
Enjoying a preprogrammed sound field
GUI
MODE
2
3-6
6
Press
V/v repeatedly to select
the surround sound you want.
MENU
1
Start playing a sound source you want to listen to (CD, DVD, etc.).
2
Press GUI MODE to select “GUI
ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the
TV screen.
3
Press
V/v repeatedly to select
“Settings”, then press or
b.
The Settings menu list appears on the TV screen.
4
Press
V/v repeatedly to select
“Surround”, then press or
b.
5
Press
V/v repeatedly to select
“Sound Field Setup”, then press
b.
To select enhanced surround mode
1
Select “Enhanced Sur Mode” in step 5 above.
2
Press
V/v repeatedly to select the enhanced surround sound you want.
3
Press .
Note
The selected enhanced surround mode can only be applied if you have selected “Enhanced Sur” as a sound field in “Sound Field Setup” parameter.
To adjust the effect level
1
After you have selected the surround sound in step 6, press or b.
2
Press V/v repeatedly to adjust the effect level, then press /
B/b.
Higher settings apply more surround effect.
You can adjust the effect level in 4 steps
(50%, 80%, 100%, 150%).
Note
You may not able to adjust the effect level for some sound field.
59
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\060SUR.fm
Types of 2CH mode
x 2ch Stereo
The receiver outputs the sound from the front left/right speakers only. There is no sound from the subwoofer.
Standard 2 channel stereo sources completely bypass the sound field processing and multi channel surround formats are downmixed to 2 channel except LFE signals.
Note
No sound is output from the subwoofer in the 2ch
Stereo mode. To listen to 2 channel stereo sources using the front left/right speakers and a subwoofer, select “A.F.D. Auto”.
This receiver will generate a low frequency signal for output to the subwoofer when there is no LFE signal, which is a low-pass sound effect output from a subwoofer to a 2 channel signal.
x Analog Direct
You can switch the audio of the selected input to 2 channel analog input. This function enables you to enjoy high quality analog sources.
When using this function, only the volume and front speaker balance can be adjusted.
masterpage: Left
60
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\060SUR.fm
masterpage: Right
When connecting Blu-ray disc players and other next generation HD players
This receiver supports the following audio formats.
Audio format
Dolby Digital
Dolby Digital EX
Dolby Digital Plus a)
Dolby TrueHD a)
DTS
DTS-ES
DTS 96/24
DTS-HD
High Resolution Audio a)
DTS-HD
Master Audio a) b)
Multi channel Linear PCM a)
7.1ch
5.1ch
6.1ch
5.1ch
7.1ch
Maximum number of channels
Connection of the playback component and the receiver
COAXIAL/OPTICAL HDMI
a a 5.1ch
6.1ch
a a
7.1ch
× a
× a a a
× a a a a a
7.1ch
7.1ch
×
× a a a)
Audio signals are output in another format if the playback component does not correspond to the format. For details, refer to the operating instructions of the playback component.
b)
Signals with a sampling frequency of more than 96 kHz are played back at 96 kHz.
61
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\060SUR.fm
masterpage: Left
Types of A.F.D. mode
The Auto Format Direct (A.F.D.) mode allows you to listen to higher fidelity sound and select the decoding mode for listening to a 2 channel stereo sound as multi channel sound.
A.F.D. mode
[appears on TV screen]
Multi channel audio after decoding
(Detecting automatically)
Effect
Presets the sound as it was recorded/encoded without adding any surround effects.
A.F.D. Auto
[A.F.D. Auto]
Enhanced Surround Mode
[Enhanced Sur]
Pro Logic II*
[PL II]
Pro Logic IIx*
[PL IIx]
Neo:6 Cinema
[Neo:6 Cinema]
Neo:6 Music
[Neo:6 Music]
Neural-THX
®
[Neural-THX]
Multi Stereo
[Multi Stereo]
5-channel signals Performs Dolby Pro Logic II decoding.
7-channel signals Performs Dolby Pro Logic IIx decoding.
7-channel signals Performs DTS Neo:6 Cinema mode decoding.
7-channel signals Performs DTS Neo:6 Music mode decoding. This setting is ideal for normal stereo sources such as CDs.
7-channel signals Next generation of Neural-THX
®
Surround. In addition to stereo enhancement processing and pure discrete 5.1 surround sound, now capable of full 360°
7.1 surround sound playback from Neural-THX
®
Surround encoded content.
(Multi Stereo) Outputs 2 channel left/right signals from all speakers.
However, sound may not be output from certain speakers depending on the speaker settings.
* Depends on the speaker pattern setting, some enhanced surround mode parameter may not be available.
Notes
• This function does not work in the following cases.
– The multi channel input is selected.
– DTS-HD signals with a sampling frequency of more than 48 kHz are being received.
– Dolby TrueHD signals with a sampling frequency of more than 48 kHz are being received.
– “Analog Direct” is being used.
• The beginning of the sound stream may be dropped out when Neural-THX
®
processing is turned on or off.
Tips
• You can identify the encoding format of DVD software, etc., by looking at the logo on the package.
• Dolby Pro Logic IIx decoding is effective, when a multi channel signal is input.
62
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\060SUR.fm
If you connect a subwoofer
This receiver will generate a low frequency signal for output to the subwoofer when there is no LFE signal, which is a low-pass sound effect output to a subwoofer from a 2 channel signal. However, the low frequency signal is not generated for “Neo:6 Cinema” or “Neo:6
Music” when all speakers are set to “LARGE”.
In order to take full advantage of the Dolby
Digital bass redirection circuitry, we recommend setting the subwoofer’s cut off frequency as high as possible.
masterpage: Right
63
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\060SUR.fm
masterpage: Left
Types of music/movie mode
You can take advantage of surround sound simply by selecting one of the receiver’s preprogrammed sound fields. They bring the exciting and powerful sound of movie theaters and concert halls into your home.
Sound field for
Sound field
[appears on TV screen]
Effect
Movie
Music
Cinema Studio EX A
DCS
[Cinema St EX A]
Cinema Studio EX B
DCS
[Cinema St EX B]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Cary Grant Theater” cinema production studio. This is a standard mode, great for watching almost any type of movie.
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Kim Novak Theater” cinema production studio. This mode is ideal for watching science-fiction or action movies with lots of sound effects.
Cinema Studio EX C
DCS
[Cinema St EX C]
Reproduces the sound characteristics of the Sony Pictures
Entertainment scoring stage. This mode is ideal for watching musicals or films where orchestra music is featured in the soundtrack.
V.Multi Dimension
DCS [V.Multi Dimension]
Creates many virtual speakers from a single pair of actual surround speakers.
Hall [Hall]
Jazz Club [Jazz Club]
Reproduces the acoustics of a classical concert hall.
Reproduces the acoustics of a jazz club.
Live Concert [Live Concert] Reproduces the acoustics of a 300-seat live house.
Stadium [Stadium] Reproduces the feeling of a large open-air stadium.
Headphone a)
Sports [Sports]
Portable Audio Enhancer
[Portable Audio]
Reproduces the feeling of sports broadcasting.
Reproduces a clear enhanced sound image from your portable audio device. This mode is ideal for MP3 and other compressed music.
Headphone (2ch)
[HP(2CH)]
Headphone Theater DCS
[HP Theater]
This mode is selected automatically when you use headphones when sound field is selected for movie/music. It allows you to experience a theater-like environment while listening through a pair of headphones.
Headphone (Multi)
[HP MULTI] b)
This mode is selected automatically if you use headphones when “2ch Stereo” mode or A.F.D. mode is selected. Standard
2 channel stereo sources completely bypass the sound field processing and multi channel surround formats are downmixed to 2 channels except LFE signals.
This mode is selected automatically if you use headphones when the multi channel input is selected. Outputs the front analog signals from the MULTI CHANNEL INPUT jacks.
Headphone (Direct)
[HP(Direct)]
Outputs the analog signals without processing by the tone, sound field, etc.
a)
You can select this sound field mode if the headphones are connected to the receiver.
b)
Appears on the display window only.
64
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\060SUR.fm
masterpage: Right
Notes
• The sound fields for music and movies do not work in the following cases.
– The multi channel input is selected.
– DTS-HD signals with a sampling frequency of more than 48 kHz are being received.
– Dolby TrueHD signals with a sampling frequency of more than 48 kHz are being received.
– Signals with a sampling frequency of more than
48 kHz are being received.
– The multi channel PCM signals are received via a HDMI IN jack.
• When one of the sound fields for music is selected, no sound is output from the subwoofer if all the speakers are set to “LARGE” in the Speaker settings menu.
However, the sound will be output from the subwoofer if
– the digital input signal contains LFE signals.
– the front and surround speakers are set to
“SMALL”.
– the sound field for movie is selected.
– “Portable Audio” is selected.
Tips
• You can identify the encoding format of DVD software, etc., by looking at the logo on the package.
• Sound fields with DCS marks use DCS
technology. See “Glossary” (page 125).
• When the sound field’s DCS mark is selected, the Digital Cinema Sound lamp lights up on the display.
To turn off the surround effect for MOVIE/MUSIC
Select “2ch Stereo” or “A.F.D. Auto” in the
Surround settings menu.
Resetting sound fields to the initial settings
Be sure to use the buttons on the receiver for this operation.
1,2
2
1
Press POWER to turn off the receiver.
2
While holding down MUSIC, press POWER.
“S.F. CLEAR” appears on the display and all sound fields are reset to their initial setting.
65
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\070SET.fm
masterpage: Left
Enjoying the surround effect at low volume levels
(NIGHT MODE)
This function allows you to retain a theater like environment at low volume levels. This function can be used with other sound fields.
When watching a movie late at night, you will be able to hear the dialog clearly even at a low volume level.
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
NIGHT
MODE
Advanced Speakers Setting Up
Adjusting the speaker settings manually
You can adjust each speaker manually.
You can also adjust the speaker levels after the
Auto Calibration is completed.
Making settings with the
Manual Setup menu
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
1
2-8
Press NIGHT MODE.
The NIGHT MODE function is activated. The
NIGHT MODE is set to on and off as you press NIGHT MODE.
Note
This function does not work in the following cases.
– The multi channel input is selected.
– Dolby TrueHD signals with a sampling frequency of more than 96 kHz are being received.
– PCM signals with a sampling frequency of more than 96 kHz are being received.
MENU
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the
TV screen.
2
Press
V/v repeatedly to select
“Settings”, then press or
b.
The Settings menu list appears on the TV screen.
3
Press
V/v repeatedly to select
“Speaker”, then press or
b.
66
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\070SET.fm
masterpage: Right
4
Press
V/v repeatedly to select
“Manual Setup”, then press or
b.
Manual Setup menu parameters
x Level
(Level of speaker)
You can adjust each speaker’s level (center, surround left/right, surround back left/right, subwoofer). You can adjust the level from –20 dB to +10 dB in 0.5 dB steps.
For the front left/right speakers, you can adjust the balance on either side. You can adjust the front left level from FL–10.0 dB to FL+10.0 dB in 0.5 dB steps. You can also adjust the front right level from FR–10.0 dB to FR+10.0 dB in 0.5 dB steps.
5
Press
V/v/B/b to select speaker
you want to adjust.
6
Press .
7
Press
B/b repeatedly to select
the parameter you want.
8
Press
V/v repeatedly to adjust
the setting.
x Distance
(Distance from the seating position to each speaker)
You can adjust the distance from the listening position to each speaker (front left/right, center, surround left/right, surround back left/ right, subwoofer).
You can adjust the distance from 1.0 meter to
10.0 meters (3 feet 3 inches to 32 feet
9 inches) in 0.01 meter (1 inch) steps.
continued
67
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\070SET.fm
masterpage: Left
x Size
(Size of each speaker)
You can adjust each speaker’s (front left/right, center, surround left/right, surround back left/ right) size.
• LARGE
If you connect large speakers that will effectively reproduce bass frequencies, select “LARGE”. Normally, select
“LARGE”.
• SMALL
If the sound is distorted, or you feel a lack of surround effects when using multi channel surround sound, select “SMALL” to activate the bass redirection circuitry and output the bass frequencies of each channel from the subwoofer or other “LARGE” speakers.
Note
When one of the sound fields for music is selected, no sound is output from the subwoofer if all the speakers are set to “LARGE”. However, the sound will be output from the subwoofer if the digital input signal contains LFE signals, or if the front or surround speakers are set to “SMALL”, the sound field for movie is selected, or “Portable Audio” is selected.
Tips
• The “LARGE” and “SMALL” settings for each speaker determine whether the internal sound processor will cut the bass signal from that channel.
When the bass is cut from a channel, the bass redirection circuitry sends the corresponding bass frequencies to the subwoofer or other “LARGE” speakers.
However, since bass sound has a certain amount of directionality, it is best not to cut it, if possible.
Therefore, even when using small speakers, you can set them to “LARGE” if you want to output the bass frequencies from that speaker. On the other hand, if you are using a large speaker, but prefer not to have bass frequencies output from that speaker, set it to “SMALL”.
If the overall sound level is lower than you prefer, set all speakers to “LARGE”. If there is not enough bass, you can use the equalizer to boost the bass levels.
• The surround back speakers will be set to the same setting as that of the surround speakers.
• When the front speakers are set to “SMALL”, the center, surround, and surround back speakers are also automatically set to “SMALL”.
• If you do not use the subwoofer, the front speakers are automatically set to “LARGE”.
68
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\070SET.fm
masterpage: Right
Making settings with the
Speaker Pattern menu
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
1
2-5
5
Press
V/v repeatedly to select
the speaker pattern you want.
MENU
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the
TV screen.
2
Press
V/v repeatedly to select
“Settings”, then press or
b.
The Settings menu list appears on the TV screen.
3
Press
V/v repeatedly to select
“Speaker”, then press or
b.
4
Press
V/v repeatedly to select
“Speaker Pattern”, then press
or
b.
Select “Speaker Pattern” according to the speaker system which you are using. You do not need to select the speaker pattern after Auto Calibration.
69
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\070SET.fm
masterpage: Left
Making settings with the Test
Tone menu
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
1
2-6
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the
TV screen.
2
Press
V/v repeatedly to select
“Settings”, then press or
b.
The Settings menu list appears on the TV screen.
3
Press
V/v repeatedly to select
“Speaker”, then press or
b.
4
Press
V/v repeatedly to select
“Test Tone”, then press or
b.
5
Press
V/v repeatedly to select
the speaker you want to adjust, then press .
The test tone is output from each speaker in sequence.
6
Adjust the parameter using
V/v,
then press .
Tips
• To adjust the level of all speakers at the same time, press MASTER VOL +/–. You can also use MASTER VOLUME on the receiver.
• The adjusted value is shown on the display during adjustment.
When a test tone is not output from the speakers
• The speaker cords may not be connected securely. Check to see if they are connected securely and cannot be disconnected by pulling on them slightly.
• The speaker cords may have the short-circuit problem.
When a test tone is output from a different speaker than the speaker displayed on the screen
The speaker pattern to the connected speaker is not set up correctly. Make sure the speaker connection and the speaker pattern match.
70
US
You can select the test tone type.
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\070SET.fm
masterpage: Right
Test Tone menu parameters
x Test Tone
• OFF
• AUTO
The test tone is output from each speaker in sequence.
• FL, CNT, FR, SR, SBR, SBL, SB, SL, SW
You can select which speakers will output the test tone.
x Phase Noise
• OFF
• FL/FR, FL/CNT, CNT/FR, FR/SL, FR/SR,
SR/SL, SR/SBR, SBR/SBL, SR/SB, SBL/
SL, SB/SL, SL/FL, FL/SR
Lets you output the test tone sequentially from adjacent speakers.
Some items may not be displayed, depending on the setting of the speaker pattern.
x Phase Audio
• OFF
• FL/FR, FL/CNT, CNT/FR, FR/SL, FR/SR,
SR/SL, SR/SBR, SBR/SBL, SR/SB, SBL/
SL, SB/SL, SL/FL, FL/SR
Lets you output front 2 channel source sound
(instead of the test tone) sequentially from adjacent speakers.
Some items may not be displayed, depending on the setting of the speaker pattern.
Other parameters of Speaker settings menu
x BI-AMP Speaker
• OFF
If you have not connected surround back speakers, select “OFF”.
• ON
If you connect front speakers in a biamplifier configuration, select “ON”.
Note
Set “BI-AMP Speaker” to “OFF”, then connect the surround back speakers to this receiver when you want to change the connection from a bi-amplifier connection to a surround back speakers connection.
Re-set up the speakers after you connect the surround back speakers. Refer to “Auto Calibration”
(page 44) or “Manual Setup” (page 67).
x Crossover Freq
(Speaker crossover frequency)
Lets you set the bass crossover frequency of speakers that has been set to “SMALL” in the
Speaker menu. Measured speaker crossover frequency is set for each speaker after the Auto
Calibration.
The adjusted value is set for each speaker when you adjust the speaker crossover frequency using “Crossover Freq” after the
Auto Calibration.
continued
71
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\070SET.fm
masterpage: Left
x D.Range Comp
(Dynamic range compressor)
Lets you compress the dynamic range of the sound track. This may be useful when you want to watch movies at low volumes late at night. Dynamic range compression is possible with Dolby Digital sources only.
• MAX
The dynamic range is compressed dramatically.
• STD
The dynamic range is compressed as intended by the recording engineer.
• AUTO
The dynamic range is applied automatically with Dolby TrueHD source or other source is set to “OFF”.
• OFF
The dynamic range is not compressed.
Tips
• Dynamic range compressor lets you compress the dynamic range of the soundtrack based on the dynamic range information included in the Dolby
Digital signal.
• “STD” is the standard setting, but it only enacts light compression. Therefore, we recommend using the “MAX” setting. This greatly compresses the dynamic range and lets you view movies late at night at low volumes. Unlike analog limiters, the levels are predetermined and provide a very natural compression.
x Distance Unit (Distance unit)
Lets you select the unit of measure for setting distances.
• METER
The distance is displayed in meters.
• FEET
The distance is displayed in feet.
Adjusting the equalizer
You can use following parameters to adjust the tonal quality (bass/treble level) of all speakers, and apply them. These settings are applied to all sound fields and for each speaker.
Bass Treble
Level
(dB)
Frequency
(Hz)
Notes
• This function does not work in the following cases.
– The multi channel input is selected.
– Dolby TrueHD signals with a sampling frequency of more than 96 kHz are being received.
– PCM signals with a sampling frequency of more than 96 kHz are being received.
• If the equalizer is adjusted while the receiver is receiving signals with a sampling frequency of more than 96 kHz, the signals will always be played back at 96 kHz.
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
1
2-5
OPTIONS
MENU
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the
TV screen.
72
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Right
2
Press
V/v repeatedly to select
“Settings”, then press or
b.
The Settings menu list appears on the TV screen.
3
Press
V/v repeatedly to select
“EQ”, then press or
b.
4
Choose the speaker you want to adjust using
B/b, then press
.
5
Press
B/b repeatedly to select
“Bass” or “Treble”, then press
V/v to adjust the parameter.
Tip
You can adjust the front speaker bass and treble level with TONE MODE and TONE +/– on the receiver.
Tuner Operations
Listening to FM/AM radio
You can listen to FM and AM broadcasts through the built-in tuner. Before operation, make sure you have connected the FM and
AM antennas (aerials) to the receiver
Tip
The tuning scale for direct tuning is shown below.
• FM band100 kHz
• AM band10 kHz*
* The AM tuning scale can be changed (page 135).
Automatic tuning
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
1
2-4
MENU
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the
TV screen.
2
Press
V/v repeatedly to select
“FM” or “AM”, then press or
b.
The FM or AM menu list appears on the
TV screen.
continued
73
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Left
3
Press
V/v to select “Auto
Tuning”, then press or
b.
Direct tuning
You can enter the frequency of a station directly by using the numeric buttons.
4
4
0/10
ENT/MEM
4
Press
V/v.
Press
V to scan from low to high, press v to scan from high to low.
The receiver stops scanning whenever a station is received.
In case of poor FM stereo reception
1
Press OPTIONS.
2
Press V/v to select “FM Mode”, then press b.
3
Press V/v to select “MONO”, then press .
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE 1
2,3,
5
MENU
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the
TV screen.
2
Press
V/v repeatedly to select
“FM” or “AM”, then press or
b.
3
Press
V/v to select “Direct
Tuning”, then press or
b.
74
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Right
4
Press SHIFT, then press numeric buttons to enter the frequency.
Example 1: FM 102.50 MHz
Select 1 b 0 b 2 b 5
Example 2: AM 1,350 kHz
Select 1 b 3 b 5 b 0
Presetting radio stations
You can preset up to 30 FM and 30 AM stations. Then you can easily tune in the stations you often listen to.
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
MENU
1
2,
5-7
4
Tip
If you have tuned in an AM station, adjust the direction of the AM loop antenna
(aerial) for optimum reception.
5
Press .
If you cannot tune in a station
“– – – .– – MHz” appears and then the display returns to the current frequency.
Make sure you have entered the right frequency. If not, repeat step 4. If you still cannot tune in a station, the frequency is not used in your area.
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the TV screen.
2
Press
V/v repeatedly to select
“FM” or “AM”, then press or
b.
3
Tune in the station that you want to preset using Automatic
Tuning (page 73) or Direct
Tuning (page 74).
In case of poor FM stereo reception,
switch the FM reception mode (page 74).
4
Press OPTIONS.
5
Press
V/v to select “Memory”,
then press or
b.
6
Press
V/v to select a preset
number.
7
Press .
The station is stored as the selected preset number.
continued
75
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Left
8
Repeat steps 3 to 7 to preset another station.
To tune to preset stations
1
Repeat steps 1 and 2 of “Presetting radio stations”.
2
Press V/v to select the preset station you want.
You can select a preset station as follows:
• AM band AM 1 to AM 30
• FM band FM 1 to FM 30
To name preset stations
1
Select a preset station you want to name.
2
Press OPTIONS, then select “Name
Input”.
For details on naming operations, refer to
Listening to satellite radio
About XM Radio
XM is North America’s number one satellite radio company, offering an extraordinary variety of commercial-free music, plus the best in premier sports, news, talk radio, comedy, children’s and entertainment programming, broadcast in superior digital audio quality coast to coast. For more information, or to subscribe,
U.S. customers visit xmradio.com or call XM
Listener Care at 1-800-XMRADIO (1-800-
967-2346); Canadian customers visit xmradio.ca or call XM Listener Care at 1-877-
GETXMSR (1-877-438-9677).
XM Ready
®
Legal
XM monthly service subscription sold separately. XM Mini-Tuner and Home Dock required (each sold separately) to receive XM service. It is prohibited to copy, decompile, disassemble, reverse engineer, hack, manipulate or otherwise make available any technology or software incorporated in receivers compatible with the XM satellite
Radio System. Installation costs and other fees and taxes, including a one-time activation fee may apply. All fees and programming subject to change. Channels with frequent explicit language are indicated with an XL. Channel blocking is available for XM radio receivers by calling 1-800-XMRADIO (U.S. residents) and
1-877-GETXMSR (Canadian residents). Only available in the 48 contiguous United States and Canada. ©2008 XM Satellite Radio Inc.
All rights reserved.
76
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Right
XM Ready
®
Subscription
Once you have installed the XM Mini-Tuner
Home Dock, inserted the XM Mini-Tuner, connected the XM Mini-Tuner Home Dock to your XM Ready
®
audio system, and installed the antenna, you are ready to subscribe and begin receiving XM programming. There are three places to find your eight character XM
Radio ID: On the XM Mini-Tuner, on the XM
Mini-Tuner package, and on XM Channel 0.
Record the Radio ID below for reference.
ssssssss
Note
The XM Radio ID does not use the letters “I”, “O”,
“S” or “F”.
Activate your XM Satellite Radio service in the U.S. online at http://activate.xmradio.com or call 1-800-XMRADIO (1-800-967-2346).
Activate your XM Satellite Radio service in
Canada online at https://activate.xmradio.ca or call 1-877-GET-XMSR (1-877-438-9677).
You will need a major credit card. XM will send a signal from the satellites to activate the full channel lineup. Activation normally takes
10-15 minutes, but during peak busy periods you may need to keep your XM Ready audio system on for up to an hour. When you can access the full lineup on your XM Ready audio system you are done.
SIRIUS Satellite Radio: The Best
Radio On Radio
SIRIUS brings all your favorite entertainment including 100% commercial-free music, plus superior sports coverage, uncensored talk and comedy, world-class entertainment, news, weather and more for your car, home or office.
Sirius is available in the US for subscribers with addresses in the continental US and is available in Canada for subscribers with a Canadian address. Required subscription plus compatible
SiriusConnect Home Tuner with antenna are required and sold separately. SIRIUS
Programming is subject to change. Visit sirius.com or siriuscanada.ca for the most complete and up-to-date channel lineup and product information. “SIRIUS” and the SIRIUS dog logo and related marks are trademarks of
SIRIUS Satellite Radio Inc. All rights reserved.
To Subscribe to SIRIUS Satellite
Radio
Purchase and connect a SiriusConnect Home
Tuner to your Sirius Ready home audio system.
You are then ready to activate and subscribe to
Sirius by either calling 1.888.539.SIRIUS
(7474) or log on to sirius.com (US), siriuscanada.ca (Canada). It is that easy.
77
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Left
Connecting the XM Radio or
SIRIUS Satellite Radio
SIRIUS jack XM jack
To connect to the XM jack
Before operating the system, connect the XM
Mini-Tuner and Home Dock to the XM jack.
Note
To ensure optimal reception of XM’s satellite signal, move your antenna to various window locations around your home to see where the best reception will be received. Most XM customers place the antenna in a south-facing window with a clear view to the sky.
To connect to the SIRIUS jack
Connect the SiriusConnect Home tuner. When you use the SiriusConnect Home tuner with this receiver, be sure to connect the AC power adaptor supplied with the tuner to a wall outlet.
Keep the SiriusConnect Home tuner, antenna, and AC power adaptor away from the speaker cords and the power cord to avoid picking up noise.
Aiming the XM Radio or SIRIUS antenna (aerial)
2CH/
A.DIRECT
A.F.D.
RESOLUTION
INPUT
MODE
MOVIE MUSIC
SLEEP
NIGHT
MODE
GUI
MODE
1
2-3
HOME
CATEGORY
MENU
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the TV screen.
2
Press
V/v repeatedly to select
“XM” or “SR”, then press or
b.
3
Press OPTIONS, then press
V/v
repeatedly to select “Antenna
Aiming”, then press .
78
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Right
4
While checking the parameter, aim your antenna (aerial) to where the best reception will be received.
For details on the parameter, see “Signal strength” below.
Signal strength
Signal strength
Signal type
Satellite Terrestrial
Good
Marginal
Weak
None
Checking the XM Radio ID or
SIRIUS ID number
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the TV screen.
2
Press
V/v repeatedly to select
“XM” or “SR”, then press or
b.
XM
1
2-3
3
MENU
continued
79
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Left
SIRIUS
Selecting a channel by Category
Mode
You can select a channel from one category or all the categories.
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
3
Press OPTIONS, then press
V/v
repeatedly to select “Radio ID” or “Sirius ID”, then press .
XM
SIRIUS
1
2-4
MENU
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the TV screen.
2
Press
V/v repeatedly to select
“XM” or “SR”, then press or
b.
3
Press
V/v repeatedly to select
the category, then press or
b.
• ALL: You can select a channel from all the categories.
• (category name): You can select a channel from one category.
XM
4
Check the XM Radio ID or
SIRIUS ID on the TV screen and write it in the space provided here.
XM Radio ID:_____________________
Sirius ID:_________________________
80
US
You can also check the XM Radio ID and
SIRIUS ID using the display on the receiver.
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Right
SIRIUS
Selecting a channel by inputting the channel number directly
5
5
0/10
ENT/MEM
Note
When the “Preset Mode” screen is displayed, press OPTIONS, then press V/v repeatedly to select “Category Mode”.
4
Press
V/v to select the channel,
then press .
The selected channel is being received.
The channel information is displayed on the TV screen.
Note
When you select a channel in the “Category Mode”, the channel you selected may not be the one in the category you want. This is because one channel may belong to more than one category.
MENU
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the TV screen.
2
Press
V/v repeatedly to select
“XM” or “SR”, then press or
b.
3
Press OPTIONS.
4
Press
V/v to select “Direct
Tuning”, then press .
5
Press SHIFT, then press numeric buttons to enter the channel number.
6
Press .
The selected channel is tune in.
81
US
1
2,
4,6
3
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Left
Presetting the channels
You can select the channels you want directly by presetting them using the preset numbers.
You can preset up to 30 XM Radio channels and 30 SIRIUS Satellite Radio channels.
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
1
MENU
2,
5,6
4
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the TV screen.
2
Press
V/v repeatedly to select
“XM” or “SR”, then press or
b.
3
Select a channel you want to preset using Category Tuning
(page 80) or Direct Tuning
(page 81).
4
Press OPTIONS.
5
Press
V/v to select “Memory”,
then press or
b.
6
Press
V/v repeatedly to select
the preset channel you want, then press .
Preset channels from 1 to 30 are available, and a default channel is preset for all the preset channels when you purchase the receiver.
The selected channel is registered as the preset channel you selected in step 3.
7
Repeat steps 3 to 6 to preset another channel.
To select the preset channels
1
Repeat steps 1 and 2 of “Presetting the channels”.
2
Press V/v to select the preset number from the preset list, then press .
You can select stored preset channels from
1 to 30.
Notes
• The channel information you have preset may be changed if XM Satellite Radio Inc. or SIRIUS
Satellite Radio Inc. change their channel programming.
• When the “Category Mode” screen is displayed, press OPTIONS, then press
V/v to select “Preset
Mode”.
82
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Right
Restricting access to specific channels (Parental Lock)
(SIRIUS only)
You can restrict access to certain channels using your own lock code. The lock code is set to “0000” as the default.
Change the lock code before you use this
function for the first time (see “To change the lock code”).
3
Select a channel you want to lock using Category Tuning
(page 80) or Direct Tuning
(page 81).
4
Press OPTIONS, then press
V/v
to select “Parental Lock”, then press
b.
6
MENU
0/10
ENT/MEM
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
6
1
2,
4,5
4
5
Press
V/v repeatedly to select
“ON”, then press .
“Enter your 4-digit lock code.” appears.
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the TV screen.
2
Press
V/v repeatedly to select
“SR”, then press or
b.
continued
83
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Left
6
Press SHIFT, then press the numeric buttons to enter your
4-digit lock code.
“The channel has been locked.” appears and the Parental Lock is set.
To delete the numbers you have entered, go back to step 4 by pressing RETURN/
EXIT O, and then repeat the procedure above from step 4.
To change the lock code
1
Press V/v repeatedly to select “SR”, then press or b.
2
Press OPTIONS, then press V/v to select “Lock Code”, then press .
“Enter your 4-digit lock code.” appears.
3
Press SHIFT, then press the numeric buttons to enter your 4-digit lock code.
“Enter a new lock code.” appears.
4
Enter a new 4-digit lock code using the numeric buttons.
“To confirm, enter your new lock code again.” appears.
5
Reenter the new lock code with the numeric buttons.
“The lock code has been changed.” appears.
To listen to the locked channels
1
Press V/v repeatedly to select “SR”, then press or b.
2
Select a locked channel you want to listen to using “Direct Tuning”
“The channel is locked. Enter your 4-digit lock code.” appears.
3
Press SHIFT, then press the numeric buttons to enter your 4-digit lock code.
The channel is tuned in.
To cancel the Parental Lock
1
Press V/v repeatedly to select “SR”, then press or b.
2
Tune in the channel you want to unlock
using “Direct Tuning” (page 81).
3
Press OPTIONS, then press V/v to select “Parental Lock”, then press or b.
4
Press V/v repeatedly to select “OFF”, then press .
“Enter your 4-digit lock code.” appears.
5
Press SHIFT, then press the numeric buttons to enter your 4-digit lock code.
“The channel has been unlocked.” appears and the channel is unlocked.
Notes
• When you select a channel using Category Tuning, locked channels are skipped.
• When the receiver is reset to the factory settings, the lock code returns to the default (0000), but the
Parental Lock settings are not removed.
• You cannot preset locked channels. If you set the
Parental Lock for a preset channel, the preset information for that channel returns to the default.
• You cannot set the Parental Lock for channel 0 or channel 184.
84
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Right
XM Radio messages list
Message appears on TV screen
[Display window]
Explanation
Check XM Tuner
[XM TUNER]
The XM Mini-Tuner is not installed or not fully seated in the XM Mini-
Tuner Home Dock or the XM Mini-
Tuner Home Dock is not connected to the receiver.
Remedies
Confirm the XM Mini-Tuner is fully seated in the dock and check the XM Mini-Tuner and Home
Dock cable is connected to the receiver.
Check Antenna
[ANTENNA]
CH Unauthorized
[UNAUTH]
No Signal
[NO SIGNAL]
The XM antenna is not connected to Check that the XM antenna is connected to the XM the XM Mini-Tuner Home Dock or the XM antenna cable is damaged.
Mini-Tuner and Home Dock securely and check the antenna cable for damage. Replace the XM antenna if the cable is damaged.
You have selected an XM channel that is blocked or cannot be received with your XM subscription package.
Consult the latest channel guide at www.xmradio.com (US residents) or www.xmradio.ca (Canadian residents) for the current list of channels.
For information on receiving this channel, visit www.xmradio.com (US residents) or www.xmradio.ca (Canadian residents). You can also contact XM Satellite Radio at 1-800-967-2346
(US residents) or 1-877-438-9677 (Canadian residents).
The XM Mini-Tuner is not receiving the XM satellite signal.
The XM antenna’s view of the satellites may be blocked or the antenna is not properly aimed.
Check the antenna for obstructions and reposition the XM antenna to get a better signal reception. To optimize the antenna position, see “Aiming the XM
Radio or SIRIUS Antenna” (page 78).
Refer to the operating instructions supplied with the XM Mini-Tuner and Home Dock for antenna installation information.
Loading
[LOADING]
Off Air
[OFF AIR]
–––
CH Unavailable
[CH UNAVL]
The XM Mini-Tuner is acquiring audio or program information from the XM satellite signal. This
This message should disappear in a few second when the signal is strong.
If you often see this message, reposition the XM message can also occur in weak XM signal conditions.
antenna for better signal reception.
To optimize the antenna position, see “Aiming the
XM Radio or SIRIUS Antenna” (page 78).
You have selected an XM channel that is not currently broadcasting.
Check this XM channel later. In the meantime, select another channel.
No artist name or song title is available for this selection.
—
The selected channel is not available. The channel may have been reassigned to a different channel number. This message may occur initially with a new radio or a radio that has not received XM’s signal for an extended period.
Consult the latest channel guide at www.xmradio.com (US residents) or www.xmradio.ca (Canadian residents) for the current channel list. For a new radio or a radio that has not received XM’s signal for an extended period, allow the radio to receive the XM satellite signal for at least 5 minutes and then select the channel again.
continued
85
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\080TUN.fm
masterpage: Left
SIRIUS Satellite Radio message list
Message appears on TV screen
[Display window]
Explanation
Antenna Error
[ANTENNA]
Acquiring Signal
[ACQUIRING]
The antenna is not connected properly.
Remedies
Check the connection between the SiriusConnect
Home tuner and the antenna.
The receiving condition is not good. Try moving the antenna to another location. For details about the antenna location, see the instructions supplied with the SiriusConnect Home tuner.
Call 888-539-SIRI
[CALL 888,
539-SIRI]
Check Sirius Tuner
[SR TUNER]
Invalid CH
[INVALID]
You have not subscribed for the selected channel.
—
The SiriusConnect Home tuner is not connected properly.
Check all the connections, and then turn the system on again. Also make sure if the AC adaptor supplied with the SiriusConnect Home tuner is connected to a wall socket.
You have entered an invalid channel number.
The channel to be tuned-in is void due to the change by the broadcast service, or the receiving condition is not good.
The selected channel is locked.
— Locked Channel
[LOCKED CH]
Sub Updated
[SUB UPDT]
The subscription information has been updated.
Updating
[UPDATING] xx% Completed
(xx are for integers)
Channel information is being updated.
—
—
FW Updating
[FW UPDT]
–––––
The SiriusConnect Home tuner firmware is being updated.
There is no text information in the channel.
—
This is not an error. The text information may not be displayed depending on the system condition, for example, right after the system has received a channel.
86
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
Control for HDMI
Using the Control for
HDMI function for
“BRAVIA” Sync
To use “BRAVIA” Sync, set the Control for
HDMI function as explained below.
By connecting Sony components that are compatible with the Control for HDMI function with an HDMI cable (not supplied), operation is simplified as follows:
• One-Touch Play: When you play back a component such as a DVD/Blu-ray disc player, the receiver and the TV are turned on automatically and switched to the appropriate HDMI input.
• System Audio Control: While watching TV, you can select to output the sound from the
TV speaker or the speakers connected to the receiver.
• System Power Off: When you turn off the
TV, the receiver and connected components are also turned off simultaneously.
Control for HDMI is a mutual control function standard used by HDMI CEC (Consumer
Electronics Control) for HDMI (High-
Definition Multimedia Interface).
The Control for HDMI function does not work in the following cases:
• When you connect the receiver to a component which does not correspond with
Sony Control for HDMI function.
• When you connect the receiver and components using other than HDMI connection.
We recommend that you connect the receiver to products featuring “BRAVIA” Sync.
Note
Depending on the connected component, the
Control for HDMI function may not work. Refer to the operating instructions of the component.
87
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
Connecting a TV and other components
Before connecting cords, be sure to disconnect the AC power cord (main lead).
Satellite tuner/Set-top box
Audio/video signals
A
To enjoy TV multi channel surround sound broadcasting
You can listen to TV multi channel surround sound broadcasting from the speakers connected to the receiver.
Connect the OPTICAL output jack of the TV to the TV OPTICAL IN jack of the receiver.
Blu-ray disc player
Audio/ video signals
A
DVD player
Audio/video signals
A
B C A
Audio signals
Audio/video signals
TV, etc.
A
HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
B Optical digital cord (not supplied) a)
C
Audio cord (not supplied) a) a)
Connect at least one of the audio cords (B or C).
88
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
Preparing Control for
HDMI function
This receiver supports the Control for HDMI-
Easy Setting function.
This function is only available for certain types of TV. When you perform the Control for
HDMI-Easy Setting from the TV, the Control for HDMI setting on this receiver will automatically change accordingly.
During the Control for HDMI-Easy Setting operation, “SCANNING” flashes in the display.
This receiver will automatically change the input to HDMI input. When the setting is completed, “COMPLETE” appears on the display.
For details, refer to the operating instructions of the TV.
If your TV does not support the Control for
HDMI-Easy Setting function, do the following procedures. For details on setting the TV and connected components, refer to the operating instructions of the respective components.
1
Make sure that the receiver is connected to the TV and components (compatible with
Control for HDMI function) via HDMI connection.
2
Turn on the receiver, TV and connected components.
3
Set the respective Control for HDMI function for the receiver and TV to on.
See “To set Control for HDMI” (page 90).
When the receiver menu is displayed on the
TV screen in the screen mode, press GUI
MODE repeatedly to select “GUI OFF” to enter the display mode, then check the TV display image of the component connected to the receiver.
For details on setting the TV, refer to the operating instructions of the TV.
4
Select the HDMI input of the receiver and
TV to match the HDMI input of the connected component, so that the image from the connected component is displayed.
5
Set the Control for HDMI function for the connected component to on.
If the Control for HDMI function for the connected component is already set to on, you do not need to change the setting.
6
Repeat steps 4 and 5 for other components that you want to use the Control for HDMI function.
Notes
• If you unplug and reconnect the HDMI cable, be sure to repeat steps 1 to 6 above.
• You cannot perform One-Touch Play and System
Audio Control during the Control for HDMI-Easy
Setting operation.
• Before you do the Control for HDMI-Easy Setting from the TV, be sure to turn on the TV, connected components and receiver.
• If the playback components cannot function after you have made the settings for Control for HDMI-
Easy Setting, check the Control for HDMI setting on your TV.
• If the connected components do not support
Control for HDMI-Easy Setting, you need to set the Control for HDMI function for the connected components to on before you perform the Control for HDMI-Easy Setting from the TV.
89
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
To set Control for HDMI
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
2-5
1
MENU
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the
TV screen.
2
Press
V/v repeatedly to select
“Settings”, then press or
b.
The Settings menu list appears on the TV screen.
3
Press
V/v repeatedly to select
“HDMI”, then press or
b.
4
Press
V/v repeatedly to select
“Control for HDMI”, then press
or
b.
5
Press
V/v repeatedly to select
“ON”, then press .
Control for HDMI function is activated.
Watching a DVD
(One-Touch Play)
You can enjoy sound and image from the components connected to the receiver via
HDMI connections by a simple operation.
Play back a connected component.
The receiver and the TV are turned on automatically and switched to the appropriate
HDMI input.
Watching a DVD by simple operation
You can also select a connected component, such as a DVD/Blu-ray disc player using the
TV menu. In this case, the receiver and the TV switch to the appropriate HDMI input.
Note
Depending on the TV, the start of the content may not be output.
90
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
Enjoying the TV sound from the speakers connected to the receiver
(System Audio Control)
You can enjoy the TV sound from the speakers connected to the receiver by a simple operation.
You can operate System Audio Control function using the TV menu. For details, refer to the operating instructions of the TV.
When System Audio Control function is turned on, the receiver will turns on and switches to the appropriate input automatically.
TV sound is output from the speakers connected to the receiver, and the volume of the TV is minimized simultaneously.
You can also use the System Audio Control function as follows.
• If you turn on the receiver while the TV is turned on, the System Audio Control function will automatically be set to on and the TV sound will output from the speakers connected to the receiver. However, if you turn off the receiver, the sound will output from the TV speakers.
• You can adjust the receiver’s volume when you adjust the TV volume.
Notes
• If System Audio Control does not function according to your TV setting, refer to the operating instructions of the TV.
• When “Control for HDMI” is set to “ON”, the
“Audio Out” settings in the HDMI menu will set automatically depending on the System Audio
Control settings.
• When you connect a TV that does not have System
Audio Control function, the System Audio Control function does not work.
• If the TV is turned on before turning on the receiver, the TV sound will not be output for a moment.
Turning off the receiver with the TV
(System Power Off)
When you turn the TV off by using the
POWER button on the TV’s remote, the receiver and the connected components turn off automatically.
You can also use the receiver’s remote to turn off the TV.
TV
AV ?/1
Press TV, then press AV ?/1.
The TV, receiver and the components connected via HDMI are turned off.
Notes
• Set the TV Standby Synchro to “ON” before using the System Power Off function. For details, refer to the operating instructions of the TV.
• Depending on the status, the connected components may not be turned off. For details, refer to the operating instructions of the connected components.
91
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
Other Operations
Converting analog video input signals
This receiver allows you to convert the resolution of analog video input signals.
RESOLUTION
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
Press RESOLUTION repeatedly.
Each time you press the button, the resolution of the output signals will be changed.
You can also use “Resolution” in the Video settings menu.
Enjoying the DIGITAL
MEDIA PORT adapter
(DMPORT)
The DIGITAL MEDIA PORT (DMPORT) allows you to enjoy sound from a network system such as a portable audio/video source or computer.
By connecting a DIGITAL MEDIA PORT adapter, you can enjoy sound and image from the connected component on the receiver.
For details on connecting the DIGITAL
MEDIA PORT adapter, see “Connecting components with digital audio output jacks”
Sony offers the following DIGITAL MEDIA
PORT adapters:
• TDM-BT1 Bluetooth™ Wireless Audio
Adapter
• TDM-NW1/NW10 DIGITAL MEDIA
PORT Adapter
• TDM-NC1 Wireless Network Audio Client
• TDM-iP1/iP10/iP50 DIGITAL MEDIA
PORT Adapter
• TDM-MP10 DIGITAL MEDIA PORT
Adapter
The DIGITAL MEDIA PORT adapter is an optional product.
Notes
• Do not connect an adapter other than the DIGITAL
MEDIA PORT adapter.
• Before disconnecting the DIGITAL MEDIA PORT adapter, make sure to turn the receiver off using the remote.
• Do not connect or disconnect the DIGITAL
MEDIA PORT adapter while the receiver is turned on.
• Depending on the type of DIGITAL MEDIA
PORT adapter, video output may not be possible.
• The DIGITAL MEDIA PORT adapters are available for purchase depending on the area.
92
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
Selecting an operation screen to operate the component connected to the DIGITAL MEDIA
PORT adapter
You can select an operation screen using the
GUI menu, depending on the DIGITAL
MEDIA PORT adapter you want to use. For some adapter, such as TDM-BT1 or TDM-
NW1, the operation screen is fixed and you cannot change it on the GUI screen.
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
1
2,
3,5
4
4
Press OPTIONS to display
“Function List”.
5
Press
V/v to select “DMPORT
Control”.
You can select the following modes in this menu;
• System GUI
This mode is for the TDM-iP1 and
TDM-NC1. The list of tracks will be displayed on the GUI screen of the receiver. You can select a track you want and play back it on each GUI screen.
• Adapter GUI
This mode is for the TDM-iP1 and
TDM-NC1. The menu of the adapter will be displayed on the TV screen.
• iPod
This mode can be selected only when the TDM-iP1 is connected.
If “DMPORT Control” is not displayed, see the operating instructions supplied with component for details on operating that component.
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the
TV screen.
2
Press
V/v repeatedly to select
“Music”, then press or
b.
3
Press
The component connected to the
DIGITAL MEDIA PORT adapter is recognized and “DMPORT” on the screen will change to each component’s name.
The category of the component connected to DIGITAL MEDIA PORT adapter appears on the TV screen.
93
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
Operating the component connected to the DIGITAL MEDIA
PORT adapter
To operate the TDM-iP1 or TDM-
NC1 using the GUI menu of the receiver
1
Make sure that “System GUI” is
selected in step 5 in “Selecting an operation screen to operate the component connected to the DIGITAL MEDIA PORT adapter” (page 93).
2
Select content from the contents list displayed on the
GUI screen and play it back.
iPod Playlists > Playlist > Track
Artists > Track
Albums > Album > Track
Songs > Track
Genres > Genre > Artist > Album > Track
Composers > Composer > Track
Audiobooks > Audiobook
Network Client Music Surfin a)
> Album c)
> Track
Playlist a)
> Playlist > Track
Web Radio a)
> Station > Program
Music Library b)
> Album > Track
a)
Displayed only when M-crew Server is connected.
b)
Displayed only when a DLNA server other than
M-crew Server is connected.
c)
Displayed as “Genre”, “Artist” or “Album”, depending on setting of “List Mode”.
To operate the TDM-iP1 or TDM-
NC1 using the adapter menu
Make sure that “Adapter GUI” is selected in
step 5 in “Selecting an operation screen to operate the component connected to the
DIGITAL MEDIA PORT adapter” (page 93).
For details on operating the adapter using the adapter GUI menu, refer to the operating instructions supplied with the adapter you are using.
To operate the TDM-iP1 using the iPod menu
Make sure that “iPod” is selected in step 5 in
“Selecting an operation screen to operate the component connected to the DIGITAL
MEDIA PORT adapter” (page 93).
For details on operating the iPod, refer to the operating instruction supplied with the iPod.
94
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
Playing the selected track
During playback of the selected track, the displayed screen changes depending on the
DIGITAL MEDIA PORT adapter connected.
TDM-iP1
TDM-NC1
You can also operate the components connected to the DIGITAL MEDIA PORT adapter using the following buttons on the remote of the receiver.
To Do the following
Play
Pause
Press N.
Press X. To resume play, press the button again.
Press x.* Stop
Find the beginning of a track during playback, or find the beginning of the previous track
Press ..
Find the beginning of the next track
Press >.
Skip to the previous album
Press B•.
Skip to the next album Press • b.
Go backward/forward Press m/M.**
* When a TDM-iP1 is connected, the receiver enters pause mode when x is pressed.
** Fast-backward/forward while pressing and holding the m/M button.
Option parameters in the play modes
x Repeat Mode (TDM-iP1 only)
• Off
• One
• All x Shuffle (TDM-iP1 only)
• Off
• Songs
• Albums x List Mode (TDM-NC1 only)
• All Tracks
• Disc List
• Artist List
• Genre List
Tip
The List Mode can be used with the Function List menu even when the list is displayed.
continued
95
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
DIGITAL MEDIA PORT message list
Message appears Explanation
No Adapter
No Device
No Audio
Loading
No Server*
No Track*
No Item*
Connecting*
Configuring*
Warning*
Party Mode*
Searching*
The adapter is not connected.
There is no device connected to the adapter.
No audio file was found.
The data is being read.
There is no server connected.
No track was found.
No item was found.
Connecting to the server.
The network is setting up.
Check the display of the
DIGITAL MEDIA PORT adapter.
The unit is currently in party mode “Guest”.
Searching the server.
* TDM-NC1 only.
Naming inputs
You can enter a name of up to 8 characters for inputs and display it.
This is convenient for labeling the jacks with the names of the connected components.
INPUT
MODE
NIGHT
MODE
GUI
MODE
3-4
2
1
Choose the item you want to name.
You can name the following items.
• Auto Calibration position (page 44)
2
Press OPTIONS.
3
Select “Name Input”, then press .
96
US
4
Press
V/v/B/b to select a
character, then press .
The name you entered is registered.
To cancel naming input
Press RETURN/EXIT O.
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
Switching between digital and analog audio
(INPUT MODE)
When you connect components to both digital and analog audio input jacks on the receiver, you can fix the audio input mode to either of them, or switch from one to the other, depending on the type of material you intend to watch.
0/10
ENT/MEM
1
Audio input modes
• AUTO
Gives priority to digital audio signals when there are both digital and analog connections. If there are more than one digital connection, HDMI audio signals have priority over COAXIAL and OPTICAL audio signals.
If there are no digital audio signals, analog audio signals are selected.
• ANALOG
Specifies the analog audio signals input to the AUDIO IN (L/R) jacks.
Notes
• Some audio input modes may not be set up depending on the input.
• When XM, SIRIUS or DMPORT input is selected,
“------” appears on the display, and you cannot select other modes. Select an input mode other than the XM, SIRIUS and DMPORT input, then set the audio input mode.
• When “Analog Direct” is being used, or the multi channel input is selected, audio input is automatically set to “ANALOG”. You cannot select other modes.
2
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
1
Press the input button.
You can also use INPUT SELECTOR on the receiver.
2
Press INPUT MODE repeatedly to select the audio input mode.
The selected audio input mode appears on the display window.
97
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
Enjoying the sound/ images from other inputs
You can reassign video and/or audio signals to another input.
Example: Connect the OPTICAL OUT jack of the DVD player to the OPTICAL VIDEO 1 IN jack of this receiver when you want to input the only digital optical audio signals from the
DVD player.
Connect the component video jack of the DVD player to the COMPONENT VIDEO COMPO
1 IN jack of this receiver when you want to input the video signals from the DVD player.
Assign video and/or audio signals to the DVD input jack using “Input Assign” in the Input menu.
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
6
1
2,3,5
4
MENU
2
Press
V/v repeatedly to select
“Input”, then press or
b.
3
Press
V/v to select the input
name you want to assign.
4
Press OPTIONS, then select
“Input Assign”.
1
Press GUI MODE repeatedly to select “GUI ON”.
“GUI MODE” appears on the display window of the receiver and the GUI menu appears on the TV screen. Press MENU if the GUI menu does not appear on the
TV screen.
5
Select the audio and/or video signals you want to assign to the input which you selected in step 3 using
V/v/B/b.
98
US
6
Press RETURN/EXIT O to
enter the setting.
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
Input name
Assignable video input jacks
COMPONENT 1
COMPONENT 2
COMPONENT 3
COMPOSITE
NONE
Assignable audio input jacks
VIDEO 1 OPT
SAT OPT
DVD COAX
SA-CD COAX
VIDEO1 VIDEO2 BD
a a a a
– a
– a a a a a a a a a
– a a a a a a a a
– a
DVD
a a
– a a a a
– a
SAT
a a a a
–
– a a a
MD/
TAPE
a
SA-CD/
CD
MULTI
IN
a a a a
– a a a
– a a a a a a a a a
– a
–
–
–
–
– a
Notes
• You cannot assign optical signals from an input source to the optical input jacks on the receiver, and you cannot assign coaxial signals from the input source to the coaxial input jacks on the receiver.
• When you assign the digital audio input, the INPUT MODE setting may change automatically.
99
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
Changing the display
You can check the sound field, etc., by changing the information on the display.
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
DISPLAY
GUI
MODE
MENU
Press DISPLAY repeatedly.
Each time you press DISPLAY, the display will change as follows.
Input name you selected* t Original input name t Sound field currently applied t
Volume t Stream information
FM and AM band
Preset station name* t Frequency t Sound field currently applied t Volume
* Index name appears only when you have assigned one to the input or preset station.
Index name does not appear when only blank spaces have been entered.
Note
Character or marks may not be displayed for some languages.
Tip
You cannot switch the display while “GUI MODE” is shown on the display window. Press GUI MODE repeatedly to select “GUI OFF”.
100
US
masterpage: Left
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
About the indicators on the display window
masterpage: Right
Name
A SW
B LFE
C COAX
Function
Lights up when subwoofer is connected and the audio signal is output from the
SUBWOOFER jack. While this indicator lights up, the receiver creates a subwoofer signal based on the LFE signal in the disc being played back or the low frequency components of the front channels.
Lights up when the disc being played back contains an LFE (Low Frequency
Effects) channel and the
LFE channel signal is actually being reproduced.
Since the LFE signal is not recorded in all parts of the input signal the bar indication will fluctuate
(and may turn off) during playback.
Lights up when INPUT
MODE is set to “AUTO” and the source signal is a digital signal being input through the COAXIAL jack.
Name
D OPT
Function
Lights up when INPUT
MODE is set to “AUTO” and the source signal is a digital signal being input through the OPTICAL jack.
E ; D/
; D EX/
; D+/
; TrueHD
“; D” lights up when the receiver is decoding Dolby
Digital signals.
“; D EX” lights up when the receiver is decoding
Dolby Digital Surround EX signals.
“; D+” lights up when the receiver is decoding Dolby
Digital Plus signals.
“; TrueHD” lights up when the receiver is decoding Dolby TrueHD signals.
Note
When playing a Dolby Digital format disc, be sure that you have made digital connections and that INPUT MODE is set
F Neural-THX Lights up when the receiver applies Neural-THX processing to input signals.
continued
101
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
Name Function
G DTS/
DTS-ES/
DTS 96/24
“DTS” lights up when the receiver is decoding DTS signals.
“DTS-ES” lights up when the receiver is decoding
DTS-ES signals.
“DTS 96/24” lights up when the receiver is decoding DTS 96/24 (DTS
96 kHz/24 bit) signals.
Note
When playing a DTS format disc, be sure that you have made digital connections and that INPUT MODE is set to
H D.RANGE
Lights up when dynamic range compression is activated.
I CAT
Lights up when category mode is selected during the satellite radio operation.
J SP A/SP B/
SP A+B
Lights up according to the speaker system used
indicators do not light up if the speaker output is turned off or if headphones are connected.
K Tuner indicators
Lights up when using the receiver to tune in radio stations, etc.
L SLEEP
Lights up when the sleep timer is activated.
M A.DIRECT Lights up when the receiver is processing Analog Direct signals.
N SIRIUS
Lights up when the
SiriusConnect Home tuner is connected and “SIRIUS” is selected.
O MEM
Lights up when a memory function, such as Preset
Memory etc., is activated.
Name
P XM
Function
Lights up when XM Mini-
Tuner and Home Dock are connected and “XM” is selected.
Q ; PL/
; PL II/
; PL IIx
“; PL” lights up when the receiver applies Pro Logic processing to 2 channel signals in order to output the center and surround channel signals.
“; PL II” lights up when the Pro Logic II decoder is activated.
“; PL IIx” lights up when the Pro Logic IIx decoder is activated.
However, these indicators do not light up if both the center and surround speakers are not connected and you select a sound field using the A.F.D. button.
Note
Dolby Pro Logic IIx decoding does not function for signals with a sampling frequency of more than 48 kHz.
R BI-AMP
Lights up when BI-AMP
Speaker setting is set to
“ON”.
S EQ
Lights up when the equalizer is activated.
T NEO:6
Lights up when DTS Neo:6
Cinema/Music decoding is activated.
U DTS-HD
MSTR/
DTS-HD HI
RES
“DTS-HD MSTR” lights up when the receiver is decoding DTS-HD Master
Audio signals.
“DTS-HD HI RES” lights up when the receiver is decoding DTS-HD High
Resolution signals.
V LPCM
Lights up when Linear
PCM signals are detected.
102
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
Name Function
W ANALOG
Lights up when
– INPUT MODE is set to
“AUTO” and no digital signal is being input through the COAXIAL,
OPTICAL or HDMI jacks.
– INPUT MODE is set to
“ANALOG”.
– the “Analog Direct” is being used.
X DMPORT
Lights up when DIGITAL
MEDIA PORT adapter is connected and “DMPORT” is selected.
Y MULTI IN
Lights up when multi channel input is selected.
Z HDMI
Lights up when the receiver recognizes a component connected via an HDMI IN jack.
Name
wj Playback channel indicators
L
R
C
SL
SR
S
SBL
SBR
SB
Function
The letters (L, C, R, etc.) indicate the channels being played back. The boxes around the letters vary to show how the receiver downmixes the source sound (based on the speaker settings).
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the surround components obtained by Pro Logic processing)
Surround Back Left
Surround Back Right
Surround Back (the surround back components obtained by 6.1 channel decoding)
Example:
Recording format (Front/
Surround): 3/2.1
When Speaker Pattern is set
Sound Field: A.F.D. AUTO
103
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
Using the sleep timer
You can set the receiver to turn off automatically at a specified time.
SLEEP
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
Recording using the receiver
You can record from a video/audio component using the receiver. Refer to the operating instructions supplied with your recording component.
Press SLEEP repeatedly while the power is on.
Each time you press SLEEP, the display changes cyclically as follows:
MD/
TAPE
SA-CD/
CD
0/10
ENT/MEM
1
When sleep timer is being used, “SLEEP” lights up in the display.
Tip
To check the remaining time before the receiver turns off, press SLEEP. The remaining time appears on the display. If you press SLEEP again, the sleep timer will be cancelled.
2CH/
A.DIRECT
Recording onto a MiniDisc or audio tape
You can record onto a MiniDisc or audio tape using the receiver. See the operating instructions supplied with your MD deck or tape deck.
1
Press the input button of the playback component.
You can also use INPUT SELECTOR on the receiver.
2
Prepare the playback component for playing.
For example, insert a CD into the CD player.
3
Prepare the recording component.
Insert a blank MD or tape into the recording deck and adjust the recording level.
104
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
4
Start recording on the recording deck, then start playback on the playback component.
Notes
• Sound adjustments do not affect the signal output from the MD/TAPE OUT jacks.
• The audio input signals from the MULTI
CHANNEL INPUT jacks are not output.
Recording onto a recording media
1
Press the input button of the playback component.
You can also use INPUT SELECTOR on the receiver.
2
Prepare the component for playing.
For example, insert the video tape you want to copy into the VCR.
3
Prepare the recording component.
Insert a blank video tape, etc., into the recording component (connected to the
VIDEO 1 OUT jack) for recording.
4
Start recording on the recording component, then start playback on the playback component.
Notes
• Some sources contain copy guards to prevent recording. In this case, you may not be able to record from the sources.
• The audio input signals from the MULTI
CHANNEL INPUT jacks are not output.
• Only analog input signals are output from the analog output jack (for recording).
• HDMI sound cannot be recorded.
Using a bi-amplifier connection
If you are not using surround back speakers, you can use the SURROUND BACK
SPEAKERS terminals for the front speakers for use with a bi-amplifier connection.
To connect speakers
Front speaker
(R)
Front speaker
(L)
Hi
Lo
Hi
Lo
Connect the terminals on the Lo (or Hi) side of the front speakers to the FRONT SPEAKERS
A terminals, and connect the terminals on the
Hi (or Lo) side of the front speakers to the
SURROUND BACK SPEAKERS terminals.
Make sure that metal fittings of Hi/Lo attached to the speakers have been removed from the speakers. Not doing so may cause the receiver to malfunction.
continued
105
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
To set up speakers
Set “Bi-AMP Speaker” to “ON” in the
Speaker settings menu. The same signals output from the FRONT SPEAKERS A jacks can be output from the SURROUND BACK
SPEAKERS terminals by setting “Bi-AMP
Speaker” to “ON”.
Notes
• You cannot use the FRONT SPEAKERS B jacks for a bi-amplifier connection.
• When you use the Auto Calibration function, make the bi-amplifier settings before you perform Auto
Calibration.
• If you make the bi-amplifier settings, the speaker level, and equalizer settings of the surround back speakers become invalid, and those of the front speakers are used.
• Signals output from the PRE OUT jacks are used with the same settings as those of the SPEAKERS terminals.
Operating without connecting to the TV
You can operate this receiver using the display even if you do not use a GUI when a TV monitor is not connected.
Press GUI MODE repeatedly to select “GUI OFF”.
When “GUI MODE” is displayed in the display window, the menu is set to display on the TV screen using a GUI.
Navigating through menus on the display
1
MD/
TAPE
SA-CD/
CD
0/10
ENT/MEM
2CH/
A.DIRECT
INPUT
MODE
NIGHT
MODE
GUI
MODE
3-8
2
1
Press AMP.
2
Press MENU.
3
Press
V/v repeatedly to select
the menu you want.
106
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
4
Press menu.
5
Press
V/v repeatedly to select
the parameter you want to adjust.
6
Press parameter.
7
Press
V/v repeatedly to select
the setting you want.
8
Press to enter the setting.
To return to the previous display
Press
B.
To exit the menu
Press MENU.
Note
Some parameters and settings may appear dimmed on the display. This means that they are either unavailable or fixed and unchangeable.
masterpage: Right
107
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
Overview of the menus
The following options are available in each menu. For details on navigating through
Menu
[Display window]
Parameters
[Display window]
Auto Calibration settings
[<AUTO CAL>]
Auto Calibration start
[A.CAL START]
Calibration type [CAL TYPE]
Level settings
[<LEVEL>]
Settings Initial setting
FULL FLAT, ENGINEER,
FRONT REF, OFF
POS 1, POS 2, POS 3
FULL FLAT
Position [POSITION]
Naming inputs [NAME IN]
Test tone
[TEST TONE]
Phase noise
[P. NOISE]
OFF, AUTO xxx a)
, FIX xxx a)
POS 1
OFF
Phase audio
[P. AUDIO]
Front left speaker level
[FL LEVEL]
Front right speaker level
[FR LEVEL]
Center speaker level
[CNT LEVEL]
Surround left speaker level
[SL LEVEL]
Surround right speaker level
[SR LEVEL]
Surround back speaker level
[SB LEVEL]
Surround back left speaker level
[SBL LEVEL]
Surround back right speaker level
[SBR LEVEL]
Subwoofer level
[SW LEVEL]
Dynamic range compressor
[D. RANGE]
OFF, FL/FR, FL/CNT, CNT/FR, FR/SL,
FR/SR, SR/SL, SR/SBR, SBR/SBL,
SR/SB, SBL/SL, SB/SL, SL/FL, FL/SR
OFF
OFF, FL/FR, FL/CNT, CNT/FR, FR/SL,
FR/SR, SR/SL, SR/SBR, SBR/SBL,
SR/SB, SBL/SL, SB/SL, SL/FL, FL/SR
OFF
FL 0 dB FL –10.0 dB to FL +10.0 dB
(0.5 dB step)
FR –10.0 dB to FR +10.0 dB
(0.5 dB step)
FR 0 dB
CNT 0 dB CNT –20.0 dB to CNT +10.0 dB
(0.5 dB step)
SL –20.0 dB to SL +10.0 dB
(0.5 dB step)
SR –20.0 dB to SR +10.0 dB
(0.5 dB step)
SB –20.0 dB to SB +10.0 dB
(0.5 dB step)
SBL –20.0 dB to SBL +10.0 dB
(0.5 dB step)
SBR –20.0 dB to SBR +10.0 dB
(0.5 dB step)
SL 0 dB
SR 0 dB
SB 0 dB
SBL 0 dB
SBR 0 dB
SW –20.0 dB to SW +10.0 dB
(0.5 dB step)
COMP. MAX, COMP. STD, COMP.
AUTO, COMP. OFF
SW 0 dB
COMP.
AUTO
108
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
Menu
[Display window]
Speaker settings
[<SPEAKER>]
Parameters
[Display window]
Speaker pattern
[SP PATTERN]
Settings
3/4.1, 3/4, 3/3.1, 3/3, 2/4.1,
2/4, 3/2.1, 3/2, 2/3.1, 2/3,
2/2.1, 2/2, 3/0.1, 3/0, 2/0.1, 2/0
LARGE, SMALL Front speakers
[FRT SP]
Center speaker
[CNT SP]
Surround speakers
[SUR SP]
Bi-amplifier
[BI-AMP SP]
Front left speaker distance
[FL DIST.]
LARGE, SMALL
LARGE, SMALL
OFF, ON
Front right speaker distance
[FR DIST.]
Center speaker distance
[CNT DIST.]
Surround left speaker distance
[SL DIST.]
Surround right speaker distance
[SR DIST.]
FL 3’3” to FL 32’9” (FL 1.0 m to
FL 10.0 m) (1 inch (0.01 m) step)
FR 3’3” to FR 32’9” (FR 1.0 m to
FR 10.0 m) (1 inch (0.01 m) step)
CNT 3’3” to CNT 32’9” (CNT 1.0 m to CNT 10.0 m) (1 inch (0.01 m) step)
Surround back speaker distance
[SB DIST.]
Surround back left speaker distance
[SBL DIST.]
SBL 3’3” to SBL 32’9” (SBL 1.0 m to
SBL 10.0 m) (1 inch (0.01 m) step)
Surround back right speaker distance [SBR DIST.]
Subwoofer distance
[SW DIST.]
Distance unit b)
[DIST. UNIT]
SBR 3’3” to SBR 32’9” (SBR 1.0 m to SBR 10.0 m) (1 inch (0.01 m) step)
SW 3’3” to SW 32’9” (SW 1.0 m to
SW 10.0 m) (1 inch (0.01 m) step)
METER, FEET
Front speakers crossover frequency b)
[FRT CROSS]
Center speaker crossover frequency b)
[CTR CROSS]
SB 3’3” to SB 32’9” (SB 1.0 m to
SB 10.0 m) (1 inch (0.01 m) step)
CROSS 40 Hz to CROSS 200 Hz
(10 Hz step)
CROSS 40 Hz to CROSS 200 Hz
(10 Hz step)
Surround speakers crossover frequency b)
[SUR CROSS]
Speaker Impedance
[SP IMP.]
SL 3’3” to SL 32’9” (SL 1.0 m to
SL 10.0 m) (1 inch (0.01 m) step)
SR 3’3” to SR 32’9” (SR 1.0 m to SR
10.0 m) (1 inch (0.01 m) step)
CROSS 40 Hz to CROSS 200 Hz
(10 Hz step)
8 ohms, 4 ohms
Initial setting
3/4.1
LARGE
LARGE
LARGE
OFF
CROSS
120 Hz
CROSS
120 Hz
CROSS
120 Hz
8 ohms
FL 9’10”
(3 m)
FR 9’10”
(3 m)
CNT 9’10”
(3 m)
SL 9’10”
(3 m)
SR 9’10”
(3 m)
SB 9’10”
(3 m)
SBL 9’10”
(3 m)
SBR 9’10”
(3 m)
SW 9’10”
(3 m)
FEET
continued
109
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
Menu
[Display window]
EQ settings
[<EQ>]
Parameters
[Display window]
Surround settings
[<SURROUND>]
Sound field selection
[S.F. SELECT]
Enhanced surround mode
[E.SUR MODE]
Effect level
[EFFECT]
Front speakers bass level
[FRT BASS]
Front speakers treble level
[FRT TREBLE]
Tuner settings
[<TUNER>]
Center speaker bass level
[CNT BASS]
Center speaker treble level
[CNT TREBLE]
Surround speakers bass level
[SUR BASS]
Surround speakers treble level
[SUR TREBLE]
FM station receiving mode
[FM MODE]
Naming preset stations
[NAME IN]
XM antenna aiming mode
[XM ANT AIM] d)
XM radio ID
[XM ID]
Parental lock
[PARENTAL]
Lock code edit
[CODE EDIT]
Sirius antenna aiming mode
[SR ANT AIM] e)
Sirius radio ID
[SIRIUS ID]
Settings Initial setting
PLII c)
, PLIIx c)
, NEO6 CIN, NEO6
MUS, NEURAL-THX
PLIIx
EFCT. 50%, EFCT. 80%, EFCT. 100%,
EFCT. 150%
EFCT.
100%
FRT B. –10 dB to FRT B. +10 dB
(1 dB step)
FRT T. –10 dB to FRT T. +10 dB
(1 dB step)
FRT B.
0 dB
FRT T.
0 dB
CNT B. –10 dB to CNT B. +10 dB
(1 dB step)
CNT T. –10 dB to CNT T. +10 dB
(1 dB step)
SUR B. –10 dB to SUR B. +10 dB
(1 dB step)
SUR T. –10 dB to SUR T. +10 dB
(1 dB step)
STEREO, MONO
CNT B.
0 dB
CNT T.
0 dB
SUR B.
0 dB
SUR T.
0 dB
STEREO
OFF, ON OFF
110
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
Menu
[Display window]
Audio settings
[<AUDIO>]
Video settings
[<VIDEO>]
HDMI settings
[<HDMI>]
Parameters
[Display window]
Synchronizes audio with video output
[A/V SYNC]
Digital broadcast language selection
[DUAL MONO]
Digital audio input decoding priority
[DEC. PRIO]
Digital audio input assignment
[A. ASSIGN]
VIDEO 1? b
VIDEO 2? b
BD? b
DVD? b
SAT? b
MD/TAPE? b
SA-CD/CD? b
Converting video signals
[RESOLUTION]
Video input assignment
[V. ASSIGN]
VIDEO 1? b
VIDEO 2? b
BD? b
DVD? b
SAT? b
MD/TAPE? b
SA-CD/CD? b
MULTI IN? b
Control for HDMI
[CTRL:HDMI]
Setting HDMI audio input
[AUDIO OUT]
Subwoofer level for HDMI
[SW LEVEL]
Settings
0 ms to 300 ms
(10 ms step)
MAIN/SUB, MAIN, SUB
DEC. AUTO, DEC. PCM
VIDEO 1 OPT, SAT OPT, DVD COAX,
SA-CD COAX, ANALOG
DIRECT, AUTO, 480/576i,
480/576p, 720p, 1080i, 1080p
COMPONENT 1, COMPONENT 2,
COMPONENT 3, COMPOSITE
COMPONENT 1, COMPONENT 2,
COMPONENT 3, NONE
CTRL OFF, CTRL ON
AMP, TV+AMP
SW AUTO, SW +10 dB, SW 0 dB
Initial setting
0 ms
MAIN
DEC.
AUTO
AUTO
CTRL OFF
AMP
SW 0 dB
continued
111
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
Menu
[Display window]
System settings
[<SYSTEM>]
Parameters
[Display window]
Naming inputs
[NAME IN]
Brightness of the display
[DIMMER]
RS-232C Control
[RS-232C]
Settings
0% DOWN, 60% DOWN,
100% DOWN
OFF, ON
Initial setting
0% DOWN
ON a) b) c) d) e) xxx represent a speaker channel (FL, FR, CNT, SL, SR, SB, SBL, SBR, SW).
You cannot select this setting if your speaker is set to “LARGE”.
This parameter is available depending on the speaker configuration.
This parameter is only available if the XM Mini-Tuner and Home Dock is connected to the XM jack on the receiver.
This parameter is only available if the SiriusConnect Home Tuner is connected to the SIRIUS jack on the receiver.
112
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
Performing Auto Calibration
For details on the Auto Calibration, see “9:
Calibrating the appropriate speaker settings automatically (Auto Calibration)” (page 44).
Refer to “Before you perform the Auto
Calibration” (page 44) before performing the
Auto Calibration.
To operate on the receiver
1
Press GUI MODE repeatedly to select
“GUI OFF”.
2
Press AMP.
Receiver operation is enabled.
3
Press MENU.
4
Press V/v repeatedly to select “<AUTO
CAL>” , then press .
5
Press V/v repeatedly to select
“A.CAL START”, then press to start the measurement.
Measurement starts in 5 seconds. A count down is displayed.
Note
While the time is counting down, stand away from the measurement area to avoid measurement error.
6
Measurement starts.
The measurement process will take approximately 30 seconds. Wait until the measurement process completes.
To cancel Auto Calibration
The measurement will be canceled when you do the following:
– Press ?/1, input buttons or MUTING.
– Press SPEAKERS (OFF/A/B/A+B) on the receiver.
– Change the volume level.
– Connect the headphones.
Tips
• Operations other than turning the receiver on or off are deactivated during Auto Calibration.
• The measurements may not be performed correctly or Auto Calibration cannot be performed when special speakers, such as dipole speakers are used.
To confirm/save Auto
Calibration when GUI function is turned off
1
Confirm the measurement result.
When the measurement ends, a beep sounds and the measurement result appears on the display window.
Measurement result
Display window
Explanation
When the measurement process completes properly
When the measurement process fails
COMPLETE Proceed to step
2.
E- xxx:xx
2
Press V/v repeatedly to select the item, then press .
Item Explanation
RETRY
SAVE EXIT
Performs the Auto Calibration again.
Saves the measurement results and exits the setting process.
WARN CHECK Displays a warning concerning the measurement
results. See “Message list after Auto Calibration measurement” (page 49).
PHASE INFO.
Displays the phase of each speaker (in phase/out of
DIST. INFO.
Displays the measurement result for speaker distance.
LEVEL INFO.
Displays the measurement result for speaker level.
continued
113
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
Item Explanation
EXIT Exits the setting process without saving the measurement results.
3
Select “SAVE EXIT” in step 2.
The measurement results are saved.
4
Press V/v repeatedly to select the Auto
Calibration Type, then press .
Auto
Calibration
Type
FULL FLAT
Explanation
ENGINEER
FRONT REF
OFF
Makes the measurement of frequency from each speaker flat.
Sets the frequency characteristics to a set that matches that of the Sony listening room standard.
Adjusts the characteristics of all the speakers to match the characteristics of the front speaker.
Set the Auto Calibration EQ to off.
Tip
The size of a speaker (LARGE/SMALL) is determined by the low frequency characteristics.
The measurement results may vary, depending on the position of the optimizer microphone and speakers, and the shape of the room. It is recommended that you follow the measurement results. However, you can change those settings in the Speaker settings menu. Save the measurement results first, then try to change the settings if you want.
When you select “PHASE INFO.”
You can check the phase of each speaker (in phase/out of phase).
Press V/v repeatedly to select a speaker, then press
to return to step 1 in “To confirm/save Auto Calibration when GUI function is turned off”.
Display window
xxx*:IN
Explanation
The speaker is in phase.
xxx*:OUT The speaker is out of phase. The
“+” and “–” terminals of the speaker may be connected the other way around. However, depending on the speakers,
“xxx:OUT” appears on the display even though the speakers are connected properly. This is because of the speakers’ specifications. In this case, you can continue to use the receiver.
xxx*– – – No speakers are connected.
* xxx represent a speaker channel.
FL Front Left
FR Front Right
CNT Center
SL Surround Left
SR Surround Right
SB Surround Back
SBL Surround Back Left
SBR Surround Back Right
SW Subwoofer
Tip
Depending on the position of the subwoofer, the measurement results for polarity may vary.
However, there will be no problems even if you continue to use the receiver with that value.
Selecting a sound field type
For details on each sound field type, see
“Enjoying a pre-programmed sound field”
Press 2CH/A.DIRECT, A.F.D.,
MOVIE, or MUSIC repeatedly.
The selected sound field type appears on the display.
114
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
To select Enhanced Surround
Mode
1
Press AMP.
2
Press MENU.
3
Press V/v repeatedly to select
“<SURROUND>”, then press or b.
4
Press V/v repeatedly to select
“<E.SUR MODE>”, then press or b.
5
Press V/v repeatedly to select the
Enhanced Surround Mode you want, then press .
Note
The selected Enhanced Surround Mode can only be applied if you have selected “E.SURROUND” by pressing A.F.D repeatedly.
Listening to the sound without any adjustment (ANALOG
DIRECT)
Press 2CH/A.DIRECT repeatedly to select “A.DIRECT”.
Listening to the FM/AM radio
For details on the tuner function, see “Tuner
Tuning radio stations
1
Press TUNER repeatedly to select the
FM or AM band.
You can also use INPUT SELECTOR on the receiver.
2
Press TUNING + or TUNING –.
Press TUNING + to scan from low to high frequencies, press TUNING – to scan from high to low frequencies. The receiver stops scanning whenever a station is received.
You can also press TUNING MODE on the receiver to select “AUTO” and then turn
TUNING +/– to select stations.
Selecting a frequency directly
(Direct Tuning)
1
After selecting the FM or AM band, press D.TUNING.
2
Press SHIFT, then press numeric buttons to enter the frequency.
3
Press .
Presetting radio stations
1
Tune in the station that you want to preset.
For details on the operation, refer to
2
Press SHIFT, then press ENT/
MEM.
You can also use MEMORY/ENTER on the receiver.
“MEM” lights up for a few seconds.
Perform steps 3 and 4 before “MEM” disappears.
3
Press PRESET + or PRESET – to select a preset number.
30 FM and 30 AM preset numbers are available. If “MEM” disappears before you select the preset number, start again from step 2.
4
Press ENT/MEM.
If SHIFT indicator is light off before you press ENT/MEM, press SHIFT.
You can also use MEMORY/ENTER on the receiver. The station is stored as the selected preset number.
If “MEM” disappears before you press
ENT/MEM, start again from step 2.
5
Repeat steps 1 to 4 to preset another station.
continued
115
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Left
Selecting a preset station
1
Press TUNER repeatedly to select the
FM or AM band.
2
Press PRESET+ or PRESET – repeatedly to select the preset station you want.
You can also press SHIFT, then press numeric buttons to select the preset station you want. Then, press to enter the selection.
You can also press TUNING MODE on the receiver repeatedly to select “PRESET” then use TUNING +/– to select the preset station you want.
Listening to satellite tuner
For details on XM/SIRIUS Radio service,
refer to “Listening to satellite radio” (page 76)
Aiming the XM Radio or SIRIUS
Antenna
You can use “XM ANT AIM” or “SR ANT
AIM” in the Tuner settings menu to help you aim the antenna for optimal signal reception.
1
Press XM to select “XM RADIO” or press SIRIUS to select “SIRIUS”.
You can also use INPUT SELECTOR on the receiver.
2
Press AMP.
3
Press MENU.
4
Press V/v repeatedly to select
“<TUNER>”.
5
Press
6
Press V/v repeatedly to select “XM
ANT AIM” or “SR ANT AIM”.
7
Press
8
While checking the parameter, aim your antenna to where the best reception will be received.
For details on the parameter, see “XM
Signal Strength” or “SIRIUS Signal
XM Signal Strength
Signal strength
GOOD
MARGINAL
WEAK
NO SIGNAL
Signal type
Satellite Terrestrial
S:3
S:2
S:1
S:0
T:3
T:2
T:1
T:0
SIRIUS Signal Strength
Signal
Strength
EXC (excellent)
GOOD
WEAK
NONE
Signal type
Satellite Terrestrial
S:3
S:2
T:3
T:2
S:1
S:0
T:1
T:0
116
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\090OTH.fm
masterpage: Right
Checking the Satellite Tuner ID
1
Press XM to select “XM RADIO” or press SIRIUS to select “SIRIUS”.
You can also use INPUT SELECTOR on the receiver.
2
Press TUNING + or TUNING – to select channel 0.
You can also press TUNING MODE on the receiver to select “AUTO” then turn
TUNING +/– to select channel 0.
3
Check the XM ID or SIRIUS ID on the display and write it in the space provided here.
XM ID:_____________________
SIRIUS ID:_______________________
Selecting channels from a category (CATEGORY TUNING)
1
Press XM to select “XM RADIO” or press SIRIUS to select “SIRIUS”.
You can also use INPUT SELECTOR on the receiver.
2
Press CATEGORY MODE repeatedly to select “ONE CAT”.
• ALL CAT: You can select a channel from all the categories. The initial setting is
“ALL CAT”.
• ONE CAT: You can select a channel from one category. “CAT” lights up on the display when you set to “ONE CAT” mode.
3
Press CATEGORY + or CATEGORY – to select the category you want.
The category is selected and the channel with the lowest number in the specified category is selected.
4
Press TUNING + or TUNING – to select the channel.
You can also press TUNING MODE on the receiver to select “AUTO”, then turn
TUNING +/– to select the channel.
Selecting a channel number directly (Direct tuning)
1
After selecting satellite tuner, press
D.TUNING.
2
Press SHIFT, then press numeric buttons to enter the channel number.
3
Press .
Displaying the satellite tuner information
Press DISPLAY repeatedly.
Each time you press DISPLAY while tuning in the channel, the display changes cyclically as follows:
Channel name t Channel number t
Category name t Artist name/Feature t
Song/Program title t Composer name
(SIRIUS only) t Signal strength t Sound field currently applied t Volume
117
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\100REM.fm
masterpage: Left
Presetting satellite tuner channels
1
Select a channel you want to preset.
For details on this operation, refer to
“Selecting channels from a category
2
Press SHIFT, then press ENT/
MEM.
You can also use MEMORY/ENTER on the receiver.
“MEM” lights up on the display.
3
Press PRESET + or PRESET – to select a preset number.
You can also select the number by pressing SHIFT, then numeric buttons.
Preset numbers from 1 to 30 are available.
Channel 1 is preset for the preset numbers when you purchase the receiver.
4
Press ENT/MEM.
If SHIFT indicator is light off before you press ENT/MEM, press SHIFT.
You can also use MEMORY/ENTER on the receiver.
“MEM” lights off.
5
Repeat steps 1 to 4 to preset another channel.
Selecting a preset channel
1
Press XM to select “XM RADIO” or press SIRIUS to select “SIRIUS”.
2
Press PRESET+ or PRESET – repeatedly to select the preset channel you want.
You can also press SHIFT, then numeric buttons to select the preset channel you want. Then, press ENT/MEM to enter the selection.
You can also press TUNING MODE on the receiver repeatedly to select “PRESET” then use TUNING +/– to select the preset channel you want.
118
US
Using the Remote
Operating each component using the remote
When you program the remote to control the following Sony or non-Sony components, you can use the buttons on the remote that are marked with circles. Note, however, that some buttons may not operate your component.
If you want to change the contents of the input list to match your particular components, see
“Programming the remote” (page 120).
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\100REM.fm
masterpage: Right
Table of buttons used to control each component
Component
Button
TV VCR DVD player,
DVD/VHS combo
Blu-ray disc player
PSX Video CD player,
LD player
Digital
CATV terminal
(UC)
DSS
(UC)
Digital satellite/ terrestrial receiver
(EURO)
Tape deck
A/B
DAT deck
CD player,
DIGITAL
MEDIA
MD deck
PORT device
AV ?/1 z z z z z z z z z z z z z z z z z z z z z z Numeric buttons (SHIFT mode) z z z TV INPUT, WIDE
(SHIFT mode)
-/--, >10, CLEAR
(SHIFT mode)
ENT/MEM
(SHIFT mode)
DISPLAY
RETURN/EXIT O z z z z z z z z z z z z z z z z z z z z z z z b) z z z z z z z z z z z z z z z z
OPTIONS/TOOLS z
V/v/B/b,
, MENU,
HOME z z
./> z z
B·/·b m/TUNING –,
M/TUNING + z z z z z z z z z z z z z z z z z z z z z z z z z z z z z d) z z z z z z z z z a) z c) z
DISC SKIP
N, X, x z z
MUTING,
MASTER VOL +/–,
TV VOL +/– z
PRESET +/–,
TV CH +/–
BD/DVD TOP MENU,
BD/DVD MENU
F1, F2 z z z z z z z z z z z z z z b) z z z z z z z z a)
DVD player only.
b)
LD player only.
c)
Video CD only.
d)
Tape deck B only.
119
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\100REM.fm
masterpage: Left
Programming the remote
You can customize the remote to match the components connected to your receiver. You can even program the remote to control non-
Sony components and also Sony components that the remote is normally unable to control.
The procedure below uses as an example a case in which a VCR made by a company other than Sony is connected to the VIDEO 1 IN jacks on the receiver.
Before you begin, note that:
– You cannot change the settings of PHONO.
– The remote can control only components that accept infrared wireless control signals.
Be sure to turn on the receiver and point the remote towards the receiver when performing the following procedure.
1
2,3
MD/
TAPE
SA-CD/
CD
0/10
ENT/MEM
4
2CH/
A.DIRECT
1
Press AV ?/1 while pressing RM
SET UP.
The RM SET UP indicator slowly flashes.
2
Press the input button
(including TV) for the component you want to control.
For example, if you are going to control a
CD player, press SA-CD/CD.
The RM SET UP and the SHIFT button indicator light up.
If you press the button for a component of which you cannot program the remote, such as DMPORT, XM or SIRIUS, etc., the RM SET UP indicator keeps flashing.
3
Press the numeric buttons to enter the numeric code (or one of the codes if more than one code exists) corresponding to the component and the maker of the component you want to control.
See the tables on page 121–124 for
information on the numeric code(s).
Note
For a TV remote code value, only numbers in the 500’s are valid.
4
Press ENT/MEM.
Once the numeric code has been verified, the RM SET UP indicator slowly flashes twice and the remote automatically exits the programming mode.
5
Repeat steps 1 to 4 to control other components.
Notes
• The indicator turns off while a valid button is pressed.
• In step 2, if you press TUNER, you can only
program the button to control a tuner (page 124).
• In step 2, if you want to change to other input, press
SHIFT and then press the new input buttons you want.
• For the numeric codes, only the last three numbers entered are valid.
120
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\100REM.fm
masterpage: Right
To cancel programming
Press RM SET UP during any step.
The RM SET UP indicator flashes 5 times in quick succession. The remote automatically exits the programming mode.
To activate the input after programming
Press the programmed button to activate the input you want.
If programming is unsuccessful, check the following:
• If the indicator does not light up in step 1, the batteries are weak. Replace both batteries.
• If the indicator flashes 5 times in quick succession while entering the numeric code, an error has occurred. Start again from step
1.
The numeric codes corresponding to the component and the maker of the component
Use the numeric codes in the tables below to control non-Sony components and also Sony components that the remote is normally unable to control. Since the remote signal that a component accepts differs depending on the model and year of the component, more than one numeric code may be assigned to a component. If you fail to program your remote using one of the codes, try using other codes.
Notes
• The numeric codes are based on the latest information available for each brand. There is a chance, however, that your component will not respond to some or all of the codes.
• All of the input buttons on this remote may not be available when used with your particular component.
To control a CD player
Maker
SONY
DENON
JVC
KENWOOD
MAGNAVOX
MARANTZ
ONKYO
PANASONIC
PHILIPS
PIONEER
TECHNICS
YAMAHA
Code(s)
101, 102, 103
104, 123
105, 106, 107
108, 109, 110
111, 116
116
112, 113, 114
115
116
117
115, 118, 119
120, 121, 122
To control a DAT deck
Maker
SONY
PIONEER
Code(s)
203
219
To control an MD deck
Maker
SONY
DENON
JVC
KENWOOD
Code(s)
301
302
303
304
To control a tape deck
Maker
SONY
DENON
KENWOOD
NAKAMICHI
PANASONIC
PHILIPS
PIONEER
TECHNICS
YAMAHA
Code(s)
201, 202
204, 205
206, 207, 208, 209
210
216
211, 212
213, 214
215, 216
217, 218
To control an LD player
Maker
SONY
PIONEER
Code(s)
601, 602, 603
606
continued
121
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\100REM.fm
masterpage: Left
To control a video CD player
Maker
SONY
Code(s)
605
To control a DVD recorder
Maker
SONY
Code(s)
401, 402, 403
To control a VCR
Maker
SONY
AIWA*
AKAI
BLAUPUNKT
EMERSON
Code(s)
701, 702, 703, 704, 705,
706
710, 750, 757, 758
707, 708, 709, 759
740
711, 712, 713, 714, 715,
716, 750
717, 718, 719, 720
721, 722, 730
FISHER
GENERAL ELECTRIC
(GE)
GOLDSTAR/LG
GRUNDIG
HITACHI
ITT/NOKIA
JVC
MAGNAVOX
MITSUBISHI/MGA
NEC
PANASONIC
PHILIPS
PIONEER
RCA/PROSCAN
SAMSUNG
SANYO
SHARP
TELEFUNKEN
TOSHIBA
ZENITH
723, 753
724
722, 725, 729, 741
717
726, 727, 728, 736
730, 731, 738
732, 733, 734, 735
736
729, 730, 737, 738, 739,
740
729, 730, 731
729
722, 729, 730, 731, 741,
747
742, 743, 744, 745
717, 720, 746
748, 749
751, 752
747, 756
754
* If an AIWA VCR does not work even though you enter the code for AIWA, enter the code for Sony instead.
To control a DVD player
Maker
SONY
BROKSONIC
DENON
HITACHI
JVC
MITSUBISHI
ORITRON
PANASONIC
PHILIPS
PIONEER
RCA
SAMSUNG
TOSHIBA
ZENITH
Code(s)
401, 402, 403
424
405
416
415, 423
419
417
406, 408, 425
407
409, 410
414
416, 422
404, 421
418, 420
To control a DVD recorder
Maker
SONY
Code(s)
401, 402, 403
122
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\100REM.fm
masterpage: Right
To control a TV
Maker
SONY
AIWA
AKAI
AOC
CENTURION
CORONADO
CURTIS-MATHES
DAYTRON
DAEWOO
FISHER
FUNAI
FUJITSU
GOLDSTAR/LG
GRUNDIG
HITACHI
ITT/NOKIA
J.C.PENNY
JVC
KMC
MAGNAVOX
MARANTZ
MITSUBISHI/MGA
NEC
NORDMENDE
NOKIA
PANASONIC
PHILIPS
PHILCO
PIONEER
PORTLAND
QUASAR
RADIO SHACK
RCA/PROSCAN
SAMSUNG
SAMPO
SABA
SANYO
SCOTT
SEARS
SHARP
SYLVANIA
Code(s)
501
501, 536, 539
503
503
566
517
503, 551, 566, 567
517, 566
504, 505, 506, 507, 515,
544
508, 545
548
528
503, 512, 515, 517, 534,
544, 556, 568
511, 533, 534
503, 513, 514, 515, 517,
519, 544, 557, 571
521, 522
503, 510, 566
516, 552
517
503, 515, 517, 518, 544,
566
527
503, 519, 527, 544, 566,
568
503, 517, 520, 540, 544,
554, 566
530, 558
521, 522, 573, 575
509, 524, 553, 559, 572
515, 518, 557, 570, 571
503, 504, 514, 517, 518
509, 525, 526, 540, 551,
555
503
509, 535
503, 510, 527, 565, 567
503, 510, 523, 529, 544
503, 515, 517, 531, 532,
534, 544, 556, 557, 562,
563, 566, 569
566
530, 537, 547, 549, 558
508, 545, 546, 560, 567
503, 566
503, 508, 510, 517, 518,
551
517, 535, 550, 561, 565
503, 518, 566
Maker
THOMSON
TOSHIBA
TELEFUNKEN
TEKNIKA
WARDS
YORK
ZENITH
GE
LOEWE
Code(s)
530, 537, 547, 549
535, 539, 540, 541, 551
530, 537, 538, 547, 549,
558
517, 518, 567
503, 517, 566
566
542, 543, 567
503, 509, 510, 544
515, 534, 556
To control a satellite tuner
Maker
SONY
AMSTRAD
BskyB
GENERAL
ELECTRIC(GE)
GRUNDIG
HUMAX
THOMSON
PACE
PANASONIC
PHILIPS
NOKIA
RCA/PROSCAN
BITA/HITACHI
HUGHES
JVC/Echostar/Dish
Network
MITSUBISHI
SAMSUNG
TOSHIBA
Code(s)
801, 802, 803, 804, 824,
825, 865
845, 846
862
866
859, 860
846, 847
857, 861, 864, 876
848, 849, 850, 852, 862,
863, 864
818, 855
856, 857, 858, 859, 860,
864, 874
851, 853, 854, 864
866, 871
868
867
873
872
875
869, 870
continued
123
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\100REM.fm
masterpage: Left
To control a cable box
Maker
SONY
HAMLIN/REGAL
JERROLD/G.I./
MOTOROLA
JERROLD
Code(s)
821, 822, 823
836, 837, 838, 839, 840
806, 807, 808, 809, 810,
811, 812, 813, 814, 819
830, 831
OAK
PANASONIC
841, 842, 843
816, 826, 832, 833, 834,
835
830, 831 PHILIPS
PIONEER
RCA
828, 829
805
SCIENTIFIC ATLANTA 815, 816, 817, 844
TOCOM/PHILIPS 830, 831
ZENITH 826, 827
To control a tuner
Maker
SONY
Code(s)
002, 005
To control a Blu-ray disc player
Maker
SONY
Code(s)
310, 311, 312
To control a PSX
Maker
SONY
Code(s)
313, 314, 315
To control a DVD/VHS COMBO
Maker
SONY
Code(s)
411
To control a DVD/HDD COMBO
Maker
SONY
Code(s)
401, 402, 403
Clearing all the contents of the remote’s memory
While holding down MASTER
VOL – , press and hold ?/1, then
press AV ?/1.
The RM SET UP button flashes three times.
All the contents of the remote’s memory (i.e., all the programmed data) are cleared.
124
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\110ADD.fm
masterpage: Right
Additional Information
Glossary
x Cinema Studio EX
A surround sound mode that can be regarded as the compilation of Digital Cinema Sound technology, delivers the sound of a dubbing theater using three technologies: “Virtual
Multi Dimensions”, “Screen Depth
Matching”, and “Cinema Studio
Reverberation”.
“Virtual Multi Dimensions”, the virtual speaker technology, creates a virtual multisurround environment with actual speakers up to 7.1 channels, and brings the surround sound experience of a theater with the latest facilities into your home.
“Screen Depth Matching” reproduces treble attenuation, fullness, and depth of sound usually created in a theater using sound emission from behind the screen. This is then added to the front and center channels.
“Cinema Studio Reverberation” reproduces the sound characteristics of state-of-the-art dubbing theaters and recording studios, including Sony Pictures Entertainment’s dubbing studios. There are three modes, A/B/
C, available according to the studio type.
x Component video
A format for transmitting video signal information consisting of three separate signals: luminance Y, chrominance Pb, and chrominance Pr. High quality pictures, such as
DVD video or HDTV pictures, are transmitted more faithfully. The three jacks are colorcoded green, blue, and red.
x Composite video
A standard format for transmitting video signal information. The luminance signal Y and chrominance signal C are combined and transmitted together.
x Crossover frequency
The frequency at which two speaker’s frequencies intersect.
x Deep Color
Video signals for which the color depth of signals passing through an HDMI jack have been raised.
The number of colors that could be expressed by 1 pixel was 24 bits (16,777,216 colors) with the current HDMI jack. However, the number of colors which can be expressed by 1 pixel will be 36, etc., bits when the receiver corresponds to Deep Color.
Since the gradation of the depth of a color can be expressed more finely with more bits, continuous color changes can be more smoothly expressed.
x Digital Cinema Sound (DCS)
Unique sound reproduction technology for home theater developed by Sony, in cooperation with Sony Pictures Entertainment, for enjoying the exciting and powerful sound of movie theaters at home. With this “Digital
Cinema Sound” developed by integrating a
DSP (Digital Signal Processor) and measured data, the ideal sound field intended by filmmakers can be experienced at home.
x Dolby Digital
Digital audio encoding/decoding technology developed by Dolby Laboratories, Inc. It consists of front (left/right), center, surround
(left/right) and subwoofer channels. It is a designated audio standard for DVD-video and also known as 5.1 channels surround. Since surround information is recorded and reproduced in stereo, more realistic sound with fuller presence is delivered than with Dolby surround.
continued
125
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\110ADD.fm
masterpage: Left
x Dolby Digital Plus
Dolby Digital Plus provides the flexibility and efficiency to deliver more channels of compelling surround sound for high-definition video media. Its superior coding efficiencies enable up to 7.1ch of high-quality multichannel audio without negatively impacting bit budgets allocated for video performance or additional feature sets.
x Dolby Digital Surround EX
Acoustic technology developed by Dolby
Laboratories, Inc. Surround back information is matrixed into regular left and right surround channels so that the sound can be reproduced in 6.1 channels. Active scenes, especially, are recreated with a more dynamic and realistic sound field.
x Dolby Pro Logic II
This technology converts 2 channels stereo recorded audio into 5.1 channels for playback.
There is a MOVIE mode for movies and
MUSIC mode for stereo sources such as music. Old movies encoded in the traditional stereo format can be enhanced with 5.1 channels surround sound.
The GAME mode is suitable for video games.
x Dolby Pro Logic IIx
Technology for 7.1 channels (or 6.1 channels) playback. Along with audio encoded in Dolby
Digital Surround EX, 5.1 channels Dolby
Digital encoded audio can be reproduced in
7.1 channels (or 6.1 channels). Furthermore, existing stereo recorded content can also be reproduced in 7.1 channels (or 6.1 channels).
x Dolby Surround (Dolby Pro
Logic)
Audio processing technology developed by
Dolby Laboratories, Inc. Center and mono surround information is matrixed into two stereo channels. When reproduced, audio is decoded and output in 4 channels surround sound. This is the most common audio processing method for DVD-video.
x Dolby TrueHD
Dolby TrueHD is Dolby’s lossless audio technology developed for high-definition optical discs. Dolby TrueHD audio is bit-forbit identical to the original studio masters and provides supreme-quality audio up to 8ch at
96 kHz/24 bit and up to 6ch at 192 kHz/24 bit.
Together with high-definition video, it offers an unprecedented home theater experience.
x DTS 96/24
A high sound quality digital signal format. It records audio at a sampling frequency and bit rate of 96 kHz/24 bit which is the highest possible for DVD-video. The number of playback channels varies depending on the software.
x DTS Digital Surround
Digital audio encoding/decoding technology for theaters developed by DTS, Inc. It compresses audio less than Dolby Digital, delivering a higher quality sound reproduction.
x DTS-ES
Format for 6.1 channels playback with surround back information. There are two modes, “Discrete 6.1” which records all channels independently, and “Matrix 6.1” which matrixes surround back channel into surround left and surround right channels. It is ideal for playback of motion picture soundtracks.
126
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\110ADD.fm
masterpage: Right
x DTS-HD
Audio format which extends the conventional
DTS Digital Surround format.
This format consists of a core and an extension, and the core part has DTS Digital
Surround compatibility. There are two kinds of
DTS-HD, DTS-HD High Resolution Audio and DTS-HD Master Audio. DTS-HD High
Resolution Audio has a maximum transmission rate of 6 Mbps, with lossy compression (Lossy), and DTS-HD High
Resolution Audio corresponds to a maximum sampling frequency of 96 kHz, and a maximum of 7.1 ch. DTS-HD Master Audio has a the maximum transmission rate of
24.5 Mbps, and uses lossless compression(Lossless), and DTS-HD Master
Audio corresponds to a maximum sampling frequency of 192 kHz, and a maximum of 7.1 ch.
x DTS Neo:6
This technology converts 2 channels stereo recorded audio for 7 channels playback. There are two modes to select according to the playback source or your preference, CINEMA for movies, and MUSIC for stereo sources such as music.
x HDMI (High-Definition
Multimedia Interface)
HDMI (High-Definition Multimedia
Interface) is an interface that supports both video and audio on a single digital connection, allowing you to enjoy high quality digital picture and sound. The HDMI specification supports HDCP (High-bandwidth Digital
Contents Protection), a copy protection technology that incorporates coding technology for digital video signals.
x High Bitrate Audio
It refers to the audio formats of the compression method (DTS-HD Master Audio,
Dolby TrueHD, etc.) which is a high bitrate format recorded mainly on Blu-ray Disc etc.
x Interlace
A scanning method which completes a picture by displaying half of the lines on a tube surface of a TV or monitor each 1/60 second. First, all the odd-numbered lines are drawn, leaving spaces between each line, then all the evennumbered lines are drawn to fill the spaces.
“i” of “480i” stands for “Interlace”.
x L.F.E. (Low Frequency Effects)
Sound effects of low frequencies which are output from a subwoofer in Dolby Digital or
DTS, etc. By adding a deep bass with a frequency between 20 to 120 Hz, audio becomes more powerful.
x Neural-THX
Neural-THX
®
Surround is taking surround sound to the next level. This revolutionary new technology delivers the rich envelopment and discrete image detail of surround sound in a format that is fully compatible with stereo.
Neural-THX Surround reduces the bandwidth needed for broadcasters to deliver true, multi channel surround presentations, and enables
7.1-channel support for gaming and movies.
By unmasking the audio details, typically lost by other playback systems, audiences will experience the deep ambience and subtle details of movies, music and games. And with this technology being used by sound designers during content creation, as well as embedded into playback devices, Neural-THX Surround promises a listening experience that is true to the original mix.
Neural-THX Surround has been chosen as the official surround sound broadcast format for
XM Satellite Radio’s “XM HD Surround”, as well as other leading FM/HD radio stations worldwide.
For additional information, please visit www.neuralsurround.com.
x PCM (Pulse Code Modulation)
A method of converting analog audio to digital audio for easy enjoyment of digital sound.
continued
127
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\110ADD.fm
masterpage: Left
x Progressive
A scanning method that draws all scanning lines sequentially, as opposed to interlaced scanning where all the odd and then all the even lines are drawn.
“p” of “480p” stands for “Progressive”.
x x.v.Color x.v.Color is a more familiar term for the xvYCC standard proposed by Sony, and is a trademark of Sony. xvYCC is an international standard for color space in video.
This standard can express a wider color range than the currently used broadcast standard.
Precautions
On safety
Should any solid object or liquid fall into the cabinet, unplug the receiver and have it checked by qualified personnel before operating it any further.
On power sources
• Before operating the receiver, check that the operating voltage is identical with your local power supply.
The operating voltage is indicated on the nameplate on the back of the receiver.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• If you are not going to use the receiver for a long time, be sure to disconnect the receiver from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.
• One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
• AC power cord (mains lead) must be changed only at a qualified service shop.
On heat buildup
Although the receiver heats up during operation, this is not a malfunction. If you continuously use this receiver at a large volume, the cabinet temperature of the top, side and bottom rises considerably. To avoid burning yourself, do not touch the cabinet.
128
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\110ADD.fm
masterpage: Right
On placement
• Place the receiver in a location with adequate ventilation to prevent heat buildup and prolong the life of the receiver.
• Do not place the receiver near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.
• Do not place anything on top of the cabinet that might block the ventilation holes and cause malfunctions.
• Do not place the receiver near equipment such as a television, VCR, or tape deck. (If the receiver is being used in combination with a television, VCR, or tape deck, and is placed too close to that equipment, noise may result, and picture quality may suffer.
This is especially likely when using an indoor antenna (aerial). Therefore, we recommend using an outdoor antenna
(aerial).)
On operation
Before connecting other components, be sure to turn off and unplug the receiver.
On cleaning
Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
If you have any questions or problems concerning your receiver, please consult your nearest Sony dealer.
Troubleshooting
If you experience any of the following difficulties while using the receiver, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer.
Audio
There is no sound, no matter which component is selected, or only a very low-level sound is heard.
• Check that the speakers and components are connected securely.
• Check that all speaker cords are connected correctly.
• Check that both the receiver and all components are turned on.
• Check that MASTER VOLUME control is not set at –
∞ dB. Try to set it at about –40 dB.
• Check that SPEAKERS (OFF/A/B/A+B)
• Press MUTING on the remote to cancel the muting function.
• Check that you have selected the correct component with INPUT SELECTOR.
• Check that headphones are not connected.
• When only a very low-level sound is heard, check to see if NIGHT MODE is
• The protective device on the receiver has been activated. Turn off the receiver, eliminate the short-circuit problem, and turn on the power again.
There is no sound from a specific component.
• Check that the component is connected correctly to the audio input jacks for that component.
• Check that the cord(s) used for the connection is (are) fully inserted into the jacks on both the receiver and the component.
continued
129
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\110ADD.fm
masterpage: Left
There is no sound from one of the front speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is output from the headphones. If only one channel is output from the headphones, the component may not be connected to the receiver correctly. Check that all the cords are fully inserted into the jacks on both the receiver and the component. If both channels are output from the headphones, the front speaker may not be connected to the receiver correctly. Check the connection of the front speaker which is not outputting any sound.
• Make sure you have connected both the L or R jack to an analog component and not just to either the L or R jack. Use a monaural-stereo cable (not supplied).
There is no sound from analog 2 channel sources.
• Check to make sure the selected audio
(digital) input jack is not assigned to other inputs in “Input Assign” in the Input menu
There is no sound from digital sources
(from COAXIAL or OPTICAL input jack).
• Check that the INPUT MODE is set to
• Check that the “Analog Direct” is not being used.
• Check to make sure the selected audio
(digital) input jack is not assigned to other inputs in “Input Assign” in the Input menu
The left and right sounds are unbalanced or reversed.
• Check that the speakers and components are connected correctly and securely.
• Adjust the balance parameters using the
Speaker setting menu in GUI menu.
There is severe hum or noise.
• Check that the speakers and components are connected securely.
• Check that the connecting cords are away from a transformer or motor, and at least
10 feet (3 meters) away from a TV set or fluorescent light.
• Move your TV away from the audio components.
• Make sure you have grounded the U
SIGNAL GND terminal (only when a turntable is connected).
• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.
There is no sound, or only a very lowlevel sound is heard from the center/ surround/surround back speakers.
• Select a “Cinema Studio EX” mode
• Adjust the speaker level (page 66).
There is no sound from the subwoofer.
• Check that the subwoofer is connected correctly and securely.
• Make sure you have turned on your speaker.
• When all speakers are set to “LARGE” and “Neo:6 Cinema”, or “Neo:6 Music” is selected, there is no sound from the subwoofer.
The surround effect cannot be obtained.
• Make sure the sound field function is on
(press MOVIE).
• Sound fields do not function for signals with a sampling frequency of more than
48 kHz.
130
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\110ADD.fm
masterpage: Right
Dolby Digital or DTS multi channel sound is not reproduced.
• Check that the DVD, etc. you are playing is recorded in Dolby Digital or DTS format.
• When connecting the DVD player, etc., to the digital input jacks of this receiver, make sure the setting for the digital audio output of the connected component is available.
Recording cannot be carried out.
• Check that the components are connected
• Select the source component using INPUT
The MULTI CHANNEL DECODING lamp does not light up in blue.
• Check that the playback component is connected on a digital jack and the input is selected properly on this receiver.
• Check whether the input source of the software being played back corresponds to the multi channel format.
• Check whether the setup on the playback component is set to multi channel sound.
• Check to make sure the selected audio
(digital) input jack is not assigned to other inputs in “Input Assign” in the Input menu
There is no sound from the component connected to the DIGITAL MEDIA PORT adapter.
• Adjust the volume of this receiver.
• The DIGITAL MEDIA PORT adapter and/or component is not connected correctly. Turn off the receiver, then reconnect the DIGITAL MEDIA PORT adapter and/or component.
• Check the DIGITAL MEDIA PORT adapter and/or component device to make sure it supports this receiver.
Video
There is no picture or an unclear picture appears on the TV screen or monitor.
• Select the appropriate input on the receiver
• Set your TV to the appropriate input mode.
• Move your TV away from the audio components.
• Assign the component video input correctly.
• The input signal should be same as the input function when you are up-converting an input signal with this receiver
Recording cannot be carried out.
• Check that the components are connected
• Select the source component using INPUT
The GUI mode does not appear on the
TV screen.
• Press GUI MODE repeatedly to select
“GUI ON”. If the GUI menu still does not appear on the TV screen, press MENU.
• Check the TV is connected correctly.
continued
131
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\110ADD.fm
masterpage: Left
HDMI
The source sound input to the HDMI jack is not output from the receiver or the TV speaker.
• Check the setting of “Audio Out” in the
• Check that the component is connected correctly to the HDMI jack for that component.
• You cannot listen to the Super Audio CD by connecting HDMI.
• Depending on the playback component, you may need to set up the component.
Refer to the operating instructions supplied with each component.
• Be sure to use a connecting cable for the
HDMI jack corresponding to high speed
(an HDMI version 1.3a, category 2 cable) when you view images or listen to sound during a Deep Color transmission.
The source image input to the HDMI jack is not output from the TV.
• Check the HDMI connection (page 26).
• Depending on the playback component, you may need to set up the component.
Refer to the operating instructions supplied with the each component.
• Be sure to use a connecting cable for the
HDMI jack corresponding to high speed
(an HDMI version 1.3a, category 2 cable) when you view images or listen to sound during a Deep Color transmission.
The Control for HDMI function does not work.
• Check the HDMI connection (page 26).
• Make sure “Control for HDMI” is set to
“ON” in the HDMI menu.
• Make sure the connected component is compatible with the Control for HDMI function.
• Check the Control for HDMI settings on the connected component. Refer to the operating instructions of the connected component.
• If you change the HDMI connection, connect/disconnect the AC power cord, or there is a power failure, repeat the
procedures of “Preparing Control for
No sound is output from the receiver and TV speaker while using the System
Audio Control function.
• Make sure the TV is compatible with the
System Audio Control function.
• If the TV does not have System Audio
Control function, set the “Audio Out” settings in HDMI menu to
– “TV+AMP” if you want to listen to the sound from the TV speaker and receiver.
– “AMP” if you want to listen to the sound from the receiver.
• If you cannot listen to the sound of a component connected to the receiver
– Change the input of the receiver to
HDMI when you want to watch a program on a component connected via
HDMI connection to the receiver.
– Change the TV channel when you want to watch a TV broadcast.
– Select the component or input you want to watch when you watch a program on the component connected to the TV.
Refer to the operating instructions of the
TV on this operation.
132
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\110ADD.fm
masterpage: Right
The TV’s remote commander cannot be used to control the connected component when using the Control for
HDMI function.
• Change the input of the receiver to the
HDMI input connected to the component.
Tuner
The FM reception is poor.
• Use a 75-ohm coaxial cable (not supplied) to connect the receiver to an outdoor FM antenna (aerial) as shown below. If you connect the receiver to an outdoor antenna
(aerial), ground it against lightning. To prevent a gas explosion, do not connect the ground (earth) wire to a gas pipe.
Outdoor FM antenna (aerial)
Receiver
Ground (earth) wire (not supplied)
To ground
Radio stations cannot be tuned in.
• Check that the antennas (aerials) are connected securely. Adjust the antennas
(aerials) and connect an external antenna
(aerial), if necessary.
• Keep the satellite radio antenna, away from the speaker cords and the power cord to avoid picking up noise.
• The signal strength of the stations is too weak (when tuning in with automatic tuning). Use direct tuning.
• Make sure you set the tuning interval correctly (when tuning in AM stations with direct tuning).
• No stations have been preset or the preset stations have been cleared (when tuning by scanning preset stations). Preset the
• Press DISPLAY so that the frequency appears on the display.
The system cannot receive satellite channels at all.
• The receiving condition is not good. Move the antenna to the place where the condition is good.
• Check that you subscribed to the desired
satellite radio service (see page 76).
continued
133
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\110ADD.fm
masterpage: Left
Remote control
The remote does not function.
• Point the remote at the remote sensor on the receiver.
• Remove any obstacles in the path between the remote and the receiver.
• Replace all the batteries in the remote with new ones, if they are weak.
• Make sure that the command modes of the receiver and the remote are the same. If the command mode of the receiver and the remote are different, you cannot operate
the receiver with the remote (page 37).
• Make sure you select the correct input on the remote.
• When you operate a programmed non-
Sony component, the remote may not function properly depending on the model and the maker of the component.
Reference sections for clearing the memory
To clear
All memorized settings
Customized sound fields
See
Error messages
If there is a malfunction, the display shows a code of two numbers and a message. You can check the condition of the system by the message. Refer to the following table to solve the problem. If any problem persists, consult your nearest Sony dealer.
PROTECTOR
Irregular current is output to the speakers, or the upper panel of the receiver is covered with something. The receiver will automatically turn off after a few seconds.
Check the connection of speakers and turn on the power again.
For other messages, refer to “Message list after
Auto Calibration measurement” (page 49),
“XM Radio messages list” (page 85),
“SIRIUS Satellite Radio message list”
(page 86) and “DIGITAL MEDIA PORT message list” (page 96).
134
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\110ADD.fm
masterpage: Right
Specifications
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 8 ohm loads, both channels driven, from
20 – 20,000 Hz; rated 100 watts per channel minimum RMS power, with no more than
0.09% total harmonic distortion from 250 milliwatts to rated output.
Amplifier section
Power Output
Rated Power Output at Stereo Mode
1)
(8 ohms 20 Hz – 20 kHz, THD 0.09%):
100 W + 100 W
Reference Power Output at Stereo Mode
(4 ohms 20 Hz – 20 kHz, THD 0.15%):
85 W + 85 W
Reference Power Output (8 ohms 1 kHz, THD
0.7%)
FRONT
2)
:
CENTER
2)
:
SURROUND
2)
:
SUR BACK
2)
:
110 W + 110 W
110 W
110 W + 110 W
110 W + 110 W
Reference Power Output (4 ohms 1 kHz, THD
0.7%)
FRONT
2)
:
CENTER
2)
:
SURROUND
2)
:
SUR BACK
2)
:
100 W + 100 W
100 W
100 W + 100 W
100 W + 100 W
1)
Measured under the following conditions:
120 V AC, 60 Hz
2)
Depending on the sound field settings and the source, there may be no sound output.
Frequency response
PHONO
Analog
RIAA equalization curve
± 0.5 dB
10 Hz – 100 kHz,
± 3 dB (with sound field and equalizer bypassed)
Input
PHONO
Analog
Sensitivity: 2.5 mV
Impedance: 50 kohms
S/N
3)
LPF)
: 90 dB (A, 20 kHz
4)
Sensitivity: 150 mV/
50 kohms
S/N
3)
LPF)
: 100 dB (A, 20 kHz
4)
Digital (Coaxial) Impedance: 75 ohms
S/N
3)
: 96 dB
(A, 20 kHz LPF)
4)
Digital (Optical) S/N
3)
: 96 dB
(A, 20 kHz LPF)
4)
Output (analog)
AUDIO OUT Voltage: 150 mV/
1 kohm
SUBWOOFER Voltage: 2 V/1 kohm
Equalizer
Gain levels ±10 dB, 1 dB step
3)
INPUT SHORT (with sound field and equalizer bypassed).
4)
Weighted network, input level.
FM tuner section
Tuning range 87.5 – 108.0 MHz
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms, unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
With 10-kHz tuning scale
530 – 1,710 kHz
5)
With 9-kHz tuning scale
531 – 1,710 kHz
5)
Antenna (aerial) Loop antenna (aerial)
Intermediate frequency
450 kHz
5)
You can change the AM tuning scale to either 9 kHz or 10 kHz. After tuning in any AM station, turn off the receiver. While holding down
TUNING MODE, press POWER on the receiver.
All preset stations will be erased when you change the tuning scale. To reset the scale to 10 kHz (or 9 kHz), repeat the procedure.
continued
135
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\110ADD.fm
masterpage: Left
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
P
B
/C
B
: 0.7 Vp-p, 75 ohms
P
R
/C
R
: 0.7 Vp-p, 75 ohms
80 MHz HD Pass Through
HDMI Video
Input/Output (HDMI Repeater block)
640 × 480p@60 Hz
720 × [email protected]/60 Hz
1440 × [email protected]/60 Hz (pixel sent 2 times)
1280 × [email protected]/60 Hz
1920 × [email protected]/60 Hz
1920 × [email protected]/60 Hz
720 × 576p@50 Hz
1440 × 576p@50 Hz (pixel sent 2 times)
1280 × 720p@50 Hz
1920 × 1080i@50 Hz
1920 × 1080p@50 Hz
1920 × 1080p@24 Hz
General
Power requirements 120 V AC, 60 Hz
Power output (DIGITAL MEDIA PORT)
DC OUT: 5 V, 0.7 A MAX
Power consumption 350 W
Power consumption (during standby mode)
0.7 W (when “HDMI
Control” and “RS-232C
Control” are set to “OFF”)
Dimensions 17 × 6 1/4 × 15 3/8 inches
(430 × 157.5 × 388 mm)
(width/height/depth) including projecting parts and controls
Mass (Approx.) 26 lb 15 oz (12.2 kg)
Supplied accessories
Operating Instructions (this manual)
Quick Setup Guide (1)
GUI Menu List (1)
Optimizer microphone (ECM-AC2) (1)
FM wire antenna (aerial) (1)
AM loop antenna (aerial) (1)
AC power cord (mains lead) (1)
Remote commander (RM-AAP025) (1)
Remote commander (RM-AAU039) (1)
R6 (size-AA) batteries (4)
Design and specifications are subject to change without notice.
136
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\010COVIX.fm
Index
Symbols
U SIGNAL GND terminal
Numerics
2 channel
2ch Stereo Mode
4 ohms
5.1 channel
7.1 channel
8 ohms
A
A.F.D. (mode)
A/V Sync
AC power cord
AM
Analog Direct
Audio (Settings)
Auto Calibration
Auto Tuning
B
Bass
BI-AMP SP
Bi-amplifier connection
Blu-ray disc player
masterpage: Right
C
Calibration Type Select
Category Mode
CD player
Changing the display
Cinema Studio EX (mode)
Clear memory
Command mode
Connections antennas
audio components
monitor
speakers
video components
Control for HDMI connecting
preparing
Crossover Freq
D
D.Range Comp (Dynamic range compressor)
DCAC (Digital Cinema Auto Calibration)
DCS
Decode Priority
DIGITAL MEDIA PORT
Direct Tuning
Display window
Distance
Distance Unit
Dolby Digital EX
DTS Neo:6 (Cinema, Music)
Dual Mono
DVD player
DVD recorder
E
Effect Level
Enhanced Setup
EQ (Settings)
Equalizer
continued
137
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\010COVIX.fm
masterpage: Left
F
FM
FM Mode
G
Gain Adjusting (Bass/Treble)
GUI (Graphical User Interface)
H
HDMI (Settings)
HDMI jacks
Headphone (Settings)
I
Input
Input Assign
INPUT MODE
INPUT SELECTOR
iPod
L
LARGE
Level
LFE (Low Frequency Effect)
List Mode
Lock Code
M
Manual Setup
MASTER VOLUME
Messages
Auto Calibration
DIGITAL MEDIA PORT
error
SIRIUS
XM
Movie
MULTI CHANNEL DECODING lamp
Music
Muting
N
Name Input
Network Client
Neural-THX
NIGHT MODE
138
US
P
Parental Lock
Phase Audio
Phase Noise
PHONES
PLII
PLIIx
Position (Auto Calibration)
Preset channels
Preset Mode
Preset stations
PROTECTOR
R
Radio ID
,
Recording
Remote
Resetting
Resolution
RS-232C Control
S
Satellite radio
SIRIUS Satellite Radio
Size
Sleep timer
SMALL
Sound Field Select
Sound Field Setup
Speaker (Settings)
Speaker Impedance
Speaker Pattern
SPEAKERS (OFF/A/B/A+B)
Super Audio CD player
Surround
Surround Settings
System (Settings)
T
Test Tone
TONE +/–
TONE MODE
,
Treble
Tuner
Tuner (Settings)
Tuning
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01US-STRDA2400ESUC\010COVIX.fm
U
Up converting
V
VCR
Video (Settings)
VIDEO 2 IN/PORTABLE AV IN jacks
Video game
X
XM Radio
masterpage: Right
139
US
STR-DA2400ES
3-289-204-12(1)
D:\SONY HA\3289204121\01COV-STRDA2400ESUC\010BCO.fm
masterpage: Left
Sony Corporation
Printed in Malaysia
STR-DA2400ES
3-289-204-12(1)
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
