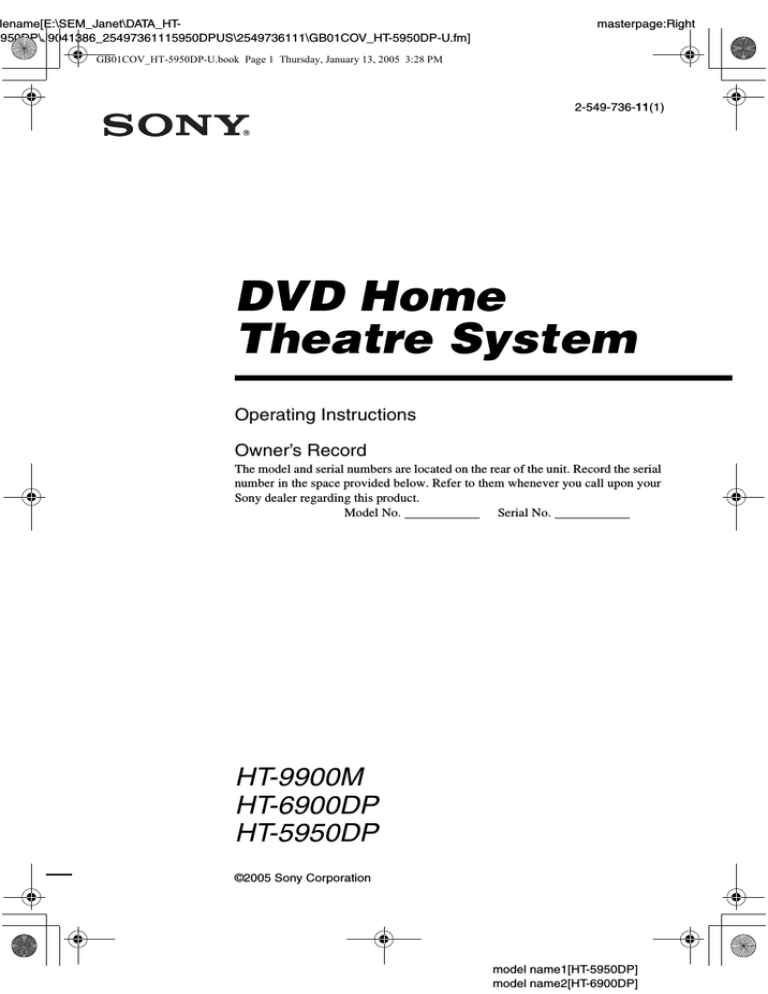

Sony 5950DP Home Theater System User Manual
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB01COV_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 1 Thursday, January 13, 2005 3:28 PM masterpage:Right
2-549-736-11(1)
DVD Home
Theatre System
Operating Instructions
Owner’s Record
The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your
Sony dealer regarding this product.
Model No. Serial No.
HT-9900M
HT-6900DP
HT-5950DP
©2005 Sony Corporation
model name1[HT-5950DP] model name2[HT-6900DP]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB02REG_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 2 Thursday, January 13, 2005 3:28 PM masterpage:Left
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent fire, do not cover the ventilation of the apparatus with newspapers, table-cloths, curtains, etc.
And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Don’t throw away batteries with general house waste; dispose of them correctly as chemical waste.
For customers in the United States
This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION
You are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment.
Note to CATV system installer:
This reminder is provided to call CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
For customers in Canada
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
E NERGY S TAR
®
is a U.S. registered mark. As an E NERGY S TAR
®
partner,
Sony Corporation has determined that this product meets the E
NERGY
S
TAR
® guidelines for energy efficiency.
2
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB02REG_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 3 Thursday, January 13, 2005 3:28 PM masterpage:Right
About This Manual
• The instructions in this manual are for model
HT-9900M, HT-6900DP and HT-5950DP. Check your receiver’s model number by looking at the lower right corner of the front panel. In this manual,
HT-9900M is used for illustration purposes unless stated otherwise. Any difference in operation is clearly indicated in the text, for example, “HT-
9900M only”
• The instructions in this manual describe the controls on the receiver. You can also use the controls on the supplied remote if they have the same or similar names as those on the receiver. For details on the use
of your remote, see pages 43–51. For details on the
use of your DVD player, refer to the separate operating instructions supplied with the DVD player.
The HT-9900M consists of:
• Receiver
• Speaker system
– Front speaker (left)
– Front speaker (right)
– Center speaker
– Surround speaker (left)
– Surround speaker (right)
– Surround back speaker
– Sub woofer
• DVD player
STR-K9900P
SS-MSP69L
SS-MSP69R
SS-CNP69
SS-MSP69SL
SS-MSP69SR
SS-MSP69SB
SA-WMSP69
DVP-CX985V
The HT-6900DP consists of:
• Receiver
• Speaker system
– Front speaker (left)
– Front speaker (right)
– Center speaker
– Surround speaker (left)
– Surround speaker (right)
– Surround back speaker
– Sub woofer
• DVD player
The HT-5950DP consists of:
• Receiver
• Speaker system
– Front speaker (left)
– Front speaker (right)
– Center speaker
– Surround speaker (left)
– Surround speaker (right)
– Surround back speaker
– Sub woofer
• DVD player
STR-K9900P
SS-MSP69L
SS-MSP69R
SS-CNP69
SS-MSP69SL
SS-MSP69SR
SS-MSP69SB
SA-WMSP69
DVP-NC60P
STR-K5900P
SS-MSP67L
SS-MSP67R
SS-CNP67
SS-MSP67SL
SS-MSP67SR
SS-MSP67SB
SA-WMSP87
DVP-NC60P
About area codes
The area code of the receiver you purchased is shown on the lower portion of the rear panel (see the illustration below).
SURROUND BACK
R L
– +
R
FRONT A
CENTER
SPEAKERS
L
R
FRONT B
L
– – +
R
SURROUND
EAKERS
L
2-XXX-XXX-XX AA
Area code
Any differences in operation, according to the area code, are clearly indicated in the text, for example,
“Models of area code AA only”.
This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby
Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.
** “DTS”, “DTS-ES”, “Neo:6” and “DTS 96/24” are trademarks of Digital Theater Systems, Inc.
Note for the supplied remote
For RM-AAP001
The AUX, MULTI CH* and 12 buttons on the remote are not available for receiver operation.
* HT-5950DP only.
3
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB01COV_HT-5950DP-UTOC.fm]
GB01COV_HT-5950DP-U.book Page 4 Thursday, January 13, 2005 3:28 PM masterpage:Left
Table of Contents
Getting Started
1: Check how to hookup your components....................................... 5
1a: Connecting components with digital audio output jacks ........... 7
1b: Connecting components with multi channel output jacks........ 10
1c: Connecting components with only analog audio jacks ............ 12
2: Connecting the antennas ................... 14
3: Connecting speakers ......................... 15
4: Connecting the AC power cord ........ 17
5: Setting up the speakers ..................... 19
6: Setting up the sub woofer ................. 21
7: Adjusting the speaker levels and balance ............................................ 22
Amplifier Operation
Selecting the component ....................... 23
Listening to multi channel sound .......... 24
Listening to FM/AM radio.................... 24
Presetting radio stations ........................ 25
Changing the display............................. 26
About the indications in the display...... 27
Enjoying Surround Sound
Using only the front speakers and sub woofer ...................................... 29
Enjoying higher fidelity sound.............. 29
Selecting a sound field .......................... 31
Selecting the surround back decoding mode ............................................... 33
Advanced Adjustments and
Settings
Assigning the component video input................................................ 35
Switching the audio input mode for digital components ......................... 35
Customizing sound fields ..................... 36
Adjusting the tone................................. 37
Advanced settings................................. 38
Other Operations
Naming preset stations and inputs ........ 40
Using the Sleep Timer .......................... 40
Selecting the speaker system ................ 41
Recording ............................................. 41
Operations Using the Remote
RM-AAP001
Before you use your remote.................. 43
Remote button description.................... 43
Selecting the command mode of the remote............................................. 47
Programming the remote ...................... 48
Additional Information
Precautions ........................................... 52
Troubleshooting.................................... 53
Specifications ....................................... 55
List of button locations and reference pages............................................... 59
Index ........................................ back cover
4
US
model name1[HT-5950DP]
model name2[HT-6900DP]
model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 5 Thursday, January 13, 2005 3:28 PM masterpage:Right
Getting Started
1: Check how to hookup your components
Steps 1a through 1c beginning on page 7 describe how to hook up your components to this receiver.
Before you begin, refer to “Connectable components” below for the pages which describe how to
connect each component.
After hooking up all your components, proceed to “2: Connecting the antennas” (page 14).
Connectable components
Component to be connected
DVD player
With digital audio output a)
With multi channel audio output b)
With analog audio output only c)
TV monitor
With component video input d)
With composite video input only
Satellite tuner
With digital audio output a)
With analog audio output only c)
Super Audio CD/CD player
With digital audio output a)
With multi channel audio output b)
With analog audio output only c)
MD/Tape deck
With analog audio output only c)
Multi channel decoder
VCR, camcorder, video game, etc.
Page
a) b) c)
Model with a DIGITAL OPTICAL OUTPUT or DIGITAL COAXIAL OUTPUT jack, etc.
(HT-9900M and HT-6900DP only) Model with a MULTI CH OUTPUT jacks, etc. This connection is used to output the audio decoded by the component’s internal multi channel decoder through this receiver.
Model equipped only with AUDIO OUT L/R jacks, etc.
d)
Model with component video (Y, P
B
/C
B
/B-Y, P
R
/C
R
/R-Y) input jacks.
continued
5
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 6 Thursday, January 13, 2005 3:28 PM masterpage:Left
Required cords
The hookup diagrams on the subsequent pages assume the use of the following optional connection cords (A to G) (not supplied unless indicated).
A Audio cord
White (L)
Red (R)
B Audio/video cord
Yellow (video)
White (L/audio)
Red (R/audio)
C Video cord
Yellow
D Optical digital cord
E Coaxial digital cord (supplied)
Orange
F Monaural audio cord
Black
Tip
Audio cord A can be torn into two monaural audio cords F.
G Component video cord
Green
Blue
Red
Notes
• Turn off the power to all components before making any connections.
• Be sure to make connections firmly to avoid hum and noise.
• When connecting an audio/video cord, be sure to match the color-coded pins to the appropriate jacks on the components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red.
• When connecting optical digital cords, insert the cord plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
6
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 7 Thursday, January 13, 2005 3:28 PM masterpage:Right
.
1a: Connecting components with digital audio output jacks
Hooking up a DVD player, TV monitor or satellite tuner
For details on the required cords (A
1 Connect the audio jacks.
OUTPUT
DIGITAL
COAXIAL
DVD player
E
L
OUTPUT
AUDIO
OUT
R
A
DIGITAL
OPTICAL
VIDEO 2
IN
SA-CD/
CD
IN
DVD
IN
COAXIAL
ANTENNA
AM
COMPONENT VIDEO
ASSIGNABLE
Y
MONITOR
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT
DVD
IN
P
B
/C
B
/B–Y
VIDEO 2
IN
MONITOR
OUT
R
/C
R
/R–Y
AUDIO
OUT
L L L L
L
CENTER
R
IN
SA-CD/CD
R
OUT IN
MD/TAPE
AUDIO IN
DVD
R
AUDIO IN
VIDEO 2
AUDIO OUT
R
AUDIO IN
VIDEO 1
FRONT
R
SURROUND
SUB
WOOFER
MULTI CH IN
SUB
WOOFER
D
OUTPUT
DIGITAL
OPTICAL
Satellite tuner
L
OUTPUT
AUDIO
OUT
R
A
Note
You can also listen to the sound of your TV by connecting your TV’s audio output jacks to the VIDEO 2 AUDIO IN jacks on the receiver. In this case, do not connect the TV’s video output jack to the VIDEO 2 VIDEO IN jack on the receiver.
continued
7
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 8 Thursday, January 13, 2005 3:28 PM masterpage:Left
2 Connect the video jacks.
The following illustration shows how to connect a TV or satellite tuner and a DVD player with
COMPONENT VIDEO (Y, P
B
/C
B
/B-Y, P
R
/C
R
/R-Y) output jacks. Connecting a TV with component video input jacks allows you to enjoy higher quality video.
OUTPUT
VIDEO
Satellite tuner
OUTPUT
P
R
/C
R
COMPONENT
/R–Y P
B
/C
B
/B–Y Y
INPUT
VIDEO
TV monitor
INPUT
P
R
/C
R
COMPONENT
/R–Y P
B
/C
B
/B–Y Y
C G C G
DIGITAL
OPTICAL
VIDEO 2
IN
SA-CD/
CD
IN
DVD
IN
COAXIAL
ANTENNA
AM
COMPONENT VIDEO
ASSIGNABLE
Y
MONITOR
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT
DVD
IN
P
B
/C
/B–Y
VIDEO 2
IN
MONITOR
OUT
P
R
/C
R
/R–Y
AUDIO
OUT
L L L L
L
CENTER
R
IN
SA-CD/CD
R
OUT IN
MD/TAPE
AUDIO IN
DVD
R
AUDIO IN
VIDEO 2
R
AUDIO OUT AUDIO IN
VIDEO 1
FRONT
R
SURROUND
SUB
WOOFER
MULTI CH IN
SUB
WOOFER
C
OUTPUT
VIDEO
G
OUTPUT
P
R
/C
R
COMPONENT
/R–Y P
B
/C
B
/B–Y Y
DVD player
Note
On this receiver, the standard video signals cannot be converted to component video signals (or vice versa).
8
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 9 Thursday, January 13, 2005 3:28 PM masterpage:Right
Hooking up a Super Audio CD/CD player
For details on the required cords (A
DIGITAL
OPTICAL
VIDEO 2
IN
SA-CD/
CD
IN
DVD
IN
COAXIAL
ANTENNA
AM
COMPONENT VIDEO
ASSIGNABLE
Y
MONITOR
B
/C
B
/B–Y
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
P
R
/C
/R–Y
AUDIO
OUT
L L L L
L
CENTER
R
IN
SA-CD/CD
R
OUT IN
MD/TAPE
AUDIO IN
DVD
R
AUDIO IN
VIDEO 2
R
AUDIO OUT AUDIO IN
VIDEO 1
FRONT
R
SURROUND
SUB
WOOFER
MULTI CH IN
SUB
WOOFER
D
DIGITAL
OPTICAL
OUT
A
OUTPUT
LINE
L
R
Super Audio CD/
CD player
Tip
All the digital audio jacks are compatible with 32 kHz, 44.1 kHz, 48 kHz and 96 kHz sampling frequencies.
Note
No sound is output when you play a Super Audio CD on the Super Audio CD player connected to the
SA-CD/CD OPTICAL IN jack on this receiver. Connect the player to the analog input jacks (SA-CD/CD IN jacks).
Refer to the operating instructions supplied with the Super Audio CD player.
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
9
US
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 10 Thursday, January 13, 2005 3:28 PM masterpage:Left
1b: Connecting components with multi channel output jacks
1 Connect the audio jacks.
(HT-9900M and HT-6900DP only)
If your DVD or Super Audio CD player is equipped with multi channel output jacks, you can connect it to this receiver’s MULTI CH IN jacks to enjoy the multi channel sound. Alternatively, the multi channel input jacks can be used to connect an external multi channel decoder.
For details on the required cords (A
–
DIGITAL
OPTICAL
VIDEO 2
IN
SA-CD/
CD
IN
DVD
IN
COAXIAL
ANTENNA
AM
COMPONENT VIDEO
ASSIGNABLE
Y
MONITOR
B
/C
/B–Y
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT DVD
IN
VIDEO 2
IN
MONITOR
OUT
P
R
/C
/R–Y
AUDIO
OUT
L L L L
L
CENTER
R
IN
SA-CD/CD
R
OUT IN
MD/TAPE
AUDIO IN
DVD
R
AUDIO IN
VIDEO 2
R
AUDIO OUT AUDIO IN
VIDEO 1
FRONT
R
SURROUND
SUB
WOOFER
MULTI CH IN
SUB
WOOFER
A A F F
L
CENTER
R
FRONT SURROUND
SUB
WOOFER
MULTI CH OUT
DVD player,
Super Audio CD player,
Multi channel decoder, etc.
Tip
This connection also allows you to enjoy software with multi channel audio recorded in formats other than the Dolby
Digital and DTS.
Note
When you make connections to the MULTI CH IN jacks, you will need to adjust the level of the speakers and sub woofer using the controls on the connected component.
10
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 11 Thursday, January 13, 2005 3:28 PM masterpage:Right
2 Connect the video jacks.
The following illustration shows how to connect a DVD player with COMPONENT VIDEO (Y, P
B
/
C
B
/B-Y, P
R
/C
R
/R-Y) output jacks. Connecting a TV with component video input jacks allows you to enjoy higher quality video.
OUTPUT
VIDEO
DVD player
OUTPUT
P
R
/C
R
COMPONENT
/R–Y P
B
/C
B
/B–Y Y
INPUT
VIDEO
TV monitor
INPUT
P
R
/C
R
COMPONENT
/R–Y P
B
/C
B
/B–Y Y
C G C G
DIGITAL
OPTICAL
VIDEO 2
IN
SA-CD/
CD
IN
DVD
IN
COAXIAL
ANTENNA
AM
COMPONENT VIDEO
ASSIGNABLE
Y
MONITOR
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT
DVD
IN
P
B
/C
B
/B–Y
VIDEO 2
IN
MONITOR
OUT
R
/C
R
/R–Y
AUDIO
OUT
L
L L L L
CENTER
R
IN
SA-CD/CD
R
OUT IN
MD/TAPE
AUDIO IN
DVD
R
AUDIO IN
VIDEO 2
AUDIO OUT
R
AUDIO IN
VIDEO 1
FRONT
R
SURROUND
SUB
WOOFER
MULTI CH IN
SUB
WOOFER
Note
On this receiver, the standard video signals cannot be converted to component video signals (or vice versa).
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
11
US
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 12 Thursday, January 13, 2005 3:28 PM masterpage:Left
1c: Connecting components with only analog audio jacks
Hooking up audio components
For details on the required cords (A
–
DIGITAL
OPTICAL
VIDEO 2
IN
SA-CD/
CD
IN
DVD
IN
COAXIAL
ANTENNA
AM
COMPONENT VIDEO
ASSIGNABLE
Y
MONITOR
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT DVD
IN
B
/C
B
/B–Y
VIDEO 2
IN
MONITOR
OUT
R
/C
R
/R–Y
AUDIO
OUT
L L L L
L
CENTER
R
IN
SA-CD/CD
R
OUT IN
MD/TAPE
AUDIO IN
DVD
R
AUDIO IN
VIDEO 2
AUDIO OUT
R
AUDIO IN
VIDEO 1
FRONT
R
SURROUND
SUB
WOOFER
MULTI CH IN
SUB
WOOFER
A
OUTPUT
LINE
L
R
Super Audio CD/
CD player
OUT
A
INPUT OUTPUT
LINE LINE
L
R
A
IN
MD/Tape deck
12
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 13 Thursday, January 13, 2005 3:28 PM masterpage:Right
Hooking up video components
If you connect your TV to the MONITOR VIDEO OUT jack, you can watch the video from the selected
input (page 23). For details on the required cords (A
Satellite tuner
OUTPUT
VIDEO
OUT
AUDIO
OUT
L
R
B
INPUT
VIDEO
TV monitor
C
To the VIDEO 3
IN/PORTABLE
AV IN jacks
(Front panel)
SA-CD/
CD
IN
DVD
IN
COAXIAL
DIGITAL
OPTICAL
VIDEO 2
IN
ANTENNA
AM
COMPONENT VIDEO
ASSIGNABLE
Y
MONITOR
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT
DVD
IN
B
/C
B
/B–Y
VIDEO 2
IN
MONITOR
OUT
R
/C
R
/R–Y
AUDIO
OUT
L L L L
L
CENTER
R
IN
SA-CD/CD
R
OUT IN
MD/TAPE
AUDIO IN
DVD
R
AUDIO IN
VIDEO 2
AUDIO OUT
R
AUDIO IN
VIDEO 1
FRONT
R
SURROUND
SUB
WOOFER
MULTI CH IN
SUB
WOOFER
B
Camcorder or video game
OUT
B
INPUT OUTPUT
VIDEO
IN
VIDEO
OUT
AUDIO
IN
AUDIO
OUT
L
R
B
IN
VCR
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
13
US
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 14 Thursday, January 13, 2005 3:28 PM
2: Connecting the antennas
Connect the supplied AM loop antenna and FM wire antenna.
AM loop antenna
(supplied)
DIGITAL
OPTICAL
VIDEO 2
IN
SA-CD/
CD
IN
DVD
IN
COAXIAL
ANTENNA
AM
FM wire antenna
(supplied)
COMPONENT VIDEO
ASSIGNABLE
Y
MONITOR
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT
DVD
IN
P
B
/C
B
/B–Y
VIDEO 2
IN
MONITOR
OUT
R
/C
R
/R–Y
AUDIO
OUT
L L L L
L
CENTER
R
IN
SA-CD/CD
R
OUT IN
MD/TAPE
AUDIO IN
DVD
R
AUDIO IN
VIDEO 2
AUDIO OUT
R
AUDIO IN
VIDEO 1
FRONT
R
SURROUND
SUB
WOOFER
MULTI CH IN
SUB
WOOFER
*
* The shape of the connector varies depending on the area code.
Notes
• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
masterpage:Left
14
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 15 Thursday, January 13, 2005 3:28 PM masterpage:Right
3: Connecting speakers
Connect your speakers to the receiver. This receiver allows you to use a 6.1 channel speaker system.
To fully enjoy theater-like multi channel surround sound requires five speakers (two front speakers, a center speaker, and two surround speakers) and a sub woofer (5.1 channel).
You can enjoy high fidelity reproduction of DVD software recorded in the Surround EX format if you
Example of 6.1 channel speaker system configuration
Center speaker
Front speaker (Right)
Surround speaker (Right)
Front speaker (Left)
Sub woofer
Surround speaker (Left)
Surround back speaker
Tips
• When you connect 6.1 channel speaker system, place the surround back speaker behind the listening position.
• Since the sub woofer does not emit highly directional signals, you can place it wherever you want.
• For greater flexibility in the positioning of the speakers, use the optional WS-FV10D (HT-5950DP only) or
WS-FV11 floor stand (available only in certain countries).
• You can also install the front, surround and surround back speakers on the wall (see page 17).
Note
Connect the long speaker connecting cords to the surround and surround back speaker terminals and the short speaker connecting cords to the front and center speaker terminals.
Attaching foot pads
To prevent speaker vibration or movement, attach the supplied foot pads to the speaker as shown in the illustration below.
Note
Be sure to attach the supplied foot pads to the sub woofer as well.
continued
15
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 16 Thursday, January 13, 2005 3:28 PM masterpage:Left
Required cords
A Speaker cords (supplied)
(+)
(–)
B Monaural audio cord (supplied)
Black
E
Front speaker
(Right) e
A
E
Front speaker
(Left)
A e E
Center speaker
A e E
Surround back speaker e
A
SPEAKERS
FRONT B*
NT VIDEO
Y
B
/C
/B–Y
MONITOR
OUT
P
R
/C
/R–Y
AUDIO
OUT
SUB
WOOFER
SURROUND BACK
R L
– +
R
FRONT A
CENTER
SPEAKERS
L
R L
FRONT B
+ – – +
R
SURROUND
SPEAKERS
L
VOLTAGE SELECTOR
SUB
WOOFER**
INPUT
B
Sub woofer
A
E
Surround speaker
(Right) e
A
E
Surround speaker
(Left) e
* (HT-9900M and HT-6900DP only) If you have an additional front speaker system, connect them to the
SPEAKERS FRONT B terminals. You can select the front speakers you want to use with the SPEAKERS
(OFF/A/B/A+B) button. For details, see “Selecting the speaker system” (page 41).
** (HT-9900M and HT-6900DP only) If you have an additional sub woofer, you can connect it to the other SUB
WOOFER terminal.
16
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 17 Thursday, January 13, 2005 3:28 PM masterpage:Right
Installing the speakers on the wall
You can install your front, surround and surround back speakers on the wall.
1
Prepare screws (not supplied) that are suitable for the metal hook on the back of each speaker. See the illustrations below.
more than 4 mm
(5/32 inch) more than 25 mm (1 inch)
4.6 mm
(3/16 inch)
10 mm
(13/32 inch)
Metal hook on the back of the speaker
2
Fasten the screws to the wall. The screws should protrude 5 to 7 mm (7/32 to 9/32 inch).
3
Hang the speakers on the screws.
Metal hook on the back of the speaker
4.6 mm
(3/16 inch)
10 mm
(13/32 inch)
Notes
• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where reinforcement is applied.
• Contact a screw shop or installer regarding the wall material or screws to be used.
• Sony is not responsible for accident or damage caused by improper installation, insufficient wall strength or improper screw installation, natural calamity, etc.
5 to 7 mm
(7/32 to 9/32 inch)
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
17
US
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 18 Thursday, January 13, 2005 3:28 PM masterpage:Left
4: Connecting the AC power cord
Connect the AC power cord to a wall outlet.
R L
R L
FRONT B
AC power cord b
To a wall outlet
Performing initial setup operations
Before using the receiver for the first time, initialize the receiver by performing the following procedure.
This procedure can also be used to return settings you have made to their factory defaults.
Use the buttons on the receiver for the operation.
1
Press ?/1 to turn off the receiver.
2
Hold down ?/1 for 5 seconds.
“PUSH” and “ENTER” appears in the display alternatingly.
3
Press ENTER.
“CLEARING” appears in the display for a while, then “CLEARED” appears.
The following are reset to their factory settings.
• All settings in the SPEAKER SET UP,
LEVEL, TONE and CUSTOMIZE menus.
• The sound field memorized for each input and preset station.
• All sound field parameters.
• All preset stations.
• All index names for inputs and preset stations.
• MASTER VOLUME –/+ is set to “VOL
MIN”.
18
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 19 Thursday, January 13, 2005 3:28 PM masterpage:Right
5: Setting up the speakers
You can use the SPEAKER SET UP menu to set the distance and location of the speakers connected to this receiver.
1
Press ?/1 to turn on the receiver.
2
Press MAIN MENU repeatedly to select
“ SET UP ”.
3
Press or repeatedly to select the parameter you want to adjust.
For details, see “SPEAKER SET UP menu parameters” below.
Note
Some speaker setup items may appear dimmed in the display. This means that they have been adjusted automatically due to other speaker settings or may not be adjustable.
4
Press + or – repeatedly to select the setting you want.
The setting is entered automatically.
5
Repeat steps 3 and 4 until you have set
all of the items that follow.
SPEAKER SET UP menu parameters
The initial settings are underlined.
x
L R
DIST. XX ft.
(Front speaker distance)
Initial setting: 10 ft.
Lets you set the distance from your listening position to the front speakers (A). You can adjust from 3 to 23 feet in 1 foot steps.
If both front speakers are not placed an equal distance from your listening position, set the distance to the closest speaker.
B
A
30˚ 30˚
A
100˚-120˚ 100˚-120˚
C C
D x
C
DIST. XX ft.
(Center speaker distance)
Initial setting: 10 ft.
Lets you set the distance from your listening position to the center speaker. Center speaker distance should be set from a distance equal to the front speaker distance (A) to a distance 5 feet closer to your listening position (B).
x
SL SR
DIST. XX ft.
(Surround speaker distance)
Initial setting: 10 ft.
Lets you set the distance from your listening position to the surround speakers. Surround speaker distance should be set from a distance equal to the front speaker distance (A) to a distance 15 feet closer to your listening position (C).
If both surround speakers are not placed an equal distance from your listening position, set the distance to the closest speaker.
x
SB
DIST. XX ft.
(Surround back speaker distance)
Initial setting: 10 ft.
Lets you set the distance from your listening position to the surround back speaker. Surround back speaker distance should be set from a distance equal to the front speaker distance (A) to a distance 15 feet closer to your listening position (D).
Tip
The receiver lets you to input the speaker position in terms of distance. However, it is not possible to set the center speaker further than the front speakers. Also, the center speaker cannot be set more than 5 feet closer than the front speakers.
Likewise, the surround speakers cannot be set further away from the listening position than the front speakers. And they can be no more than 15 feet closer.
This is because incorrect speaker placement is not conducive to the enjoyment of surround sound.
Please note that, setting the speaker distance closer than the actual location of the speakers will cause a delay in the output of the sound from that speaker. In other words, the speaker will sound like it is further away.
For example, setting the center speaker distance 3–6 feet closer than the actual speaker position will create a fairly realistic sensation of being “inside” the screen.
If you cannot obtain a satisfactory surround effect because the surround speakers are too close, setting the surround speaker distance closer (shorter) than the actual distance will create a larger sound stage.
Adjusting these parameter while listening to the sound often results in much better surround sound. Give it a try!
continued
19
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 20 Thursday, January 13, 2005 3:28 PM masterpage:Left x
SW
XXXXXXX
(Sub woofer phase polarity)
(HT-9900M and HT-6900DP only)
Lets you set the sub woofer phase polarity.
• NORMAL
Normally, select “NORMAL”.
• REVERSE
Depending on the type of front speakers, the position of the sub woofer, and the cut-off frequency of the sub woofer, setting the phase polarity to
“REVERSE” may produce better bass. Besides bass reproduction, the richness and tightness of the overall sound may also be affected. While listening from the main listening position, select the setting that best suits your environment.
x
SL SR
XXXX/XX
(Surround speaker position)
Lets you specify the location of your surround speakers for proper implementation of the surround effects in
the Cinema Studio EX modes (page 31).
A
D
C
B
100˚
120˚
B
D
60
30
C
A
• SIDE/LO
Select if the location of your surround speakers corresponds to section A and C.
• SIDE/HI
Select if the location of your surround speakers corresponds to section A and D.
• BEHD/LO
Select if the location of your surround speakers corresponds to section B and C.
• BEHD/HI
Select if the location of your surround speakers corresponds to section B and D.
Tip
Surround speaker position is designed specifically for implementation of the Cinema Studio EX modes.
For other sound fields, speaker position is not so critical. Those sound fields were designed under the premise that the surround speakers would be located behind the listening position, but presentation remains fairly consistent even with the surround speakers positioned at a rather wide angle. However, if the speakers are pointing toward the listener from the immediate left and right of the listening position, the surround effects becomes unclear unless set to
“SIDE/LO” or “SIDE/HI”.
Nevertheless, each listening environment has many variables, such as wall reflections, and you may obtain better results using “BEHD/HI” if your speakers are located high above the listening position, even if they are to the immediate left and right.
Therefore, although it may result in a setting contrary to the above explanation, we recommend that you playback multi channel surround encoded software and select the setting that provides a good sense of spaciousness and that best succeeds in forming a cohesive space between the surround sound from the surround speakers and the sound of the front speakers.
If you are not sure which sounds best, select
“BEHD/LO” or “BEHD/HI” and then use the speaker distance parameter and speaker level adjustments to obtain proper balance.
20
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 21 Thursday, January 13, 2005 3:28 PM masterpage:Right
6: Setting up the sub woofer
Listening to the sub woofer
HT-9900M and HT-6900DP only
POWER indicator
POWER
Adjusting the level
Slight adjustments to the system can enhance your sound enjoyment.
HT-9900M and HT-6900DP only
LEVEL
INPUT
LEVEL
HT-5950DP only
HT-5950DP only
POWER indicator
LEVEL
POWER
Before playing the program source, set the volume to minimum on the receiver.
1
Turn on the receiver.
2
Press input buttons (e.g., DVD) to select the program source (e.g., DVD player).
3
Press POWER on the sub woofer.
The POWER indicator on the sub woofer lights up.
4
Play the program source.
Turn LEVEL to adjust the volume.
Set the volume level to best suit your preference according to the program source.
Note
Do not set the volume of the sub woofer to maximum.
Extraneous noise may be heard.
continued
21
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB03CON_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 22 Thursday, January 13, 2005 3:28 PM
7: Adjusting the speaker levels and balance
— TEST TONE
Adjust the speaker levels and balance while listening to the test tone from your listening position. Use the remote for the operation.
Tip
The receiver employs a test tone with a frequency centered at 800 Hz.
1
Press ?/1 to turn on the receiver.
2
Press TEST TONE.
“T. TONE” appears in the display and the test tone is output from each speaker in sequence.
Front (left) t Center t Front (right) t
Surround (right) t Surround back t
Surround (left) t Sub woofer
3
Adjust the speaker levels and balance using the LEVEL menu so that the level of the test tone sounds the same from each speaker.
For details on the LEVEL menu settings,
Tips
• To adjust the level of all speakers at the same time, press MASTER VOL +/– on the remote or turn MASTER VOLUME –/+ on the receiver.
• The adjusted value are shown in the display during adjustment.
4
Press TEST TONE again after adjustment.
The test tone turns off.
Notes
• (HT-9900M and HT-6900DP only) The test tone cannot be used when MULTI CH IN function is used.
• Although these adjustments can also be made via the front panel using the LEVEL menu (when the test tone is output, the receiver switches to the LEVEL menu automatically), we recommend you follow the procedure described above and adjust the speaker levels from your listening position using the remote.
22
US
masterpage:Left
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB04BSC_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 23 Thursday, January 13, 2005 3:28 PM masterpage:Right
Amplifier Operation
Selecting the component
1
Press input buttons to select the input.
To select the
VCR
Press
VIDEO 1
Satellite tuner VIDEO 2
Camcorder or video game VIDEO 3
DVD player
MD or tape deck
Super Audio CD or
CD player
Built-in tuner (FM)
Built-in tuner (AM)
DVD
MD/TAPE
SA-CD/CD
FM
AM
The selected input appears in the display.
2
Turn on the component and start playback.
Note
If you select any video components, set the TV’s video input to match the component you selected.
3
Turn MASTER VOLUME –/+ to adjust the volume.
Note
To avoid damaging your speakers, make sure that you turn down the volume before you turn off the receiver.
To mute the sound
Press MUTING on the remote.
The muting function will be canceled when you do the following.
• Press MUTING on the remote again.
• Turn the power off.
• Increase the volume.
To use the headphones
Connect the headphones to the PHONES jack.
• When the headphones are connected, speaker output is automatically canceled and the following indications in the display turn off.
Model Indications
HT-9900M and HT-6900DP SP A and SP B
HT-5950DP SP
• When the headphones are connected, you can select only the following sound fields
– HP 2CH (HEADPHONE 2CH)
– HP MULTI (HEADPHONE MULTI)
(HT-9900M and HT-6900DP only)
– HP THEA (HEADPHONE THEATER)
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
23
US
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB04BSC_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 24 Thursday, January 13, 2005 3:28 PM masterpage:Left
Listening to multi channel sound
— MULTI CH IN
(HT-9900M and HT-6900DP only)
You can select the audio directly from the components connected to the MULTI CH IN jacks. This enables you to enjoy high quality analog inputs such as DVD or Super Audio CD.
When MULTI CH IN is selected, the tone and sound field cannot be used.
Press MULTI CH IN.
Press again to cancel the MULTI CH IN function.
Note
To optimize the sound balance of this system, we recommend that you set the speaker configuration of your DVD or Super Audio CD player as follows:
Speaker type
FRONT
CENTER
SURROUND/REAR
SUB WOOFER
Settings
SMALL
SMALL
SMALL
YES
When MULTI CHANNEL
DECODING indicator lights up
The MULTI CHANNEL DECODING indicator lights up when the receiver is decoding multi channel sources.
However, this indicator does not light up if you select 2CH STEREO mode.
Listening to FM/AM radio
You can listen to FM and AM broadcasts through the built-in tuner. Before operation, make sure you have connected the FM and AM
antennas to the receiver (see page 14).
Tip
The tuning scale differs depending on the area code as shown in the following table. For details on area codes,
Area code
U, CA
FM
100 kHz
AM
10 kHz*
* The AM tuning scale can be changed (see page 56).
Automatic tuning
If you do not know the frequency of the station you want, you can let the receiver scan all available stations in your area.
1
Press FM or AM to select the FM or AM band.
The last received station is tuned in.
2
Press TUNING + or TUNING –.
Press TUNING + to scan from low to high; press TUNING – to scan from high to low.
The receiver stops scanning whenever a station is received.
Tip
If “STEREO” flashes in the display and the FM stereo reception is poor, press FM MODE to change to monaural (MONO). You will not be able to enjoy the stereo effect, but the sound will be less distorted. To return to stereo mode, press FM MODE again.
24
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB04BSC_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 25 Thursday, January 13, 2005 3:28 PM masterpage:Right
Direct tuning
You can enter the frequency of the station you want directly. Use the remote for the operation.
1
Press TUNER repeatedly to select the
FM or AM band.
The last received station is tuned in.
Tip
You can also use FM or AM on the receiver.
2
Press D.TUNING.
3
Press the numeric buttons to enter the frequency.
Example 1: FM 102.50 MHz
Press 1 b 0 b 2 b 5 b 0
Example 2: AM 1,350 kHz
Press 1 b 3 b 5 b 0
(You do not have to enter the last “0” when the tuning scale is set to 10 kHz.)
If you have tuned in an AM station, adjust the direction of the AM loop antenna for optimum reception.
If you cannot tune in a station and the entered numbers flash
Make sure you have entered the right frequency.
If not, repeat steps 2 and 3. If the entered
numbers still flash, the frequency is not used in your area.
Presetting radio stations
You can preset up to 30 FM or AM stations.
Then you can easily tune in the stations you often listen to.
Presetting radio stations
1
Press FM or AM to select the FM or AM band.
The last received station is tuned in.
2
Tune in the station that you want to preset using Automatic Tuning
(page 24) or Direct Tuning (page 25).
3
Press MEMORY.
“MEMORY” appears in the display for a
few seconds. Do steps 4 to 5 before the
display goes out.
4
Press PRESET TUNING + or PRESET
TUNING – repeatedly to select a preset station number.
Each time you press the button, you can select the preset station number as follows: tA1yA2y...yA0yB1yB2y...yB0T
tC0y...yC2yC1T
If “MEMORY” goes out before you select the preset station number, start again from
Tip
You can also use the remote to select a preset station number. Press SHIFT repeatedly to select a memory page (A, B or C) and then press the numeric buttons to select a preset number.
5
Press MEMORY again.
The station is stored to the selected preset number.
If “MEMORY” goes out before you press
MEMORY, start again from step 3.
6
Repeat steps 2 to 5 to preset another
station.
continued
25
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB04BSC_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 26 Thursday, January 13, 2005 3:28 PM masterpage:Left
Tuning to preset stations
1
Press FM or AM to select the FM or AM band.
The last received station is tuned in.
2
Press PRESET TUNING + or PRESET
TUNING – repeatedly to select the preset station you want.
Each time you press the button, you can select the preset station as follows: tA1yA2y...yA0yB1yB2y...yB0T
tC0y...yC2yC1T
Using the remote
1
Press TUNER repeatedly to select the FM or
AM band.
2
Press PRESET/CH/D.SKIP +/– repeatedly to select the preset station you want.
To select the preset station directly
Press the numeric buttons on the remote.
The preset station of the selected number in the current memory page is tuned in. Press SHIFT repeatedly on the remote to change the memory page.
Changing the display
Changing the information in the display
You can check the sound field etc. by changing the information in the display.
Press DISPLAY repeatedly.
Each time you press DISPLAY, the display will change cyclically as follows.
Index name of the input
* t Selected input t
Sound field currently applied
When the tuner is selected
Preset station name* t Frequency t Sound field currently applied
* Index name appears only when you have assigned
one to the input or preset station (page 40). Index
name does not appear when only blank spaces have been entered, or it is the same as the input name.
Adjusting the brightness of the display
Press DIMMER repeatedly.
The brightness of the display will change in 3 steps.
26
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB04BSC_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 27 Thursday, January 13, 2005 3:28 PM masterpage:Right
About the indications in the display
1 2 3* 4 5 6 7
SW
LFE SP A
;
DIGITAL EX
;
PRO LOGIC IIx DTS-ES NEO:6
SP B SLEEP OPT COAX 96/24 D.RANGE
L C R
SL S SR
SB
qs qa q; 9
STEREO MONO
MEMORY
8 qd
A SW: Lights up when the audio signal is output from the SUB WOOFER jack.
B LFE: Lights up when the disc being played back contains the LFE (Low Frequency
Effect) channel and the LFE channel signal is actually being reproduced.
C SP A/SP B*: Lights up in accordance with the speaker system being used (A or B). Turns off when speaker output is turned off or when headphones are connected.
* For HT-5950DP, “SP” lights up in the display.
D ; DIGITAL EX: “; DIGITAL” lights up when the receiver is decoding signals recorded in the Dolby Digital format.
“; DIGITAL EX” lights up when the receiver is decoding signals recorded in the
Dolby Digital EX format.
Note
When playing a Dolby Digital format disc, be sure that you have made digital connections and
that INPUT MODE is not set to “ANALOG”
E ; PRO LOGIC IIx: “; PRO LOGIC” lights up when the receiver applies Pro Logic processing to 2 channel signals in order to output the center and surround channel signals. “; PRO LOGIC II” lights up when the Pro Logic II Movie/Music/Game decoder is activated. “; PRO LOGIC IIx” lights up when the Pro Logic IIx Movie/Music/Game decoder is activated.
Note
Dolby Pro Logic IIx decoding does not function for DTS signals or for signals with a sampling frequency of more than 48 kHz.
F DTS-ES 96/24: “DTS” lights up when DTS signals are input. “DTS-ES” lights up when
DTS-ES signals are input. “DTS 96/24” lights up when the receiver is decoding DTS 96 kHz/
24 bit signals.
Note
When playing a DTS format disc, be sure that you have made digital connections and that INPUT
MODE is not set to “ANALOG” (page 35).
G NEO:6: Lights up when DTS Neo:6 Cinema/
Music mode decoding is activated.
H Tuner indicators: Lights up when using the receiver to tune in radio stations, etc. See
pages 24–26 for tuner operations.
I D.RANGE: Lights up when dynamic range
compression is activated (page 36).
J COAX: Lights up when the source signal is a digital signal being input through the
COAXIAL terminal or when INPUT MODE
is set to “COAX IN” (page 35).
K OPT: Lights up when the source signal is a digital signal being input through the
OPTICAL terminal or when INPUT MODE is
L SLEEP: Lights up when sleep timer is activated.
continued
27
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB04BSC_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 28 Thursday, January 13, 2005 3:28 PM
M Playback channel indicators: The letters
(L, C, R, etc.) indicate the channels being played back. The boxes around the letters vary to show how the receiver downmixes the source sound.
L (Front Left), R (Front Right), C (Center
(monaural)), SL (Surround Left), SR
(Surround Right), S (Surround (monaural or the surround components obtained by Pro
Logic processing)), SB (Surround Back (the surround back components obtained by 6.1 channel decoding))
Example:
Recording format (Front /Surround): 3/2
Sound Field: A.F.D. AUTO
L C R
SL SR
masterpage:Left
28
US
model name1[HT-5950DP]
model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB05SND_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 29 Thursday, January 13, 2005 3:28 PM masterpage:Right
Enjoying Surround Sound
Using only the front speakers and sub woofer
— 2CH STEREO
In this mode, the receiver outputs the sound from the front left/right speakers and sub woofer.
When multi channel surround formats are input, the signals are downmixed to 2 channel with bass frequencies being output from the sub woofer.
When standard 2 channel stereo sources are input, the receiver’s bass redirection circuitry will be activated. The front channel bass frequencies will be output from the sub woofer.
Press 2CH.
“2CH ST.” appears in the display and the receiver switches to the 2CH STEREO mode.
Enjoying higher fidelity sound
— AUTO FORMAT DIRECT
The Auto Format Direct (A.F.D.) mode allows you to select the decoding mode you want for your audio sound.
A.F.D. mode
(Display)
A.F.D. AUTO
(A.F.D. AUTO)
PRO LOGIC
(DOLBY PL)
PRO LOGIC II MOVIE
(PLII MV)
PRO LOGIC II MUSIC
(PLII MS)
PRO LOGIC II GAME
(PLII GM)
PRO LOGIC IIx MOVIE
(PLIIX MV)
PRO LOGIC IIx MUSIC
(PLIIX MS)
PRO LOGIC IIx GAME
(PLIIX GM)
Neo:6 Cinema
(NEO6 CIN)
Neo:6 Music
(NEO6 MUS)
MULTI STEREO
(MULTI ST.)
Decoding mode
As encoded
Dolby Pro Logic
Dolby Pro Logic II
Dolby Pro Logic IIx
DTS Neo:6
continued
29
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB05SND_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 30 Thursday, January 13, 2005 3:28 PM masterpage:Left
Decoding the input audio signal automatically
In this mode, the receiver automatically detects the type of audio signal being input (Dolby
Digital, DTS, standard 2 channel stereo, etc.) and performs the proper decoding if necessary.
This mode presents the sound as it was recorded/ encoded, without adding any surround effects.
However, if there are no low frequency signals
(Dolby Digital LFE, etc.) it will generate a low frequency signal for output to the sub woofer.
Press A.F.D. repeatedly to select “A.F.D.
AUTO”.
The receiver automatically detects the type of audio signal being input and performs the proper decoding if necessary.
Tip
In most cases, “A.F.D. AUTO” provides the most appropriate decoding. You may want to use SURR
BACK DECODING (page 33) to match the input
stream to the mode you prefer.
Enjoying stereo sound in multi channel (2 channel decoding mode)
This mode lets you specify the type of decoding for 2 channel audio sources. This receiver can reproduce 2 channel sound in 5 channels through Dolby Pro Logic II; 6 channels through
Dolby Pro Logic IIx; 6 channels through DTS
Neo:6 or 4 channels through Dolby Pro Logic.
However, DTS 2CH sources are not decoded by
DTS Neo:6; they are output in 2 channels.
Press A.F.D. repeatedly to select the 2 channel decoding mode.
The selected type of decoding appears in the display.
x DOLBY PL (PRO LOGIC)
Performs Dolby Pro Logic decoding. The source recorded in 2 channel is decoded into 4.1 channels.
x PLII MV (PRO LOGIC
II MOVIE)
Performs Dolby Pro Logic II Movie mode decoding.
This setting is ideal for movies encoded in Dolby
Surround. In addition, this mode can reproduce sound in 5.1 channel when watching videos of overdubbed or old movies.
x PLII MS (PRO LOGIC
II MUSIC)
Performs Dolby Pro Logic II Music mode decoding.
This setting is ideal for normal stereo sources such as
CDs. x PLII GM (PRO LOGIC
II GAME)
Performs Dolby Pro Logic II Game mode decoding.
This setting is ideal for video game softwares.
x PLIIX MV (PRO LOGIC
II x MOVIE)
Performs Dolby Pro Logic IIx Movie mode decoding.
This setting expands Dolby Pro Logic II Movie or
Dolby Digital 5.1 to discrete 6.1 movie channels.
x PLIIX MS (PRO LOGIC
II x MUSIC)
Performs Dolby Pro Logic IIx Music mode decoding.
This setting shares hard “back” effects across all surround speakers.
x PLIIX GM (PRO LOGIC
II x GAME)
Performs Dolby Pro Logic IIx Game mode decoding.
This setting delivers full-impact special effect signals panned to the surround speakers.
Note
Dolby Pro Logic IIx decoding does not function for
DTS format signals or for signals with a sampling frequency of more than 48 kHz.
x NEO6 CIN (Neo:6 Cinema)
Performs DTS Neo:6 Cinema mode decoding. x NEO6 MUS (Neo:6 Music)
Performs DTS Neo:6 Music mode decoding. This setting is ideal for normal stereo sources such as CDs.
x MULTI ST. (MULTI STEREO)
Outputs the 2 channel left/right signals from all speakers.
30
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB05SND_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 31 Thursday, January 13, 2005 3:28 PM masterpage:Right
Selecting a sound field
You can take advantage of surround sound simply by selecting one of the receiver’s preprogrammed sound fields. They bring the exciting and powerful sound of movie theaters and concert halls into your home.
Selecting a sound field for movies
Press MOVIE repeatedly to select the sound field you want.
The selected sound field appears in the display.
Sound field Display
CINEMA STUDIO EX A DCS C.ST.EX A
CINEMA STUDIO EX B DCS C.ST.EX B
CINEMA STUDIO EX C DCS C.ST.EX C
About DCS (Digital Cinema
Sound)
Sound fields with
DCS
marks use DCS technology.
DCS is the concept name of the surround technology for home theater developed by Sony.
DCS uses the DSP (Digital Signal Processor) technology to reproduce the sound characteristics of an actual cinema cutting studio in Hollywood.
When played at home, DCS will create a powerful theater effect that mimics the artistic combination of sound and action as envisioned by the movie director. x C.ST.EX A (CINEMA STUDIO EX A) DCS
Reproduces the sound characteristics of the Sony
Pictures Entertainment “Cary Grant Theater” cinema production studio. This is a standard mode, great for watching most any type of movies.
x C.ST.EX B (CINEMA STUDIO EX B) DCS
Reproduces the sound characteristics of the Sony
Pictures Entertainment “Kim Novak Theater” cinema production studio. This mode is ideal for watching science-fiction or action movies with lots of sound effects.
x C.ST.EX C (CINEMA STUDIO EX C) DCS
Reproduces the sound characteristics of the Sony
Pictures Entertainment scoring stage. This mode is ideal for watching musicals or films where orchestra music is featured in the soundtrack.
About CINEMA STUDIO EX modes
CINEMA STUDIO EX modes are suitable for watching motion picture DVDs (etc.), with multi channel surround effects. You can reproduce the sound characteristics of Sony
Pictures Entertainment’s dubbing studio in your home.
The CINEMA STUDIO EX modes consist of the following three elements.
• Virtual Multi Dimension
Creates 5 sets of virtual speakers from a single pair of actual surround speakers.
• Screen Depth Matching
Creates the sensation that the sound is coming from inside the screen like in theaters.
• Cinema Studio Reverberation
Reproduces the type of reverberation found in theaters.
The CINEMA STUDIO EX modes integrate these three elements simultaneously.
Notes
• The effects provided by the virtual speakers may cause increased noise in the playback signal.
• When listening with sound fields that employ the virtual speakers, you will not be able to hear any sound coming directly from the surround speakers.
continued
31
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB05SND_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 32 Thursday, January 13, 2005 3:28 PM masterpage:Left
32
US
Selecting a sound field for music
Press MUSIC repeatedly to select the sound field you want.
The selected sound field appears in the display.
Sound field Display
HALL HALL
JAZZ CLUB
LIVE CONCERT
JAZZ
CONCERT x HALL
Reproduces the acoustics of a classical concert hall.
x JAZZ (JAZZ CLUB)
Reproduces the acoustics of a jazz club.
x CONCERT (LIVE CONCERT)
Reproduces the acoustics of a 300-seat live house.
When the headphones are connected
You can select only from the following sound fields.
x HP 2CH (HEADPHONE 2CH)
Outputs the sound in 2 channel (stereo). Standard 2 channel stereo sources completely bypass the sound field processing and multi channel surround formats are downmixed to 2 channels.
x HP MULTI (HEADPHONE MULTI)
(HT-9900M and HT-6900DP only)
Outputs the front analog signal from MULTI CH IN jacks.
x HP THEA (HEADPHONE THEATER)
DCS
Allows you to experience a theater-like environment while listening through a pair of headphones.
Note
If you connect a pair of headphones while a sound field is operating, the system will automatically switch to
HEADPHONE 2CH if using a sound field selected with the 2CH or A.F.D. button, or to HEADPHONE
THEATER if using a sound field selected with the
MOVIE or MUSIC button.
To turn off the surround effect
Press 2CH to select “2CH ST.” or press A.F.D. repeatedly to select “A.F.D. AUTO”.
Tips
• The receiver lets you apply the last selected sound field to an input whenever it is selected (Sound Field
Link). For example, if you select HALL for the
SA-CD/CD input, then change to a different input and then return to SA-CD/CD, HALL will automatically be applied again.
• You can identify the encoding format of DVD software, etc. by looking at the logo on the package.
– : Dolby Digital discs
–
–
: Dolby Surround encoded programs
: DTS Digital Surround encoded programs
Note
Sound fields do not function for the signals with a sampling frequency of more than 48 kHz.
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB05SND_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 33 Thursday, January 13, 2005 3:28 PM
Selecting the surround back decoding mode
— SURR BACK DECODING
This function lets you select the decoding mode for the surround back signals of the multi channel input stream.
By decoding the surround back signal of DVD software (etc.) recorded in Dolby Digital EX,
DTS-ES Matrix, DTS-ES Discrete 6.1, etc. format, you can enjoy the surround sound intended by the filmmakers.
Press SURR BACK DECODING repeatedly to select the surround back decoding mode.
“SB XXXX” appears in the display.
For details, see “How to select the surround back decoding mode” on page 34.
Tip
You can select the surround back decoding mode using
“SB XXXX” in the CUSTOMIZE menu (page 38).
Note
You can select the surround back decoding mode only when you use a sound field selected with the A.F.D. button except for the Dolby Pro Logic IIx mode.
masterpage:Right
continued
33
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB05SND_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 34 Thursday, January 13, 2005 3:28 PM masterpage:Left
How to select the surround back decoding mode
You can select the surround back decoding mode you want according to the input stream.
When you select “SB AUTO”
When the input stream contains the 6.1 channel decode flag a)
, the appropriate decoder is applied to decode the surround back signal.
Input stream
Dolby Digital 5.1
Dolby Digital EX b)
DTS 5.1
DTS-ES Matrix 6.1
c)
DTS-ES Discrete 6.1
d)
Output channel
5.1
6.1
5.1
6.1
6.1
Applied surround back decoder
—
Matrix decoder conforms to Dolby Digital EX
—
DTS Matrix decoder
DTS Discrete decoder
When you select “SB ON”
Dolby Digital EX is applied to decode the surround back signal regardless of the 6.1 channel decode flag a)
in the input stream. This decoder conforms to Dolby Digital EX and functions the same as the decoders e)
used in movie theaters.
Input stream
Dolby Digital 5.1
Dolby Digital EX b)
DTS 5.1
DTS-ES Matrix 6.1
c)
DTS-ES Discrete 6.1
d)
Output channel
6.1
6.1
6.1
6.1
6.1
Applied surround back decoder
Matrix decoder conforms to Dolby Digital EX
Matrix decoder conforms to Dolby Digital EX
Matrix decoder conforms to Dolby Digital EX
Matrix decoder conforms to Dolby Digital EX
Matrix decoder conforms to Dolby Digital EX
When you select “SB OFF”
Surround back decoding is not performed.
a)
6.1 channel decode flag is the information recorded in software like DVDs.
b)
Dolby Digital DVD that includes a Surround EX flag. The Dolby Corporation web page can help you distinguish
Surround EX films.
c) d)
Software encoded with a flag to denote it has both Surround EX and 5.1 channel signals.
Software encoded with both 5.1 channel signals and an extension stream designed for returning those signals to
6.1 discrete channels. Discrete 6.1 channel signals are DVD specific signals not used in movie theaters.
e)
This decoder can be used for all 6.1 formats (Dolby Digital EX, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1).
Note
There may be no sound from the surround back speaker in Dolby Digital EX mode. Some discs have no Dolby Digital
EX flag even though the packages have Dolby Digital EX logos. In this case, select “SB ON”.
34
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB06ADV_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 35 Thursday, January 13, 2005 3:28 PM masterpage:Right
Advanced Adjustments and Settings
Assigning the component video input
— COMPONENT VIDEO INPUT
ASSIGN
You can assign a component video input for another visual input.
1
Press MAIN MENU repeatedly to select
“ CUSTOM ”.
2
Press or repeatedly to select
“COMP. V. A.”.
3
Press ENTER.
4
Press or repeatedly to select the component video input you want to assign.
5
Press + or – repeatedly to select the input you want to assign the component video input jacks selected
The input you can assign varies for each
component video input. For details, see
“Selectable component video inputs for each input”.
6
Press ENTER.
Selectable component video inputs for each input
The initial settings are underlined.
VIDEO 2
VIDEO 1, VIDEO 2, VIDEO 3
DVD
VIDEO 1, VIDEO 3, DVD
Note
You cannot assign a visual input to more than one component video input.
Switching the audio input mode for digital components
— INPUT MODE
You can switch the audio input mode for components which have digital audio input jacks.
1
Press input buttons to select the input.
2
Press INPUT MODE repeatedly to select the audio input mode.
The selected audio input mode appears in the display.
Audio input modes
• AUTO IN
Gives priority to digital signals when there are both digital and analog connections. If there are no digital signals, analog is selected.
• COAX IN
Specifies the digital audio signals input to the
DIGITAL COAXIAL input jack.
• OPT IN
Specifies the digital audio signals input to the
DIGITAL OPTICAL input jacks.
• ANALOG
Specifies the analog audio signals input to the
AUDIO IN (L/R) jacks.
Notes
• When signals with a sampling frequency of more than 48 kHz is input, the tone and sound field cannot be used.
• Some audio input modes may be dimmed depending on the input. This means that the selected input is unavailable.
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
35
US
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB06ADV_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 36 Thursday, January 13, 2005 3:28 PM masterpage:Left
Customizing sound fields
By adjusting the LEVEL menu, you can customize the sound fields to suit your particular listening situation.
Note on the displayed items
The setup items you can adjust in each menu vary depending on the sound field. Certain setup parameters may be dimmed in the display. This means that the selected parameter is either unavailable or fixed and unchangeable.
Adjusting the LEVEL menu
You can adjust the balance and level of each speaker. These settings are applied to all sound fields except for effect level parameter. The effect level parameter settings are stored individually for each sound field.
1
Start playing a source encoded with multi channel surround effects (DVD, etc.).
2
Press MAIN MENU repeatedly to select
“ LEVEL ”.
3
Press or repeatedly to select the parameter you want to adjust.
For details, see “LEVEL menu parameters”
below.
4
While monitoring the sound, press + or
– repeatedly to select the setting you want.
The setting is entered automatically.
5
Repeat steps 3 and 4 to adjust the other
parameters.
LEVEL menu parameters
The initial setting is underlined.
x
L R
BAL. L/R XX
(Front speaker balance)
Initial setting: BALANCE (0)
Lets you adjust the balance between front left and right speakers. You can adjust in the range of BAL. L (+1 to
+8), BALANCE (0), BAL. R (+1 to +8) in 17 steps.
x CTR XXX dB
(Center speaker level)
x SUR.L. XXX dB
(Surround speaker (left) level)
x SUR.R. XXX dB
(Surround speaker (right) level)
x SB XXX dB
(Surround back speaker level)
x S.W. XXX dB
(Sub woofer level)
Initial setting: 0 dB
You can adjust from –10 dB to +10 dB in 1 dB steps.
x
D.RANGE
COMP. XXX
(Dynamic range compressor)
Lets you compress the dynamic range of the sound track. This may be useful when you want to watch movies at low volumes late at night.
• OFF
The dynamic range is not compressed.
• STD
The dynamic range is compressed as intended by the recording engineer.
• MAX
The dynamic range is compressed dramatically.
Tip
Dynamic range compressor lets you compress the dynamic range of the soundtrack based on the dynamic range information included in the Dolby Digital signal.
“STD” is the standard setting, but it only enacts light compression. Therefore, we recommend using the
“MAX” setting. This greatly compresses the dynamic range and lets you view movies late at night at low volumes. Unlike analog limiters, the levels are predetermined and provide a very natural compression.
Note
Dynamic range compression is possible with Dolby
Digital sources only.
x EFCT. XXX (Effect level)
Initial setting: STD
Lets you adjust the “presence” of the surround effect in
3 levels – MIN (minimum effect), STD (standard effect) and MAX (maximum effect).
Note
This parameter is valid only when you use a sound field selected with the MOVIE or MUSIC buttons.
36
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB06ADV_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 37 Thursday, January 13, 2005 3:28 PM masterpage:Right
Resetting sound fields to the initial settings
Use the buttons on the receiver for the operation.
1
Press ?/1 to turn off the power.
2
While holding down 2CH, press
?/1.
“SF. CLR.” appears in the display and all sound fields are reset to the initial setting.
Adjusting the tone
You can adjust the tonal quality (bass, treble level) of the front speakers using the TONE menu.
1
Start playing a source encoded with multi channel surround effects (DVD, etc.).
2
Press MAIN MENU repeatedly to select
“ TONE ”.
3
Press or repeatedly to select the parameter you want to adjust.
For details, see “TONE menu parameters”
below.
4
While monitoring the sound, press + or
– repeatedly to select the setting you want.
The setting is entered automatically.
5
Repeat steps 3 and 4 to adjust the other
items.
Note
You cannot adjust the tone when the receiver is decoding signals with a sampling frequency of more than 48 kHz, or when DTS 96/24, DTS-ES Matrix or
DTS Neo:6 decoding is applied.
TONE menu parameters
x BASS XX dB
(Front speaker bass level)
x TREB. XX dB
(Front speaker treble level)
Initial setting: 0 dB
You can adjust from –6 dB to +6 dB in 1 dB steps.
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
37
US
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB06ADV_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 38 Thursday, January 13, 2005 3:28 PM masterpage:Left
Advanced settings
Using the CUSTOMIZE menu to adjust the receiver
You can adjust various receiver settings using the CUSTOMIZE menu.
1
Press MAIN MENU repeatedly to select
“ CUSTOM ”.
2
Press or repeatedly to select the parameter you want to adjust.
For details, see “CUSTOMIZE menu parameters” below.
3
Press + or – repeatedly to select the setting you want.
The setting is entered automatically.
4
Repeat steps 2 and 3 to adjust the other
items.
CUSTOMIZE menu parameters
The initial settings are underlined.
x
DTS 96/24
96 XXXX
(DTS 96/24 decoding mode)
• AUTO
When a DTS 96/24 signal is input, it is played back at 96 kHz sampling frequencies.
• OFF
Even when a DTS 96/24 signal is input, it is played back at 48 kHz sampling frequencies.
Notes
• This parameter is valid only in the A.F.D. mode
(page 29). In other sound fields, this parameter is
always set to “96 OFF”.
• DTS 96/24 decoding is only valid in the A.F.D. mode
(page 29). When the system is set to other sound
fields, standard 48 kHz decoding is used.
x SB XXXX
(Surround back decoding mode)
You can also press SURR BACK DECODING to set
the surround back decoding mode (page 33).
For details on each decoding mode, see page 34.
• OFF
• AUTO
• ON
Note
You can select the surround back decoding mode only when you use a sound field selected with the A.F.D. button except for the Dolby Pro Logic IIx mode.
x A.V.SYNC. X
(Time alignment)
• Y (Yes) (Delay time: 68 ms)
The audio output is delayed so that the time gap between the audio output and visual display is minimized.
• N (No) (Delay time: 0 ms)
The audio output is not delayed.
Notes
• This parameter is useful when you use a large LCD or plasma monitor or a projection TV.
• This parameter is valid only when you use a sound field selected with the 2CH or A.F.D. buttons.
• The parameter is not valid when PCM 96 kHz, DTS
96/24 or DTS 2048 signals are input or when the receiver is performing DTS-ES Matrix 6.1 decoding.
x DEC. XXXX
(Digital audio input decoding priority)
Lets you specify the input mode for the digital signal input to the DIGITAL IN jacks.
The initial setting is “DEC. AUTO” for VIDEO 2 and
“DEC. PCM” for DVD and SA-CD/CD.
• AUTO
Automatically switches the input mode between
DTS, Dolby Digital, or PCM.
• PCM
PCM signals are given priority (to prevent the interruption when playback starts). Even when other signals are input, the sound is output. However, this receiver cannot decode DTS-CD when set to “DEC.
PCM”.
Note
When set to “DEC. AUTO” and the sound from the digital audio jacks (for CD, etc.) is interrupted when playback starts, set to “DEC. PCM”.
38
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB06ADV_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 39 Thursday, January 13, 2005 3:28 PM x DUAL XXX
(Digital broadcast language selection)
Lets you select the language you want to listen to during digital broadcast. This feature only functions for Dolby Digital sources.
• M/S (Main/Sub)
Sound of the main language will be output through the front left speaker and sound of the sub language will be output through the front right speaker simultaneously.
• M (Main)
Sound of the main language will be output.
• S (Sub)
Sound of the sub language will be output.
• M+S (Main + Sub)
Mixed sound of both the main and sub languages will be output.
x COMP. V. A.
(Component video input assignment)
Lets you assign the component video input to another
visual input. For details, see “Assigning the component video input” on page 35.
x NAME IN
(Naming preset stations and inputs)
Lets you set the name of preset stations and inputs
selected with input buttons. For details, see “Naming preset stations and inputs” on page 40.
masterpage:Right model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
39
US
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB070TH_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 40 Thursday, January 13, 2005 3:28 PM masterpage:Left
Other Operations
Naming preset stations and inputs
You can enter a name of up to 8 characters for preset stations and inputs selected with input buttons, and display it in the receiver’s display.
Use the buttons on the receiver for the operation.
1
To index a preset station
Press FM or AM to select the FM or AM band, then tune in the preset station you want to create an index name for
To index an input
Press the input button to select the input you want to create an index name for.
2
Press MAIN MENU repeatedly to select
“ CUSTOM ”.
3
Press
“NAME IN”.
4
Press ENTER.
The cursor flashes and you can select a character.
5
Use or and + or – to create an index name.
Press + or – repeatedly to select a character, then press > to move the cursor to the next position.
Tips
• You can select the character type as follows by pressing + or – repeatedly.
Alphabet (upper case) t Numbers t Symbols
• To enter a blank space, press + or – repeatedly until a blank space appears in the display.
• If you made a mistake, press < or > repeatedly until the character you want to change flashes, then press + or – repeatedly to select the correct character.
6
Press ENTER to store the index name.
Using the Sleep Timer
You can set the receiver to turn off automatically at a specified time.
Using the remote
1
Press ALT to light up the button.
2
Press SLEEP repeatedly while the power is on.
(HT-5950DP only)
Press SLEEP repeatedly while the power is on.
Each time you press SLEEP, the display changes cyclically as follows:
2-00-00 t 1-30-00 t 1-00-00 t
0-30-00 t OFF
While using Sleep Timer, “SLEEP” lights up in the display.
Tip
To check the remaining time before the receiver turns off, press SLEEP on the receiver (HT-5950DP only) or use the remote by pressing ALT to light up the button, then press SLEEP. The remaining time appears in the display. If you press SLEEP again, the sleep timer will be canceled.
40
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB070TH_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 41 Thursday, January 13, 2005 3:28 PM masterpage:Right
Selecting the speaker system
You can select the front speaker system you want to use by pressing the following button.
The selected speaker system appears in the display.
Model
HT-9900M and
HT-6900DP
HT-5950DP
Button
SPEAKERS
(OFF/A/B/A+B)
SPEAKERS
(ON/OFF)
Indications
SP A
SP B
SP
To turn off the speaker output, press the button repeatedly until the indications in the display turn off.
The speaker system
(HT-5950DP only)
• SP
The speakers connected to the SPEAKERS
FRONT terminals.
(HT-9900M and HT-6900DP only)
• SP A
The speakers connected to the SPEAKERS
FRONT A terminals.
• SP B
The speakers connected to the SPEAKERS
FRONT B terminals.
• SP A and SP B
The speakers connected to both the
SPEAKERS FRONT A and B terminals
(parallel connection).
Recording
Before you begin, make sure you have connected all components properly.
Recording on an audio tape or
MiniDisc
You can record on a cassette tape or MiniDisc using the receiver. See the operating instructions of your cassette deck or MD deck if you need help.
1
Select the component to be recorded.
2
Prepare the component for playing.
For example, insert a CD into the CD player.
3
Insert a blank tape or MD into the recording deck and adjust the recording level, if necessary.
4
Start recording on the recording deck, then start playback on the playback component.
Notes
• Sound adjustments do not affect the signal output from the MD/TAPE OUT jacks.
• The analog audio signals of the current input is output from the MD/TAPE OUT jacks.
• (HT-9900M and HT-6900DP only) The signals input to the MULTI CH IN jacks are not output from the
MD/TAPE OUT jacks even when MULTI CH IN is being used. The analog audio signals of the current or previously used input are output.
continued
41
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB070TH_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 42 Thursday, January 13, 2005 3:28 PM
Recording on a video tape
You can record from a VCR, a TV or a DVD player using the receiver. You can also add audio from a variety of audio sources when editing a video tape. See the operating instructions of your VCR or DVD player if you need help.
1
Select the program source to be recorded.
2
Prepare the component for playing.
For example, insert a video tape you want to record into VCR.
3
Insert a blank video tape into the VCR
(VIDEO 1) for recording.
4
Start recording on the recording VCR, then start playing the video tape or
DVD you want to record.
Tip
You can record the sound from any audio source onto a video tape while copying from a video tape or DVD.
Locate the point where you want to start recording from another audio source, select the program source, then start playback. The audio from that source will be recorded onto the audio track of the video tape instead of the audio from the original medium. To resume audio recording from the original medium, select the video source again.
Notes
• You cannot record a digital audio signal using a component connected to the analog VIDEO 1
AUDIO OUT jacks.
• Make sure to make both digital and analog connections to the VIDEO 2 and DVD inputs.
Analog recording is not possible if you make only digital connections.
• The analog audio signals of the current input are output from the VIDEO 1 AUDIO OUT jacks.
• (HT-9900M and HT-6900DP only) The signals input to the MULTI CH IN jacks are not output from
VIDEO 1 AUDIO OUT jacks even when MULTI
CH IN is being used. The analog audio signals of the current or previously used input are output.
42
US
masterpage:Left model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB08REM_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 43 Thursday, January 13, 2005 3:28 PM masterpage:Right
Operations Using the Remote RM-AAP001
You can use the remote RM-AAP001 to operate the components in your system.
Remote button description
Before you use your remote
Inserting batteries into the remote
Insert R6 (size-AA) batteries with the + and – properly oriented in the battery compartment.
When using the remote, point it at the remote sensor on the receiver.
1
2
3
4
5
6
TV ?/1
RM SET UP
AV ?/1
P
?/1
SYSTEM STANDBY SLEEP
VIDEO1 VIDEO2 VIDEO3 DVD
AV1 AV2
MD/TAPE SA-CD/CD TUNER AUX
MULTI CH
Tip
Under normal conditions, the batteries should last for about 6 months. When the remote no longer operates the receiver, replace all batteries with new ones.
Notes
• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with an old one.
• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.
• If you don’t use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.
7
8
9
*q; qa
ENTER
*qs
*qd
2CH
1
A.F.D.
MOVIE MUSIC
2
DUAL
MONO
3
SB
DECODING
AUDIO
4
ANGLE
5
JUMP/
TIME
6
PRESET/
CH/D.SKIP
7 8 9
SUBTITLE
.
>
SHIFT
0/10 >10/11
D.TUNING
m M
ENTER
DISC
-
12
ALT
ANT CLEAR SEARCH MODE
H
TOP MENU/
GUIDE
X x
AV MENU
MUTING
V
MASTER
VOL
B b v
O
DISPLAY
TV VOL
RETURN/EXIT
TV CH
TV/
VIDEO
MAIN
MENU
WIDE
TEST
TONE
qj qh qg qf wg wf wd ws wa w; ql ef ed es ea e; wl wk wj wh qk
*
* The H, TV VOL +, TV CH + and MASTER
VOL + buttons have a tactile dot. Use the tactile dot as a reference when operating the receiver and other audio/video components.
continued
43
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB08REM_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 44 Thursday, January 13, 2005 3:28 PM masterpage:Left
44
US
The tables below show the settings of each button.
Remote
Button
Operations Function
A.F.D. 7 Receiver Selects the decoding mode for audio sound.
ALT wd
ANGLE
7
ANT 9
AUDIO
7
AUX e;
Remote When ALT button lights up, it changes the remote key function to activate those buttons with orange printing.
Selects viewing angle or changes the angles.
DVD player/
Blu-ray disc recorder
VCR/
Satellite tuner
Selects output signal from the antenna terminal: TV signal or
VCR program.
TV/VCR/
DVD player/
Satellite tuner/
Blu-ray disc recorder/
Hard disc recorder/PSX
Changes the sound to
Multiplex, Bilingual or
Multi channel TV
Sound.
Receiver To listen to an audio equipment.
AV MENU qa
VCR/
Satellite tuner/
DVD player/
Blu-ray disc recorder/
Hard disc recorder/PSX
Displays menu.
AV1 3 and
AV2 4
Remote
AV ?/1 ed
TV/VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Blu-ray disc recorder/
Hard disc recorder/PSX/
Satellite tuner
Selects the command mode of the remote.
Turns the audio and video components on or off.
Remote
Button
Operations Function
CLEAR 9 CD player/
DVD player/
Blu-ray disc recorder/PSX/
Satellite tuner
Clears a mistake when you press the incorrect numeric buttons or returns to continuos playback etc.
DISC ws CD player/
VCD player
Selects a disc directly
(multi-disc changer only).
DISPLAY qa
TV/VCR/
VCD player/
LD player/
DVD player/
Receiver/
CD player/
MD deck/
Blu-ray disc recorder/
Hard disc recorder/PSX/
Satellite tuner
Selects information displayed on the TV screen.
D.TUNING
9
DUAL
MONO 7
Receiver
Receiver
Enters direct tuning mode.
Selects the language you want during digital broadcast.
To watch DVD.
DVD es Receiver
ENTER wf TV/VCR/
Satellite tuner/
LD player/
MD deck/
DAT deck/
Tape deck/
Blu-ray disc recorder/
Hard disc recorder/PSX
After selecting a channel, disc or track using the numeric buttons, press to enter the value.
ENTER qa Receiver/
VCR/
Satellite tuner/
DVD player
Enters the selection.
JUMP/TIME
7
Satellite tuner/ Toggles between the
TV/
Blu-ray disc recorder previous and the current channels.
MAIN
MENU qh
CD player/
MD deck/
VCD player/
DVD player
Receiver
Shows the time or displays the playing time of disc, etc.
Selects the menu of the receiver.
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB08REM_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 45 Thursday, January 13, 2005 3:28 PM masterpage:Right
Remote
Button
MASTER
VOL +/– qk
MD/TAPE
5
MOVIE 7
MULTI CH wk
MUSIC wj
Operations Function
Receiver
Receiver
Receiver
Receiver
Receiver
Adjusts the master volume of the receiver.
To listen to Minidisc or audio tape.
Selects the preprogrammed sound fields for movie.
Selects MULTI CH
IN source.
Selects the preprogrammed sound fields for music.
MUTING ql Receiver
PRESET/
CH/
D.SKIP +/– wg
RETURN/
EXIT qa
Receiver
Mutes the sound from the receiver.
Selects preset stations.
TV/VCR/
Satellite tuner/
Blu-ray disc recorder/
Hard disc recorder
Selects preset channels.
Skips discs (multidisc changer only).
CD player/
VCD player/
DVD player/
MD deck/
LD player
VCD player/
LD player/
DVD player
Returns to the previous menu.
RM SET UP
2
Satellite tuner Exits the menu.
Remote To set up the remote.
SA-CD/CD
6
Receiver
SB
DECODING wh
Receiver
To listen to Super
Audio CD or compact disc.
Selects the surround back decoding modes.
SEARCH
MODE ws
DVD player Selects searching mode. Press to select the unit for search
(track, index, etc.)
SHIFT 9 Receiver Selects a memory page for presetting radio stations or tuning to preset stations.
Remote
Button
Operations Function
SLEEP ef Receiver Activates the sleep function and the duration which the receiver turns off automatically.
SUBTITLE
8
DVD player Changes the subtitles.
SYSTEM
STANDBY
(Press AV
?/1 ed and
?/1 ef at the same time)
Receiver/
TV/VCR/
Satellite tuner/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck
Turns off the receiver and other Sony audio/ video components.
TEST
TONE qg
Receiver Outputs test tone.
TOP MENU/ DVD player Displays DVD title.
GUIDE qa Satellite tuner/
Blu-ray disc recorder/
Hard disc recorder/PSX
Displays guide menu.
TUNER wl Receiver
TV CH +/– qd
TV
To listen to radio programs.
Selects preset TV channels.
TV/VIDEO qj
TV
TV VOL
+/– qs
TV
TV ?/1 1 TV
VIDEO1 3 Receiver
Selects input signal:
TV input or video input.
Adjusts the volume of the TV.
Turns the TV on or off.
To watch VCR.
(VTR mode 3)
VIDEO2 4 Receiver
VIDEO3 ea
WIDE qf
Receiver
TV
To watch VCR.
(VTR mode 1)
To watch VCR.
(VTR mode 2)
Selects the wide picture mode.
continued
45
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB08REM_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 46 Thursday, January 13, 2005 3:28 PM masterpage:Left
46
US
Remote
Button
1-9 7 and
0/10 8
Operations Function
Receiver
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck
TV/VCR/
Satellite tuner/
Blu-ray disc recorder/
Hard disc recorder/PSX
Receiver
Use with SHIFT to preset radio station or tuning to preset stations and with
D.TUNING for direct tuning.
Selects track numbers.
0/10 selects track 10.
Selects channel numbers.
2CH 7
>10/11 8 CD player/
VCD player/
LD player/
MD deck/
Tape deck/
TV/VCR/
Blu-ray disc recorder/
Hard disc recorder/PSX/
Satellite tuner
-/-- ws TV/
Blu-ray disc recorder/
Hard disc recorder/PSX/
Satellite tuner
?/1 ef
Receiver
./>
8
Selects 2CH
STEREO mode.
Selects track numbers over 10.
Selects the channel entry mode, either one or two digit.
Turns the receiver on or off.
Skips tracks.
VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck/
Blu-ray disc recorder/
Hard disc recorder/PSX
Remote
Button
m/M
9
N q;
X w; x wa
Operations Function
CD player/
VCD player/
DVD player/
LD player/
MD deck/
Blu-ray disc recorder/
Hard disc recorder/PSX
VCR/
DAT deck/
Tape deck
VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck/
Blu-ray disc recorder/
Hard disc recorder/PSX
VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck/
Blu-ray disc recorder/
Hard disc recorder/PSX
VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck/
Blu-ray disc recorder/
Hard disc recorder/PSX
Searches tracks in the forward or backward direction.
Fastforwards or rewinds.
Starts playback.
Pauses playback or recording. (Also starts recording with components in recording standby.)
Stops playback.
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB08REM_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 47 Thursday, January 13, 2005 3:28 PM masterpage:Right
Remote
Button
O qa
Operations Function
VCD player/
LD player/
DVD player/
Blu-ray disc recorder/
Hard disc recorder/PSX/
Satellite tuner
Receiver
Receiver
Returns to the previous menu or exits the menu.
V/v qa
B/b qa
V/v/B/b qa VCR/
DVD player/
Blu-ray disc recorder/
Hard disc recorder/PSX/
Satellite tuner
Selects a menu item.
Adjusts or changes the setting.
Selects a menu item.
Notes
• The AUX, MULTI CH* and 12 buttons on the remote are not available for receiver operation.
• Some functions explained in this section may not work depending on the model.
• The above explanation is intended to serve as an example only. Therefore, depending on the component the above operation may not be possible or may operate differently than described.
• When you press input buttons (VIDEO1, VIDEO2,
VIDEO3 or DVD), the input mode of the TV might not switch to the corresponding input mode that you want. In this case, press TV/VIDEO button to switch the input mode of the TV.
• To activate the buttons with orange printing, press
ALT first before pressing the buttons.
* HT-5950DP only
Selecting the command mode of the remote
Set the remote command mode using the
RM SET UP button and the remote command mode buttons.
Selecting the command mode
You can switch the command mode (AV1 and
AV2) of the remote. If the command mode of the receiver and the remote is different, you cannot use the remote to operate the receiver. To
change the command mode of the receiver, see page 54.
Press AV1 (or AV2) while holding down
RM SET UP.
The indicator flashes once (twice for AV2) , then the command mode switches.
To check the command mode of the remote
Press RM SET UP. You can check the remote by the indicator.
Mode
AV1
AV2
Indicator flashes
once twice
To reset the remote to factory settings
Press ?/1, AV ?/1 and MASTER VOL – at
the same time.
The indicator flashes 3 times, then goes off.
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
47
US
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB08REM_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 48 Thursday, January 13, 2005 3:28 PM masterpage:Left
Programming the remote
You can program the remote to control non-
Sony components by changing the code. Once the control signals have been memorized, you can use those components as part of your system.
Furthermore, you can also program the remote for Sony components that the remote is unable to control. Note that the remote can only control components that accept infrared wireless control signals.
1
Press AV ?/1 while holding down
RM SET UP.
The indicator lights up.
2
Press the input button (including TV
?/1) for the component you want to
control.
For example, if you are going to control a
CD player, press SA-CD/CD.
3
Press the numeric buttons to enter the numeric code (or one of the codes if more than one code exists) corresponding to the component and the maker of the component you want to control.
See the tables on pages 49–51 for
information on the numeric code(s) corresponding to the component and the maker of the component (the first digit and the last two digits of the numeric code correspond to the category and the maker’s code respectively).
4
Press ENTER.
Once the numeric code has been verified, the indicator slowly flashes twice and the remote automatically exits the programming mode.
5
Repeat steps 1 to 4 to control other
components.
To cancel programming
Press RM SET UP during any step. The remote automatically exits the programming mode.
To activate the input after programming
Press the programmed button to activate the input you want.
If programming is unsuccessful, check the following:
• If the indicator does not light up in step 1, the
batteries are weak. Replace both batteries.
• If the indicator flashes 4 times in quick succession while entering the numeric code,
an error has occurred. Start again from step 1.
Notes
• The indicator turns off while a valid button is pressed.
• In step 2, if several input buttons are pressed, only the
last pressed button is valid.
• In step 2, if you press TV ?/1, only TV VOL +/– ,
TV CH +/–, TV/VIDEO and WIDE buttons are reprogrammed.
• In step 3, if an input button is pressed, the new input
is selected and the programming procedure returns to
• For the numeric codes, only the first three numbers entered are valid.
To clear the memory of the remote
To clear all programmed and learned signals, do the following to reset the remote to factory settings.
Press ?/1, AV ?/1 and MASTER VOL – at
the same time.
The indicator flashes 3 times, then goes off.
48
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB08REM_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 49 Thursday, January 13, 2005 3:28 PM masterpage:Right
The numeric codes corresponding to the component and the maker of the component
Use the numeric codes in the tables below to control non-Sony components and also Sony components that the remote is normally unable to control. Since the remote signal that a component accepts differs depending on the model and year of the component, more than one numeric code may be assigned to a component.
If you fail to program your remote using one of the codes, try using other codes.
Notes
• The numeric codes are based on the latest information available for each brand. There is a chance, however, that your component will not respond to some or all of the codes.
• All of the input buttons on this remote may not be available when used with your particular component.
To control a CD player
Maker
SONY
DENON
JVC
KENWOOD
MAGNAVOX
MARANTZ
ONKYO
PANASONIC
PHILIPS
PIONEER
TECHNICS
YAMAHA
Code(s)
101, 102, 103
104, 123
105, 106, 107
108, 109, 110
111, 116
116
112, 113, 114
115
116
117
115, 118, 119
120, 121, 122
To control a DAT deck
Maker
SONY
PIONEER
Code(s)
203
219
To control an MD deck
Maker
SONY
DENON
JVC
KENWOOD
Code(s)
301
302
303
304
To control a tape deck
Maker
SONY
DENON
KENWOOD
NAKAMICHI
PANASONIC
PHILIPS
PIONEER
TECHNICS
YAMAHA
Code(s)
201, 202
204, 205
206, 207, 208, 209
210
216
211, 212
213, 214
215, 216
217, 218
To control an LD player
Maker
SONY
PIONEER
Code(s)
601, 602, 603
606
To control a video CD player
Maker
SONY
Code(s)
605
continued
49
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB08REM_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 50 Thursday, January 13, 2005 3:28 PM masterpage:Left
To control a VCR
Maker
SONY
AIWA*
AKAI
BLAUPUNKT
EMERSON
PHILIPS
PIONEER
RCA/PROSCAN
Code(s)
701, 702, 703, 704, 705,
706
710, 750, 757, 758
707, 708, 709, 759
740
711, 712, 713, 714, 715,
716, 750
FISHER 717, 718, 719, 720
GENERAL ELECTRIC 721, 722, 730
GOLDSTAR
GRUNDIG
723, 753
724
HITACHI
ITT/NOKIA
JVC
MAGNAVOX
722, 725, 729, 741
717
726, 727, 728, 736
730, 731, 738
MITSUBISHI/MGA
NEC
PANASONIC
732, 733, 734, 735
736
729, 730, 737, 738, 739,
740
729, 730, 731
729
722, 729, 730, 731, 741,
747
SAMSUNG
SANYO
SHARP
TELEFUNKEN
TOSHIBA
ZENITH
742, 743, 744, 745
717, 720, 746
748, 749
751, 752
747, 755, 756
754
* If an AIWA VCR does not work even though you enter the code for AIWA, enter the code for Sony instead.
To control a DVD player
Maker
SONY
PANASONIC
PHILIPS
PIONEER
TOSHIBA
DENON
Code(s)
401, 402, 403
406, 408
407
409
404
405
To control a TV
Maker
SONY
DAEWOO
FISHER
GOLDSTAR
GRUNDIG
HITACHI
ITT/NOKIA
JVC
MAGNAVOX
MITSUBISHI/MGA
NEC
PANASONIC
PHILIPS
PIONEER
RCA/PROSCAN
SAMSUNG
SANYO
SHARP
TELEFUNKEN
THOMSON
TOSHIBA
ZENITH
Code(s)
501, 502
504, 505, 506, 507, 515,
544
508
503, 511, 512, 515, 534,
544
517, 534
513, 514, 515, 544
521, 522
516
503, 518, 544
503, 519, 544
503, 520, 544
509, 524
515, 518
509, 525, 526, 540
510, 527, 528, 529, 544
503, 515, 531, 532, 533,
534, 544
508, 545, 546, 547
535
523, 536, 537, 538
530, 537, 539
535, 540, 541
542, 543
To control a satellite tuner or cable box
Maker
SONY
JERROLD/G.I.
PANASONIC
RCA
S. ATLANTA
Code(s)
801, 802, 803, 804
806, 807, 808, 809, 810,
811, 812, 813, 814
818
805, 819
815, 816, 817
To control a tuner
Maker
SONY
Code(s)
002, 003, 004, 005
50
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB08REM_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 51 Thursday, January 13, 2005 3:28 PM
To control a hard disc recorder
Maker
SONY
Code(s)
307, 308, 309
To control a Blu-ray disc recorder
Maker
SONY
Code(s)
310, 311, 312
To control a PSX
Maker
SONY
Code(s)
313, 314, 315 masterpage:Right model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
51
US
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB09ADD_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 52 Thursday, January 13, 2005 3:28 PM masterpage:Left
52
US
Additional Information
Precautions
On safety
Should any solid object or liquid fall into the cabinet, unplug the receiver and have it checked by qualified personnel before operating it any further.
On power sources
• Before operating the receiver, check that the operating voltage is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the receiver.
• The receiver is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the receiver itself has been turned off.
• If you are not going to use the receiver for a long time, be sure to disconnect the receiver from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord.
• One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
• AC power cord must be changed only at the qualified service shop.
On heat buildup
Although the receiver heats up during operation, this is not a malfunction. If you continuously use this receiver at a large volume, the cabinet temperature of the top, side and bottom rises considerably. To avoid burning yourself, do not touch the cabinet.
On placement
• Place the receiver in a location with adequate ventilation to prevent heat buildup and prolong the life of the receiver.
• Do not place the receiver near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.
• Do not place anything on top of the cabinet that might block the ventilation holes and cause malfunctions.
• Use caution when placing the receiver on surfaces that have been specially treated (with wax, oil, polish, etc.) as staining or discoloration of the surface may result.
On operation
Before connecting other components, be sure to turn off and unplug the receiver.
If you encounter color irregularity on a nearby TV screen
The front and center speakers and the sub woofer are magnetically shielded to allow it to be installed near a TV set. However, color irregularities may still be observed on certain types of TV sets. As the surround speakers and surround back speaker are not magnetically shielded, we recommend that you place
them slightly further away from a TV set (page 15).
If color irregularity is observed...
Turn off the TV set once, then turn it on again after
15 to 30 minutes.
If color irregularity is observed again...
Place the speaker further away from the TV set.
If howling occurs
Reposition the speakers or turn down the volume on the receiver.
On cleaning
Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.
If you have any question or problem concerning your receiver, please consult your nearest Sony dealer.
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB09ADD_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 53 Thursday, January 13, 2005 3:28 PM masterpage:Right
Troubleshooting
If you experience any of the following difficulties while using the receiver, use this troubleshooting guide to help you remedy the problem.
There is no sound or only a very low-level sound no matter which component is selected.
• Check that the speakers and components are connected correctly and securely.
• Check that both the receiver and all components are turned on.
• Check that you have selected the correct component on the receiver.
• Check that MASTER VOLUME –/+ is not set at
“VOL MIN”.
• Check that the SPEAKERS (OFF/A/B/A+B)* or
SPEAKERS (ON/OFF)** is not set to off
• Check that the headphones are not connected.
• Press MUTING on the remote to cancel the muting function.
There is no sound from a specific component.
• Check that the component is connected correctly to the audio input jacks for that component.
• Check that the cord(s) used for the connection is
(are) fully inserted into the jacks on both the receiver and the component.
• Check that you have selected the correct component on the receiver.
There is no sound from one of the front speakers.
• Connect a pair of headphones to the PHONES jack to verify that sound is output from the headphones. If only one channel is output from the headphones, the component may not be connected to the receiver correctly. Check that all the cords are fully inserted into the jacks on both the receiver and the component. If both channels are output from the headphones, the front speaker may not be connected to the receiver correctly.
Check the connection of the front speaker which is not outputting any sound.
There is no sound from analog 2 channel sources.
• Check that the INPUT MODE is not set to
“COAX IN” or “OPT IN” (page 35).
• Check that you have not selected MULTI CH IN function.*
There is no sound from digital sources (from
COAXIAL or OPTICAL input jack).
• Check that the INPUT MODE is not set to
“ANALOG” (page 35). Check that the INPUT
MODE is not set to “COAX IN” for the sources from OPTICAL input jack, or set to “OPT IN” for the sources from COAXIAL input jack.
• Check that you have not selected MULTI CH IN function.*
The left and right sounds are unbalanced or reversed.
• Check that the speakers and components are connected correctly and securely.
• Adjust balance parameters in the LEVEL menu.
There is severe hum or noise.
• Check that the speakers and components are connected securely.
• Check that the connecting cords are away from a transformer or motor, and at least 3 meters (10 feet) away from a TV set or fluorescent light.
• Move your audio components away from the TV.
• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.
There is no sound from the surround back speakers.
• Some discs have no Dolby Digital EX flag even though the packages have Dolby Digital EX
logos. In this case, select “SB ON” (page 38).
There is no sound or only a very low-level sound is heard from the center/surround/ surround back speakers.
• Select the CINEMA STUDIO EX mode
• Adjust the speaker level (page 22).
There is no sound from the sub woofer.
• Check that the sub woofer is connected correctly and securely.
The surround effect cannot be obtained.
• Make sure the sound field function is on (press
MOVIE or MUSIC).
• Sound fields do not function for the signals with a sampling frequency of more than 48 kHz.
* HT-9900M and HT-6900DP only.
** HT-5950DP only.
continued
53
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB09ADD_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 54 Thursday, January 13, 2005 3:28 PM masterpage:Left
54
US
Dolby Digital or DTS multi channel sound is not reproduced.
• Check that the playing DVD, etc. is recorded in
Dolby Digital or DTS format.
• When connecting the DVD player, etc. to the digital input jacks of this receiver, check the audio setting (settings for the audio output) of the connected component.
Recording cannot be done.
• Check that the components are connected correctly.
• Select the source component with input buttons.
The FM reception is poor.
• Use a 75-ohm coaxial cable (not supplied) to connect the receiver to an outdoor FM antenna as shown below. If you connect the receiver to an outdoor antenna, ground it against lightning. To prevent a gas explosion, do not connect the ground wire to a gas pipe.
Outdoor FM antenna
Receiver
ANTENNA
Radio stations cannot be tuned in.
• Check that the antennas are connected securely.
Adjust the antennas and connect an external antenna if necessary.
• The signal strength of the stations is too weak
(when tuning in with automatic tuning). Use direct tuning.
• Make sure you set the tuning interval correctly
(when tuning in AM stations with direct tuning).
• No stations have been preset or the preset stations have been cleared (when tuning by scanning
preset stations). Preset the stations (page 25).
• Press DISPLAY repeatedly so that the frequency appears in the display.
There is no picture or an unclear picture appears on the TV screen or monitor.
• Select the appropriate input on the receiver.
• Set your TV to the appropriate input mode.
• Move your audio components away from the TV.
AM
Ground wire
(not supplied)
To ground
Remote control
The remote does not function.
• The AUX, MULTI CH** and 12 buttons on the remote are not available for receiver operation.
• Point the remote at the remote sensor on the receiver.
• Remove any obstacles in the path between the remote and the receiver.
• Replace all the batteries in the remote with new ones, if they are weak.
• Check if the command modes of the receiver and the remote is the same. If the command mode of the receiver and the remote is different, you cannot operate the receiver with the remote. To switch the command mode of the receiver, press
?/1 to turn off the power. Then, press ?/1 while pressing ENTER. Each time you press ?/1, the command mode switches between
“C.MODE.AV2” and “C.MODE.AV1”. (The initial setting is “C.MODE.AV2”.)
• Make sure you select the correct input on the remote.
• To activate the buttons with orange printing, press
ALT first before pressing the buttons.
• Before you use the
V/v/B/b button for receiver operation, press MAIN MENU. To operate other components, press TOP MENU/GUIDE or AV
MENU after pressing the input button.
** HT-5950DP only.
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB09ADD_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 55 Thursday, January 13, 2005 3:28 PM masterpage:Right
Error messages
If there is a malfunction, the display shows a message. You can check the condition of the receiver by the message. Refer to the following table to solve the problem.
DEC. EROR
Appears when the signal which the receiver cannot decode (ex. DTS-CD) is input when “DEC. XXXX” in the CUSTOMIZE menu is set to “DEC. PCM”.
Set to “DEC. AUTO”.
PROTECT
Irregular current is output from the speakers. The receiver will automatically turn off after a few seconds. Check the speaker connection and turn on the power again. If this problem persists, consult your nearest Sony dealer.
If you are unable to remedy the problem using the troubleshooting guide
Clearing the receiver’s memory may remedy the
problem (page 18). However, note that all
memorized settings will be reset to their factory settings and you will have to readjust all settings on the receiver.
If the problem persist
Consult your nearest Sony dealer.
Reference sections for clearing the receiver’s memory
To clear
All memorized settings
Customized sound fields
See
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
(Model of area code U only)
With 6 ohm loads, both channels driven, from
120 – 20,000 Hz; rated 90 watts (STR-K9900P)/
70 watts (STR-K5900P) per channel minimum
RMS power, with no more than 0.7% total harmonic distortion from 250 milliwatts to rated output.
Amplifier section
Power Output
1)
Model of area code U
(6 ohms 1 kHz, THD 10%)
STR-K9900P: FRONT
2)
: 140 W/ch
CENTER
2)
: 140 W
SURR
2)
: 140 W/ch
SURR BACK
2)
: 140 W
STR-K5900P: FRONT
2)
: 110 W/ch
CENTER
2)
: 110 W
SURR
2)
: 110 W/ch
SURR BACK
2)
: 110 W
Model of area code CA
(6 ohms 1 kHz, THD 0.7%)
STR-K5900P: FRONT
2)
: 70 W/ch
CENTER
2)
: 70 W
SURR
2)
: 70 W/ch
SURR BACK
2)
: 70 W
(6 ohms 1 kHz, THD 10%)
STR-K5900P: FRONT
2)
: 110 W/ch
CENTER
2)
: 110 W
SURR
2)
: 110 W/ch
SURR BACK
2)
: 110 W
1) Measured under the following conditions:
Area code
U, CA
Power requirements
120 V AC, 60 Hz
2) Depending on the sound field settings and the source, there may be no sound output.
continued
55
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB09ADD_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 56 Thursday, January 13, 2005 3:28 PM masterpage:Left
56
US
Inputs (Analog)
MULTI CH IN*,
SA-CD/CD, MD/TAPE,
DVD, VIDEO 1, 2, 3
Sensitivity: 800 mV
Impedance: 50 k ohms
* HT-9900M and HT-6900DP only.
Inputs (Digital)
DVD (Coaxial)
VIDEO 2, SA-CD/CD
(Optical)
Sensitivity: –
Impedance: 75 ohms
Sensitivity: –
Impedance: –
Outputs (Analog)
MD/TAPE (OUT),
VIDEO 1 (AUDIO OUT)
Voltage: 800 mV
Impedance: 10 k ohms
SUB WOOFER Voltage: 2 V
Impedance: 1 k ohm
Reproduction frequency range:
28 – 20,000 Hz
Tone
Gain levels ±6 dB, 1 dB step
FM tuner section
Tuning range
Antenna
87.5 - 108.0 MHz
FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Model of area code U, CA
With 10-kHz tuning scale: 530 – 1,710 kHz
3)
With 9-kHz tuning scale: 531 – 1,710 kHz
3)
Antenna Loop antenna
Intermediate frequency 450 kHz
3) You can change the AM tuning scale to 9 kHz or 10 kHz. After tuning in any AM station, turn off the receiver. While holding down PRESET TUNING + or TUNING +, press ?/1. All preset stations will be erased when you change the tuning scale. To reset the scale to 10 kHz (or 9 kHz), repeat the procedure.
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO: Y: 1 Vp-p, 75 ohms
P
B
/C
B
/B-Y: 0.7 Vp-p,
75 ohms
P
R
/C
R
/R-Y: 0.7 Vp-p,
75 ohms
80 MHz HD Pass Through
General
Power requirements
Area code
U, CA
Power requirements
120 V AC, 60 Hz
Power consumption
Area code
U (STR-K9900P)
U (STR-K5900P)
CA
Power consumption
190 W
140 W
200 VA
Power consumption (during standby mode)
0.2 W
Dimensions (w/h/d) (Approx.)
Mass (Approx.)
430 × 157.5 × 310 mm
(16 7/8 × 6 2/8 × 12 2/8 inches) including projecting parts and controls
8.0 kg (17 lb 11 oz)
Speaker section
HT-9900M and HT-6900DP only
Front speakers (SS-MSP69L/SS-MSP69R)
Center speaker (SS-CNP69)
Surround speakers (SS-MSP69SL/
SS-MSP69SR)
Surround back speaker (SS-MSP69SB)
Front speakers 2-way, magnetically shielded
Center speaker Full range, magnetically shielded
Surround/surround back speakers
Full range
Speaker units
Front speakers
Center speaker
80 mm cone type,
25 mm balance dome
57 mm cone type × 2
Surround/surround back speakers
80 mm cone type
Enclosure type
Rated Impedance
Bass reflex
6 ohms model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB09ADD_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 57 Thursday, January 13, 2005 3:28 PM masterpage:Right
Dimension (w/h/d) (Approx.)
Front speakers 130 × 220 × 120 mm
Center speaker
(5 1/8 × 8 5/8 × 4 6/8 inches)
245 × 108 × 120 mm
(9 5/8 × 4 2/8 × 4 6/8 inches)
Surround/surround back speakers
115 × 168 × 120 mm
(4 4/8 × 6 5/8 × 4 6/8 inches)
Mass (Approx.)
Front speakers
Center speaker
1.7 kg (3 lb 12 oz)
1.6 kg (3 lb 9 oz)
Surround/surround back speakers
1.1 kg (2 lb 7 oz)
HT-5950DP only
Front speakers (SS-MSP67L/
SS-MSP67R)
Center speaker (SS-CNP67)
Surround speakers (SS-MSP67SL/
SS-MSP67SR)
Surround back speaker (SS-MSP67SB)
Front/center speakers Full range, magnetically shielded
Surround/surround back speakers
Speaker units
Enclosure type
Rated Impedance
Full range
70 mm cone type
Closed type
6 ohms
Dimension (w/h/d) (Approx.)
Front/surround/surround back speakers
91 × 96 × 102 mm
(3 1/2 × 3 3/4 × 4 inches)
Center speaker 155 × 96 × 102 mm
(6 1/8 × 3 3/4 × 4 inches)
Mass (Approx.)
Front speakers 0.65 kg (1 lb 8 oz)
Center speaker 0.75 kg (1 lb 12 oz)
Surround/surround back speakers
0.6 kg (1 lb 6 oz)
HT-9900M and HT-6900DP only
(SA-WMSP69)
HT-5950DP only (SA-WMSP87)
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 6 ohm loads, from 28 – 200 Hz; rated
120 watts (SA-WMSP69)/120 watts
(SA-WMSP87), minimum RMS power, with no more than 0.8% total harmonic distortion from
250 milliwatts to rated output.
Speaker system
Speaker unit
SA-WMSP69
SA-WMSP87
Enclosure type
RMS output:
SA-WMSP69
SA-WMSP87
Input
Power requirements
Area code
U, CA
Active subwoofer, magnetically shielded
250 mm cone type
200 mm cone type
Acoustically loaded bass reflex
160 W (5 ohms, 100 Hz,
THD 10%)
155 W (5 ohms, 100 Hz,
THD 10%)
LINE IN (input pin jacks)
Power requirements
120 V AC, 60 Hz
Power consumption
SA-WMSP69
SA-WMSP87
120 W
95 W
Dimensions (w/h/d) (Approx.)
SA-WMSP69 337 × 410 × 366 mm
(13 1/4 × 16 1/8 × 14 1/2 inches) including front
SA-WMSP87 panel
270 × 325 × 398 mm
(10 5/8 × 12 3/4 × 15 5/8 inches) including front panel
Mass (Approx.)
SA-WMSP69
SA-WMSP87
13.0 kg (28 lb 11 oz)
9.0 kg (19 lb 14 oz)
continued
57
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB09ADD_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 58 Thursday, January 13, 2005 3:28 PM
Supplied accessories
FM wire antenna (1)
AM loop antenna (1)
Speaker connecting cord, long (3)
Speaker connecting cord, short (3)
Monaural connecting cord (1)
Coaxial digital cord (1)
Foot pads (speakers) (24)
Foot pads (subwoofer) (4)
Remote commander RM-AAP001 (1)
R6 (size-AA) batteries (2)
Front speakers (2)
• HT-9900M/HT-6900DP (SS-MSP69L/
SS-MSP69R)
• HT-5950DP (SS-MSP67L/SS-MSP67R)
Center speaker (1)
• HT-9900M/HT-6900DP (SS-CNP69)
• HT-5950DP (SS-CNP67)
Surround speakers (2)
• HT-9900M/HT-6900DP (SS-MSP69SL/
SS-MSP69SR)
• HT-5950DP (SS-MSP67SL/SS-MSP67SR)
Surround back speaker (1)
• HT-9900M/HT-6900DP (SS-MSP69SB)
• HT-5950DP (SS-MSP67SB)
Sub woofer (1)
• HT-9900M/HT-6900DP (SA-WMSP69)
• HT-5950DP (SA-WMSP87)
For details on the area code of the component you
Design and specifications are subject to change without notice.
masterpage:Left
58
US
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2-549-736-11(1)]
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB09ADD_HT-5950DP-U.fm]
GB01COV_HT-5950DP-U.book Page 59 Thursday, January 13, 2005 3:28 PM masterpage:Right-3
(3 column)
List of button locations and reference pages
How to use this page
Use this page to find the location of buttons that are mentioned in the text.
Illustration number
r
DISPLAY
3
R R
Name of button/part Reference page
Main unit
ALPHABETICAL ORDER
A - H
A.F.D. (button/indicator) qa (30,
I - O
Input buttons w; (23, 35, 39, 40,
1 2 3 4
MOVIE (button/indicator) qs
MULTI CHANNEL DECODING
MUSIC (button/indicator) qd (32,
P - Z
SPEAKERS (OFF/A/B/A+B)*
5 6
SURR BACK DECODING qf
VIDEO 3 IN/PORTABLE AV IN
NUMBERS AND SYMBOLS
2CH (button/indicator) q; (29,
?/1 (power) 1 (18, 19, 37, 56)
* HT-9900M and HT-6900DP only.
** HT-5950DP only.
7
8
9 q; qa qs qd qf qg ef ed es ea e; wl wk wj wh wg wf wd ws wa w; ql qk qj qh
model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
59
US
lename[E:\SEM_Janet\DATA_HT-
950DP\J9041386_25497361115950DPUS\2549736111\GB01COV_HT-5950DP-UIX.fm]
GB01COV_HT-5950DP-U.book Page 60 Thursday, January 13, 2005 3:28 PM
Index
A
Adjusting
CUSTOMIZE parameters
LEVEL parameters
speaker levels and balance
SPEAKER SET UP parameters
TONE parameters
Automatic tuning
C
Changing display
Clearing receiver’s memory
CUSTOMIZE menu
D
Digital Cinema Sound
Direct tuning
Dual Mono
E
I
L
LEVEL menu
N
Naming
P
Preset stations how to
how to tune
masterpage:Left
R
Recording on a video tape
on an audio tape or MD
S
Selecting component
sound field
–
speaker system
Sleep Timer
Sound field customizing
pre-programmed
–
resetting
selecting
–
SPEAKER SET UP menu
Speakers adjusting speaker levels and balance
connection
placement
Sub woofer phase polarity
Supplied accessories
T
Test tone
TONE menu
Tuning automatically
directly
to preset stations
Sony Corporation
Printed in Malaysia model name1[HT-5950DP] model name2[HT-6900DP] model name3[HT-9900M]
[2 549 736 11(2)]
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
