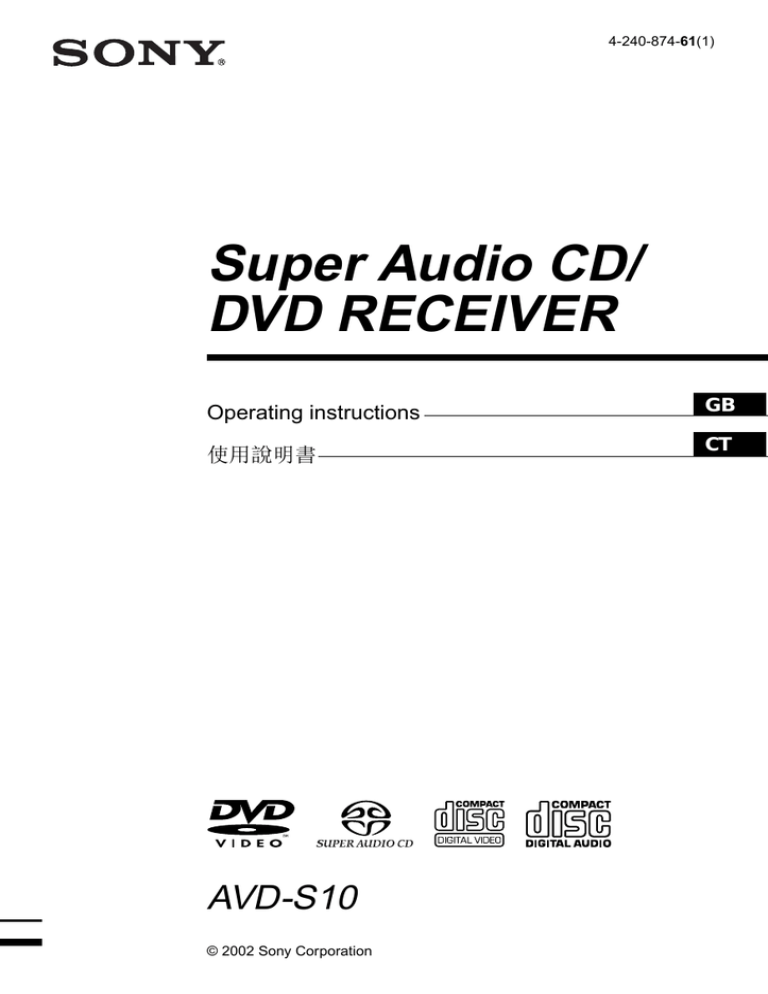

4-240-874-61(1)
Super Audio CD/
DVD RECEIVER
Operating instructions
使用說明書
AVD-S10
© 2002 Sony Corporation
FR
GB
FR
CT
WARNING
To prevent fire or shock
hazard, do not expose the unit
to rain or moisture.
Do not install the appliance in a
confined space, such as a bookcase
or built-in cabinet.
To prevent fire, do not Cover the
ventilation of the apparatus with
news papers, table-cloths, curtains,
etc. And don’t place lighted candles
on the apparatus.
To prevent fire or shock hazard, do
not place objects filled with liquids,
such as vases, on the apparatus.
This appliance is classified as a
CLASS 1 LASER product. The label
is located on the rear exterior.
The following caution label is
located inside the receiver.
Don’t throw
away the battery
with general
house waste,
dispose of it
correctly as
chemical waste.
2GB
Precautions
Safety
• If anything falls into the cabinet,
unplug the unit and have it
checked by qualified personnel
before operating it any further.
• The unit is not disconnected from
the mains as long as it is
connected to the mains outlet,
even if the unit itself has been
turned off.
• Unplug the unit from the wall
outlet if you do not intend to use it
for an extended period of time. To
disconnect the cord, pull it out by
the plug, never by the cord.
Installing
• Allow adequate air circulation to
prevent internal heat buildup.
• Do not place the unit on surfaces
(rugs, blankets, etc.) or near
materials (curtains, draperies) that
may block the ventilation slots.
• Do not install the unit near heat
sources such as radiators, or air
ducts, or in a place subject to
direct sunlight, excessive dust,
mechanical vibration, or shock.
• Do not install the unit in an
inclined position. It is designed to
be operated in a horizontal
position only.
• Keep the unit and discs away from
equipment with strong magnets,
such as microwave ovens, or large
loudspeakers.
• Do not place heavy objects on the
unit.
• If the unit is brought directly from
a cold to a warm location,
moisture may condense inside the
Compact AV System and cause
damage to the lenses. When you
first install the unit, or when you
move it from a cold to a warm
location, wait for about 30 minutes
before operating the unit.
ENERGY STAR® is a U.S.
registered mark.
As an ENERGY STAR® partner,
Sony Corporation has
determined that this product
meets the ENERGY STAR®
guidelines for energy efficiency.
Welcome!
Thank you for purchasing this Sony
Super Audio CD/DVD receiver.
Before operating this receiver, please
read this manual thoroughly and
retain it for future reference.
Precautions
On safety
Should any solid object or liquid fall into the
cabinet, unplug the receiver and have it checked
by qualified personnel before operating it any
further.
On power sources
• The unit is not disconnected from the AC power
source (mains) as long as it is connected to the
wall outlet, even if the unit itself has been
turned off.
• AC power cord must be changed only at the
qualified service shop.
On placement
• Place the receiver in a location with adequate
ventilation to prevent heat build-up in the
receiver.
• At high volume, over long periods of time, the
cabinet becomes hot to the touch. This is not a
malfunction. However, touching the cabinet
should be avoided. Do not place the unit in a
confined space where ventilation is poor as this
may cause overheating.
• Do not block the ventilation slots by putting
anything on the receiver. The receiver is
equipped with a high power amplifier. If the
ventilation slots on the top surface are blocked,
the unit can overheat and malfunction.
• Do not place the receiver on a soft surface such
as a rug that might block the ventilation holes
on the bottom.
• Do not place the receiver in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust, or mechanical shock.
On operation
• If the receiver is brought directly from a cold to
a warm location, or is placed in a very damp
room, moisture may condense on the lenses
inside the receiver. Should this occur, the
receiver may not operate properly. In this case,
remove the disc and leave the receiver turned on
for about half an hour until the moisture
evaporates.
• When you move the receiver, take out any discs.
If you don’t, the disc may be damaged.
• For power saving purposes, the receiver can be
completely turned off by the POWER button on
the main unit. Though the LED remains lit for a
while, the receiver is completely off.
On adjusting volume
Do not turn up the volume while listening to a
section with very low level inputs or no audio
signals. If you do, the speakers may be damaged
when a peak level section is played.
On cleaning
Clean the cabinet, panel, and controls with a soft
cloth slightly moistened with a mild detergent
solution. Do not use any type of abrasive pad,
scouring powder or solvent such as alcohol or
benzine.
If you have any questions or problems concerning
your receiver, please consult your nearest Sony
dealer.
On cleaning discs
Do not use a commercially available CD/DVD
cleaning disc. It may cause a malfunction.
On your TV’s colour
If the speakers should cause the TV screen to have
colour irregularity, turn off the TV at once then
turn it on after 15 to 30 minutes. If colour
irregularity should persist, place the speakers
further away from the set.
IMPORTANT NOTICE
Caution: This receiver is capable of holding a
still video image or on-screen display image on
your television screen indefinitely. If you leave
the still video image or on-screen display image
displayed on your TV for an extended period of
time you risk permanent damage to your
television screen. Projection televisions are
especially susceptible to this.
3GB
Table of Contents
WARNING .......................................................................................................... 2
Welcome! ........................................................................................................... 2
Precautions ........................................................................................................ 3
About this Manual .............................................................................................. 6
This receiver Can Play the Following Discs ....................................................... 6
Notes about the Discs ........................................................................................ 8
Index to Parts and Controls ............................................................................... 9
Guide to the Control Menu Display (Magic Pad) .............................................. 13
Getting Started ................................................................ 15
Quick Overview ................................................................................................
Unpacking ........................................................................................................
Inserting Batteries into the Remote .................................................................
Step 1: Speaker System Hookup .....................................................................
Step 2: Antenna Hookups ................................................................................
Step 3: TV and Video Component Hookups ....................................................
Speaker Setup .................................................................................................
Presetting Radio Stations ................................................................................
15
15
16
16
19
21
23
28
Playing Discs .................................................................. 30
Playing Discs ...................................................................................................
Resuming Playback from the Point Where You Stopped the Disc
(Resume Play) ...........................................................................................
Using the DVD’s Menu .....................................................................................
Playing VIDEO CDs with PBC Functions (PBC Playback) ..............................
Creating Your Own Programme (Programme Play) .........................................
Playing in random order (Shuffle Play) ............................................................
Playing repeatedly (Repeat Play) ....................................................................
30
31
32
33
34
36
36
Searching for a Scene ....................................................... 38
Searching for a Particular Point on a Disc (Scan, Slow-motion Play) .............. 38
Searching for a Title/Chapter/Track/Index/Scene ............................................. 39
Viewing Information About the Disc ....................................... 41
Viewing the Playing Time and Remaining Time on the Front Panel Display .... 41
Checking the Playing Time and Remaining Time ............................................ 42
4GB
Sound Adjustments ........................................................... 44
Changing the Sound ........................................................................................
Automatically decoding the input audio signal (Auto Format Decode) ............
Enjoying Surround Sound ................................................................................
Using only the front speakers (2 Channel Stereo) ...........................................
Adjusting the level parameters .........................................................................
44
46
46
50
50
Enjoying Movies .............................................................. 51
Changing the Angles ....................................................................................... 51
Displaying the Subtitles ................................................................................... 52
Checking the Play Information (ADVANCED) .................................................. 53
Using Various Additional Functions ....................................... 54
Locking Discs (CUSTOM PARENTAL CONTROL, PARENTAL CONTROL) ... 54
Other Operations ............................................................. 59
Controlling the TV with the Supplied Remote ..................................................
Watching the Video or other Unit .....................................................................
Listening to the Radio ......................................................................................
Naming Preset Stations ...................................................................................
59
60
61
62
Settings and Adjustments ................................................... 63
Using the Setup Display ..................................................................................
Setting the Display or Sound Track Language (LANGUAGE SETUP) .............
Settings for the Display (SCREEN SETUP) .....................................................
Custom Settings (CUSTOM SETUP) ...............................................................
Settings for the Speakers (SPEAKER SETUP) ...............................................
63
64
65
66
67
Additional Information ....................................................... 71
Troubleshooting ...............................................................................................
Self-diagnosis Function (When letters/numbers appear on the front panel
display) .......................................................................................................
Glossary ..........................................................................................................
Specifications ...................................................................................................
Language Code List .........................................................................................
DVD Setup Menu List ......................................................................................
Index ................................................................................................................
71
74
74
77
79
80
81
5GB
Terms for discs
About this Manual
• The instructions in this manual describe
the controls on the remote. You can also
use the controls on the receiver if they
have the same or similar names as those on
the remote.
• The icons used in this manual are
explained below:
Icon
Meaning
Icon
Meaning
Functions
available in
DVD video
mode
Functions
available in
Super Audio
CD and
Audio CD
mode
Functions
available in
VIDEO
CD mode
Functions
available in
CD mode
More
convenient
features
z
This receiver Can Play
the Following Discs
Format of discs
DVD VIDEO
• Title
The longest sections of a picture or music
feature on a DVD, movie, etc., in video
software, or the entire album in audio
software. Each title is assigned a title
number enabling you to locate the title you
want.
• Chapter
Sections of a picture or a music piece that
are smaller than titles. A title is composed
of several chapters. Each chapter is
assigned a chapter number enabling you to
locate the chapter you want. Depending on
the disc, no chapters may be recorded.
• Track
Sections of a picture or a music piece on a
VIDEO CD, Super Audio CD, or CD.
Each track is assigned a track number
enabling you to locate the track you want.
• Index (Super Audio CD, CD) / Video
Index (VIDEO CD)
A number that divides a track into sections
to easily locate the point you want on a
VIDEO CD, Super Audio CD, or CD.
Depending on the disc, no indexes may be
recorded.
• Scene
On a VIDEO CD with PBC functions
(page 33), the menu screens, moving
pictures and still pictures are divided into
sections called “scenes.” Each scene is
assigned a scene number enabling you to
locate the scene you want.
Disc
Super Audio CD
DVD
structure
Title
Chapter
VIDEO CD
Music CD
The “DVD VIDEO” logo is a trademark.
6GB
VIDEO CD,
Super
Audio CD,
or CD
structure
Disc
Track
Index
Note on PBC (Playback Control)
(VIDEO CDs)
This receiver conforms to Ver. 1.1 and Ver.
2.0 of VIDEO CD standards. You can enjoy
two kinds of playback depending on the disc
type.
You can
Enjoy video playback
(moving pictures) as well
as music.
Disc type
VIDEO CDs
without PBC
functions
(Ver. 1.1 discs)
VIDEO CDs
with PBC
functions
(Ver. 2.0 discs)
Play interactive software
using menu screens
displayed on the TV screen
(PBC Playback), in
addition to the video
playback functions of Ver.
1.1 discs. Moreover, you
can play high-resolution
still pictures, if they are
included on the disc.
Region code
Your receiver has a region code printed on
the back of the unit and will only play
DVDs labelled with the same region code.
DVDs labelled
will also play on this
receiver.
If you try to play any other DVD, the
message “Playback prohibited by area
limitations.” will appear on the TV screen.
Depending on the DVD, no region code
indication may be labelled even though
playing the DVD is prohibited by area
restrictions.
ALL
Examples of discs that the receiver
cannot play
The receiver cannot play the following
discs:
• CD-ROMs (PHOTO CDs included)
• All CD-Rs other than music and VCD
formatted CD-Rs
• Data part of CD-Extras
• DVD-ROMs
• DVD Audio discs
• A DVD with a different region code (page
7, 76).
• A disc that has a non-standard shape (e.g.,
card, heart)
• A disc with paper or stickers on it.
• A disc that has the adhesive, cellophane
tape, or a sticker still left on it.
Note
Some CD-Rs or CD-RWs cannot be played on this
receiver depending upon the recording quality or
physical condition of the disc, or the characteristics
of the recording device.
Furthermore, the disc will not play if it has not been
correctly finalized. For more information, see the
operating instructions for the recording device.
Note on playback operations of
DVDs and VIDEO CDs
Some playback operations of DVDs and
VIDEO CDs may be intentionally set by
software producers. Since this receiver plays
DVDs and VIDEO CDs according to the
disc contents the software producers
designed, some playback features may not
be available. Also, refer to the instructions
supplied with the DVDs or VIDEO CDs.
7GB
Copyrights
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents, other
intellectual property rights owned by
Macrovision Corporation, and other rights
owners. Use of this copyright protection
technology must be authorized by
Macrovision Corporation, and is intended
for home and other limited viewing uses
only unless otherwise authorized by
Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
This receiver incorporates Dolby* Digital,
Pro Logic Surround, and the DTS** Digital
Surround System.
* Manufactured under license from Dolby
Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol
are trademarks of Dolby Laboratories.
Confidential unpublished works. © 1992-1997
Dolby Laboratories. All rights reserved.
** Manufactured under license from Digital Theater
Systems, Inc. US Pat. No. 5,451,942 and other
worldwide patents issued and pending. “DTS” and
“DTS Digital Surround” are trademarks of Digital
Theater Systems, Inc. © 1996 Digital Theater
Systems, Inc. All rights reserved.
Notes about the Discs
On handling discs
• To keep the disc clean, handle the disc by
its edge. Do not touch the surface.
• Do not stick paper or tape on the disc.
• Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave
it in a car parked in direct sunlight as the
temperature may rise considerably inside
the car.
• After playing, store the disc in its case.
On cleaning
• Before playing, clean the disc with a
cleaning cloth.
Wipe the disc from the centre out.
• Do not use solvents such as benzine,
thinner, commercially available cleaners,
or anti-static spray intended for vinyl LPs.
8GB
Index to Parts and Controls
For more information, refer to the pages indicated in parentheses.
Front Panel
–
PRESET
+
VOLUME
STANDBY
DISPLAY
POWER
SOUND FIELD
–
1
2
3
4
5
6
7
8
POWER switch (30)
STANDBY indicator (30)
Disc tray (30)
A (open/close) (30)
H (play) (30)
X (pause) (31)
x (stop) (30)
./>, PRESET +/– (28, 31)
9
q;
qa
qs
qd
qf
qg
qh
BAND
FUNCTION
PHONES
+
VOLUME control (30)
PHONES jack (30)
FUNCTION (60)
BAND (28)
SOUND FIELD +/– (46)
DISPLAY (61)
Front panel display (10)
(remote sensor) (16)
continued
9GB
Front Panel Display
When playing back a DVD
Current surround
format
Playing status
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
Lights up when you
can change the angle
Current chapter number
TRACK
CHAPTER INDEX
Current sound
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
Current title
number
Playing time
Current play mode
When playing back a Super Audio CD, CD, or VIDEO CD
Current index number
(The index indicator does not appear
during Super Audio CD playback.)
Playing status
ALL 1 DISC S AUTO
TITLE
TRACK
CHAPTER INDEX
H TUNED
Current sound
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
DIGITAL FM AM
NTSC PBC ANGLE
Lights up during
PBC playback
(VIDEO CD only)
Playing time
Current track number
Current play mode
When listening to the radio
Preset number
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
Current band
10GB
TRACK
Monaural/Stereo effect
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
Current station
Rear Panel
MONITOR OUT
COMPONENT VIDEO OUT (DVD ONLY)
SPEAKERS
FRONT
R
AM
S VIDEO OUT S VIDEO IN
S VIDEO IN
S VIDEO
AUDIO OUT AUDIO IN
AUDIO IN
AUDIO IN
COAXIAL
Y
PB/CB
OPTICAL OPTICAL OPTICAL
(CD ONLY) DIGITAL IN DIGITAL IN
L
75Ω
SUB
WOOFER
AUDIO
OUT
FM
ANT
R
+
+
+
–
–
–
R
VIDEO
TV/SAT AUX
DIGITAL OUT MD/DAT
IMPEDANCE USE 6–16Ω
CENTER
L
SURROUND
L
R
PR/CR
L
+
–
R
L
TV/SAT
1 AM antenna (19)
2 VIDEO (S VIDEO/AUDIO L/R IN/
OUT) jacks (21)
3 TV/SAT (S VIDEO/AUDIO L/R IN)
jacks (21)
4 MONITOR OUT (S VIDEO) jack (21)
5 COMPONENT VIDEO OUT (DVD
ONLY) jacks (21)
6
7
8
9
0
SUBWOOFER AUDIO OUT jack (17)
SPEAKERS jacks (17)
TV/SAT (OPTICAL DIGITAL IN) jack
MD/DAT (OPTICAL DIGITAL IN) jack
DIGITAL OUT (OPTICAL (CD
ONLY)) jack
qa AUX (AUDIO IN L/R) jacks
qs FM 75Ω COAXIAL antenna jack (20)
continued
11GB
Remote
Note
This remote control glows in the dark. However,
before glowing, the remote must be exposed to light
for awhile.
12GB
1
2
3
4
5
6
7
8
9
0
qa
qs
qd
qf
qg
qh
qj
qk
ql
w;
wa
ws
wd
wf
wg
wh
wj
wk
wl
e;
ea
es
ed
ef
eg
eh
ej
ek
el
RM SET UP (59)
OPEN/CLOSE (30)
BAND (28)
FUNCTION (60)
MEMORY (28)
NAME (62)
PLAY MODE (34)
REPEAT (37)
Number buttons (32)
./>, PRESET +/– (28, 31)
H (play) (30)
X (pause) (31)
DVD TOP MENU (32)
C/X/x/c/ENTER (24)
DVD DISPLAY (13, 36)
TV CH +/– (60)
TV VOL +/– (60)
TV [/1 (on/standby) (60)
[/1 (on/standby) (30)
STEREO/MONO (61)
DISPLAY (61)
SOUND FIELD +/– (46)
TIME (41)
DIMMER (27)
AUDIO (44)
ANGLE (51)
SUBTITLE (52)
ENTER
CLEAR (35)
m/M (28, 38)
x (stop) (30)
MUTING (31)
DVD MENU (32)
VOLUME +/– (30)
O RETURN (33)
TV/VIDEO (60)
AMP MENU (24)
DVD SETUP (64)
WIDE (60)
Guide to the Control Menu Display (Magic Pad)
Use the Control Menu to select a function that you’d like to use. The Control Menu display
appears when the DVD DISPLAY button is pressed. For details, refer to the page in
parentheses.
Control Menu
Total number of titles or tracks recorded
Current playing title number (Video CD/
Super Audio CD/CD: track number)
Current playing chapter
number (Video CD/Super
Audio CD/CD: index number)
Playing time
Playback status
(NPlayback, XPause, xStop, etc.)
12(27)
18(34)
T
1:32:55
Icon of selected
Control Menu item
DVD
SUBTITLE
Select:
Type of disc being
played back
Current setting
OFF
OFF
1: ENGLISH
2: FRENCH
3: SPANISH
Control Menu items
Function name of selected
Control Menu item
Total number of chapters or indexes recorded
Options
ENTER
Cancel:
RETURN
Operation message
List of Control Menu Items
TITLE (DVD only) (page 39)/
SCENE (only VIDEO CD in PBC
playback) (page 39)/TRACK (VIDEO CD
only) (page 39)
Selects the title (DVD), the scene (VIDEO
CD in PBC playback), or the track
(VIDEO CD) to be played.
CHAPTER (DVD only) (page
39)/INDEX (VIDEO CD only) (page 39)
Selects the chapter (DVD) or the index
(VIDEO CD) to be played.
TRACK (Super Audio CD/CD
only) (page 39)
Selects the track (Super Audio CD/CD) to
be played.
INDEX (Super Audio CD/CD
only) (page 39)
Selects the index (Super Audio CD/CD) to
be played.
TIME/TEXT (page 40)
Checks the elapsed time and the remaining
playback time.
Inputs the time code for picture and music
searching.
Displays the DVD or the Super Audio CD/
CD text.
continued
13GB
AUDIO (page 44)
Changes the audio setting.
SUBTITLE (DVD only) (page
Displays the subtitles.
Changes the subtitle language.
ANGLE (DVD only) (page 51)
Changes the angle.
REPEAT (page 36)
Plays the entire disc (all titles/all tracks)
repeatedly, or one title/chapter/track
repeatedly.
52)
ADVANCED (DVD only)
(page 53)
Checks the information (bit rate or layer)
on the disc while playing a DVD.
CUSTOM PARENTAL
CONTROL (page 54)
Sets the disc to prohibit playing.
SETUP (page 64)
CUSTOM Setup
By using the Setup Display, you can make
various adjustments to items such as
picture and sound. You can also set a
language for the subtitles and the Setup
Display, among other things.
RESET
Returns the settings in “SETUP” to the
default setting.
z Each time you press DVD DISPLAY, the Control Menu display changes as follows:
, Control Menu display
m
ADVANCED display (Appears if you select any setting other than “OFF.” See page 53.)
m
Control Menu display off
The Control Menu items are different depending on the disc.
z The Control Menu icon indicator lights up in green
t
when you select “REPEAT” unless
you set the REPEAT PLAY setting to “OFF.” The “ANGLE” indicator lights up in green only when the angles can
be changed.
14GB
Getting Started
Quick Overview
This chapter presents a quick overview so you can begin enjoying your new receiver right away.
For selecting a language used in the on-screen display, refer to page 64.
For selecting the aspect ratio of the TV to be connected, refer to page 65.
Check that you have the following items:
• AM loop antenna (1)
• FM wire antenna (1)
• S Video cord (1)
• Remote Commander (remote) RM-SP10 (1)
• R6 (size AA) batteries (2)
Getting Started
Unpacking
15GB
Inserting Batteries into the Remote
You can control the receiver using the supplied remote. Insert two R6 (size AA) batteries by
matching the 3 and # ends on the batteries to the markings inside the compartment. When
using the remote, point it at the remote sensor on the receiver.
Notes
•
•
•
•
Do not leave the remote in an extremely hot or humid place.
Do not use a new battery with an old one.
Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a
malfunction.
• If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from
battery leakage and corrosion.
Step 1: Speaker System Hookup
You can enjoy surround sound by connecting 5 speakers (front L/R speakers, centre speaker,
rear L/R speakers) and active subwoofer to the receiver. If you do not connect 5 speakers and
active subwoofer to the receiver, the receiver optimizes the surround signal depending on the
number of connected speakers. When you connect 2 speakers to the receiver, connect the
speakers to the SPEAKERS FRONT L/R jacks.
Notes
•
•
•
•
16GB
Be sure to match the speaker cord to the appropriate terminal: 3 to 3, # to #, L to L, and R to R jack.
Use the high performance speakers.
Use the same size and performance speakers for the front, centre, and rear speakers.
To obtain the best possible surround sound, specify the speaker parameters (number, distance, level, etc.) on page
23.
Terminals for connecting the speakers
To the
SPEAKERS FRONT L and R terminals
SPEAKERS REAR L and R terminals
SPEAKERS CENTER terminal
SUBWOOFER AUDIO OUT terminal
MONITOR OUT
COMPONENT VIDEO OUT (DVD ONLY)
SPEAKERS
IMPEDANCE USE 6–16Ω
FRONT
R
AM
S VIDEO OUT S VIDEO IN
S VIDEO IN
S VIDEO
AUDIO OUT AUDIO IN
AUDIO IN
AUDIO IN
COAXIAL
Y
PB/CB
OPTICAL OPTICAL OPTICAL
(CD ONLY) DIGITAL IN DIGITAL IN
L
SUB
WOOFER
AUDIO
OUT
+
+
+
–
–
–
R
75Ω
R
VIDEO
TV/SAT AUX
DIGITAL OUT MD/DAT
SURROUND
R
L
L
+
–
R
L
TV/SAT
+
+
CENTER
L
PR/CR
FM
ANT
Getting Started
Connect the
Front speakers
Rear speakers
Centre speaker
Subwoofer
–
–
Centre speaker
Front speaker (R)
+
–
Front speaker (L)
Subwoofer
(active type)
+
–
Rear speaker (R)
+
–
Rear speaker (L)
17GB
To avoid short-circuiting the speakers
Short-circuiting of the speakers may damage the receiver. To prevent this, be sure to follow
these precautions when connecting the speakers. Make sure the bare wire of each speaker cord
does not touch another speaker terminal or the bare wire of another speaker cord.
Examples of poor conditions of the speaker cord
Stripped speaker cord is
touching another speaker
terminal.
Stripped cords are touching
each other due to excessive
removal of insulation.
After connecting all the components, speakers, and AC power cord (mains lead), output a test
tone to check that all the speakers are connected correctly. For details on outputting a test tone,
see page 26.
If no sound is heard from a speaker while outputting a test tone, or a test tone is output from a
speaker other than the one currently displayed on the front panel display, the speaker may be
short-circuited. If this happens, check the speaker connection again.
Notes
• Be sure to match the speaker cord to the appropriate terminal on the components: 3 to 3, and # to #. If the
cords are reversed, the sound will be distorted and will lack bass.
• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output
on the speakers.
18GB
Step 2: Antenna Hookups
Connect the supplied AM/FM antennas for listening to the radio.
Connect the
AM loop antenna
FM wire antenna
Getting Started
Terminals for connecting the antennas
To the
AM terminals
FM 75Ω COAXIAL terminal
AM loop antenna
FM wire antenna
MONITOR OUT
COMPONENT VIDEO OUT (DVD ONLY)
SPEAKERS
FRONT
R
AM
S VIDEO OUT S VIDEO IN
S VIDEO IN
S VIDEO
AUDIO OUT AUDIO IN
AUDIO IN
AUDIO IN
COAXIAL
Y
PB/CB
OPTICAL OPTICAL OPTICAL
(CD ONLY) DIGITAL IN DIGITAL IN
L
75Ω
SUB
WOOFER
AUDIO
OUT
FM
ANT
R
+
+
+
–
–
–
R
VIDEO
TV/SAT AUX
DIGITAL OUT MD/DAT
IMPEDANCE USE 6–16Ω
CENTER
L
SURROUND
R
L
PR/CR
L
+
–
R
L
TV/SAT
Notes
• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
continued
19GB
z If you have poor FM reception
Use a 75-ohms coaxial cable (not supplied) to connect the receiver to an outdoor FM antenna as shown below.
Outdoor FM antenna
System
Earth wire
(not supplied)
AM
COAXIAL
FM
75Ω
To earth
Note
If you connect the receiver to an outdoor antenna, ground it to protect against lightning. To prevent a gas explosion,
do not connect the earth wire to a gas pipe.
20GB
Step 3: TV and Video Component Hookups
Required cords
Audio cords (not supplied)
When connecting a cord, be sure to match the colour-coded pins to the appropriate jacks on the
components.
White (L/audio)
White (L/audio)
Red (R/audio)
Red (R/audio)
Getting Started
S Video cord for connecting a TV monitor
Jacks for connecting video components
Connect a
TV monitor
VCR
Digital satellite receiver
To the
MONITOR OUT (S VIDEO) jack
VIDEO (S VIDEO/AUDIO L/R IN/OUT) jacks
TV/SAT (S VIDEO/AUDIO L/R IN) jacks
z When using the COMPONENT VIDEO OUT jacks instead of the S Video jacks (Y, PB/CB, PR/CR)
Your TV monitor must also be connected via COMPONENT VIDEO OUT jacks (Y, PB/CB, PR/CR).
Notes
• When you select VIDEO using the FUNCTION button, the signal is output from the front L/R speakers, but not
from the VIDEO (AUDIO L/R OUT) jacks.
• When you use the Video line outputs, please set the unit to 2CH STEREO mode. If the unit is not in 2CH
STEREO mode, the line outputs may not function properly.
21GB
MONITOR OUT
COMPONENT VIDEO OUT (DVD ONLY)
SPEAKERS
FRONT
R
AM
S VIDEO OUT S VIDEO IN
S VIDEO IN
S VIDEO
AUDIO OUT AUDIO IN
AUDIO IN
AUDIO IN
COAXIAL
Y
PB/CB
OPTICAL OPTICAL OPTICAL
(CD ONLY) DIGITAL IN DIGITAL IN
L
75Ω
SUB
WOOFER
AUDIO
OUT
FM
ANT
+
+
+
–
–
–
R
R
VIDEO
TV/SAT AUX
DIGITAL OUT MD/DAT
IN
L
OUT
S VIDEO
IN
AUDIO
IN
SURROUND
L
R
+
–
R
L
TV/SAT
OUT
S VIDEO
IN
IMPEDANCE USE 6–16Ω
CENTER
L
PR/CR
OUT
AUDIO
IN
IN
INPUT
S VIDEO
IN
S VIDEO
IN
AUDIO
IN
L
L
L
R
R
R
OUTPUT
OPTICAL
VCR
Digital satellite receiver
TV monitor
If you connect a digital satellite receiver with the TV/SAT (OPTICAL DIGITAL IN)
jack
The digital satellite receiver can be connected to the TV/SAT (OPTICAL DIGITAL IN) jack
instead of the TV/SAT (AUDIO L/R IN) jacks of the system.
The system can accept both the digital and analog signals. Digital signals have priority over
analog signals. If the digital signal ceases, the analog signal will be processed after 2 seconds.
If you connect a digital satellite receiver without the TV/SAT (OPTICAL DIGITAL
IN) jack
Connect the digital satellite receiver to the TV/SAT (AUDIO L/R IN) jacks only of the system.
Setup for the system (for Asian models)
Setup is necessary for the system, depending on the TV monitor to be connected.
The initial setting for Asian models is NTSC.
If the colour system of the TV is PAL*
To set the system to PAL, turn on the system by pressing [/1 on the remote while pressing X
(pause) button on the system. You need to hold the X button until AVD-S10 appears on the
display. To reset to NTSC, turn off the system and then turn on again using the remote while
pressing the X button on the system.
* If the colour system of the TV is NTSC, do the same operation above to set the system to
NTSC.
Connecting the AC Power Cord (mains lead)
Before connecting the AC power cord (mains lead) of this system to a wall outlet (mains),
connect the speakers to the system (see page 17).
Connect the AC power cord (mains lead) of your TV/video components to a wall outlet (mains).
22GB
Speaker Setup
Getting Started
For the best possible surround sound, all the speakers other than the subwoofer should be the
same distance from the listening position (A).
However, this receiver allows you to place the centre speaker up to 1.6 meters (5.0 feet) closer
(B) and the rear speakers up to 4.6 meters (15.0 feet) closer (C) to the listening position.
The front speakers can be placed from 1.0 to 15.0 meters (3.0 to 50.0 feet) (A) from the
listening position.
You can place the subwoofer in any position.
You can place the rear speakers either behind you or to the side, depending on the shape of your
room, etc.
When the rear speakers are placed to the side
When the rear speakers are placed behind you
B
B
A
A
A
45°
A
45°
C
C
90°
20°
C
C
90°
20°
Note
Do not place the centre and rear speakers farther away from the listening position than the front speakers.
Specifying the speaker parameters
To obtain the best possible surround sound, first specify the distance of the speakers from your
listening position, then set the balance and level. Use the test tone to adjust the speaker volumes
to the same level.
You may adjust the speaker parameters using SPEAKER SETUP in the setup display (page 67).
continued
23GB
C/X/x/c/ENTER
AMP MENU
To specify the size, distance, position and height of the speakers
1
2
Press AMP MENU repeatedly to display 9 SP. SETUP on the front panel display.
3
Set the parameter using C/c.
The selected parameter will appear on the front panel display.
4
Repeat Steps 2 and 3 to set other parameters in 9 SP. SETUP.
If you do not operate the remote for a few seconds, the parameter turns off and is stored in
the receiver.
Sit in your listening position and select the item to be set using X/x.
• Items set in 9 SP. SETUP
– Size of 5 speakers (front L/R, centre, rear L/R)
– with or without the subwoofer
– Distance of the front, rear, and centre speakers
– Position and height of the rear speakers
xSIZE
When you do not connect centre or rear speakers, or move the rear speakers, set the parameters
for F.SP., C.SP., R.SP., and S.W. The default settings are underlined.
• F.SP. (front speaker)
–LARGE: Normally select this.
–SMALL: Select this if the small speakers are used for the front speaker.
• C.SP. (centre speaker)
–LARGE: Normally select this.
–SMALL: Select this if the small speaker is used for the centre speaker.
–NO: Select this if no centre speaker is used.
24GB
Getting Started
• R.SP. (rear speakers)
–LARGE: Normally select this. Specify the position and height to implement the Digital
Cinema Surround modes in the “Virtual” sound field (page 48) properly.
–SMALL: Select this if the small speakers are used for the rear speaker. Specify the position
and height to implement the Digital Cinema Surround modes in the “Virtual” sound field
(page 48) properly.
–NO: Select this if no rear speakers are used.
• S.W. (subwoofer)
–YES: Select this if the subwoofer is used.
–NO: Select this if no subwoofer is used.
xDISTANCE
You can vary the distance of each speaker as follows. The default settings are underlined.
• F. D. 5 m (17 ft) (front speakers distance)
Front speaker distance can be set in 0.2 meter (1.0 foot) steps from 1.0 to 15.0 meters (3.0 to
50.0 feet).
• C. D. 5 m (17 ft) (centre speaker distance)
Centre speaker distance can be set in 0.2 meter (1.0 foot) steps from the front speaker distance
to 1.6 meters (5.0 feet) closer to your listening position.
• R. D. 3.4 m (12 ft) (rear speakers distance)
Rear speaker distance can be set in 0.2 meter (1.0 foot) steps from a distance equal to the front
speaker distance to a distance 4.6 meters (15.0 feet) closer to your listening position.
Note
If each of the front or rear speakers are not placed an equal distance from your listening position, set the distance
of the closest speaker.
Specifying the rear speaker position and height
If you select anything other than “NO” in “R.SP.,” specify the position and height of the rear
speakers. The default settings are underlined.
Position diagram
90
A
A
45
B
B
20
• R. P. BEHIND
Select this if the rear speakers are located in the section B.
• R. P. SIDE
Select this if the rear speakers are located in the section A.
continued
25GB
Height diagram
C
C
60
D
D
30
• R. H. LOW
Select this if the rear speakers are located in section D.
• R. H. HIGH
Select this if the rear speakers are located in section C.
These parameters are not available when “R.SP.“ is set to “NO”.
To specify the balance and level of the speakers
1
2
Press AMP MENU repeatedly to display 9 LEVEL on the front panel display.
3
Sit in your listening position and select the item to be adjusted using X/x.
• Items adjusted in 9 LEVEL
– Balance of the front and rear speakers
– Volume level of the centre and rear speakers and subwoofer
4
Adjust the volume level so that the volume of the test tone from each speaker sounds the
same using C/c.
The adjusted value will appear on the front panel display.
5
Repeat Steps 3 and 4 to adjust other parameters in 9 LEVEL.
If you do not operate the remote for a few seconds, the value disappears from the display
and is stored in the receiver.
6
Use X/x to select T.TONE and use C/c to set T.TONE to OFF.
Use X/x to select T.TONE and use C/c to set T.TONE to ON.
You will hear the test tone from each speaker in sequence.
xBALANCE
You can vary the balance of each speaker as follows. The default settings are underlined.
• F. ......I...... centre (front speakers)
Adjust the balance between the front left and right speakers (You can adjust from centre,
6 steps left or right).
• R. ......I...... centre (rear speakers)
Adjust the balance between the rear left and right speakers (You can adjust from centre,
6 steps left or right).
26GB
Notes
• When you select an item, the sound cuts off for a moment.
• Depending on the settings of other speakers, the subwoofer may output excessive sound.
To adjust the volume of all the speakers at one time
Use the VOLUME control.
Getting Started
xLEVEL
You can vary the level of each speaker as follows. The default settings are underlined.
• C. LEVEL 0 dB (centre speaker level)
Adjust the level of the centre speaker (you can adjust from –10 dB to +10 dB in 1 dB steps).
• R. LEVEL 0 dB (rear speakers level)
Adjust the level of the rear speakers (you can adjust from –10 dB to +10 dB in 1 dB steps).
• SW. LEV. 0 dB (subwoofer level)
Adjust the level of the subwoofer (you can adjust from –10 dB to +10 dB in 1 dB steps).
Other AMP MENU settings
You can control the brightness of the front panel display, clear the preset stations and the station
names, and set the speaker parameters back to the default setting. Press AMP MENU repeatedly
to display 9 CUSTOMIZE. Use X/x to select the following items.
xDIMMER
You can change the brightness of the front panel display by two ways. Use C/c to adjust the
settings or press DIMMER.
xMEMO. CLR.
You can clear the preset stations and station names, and set the speaker parameters back to the
default setting.
• MEMO.CLR.N (No): Press ENTER to skip back to previous menu.
• MEMO.CLR.Y (Yes): If you press ENTER, “Really? N” appears. To clear the memory, use
C/c to select “Really? Y” and press ENTER. “ALL CLEAR!” is displayed and all settings
such as preset stations and station names will be cleared, and speaker parameters will be reset
to their default settings.
27GB
Presetting Radio Stations
You can preset 20 stations for FM and 10 stations for AM.
Before tuning, make sure to turn down the volume to minimum.
BAND
MEMORY
PRESET +/–
m/M
ENTER
1 Press BAND repeatedly until the band you want appears on the front panel
display.
Every time you press BAND, the band changes to AM or FM alternately.
2 Press and hold m or M until the frequency indication starts to change,
then release.
Scanning stops when the receiver tunes in a station. “TUNED” and “ST” (for stereo
programme) appear on the front panel display.
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
3 Press MEMORY.
A preset number appears on the front panel display.
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
4 Press PRESET + or – to select the preset number you want.
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
28GB
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
5 Press ENTER.
The station is stored.
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
TRACK
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
6 Repeat 1 to 5 to store other stations.
To tune in a station with a weak signal
Press m or M repeatedly in 2 to tune in the station manually.
Getting Started
v
CHAPTER INDEX
To change the preset number
Start over from 1.
To change the AM tuning interval (except for European, Middle Eastern, and
Philippine models)
The AM tuning interval is factory set to 9 kHz (10 kHz in some areas).
To change the AM tuning interval, tune in any AM station first, then turn off the system by
pressing [/1 on the remote. While holding down x (on the system), turn on the power using
the remote. When you change the interval, AM preset stations will be erased.
To reset the interval, repeat the same procedure.
29GB
Playing Discs
4
Playing Discs
Press A on the receiver or OPEN/
CLOSE on the remote, and place a
disc on the disc tray.
The receiver automatically turns on
and the STANDBY indicator turns off.
Depending on the DVD or VIDEO CD,
some operations may be different or
restricted.
Refer to the operating instructions supplied
with your disc.
STANDBY
indicator
A
H x
With the playback side facing down
PHONES
Adjust the volume
Connect
headphones
POWER
OPEN/
CLOSE
H
1
2
3
Press H.
The disc tray closes, and the receiver
starts playback (continuous play).
Adjust the volume on the receiver.
[/1
After following Step 5
Depending on the disc, a menu may appear
on the TV screen. You can play the disc
interactively by following the instructions
on the menu. DVD (page 32), VIDEO CD
(page 33).
x
Turn on your TV.
Switch the input selector on the TV
to this receiver.
Press POWER on the receiver.
The receiver enters standby mode and
the STANDBY indicator lights up in
red.
30GB
5
To turn on the receiver
Press POWER on the receiver. The receiver
enters standby mode and the STANDBY
indicator lights up in red. Press [/1 on the
remote. The receiver turns on and the
STANDBY indicator turns off. In standby
mode, you can also turn on the receiver by
pressing A on the receiver or by pressing
H.
To turn off the receiver
Press [/1 on the remote. The receiver
enters standby mode and the STANDBY
indicator lights up in red. To turn off the
receiver completely, press POWER on the
receiver. While playing a disc, do not turn
off the receiver by pressing POWER. Doing
so may cancel the menu settings. When you
turn off the receiver, first press x to stop
playback and then press [/1 on the remote.
Saving the power in standby mode
Press [/1 on the remote once.
z While the receiver is in standby mode, the
STANDBY indicator on the receiver lights up.
Resuming Playback from
the Point Where You
Stopped the Disc (Resume Play)
To cancel standby mode
Press [/1 on the remote once.
OPEN/CLOSE
H
Playing Discs
When you stop the disc, the receiver
remembers the point where you pressed x
and “RESUME” appears on the front panel
display. As long as you do not open the disc
tray, Resume Play will work even if the
receiver enters standby mode by pressing
[/1.
Additional operations
x
./>
H
x
X
To
Stop
Pause
Resume play after
pause
Go to the next chapter,
track, or scene in
continuous play mode
Go back to the
preceding chapter, track,
or scene in continuous
play mode
Stop play and remove
the disc
Mute the sound
MUTING
Operation
Press x.
Press X.
Press X or H.
1
Press >.
“RESUME” appears on the front panel
display, so you can restart the disc
from the point where you stopped the
disc.
If “RESUME” does not appear,
Resume Play is not available.
Press ..
Press OPEN/CLOSE.
Press MUTING. To
cancel muting, press it
again or turn up the
volume.
Note
While playing a disc, press x to
stop playback.
2
Press H.
The receiver starts playback from the
point where you stopped the disc in
Step 1.
z To play from the beginning of the disc, press x
twice, then press H.
Do not push the disc tray when closing it. Press
OPEN/CLOSE to close the disc tray.
continued
31GB
Notes
• Depending on where you stopped the disc, the
receiver may not resume playback from exactly the
same point.
• The point where you stopped playing is cleared
when:
– you turn the power off by pressing POWER on
the receiver.
– you change the play mode.
Using the DVD’s Menu
A DVD is divided into long sections of a
picture or a music feature called “titles.”
When you play a DVD which contains
several titles, you can select the title you
want using DVD TOP MENU.
When you play DVDs that allow you to
select items such as the language for the
subtitles and the language for the sound,
select these items using DVD MENU.
Number
buttons
DVD TOP
MENU
DVD MENU
ENTER
C/X/x/c
32GB
1
Press DVD TOP MENU or DVD MENU.
The disc’s menu appears on the TV
screen.
The contents of the menu vary from disc
to disc.
2
Press C/X/x/c or the number buttons
to select the item you want to play or
change.
3
Press ENTER.
Playing VIDEO CDs with
PBC Functions (PBC Playback)
z To play without using PBC, press ./> or
the number buttons while the receiver is stopped to
select a track, then press H or ENTER.
“Play without PBC” appears on the TV screen and
the receiver starts continuous play. You cannot play
still pictures such as a menu. To return to PBC
playback, press x twice, then press H.
Note
Depending on the VIDEO CD, “Press ENTER” in
Step 3 may appear as “Press SELECT” in the
instructions supplied with the disc. In this case, press
H.
Playing Discs
With PBC (Playback Control) functions,
you can enjoy simple interactive operations,
search functions, and other such operations.
PBC playback allows you to play VIDEO
CDs interactively by following the menu on
the TV screen.
To go back to the menu
Press O RETURN.
Number
buttons
./>
H
x
ENTER
X/x
O RETURN
1
Start playing a VIDEO CD with PBC
functions.
The menu for your selection appears.
2
3
4
Select the item number you want
by pressing X/x or the number
buttons.
Press ENTER.
Follow the instructions in the
menu for interactive operations.
Refer to the instructions supplied with
the disc, as the operating procedure
may differ according to the VIDEO
CD.
33GB
Creating Your Own
Programme (Programme Play)
2
Press c.
The cursor moves to the title or track
(in this case, “01”).
Title
PROGRAM
ALL CLEAR
1. TITLE – –
2. TITLE – –
3. TITLE – –
4. TITLE – –
5. TITLE – –
6. TITLE – –
7. TITLE – –
You can play the contents of a disc in the
order you want by arranging the order of the
titles, chapters or tracks on the disc to create
your own programme. You can programme
up to 25 titles, chapters, and tracks.
Chapter
T
C
––
01
02
03
04
05
ALL
01
02
03
04
05
06
Chapters recorded on a disc
PLAY MODE
REPEAT
3
Number
buttons
CLEAR
Select the title, chapter, or track
you want to programme.
xWhen playing a DVD
For example, select chapter “03” of
title “02.”
Press X/x or the number buttons to
select “02” under “T,” then press
ENTER.
H
ENTER
X/x/c
PROGRAM
1
In stop mode, press PLAY MODE
repeatedly until “PROGRAM”
appears on the front panel
display.
The programming display appears on
the TV screen.
“TRACK” is displayed when you play a
VIDEO CD, Super Audio CD, or CD.
PROGRAM
ALL CLEAR
1. TITLE
2. TITLE – –
3. TITLE – –
4. TITLE – –
5. TITLE – –
6. TITLE – –
7. TITLE – –
T
––
01
02
03
04
05
ALL CLEAR
1. TITLE – –
2. TITLE – –
3. TITLE – –
4. TITLE – –
5. TITLE – –
6. TITLE – –
7. TITLE – –
T
C
––
01
02
03
04
05
ALL
01
02
03
04
05
06
Next, press X/x or the number buttons
to select “03” under “C,” then press
ENTER.
PROGRAM
ALL CLEAR
1. TITLE 0 2 – 0 3
2. TITLE – –
3. TITLE – –
4. TITLE – –
5. TITLE – –
6. TITLE – –
7. TITLE – –
T
––
01
02
03
04
05
Titles or tracks
recorded on a disc
Selected title and chapter
34GB
xWhen playing a VIDEO CD,
Super Audio CD, or CD
For example, select track “02.”
Press X/x or the number buttons to
select “02” under “T,” then press
ENTER.
To cancel the programmed order
To cancel all the titles, chapters, or tracks in
the programmed order, press X, and select
“ALL CLEAR” in Step 2. To cancel the
selected programme, select the programme
using X/x in Step 2, then press CLEAR, or
select “--” in Step 3, then press ENTER.
Selected track
z You can do Repeat Play of the programmed titles,
ALL CLEAR
1. TRACK 0 2
2. TRACK – –
3. TRACK – –
4. TRACK – –
5. TRACK – –
6. TRACK – –
7. TRACK – –
0:15:30
T
––
01
02
03
04
05
chapters, or tracks. Press REPEAT, or set “REPEAT”
to “ON” in the Control Menu display during
Programme Play.
Note
The number of titles, chapters, or tracks displayed are
the same number of titles, chapters, or tracks
recorded on a disc.
Playing Discs
PROGRAM
Total time of the programmed tracks
4
To programme other titles,
chapters, or tracks, repeat Steps 2
to 3.
The programmed titles, chapters, and
tracks are displayed in the selected
order.
5
Press H to start Programme
Play.
Programme Play begins.
When the programme ends, you can
restart the same programme again by
pressing H.
To return to normal play
Press CLEAR during playback.
To turn off the programme menu
In stop mode, press PLAY MODE to turn
off the programme menu.
To change the programme
1
In Step 2, select the programme number
of the title, chapter, or track you want to
change using X/x or the number
buttons, and press c.
2
Follow Step 3 for new programming.
35GB
Playing in random order
Playing repeatedly (Repeat
(Shuffle Play)
Play)
You can have the receiver “shuffle” titles,
chapters, or tracks and play them in random
order. Subsequent “shuffling” may produce
a different playing order.
You can play all the titles/tracks or a single
title/chapter/track on a disc.
In Shuffle or Programme Play mode, the
receiver repeats the titles or tracks in the
shuffled or programmed order.
You cannot perform Repeat Play during
PBC playback of VIDEO CDs (page 33).
You may not be able to perform Repeat Play
depending on the DVD.
PLAY MODE
CLEAR
H
PLAY MODE
REPEAT
CLEAR
H
1
2
In stop mode, press PLAY MODE
repeatedly until “SHUFFLE”
appears on the front panel
display.
DVD DISPLAY
Press H.
To return to normal play
In stop mode, press PLAY MODE twice, or
during playback, press CLEAR to return to
normal play.
Notes
• Shuffle Play is cancelled when:
– you open or close the disc tray
– you turn the power off
– you change the function
• You may not be able to do Shuffle Play depending
on the DVD.
36GB
ENTER
X/x
1
Press DVD DISPLAY.
The Control Menu appears.
2
Press X/x to select
(REPEAT), then press ENTER.
If you do not select “OFF,” the
indicator of “REPEAT” lights up in
green.
3
Select the Repeat Play setting.
12(27)
18(34)
T
1:32:55
DVD
OFF
OFF
DISC
TITLE
CHAPTER
Playing Discs
When playing a DVD and when
Programme Play is set to OFF
• OFF: does not play repeatedly.
• DISC: repeats all the titles.
• TITLE: repeats the current title on a disc.
• CHAPTER: repeats the current chapter.
When playing a VIDEO CD/Super
Audio CD/CD and when Programme
Play is set to OFF
• OFF: does not play repeatedly.
• DISC: repeats all the tracks on a disc.
• TRACK: repeats the current track
When Programme Play is set to ON
• OFF: does not play repeatedly.
• ON: repeats Programme Play.
To cancel Repeat Play
Press CLEAR.
z You can set Repeat Play during stop
mode
After selecting the “REPEAT” item, press H.
The receiver starts Repeat Play.
z You can quickly display the “REPEAT”
status
Press REPEAT on the remote.
Note
Repeat play is cancelled when:
– you turn the power off.
– you change the function.
37GB
Searching for a Scene
Searching for a Particular
Point on a Disc (Scan, Slowmotion Play)
You can locate a particular point on a disc
quickly by monitoring the picture or playing
back slowly.
m/M
H
Watching frame by frame (Slowmotion play)
You can use this function only for DVDs or
VIDEO CDs. Press m or M when the
receiver is in the pause mode. To return to
normal speed, press H.
Each time you press m or M during
Slow-motion play, the playback speed
changes. Two speeds are available. With
each press, the indication changes as
follows:
Playback direction
SLOW 2M y SLOW 1M
Opposite direction (DVD only)
SLOW 2m y SLOW 1m
Note
Depending on the DVD/VIDEO CD, you may not be
able to do some of the operations described.
Locating a point quickly by playing
a disc in fast forward or fast
reverse (Scan)
Press m or M while playing a disc.
When you find the point you want, press
H to return to normal speed.
Each time you press m or M during
scan, the playback speed changes. Three
speeds are available. With each press, the
indication changes as follows:
t
Playback direction
×2B (DVD/Super Audio CD/CD only) t FF1M
FF2M T
t
Opposite direction
×2b (DVD only) t FR1m t FR2m
The ×2B/×2b playback speed is about twice
the normal speed. The FF2M/FR2m
playback speed is faster than FF1M/
FR1m.
38GB
The SLOW 2M/SLOW 2m playback
speed is slower than SLOW 1M/SLOW
1m.
xWhen playing a VIDEO CD with
PBC Playback
(SCENE)
Searching for a Title/
Chapter/Track/Index/
Scene
xWhen playing a Super Audio
CD/CD
(TRACK) or
(INDEX)
You can search a DVD disc by title or
chapter, and you can search a VIDEO CD or
CD by track, index, or scene. As titles and
tracks are assigned unique numbers on the
disc, you can select the desired one by
entering its number. Or, you can search for a
scene using the time code. (TIME SEARCH)
12(27)
18(34)
T
1:32:55
Number
buttons
Searching for a Scene
Example: when you select
(CHAPTER)
“** (**)” is selected (** refers to a
number).
The number in parentheses indicates
the total number of titles, chapters,
tracks, indexes, or scenes.
DVD
CLEAR
Selected row
ENTER
X/x
DVD DISPLAY
3
Press ENTER.
“** (**)” changes to “— (**)”.
12(27)
– –(34)
T
1:32:55
1
DVD
Press DVD DISPLAY.
The Control Menu appears.
2
Press X/x to select the search
method.
xWhen playing a DVD
(TITLE),
(CHAPTER), or
(TIME/TEXT)
Select TIME/TEXT for TIME
SEARCH.
xWhen playing a VIDEO CD
(TRACK) or
(INDEX)
4
Press X/x or the number buttons
to select the title, chapter, track,
index, or scene number you want
to search.
If you make a mistake
Cancel the number by pressing
CLEAR, then select another number.
continued
39GB
5
Press ENTER.
The receiver starts playback from the
selected number.
To turn off the Control Menu
Press DVD DISPLAY repeatedly until the
Control Menu is turned off.
To search for a scene using the time
code (TIME SEARCH) (DVD only)
1
In Step 2, select
(TIME/
TEXT).
“T **:**:**” (playing time of the
current title) is selected.
2
Press ENTER.
“T **:**:**” changes to “T --:--:--.”
3
Input the time code using the number
buttons, then press ENTER.
For example, to find the scene at
2 hours, 10 minutes, and 20 seconds
after the beginning, just enter “2:10:20.”
Note
The title, chapter or track number displayed is the
same number recorded on the disc.
40GB
Viewing Information About the Disc
Viewing the Playing Time
and Remaining Time on
the Front Panel Display
When playing a DVD
Playing time and number of the current title
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
Remaining time of the
current title
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
You can check information about the disc,
such as the remaining time, total number of
titles of a DVD, or tracks of a Super Audio
CD, CD, or VIDEO CD, using the front
panel display (page 10).
Playing time and number
of the current chapter
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
Remaining time of the
current chapter
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
Viewing Information About the Disc
TITLE
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
TIME
Text
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
When playing a VIDEO CD (without
PBC functions), Super Audio CD, or
CD
Playing time and current track number
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
Press TIME.
Each time you press TIME while playing the
disc, the display changes as shown in the
following charts.
Remaining time of the
current track
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
Playing time of the disc
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
Remaining time of the
disc
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
Text
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
continued
41GB
z When playing VIDEO CDs with PBC functions,
the scene number and the playing time are displayed.
z The playing time and remaining time of the
current chapter, title, track, scene, or disc will also
appear on your TV screen. See the following section
“Checking the Playing Time and Remaining Time”
for instructions on how to read this information.
Notes
• While playing Super Audio CD, the index indicator
does not appear on the front panel display.
• Depending on the type of disc being played and the
playing mode, the disc information may not be
displayed.
Checking the Playing
Time and Remaining Time
You can check the playing time and
remaining time of the current title, chapter,
or track, and the total playing time or
remaining time of the disc. You can also
check the DVD/CD/Super Audio CD text
recorded on the disc.
TIME
DVD
DISPLAY
1
Press DVD DISPLAY during
playback.
The Control Menu appears.
12(27)
18(34)
T
1:32:55
DVD
Disc type
Time information
42GB
2
Press TIME repeatedly to change
the time information.
The display and the kinds of time that
you can change depend on the disc you
are playing.
xWhen playing a VIDEO CD
(with PBC functions)
• **:**
Playing time of the current scene
xWhen playing a VIDEO CD
(without PBC functions), Super
Audio CD, or CD
• T **:**
Playing time of the current track
• T–**:**
Remaining time of the current
track
• D **:**
Playing time of the current disc
• D–**:**
Remaining time of the current disc
Checking the DVD/CD/Super Audio
CD text
Press TIME repeatedly in Step 2 to display
the text recorded on the DVD/CD/Super
Audio CD. The DVD/CD/Super Audio CD
text appears only when the text is recorded
on the disc. You cannot change the text.
TIME/TEXT
BRAHMS SYMPHONY NO – 4
DVD/CD/Super Audio CD text
z If the DVD/CD/Super Audio CD text does not fit
in a single line, you can see the entire text scrolls
across the front display.
z You can select the time and text by pressing
TIME.
Notes
• Only English words can be displayed.
• In Super Audio CD playback, the receiver can only
display a limited number of characters. Also,
depending on the disc, not all text characters are
not displayed.
Viewing Information About the Disc
xWhen playing a DVD
• T **:**:**
Playing time of the current title
• T–**:**:**
Remaining time of the current title
• C **:**:**
Playing time of the current chapter
• C–**:**:**
Remaining time of the current
chapter
To turn off the Control Menu
Press DVD DISPLAY repeatedly until the
Control Menu is turned off.
43GB
Sound Adjustments
3
Changing the Sound
Press X/x to select the desired
audio signal.
xWhen playing a DVD
Depending on the DVD, the choice of
language varies.
When 4 digits are displayed, they
represent the language code. Refer to
the language code list on page 79 to
see which language the code
represents. When the same language is
displayed two or more times, the DVD
is recorded in multiple audio formats.
If a DVD is recorded with multilingual
tracks, you can select the language you want
while playing the DVD.
If the DVD is recorded in multiple audio
formats (PCM, Dolby Digital, MPEG audio,
or DTS), you can select the audio format
you want while playing the DVD.
With stereo CDs or VIDEO CDs, you can
select the sound from the right or left channel
and listen to the sound of the selected channel
through both the right and left speakers. (In
this case, the sound loses its stereo effect.)
For example, when playing a disc containing
a song with the vocals on the right channel
and the instruments on the left channel, you
can select the left channel and hear only the
instruments from both speakers.
xWhen playing a VIDEO CD, or CD
The default setting is underlined.
• STEREO: The standard stereo sound
• 1/L: The sound of the left channel
(monaural)
• 2/R: The sound of the right
channel (monaural)
xWhen playing a Super Audio CD
In stop mode, depending on the Super
Audio CD, the choice of settings
varies.
• MULTI: The disc has multichannel playback area
• 2CH: The disc has the 2 channel
playback area.
• CD: When you want to play the
disc as a conventional CD.
AUDIO
ENTER
X/x
DVD DISPLAY
Note
1
Not all discs give you the three choices above
when in Super Audio CD playback. It all
depends on the layer configuration of the
Super Audio CD to be played.
Press DVD DISPLAY during
playback.
The Control Menu is displayed.
2
Press X/x to select
(AUDIO), then press ENTER.
The options for AUDIO appear.
12(27)
18(34)
T
1:32:55
1: ENGLISH
1: ENGLISH
2: ENGLISH
3: FRENCH
DVD
PROGRAM FORMAT
DOLBY DIGITAL 3/2.1
L
C
R
LFE
LS
44GB
4
Press ENTER.
To turn off the Control Menu
Press DVD DISPLAY repeatedly until the
Control Menu is turned off.
z You can select AUDIO directly by pressing AUDIO.
Each time you press the button, the item changes.
Note
RS
For discs not in multiple audio format, you cannot
change the sound.
Displaying the audio information of
the disc
When you select “AUDIO,” the channels
being played are displayed on the screen.
For example, in Dolby Digital format,
multiple signals ranging from monaural to
5.1 channel signals can be recorded on a
DVD. Depending on the DVD, the number
of recorded channels may differ.
The display examples are as follows:
• PCM (stereo)
PROGRAM FORMAT
PCM 48kHz 24bit
• Dolby Surround
Current audio format*
12(27)
18(34)
T
1:32:55
1: ENGLISH
PROGRAM FORMAT
DOLBY DIGITAL 2/0
DOLBY SURROUND
L
C
R
DVD
PROGRAM FORMAT
DOLBY DIGITAL 3/2.1
L
C
R
LS
RS
Current playing programme format**
* “PCM,” “MPEG,” “DTS,” or “DOLBY
DIGITAL” is displayed.
For “DOLBY DIGITAL,” the channels in
the playing track are displayed numerically
as follows:
• Dolby Digital 5.1ch
When an LFE signal component is output,
“LFE” is enclosed in a solid line. When an
LFE signal component is not output,
“LFE” is enclosed in a broken line.
PROGRAM FORMAT
DOLBY DIGITAL 3/2.1
L
For Dolby Digital 5.1 ch:
Front component 2 +
Centre component 1
LFE (Low Frequency
Effect) component 1
**The letters in the programme format
display mean the following sound
component:
L: Front (left)
R : Front (right)
C : Centre
LS : Rear (left)
RS : Rear (right)
S : Rear (monaural): The rear
component of the Dolby
Surround processed signal and
the Dolby Digital signal.
LFE : LFE (Low Frequency Effect)
R
LFE
Rear component 2
DOLBY DIGITAL 3 / 2 . 1
C
Sound Adjustments
S
LFE
LS
RS
• DTS
“LFE” is always enclosed in a solid line
regardless of the LFE signal component
being output.
PROGRAM FORMAT
DTS 3/2.1
L
C
R
LFE
LS
RS
Notes
• When the signal contains rear signal components
such as LS, RS, or S, the surround effect is
enhanced (page 46).
• If you play MPEG AUDIO sound tracks, the
receiver outputs PCM (stereo) signals.
45GB
Automatically decoding
the input audio signal (Auto
Enjoying Surround Sound
Format Decode)
The auto format decode function
automatically detects the type of audio
signal being input (Dolby Digital, DTS, or
standard 2 channel stereo) and performs the
proper decoding if necessary. This mode
presents the sound as it was recorded/
encoded, without adding any effects (e.g.
reverberation).
However, if there are no low frequency
signals (Dolby Digital LFE, etc.), it will
generate a low frequency signal for output to
the sub woofer.
SOUND
FIELD +/–
You can take advantage of surround sound
simply by selecting one of the receiver’s
pre-programmed sound fields. They bring
the exciting and powerful sound of movie
theaters and concert halls into your home.
To select the sound field, press SOUND
FIELD +/– repeatedly until the sound field
you want appears on the front panel display.
Sound field
Normal surround
Cinema Studio EX A
Cinema Studio EX B
Cinema Studio EX C
Virtual Multi Dimension
Virtual Semi Multi
Dimension
Small Hall
Large Hall
Jazz Club
Live House
Game
Display
N.SURROUND
C.S.EX.A*
C.S.EX.B*
C.S.EX.C*
V.MULTI D.
V.S.M.D.
SMALL HALL
LARGE HALL
JAZZ CLUB
LIVE HOUSE
GAME
* Use DCS Technology
Press SOUND FIELD +/– repeatedly
until “A.F.D.(AUTO FORMAT DECODE)”
appears on the front panel display.
The auto format decode function is
activated.
46GB
About DCS (Digital Cinema Sound)
In the collaboration with Sony Pictures
Entertainment, Sony measured the sound
environment of their studios and integrated
the data of the measurement and Sony’s own
DSP (Digital Signal Processor) technology
to develop “Digital Cinema Sound”.
“Digital Cinema Sound” simulates in a
home theater an ideal movie theater sound
environment based on the preference of
movie director.
SOUND
FIELD +/–
Cinema Studio EX is ideal for enjoying the
movie software encoded with multi channel
format, such as the Dolby Digital DVD.
This mode reproduces the sound
characteristics of Sony Pictures
Entertainment’s studios.
About Cinema Studio EX
Cinema Studio EX consists of the following
three elements.
• Virtual Multi Dimension
Creates 5 sets of virtual speakers
surrounding the listener from a single pair
of actual rear speakers.
• Screen Depth Matching
In a movie theater, sound seems to come
from inside the image reflected on the
movie screen. This element creates the
same sensation in your listening room by
shifting the sound of the front speakers
“into” the screen.
• Cinema Studio Reverberation
Reproduces the reverberations peculiar to a
movie theater.
Cinema Studio EX is the integrated mode
which operates these elements
simultaneously.
Sound Adjustments
Enjoying movies with Cinema Studio
EX
C.S.EX C (Cinema Studio EX C)
Reproduces the sound characteristics of the
Sony Pictures Entertainment scoring stage.
This mode is ideal for watching musicals or
classic films where music is featured in the
soundtrack.
Notes
Press SOUND FIELD +/– repeatedly
until “C.S.EX A (or B, C)” appears on
the front panel display.
C.S.EX A (Cinema Studio EX A)
Reproduces the sound characteristics of the
Sony Pictures Entertainment “Cary Grant
Theater” cinema production studio. This is a
standard mode, great for watching most any
type of movie.
C.S.EX B (Cinema Studio EX B)
Reproduces the sound characteristics of the
Sony Pictures Entertainment “Kim Novak
Theater” cinema production studio. This
mode is ideal for watching science-fiction or
action movies with lots of sound effects.
• The effects provided by the virtual speakers may
cause increased noise in the playback signal.
• When listening with sound fields that employ the
virtual speakers, you will not be able to hear any
sound coming directly from the rear speakers.
Selecting other sound fields
Press SOUND FIELD +/– repeatedly
until the sound field you want appears
on the front panel display.
The current sound field appears on the front
panel display.
continued
47GB
N. SURROUND (Normal Surround)
Software with multi channel surround audio
signals is played back according to the way
it was recorded. Software with 2 channel
audio signals is decoded with Dolby Pro
Logic to create surround effects.
V. MULTI D.*
(Virtual Multi Dimension)
Uses 3D sound imaging to create an array of
virtual rear speakers positioned higher than
the listener from a single pair of actual rear
speakers. This mode creates 5 sets of virtual
speakers surrounding the listener at
approximately a 30° angle of elevation.
C
R
LS
RS
LS
RS
LS
RS
BEHIND
L
C
R
LS
RS
LS
RS
LS
RS
V. S. M. D.*
(Virtual Semi Multi Dimension)
Uses 3D sound imaging to create virtual rear
speakers from the sound of the front
speakers without using actual rear speakers.
This mode creates 5 sets of virtual speakers
surrounding the listener at a 30° angle of
elevation.
L
C
R
LS
RS
LS
RS
LS
48GB
RS
LARGE HALL (Large Hall)
Reproduces the acoustics of a large
rectangular concert hall.
Ideal for soft acoustic sounds.
JAZZ CLUB (Jazz Club)
Reproduces the acoustics of a jazz club.
LIVE HOUSE (Live House)
Reproduces the acoustics of a 300-seat live
concert.
GAME (Game)
Obtains maximum audio impact from video
game software.
SIDE
L
SMALL HALL (Small Hall)
Reproduces the acoustics of a small
rectangular concert hall.
HEADPHONE THEATER (Headphone
Theatre)
When you connect your headphone to the
PHONES jack of the receiver, the
HEADPHONE THEATER mode allows you
to experience a theatre like environment
while listening through a pair of
headphones. This mode is very effective
with 5.1 ch discreet signal sources like
Dolby Digital and DTS. Selecting any
Sound Field selections (except AUTO
FORMAT DECODE or 2 CH STEREO)
enables the mode.
* “Virtual” sound field: Sound field with
virtual speakers.
To turn the surround effect off
Press SOUND FIELD +/– repeatedly until
“A.F.D.” or “2CH STEREO” appears on the
front panel display.
z The receiver memorises the last sound
field selected for each function mode (Sound
Field Link)
Whenever you select a function such as DVD or
TUNER, the sound field that was last applied to the
function is automatically applied again. For example,
if you listen to DVD with SMALL HALL as the sound
field, then change to another function, and then return
to DVD, SMALL HALL will be applied again. With
the tuner, sound fields are memorised separately for all
preset stations.
z You can identify the encoding format of
programme software by looking at its
packaging
– Dolby Digital discs are labelled with the
logo.
– Dolby Surround encoded programmes are labelled
with the
logo.
– DTS Digital Surround discs are marked with DTS.
Note
When sound signals with a sampling frequency of 96
kHz are input, the sound signals are output in stereo
automatically, and the sound field is turned off.
Adjustable parameters
FRONT BAL. REAR BAL. REAR LEVEL CENTER LEVEL SUB WOOFER LEVEL
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
Sound Adjustments
C.S.EX A
C.S.EX B
C.S.EX C
N. SURROUND
V.MULTI D.
V.S.M.D.
SMALL HALL
LARGE HALL
JAZZ CLUB
LIVE HOUSE
GAME
HEADPHONE THEATER
Note
Depending on the disc, the audio signal may not output according to the table above. For details, see the instruction
manual of the disc.
49GB
Using only the front
speakers (2 Channel Stereo)
SOUND
FIELD +/–
Adjusting the level
parameters
The level menu contains parameters that let
you adjust the balance and speaker volumes
of each speaker (page 26).
ENTER
C/X/x/c
AMP MENU
Press SOUND FIELD +/– repeatedly
until “2CH STEREO” appears on the
front panel display.
This mode outputs the sound from the front
left and right speakers only. Standard 2
channel (stereo) sources completely bypass
the sound field processing. Multi channel
surround formats are downmixed to 2
channel.
1
2
Start playing a programme source
encoded with multichannel
surround sound.
Press AMP MENU repeatedly.
9 LEVEL appears on the front panel
display.
Note
No sound is output from the sub woofer when “2CH
STEREO” is selected. To listen to 2 channel (stereo)
sources using the front left and right speakers and a
sub woofer, press SOUND FIELD +/– repeatedly to
select “A.F.D.”
3
4
Sit in your listening position and
select the item to be adjusted
using X/x.
Adjust the volume level using C/c.
The adjusted value will appear on the
front panel display. If you do not operate
the remote for a few seconds, the value
turns off and is stored in the receiver.
50GB
Enjoying Movies
Changing the Angles
If various angles (multi-angles) for a scene
are recorded on the DVD, “ANGLE”
appears in the front panel display. This
means that you can change the viewing
angle.
For example, while playing a scene of a
train in motion, you can display the view
from either the front of the train, the left
window of the train, or from the right
window without having the train’s
movement interrupted.
3
Press c or ENTER.
The angle number changes to “-.”
12(27)
18(34)
T
1:32:55
–
4
DVD
(9)
Select the angle number using the
number buttons or X/x, then
press ENTER.
The angle is changed to the selected
angle.
To turn off the Control Menu
Press DVD DISPLAY repeatedly until the
Control Menu is turned off.
ENTER
X/x/c
DVD DISPLAY
z You can select the angle directly by pressing
ANGLE. Each time you press the button, the angle
changes.
Enjoying Movies
ANGLE
Number
Buttons
Note
1
Depending on the DVD, you may not be able to
change the angles, even if multi-angles are recorded
on the DVD.
Press DVD DISPLAY during
playback.
The Control Menu appears.
2
Press X/x to select
(ANGLE).
The angle number appears.
The number in parentheses indicates
the total number of angles.
12(27)
18(34)
T
1:32:55
DVD
1(9)
51GB
Displaying the Subtitles
If subtitles are recorded on the discs, you
can turn the subtitles on and off while
playing. If multilingual subtitles are
recorded on the disc, you can change the
subtitle language while playing, or turn the
subtitles on or off whenever you want. For
example, you can select the language you
want to practice and turn the subtitles on for
better understanding.
3
Press X/x to select the language.
Depending on the DVD, the choice of
language varies.
When 4 digits are displayed, they
indicate the language code. Refer to
the language code list on page 79 to
see which language the code
represents.
4
Press ENTER.
To cancel the SUBTITLE setting
Select “OFF” in Step 3.
SUBTITLE
To turn off the Control Menu
Press DVD DISPLAY repeatedly until the
Control Menu is turned off.
ENTER
X/x
z You can select SUBTITLE directly by pressing
SUBTITLE. Each time you press the button, the item
changes.
DVD DISPLAY
Note
Depending on the DVD, you may not be able to
change the subtitles even if multilingual subtitles are
recorded on it.
1
Press DVD DISPLAY during
playback.
The Control Menu appears.
2
Press X/x to select
(SUBTITLE), then press ENTER.
The options for SUBTITLE appear.
12(27)
18(34)
T
1:32:55
OFF
OFF
1: ENGLISH
2: FRENCH
3: SPANISH
52GB
DVD
To close the ADVANCED window
Select “OFF” in Step 3.
Checking the Play
Information (ADVANCED)
You can check information such as the bit
rate or the disc layer that is being played.
While playing a disc, an approximate bit
rate of the playback picture is always
displayed as Mbps (Mega bit per second)
and the audio as kbps (kilo bit per second).
To turn off the Control Menu
Press DVD DISPLAY repeatedly until the
Control Menu is turned off.
Displays of each item
By pressing DVD DISPLAY repeatedly, you
can display either “BIT RATE” or
“LAYER,” whichever was selected in
“ADVANCED.”
BIT RATE
ENTER
X/x
BIT RATE
DVD DISPLAY
0
5
384kbps
Audio
Mbps
Video
10
1
BIT RATE
Press DVD DISPLAY during
playback.
The Control Menu is displayed.
2
Press X/x to select
(ADVANCED), then press ENTER.
The options for ADVANCED appear.
12(27)
18(34)
T
1:32:55
DVD
0
3
10
Audio
Video
Appears when the DVD
has dual layers
BIT RATE
384 kbps
0
5
10
Mbps
Press X/x to select the items.
For each item, please refer to
“Displays of each item.”
• BIT RATE: displays the bit rate.
• LAYER: displays the layer and the
pick-up point.
4
5
Mbps
Bit rate refers to the amount of video/audio
data per second in a disc. When the bit rate
level is high, there is a large amount of data.
However, this does not always mean that
you can get higher quality pictures or
sounds.
LAYER
BIT RATE
OFF
BIT RATE
LAYER
kbps
1000
0
Enjoying Movies
When playing MPEG audio sound tracks
Press ENTER.
Indicates the approximate point where the
disc is playing.
If it is a dual-layer DVD, the receiver
indicates which layer is being read (“Layer
0” or “Layer 1”).
For details on the layers, see page 75
(DVD).
53GB
Using Various Additional Functions
Locking Discs (CUSTOM
3
PARENTAL CONTROL, PARENTAL
CONTROL)
You can set two kinds of playback
restrictions for a disc.
• Custom Parental Control
You can set the playback restrictions so
that the receiver will not play inappropriate
discs.
• Parental Control
Playback of some DVDs can be limited
according to a predetermined level such as
the age of the users.
The same password is used for both Parental
Control and Custom Parental Control.
Custom Parental Control
You can set the same Custom Parental
Control password for up to 50 discs. When
you set the fifty-first-disc, the playback
restriction for the first disc is cancelled.
Number
buttons
x
ENTER
C/X/x
O RETURN
DVD DISPLAY
1
2
54GB
Insert the disc you want to lock.
If the disc is playing, press x to stop
playback.
In stop mode, press DVD DISPLAY.
The Control Menu appears.
Press X/x to select
(CUSTOM
PARENTAL CONTROL), then press
ENTER.
“CUSTOM PARENTAL CONTROL” is
selected.
12(27)
18(34)
T
1:32:55
DVD
OFF
ON
PASSWORD
4
Press X/x to select “ON t,” then
press ENTER.
xWhen you have not entered a
password
The display for registering a new
password appears.
CUSTOM PARENTAL CONTROL
Enter a new 4-digit password, then
press ENTER .
Enter a 4-digit password by using the
number buttons, then press ENTER.
The display for confirming the password
appears.
xWhen you have already
registered a password
The display for entering the password
appears.
CUSTOM PARENTAL CONTROL
Enter password, then press
ENTER
.
5
Enter or re-enter your 4-digit password
by using the number buttons, then
press ENTER.
“Custom parental control is set.” appears
and the screen returns to the Control
Menu display.
Playing the disc for which Custom
Parental Control is set
1
If you make a mistake entering
your password
Press C before you press ENTER and
input the correct number.
If you make a mistake
Press O RETURN, then start from Step 3
again.
To turn off the Control Menu
Press O RETURN, then press DVD
DISPLAY repeatedly until the Control
Menu is turned off.
1
2
In Step 4, select “OFF t,” then press
ENTER.
Enter your 4-digit password using the
number buttons, then press ENTER.
To change the password
1
In Step 4, press X/x to select
“PASSWORD t,” then press ENTER.
The display for entering the password
appears.
2
Enter your 4-digit password using the
number buttons, then press ENTER.
3
Enter a new 4-digit password using the
number buttons, then press ENTER.
4
To confirm your password, re-enter it
using the number buttons, then press
ENTER.
CUSTOM PARENTAL CONTROL
Custom parental control is already
set. To play, enter your password
and press ENTER .
2
Enter your 4-digit password using the
number buttons, then press ENTER.
The receiver is ready for playback.
z If you forget your password, enter the 6-digit
number “199703” using the number buttons when the
CUSTOM PARENTAL CONTROL display asks you
for your password, then press ENTER. The display
will ask you to enter a new 4-digit password.
Limiting playback for children
(Parental Control)
Playback of some DVDs can be limited
according to a predetermined level such as
the age of the users. The “Parental Control”
function allows you to set a playback
limitation level.
A scene that is limited is not played, or it is
replaced by a different scene.
Using Various Additional Functions
To turn off the Custom Parental
Control function
Insert the disc for which Custom
Parental Control is set.
The CUSTOM PARENTAL CONTROL
display appears.
Number
buttons
H
ENTER
X/x
O RETURN
DVD DISPLAY
continued
55GB
1
In stop mode, press DVD DISPLAY.
The Setup Display appears.
2
Press X/x to select “CUSTOM SETUP,”
then press ENTER.
“CUSTOM SETUP” is displayed.
4
Enter or re-enter your password using
the number buttons, then press ENTER.
The display for setting the playback
limitation level and changing the
password appears.
CUSTOM SETUP
CUSTOM SETUP
COLOR SYSTEM:
PAUSE MODE:
PARENTAL CONTROL
TRACK SELECTION:
3
PARENTAL CONTROL
LEVEL:
STANDARD:
CHANGE PASSWORD
AUTO
AUTO
OFF
Press X/x to select “PARENTAL
CONTROL t,” then press ENTER.
5
xIf you have not entered a
password
The display for registering a new
password appears.
OFF
USA
Press X/x to select “STANDARD,” then
press ENTER.
The selection items for “STANDARD”
are displayed.
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
STANDARD:
CHANGE PASSWORD
CUSTOM SETUP
OFF
USA
USA
OTHERS
PARENTAL CONTROL
Enter a new 4-digit password, then
press ENTER .
6
Enter a 4-digit password using the
number buttons, then press ENTER.
The display for confirming the password
appears.
xWhen you have already
registered a password
The display for entering the password
appears.
CUSTOM SETUP
PARENTAL CONTROL
Enter password, then press
56GB
ENTER
.
Press X/x to select a geographic area
as the playback limitation level, then
press ENTER.
The area is selected.
If you select “OTHERS t,” select and
enter the standard code in the table on
page 58 using the number buttons.
7
Press ENTER.
The selection items for “LEVEL” are
displayed.
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
STANDARD:
CHANGE PASSWORD
8
1
Insert the disc and press H.
The PARENTAL CONTROL display
appears.
2
Enter your 4-digit password using the
number buttons, then press ENTER.
The receiver starts playback.
OFF
OFF
8:
7:
6:
5:
NC17
R
Select the level you want using X/x,
then press ENTER.
Parental Control setting is complete.
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
STANDARD:
CHANGE PASSWORD
Playing the disc for which Parental
Control is set
4:
PG13
USA
z If you forget your password, remove the disc and
repeat Step 1 to 5 of “Limiting playback for
children.” When you are asked to enter your
password, enter “199703” using the number buttons,
then press ENTER. The display will ask you to enter
a new 4-digit password. After you enter a new 4-digit
password in Step 3, replace the disc in the receiver
and press H. When the PARENTAL CONTROL
display appears, enter your new password.
Notes
If you make a mistake
Press O RETURN to go back to the
previous screen.
To turn off the Setup Display
Press DVD SETUP repeatedly until the
Setup Display is turned off.
To turn off the Parental Control
function and play the DVD after
entering your password
Set “LEVEL” to “OFF” in Step 8.
Using Various Additional Functions
The lower the value, the more strict the
limitation.
• When you play DVDs which do not have the
Parental Control function, playback cannot be
limited on this receiver.
• Depending on the DVD, you may be asked to
change the parental control level while playing the
disc. In this case, enter your password, then change
the level. If the Resume Play mode is cancelled, the
level returns to the original level.
To change the password
1
In Step 5, select “CHANGE
PASSWORD t” using x, then press
ENTER.
The display for entering the password
appears.
2
Follow Step 3 to enter a new password.
continued
57GB
Area Code
Standard
58GB
Code
number
Standard
Code
number
Argentina
2044
Korea
2304
Australia
2047
Malaysia
2363
Austria
2046
Mexico
2362
Belgium
2057
Netherlands
2376
Brazil
2070
New Zealand
2390
Canada
2079
Norway
2379
Chile
2090
Pakistan
2427
China
2092
Philippines
2424
Denmark
2115
Portugal
2436
Finland
2165
Russia
2489
France
2174
Singapore
2501
Germany
2109
Spain
2149
Hong Kong
2219
Sweden
2499
India
2248
Switzerland
2086
Indonesia
2238
Taiwan
2543
Italy
2254
Thailand
2528
Japan
2276
United Kingdom
2184
Other Operations
Controlling the TV with
the Supplied Remote
By adjusting the remote signal, you can
control your TV with the supplied remote.
Notes
• If you enter a new code number, the code number
previously entered will be erased.
• When you replace the batteries of the remote, the
code number may be reset to the default (SONY)
setting. Reset the appropriate code number.
Controlling TVs with the remote
RM SET UP
TV ?/1
Number*
buttons
Manufacturer
Code number
AIWA
17
AKAI
22
AOC
22
CENTURION
28
COLONAD
21
CURTIS-MATHES
28
Daytron
28
EMERSON
21, 22, 30
FISHER
27
FUJITSU
11
FUNAI
14
General Electric
24, 26
GOLD STAR (LG)
21, 22, 32
GRUNDIG
44
HITACHI
04, 21, 51
J.C.Penney
22, 28
JVC
06
KMC
21
LOEWE
56
MAGNAVOX
21, 25, 28
MARANTZ
22, 29
MGA/MITUBISHI
22, 28, 29, 32
NEC
09, 22, 28
NOKIA
47, 48, 58
Philico
TV VOL +/–
TV/VIDEO
WIDE
TV CH +/–
1
2
Press TV [/1 while pressing RM SET
UP.
The SET UP indicator lights up.
Enter your TV’s manufacturer’s code
(see the table) using the number
buttons.
The SET UP indicator flashes twice.
Code numbers of controllable TVs
If more than one code number is listed, try
entering them one at a time until you find
the one that works with your TV.
21, 22
PHILIPS
25, 34, 41, 42, 43
PIONEER
10
Portland
21
QUASAR
08, 24
RADIO SHACK
23, 30
RCA
22, 26
SABA
45, 46
SAMPO
28
SAMSUNG
18, 33, 49, 50
SANYO
07, 15, 27, 52
SCOTT
28
SEARS
03, 26, 27
SHARP
08, 16, 21, 23
SONY
01 (default), 12
SYLVANIA
25, 28
TEKNIKA
21, 25, 30
TELEFUNKEN
53
THOMSON
55
TOSHIBA
03, 54
WARDS
21, 22, 28
YORX
28
ZENITH
31
Other Operations
PANASONIC (MATSUSHITA) 02, 13, 24, 57
59GB
Controlling the TV
You can control your TV using the buttons
below.
By pressing
TV [/1
TV/VIDEO
TV VOL +/–
TV CH +/–
WIDE
You can
Turn the TV on or off.
Switch the TV’s input source
between the TV and other input
sources.
adjust the TV volume.
change the TV channel.
change the aspect ratio of your
TV.
Watching the Video or
other Unit
You can use VCR or other units connected
to the VIDEO (S VIDEO/AUDIO L/R IN/
OUT jacks. Refer to the operation manual
supplied with the unit for further
information on the operation.
FUNCTION
Note
Depending on the TV, you may not be able to control
your TV or to use some of the buttons above.
* Use the number buttons only to enter the code
number of controllable TVs.
Press FUNCTION repeatedly until
“VIDEO” appears on the front panel
display.
Each time you press FUNCTION, the mode
of the receiver changes in the following
sequence.
DVD t VIDEO tTV/SAT t AUX t
MD/DAT t TUNER t DVD...
Note
You can listen to other equipment (cassette deck,
satellite tuner, etc.) connected to the receiver by
pressing FUNCTION and selecting the connected
input.
60GB
To listen to non-preset radio stations
Use manual or automatic tuning in Step 2.
For manual tuning, press m or M on the
remote repeatedly.
For automatic tuning, press and hold m or
M on the remote.
Listening to the Radio
Preset radio stations in the receiver’s
memory first (see “Presetting Radio
Stations” on page 28).
z If an FM programme is noisy
?/1
STEREO/
MONO
FUNCTION
DISPLAY
m/M
PRESET
+/–
VOLUME
+/–
1
Press FUNCTION repeatedly until
“TUNER” appears on the front
panel display.
Press STEREO/MONO on the remote so that
“MONO” appears on the front panel display. There
will be no stereo effect, but the reception will
improve. Press the button again to restore the stereo
effect.
z To improve reception
Reorient the supplied antennas.
To check the frequency or sound field
Press DISPLAY repeatedly.
Each time you press DISPLAY, the front
panel display changes as follows:
index name of the station t frequency t
sound field t index name of the station
The last received station is tuned in.
TRACK
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
m
2
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
Other Operations
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
Press PRESET + or PRESET –
repeatedly to select the preset
station you want.
Each time you press the button, the
receiver tunes in one preset station.
3
Adjust the volume by pressing
VOLUME +/–.
To turn off the radio
Press ?/1.
61GB
Naming Preset Stations
You can enter a name of up to 8 characters
for preset stations. These names (for
example, “XYZ”) appear on the front panel
display when a station is selected.
Note that no more than one name can be
entered for each preset station.
3
4
If you make a mistake
Press C or c repeatedly until the
character to be changed flashes, then
press x/X to select the right character.
5
1
Press FUNCTION repeatedly until
“TUNER” appears on the front
panel display.
The last station you received is tuned
in.
Each time you press FUNCTION, the
mode of the receiver changes in the
following sequence:
DVD t VIDEO tTV/SAT t AUX
t MD/DAT t TUNER t DVD...
2
Tune in the preset station you
want to create an index name for.
If you are not familiar with how to
tune in preset stations, see “Listening
to the Radio” on page 61.
62GB
Create an index name by using the
cursor buttons:
Press x/X to select a character, then
press c to move the cursor to the next
position.
FUNCTION
NAME
ENTER
C/X/x/c
Press NAME.
Press ENTER.
To assign index names to other
stations
Repeat Steps 2 to 5.
Settings and Adjustments
Using the Setup Display
By using the Setup Display, you can make
various adjustments to items such as picture
and sound. You can also set a language for
the subtitles and the Setup Display, among
other things. For details on each Setup
Display item, see page 64-70. For an overall
list of Setup Display items, see page 80.
How to use the Setup Display
ENTER
X/x
3
Press X/x to select “CUSTOM,” then
press ENTER.
The Setup Display appears.
Main
item
4
LANGUAGE SETUP
OSD:
DVD MENU:
AUDIO:
SUBTITLE:
ENGLISH
ENGLISH
ORIGINAL
ENGLISH
Press X/x to select the setup item from
the displayed list: “LANGUAGE SETUP,”
“SCREEN SETUP,” “CUSTOM SETUP,”
and “SPEAKER SETUP.” Then press
ENTER.
The selected Setup item appears.
Example: “SCREEN SETUP”
Selected item
DVD DISPLAY
DVD
SETUP
Setup
items
In stop mode, press DVD DISPLAY.
The Control Menu appears.
If you press DVD SETUP, you can go to
Step 3 directly.
2
Press X/x to select
(SETUP),
then press ENTER.
The options for SETUP appear.
16:9
ON
JACKET PICTURE
Settings and Adjustments
1
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
( 47 )
:
:
DVD
CUSTOM
RESET
continued
63GB
5
Select an item using X/x, then press
ENTER.
The options for the selected item appear.
Example: “TV TYPE”
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
16:9
16:9
4:3 LETTER BOX
4:3 PAN SCAN
Options
6
Select a setting using X/x, then press
ENTER.
The setting is selected and setup is
complete.
Example: “4:3 PAN SCAN”
Setting the Display or
Sound Track Language
(LANGUAGE SETUP)
“LANGUAGE SETUP” allows you to set
various languages for the on-screen display
or sound track.
Select “LANGUAGE SETUP” in the Setup
Display. For details on using the display, see
“Using the Setup Display” (page 63).
LANGUAGE SETUP
OSD:
DVD MENU:
AUDIO:
SUBTITLE:
ENGLISH
ENGLISH
ORIGINAL
ENGLISH
Selected setting
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
4:3 PAN SCAN
ON
JACKET PICTURE
xOSD (On-Screen Display)
Switches the display language on the screen.
Selects the language from the displayed list.
xDVD MENU (DVD only)
Selects the desired language for the DVD
menu.
To turn off the Setup Display
Press DVD SETUP or DVD DISPLAY
repeatedly until the Setup Display is turned
off.
z If you select “RESET” in Step 2, you can reset all
of the “SETUP” settings on page 80 (except for
PARENTAL CONTROL) to the default settings.
After you select “RESET” and press ENTER, select
“YES” to reset the settings (it takes a few seconds to
complete), or select “NO” and press ENTER to
return to the Control Menu. Do not press POWER or
[/1 when resetting the receiver.
64GB
xAUDIO (DVD only)
Switches the language of the sound track.
Selects the language from the displayed list.
When you select “ORIGINAL,” the
language given priority in the disc is
selected.
xSUBTITLE (DVD only)
Switches the language of the subtitle.
Selects the language from the displayed list.
When you select “AUDIO FOLLOW,” the
language for the subtitles changes according
to the language you selected for the sound
track.
zIf you select “OTHERS t” in “DVD MENU,”
“SUBTITLE,” or “AUDIO,” select and enter the
language code from the list using the number buttons
(page 79).
After you have made a selection, the language code
(4 digits) is displayed the next time you select
“OTHERS t.”
Note
If you select a language that is not recorded on the
DVD, one of the recorded languages will be
automatically selected (except for the “OSD”).
Settings for the Display
(SCREEN SETUP)
Choose settings according to the TV to be
connected.
Select “SCREEN SETUP” in the Setup
Display. For details on using the display, see
“Using the Setup Display” (page 63).
The default settings are underlined.
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
16:9
ON
JACKET PICTURE
xTV TYPE (DVD only)
Selects the aspect ratio of the connected TV
(4:3 standard or wide).
The default settings vary, depending on the
country model.
16:9
4:3
PAN SCAN
continued
Settings and Adjustments
4:3
LETTER
BOX
Select this when you connect a
wide-screen TV or a TV with a
wide mode function.
Select this when you connect a
4:3 screen TV. Displays a wide
picture with bands on the upper
and lower portions of the screen.
Select this when you connect a
4:3 screen TV. Automatically
displays the wide picture on the
entire screen and cuts off the
portions that do not fit.
65GB
16:9
Custom Settings (CUSTOM
SETUP)
4:3 LETTER BOX
Allows setting up Parental Control and other
settings.
Select “CUSTOM SETUP” in the Setup
Display. For details on using the display, see
“Using the Setup Display” (page 63).
The default settings are underlined.
4:3 PAN SCAN
Note
CUSTOM SETUP
COLOR SYSTEM:
PAUSE MODE:
PARENTAL CONTROL
TRACK SELECTION:
Depending on the DVD, “4:3 LETTER BOX” may
be selected automatically instead of “4:3 PAN
SCAN” or vice versa.
xSCREEN SAVER
Turns the screen saver on and off so that the
screen saver image appears when you leave
the receiver in pause or stop mode for
15 minutes, or when you play back a CD for
more than 15 minutes. The screen saver will
help prevent your display device from
becoming damaged (ghosting). Press H to
turn off the screen saver.
ON
OFF
JACKET
GRAPHICS
BLUE
BLACK
66GB
The jacket picture (still picture)
appears in the background, but
only when the jacket picture is
already recorded on the disc
(CD-EXTRA, etc.). If the disc
does not contain a jacket
picture, the “GRAPHICS”
picture appears.
A preset picture stored in the
receiver appears in the
background.
The background colour is blue.
The background colour is black.
OFF
xCOLOR SYSTEM for VIDEO CD
playback (Asian models only)
Select the colour system when you play a
VIDEO CD.
AUTO
Turns on the screen saver.
Turns off the screen saver.
xBACKGROUND
Selects the background colour or picture on
the TV screen in stop mode or while playing
a CD.
AUTO
AUTO
PAL
NTSC
Outputs the video signal in the
system of the disc, either PAL or
NTSC. If your TV uses a DUAL
system, select AUTO.
Changes the video signal of an
NTSC disc and output in the
PAL system.
Changes the video signal of a
PAL disc and output in the
NTSC system.
Notes
• You cannot change the colour system of the disc
itself.
• On Asian models, you can change the colour
system of the system according to the connected
TV. See page 22.
xPAUSE MODE (DVD only)
Selects the picture in pause mode.
AUTO
FRAME
The picture, including subjects
that move dynamically, is output
with no jitter. Normally select
this position.
The picture, including subjects
that do not move dynamically, is
output in high resolution.
xPARENTAL CONTROL t (DVD only)
Sets a password and playback limitation
level for DVDs with playback limitation for
children. For details, see “Limiting playback
for children (Parental Control)” (page 55).
xTRACK SELECTION (DVD only)
Gives the sound track having the highest
number of channels priority when you play
a DVD on which multiple audio formats
(PCM, MPEG audio, DTS, or Dolby Digital
format) are recorded.
OFF
AUTO
No priority given.
Priority given.
Notes
(SPEAKER SETUP)
To obtain the best possible surround sound,
set the size of the speakers you have
connected and their distance from your
listening position. Then use the test tone to
adjust the volume and the balance of the
speakers to the same level.
Select “SPEAKER SETUP” in the setup
display. For details, see “Using the Setup
Display” (page 63).
SPEAKER SETUP
SIZE:
DISTANCE:
BALANCE:
LEVEL:
TEST TONE:
LARGE
FRONT:
LARGE
CENTER:
LARGE(BEHIND,LOW)
REAR:
SUBWOOFER:
YES
To return to the default setting
Select the item, then press CLEAR.
xSIZE
When you do not connect centre or rear
speakers, or move the rear speakers, set the
parameters for FRONT, CENTER, REAR,
and SUBWOOFER. The default settings are
underlined.
• FRONT
— LARGE: Normally select this.
— SMALL: Select this if the small
speakers are used for the front speaker.
• CENTER
— LARGE: Normally select this.
— SMALL: Select this if the small
speaker is used for the centre speaker.
— NONE: Select this if no centre speaker
is used.
Settings and Adjustments
• When you set the item to “AUTO,” the language
may change. The “TRACK SELECTION” setting
has higher priority than the “AUDIO” settings in
“LANGUAGE SETUP” (page 64).
• If PCM, DTS, MPEG audio, and Dolby Digital
sound tracks have the same number of channels, the
receiver selects PCM, DTS, Dolby Digital, and
MPEG audio sound tracks in this order.
• Depending on the DVD, the audio channel with
priority may be predetermined. In this case, you
cannot give priority to the DTS, Dolby Digital, or
MPEG audio format by selecting “AUTO.”
Settings for the Speakers
continued
67GB
• REAR
— LARGE (BEHIND, LOW), LARGE
(BEHIND, HIGH), LARGE (SIDE,
LOW), LARGE (SIDE, HIGH),
SMALL (BEHIND, LOW), SMALL
(BEHIND, HIGH), SMALL (SIDE,
LOW), SMALL (SIDE, HIGH):
Specify the position and height to
implement the Digital Cinema
Surround modes in the “Virtual Multi
Dimension” sound field (page 48)
properly.
— NONE: Select this if no rear speaker is
used.
• SUBWOOFER
— YES: Select this if the subwoofer is
used.
— NONE: Select this if no subwoofer is
used.
Position diagram
90
A
A
45
B
B
20
Height diagram
C
C
60
Notes
D
D
30
• When you select an item, the sound cuts off for a
moment.
• Depending on the settings of other speakers, the
subwoofer may output excessive sound.
Specifying the rear speaker position
and height
If you select anything other than “NONE” in
“REAR,” specify the position and height of
the rear speakers. The default setting is
underlined.
Select this if the rear
speakers are located in
section B and D.
Select this if the rear
speakers are located in
section B and C.
Select this if the rear
speakers are located in
section A and D.
LARGE (SIDE, HIGH), Select this if the rear
SMALL (SIDE, HIGH) speakers are located in
section A and C.
LARGE (BEHIND,
LOW), SMALL
(BEHIND, LOW)
LARGE (BEHIND,
HIGH), SMALL
(BEHIND, HIGH)
LARGE (SIDE, LOW),
SMALL (SIDE, LOW)
These parameters are not available when “REAR” is
set to “NONE.”
68GB
xDISTANCE
The default distance setting for the speakers
in relation to the listening position is shown
below.
5m
(17ft)
5m
(17ft)
3.4m
(12ft)
5m
(17ft)
3.4m
(12ft)
Be sure to change the value in the Setup
Display when you move the speakers. The
default settings are underlined.
FRONT
5 m/17 ft
Front speaker distance from the
listening position can be set in
0.2 meter (1 foot) increments from
1 to 15 meters (3 to 50 feet).
CENTER Centre speaker distance can be
5 m/17 ft moved up to 1.6 meters (5 feet)
forward closer to the listening
position, in 0.2 meter (1 foot)
increments.
REAR
Rear speaker distance can be moved
3.4 m/
up to 4.6 meters (15 feet) closer to
12 ft
your listening position from the
front speaker position, in 0.2 meter
(1 foot) increments.
Notes
• When you set the distance, the sound cuts off for a
moment.
• If each of the front or rear speakers are not placed
at an equal distance from your listening position,
set the distance according to the closest speaker.
• Do not place the rear speakers farther away from
your listening position than the front speakers.
xBALANCE
You can vary the balance of the left and right
speakers as follows. Be sure to set “TEST
TONE” to “ON” for easy adjustment.
The default settings are underlined.
xLEVEL
You can vary the level of each speaker as
follows. Be sure to set “TEST TONE” to
“ON” for easy adjustment.
The default settings are underlined.
CENTER
0 dB
Adjusts the level of the centre
speaker (–10 dB to +10 dB,
1dB increments).
REAR 0 dB
Adjusts the level of the rear
speakers (–10 dB to +10 dB,
1dB increments).
SUBWOOFER Adjusts the level of the
0 dB
subwoofer (–10 dB to +10 dB,
1dB increments).
To adjust the volume of all the
speakers at one time
Use the VOLUME control.
xTEST TONE
The speakers will emit a test tone to adjust
“BALANCE” and “LEVEL.” The default
setting is underlined.
OFF
Settings and Adjustments
ON
FRONT Adjust the balance between the
CENTRE front left and right speakers (You
can adjust from centre 6 steps left
or right).
Adjust the balance between the rear
REAR
CENTRE left and right speakers (You can
adjust from centre 6 steps left or
right).
The test tone is not emitted from the
speakers.
The test tone is emitted from each
speaker in sequence while adjusting
balance or level.
When you select one of the
“SPEAKER SETUP” items, the test
tone is emitted from both left and
right speakers simultaneously.
69GB
Adjusting the speaker volume and
level
1
After you stop playback, select
“SPEAKER SETUP” after pressing DVD
SETUP in the Setup Display.
2
Select “TEST TONE” and set “TEST
TONE” to “ON.”
You will hear the test tone from each
speaker in sequence.
3
From your listening position, select
“BALANCE” or “LEVEL” and adjust the
value of “BALANCE” and “LEVEL” using
X/x.
The test tone is emitted from both left
and right speakers simultaneously.
4
Select “TEST TONE” and set “TEST
TONE” to “OFF” to turn off the test
tone.
Note
When you adjust the speaker settings, the sound cuts
off for a moment.
70GB
Additional Information
Troubleshooting
Sound
There is no sound.
If you experience any of the following
difficulties while using the receiver, use this
troubleshooting guide to help remedy the
problem before requesting repairs. Should
any problem persist, consult your nearest
Sony dealer.
Power
The power is not turned on.
, Check that the AC power cord (mains lead) is
connected securely.
There is no picture.
, The connecting cords are not connected
securely.
, The connecting cords are damaged.
, The receiver is not connected to the correct
TV input jack (page 21).
, The video input on the TV is not set so that
you can view pictures from the receiver.
Picture noise appears.
Even though you set the aspect ratio
in “TV TYPE” of “SCREEN SETUP,”
the picture does not fill the screen.
, The aspect ratio of the disc is fixed on your
DVD.
The picture is black and white.
, Depending on the TV, the picture on the
screen becomes black and white when you
play a disc recorded in the NTSC colour
system.
The left and right sounds are
unbalanced or reversed.
, Check that the speakers and components are
connected correctly and securely.
, Adjust the front balance parameter in the
LEVEL menu (pages 26, 69).
Severe hum or noise is heard.
Additional Information
, The disc is dirty or flawed.
, If the picture output from your receiver goes
through your VCR to get to your TV, the
copy-protection signal applied to some DVD
programmes could affect picture quality.
, The connecting cord is not connected
securely.
, The connecting cord is damaged.
, Press MUTING on the remote if “MUTING
ON” is displayed on the front panel display.
, The protective device on the receiver has
been activated because of a short circuit. Turn
off the receiver, eliminate the short-circuit
problem and turn on the power again.
, The audio connecting cord is damaged.
Replace it with a new one.
, The receiver is in pause mode or in Slowmotion Play mode. Press H to return to
normal play mode.
, Fast forward or fast reverse is performed.
Press H to return to normal play mode.
, Check the speaker settings (pages 23, 67).
, Check that the speakers and components are
connected securely.
, Check that the connecting cords are away
from a transformer or motor, and at least
3 meters (10 feet) away from a TV set or
fluorescent light.
, Move your TV away from the audio
components.
, The plugs and jacks are dirty. Wipe them with
a cloth slightly moistened with alcohol.
, Clean the disc.
The sound loses stereo effect when
you play a VIDEO CD, or a CD.
, Set “AUDIO” to “STEREO” in the Control
Menu display (page 44).
, Make sure you connect the receiver
appropriately.
continued
71GB
The surround effect is difficult to
hear when you are playing a Dolby
Digital sound track.
, Make sure the sound field function is on
(page 46).
, Check the speaker connections and settings
(pages 16, 23, 67).
, Depending on the DVD, the output signal
may not be the entire 5.1 channels. It may be
monaural or stereo even if the sound track is
recorded in Dolby Digital format.
The surround effect is difficult to
hear when you are playing a Dolby
Digital or MPEG audio sound track.
, Check the speaker connections and setting
(pages 16, 23, 67).
, Depending on the DVD, the output signal
may not be the entire 5.1 channels. It may be
monaural or stereo even if the sound track is
recorded in Dolby Digital or MPEG audio
format.
The sound comes from the centre
speaker only.
, Depending on the disc, the sound may come
from the centre speaker only.
No sound is heard from the centre
speaker.
, Make sure the sound field function is on
(page 46).
, Select a sound field containing the word
“cinema” or “virtual” (page 46).
No sound or only a very low-level
sound is heard from the rear
speakers.
, Make sure the sound field function is on
(page 46).
, Select a sound field containing the word
“cinema” or “virtual” (page 46).
72GB
Operation
Radio stations cannot be tuned in.
, Check that the antennas are connected
securely. Adjust the antennas and connect an
external antenna if necessary.
, The signal strength of the stations is too weak
(when tuning in with automatic tuning). Use
direct tuning.
, No stations have been preset or the preset
stations have been cleared (when tuning by
scanning preset stations). Preset the stations
(page 28).
, Press DISPLAY so that the frequency appears
on the front panel display.
The remote does not function.
, There are obstacles between the remote and
the receiver.
, The distance between the remote and the
receiver is too far.
, The remote is not pointed at the remote
sensor on the receiver.
, The batteries in the remote are weak.
The disc does not play.
, There is no disc inside.
, The disc is turned over.
Insert the disc with the playback side facing
down on the disc tray.
, The disc is skewed.
, The receiver cannot play CD-ROMs, etc.
(page 7).
, The region code on the DVD does not match
the receiver.
, Moisture has condensed inside the receiver.
Remove the disc and leave the receiver turned
on for about half an hour (page 3).
The disc does not start playing from
the beginning.
The subtitle language cannot be
changed.
, Programme Play, Shuffle Play, or Repeat Play
has been selected (pages 34-37).
Press CLEAR to cancel these functions
before playing a disc.
, Resume Play has been selected.
During stop, press x on the receiver or the
remote and then start DVD playback (page
31).
, The title, DVD or PBC menu automatically
appears on the TV screen.
, Multilingual subtitles are not recorded on the
DVD being played.
, The DVD prohibits changing the subtitles.
The receiver starts playing the disc
automatically.
The subtitle cannot be turned off.
, The DVD prohibits turning off subtitles.
The angles cannot be changed.
, Multi-angles are not recorded on the DVD
being played. The angle can be changed only
when the “ANGLE” indicator lights up on the
front panel display.
, The DVD prohibits changing the angles.
, The DVD features an auto playback function.
Playback stops automatically.
, Some discs may contain an auto pause signal.
While playing such a disc, the receiver stops
playback at the auto pause signal.
You cannot perform some functions
such as Stop, Search, Slow-motion
Play, Repeat Play, Shuffle Play, or
Programme Play.
Messages do not appear on the
screen in the language you want.
, In the Setup Display, select the desired
language for the on-screen display in “OSD”
under “LANGUAGE SETUP” (page 64).
The language for the sound track
cannot be changed.
, Multilingual tracks are not recorded on the
DVD being played.
, The DVD prohibits changing the language for
the sound track.
, If static electricity, etc., causes the receiver to
operate abnormally, press POWER on the
receiver to turn the receiver off and then on
again.
Nothing is displayed on the front
panel display.
, Press DIMMER on the remote.
A 5-character service number is
displayed on the screen and on the
front panel display.
, The self-diagnosis function was activated.
(See the table on page 74.)
The disc tray does not open and
“LOCKED” appears on the front panel
display.
Additional Information
, Depending on the disc, you may not be able
to do some of the operations above. See the
operating manual that comes with the disc.
The receiver does not operate
properly.
, Contact your Sony dealer or local authorized
Sony service facility.
“PROTECT” appears on the front
panel display.
, The speaker protection circuit is in function.
Check the speaker connections.
73GB
Self-diagnosis Function
Glossary
(When letters/numbers appear on the
front panel display)
The self-diagnosis function is activated to
prevent the receiver from malfunctioning. In
this case a five-character service number
(e.g., C 13 00) with a combination of a letter
and digits appears on the screen and the
front panel display. Refer to the following
table.
Bit rate
Value indicating the amount of video data
compressed in a DVD per second. The unit
is Mbps (Mega bit per second). 1 Mbps
indicates that the data per second is
1,000,000 bits. The higher the bit rate is, the
larger the amount of data. However, this
does not always mean that you can get
higher quality pictures.
Chapter
C:13:00
First three
characters of
the service
number
C 13
C 31
E XX
(xx is a number)
74GB
Cause and/or Corrective
Action
The disc is dirty.
, Clean the disc with a soft
cloth (page 8).
The disc is not inserted
correctly.
, Re-insert the disc
correctly.
To prevent a malfunction, the
receiver has performed the
self-diagnosis function.
, Contact your nearest Sony
dealer or local authorized
Sony service facility and
give the 5-character
service number.
Example: E 61 10
Sections of a picture or a music piece on a
DVD that are smaller than titles. A title is
composed of several chapters. Each chapter
is assigned a chapter number enabling you
to locate the chapter you want.
Digital Cinema Sound (DCS)
This is the generic name of the surround
sound produced by digital signal processing
technology developed by Sony. Unlike
previous surround sound fields mainly
directed at the reproduction of music,
Digital Cinema Sound is designed
specifically for the enjoyment of movies.
Dolby Digital
This sound format for movie theaters is
more advanced than Dolby Pro Logic
Surround. In this format, the rear speakers
output stereo sound with an expanded
frequency range and a subwoofer channel
for deep bass is independently provided.
This format is also called “5.1” because the
subwoofer channel is counted as 0.1 channel
(since it functions only when a deep bass
effect is needed). All six channels in this
format are recorded separately to realize
superior channel separation. Furthermore,
since all the signals are processed digitally,
less signal degradation occurs.
Dolby Pro Logic Surround
As one method of decoding Dolby
Surround, Dolby Pro Logic Surround
produces four channels from two-channel
sound. Compared with the former Dolby
Surround system, Dolby Pro Logic Surround
reproduces left-to-right panning more
naturally and localizes sounds more
precisely. To take full advantage of Dolby
Pro Logic Surround, you should have one
pair of rear speakers and a centre speaker.
The rear speakers output monaural sound.
DTS
Digital audio compression technology that
the Digital Theater Systems, Inc. developed.
This technology conforms to 5.1-channel
surround. The rear channel is stereo and
there is discrete subwoofer channel in this
format. DTS provides the same 5.1 discrete
channels of high quality digital audio. The
good channel separation is realized because
all the channel data is recorded discrete and
processed in digital.
The audio data is recorded in Dolby Digital
as well as in PCM, allowing you to enjoy
more real audio presence.
Furthermore, various advanced functions
such as the multi-angle, multilingual, and
Parental Control functions are provided with
the DVD.
Index (Super Audio CD/CD)/Video
Index (VIDEO CD)
A number that divides a track into sections
to easily locate the point you want on an
Super Audio CD/CD or VIDEO CD.
Depending on the disc, no index may be
recorded.
Multi-angle function
Various angles, or viewpoints of the video
camera for a scene are recorded on some
DVDs.
Multilingual function
Several languages for the sound or subtitles
in a picture are recorded on some DVDs.
Parental Control
A disc that contains up to 8 hours of moving
pictures even though its diameter is the same
as a CD.
The data capacity of a single-layer and
single-sided DVD, at 4.7 GB (Giga Byte), is
7 times that of a CD. Furthermore, the data
capacity of a dual-layer and single-sided
DVD is 8.5 GB, a single-layer and doublesided DVD 9.4 GB, and a dual-layer and
double-sided DVD 17 GB.
The picture data uses the MPEG 2 format,
one of the worldwide standards of digital
compression technology. The picture data is
compressed to about 1/40 of its original size.
The DVD also uses the variable rate coding
technology that changes the data to be
allocated according to the status of the
picture.
A function of the DVD to limit playback of
the disc by the age of the users according to
the limitation level in each country. The
limitation varies from disc to disc; when it is
activated, playback is completely prohibited,
violent scenes are skipped or replaced with
other scenes and so on.
Additional Information
DVD
Playback Control (PBC)
Signals encoded on VIDEO CDs (Version
2.0) to control playback.
By using menu screens recorded on VIDEO
CDs with PBC functions, you can enjoy
playing simple interactive programmes,
programmes with search functions, and so
on.
continued
75GB
Region Code
VIDEO CD
This receiver is used to protect copyrights. A
region number is allocated on each DVD
system or DVD disc according to the sales
region. Each region code is shown on the
receiver as well as on the disc packaging.
The receiver can play the discs that match its
region code. The receiver can also play discs
with the “ ” mark. Even when the region
code is not shown on the DVD, the region
limit may still be activated.
A compact disc that contains moving
pictures.
The picture data uses the MPEG 1 format,
one of the worldwide standards of digital
compression technology. The picture data is
compressed to about 1/140 of its original
size. Consequently, a 12 cm VIDEO CD can
contain up to 74 minutes of moving pictures.
VIDEO CDs also contain compact audio
data. Sounds outside the range of human
hearing are compressed while the sounds we
can hear are not compressed. VIDEO CDs
can hold 6 times the audio information of
conventional audio CDs.
There are 2 versions of VIDEO CDs.
• Version 1.1: You can play only moving
pictures and sounds.
• Version 2.0: You can play high-resolution
still pictures and enjoy PBC functions.
This receiver conforms to both versions.
ALL
Scene
On a VIDEO CD with PBC (playback
control) functions, the menu screens,
moving pictures and still pictures are
divided into sections called “scenes.”
Super Audio CD
This audio format is based upon the current
audio CD standards but includes a greater
amount of information which provides
higher quality sound. There are three types
of discs: single layer, double layer and
hybrid discs. The hybrid disc contains both
standard audio CD and Super Audio CD
information.
Title
The longest sections of a picture or music
feature on a DVD, movie, etc., in video
software, or the entire album in audio
software. Each title is assigned a title
number enabling you to locate the title you
want.
Track
Sections of a picture or a music piece on a
CD or VIDEO CD. Each track is assigned a
track number enabling you to locate the
track you want.
76GB
Specifications
Amplifier section
Stereo mode
Surround mode
50 W + 50 W (6 ohms at 1 kHz, THD 10 %)
Front: 50 W + 50 W
Center*: 50 W
Rear*: 50 W + 50 W (6 ohms at 1 kHz, THD 10 %)
* Depending on the sound field settings and the source, there may be no sound output.
Inputs (Analog)
Inputs (Digital)
Outputs (Analog)
Outputs (Digital)
VIDEO IN, AUX IN:
Sensitivity: 150 mV
Impedance: 50 kilohms
MD/DAT IN, TV/SAT IN OPTICAL:
Sensitivity: –
VIDEO OUT:
Voltage: 2 V
Impedance: 1 kilohms
SUBWOOFER AUDIO OUT:
Voltage: 3 V
Impedance: 47 kilohms
PHONES:
Accepts low- and high-impedance headphones
DIGITAL OUT OPTICAL (CD ONLY):
Sensitivity: –
Super Audio CD/DVD system
Laser
Additional Information
Semiconductor laser
(Super Audio CD/DVD: λ = 650 nm)
(CD: λ = 780 nm)
Emission duration: continuous
Signal format system
NTSC/PAL
Frequency response (at 2 CH STEREO mode)
DVD (PCM): 2 Hz to 22 kHz (±1.0 dB)
CD: 2 Hz to 20 kHz (±1.0 dB)
Signal-to-noise ratio
More than 80 dB (VIDEO 1 (AUDIO) connectors only)
Harmonic distortion
Less than 0.03 %
continued
77GB
FM tuner section
System
North American model:
Other models:
Antenna
Antenna terminals
Intermediate frequency
PLL quartz-locked digital synthesizer system
87.5 – 108.0 MHz (100 kHz step)
87.5 – 108.0 MHz (50 kHz step)
FM wire antenna
75 ohms, unbalanced
10.7 MHz
AM tuner section
System
Tuner section:
PLL quartz-locked digital synthesizer system
Tuning range
North American model:
530 – 1,710 kHz (with the interval set at 10 kHz)
531 – 1,710 kHz (with the interval set at 9 kHz)
European, Middle Eastern, and Philipinne models:
531 – 1,602 kHz (with the interval set at 9 kHz)
Other models:
531 – 1,602 kHz (with the interval set at 9 kHz)
530 – 1,710 kHz (with the interval set at 10 kHz)
Antenna
Loop antenna
Intermediate frequency
450 kHz
Video section
Inputs
Outputs
General
Power requirements
Power consumption
Dimensions (approx.)
Mass (approx.)
Operating temperature
Operating humidity
Supplied accessories
S-video:
Y: 1 Vp-p 75 ohms
C: 0.286 Vp-p 75 ohms
S-video:
Y: 1 Vp-p 75 ohms
C: 0.286 Vp-p 75 ohms
230 V AC, 50/60 Hz
105 W
430 × 82.5 × 376 mm (17 × 3 1/4 × 14 7/8 inches) (w/h/d) incl. projecting
parts
4.3 kg (9 lb 8 oz)
5˚C to 35˚C (41˚F to 95˚F)
5 % to 90 %
See page 15.
Design and specifications are subject to change without notice.
78GB
Language Code List
For details, see pages 44, 52, 65.
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Code Language
Code Language
Code Language
1027
1028
1032
1039
1044
1045
1051
1052
1053
1057
1059
1060
1061
1066
1183
1186
1194
1196
1203
1209
1217
1226
1229
1233
1235
1239
1245
1248
1253
1254
1257
1261
1269
1283
1287
1297
1298
1299
1300
1301
1305
1307
1311
1313
1326
1327
1332
1334
1345
1347
1349
1350
1352
1353
1356
1357
1358
1363
1365
1369
1376
1379
1393
1403
1408
1417
1428
1435
1436
1463
1481
1507
1508
1509
1511
1512
1513
1514
1515
1516
1517
1521
1525
1527
1528
1529
1531
1532
1534
1535
1538
1539
1540
1543
1557
1564
1572
1581
1587
1613
1632
1665
1684
1697
1067
1070
1079
1093
1097
1103
1105
1109
1130
1142
1144
1145
1149
1150
1151
1157
1165
1166
1171
1174
1181
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali;
Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Interlingue
Inupiak
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian; Lettish
Malagasy
1482
1483
1489
1491
1495
1498
1501
1502
1503
1505
1506
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan)Oromo
Oriya
Punjabi
Polish
Pashto; Pushto
Portuguese
Quechua
RhaetoRomance
Kirundi
Romanian
Russian
Kinyarwanda
Sanskrit
Sindhi
Sangho
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Setswana
Tonga
Turkish
Tsonga
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
1703 Not specified
Additional Information
Code Language
79GB
DVD Setup Menu List
You can set the following items with the DVD setup menu.
The order of the displayed items may be different from the actual display.
LANGUAGE SETUP
SCREEN SETUP
OSD
(Select the language you
want to use from the
displayed language list.)
TV TYPE
DVD MENU
(Select the language you
want to use from the
displayed language list.)
SCREEN SAVER
AUDIO
(Select the language you
want to use from the
displayed language list.
When you select
ORIGINAL, you can
enjoy the language given
priority on the disc.)
SUBTITLE
(Select the language you
want to use from the
displayed language list.
When you select AUDIO
FOLLOW, the setting is
automatically switched to
the language selected in
AUDIO.)
BACKGROUND
SPEAKER SETUP
SIZE
FRONT
CENTER
REAR
PAUSE
MODE
PARENTAL
CONTROL
80GB
TRACK
SELECTION
AUTO
FRAME
LEVEL
AUTO
PAL
NTSC
OFF
8.
7. NC17
6.
R
5.
4. PG13
3.
PG
2.
1.
G
STANDARD USA
OTHERS
CHANGE PASSWORD
OFF
AUTO
LARGE
SMALL
LARGE
SMALL
NONE
LARGE
SMALL
CUSTOM SETUP
COLOR SYSTEM*
16:9
4:3 LETTER
BOX
4:3 PAN SCAN
ON
OFF
JACKET
GRAPHICS
BLUE
BLACK
BEHIND,LOW
BEHIND,HIGH
SIDE,LOW
SIDE,HIGH
BEHIND,LOW
BEHIND,HIGH
SIDE,LOW
SIDE,HIGH
NONE
SUBWOOFER
YES/NONE
DISTANCE** FRONT
1m ~15m
CENTER
0m ~15m
REAR
0m ~15m
BALANCE
FRONT 6 steps left or right
REAR 6 steps left or right
LEVEL
CENTER
–10dB ~ +10dB
REAR
–10dB ~ +10dB
SUBWOOFER –10dB ~ +10dB
TEST
OFF
TONE
ON
* Only for Asian models.
Index
Numerics
I
S
16:9 65
4:3 LETTER BOX 65
4:3 PAN SCAN 65
INDEX 39
Index 6
S VIDEO 21
Super Audio CD 76
Scan 38
SCENE 39
Scene 6, 76
SCREEN SAVER 66
SCREEN SETUP 65
SHUFFLE 36
Shuffle Play 36
SIZE 67
Slow-motion Play 38
Sound Field 46
SPEAKER SETUP 67
Speaker System Hookup 16
SUBTITLE 52, 64
A
ADVANCED 53
AMP MENU 24
ANGLE 51
Antenna Hookups 19
AUDIO 44, 64
B
BACKGROUND 66
BALANCE 26, 69
BAND 28
Batteries 16
Bit rate 53, 74
C
D
DIMMER 27
DISTANCE 25, 68
Dolby Digital 74
Dolby Pro Logic Surround 75
DTS 75
DVD 32, 75
DVD MENU 32, 64
F
Front Panel 9
Fast forward 38
Fast reverse 38
Front panel display 10
LANGUAGE SETUP 64
LEVEL 27, 69
Locating
a specific Point 39
by watching the TV screen 38
M
MEMORY 28
Multi-angle function 51
Multilingual function 44
MUTING 31
N
NAME 62
O
On-screen display
Control Menu display 13
Setup Display 63
OSD 64
P
PARENTAL CONTROL 55, 67,
75
PAUSE MODE 67
PBC Playback 33, 75
PLAY MODE 34
Preset Station 28, 61
Programme Play 34
Q
Quick Overview 15
R
Radio 61
Rear Panel 11
Region code 7, 76
Remote 12, 59
REPEAT 36
RESET 64
Resume Play 31
T
TEST TONE 69
TIME SEARCH 40
TIME 41
TIME/TEXT 40
TITLE 39
Title 6, 76
Title menu 32
TRACK 39
Track 6, 76
TRACK SELECTION 67
Troubleshooting 71
TV Hookups 21
TV TYPE 65
U
Usable discs 6
V
VIDEO CD 33, 76
Additional Information
CD 30
CHAPTER 39
Chapter 6, 74
COLOR SYSTEM 66
Continuous play
CD/VIDEO CD/Super Audio
CD/DVD 30
Control Menu 13
CUSTOM PARENTAL
CONTROL 54
CUSTOM SETUP 66
L
H
Handling discs 8
81GB
警語
為防止火災或電擊,請勿將
本機放在雨水所及或潮濕的地
方。
請勿將本機安裝在狹窄的空間
內,如書櫥或壁櫥內。
為防止火災,切勿用報紙、
桌布、窗簾等蓋住設備的通風
孔。也不要將點燃的蠟燭放在設
備上。
為防止火災或電擊,請勿將
花瓶等裝滿液體的物品放在設備
上。
本設備被分類為 C L A S S 1
LASER 產品。此標籤位於設備的後
表面。
下列警告標籤位於接收器
內。
勿將電池與
普通的家庭垃圾
一起扔棄,請將
其作為化學廢棄
物正確地處理。
2CT
注意事項
安全
• 若有任何異物掉落到機殼內,請
拔下本機電源插頭,並經合格的
專業技術人員檢查以後,方可再
行使用。
• 即使本機電源已關閉,但祇要電
源線還插在牆壁電源插座上,則
仍未脫離交流電源。
• 如果您長期不使用本機,請從牆
壁電源插座拔下電源線。拔取電
源線時,請拿著插頭拔出,切勿
拉扯電線。
安裝
• 請保持空氣流通以防止機內積
熱。
• 請勿將本機放在柔軟的表面(如
毛毯、地毯等),或靠近窗帘、
帷幔等物,以免阻塞通風孔。
• 請勿將本機放在靠近如散熱器或
排氣管等熱源之處,或受陽光直
射、多塵、有機械振動或衝擊的
地方。
• 請勿將本機傾斜放置。本機必須
在水平位置上工作。
• 請勿將本機和光碟放在帶強磁場
的裝置附近,如微波爐或大功率
揚聲器。
• 請勿在本機上放置重物。
• 如果將本機直接從寒冷的地方搬
到溫暖的地方,會引起壓縮 A V
接收機內部出現濕氣凝結,並損
壞透鏡。當您第一次使用本機
時,或將其從寒冷地方直接搬到
溫暖的地方使用時,請等待約
30 分鐘以後再開始操作。
ENERGY STAR® 是美國註冊
商標。
作為 ENERGY STAR® 的伙
伴,Sony 公司已經確定本產品
符合 ENERGY STAR® 能量效率
準則。
歡迎使用!
感謝您購買 Sony 壓縮 AV 接
收機。在操作本接收機前,請仔細
閱讀本手冊,并妥善保管,以備今
後參考。
注意事項
關於安全
如果有固體物品或者液體落入機箱,請拔下插
頭,並請合格的技術人員檢修,此前請勿繼續
使用。
關於電源
• 只要本機仍連接在牆上的電源插座內,即使機
器已經關閉,但本機仍未脫離交流電源。
• 交流電源線只能在有資格的服務商店進行更
換。
關於放置
• 接收機應放置於通風良好的地方,以防止接收
機內部熱量的聚積。
• 長時間以大音量使用將導致機殼發熱。這不
是故障。但是,請勿觸摸機殼。勿將本裝置
放置在通風不良的狹窄之處,以防止過熱。
• 切勿在該接收機上放置任何物體,以免阻塞
通風孔。本接收機裝有一個大功率放大器。
如果上表面的通風孔被阻塞,將導致本裝置
過熱並產生故障。
• 勿將接收機放置於地毯之類的柔軟表面上,以
防止堵塞住底部的通風孔。
• 勿將接收機放置於熱源附近,或受陽光直接照
射,或是過多灰塵的地方,或者遭受機械沖
擊。
關於音量調節
當聽到音量較小或沒有聲音信號的部分
時,不要增加音量。否則,在播放到峰值信號
部分時可能會損壞揚聲器。
關於清潔
用蘸有清潔劑溫水溶液的軟布清潔機箱、
面板以及各控制鍵。不要使用任何粗糙的布、
洗衣粉,或者溶劑如酒精或汽油。
如果您對接收機有什麼疑問或問題,請向
當地的 Sony 產品銷售商咨詢。
關於清潔光碟
切勿使用市面上購買的 CD/DVD 清潔光
碟。這可能會導致故障發生。
關於您的電視機的顏色
如果揚聲器引起電視機屏幕顏色不正常,
請立即關閉電視機,15﹣30 分鐘之後再打開電
視機。如果情況未能改善,請將揚聲器遠離電
視機。
重要注意事項
注意:本接收機會在您的電視機屏幕上產生
不確定的靜止視頻圖像或屏幕顯示圖像。如
果您在電視機屏幕上長時間保留這些圖像,
將有可能對您的電視機屏幕造成永久損傷。
投影電視機特別容易受到此類損傷。
關於操作
• 如果接收機直接從較冷的地方移到較暖的地
方,或者放置於潮濕的房間中,接收機內部的
鏡頭上可能會有水汽凝結。如果這樣,接收機
可能無法正常工作。這種情況下,可取出光
碟,並使接收機通電約半小時,直至水汽蒸
發。
• 當移動接收機時,須取出光碟。否則,可能會
損壞光碟。
• 為了節約能源,可用主機上的 POWER 按鈕完
全關閉該接收機。雖然 LED 繼續點亮片刻,
但是接收機已被完全關閉。
3CT
目錄
警語 ................................................................ 2
歡迎使用! .......................................................... 2
注意事項 ............................................................ 3
關於本手冊 .......................................................... 6
本接收機可以播放的光碟 .............................................. 6
光碟使用注意事項 .................................................... 8
部件和控制鍵索引 .................................................... 9
控制選單顯示說明(魔板) ........................................... 13
入門指南 .............................................. 15
快速瀏覽 ...........................................................
開箱 ...............................................................
遙控器電池的安裝 ...................................................
步驟 1:揚聲器系統的連接 ...........................................
步驟 2:天線連接 ...................................................
步驟 3:電視機與視頻部件連接 .......................................
揚聲器設定 .........................................................
預設電台 ...........................................................
15
15
16
16
19
21
23
28
播放光碟 .............................................. 30
播放光碟 ...........................................................
從停止的地方恢復播放光碟(恢復播放) ...............................
使用 DVD 選單 ......................................................
用 PBC 功能播放 VIDEO CD 光碟(PBC 播放) ..........................
創建自己的程序(編序播放) .........................................
隨機播放(隨機播放) ...............................................
反覆播放(重複播放) ...............................................
30
31
32
33
34
36
36
搜尋場面 .............................................. 38
搜尋光碟上的特定位置(掃描,慢速播放) ............................. 38
搜尋標題/章/軌跡/索引/場面 ......................................... 39
瀏覽光碟資訊 .......................................... 41
瀏覽前面板顯示幕上的播放時間和剩餘時間 ............................. 41
查看播放時間和剩餘時間 ............................................. 42
4CT
聲音調節 .............................................. 44
改變聲音 ...........................................................
自動解碼音頻輸入信號 ...............................................
欣賞環繞聲 .........................................................
僅使用前置揚聲器 ...................................................
調節音量等級參數 ...................................................
44
46
46
50
50
欣賞電影 .............................................. 51
變換角度 ........................................................... 51
顯示字幕 ........................................................... 52
查看播放資訊(先進功能) ........................................... 53
使用各種附加功能 ...................................... 54
鎖住碟片(用戶鎖定,視聽者年齡控制) ............................... 54
其他操作 .............................................. 59
用遙控器控制電視機 .................................................
觀看圖像或其它裝置 .................................................
收聽無線電台 .......................................................
為預置電台命名 .....................................................
59
60
61
62
設定和調節 ............................................ 63
使用設定顯示 .......................................................
設定顯示或聲音軌跡語言(語言設定) .................................
顯示設定(畫面設定) ...............................................
個人設定(個人設定) ...............................................
揚聲器的設定(揚聲器設定) .........................................
63
64
65
66
67
附加資訊 .............................................. 71
故障排除 ...........................................................
自檢功能(顯示中出現字母/數字時) ..................................
術語 ...............................................................
規格 ...............................................................
語言代碼列表 .......................................................
DVD 設定選單列表 ...................................................
索引 ...............................................................
71
74
74
77
79
80
81
5CT
光碟術語
關於本手冊
• 本手冊中的說明採用遙控器上的控制
鍵。如果在接收機上有與遙控器上相同
或相似名稱的控制鍵,您也可以使用。
• 本手冊中使用的圖形標誌解釋如下:
標誌
含義
標誌
含義
DVD 視頻
模式中可
用的功能
Super Audio
CD(超級音頻
CD)和音頻
CD 模式中可
用的功能
VIDEO CD
模式中可
用的功能
CD 模式中
可用的功能
z
更多的方便
特色
本接收機可以播放的光
碟
光碟格式
DVD VIDEO
超級音頻 CD
• 標題
在 DVD 光碟、電影,以及視頻軟件中,
最長的畫面或音樂特輯部分;在視頻軟
體上的電影等畫面片段;或者在音頻軟
體上的整個專輯等。每個標題配有一個
標題號碼,可用來查找您想要的標題。
•章
比標題小的一段畫面或一段音樂部分。
一個標題由幾個章組成。每個章都分配
有一個章號,可以使您查找到您想要的
章。根據光碟的不同,章可不被標記號
碼。
• 軌跡
VIDEO CD、Super Audio CD 或 CD 光碟
上一段畫面或一段音樂作品中的一部
分。每個曲目都分配有一個軌跡號,可
以使您查找到您想要的軌跡。
• 索引(Super Audio CD,CD)/視頻索
引(VIDEO CD)
VIDEO CD、Super Audio CD 或 CD 上將
一個軌跡分成幾部分的數字,以使您方
便地查找到您想要的位置。根據光碟的
不同,有些可能未錄製索引。
• 場面
在有 PBC 功能(第 33 頁)的 VIDEO CD
光碟上,選單屏幕、運動的畫面和靜止
的畫面被分成幾部分,每部分稱作“場
面”。每個場面都分配有一個場面號,
可以使您查找到您想要的場面。
光碟
VIDEO CD
DVD
結構
標題
章
光碟
音樂 CD
“DVD VIDEO”標識是一個商標。
6CT
VIDEO CD、
Super
Audio CD
或 CD 結構
軌跡
索引
PBC(播放控制)注意事項(VIDEO CD 光
碟)
本接收機符合 VIDEO CD 標準 1.1 版本和
2.0 版本。您可以根據光碟的種類來體驗
兩種不同的類型播放。
光碟種類
無 PBC 功能的
VIDEO CD 碟
(1.1 版本光
碟)
有 PBC 功能的
VIDEO CD 光碟
(2.0 版本光
碟)
您可以
欣賞視像(運動畫面)
及音樂
除 1.1 版本光碟的視頻
播放功能外,還可以通
過電視機屏幕上顯示的
選單屏幕來播放交互式
軟體。此外,您也可以
播放光碟上的高分辨率
靜止畫面。
地區代碼
您的接收機在裝置後部印有一個地區
代碼,接收機只能播放標有相同地區代碼
的 DVD 光碟。
的 DVD 光碟也可以在本接
標有
收機上使用。
如果您試圖播放其它類型的 DVD 光
碟,電視機屏幕上將顯示“由於地區限
制,此光碟禁止播放。”的資訊。有些
DVD 光碟可能沒有標上地區代碼,但由於
受地區限制無法播放。
ALL
接收機不能播放的光碟舉例
接收機不能播放以下光碟:
• CD﹣ROM(包括 PHOTO CD)
• 除了音樂和 VIDEO CD 格式的 CD﹣R 以
外的所有 CD﹣R
• CD﹣Extra 的數據部分
• DVD﹣ROM
• DVD 音頻光碟
• 有不同地區代碼的 DVD 光碟(第 7、75
頁)
• 非標準外形的光碟(例如卡片形、心
形)
• 貼有紙或膠粘物的光碟
• 表面有膠合劑、玻璃紙膠帶,或膠粘物
的光碟
注意
由於光碟刻錄的品質或物理條件的不同,或是
刻錄設備的性能不同,本接收機上將不能播放某些
CD﹣R 或 CD﹣RW 光碟。
此外,如果光碟未正確錄製完成,也將不能播
放。更多資訊請查閱刻錄設備的操作說明。
DVD 光碟和 VIDEO CD 光碟的播放
操作注意事項
某些 DVD 光碟和 VIDEO CD 光碟的播
放操作可能由軟體製造商特意設置。由於
本接收機按照軟體製造商設計的光碟內容
播放 DVD 光碟和 VIDEO CD 光碟,某些播
放性能可能不能使用。同樣,可以查閱
DVD 光碟和 VIDEO CD 光碟所附帶的說
明。
7CT
著作權
本產品含有著作權保護技術,受美國
專利法權保護,其它技術所有權歸
Macrovision 公司及其它權利所有者所有。
須經 Macrovision 公司授權方可使用此著
作權保護技術,並僅限於家庭用及其它有
限的觀賞用途,除非經 Macrovision 公司
額外授權。禁止顛倒操縱和拆裝。
光碟使用注意事項
關於拿取光碟
• 為保持光碟清潔,夾住邊緣拿取光碟,
切勿觸摸光碟的表面。
• 不要在光碟上粘貼紙張或膠帶紙。
本接收機含有 Dolby* Digital、Pro
Logic 環繞、及 DTS** 數字環繞系統。
* 經杜比實驗室授權生產。
“杜比”,“Dolby”,“Pro Logic”和雙 D
標誌是杜比實驗室的商標。
不予發行的保密作品。© 杜比實驗室 1992﹣
1997 年。版權所有,翻印必究。
** Digital Theater Systems 公司美國專利號 5,
451,942,以及其它世界範圍內的在申請中並未
得到答覆的專利所許可下的生產。“D T S ”和
“DTS Digital Surround”是 Digital Theater
Systems 公司的商標。© 1996 Digital Theater
Systems 公司版權所有。
• 不要讓光碟處於陽光直接照射下,或者
暖氣管等熱源的附近,或者留在陽光照
射下的汽車內,以免車內的溫度昇高而
對光碟造成損害。
• 播放完後,請將光碟置於光碟盒內保
存。
關於清潔
• 播放前,用乾淨的布清潔光碟。
從光碟的中心向外緣擦拭。
• 請勿使用汽油、 稀釋劑等溶劑,或者是
市面上購買的清潔劑,或者是抗靜電噴
霧劑聚乙烯。
8CT
部件和控制鍵索引
更多資訊,請參考括號中標註的頁。
前面板
–
PRESET
+
VOLUME
STANDBY
DISPLAY
POWER
SOUND FIELD
–
POWER(電源)開關(30)
STANDBY(等待)指示燈(30)
光碟托架(30)
A(打開/關閉)鍵(30)
H(播放)鍵(30)
X(暫停)鍵(31)
x(停止)鍵(30)
./> PRESET +/- (預置 +/-)
鍵(28,31)
9 VOLUME 控制器(30)
1
2
3
4
5
6
7
8
q;
qa
qs
qd
qf
qg
qh
BAND
FUNCTION
PHONES
+
PHONES(耳機)插孔(30)
FUNCTION(功能)鍵(60)
BAND(波段)鍵(28)
SOUND FIELD +/-(聲場)鍵(46)
DISPLAY(顯示)鍵(61)
前面板顯示幕(10)
(遙控器感應器)(16)
續
9CT
前面板顯示幕
播放 DVD 光碟時
當前環繞格式
當前章節號
播放狀態
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
可以變換角度時點亮
TRACK
CHAPTER INDEX
當前聲音
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
播放時間
當前標題號
當前播放模式
播放 Super Audio CD、CD 或 VIDEO CD 光碟時
當前索引號(Super Audio CD 播放
時不出現索引指示。)
播放狀態
ALL 1 DISC S AUTO
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
DIGITAL FM AM
NTSC PBC ANGLE
PBC 播放時點亮(僅
對於 VIDEO CD)
當前聲音
播放時間
當前軌跡號
當前播放模式
收聽無線電台時
預置號
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
當前波段
10CT
TRACK
單聲道/立體聲效果
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
當前電台
後面板
MONITOR OUT
COMPONENT VIDEO OUT (DVD ONLY)
SPEAKERS
FRONT
R
AM
S VIDEO OUT S VIDEO IN
S VIDEO IN
S VIDEO
AUDIO OUT AUDIO IN
AUDIO IN
AUDIO IN
COAXIAL
Y
PB/CB
OPTICAL OPTICAL OPTICAL
(CD ONLY) DIGITAL IN DIGITAL IN
L
75Ω
SUB
WOOFER
AUDIO
OUT
FM
ANT
+
+
+
–
–
–
R
R
VIDEO
TV/SAT AUX
DIGITAL OUT MD/DAT
IMPEDANCE USE 6–16Ω
CENTER
L
SURROUND
R
L
PR/CR
L
+
–
R
L
TV/SAT
1 AM 天線 (19)
2 VIDEO (S VIDEO/AUDIO L/R OUT/IN)
插孔 (21)
3 TV/SAT (S VIDEO/AUDIO L/R IN) 插孔
(21)
4 MONITOR OUT (S VIDEO) 插孔 (21)
5 COMPONENT VIDEO OUT 插孔 (21)
SUBWOOFER AUDIO OUT 插孔 (17)
SPEAKERS 插孔 (17)
TV/SAT (OPTICAL DIGITAL IN) 插孔
MD/DAT (OPTICAL DIGITAL IN) 插孔
DIGITAL OUT (OPTICAL (CD ONLY))
插孔
qa AUX (AUDIO IN L/R) 插孔
qs FM 75Ω COAXIAL 天線插孔 (20)
6
7
8
9
0
續
11CT
遙控器
1
2
3
4
5
6
7
8
9
0
qa
qs
qd
qf
qg
qh
qj
qk
ql
w;
注意
此遙控器在黑暗中會發光。不過,此前應將
遙控器置於光線下照射一段時間。
12CT
wa
ws
wd
wf
wg
wh
wj
wk
wl
e;
ea
es
ed
ef
eg
eh
ej
ek
el
RM SET UP(RM 設定)鍵(59)
OPEN/CLOSE(打開/關閉)鍵(30)
BAND(波段)鍵(28)
FUNCTION(功能)鍵(60)
MEMORY(記憶)鍵(28)
NAME(名稱)鍵(63)
PLAY MODE(播放模式)鍵(34)
REPEAT(重複)鍵(37)
號碼鍵(32)
./> PRESET +/-(預置 +/-)
鍵(28,31)
H(播放)鍵(30)
X(暫停)鍵(31)
DVD TOP MENU(DVD 頂部選單)鍵
(32)
C/X/x/c/ENTER(C/X/x/c 確認)鍵
(24)
DVD DISPLAY(DVD 顯示)鍵(13,26)
TV CH +/- 鍵(60)
TV VOL +/-(音量 +/-)鍵(60)
TV [/1(開啟/待機)鍵(60)
[/1(開啟/待機)鍵(30)
STEREO/MONO(立體聲/單聲道)鍵
(61)
DISPLAY(顯示)鍵(61)
SOUND FIELD +/-(聲場)鍵(46)
TIME(時間)鍵(41)
DIMMER(調光器)鍵(27)
AUDIO(音頻)鍵(44)
ANGLE(角度)鍵(51)
SUBTITLE(字幕)鍵(52)
ENTER(確認)鍵
CLEAR(清除)鍵(35)
m/M 鍵(28,38)
x(停止)鍵(30)
MUTING(靜音)鍵(31)
DVD MENU(DVD 選單)鍵(32)
VOLUME +/-(音量 +/-)鍵(30)
O RETURN(返回)鍵(33)
TV/VIDEO(TV/視頻)鍵(60)
AMP MENU(AMP 選單)鍵(24)
DVD SETUP(DVD 設置)鍵(64)
WIDE(寬屏幕)(60)
控制選單顯示說明(魔板)
使用控制選單可以選擇您想實現的功能。按下 DVD DISPLAY 鍵可以顯示控制選
單。更多資訊請參閱括號中標註的相應頁。
控制選單
標題或軌跡的總數
當前播放的標題號(對於 VIDEO CD/
Super Audio CD/CD 是軌跡號)
當前播放的章節號(對於
VIDEO CD/Super Audio CD/CD
是索引號)
播放時間
所選的控制選單選項的標誌
控制選單選項
章節或索引的總數
播放狀態
(N 播放,X 暫停,x 停止等等)
正在播放的光碟類型
當前設置
選項
所選擇的控制選單選項的
功能名稱
操作資訊
控制選單選項列表
標題(僅對於 DVD)(第 39 頁)/ 可以播放所選擇的標題(D V D ),場面
(PBC 播放時的 VIDEO CD),或者軌跡
場面(僅對於 PBC 播放時的 VIDEO CD)
(VIDEO CD)。
(第 39 頁)/軌跡(僅對於 VIDEO CD)
(第 39 頁)
章(僅對於 DVD)(第 39 頁)/ 可以播放所選擇的章(DVD),或者索引
(VIDEO CD)。
索引(僅對於 VIDEO CD)(第 39 頁)
軌跡(僅對於 Super Audio
CD/CD)(第 39 頁)
可以播放所選擇的軌跡(Super Audio
CD/CD)。
索引(僅對於 Super Audio
CD/CD)(第 39 頁)
可以播放所選擇的索引(Super Audio
CD/CD)。
時間/文字(第 40 頁)
查看已用的時間和所剩播放時間。
輸入時間代碼可以進行畫面和音樂的搜
索。
顯示 DVD 或 Super Audio CD/CD 光碟的
文字內容。
續
13CT
聲音語言(第 44 頁)
改變音頻設置。
字幕(僅對於 DVD)(第 52 頁) 顯示字幕。
改變字幕的語言。
角度(僅對於 DVD)(第 51 頁) 改變角度。
重複(第 36 頁)
先進功能(僅對於 DVD)
(第 53 頁)
重複播放整個光碟(所有的標題/所有
的軌跡),或者重複播放一個標題/章/
軌跡。
播放 DVD 時查看光碟上的資訊(比特
速率或層)。
用戶鎖定(第 54 頁)
設置光碟為禁止播放狀態。
設定(第 64 頁)
個人設定
使用設置顯示,您可以調整畫面和聲音
等各種選項。您也可以在其它選項中設
置字幕和設置顯示的語言。
重新設定
在“設定”中將設置恢復至默認狀態。
z 當您每按一次 DVD DISPLAY 鍵,控制選單的顯示按如下變化:
, 控制選單顯示
m
先進功能顯示(在您選擇了“關”以外的任何設置時出現,參見第 53 頁)
m
控制選單顯示關閉
控制選單選項因光碟不同而有差異。
z 當您選擇了除“關”以外的“重複”時,控制選單標誌指示燈變綠。
以變化時,“角度”指示燈變綠。
14CT
t
僅當角度可
入門指南
快速瀏覽
本章提供了一個快速瀏覽方式,使您可以迅速使用您的新接收機。
要選擇屏幕顯示中使用的語言,參閱第 64 頁。
要選擇所連接的電視機上的外觀比例,參閱第 65 頁。
入門指南
開箱
檢查以下組件:
• 調幅環形天線(1)
• 調頻纜線天線(1)
• S 視頻線(1)
• 遙控器 RM-SP10(1)
• R6(型號 AA)電池(2)
15CT
遙控器電池的安裝
您可以用提供的遙控器控制接收機。 裝入兩節 R6(型號 AA)電池,注意電池的
3 和 # 極要與電池盒內的標誌一致。 使用遙控器時,要將遙控器對準接收機上的遙控
感應器 。
注意
•
•
•
•
•
請勿將遙控器置於過熱或過於潮濕的地方。
請勿將新電池與舊電池混用。
遙控器內切勿落入異物,尤其在更換電池時。
請勿讓陽光或發光的物品直接照射遙控感應器。否則可能會引起故障。
長期不用遙控器時請取出電池,以免因電池泄漏和腐蝕可能引起的損害。
步驟 1:揚聲器系統的連接
您可以通過將 5 個揚聲器(前置左/右揚聲器,中置揚聲器,後置左/右揚聲器)
和有源低音揚聲器連接至本接收機來欣賞環繞聲。如果您未在接收機上連接 5 個揚聲器
和有源低音揚聲器,接收機則根據連接的揚聲器數量优化環繞信號。在接收機上連接 2 個
揚聲器時,請將揚聲器連接至 SPEAKERS FRONT L/R 插孔。
注意
•
•
•
•
16CT
務必將揚聲器導線連接至合適的端子:3 至 3,# 至 # ,L 至 L,以及 R 至 R 插孔。
請使用高性能的揚聲器。
請使用同一尺寸和性能的前置,中置和後置揚聲器。
要獲得盡可能好的環繞聲,請指定第 23 頁中的揚聲器參數(數量,距離,音量等級等)。
連接揚聲器的接線端
連接到
SPEAKER FRONT L 和 R 接線端
SPEAKER REAR L 和 R 接線端
SPEAKER CENTER 接線端
SUBWOOFER AUDIO OUT 接線端
MONITOR OUT
COMPONENT VIDEO OUT
SPEAKERS
IMPEDANCE USE 6–16Ω
FRONT
R
AM
S VIDEO OUT S VIDEO IN
S VIDEO IN
S VIDEO
AUDIO OUT AUDIO IN
AUDIO IN
AUDIO IN
COAXIAL
Y
PB/B-Y
OPTICAL OPTICAL OPTICAL
(CD ONLY) DIGITAL IN DIGITAL IN
L
SUB
WOOFER
AUDIO
OUT
+
+
+
–
–
–
R
75Ω
R
VIDEO
TV/SAT AUX DIGITAL OUT MD/DAT
SURROUND
R
L
L
+
–
R
L
TV/SAT
+
+
CENTER
L
PR/R-Y
FM
ANT
入門指南
連接
前置揚聲器
後置揚聲器
中置揚聲器
低音揚聲器
–
–
中置揚聲器
前置揚聲器(右)
+
–
前置揚聲器(左)
低音揚聲器
(有源型)
+
–
後置揚聲器(右)
+
–
後置揚聲器(左)
17CT
避免揚聲器短路
揚聲器短路可能會引起對接收機的損害。為避免出現這種情況,連接揚聲器時一定
要遵循以下注意事項。每個揚聲器連線的電線裸露部分必須不能碰到其它揚聲器接線端
或其它揚聲器連線的電線裸露部分。
揚聲器連線的錯誤情況舉例
揚聲器連線的電線裸露部分
與其它揚聲器接線端接觸
由於絕緣面移除而使電線裸露部
分互相接觸
在連接完所有的組件、揚聲器和交流電源線(幹線導線)後,輸出一個測試聲音以
檢測所有的揚聲器是否連接正確。輸出測試聲音的詳細說明請參閱第 26 頁。
如果輸出測試聲音時揚聲器中沒有聲音,或者播放出聲音的揚聲器不是前面板顯示
幕內當前顯示的揚聲器,則揚聲器可能短路。這種情況下須重新檢查揚聲器的連接。
注意
• 揚聲器連線要與組件上正確的接線端相連接: 3 接 3, # 接 #。 如果連線接反,聲音將會失真及
缺少低音部分。
• 如果您使用下限最大輸入額定功率的前置揚聲器,請小心調整音量,以免揚聲器上的輸出過大。
18CT
步驟 2:天線連接
連接上所提供的調幅/調頻天線以收聽無線電台。
連接
連接到
調幅環形天線
調幅接線端
調頻線天線
調頻 75Ω 同軸接線端
入門指南
連接天線所用的接線端
調幅環形天線
調頻線天線
MONITOR OUT
COMPONENT VIDEO OUT
SPEAKERS
FRONT
R
AM
S VIDEO OUT S VIDEO IN
S VIDEO IN
S VIDEO
AUDIO OUT AUDIO IN
AUDIO IN
AUDIO IN
COAXIAL
Y
PB/B-Y
OPTICAL OPTICAL OPTICAL
(CD ONLY) DIGITAL IN DIGITAL IN
L
75Ω
SUB
WOOFER
AUDIO
OUT
FM
ANT
R
+
+
+
–
–
–
R
VIDEO
TV/SAT AUX DIGITAL OUT MD/DAT
IMPEDANCE USE 6–16Ω
CENTER
L
SURROUND
R
L
PR/R-Y
L
+
–
R
L
TV/SAT
注意
• 為防止產生噪聲,可將調幅環形天線遠離接收機及其它組件。
• 須將調頻纜線天線充分伸展開。
• 連接完調頻線天線後,應盡可能地使它保持水平。
續
19CT
z 如果調頻波段接收效果不佳
用一 75Ω 的同軸電纜(未提供)將接收機與戶外的調頻天線相連接,如下圖如示。
接收機
戶外調頻天線
AM
接地線
(未提供)
COAXIAL
FM
75‰
接地
注意
如果您將接收機與戶外的調頻天線相連接,須將接收機接地以免遭到雷擊。為防止可燃氣體爆炸,切
勿將接地線連接到煤氣管道上。
20CT
步驟 3:電視機與視頻部件連接
所需連線
入門指南
連接電視顯示器的 S - 視頻線
音頻線(未提供)
連接接線時,務必要將各種顏色標記的插頭與組件上相應的插孔正確連接。
白色(L/音頻)
白色(L/音頻)
紅色(R/音頻)
紅色(R/音頻)
連接視頻組件的插孔
連接
電視顯示器
錄像機
數字衛星接收機
連接到
MONITOR OUT(S VIDEO)插孔
VIDEO(S VIDEO/AUDIO L/R IN/OUT)插孔
TV/SAT(S VIDEO/AUDIO L/R IN)插孔
z 當使用 COMPONENT VIDEO OUT 插孔(Y,PB/CB,PR/CR)取代 S 視頻插孔時
您的電視顯示器也必須連接到 COMPONENT VIDEO OUT 插孔(Y,PB/CB,PR/CR)。
注意
• 當您使用 FUNCTION 鍵選擇 VIDEO 時,信號從前置左/右揚聲器輸出,而不是從 VIDEO (AUDIO L/R
OUT)插孔輸出。
• 當您使用視頻線 1 輸出時,請將該裝置設定為 2CH STEREO 模式。如果沒有將該裝置設定為 2CH STEREO
模式,線輸出可能無法正確進行。
21CT
MONITOR OUT
COMPONENT VIDEO OUT
SPEAKERS
FRONT
R
AM
S VIDEO OUT S VIDEO IN
S VIDEO IN
S VIDEO
AUDIO OUT AUDIO IN
AUDIO IN
AUDIO IN
COAXIAL
Y
PB/B-Y
OPTICAL OPTICAL OPTICAL
(CD ONLY) DIGITAL IN DIGITAL IN
L
75Ω
SUB
WOOFER
+
+
+
–
–
–
AUDIO
OUT
FM
ANT
R
R
VIDEO
TV/SAT AUX DIGITAL OUT MD/DAT
IN
OUT
S VIDEO
IN
AUDIO
IN
SURROUND
R
L
L
+
–
R
L
TV/SAT
OUT
S VIDEO
IN
IMPEDANCE USE 6–16Ω
CENTER
L
PR/R-Y
OUT
AUDIO
IN
IN
INPUT
S VIDEO
IN
S VIDEO
IN
AUDIO
IN
L
L
L
R
R
R
OUTPUT
OPTICAL
錄像機
數字衛星接收機
電視顯示器
如果連接帶 TV/SAT (OPTICAL DIGITAL IN) 插孔的數字衛星接收機
將數字衛星接收機連接至接收機的 TV/SAT(OPTICAL DIGITAL IN)插孔,而不是 TV/
SAT (AUDIO L/R IN)插孔。
接收機可以接收數字和模擬兩種信號。數字信號的優先級別高於模擬信號。如果數
字信號中斷,2 秒鐘後接收機將處理模擬信號。
如果連接不帶 TV/SAT(OPTICAL DIGITAL IN)插孔的數字衛星接收機
數字衛星接收機只能連接至接收機的 TV/SAT (AUDIO L/R IN) 插孔。
接收機設定
根據連接的電視顯示器不同,有必要對接收機進行設定。
亞洲機型的初始設定為 NTSC。
如果電視機的彩色系統為 PAL*
要將接收機設定為 PAL,按住接收機上的 X(暫停)鍵的同時按遙控器上的 [/1
鍵打開接收機電源。必須按住 X 鍵直至 AVD-S10 出現在顯示幕上。要重新設定為 NTSC,
請先關閉接收機,然後按住接收機上的 X 鍵的同時用遙控器再次打開接收機電源。
* 如果電視機的彩色系統為 NTSC,進行上述同樣的操作將接收機設定為 NTSC。
連接交流電源線(幹線導線)
在將接收機的交流電源線(幹線導線)接到牆上的插座(幹線)上之前,先要將揚聲
器連接到接收機上(參閱第 17 頁)。
將電視機/視頻組件的交流電源線(幹線導線)接到牆上的插座(幹線)上。
22CT
揚聲器設定
入門指南
為盡可能獲得最佳的環繞聲效果,除低音揚聲器外的所有揚聲器都應與收聽位置有
相同的距離(A)。
然而,如果需要,您可以將中置揚聲器向收聽位置移近 1.6 米(B),將後置揚
聲器向收聽位置移近 4.6 米(C)。
前置揚聲器可以放在距離收聽位置 1.0﹣15.0 米(A)的範圍內。
低音揚聲器可以放在任何位置上。
您可以根據房間的形狀等因素,將後置揚聲器放置於您的後方或是兩側。
後置揚聲器放置於兩側時
後置揚聲器放置於後方時
B
B
A
A
A
45°
A
45°
C
C
C
90°
20°
C
90°
20°
注意
中置揚聲器和後置揚聲器不要放置得比前置揚聲器距離收聽位置更遠。
揚聲器參數說明
為盡可能獲得最佳的環繞聲效果,首先規定揚聲器離開收聽位置的距離,然後設置
平衡和音量等級。使用測試聲音調整揚聲器的音量至相同等級。
您可以在設定顯示中使用“揚聲器設定”來調整揚聲器的參數(參閱第 67 頁)。
續
23CT
C/X/x/c/ENTER
AMP MENU
確定揚聲器的尺寸,距離,位置和高度
1
2
反覆按下 AMP MENU 鍵,直至前面板顯示幕內顯示 9 SP.SETUP。
3
使用 C/c 鍵來設定參數。
所選擇的參數將出現在前面板顯示幕內。
4
重複步驟 2 和步驟 3,在 9 SP.SETUP 中設定其它參數。
如果停止操作遙控器幾秒鐘後,參數會關閉,並保存於接收機中。
坐在收聽位置上,使用 X/x 鍵來選擇所要設定的選項。
• 9 SP.SETUP 中設定的選項
─5 個揚聲器(前置左/右,中置,後置左/右)的尺寸
─帶有或沒有低音揚聲器
─前置揚聲器、後置揚聲器和中置揚聲器的距離
─後置揚聲器的位置和高度
x尺寸
對於 F.SP.,C.SP.,R.SP.和 S.W. 默認設定有下划線。
• F.SP.(前置揚聲器)
─LARGE:一般情況下選擇此項。
─SMALL:如果小型揚聲器用作前置揚聲器則選擇此項。
• C.SP.(中置揚聲器)
─LARGE:一般情況下選擇此項。
─SMALL:如果小型揚聲器用作中置揚聲器則選擇此項。
─NO:如果不使用中置揚聲器則選擇此項。
24CT
x視聽距離
您可以如下來改變每個揚聲器的距離。默認設定有下划線。
• F.D. 5m(前置揚聲器距离)
前置揚聲器距离可以以 0.2m 遞增,在 1.0 到 15.0m 之間設定。
• C.D. 5m(中置揚聲器距离)
中置揚聲器距离可以從前置揚聲器距离,以 0.2m 遞增,朝您的收聽位置靠近最多 1.6m。
• R.D. 3.4m(後置揚聲器距离)
後置揚聲器距离可以從与前置揚聲器相同的距离處,以 0.2m 遞增,朝您的收聽位置靠
近最多 4.6m。
入門指南
• R.SP.(後置揚聲器)
─LARGE:一般情況下選擇此項。確定位置和高度可以正確地實現“虛擬”聲場(第
48 頁)中的“數字影院環繞”模式。
─SMALL:如果小型揚聲器用作後置揚聲器則選擇此項。確定位置和高度可以正確地實
現“虛擬”聲場(第 48 頁)中的“數字影院環繞”模式。
─NO:如果不使用後置揚聲器則選擇此項。
• S.W.(低音揚聲器)
─YES:如果使用低音揚聲器則選擇此項。
─NO:如果不使用低音揚聲器則選擇此項。
注意
如果每個前置揚聲器或者後置揚聲器沒有放置在距離收聽位置相同的距離上,則要調整最近的揚聲器的
距離。
確定後置揚聲器的位置和高度
如果您在“R.SP.”中選擇了“NO”以外的任何選項,則要確定後置揚聲器的位置和
高度。下划線部分為默認設定。
位置圖解
90
A
A
45
B
B
20
• R.P.BEHIND
如果後置揚聲器被放置在 B 區域,則選擇此項。
• R.P.SIDE
如果後置揚聲器被放置在 A 區域,則選擇此項。
續
25CT
高度圖解
C
C
60
D
D
30
• R.H.LOW
如果後置揚聲器被放置在 D 區域,則選擇此項。
• R.H.HIGH
如果後置揚聲器被放置在 C 區域,則選擇此項。
當“R.SP.”選項設置成“NO”時,這些參數無效。
確定揚聲器間的平衡和音量等級
1
2
反覆按下 AMP MENU 鍵,直至前面板顯示幕內顯示 9 LEVEL。
使用 X/x 鍵選擇 T.TONE,然後使用 C/c 鍵將 T.TONE 設定為 ON。
您可以依次聽到每個揚聲器發出的測試聲音。
3
坐在收聽位置,使用 X/x 鍵來選擇需調整的選項。
• 在 9 LEVEL 中調整的選項
─前置揚聲器與後置揚聲器之間的平衡
─中置揚聲器與後置揚聲器,及低音揚聲器的音量等級
4
使用 C/c 鍵來調整音量等級,使每個揚聲器中發出的測試聲音音量聽起來一致。
前面板顯示幕內將顯示所調整量的值。
5
重複步驟 3 和 4,調整 9 LEVEL 中的其它參數。
如果幾秒鐘內沒有操作遙控器,顯示幕內的顯示值將消失,並被儲存到接收機中。
6
使用 X/x 鍵選擇 T.TONE,然後使用 C/c 鍵將 T.TONE 設定為 OFF。
x平衡調整
您可以按如下方法來調整每個揚聲器的平衡。默認設定有下划線。
• F. ......I......(中間)(前置揚聲器)
調整前左揚聲器和前右揚聲器之間的平衡(您可以從中間調整,向左或向右各有 6
級)。
• R. ......I......(中間)(後置揚聲器)
調整後左揚聲器和後右揚聲器之間的平衡(您可以從中間調整,向左或向右各有 6
級)。
26CT
入門指南
x水平
您可以按如下方法來調整每個揚聲器的音量等級。默認設定有下划線。
• C.LEVEL 0 dB(中置揚聲器音量等級)
調整中置揚聲器的音量等級(可用范圍從 -10dB 到 +10dB,調節步幅為 1dB)。
• R.LEVEL 0 dB(後置揚聲器音量等級)
調整後置揚聲器的音量等級(可用范圍從 -10dB 到 +10dB,調節步幅為 1dB)。
• S.W.LEV. 0 dB(低音揚聲器音量等級)
調整低音揚聲器的音量等級(可用范圍從 -10dB 到 +10dB,調節步幅為 1dB)。
注意
• 當您選擇一個選項時,聲音會停頓短暫時間。
• 根據其它揚聲器設置的不同,低音揚聲器可能會輸出過大的聲音。
同時調整所有揚聲器的音量
使用 VOLUME 控制器。
其它的“AMP MENU”設置
您可以控制前面板顯示幕內的亮度,清除預置電台和電台名,並將揚聲器的參數恢復
至默認狀態。反覆按下 AMP MENU 鍵,直至顯示 9 CUSTOMIZE 的字樣。使用 X/x 鍵可
選擇以下的選項。
x顯示幕調光器(DIMMER)
可以用兩種方法改變前面板顯示幕的亮度。使用 C/c 調節設定或按 DIMMER 鍵。
xMEMO.CLR.
您可以清除預置電台或電台名稱,並將揚聲器參數恢復至默認設定。
• MEMO.CLR.N(不):按 ENTER 鍵跳回到前一選單。
• MEMO.CLR.Y(是):如果按 ENTER 鍵,會出現“Really? N”。要清除記憶,用 C/c
選擇“Really? Y”並按 ENTER 鍵。出現“ALL CLEAR!”,所有設定如預置電台和電台
名稱將被清除,且揚聲器參數將恢復至默認設定。
27CT
預設電台
您可以預置 20 個調頻電台和 10 個調幅電台。
調諧電台前,須將音量關至最小。
BAND
MEMORY
PRESET +/-
m/M
ENTER
1 反覆按下 BAND 鍵,直到前面板顯示幕內出現所需的波段。
每次按下 BAND 鍵時,波段會在 AM 和 FM 之間輪流轉換。
2 按住 m 或者 M 鍵,直到頻率顯示開始變化,然後鬆開鍵。
當接收機調諧到一個電台時,掃描會停止。前面板顯示幕內顯示出“TUNED”和
“ST”(對於立體聲節目)字樣。
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
3 按下 MEMORY 鍵。
前面板顯示幕內出現一個預置號。
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
4 按下 PRESET + 或者 PRESET - 鍵來選擇所需的預置號。
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
28CT
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
5 按 ENTER 鍵。
電台被存儲。
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
TRACK
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
H TUNED
入門指南
v
CHAPTER INDEX
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
6 重複步驟 1 到 5 存儲其他的電台。
調諧信號微弱的電台
在步驟 2 中反覆按 m 鍵或 M 鍵手動調到某一電台。
改變預先設置的數字
再一次從 1 開始。
改變 AM 調諧間隙
廠家通常將 AM 調頻間隙設置為 9KHZ(某些地區為 10KHZ)。
要改變 AM 調頻間隙,先調到任一個 AM 電台,然後按遙控器上的 @/1 鍵關閉電
源。在按住 ■ 鍵(接收機上)時,再重新打開電源。當您改變間隙時,先前設置的 AM
電台將會被抹去。
要重新設定間隙,重複同樣的過程。
29CT
播放光碟
4
播放光碟
按 A 鍵或者按遙控器上的 OPEN/
C L O S E 鍵,把光碟放入光碟托
架。
接收機自動開啟且 STANDBY 指
示燈熄滅。
不同的 DVD 和 VIDEO CD,它們的一
些操作可能不同或有一定的限制。
參照隨影碟附帶的操作說明。
STANDBY(等待)
A
指示燈
H x
播放面朝下
PHONES
音量調節
連接耳機
POWER
OPEN/CLOSE
H
1
2
3
按 H 鍵。
光碟托架關閉,接收機開始播放
(連續播放)。調節接收機音量。
[/1
x
打開電視。
將電視機的輸入選擇切換至本接
收機。
按下本接收機的 POWER 鍵。
接收機進入等待模式,STANDBY
指示燈點亮為紅色。
30CT
5
第 5 步以後
根據不同的光碟電視屏幕上會顯示一
個選單。您可以根據選單上的說明交互式
播放影碟。DVD(第 32 頁),VIDEO CD
(第 33 頁)。
打開接收機
按接收機上的 POWER 鍵。接收機進
入等待模式且 STANDBY 指示燈點亮為紅
色。按遙控器上的 [/1 鍵。接收機開啟且
STANDBY 指示燈熄滅。在等待模式中,按
接收機上的 A 鍵或 H 鍵也可以打開接
收機電源。
關閉接收機
按遙控器上的 [/1 鍵。接收機進入
等待模式且 STANDBY 指示燈點亮為紅色。
要完全關閉接收機,請按接收機上的
POWER 鍵。播放光碟時,請勿按 POWER 鍵
關閉接收機。否則可能會取消選單設定。
當要關閉接收機時,先按 x 鍵停止播放,
然後按遙控器上的 [/1 鍵。
在等待模式中節電
按一下遙控器上的 [/1 鍵。
z 當接收機處於等待模式時,接收機上的 STANDBY
從停止的地方恢復播放
光碟(恢復播放)
指示燈處於點亮。
要取消等待模式
按一下遙控器上的 [/1 鍵。
OPEN/CLOSE
H
播放光碟
補充操作
當您 x 鍵停止播放時,接收機已記
住您暫停的那一位置。接收機前顯示面板
上顯示“RESUME”。只要您不打開光碟托
架,即使您按下 [/1 鍵接收機進入了等
待狀態,恢復播放功能仍有效。
x
./>
H
X
要
停止
暫停
暫停後繼續播放
在連續播放模式中進至
下一章軌跡或場面
在連續播放模式中進至
上一章軌跡或場面
停止播放並取出影碟
靜音
x
MUTING
操作
按 x 鍵。
按 X 鍵。
按 X 或 H 鍵。
按 > 鍵。
1
“RESUME”顯示在前顯示面板
上,因而您可以從您停止的地方重
新播放影碟。
如果“RESUME”沒有顯示,則
不能進行繼續播放。
按 . 鍵。
按 OPEN/CLOSE。
按 MUTING 鍵。要取消
靜 音 , 再 按 一 次
MUTING 鍵,或把音量
放大。
播放光碟時,按 x 鍵停止播
放。
2
按 H 鍵。
接收機從步驟 1 中停止的地方
開始播放。
z 要從頭開始播放光碟,按兩次 x 鍵,然後按
注意
H鍵。
關閉光碟托架必須通過按 OPEN/CLOSE 鍵,
不能用手推光碟托架。
續
31CT
注意
• 根據停止播放的位置不同,接收機可能不能精
確地從停止點繼續播放。
• 當在下列情況下,停止播放的點將會很清楚:
﹣當您關閉接收機上的 POWER 鍵時。
﹣當您改變播放模式時。
使用 DVD 選單
DVD 光碟被分為很長的幾個畫面或音
樂特寫部分,這些稱作“標題”。播放含
有多個標題的 DVD 光碟時,您可以使用
DVD TOP MENU 選擇所要的標題。
播放可以選擇字幕語言和聲音語言等
項目的 DVD 光碟時,請使用 DVD MENU 選
擇這些項目。
數字鍵
DVD TOP
MENU
ENTER
C/X/x/c
32CT
DVD MENU
1
按 DVD TOP MENU 或 DVD MENU 鍵。
光碟選單顯示在電視屏幕上。
不同的光碟其選單內容不一樣。
2
按 C/X/x/c 鍵或數字鍵來選擇您要
播放或改變的項目。
3
按 ENTER 鍵。
用 PBC 功能播放 VIDEO
CD 光碟(PBC 播放)
z 要不用 P B C 功能播放,當接收機停止時按
./> 鍵或者數字鍵來選擇一個軌跡,然後按
H 鍵或者 ENTER 鍵。
電視屏幕上顯示“不以 PBC 方式播放”,接收機
開始連續播放。您不能播放靜止的畫面如選單。要
返回 PBC 播放,按兩次 x 鍵,然後按 H 鍵。
注意
在一些與光碟一起附帶的說明中,步驟 3 中
的“按 ENTER 鍵”可能顯示為“按 SELECT 鍵”,
這取決於不同的 VIDEO CD。在這種情況下按 H
鍵。
播放光碟
運用 PBC(播放控制)功能,您可以
享有簡單的交互操作、搜索功能和其他一
些類似的操作。按照以下電視屏幕上的選
單,PBC 播放功能允許您交互式播放 VIDEO
CD。
回到選單
按 O RETURN 鍵。
數字鍵
./>
H
x
ENTER
X/x
O RETURN
1
用 PBC 功能開始播放 VIDEO CD。
屏幕上顯示供您選擇的選單。
2
3
4
按 X/x 鍵或者數字鍵來選擇所
要的項目號。
按 ENTER 鍵。
按照選單中的說明進行交互式操
作。
參照隨光碟一起附帶的說明,因
為 VIDEO CD 的操作過程可能各有不
同。
33CT
創建自己的程序(編序播放)
2
光標移動到某一標題或軌跡(這
里是“01”)。
標題
您可以通過編一個程序來把光碟中的
標題,章或軌跡排序,使得光碟中的內容
按您想要的順序播放。最多可編 25 個標
題,章和軌跡。
PLAY MODE
章
REPEAT
記錄在光碟上的章
數字鍵
CLEAR
H
ENTER
X/x/c
1
按 c 鍵。
3
選擇您要編序的標題,章和軌
跡。
x當播放 DVD 時
例如選擇 02 標題中的 03 章。
按 X/x 鍵或者數字鍵在“T”
下選擇“02”,然後按 ENTER 鍵。
在停止模式時,反覆按 PLAY MODE
鍵,直到在接收機前顯示面板上
出現“PROGRAM”。
編序顯示出現在電視屏幕上。
當您播放 VIDEO CD,Super Audio
CD,或者 CD 時,顯示“軌跡”。
下一步是按 X/x 鍵或者數字鍵
來選擇“C ”下的“0 3 ”,然後按
ENTER 鍵。
記錄在光碟上的標
題或軌跡
已選擇的標題和章
34CT
x播放 VIDEO CD,Super Audio
CD,或 CD 時
例如選擇軌跡“02”。
按 X/x 鍵或數字鍵選擇“T”
下的“02”,然後按 ENTER 鍵。
已選軌跡
取消已編序順序
要取消所有標題,章和軌跡的編序順
序,按 X 鍵,然後在步驟 2 中選擇“全
部消除”。取消選擇的編序,則在步驟 2
中用 X/x 鍵選擇此編序,然後按 CLEAR,
或者在步驟 3 中選擇“--”,然後按 ENTER
鍵。
注意
播放的標題,章或軌跡的序號與記錄在光碟上
的序號是一樣的。
播放光碟
z 您可以重複播放被編序的標題,章或軌跡。按
REPEAT 鍵,或者在編序播放時,在控制選單顯示
中將“重複”設定為開。
被編軌跡的總時間
4
要編序其他的標題,章或軌跡,
重複步驟 2 至 3。
已編序的標題,章和軌跡將按被
選擇的順序播放。
5
按 H 鍵開始編序播放。
編序播放開始。
當編序播放結束時,您可以按
H 鍵再次開始此編序的播放。
要返回正常播放
在播放時按 CLEAR 鍵。
要關閉編序選單
在停止模式下,按 PLAY MODE 來關
閉編序選單。
要改變編序
1
在步驟 2 中,用 X/x 鍵或數字鍵選
擇您所要改變的標題,章或軌跡,然
後按 c 鍵。
2
依據步驟 3 進行新的編序。
35CT
隨機播放
反覆播放(重複播放)
(隨機播放)
您可以讓接收機“隨機”標題、章或
軌跡並以隨著順序播放。每次“隨機”會
產生不同的播放順序。
PLAY MODE
您可播放光碟上的所有標題/軌跡或
僅僅是某一標題/章/軌跡。
在隨機播放或編序播放模式中,接收
機分別按隨機順序或編序順序重複播放標
題或軌跡。
您不能在用 PBC 功能播放 VIDEO CD
時進行重複播放。(第 33 頁)
有些 DVD 機可能不能進行重複播放。
CLEAR
H
PLAY MODE
REPEAT
CLEAR
1
2
H
在停止模式,連續按 PLAY MODE
鍵直到接收機前顯示面板上顯示
“SHUFFLE”。
DVD DISPLAY
按 H 鍵。
要返回正常播放
在停止模式下,按兩次 PLAY MODE 鍵
或者是在播放時按 CLEAR 鍵回到正常播
放。
注意
• 在下列情況下隨機播放將被取消:
﹣打開或關閉光碟托架。
﹣關閉電源。
﹣切換功能。
• 有些 DVD 不能進行隨機播放。
36CT
ENTER
X/x
1
按 DVD DISPLAY 鍵。
出現控制選單。
2
按 X/x 鍵選擇
複)然後按 ENTER 鍵。
(重
如 果 您 不 選 擇 “ 關 ” ,
“REPEAT”指示燈將點亮為綠色。
3
選擇重複播放設定。
播放光碟
當播放 DVD 且編序播放設定為關時
• 關 :不反覆播放。
• 光碟:重複播放所有標題。
• 標題:重複播放當前光碟上的標題。
• 章 :重複播放當前章。
當播放 VIDEO CD/Super Audio CD/CD 且
編序播放設定為關時
• 關 :不反覆播放。
• 光碟:重複播放光碟上的所有軌跡。
• 軌跡:重複播放當前軌跡。
當編序播放設定為開時
• 關:不反覆播放。
• 開:重複編序播放。
取消重複播放
按 CLEAR 鍵。
z 您可以在停止模式下設定重複播放
選擇“重複”項,按 H 鍵。接收機開始重
複播放。
z 快速顯示“重複”狀態
按遙控器的 REPEAT 鍵。
注意
當在下列情況下重複播放被取消:
﹣關閉電源。
﹣切換功能。
37CT
搜尋場面
搜尋光碟上的特定位置
(掃描,慢速播放)
您可以通過監視畫面或慢速播放來快
速查找光碟上的某一特定位置。
m/M
H
逐幀觀看畫面(慢放)
您只能在 DVD 或 VIDEO CD 機上使用
這一功能。當本接收機處於暫停狀態時,
按 m 或 M 鍵。按 H 鍵回到正常
播放速度。
每次在慢放時按 m 或 M 鍵,播
放速度發生改變。可以獲得兩種速度。每
按一次指示改變如下:
播放方向
SLOW 2M y SLOW 1M
相反方向(只限 DVD)
SLOW 2m y SLOW 1m
SLOW 2M/SLOW 2m 的播放速度慢於
SLOW 1M/SLOW 1m。
注意
有些 DVD/VIDEO CD 機不能進行上面所描述
的操作。
通過快進或快退來快速查找某一點
(掃描)
播放光碟時按 m 或 M 鍵。當發
現您所要找的那一點時,按 H 鍵回到
正常的播放速度。
掃描時每按一次 m 或 M 鍵,播
放速度將改變。可以獲得三種速度。每
按一次其指示改變如下:
t
播放方向
×2B (僅對於 DVD/Super Audio CD/CD) t FF1M t FF2M
t
相反方向
×2b (僅對於 DVD) t FR1m t FR2m
×2B/×2b 的播放速度約為正常速度
的 2 倍。FF2M/FR2m 的播放速度快
於 FF1M/FR1m。
38CT
x用 PBC 播放功能播放 VIDEO CD 時
(場面)
搜尋標題/章/軌跡/索引/
場面
x播放 Super Audio CD/CD 時
(軌跡)或
(索引)
您可以通過標題或章來搜索一張 DVD
光碟,同樣您也可以通過軌跡、索引或畫
面來搜索一張 VIDEO CD/CD 光碟。因為
在光碟上每一標題和軌跡都被設為特定的
編號,所以您需輸入它的編號就可選擇您
想要的那一個。或者您可以通過時間編碼
來選擇某一畫面。(時間搜索)
搜尋場面
例如:當您選擇
(章)時,則選擇“**(**)”(**
對應某一數字)。
括弧里的數字表示所有的標題、
章、軌跡、索引或畫面的總數。
數字鍵
所選擇的行
CLEAR
ENTER
X/x
DVD DISPLAY
1
3
按 ENTER 鍵。
“**(**)”變為“─
(**)”。
按 DVD DISPLAY 鍵 。
出現控制選單。
2
按 X/x 鍵選擇搜索方法。
x播放 DVD 時
(標題),
(章),或
(時間/文字)
選擇時間/文字進行時間搜索。
x播放 VIDEO CD 時
(軌跡)或
(索引)
4
按 X/x 鍵或者數字鍵來選擇您
要搜索的標題、章、軌跡、索引
或畫面的數字編碼。
如果您操作有誤
按 CLEAR 鍵取消您選的數字,
然後選擇其他的數字。
續
39CT
5
按 ENTER 鍵。
接收機從您選擇的那一數字開始
播放。
關閉控制選單
連續按 DVD DISPLAY 鍵直到控制選單
被關閉。
用時間編碼來搜索某一畫面(時間搜索)
(只限 DVD)
1
在步驟 2 中選擇
(時間/文
字)。
選擇了“T **:**:**”。(當前標題
的播放時間)
2
按 ENTER 鍵。
“T **:**:**”變為“T --:--:--”。
3
用數字鍵輸入時間編碼,然後按 ENTER
鍵。
例如,要找開始後 2 小時 10 分 20
秒的畫面,只需輸入“2:10:20”。
注意
所顯示的某一標題、章或軌跡的編碼與記錄在
光碟上的是一致的。
40CT
瀏覽光碟資訊
瀏覽前面板顯示幕上的
播放時間和剩餘時間
播放 DVD 時
當前標題的播放時間和號碼
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
當前標題的剩餘時間
用前面板顯示幕可以顯示有關影碟的
資訊如:剩餘時間、 DVD 影碟的總標題
數,或 Super Audio CD、CD 或 VIDEO CD
的軌跡數(第 10 頁)。
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
當前章的播放時間和號碼
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
當前章的剩餘時間
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
瀏覽光碟資訊
TITLE
TIME
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
文字
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
播放 VIDEO CD(無 PBC 功能),Super
Audio CD 或 CD 時
按 TIME 鍵。
當播放影碟時,每按一次 TIME 鍵顯
示的內容就會變化,這種變化在下面的圖
形中說明。
播放時間和當前軌跡號碼
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
當前軌跡的剩餘時間
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
光碟的播放時間
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
光碟的剩餘時間
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
文字
TITLE
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
續
41CT
z 當播放沒有 PBC 功能的 VIDEO CD 光碟時,
顯示場面號和播放時間。
查看播放時間和剩餘時間
z 當前的章、標題、軌跡、場面或光碟的播放時
間和剩餘時間也將在電視機屏幕上出現。參看下一
部分的“查看播放時間和剩餘時間”。這是有關怎
樣讀懂這些資訊的說明。
注意
• 當播放 Super Audio CD 時,索引指示標記不出
現在前面板顯示幕上。
• 這些影碟資訊的出現與否,與你正在播放的影
碟類型和播放模式有關。
您能查看光碟當前標題、章或軌跡的
播放時間剩餘時間,以及總播放時間或剩
餘時間。您也能查看記錄在影碟上的 DVD/
CD/Super Audio CD 文字資訊。
TIME
DVD DISPLAY
1
在播放過程中,按 DVD DISPLAY
鍵。
出現控制選單。
影碟類型
時間資訊
42CT
2
反覆地按 TIME 鍵改變時間資訊。
您能改變的顯示和時間類型與您
正在播放的光碟有關。
x當播放 DVD 光碟時
• T**:**:**
當前標題的播放時間
• T﹣**:**:**
當前標題的剩餘時間
• C**:**:**
當前章的播放時間
• C﹣**:**:**
當前章的剩餘時間
x當播放 VIDEO CD(無 PBC 功能)
或 Super Audio CD 或 CD 光碟時
• T**:**
當前軌跡的播放時間
• T﹣**:**
當前軌跡的剩餘時間
• D**:**
當前光碟的播放時間
• D﹣**:**
當前光碟的剩餘時間
查看 DVD/CD/Super Audio CD 的文字
在步驟 2 中反覆地按 TIME 鍵顯示
記錄在 DVD/CD/Super Audio CD 上的文
字。僅當文字被記錄在光碟上時,DVD/CD/
Super Audio CD 的文字才出現。您不能
改變此文字。
DVD/CD/Super Audio CD 文字
z 如果 DVD/CD/Super Audio CD 文字在一行內顯
示不下,可在前顯示幕上滾動觀看整個文字。
z 按下 TIME 鍵可選擇時間和文字。
瀏覽光碟資訊
x當播放 VIDEO CD(有 PBC 功能)
光碟時
• **:**
當前場面的播放時間
關閉控制選單
反覆地按 DVD DISPLAY 鍵,直到控
制選單關閉。
注意
• 僅在字母表里列出的字母才能顯示。
• 本接收機只能顯示一個級 DVD/CD/Super Audio
CD 文字。如影碟名稱或標題。
• 在播放 Super Audio CD 時,本接收機只能顯示
有限的字符。對於不同光碟,也可能所有文字字
符均無法顯示。
43CT
聲音調節
3
改變聲音
按 X/x 鍵選擇所需的聲音語言
信號。
x當播放 DVD 時
語言改變選項與播放的 DVD 光
碟有關。
4 位數字顯示代表的是語言代
碼。第 77 頁的語言代碼列表可以查
出各語言代碼。當同種語言顯示兩次
或兩次以上時,則此 DVD 是以多種
音頻格式錄製的。
如果 DVD 是以多語言錄製的,播放
DVD 時,可選擇您需要的語言。
如果 D V D 是以多音頻格式錄製的
(PCM,杜比數碼,MPEG 音頻或 DTS),
當播放 DVD 時可選擇您需要的格式。
對帶有立體聲的 CD 或 VIDEO CD 的
碟片,您可從右側或左側聲道中選擇聲
音,並能通過左右揚聲器聽到您選擇的聲
道發出的聲音。(這種情況下,聲音沒有
立體聲效果)。例如,當您播放的光碟含
有一首歌,這首歌是在右聲道發音,左聲
道有樂聲,此時您可選擇左聲道,並只能
從兩個揚聲器聽到樂聲。
x當播放 VIDEO CD 或 CD 時
下划線部分為默認設定。
• STEREO:標準立體聲
• 1/L:左聲道聲音(單聲道)
• 2/R:右聲道聲音(單聲道)
x當播放 Super Audio CD 時
在停止模式下,設定選項的變化
與 Super Audio CD 碟片有關。
• MULTI:碟片有多聲道播放區。
• 2 CH:碟片有 2 個聲道播放區。
• CD:把光碟作為常規 CD 播放時。
AUDIO
注意
在 Super Audio CD 播放中,並不是所
有碟片都能提供上述三種選擇。這與播放的
Super Audio CD 碟片的層結構有關
ENTER
X/x
DVD DISPLAY
4
1
在播放過程中按下 DVD DISPLAY
鍵。
顯示控制選單。
2
按下 X/x 鍵選擇
(聲
音語言),然後按 ENTER 鍵。
聲音語言選項出現。
44CT
按 ENTER 鍵。
關閉控制選單
反覆按 DVD DISPLAY 鍵直到控制選
單關閉。
z 按 AUDIO 鍵直接選擇“聲音語言”,每按一次
此鍵,項目將改變。
注意
您不能改變非多音頻格式碟片的聲音。
顯示例舉如下:
• PCM(立體聲)
顯示碟片的音頻資訊
當您選擇“聲音語言”項時,被播放
的聲道就會顯示在屏幕上。例如,在杜比
數碼格式下,從單聲道到 5.1 聲道信號
的多種信號被錄製到 DVD 光碟上。被錄
製聲道的數目與播放的 DVD 光碟有關。
PROGRAM FORMAT
PCM 48kHz 24bit
當前音頻格式*
• 杜比環繞
PROGRAM FORMAT
DOLBY DIGITAL 2/0
DOLBY SURROUND
L
C
R
S
* “PCM”,“MPEG”,“DTS”或“DOLBY
DIGITAL”音頻格式被顯示出來。
對“DOLBY DIGITAL”而言,播放軌跡中
的聲道數字化顯示如下:
杜比數碼 5.1 聲道:
• 杜比數碼 5.1 聲道
當輸出一個低頻信號部分時,“LFE”有
實線框起。當未輸出低頻信號部分時,
“LFE”以虛線框起。
後分量 2
聲音調節
當前播放的程序格式**
PROGRAM FORMAT
DOLBY DIGITAL 3/2.1
DOLBY DIGITAL 3 / 2 . 1
L
C
R
LFE
前置分量 2+
中置分量 1
LFE(低頻效果)
分量 1
**程序格式化顯示選單中的字母表示下列
聲音部分:
L: 前置(左)
R: 前置(右)
C: 中置
LS: 後置(左)
RS: 後置(右)
S: 後置(單聲道):經杜比環繞
處理的信號和杜比數碼信號的
後置部分。
LFE:LFE(低頻效果)
LS
RS
• DTS
不管“LFE”信號分量是否輸出,“LFE”
始終以實線框起。
PROGRAM FORMAT
DTS 3/2.1
L
C
R
LFE
LS
RS
注意
• 當信號包括後置信號部分,如 LS、RS 或 S 時,
環繞效果被增強(第 46 頁)。
• 如果播放 MPEG 音頻聲音軌跡,本接收機輸出
PCM(立體聲)信號。
45CT
自動解碼音頻輸入信號
欣賞環繞聲
(自動格式解碼)
自動格式解碼功能自動檢測輸入音頻
信號的類型(杜比數碼,DTS,或標準 2
聲道立體聲),並根據需要進行正確的解
碼。該模式僅再現錄製/編碼時的聲音,
不增加任何效果(如混響)。
但是,如果沒有低頻率信號(杜比數
碼 LFE 等),它將產生一個低頻率信號
輸出至低音揚聲器。
SOUND
FIELD +/-
反覆按 SOUND FIELD +/- 鍵直至
“A.F.D. (AUTO FORMAT DECODE)”
顯示在前面板顯示幕上。
自動格式解碼功能被開啟。
46CT
您可以簡單地選擇接收機中的一個預
編序聲場來欣賞環繞聲。它們可以將電影
院和音樂廳動人且強有力的聲音帶入您的
家中。
要選擇聲場,反覆按SOUND FIELD +/鍵直至您想要的聲場出現在前面板顯示幕
上。
聲場
普通環繞
電影演播室 EX A
電影演播室 EX B
電影演播室 EX C
虛擬多維空間
虛擬半多維空間
小型音樂廳
大型音樂廳
爵士樂俱樂部
現場原創
遊戲
顯示
N.SURROUND
C.S.EX.A*
C.S.EX.B*
C.S.EX.C*
V.MULTI D.
V.S.M.D.
SMALL HALL
LARGE HALL
JAZZ CLUB
LIVE HOUSE
GAME
* 使用 DCS 技術
關於 DCS(數字影院音響)
與 Sony Picture Entertainment 合
作,Sony 測量出他們演播室的聲音環境,
並將測量數據與 Sony 公司自己的 DSP(數
字信號處理器)技術相結合,開發出“數
字影院音響”技術。“數字影院音響”在
家庭影院中根據電影導演的喜好模仿理想
中的電影院聲音環境。
SOUND
FIELD +/-
電影演播室 EX 是一種欣賞杜比數碼
DVD 等使用多聲道格式編碼的電影軟體的
理想模式。該模式再現 Sony Picture
Entertainment 演播室的聲音特性。
反覆按 SOUND FIELD +/- 鍵直至
“C.S.EX A (或 B,C)”顯示在前面
板顯示幕上。
關於電影演播室 EX
電影演播室 EX 包含一下三個要素。
• 虛擬多維空間
從一對實際後置揚聲器創造出 5 對環繞
視聽者的虛擬揚聲器。
• 屏幕深度匹配
在電影院中,聲音似乎是從反射在電影
屏幕上的畫面中傳出來。該要素通過將
前置揚聲器的聲音“移動至”屏幕內,
在您的視聽室中創造出同樣的感覺。
• 電影演播室混響
再現電影院特有的混響。
電影演播室 EX 是同時執行這些要素的
組合模式。
聲音調節
以電影演播室 EX 欣賞電影
C.S.EX C(電影演播室 EX C)
再現 Sony Picture Entertainment
音樂配音室的聲音特性。這是觀看電影配
樂以音樂為主的音樂電影或古典電影的理
想模式。
注意
• 虛擬揚聲器產生的效果可能會增加播放信號中的
噪音。
• 聆聽使用虛擬揚聲器的聲場時,您將無法聽到任
何直接來自後置揚聲器的聲音。
選擇其他聲場
反覆按 SOUND FIELD +/- 鍵直至您想
要的聲場顯示在前面板顯示幕上。
C.S.EX A(電影演播室 EX A)
再現 Sony Picture Entertainment
“Cary Grant Theater”電影製作演播室
的聲音特性。這是一種標準模式,適合於
觀看大多數類型的電影。
當前聲場顯示在前面板顯示幕上。
C.S.EX B(電影演播室 EX B)
再現 Sony Picture Entertainment
“Kim Novak Theater”電影製作演播室
的聲音特性。這是觀看科幻片或動作片等
包含各種聲音效果電影的理想模式。
續
47CT
N.SURROUND(普通環繞)
根據錄製方法播放包含多聲道環繞音
頻信號的軟體。用杜比 Pro Logic 解碼
帶 2 聲道音頻信號的軟體以創造環繞效
果。
V. MULTI D.*
(虛擬多維空間)
用 3D 聲音成像技術,從一對實際的
後置揚聲器產生一個高於視聽著位置的虛
擬後置揚聲器陣列。這種模式能以約 30º
角增加圍繞收聽者產生 5 對虛擬揚聲器。
側
L
C
RS
LS
RS
LS
RS
後
L
C
R
LS
JAZZ CLUB(爵士樂俱樂部)
再現爵士樂俱樂部的原聲。
LIVE HOUSE(現場原創)
再現容納約 300 人的現場音樂廳原聲。
HEADPHONE THEATER(耳機劇院)
當您將耳機連接至接收機的 PHONES 插
孔時,HEADPHONE THEATER 模式讓您通
過一對耳機如身臨其境地體驗劇院效
果。用杜比數碼和 DTS 等 5.1 聲道信
號音源能使這種模式的效果更佳。選取
任何聲場選項(除 AUTO FORMAT DECODE
或 2 CH STEREO 以外)都能使用此模
式。
RS
LS
* “虛擬”聲場:採用虛擬揚聲器的聲
場。
RS
LS
RS
V.S.M.D.*
(虛擬半多維空間)
不用真正的後置揚聲器而用 3D 聲音
成像技術,從前置揚聲器的聲音中創建虛
擬後置揚聲器。這種模式能以約 30º 角增
加圍繞收聽者產生 5 對虛擬揚聲器。
L
C
R
LS
RS
LS
RS
LS
48CT
LARGE HALL(大型音樂廳)
再現矩形大型音樂廳的原聲。
是輕柔原聲的理想選擇。
GAME(遊戲)
從視頻遊戲軟體中獲得最大音頻壓縮。
R
LS
SMALL HALL(小型音樂廳)
再現矩形小型音樂廳的原聲。
RS
要關閉環繞聲效果
反覆按 SOUND FIELD +/- 鍵直至
“A.F.D.”或“2CH STEREO”顯示在前面
板顯示幕上。
z 接收機為每個功能模式記憶最後選定的聲場
(聲場鏈接)
任何時候選擇 DVD 或 TUNER 等功能時,最
後用於該功能的聲場再次被自動應用。例如,如果
您用 SMALL HALL 作聲場來聆聽 DVD,當改變為其
他功能,然後又返回 DVD 時,將再次應用 SMALL
HALL。對於調諧器,各預設電台的聲場被分別記
憶。
z 查看包裝就可以識別節目軟體的編碼格式
– 杜比數碼光碟標有
標記。
– 杜比環繞編碼節目標有
標記。
– DTS 數碼環繞光碟標有 DTS 標記。
注意
當輸入採樣頻率為 96kHz 的聲音信號時,
該聲音信號自動以立體聲形式輸出,且聲場關
閉。
可調節參數
FRONT BAL.
z
z
z
z
z
z
z
z
z
z
z
z
REAR BAL.
z
z
z
z
z
REAR LEVEL
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
CENTER LEVEL
z
z
z
z
z
z
z
z
z
z
z
SUB WOOFER LEVEL
z
z
z
z
z
z
z
z
z
z
z
聲音調節
C.S.EX A
C.S.EX B
C.S.EX C
N. SURROUND
V.MULTI D.
V.S.M.D.
SMALL HALL
LARGE HALL
JAZZ CLUB
LIVE HOUSE
GAME
HEADPHONE THEATER
注意
根據光碟而定,上表所述的音頻信號可能無法輸出。詳細資訊,請參閱光碟的使用說明書。
49CT
僅使用前置揚聲器
調節音量等級參數
(2 聲道立體聲)
音量等級選單包含可用以調整平衡和
每個揚聲器的揚聲器音量的參數(第 26
頁)。
SOUND
FIELD +/-
ENTER
C/X/x/c
AMP MENU
反覆按 SOUND FIELD +/- 鍵直至“2CH
STEREO”顯示在前面板顯示幕上。
該模式僅從前置左和右揚聲器輸出聲
音。標準 2 聲道(立體聲)音源完全通
過此聲場處理。多聲道環繞格式被合併為
2 聲道。
1
2
開始播放用多聲道環繞聲編碼的
節目源。
反覆按 AMP MENU 鍵。
9 LEVEL 顯示在前面板顯示幕內。
注意
選擇了“2CH STEREO”時,低音揚聲器中無聲音
輸出。要用前置左和右揚聲器以及低音揚聲器收聽2
聲道(立體聲)音源,請反覆按 SOUND FIELD +/鍵選擇“A.F.D.”。
3
4
坐在收聽位置用 X/x 鍵選擇要
調整的項目。
用 C/c 鍵調整音量等級。
調整值將出現在前面板顯示幕上。若
幾秒鐘內不操作遙控器,這個值將關
閉並儲存在接收機中。
50CT
欣賞電影
3
變換角度
按 c 鍵或 ENTER 鍵。
角度變化為“-.”。
如果 DVD 上對每一場面錄有各種角
度(多角度),前面板顯示幕上將出現
“ANGLE”選單。這表明您能改變視角。
例如,當您播放正在行進的火車場面
時,您能從火車的前面,火車的左窗口或
右窗口顯示景色,而無需火車停下。
4
用數字鍵或 X/x 鍵選擇角度,
然後按 ENTER 鍵。
ANGLE
數字鍵
角度轉變為所選擇的角度。
z 可以按 ANGLE 鍵直接選擇角度。每按一次這個
按扭,角度變化一次。
欣賞電影
關閉控制選單
反覆地按 DVD DISPLAY 鍵,直到控
制選單關閉。
ENTER
X/c/x
DVD DISPLAY
注意
1
在播放過程中按 DVD DISPLAY
鍵。
有的 DVD,即使光碟上錄有多角度,但也可能
無法改變角度。
出現控制選單。
2
按 X/x 鍵選擇
度)。
(角
出現角度的值。
括號中的數值為總角度。
51CT
顯示字幕
3
如果光碟錄有字幕,在播放時可以打
開或關閉字幕。如果光碟錄有不同語言的
字幕,在播放時可以切換字幕語言,或您
可以隨時打開或關閉字幕。例如,選擇您
需練習的語言,打開字幕以便更好的理
解。
4
SUBTITLE
ENTER
X/x
DVD DISPLAY
按 X/x 鍵選擇語言。
不同的 DVD 光碟有不同的選擇
語言。
顯示的 4 位數表示語言的代碼。
參照第 77 頁的語言代碼列表,觀看
各代碼所表示的語言。
按 ENTER 鍵。
取消字幕設置操作
在第 3 步中選擇“關”。
關閉控制選單
反覆按 DVD DISPLAY 鍵直到控制選
單關閉。
z 可以直接按 SUBTITLE 鍵選擇字幕。每按一次,
選項就改變一次。
注意
1
播放時按下 DVD DISPLAY 鍵。
出現控制選單。
2
按 X / x 選擇
(字
幕),然後按下 ENTER 鍵。
出現字幕選項。
52CT
對於不同的 DVD,即使錄有多種語言字幕,也
可能無法改變字幕語言。
查看播放資訊 (先進功能)
您能查看資訊如:正在播放的比特速
率或光碟層。當播放光碟時,播放畫面近
似比特速率總是以 Mbps(兆比特每秒)顯
示,音頻以 kbps(千比特每秒)顯示。
要關閉“高級選項”窗口
在步驟 3 中選擇“關”。
要關閉控制選單
反覆按 DVD DISPLAY 鍵直到控制選
單關閉。
每個選項顯示
通過反覆按 DVD DISPLAY 鍵,您能
顯示“比特速率”或“層”。這兩項都在
“先進功能”中選擇。
ENTER
X/x
比特速率
音頻
DVD DISPLAY
視頻
1
在播放過程中,按 DVD DISPLAY
鍵。
音頻
視頻
顯示控制選單。
2
按 X/x 鍵選擇
(先
進功能),然後按 ENTER 鍵。
出現先進功能選項。
比特速率是指光碟上視頻/音頻每秒
數據量,比特速率越高,數據量越大。當
比特速率水平很高時,說明有大量的數據
量,然而這並不意味著能得到更高品質的
圖像或聲音。
層
3
按 X/x 鍵選擇項目。
每一項請查閱參考“每項顯
示”選單。
• 比特速率:顯示比特速率。
• 層:顯示層和拾音點。
4
欣賞電影
當正在播放 MPEG 音頻聲音軌跡時
DVD 有雙層時出現
表示光碟正在播放的近似點。
如果是一個雙層 DVD 光碟,接收機顯示
哪一層正在被讀取(“Layer 0”或“Layer
1”)。
有關層的詳細說明參看第 75 頁(DVD)。
按 ENTER 鍵。
53CT
使用各種附加功能
鎖住碟片(用戶鎖定,視聽者年
3
按 X/x 鍵選擇
(用戶鎖
定),再按 ENTER 鍵
“用戶鎖定”被選擇。
4
按 X/ x 選擇“開 → 鍵”,再按
ENTER 鍵。
齡控制)
您可以設定兩種光碟播放限制。
• 用戶鎖定
設定播放限制使接收機不播放不合適的
光碟。
• 視聽者年齡控制
根據預先確定的等級,如使用者的年
齡,可限制播放某些 DVD。
視聽者年齡控制和用戶鎖定使用相同
的密碼。
用戶鎖定
可最多為 50 張碟片設置相同的用戶
鎖定密碼。但當您為第 51 張設置時,第
1 張光碟的播放限制就會被取消。
x如果還未輸入密碼
出現用於注冊新密碼的顯示畫
面。
數字鍵
x
ENTER
C/X/x
O RETURN
DVD DISPLAY
用數字鍵輸入 4 位密碼,然後按
ENTER 鍵,然後會出現要求確認密碼的
顯示畫面。
x當已註冊密碼
出現要求輸入密碼的畫面顯示。
54CT
1
裝入想鎖定的光碟。
若光碟正在播放,按 x 鍵停止
播放。
2
在停止模式下,按 DVD DISPLAY 鍵。
出現控制選單如下。
5
使用數字鍵輸入或重新輸入 4 位密碼,
然後按 ENTER 鍵。
出現“用戶鎖定功能已設定”
後,屏幕重新回到控制選單。
播放設有用戶鎖定的光碟
1
裝入有用戶鎖定設定的光碟。
出現用戶鎖定顯示畫面。
2
用數字鍵輸入 4 位數密碼,然後按
ENTER 鍵。
接收機已作好播放準備。
如果輸入密碼有誤
在按 ENTER 鍵之前按 C 鍵,並
輸入正確數字。
如果操作有誤
按 O RETURN 鍵,然後再從第 3 步
重新開始。
要關閉控制選單
按 O RETURN 鍵,再反覆按 DVD
DISPLAY 鍵直到關閉控制選單。
要關閉用戶鎖定功能
在步驟 4 中,選擇“關 →”,然後按
下 ENTER 鍵。
2
用數字鍵輸入 4 位數密碼,然後按 ENTER
鍵。
z 如果您忘記密碼,當顯示用戶鎖定顯示畫面要
求您輸入密碼時,用數字鍵輸入“199703”6 位
數,然後按 ENTER 鍵。隨後會顯示要求您輸入新
的 4 位數密碼。
限制兒童播放(視聽者年齡控制)
要改變密碼
1
在步驟 4 中,按 X/x 鍵選擇到“密
碼 →”,再按 ENTER 鍵,出現要求
輸入密碼畫面。
2
用數字鍵輸入 4 位數密碼,然後按 ENTER
鍵。
3
用數字鍵輸入新的 4 位數密碼,然後
按 ENTER 鍵。
4
用數字鍵重新輸入一遍密碼進行確
認,然後按 ENTER 鍵。
根據預先設置碟片的播放級別,如使
用者的年齡來限制播放某些碟片。“視聽
者年齡控制”功能允許您設置播放限制級
別。
被限制場面不被播放,或由其他場面
取代。
使用各種附加功能
1
數字鍵
H
ENTER
X/x
O RETURN
DVD DISPLAY
續
55CT
1
在停止模式下,按 DVD DISPLAY 鍵。
出現設置顯示。
2
按 X/x 鍵選擇“個人設定”,然後按
ENTER 鍵。
顯示“個人設定”。
3
按 X/ x 鍵選擇“視聽者年齡控制
→”,再按 ENTER 鍵。
4
用數字鍵輸入或重新輸入密碼,然後
按 ENTER 鍵。
出現設置播放限制級別及改變密
碼的顯示。
5
按 X/ x 鍵選擇“標準”,然後按
ENTER 鍵。
顯示“標準”選項。
6
按 X/x 鍵選擇地理區域作為播放限制
級別,然後按 ENTER 鍵。
地區已選擇。
如果選擇“其他 →”,用數字鍵
選擇和輸入第 56 頁表中的標準代碼。
x如果還未設過密碼
出現要求註冊新密碼的顯示。
用數字鍵輸入 4 位數新密碼後,
按 ENTER 鍵。
隨後出現要求確認密碼顯示。
x如果已經註冊過密碼
出現要求輸入密碼顯示。
56CT
7
8
按 ENTER 鍵。
顯示“水平”的選項。
用 X/x 鍵選擇所需的級別,然後按
ENTER 鍵。
視聽者年齡控制設定完成。
播放已設定視聽者年齡控制的光碟
1
裝入光碟,按 H 鍵。
出現視聽者年齡控制顯示。
2
用數字鍵輸入 4 位數密碼,然後按
ENTER 鍵。
接收機開始播放。
z 如果您忘記了密碼,取出光碟並重複“限制兒
童播放”中的步驟 1 至 5,當要求輸入密碼時,
用數字鍵輸入“199703”,然後按 ENTER 鍵。此
時會顯示要求您輸入新的 4 位數密碼。在第 3 步
中輸入 4 位數新密碼後,把光碟重新放入接收機
並按 H 鍵。當出現視聽者年齡控制顯示時,輸
入新密碼。
注意
數值越低限制越嚴格。
如果操作有誤
按 O RETURN 鍵前一屏幕顯示。
使用各種附加功能
• 當播放無視聽者年齡控制功能的 DVD 時,本接
收機無法限制播放。
• 對於不同的 DVD,當您播放時可能會要求改變視
聽者年齡控制等級。出現這種情況,請輸入密
碼,然後改變等級。如果取消繼續播放模式,就
會恢復到原來的等級。
要關閉設定顯示
反覆按 DVD SETUP 鍵直到關閉設定
顯示。
關閉視聽者年齡控制功能並在輸入密碼後
播放 DVD
在第 8 步中將“水平”設定為“關”。
改變密碼
1
在第 5 步中,用 x 鍵選擇“改變密
碼 →”,然後按 ENTER 鍵。
出現要求輸入密碼的顯示。
2
按第 3 步輸入一新的密碼。
續
57CT
地區代碼
標準
阿根廷
澳大利亞
奧地利
巴基斯坦
巴西
比利時
丹麥
德國
俄羅斯
法國
菲律賓
芬蘭
韓國
荷蘭
加拿大
馬來西亞
墨西哥
58CT
代碼
2044
2047
2046
2427
2070
2057
2115
2109
2489
2174
2424
2165
2304
2376
2079
2363
2362
標準
挪威
葡萄牙
日本
瑞典
瑞士
泰國
台灣
西班牙
香港
新加坡
新西蘭
意大利
印度
印度尼西亞
英國
智利
中國
代碼
2379
2436
2276
2499
2086
2528
2543
2149
2219
2501
2390
2254
2248
2238
2184
2090
2092
其他操作
用遙控器控制電視機
通過調整遙控信號,則可以用附帶的
遙控器控制電視機。
注意
• 如果輸入新的代碼,以前輸入的代碼就會被抹
去。
• 更換遙控器電池時,代碼可能會復位為默認
(Sony)值。重新設置合適的代碼值。
使用遙控器控制電視機
RM SET UP
TV ?/1
數字鍵*
TV/VIDEO
WIDE
TV CH +/-
1
按住 RM SET UP 鍵的同時按 TV [/1 鍵。
SET UP 指示燈點亮。
2
用數字鍵輸入電視機製造商代碼(參見列
表)。
SET UP 指示燈閃爍兩次。
可遙控電視機的代碼值
如果列出的可選代碼不止一個,請逐
個輸入,直到找到對您電視機有效的代
碼。
生產商
代碼號
AIWA
AKAI
AOC
CENTURION
COLONAD
CURTIS-MATHES
Daytron
EMERSON
FISHER
FUJITSU
FUNAI
General Electric
GOLD STAR (LG)
GRUNDIG
HITACHI
J.C.Penney
JVC
KMC
LOEWE
MAGNAVOX
MARANTZ
MGA/MITUBISHI
NEC
NOKIA
PANASONIC (MATSUSHITA)
Philico
PHILIPS
PIONEER
Portland
QUASAR
RADIO SHACK
RCA
SABA
SAMPO
SAMSUNG
SANYO
SCOTT
SEARS
SHARP
SONY
SYLVANIA
TEKNIKA
TELEFUNKEN
THOMSON
TOSHIBA
WARDS
YORX
ZENITH
17
22
22
28
21
28
28
21, 22, 30
27
11
14
24, 26
21, 22, 32
44
04, 21, 51
22, 28
06
21
56
21, 25, 28
22, 29
22, 28, 29, 32
09, 22, 28
47, 48, 58
02, 13, 24, 57
21, 22
25, 34, 41, 42, 43
10
21
08, 24
23, 30
22, 26
45, 46
28
18, 33, 49, 50
07, 15, 27, 52
28
03, 26, 27
08, 16, 21, 23
01 (default), 12
25, 28
21, 25, 30
53
55
03, 54
21, 22, 28
28
31
其他操作
TV VOL +/-
電視機
59CT
控制電視機
您可以使用以下鍵來控制電視機。
按下
可以
TV [/1 鍵
打開或關閉電視機。
TV/VIDEO 鍵
在電視機和其它輸入
源中轉換電視機的輸
入源。
TV VOL +/- 鍵
調節電視機音量。
TV CH +/- 鍵
變換電視機聲道。
WIDE 鍵
變換電視機的縱橫比。
觀看圖像或其它裝置
可以將錄影機或其它裝置連接到
VIDEO(S VIDEO/AUDIO L/R IN/OUT) 插
孔。更多操作資訊請查閱該裝置所附帶的
操作手冊。
FUNCTION
注意
對於不同的電視機,有的可能無法控制,或者
以上某些鍵無法使用。
* 僅能使用數字鍵輸入可控制電視機的代碼。
反覆按下 FUNCTION 鍵,直到連接有
裝置的“VIDEO”插孔出現在前面板顯
示幕內。
每按一次 FUNCTION 鍵,接收機模式
按如下順序改變:
DVD t VIDEO t TV/SAT t AUX t MD/
DAT t TUNER t DVD...
注意
您可以按 FUNCTION 鍵並選擇所連接的輸入
訊號,來收聽連接在接收機上的其它裝置(卡座、
衛星調諧器等)。
60CT
收聽無線電台
首先將電台預先設置在接收機的記憶
體中(參看第 28 頁的“預設電台”)。
FUNCTION
DISPLAY
要收聽未預置的電台
在步驟 2 中用手動或自動調諧。反
覆按遙控器上的 m 或 M 鍵進行手動
調諧。
按住遙控器上的 m 或 M 鍵進行
自動調諧。
?/1
z 如果 FM 節目出現噪聲
STEREO/
MONO
按遙控器上的 STEREO/MONO 鍵,使在前面板
顯示幕中出現 MONO,立體聲效果消失,但接收效
果有改善,再按一下此鍵可恢復立體聲效果。
z 提高接收效果
重新定位天線。
m/M
PRESET +/-
VOLUME +/-
1
反覆按 FUNCTION 鍵直到 TUNER
選單出現在前面板顯示幕內。
查看頻率或聲場
反覆按 DISPLAY 鍵。
每按一次 DISPLAY 鍵,前面板顯示
幕將按下列順序變化:
電台索引名稱 t 頻率 t 聲場 t
電台索引名稱
最後一次接收的電台調入。
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
m
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
2
TRACK
CHAPTER INDEX
H TUNED
M MONO ST S
dB REPEAT 1
k H z PROGRAM
M H z SHUFFLE
其他操作
ALL 1 DISC S AUTO TITLE
PRO LOGIC
DIGITAL FM AM
NTSC PBC ANGLE
反覆的按 PRESET + 或 PRESET 鍵,選擇想要的預置電台。
每按一次鍵,接收機就調入一個
電台。
3
按 VOL +/- 鍵調節音量。
要關閉收音機。
按 ?/1 鍵。
61CT
為預置電台命名
您可以為已預置的電台輸入最多 8 個
字符的名稱。當選擇一個電台後,這些名稱
(如“XYZ”)將出現在接收機前面板顯示
幕上。
注意每個預置電台只可輸入一個名
稱。
FUNCTION
NAME
3
4
按 NAME 鍵。
用箭頭鍵建立名稱索引。
按 x/X 鍵選擇一個章,然後按
c 鍵移動光標到下一個位置。
如果操作有誤
反覆按 C 或 c 鍵直到要更改
的字符閃爍,然後按 x/X 鍵選擇正
確的字符。
5
按 ENTER 鍵。
要給其它電台定義索引名稱
重複步驟 2 至 5。
ENTER
C/X/x/c
1
反覆按 FUNCTION 鍵,直到 TUNER
出現在前面板顯示幕上。
最後一次接收的電台被調入。
每按一次 FUNCTION 鍵,接收機
模式就按下列順序改變:
DVD t VIDEO t TV/SAT t AUX
t MD/DAT t TUNER t DVD...
2
調入想要為其建立名稱索引的預
置電台。
如果您不熟悉如何調入預置電
台,參看第 61 頁的“收聽無線電
台”。
62CT
設定和調節
3
使用設定顯示
使用設定顯示,能對圖像和聲音等項
目做各種調整。您也能為字幕和設定顯示
設置一種語言及其它內容。在第 62﹣68
頁將詳細介紹每一個設定顯示項目。有關
設定顯示項目的總清單,請看第 78 頁。
按 X/x 鍵選擇“常規”然後按 ENTER
鍵。
出現設定顯示。
主要
項目
如何使用設定顯示
4
ENTER
X/x
DVD DISPLAY
按 X / x 鍵從顯示列表: “語言設
定”、“畫面設定”、“個人設置”
和“揚聲器設定”中選擇設置項目,
然後按 ENTER 鍵。
已選擇的設定項目出現。
例如“畫面設定”
DVD SETUP
所選項目
設定
項目
在停止模式下,按 DVD DISPLAY 鍵。
出現控制選單。
如果按 DVD SETUP 鍵,將直接進
入步驟 3。
2
按 X/x 鍵選擇
(設定)然
後按 ENTER 鍵。
有關設置的選擇項將出現。
設定和調節
1
續
63CT
5
按 X/ x 鍵選擇一個項目,然後按
ENTER 鍵。
出現已選擇的項目。
例如:“電視機形式”
設定顯示或聲音軌跡語
言(語言設定)
“語言設定”可使您對屏幕顯示或聲
音軌跡設置各種語言。
在設置顯示中選擇“語言設定”。關
於怎樣用顯示的更詳細介紹,參看“使用
設定顯示”(第 63 頁)。
選項
6
按 X/ x 鍵選擇一個設定,然後按
ENTER 鍵。
此設定已選擇並完成設定。
例如:“4:3 全景掃描”
被選設定
x畫面顯示語言(屏幕顯示)
在屏幕上轉換顯示語言。
從顯示選單中選擇語言。
xDVD 菜單(僅用於 DVD)
為 DVD 選單選擇所要的語言。
x聲音語言(僅用於 DVD)
轉換聲音軌跡語言。從顯示選單中選
擇語言。當您選擇“原文”時,則選擇了
光碟中優先給出的語言。
要關閉設定顯示
反覆的按 DVD SETUP 或 DVD DISPLAY
鍵,直到設定顯示關閉。
z 如果在步驟 2 中選擇“重新設定”,您能將第
80 頁中所有“設定”中的設定項目重新設定為默
認設定(除視聽者年齡控制)。在您選擇“重新設
定”並按 ENTER 鍵後選擇“是”,則可重新設定
所有的設置(這需要幾秒鐘完成),或選擇“不”
並且按 ENTER 鍵回到控制選單。當重新設定接收
機時,切勿按 POWER 鍵或 ?/1 鍵。
64CT
x字幕(僅用於 DVD)
轉換字幕語言。從顯示選單中選擇語
言。當您選擇“聲音連動”選項時,字幕
語言變化取決於您為聲音軌跡選擇的語
言。
z如果您在“DVD 菜單”、“字幕”、或“聲音
語言”中選擇了“其他 t”,您就可以用數字鍵
從列表中選擇並輸入語言代碼(第 79 頁)。
當作出選擇後,下次您選擇“其他 t”時將顯示
此語言代碼(4 位數字)。
注意
如果您選擇的一種語言在 D V D 中沒有被錄
製,那麼其中一種被錄製的語言將被自動選中
(除“畫面顯示語言”外)。
顯示設定(畫面設定)
按照連接的電視機選擇設置。
在設定顯示中選擇“畫面設定”。有
關使用顯示的詳細說明參看“使用設定顯
示”(第 63 頁)。
默認設定有下划線。
x電視機形式(僅用於 DVD)
選擇與 DVD 相連接電視機的外觀比
率(4:3 標準或寬屏)。
默認設定依據所在國家的機型而不
同。
16:9
4:3
全景掃描
設定和調節
4:3
信箱形式
當您所連接的電視機是寬屏幕
或具有寬模式功能時,選擇此
項。
當您所連接的電視機屏幕的比
率是 4:3 時,選擇此項。
顯示寬畫面,並且在屏幕上部
和下部有帶邊。
當連接 4:3 屏幕電視機時選
擇此項。在整個屏幕上自動顯
示寬畫面,並切除無法顯示到
的部分。
續
65CT
16:9
個人設定(個人設定)
4:3 信箱形式
允許建立視聽者年齡控制和其它設
定。
在設定顯示中選擇“個人設定”。
有關使用顯示的詳細說明參看“使用
設定顯示”(第 63 頁)。
有下划線的為默認設定。
4:3 全景掃描
注意
在有的 DVD 中,“4:3 信箱形式”會被自動
選取,從而代替“4:3 全景掃描”,反之亦然。
x屏幕節能
打開和關閉屏幕節能使接收機在處於
暫停或處於停止模式達 15 分鐘,或播放
CD 超過 15 分鐘時,出現屏幕節能圖像。
屏幕節能可防止顯示設備受到損壞,按下
H 鍵則關閉屏幕節能。
開
關
打開屏幕節能。
關閉屏幕節能。
自動
x背景畫面
在停止模式或正在播放 CD 時,可以
為電視屏幕選擇背景顏色或圖片。
PAL
封套畫面
圖像
圖形
藍色
黑色
66CT
x播放 VIDEO CD 的彩色系統
當播放 VIDEO CD 時選擇彩色系統。
只有當光碟中已錄有此封套畫
面圖像(靜止圖片)時,才會
出現背景畫面,如果光碟中不
含有封套畫面圖像,此時將出
現“圖形”畫面。
儲存系統中的一個預設畫面出
現在背景上。
背景是藍色。
背景是黑色。
NTSC
對 PAL 或 NTSC,均輸出光碟
系統中的圖像信號。如果您的
電視機是 DUAL 系統,請選擇
自動。
改變 NTSC 光碟的視頻信號,
並在 PAL 系統中的輸出。
改變 PAL 光碟中的圖像信號並
在 NTSC 系統中輸出。
注意
• 您不能改變光碟自身的彩色系統。
• 對亞洲機型或澳大利亞機型,您能根據相連接的
電視機改變裝置的彩色系統。見第 22 頁。
x暫停模式(僅對 DVD)
選擇暫停模式下的圖片。
自動
幀
輸出含有移動物體的動感畫
面,且無圖象抖動。正常情況
下就選擇比項。
以高清晰度輸出含有無動感物
體的畫面。
x視聽者年齡控制 t(僅對 DVD)
對 DVD 設定密碼和播放限制等級,
以對兒童播放進行限制。要獲得更詳細地
了解,參看“限制兒童播放(視聽者年齡
控制)”(第 55 頁)。
揚聲器的設定(揚聲器設定)
為獲得最佳的環繞聲,必須對已連接
的揚聲器設定尺寸和距收聽位置的距離。
然後用測試音調整揚聲器音量和平衡至相
同水平。
在設定顯示中選擇“揚聲器設定”。
詳細說明參看“使用設定顯示”(第 63
頁)。
下划線部分為默認設定。
x聲音軌跡選擇(僅對 DVD)
當播放一張記錄有多種音頻格式
(PCM,MPEG 音頻,DTS,或者杜比數碼格
式)的 DVD 光碟時,具有最高聲道數的
聲音軌跡有優先權。
關
自動
沒有得到優先權。
得到優先權。
注意
x尺寸
當您未連接中置或後置揚聲器,或搬
動後置揚聲器時,須設定前置揚聲器中置
揚聲器,後置揚聲器和低音揚聲器參數。
下划線部分為默認設定。
• 前置揚聲器
﹣大:一般情況下選擇此項。
﹣小:如果小型揚聲器用作前置揚聲器
則選擇此項。
• 中置揚聲器
﹣大:一般情況下選擇此項。
﹣小:如果小型揚聲器用作中置揚聲器
則選擇此項。
﹣無:如果不使用中置揚聲器則選擇此
項。
設定和調節
• 當項目設定為“自動”時,可以改變語言。在
“語言設定”中,“聲音軌跡選擇”設定比“聲
音語言”設定具有更高的優先級(第 64 頁)。
• 如果 PCM、DTS、MPEG 音頻,以及杜比數字等聲
音軌跡有相同的聲道數,接收機會依次選擇
PCM、DTS、杜比數字,以及 MPEG 音頻的聲音軌
跡。
• 根據 DVD 光碟的不同,接收機預先選定音頻聲
道為優先。此時,您不能通過選擇“自動”,使
DTS、杜比數字,或者 MPEG 音頻聲音格式獲得
優先級。
要回到默認設定
選擇這一項,然後按 CLEAR 鍵。
續
67CT
• 後置揚聲器
﹣大 ( 後置,低置) ,大(後置,高
置),大(側置,低置),大(側
置,高置),小 ( 後置,低置) ,小
(後置,高置),小(側置,低
置),小(側置,高置):確定位置
和高度可以正確地實現“虛擬”聲場
(第48頁)中的“數字影院環繞”模
式。
﹣無:如果不使用後置揚聲器則選擇此
項。
• 低音揚聲器
﹣是:如果使用低音揚聲器則選擇此
項。
﹣無:如果不使用低音揚聲器則選擇此
項。
位置圖
90
A
A
45
B
B
20
高度圖
注意
• 當您選擇某一項目時,聲音會停止片刻。
• 根據其它揚聲器的設定,低音揚聲器可能產生過
大的聲音。
C
C
60
D
D
30
確定後置揚聲器的位置和高度
如果您在“後置揚聲器”選項中選取
“無”,則可確定後置揚聲器的位置和高
度。有下划線為默認設定。
大(後置、低置)如果後置揚聲器位於 B 和
小(後置、低置)D 時選擇此項。
大(後置、高置)如果後置揚聲器位於 B 和
小(後置、高置)C 時選擇此項。
大(側置、低置)如果後置揚聲器位於 A 和
小(側置、低置)D 時選擇此項。
大(側置、高置)如果後置揚聲器位於 A 和
小(側置、高置)C 時選擇此項。
x視聽距離
揚聲器默認距離的設定與以下圖示的
收聽位置有關。
5m
5m
5m
當“後置揚聲器”設定為“無”時,這些參
數不能使用。
3.4m
3.4m
當移動揚聲器時一定要改變設定顯示
中的值。默認設定有下划線。
68CT
前置
揚聲器
(5m)
中置
揚聲器
(5m)
後置
揚聲器
(3.4m)
前置揚聲器距收聽者的距離範圍為
1.0 到 15m,設定以 0.2m 遞增。
中置揚聲器距離可以朝收聽位置移
動至 1.6m,移動以 0.2m 遞增。
後置揚聲器的距離從前置揚聲器位
置起向收聽位置最多移動 4.6m,
移動以 0.2m 遞增。
中置揚聲器
(0dB)
後置揚聲器
(0dB)
注意
• 當您設置距離時,聲音會停止片刻。
• 如果每個前置或後置揚聲器未放置在距收聽位置
相等的距離,請按照最近的揚聲器設定距離。
• 不要將後置喇叭放置在比前置揚聲器距收聽位置
更遠的位置。
x平衡調整
您能如下改變左右揚聲器間的平衡。
確保把 “測試音調”設置為“開”,以方
便調整。
有下划線為默認調整。
前置揚聲
器 (中心)
後置揚聲
器 (中心)
x水平
您能如下改變每個揚聲器的水平。確
保使“測試音調”設定為“開”,以便容
易調整。
默認設定有下划線。
調整前置左右揚聲器間的平衡(您
能從中心 6 級向左或右調整)。
調整後置左右揚聲器間的平衡(您
能從中心 6 級向左或右調整)。
低音揚聲器
(0dB)
調整中置揚聲器的水平。(從
-10dB 至 +10dB,以 1dB 遞
增)。
調整後置揚聲器的水平。(從
-10dB 至 +10dB,以 1dB 遞
增)。
調整低音揚聲器的水平。
(從 -10dB 至 +10dB,以 1dB
遞增)。
一次性調整所有揚聲器的音量
使用 VOLUME 鍵控制。
x測試音調
揚聲器將發出測試音調來調整“平
衡”和“水平”。
關
開
設定和調節
揚聲器不發出測試音調。
調整平衡和水平時,每個揚聲器
依次發出測試音調。
當您選擇“揚聲器設定”中某一
項時,左右兩個揚聲器同時發出
測試音調。
69CT
調整揚聲器音量和水平
1
在您停止播放後,按下設定顯示中的
DVD SETUP 鍵後選擇“揚聲器設定”。
2
選擇“測試音調”並將“測試音調”
設置為“開”。
您能依次聽到來自各個揚聲器的
測試音調。
3
在收聽位置處,選擇“平衡調整”或
“水平”,然後用 X/x 鍵調整“平
衡調整”值和“水平”值。
左右揚聲器同時發出測試音調。
4
選擇“測試音調”並把“測試音調”
設置為“關”,以關閉測試音調。
注意
當您調整揚聲器設定時,聲音會停止片刻。
70CT
附加資訊
故障排除
聲音
無聲音。
如果您在使用本接收機時遇到下列困
難,在請求修理之前,可以用此故障排除
指南來解決問題。如果問題仍存在,請咨
詢離您最近的索尼銷售商。
電源
電源未打開。
, 檢查電源插頭(幹線導線)是否完全的插
入插座。
圖像
無圖像。
, 連接線未完全連接。
, 連接線損壞。
, 接收機未連接到正確的電視機輸入插孔
(第 21 頁)。
, 電視機未設定為視頻輸入,以致無法觀看
來自本接收機的圖像。
出現圖像雜波。
即使在“畫面設置”的“電視機形式”中
設置了外觀比率,圖像仍不能充滿整個屏
幕。
, 說明您的 DVD 已經鎖定光碟的外觀比率。
畫面是黑白圖像。
左右聲音不平衡或顛倒
, 檢查揚聲器和部件間連接是否正確和完
全。
, 調整 LEVEL 選單中的前置平衡參數(第
26,69 頁)。
聽到嚴重的嗡嗡聲或噪聲。
, 檢查揚聲器和部件間連接是否完全連接。
, 檢查連接線是否遠離變壓器或馬達,並使
連接線遠離電視機或熒光燈至少 3 米。
, 使電視機遠離音頻部件。
, 插頭和插孔髒污,用帶有酒精的濕布擦
洗。
, 清潔光碟。
播放 VIDEO CD 或 CD 碟片時立體聲效果
丟失。
附加資訊
, 光碟髒或有裂紋。
, 如果通過 VCR 將圖像從本接收機輸出至電
視機,某些 DVD 節目上採用的版權保護信
號能影響圖像的品質。
, 連接線未完全連接。
, 連接線損壞。
, 如果前面板顯示幕中顯示了“MUTING ON”,
請按一下遙控器上的 MUTING 鍵。
, 接收機的保護裝置由於短路被啟動。關閉
統,清除短路,再重新打開電源。
, 音頻連接線損壞。
更換新的音頻連接線。
, 接收機處於暫停或慢進播放模式,按 H
鍵回到正常播放模式。
, 正在進行快進或快倒。
按 H 鍵回到正常播放模式。
, 檢查揚聲器的設定(第 23、67 頁)。
, 在控制選單顯示中設置“聲音語言”為
“立體聲”(第 44 頁)。
, 確認已將接收機連接正確。
, 當播放以 NTSC 制式錄製的光碟,屏幕上
的圖像會由於電視機的不同而變為黑白。
續
71CT
當播放杜比數碼聲音軌跡時,聽不到環繞
效果。
, 檢查是否開啟聲場功能(第 46 頁)。
, 檢查揚聲器連接和設定(第 16、23、67
頁)。
, 有些 DVD 即使是以杜比數碼格式錄製的聲
音軌跡,輸出的信號卻不是完全 5.1 聲
道,而是單聲道或立體聲。
當播放杜比數碼或 MPEG 音頻聲音軌跡時
聽不到環繞效果。
無法調入無線電台。
, 確認天線是否連接正確。調整天線,必要
時連接室外天線。
, 電台信號強度太弱(自動調諧時)。直接
手動調諧。
, 未預設電台或預設電台已被清除(使用掃
描調諧預設電台時)。請重新預設電台
(第 28 頁)。
, 按 DISPLAY 鍵顯示頻率。
, 檢查揚聲器連接和設定(第 16、23、67
頁)。
, 有些 DVD 即使是以有杜比格式或以 MPEG
音頻格式錄製的聲音軌跡,輸出的信號不
完全是 5.1 聲道,而是單聲道或立體聲。
遙控器失靈。
僅中置揚聲器有聲音。
光碟無法播放。
, 有的光碟聲音只來自於中置揚聲器。
中置揚聲器沒有聲音。
, 確認聲場功能是否開啟(第 46 頁)。
, 選擇含有“CINEMA”和“VIRTUAL”單詞的
聲場(第 46 頁)。
後置揚聲器沒有聲音或音量很小。
, 確認聲場功能是否開啟(第 46 頁)。
, 選擇含有“CINEMA”和“VIRTUAL”單詞的
聲場(第 46 頁)。
72CT
操作
,
,
,
,
遙控器和接收機之間是否有障礙物。
遙控器與接收機距離太遠。
遙控器沒有對準接收機的遙控感應器。
遙控器電池能量變弱。
, 沒有放入光碟。
, 碟片放反了。
把碟片播放面向下裝入光碟托架。
, 光碟未放正。
, 接收機不能播放 CD﹣ROM 等(第 7
頁)。
, DVD 區域編碼與接收機不相符。
, 接收機受潮。
取出碟片,讓接收機通電約半小時(第 3
頁)。
光碟未從開頭播放。
字幕語言無法改變。
, 已選擇程序播放,隨機播放或重複播放功
能(第 34-37 頁)。
在播放光碟前按 CLEAR 鍵取消這些功能。
, 已選擇重新播放功能。
在停止狀態中,按接收機上或遙控器上的
x 鍵然後開始播放 DVD(第 31 頁)。
, 標題,DVD 或 PBC 選單自動出現在電視機
屏幕上。
, 正在播放的 DVD 未錄製多語言字幕。
, 此 DVD 禁止改變字幕。
字幕無法關閉。
, 此 DVD 禁止關閉字幕。
無法改變角度。
, DVD 執行自動播放功能。
, 正在播放的 DVD 未錄製多角度。只有位於
前面板顯示幕的“角度”指示燈亮時,才
能改變角度。
, 此 DVD 禁止改變角度。
播放自動停止。
接收機無法正確運行。
接收機開始自動播放光碟。
, 某些碟片可能含有自動暫停信號。播放此
種碟片時,接收機會在自動暫停信號處停
止播放。
不能執行下列這些功能:如停止、尋找、
慢放、重複播放、隨機播放或程序播放。
, 有的光碟可能無法執行上述一些操作。參
看隨光碟附帶的操作手冊。
資訊未以您想要的語言顯示。
, 在設定顯示中,在“畫面顯示語言”下的
“語言設定”內選擇需要的屏幕顯示語言
(第 64 頁)。
, 正在播放的 DVD 未錄製多語言軌跡的功
能。
, 此 DVD 禁止改變聲音軌跡語言。
前面板顯示幕沒有任何顯示。
, 按遙控器上的 DIMMER 鍵。
5 個字符的維修號碼出現在屏幕和前面板
顯示幕內。
, 自檢功能被激活(見第 74 頁中的表)。
光碟托架不能打開,並且 LOCKED 字樣顯
示在前面板顯示幕內。
, 請與 Sony 銷售商或當地授權的 Sony 服
務機構聯繫。
“PROTECT”出現在前面板顯示幕上。
附加資訊
聲音軌跡語言無法改變。
, 如果靜電干擾等原因使接收機不能正常的
運行,請按接收機上的 POWER 鍵使接收機
關閉,然後再開啟。
, 揚聲器保護電路起作用。請檢查揚聲器連
接。
73CT
自檢功能(顯示中出現字母/數
術語
字時)
自檢功能激活時能防止接收機出現故
障。在這種情況下,屏幕和前面板顯示幕
上將顯示一個 5 個字符的服務編號(如:
C13 00)。參看下表。
C:13:00
維修編號的
前 3 個字符
C 13
C 31
E XX
(XX 為數字)
74CT
原因和/或糾正方法
光碟髒污。
, 用軟布清洗光碟(第 8
頁)。
光碟沒有正確的放入。
, 重新正確放入光碟。
為了防止出現故障,接收機
執行自檢功能。
, 與最近的 Sony 銷售商或
當地授權的服務部門聯
繫,並提供一個 5 位數
的服務編號。
如:E61 10
比特速率
其值表明一個 DVD 每秒壓縮圖像數據
的數量,其單位是 Mbps(兆比特每秒)。
1 Mbps 相等於每秒的數據是 1,000,000
比特。比特速率越高,數據量越大。但
是,這不等於您能獲得高品質的圖像。
標題
DVD 光碟上的一段畫面或一段音樂的
最長部分;在視頻軟體上的電影等畫面片
段;或者在音頻軟體上的整個專輯等。每
個標題配有一個標題號碼,可用來查找您
想要的標題。
播放控制(PBC)
VIDEO CD(2.0 版本)上的加密信號
可以控制播放。
使用帶 PBC 功能的 VIDEO CD 上記載
的屏幕選單,您可以享受簡單的交互式程
序,這種程序里有查找和其它功能。
超級音頻 CD(Super Audio CD)
這種音頻格式基於當前的音頻 CD 標
準,但它包括能提供更高品質聲音的更大
量的資訊。有三種類型的光碟:單層,雙層
和混和型。混合型的光碟包括標準的音頻
CD 和超級音頻 CD 兩種資訊。
場面
杜比專業邏輯環繞
在有 PBC(播放控制)功能的 VIDEO
CD 上,選單螢幕、運動影像和靜止影像都
被分成許多部分,稱為“場面”。
作為一種編譯杜比環繞的方法,杜比
專業邏輯環繞能把兩聲道的聲音變為四聲
道。相比以前的杜比環繞系統,杜比專業
邏輯環繞能更自然地再現從左到右的整個
環繞效果,可以更準確地定位聲音。要充
分利用了杜比專業邏輯環繞,您應該有一
對後置揚聲器和一個中置揚聲器。後置揚
聲器輸出單聲道聲音。
地區代碼
本接收機可以保護版權。根據銷售地
區的差異每個 DVD 接收機或 DVD 光碟中
都分配有一個地區代碼。每地區代碼都註
明在接收機中或光碟的包裝上。本接收機
能播放與地區代碼一致的光碟。也能播放
標記的光碟。即使地區代碼沒有
帶有
在 DVD 上標出,地區限定仍可能被啟動。
ALL
多角度功能
某些 DVD 能錄製一個場面的各角度
或攝像機的各視點。
DTS(數碼劇院系統)
多語種功能
數碼音頻壓縮技術是由數碼劇院系統
公司開發的。這種技術符合 5.1 聲道環
繞。後置聲道是立體聲,並且在這種格式
下有一個分立的低音揚聲器聲道。DTS 提
供同樣高品質數字音頻 5.1 離散聲道。
所有的聲道數據離散地錄製並數字化處
理,這樣可以獲得更佳的聲道分離效果。
有些 DVD 中為聲音或圖像中的字幕
而錄有幾種語言。
杜比數碼
與 CD 直徑相同的 DVD 光碟最多可
容納 8 小時的動畫。
一張單層單面的 DVD 光碟容納的數
據量是 4.7 GB,是 CD 的 7 倍。此外,
一張雙層單面的 DVD 光碟容納的數據量
是 8.5 GB,一張單層雙面的 DVD 是 9.4
GB。雙層雙面的 DVD 是 17 GB。
該圖像數據使用數字壓縮技術中心的
世界性標準之一的 MPEG 2 格式。圖像數
據被壓縮成原始尺寸的1 /40。這種 DVD
也採用可變率代碼技術,這種技術根據圖
像的狀態,改變已分配的數據。
音頻數據以杜比數碼以及 PCM 的形
式被錄製,以便您欣賞更真實的現場聲
音。
此外,這種類型 DVD 可以提供各種
先進的功能如:多角度、多語種和視聽
者年齡控制。
附加資訊
這種適合影院的聲音格式比杜比邏輯
環繞更先進。在這種模式中,後置揚聲器
輸出有擴展頻率範圍的立體聲,並且單獨
提供用於超低音的低音揚聲器聲道,這種
格式也稱為 5.1,因為低音揚聲器聲道被
看作 0.1 聲道(只有需要超低音效果時,
它才起作用)。這種格式中六個聲道被單
獨錄製,以形成良好聲道分離。此外,因
為所有信號都經數字化處理,因此發生衰
減的信號較少。
DVD
續
75CT
軌跡
章
它是 CD 或 VIDEO CD 上的一副圖片
或一個音樂片段的組成部分。每個軌跡用
一個軌跡號標記,以便您查找所需的軌
跡。
DVD 光碟上的一段圖像或一段音樂部
分,比標題小。一個標題由幾個章組成。
每一章要用章節數標出,以便讓您查找您
需要的章。
視聽者年齡控制
該 DVD 功能是根據每個國家的限制
等級,對不同年齡的用戶對光碟的播放做
出限制。不同光碟限制不同。限制激活
時,禁止播放,暴力的場面可跳過去或用
其它的場景代替等。
數碼影院聲音(DCS)
它是環繞聲的同類名稱。環繞聲是由
Sony公司研製的數碼信號處理技術來產生
的,這種數字影院聲音不同以前那種旨在
進行音樂複製的環繞聲場。
索引(超級音頻 CD/CD)/視頻索引(VIDEO
CD)
超級音頻 CD/CD 或 VIDEO CD 上將一
個軌跡分成幾部分的數字,以用來方便地
找到您想要的位置。根據光碟的不同,可
能未錄製索引。
VIDEO CD
具有動畫的壓縮盤。
這種圖片數據採用 MPEG 1 格式,它
是數字壓縮技術的世界性標準之一。圖片
數據被壓縮為原來的 1/140。因此,一張
12 厘米的 VIDEO CD 能包含最長為 74 分
鐘的移動畫面。VIDEO CD 也含有壓縮音
頻數據。人的聽力範圍外的聲音都被壓縮
而聽力範圍內的則沒有壓縮。VIDEO CD 的
音頻資訊容量是傳統的 CD 的 6 倍。
有兩個版本的 VIDEO CD 碟片。
•版本 1.1:您只可播放動畫和聲音。
•版本 2.0:能播放高分辨率的靜畫和體
驗 PBC 功能。
本接收機適用於以上兩種版本。
76CT
規格
放大器部分
立體聲模式
環繞模式
50 W + 50 W(1 kHz 時 6 歐姆,THD10%)
前置揚聲器 :50 W + 50 W
中置揚聲器*:50 W
後置揚聲器*:50 W + 50 W(1 kHz 時 6 歐姆,THD10%)
* 根據不同的聲場設定和音源,可能沒有聲音輸出。
輸入(模擬)
輸入(數字)
輸出(模擬)
輸出(數字)
VIDEO IN, AUX IN:
靈敏度:150 mV
阻抗:50 千歐姆
MD/DAT IN, TV/SAT IN OPTICAL:
靈敏度:—
VIDEO OUT:
電壓:2 V
阻抗:1 千歐姆
SUBWOOFER AUDIO OUT:
電壓:3 V
阻抗:47 千歐姆
耳機:
接受低和高阻抗的頭戴式耳機
DIGITAL OUT OPTICAL(CD only):
靈敏度:—
SACD/DVD 接收機
雷射
附加資訊
半導體雷射
(Super Audio CD/DVD:λ = 650 nm)
(CD:λ = 780 nm)
輻射持續時間:連續
信號格式系統
NTSC/PAL
頻率響應(在 2 CH STEREO 模式下)
DVD(PCM):2 Hz 至 22 kHz(±1.0db)
CD:2 Hz 至 20 kHz(±1.0db)
信噪比
大於 80dB(VIDEO 1(AUDIO)連接器)
諧波失真
小於 0.03%
續
77CT
FM 調諧部分
系統
北美機型:
其它型號:
天線:
天線端子:
中頻:
PLL 石英鎖定數字合成系統。
87.5 - 108.0 MHz(100 kHz 步級)
87.5 - 108.0 MHz(50 kHz 步級)
FM 線天線
75 歐姆,非平衡
10.7 MHz
AM 調諧部分
系統
調諧範圍
北美機型:
歐洲、中東和菲律賓機型:
其它型號:
天線
中頻:
調諧部分:
PLL 石英鎖定數字合成系統
530﹣1,710
531﹣1,710
531﹣1,602
531﹣1,602
530﹣1,710
環形天線
450 KHz
kHz(間隔設定為
kHz(間隔設定為
kHz(間隔設定為
kHz(間隔設定為
kHz(間隔設定為
10 kHz)
9 kHz)
9 kHz)
9 kHz)
10 kHz)
視頻部分
輸入
輸出
S﹣視頻:
Y:1Vp﹣p 75 歐姆
C:0.286Vp﹣p 75 歐姆
S﹣視頻:
Y:1Vp﹣p 75 歐姆
C:0.286Vp﹣p 75 歐姆
常規
電源要求
功率消耗
體積(約)
質量(約)
工作溫度
工作濕度
提供配件
230 V AC 50/60 Hz
105 W
430 × 82.5 × 376 mm(寬×高×深)包括突出部分
4.3 kg
5°C 至 35°C
5% 至 90%
參見第 15 頁
設計和規格如有更改,恕不另行通知。
78CT
語言代碼列表
詳細介紹參看第 44,52,65 頁。
這些語言拼寫符合 ISO639:1988(E/F)標準。
語言代碼
語言代碼
語言代碼
1027
1028
1032
1039
1044
1045
1051
1052
1053
1057
1059
1060
1061
1066
1183
1186
1194
1196
1203
1209
1217
1226
1229
1233
1235
1239
1245
1248
1253
1254
1257
1261
1269
1283
1287
1297
1298
1299
1300
1301
1305
1307
1311
1313
1326
1327
1332
1334
1345
1347
1349
1350
1352
1353
1356
1357
1358
1363
1365
1369
1376
1379
1393
1403
1408
1417
1428
1435
1436
1463
1481
1507
1508
1509
1511
1512
1513
1514
1515
1516
1517
1521
1525
1527
1528
1529
1531
1532
1534
1535
1538
1539
1540
1543
1557
1564
1572
1581
1587
1613
1632
1665
1684
1697
1067
1070
1079
1093
1097
1103
1105
1109
1130
1142
1144
1145
1149
1150
1151
1157
1165
1166
1171
1174
1181
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali;
Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Interlingue
Inupiak
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian; Lettish
Malagasy
1482
1483
1489
1491
1495
1498
1501
1502
1503
1505
1506
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan)Oromo
Oriya
Punjabi
Polish
Pashto; Pushto
Portuguese
Quechua
RhaetoRomance
Kirundi
Romanian
Russian
Kinyarwanda
Sanskrit
Sindhi
Sangho
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Setswana
Tonga
Turkish
Tsonga
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
附加資訊
語言代碼
1703 未說明
79CT
DVD 設定選單列表
用 DVD 設定選單能設置下列項目。
顯示項目的順序可能與實際選單略有不同。
語言設定
畫面設定
畫面顯示語言 (從顯示語言列表中選擇
要使用的語言)。
電視機形式
DVD 菜單
(從顯示語言列表中選擇
要使用的語言)。
屏幕節能
聲音語言
(從顯示語言列表中選擇
要使用的語言。當您選擇
原文時,您能聽到光碟上
最優先給出的語言)。
字幕
(從顯示語言列表中選擇
要使用的語言。當您選擇
聲音連動時,設定被自動
轉化成“聲音語言”中被
選擇的語言)。
背景畫面
揚聲器設定
尺寸
後置揚聲器
彩色系統*
視聽者
年齡控制
自動
幀
水平
標準
聲音軌跡
選擇
前置揚聲器
中置揚聲器
個人設定
暫停模式
16:9
4:3 信箱形式
4:3 全景掃描
開
關
封套畫面圖像
圖形
蘭色
黑色
改變密碼
關
自動
自動
PAL
NTSC
關
8.
7. NC17
6.
R
5.
4. PG13
3.
PG
2.
1.
G
美國
其它
小
視聽距離
平衡調整
水平
測試音調
低音揚聲器
前置揚聲器
中置揚聲器
後置揚聲器
前置揚聲器
後置揚聲器
中置揚聲器
後置揚聲器
低音揚聲器
關
開
* 僅用於亞洲機型和澳洲機型。
80CT
大
小
大
小
無
大
後置、低置
後置、高置
側置、低置
側置、高置
後置、低置
後置、高置
側置、低置
側置、高置
無
是/無
1∼15 米
0∼15 米
0∼15 米
左或右各 6 級
左或右各 6 級
-10∼+10dB
-10∼+10dB
-10∼+10dB
索引
數字
H
16:9 65
4:3 全景掃描 65
4:3 信箱形式 65
後面板 11
畫面設定 65
畫面顯示語言 64
A
J
AMP 選單 24
角度 51
靜音 31
時間 41
時間/文字 40
時間搜索 40
視聽距離 25, 68
視聽者年齡控制 55, 67, 76
水平 27, 69
隨機 36
隨機播放 36
索引 6, 39
背景畫面 66
編序播放 34
標題 6, 39, 74
標題選單 32
比特速率 53, 74
波段 28
播放模式 34
K
T
C
L
彩色系統 66
操作光碟 8
CD 30
測試音調 69
場面 6, 39, 175
尺寸 67
重複播放 36
重新播放 31
重新設定 64
連續播放
CD/VIDEO CD/
SACD/DVD 30
B
D
DVD 32, 75
DVD 選單 32, 64
地區代碼 7, 75
電池 16
電視機形式 65
DTS 75
杜比邏輯環繞 75
杜比數碼 75
多角度功能 51
多語言功能 44
G
個人設定 66
觀看電視機屏幕
查找特定點 38
軌跡 6, 39, 76
故障排除 71
可用光碟 6
控制選單 13
控制選單顯示 13
快倒 38
快進 38
快速瀏覽 15
天線連接 19
調光器 27
TV 和視頻裝置連接 21
V
VIDEO CD 33, 76
W
無線廣播 61
X
M
先進功能 53
MEMORY 28
慢進播放 38
名稱 62
Y
PBC 播放 33, 74
平衡調整 26, 69
屏幕節能 66
揚聲器設定 67
揚聲器系統連接 16
遙控器 12, 59
用戶鎖定 54
預設電台 28, 61
語言設定 64
Q
Z
P
前面板 9
前面板顯示幕 10
章 6, 39, 76
暫停模式 67
字幕 50, 64
S
S VIDEO 21
SACD 74
掃描 38
設定顯示 61
聲場 46
聲音軌跡選擇 67
聲音語言 44, 64
81CT
Sony Corporation Printed in Korea
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
