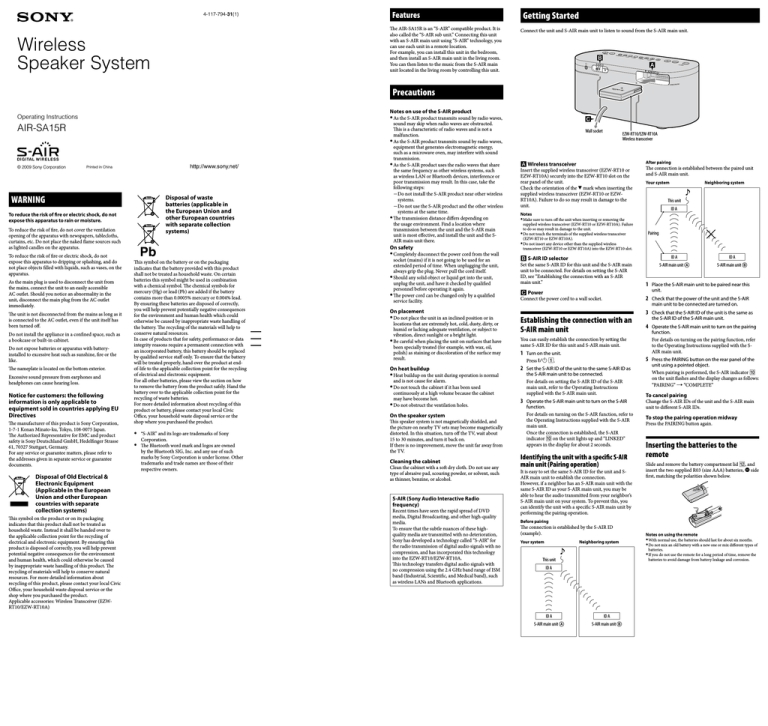

Features
The AIR-SA15R is an “S-AIR” compatible product. It is
also called the “S-AIR sub unit.” Connecting this unit
with an S-AIR main unit using “S-AIR” technology, you
can use each unit in a remote location.
For example, you can install this unit in the bedroom,
and then install an S-AIR main unit in the living room.
You can then listen to the music from the S-AIR main
unit located in the living room by controlling this unit.
Wireless
Speaker System
Getting Started
Connect the unit and S-AIR main unit to listen to sound from the S-AIR main unit.
Precautions
Notes on use of the S-AIR product
Operating Instructions
AIR-SA15R
© 2009 Sony Corporation
Printed in China
WARNING
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
To reduce the risk of fire, do not cover the ventilation
opening of the apparatus with newspapers, tablecloths,
curtains, etc. Do not place the naked flame sources such
as lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do not
expose this apparatus to dripping or splashing, and do
not place objects filled with liquids, such as vases, on the
apparatus.
As the main plug is used to disconnect the unit from
the mains, connect the unit to an easily accessible
AC outlet. Should you notice an abnormality in the
unit, disconnect the main plug from the AC outlet
immediately.
The unit is not disconnected from the mains as long as it
is connected to the AC outlet, even if the unit itself has
been turned off.
Do not install the appliance in a confined space, such as
a bookcase or built-in cabinet.
Do not expose batteries or apparatus with batteryinstalled to excessive heat such as sunshine, fire or the
like.
The nameplate is located on the bottom exterior.
Excessive sound pressure from earphones and
headphones can cause hearing loss.
Notice for customers: the following
information is only applicable to
equipment sold in countries applying EU
Directives
The manufacturer of this product is Sony Corporation,
1-7-1 Konan Minato-ku, Tokyo, 108-0075 Japan.
The Authorized Representative for EMC and product
safety is Sony Deutschland GmbH, Hedelfinger Strasse
61, 70327 Stuttgart, Germany.
For any service or guarantee matters, please refer to
the addresses given in separate service or guarantee
documents.
Disposal of Old Electrical &
Electronic Equipment
(Applicable in the European
Union and other European
countries with separate
collection systems)
This symbol on the product or on its packaging
indicates that this product shall not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. The
recycling of materials will help to conserve natural
resources. For more detailed information about
recycling of this product, please contact your local Civic
Office, your household waste disposal service or the
shop where you purchased the product.
Applicable accessories: Wireless Transceiver (EZWRT10/EZW-RT10A)
Disposal of waste
batteries (applicable in
the European Union and
other European countries
with separate collection
systems)
As the S-AIR product transmits sound by radio waves,
sound may skip when radio waves are obstructed.
This is a characteristic of radio waves and is not a
malfunction.
As the S-AIR product transmits sound by radio waves,
equipment that generates electromagnetic energy,
such as a microwave oven, may interfere with sound
transmission.
As the S-AIR product uses the radio waves that share
the same frequency as other wireless systems, such
as wireless LAN or Bluetooth devices, interference or
poor transmission may result. In this case, take the
following steps:
Do not install the S-AIR product near other wireless
systems.
Do not use the S-AIR product and the other wireless
systems at the same time.
The transmission distance differs depending on
the usage environment. Find a location where
transmission between the unit and the S-AIR main
unit is most effective, and install the unit and the SAIR main unit there.
On safety
This symbol on the battery or on the packaging
indicates that the battery provided with this product
shall not be treated as household waste. On certain
batteries this symbol might be used in combination
with a chemical symbol. The chemical symbols for
mercury (Hg) or lead (Pb) are added if the battery
contains more than 0.0005% mercury or 0.004% lead.
By ensuring these batteries are disposed of correctly,
you will help prevent potentially negative consequences
for the environment and human health which could
otherwise be caused by inappropriate waste handling of
the battery. The recycling of the materials will help to
conserve natural resources.
In case of products that for safety, performance or data
integrity reasons require a permanent connection with
an incorporated battery, this battery should be replaced
by qualified service staff only. To ensure that the battery
will be treated properly, hand over the product at endof-life to the applicable collection point for the recycling
of electrical and electronic equipment.
For all other batteries, please view the section on how
to remove the battery from the product safely. Hand the
battery over to the applicable collection point for the
recycling of waste batteries.
For more detailed information about recycling of this
product or battery, please contact your local Civic
Office, your household waste disposal service or the
shop where you purchased the product.
 “S-AIR” and its logo are trademarks of Sony
Corporation.
 The Bluetooth word mark and logos are owned
by the Bluetooth SIG, Inc. and any use of such
marks by Sony Corporation is under license. Other
trademarks and trade names are those of their
respective owners.
Completely disconnect the power cord from the wall
socket (mains) if it is not going to be used for an
extended period of time. When unplugging the unit,
always grip the plug. Never pull the cord itself.
Should any solid object or liquid get into the unit,
unplug the unit, and have it checked by qualified
personnel before operating it again.
The power cord can be changed only by a qualified
service facility.
Wall socket
EZW-RT10/EZW-RT10A
Wireless transceiver
 Wireless transceiver
Insert the supplied wireless transceiver (EZW-RT10 or
EZW-RT10A) securely into the EZW-RT10 slot on the
rear panel of the unit.
Check the orientation of the  mark when inserting the
supplied wireless transceiver (EZW-RT10 or EZWRT10A). Failure to do so may result in damage to the
unit.
Make sure to turn off the unit when inserting or removing the
supplied wireless transceiver (EZW-RT10 or EZW-RT10A). Failure
to do so may result in damage to the unit.
Do not touch the terminals of the supplied wireless transceiver
(EZW-RT10 or EZW-RT10A).
Do not insert any device other than the supplied wireless
transceiver (EZW-RT10 or EZW-RT10A) into the EZW-RT10 slot.
 S-AIR ID selector
Set the same S-AIR ID for this unit and the S-AIR main
unit to be connected. For details on setting the S-AIR
ID, see “Establishing the connection with an S-AIR
main unit.”
2 Set the S-AIR ID of the unit to the same S-AIR ID as
Clean the cabinet with a soft dry cloth. Do not use any
type of abrasive pad, scouring powder, or solvent, such
as thinner, benzine, or alcohol.
S-AIR (Sony Audio Interactive Radio
frequency)
Recent times have seen the rapid spread of DVD
media, Digital Broadcasting, and other high-quality
media.
To ensure that the subtle nuances of these highquality media are transmitted with no deterioration,
Sony has developed a technology called “S-AIR” for
the radio transmission of digital audio signals with no
compression, and has incorporated this technology
into the EZW-RT10/EZW-RT10A.
This technology transfers digital audio signals with
no compression using the 2.4 GHz band range of ISM
band (Industrial, Scientific, and Medical band), such
as wireless LANs and Bluetooth applications.
This unit
ID A
Pairing
ID A
ID A
S-AIR main unit 
S-AIR main unit 
1 Place the S-AIR main unit to be paired near this
main unit to be connected are turned on.
On heat buildup
Cleaning the cabinet
Neighboring system
2 Check that the power of the unit and the S-AIR
Establishing the connection with an
S-AIR main unit
This speaker system is not magnetically shielded, and
the picture on nearby TV sets may become magnetically
distorted. In this situation, turn off the TV, wait about
15 to 30 minutes, and turn it back on.
If there is no improvement, move the unit far away from
the TV.
Your system
unit.
 Power
Connect the power cord to a wall socket.
Do not place the unit in an inclined position or in
locations that are extremely hot, cold, dusty, dirty, or
humid or lacking adequate ventilation, or subject to
vibration, direct sunlight or a bright light.
Be careful when placing the unit on surfaces that have
been specially treated (for example, with wax, oil,
polish) as staining or discoloration of the surface may
result.
On the speaker system
The connection is established between the paired unit
and S-AIR main unit.
Notes
On placement
Heat buildup on the unit during operation is normal
and is not cause for alarm.
Do not touch the cabinet if it has been used
continuously at a high volume because the cabinet
may have become hot.
Do not obstruct the ventilation holes.
After pairing
You can easily establish the connection by setting the
same S-AIR ID for this unit and S-AIR main unit.
1 Turn on the unit.
3 Check that the S-AIR ID of the unit is the same as
the S-AIR ID of the S-AIR main unit.
4 Operate the S-AIR main unit to turn on the pairing
function.
For details on turning on the pairing function, refer
to the Operating Instructions supplied with the SAIR main unit.
5 Press the PAIRING button on the rear panel of the
Press  .
the S-AIR main unit to be connected.
For details on setting the S-AIR ID of the S-AIR
main unit, refer to the Operating Instructions
supplied with the S-AIR main unit.
3 Operate the S-AIR main unit to turn on the S-AIR
function.
For details on turning on the S-AIR function, refer to
the Operating Instructions supplied with the S-AIR
main unit.
Once the connection is established, the S-AIR
indicator  on the unit lights up and “LINKED”
appears in the display for about 2 seconds.
Identifying the unit with a specific S-AIR
main unit (Pairing operation)
It is easy to set the same S-AIR ID for the unit and SAIR main unit to establish the connection.
However, if a neighbor has an S-AIR main unit with the
same S-AIR ID as your S-AIR main unit, you may be
able to hear the audio transmitted from your neighbor’s
S-AIR main unit on your system. To prevent this, you
can identify the unit with a specific S-AIR main unit by
performing the pairing operation.
unit using a pointed object.
When pairing is performed, the S-AIR indicator 
on the unit flashes and the display changes as follows:
“PAIRING”  “COMPLETE”
To cancel pairing
Change the S-AIR IDs of the unit and the S-AIR main
unit to different S-AIR IDs.
To stop the pairing operation midway
Press the PAIRING button again.
Inserting the batteries to the
remote
Slide and remove the battery compartment lid , and
insert the two supplied R03 (size AAA) batteries,  side
first, matching the polarities shown below.
Before pairing
The connection is established by the S-AIR ID
(example).
Your system
Neighboring system
This unit
ID A
ID A
ID A
S-AIR main unit 
S-AIR main unit 
Notes on using the remote
With normal use, the batteries should last for about six months.
Do not mix an old battery with a new one or mix different types of
batteries.
If you do not use the remote for a long period of time, remove the
batteries to avoid damage from battery leakage and corrosion.
Troubleshooting
Operations
Unit (AIR-SA15R/Wireless Speaker System)
Remote (RM-ANU046)
1 Make sure the power cord is correctly and firmly
connected.
2 Find your problem in the checklist below, and take
the indicated corrective action.
If the issue persists, contact your nearest Sony dealer.
When bringing this unit in for repairs, be sure to
bring in the entire system (this unit, the S-AIR main
unit and wireless transceivers).
This product is a system product, and the entire
system is needed to determine the location requiring
repair.
If the STANDBY indicator flashes
Immediately unplug the power cord, and check if
anything is blocking the ventilation holes on the rear
panel of the unit.
After the STANDBY indicator  stops flashing,
reconnect the power cord, and turn on the unit. If the
issue persists, contact your nearest Sony dealer.
The remote does not function.
Setting the clock
Changing the display
Use buttons on the unit to set the clock.
To change the information on the display
while the unit is on
1 Turn on the unit.
Press  .
2 Select the clock set mode.
Press CLOCK/TIMER MENU . If the current
mode appears on the display, press /
 repeatedly to select “CLOCK,” and then press
CLOCK/TIMER ENTER .
3 Set the time.
Listening to the sound of the
connected S-AIR main unit
You can use the S-AIR function to listen to the sound of
an S-AIR main unit in a remote location.
1 Perform the procedure described in “Establishing
the connection with an S-AIR main unit” and check
that the S-AIR indicator  is lit.
2 Press S-AIR CH  repeatedly to select the desired
S-AIR channel of the S-AIR main unit.
When the unit is connected to an S-AIR main unit:
Sound from the connected S-AIR main unit is
output. However, an alarm sounds in the following
cases.
 When communication with the S-AIR main unit
is cut off.
 When no sound is output from the S-AIR main
unit or the audio signal level is too low.
 When the S-AIR main unit is not ready for
playback at the set start time. Note that the alarm
continues to sound even if the S-AIR main unit
becomes ready after the start time has passed.
Information of the connected S-AIR main unit1) 
Model name of the connected S-AIR main unit2) 
Clock2)  ...
“S-AIR”  “UNLINKED”2)  Clock2)  ...
The displayed information depends on the connected S-AIR main
unit. Up to 16 characters can be displayed.
Displayed for about 8 seconds.
1)
2)
To turn off the display
When the unit is turned off, the clock is displayed. You
can turn off the clock display to minimize the amount of
power consumed (Power Saving Mode).
Press DISPLAY  on the unit when the clock is
displayed.
Press the button again to display the clock.
Note
The STANDBY indicator  on the unit lights up when the unit is
off.
Using the Timers
Sleep Timer:
The S-AIR channels that can be selected depend
on the S-AIR main unit. For details, refer to the
Operating Instructions supplied with the S-AIR main
unit.
3 Press VOLUME +/  to adjust the volume.
To operate the S-AIR main unit from the unit
You can perform the following operations using the
buttons on the remote or unit.
To
Start playback of a CD/DVD,
etc.
Stop playback of a CD/DVD,
etc.
Pause playback of a CD/DVD,
etc.
Select a track, file or chapter
of a CD/DVD, etc.
Select a preset station when
listening to the radio
Change the FM/AM band
when listening to the radio.
Press
 .
/CANCEL .
 .
/ .
PRESET +/  .
Hold down S-AIR
CH  until the band
changes.
Depending on the connected S-AIR main unit,
the operation may differ. Refer to the Operating
Instructions of the S-AIR main unit.
To listen with headphones
Connect headphones (not supplied) to the 
(headphones) jack located on the rear panel of the unit.
Note
The elapsed playing time or remaining playing time of the
CD/DVD, etc. being played on the S-AIR main unit may not
be displayed on this unit. In this case, “.” appears.
ALARM:
Press DISPLAY  on the unit. Each time you press the
button, the display changes as follows:
The unit offers two timer functions. If you use the
Daily Timer with the Sleep Timer, the Sleep Timer has
priority.
Use buttons on the unit to set the timers.
Wireless strength
option.
The default setting is underlined.
An alarm is output.
When the unit is not connected to an S-AIR main unit:
Press /  repeatedly to set the hour, and
then press CLOCK/TIMER ENTER . Use the
same procedure to set the minute.
The clock settings are lost when you disconnect the
power cord or if a power failure occurs.
6 Press /  repeatedly to select the desired
You can fall asleep to music. This function works even if
the clock is not set.
Press SLEEP  repeatedly.
Note
Even if you set the timer, no sound is output from the unit if
playback on the connected S-AIR main unit ends within the set time
period or if communication with the S-AIR main unit is cut off.
Daily Timer:
You can wake up to the sound of the connected S-AIR
main unit at a preset time.
Make sure you have set the clock.
1 Press VOLUME +/  repeatedly to adjust the
volume level while viewing the volume level
indication on the display.
2 Press CLOCK/TIMER MENU .
3 Press /  repeatedly to select “TIMER,”
then press CLOCK/TIMER ENTER .
“ON TIME” appears, and the hour indication flashes.
4 Set the time to start playing.
Press /  repeatedly to set the hour, and
then press CLOCK/TIMER ENTER .
The minute indication flashes. Use the procedure
above to set the minute.
5 Use the same procedure as in step 4 to set the time
to stop playing.
AUTO:
7 Press CLOCK/TIMER ENTER .
The display shows the timer settings.
8 If you selected “ALARM” in step 6, go to step 9.
If you selected “AUTO” in step 6, prepare the sound
source on the S-AIR main unit.
For details on preparing the sound source, refer to
the Operating Instructions supplied with the S-AIR
main unit.
9 Press   to turn off the unit.
The unit turns on about 45 seconds before the preset
time.
If the unit is on at the preset time, the Daily Timer
will not play.
To stop the alarm
Press any button.
To activate or check the timer again
1 Press CLOCK/TIMER MENU .
“SELECT” flashes in the display.
2 Press CLOCK/TIMER ENTER .
3 Press /  repeatedly to select “TIMER.”
4 Press CLOCK/TIMER ENTER .
To cancel the timer
1 Press CLOCK/TIMER MENU .
“SELECT” flashes in the display.
2 Press CLOCK/TIMER ENTER .
3 Press /  repeatedly to select “OFF.”
4 Press CLOCK/TIMER ENTER .
To change the setting
Start over from step 1.
Tip
The Daily Timer setting remains as long as the setting is not canceled
manually.
Turning off the remote control
function
In addition to the unit you already have, you can
connect other S-AIR sub units to a single S-AIR main
unit and use them together.
However, when using multiple S-AIR sub units near
each other, all the S-AIR sub units may receive the same
signal from the remote and the connected S-AIR main
unit may not function properly. To prevent this, you can
turn off the remote control function of the S-AIR sub
units.
Use buttons on the S-AIR sub unit whose remote
control function you want to turn off.
1 Press   to turn off the unit.
2 Press DISPLAY  repeatedly until the clock is
displayed.
3 Press   while holding down CLOCK TIMER/
ENTER .
“RMT OFF” appears in the display and the unit is
turned on. If you try controlling the unit using the
remote, “RMT OFF” appears in the display and the
unit will not accept the signal from the remote.
To turn on the remote control function
Perform steps 1 and 3 above and check that “RMT ON”
appears in the display.
Note
Even when the remote control function is turned off,  
and VOLUME +/  on the remote will continue to
function.
Remove any obstacles between the remote and the
remote sensor  on the unit, and position the unit
away from fluorescent lights.
Point the remote at the remote sensor  on the unit.
Move the remote closer to the unit.
The remote control function is off. Turn on the remote
control function.
The S-AIR indicator  is turned off.
Check that the power cord is connected securely and
the unit is turned on.
Check that the supplied wireless transceiver is inserted
securely to the unit.
Connecting the unit and S-AIR main unit is not
possible. (The S-AIR indicator  flashes.)
Check that the supplied wireless transceiver is inserted
securely to the unit.
If you use another S-AIR main unit, place it more than
8 m away from the S-AIR main unit you are using.
Confirm the S-AIR IDs of the unit and the S-AIR
main unit.
The unit is paired with another S-AIR main unit. Pair
the unit with the S-AIR main unit you are using.
The unit is paired with another S-AIR main unit.
Cancel pairing.
Place so that the unit and the S-AIR main unit are
separated from other wireless devices.
Stop using any other wireless devices.
The connected S-AIR main unit is turned off. Make
sure the power cord is connected and turn on the SAIR main unit.
The S-AIR channel fails to change.
Check that the unit and the S-AIR main unit are
connected properly.
There is no sound.
If you use another S-AIR main unit, place it more than
8 m away from the S-AIR main unit you are using.
Confirm the S-AIR IDs of the unit and the S-AIR
main unit.
Check the pairing setting.
Place so that the unit and the S-AIR main unit are
closer.
Stop using any equipment that generates
electromagnetic energy such as a microwave oven.
Place so that the unit and the S-AIR main unit are
separated from other wireless devices.
Stop using any other wireless devices.
Change the S-AIR ID settings of the unit and the SAIR main unit.
Turn off the unit and S-AIR main unit and then turn
them on again.
Check that the power cord is connected securely and
the unit is turned on.
Increase the volume of the unit.
Check that headphones are not connected to the 
(headphones) jack on the rear panel of the unit.
There is noise or the sound skips.
If you use another S-AIR main unit, place it more than
8 m away from the S-AIR main unit you are using.
Place so that the unit and the S-AIR main unit are
closer.
Stop using any equipment that generates
electromagnetic energy such as a microwave oven.
Place so that the unit and the S-AIR main unit are
separated from other wireless devices.
Stop using any other wireless devices.
Change the S-AIR ID settings of the unit and the SAIR main unit.
Do not place a mobile phone near the unit and the
S-AIR main unit, as this may result in noise.
To reset the unit to factory settings
If the unit still does not operate properly, reset the unit
to factory settings.
1 Disconnect and reconnect the power cord, and
then turn on the unit.
2 Press /CANCEL , DISPLAY  and   on
the unit at the same time.
All user-configured settings, such as timer, clock, etc.
are deleted.
Messages
CANCEL : Time out without pairing.
COMPLETE : Pairing is completed.
ID A : Sets the S-AIR ID to “A.”
ID B : Sets the S-AIR ID to “B.”
ID C : Sets the S-AIR ID to “C.”
LINKED : The unit is connected to the S-AIR main unit.
PAIRING : Pairing is in progress.
RMT OFF : The unit is not accepting signals from the
remote because the remote control function is set to
“RMT OFF.”
S-AIR : Displayed from the point power of the unit is
turned on until connection with the S-AIR main unit
is established.
TIME NG : The Daily Timer start and end times are set
to the same time.
UNLINKED: The connection with the S-AIR main unit
is cut off.
Specifications
Amplifier section
DIN power output (rated):
3 + 3 watts (3 ohms at 1 kHz, DIN)
Continuous RMS power output (reference):
4 + 4 watts (3 ohms at 1 kHz, 10% THD)
Output
 (stereo mini jack): Accepts headphones with an
impedance of 8 ohms or more
Speaker section
Speaker system: Full range, bass-reflex type
Speaker units: 65 mm, cone type (2)
Nominal impedance: 3 ohms
Wireless transceiver (EZW-RT10/EZW-RT10A)
Communication System: S-AIR Specification version 1.0
Frequency band: 2.4000 GHz  2.4835 GHz
Modulation method: DSSS
Power requirements: DC 3.3 V, 350 mA
Dimensions (w/h/d): 50 × 13 × 60 mm
Mass: 24 g
General
Power requirements: 230 V AC, 50/60 Hz
Power consumption: 15 watts
Dimensions (w/h/d): Approx. 300 × 136 × 115 mm
Mass: Approx. 2.2 kg
Supplied accessories: Wireless transceiver (EZW-RT10
or EZW-RT10A) (1)/Remote commander
(RM-ANU046) (1)/R03 (size AAA) batteries (2)
Design and specifications are subject to change without
notice.
Halogenated flame retardants are not used in the certain printed
wiring boards.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
