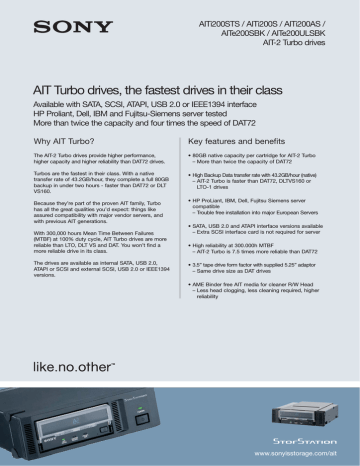

AITi200STS / AITi200S / AITi200AS /
AITe200SBK / AITe200ULSBK
AIT-2 Turbo drives
AIT Turbo drives, the fastest drives in their class
Available with SATA, SCSI, ATAPI, USB 2.0 or IEEE1394 interface
HP Proliant, Dell, IBM and Fujitsu-Siemens server tested
More than twice the capacity and four times the speed of DAT72
Why AIT Turbo?
Key features and benefits
The AIT-2 Turbo drives provide higher performance,
higher capacity and higher reliability than DAT72 drives.
• 80GB native capacity per cartridge for AIT-2 Turbo
– More than twice the capacity of DAT72
Turbos are the fastest in their class. With a native
transfer rate of 43.2GB/hour, they complete a full 80GB
backup in under two hours - faster than DAT72 or DLT
VS160.
• High Backup Data transfer rate with 43.2GB/hour (native)
– AIT-2 Turbo is faster than DAT72, DLTVS160 or
LTO-1 drives
Because they’re part of the proven AIT family, Turbo
has all the great qualities you’d expect: things like
assured compatibility with major vendor servers, and
with previous AIT generations.
With 300,000 hours Mean Time Between Failures
(MTBF) at 100% duty cycle, AIT Turbo drives are more
reliable than LTO, DLT VS and DAT. You won’t find a
more reliable drive in its class.
The drives are available as internal SATA, USB 2.0,
ATAPI or SCSI and external SCSI, USB 2.0 or IEEE1394
versions.
• HP ProLiant, IBM, Dell, Fujitsu Siemens server
compatible
– Trouble free installation into major European Servers
• SATA, USB 2.0 and ATAPI interface versions available
– Extra SCSI interface card is not required for server
• High reliability at 300.000h MTBF
– AIT-2 Turbo is 7.5 times more reliable than DAT72
• 3.5” tape drive form factor with supplied 5.25” adaptor
– Same drive size as DAT drives
• AME Binder free AIT media for cleaner R/W Head
– Less head clogging, less cleaning required, higher
reliability
www.sonyisstorage.com/ait
AIT roadmap
Specifications
Model Name
Tape Drive Type
Native Capacity
Compressed Capacity*
Native Sustained Transfer Rate
Interface
Burst Transfer Rate
AITi200STS
Internal SATA / USB 2.0**
AITi200S
Internal SCSI
Serial ATA (Gen 1) / *
USB 2.0*
Ultra 160
SCSI LVD/SE
68pin High Density
150MB/s / 60MB/s**
160MB/s
Hardware Data Compression
Error Rate
Buffer Size
MTBF (100% duty cycle)
Head Life
Dimension (W,H,D) mm
Power Consumption (write operation)
Operating Environment Temperature
Humidity (operating)
Weight
24MB
12W
AITi200AS
Internal ATAPI
80GB
208GB*
43.2GB/h, (12MB/s)
ATA/ATAPI
(Ultra ATA100)
100MB/s
AITe200SBK
External SCSI
AITe200ULSBK
External USB2.0 / IEEE1394
Ultra 160
SCSI LVD/SE
68pin High Density
IEEE1394 (i.LINK S400)
USB2.0
(USB 1.1 with USB
1.1 performance)
50MB/s (IEEE1394)
60MB/s (USB2.0)
160MB/s
ALDC (Adaptive Lossless Data Compression)
Less than 10-17 bits
32MB
300.000h
50.000h (typical)
3.5”: 101.6*41.2*155
5.25”: 146*41.2*155
14W
5°C to 40°C
20 to 80% (26°C)
3.5”: 780g, 5.25”: 1050g
198 * 64.5 *246
20W
10°C to 35°C
30 to 80% (26°C)
2.4 Kg
**2.6:1 data compressed with ALDC. The data compression rate varies according to the type of data and the rate is generally lower if the data has already been compressed
*1kByte=1000Byte, 1MByte=1000kByte, 1GByte=1000MByte
**USB 2.0 connector is available via SATA / USB adapter
Supplied Accessories
AITi200S, AITi200AS, AITi200STS (internal):
3.5” AIT tape drive, 5.25” front bezel adaptor attached, Black
mounted front bezel with spare white front bezel kit, Quick start
guide, Mounting screws, Warranty flyer, WEEE recycling flyer,
backup software disc (check web site for latest version information),
USB adapter with internal USB cable and 4 pin motherboard
connector (AITi200STS only).
AITe200SBK (external):
External black AIT tape drive, Warranty flyer, Quick start guide, SCSI
terminator and power cable (UK+EU), WEEE recycling flyer, backup
software disc (check web site for latest version information).
AITe200ULSBK (external):
External black AIT tape drive, Warranty flyer, Quick start guide, 1 x
USB and 2 x FireWire (4 pin-6 pin, 6 pin-6 pin) cables, Power cable
(UK+EU), WEEE recycling flyer, backup software disc (check web
site for latest version information).
Optional Accessories
TAIT2-80C
TAIT2-80N
SDX2-50C
Sony AIT-2 Turbo 80GB Data Cartridge,
With MIC, rewritable
SDX2-36C
Sony AIT-2 36GB Data Cartridge (rewritable)
SDX2-50W
Sony AIT-2 50GB Data Cartridge (WORM)
Sony AIT-2 Turbo 80GB Data Cartridge,
Without MIC, rewritable
SDX1-CL
Sony AIT Cleaning Cartridge
KITRMEU
1U 19" rack mount kit for maximum two internal
tape drives
Sony AIT-2 50GB Data Cartridge (rewritable)
www.sonyisstorage.com/ait
Sony, StorStation and AIT-2 Turbo are trademarks of Sony Corporation. Features and specifications are subject to change without notice. Sony
Corporation is not responsible for any errors that may appear in this document. Sony Europe-MC October 2007.
