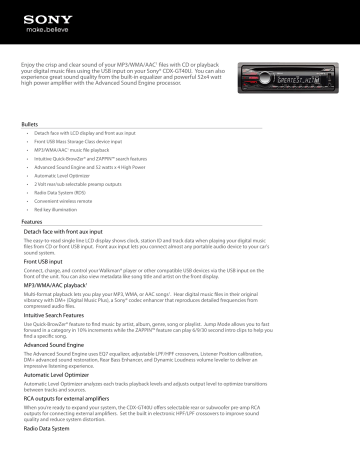

CDX-GT40U
CDX-GT40U CD Receiver with USB input
Enjoy the crisp and clear sound of your MP3/WMA/AAC1 files with CD or playback
your digital music files using the USB input on your Sony® CDX-GT40U. You can also
experience great sound quality from the built-in equalizer and powerful 52x4 watt
high power amplifier with the Advanced Sound Engine processor.
Bullets
•
Detach face with LCD display and front aux input
•
Front USB Mass Storage Class device input
•
MP3/WMA/AAC1 music file playback
•
Intuitive Quick-BrowZer® and ZAPPIN™ search features
•
Advanced Sound Engine and 52 watts x 4 High Power
•
Automatic Level Optimizer
•
2 Volt rear/sub selectable preamp outputs
•
Radio Data System (RDS)
•
Convenient wireless remote
•
Red key illumination
Features
Detach face with front aux input
The easy-to-read single line LCD display shows clock, station ID and track data when playing your digital music
files from CD or front USB input. Front aux input lets you connect almost any portable audio device to your car's
sound system.
Front USB input
Connect, charge, and control your Walkman® player or other compatible USB devices via the USB input on the
front of the unit. You can also view metadata like song title and artist on the front display.
MP3/WMA/AAC playback1
Multi-format playback lets you play your MP3, WMA, or AAC songs1. Hear digital music files in their original
vibrancy with DM+ (Digital Music Plus), a Sony® codec enhancer that reproduces detailed frequencies from
compressed audio files.
Intuitive Search Features
Use Quick-BrowZer® feature to find music by artist, album, genre, song or playlist. Jump Mode allows you to fast
forward in a category in 10% increments while the ZAPPIN™ feature can play 6/9/30 second intro clips to help you
find a specific song.
Advanced Sound Engine
The Advanced Sound Engine uses EQ7 equalizer, adjustable LPF/HPF crossovers, Listener Position calibration,
DM+ advanced sound restoration, Rear Bass Enhancer, and Dynamic Loudness volume leveler to deliver an
impressive listening experience.
Automatic Level Optimizer
Automatic Level Optimizer analyzes each tracks playback levels and adjusts output level to optimize transitions
between tracks and sources.
RCA outputs for external amplifiers
When you’re ready to expand your system, the CDX-GT40U offers selectable rear or subwoofer pre-amp RCA
outputs for connecting external amplifiers. Set the built in electronic HPF/LPF crossovers to improve sound
quality and reduce system distortion.
Radio Data System
Radio Data System (RDS) feature displays radio broadcast information such as artist and track information when
listening to compatible AM/FM stations. RDS also allows expanded channel playback with compatible radio
station broadcasts.
Wireless card remote
Control your receiver while keeping your eyes on the road with the included wireless card remote (RM-X211).
Key illumination
Red key illumination helps you locate buttons quickly during evening playback.
Specifications
Amplifier Section
Max power output
52 watts x 4 at 4 ohms
Power Ad Hoc
CEA2006 Standard Power: 17 Watts RMS per channel into 4 Ohms, 4 channels driven from 20 Hz to 20
kHz with less than 1% THD+N.
Speaker Impedance
4-8 Ohms
AMP & General Feature
Automatic Level Optimizer
Yes
Aux-In
Yes (Front)
DM+ (Codec enhancer)
Yes(Gen2.1)
EQ
EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16
kHz.
High Pass Filter
Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
Loudness
Dynamic Loudness
Low Pass Filter
Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
Output Power (4ohm, 1kHz,16V)(W)
52 watts x 4
Pre Out
(1) Rear / Sub switchable
Rear/Sub initial
Sub
Rear Bass Enhancer
Yes
Time Alignment Custom
Yes (Adjustment)
Time Alignment Preset
Yes
USB
Yes (Front)
Audio
Band
AM / FM
Equalizer
EQ7:7 band EQ with +/- 6 dB adjustment at 63 Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16
kHz.
Format(s) Supported
MP3/WMA/AAC files1
Preout Impedance
220 ohms
Preout Voltage
2 volt
S/N Ratio
Audio Power: CEA2006 S/N 80 dBA
Signal-to-Noise Ratio (dB)
CD: 120 dB
Station Preset(s)
18 FM / 12 AM
Tuner Frequency Range
FM (MHz): 87.5-107.9
AM (kHz): 530-1710
Tuner Type
SSIR-EXA with RDS
Wow and Flutter
Below measurable limit
AUX in Feature
Level Adjustment
Convenience
Yes (-8dB / +18dB)
Tilt Range
0-45° mounting angle
Convenience Features
Dimmer Adjust
Manual
Key Illumination
Red
On-Screen Clock
12H
Display
Display Color
Black / Negative Color
Display Technology
LCD
Text Displayed
Source, artist, track, playback time, menu and clock
Text Lines
1 line of information
Display Panel
Auto off mode
Yes
Dimmer Adjust
Manual
Panel Design
Display color (Color Variation/Nega or Posi)
Black color / Negative
Display Device (LCD/FL/OEL/TFT)
LCD
Key Illumination
RED
Panel finish color
Black (Bare)
Feature
CODEC (for USB)
MP3, WMA, AAC1
Jump Mode
Yes
List Browsing (Folders/Files)
Yes
Pause
Yes
Repeat
OFF/ TRACK/ ALBUM
Resume Play
Yes
Shuffle
OFF/ALBUM/DEVICE
ZAPPIN
Yes
General
CEA2006 output power
17
CEA2006 S/N
80
Dimensions (WxHxD) (mm)
178x50x180
Maximum output power (4ohm, 1kHz, 16V)(W)
52
Mounting dimensions (WxHxD)(mm)
182 x 53 x 162
Preout impedance (ohms)
220
Preout output level (V)
2
Weight (kg)
1.2
Inputs and Outputs
12V Trigger Output(s)
Power amplifier turn on
Antenna Terminal(s)
AM/FM Antenna Input Terminal
Audio In
Front Aux in with variable level
Front USB input
Digital Audio Input(s)
Ability to use all forms of USB devices may vary as not all devices are compatible. This unit is compliant
with MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the
USB standard. This unit cannot recognize USB devices via a USB hub.
If you have any questions or problems concerning your unit that are not covered in the owners
manual, consult your nearest Sony dealer.
Infrared Port
Wireless remote
RCA Audio Output(s)
Rear/Subwoofer selectable RCA pre-amp outputs
Remote Jack
Optional wired remote terminal
USB Port(s)
Front
USB Capable
USB Mass Storage Device
Yes
Other Features
Card Remote ( ): Option
RM-X211
CD lock mode
Yes
Clock
12H
Rotary commander ( ):Option
(RM-X4S)
Security
Detachable
Tuner
FM Usable Sensitivity
8 dBf
Frequency Response
FM: 20-15,000 Hz
S/N Ratio
80 dB (stereo)
Selectivity
75 dB at 400 kHz
Stereo Separation
50 dB at 1 KHz
FM: Channel separation (dB)
50 dB at 1 kHz
FM: Frequency response (Hz)
20 - 15k
FM: Intermediate frequency (MHz)
25KHz
FM: S/N ratio (mono) (dB)
80 dB stereo
FM: Selectivity (400 kHz) (dB)
75 dB
FM: Tuning range (MHz)
87.5-107.9
FM: Usable sensitivity (75 ohm) (dBf )
8 dBf
MW: Tuning range(kHz)
530-1710
MW/LW/SW: Sensitivity (75 ohm) MW/LW/SW(uV)
26/-/-
Tuner Feature
Preset
FM18/AM12
RDS/EON (NA Only:RBDS, Others:RDS)
Yes (RBDS)
Weights and Measurements
Dimensions (Approx.)
178 x 50 x 180 mm, 7.125 x 2 x 7.125 inch (w/h/d)
Dimensions (Approx) Depth
7.125" (180 mm)
Dimensions (Approx) Height
2" (50 mm)
Dimensions (Approx) Width
7.125" (178 mm)
Weight (Approx.)
1.2 kg (2 lb. 11 oz.)
Supplied Accessories
Supplied Accessories
Parts for installation and connections (1 set)
RM-X211 wireless remote
1. Copy-protected content not supported.
