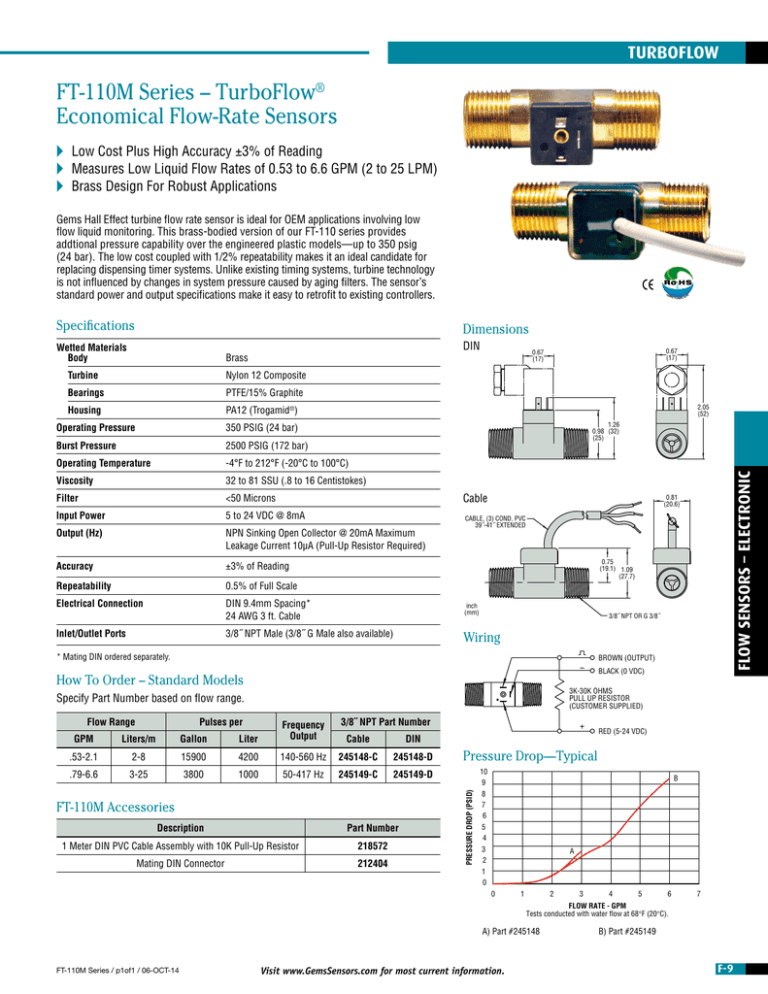

FT-110M Series – TurboFlow Economical Flow-Rate Sensors

FT-110M Series – TurboFlow  Economical Flow-Rate Sensors
TURBOFLOW
FT-110M Series – TurboFlow®
Economical Flow-Rate Sensors
 Low Cost Plus High Accuracy ±3% of Reading
 Measures Low Liquid Flow Rates of 0.53 to 6.6 GPM (2 to 25 LPM)
 Brass Design For Robust Applications
Gems Hall Effect turbine flow rate sensor is ideal for OEM applications involving low
flow liquid monitoring. This brass-bodied version of our FT-110 series provides
addtional pressure capability over the engineered plastic models—up to 350 psig
(24 bar). The low cost coupled with 1/2% repeatability makes it an ideal candidate for
replacing dispensing timer systems. Unlike existing timing systems, turbine technology
is not influenced by changes in system pressure caused by aging filters. The sensor’s
standard power and output specifications make it easy to retrofit to existing controllers.
Ro H S
G
EM
®
S CO PLIAN
M
T
Ro H S
G
Specifications
EM
®
S CO PLIAN
M
T
Dimensions
DIN
Brass
Turbine
Nylon 12 Composite
Bearings
PTFE/15% Graphite
Housing
PA12 (Trogamid®)
2.05
(52)
1.26
0.98 (32)
(25)
Operating Pressure
350 PSIG (24 bar)
Burst Pressure
2500 PSIG (172 bar)
Operating Temperature
-4°F to 212°F (-20°C to 100°C)
Viscosity
32 to 81 SSU (.8 to 16 Centistokes)
Filter
<50 Microns
Input Power
5 to 24 VDC @ 8mA
Output (Hz)
NPN Sinking Open Collector @ 20mA Maximum
Leakage Current 10µA (Pull-Up Resistor Required)
Accuracy
±3% of Reading
Repeatability
0.5% of Full Scale
Electrical Connection
DIN 9.4mm Spacing*
24 AWG 3 ft. Cable
Inlet/Outlet Ports
0.67
(17)
0.67
(17)
Cable
0.81
(20.6)
CABLE, (3) COND, PVC
39˝-41˝ EXTENDED
0.75
(19.1) 1.09
(27.7)
inch
(mm)
3/8˝ NPT Male (3/8˝ G Male also available)
3/8˝ NPT OR G 3/8˝
Wiring
* Mating DIN ordered separately.
BROWN (OUTPUT)
BLACK (0 VDC)
How To Order – Standard Models
3K-30K OHMS
PULL UP RESISTOR
(CUSTOMER SUPPLIED)
Specify Part Number based on flow range.
Pulses per
3/8˝ NPT Part Number
Cable
DIN
GPM
Liters/m
Gallon
Liter
Frequency
Output
.53-2.1
2-8
15900
4200
140-560 Hz
245148-C
245148-D
.79-6.6
3-25
3800
1000
50-417 Hz
245149-C
245149-D
FT-110M Accessories
Description
Part Number
1 Meter DIN PVC Cable Assembly with 10K Pull-Up Resistor
218572
Mating DIN Connector
212404
RED (5-24 VDC)
Pressure Drop—Typical
PRESSURE DROP (PSID)
Flow Range
FLOW SENSORS – ELECTRONIC
Wetted Materials
Body
10
9
8
7
6
5
4
3
2
1
0
BROWN (OUTPUT)
B
BLACK (0 VDC)
RED (5-24 VDC)
A
0
1
2
3
4
5
6
7
FLOW RATE - GPM
Tests conducted with water flow at 68°F (20°C).
A) Part # 245148
FT-110M Series / p1of1 / 06-OCT-14
Visit www.GemsSensors.com for most current information.
B) Part # 245149
F-9
FT-110 Series – TurboFlow®
Economical Flow-Rate Sensors




Low Cost Plus High Accuracy ±3% of Reading
Measures Low Liquid Flow Rates of 0.13 to 9.2 GPM (0.5 to 35 LPM)
Lightweight Plastic Design Enables Mounting in any Position
O-ring Design for Manifold Mounting
Gems Hall Effect turbine flow rate sensor is ideal for OEM applications involving low
flow liquid monitoring. The low cost coupled with 1/2% repeatability makes it an ideal
candidate for replacing dispensing timer systems. Unlike existing timing systems,
turbine technology is not influenced by changes in system pressure caused by aging
filters. The sensor’s standard power and output specifications make it easy to retrofit to
existing controllers.
Ro H S
G
EM
®
S CO PLIAN
M
T
Ro H S
G
EM
®
S CO PLIAN
M
T
Specifications
Wetted Materials
Body
Nylon 12
Turbine
Nylon 12 Composite
Bearings
PTFE/15% Graphite
200 PSIG (13.7 bar)
Burst Pressure
2500 PSIG (172 bar)
Operating Temperature
-4°F to 212°F (-20°C to 100°C)
Viscosity
32 to 81 SSU (.8 to 16 Centistokes)
Filter
<50 Microns
Input Power
5 to 24 VDC @ 8mA
Output (Hz)
NPN Sinking Open Collector @ 20mA Maximum
Leakage Current 10µA (Pull-Up Resistor Required)
Accuracy
±3% of Reading
Repeatability
0.5% of Full Scale
Electrical Connection
DIN 9.4mm Spacing*
24 AWG 3 ft. Cable
Inlet/Outlet Ports
3/8˝ NPT Male
17mm Tube O-Ring
* Mating DIN ordered separately.
Wiring
DIN
OUTPUT
0 VDC
3K-30K OHMS
PULL UP RESISTOR
(CUSTOMER SUPPLIED)
Pressure Drop—Typical
18
16
PRESSURE DROP (PSID)
FLOW SENSORS – ELECTRONIC
Operating Pressure
14
A
12
B
10
8
6
4
2
0
0
Cable
BROWN (OUTPUT)
.25
.50
1
2
2.5
3
4
5
6
7
8
FLOW RATE - GPM
Tests conducted with water flow at 68°F (20°C).
5-24 VDC
A) Part # 173931 173936
173932 173937
173933 173938
B) Part # 173934 173940
173935 234265
173939 244426
BLACK (0 VDC)
RED (5-24 VDC)
F-10
Visit www.GemsSensors.com for most current information.
FT-110 / p1of2 / 06-OCT-14
TURBOFLOW
Dimensions
O-Ring DIN
0.67
(17)
0.67
(17)
2.05
(52)
O-RING
0.55 X 0.07
(14 X 1.78)
2.05
(52)
1.26
0.98 (32)
(25)
0.66 0.56
(16.7) (14.2)
1.26
0.98 (32)
(25)
O-RIN
0.55 X 0.0
(14 X 1.78
(
2.17
(55)
O-Ring Cable
3/8˝ NPT Cable
0.79
(20)
1.18
(30)
0.81
(20.6)
CABLE, (3) COND, PVC
39˝-41˝ EXTENDED
0.75
(19.1) 1.09
(27.7)
1.06
(27)
inch
(mm)
inch
(mm)
OUTPUT
3/8˝ NPT OR G 3/8˝0 VDC
Installation: Bore Preparation
3K-30K OHMS
PULL UP RESISTOR
(CUSTOMER SUPPLIED)
Installation Bore in accordance with ISO 3601.
LEAD IN CHAMFER
0.90 MM AT 20°
1.10 MM AT 15°
DETAIL ‘A’
FLOW SENSORS – ELECTRONIC
2.05
(52)
3/8˝ NPT DIN
0.67
(17)
5-24 VDC
20°
15°
BROWN (OUTPUT)
0.675 (17.13)
Ø 0.670 (17.00)
BLACK (0 VDC)
RED (5-24 VDC)
DETAIL ‘A’
SCALE 4:1
How To Order – Standard Models
Specify Part Number based on flow range.
Flow Range
GPM
Pulses per
Liters/m
Gallon
Frequency
Output
Liter
3/8˝ NPT Part Number
Cable
DIN
O-Ring Part Number
Cable
DIN
.13-1.3
.5-5
26200
6900
58-575 Hz
173931-C
173931-D
244421-C
244421-D
.13-2
.5-7.5
17800
4700
39-588 Hz
173933-C
173933-D
244423-C
244423-D
.26-2.6
1-10
12500
3300
55-550 Hz
173932-C
173932-D
244422-C
244422-D
.26-4
1-15
8300
2200
37-550 Hz
173934-C
173934-D
244424-C
244424-D
1-25
3800
1000
16.7-416 Hz
173935-C
173935-D
244425-C
244425-D
2-35
2840
750
25-438 Hz
234265-C
234265-D
244426-C
244426-D
.26-6.6
.53-9.2
0.67
(17)
0.67
(17)
FT-110 Accessories
Consult factory for special customized OEM versions.
1.26
0.98 (32)
Description
(25)
2.05
(52)
2.05
(52)
O-RING
0.55 X 0.07
(14 X 1.78)
1.26
0.98 (32)
(25)
Part Number0.66
1 Meter DIN PVC Cable Assembly with 10K Pull-Up Resistor
218572
Mating DIN Connector
212404
0.67
(17)
0.56
(16.7) (14.2)
2.17
(55)
0.81
(20.6)
CABLE, (3) COND, PVC
39˝-41˝ EXTENDED
FT-110 / p2of2 / 06-OCT-14
1.18
(30)
Visit www.GemsSensors.com for most current information.
0.79
(20)
F-11
