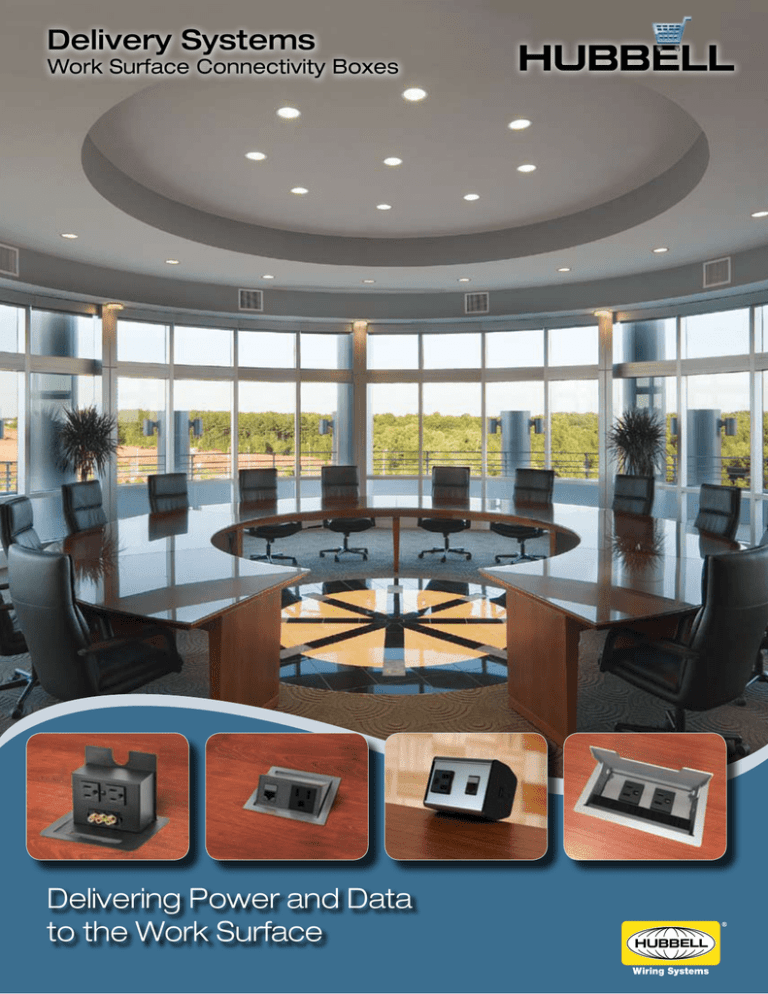

Delivery Systems
Work Surface Connectivity Boxes
Delivering Power and Data
to the Work Surface
Pre-Wired Work Surface Series
The Hubbell Work Surface Series products deliver power and low voltage services to the
work surface. An open architecture design allows keystone jacks or Hubbell iSTATION™
connectivity to configure specific needs for AV and multi-media, making them the perfect
solution for kiosks, work stations and hospitality applications.
Multiple finish options to match any style
or décor. All models in the Work Surface
Series are pre-wired for easy installation.
Square Lift-Up Style
Description
WSBC21UBK
Two (2) pre-wired 15A outlets with 6-ft.
power supply cord; 1-Unit opening for
Hubbell iSTATION modules. Unit rotates
up when in use and down to conceal
services when not in use.
Dimensions
Finish
5.75"L x 5.39"W x 4.25"H Black
Silver
Catalog Number
WSBC21UBK
WSBC21USV
Square Mini Lift-Up Style
Description
WSBA11BK
Dimensions
Finish
Catalog Number
One (1) pre-wired 15A outlet with 9-ft.
power supply cord; One (1) RJ-45 jack
installed with 6-ft. patch cord. Unit rotates
up a 30° angle.
3.7"L x 3.7"W x 2.93"H
Black
WSBA11BK
Brushed Stainless Steel WSBA11BSS
Two (2) pre-wired 15A outlets with 9-ft.
power supply cord (power only).
3.7"L x 3.7"W x 2.93"H
Black
WSBA2BK
Brushed Stainless Steel WSBA2BSS
Pre-Wired Work Surface Series
These Work Surface boxes deliver power and data services above the table and also
provide convenience outlets below the table surface. Units can easily be disconnected
when tables are moved or stored, providing a flexible electrical and low-voltage
infrastructure.
Integrates with Hubbell keystone devices
and iSTATION™ modules for AV and
Multi-media solutions.
Recessed Concealed Services
Description
Dimensions
Finish
Catalog Number
Two (2) pre-wired 15A outlets with 6-ft.
power supply cord; One (1) Low Voltage Plate
included with 1-Unit opening for Hubbell
iSTATION modules; Two (2) additional 1-Unit
openings provided in base of unit.
8.98"L x 5.47"W x 2.97"H Black
WSBB23UBK
Brushed Anod. Alum.
WSBB23UBAL
Brushed Stainless Steel WSBB23UBSS
Empty Enclosure intended for field wiring.
8.98"L x 5.47"W x 2.97"H Black
WSBB23UBK
WSBBHWBK
Grommet Style
Description
Two (2) pre-wired 15A recessed outlets
with 6-ft. power supply cord; Two (2)
Hubbell Keystone openings.
Flush Grommet Cover with
dust shield.
WSBF22BK
Dimensions
Finish
8.62"L x 3.0"W x 2.25"H Black
Silver
5.68"L x 3.39"W x 0.96"H Black
Silver
Stainless Steel
Brushed Aluminum
Catalog Number
WSBF22BK
WSBF22SV
WSBFGROMBK
WSBFGROMSV
WSBFGROMBSS
WSBFGROMBAL
WSBFGROMSV
Pre-Wired Work Surface Series
Lab benches and computer stations often require convenience power and data services
for user interface. These two modules offer several configurations that can mount to table
edges, above or below the surface.
Several profile options offer power
and low-voltage services, depending
on the requirements.
Under Table Mount
Description
Dimensions
Finish
Catalog Number
6.50"L x 1.75"W x 2.25"H
Black
WSBD21UBK
Dimensions
Finish
Catalog Number
One (1) pre-wired 15A outlet with 9-ft. power
supply cord; One (1) Hubbell Keystone opening.
3.57"L x 2.19"W x 2.50"H
Black
Silver
WSBE11BK
WSBE11SV
Two (2) pre-wired 15A outlets with 9-ft. power
supply cord; Two (2) Hubbell Keystone openings.
6.32"L x 2.19"W x 2.50"H
Black
Silver
WSBE22BK
WSBE22SV
Three (3) pre-wired 15A outlets with 9-ft. power
supply cord; One (1) Low Voltage Plate included with
1-Unit opening for Hubbell iSTATION™ modules.
8.25"L x 2.19"W x 2.50"H
Black
Silver
WSBE31UBK
WSBE31USV
n/a
WSBECLAMP
Two (2) pre-wired 15A outlets with 9-ft.
power supply cord; One (1) Low Voltage Plate
included with 1-Unit opening for Hubbell
iSTATION™ modules.
WSBD21UBK
Work Surface Mount
Description
WSBE22SV
Mounting bracket with thumb screw (optional).
n/a
Pre-Wired Work Surface “Elite” Series
The “Elite” series of work surface boxes offer a higher end solution for the most attractive
spaces. Power and data services blend with the environment, but are easy to access.
Architectural finishes ensure a pleasing look.
Architectural finishes for high end spaces.
Conceal services while providing an easy
interface for users. Cable management
features reduce clutter.
Recessed Concealed Services
Description
Four (4) pre-wired 15A outlets with 6-ft.
power supply cord; Three (3) Low Voltage
Plates included with 1-Unit opening for
Hubbell iSTATION™ modules. With
dampened, retractable cover.
Dimensions
15.0"L x 9.0"W x 6.25"H
Finish
Catalog Number
Black Anod. Alum.
Clear Anod. Alum.
Black
Silver
WSBG43UBBA
WSBG43UBAL
WSBG43UBK
WSBG43USV
WSBG43UBAL
(Cover doors shown open)
Pop-Up Style
Description
Base Unit with Four (4) pre-wired 15A outlets
with 6-ft. power supply cord; Two (2) Low
Voltage plates included with 1-Unit opening
for Hubbell iSTATION™ modules.
Trim Ring and Decorative Round Top.
Dimensions
Finish
8.90"L x 8.90"W x 13.9"H
—
5.25" Diameter
Black
Stainless Steel
Catalog Number
WSBH42U
WSBHTRBK
WSBHTRBSS
WSBH42U with
WSBHTRBK
Furniture and Work Surface Connectivity Boxes
Square Flush Mount Boxes
Description
Dimensions
Finish
Catalog Number
2-Gang Square Flush Mount Box with Cover.
6.5"L x 6.5"W x 3.75"H
Black
HBLSHA2
2-Gang Square Flush Mount Box with Cover.
6.5"L x 6.5"W x 3.75"H
Stainless Steel
HBLSHA2BSS
Rectangular Flush Mount Boxes
HBLSHA2
HBLPHA2
Description
Dimensions
Finish
Catalog Number
2-Gang Rectangular Flush Mount with Cover.
10.75"L x 4.06"W x 3.5"H
Black
HBLPHA2
2-Gang Rectangular Flush Mount with Cover.
10.75"L x 4.06"W x 3.5"H
Stainless Steel
HBLPHA2BSS
4-Gang Rectangular Flush Mount with Cover.
10.75"L x 6.5"W x 3.5"H
Black
HBLPHA4
4-Gang Rectangular Flush Mount with Cover.
10.75"L x 6.5"W x 3.5"H
Stainless Steel
HBLPHA4BSS
Surface Mount Boxes
Description
Dimensions
Finish
Catalog Number
2-Gang Surface Mount Box.
4.19"L x 4.81"W x 2.44"H
Black
HBLCON2
3-Gang Surface Mount Box.
6.19"L x 4.81"W x 2.44"H
Black
HBLCON3
Recessed Mount Boxes
Description
HBLCON2
Dimensions
Finish
Catalog Number
4-Gang Recessed Mount.
10.25"L x 7.0"W x 5.88"H
Black
HBLMIR2
8-Gang Recessed Mount.
31.0"L x 10.25"W x 5.88"H Black
HBLMIR4
Under Desk Mount Boxes
Description
HBLMIR2
Dimensions
Finish
Catalog Number
2-Gang Under Desk Mount.
9.19"L x 3.0"W x 2.88"H
Black
HBLMAR2
3-Gang Under Desk Mount.
13.69"L x 3.0"W x 2.88"H
Black
HBLMAR3
HBLIMFSBK
HBL317SBK
3-Unit Hubbell
iSTATION™ Hubbell
6-Port
Hubbell – Screw Type Face Plates
HBLST302SBK
HBLDE301SBK
HBLBL300SBK
HBLMAR2
Duplex
Style Line®
Blank Decorator Opening
Table Top Boxes
Low Voltage Only
Description
TTBKSBK
TTBXLRBK
Dimensions
Finish
Catalog Number
Table Top box; 2-inch diameter hole;
One (1) keystone opening; Keystone
modules sold separately.
2.19" Diameter
Black Anod. Alum. TTBKSBK
Clear Anod. Alum. TTBKSAL
Solid Brass
TTBKSBR
Table Top box; 2-inch diameter hole;
One (1) XLR microphone jack installed.
2.19" Diameter
Black Anod. Alum. TTBXLRBK
Clear Anod. Alum. TTBXLRAL
Solid Brass
TTBXLRBR
Pre-Wired Dual-Service
Description
TTBDS1BK
TTBDS2BK
Dimensions
Finish
Catalog Number
Table Top box; 3.5-inch diameter hole; One (1)
pre-wired 15A outlet with 9-ft. power supply cord;
One (1) 3.5mm screw terminal audio jack; One
(1) 15-pin gender changer F/F; Two (2) keystone
openings; Keystone modules sold separately.
3.88" Diameter
Black Anod. Alum. TTBDS1BK
Clear Anod. Alum. TTBDS1AL
Solid Brass
TTBDS1BR
Table Top box; 3.5-inch diameter hole;
Two (2) pre-wired 15A outlets with 9-ft. power
supply cord; Two (2) keystone openings;
Keystone modules sold separately.
3.88" Diameter
Black Anod. Alum. TTBDS2BK
Clear Anod. Alum. TTBDS2AL
Solid Brass
TTBDS2BR
Wiring Devices and Multimedia Connectivity
Hubbell Power Devices
Extra Heavy Duty
Spec Grade
15A, 125V
20A, 125V
HBL5262x
HBL5362x
Hubbell-Pro™
15A, 125V
20A, 125V
5262x
5362x
Style Line® Decorator
15A, 125V
20A, 125V
DR15x
DR20x
Keystone Snap Fit
X-END™
Jacks
Category 6
Category 5e
Snap Fit
HXJ6x
HXJ5Ex
x=colors: B (Blue), OW (Office White) or W (White).
USB Coupler
x=colors: B (Blue), OW (Office White) or W (White).
15A, 125V
20A, 125V
Category 6
Category 5e
SFC6BK
SFC5EBK
X-END™ Plug-n-Play Modules
8-Pin Female
SFRCx(x)
SFRC110(x)
SFRC(x)Rx
S-Video with 3.5mm Audio; 1-Unit
S-Video with 2 RCA L/R Audio; 1-Unit
3 RCA Composite Video with L/R Audio; 1-Unit
3 RCA Component Video; 1-Unit
3 RCA Composite S-Video with L/R Audio; 1.5-Unit
4 RCA Component Video with S/PDIF; 1.5-Unit
5 RCA Component Video with LR Audio; 1.5-Unit
3 RCA Component with 3.5mm Audio; 1.5-Unit
3 RCA Component with S-Video; 1.5-Unit
5-BNC RGBHV; 1.5-Unit
IG5252
IG5352
RCA Connector
Surge Suppression
15A, 125V
20A, 125V
HBL5262xSA
HBL5362xSA
Heavy Duty Commercial
LED GFCI
15A, 125V
20A, 125V
GF15xLA
GF20xLA
x=colors: AL (Almond), BK (Black), GY (Gray),
I (Ivory), OW (Office White), W (White) or
no suffix (Brown)
Blank Data Frames
Duplex Outlet Frame
2-Port
BR106x
4-Port
Q106x
Style Line® Decorator Frame
2-Port
ISF2x
3-Port
ISF3x
4-Port
ISF4x
6-Port
ISF6x
x=colors: AL (Almond), BK (Black), GY (Gray),
EI (Electric Ivory), OW (Office White) or W (White).
Solder
110 Termination
Pass-through
x=colors: AL (Almond), BK (Black), GY (Gray),
EI (Electric Ivory), OW (Office White) or W (White)
(x)= insulator color: BK (Black), B (Blue), GN (Green),
OR (Orange), R (Red), W (White) or Y (Yellow).
XLR 3-Pin
Connector
Solder
Screw Terminal
Blank Module,
1.5-Unit, 10 PK
XLR10
XLRST10
IMAVB15W
HDMI
Connector
Coupler
3" Tail
Blank Module,
1-Unit, 10 PK
HDMIC1
HDMIT1
IMBDS1W
HDMI
Decorator Frame
Description
1-Port
2-Port
Female to Female
NS801x
NS802x
Work Surface Box Data Plates
** For use with “Work Surface Box” series only,
catalog numbers starting with WSB.
IMS3581xx
IMSRA81xx
IMR8P1xx
IMCR81xx
IMSRC815xx
IMCRD815xx
IMCAR815xx
IMC35815xx
IMSCCR815xx
IMB815xx
xx = Module Color: AL (Almond), BK (Black), EI (Electric Ivory), GY (Gray),
LA (Light Almond), OW (Office White) or W (White).
X-END™ AV Plug-n-Play
Application Tails
8-Pin Female; 1-ft. Tail
S-Video with 3.5mm Audio
S-Video with 2 RCA L/R Audio
3 RCA Composite Video with L/R Audio
3 RCA Component Video
3 RCA Composite S-Video with L/R Audio
4 RCA Component Video with S/PDIF
5 RCA Component Video with LR Audio
3 RCA Component with 3.5mm Audio
3 RCA Component with S-Video
5-BNC RGBHV
15-Pin HD15 Female (VGA Style)
15-Pin HD15 Male (VGA Style)
AVS35T1
AVSRAT1
AVRCT1
AVCRT1
AVSRCT1
AVCRDT1
AVCART1
AVC35T1
AVSCRT1
AVBT1
15T6P1*
15MP6P1*
* Add 0 at end of part number to get a package of 10 pieces.
x=color: AL (Almond), BK (Black), GY (Gray), I (Ivory),
LA (Light Almond) or W (White).
Data Plates**
Blank, 1-Unit WSBPLATE1
iSTATION™
WSBPLATE2
Cut-out, 1-Unit
15S6P1*
15A6P1*
15N6P1*
Straight 180º
Angled 45º
Right Angle 90º
* Add 0 at end of part number to get a package of 10 pieces.
Data Coupler
Isolated Ground (Orange)
SFAVCT
SFAVCN
SFAVCS
Keystone, 4" Tail
Keystone, 90º
Keystone, Straight
X-END™ AV Plug-n-Play Bulk Connectors
15-Pin HD15; 8-Pin Female
SFUSBABx
SFUSBAAx
A to B
A to A
X-END™ Keystone Snap Fit Connectors
8-Pin Female; Black
AV Horizontal Run
Description Non-Plenum
8-Pin
Plenum
VGA6xxxBK
VGA6PxxxBK
xxx=length: 5 ft. (05) to 100 ft. (100). Order in
multiples of 5 ft.
X-END™ AV Plug-n-Play
Application Patching Runs
8-Pin Female
S-Video with 3.5mm Audio
S-Video with 2 RCA L/R Audio
3 RCA Composite Video with L/R Audio
3 RCA Component Video
3 RCA Composite S-Video with L/R Audio
4 RCA Component Video with S/PDIF
5 RCA Component Video with LR Audio
3 RCA Component with 3.5mm Audio
3 RCA Component with S-Video
5-BNC RGBHV
15-Pin HD15 Female (VGA Style)
AVS35xx
AVSRAxx
AVRCxx
AVCRxx
AVSRCxx
AVCRDxx
AVCARxx
AVC35xx
AVSCRxx
AVBxx
AV15Mxx
xx = length: 05 = 5'; 10 = 10'
Hubbell iSTATION™ Modules and Frames
Keystone Module
1-Port, 1-Unit
IM1K1x
2-Port, 1-Unit
IM2K1x
Angled Keystone Module
1-Port, 1.5-Unit IM1KA15x
2-Port, 1.5-Unit IM2KA15x
For color options replace x with the following: AL (Almond), BK (Black), GY (Gray), EI (Electric Ivory), OW (Office White) or W (White).
Please visit our website at www.hubbell-wiring.com to view colors in our virtual catalog.
15/9-Pin or HDMI Blank Module
IMBDS1x
1-Unit
2-Unit with 3.5mm IMB15315x
Stereo Jack
Visit our website www.hubbell-wiring.com for complete product line.
1
2
3
4
1
2
AV Ceiling Box
Configured with 15A power outlet,
15-pin feed through and 3.5mm
audio jack. This unit allows for
further customizing by populating
two keystone openings. Plenum
and non-plenum versions available.
3
X-END™ Plug-n-Play AV System
X-END’s main focus is the
integration of connections
from multimedia devices and
applications such as:
• Display devices
• White boarding
• Videoconferencing
• Webcasting
• Streaming media content
®
Wiring Systems
FPTV Connection Enclosure
Hubbell’s netSELECT® Flat Panel
Television enclosure delivers
high-density connectivity and
power in the wall. This allows flat
panel displays and interactive
“smart” boards to sit flush
against walls with no dangling
cords. It quickly installs to studs
or sheetrock without additional
components or hardware.
4
SystemOne FRPT and Floor Box
Hubbell SystemOne sub-plates
are designed to meet the growing
needs of the audio and video
markets. Some sub-plates provide
power outlets with Hubbell’s audio/
video products including 15-pin
SVGA, RCA, S-Video, 3.5mm
stereo, and XLR microphone
jacks. Other sub-plates can
accommodate Extron® Electronics
MAAP and AAP series audio/video
modules.
www.hubbell-wiring.com
www.hubbell-premise.com
Hubbell Wiring Device-Kellems • Hubbell Incorporated (Delaware) • 40 Waterview Drive • Shelton, CT 06484 • Phone (800) 288-6000 • FAX (800) 255-1031
Hubbell Premise Wiring • Hubbell Incorporated (Delaware) • 23 Clara Drive Suite 103 • Mystic, CT 06355 • Phone (800) 626-0005 • FAX (860) 535-8328
Printed in U.S.A. Specifications subject to change without notice.
WLBD003 02/11
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
