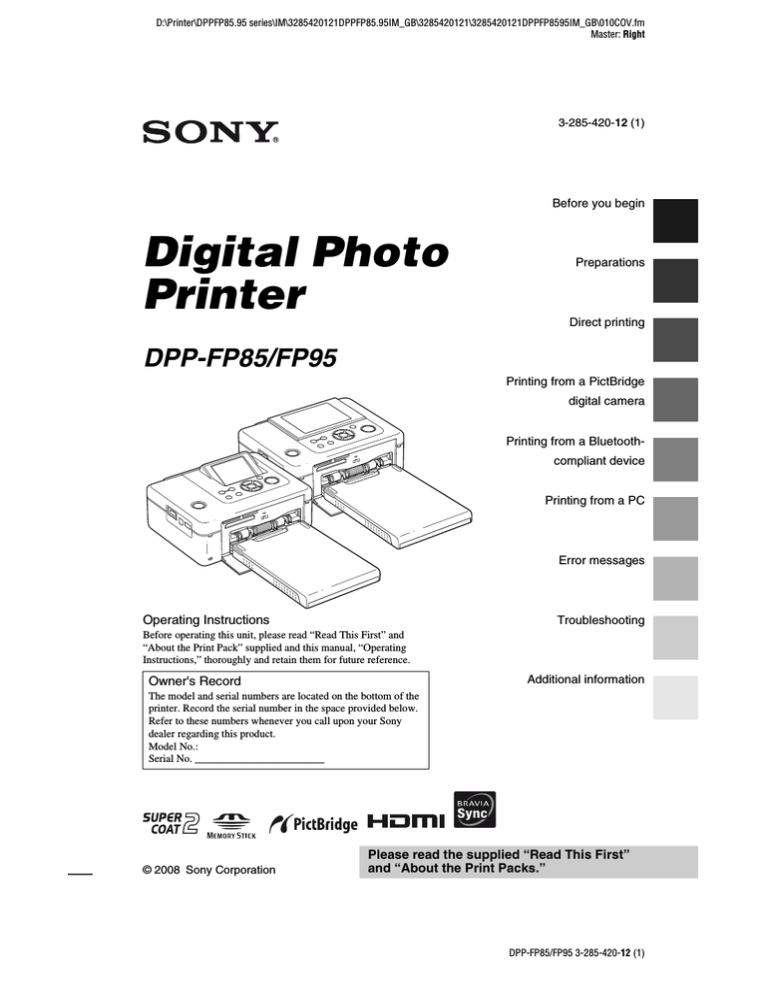

D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\010COV.fm
Master: Right
3-285-420-12 (1)
Before you begin
Digital Photo
Printer
Preparations
Direct printing
DPP-FP85/FP95
Printing from a PictBridge
digital camera
Printing from a Bluetoothcompliant device
Printing from a PC
Error messages
Operating Instructions
Troubleshooting
Before operating this unit, please read “Read This First” and
“About the Print Pack” supplied and this manual, “Operating
Instructions,” thoroughly and retain them for future reference.
Additional information
Owner's Record
The model and serial numbers are located on the bottom of the
printer. Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony
dealer regarding this product.
Model No.:
Serial No. ________________________
© 2008 Sony Corporation
Please read the supplied “Read This First”
and “About the Print Packs.”
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\020REG.fm
Master: Left
For the customers purchasing
the DPP-FP95 in the U.S.A.
user is encouraged to try to correct the interference by
one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
For the Customers in Europe
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
This product has been tested and found compliant
with the limits set out in the EMC Directive for using
connection cables shorter than 3 meters (9.8 feet).
If you have any questions about this product, you may
call:
Sony Customer Information Services Center
1-800-222-SONY (7669)
Attention
WARNING
To reduce fire or shock hazard, do not
expose the unit to rain or moisture.
The number below is for the FCC related matters
only.
Regulatory Information
Declaration of Conformity
Trade Name:
Model No.:
Responsible Party:
Address:
SONY
DPP-FP95
Sony Electronics Inc.
16530 Via Esprillo, San Diego,
CA 92127 U.S.A.
Telephone No.:
858-942-2230
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
The electromagnetic fields at the specific frequencies
may influence the picture of this digital photo printer.
Notice
If static electricity or electromagnetism causes data
transfer to discontinue midway (fail), restart the
application or disconnect and connect the
communication cable (USB, etc) again.
Notice for the customers in the
countries applying EU Directives
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan Minato-ku Tokyo,
108-0075 Japan.
The Authorized Representative for EMC and product
safety is Sony Deutschland Gmbh, Hedelfinger
Strasse 61, 70327 Stuttgart, Germany.
For any service or guarantee matters, please refer to
the addresses given in separate service or guarantee
documents.
Note:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on, the
2 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\020REG.fm
Master: Right
Disposal of Old Electrical &
Electronic Equipment (Applicable in
the European Union and other
European countries with separate
collection systems)
This symbol on the
product or on its
packaging indicates that
this product shall not be
treated as household
waste. Instead it shall be
handed over to the
applicable collection
point for the recycling of
electrical and electronic
equipment. By ensuring
this product is disposed
of correctly, you will
help prevent potential
negative consequences for the environment and
human health, which could otherwise be caused by
inappropriate waste handling of this product. The
recycling of materials will help to conserve natural
resources. For more detailed information about
recycling of this product, please contact your local
Civic Office, your household waste disposal service
or the shop where you purchased the product.
NOTICE FOR CUSTOMERS IN
THE UNITED KINGDOM
A moulded plug complying with BS 1363 is fitted to
this equipment for your safety and convenience.
Should the fuse in the plug supplied need to be
replaced, a fuse of the same rating as the supplied one
and approved by ASTA or BSI to BS 1362,
(i.e.marked with
or
mark) must be used.
If the plug supplied with this equipment has a
detachable fuse cover, be sure to attach the fuse cover
after you change the fuse. Never use the plug without
the fuse cover. If you should lose the fuse cover,
please contact your nearest Sony service station.
Duplication, edition, or printing of a CD, TV
program, copyrighted materials such as pictures or
publications, or any other materials except for your
own recording or creation is limited to private or
domestic use only. Unless you hold copyright or
have permission from copyright holders for the
materials to be duplicated, use of those materials
beyond this limit may infringe the provisions of the
copyright law and be subject to the copyright
holder’s claim for damages.
When using photo images with this printer, pay
special attention not to infringe the provisions of
the copyright law. Any unauthorized use or
modification of portraits may also infringe their
rights.
For some demonstrations, performances, or
exhibits, photography may be forbidden.
Backup recommendations
To avoid potential risk of data loss caused by
accidental operation or malfunction of the printer,
we recommend that you save a backup copy of
your data.
Information
IN NO EVENT SHALL SELLER BE LIABLE
FOR ANY DIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY
NATURE, OR LOSSES OR EXPENSES
RESULTING FROM ANY DEFECTIVE
PRODUCT OR THE USE OF ANY PRODUCT.
Sony shall assume no responsibility for any
accidental or consequential damages or loss of the
recorded content which may be caused by use or
malfunction of the printer or memory card.
Notes on LCD screen
• The displayed image on the screen is not identical in
picture quality and colors with the printed image
because display methods or profiles differ. Please
regard the displayed image as just a reference.
• Do not press against the LCD screen. The screen
may be discolored and that may cause a
malfunction.
• Exposing the LCD screen to direct sunlight for a
long period may cause malfunctions.
• The LCD screen is manufactured using extremely
high-precision technology, so over 99.99% of the
pixels are operational for effective use. However,
there may be some tiny black points and/or bright
points (white, red, blue or green in color) that
constantly appear on the LCD screen. These points
are normal in the manufacturing process and do not
affect the printing in any way.
• Images may trail across on the LCD screen in a cold
location. This is not a malfunction.
3 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\020REG.fm
Master: Left
On trademarks and copyrights
• “BRAVIA,” BRAVIA Sync,
, Cyber-shot,
, “Memory Stick,”
,
“Memory Stick Duo,”
,
“MagicGate Memory Stick,” “Memory Stick
PRO,”
, “Memory Stick
PRO Duo,”
, “Memory
Stick PRO-HG Duo,”
,
“Memory Stick Micro,”
,
, “Memory Stick-ROM,”
,
“MagicGate,” and
are
trademarks of Sony Corporation.
• HDMI,
, and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
• Microsoft, Windows, Windows Vista and DirectX
are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or
other countries.
• Intel and Pentium are the registered trademarks or
trademarks of Intel Corporation.
• CompactFlash is a trademark of SanDisk
Corporation in the U.S.A.
•
or xD-Picture Card™ is a trademark of
FUJIFILM Corporation.
•
is a trademark of FotoNation Inc. in the
U.S.A.
•
•
•
•
•
•
is a registered trademark of
Ichikawa Soft Laboratory.
All other companies and product names mentioned
herein may be the trademarks or registered
trademarks of their respective companies.
Furthermore, “™” and “®” are not mentioned in
each case in this manual.
This unit is equipped with face recognition feature.
Sony Face Recognition technology developed by
Sony is used.
The Bluetooth word mark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks
by Sony Corporation is under license. Other
trademarks and trade names are those of their
respective owners.
Zlib
© 1995- 2002 Jean-loup Gailly and Mark Adler
Contains iType™ and fonts from Monotype
Imaging Inc.
iType™ is a trademark of Monotype Imaging Inc.
Notice for users
Program © 2008 Sony Corporation
Documentation © 2008 Sony Corporation
All rights reserved. This manual or the software
described herein, in whole or in part, may not be
reproduced, translated or reduced to any machine
readable form without prior written approval from
Sony Corporation.
IN NO EVENT SHALL SONY CORPORATION BE
LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES,
WHETHER BASED ON TORT, CONTACT, OR
OTHERWISE, ARISING OUT OF OR IN
CONNECTION WITH THIS MANUAL, THE
SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN OR THE USE THEREOF.
By breaking the seal of the envelope of the CD-ROM
package, you accept all the terms and conditions of
this agreement. If you do not accept these terms and
conditions, please return this disk envelope unopened,
along with the rest of the package, immediately to the
dealer where you obtained it.
Sony Corporation reserves the right to make any
modification to this manual or the information
contained herein at any time without notice.
The software described herein may also be governed
by the terms of a separate user license agreement.
Any design data such as sample pictures provided in
this software cannot be modified or duplicated except
for the purpose of personal use. Any unauthorized
duplication of this software is prohibited under
copyright law.
Please note that unauthorized duplication or
modification of portraits or copyrighted work could
infringe the rights reserved by rights holders.
You may be referred to the supplied “Read This
First” and “About the Print Packs” when there are
detailed explanations in the leaflet.
On the illustrations and screen
shot used in this manual
The illustrations and screen shots used in this
manual are of the DPP-FP95 unless noted
otherwise.
4 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\010COVTOC.fm
Master: Right
Table of Contents
Before you begin
Identifying the parts ........................7
Preparations
Checking the contents of the
package ..........................................9
Setting the ink ribbon .....................9
Inserting the print paper ...............10
Connecting to the
AC power source ..........................12
Direct printing
LCD screen display .......................13
An image preview view ...................13
Index View ......................................14
Basic printing ...............................15
Inserting a memory card .................15
Printing selected images ................16
Enjoying various printing ..............18
Correcting a failed photo automatically
(AUTO TOUCH-UP) ........................20
Editing an image ...........................21
Enlarging and reducing
an image size .................................21
Moving an image ...........................21
Rotating an image ..........................21
Adjusting an image ........................22
Adding a special filter to an image .22
Correcting the
red-eye phenomenon .....................24
Printing an edited image ................ 25
Saving an edited image .................. 25
Performing “CreativePrint” ...........26
Making a Scrapbook ...................... 26
Making a Calendar ......................... 27
Superimposing a message
on an image ................................... 29
Adding a frame ............................... 31
Making layout prints ...................... 32
Making an ID photo ....................... 32
Performing Batch Print (Index Print/
DPOF Print/Print All) .....................33
Viewing a slideshow .....................34
Showing the slideshow .................. 34
Reserving printing .......................... 35
Printing .......................................... 35
File operations ..............................35
Copying images ............................. 35
Deleting selected images ............... 36
Formatting a “Memory Stick” ......... 37
Changing the Print setup ..............38
Changing the
Display/Printer setup ....................41
Printing from a High Definition
television ......................................43
Connecting to a television .............. 43
Printing procedures ....................... 44
On control for HDMI ...................... 45
On BRAVIA PhotoTV HD ................ 45
What is “BRAVIA Sync” .................. 45
Printing from an external device ...46
Continued
5 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\010COVTOC.fm
Master: Left
Printing from a PictBridge
digital camera
Error messages
If an error message appears ......... 62
Printing from a PictBridge digital
camera .........................................47
Troubleshooting
Printing from a Bluetoothcompliant device
If trouble occurs ........................... 65
If paper jams ................................77
Cleaning .......................................78
Printing from a Bluetooth-compliant
device ...........................................48
Compatible profiles for Bluetooth
communication .............................. 48
Preparations: connecting
DPPA-BT1 ..................................... 48
Printing .......................................... 49
Transferring an image to a memory
card ............................................... 49
Printing from a PC
Printing from a PC ........................51
Installing the software ..................51
System requirements ..................... 51
Installing the printer driver ............. 52
Uninstalling the printer driver ........ 54
Installing the Picture Motion
Browser ......................................... 55
Uninstalling the Picture Motion
Browser ......................................... 56
Printing photos from the Picture
Motion Browser ............................56
Registering a browsing folder ........ 60
Stopping printing ........................... 60
Printing from a commercially-available
software application ....................... 61
Additional information
Precautions ..................................79
On safety ........................................79
On installation ................................79
On cleaning ....................................80
On restrictions on duplication ........80
About the Memory Cards ..............80
“Memory Stick” ..............................80
SD Card ..........................................81
xD-Picture Card ..............................82
CompactFlash card .........................82
Notes on using memory card ..........82
Specifications ...............................83
Printing range .................................85
Glossary .......................................86
Index ............................................ 87
6 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\030C01.fm
Master: Right.L0
Before you begin
Identifying the parts
A 1 (on/standby) button/standby
indicator)
B MENU button
C
(Index View)
(zoom out)/
(zoom in) buttons (.page 15)
D LCD screen
2.5 type DPP-FP85
3.6 type DPP-FP95
E ENTER button
F Direction (g/G/f/F) buttons
G AUTO TOUCH-UP button
(.page 20)
H PRINT button/indicator
I CANCEL button
J “Memory Stick PRO” (Standard/
Duo) slot (.page 15)
K SD Card/xD-Picture Card slot
(.page 15)
L CompactFlash card slot
(.page 15)
M Paper tray compartment door
N Paper tray compartment
(.page 11)
O Access indicator
P Ink ribbon eject lever (.page 9)
Q Ink ribbon (not supplied)
(.page 9)
R Ink ribbon compartment door
(.page 9)
Continued
7 GB
DPP-FP85/FP95 3-285-420-12 (1)
Before you begin
For details, see the pages indicated in the
parentheses.
Illustrations are of the DPP-FP95. The button
locations and names of the DPP-FP85 are
identical, although the LCD screen size is
different.
Printer front panel
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\030C01.fm
Master: Left
Printer left side panel
E HDMI OUT (output) connector
(.page 43)
When using the printer with a High-definition
television, connect an HDMI cable into this
connector.
F
USB connector (.page 53)
When using the printer in PC mode, connect a
USB cable to this connector.
G PictBridge/EXT INTERFACE
connector (.pages 46 to 48)
Printer rear panel
A Handle
As illustrated below, raise the handle when
you carry the printer.
When you use the printer, close the handle to
its original position.
When using a PictBridge-compliant digital
camera, a mass storage device such as a USB
memory or photo storage device, a Bluetooth
USB adaptor (DPPA-BT1*), or other external
USB device, connect it via this connector.
(*In some regions, the DPPA-BT1 Bluetooth
USB adaptor is not sold.)
Notes
• When you carry the printer, make sure to
remove memory cards, external devices,
the paper tray, AC adaptor, and other
cables. Otherwise malfunctions may occur.
• When using the DPP-FP95, set the LCD
panel to its original position.
B Ventilation holes
C Paper outlet
D DC IN 24 V jack (.page 12)
Plug the supplied AC adaptor into this
connector. Then connect the AC adaptor and
AC outlet with the power cord.
8 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\040C02.fm
Master: Right
Preparations
Checking the contents
of the package
*1 The plug shape and specifications of the AC power
cord differ depending on the region in which you
purchased the printer.
About Sony Print Packs (not
supplied)
1
2
Pull and open the ink ribbon
compartment door.
Insert the ink ribbon in the direction
of the arrow until it clicks into place.
Preparations
Make sure that the following accessories are
supplied with your printer.
• Paper tray (1)
• AC adaptor (1)
• AC power cord*1 (1)
• Cleaning cartridge (1)/Cleaning sheet (1)
• CD-ROM (Windows Printer Driver Software
Ver.1.0 and Picture Motion Browser
Ver.3.0) (1)
• Operating Instructions (this booklet) (1)
• Read This First (1)
• About the Print Packs (1)
• Warranty (In some regions, the warranty is
not supplied.) (1)
• Sony End User Software License Agreement
(1)
Setting the ink ribbon
3
Close the ink ribbon compartment
door.
Removing the ink ribbon
Push up the blue eject lever, and remove
the used ink ribbon.
Please use a Sony optional color print pack
designed for the printer. For details, see the
supplied “About the Print Packs.”
Continued
9 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\040C02.fm
Master: Left
Notes
• Do not touch the ink ribbon or store the ink ribbon
in a dusty location. Fingerprints or dust on the ink
ribbon may result in imperfect printing.
• Do not rewind the ink ribbon and use the rewound
ink ribbon for printing. Otherwise, proper printing
results will not be obtained, or a malfunction may
occur. If the ink ribbon does not click into place,
remove it and then re-insert it. Only when the ink
ribbon is too slack to be loaded, keep pressing the
core of the ribbon and wind the ink ribbon in the
direction of the arrow to remove the slack.
Inserting the print paper
1
Open the paper tray cover.
Hold the parts on both sides of the paper
tray cover (shown with arrows) and open
the paper tray cover.
Do not wind the
ribbon in the
directions shown
here.
•
•
•
•
Do not disassemble the ink ribbon.
Do not pull out the ribbon from the ink ribbon.
Do not remove the ink ribbon while printing.
Avoid placing the ink ribbon in a location subject
to high temperatures, high humidity, excessive
dust or direct sunlight. Please store it in a cool and
dark place and use it within a short period from the
date of production. Depending on the storage
conditions, the ink ribbon may deteriorate. Use of
such an ink ribbon may affect the printed results,
for which we cannot guarantee or compensate.
2
Set the print paper into the paper
tray.
10 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\040C02.fm
Master: Right
3
Close the paper tray cover.
• To avoid paper jam or malfunctions of the printer,
make sure of the following before printing:
– Do not write or type on the print paper.
– Do not attach a sticker or stamps on the print
paper.
– When adding print paper to the paper tray, be
sure that the total number of print paper sheets
does not exceed 20 sheets.
4
– Do not insert different types of print paper
together into the paper tray.
Open the slide cover.
– Use the print paper for this printer only.
– Do not use print paper ejected without printing.
Notes on storing the print paper
5
Insert the paper tray into the printer.
• To store print paper in the tray, remove the paper
tray from the printer and close the slide door of the
paper tray.
• Avoid storing the paper with the printed faces
touching each other or in contact with rubber or
plastic products, including vinyl chloride or
plasticizer for an extended period of time; color
changes or deterioration of the printed image may
occur.
• Avoid placing the print paper in a location subject
to high temperatures, high humidity, excessive
dust or direct sunlight.
• When you are going to store partially-used print
paper, store it in its original bag or a similar
container.
Notes
• You can set up to 20 sheets of print paper. Riffle
the print paper thoroughly. Insert the print paper
with the protective sheet facing up. Then remove
the protective sheet.
• Insert the print paper with its printing surface (the
side with no imprint) facing up.
• Do not touch the printing surface. Fingerprints or
contamination on the printing surface may result in
imperfect printing.
• Do not bend the print paper, or cut the print paper
from the perforations before printing.
11 GB
DPP-FP85/FP95 3-285-420-12 (1)
Preparations
– Do not print on used print paper. Printing an
image twice on the same paper will not make
the printed image thicker.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\040C02.fm
Master: Left
Connecting to the AC
power source
1
2
Insert the plug of the AC adaptor
into the DC IN 24 V jack on the back
of the printer.
10 cm
(13/32
inches)
Connect one plug of the AC power
cord to the connector of the AC
adaptor and the other plug to the
wall outlet.
Notes
• Do not place the printer in an unstable location
such as on a wobbly table.
• Leave enough room around the printer. The print
paper emerges from the back a few times during
printing. Keep 10 cm (13/32 inches) or more space
at the rear of the printer.
• Connect the AC adaptor to an easily accessible
wall outlet close by. If trouble occurs while using
the adaptor, immediately shut off the power by
disconnecting the plug from the wall outlet.
• Do not short the plug of the AC adaptor with a
metallic object, as this may cause a malfunction.
• Do not use the AC adaptor placed in a narrow
space, such as between a wall and furniture.
• When you have finished using the AC adaptor,
disconnect the AC power cord from the
DC IN 24 V jack of the printer and from the AC
power sources.
• The printer is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet, even if the printer itself has been turned off.
AC adaptor
AC power cord
To the wall
outlet
To use your Printer abroad Power sources
You can use your Printer and the AC Adaptor
(supplied) in any country or region where the
power supply is within 100 V to 240 V AC,
50/60 Hz. Use a commercially available AC
plug adaptor [a], if necessary, depending on the
wall outlet (wall socket) [b].
AC-S2422
Do not use an electronics transformer (travel
converter), as this may cause a malfunction.
12 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
Direct printing
LCD screen display
An image preview view
On-screen Display: On
You can change the image preview view by
setting the “On-screen Display” from the
Display/Printer setup menu.
To display a different image, press g/G.
A Input/setting indications
Input indications and settings information for
an image are displayed.
Icons
Meaning
“Memory Stick” input
CompactFlash card input
SD Card input
xD-Picture Card input
External Device input
DPOF print preset indication
On-screen Display: Off
Associated file indication
(Displayed when there is an
associated file such as a motion
file or a miniature e-mail image
file.)
Indicates Date Print “On.”
Indicates Date Print (Date/Time)
“On.”
Indicates “Pattern 1” (Borders).
Indicates “Pattern 2” (Borders).
Indicates Pages Per Sheet 4 “On.”
On-screen Display: Details
Indicates Pages Per Sheet 9 “On.”
Indicates Pages Per Sheet 16
“On.”
B Number of selected images/Total
number of images
C Ink ribbon indication
P: P size
C: Cleaning cartridge
Continued
13 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
Protect indication
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
D Image number (folder-file
number)*
(*DCF-compatible files only. In the case of
other file formats, only part of the file name
will be displayed.)
Index View “by date”
The images are listed by their shot or saved
date.
E Operation tips
F Shot or saved date (*month/day/
year)
G Print quantity setting
H Detailed information display
Index View
Displays a list of the images contained on the
selected medium (Index View). You can switch
the index view by selecting “by Filename” or
“by date” on the Index View menu.
Index View “by Filename”
The images are listed in the order of their file
names.
A Cursor (orange frame)
You can move the cursor (selection) by
pressing g/G/f/F.
B Print quantity setting
C Operation tips
D Scroll bar
Indicates the location of the image among the
total number of images.
E Shooting date (*month, day, and
year)
* Settings at the factory differ depending on
the country or area you purchased the
printer.
When you start using the printer, please
make setting for each item. You can change
the order of month, day, and year (page 42).
Note
When the number of images exceeds 2,000, the
images cannot be displayed by date. They are
displayed by file names.
14 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
Switching the image preview
view and index view
Basic printing
You can switch the display as follows:
Inserting a memory card
With the label side facing up, insert a
memory card (“Memory Stick,” “Memory
Stick Duo,” CompactFlash card, SD Card or an
xD-Picture Card) that contains the images for
printing into the proper slot until firmly into
place. For the types of memory cards you can
use with the printer, please see pages 80 to 82.
Access indicator
Direct printing
• To display the index view
In an image preview view, press
(Index View)/ (Reduce).
When an image is enlarged, press
repeatedly. An image is reduced to its
original scale and then the index view is
displayed.
• To display an image preview view
In the index view, press g/G/f/F to move
the cursor to the desired image and press
ENTER or
(Enlarge). The display
changes from the index view to an image
preview view.
• To enlarge an image
In an image preview view, press
(Enlarge) repeatedly. The image is
enlarged up to 5 times the original scale.
With the label side facing up (xD-Picture Card,
SD Card, CompactFlash card, or “Memory Stick”
(“Memory Stick Duo”) from the left)
To eject a memory card
Remove the memory card from the slot slowly
in the reverse direction it was inserted.
Continued
15 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
Notes
• Insert only the memory card that you want to use
for printing. When multiple memory cards are
inserted, the memory card inserted first will have
the first priority.
• The printer supports both standard and small sizes.
A Memory Stick Duo adaptor is not necessary.
• The SD Card/xD-Picture Card slot automatically
detects card type.
• To use a memory card, follow the steps described
on pages 80 to 82.
Printing selected images
This section explains how to display the images
of a memory card or an external device on the
printer’s LCD screen and print the selected
images (direct printing). For how to print from
an external device, see page 46.
1
Press 1 (on/standby) to turn on the
printer.
The standby indicator of the printer lights
in yellow green. An image stored on the
memory card or external device is
displayed on the LCD screen.
2
3
Press g/G to display the image that
you want to print.
Set the print quantity.
To print one sheet of the displayed image,
skip this procedure and go on to the next
step.
Press ENTER to display the print quantity
indication. Then press f/F to specify the
number of copies and press ENTER.
4
Press PRINT.
While the PRINT button lights in green,
the printer is ready for printing. All the
images with print quantity settings are
printed.
To print multiple images
Repeat steps 2 and 3.
To change the print quantity
Display the image whose print quantity
you want to change, and press ENTER to
display the print quantity indication. Then
press f/F to set the print quantity and
then press ENTER.
If you select “0,” printing is canceled.
Enlarging an image to be
printed (Trimming Print)
Press
(Enlarge). You can enlarge an image
up to the 5 times the original scale.
Press PRINT, so that the print preview is
displayed. Press PRINT again to print the
image preview view.
To resume the original size, press
(Reduce).
Notes
• Never move or turn off the printer while it is
printing; the ink ribbon may become stuck or paper
jam may occur. In case you turn off the power,
keep the paper tray inserted and turn on the printer.
After the paper is ejected, resume printing.
• Do not remove the paper tray during printing.
Otherwise, malfunction may occur.
• The print paper emerges a few times during
printing. Do not touch nor pull the emerged paper.
• If print paper is jammed, see page 77.
16 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
On built-in images
If you press ENTER while nothing is
connected to the printer, the images contained
in the printer are displayed. You can print or
adjust the built-in images.
Direct printing
On selecting input
The printer is not equipped with the input select
switch. When you connect a memory card or an
external device with the printer, the images of
the connected media are displayed
automatically. If multiple memory cards or an
external device are connected, the media first
connected has the priority.
When you turn on the printer with multiple
media being inserted or connected, the printer
detects the media in the order of “Memory
Stick,” CompactFlash card, SD Card, xDPicture Card, and external device connected to
PictBridge/EXT INTERFACE connector.
On demonstration mode
After five seconds elapse with no memory card
or external device connected, the printer enters
into the demonstration mode.
Pressing a button, or connecting a memory card
or external device terminates the demonstration
mode.
17 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
Enjoying various printing
Operation using the printer
buttons
AUTO TOUCH-UP
Press MENU.
AUTO TOUCH-UP adjustment
.page 20
In addition to the Auto Fine Print5
automatic adjustment, the following
adjustments are performed:
• Skin Smoothing
• Exposure Correction (using face
detection feature)
• Focus Correction
• Red-eye Correction
You can use AUTO TOUCH-UP adjustment
during Edit or CreativePrint menu
operations.
• Press g/G to select a desired item,
and then press ENTER.
• To exit the menu, press MENU again.
1
Edit .page 21
You can adjust the size, position, hue or other picture property of the selected image.
Items
Procedures
Adds an filter to an image.
Reduces the red-eye phenomenon.
Items
/
Procedures
Increases or reduces the size of an
image.
Moves an image.
Rotates an image.
Adjusts the picture quality of an
image.
Undoes the editing just done and
resets the image to the status
before editing.
Saves the edited image.
Pressing the AUTO TOUCH-UP
button adjusts exposure, focus,
red-eye and other corrections
automatically.
Prints an edited image.
Exits the Edit menu.
18 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
2
CreativePrint .page 26
You can create a Calendar, ID Photo, or other various printouts.
3
Scrapbook
Calendar
Superimpose
Frame
Layout Print
ID Photo
Batch Print .page 33
Index Print
4
Slideshow .page 34
You can perform a slideshow of the images saved in a memory
card or an external device. You can also perform a slideshow
of the “CreativePrint” prints.
5
6
Print setup
Display/Printer setup
.page 38
7
.page 41
File operation .page 35
• Copying images between memory cards
• Deleting an image
• Formatting a “Memory Stick”
19 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
You can enjoy batch print such as
“Index Print,” “DPOF Print,“ and “Print
All.”
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
Correcting a failed
photo automatically
(AUTO TOUCH-UP)
1
Select the image that you want to
adjust and then press AUTO
TOUCH-UP.
Adjustment of the selected image starts.
The adjustment results will be displayed
on the screen. When a human face is
detected, the face is displayed with a
frame as the adjustments proceed.
To check the adjustment result
more clearly:
Press to enlarge the image. (The image
will not be enlarged when printed.)
To display the original image
(before adjustments) again
Press AUTO TOUCH-UP. To display the
adjusted image, press AUTO TOUCH-UP
again.
If you have set a print quantity for
multiple images
All the images with print quantity settings
are adjusted. To display other images,
press g/G.
Notes
• After the AUTO TOUCH-UP adjustment, you
cannot make a trimming print of an image that has
been enlarged by pressing .
• Depending on the image, a face may not be
automatically detected. If the brightness of the face
is not adjusted properly, select “Adjust” from the
Edit menu to adjust the brightness manually
(page 22).
• Depending on the image, the out-of-focus
phenomenon may not be corrected. In this case,
use the “Sharpness” function from Adjust in the
Edit menu to adjust the sharpness manually
(page 22).
• Out-of-focus reduction does not take effect on blur
caused by shaking of the camera.
• Depending on the image, the red-eye phenomenon
may not be corrected. In this case, perform red-eye
correction to make red-eye adjustments manually
(page 24).
The automatic red-eye
correction function of this
printer uses the technology of
FotoNation Inc. in the U.S.A.
The “Skin Smoothing” correction function of
the printer uses the technology of Ichikawa
Soft Laboratory.
To change the print quantity
Press ENTER to display the print quantity
indication. Then press f/F to set the print
quantity and then press ENTER.
2
Press PRINT.
Printing of the selected image(s) starts.
Tip
Adjustment takes effect only on the image being
printed. The original image will not be adjusted.
20 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
Rotating an image
Editing an image
Enlarging and reducing
an image size
1
From the
Edit menu (page 18),
press g/G to select
(Rotate) and
then press ENTER.
The Rotate menu is displayed.
1
From the
Edit menu (page 18),
press g/G to select
(Enlarge) to
enlarge an image or
(Reduce)
to reduce it, and then press ENTER.
2
Note
The picture quality of an enlarged image may
deteriorate depending on its size.
• Rotate 90 Clockwise: Each time you
press ENTER, the image rotates 90°
clockwise.
• Rotate 90 Counterclockwise:
Each time you press ENTER, the image
rotates 90° counterclockwise.
Moving an image
1
From the
Edit menu (page 18),
press g/G to select
(Move) and
then press ENTER.
The g/G/f/F indicators appear on the
Press f/F to select the direction to
rotate the image and then press
ENTER.
3
Press PRINT.
left/right/above/below the image and you
can move the image.
2
3
Press g/G/f/F to move an image.
Press ENTER.
The image is fixed in its current position.
4
Press PRINT.
Continued
21 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
Each time you press the button, the image
becomes larger or smaller. You can also
use the (zoom in) and (zoom out)
buttons to enlarge or reduce the image
size:
: up to 200%
: down to 60%
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
Adjusting an image
1
From the
Edit menu (page 18),
press g/G to select
(Adjust) and
then press ENTER.
Adding a special filter to
an image
1
The Adjust menu is displayed.
2
From the
Edit menu (page 18),
press g/G to select
(Filter) and
then press ENTER.
The Filter menu is displayed.
Press f/F to select the desired
adjustment tool and press ENTER.
The adjustment screen of the selected tool
appears.
When “Brightness” is selected.
.
2
Press g/G to adjust an image while
checking the level.
The image before adjustment is displayed
on the left half of the screen, and the
adjusted image is displayed on the right.
• Brightness: Press G to brighten the
picture or g to darken it.
• Tint: Press G to make the picture
greenish or g to make it reddish.
• Saturation: Press G to deepen the
colors or g to lighten them.
• Sharpness: Press G to sharpen the
outlines or g to soften them.
3
Press ENTER.
The adjustment takes effect.
4
Press PRINT.
Press f/F to select the filter you
want to add to the image.
• No Filter: No special filter is used on
the image (default setting).
• Single Color: Changes all the colors
except for the one specified color into
gray scale.
• Painting: Makes the image look like a
painted picture.
The “Painting” filter of the printer is uses the
technology of Ichikawa Soft Laboratory.
• Cross Filter: Adds a cross, starburst
effect to the light source to print an
image with a sparkling impression.
• Partial Color: Makes the
surroundings of the subject
monochrome to emphasize the subject
in the center.
• Sepia: Changes the image to look like
an old photograph with faded colors.
• Monochrome: Changes the image
into a black and white picture.
22 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
To select a color from a photo
1 Press f/F to select “Select a favorite
color.,” then press ENTER.
The image is displayed with the colorpick tool.
2 Press g/G/f/F to specify the portion
that contains your favorite color, and
then press ENTER.
• Fish-eye: Makes the image look like a
photo taken with a fish-eye lens.
3
Press ENTER.
The filter takes effect.
When you have selected “Cross Filter,”
“Painting,” or “Single Color,” the setting
window is displayed. Move to the next
step.
4
Set the level and range.
3 Press g/G to specify the range of the
x Painting
Press f/F to adjust the line length and
then press ENTER.
selected color.
x Single Color
To select a color from specified colors
Press g/G to select the color that you
want to retain and then press ENTER.
4 Press ENTER to fix the color and range.
The image becomes monochrome while
the specified color remains.
5
The image becomes monochrome while
the specified color remains.
Press PRINT.
Tip
To redo the above operations, select “No Filter” and
then redo the operations.
Continued
23 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
x Cross Filter
1 Select “Level” with f/F and press
ENTER, adjust the level with f/F, and
then press ENTER.
The higher the level you set, the more
light sources become sparkling.
2 Select “Length” with f/F and press
ENTER, adjust the length of light with
f/F, and then press ENTER.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
3 Press ENTER.
Correcting the red-eye
phenomenon
The frame is fixed in the current
position.
x To change the size of the
adjustment frame
Press g/G to select
(Enlarge) or
(Reduce) and press ENTER.
Each time you press ENTER, the frame
becomes larger or smaller.
You can also enlarge or reduce the size by
pressing the (zoom in) or (zoom out)
buttons on the printer.
When pressing AUTO TOUCH-UP cannot
reduce the red-eye phenomenon of a subject
shot by flash, you can adjust the image
manually.
Note
If you perform additional editing, such as enlarging,
reducing the image size, rotating or moving an image,
after the red-eye correction, the red-eye correction
may not take effect. Perform the red-eye correction
after these editorial operations.
1
From the
Edit menu (page 18),
press g/G to select
(Red-eye
Correction) and then press ENTER.
The adjustment frame appears on the
image, which indicates the range for redeye correction.
Adjustment frame
Tip
Make the size of the adjustment frame 2 to 7
times as large as the eye size.
3
Press g/G to select
ENTER.
and press
The range of red-eye correction is
enlarged.
4
Press ENTER.
The adjustment takes effect.
The Red-eye correction menu is
displayed.
To make a red-eye correction for other
eyes, repeat steps 2 to 4.
5
Press g/G to select
ENTER.
and press
The Edit menu is displayed again.
6
2
Adjust the position and size of the
adjustment frame.
Press PRINT.
To reset the adjustment
Press CANCEL in step 5 instead of ENTER.
Make the red-eye correction for the right
and left eyes separately.
x To move the adjustment frame
1 Press g/G to select
(Move) and
press ENTER.
2 Move the frame with g/G/f/F.
The frame moves in the selected
direction.
24 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
Printing an edited image
1
3
Press g/G to select an item (day, month,
and year), and press f/F to select the
number, and then press ENTER.
Press PRINT.
The print quantity indication is displayed.
2
Set date.
Set the print quantity.
• To increase the print quantity one by
one, press f repeatedly.
• To reduce the print quantity one by one,
press F briefly repeatedly.
• To reset the print quantity to 1, press F
for more than two seconds.
3
Press PRINT.
1
Select
ENTER.
The image edited by the Edit or
CreativePrint menu is saved as a new
image. The dialog box used to specify the
new image number (folder number-file
number) is displayed.
(Save) and then press
The dialog box used to specify the
destination folder is displayed.
2
Select the destination where you
want to save the image.
Press f/F to select “Memory Stick,”
“CompactFlash,” “SD Card,” “xD-Picture
Card” or “External Device,” and press
ENTER.
Tip
When you select “External Device,” a dialog
box for selecting a drive may be displayed.
Follow the instructions on the screen to select
the destination drive.
Tip
The original image will not be overwritten.
4
Press ENTER.
Notes
• While the image is being saved, do not turn off the
printer or remove a memory card or external
device from the printer. The printer, memory card,
USB card, or external device may be damaged or
the data may be lost.
• You cannot save built-in images.
The dialog box used for setting a date is
displayed. You can save the set date with
the image.
25 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
Saving an edited image
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
Performing
“CreativePrint”
Making a Scrapbook
1
Using the CreativePrint menu
The window for selecting a theme is
displayed.
Note
Depending on the size of the print paper, the
templates you can select may differ. To specify
the template, make sure to set the appropriate
ink ribbon and print paper in advance. Then
select a template for the size set.
From the
CreativePrint menu
(page 19), press g/G/f/F to select
“Scrapbook,” then press ENTER.
2
Press g/G/f/F to select the desired
theme, then press ENTER.
The window used for selecting templates
of the selected theme is displayed.
To undo the operation midway
Press CANCEL The window of the previous step is
displayed. Depending on the step, you may not be
able to undo the operation.
To exit the CreativePrint menu
• Press MENU in the middle of the operations
and select “CreativePrint Complete.”
• In the image preview view, press g/G/f/F
to select
and press ENTER.
The dialog box for saving an image may be
displayed (page 25).
3
Tip
You can press MENU while performing CreativePrint
and set part of the Print setup menu items.
Press g/G/f/F to select the desired
template, then press ENTER.
A preview of the selected template is
displayed.
4
Select an image.
When you select a template with multiple
images, repeat the procedures below to
select an image for each area.
Image area
26 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
1 Press g/G/f/F to select an image area,
then press ENTER.
The index view is displayed.
2 Press g/G/f/F to select the desired
image, then press ENTER.
The window used for adjusting the
image is displayed.
5
6
Adjustment tools
and press
The selected image is added to the image
area.
To add a stamp, see “Superimposing a
stamp” on page 31.
7
Adjust the image size, position or
others of the selected image.
Press g/G to select the desired adjustment
item, then press ENTER.
Press g/G to select
ENTER.
Press PRINT.
To save the image, see page 25.
Making a Calendar
1
The window used for selecting the
calendar template, is displayed.
2
Press g/G/f/F to select the desired
template, and then press ENTER.
The preview of the selected template is
displayed.
Image area
Items
/
Calendar area
Procedures
Increases or reduces the
size of an image when the
buttons on the printer are
pressed.
Move the image with
g/G/f/F, and then press
ENTER.
Each time you press
ENTER, the image rotates
90° clockwise.
Automatically adjusts a
failed photo having
problems such as being
backlit, out-of-focus, or
showing the red-eye
phenomenon, when the
button on the printer is
pressed.(page 20)
Tip
You can select and set an image area or calendar
area in any order.
Continued
27 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
From the
CreativePrint menu
(page 19), press g/G/f/F to select
“Calendar,” then press ENTER.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
3
Select an image.
When you select a template with multiple
images, select an image for each area. For
how to select an image, see step 4 on
page 26. When you select image(s), the
window for adjusting the image is
displayed.
4
Adjust the image.
For how to adjust an image, see step 5 on
page 27. When you adjust an image, the
image is added to the image area.
5
Set the calendar.
1 Press g/G/f/F to select the calendar
area and press ENTER.
The calendar setting window is
displayed.
Item
Settings/Procedures
Date color Set the color of Sunday and
Saturday to be displayed in
the calendar. Press G and
then f/F to select the
desired color for Sunday
and Saturday. Then press
ENTER.
Modify
Calendar
You can add a stamp or
desired color to a specific
day in the calendar.
When adding a stamp
(Example)
1Press g/G to select
(Stamp), and press
ENTER.
The stamp selection
window is displayed.
2Press g/G/f/F to select
a desired stamp, and
press ENTER.
The calendar is displayed.
2 Press f/F to select the item that you
want to set, and then press ENTER.
Item
Settings/Procedures
Start Y/M
Set the first month and the
year starting the calendar.
Press g/G to select the
month or year and press
f/F to set the number.
Press ENTER.
Start Day Set the day of the week
(placed furthest left in the
calendar). Press f/F to
select “Sunday” or
“Monday.” Then press
ENTER.
3Press g/G/f/F to select a
desired date for adding a
stamp and press ENTER.
4Press f/F to select
and press ENTER.
To exit Modify Calendar
and return to the Calendar
setting window, press g/G
to select
and press
ENTER. You can set “Date
color” in the similar
procedures.
28 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
The calendar is displayed in the calendar
area.
To add a stamp, see “Superimposing a
stamp” on page 31.
6
Press PRINT.
To save the image, see page 25.
3
Superimpose a handwritten or a
standard format message over the
background image.
x To superimpose a handwritten
message
1 Press g/G to select
(Handwritten
message), then press ENTER.
Superimposing a message on
an image
Tip
1
From the
CreativePrint menu
(page 19), press g/G/f/F to select
“Superimpose,” then press
ENTER.
The window used for selecting the
background image is displayed.
2
The window used for selecting an
image to be superimposed is displayed.
2 Press g/G/f/F to select the image you
want to superimpose and press ENTER.
Select the image of handwritten
characters or illustrations you have
prepared in advance.
The trimming cursor is displayed.
Select an image for the background.
1 Press g/G/f/F to select an image for
background, then press ENTER.
The window used for adjusting the
image is displayed. For how to adjust an
image, see step 5 on page 27.
2 Press g/G to select
and then press
ENTER.
Preview window is displayed.
3 When you do not want to trim a
message, press ENTER.
Continued
29 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
To superimpose handwritten characters or an
illustration, draw them with a black ink pen on a sheet
of white paper, shoot them with a digital camera, and
save the image on a memory card.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
To specify the trimmed portion
Press g/G/f/F to select
trimming tool, and press ENTER.
Press g/G/f/F to move the cursor to
the position that you want to specify as
the beginning point of the trimmed area,
then press ENTER.
Repeat the same procedures to specify
the ending point of the trimmed area.
x Superimposing a standard
format message
1 Press g/G to select
(Standard
format message), then press ENTER.
The window used for selecting a
standard format message is displayed.
2 Press f/F to select the desired message
The color selection window is
displayed.
4 Press g/G/f/F to select the desired
color and then press ENTER.
The window used for adjusting the
superimposed image is displayed.
For how to adjust an image, see step 5
on page 27.
5 Press g/G to select
and press
ENTER.
A preview of the selected image
superimposed on the background image
is displayed.
and press ENTER.
The color selection window is
displayed.
3 Press g/G/f/F to select the desired
color and then press ENTER.
The window used for adjusting the
message is displayed. For how to adjust
an image, see step 5 on page 27.
4 Press g/G to select
and press
ENTER.
A preview of the superimposed
message on the background image is
displayed.
30 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
x Superimposing a stamp
1 Press g/G to select
(Stamp), then
press ENTER.
The window for selecting a stamp is
displayed.
2 Press g/G/f/F to select a desired
stamp and press ENTER.
The window used for adjusting the
stamp is displayed. For how to adjust an
image, see step 5 on page 27.
3 Press g/G to select
and press
ENTER.
The preview of the superimposed stamp
on the background image is displayed.
Adding a frame
1
From the
CreativePrint menu
(page 19), press g/G/f/F to select
“Frame,” then press ENTER.
The Frame templates are displayed.
4
Press PRINT.
To save the image, see page 25.
To superimpose multiple
handwritten characters or preset
messages
Press g/G to select
(Handwritten
message) or
(Standard format
message) and repeat step 3.
2
Press g/G/f/F to select the desired
frame, then press ENTER.
The index view is displayed.
3
Press g/G/f/F to select the desired
image, then press ENTER.
The image adjustment window is
displayed. For how to adjust an image, see
step 5 on page 27.
4
Press g/G to select
ENTER.
and press
The selected image is displayed with the
selected frame.
5
Press PRINT.
To add a stamp, see “Superimposing a
stamp” on page 31.
Continued
31 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
To add multiple stamps
Repeat steps 2 through 3
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
Making layout prints
1
From the
CreativePrint menu
(page 19), press g/G/f/F to select
“Layout Print,” then press
ENTER.
Making an ID photo
1
The window used for setting the height
and width of an ID Photo is displayed.
The Layout Print templates are displayed.
2
Press g/G/f/F to select the desired
template, then press ENTER.
The preview of the selected template is
displayed
3
Select an image.
Tip
You can set a maximum size of 7.0 (width) x
9.0 (height) cm.
2
When you select a template with multiple
images, select an image for each area. For
how to select an image, see step 4 on
page 26. When you select image(s), the
window for adjusting the image is
displayed.
4
5
Press PRINT.
Press g/G/f/F to select the item
that you want to adjust, and press
ENTER.
• To specify the unit: Select the text box at
the left of the photo frame. You can select
either “cm” or “inch.”
• To specify the height: Select the figure box
at the right of the photo frame.
• To specify the width: Select the figure box
in the upper of the photo frame.
Adjust an image.
For how to adjust an image, see step 5 on
page 27. When you adjust an image, the
image is added to the image area.
To add a stamp, see “Superimposing a
stamp” on page 31.
From the
CreativePrint menu
(page 19), press g/G/f/F to select
“ID Photo,” then press ENTER.
3
4
5
Press f/F to set the size or unit and
then press ENTER.
If you want to specify the other size,
repeat steps 2 and 3.
Press g/G/f/F to select
press ENTER.
and
The window for selecting an image is
displayed.
32 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
6
Press g/G/f/F to select the desired
image, and then press ENTER.
The window used for adjusting the image
is displayed.
You can also set the following adjustment
items.
Items
Procedures
Adjust the picture quality
of an image. (page 22)
Displays the window to
correct red-eye
phenomenon. (page 24)
Performing Batch Print
(Index Print/DPOF Print/Print All)
• Index Print
You can print a list (index) of all the images
stored in a memory card or an external
device, which allows you to check the
contents of the selected media easily.
The number of split panes on a sheet will be
calculated automatically. Images are printed
in each split pane.
For other adjustment items, see step 5 on
page 27.
7
8
Press g/G to select
ENTER.
and press
Press PRINT.
Note
An ID photo print using this printer may not be
acceptable to be used for an identification card or
passport. Please check the requirements for the photo
to be used in the certificate before you submit the card
or passport.
• Print All
You can print all the images stored on a
memory card or an external device at one
time.
• DPOF Print
The images which are DPOF (Digital Print
Order Format) preset for printing are
displayed with the print mark ( ) in an
image preview. You can print those images
at one time. The images are printed with the
preset number of copies in the order they
were displayed.
Notes
• For how to preset images for printing, see the
manual of your digital camera.
• Some types of digital cameras do not support the
DPOF function, or the printer may not support
some of the functions of the digital camera.
Continued
33 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
Makes an image into
monochrome pictures.
(page 22)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
1
From the menu, select
(Batch
Print) and then press ENTER.
The Batch Print menu is displayed.
2
Press f/F to select “Index Print,”
“DPOF Print,” or “Print All” and then
press ENTER.
The confirmation dialog box is displayed.
Viewing a slideshow
Showing the slideshow
1
Note
If there are no DPOF preset images when you
select “DPOF Print,” an error message will be
displayed.
3
From the menu, press g/G to select
(Slideshow) and then press
ENTER.
The Slideshow menu is displayed.
2
Press g/G to select “Yes” to start
printing or “No” to cancel printing,
and then press ENTER.
Press f/F to select “Switch,” and
then press ENTER.
The window used to specify the way
images are switched is displayed.
When you select “Yes” printing starts.
Items
Procedures
Manual
Press g/G to switch
images.
Auto1
Simple
The images are displayed
automatically one after
another in the order of the
index view.
Auto2
Creative*
The “CreativePrint”
images or edited images
with filters are displayed
automatically, at random.
*: Factory settings
3
Press f/F to select “Execute,” and
press ENTER.
The slideshow starts.
34 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
Reserving printing
During a slideshow, press ENTER and the
displayed image will be reserved to be printed.
If you have selected the “Auto2 Creative”
switch option, you cannot reserve an image for
printing.
To stop a slideshow
Press CANCEL.
Note
Depending on the image, it may take time to be
displayed.
File operations
Copying images
You can copy memory card images to another
memory card or an external device connected
to the PictBridge/EXT INTERFACE
connector.
1
The print preview of the displayed image will
appear.
When an image is reserved to be printed, you
can check the print preview by pressing g/G.
Press PRINT again so that printing starts.
After printing is completed, slideshow
resumes.
2
Press f/F to select “Copy all files”
or “Copy selected files” and press
ENTER.
• When “Copy all files“is selected, skip
to step 5.
• When “Copy selected files” is selected,
the index view of the memory card or
external device is displayed.
3
Press g/G/f/F to select the desired
image and press ENTER.
To copy multiple images, repeat this step.
To cancel the selection
Press g/G/f/F to select the image you
want to cancel, and press ENTER again.
4
Press MENU.
The dialog box to select the destination is
displayed.
Continued
35 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
The File operation menu is displayed
(page 19).
Printing
During a slideshow, press PRINT.
From the menu, press g/G to select
(File operation) and then press
ENTER.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
5
Press f/F to select “Memory Stick,”
“CompactFlash”, “SD Card,” “xDPicture Card” or “External Device,”
and press ENTER.
Deleting selected images
You can select and delete images stored on a
memory card.
Tip
When you select “External Device,” a dialog
box for selecting a drive may be displayed.
Follow the instructions on the screen to select
the destination drive.
1
The File operation menu is displayed
(page 19).
Note
You cannot copy an image onto the same
memory card or external device containing the
image to be copied.
6
From the menu, press g/G to select
(File operation) and then press
ENTER.
2
Press f/F to select “Delete Image”
and press ENTER.
The index view is displayed.
Press f/F to select the desired
folder and press ENTER.
Trash icon
The selected images are copied to the
destination folder.
Tips
• You can select a folder number of the destination.
If there is no such file at the destination, a new
folder is created.
• To exit the File operation menu midway, press
CANCEL.
Note
While copying images, do not turn off the printer or
remove the memory card or external device from the
printer. The printer, memory card, or USB external
device may be damaged or the data may be lost.
3
Press g/G/f/F to move the trash
icon to the image you want to
delete, then press ENTER.
To delete multiple images, repeat this
step.
To cancel the selection
Press g/G/f/F to select the image you
want to cancel, and press ENTER again.
4
Press MENU.
A confirmation dialog box is displayed.
5
Press g/G to select “OK” and press
ENTER.
The selected images are deleted.
36 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
Tip
Formatting a “Memory Stick”
To exit the File operation menu, press CANCEL.
You can format a “Memory Stick.”
Notes
1
From the menu, press g/G to select
(File operation) and then press
ENTER.
The File operation menu is displayed
(page 19).
2
Press f/F to select “Memory Stick
Format” and press ENTER.
The confirmation dialog box is displayed.
3
Press g/G to select “OK” and press
ENTER.
The “Memory Stick” is formatted.
Notes
• When you format a “Memory Stick,” all the
images on it are deleted.
• During formatting, do not turn off the printer or
remove the memory card. The printer or the
memory card may be damaged. Or the image may
be lost.
• You cannot format a memory card other than a
“Memory Stick” or an external device such as a
USB memory.
37 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
• During the deletion, do not turn off the printer or
remove the memory card. The printer or the
memory card may be damaged. Or the data may be
lost.
• An image, once deleted, will be lost forever.
• When you delete an image with an associated file
indication ( ), the associated motion picture file
or e-mail file will be also deleted.
• You cannot delete a protected image with the
protect indication (
) or a DPOF preset
indication (
) displayed. To delete them, use
your digital camera. For the details, see the
operating instruction of the digital camera.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
Changing the Print
setup
1
From the menu, press g/G to select
(Print setup) and then press
ENTER.
The Print setup menu is displayed.
Note
During the “CreativePrint” operations, you
cannot select the items except for “Color
Setting.” (Setting items which cannot be
selected and changed are displayed in gray.)
2
Press f/F to select the desired
setting item, and press ENTER.
The setting window for the selected item
is displayed.
3
Press f/F to select the desired
setting and press ENTER.
The setting is fixed.
Tip
To exit the Print setup menu, press MENU.
38 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
Item
Settings
Contents
Date Print
Date/Time, Date
Prints an image with the date and time of shooting when
the image is recorded according to the DCF (Design rule
for Camera File system) format and the date and time of
shooting is recorded as part of shooting information. You
can select “Date” or “Date/Time.”
When the image is edited on the printer, the date and time
you input in saving an image is printed.
Off*
Prints an image without the date and time.
Borders
Pattern 1/Pattern 2 Prints an image with borders around the image. To print
an image without being cut, select “Pattern 1.” To leave
almost-equal borders in the top, bottom, right and left
around an image, select “Pattern 2.”
Note
Borderless*
Prints an image without blank space around the image.
Note
When printing a standard 4:3 picture shot by a digital camera,
the top and bottom edges of the image are cut and it is printed
as a 3:2 picture.
Pattern 1
AUTO TOUCHUP Setting
Pattern 2
Borderless
You can specify the correction level each for the following elements when the
AUTO TOUCH-UP button is pressed. You can select “Off,” “Standard*,”
“Strong.” (For “Red-eye Correction,” you can select “On*” or “Off.”
• Skin Smoothing: The skin status is automatically recognized and adjusted
to its optimum status.
• Exposure Correction: The brightness is adjusted by using the face
recognition features.
• Focus Correction: Off-focus image will be adjusted to on-focus image.
• Red-eye Correction: Reduces the red-eye phenomenon shot by flash.
*: Factory settings
Continued
39 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
When you select “Pattern 2,” the top and bottom edges or right
and left edges may be trimmed and printed depending on the
image.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
Item
Settings
Contents
Auto Fine Print5
Photographic*/
Vivid
The function automatically corrects the picture quality so
that an image may be printed in more vivid, clear and
beautiful pictures. It is especially effective for a darker
image with low contrast. The pictures are corrected to
reproduce natural skin colors, vivid tree leaf green, or
clear sky blue.
• Photographic: Adjusts an image automatically so that
the image is printed with natural and beautiful pictures.
(Recommended)
• Vivid: Adjusts an image automatically so that the
image is printed with stronger sharpness correction and
more vivid pictures than the Photographic mode.
Tip
For the images shot by an Exif Print (Exif 2.21)-compliant
digital camera, they are adjusted to their optimum picture
quality.
Notes
• The original image data is not corrected.
• When printing in PC mode, the Auto Fine Print5 setting with
the printer driver has priority over the setting here. In the
PictBridge mode, this setting holds effective.
Off
Prints an image without any corrections.
Pages Per Sheet
4-split/9-split/
16-split
Prints the specified numbers of split screens, with each
screen an image is placed.
Off*
Prints an image without split screens.
Color Setting
Adjusts the colors and sharpness of a print. Press g/G to select a color element
( “R” (red), “G“ (green), or “B” (blue)) or “S” (Sharpness), and then press f/F
to set the level. You can set the levels for R, G, B in the range from +4 to –4
and for S in the range from +7 to 0.
R:Adjusts the red and blue elements. The higher you set the level, the more
reddish the picture becomes as if it receives red light. The lower you set
the level, the darker the picture becomes as if light blue is added.
G:Adjusts the green and purple elements. The higher you set the level, the
more greenish the picture becomes as if it receives green light. The lower
you set the level, the darker the picture becomes as if red purple is added.
B:Adjusts the blue and yellow elements. The higher you set the level, the
more bluish the picture becomes as if it receives blue light. The lower you
set the level, the darker the picture becomes as if yellow is added.
S:The higher you set the level, the more distinct the outlines become.
(*R: 0/G:0/B:0/S:0)
*: Factory settings
40 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
Changing the Display/
Printer setup
1
From the menu, press g/G to select
(Display/Printer setup) and then
press ENTER.
The Display/Printer setup menu is
displayed.
Direct printing
2
Press f/F to select the desired
setting item, and press ENTER.
The setting window for the selected item
is displayed (next page).
Note
During Edit or CreativePrint operations, some
items cannot be selected and changed. Those
items which cannot be changed are displayed in
gray.
3
Press f/F to select the desired
setting and press ENTER.
The setting is fixed.
Tips
• To exit the Display/Printer setup menu, press
MENU.
• To reset the settings to their factory-set values,
select “Default Setting” and press ENTER. All the
settings are reset to their factory-set values.
Continued
41 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
Item
Settings
Contents
Index View
by Filename*
In the index view, the images are displayed in the order of
their image numbers.
by date
In the index view, the images are displayed according to
their date.
Ascending*
In the index view, the images are displayed in the order of
their image numbers, starting from the smallest number.
Descending
In the index view, the images are displayed in the order of
their image numbers, starting from the largest number.
On
In the index view, the images without thumbnail
(miniature image used as index) data will be displayed as
an icon.
Off*
In the index view, the images without thumbnail data will
be displayed as its original image.
Listing Order
Icon
Date Display
Order*2
Set the displayed order of the date (Year, Month, and Day) from the following:
• Y/M/D •M/D/Y • D/M/Y
LCD Backlight
Set the brightness level of the LCD Backlight from the following:
Bright*/Dark
On-screen Display In an image preview, you can select the information display as follows:
On*/Off/Details
CONTROL FOR
HDMI
On*
By connecting the printer to a television that supports
HDMI device control, you can use various synchronized
operations with the television.
Off
Operations of HDMI device control operations cannot be
used.
Printer information Version of the firmware and total print number will be displayed.
display
Language*2
You can select the language to display menu or messages: Japanese/English/
French/Spanish/German/Italian/Russian/Simplified Chinese/Traditional
Chinese/Korea/Arabic/Portuguese/Dutch/Persian/Hungarian/Polish/Czech/
Thai/Greek/Turkish/Malay/Swedish/Norwegian/Danish/Finnish
Default Setting
Resets the settings to their default factory-set values.
*: Factory settings
*2: Settings at the factory differ depending on the country
or area you purchased the printer. When you start using
the printer, please make setting for each item.
42 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
To the HDMI OUT connector
Printing from a High
Definition television
The printer supports the HDMI (HighDefinition Multimedia Interface) output. By
connecting the printer to a television equipped
with an HDMI input, you can view higher
precision photos on the television and perform
printing operations.
High-definition television
Connecting to a television
1
Prepare a commercially available
HDMI cable.
Notes
• Use an HDMI cable shorter than 3m in
length.
• Use an HDMI cable acquiring the HDMI
logo.
2
Connect the printer HDMI OUT
(output) connector to a HDMI input
connector of a television.
To an HDMI input connector
While the printer outputs signals to the
television, the printer LCD screen goes
off.
3
Switch the TV input.
When the printer is connected to a
television and then the printer power is
turned on, a television supporting HDMI
control function switches the input
automatically to the printer and displays
the printer pictures on the monitor. When
the television is on the standby mode, the
television power is also turned on.
Notes
• We cannot guarantee operations with all types of
televisions.
• If the HDMI control setting of your television is
off, the television input does not switch
automatically. Settings differ depending on the
television you use. For details, see the manual
supplied with your television.
• If “CONTROL FOR HDMI” is set to “Off,” the
input will not switch automatically (page 42).
Continued
43 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
Use a commercially available HDMI cable to
connect the HDMI OUT connector (A Type) of
the printer to an HDMI input connector of a
television.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
• When you are using a television that does not
support the control for HDMI or you connect a
television with the printer for the first time, your
television may not switch input automatically. If
this occurs, switch the input manually to display
the printer pictures on the television.
Procedures for switching the input differ
depending on the type of a television. For details,
see the manual supplied with your television.
• If you remove or connect an HDMI cable while the
printer is performing an image-processing, printing
or other time-consuming job, the display may
switch between LCD and television. Until the job
is competed, however, the display may show
unusual view.
During copying file, deleting file or other file
operations , do not remove or connect an HDMI
cable. Doing so cancels the job.
Printing procedures
Using the printer buttons for
printing
1
2
Insert a memory card into the
printer.
Press g/G and ENTER of the printer
to select an image, and then press
PRINT to start printing.
The printing procedures are the same as
those with the printer itself. You can
perform Edit and CreativePrint operations.
Notes
• We cannot guarantee operations with all types of
televisions.
• When you are using a Sony TV, you cannot use the
TV remote control to operate the printer if the TV
does not support BRAVIA Sync (Sync menu
compatible).
• To operate the printer, the %5$4, [Enter],
[Return] buttons of the remote control support the
HDMI control.
• If the HDMI control setting of your television is
off, you cannot use the TV remote control to
operate the printer. Settings differ depending on
the television you use. For details, see the manual
supplied with your television.
• If “CONTROL FOR HDMI” is set to “Off,” you
cannot use the TV remote control to operate the
printer (page 42).
x Basic printer operations with a TV
remote control unit
• When a cursor is displayed in an index view
or menu display, you can move the cursor by
pressing %5$4.
• When no cursor is displayed in an image
preview, press $ or a link menu button to
display the operation panel such as the
printer operation panel on the TV monitor.
Press %5$4 on the TV remote control unit to
select an item and then press [Enter] button.
Note
During the Edit and CreativePrint operations, the
black lines appear top, bottom, right and left edges of
the screen and the pictures displayed are rough.
Using the television remote
control unit for printing
If your television supports the control for
HDMI, you can use the remote control unit of
your television to operate the printer.
Operation panel displayed on the TV monitor
44 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Right
• To hide the operation panel, select
on the upper
right corner of the operation panel, or press
CANCEL button on the printer or on the TV
remote control.
Note
With the TV remote control, you cannot do the
following operation:
• Printing from an index view
• Selecting multiple images and then deleting or
copying them.
x Printing
1
Press %5 on the TV control unit to
select an image, press $ to display
the operation panel on the TV
monitor, and then select
(print).
x Displaying a menu
Press $ to display the operation panel on the
TV monitor, press %5$4 to select [Menu],
and then press ENTER.
You can perform Edit and CreativePrint menu
operations.
Note
During the Edit and CreativePrint operations, the
black lines appear top, bottom, right and left edges of
the screen and the pictures displayed are rough.
On control for HDMI
When the “CONTROL FOR HDMI” is set to
“On,” you can use the following printer
operations:
• Turning off the printer power together with
the television.
• After the printer is connected to the TV, you
can switch the TV input automatically to the
printer by turning on the printer, or by
connecting the powered-on printer to the
television. If a television is on the standby
mode, the television is also turned on.
Note
To enable above functions, your television must
support each function.
On BRAVIA PhotoTV HD
The printer supports “BRAVIA PhotoTV HD,”
which reproduces pictures and colors with high
fidelity. By coupling with “BRAVIA PhotoTV
HD”-ready products, you can enjoy photos
with full high definition picture quality.
Dedicated descriptions of flowers and human
faces, dynamic descriptions of sands and
waves, and other photos are reproduced with
stunning photo-realistic picture quality on a
large TV screen.
What is “BRAVIA Sync”
The “BRAVIA Sync” is a name of a feature of
Sony products that uses the HDMI control
signals and enables you to control linked
operations of a “BRAVIA Sync”-ready product
from a BRAVIA control unit.
By connecting the printer and a “BRAVIA
Sync”-compatible TV with an HDMI cable,
you can use a BRAVIA control unit to perform
linked operations.
45 GB
DPP-FP85/FP95 3-285-420-12 (1)
Direct printing
2
Insert a memory card into the
printer.
• You can perform the printer operations using
the TV remote control unit.
• If you switch the language of the TV while
the printer and the television is being
connected, you can also change the printer
language automatically.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\050C03.fm
Master: Left
Printing from an
external device
You can connect a mass-storage-complaint
digital camera, a USB memory, a photo storage
device, digital photo frame, or other external
device and print an image directly from the
external device.
To PictBridge/EXT INTERFACE
connector
External device such
as a USB memory
Notes
• We cannot guarantee connection with all types of
mass storage devices.
• If a memory card is inserted in the printer, the
printer cannot read the signal from an external
device connected to the PictBridge/EXT
INTERFACE connector of the printer. Remove the
memory card, if any.
1
Set your digital camera or other
external device ready for printing
with the Mass Storage-compliant
printer.
The settings and operations that are
necessary before connection differ
depending on the external device you use.
For details, see the operating instructions
of the external device. (In case of Sony
Cyber-shot digital camera, for example,
select “Normal” mode or “Mass Storage”
mode for the “USB Connect.” )
2
3
4
Notes
• If you use a commercially available USB cable,
please use the A-TYPE USB cable of shorter than
3m in length.
• While the access indicator of the external device is
flashing, never turn off the power of the printer or
an external device nor remove the external device.
The data inside the external device may be
damaged. We cannot compensate for any damages
that may be caused by data loss or damage.
• You cannot use a USB hub or a USB device
equipped with a USB hub.
• Encoded or compressed data by fingerprint
authentication or password cannot be used.
Connect the printer to the AC power
source (page 12).
Press the 1 (on/standby) button to
turn on the printer.
Connect an external device such as
a USB memory to the PictBridge/
EXT INTERFACE connector of the
printer.
Use a USB cable supplied with your
digital camera or external device. You can
enjoy direct printing.
46 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\060C04.fm
Master: Right.L0
Printing from a PictBridge digital camera
Printing from a
PictBridge digital
camera
•
•
•
•
Index Print
DPOF Print
Borders/Borderless Print
Date Print
To PictBridge/EXT
INTERFACE connector
You can connect a PictBridge-compliant digital
camera and print an image directly from your
digital camera.
When printing from a PictBridge/EXT
INTERFACE connector, make sure to remove
memory card(s), your computer, and a
television from the printer in advance.
1
3
4
Connect the printer to the AC power
source (page 12).
Press the 1 (on/standby) button to
turn on the printer.
Connect the PictBridge-compliant
digital camera to the PictBridge/EXT
INTERFACE connector of the
printer.
When you connect a PictBridge-compliant
digital camera to the printer, “PictBridge”
is displayed on the LCD display of the
printer.
5
Operate the digital camera to print
an image.
The printer supports the following prints:
• Single-image print
• All images print
To USB connector
Notes
• If you replace an ink ribbon while the printer is
connected to a PictBridge-compliant digital
camera, an image may not be printed properly. If
this occurs, disconnect and then connect the digital
camera.
• When printing from a PictBridge-compliant digital
camera, an image will be printed according to the
settings of the Print setup menu of the printer.
When you set the Date Print or Borders/Borderless
options with your digital camera, the digital
camera settings will have priority. If you select
“Borders” with the printer and “Borders” with your
camera, “Pattern 1” will be used for printing.
• Even when you select “Date/Time” for Date Print
setting, time may not be printed according to the
digital camera you use.
• For error messages displayed on your digital
camera, refer to the operating instructions of your
digital camera.
• You cannot use a USB hub or a digital camera
containing a USB hub.
47 GB
DPP-FP85/FP95 3-285-420-12 (1)
Printing from a PictBridge digital camera
The required settings and operations that
must be completed before connection
differ depending on the digital camera.
For details, see the operating instructions
of your digital camera. (In case of a Sony
Cyber-shot digital camera, for example,
select “PictBridge” mode for the “USB
Connect.”)
2
Camera or other
PictBridge-complaint
device
Set your digital camera ready for
printing with a PictBridge-compliant
printer.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\070C05.fm
Master: Left.L0
Printing from a Bluetooth-compliant device
Printing from a Bluetoothcompliant device
By connecting the Sony DPPA-BT1 Bluetooth
USB adaptor to the PictBridge/EXT
INTERFACE connector of your printer, you
can print an image from a Bluetooth-compliant
mobile phone, digital camera, or other device.
Maximum number of pixels that can be
handled
8 000(H) × 6 000(V) dots (Maximum 5 MB or
less)
Preparations: connecting
DPPA-BT1
Before you start transferring an image or
printing, you need the following preparations:
Notes
• Do not use the DPPA-BT1 outside the area you
purchased it. Depending on the area, the use of the
adaptor may violate the local radio wave
regulations and may be subject to penalty.
• In some regions, the Sony DPPA-BT1 Bluetooth
USB adaptor is not sold.
Compatible profiles for
Bluetooth communication
1
2
3
Connect the printer to the AC power
source.
Press the 1 (on-standby) button to
turn on the printer.
Insert the Bluetooth adaptor into the
PictBridge/EXT INTERFACE
connector of your printer.
The DPP-FP85/FP95 supports the following
profiles:
• BIP (Basic Imaging Profile)
• OPP (Object Push Profile)
For the profiles that your Bluetooth device
supports, please refer to its manual.
What is a “Profile”?
A profile consists of the standards that enable
Bluetooth wireless communication. There are
several profiles available, depending on the
purposes and product to be used. To make
Bluetooth communication possible, the devices
used in the communicated should support the
same profile.
The Bluetooth printing mode window is
displayed.
Compatible image file formats that can
be printed
JPEG: DCF 2.0 compatible, Exif 2.21
compatible, JFIF (4:4:4, 4:2:2, 4:2:0
formats Baseline JPEG)
TIFF:
Exif 2.21 compatible
BMP: 1, 4, 8, 16, 24, 32 bit Windows format
Some image file formats are not compatible.
48 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\070C05.fm
Master: Right
Note
If any device, other than the Bluetooth adaptor,
such as a memory card, camera, PC, or other
USB memory or a USB cable is connected to
any of the memory card slots, the PictBridge/
EXT INTERFACE connector, or USB
connecter of your printer, disconnect it from the
printer and then connect the Bluetooth adaptor.
Printing
Print from the Bluetooth-compliant
mobile phone, or other device.
For printing procedures, refer to the manual of
your Bluetooth device.
* A Passkey is often referred to as a “pass code” or
“PIN code.”
Transferring an image to a
memory card
1
Insert a memory card into the
appropriate memory card slot of the
printer.
Insert a memory card that you want to
save an image to be transferred only.
The Bluetooth saving mode window is
displayed.
2
Transfer an image from the
Bluetooth-compliant mobile phone,
or other device.
Perform the similar procedures when you
print an image. For details, see the
operating instructions of the Bluetoothcompliant device you are using.
The image transferred is saved in the
memory card.
Continued
49 GB
DPP-FP85/FP95 3-285-420-12 (1)
Printing from a Bluetooth-compliant device
To select the printer from a Bluetoothcompliant device, select “Sony DPP-FP85 ##”/
“Sony DPP-FP95 ##.” (“##” stands for the two
figures from the right of the address displayed
in the LCD screen:
When input of Passkey* is required
Input “0000.” You cannot change the Passkey
with the printer.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\070C05.fm
Master: Left
Notes
• Do not use the DPPA-BT1 outside the area you
purchased it. Depending on the areas, the use of
this product may violate the local radio wave
regulations and may be subject to its penalty.
• The communication distance of the product may
vary depending on the obstacles between the
product (a human body, metal object, or wall) and
the mobile phone or other device.
• The sensitivity of the Bluetooth communication
may be affected in the following conditions:
– When there is an obstacle between the product
and the mobile phone or other product such as a
human body, metal object, or a wall.
– Where a wireless LAN is established or a
microwave oven is being used near-by, or other
electromagnetic waves are emitted.
• Since a Bluetooth device and a wireless LAN
(IEEE802.11b/g) device use the same frequency
ranges, wave interference may occur when the
product is used near a device equipped with a
wireless LAN. This may cause deterioration in the
communication speed and connection conditions.
If this occurs, take the following measures:
P Caution
• Radio waves from a Bluetooth device may
adversely affect the operation of electrical and
medical devices, and could lead to accidents due to
malfunctions. Make sure to turn off the product
and mobile phone and do not use this product in
the following places:
– Inside medical facilities, trains, airplanes, gas
stations or other places that may emit flammable
gas.
– near automatic doors or fire alarms or other
automatically controlled devices.
• Keep this product at least 22 cm away from cardiac
pacemakers. Radio waves from this product may
adversely affect the operation of cardiac
pacemakers.
• Do not disassemble or modify this product. Doing
so could result in injury, electric shock, or fire.
– Keep a distance of at the least 10 m from a
wireless LAN device when you connect the
product to a mobile phone.
•
•
•
•
– Turn off the wireless LAN device in case you
want to use the product closer than 10 m from
the wireless LAN device.
We cannot guarantee that this product works with
all devices enabled with Bluetooth wireless
technology.
Sony cannot assume any responsibility for any
information leakage that may be caused in
Bluetooth communications.
Sony cannot accept responsibilities for any failure
to satisfy the protection requirements resulting
from a non-recommended modification or use of
the product.
For customer support information, please refer to
the operating instructions of your printer.
50 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\080C06.fm
Master: Right.L0
Printing from a PC
Printing from a PC
You can print the images from a PC by
installing the supplied software on your PC and
connecting it to the printer.
This section explains how to install the
supplied software on your PC and how to use
the supplied Picture Motion Browser software
to print an image.
Please also refer to the operating instructions
supplied with your PC for information on
operating the PC.
Installation of the software is necessary only
when you connect the printer to your PC for the
first time.
System requirements
To use the supplied printer driver and Picture
Motion Browser, you need a PC that meets the
following system requirements:
Operating Microsoft Windows Vista (*2)/
System(*1) Windows XP SP2 (*2)/Windows
2000 Professional SP4 (Factoryinstalled)
(*1)This printer driver does not run on
Windows 2000 Professional SP2 or
former, or Windows Me or former
operating systems.
This printer driver does not run on
Macintosh.
(*2)The Picture Motion Browser, 64-bit
editions and starter (Edition) are not
supported.
CPU
Pentium III 500MHz or faster
(Pentium III 800MHz or faster is
recommended.)
RAM:
256 MB or more (512 MB or more
is recommended.)
Hard disk 400 MB or more (Depending on the
space:
Windows version you are using,
more space will be required. To
handle image data, you will need
additional hard disk space.)
Display
setting:
Screen resolution: 1024 × 768 dots
or more recommended
Screen colors: High Color (16-bit)
or greater
Connector USB connector
Drive
CD-ROM drive (to be used for
software installation)
Continued
51 GB
DPP-FP85/FP95 3-285-420-12 (1)
Printing from a PC
On the supplied CD-ROM
The supplied CD-ROM contains the following
software:
• Printer driver for the DPP-FP85/FP95: The
software describes the printer’s requirements
and enables printing from the PC.
• Picture Motion Browser: Sony’s original
software application that allows you to
handle photographs and moving images—
this includes capturing, managing,
processing, and printing.
Installing the software
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\080C06.fm
Master: Left
Notes
• If a hub is used to connect the printer and your PC,
or if two or more USB devices, including other
printers, are connected to your PC, trouble may
occur. If this occurs, simplify the connections
between your PC and the printer.
• You cannot operate the printer from another USB
device being used simultaneously.
• Do not remove the USB cable from or connect it to
the printer during data communication or printing.
The printer may not work properly.
• The printer does not support standby, sleep, and
hibernation modes and restarting from those
modes. Do not allow the PC connected to the
printer to switch to one of those modes during
printing. If you do so, printing may be failed.
• When printing is failed, remove a USB cable and
then connect it, or restart your computer. Then try
printing again.
• If you pause a printing job in process, and resume
printing after a while, printing may not be
performed correctly.
• We cannot guarantee operations with all PCs, even
though they may meet or exceed the system
requirements.
• Picture Motion Browser supports DirectX
technology and DirectX installation may be
required.
DirectX is available on the CD-ROM.
• If the Picture Motion Browser is installed on a PC
on which the Cyber-shot Viewer is already
installed, the Cyber-shot Viewer will be
overwritten and replaced by the Picture Motion
Browser. The browsing folders once registered in
the Cyber-shot Viewer will be automatically
registered in the Picture Motion Browser. When
using the Picture Motion Browser, you can view
the folders easier than you can when using the
Cyber-shot Viewer, as the registered folders are
displayed by group when viewing folders. With its
improved red-eye reduction adjustment and newlyadded tone curve adjustment, the Picture Motion
Browser also offers more powerful editorial
features. You can also use the software to write
data onto an external memory card.
Installing the printer driver
Follow the procedures below to install the
driver.
Notes
• Do not connect the printer to the PC before
installing the driver.
• Please log on to Windows using a “Computer
administrator” user account.
• Be sure to close all running programs before
installing the software.
• The dialog boxes shown in this section are from
Windows Vista, unless otherwise specified. The
installation procedures and the dialog boxes shown
differ depending on the operating system.
1
Turn on your PC, start Windows,
and insert the supplied CD-ROM
into the CD-ROM drive of your PC.
The installation window is displayed.
Notes
• If the installation window is not displayed
automatically, double-click the “Setup.exe”
file on the CD-ROM.
• In Windows Vista, the AutoPlay window
may appear. Even if this occurs, select
“Setup.exe” and follow the instructions on
the screen. When the window used for
controlling the user account is displayed,
select “Continue.”
2
Click “Installing Printer Driver.”
The “InstallShield Wizard” dialog box is
displayed.
52 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\080C06.fm
Master: Right
3
Click “Next.”
The license agreement dialog box is
displayed.
4
Read the agreement thoroughly,
and if you agree, check “I accept the
terms of the license agreement” and
click “Next.”
To USB
connector
To USB connector
Windows PC
Note
5
Click “Install.”
Installation starts.
6
7
When the “Sony DPP-FP95/FP85
printer driver has been successfully
installed.” dialog is displayed, click
“Finish.”
9
Wait for a while, then check to see
that “Sony DPP-FP85” or “Sony
DPP-FP95” has been added to the
“Printers” or “Printers and Faxes.”
Press the 1 (on/standby) button to
turn on the printer.
Connect the USB connectors of the
printer and your PC with a USB
cable (not supplied).
Printer driver installation starts
automatically.
10 When the installation is complete,
remove the CD-ROM from your PC
and keep it for future use.
To continue the process and install the
Picture Motion Browser software, follow
the procedures from step 2 on page 55.
Continued
53 GB
DPP-FP85/FP95 3-285-420-12 (1)
Printing from a PC
8
Use a B-type USB cable shorter than 3m in
length.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\080C06.fm
Master: Left
5
Notes
• If the installation fails, remove the printer from
your PC, restart your PC, and then follow the
installation procedures from step 1 again.
• After installation, the “Sony DPP-FP85” or “Sony
DPP-FP95” is not yet set as the default printer. Set
the printer you use for each application.
• The supplied CD-ROM will be required when you
uninstall or re-install the printer driver. Keep it for
possible future use.
• Before you use the printer, read the Readme file
(the Readme folder of the CD-ROM c English
folder c Readme.txt).
When the software is installed
The
icon is displayed on the Windows
desktop, as well as a shortcut to the web site for
printer customer registration. After you finish
registration, you can find support information
at: http://www.sony.net/registration/di/
Read the agreement thoroughly,
and if you agree, check “I accept the
terms of the license agreement” and
click “Next.”
The confirmation dialog box used for
removing the software is displayed.
6
Click “Yes.”
The confirmation dialog box used for
restart is displayed.
7
Check “Yes, I want to restart my
computer now” and click “OK.”
After the computer is restarted, the
relevant files will be deleted and
uninstallation is complete.
Uninstalling the printer driver
When the printer drive becomes unnecessary,
please follow the procedures below to remove
the printer driver:
1
2
Disconnect the USB cable (not
supplied) from your printer and the
PC.
Insert the supplied CD-ROM into the
CD-ROM drive of your PC.
The installation window is displayed.
Note
If the installation window is not displayed
automatically, double-click the “Setup.exe” file
on the CD-ROM.
3
Click “Installing Printer Driver.”
The “InstallShield Wizard” dialog box is
displayed.
4
Click “Next.”
The license agreement dialog box is
displayed.
54 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\080C06.fm
Master: Right
Installing the Picture Motion
Browser
5
Read the agreement thoroughly,
and if you agree, check “I accept the
terms of the license agreement” and
click “Next.”
Follow the procedures below to install the
Picture Motion Browser.
Notes
• Please log on to Windows using a “Computer
administrator” user account.
• Be sure to close all running programs before
installing the software.
• The dialog boxes shown in this section are from
Windows Vista, unless otherwise specified. The
installation procedures and the dialog boxes shown
differ depending on the operating system.
1
Turn on your PC, start Windows,
and insert the supplied CD-ROM
into the CD-ROM drive of your PC.
The dialog box notifying you that the
program is ready to be installed is
displayed.
6
The installation window is displayed.
2
Click “Installing Picture Motion
Browser.”
The “Choose Setup Language” dialog box
is displayed.
3
The “InstallShield Wizard” dialog box is
displayed.
4
Click “Next.”
The license agreement dialog box is
displayed.
When you are prompted to restart your
PC, follow the displayed instructions to
restart it.
7
When the installation is complete,
remove the CD-ROM from your PC
and keep it for future use.
Notes
• If the installation fails, perform the installation
procedures from step 2 again.
• The supplied CD-ROM will be required when you
uninstall or re-install the Picture Motion Browser.
Keep it in a safe place for possible future use.
Continued
55 GB
DPP-FP85/FP95 3-285-420-12 (1)
Printing from a PC
Select your language and click
“Next.”
Click “Install” and follow the
instructions on the screen to
proceed with installation.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\080C06.fm
Master: Left
Uninstalling the Picture
Motion Browser
When this software is no longer needed,
remove it from your PC as follows:
1
Click “Start” - “Control Panel.”
The Control Panel is displayed.
2
3
Open “Add or Remove Programs.”
Select “Sony Picture Utility” and
click “Change/Remove.”
The software uninstallation process starts.
Printing photos from the
Picture Motion Browser
You can use the Picture Motion Browser to
print an image from your PC using P size print
paper.
1
Start the Picture Motion Browser
window using either of the following
methods:
• Double-click
(Picture Motion
Browser) on the Windows desktop.
• Click “Start” - “All Programs” (or
“Programs” with Windows 2000) “Sony Picture Utility” - “Picture
Motion Browser.”
When the Picture Motion Browser is
started for the first time, the dialog box
used to register a viewed folder is
displayed. If images have already been
saved in the “Pictures” folder, click
“Register Now.”
If you have saved images in a folder other
than the “Pictures” folder, click “Register
Later.” Refer to “Registering a browsing
folder” on page 60.
Tip
In Windows XP/Windows 2000, please read
“Pictures” as “My Pictures.”
56 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\080C06.fm
Master: Right
How to access the “Pictures” folder
• In Windows 2000:
Click “My Documents” - “Pictures” on
the desktop.
• In Windows Vista/XP:
Click “Start” - “Pictures” from the
taskbar.
2
Click “Start.”
The main window of the Picture Motion
Browser is displayed
3
Click the folder containing the
photos you want to print.
As an example, the “sample” folder is
selected in the following explanation.
4
Select the photos that you want to
print and click
(print).
The Print dialog box is displayed.
5
In the “Printer” drop-down list box,
select “Sony DPP-FP85” or “Sony
DPP-FP95.” To set the paper
orientation or other print options, go
to step 6. To print, skip to step 11.
In main window, there are the following
two different views. To switch the view,
click the “Folders” or “Calendar” tab in
the right frame.
• “Calendar” view
The images will be classified according
to the shot date and are displayed as
thumbnails on each date of the calendar.
In “Calendar” view, you can switch the
display by year, by month, or by hour.
In this section, “Folders” view windows
are used as examples.
Items
Functions
Printer
Select the printer you are using:
“Sony DPP-FP85” or “Sony
DPP-FP95.”
Paper size
To change the size, click
“Properties.”
Note: In some regions, L size
print paper is not sold.
Properties
Specifies paper size,
orientation, picture quality and
other details.
Continued
57 GB
DPP-FP85/FP95 3-285-420-12 (1)
Printing from a PC
• “Folders” view
The images will be classified in each
registered folder and are displayed as
thumbnails.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\080C06.fm
Master: Left
Items
Print
Options
6
Functions
• Zoom the image until the
print area is full*: When
checked, an image will be
printed over the entire
printing area of the paper. An
edge of the photo may be cut.
When unchecked, an image
will be printed without
cutting off any portions.
*When you make a
Borderless Print, make sure
to check this option.
• Print date taken: When
checked, an image is printed
with the date of shooting if
the image is a file recorded in
the DCF (Design rule for
Camera File system) format.
Items
8
Functions
Orientation
Select the orientation of an
image when printed:
• Portrait
• Landscape
Page Order
Select the order of the pages
when printed:
• Front to Back
• Back to Front
Pages Per
Sheet
Specify the number of copies
per sheet to be printed. Select
“1.”
Advanced
Specifies the paper size or
other options.
Click “Advanced.”
The “Sony DPP-FP85/FP95 Advanced
Options” dialog box is displayed.
To set the paper orientation or other
print options, click “Properties.”
The “Properties” dialog box of the
selected printer is displayed. The printer
driver of this printer utilizes the Universal
Printer Driver, a Microsoft common
printer driver. In the dialog boxes, there
are some items that are not used within
this printer.
7
In the “Layout” tab, specify the
paper orientation or other options.
Items
Paper/
Output
Functions
• Paper Size: From the dropdown list box, select the
paper size you actually use
for printing: P size (post card
size)/L size
Note: L size print paper is
not sold in some regions.
• Copy Count: Specify the
number of copies to be
printed.
58 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\080C06.fm
Master: Right
Items
Functions
Items
Graphic • ICM Method: The printer
does not support the ICM
Color Manmethod settings. Even if you
agement
select an option other than
“ICM Disabled,” the printed
results will not reflect the
setting. Leave the option as it
is.
• ICM Intent: The printer does
not support the ICM Intent
settings. Leave the option as
it is.
Document
Options
Printer
Features
• Advanced Printing Features:
Select “Enabled” to turn on
advanced printing options
such as “Page Order.” If a
compatibility problem
occurs, disable this feature.
• Color Printing Mode: To
print in colors, select “True
Color (24bpp).” To print in
monochrome, select
“Monochrome.”
• Auto Touch-Up: Select
“ON” or “OFF.” When you
select “ON,” please select
“ICM Disabled” for “ICM
Method.” Unlike direct
printing from a memory card,
no Exif data is referred. For
details, see page 20.
• Color Setting: You can
change R (red), G (green), B
(blue), and sharpness
settings. For details, see
page 40.
9
On the “Paper/Quality” tab, specify
the color or paper source.
Items
Functions
Tray
Selection
From the “Paper Source” dropdown list box, select
“Automatically Select.”
Color
To print in colors, select
“Color.” To print in
monochrome, select “Black &
White.”
Advanced
The “Sony DPP-FP85/FP95
Advanced Options” dialog box
is displayed. (page 58) For
details, see step 8.
10 Click “OK.”
The “Print” dialog box is displayed again.
Continued
59 GB
DPP-FP85/FP95 3-285-420-12 (1)
Printing from a PC
• Borderless Print: To print an
image without borders, select
“ON.” To print with borders,
select “OFF.” Depending on
the application software, an
image will be printed with
borders even if “ON” is
selected. Set an image to be
printed fully in the print
range.
• Auto Fine Print 5: Select
from “Photo,” “Vivid,” or
“OFF.” When you select
“Photo” or “Vivid,” please
select “ICM Disabled” for
“ICM Method.” Unlike direct
printing from a memory card,
no Exif data is referred.
Functions
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\080C06.fm
Master: Left
11 Click “Print.”
Printing starts. For the details of the
properties of the Picture Motion Browser,
see the Picture Motion Browser help.
The confirmation dialog box used for
registration is displayed.
3
Registration of the image information in
the data base starts.
Note
You cannot print a motion-picture file or RAW data
files.
Click “Yes.”
4
Click “Close.”
Notes
Tips
• To select a series of still images in the image area
of the main window, click the first image in the
series and then click the last image while pressing
the Shift key. To select multiple still images not in
a sequence, click the images individually while
pressing the Ctrl key.
• You can also print from an image preview.
Registering a browsing folder
The Picture Motion Browser does not allow
you to view images saved on the PC hard disk
directly. You must first register the browsing
folder as follows:
1
Click “File”-“Register Viewed
Folder,” or click
.
The “Register Folders to View” dialog
box is displayed.
2
• The folder you select as the destination of
the imported images will be registered
automatically.
• You cannot cancel registration of the folder
you register here.
To change the browsing folder
Click “Tools” - “Settings” - “Viewed folders.”
Tips
• If a sub folder is contained in the source folder, the
images in the sub folder will also be registered.
• When the software is first started, a message
prompting you to register “Pictures” will be
displayed.
• Depending on the number of images, it may take
some tens of minutes to register images.
Stopping printing
1
Select the folder you want to register
and then click “Register.”
2
Double-click on the printer icon on
the taskbar, and open the “Print”
dialog box.
Click the document name that you
want to cancel printing of and then
click “Cancel” from the “Document”
menu.
The dialog box used for confirming the
deletion is displayed.
3
Click “Yes.”
The printing job is canceled.
Note
Note
Do not remove the job being printed. Doing so may
cause a paper jam.
You cannot register the whole drive.
60 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\080C06.fm
Master: Right
Printing from a commerciallyavailable software application
You can use a commercially-available software
application to print an image from the DPPFP85/FP95. Select “DPP-FP85” or “DPPFP95” as a printer in the print dialog box, and
select the print paper size in the page setup
dialog box. For details of print settings, see
page 58.
Print quantity setting
Depending on the software application you are
using, the print quantity setting of the
application may have priority over the setting
specified in the printer driver dialog box.
Printing from a PC
On the “Borderless Print” setting in
“Printer Features”
When using an application other than the
Picture Motion Browser, an image might be
printed with borders even if you select “ON”
for “Borderless Print” in “Printer Features” of
the “Sony DPP-FP85/FP95 Advanced Options”
dialog box.
When you select the borderless print option, the
printing range information for borderless
printing will be supplied to the application.
Some applications, however, may arrange and
print the image with borders within the
specified range.
If this occurs, do the following to print an
image without borders:
• When you can set the print range with an
application, set an image to be printed fully
within the available print range. For
example, select “Full page photo print” or a
similar option.
Orientation setting
Depending on the software application you use,
orientation may not change even if you change
portrait or landscape setting.
With the Borders/Borderless setting of
the printer driver
When the software application you use has
Borders/Borderless setting, we suggest you
select “ON” for “Borderless Print” in “Printer
Features” of the “Sony DPP-FP85/FP95
Advanced Options” dialog box as the printer
driver setting.
61 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\090C07.fm
Master: Left.L0
Error messages
If an error message appears
If an error occurs, the following error messages may be displayed on the LCD screen.
Follow the process described here to solve the problem.
Printer
Error messages
Meaning/Solutions
Error occurred with printer. Turn it off
and on, then retry. (If this error occurs
often, read the manual.)
c An error has occurred with the printer. Unplug the AC
power cord of the printer, connect it again and then try
operating again. If this occurs again, consult with your
Sony dealer or Sony service facilities.
Memory cards and external device
Error messages
Meaning/Solutions
No Memory Stick.
(Similar messages for CompactFlash
card, SD Card, and xD-Picture Card,
and external device.)
c A memory card or an external device is not inserted
into its slot. Or the external device is not connected.
Insert the memory card or an external device.
(.pages 15, 46)
An incompatible Memory Stick is
inserted.
(Similar messages for CompactFlash
card, SD Card, and xD-Picture Card,
and external device. )
c A memory card or an external device that the printer
does not support is inserted. Use a compatible memory
card or device. (.pages 80 to 82)
No image file.
c There are no image files in the memory card or an
external device that the printer can handle. Connect a
memory card or device that contains images that can
be displayed with the printer.
No DPOF file
c There are no DPOF-preset image files in the memory
card or an external device. Specify the print (DPOF)
mark with your camera.
Cannot delete a protected image.
c To delete a protected image, cancel protection on your
camera.
Cannot delete a DPOF image.
c To delete a DPOF-preset image, cancel the print
(DPOF) mark on your camera.
Protected. Cancel protect then try again. c The “Memory Stick” is write-protected. Release the
write-protection.
The Memory Stick is full.
(Similar messages for CompactFlash
card, SD Card, and xD-Picture Card,
and external device.)
c There is no free memory space in the selected memory
card or an external device. Delete unnecessary images
or replace with a one having sufficient memory space.
62 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\090C07.fm
Master: Right
Error messages
Meaning/Solutions
This Memory Stick has problem.
(Similar messages for CompactFlash
card, SD Card, and xD-Picture Card,
and external device.)
c An error may have occurred. If these messages appear
frequently, check the memory card or an external
device status with another device.
In case of an external device
An external device might be write-protected. Release
the write-protection setting of the device you use. A
built-in memory of a digital camera may be writeprotected.
Write error in the Memory Stick.
(Similar messages for CompactFlash
card, SD Card, and xD-Picture Card,
and external device.)
Memory Stick Format Error
Image editing will be completed.
Would you like to save the image?
c A protected “Memory Stick” is inserted. To save or
edit the images with the printer, use the device you are
using to cancel protection.
External devices and PictBridge-compliant devices
Error messages
Meaning/Solutions
Incompatible USB device. Check
device’s USB setting
c A USB device that the printer does not support may be
connected. Or, the USB settings of the connected
device may be incompatible. Refer to the operating
instructions of the USB device you are using.
USB hub or device with built-in hub not c Connect the device directly to the printer or use a
supported.
device that does not contain a USB hub function.
Write error in the External Device.
c The external device might be write-protected. Release
the write-protection setting of the device you are using.
The built-in memory of a digital camera may be writeprotected.
Ink ribbon
Meaning/Solutions
No ink ribbon. Insert P size ink ribbon
and press [PRINT].
c The ink ribbon is not inserted in the printer. Set the ink
ribbon into the printer. (.page 9)
If “cleaning cartridge” is displayed, set the cleaning
cartridge. (.page 78)
End of ink ribbon.
c Replace the current ink ribbon with a new ink ribbon.
(.page 9)
End of ink ribbon. Insert P size ink
ribbon and press [PRINT].
Ink ribbon type incorrect. Insert P size
ink ribbon and press [PRINT].
c Set an ink ribbon and print paper of the displayed size.
(.page 9)
Continued
63 GB
DPP-FP85/FP95 3-285-420-12 (1)
Error messages
Error messages
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\090C07.fm
Master: Left
Print paper
Error messages
Meaning/Solutions
No paper tray. Insert paper tray
containing P size printer paper and
press [PRINT].
c There is no print paper in the printer.
– The paper tray is not set in the printer.
– The print paper is not set in the paper tray.
– The print paper has run out.
In any case, set the print paper in the tray and set the
paper tray into the printer. (.page 10)
No print paper. Set the print paper for
the P Size and press [PRINT].
Cleaning sheet is not placed. Set the
cleaning sheet and press [PRINT].
c There is no cleaning sheet in the paper tray. Insert the
cleaning sheet into the paper tray and set the paper tray
into the printer.
Wrong print paper. Set the print paper
for the P Size and press [PRINT].
c The print paper and ink ribbon do not match. Check
the ink ribbon size actually loaded in the printer and set
the print paper for the identical size. (.page 9, 10)
Paper jam. Remove Print Paper.
c Paper has jammed. See “If paper jams” (.page 77)
and remove any jammed paper from the printer. If the
jammed paper cannot be removed, contact the Sony
service facilities.
64 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Right.L0
Troubleshooting
If trouble occurs
If you run into any problems using the printer, use the following guidance to solve the problem.
If the problem persists, consult your Sony dealer.
Power
Symptom
Check
Cause/Solutions
The 1 (on/
standby) button
cannot be turned
on.
• Is the AC power cord
properly connected?
c Connect the AC power cord to an AC
outlet securely. (.page 12)
Displaying images
Symptom
Check
Cause/Solutions
The LCD screen
displays no
images.
• Is the memory card or an
external device properly
inserted?
c Insert a memory card or an external device
properly. (.page 15, 46)
• Does the memory card or an
external device contain
images recorded with a
digital camera or other
device?
c Insert a memory card or an external device
that contains the recorded images.
c Check the file formats that can be printed
with the printer. (.page 83)
• Is the file format compatible c If an image is not compatible with the
with the DCF?
DCF, it may not be printed with the
printer even if it is displayed on the PC
monitor.
No images appear
either on the LCD
screen or on the
TV monitor.
• Is the TV input selector set
to the printer?
Some images in
• Are thumbnail images
c If the image is displayed but cannot be
the index view are
displayed in the index view?
printed, the file used for printing is
not displayed or
damaged.
not printed even if
c If an image is not compatible with DCF
they are displayed.
(Design rule for Camera File system), it
may not be printed with the printer even if
it is displayed on the PC monitor.
Continued
65 GB
DPP-FP85/FP95 3-285-420-12 (1)
Troubleshooting
c Even if the TV input selector is set to the
printer, no images will be displayed when
an HDMI cable is connected.
c Switch the TV input selector to the
printer. Or disconnect the HDMI cable
and switch the display to the LCD screen.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Left
Symptom
Check
• Does the mark displayed
Some images in
the index view are
below appear in the index
not displayed or
view?
not printed even if
they are displayed.
• Was the image created on
your PC?
• Does the mark displayed
below appear in the index
view?
Cause/Solutions
c If the mark shown on the left is displayed,
the image may be a JPEG file created with
your computer, or the thumbnail data is
not contained.
Select the mark and press ENTER to
display its image preview. If an image is
displayed, you can print the image. If the
same mark is displayed again, the image is
of incompatible file format and you
cannot print it with the printer.
c If the mark shown on the left is displayed,
the image is of compatible file format but
its thumbnail data or the data itself cannot
be opened.
Select the mark and press ENTER to
display its image preview. If an image is
displayed, you can print the image. If the
same mark is displayed again, you cannot
print it with the printer.
• Are there more than 9 999
c The printer can display, save, delete or
images saved in the memory
handle up to 9 999 image files. If there are
card or an external device?
more than 9 999 images stored in a
memory card or an external device, use
the PC or PictBridge mode to display and
handle the remaining images.
• Did you name or rename an
image file with your PC?
c When you name or rename an image file
on your computer and its file name
includes characters other than
alphanumeric characters, the file name
may not be displayed correctly or the
image may not be displayed on the printer.
• Did you specify the print
quantity in the index view?
c Once you have selected images in the “To
print multiple images” procedures, you
cannot print an image with which the
cursor is just placed. Press ENTER to
select it and specify the print quantity for
the image. (.page 16)
• There are 9 or more
hierarchies in the memory
card or an external device.
c The printer cannot display the images
saved in a folder of the 9th or higher
hierarchy.
66 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Right
Symptom
Check
The file name is
not displayed
correctly.
• Did you change the file
c When you name or rename an image file
name of the image with your
on your computer and its file name
PC?
includes characters other than
alphanumeric characters, the file name
may not be displayed correctly. For a file
created with a PC application, the first 8
characters of its file name will be
displayed as the file name.
In the Edit menu, • Is the previewed image
there are blank
extremely stretched
areas at the top and
vertically or horizontally?
bottom of the
previewed image.
Cause/Solutions
c If an image is extremely stretched
vertically or horizontally, blank areas may
appear in the Edit menu.
c The standard aspect ratio of an image shot
with a digital camera is 3:4. When you use
a device other than the printer to edit or
save an image, it is saved as a more
horizontal print image and its top and
bottom edges will be cut and displayed in
black.
Troubleshooting
Continued
67 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Left
Printing
Symptom
Check
Cause/Solutions
Paper does not
feed.
• Is the print paper properly
set in the paper tray?
c If print paper is not properly loaded, the
printer may develop trouble. (.page 9,
10)
Check the following:
• Insert the correct set of print paper and
ink ribbon.
• Load the print paper in the correct
direction in the tray.
• You can insert a maximum 20 sheets of
print paper into the tray. If the sheets
exceeds 20, remove the extra sheets.
• Riffle the print paper thoroughly and
insert it into the tray.
• Do not bend or fold the print paper
before printing, as this may cause
malfunctions of the printer.
• Are you using print paper
c Use print paper designed for the printer. If
that was not designed for the
you use incompatible print paper, the
printer?
printer may develop trouble. (.About
the Print Pack)
The print paper is
ejected without
being printed.
• Is the perforations of the
c Use print paper designed for the printer. If
print paper removed?
you use incompatible print paper, the
• Are you using print paper
printer may develop trouble. (.About
that was not designed for the
the Print Pack)
printer?
68 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Right
Printed results
Symptom
Check
The printed
pictures are
inferior in quality.
• Did you print preview image c Depending on the type of digital camera
data?
used, preview images may be displayed
along with the primary images in the
thumbnail list. The printed quality of the
preview images will not be as good as the
primary images. Note that if you delete
the preview images, the data for the
primary images may be damaged.
Cause/Solutions
• Did you print an image
c When printing a small image, printing
whose size (width or height)
quality is rough due to this small image
is smaller than 480 dots?
size.
• Did you use the Edit menu to c An enlarged image, depending on its
enlarge the image?
image size, will be printed with
deteriorated picture quality.
• Did you shoot an image in
the RAW file format?
c When you shoot an image in the RAW file
format, a highly-compressed JPEG file
may be also recorded. As the printer does
not support the RAW file format, it may
use the JPEG file to print an image. A
RAW file can be printed from a PC. For
details, see the operating instructions of
the digital camera you are using.
What is a RAW file?
A RAW file is an original image file
format to save uncompressed,
unprocessed still image data captured
from a digital camera.
For whether or not a digital camera can
capture an image in the RAW file format,
see the operating instructions of the digital
camera.
Troubleshooting
Continued
69 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Left
Symptom
Check
Cause/Solutions
The picture quality
and colors of the
image previewed
on the screen
differs from those
printed.
—
c Because of differences in the display
method or profiles of a LCD screen,
please regard the image being displayed
on the display as just a reference. To
adjust picture quality, do either of the
following:
– MENU button - Print setup - Color
Setting (.page 40)
– MENU button -Edit-Adjust
The printed image
differs when an
image is printed
directly from the
memory card or an
external device
connected to the
printer and when it
is printed via a PC.
—
c Because of the differences in the printer’s
internal processing and PC software
processing, the printed images will be
different.
The date cannot be • Is “Date Print” set to “Date” c Press MENU button, and set “Date Print”
printed.
or “Date/Time”?
in the Print setup menu to “Date” or
“Date/Time.” (.page 39)
• Does the image support
DCF?
The date is printed • Is “Date Print” set to “Off”?
unintentionally.
c The “Date Print” function of this unit
supports an image that is compatible with
the DCF standards.
c Press MENU button, and set “Date Print”
in the Print setup menu to “Off.”
(.page 39)
• Was the date saved with the c When the date was saved with the image,
image when it was shot with
you cannot make a print without a date.
the digital camera?
The image cannot
be printed fully in
the print range.
Borders remains.
• Did you select “Pattern 1” or c Press MENU button, and set “Borderless”
“Pattern 2” for “Borders” in
by selecting Print setup - Borders.
the Print setup menu?
(.page 39)
• Is the aspect ratio of the
image correct?
c Depending on the type of digital camera
used, the aspect ratio of the recorded
image differs, so the image may not be
printed covering the entire printable area.
70 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Right
Symptom
Check
The whole area of
an image cannot
be printed.
Cause/Solutions
—
Even though
“Borderless” is
selected in the
Print setup, the
image is printed
with borders on
both sides.
• Did you set “Pattern 1” in
the Print setup menu?
c When you use a device other than the
printer to edit or save an image, blank
areas around an image are also saved as
part of image data. Even if you print such
data with “Borderless” setting, you cannot
eliminate the borders on both sides of a
print. (.page 39)
c You can print the whole area of an image
by selecting “Pattern 1” in the Print setup
menu. (.page 39)
The image is
• Is the paper tray inserted
printed at an angle.
properly?
c Re-insert the paper tray firmly straight in
to the end.
There are white
lines or dots on the
printed pictures.
—
c The print head or paper path may be
soiled. Use the supplied cleaning cartridge
and sheet to clean the head and path.
The picture is too
bright, dark,
reddish, yellowish,
or greenish.
—
c Adjust the image by pressing MENU
button and then selecting Edit- Adjust.
(.page 22)
Red-eye correction
does not take
effect with AUTO
TOUCH-UP
button.
—
c Adjust for the red-eye phenomenon by
pressing MENU button and then selecting
Edit - Red-eye Correction. (.page 24)
Red-eye correction
—
does not take
effect with “Redeye Correction”
• Did you enlarge, reduce the
menu.
size of, rotate, or move an
image after red-eye
correction?
c Set the size of the adjustment frame to be
two to seven times as large as the eye.
(.page 24)
Settings
Symptom
Check
Cause/Solutions
The “Borderless”
and “Pattern 1/2”
setting does not
take effect.
• Are you operating the
CreativePrint menu?
c In the CreativePrint menu, templates are
used and you cannot select border/
borderless prints.
Continued
71 GB
DPP-FP85/FP95 3-285-420-12 (1)
Troubleshooting
c Red-eye correction may not work properly
if other editorial operations such as
enlarging, reducing the size of, rotating, or
moving an image. Perform these editorial
operations first and then perform red-eye
correction.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Left
Saving or deleting an image
Symptom
Check
Cause/Solutions
You cannot save
an image.
• Is the memory card
protected?
c Use your digital camera or external device
to release the protection and then try
saving again.
• Is the write-protect switch of c Slide the write-protect switch to the write
the memory card in the
enable position.
LOCK position?
You cannot delete
an image.
• Is the memory card full?
c Delete unnecessary images
(.page 36), or replace it with a new
memory card with sufficient free memory
space. Save the image again.
• Is the memory card
protected?
c Use your digital camera or external device
to release the protection and try deleting
again.
• Is the image DPOF preset?
c Release the DPOF preset with your digital
camera.
• Is the write-protect switch of c Slide the write-protect switch to the write
the memory card in the
enable position.
LOCK position?
• Are you using a “Memory
Stick-ROM?”
An image was
deleted
accidentally.
The “Memory
Stick” cannot be
formatted.
—
c You cannot recover an image once it is
deleted.
• Is the write-protect switch of c Slide the write-protect switch to the write
the memory card in the
enable position.
LOCK position?
• Is it a “Memory StickROM”?
The “Memory
Stick” was
formatted
accidentally.
c You cannot delete an image from or
format a “Memory Stick-ROM.”
—
c You cannot delete an image from or
format a “Memory Stick-ROM.”
c Once the “Memory Stick” is formatted, all
the data is deleted and cannot be
recovered.
72 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Right
Others
Symptom
Check
Cause/Solutions
You cannot insert
the ink ribbon
smoothly.
—
c If the ink ribbon does not click into place,
remove it and then re-insert it. Only when
the ink ribbon is too slack to be loaded,
wind the ink ribbon in the direction of the
arrow to remove the slack. (.page 9)
The ink ribbon
cannot be
removed.
—
c Turn off the printer using the 1 (on/
standby) button and then turn it on again.
After the motor sound stops, try to remove
the ink ribbon. If this does not solve the
problem, contact Sony service facilities or
your Sony dealer.
Connecting with a digital camera or other external device
Symptom
Check
Cause/Solutions
The PictBridge
• Is the digital camera
c Connect the cable correctly.
mark does not
connected correctly?
appear on the LCD • Is the 1 (on/standby) button c Turn on the printer using the 1 (on/
screen of the
turned on?
standby) button.
digital camera.
• Does your digital camera
c See the manual supplied with your
support PictBridge?
camera, or consult the manufacturer.
• Is “Connecting” displayed
on the printer LCD screen?
• Is the USB setting of your
c Set the USB setting of your camera to the
camera in PictBridge mode?
PictBridge mode.
You connect and
disconnect the
USB cable, but
nothing happens.
—
c The printer has developed an over-current
error. Unplug the AC power cord of the
printer, plug it in again, and then press the
1 (on/standby) button to recover from the
error.
Continued
73 GB
DPP-FP85/FP95 3-285-420-12 (1)
Troubleshooting
c The message is not displayed while the
printer is in the Edit, CreativePrint, or
other menu modes. Exit the menu and
then connect the cable again.
c Disconnect the digital camera and the
printer and then connect them again. Or
turn off and then on the printer and the
digital camera.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Left
Symptom
Check
You cannot stop
printing even if
you pressed
CANCEL.
You cannot make
Index printing.
Cause/Solutions
—
c The next print from the one currently
printed will be canceled.
c Depending on the digital camera you use,
you cannot cancel printing from the
printer. Operate the digital camera to stop
printing. Refer to the operating
instructions of the digital camera.
• Is the message “Could not
c The printer cannot print Index print of the
create printing data for some
DPOF printing. To make Index printing,
images” displayed?
insert the memory card directly or use an
external device (.page 15, 46).
Connecting with a computer
Symptom
Check
Cause/Solutions
The images on the
memory card or an
external device
inserted to the
printer are not
displayed on the
PC.
—
c The printer does not provide the function
for viewing the memory card, an external
device, or an external device images from
the computer.
You lost the
supplied CD-ROM
and want to obtain
a new one.
—
c Please download the printer driver from
the Customer support home page. Or
contact your Sony dealer.
The printer driver
cannot be
installed.
• Are you sure that you have
followed the installation
procedures correctly?
c Follow the procedures in the operating
instructions to install the driver
(.page 52). If an error occurs, restart
your computer and do the installation
procedures again.
• Is another application
program running?
c Exit all applications and then install the
driver again.
• Did you specify the
CD-ROM as the installation
CD-ROM correctly?
c Double-click “My Computer” and then
the CD-ROM icon in the open window.
Follow the procedures in the operating
instructions to install the driver.
—
c The USB driver may not be installed
properly. Follow the operating
instructions to install the USB driver
again.
74 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Right
Symptom
Check
Cause/Solutions
The printer driver
cannot be
installed.
• Is there an anti-virus
program or other program
running on the system?
c If there is an anti-virus program or other
program running on the system, exit it and
then start installing the driver.
• Did you log on using an
Administrator user account?
c To install the driver, log onto Windows
using an Administrator user account.
The printer does
not respond to the
printing order
from the PC.
An image is
printed with
borders even if I
select
“Borderless.”
—
c If there is no trouble displayed on the
Windows desktop, check the printer’s
LCD screen.
If the printer shows trouble, do the
following:
1. Turn off the 1 (on/standby) button of
the printer.
2. Disconnect the power cable, wait for 5
to 10 seconds, and then connect the
cable again.
3. Restart your computer.
If these do not solve the problem, consult
with your Sony dealer or service facilities.
• Are you using an application c When using an application other than the
software other than Picture
Picture Motion Browser, an image might
Motion Browser?
be printed with borders even if you select
borderless print.
When you can set border/borderless with
an application, set an image to be printed
fully in the print range even if it is printed
over the range.
—
c Depending on the application you use, the
print quantity setting of the application
you use may have priority over the setting
specified in the printer driver dialog box.
Colors of the
printed image
from a PC are
different from
those printed from
a memory card.
—
c Since the process in printing an image
from a memory card differs that in
printing from a PC, the colors may not be
exactly identical.
Continued
75 GB
DPP-FP85/FP95 3-285-420-12 (1)
Troubleshooting
Print quantity
specified in the
“Pages Per Sheet”
in the “Layout” tab
of the “Sony DPPFP85/FP95
Properties” dialog
box does not
match the actual
print quantity and
printed results.
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Left
Symptom
An error stating
“Error was found
while a document
is output to the
USB device.” is
displayed.
Check
Cause/Solutions
—
c Disconnect the USB cable and then
connect it again.
76 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Right
If paper jams
1
Turn off the power of the printer and
then turn it on again.
Please wait for the print paper to be
ejected automatically.
1 (on/standby)
Print paper
2
3
Remove the ejected print paper
from the printer.
Remove the paper tray and ink
ribbon from the printer and check to
ensure if there is no jammed print
paper inside.
Check to see
if there is
jammed
paper. If any,
remove it.
Troubleshooting
Note
If you cannot remove the jammed paper, contact your
Sony dealer.
77 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\100C08.fm
Master: Left
Cleaning
If white lines or period-like dots are printed on
the pictures, use the cleaning cartridge and
cleaning sheet supplied to clean inside the
printer.
Before you start cleaning the printer, please
remove any memory cards, USB memories, or
USB cables from the printer.
1
2
3
4
Open the ink ribbon compartment
door and if there is an ink ribbon
inserted, remove it.
Insert the supplied cleaning
cartridge into the printer and close
the ink ribbon compartment door.
5
Set the paper tray into the printer
and press PRINT.
The cleaning cartridge and cleaning sheet
will clean inside the printer. After the
cleaning is finished, the cleaning sheet is
automatically ejected.
6
Remove the cleaning cartridge and
sheet from the printer.
Tip
Keep the cleaning cartridge and cleaning sheet
together for future cleaning. Be careful not to lose
them.
Notes
• If you already enjoy proper printing performances,
cleaning will not improve the printed picture
quality.
• Do not place the cleaning sheet on top of print
paper and carry out cleaning, as this may cause a
paper jam or other troubles.
• If a cleaning does not improve printed picture
quality, please carry out the cleaning process a
couple of times.
• You cannot clean the printer while it is connected
to a PC or a PictBridge camera.
Remove the paper tray from the
printer. If there is print paper in the
tray, remove it.
Place the cleaning sheet into the
paper tray with the no-imprint side
facing up.
Cleaning sheet
78 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\110ADD.fm
Master: Right.L0
Additional information
Precautions
On safety
• Be careful not to set or drop any heavy
objects on the power cord, or to damage the
power cord in any way. Never operate this
printer with a damaged power cord.
• Should any solid object or liquid fall into the
cabinet, unplug the printer and have it
checked by qualified personnel before
operating it any further.
• Never disassemble the printer.
• To disconnect the power cord, pull it out by
the plug. Never pull the power cord itself.
• When the printer is not going to be used for
an extended period of time, disconnect the
power cord from the wall outlet.
• Do not handle the printer roughly.
• To reduce the risk of electrical shock, always
unplug the printer from the electrical outlet
before cleaning and servicing the printer.
On installation
• Be sure to use the AC adaptor supplied with
the printer. Do not use other AC adaptors, as
this may cause a malfunction.
• Do not use the supplied AC adaptor for other
devices.
• In case the cord of the AC adaptor is
damaged, do not use it any longer, as this
may be dangerous.
On moisture condensation
If the printer is brought directly from a cold
location to a warm location or placed in an
extremely warm or humid room, moisture may
condense inside the unit. In such cases the
printer will probably not work properly and
may even develop a fault if you persist in using
it. If moisture condensation occurs, unplug the
AC power cord of the printer and do not use the
printer for at least one hour.
On transport
When you transport the printer, remove the ink
ribbon, paper tray, AC adaptor, the memory
card, or an external device from the printer and
put the printer and its peripherals in the original
box with the protective packaging.
If you no longer have the original box and
packing parts, use similar packing material so
that the printer will not be damaged while
being transported.
Additional information
• Avoid placing the printer in a location
subject to:
– vibration
– humidity
– excessive dust
– direct sunlight
– extremely high or low temperatures
• Do not use electrical equipment near the
printer. The printer will not work properly in
electromagnetic fields.
• Do not place heavy objects on the printer.
• Leave enough room around the printer so
that the ventilation holes are not blocked.
Blocking these holes may cause internal heat
build-up.
On the AC adaptor
Continued
79 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\110ADD.fm
Master: Left
On cleaning
Clean the cabinet, panel and controls with a
soft dry cloth, or a soft cloth lightly moistened
with a mild detergent solution. Do not use any
type of solvent, such as alcohol or benzine,
which may damage the finish.
On restrictions on duplication
When duplicating documents with the printer,
pay special attention to the following:
• Duplication of banknotes, coins, or securities
is against the law.
• Duplication of blank certificates, licenses,
passports, private securities, or unused postal
stamps is also against the law.
• TV programs, films, video tapes, others’
portraits of other people or other materials
may be copyrighted. Unauthorized video
printing of such materials may infringe the
provisions of the copyright law.
About the Memory Cards
“Memory Stick”
Types of “Memory Stick” that
the printer can use
With the printer, you can use the following
types of “Memory Stick.”*1
Type of “Memory
Stick”
Displaying/
Printing
Deleting/
Saving/
Formatting
“Memory Stick”*2
(Not compatible
with “MagicGate”)
OK
OK
“Memory Stick”*2
(“MagicGate”
Compatible)
OK*5
OK*5
“MagicGate
Memory Stick”*2
OK*5
OK*5
“Memory Stick
PRO-HG”*2
OK*5*6
OK*5*6
“Memory Stick
PRO”*2
OK*5
OK*5
“Memory Stick
Micro”*3(“M2”*4)
OK*5
OK*5
*1
*2
*3
*4
*5
The printer supports FAT32. The printer has been
demonstrated as operable with a “Memory Stick”
with a capacity of 8GB or less manufactured by
Sony Corporation. However, we do not guarantee
the operations of all the “Memory Stick” media.
The printer is equipped with a slot compatible with
both standard-size and Duo-size media. Without a
Memory Stick Duo adaptor, you can use both a
standard-size “Memory Stick” and the compactsize “Memory Stick Duo.”
When using the “Memory Stick Micro” with the
printer, always insert it into an M2 adaptor.
“M2” is an abbreviation for “Memory Stick
Micro.” In this section, “M2” is used to describe
“Memory Stick Micro.”
Data reading/recording that requires “MagicGate”
copyright protection cannot be performed.
“MagicGate” is the general name of a copyright
protection technology developed by Sony using
authentication and encryption.
80 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\110ADD.fm
Master: Right
*6
The printer does not support 8 bit parallel data
transfer.
Connector
Write-protect switch
Notes on use
• For the latest information on the “Memory
Stick” types that the printer supports, see the
“Memory Stick” compatibility information
on the Sony web site:
http://www.memorystick.com/en/support/
support.html
(Select the area where you use your printer,
and then select “Digital Printer” from each
area page.)
• Do not insert more than one “Memory Stick”
at the same time, which may cause trouble
with the printer.
• If you insert a “Memory Stick Micro” into
the printer without an M2 adaptor, you may
be unable to remove the “Memory Stick
Micro”.
• If you insert the “Memory Stick Micro” into
an M2 adaptor, and insert the M2 adaptor
into a Memory Stick Duo adaptor, the printer
may not operate properly.
• When you format a “Memory Stick,” use the
format function of the printer or your digital
camera. If you format a “Memory Stick”
with your computer, images may not be
displayed properly.
• When you format a “Memory Stick,” all the
data including the protected image files will
be erased. To avoid erasing important data
by accident, make sure to check the contents
of the “Memory Stick” before formatting.
• You cannot record, edit or delete data if you
slide the write-protect switch to LOCK.
Write
enable
position
Write
protect
position
LOCK
LOCK
Place the label here.
• Do not attach any other material than the
supplied label on the labelling position.
When you attach the supplied label, be sure
to attach it to the labelling position. Be
careful that the label does not stick out.
SD Card
The SD Card slot of the printer allows you to
use the following:
• SD card*1
• miniSD card, microSD card
(An adaptor is necessary.)*2
• SDHC memory card*3
• MMC standard memory card*4
We do not guarantee proper operations for all
types of SD cards and MMC standard memory
cards.
*1
*2
The printer has been demonstrated as operable
with an SD Card with a capacity of 2 GB or
smaller.
Some commercially available card adaptors have
projected terminals on the rear. This type of
adaptor may not work properly with the printer.
Terminals
*4
The printer has been demonstrated as operable
with an SDHC card with a capacity of 8 GB or
less.
The printer has been demonstrated as operable
with an MMC standard memory card with a
capacity of 2 GB or less.
Continued
81 GB
DPP-FP85/FP95 3-285-420-12 (1)
Additional information
*3
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\110ADD.fm
Master: Left
Notes on use
Data reading/recording that requires copyright
protection cannot be performed.
xD-Picture Card
With the xD-Picture Card slot of the printer,
you can use an xD-Picture Card*5. Not all the
memory card operations are supported and we
do not guarantee proper operations for all types
of xD-Picture Card.
*5
The printer has been demonstrated as operable
with an xD-Picture Card with a capacity of 2 GB or
smaller.
CompactFlash card
The CompactFlash card slot of the printer
allows you to use the following:
• CompactFlash Storage Card (Type I/Type II)
and CF+Card (Type I/Type II)-compatible
CompactFlash Storage Card*6*7.
• Micro Drive
• COMPACT VAULT
You can also use a Smart Media card by using a
commercially available CompactFlash card
adaptor*8
However, we do not guarantee proper
operations for all types of CompactFlash cards.
*6
*7
*8
Use a CompactFlash card with a power
specification of 3.3V or 3.3V/5V. You cannot use
a type for 3V or 5V only. Do not insert other types
of CompactFlash card into the printer’s insertion
slot. The printer may be damaged.
The printer has been demonstrated as operable
with an CompactFlash with a capacity of 8 GB or
smaller.
When using a commercially available
CompactFlash card adaptor, refer to the operating
instructions of the adaptor you use for how to
install the card and adaptor. When using the
CompactFlash card adaptor, the write-protected
card may not work properly.
Notes on using memory card
• When using a card, make sure to check
correct insertion direction of the card and
correct insertion slot.
• Do not remove a card or turn off the printer
while the printer is reading or accessing data,
or the access indicator is flashing.
• We recommend that you save backup of the
important data.
• The data processed with the computer may
not be played with the printer.
• When you carry or store a card, put it in the
case supplied with it.
• Do not touch the terminal of a card with your
hand or a metal object.
• Do not strike, bend or drop a card.
• Do not disassemble or modify a card.
• Do not expose a card to water.
• Do not use or store a card under the
following conditions:
– Locations beyond the required operational
conditions including locations such as the
hot interior of a car parked in the sun or/
and in the summer, the outdoors exposed
to direct sunlight, or a place near a heater.
– Humid locations or locations with
corrosive substances present
– Locations subject to static electricity or
electrical noises
82 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\110ADD.fm
Master: Right
Specifications
x Printer
Some image file formats are not
compatible.
Image file name
DCF format, 256 characters, 8th or less
hierarchy
Maximum number of files to be handled
9 999 files for a memory card/external
device
Ink ribbon/Print Paper
See supplied “About the Print Packs.”
LCD screen
LCD panel:
DPP-FP85: 6.2 cm (2.5 type) TFT drive
DPP-FP95: 9.0 cm (3.6 type) TFT drive
Total number of dots:
DPP-FP85: 115 200 (480 × 240)
DPP-FP95: 230 400 (320 RGB × 240)
Power requirements
DC IN jack,
24 V
Power consumption
While printing: 83 W (maximum)
On standby mode: less than 1W
Operating temperature
5 °C to 35 °C (41 °F to 95 °F)
Dimensions
[DPP-FP85]
Height: Approx. 65 mm (2 1/2 inches)
Approx. 72 mm (2 7/8 inches)
(including LCD projecting parts)
Width: Approx. 180 mm (7 1/8 inches)
Depth: Approx. 137 mm (5 1/2 inches)
(excluding the handle)
Approx. 149 mm (5 7/8 inches)
(including the handle)
[DPP-FP95]
Height: Approx. 67 mm (2 5/8 inches)
Width: Approx. 180 mm (7 1/8 inches)
Continued
83 GB
DPP-FP85/FP95 3-285-420-12 (1)
Additional information
Printing method
Dye sublimation printing (Yellow/
Magenta/Cyan 3 pass)
Resolution
300 (H) × 300 (V) dpi
Image processing per dot
256 levels processing (8 bits for each
Yellow/Magenta/Cyan)
Printing range
1 800 dots x 1 200 dots
Printing size
P (Post Card/4 × 6 inch) size:
101.6 × 152.4 mm (maximum,
borderless)
Printing time (per sheet)
Memory card*1*2*3*4: Approx. 45 sec.
PictBridge*3*5: Approx. 58 sec.
Via PC*6: Approx. 45 sec.
Input/Output connectors
HDMI OUT (output) connector
A-TYPE connector,
1 080i (59.94Hz)/1 080i (50Hz)/720 p
(59.94Hz)/720p (50Hz)/576p (50Hz)/
480p (59.94Hz) compatible, BRAVIA
Sync compatible
USB (USB 2.0 High Speed) for PC
connection
PictBridge/EXT INTERFACE connector
Slot
“Memory Stick” insertion slot
SD Card/xD-Picture Card insertion slot
CompactFlash card insertion slot
Compatible image file formats
JPEG: DCF 2.0 compatible, Exif 2.21
compatible, JFIF*7
TIFF: Exif 2.21 compatible
BMP*8: 1, 4, 8, 16, 24, 32 bits Windows
format
Maximum number of pixels to be
handled
8 000(H) × 6 000(V) dots
(Excluding “Index Print” and part of
“CreativePrint”)
File system
FAT12/16/32, sector size 2048 bytes or
smaller
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\110ADD.fm
Master: Left
Depth: Approx. 137 mm (5 1/2 inches)
(excluding a handle)
Approx. 149 mm (5 7/8 inches)
(including a handle)
Depth when the paper tray is installed:
Approx. 317 mm (121/2 inches)
Mass
DPP-FP85: Approx. 1.1 kg (2 lb 7 oz)
DPP-FP95: Approx. 1.2 kg (2 lb 10 oz)
(excluding the paper tray, ink ribbon, AC
adaptor)
Supplied accessories
See page 9 of “Operating Instructions”
(this booklet)
x AC adaptor AC-S2422
Power requirements
- 100 V to 240 V,
50/60 Hz, 1.5 A to 0.75 A
Rated output voltage
24 V 2.2 A (2.2A)
Peak 3.7 A 6.5 s
Operating temperature
5 °C to 35 °C (41 °F to 95 °F)
Dimensions
Approx. 60 × 30.5 × 122 mm
(2 3/8 × 1 1/4 × 4 7/8 inches) (w/h/d,
excluding protruding parts and cables)
Mass
Approx. 305 g (11 oz)
*3
: Print Speed: Time from when the PRINT button is
pressed to when printing is finished. (The printing
time may vary depending on a used equipment, a
format of an image, a used memory card, settings
of an application and operating conditions.)
*4
: When printing from a “Memory Stick PRO Duo”
inserted in the printer’s slot
*5
: When printing via DSC-W200 connected by USB
cable. Time from when the PRINT button on the
OSD of the camera is pressed to when the printing
is finished.
*6
: The time for data processing and transferring is
excluded.
*7
: Baseline JPEG with 4:4:4, 4:2:2, or 4:2:0 format
*8: You cannot print using the Picture Motion
Browser.
Customer support home page
The latest support information is available at the
following home page address:
http://www.sony.net/
Design and specifications are subject to change
without notice.
* The total number of sheets of P size print paper
that the printer can print is estimated to be
approximately 2,000. For the total number of
sheets, please check “Printer information display”
of the “Display/Printer setup” menu (page 41).
*1
: Print Settings: Borderless, Date Print: Off, Auto
Fine Print5: On (Photographic) (When displaying
on the LCD screen)
*2
: When printing a photo (Approx.4.37 MB file size)
taken by a Sony digital still camera containing
effective picture elements of approximately
12,100,000 or equivalent.
84 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\110ADD.fm
Master: Right
Printing range
P size
152.4 mm/6 inches (1 800 dots)
101.6 mm/
4 inches
(1 200 dots)
95.5 mm/
3 7/8 inches
(1 128 dots)
146.3 mm/5 7/8 inch (1 728 dots)
Border print range
Borderless print range
Perforations
The above illustrations are those when an image with a 2:3 aspect ratio is printed.
The printing range differs for a border or a borderless print.
Additional information
85 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\110ADD.fm
Master: Left
Glossary
DCF (Design rule for Camera File
system)
This printer conforms with the DCF (Design
rule for Camera File system) standard
established by JEITA (Japan Electronics and
Information Technology Industries
Association) to maintain file exchangeability
and compatibility between digital cameras
and related products. Complete
exchangeability and compatibility, however,
are not guaranteed.
DPOF (Digital Print Order Format)
The format used to record the information
necessary for automatically printing images
shot by a digital camera at a printing shop or
with a home-use printer. The printer supports
DPOF printing and can automatically print
the preset number of copies of the DPOF
preset images.
Exif 2.21 (Exif Print)
Exif (Exchangeable image file format for
digital cameras) Print is a global standard for
digital photo printing. A digital camera
supporting Exif Print stores the data relevant
to the conditions of shooting as each shot is
taken. The printer utilises the Exif Print data
stored in each image file to ensure the
printed result matches the original shot as
closely as possible*1.
*1
HDMI (High-Definition Multimedia
Interface)
The HDMI is an interface for transmitting
digital video/audio signals on a single cable
without compression and conversion. You
can enjoy high quality video and audio
reproduction.
Note: The printer does not support audio
output.
“Memory Stick”/CompactFlash card/SD
Card/xD-Picture Card
Compact, light, removable storage media.
For details see pages 80 to 82.
PictBridge
A standard specified by Camera & Imaging
Products Association that allows you to
connect PictBridge-complaint digital camera
directly to the printer without a PC, enabling
direct printing on the spot.
Thumbnails
Miniature images for representing the
original images that are stored in the image
files taken by a digital camera. The printer
uses thumbnails in the index view.
When the “Auto Fine Print5” is enabled and an
image (JPEG file) is shot by an Exif Print (Exif
2.21)-compliant digital camera, the image is
automatically adjusted to its optimum picture
quality and printed.
86 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\010COVIX.fm
Master: Right
Index
A
AC power source 12
Adding a filter 22
Adding a frame 31
Adjusting an image 20, 22
Adjusting the size and
position 27
Associated file indication 13
Auto Fine Print5 40, 59
AUTO TOUCH-UP 20, 39,
59
B
Batch Print 33
Bluetooth device 48
Borders/Borderless 39, 59
Brightness22
C
Date Display Order 42
Date Print 39
DC IN 24 V 12
DCF (Design rule for
Camera File system) 39
Default Setting 42
Deleting an image 36
Display/Printer setup 41
DPOF 13, 33
E
Editing an image 21
Ejecting a memory card 15
Enlarging and reducing an
image size 15, 21
Error messages 62
External device 46, 48
F
File operation 35
Filter 22
Fish-eye 23
Format 37
Frame 31
Front panel 7
H
Handle 8
Handwritten message 29
HDMI 43
I
Icon 42
ID photo 32
Image data display 13
Image preview 13
Index Print 33
Index View
by date 14, 42
by Filename 14, 42
Input indications 13
Inserting a memory card 15
Inserting an ink ribbon 9
Inserting the print paper 10
Installing
Picture Motion Browser
55
Printer driver 52
L
Language 42
Layout print 32, 40
LCD backlight 42
LCD screen 7
LCD screen disdplay 13
Listing Order 42
M
Mass storage device 46
Memory Stick
Format 37
Notes on use 81
Types 80
Monochrome 22
Moving an image 21
O
On/standby switch 16, 46,
47, 48, 53
On-screen Display 13, 42
Orientation 58
P
Painting 22
Paper jams 77
Partial Color 22
Parts and controls 7
PictBridge camera 47
PictBridge/EXT
INTERFACE 46, 47, 48
Picture Motion Browser 56
Preview 13
Print All 33
87 GB
DPP-FP85/FP95 3-285-420-12 (1)
Additional information
Calendar 27
Cleaning 78
Color Setting 40
CompactFlash card
Notes on use 82
Types 82
Connecting
AC power source 12
Bluetooth device 48
Digital camera 47, 48
External device 46, 48
High Definition TV 43
CONTROL FOR HDMI 42
Copying an image 35
Correcting a failed photo
automatically 20
CreativePrint 26
Cross Filter 22
D
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\010COVIX.fm
Master: Left
Print quantity 14, 16, 25
Print setup 38
Printer information display
42
Printing
a memory card image 16
Calendar 27
Edited image 25
Enlarged image 16
Framed image 31
From a Bluetooth device
48
From a commercially
available application 61
From a High Definition
TV 43
From a PC 51
From a PictBridge camera
47
From an external device
46
ID photo 32
Layout print 32
Scrapbook 26
Superimposed image 29
Using the Picture Motion
Browser 56
Printing range 85
Protect indication 13
SD Card
Notes on use 82
Types 81
Sepia 22
Setting the print quantity 16
Sharpness 22
Single Color 22
Slideshow 34
Specifications 83
Stamp 31
Standard format message 30
Stopping printing 60
Superimposing 29
Supplied accessories 9
Switching the screen display
15
System requirement 51
T
Tint
22
Trimming Print 16
Troubleshooting 65
U
Uninstalling
Picture Motion Browser
56
Printer driver 54
USB memory 46
R
Rear panel 8
Red-eye correction 20, 24
Registering a browsing
folder 60
Rotating an image 21
S
Saturation 22
Saving an image 25
Scrapbook 26
Screen indications 13
V
Various printing 18
X
xD-Picture Card
Notes on use 82
Types 82
Z
Zooming in/out 15, 21
88 GB
DPP-FP85/FP95 3-285-420-12 (1)
D:\Printer\DPPFP85.95 series\IM\3285420121DPPFP85.95IM_GB\3285420121\3285420121DPPFP8595IM_GB\120BCO.fm
Master: Left
Printed using VOC (Volatile
Organic Compound)-free
vegetable oil based ink.
Sony Corporation
Printed in China
DPP-FP85/FP95 3-285-420-12 (1)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
