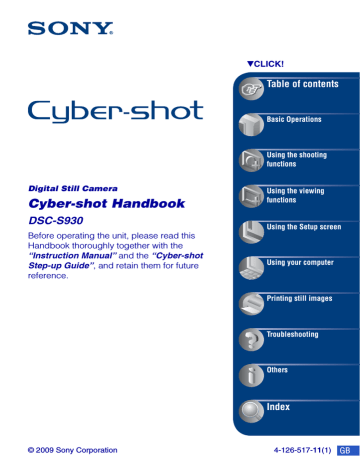

Digital Still Camera
Cyber-shot Handbook
DSC-S930
Before operating the unit, please read this
Handbook thoroughly together with the
“Instruction Manual” and the “Cyber-shot
Step-up Guide”, and retain them for future reference.
© 2009 Sony Corporation
VCLICK!
Table of contents
Index
4-126-517-11(1) GB
2
Notes on using your camera
Notes on the types of “Memory Stick” media that you can use (sold separately)
“Memory Stick Duo” media
You can use “Memory Stick Duo” media with the camera.
Notes on the LCD screen and lens
• The LCD screen is manufactured using extremely high-precision technology, so over
99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the LCD screen. These dots are a normal result of the manufacturing process, and do not affect the recording.
“Memory Stick” media
You cannot use “Memory Stick” media with the camera.
Black, white, red, blue or green points
Other memory cards cannot be used.
• For details on “Memory Stick Duo” media, see
When using “Memory Stick Duo” media with “Memory Stick” media compatible equipment
You can use the “Memory Stick Duo” media by inserting it into the “Memory
Stick Duo” media Adaptor (sold separately).
• Exposing the LCD screen or the lens to direct sunlight for long periods may cause malfunctions. Be careful when placing the camera near a window or outdoors.
• Do not press against the LCD screen. The screen may be discolored and that may cause a malfunction.
• Images may trail across on the LCD screen in a cold location. This is not a malfunction.
• This camera is equipped with a power zoom lens. Be careful not to bump the lens, and be careful not to apply force to it.
The images used in this Handbook
The images used as examples in this Handbook are reproduced images, and are not actual images shot using the camera.
“Memory Stick Duo” media Adaptor
Table of contents
Notes on using your camera .....................................................................2
Basic techniques for better images ...........................................................6
Focus – Focusing on a subject successfully..................................................... 6
Quality – On “image quality” and “image size” ............................................... 10
Changing the screen display ...................................................................18
Using the internal memory ......................................................................19
Basic Operations
Using the shooting functions
Switching the shooting mode ..................................................................30
Shooting images according to the scene ................................................31
Camera: Selecting the shooting mode
SteadyShot: Selecting the anti-blur mode
Face Detection: Detecting the face of subject
REC Mode: Selecting the continuous shooting method
EV: Adjusting the light intensity
ISO: Selecting a luminous sensitivity
Metering Mode: Selecting the Metering mode
Focus: Changing the Focus method
White Balance: Adjusting the color tones
Flash Level: Adjusting the amount of flash light
Red Eye Reduction: Setting the Red Eye Reduction function
Color Mode: Changing the vividness of the image or adding special effects
3
4
Table of contents
Using the viewing functions
(Slideshow): Playing back a series of images
(Retouch): Retouching still images
(Multi-Purpose Resize): Changing the image size according to usage
(Protect): Preventing accidental erasure
(Print): Printing images using a printer
(Rotate): Rotating a still image
(Select Folder): Selecting the folder for viewing images
Using the Setup screen
Memory Tool — Memory Stick Tool........................................................ 57
Memory Tool — Internal Memory Tool ................................................... 59
Table of contents
Using your computer
Enjoying your Windows computer ...........................................................62
Installing the software (supplied).............................................................64
On the “PMB (Picture Motion Browser)” (supplied) .................................65
Copying images to your computer using the “PMB”................................66
Copying images to a computer without “PMB” ........................................70
Viewing image files stored on a computer with the camera copying to the
“Memory Stick Duo” media......................................................................72
Using your Macintosh computer..............................................................73
Viewing “Cyber-shot Step-up Guide”.......................................................75
Printing still images
Printing images directly using a PictBridge compliant printer..................77
Troubleshooting
Warning messages..................................................................................92
Others
On the “Memory Stick Duo” media ..........................................................95
Index
5
6
Basic techniques for better images
Focus Exposure Color Quality Flash
This section describes the basics so you can enjoy your camera. It tells you how to use various camera functions such as the mode
switch (page 20), and the menus (page 28).
Focus
Focusing on a subject successfully
When you press the shutter button halfway down, the camera adjusts the focus automatically
(Auto Focus). Remember to press the shutter button only halfway down.
Do not fully press the shutter button straight away.
Press the shutter button halfway down.
AE/AF lock indicator flashing , lit/beeps
Then press the shutter button fully down.
When focusing is difficult t
If the image looks blurred even after focusing, it may be because of camera shake. t See
“Hints for preventing blur” on the next page.
Basic techniques for better images
Hints for preventing blur
The camera moved accidentally when you took the image. This is called “Camera shake”.
On the other hand, if the subject moved when you took the image, it is called “subject blur”.
Camera shake
Cause
Your hands or body shake while you hold the camera and press the shutter button, and the entire screen is blurred.
What you can do to reduce the blurring
• Use a tripod or place the camera on a flat surface to hold the camera steady.
• Shoot with a 2-second delay self-timer and stabilize the camera by holding your arms firmly at your side after pressing the shutter button.
Subject blur
Cause
Even though the camera is steady, the subject moves during the exposure so the subject looks blurred when the shutter button is pressed.
What you can do to reduce the blurring
• Select (High Sensitivity) mode in the
Camera (Scene Selection).
• Select a higher ISO sensitivity to make the shutter speed faster, and press the shutter button before the subject moves.
Notes
• When the anti-blur function is set to [Auto], you can reduce the camera shake automatically.
However, this is not effective for subject blur.
• Besides, camera shake and subject blur occur frequently under low-light or slow shutter speed conditions, such as those encountered in (Twilight) mode or (Twilight Portrait) mode. In that case, shoot with the above tips in mind.
7
Basic techniques for better images
8
Exposure
Adjusting the light intensity
You can create various images by adjusting the exposure and the ISO sensitivity. Exposure is the amount of light that the camera will receive when you release the shutter.
Exposure:
Shutter speed = Length of time the camera receives light
Aperture = Size of the opening allowing light to pass through
ISO sensitivity (Recommended Exposure
Index) = Recording sensitivity
Overexposure
= too much light
Whitish image
Correct exposure
Underexposure
= too little light
Darker image
The exposure is automatically set to the proper value in the auto adjustment mode.
However, you can adjust it manually using the functions below.
Adjusting EV:
Allows you to adjust the exposure
determined by the camera (page 36).
Metering Mode:
Allows you to change the part of the subject to be measured to determine the
Adjusting the ISO sensitivity (Recommended Exposure Index)
ISO sensitivity is a speed rating for recording media that incorporates an image sensor that receives light. Even when the exposure is the same, images differ depending on the ISO sensitivity.
To adjust the ISO sensitivity, see page 37.
High ISO sensitivity
Records a bright image even in dark locations while increasing shutter speed to reduce blur.
However, the image tends to become noisy.
Low ISO sensitivity
Records a smoother image.
However, when the exposure is insufficient, the image may become darker.
Basic techniques for better images
Color
On the effects of lighting
The apparent color of the subject is affected by the lighting conditions.
Example: The color of an image affected by light sources
Weather/lighting
Characteristics of light
Daylight
White (standard)
Cloudy
Bluish
Fluorescent
Green-tinged
Incandescent
Reddish
The color tones are adjusted automatically in the auto adjustment mode.
However, you can adjust color tones manually with [White Balance] (page 41).
9
10
Basic techniques for better images
Quality
On “image quality” and “image size”
A digital image is made up of a collection of small dots called pixels.
If it contains a large number of pixels, the picture becomes large, it takes up more memory, and the image is displayed in fine detail. “Image size” is shown by the number of pixels.
Although you cannot see the differences on the screen of the camera, the fine detail and data processing time differ when the image is printed or displayed on a computer screen.
Description of the pixels and the image size
1 Image size: 10M
3648 pixels × 2736 pixels = 9,980,928 pixels
2 Image size: VGA(E-Mail)
640 pixels × 480 pixels = 307,200 pixels
Pixels
Selecting the image size for use (page 23)
Pixel
Many pixels (Fine image quality and large file size)
Few pixels (Rough image quality but small file size)
Example: Printing in up to A3+ size
Example: An attached image to be sent by e-mail
Basic techniques for better images
Flash
On using the flash
The eyes of the subject may come out red, or fuzzy white circular spots may appear when using the flash. These phenomena can be reduced by taking the following steps.
The “Red-eye phenomenon”
Pupils become dilated in dark environments. Flash light is reflected off the blood vessels at the back of the eye (retina), causing the “red-eye” phenomenon.
Camera Eye
Retina
How can the “Red-eye phenomenon” be reduced?
• Set [Red Eye Reduction] to [On] (page 43).
• Select
(High Sensitivity) mode* in the Camera (Scene Selection) (page 30). (The flash is turned off
automatically.)
• When the eyes of the subject turn out red, correct the image with [Retouch] on the viewing menu
(page 47) or with the supplied software “PMB”.
The “White circular spots”
This is caused by particles (dust, pollen, etc.) floating close to the lens. When they are accentuated by the camera’s flash, they appear as white circular spots.
Camera
Subject
Particles (dust, pollen, etc.) in the air
How can the “White circular spots” be reduced?
• Light the room and shoot the subject without a flash.
• Select (High Sensitivity) mode* in the Camera (Scene Selection). (The flash is turned off automatically.)
* Even though you selected (High Sensitivity) mode in the Camera (Scene Selection), the shutter speed might be slower under low-light conditions, or in a dark place. In that case, use a tripod or hold your arms firmly at your side after pressing the shutter button.
11
12
Identifying parts
See the pages in parentheses for details of operation.
1
2
3
Bottom
C Microphone
D Lens
E ON/OFF (power) button
F ON/OFF (power) lamp
H Buzzer
I
(USB) jack
9
0 qa qs
A For shooting: Zoom (W/T) button
For viewing: (Playback zoom) button/
C For shooting:
(Image Size) button
For viewing:
D Hook for strap
G Control button
Menu off: DISP/ /
H Access lamp
4
5
6
7
8
Identifying parts
I Tripod receptacle
• Use a tripod with a screw less than 5.5 mm
(7/32 inch) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.
J Battery/“Memory Stick Duo” media cover
K “Memory Stick Duo” media slot
L Batteries insertion slot
13
14
Indicators on the screen
Each time you press v (DISP) on the control button, the display changes
See the pages in parentheses for details of operation.
When shooting still images
A
Display
When shooting movies
Indication
Battery remaining
Camera mode (Scene
Camera mode (Program
Vibration warning
• Indicates that vibration may prevent you from shooting clear images due to insufficient lighting. Even if the vibration warning appears, you can still shoot images. However, we recommend that you set the anti-blur function to [Auto], using the flash for better lighting or using a tripod or other means to stabilize the
Indicators on the screen
B
Display z
REC
Standby
ISO400
125
F3.5
+2.0EV
0:12
1.0 m
C
Display
12
00:00:15
Indication
Recording a movie/Standby a movie
Shutter speed
Aperture value
Recording time
(minutes : seconds)
AF range finder frame
D
Display
Indication
• This does not appear when using internal memory.
Number of recordable images
Recording Media
(“Memory Stick Duo” media, Internal memory)
Recordable time
(hours : minutes : seconds)
Flash charging
Indication
Spot metering cross hair
15
16
Indicators on the screen
When playing back still images
When playing back movies
A
Display Indication
Battery remaining
Print order (DPOF) mark
• Do not disconnect the USB cable while the mark is displayed.
B
Display
N
00:00:12
101-0012
2009 1 1
9:30 AM z STOP z PLAY
BACK/
NEXT
Indication
Playback bar
Counter
Recorded date/time of the playback image
Function guide for playing image
Selecting images
• appears when histogram display is disabled.
Indicators on the screen
C
Display
8/8 12/12
Indication
• This does not appear when using internal memory.
Image number/Number of images recorded in selected folder
Playback Media
(“Memory Stick Duo” media, Internal memory)
• This does not appear when using internal memory.
Flash
ISO400
+2.0EV
500
F3.5
Shutter speed
Aperture value
17
18
Changing the screen display
Each time you press v (DISP) on the control button, the display changes as follows:
Indicators on
Indicators on* v DISP (Screen display) button
• If you view images in bright outside light, adjust to increase the brightness of the LCD backlight.
However, the battery power may decrease faster under such condition.
• The histogram does not appear in the following situations:
While shooting
– When the menu is displayed.
– When recording movies.
During playback
– When the menu is displayed.
– In index mode.
– When you are using playback zoom.
– When you are rotating still images.
– During playback of movies.
• A large difference in the histogram displayed during shooting and playback may occur when:
– The flash strobes.
– The shutter speed is slow or fast.
• The histogram may not appear for images recorded using other cameras.
z Adjusting EV (Exposure Value) by displaying a histogram
A
Histogram on*
Indicators off*
During playback, the image information is displayed.
Histogram display
Dark
B
Bright
A histogram is a graph showing the brightness of an image. Press v (DISP) on the control button repeatedly to display the histogram on the screen. The graph display indicates a bright image when skewed to the right side, and a dark image when skewed to the left side.
A Number of pixels
B Brightness
• The histogram also appears when playing back a single image, but you cannot adjust the exposure.
* The brightness of the LCD Backlight increases
Using the internal memory
The camera has approximately 12 MB of internal memory. This memory is not removable.
Even when there is no “Memory Stick Duo” media inserted in the camera, you can record images using this internal memory.
When “Memory Stick Duo” media is inserted
B
[Recording]: Images are recorded on the “Memory Stick
Duo” media.
[Playback]: Images on the “Memory Stick Duo” media are played back.
[Menu, Setup, etc.]: Various functions can be performed on images on the “Memory Stick Duo” media.
B
Internal memory
When there is no “Memory Stick Duo” media inserted
[Recording]: Images are recorded using the internal memory.
[Playback]: Images stored in the internal memory are played back.
[Menu, Setup, etc.]: Various functions can be performed on images in the internal memory.
On image data stored in the internal memory
We recommend that you copy (back up) data without error using one of the following methods.
To copy (back up) data on “Memory Stick Duo” media
Prepare “Memory Stick Duo” media with sufficient free capacity, then perform the procedure
explained in [Copy] (page 58).
To copy (back up) data on a hard disk of your computer
Perform the procedure on pages 66, 67 or 70, 71 without “Memory Stick Duo” media inserted
in the camera.
• You cannot copy image data on “Memory Stick Duo” media to the internal memory.
• By connecting the camera and a computer with a USB cable, you can copy data stored in the internal memory to a computer. However you cannot copy data on a computer to the internal memory.
19
Basic Operations
Shooting images
Macro button
DISP button
Flash button
Self-timer button z button v/V/b/B button
Control button
(Image Size) button
Shutter button
Zoom (W/T) button
Mode switch
1
Select the desired function from the mode switch.
When shooting still images: Select (Still image).
When shooting movies: Select (Movie).
2
Hold the camera, with your elbows pressed against your body to steady it.
Position the subject in the center of the focus frame.
3
Shoot with the shutter button.
When shooting still images:
1 Press and hold the shutter button halfway down to focus.
The z (AE/AF lock) indicator (green) flashes, a beep sounds, the indicator stops flashing and remains lit.
20
AE/AF lock indicator
2 Press the shutter button fully down.
Shooting images
When shooting movies:
Press the shutter button fully down.
To stop recording, press the shutter button fully down again.
If you shoot a still image of a subject that is difficult to focus on
• The shortest shooting distance is approximately 5 cm (2 inches) (W)/50 cm (1 feet 7 3/4 inches) (T)
(from the front of the lens).
• When the camera cannot focus on the subject automatically, the AE/AF lock indicator changes to flash slowly and the beep does not sound. In addition, the AF range finder frame disappears. Recompose the shot and focus again.
Focusing may be difficult in the following situations:
– It is dark and the subject is distant.
– The contrast between the subject and the background is poor.
– The subject is seen through glass.
– The subject is moving quickly.
– There is reflective light or shiny surfaces.
– The subject is backlit or there is a flashing light.
W/T
Using the zoom
Press T to zoom, press W to undo the zoom.
• When the zoom scale exceeds 3×, the camera uses the Digital Zoom function.
For details on the [Digital Zoom] settings and the image quality, see page 55.
• You cannot change the zoom scale while shooting a movie.
Flash (Selecting a flash mode for still images)
Press B ( ) on the control button repeatedly until the desired mode is selected.
(No indicator): Flash Auto
Flashes when there is insufficient light or backlight (default setting).
: Flash forced on
: Slow synchro (Flash forced on)
The shutter speed is slow in a dark place to clearly shoot the background that is out of flash light.
: Flash forced off
• The flash strobes twice. The first flash adjusts the light quantity.
• While charging the flash, is displayed.
21
22
Shooting images
Macro (Shooting close-up)
Press b ( ) on the control button repeatedly until the desired mode is selected.
(No indicator): Auto
The camera adjusts the focus automatically from distant subjects to close-up.
Normally, put the camera in this mode.
: Macro
The camera adjusts the focus with priority on close-up subjects.
Set Macro On when shooting close subjects.
• The Auto Focus speed drops when you shoot images in the Macro.
• Setting the zoom all the way to the W side is recommended.
Using the self-timer
Press V ( ) on the control button repeatedly until the desired mode is selected.
(No indicator): Not using the self-timer
: Setting the 10-second delay self-timer
: Setting the 2-second delay self-timer
When you press the shutter button, the self-timer lamp flashes and a beep sounds until the shutter operates.
Self-timer lamp
To cancel, press V ( ) again.
• Use the 2-second delay self-timer to prevent blur of an image. The shutter is released 2 seconds after you press the shutter button, which reduces camera shake when the shutter button is pressed.
Shooting images
To change the still image size
Press (Image Size), and then press b/B to select the size.
For details on the image size, see page 10.
The default setting is marked with .
For still images
Image size
10M
(3648×2736)
Usage guidelines
For prints up to A3+(13×19")
No. of images
Less
3:2 (8M)
*1
(3648×2432)
Shoot in 3:2 aspect ratio
Printing
Fine
5M
(2592×1944)
For prints up to A4(8×10")
3M
(2048×1536)
For prints up to 10×15 cm
(4×6") or 13×18 cm(5×7")
VGA
(640×480)
16:9 (7M)
*2
(3648×2056)
Shoot at small image size for e-mail attachments
More
Less
Rough
Fine For viewing on HDTVs and printing up to A4(8×10")
16:9 (2M)
*2
(1920×1080)
For viewing on HDTVs
More
*1)
Images are recorded in 3:2 aspect ratio, same as photograph printing paper or postcards, etc.
*2)
Both edges of the image may be cut off when printing (page 89).
For movie
The image size of a movie is fixed to 320 × 240.
Rough
23
24
Viewing images
v/V/b/B button
(Index) button
(Playback zoom) button
MENU button
Mode switch z button
Control button
(Delete) button
1
Select (Playback) with the mode switch.
2
Select an image with b/B on the control button.
Movie:
Press z to play back a movie. (Press z again to stop playback.)
Press B to fast forward, b to rewind. (Press z to return to normal playback.)
• You cannot listen to the audio with this camera when a movie is played back.
To view an enlarged image (playback zoom)
Press (T) while displaying a still image. To undo the zoom, press W.
Adjust the portion with v/V/b/B.
To cancel the playback zoom, press z.
Shows the displayed area of the whole image.
In this case, the center is enlarged.
• To store enlarged images, see [Trimming] (page 47).
Viewing images
To view an index screen
Press (Index) to display the index screen while a still image is displayed.
Select an image with v/V/b/B.
To return to the single image screen, press z.
•
•
Each time you press (Index), the number of images on the index screen increases.
When using “Memory Stick Duo” media, you can select the desired date/folder with v/V after selecting the bar with b.
Bar
25
26
Deleting images
v/V/b/B button
(Index) button
MENU button
Mode switch z button
Control button
(Delete) button
1
Select (Playback) with the mode switch.
2
Press the (Delete) button while displaying in single-image or index mode.
3
Select the desired deletion method with b/B from among [This Image],
[Multiple Images] and [All In This Folder], then press z.
Deleting images
When you select [This Image]
You can delete the selected image.
Select [OK] with v, then press z.
When you select [Multiple Images]
You can select and delete multiple images simultaneously.
1 Select the images you want to delete, then press z.
The mark is checked in the check box of the image.
Single Image Index Display
2 Press the MENU button.
3 Select [OK] with v, then press z.
• To delete all the images of a folder, select [Multiple Images] on the index screen, select the bar with b and place a mark in the check box.
When you select [All In This Folder]
You can delete all the images of the selected folder.
Select [OK] with v, then press z.
27
Using menu items
v/V/b/B button z button
Control button
1
Press the MENU button to display the menu.
MENU button
• The menu will be displayed only during shooting and playback mode.
• Different items will become visible depending on the selected mode.
2
Select a desired menu item with v/V on the control button.
• If the desired item is hidden, keep pressing v/V until the item appears on the screen.
3
Select a setting with b/B.
28
• If the desired setting is hidden, keep pressing b/B until the setting appears on the screen.
• Select an item in playback mode, and press z.
4
Press the MENU button to turn off the menu.
Menu items
The available menu items vary depending on the mode switch position, and the shooting mode. Only the available items are displayed on the screen.
( : available)
Mode switch position:
Scene
Selection
Shooting menu
Camera
SteadyShot
Face Detection
REC Mode
EV
ISO
Metering Mode
Focus
White Balance
Flash Level
Red Eye Reduction
Color Mode
(Setup)
—
—
—
—
—
—
—
—
—
*
—
*
—
*
*
—
—
—
—
—
—
—
—
* The operation is limited according to the selected Scene Selection mode (page 32).
Viewing menu
(Slideshow)
(Multi-Purpose Resize)
(Rotate)
(Setup)
(Retouch)
(Protect)
(Print)
(Select Folder)
29
30
Using the shooting functions
Switching the shooting mode
You can switch the shooting mode.
There are eight shooting modes available for still images and the default setting is Auto
Adjustment.
To switch the shooting mode to other than Auto Adjustment, follow the procedure described below.
v/V/b/B button
MENU button
Mode switch z button
Control button
1 Set the mode switch to (Still image).
2 Press the MENU button to display the menu.
3 Select with
4 Select the desired mode with b/B.
5 Press the MENU button to turn off the menu.
Still image mode
: Auto Adjustment
Allows shooting with the settings adjusted automatically.
: Program Auto
Allows you to shoot with the exposure adjusted automatically (both the shutter speed and the aperture value).
Allows you to shoot with preset settings according to the scene (page 31).
Shooting images according to the scene
Scene Selection modes
The following modes are preset to match the scene conditions.
High Sensitivity
Allows you to shoot images without a flash under low light conditions, reducing blur.
Twilight Portrait*
Allows you to shoot sharp images of people with the night view in the background without compromising the atmosphere.
Soft Snap
Allows you to shoot skin colors in brighter and warmer tones for more beautiful pictures. In addition, the soft focus effect creates a gentle atmosphere for portraits of people, flowers, etc.
Landscape
Focuses only on a distant subject to shoot landscapes, etc.
Twilight*
Allows you to shoot night scenes at far distance without losing the dark atmosphere of the surroundings.
Beach
When shooting seaside or lakeside scenes, the blueness of the water is clearly recorded.
Snow
When shooting snowy scenes or other places where the whole screen appears white, use this mode to prevent sunken colors and record clear images.
* When you shoot images using (Twilight Portrait) or (Twilight) mode, the shutter speed becomes slower, and blurring occurs frequently, so use of a tripod is recommended.
31
32
Shooting images according to the scene
Functions you can use in Scene Selection
For shooting an image appropriately according to the scene condition, a combination of functions is determined by the camera. Some functions are not available, depending on the
Scene Selection mode.
Macro
—
—
Flash Face Detection
/
—
—
—
/
/
( : you can select the desired setting)
Burst
—
White Balance
*
Red Eye
Reduction
—
—
—
—
—
—
— —
—
—
* [Flash] for [White Balance] cannot be selected.
Shooting menu
For details on the operation 1 page 28
The functions in shooting mode using MENU are described below.
For details on how to operate the menu, see page 28.
The selectable mode is displayed in white.
The default settings are marked with .
Camera: Selecting the shooting mode
Unavailable
(Auto Adjustment)
(Program Auto)
(High Sensitivity)
(Soft Snap)
(Landscape)
(Twilight Portrait)
(Twilight)
(Beach)
(Snow)
Selects shooting mode for shooting still images.
33
34
Shooting menu
For details on the operation 1 page 28
SteadyShot: Selecting the anti-blur mode
Selects the anti-blur mode.
(Auto) Activates the anti-blur function automatically when shooting conditions are likely to cause camera shake.
You can stabilize images even when zooming up a far subject.
Does not use anti-blur mode.
(Off)
• The anti-blur function may not work properly in the following cases.
– When camera shake is too strong.
– When the shutter speed is slow, for example, shooting night scenes.
• Time is required for image processing.
• When shooting with a flash, the anti-blur function does not work.
Shooting menu
For details on the operation 1 page 28
Face Detection: Detecting the face of subject
Selects whether to use the Face Detection function or not.
Detects the faces of your subjects and adjusts the focus, flash, exposure, white balance and red-eye reduction settings automatically.
(Off)
(Auto)
Does not use Face Detection function.
The camera selects a face to focus on automatically.
Face Detection mark
Face Detection frame
(Orange)
Face Detection frame (White)
• The Face Detection function does not work when using the digital zoom.
• When the Scene Selection mode is set to (Soft Snap) mode, the Face Detection function is activated.
• Up to 8 faces of your subjects can be detected. However, only up to 4 faces of your subjects can be detected when (Soft Snap) mode is selected in the Scene Selection mode.
• When the camera detects more than one subject, the camera will judge which is the main subject and set focus by priority. The Face Detection frame for the main subject will turn orange.
• The frame for which the focus is set will turn green by pressing the shutter button halfway down.
• Faces may not be detected correctly when:
– It is too dark or too bright.
– Faces are partially hidden by sunglasses, masks, hats, etc.
– The subjects are not facing the camera.
35
36
Shooting menu
For details on the operation 1 page 28
REC Mode: Selecting the continuous shooting method
Selects whether the camera performs continuous shooting or not when you press the shutter button.
(Normal)
(Burst)
Does not shoot continuously.
Records 100 images in succession when you press and hold down the shutter button.
• The flash is set to (Flash forced off).
On the Burst
• When recording with the self timer, a series of a maximum of five images is recorded.
• When the battery level is low, or when the internal memory or “Memory Stick Duo” media is full, the
Burst stops.
• The focus, white balance, and exposure are adjusted for the first image, and these settings are also used for the other images.
EV: Adjusting the light intensity
Manually adjusts the exposure.
Toward – Toward +
–2.0EV
0EV
+2.0EV
Toward –: Darkens an image.
The exposure is determined automatically by the camera.
Toward +: Brightens an image.
• For details on the exposure, see page 8.
• The compensation value can be set in 1/3EV increments.
• If you shoot a subject in extremely bright or dark conditions, or when you use the flash, the exposure adjustment may not be effective.
Shooting menu
ISO: Selecting a luminous sensitivity
Selects the ISO sensitivity.
For details on the operation 1 page 28
Low ISO sensitivity
(Auto)
High ISO sensitivity
You can reduce image blurring in dark locations or moving subjects by increasing ISO sensitivity (select a larger number). However, images tend to become noisier as the ISO sensitivity number increases. Select an ISO sensitivity number according to shooting conditions.
• For details on the ISO sensitivity, see page 8.
• You can select only from [ISO AUTO], [ISO 100] to [ISO 400] when set to Burst.
37
38
Shooting menu
For details on the operation 1 page 28
Metering Mode: Selecting the Metering mode
Selects the metering mode that sets which part of the subject to measure to determine the exposure.
(Multi)
(Center)
Divides into multiple regions and measures each region. The camera determines a well-balanced exposure (Multi-pattern metering).
Measures the center of the image, and determines the exposure based on the brightness of the subject there (Centerweighted metering).
(Spot)
(Only for still image)
Measures only a part of the subject (Spot metering).
• This function is useful when the subject is backlit or when there is strong contrast between the subject and the background.
Spot metering cross hairs
Positions on the subject
• For details on the exposure, see page 8.
• When using spot metering or center-weighted metering, setting [Focus] to [Center AF] is recommended to
focus on the metering position (page 39).
• You can select the metering mode only when [Face Detection] is set to [Off].
Shooting menu
For details on the operation 1 page 28
Focus: Changing the Focus method
You can change the focus method. Use the menu when it is difficult to get the proper focus in auto focus mode.
(Multi AF) Focuses on a subject in all ranges of the finder frame automatically.
• This mode is useful when the subject is not in the center of the frame.
(Center AF)
AF range finder frame
(Only for still image)
AF range finder frame indicator
Focuses on a subject in the center of the finder frame automatically.
• Using the AF lock function together, you can compose the image the way you want.
AF range finder frame
AF range finder frame indicator
0.5 m
1.0 m
3.0 m
7.0 m
(unlimited distance)
Automatically focuses quickly on the area around a previously set distance (Focus preset).
• Focuses on a subject in all ranges of the finder frame in Focus preset mode.
• This mode is useful when repeatedly shooting a subject at the same distance.
• This mode is useful when it is difficult to get sharp focus with automatic focusing, such as when shooting a subject through a net or window.
• AF stands for Auto Focus.
• When you use Digital Zoom, the AF range finder frame is disabled and appears in a dotted line. In this case, the camera works to focus on the subjects at the center of the screen.
• You can change the focus method only when [Face Detection] is set to [Off].
• You can select only [Multi AF] when shooting movies.
• The Focus preset distance setting contains some errors, and this error increases when the zoom is set to the
T side or the lens is tilted upward or downward.
39
40
Shooting menu
For details on the operation 1 page 28
z If the subject is out of focus
When shooting with the subject at the edge of the frame (or the screen) or when using [Center AF], the camera may not focus on a subject at the edge of the frame.
In such cases, do as follows:
1 Recompose the shot so that the subject is centered in the AF range finder, and press the shutter button halfway down to focus on the subject (AF lock).
AF range finder frame
AE/AF lock indicator
As long as you do not press the shutter button fully down, you can retry the procedure as many times as you want.
2 When the AE/AF lock indicator stops flashing and remains on, return to the fully composed shot, and press the shutter button fully down.
Shooting menu
For details on the operation 1 page 28
White Balance: Adjusting the color tones
Adjusts color tones according to the surrounding light conditions. Use this function if image color appears unnatural.
(Auto)
(Daylight)
Adjusts the White Balance automatically.
Adjusts for conditions outside under a clear sky, at sundown, night scenes, the presence of neon signs or fireworks.
(Cloudy) Adjusts for a cloudy sky or a shady location.
(Fluorescent Light 1)/
(Fluorescent Light 2)/
(Fluorescent Light 3)
[Fluorescent Light 1]: Adjusts for white fluorescent lighting.
[Fluorescent Light 2]: Adjusts for natural white fluorescent lighting.
[Fluorescent Light 3]: Adjusts for day white fluorescent lighting.
n (Incandescent) Adjusts for places under an incandescent lamp, or under bright lighting, such as in a photo studio.
41
42
Shooting menu
(Flash)
For details on the operation 1 page 28
Adjusts for the flash conditions.
• You cannot select this item when shooting movies or when
(High Sensitivity) is selected in the Camera (Scene Selection).
• For details on the white balance, see page 9.
• Under fluorescent lights that flicker, the white balance function may not work correctly even though you select [Fluorescent Light 1], [Fluorescent Light 2] or [Fluorescent Light 3].
• When shooting with a flash in other than [Flash] mode, [White Balance] is set to [Auto].
Flash Level: Adjusting the amount of flash light
Adjusts the amount of flash light.
(–)
(Normal)
(+)
Makes the flash level lower.
Makes the flash level higher.
• To change flash mode, see page 21.
• If the subject is too bright or dark, this adjustment may have no effect.
Shooting menu
For details on the operation 1 page 28
Red Eye Reduction: Setting the Red Eye Reduction function
The flash strobes two or more times before shooting to reduce the red-eye phenomenon when using the flash.
(Auto)
(On)
(Off)
When the Face Detection function is activated, the flash strobes automatically to reduce the red-eye phenomenon.
The flash always strobes to reduce the red-eye phenomenon.
Does not use Red Eye Reduction.
• To avoid blurring of images, hold the camera firmly until the shutter is released. It usually takes a second after you press the shutter button. Be also sure not to allow the subject to move during this period.
• Red-eye reduction may not produce the desired effects. It depends on individual differences and conditions, such as distance to the subject, or if the subject looked away from the pre-strobe. In such a
case, you can correct the red-eye using [Retouch] in the viewing menu after shooting (page 47).
• When the Face Detection function is not used, the flash will not strobe to reduce red-eye phenomenon even when [Auto] is selected.
43
44
Shooting menu
For details on the operation 1 page 28
Color Mode: Changing the vividness of the image or adding special effects
You can change the brightness of the image, accompanied by effects.
(Normal) Sets the image to standard color.
(Sepia) Sets the image to sepia color.
(B & W) Sets the image to black and white.
(Setup): Changing Setup items
Using the viewing functions
Viewing menu
This section explains the menu items available when you press the MENU button in playback
mode. For details on how to use the menu, see page 28.
The default settings are marked with .
(Slideshow): Playing back a series of images
Plays back recorded images in order (Slideshow).
This setting is fixed to [Folder] if “Memory Stick Duo” media (sold separately) is not inserted.
All
Folder
Plays back all the still images in order.
Plays back the still images in the selected folder.
Effects
Simple
Basic
A simple slideshow switching still images at a preset interval
• The playback interval is adjustable. This effect allows you to enjoy your images at your own set pace.
A basic slideshow suitable for a wide range of scenes
Other Settings
Interval
1 sec
3 sec
5 sec
10 sec
Auto
Repeat
On
Off
Sets the display interval of images for a [Simple] slideshow.
Sets the display interval of images for a [Basic] slideshow.
Plays back images in a continuous loop.
After all the images have been played back, the slideshow ends.
45
46
Viewing menu
For details on the operation 1 page 28
Start
Exit
See the following procedure.
Cancels the slideshow.
1 Select [Image], [Effects], [Interval] and [Repeat] with v/V/b/B on the control button.
2 Select [Start] with v, then press z.
The slideshow starts.
To end the slideshow
Press z.
• You cannot pause the slideshow.
Viewing menu
For details on the operation 1 page 28
(Retouch): Retouching still images
Adds effects or makes corrections to a recorded image and records it as a new file.
The original image is retained.
To retouch the still images
1 Select the images you want to retouch while displaying in single-image.
2 Press the MENU button.
3 Select [Retouch] with v/V on the control button, then press z after selecting the desired mode with b/B.
4 Retouch the images following the instructions for each retouching mode below.
(Trimming) Playback zoom is performed on the image and part of the image is cropped.
(Red Eye Correction)
1 Press W/T to zoom in on the trimming range.
2 Set the point with v/V/b/B, then press the MENU button.
3 Select [Image Size] with v/V, then press z.
Select an image size to record with v/V, then press z again.
4 Select [OK] with v/V, then press z.
• The image size that you can trim may vary depending on the image.
• The quality of trimmed images may deteriorate.
Corrects the red-eye phenomenon caused by flash.
Select [OK] with v/V, then press z.
• You may not be able to correct the red-eye phenomenon depending on the image.
47
48
Viewing menu
For details on the operation 1 page 28
(Multi-Purpose Resize): Changing the image size according to usage
You can change the aspect ratio and size of the shooting images, then record them as new files.
You can convert images to the 16:9 aspect ratio for high definition viewing and to the VGA size for blogs or e-mail attachments.
(HDTV) Changes the aspect ratio from 4:3/3:2 to 16:9 and saves as 2M size.
(Blog/E-mail) Changes the aspect ratio from 16:9/3:2 to 4:3 and saves as VGA size.
1 Select the images you want to retouch while displaying in single-image.
2 Press the MENU button.
3 Select the [Multi-Purpose Resize] with v/V on the control button, then press z after selecting the desired size of the image with b/B.
4 Press W/T to zoom in from the area you want to trim.
5 Set the point with v/V/b/B, then press the MENU button.
6 Select [OK] with v, then press z.
• For details about the image size, see page 23.
• You cannot resize movies.
• You cannot resize the images from VGA to [HDTV].
• Enlarging the image and multi resizing can reduce the image quality.
Viewing menu
For details on the operation 1 page 28
(Protect): Preventing accidental erasure
Protects images against accidental erasure. The (Protect) indicator appears on a protected image.
(This Image)
(Multiple Images)
Protects/unlocks the currently selected image.
• This item appears only in single-image mode.
Selects and protects/unlocks multiple images.
To protect an image
1 Select the images you want to protect while displaying images in single-image mode.
2 Press the MENU button.
3 Select [Protect] with v/V on the control button, [This Image] with b/B, and then press z.
To select and protect images
1 Press the MENU button while displaying images in single-image mode or in index mode.
2 Select [Protect] with v/V, and select [Multiple Images] with b/B, then press z.
In single-image mode:
3 Select the image you want to protect with b/B, then press z.
The is attached to the selected image.
4 Press b/B to display other images you want to protect, then press z.
5 Press the MENU button.
6 Select [OK] with v, then press z.
In index mode:
3 Select the image you want to protect with v/V/b/B, then press z.
The is attached to the selected image.
4 To protect other images, repeat step 3.
To select all the images of a date/folder/favorites, select the bar with b, then press z.
5 Press the MENU button.
6 Select [OK] with v, then press z.
• Note that the formatting erases all the data stored on the recording media, even if the images are protected, and these images cannot be restored.
• It may take some time to protect an image.
49
50
Viewing menu
For details on the operation 1 page 28
To cancel the protection
Select the image for which you want to cancel protection, and unlock it by taking the same steps as in “To select and protect images”.
The (Protect) indicator disappears.
: Adding a Print order mark
Adds a print order mark (
) to the image you want to print.
(Print): Printing images using a printer
Printing images shot with the camera.
(Rotate): Rotating a still image
Rotates a still image.
1 Display the image to be rotated.
2 Press the MENU button to display the menu.
3 Select [Rotate] with v/V on the control button, then press z.
4 Select [ ], then rotate the image with b/B.
5 Select [OK] with v/V, then press z.
• You cannot rotate protected images or movies.
• You may not be able to rotate images shot with other cameras.
• When viewing images on a computer, the image rotation information may not be reflected depending on the software.
Viewing menu
For details on the operation 1 page 28
(Select Folder): Selecting the folder for viewing images
Selects the folder containing the image you want to play back.
1 Select the desired folder with b/B on the control button.
2 Select [OK] with v, then press z.
To cancel selecting the folder
Select [Exit] in step 2, then press z.
z On the folders
The camera stores images in a specified folder of “Memory Stick Duo” media. You can change the folder or create a new one.
• To create a new folder
t [Create REC.Folder] (page 57)
• To change the folder for recording images
t [Change REC.Folder] (page 58)
• When multiple folders are created in the “Memory Stick Duo” media and the first or last image in the folder is displayed, the following indicators appear.
: Moves to the previous folder.
: Moves to the next folder.
: Moves to either the previous or next folders.
(Setup): Changing Setup items
51
Using the Setup screen
Using Setup items
You can change the default settings using the Setup screen.
v/V/b/B button
MENU button
Mode switch z button
Control button
1
Press the MENU button to display the MENU screen.
2
After pressing V on the control button, go to the (Setup) setting, then
press z.
3
Press v/V/B on the control button to select the item you want to set.
4
Press z to enter the setting.
52
To turn off the (Setup) screen, press the MENU button.
To return to the menu from the (Setup) screen, press b on the control button repeatedly.
• When the mode switch is set to (Still image), press the shutter button halfway down to close the
(Setup) screen and return to the shooting mode.
To cancel the (Setup) setting
Select [Cancel] if it appears, then press z on the control button. If it does not appear, select the previous setting again.
• This setting is maintained even when the power is turned off.
Main Settings
For details on the operation 1 page 52
The default settings are marked with .
Beep
Selects the sound produced when you operate the camera.
Shutter
On
Turns on the shutter sound when you press the shutter button.
Off
Turns on the beep/shutter sound when you press the control/ shutter button.
Turns off the beep/shutter sound.
Function Guide
When you operate the camera, the function guide appears.
On
Off
Displays the function guide.
Does not display the function guide.
Initialize
Initializes the setting to the default setting. Even if you execute this function, the images stored in the internal memory are retained.
1 Select [Initialize] with v/V on the control button, then press z.
The message “Reset to default settings” appears.
2 Select [OK] with v, then press z.
The settings are reset to the default setting.
To cancel initializing
Select [Cancel] in step 2, then press z.
• Be sure not to power off the camera while initializing.
53
54
Main Settings
For details on the operation 1 page 52
USB Connect
Selects the USB mode when connecting the camera to a computer or a PictBridge compliant printer using the USB cable.
PictBridge
Mass Storage
Connects the camera to a PictBridge compliant printer
(page 77). When you connect the camera to a computer, the
copy wizard starts automatically, and the images in the recording folder on the camera are copied to the computer.
(with Windows Vista/XP, Mac OS X)
Establishes a Mass Storage connection between the camera
and a computer or other USB device (page 66).
Shooting Settings
For details on the operation 1 page 52
The default settings are marked with .
Grid Line
With reference to the grid lines, you can easily set a subject in a horizontal/vertical position.
On Displays the grid lines.
Off
• The grid lines are not recorded.
Does not display the grid lines.
Digital Zoom
Selects the digital zoom mode. The camera enlarges the image using optical zoom (up to 3×).
When the zoom scale exceeds 3×, the camera uses either Smart or Precision digital zoom.
Smart
(Smart zoom)
( )
Precision
(Precision digital zoom)
(
Off
)
Enlarges the image digitally within the range where the image will not be distorted, according to the image size.
This is not available when the image size is set to [10M],
[3:2 (8M)] or [16:9 (7M)].
• The total zoom scale of Smart zoom is shown in the following table.
Enlarges all image sizes by the total zoom scale of approximately 6×, including the optical zoom 3×. However, note that the picture quality deteriorates when the optical zoom scale is exceeded.
Does not use the digital zoom.
Image size and total zoom scale using Smart zoom (Including optical zoom 3×)
Size
5M
3M
VGA
16:9 (2M)
Total zoom scale
Approx. 4.2×
Approx. 5.3×
Approx. 17×
Approx. 5.7×
• You cannot use the Digital zoom while shooting movies.
55
56
Shooting Settings
For details on the operation 1 page 52
Auto Review
Displays the recorded image on the screen for approximately two seconds immediately after shooting a still image.
On
Off
Uses the Auto Review.
Does not use the Auto Review.
• If you press the shutter button halfway down, the recorded image display disappears and you can immediately shoot the next image.
• You cannot use the Auto review while shooting in the Burst mode.
Memory Tool
— Memory Stick Tool
For details on the operation 1 page 52
This item appears only when “Memory Stick Duo” media is inserted in the camera.
Format
Formats the “Memory Stick Duo” media. Commercially available “Memory Stick Duo” media is already formatted, and can be used immediately.
• Note that formatting permanently erases all data on “Memory Stick Duo” media, including even protected images.
1 Select [Format] with v/V on the control button, then press z.
The message “All data on Memory Stick will be erased” appears.
2 Select [OK] with v, then press z.
Formatting starts.
To cancel formatting
Select [Cancel] in step 2, then press z.
Create REC.Folder
Creates a folder in “Memory Stick Duo” media for recording images.
1 Select [Create REC.Folder] with v/V on the control button, then press z.
The folder creation screen appears.
2 Select [OK] with v, then press z.
A new folder is created with a number incremented one higher than the largest number, and the folder becomes the current recording folder.
To cancel the folder creation
Select [Cancel] in step 2, then press z.
• When not creating a new folder, the “101MSDCF” folder is selected as the recording folder.
• You can create folders designated up to “999MSDCF”.
• You cannot delete a folder with the camera. To delete a folder, use your computer, etc.
• Images are recorded in the newly created folder until you create another folder or select another recording folder.
• Up to 9,999 images can be stored in one folder. When the folder capacity exceeds 9,999, a new folder is automatically created.
• For details, see “Image file storage destinations and file names” (page 68).
57
Memory Tool — Memory Stick Tool
For details on the operation 1 page 52
Change REC.Folder
Changes the folder currently used for recording images.
1 Select [Change REC.Folder] with v/V on the control button, then press z.
The folder selection screen appears.
58
2 Select the desired folder with b/B, and [OK] with v, then press z.
To cancel changing the recording folder
Select [Cancel] in step 2, then press z.
• You cannot select the “100MSDCF” folder as a recording folder.
• You cannot move recorded images to another folder.
Copy
Copies all images in the internal memory to “Memory Stick Duo” media.
1 Insert “Memory Stick Duo” media having sufficient free capacity.
2 Select [Copy] with v/V on the control button, then press z.
The message “All data on internal memory will be copied” appears.
3 Select [OK] with v, then press z.
Copying starts.
To cancel copying
Select [Cancel] in step 3, then press z.
• Use a fully charged battery pack. If you attempt to copy image files using a battery pack with little remaining charge, the battery pack may run out, causing copying to fail or possibly corrupting the data.
• You cannot select images to copy.
• The original images in the internal memory are retained even after copying. To delete the contents of the internal memory, remove the “Memory Stick Duo” media after copying, then format the internal memory
([Format] in [Internal Memory Tool]) (page 59).
• A new folder is created on the “Memory Stick Duo” media and all the data will be copied to it. You cannot choose a specific folder and copy images to it.
• The (Print order) marks on the images are not copied.
Memory Tool
— Internal Memory Tool
For details on the operation 1 page 52
This item does not appear when “Memory Stick Duo” media is inserted in the camera.
Format
Formats the internal memory.
• Note that formatting permanently erases all data in the internal memory, including even protected images.
1 Select [Format] with v/V on the control button, then press z.
The message “All data on internal memory will be erased” appears.
2 Select [OK] with v, then press z.
Formatting starts.
To cancel formatting
Select [Cancel] in step 2, then press z.
59
60
Clock Settings
For details on the operation 1 page 52
Clock Settings
Sets the date and time.
1 Select [Clock Settings] from the (Setup) screen.
2 Press z on the control button.
3 Select the date display format with v/V, then press z.
4 Select each item with b/B and set the numeric value with v/V, then press z.
5 Select [OK], then press z.
• Midnight is indicated as 12:00 AM, and noon as 12:00 PM.
To cancel the clock setting
Select [Cancel] in step 5, then press z.
Language Setting
For details on the operation 1 page 52
Language Setting
Selects the language to be used in the menu items, warnings, and messages.
61
62
Using your computer
Enjoying your Windows computer
For details on using a Macintosh computer, refer to “Using your Macintosh computer” (page 73).
Illustrations of screens used in this section are based on the
English version.
Install the software (supplied) first (page 64)
• Installing the software as follows:
– “PMB”
Copying images to your computer (page 66)
•
•
Copying images to your computer using “PMB”.
Enjoying images using “PMB” as follows:
– Viewing images saved on your computer
–
–
Editing images
Displaying the shooting locations of still images on maps
– online
Creating a disc with the images shot (requires CD or DVD
– disc writing drive)
Printing or saving still images with the date
Additional information on this product and answers to frequently asked questions can be found at the Sony
Customer Support Website.
http://www.sony.net/
Enjoying your Windows computer
Recommended computer environment
The following environment is recommended for a computer connected to the camera.
Recommended environment for copying images
OS (pre-installed): Microsoft Windows
2000 Professional SP4/Windows XP*
1
SP3/Windows Vista*
2
SP1
• Operation is not assured in an environment based on an upgrade of the operating systems described above or in a multi-boot environment.
USB jack: Provided as standard
Recommended environment for using
“PMB”
OS (pre-installed): Microsoft Windows
XP*
1
SP3/Windows Vista*
2
SP1
CPU/Memory: Pentium III 500 MHz or faster, 256 MB of RAM or more
(Recommended: Pentium III 800 MHz or faster and 512 MB of RAM or more)
Hard Disk: Disk space required for installation— approximately 500 MB
Display: Screen resolution: 1,024 × 768 dots or more
Video Memory: 32 MB or more
(Recommended: 64 MB or more)
*1)
64-bit editions are not supported.
*2)
Starter (Edition) is not supported.
Notes on connecting the camera to a computer
• The computer environment must also satisfy the operating requirements of the OS.
• Operations are not guaranteed for all the recommended computer environments mentioned above.
• If you connect two or more USB devices to a single computer at the same time, some devices, including the camera, may not operate, depending on the types of USB devices you are using.
• Operations are not guaranteed when using a
USB hub.
• Connecting the camera using a USB interface that is compatible with Hi-Speed USB (USB 2.0 compliant) allows advanced transfer (high speed transfer) as the camera is compatible with Hi-
Speed USB (USB 2.0 compliant).
• There are two modes for a USB connection when connecting a computer, [Mass Storage]
(default setting) and [PictBridge] modes. This section describes [Mass Storage] as an example.
For details on [PictBridge], see page 54.
• When your computer resumes from a suspend or sleep mode, communication between the camera and your computer may not recover at the same time.
63
64
Installing the software (supplied)
You can install the software (supplied) using the following procedure.
• Log on as Administrator.
1
Turn on your computer, and insert the CD-ROM (supplied) into the CD-ROM drive.
The installation menu screen appears.
• If it does not appear, double-click
[Computer] (in Windows XP, [My
Computer]) t
• The AutoPlay screen may appear. Select
“Run Install.exe.” and follow the instructions that appear on the screen to proceed with the installation.
2
Click [Install].
The “Choose Setup Language” screen appears.
3
Select the desired language, then click [Next].
The “License Agreement” screen appears.
4
Read the agreement carefully. If you accept the terms of the agreement, click the radio button next to [I accept the terms of the license agreement] and then click
[Next].
5
Follow the instructions on the screen to complete the installation.
• When the restarting confirmation message appears, restart the computer following the instructions on the screen.
• DirectX may be installed depending on the system environment of your computer.
6
Remove the CD-ROM after the installation is complete.
After you install the software, the short cut icons for “PMB”, “PMB Guide”, are created on the desktop.
• Double-click to start
“PMB”.
• Double-click to start “PMB
Guide”.
On the “PMB (Picture Motion Browser)”
(supplied)
You can use still images and movies from the camera more than ever by taking advantage of the software.
This section summarizes the “PMB”.
Starting and exiting the “PMB”
“PMB” overview
With the “PMB” you can:
• Import images shot with the camera and display them on the computer.
• Organize images on the computer on a calendar by shooting date to view them.
• You can view image files stored on a computer with the camera by copying them to “Memory
Stick Duo” media.
• Retouch (Red Eye Correction, etc.), print, and send still images as e-mail attachments, change the shooting date and more.
• Still images can be printed or saved with the date.
• You can create a data disc using a CD burner drive or DVD burner drive.
• Upload the image to the Web.
• For details, refer to “PMB Guide”.
To access “PMB Guide”
• Double-click “PMB Guide” icon on the
• desktop.
From the Start menu, click [Start] t [All
Programs] t [Sony Picture Utility] t
[Help] t [PMB Guide].
Starting the “PMB”
Double-click the (PMB) icon on the desktop.
Or, from the Start menu: Click [Start] t
[All Programs] t [Sony Picture Utility] t [PMB].
• The confirmation message of the Information tool appears on the screen when starting the
“PMB” for the first time. Select [Start]. This function informs you of news, such as software updates. You can change the setting later.
Exiting the “PMB”
Click button in the top right corner of the screen.
65
66
Copying images to your computer using the
“PMB”
Preparing the camera and the computer
Connecting the camera to your computer
1 To the jack
(USB) 1
Insert “Memory Stick Duo” media with recorded images into the camera.
• When copying images in the internal memory, this step is unnecessary.
2
Insert the batteries with enough power remaining in the camera.
• When you copy images to your computer using the batteries with little remaining charge, copying may fail or image data may become corrupted if the batteries shuts down too soon.
3
Set the mode switch to
(Playback), then turn on the camera and the computer.
USB cable
2 To a USB jack
“Connecting...” appears on the screen of the camera.
Mode switch
Access indicators*
When a USB connection is established for the first time, your computer automatically runs a program to recognize the camera.
Wait for a while.
* is displayed on the screen during the communication session.
Do not operate the computer while the indicator is displayed. When the indicator changes to
, you can start using the computer again.
• If “Connecting...” does not appear, set [USB
Connect] to [Mass Storage] (page 54).
Copying images to your computer using the “PMB”
Copying images to a computer
1
Connects the camera to a computer as described
“Connecting the camera to your computer”.
After making a USB connection, the
[Import Media Files] screen of “PMB” appears automatically.
Viewing images on your computer
When importing is complete, the “PMB” starts. Thumbnails of the imported images are displayed.
• The “Pictures” (in Windows XP, “My
Pictures” ) folder is set as the default folder in
“Viewed folders”.
Organize images on the computer on a calender by the shooting date to view them.
For details, see the “PMB Guide”.
• If you use the “Memory Stick” media slot,
• If the AutoPlay Wizard appears, close it.
2
Import the images.
To start importing images, click the
[Import] button.
Example: Month display screen
By default, images are imported into a folder created in “Pictures” (in
Windows XP, “My Pictures”) that is named with the date of importing.
• For details on the “PMB”, refer to “PMB
Guide”.
67
Copying images to your computer using the “PMB”
68
To delete the USB connection
Perform the procedures from step 1 to 4 below before:
• Disconnecting the USB cable.
• Removing “Memory Stick Duo” media.
• Inserting “Memory Stick Duo” media into the camera after copying images from the internal memory.
• Turning off the camera.
1 Double-click the disconnect icon on the tasktray.
Windows Vista
Image file storage destinations and file names
The image files recorded with the camera are grouped as folders on the “Memory
Stick Duo” media or the internal memory.
Example: viewing folders on Windows
Vista
Double-click here
Windows XP/Windows 2000
Double-click here
2 Click (USB Mass Storage Device) t
[Stop].
3 Confirm the device on the confirmation window, then click [OK].
4 Click [OK].
The device is disconnected.
• Step 4 is unnecessary for Windows Vista/
XP.
A Folder containing image data recorded using a camera not equipped with the folder creating function.
B Folder containing image data recorded using the camera.
When no new folders are created, there are folders as follows:
– “Memory Stick Duo” media: “101MSDCF” only
– Internal memory: “101_SONY” only
• You cannot record any images to the
“100MSDCF” folder. The images in this folder are available only for viewing.
• You cannot record/play back any images to/on the “MISC” folder.
Copying images to your computer using the “PMB”
• Image files are named as follows:
– Still image files: DSC0ssss.JPG
– Movie files: MOV0ssss.AVI
– Index image files that are recorded when you record movies: MOV0ssss.THM
ssss stands for any number within the range from 0001 to 9999. The numerical portions of the name of a movie file recorded in movie mode and its corresponding index image file are the same.
• For more information about folders, see
69
70
Copying images to a computer without “PMB”
You can copy images to your computer without “PMB” as follows.
For a computer with a “Memory Stick” media slot
Remove the “Memory Stick Duo” media from the camera and insert it in the
“Memory Stick Duo” media Adaptor. Insert the “Memory Stick Duo” media Adaptor in the computer and copy the images.
• Even when you are using Windows 95/98/98
SecondEdition/NT/Me, you can copy images by inserting the “Memory Stick Duo” media into the “Memory Stick” media slot on your computer.
• If the “Memory Stick PRO Duo” media is not
For a computer without a “Memory
Stick” media slot
Make a USB connection and follow Stages to copy images.
• The screen displays shown in this section are the examples for copying images from “Memory
Stick Duo” media.
• The camera is not compatible with Windows 95/
98/98 SecondEdition/NT/Me of the Windows operating system.
When you use a computer without a “Memory
Stick” media slot, use a commercially available
“Memory Stick” media Reader/Writer to copy images from “Memory Stick Duo” media to your computer.
• To copy images in the internal memory to your computer, copy the images to “Memory Stick
Duo” media first, then copy them to your computer.
Copying images to a computer
-Windows Vista/XP
This section describes an example of copying images to a “Documents” (For
Windows XP: “My Documents”).
1
Prepare the camera and a computer.
Perform the same procedure as
described in “Preparing the camera and the computer” on page 66.
2
Connect the camera to your computer with the USB cable.
Perform the same procedure as
described in “Connecting the camera to your computer” on page 66.
• If “PMB” is already installed, then [Import
Media Files] is started on “PMB” but select
[Cancel] to finish.
Copying images to a computer without “PMB”
3
Click [Open folder to view files]
(For Windows XP: [Open folder to view files] t [OK]) as the wizard screen appears automatically on the desktop.
6
Click the [Documents] (For
Windows XP: [My Documents]) folder. Then, right-click on the
“Documents” window to display the menu and click [Paste].
• When the wizard screen does not appear automatically, follow the procedure in “For
Windows 2000”.
4
Double-click [DCIM].
5
Double-click the folder where the image files you want to copy are stored. Then, right-click an image file to display the menu and click
[Copy].
1
2
The image files are copied to the
[Documents] (For Windows XP: [My
Documents]) folder.
• When an image with the same file name exists in the copy destination folder, the overwrite confirmation message appears.
When you overwrite an existing image with a new one, the original file data is deleted.
To copy an image file to the computer without overwriting, change the file name and then copy the image file. However, note
that if you change the file name (page 72),
you may not play back that image with the camera.
For Windows 2000
Double-click [My Computer] t
[Removable Disk] after connecting the camera to your computer. Then, perform from step 4.
1
2
• On the storage destination of the image
71
72
Viewing image files stored on a computer with the camera copying to the “Memory Stick Duo” media
This section describes the process using a
Windows computer as an example.
When an image file copied to a computer no longer remains on “Memory Stick Duo” media, you can view that image again on the camera by copying the image file on the computer to “Memory Stick Duo” media.
• Skip step 1 if the file name set with the camera has not been changed.
• You may not be able to play back some images depending on the image size.
• Sony does not guarantee playback of image files on the camera if the files have been processed using a computer or recorded with another camera.
• When there are no folders in “Memory Stick
Duo” media, create a folder (page 57) with the
camera first, then copy the image files.
2
Copy the image file to the
“Memory Stick Duo” media folder in the following order.
1 Right-click the image file, then click
[Copy].
2 Double-click [Removable Disk] or [Sony
MemoryStick] in [Computer] (in Windows
XP, [My Computer]).
3 Right-click the [sssMSDCF] folder in the [DCIM] folder, then click [Paste].
• sss stands for any number within the range from 100 to 999.
1
Right-click the image file, then click [Rename].Change the file
name to “DSC0ssss”.
Enter a number from 0001 to 9999 for ssss.
1
2
• If the overwrite confirmation message appears, enter a different number.
• An extension may be displayed depending on the computer settings. The extension for still images is JPG, and the extension for movies is AVI. Do not change the extension.
Using your Macintosh computer
You can copy images to your Macintosh computer.
• “PMB” is not compatible with Macintosh computers.
Recommended computer environment
The following environment is recommended for a computer connected to the camera.
Recommended environment for copying images
OS (pre-installed): Mac OS 9.1/9.2/ Mac
OS X(v10.1 to v10.5)
USB jack: Provided as standard
Notes on connecting the camera to a computer
• Operations are not guaranteed for all the recommended computer environments mentioned above.
• If you connect two or more USB devices to a single computer at the same time, some devices, including your camera, may not operate depending on the types of USB devices you are using.
• Operations are not guaranteed when using a
USB hub.
• Connecting the camera using a USB interface that is compatible with Hi-Speed USB (USB 2.0 compliant) allows advanced transfer (high speed transfer) as the camera is compatible with Hi-
Speed USB (USB 2.0 compliant).
• There are two modes for a USB connection when connecting a computer, [Mass Storage]
(default setting) and [PictBridge] modes. This section describes [Mass Storage] as an example.
For details on [PictBridge], see page 54.
• When your computer resumes from a suspend or sleep mode, communication between the camera and your computer may not recover at the same time.
Copying and viewing images on a computer
1
Prepare the camera and a
Macintosh computer.
Perform the same procedure as
described in “Preparing the camera and the computer” on page 66.
2
Connect the camera to your computer with the USB cable.
Perform the same procedure as
described in “Connecting the camera to your computer” on page 66.
3
Copy image files to the Macintosh computer.
1 Double-click the newly recognized icon t [DCIM] t the folder where the images you want to copy are stored.
2 Drag and drop the image files to the hard disk icon.
The image files are copied to the hard disk.
• For details on the storage location of the
images and file names, see page 68.
4
View images on the computer.
Double-click the hard disk icon t the desired image file in the folder containing the copied files to open that image file.
73
74
Using your Macintosh computer
To delete the USB connection
Drag and drop the drive icon or the icon of the “Memory Stick Duo” media to the
“Trash” icon beforehand when you perform the procedures listed below, or the camera is disconnected from the computer.
• Disconnecting the USB cable.
• Removing “Memory Stick Duo” media.
• Inserting “Memory Stick Duo” media into the camera after copying images from the internal memory.
• Turning off the camera.
Technical Support
Additional information on this product and answers to frequently asked questions can be found at the Sony
Customer Support Website.
http://www.sony.net/
Viewing “Cyber-shot Step-up Guide”
When you install “Cyber-shot Handbook”,
“Cyber-shot Step-up Guide” is also installed. “Cyber-shot Step-up Guide” further introduces how to use the camera and optional accessories.
Viewing on Windows
Double-click (Step-up Guide) on the desktop.
To access “Step-up Guide” from the Start menu, click [Start] t [All Programs] (in
Windows 2000, [Programs]) t [Sony
Picture Utility] t [Step-up Guide].
Viewing on Macintosh
1
Copy the [stepupguide] folder in the [stepupguide] folder to your computer.
2
Select [stepupguide], [language] and then [GB] folder stored in the
CD-ROM (supplied), and copy all the files in the [GB] folder to the
[img] folder in the [stepupguide] folder that you copied to your computer in step 1. (Overwrite the files in the [img] folder with the files from the [GB] folder.)
3
After copying is complete, double-click “stepupguide.hqx” in the [stepupguide] folder to uncompress it, then double-click the generated file “stepupguide”.
• If an uncompress tool for HQX file is not installed, install the Stuffit Expander.
75
76
Printing still images
How to print still images
When you print images shot in [16:9] mode, both edges may be cut off, so be sure to check before
Printing directly using a PictBridge compliant printer (page 77)
You can print images by connecting the camera directly to a
PictBridge compliant printer.
Printing directly using a “Memory Stick” media compliant printer
You can print images with a “Memory Stick” media compliant printer.
For details, see the operating instructions supplied with the printer.
Printing using a computer
You can copy images to a computer using the supplied “PMB” software and print the images.
You can print images date inserted (page 65).
You can take “Memory Stick Duo” media containing images shot with your camera to a photo printing service shop. You can make a (Print order) mark on the images which you want to print out in advance.
Printing images directly using a PictBridge compliant printer
Even if you do not have a computer, you can print images shot using your camera by connecting the camera directly to a
PictBridge compliant printer.
Stage 1: Preparing the camera
Prepare the camera to connect it to the printer with the USB cable.
• “PictBridge” is based on the CIPA standard.
(CIPA: Camera & Imaging Products
Association)
• You cannot print movies.
• If the indicator flashes on the screen of the camera (error notification), check the connected printer.
MENU button
Control button
• To prevent the power from turning off partway through printing, to use batteries with enough power remaining is recommended.
1
Press the MENU button to display the MENU screen.
2
Select (Setup) with V on the
control button, then press z.
3
Select [Main Settings] with v/V, and select [USB Connect], then
press z.
4
Select [PictBridge] with v/V, then
press z.
The USB mode is set.
77
78
Printing images directly using a PictBridge compliant printer
Stage 2: Connecting the camera to the printer
1
Connect the camera to the printer.
3
Press the MENU button, select
[Print] with v/V on the control
button, then press z.
1 To the
(USB) jack The camera is set to playback mode, then an image and the print menu appear on the screen.
USB cable
2 To the USB jack
2
Turn on the printer. Set the mode switch to (Playback) and turn on the camera.
After the connection is made,
Stage 3: Selecting images you want to print
Select [This Image] or [Multiple
Images] with v/V, then press z.
When you select [This Image]
You can print the selected image. Move on to Stage 4.
When you select [Multiple Images]
You can print multiple selected images.
1 Select the image you want to print with v/
V/b/B, then press z.
appears on the selected image.
2 Press the MENU button to display the menu.
3 Select [OK] with v, then press z.
• To print all the images of a folder, select
[Multiple Images] on the index screen, select the bar with b, and place a mark in the check box.
Printing images directly using a PictBridge compliant printer
Stage 4: Printing
1
Select print settings with v/V/b/
B.
2
Select [OK] with v, then press z.
The image is printed.
• Do not disconnect the USB cable while the
(PictBridge Connecting) indicator appears on the screen.
indicator
[Quantity]
Selects the number of copies of the specified image to be printed.
• The designated number of images may not all fit onto a single sheet depending on the quantity of images.
[Layout]
Selects the number of image you want to print side by side on a sheet.
[Size]
Select the size of the printing sheet.
[Date]
Select [Day&Time] or [Date] to insert the date and time on images.
• When you choose [Date], the date will be
inserted in the order you select (page 60).
This function may not be provided depending on the printer.
Stage 5: Completing the printing
Make sure the screen has returned to
Stage 2, and disconnect the USB cable from the camera.
79
80
Printing at a shop
You can take “Memory Stick Duo” media containing images shot with the camera to a photo printing service shop. As long as the shop supports photo printing services conforming to the DPOF, you can make a
(Print order) mark on images in advance so that you do not need to reselect them when you print them out at the shop.
• You cannot print images stored in the internal memory at a print shop directly from the camera. Copy the images to “Memory Stick
Duo” media, then take the “Memory Stick Duo” media to the print shop.
What is DPOF?
DPOF (Digital Print Order Format) is a function allowing you to make a
(Print order) mark on images of “Memory
Stick Duo” media that you want to print out later.
• You cannot mark movies.
• You can make a to 999 images.
(Print order) mark on up
When taking “Memory Stick Duo” media to a shop
• Consult your photo printing service shop as to what types of “Memory Stick Duo” media they handle.
• If “Memory Stick Duo” media is not handled by your photo printing service shop, copy the images you want to print out to another medium such as a CD-R and take it to the shop.
• Be sure to take the “Memory Stick Duo” media
Adaptor with it.
• Before you take image data to a shop, always copy (back up) your data to a disk.
• You cannot set the number of prints.
• When you want to superimpose dates on images, consult your photo printing service shop.
Marking a selected image
MENU button
Mode switch
Control button
1
Set the mode switch to
(Playback).
2
Select the image you want to print.
3
Press the MENU button to display the menu.
4
Select [DPOF] with v/V on the control button and select [This
Image] with b/B, then press z.
A (Print order) mark is attached to the image.
DPOF
To remove the mark
Select the images from which you want to remove the mark, then repeat steps 3 and 4.
Printing at a shop
Selecting and marking the images
1
Press the MENU button while displaying images in singleimage mode or in index mode.
2
Select [DPOF] with v/V on the control button, [Multiple Images]
with b/B, and then press z.
3
Select an image to mark with the
control button, then press z.
The mark is attached to the selected image.
Single Image
5
Select [OK] with v, then press z.
The mark appears on the screen.
Single Image
Index Display
Index Display
To cancel the selection
Select [Exit] in step 5, then press z.
To remove the mark
Select the images that you want to remove the marks, then press z in step 3.
To mark all the images of a folder
To mark all the images of a folder, select
[Multiple Images] on the index screen, select the bar with b, and place a mark in the check box.
4
Press the MENU button.
81
Troubleshooting
Troubleshooting
If you experience trouble with your camera, try the following solutions.
1
Check the items on pages 83 to 91.
2
Remove the batteries, wait for about one minute, re-insert the batteries, then turn on the power.
3
Initialize the settings (page 53).
4
Consult your Sony dealer or local authorized Sony service facility.
Be aware that by sending the camera for repair, you give consent that the contents of the internal memory may be checked.
82
Click one of the following items to jump to the page explaining the symptom and cause or the appropriate corrective action.
Shooting still images/movies 84
PictBridge compliant printer 90
Troubleshooting
Batteries and power
The battery remaining indicator is incorrect, or sufficient battery remaining indicator is displayed but the power runs out too quickly.
• This phenomenon occurs when you use the camera in an extremely hot or cold location.
• When using alkaline batteries/Oxy Nickel Primary Battery (sold separately), the displayed time remaining may not be correctly indicated.
• The batteries are discharged. Insert new batteries or charged Nickel-Metal Hydride batteries
(sold separately).
• When using the Nickel-Metal Hydride batteries, the poles of batteries or the terminals of the battery cover are dirty so the batteries are not charged sufficiently. Clean them with a cotton
• When using the Nickel-Metal Hydride batteries, the displayed time remaining differs from the
current one due to the memory effect (page 97), etc. Fully discharge and then charge the
batteries to correct the display.
• The batteries are dead. Replace them with new ones.
The batteries run down too quickly.
• You are using the camera in an extremely cold location.
• The batteries are dead. Replace them with new ones.
• When using the Nickel-Metal Hydride batteries, charge them sufficiently.
Camera power is turned off automatically when you open the battery/“Memory
Stick Duo” media cover.
• This is not a malfunction. Turn off the camera before you open the battery/“Memory Stick
Duo” media cover.
Cannot turn on the camera.
• Insert the batteries correctly.
• The batteries are discharged. Insert new batteries or charged Nickel-Metal Hydride batteries.
• The batteries are dead. Replace them with new ones.
The power turns off suddenly.
• If you do not operate the camera for about three minutes while the power is on, the camera turns off automatically to prevent wearing down the batteries. Turn on the camera again.
• The batteries are discharged. Insert new batteries or charged Nickel-Metal Hydride batteries.
83
Troubleshooting
Shooting still images/movies
Cannot record images.
• Check the free capacity of the internal memory or “Memory Stick Duo” media. If it is full, do one of the following:
–
Delete unnecessary images (page 26).
– Change the “Memory Stick Duo” media.
• You cannot record images while charging the flash.
• Set the mode switch to (Still image) when shooting still images.
• Set the mode switch to (Movie) when shooting movies.
The subject is not visible on the screen.
• Your camera is set to the Playback mode. Set the mode switch to (Still image) or
Anti-blur function does not work.
• The anti-blur function does not work when appears on the display.
• The anti-blur function may not work properly when shooting night scenes.
• Shoot after pressing the shutter button halfway down; do not press it fully down suddenly.
The image is out of focus.
• The subject is too close. Make sure to position the lens farther away from the subject than the shortest shooting distance, approximately 5 cm (2 inches) (W)/50 cm (1 feet 7 3/4 inches) (T)
from the front of the lens, when shooting (page 21).
• (Twilight) mode or (Landscape) mode is selected in the Scene Selection mode when shooting still images.
•
The Focus preset function is selected. Select the auto focus mode (page 39).
•
Refer to “If the subject is out of focus” on page 40.
Zoom does not work.
•
You cannot use the Smart zoom depending on the image size (page 55).
• You cannot use the digital zoom while shooting movies.
• You cannot change the zoom scale while shooting movies.
84
The flash does not work.
• The flash is set to
• You cannot use the flash when:
–
[REC Mode] is set to [Burst] (page 36).
– (High Sensitivity) mode or (Twilight) mode is selected in the Camera (Scene
– Shooting movies.
• Set the flash to (Flash forced on) when (Landscape) mode, (Beach) mode, or
(Snow) mode is selected in the Camera (Scene Selection) (page 21).
Troubleshooting
Fuzzy specks appear in images shot using the flash.
• Particles (dust, pollen, etc.) in the air reflected the flash light and appeared in the image. This
is not a malfunction (page 11).
The close-up shooting function (Macro) does not work.
• (Twilight) mode or (Landscape) mode is selected in the Camera (Scene Selection)
Macro shooting cannot be released.
• There is no function for releasing a macro. In possible even in the macro shooting condition.
(Auto) mode, telephoto shooting is
The date and time are not displayed.
• While shooting, the date and time are not displayed. They are displayed only during playback.
Cannot insert dates on images.
•
This camera does not have a feature for superimposing dates on images (page 89).
By using “PMB”, you can print or save images with the date (page 65).
The F value and shutter speed flash when you press and hold the shutter button halfway down.
•
The exposure is incorrect. Correct the exposure (page 36).
The screen is too dark or too bright.
•
Select the brightness of the LCD backlight (page 18).
The image is too dark.
• You are shooting a subject with a light source behind the subject. Select the metering mode
(page 38) or adjust the exposure (page 36).
The image is too bright.
•
Adjust the exposure (page 36).
The image colors are not correct.
•
Set [Color Mode] to [Normal] (page 44).
Vertical streaks appear when you are shooting a very bright subject.
• The smear phenomenon is occurring and white, black, red, purple, or other streaks appear on the image. This phenomenon is not a malfunction.
85
86
Troubleshooting
Noise appears in the image when you view the screen in a dark place.
• The camera is attempting to increase the visibility of the screen by temporarily brightening the image under conditions of low illumination. There is no effect on the recorded image.
The eyes of the subject come out red.
•
Set [Red Eye Reduction] to [On] (page 43).
• Shoot the subject at a distance closer than the flash range using the flash.
• Light the room and shoot the subject.
•
Retouch the image using [Red Eye Correction] (page 47).
Dots appear and remain on the screen.
•
This is not a malfunction. These dots are not recorded (page 2).
Cannot shoot images in succession.
• The internal memory or “Memory Stick Duo” media is full. Delete unnecessary images
• The battery level is low. Insert new batteries or charged Nickel-Metal Hydride batteries (sold separately).
Viewing images
Cannot play back images.
• Set the mode switch to
•
The folder/file name has been changed on your computer (page 72).
• Sony does not guarantee playback of image files on the camera if the files have been processed using a computer or recorded with another camera.
•
The camera is in USB mode. Delete the USB connection (page 68).
The date and time are not displayed.
• The display indicators are turned off. Show the display indicators by pressing v (DISP) on the
The image appears rough right after playback starts.
• This may happen due to image processing. This is not a malfunction.
Troubleshooting
Deleting/Editing images
Cannot delete an image.
•
Cancel the protection (page 49).
The resizing function does not work.
• You cannot resize movies.
Computers
Computer OS compatibility with camera is unknown.
•
Check “Recommended computer environment” on page 63 for Windows, and page 73 for
Macintosh.
“Memory Stick PRO Duo” media is not recognized by a computer with a
“Memory Stick” media slot.
• Check that the computer and the “Memory Stick” media Reader/Writer support “Memory
Stick PRO Duo” media. Users of computers and “Memory Stick” media Readers/Writers made by manufacturers other than Sony should contact those manufacturers.
• If “Memory Stick PRO Duo” media is not supported, connect the camera to the computer
(pages 66 and 73). The computer recognizes the “Memory Stick PRO Duo” media.
Your computer does not recognize your camera.
• Turn on the camera.
• When the battery level is low, insert new batteries or charged Nickel-Metal Hydride batteries
(sold separately).
•
Set [USB Connect] to [Mass Storage] (page 54).
•
Use the USB cable (supplied) (page 66).
• Disconnect the USB cable from both the computer and the camera, and connect it again firmly.
• Disconnect all equipment other than the camera, the keyboard and the mouse from the USB connectors of your computer.
• Connect the camera directly to your computer without passing through a USB hub or other
Cannot copy images.
•
Connect the camera and your computer correctly making a USB connection (page 66).
•
Follow the designated copy procedure for your OS (pages 63 and 73).
• When you shoot images with “Memory Stick Duo” media formatted by a computer, you may not be able to copy the images to a computer. Shoot using “Memory Stick Duo” media
formatted by your camera (page 57).
87
88
Troubleshooting
After making a USB connection, “PMB” does not start automatically.
•
Make the USB connection after the computer is turned on (page 66).
Cannot play back images on your computer.
•
If you are using “PMB”, refer to “PMB Guide” (page 65).
• Consult the computer or software manufacturer.
The image and sound are interrupted by noise when you view a movie on a computer.
• You are playing back the movie directly from the internal memory or the “Memory Stick
Duo” media. Copy the movie to the hard disk of your computer, then play back the movie
Cannot print an image.
• Refer to the operation manual of the printer.
Images once copied to a computer cannot be viewed on the camera.
•
Copy them to a folder recognized by the camera, such as “101MSDCF” (page 68).
•
“Memory Stick Duo” media
Cannot insert “Memory Stick Duo” media.
• Insert it in the correct direction.
You have formatted “Memory Stick Duo” media by mistake.
• All the data on the “Memory Stick Duo” media is deleted by formatting. You cannot restore it.
Troubleshooting
Internal memory
Cannot play back or record images using the internal memory.
• There is “Memory Stick Duo” media inserted in the camera. Remove it.
Cannot copy the data stored in the internal memory to “Memory Stick Duo” media.
• The “Memory Stick Duo” media is full. Copy the image to the “Memory Stick Duo” media with sufficient free capacity.
Cannot copy the data on the “Memory Stick Duo” media or the computer to the internal memory.
• This feature is not available.
Printing
See “PictBridge compliant printer” together with the following items.
Images are printed with both edges cut off.
• Depending on your printer, all the edges of the image may be cut off. Especially when you print an image shot with the image size set to [16:9], the lateral end of the image may be cut off.
• When printing images using your printer, cancel the trimming or borderless settings. Consult the printer manufacturer as to whether the printer provides these functions or not.
• When having images printed at a digital print shop, ask the shop whether they can print the images without cutting off both edges.
Cannot print images with the date inserted.
•
You can print images with the date inserted using “PMB” (page 65).
• This camera does not have a feature for superimposing dates on images. However, because the images shot with the camera include information on the recording date, you can print images with the date superimposed if the printer or the software can recognize Exif information. For compatibility with Exif information, consult the manufacturer of the printer or the software.
• If you use a photo printing service, ask them to superimpose the dates on images.
89
Troubleshooting
PictBridge compliant printer
A connection cannot be established.
• The camera cannot be connected directly to a printer that is not compliant with the PictBridge standard. Consult the printer manufacturer as to whether the printer is compliant with
PictBridge or not.
• Check that the printer is turned on and can be connected to the camera.
•
Set [USB Connect] to [PictBridge] (page 54).
• Disconnect and connect the USB cable again. If an error message is indicated on the printer, refer to the operating instructions supplied with the printer.
Cannot print images.
• Check that the camera and the printer are properly connected using the USB cable.
• Turn on the printer. For further information, refer to the operating instructions supplied with the printer.
• If you select [Exit] during printing, images may not be printed. Disconnect and connect the
USB cable again. If you still cannot print your images, disconnect the USB cable, turn the printer off and then on, then connect the USB cable again.
• Movies cannot be printed.
• Images shot using cameras other than this camera or images modified with a computer may not be printed.
Printing is canceled.
• You disconnected the USB cable before the (PictBridge Connecting) mark disappears.
Cannot insert the date or print images in the index mode.
• The printer does not provide these functions. Consult the printer manufacturer as to whether the printer provides these functions or not.
• The date may not be inserted in the index mode depending on the printer. Consult the printer manufacturer.
“---- -- --” is printed on the date-inserted part of the image.
• The image does not have the recording data so the date cannot be inserted. Set [Date] to [Off]
and print the image again (page 79).
Cannot select the print size.
• Consult the printer manufacturer as to whether the printer can provide the desired size.
90
Cannot print the image at the size selected.
• When you use paper of a different size after connecting the printer to the camera, disconnect and then reconnect the USB cable.
• The print setting of the camera differs from that of the printer. Change the setting of either the
camera (page 79) or the printer.
Troubleshooting
Cannot operate the camera after canceling printing.
• Wait for a while as the printer is carrying out the cancellation. It may take some time depending on the printer.
Others
Cannot reset the file-number.
• If you replace a recording medium, you cannot initialize file numbers with the camera. To
initialize file numbers, format the “Memory Stick Duo” media (pages 57, 59) or the internal
memory, and then initialize the settings (page 53). However, the data on the “Memory Stick
Duo” media or the internal memory will be deleted and all settings, including date, will be initialized.
The camera does not function with the lens portion extended.
• Do not attempt to force the lens that has stopped moving.
• Insert new batteries or charged Nickel-Metal Hydride batteries, then turn on the camera again.
The lens gets fogged.
• Moisture condensation has occurred. Turn off the camera and leave it for about an hour before using it.
The lens does not move when you turn off the camera.
• The batteries are discharged. Insert new batteries or charged Nickel-Metal Hydride batteries.
The camera becomes warm when you use it for a long time.
• This is not a malfunction.
The Clock Set screen appears when you turn on the camera.
•
Set the date and time again (page 60).
You want to change the date or time.
•
Set the date and time again (page 60).
91
92
Warning messages
Messages
If the following messages appear, follow the instructions.
• The battery level is low. Insert new ones or charged Nickel-Metal Hydride batteries (sold separately). Depending on the conditions of use or the type of battery, the indicator may flash even though there are still 5 to 10 minutes of remaining battery time left.
System error
• Turn the power off and then on again.
Internal memory error
• Turn the power off and then on again.
Reinsert the Memory Stick
• Insert the “Memory Stick Duo” media correctly.
• The inserted “Memory Stick Duo” media cannot be used in your camera
• The “Memory Stick Duo” media is damaged.
• The terminal section of the “Memory
Stick Duo” media is dirty.
Memory Stick type error
• The inserted “Memory Stick Duo” media cannot be used in your camera
Cannot access Memory Stick
Access denied
• You are using the “Memory Stick Duo” media with the access controlled.
Error formatting Memory Stick
Error formatting internal memory
•
Format the media again (pages 57, 59).
Memory Stick locked
• You are using the “Memory Stick Duo” media with the write-protect switch, and the switch is set to the LOCK position.
Set the switch to the recording position.
No memory space on internal memory
No memory space on Memory Stick
• Delete unnecessary images or files
Read only memory
• Your camera cannot record or delete images on this “Memory Stick Duo” media.
No images
• No images that can be played have been recorded in the internal memory.
• No images that can be played back have been recorded on the “Memory Stick
Duo” media.
• The selected folder does not contain a file that can be played back in a slideshow.
Folder error
• A folder with the same first three digit number already exists on the “Memory
Stick Duo” media (for example:
123MSDCF and 123ABCDE). Select another folder, or create a new folder
Warning messages
Cannot create more folders
• The folder with a name beginning with
“999” exists on the “Memory Stick
Duo” media. You cannot create any folders if this is the case.
File error
• An error occurred while the image was playing back. Sony does not guarantee playback of image files on the camera if the files have been processed using a computer or recorded with another camera.
Read only folder
• You have selected a folder that cannot be set as a recording folder on the
camera. Select another folder (page 58).
File protected
•
Release the protection (page 49).
Image size over limit
• You are playing back an image with size that cannot be played back on the camera.
(Vibration warning indicator)
• Camera shake may occur due to insufficient light. Use the flash, turn on the anti-blur function, or mount the camera on a tripod to secure the camera.
Macro is invalid
• The macro is unavailable under the
Flash settings cannot be changed
• The flash is unavailable under the
Maximum number of images already selected
• You can select up to 100 image files from [Multiple Images].
• When you select all image files of a folder, the maximum number is 999.
• You can add up to 999 image files as
Favorites, and you can add the
(Print order) mark to a maximum 999 files. Cancel the selection.
Printer busy
Paper error
No paper
Ink error
Low ink
No ink
• Check the printer.
Printer error
• Check the printer.
• Check if the image you want to print is corrupted.
• The data transmission to the printer may not be completed yet. Do not disconnect the USB cable.
Processing...
• The printer is canceling the current print job. You cannot print until it is finished.
This may take time, depending on the printer.
• If you select all image files of a folder, this may take time for processing.
Operation cannot be executed for movie files
• You have selected a function that is not available for movies.
93
94
Warning messages
Operation cannot be executed in unsupported files
• Processing and other editing functions of the camera cannot be performed on image files that have been processed using a computer or images that were recorded with another camera.
Operation cannot be executed when using a PictBridge connection
• Some functions are restricted while the camera is connected to a PictBridge compliant printer.
Unable to detect face for retouch
• Retouching may not be possible depending on the image.
Turn the power off and on again
• The lens malfunction.
Others
On the “Memory Stick Duo” media
“Memory Stick Duo” media is a compact, portable IC recording medium. The types of
“Memory Stick Duo” media that can be used with the camera are listed in the table below. However, proper operation cannot be guaranteed for all “Memory Stick Duo” media functions.
“Memory Stick” media type
Memory Stick Duo
(with MagicGate)
Memory Stick Duo
(without MagicGate)
MagicGate Memory Stick
Duo
Memory Stick PRO Duo
Memory Stick PRO-HG Duo
Recording/
Playback a
*1 a
a a
a
*2
*1*2
*1
*1*3
*1)
“Memory Stick Duo” media, “MagicGate
Memory Stick Duo” media and “Memory Stick
PRO Duo” media are equipped with
MagicGate functions. MagicGate is copyright protection technology that uses encryption technology. Data recording/playback that requires MagicGate functions cannot be performed with the camera.
*2)
The camera is not compatible with high-speed data transfer using a parallel interface.
*3)
The camera is not compatible with 8-bit parallel data transfer. Supports 4-bit parallel data transfer equivalent to “Memory Stick
PRO Duo” media.
• This product is compatible with “Memory Stick
Micro” (“M2”) media. “M2” is an abbreviation for “Memory Stick Micro”.
• “Memory Stick Duo” media formatted with a computer is not guaranteed to operate with the camera.
• Data read/write speeds differ depending on the combination of the “Memory Stick Duo” media and the equipment used.
• Do not remove the “Memory Stick Duo” media while reading or writing data.
• Data may be corrupted in the following cases:
– When the “Memory Stick Duo” media is removed or the camera is turned off during a read or write operation.
– When the “Memory Stick Duo” media is used in locations subject to static electricity or electrical noise.
• We recommend backing up important data on a hard disk of your computer.
• Do not press down hard when you write down on the memo area.
• Do not attach a label on the “Memory Stick
Duo” media itself nor on “Memory Stick Duo” media Adaptor.
• When you carry or store the “Memory Stick
Duo” media, put it in the case supplied with it.
• Do not touch the terminal section of the
“Memory Stick Duo” media with your hand or a metal object.
• Do not strike, bend or drop the “Memory Stick
Duo” media.
• Do not disassemble or modify the “Memory
Stick Duo” media.
• Do not expose the “Memory Stick Duo” media to water.
• Do not leave the “Memory Stick Duo” media within the reach of small children. They might accidentally swallow it.
• Do not insert anything other than “Memory
Stick Duo” media into the “Memory Stick Duo” media slot. Otherwise, a malfunction may result.
• Do not use or store the “Memory Stick Duo” media under the following conditions:
– High temperature locations such as the hot interior of a car parked in direct sunlight
– Locations exposed to direct sunlight
– Humid locations or locations with corrosive substances present
95
96
On the “Memory Stick Duo” media
Notes on using the “Memory Stick Duo” media Adaptor (sold separately)
• To use “Memory Stick Duo” media with a
“Memory Stick” media compliant device, be sure to insert the “Memory Stick Duo” media into a “Memory Stick Duo” media Adaptor. If you insert “Memory Stick Duo” media into a
“Memory Stick” media compliant device without a “Memory Stick Duo” media Adaptor, you might not be able to remove it from the device.
• When inserting “Memory Stick Duo” media into a “Memory Stick Duo” media Adaptor, make sure the “Memory Stick Duo” media is inserted facing in the correct direction, then insert it all the way in. Incorrect insertion may result in a malfunction.
• When using “Memory Stick Duo” media inserted into a “Memory Stick Duo” media
Adaptor with a “Memory Stick” media compliant device, make sure that the “Memory
Stick Duo” media Adaptor is inserted facing the correct direction. Note that improper use may damage the equipment.
• Do not insert a “Memory Stick Duo” media
Adaptor into a “Memory Stick” media compliant device without “Memory Stick Duo” media attached. Doing so may result in malfunction of the unit.
Notes on using “Memory Stick PRO
Duo” media (sold separately)
“Memory Stick PRO Duo” media with a capacity up to 16 GB have been confirmed to operate properly with the camera.
Notes on using “Memory Stick Micro” media (sold separately)
• To use “Memory Stick Micro” media with the camera, be sure to insert the “Memory Stick
Micro” media into a Duo-sized “M2” media
Adaptor. If you insert “Memory Stick Micro” media into the camera without a Duo-sized
“M2” media Adaptor, you might not be able to remove it from the camera.
• Do not leave the “Memory Stick Micro” media within the reach of small children. They might accidentally swallow it.
On the batteries
Batteries you can and cannot use with your camera
Battery type
LR6 (size AA) alkaline batteries
*
HR 15/51:HR6 (size
AA) Nickel-Metal
Hydride batteries
*
ZR6 (size AA) Oxy
Nickel Primary
Battery
*
Lithium batteries
Manganese batteries
Ni-Cd batteries
A a
—
—
—
—
—
B a a a
—
—
—
C
— a
—
—
—
—
A: supplied
B: supported
C: rechargeable
* Before using batteries, read the following precaution for each type of battery.
As for unsupported batteries, operating performance cannot be ensured if voltage drops or other problems are caused by the nature of the battery.
On alkaline batteries (supplied)/Oxy
Nickel Primary Battery (sold separately)
• Alkaline batteries/Oxy Nickel Primary Battery cannot be charged.
• Alkaline batteries/Oxy Nickel Primary Battery have a shorter life compared to the Nickel-Metal
Hydride batteries. For this reason, the power may turn off even though the battery remaining indicator shows sufficient battery life remaining.
• Battery performance differs greatly depending on the manufacturer and the type of battery, and in some cases the battery life may be extremely short. This is especially true at low temperatures, and you may not be able to shoot at temperatures below 5°C (41°F).
• Do not mix new and old batteries.
• The battery remaining indicator may not display the correct information when using alkaline batteries/Oxy Nickel Primary Battery.
• Due to characteristics of alkaline batteries/Oxy
Nickel Primary Battery, there is a large difference between the available shooting time and the available playback time. For this reason, the camera may turn off with the lens portion extended when you switch the mode switch. In this case, replace the batteries with new ones.
Using the Nickel-Metal Hydride batteries allows you to shoot for longer periods of time.
On Nickel-Metal Hydride batteries (sold separately)
• Do not peel off the external seals or damage the batteries. Never use batteries from which the seals have been partially or completely removed, or batteries that have been split in any way. These may cause leakage, explosion, or heat-up of the battery, and personal scald or injury may be caused. These may cause a malfunction of the battery charger.
• Do not carry or store the Nickel-Metal Hydride batteries with metallic objects. Since metallic objects may short the + and – ends, resulting in the risk of heating or fire.
• If the poles of the Nickel-Metal Hydride batteries are dirty, the batteries may not charge properly. Wipe them with a dry cloth, etc.
• At the time of purchase, or when the Nickel-
Metal Hydride batteries have not been used for a long time, they may not full charge. This is typical of this type of battery, and is not a malfunction. If this happens, repeatedly using up the batteries fully, and then recharging them should correct the problem.
• If you recharge Nickel-Metal Hydride batteries before fully using up the existing charge, the low battery warning may be displayed sooner than expected. This is called the “memory effect.”* If this problem occurs, charging the batteries only after using up the existing charge will correct it.
* The “memory effect” - the situation in which the capacity of the battery is temporarily lowered.
• To use up the batteries completely, put the
camera in the slideshow mode (page 45) and
leave it that way until the batteries are used up.
• Do not mix new and used batteries.
• Do not expose the battery to water. The battery is not water-resistant.
97
Index
Index
98
A
Adjusting EV ..................18, 36
AE/AF lock indicator .....20, 40
AF lock ...........................20, 40
AF range finder frame ..........40
Aperture..................................8
Auto Adjustment ..................30
Auto Focus .......................6, 39
Auto Review.........................56
AVI .......................................69
B
B&W ....................................44
Battery ..................................97
Beach mode ..........................31
Beep......................................53
Blur .........................................7
Burst .....................................36
C
Camera..................................33
Center AF .............................39
Center-weighted metering ....38
Change REC. Folder.............58
Clock Settings.......................60
Cloudy ..................................41
Color .......................................9
Color Mode...........................44
Computer ..............................62
Macintosh......................73
Recommended environment.............63, 73
Software ........................64
Viewing image files stored on a computer with the camera ...........................72
Windows........................62
Connecting
Computer ...................... 66
Printer ........................... 78
Copy..................................... 58
Copying images to your computer ....................... 66
Create REC. Folder.............. 57
D
Date ...................................... 60
Daylight ............................... 41
Delete ................................... 26
Format..................... 57, 59
Digital Zoom........................ 55
DirectX................................. 64
DISP..................................... 18
DPOF ............................. 50, 80
E
EV ........................................ 36
Exposure ................................ 8
Extension ............................. 72
F
Face Detection ..................... 35
File name.............................. 68
File storage destination ........ 68
Flash (Shooting)................... 11
Flash (White Balance) ......... 42
Flash forced off .................... 21
Flash forced on..................... 21
Flash Level........................... 42
Flash mode ........................... 21
Fluorescent Light 1, 2, 3 ...... 41
Focus .......................... 6, 21, 39
Focus preset ......................... 39
Folder
Changing....................... 58
Creating ........................ 57
Selecting ....................... 51
Format ............................ 57, 59
Function Guide ..................... 53
G
Grid Line .............................. 55
H
High Sensitivity mode .......... 31
Histogram ............................. 18
Holding the camera .............. 20
I
Identifying parts ................... 12
Image file storage destinations and file names ............... 68
Image quality........................ 10
Image size....................... 10, 23
Incandescent ......................... 41
Index screen.......................... 25
Indicator ............................... 14
Initialize................................ 53
Install .................................... 64
Internal memory ................... 19
Internal Memory Tool .......... 59
ISO ................................... 8, 37
J
JPG ....................................... 69
L
Landscape mode ................... 31
Language Setting.................. 61
LCD Screen .......................... 18
M
Macintosh computer ............. 73
Recommended environment................... 73
Macro ................................... 22
Main Settings........................ 53
Mass Storage ........................ 54
Index
.......................................95
Memory Stick Tool...............57
Menu .....................................28
Items ..............................29
Shooting.........................33
Viewing..........................45
Metering Mode .....................38
Mode switch .........................20
Multi AF ...............................39
Multi-pattern metering..........38
Multi-Purpose Resize ...........48
O
Optical zoom...................21, 55
OS ...................................63, 73
Overexposure..........................8
P
PC .........................................62
PictBridge .......................54, 77
Pixel ......................................10
Playback................................24
Playback zoom......................24
PMB......................................65
Precision digital zoom ..........55
Pressing halfway down ...........6
Print ................................50, 76
Print order mark..............50, 80
Printing at a shop ..................80
Printing directly ....................77
Program Auto .......................30
Protect ...................................49
R
REC Mode ............................36
Red Eye Correction...............47
Red Eye Reduction ...............43
Retouch .................................47
Rewind/Fast forward ............24
Rotate ................................... 50
S
Scene Selection .................... 30
Screen
Indicator ........................ 14
LCD backlight............... 18
Select Folder ........................ 51
Self-timer ............................. 22
Sepia..................................... 44
Setup......................... 44, 51, 52
Shooting
Movie ............................ 20
Still image ..................... 20
Shooting menu ..................... 33
Shooting Settings ................. 55
Shutter speed .......................... 8
Slideshow ............................. 45
Slow synchro........................ 21
Smart zoom .......................... 55
Snow mode........................... 31
Soft Snap mode .................... 31
Software ......................... 64, 65
Spot metering ....................... 38
Spot metering cross hairs ..... 38
SteadyShot ........................... 34
T
Trimming ............................. 47
Troubleshooting ................... 82
Twilight mode ...................... 31
Twilight Portrait mode ......... 31
U
Underexposure ....................... 8
USB cable ...................... 66, 78
USB Connect........................ 54
USB jack .............................. 12
V
VGA .....................................23
Viewing images ....................24
Viewing menu ......................45
W
Warning messages ................92
White Balance ......................41
Windows computer...............62
Recommended environment...................63
Z
Zoom.....................................21
99
Additional information on this product and answers to frequently asked questions can be found at our
Customer Support Website.
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- Compact camera 10.1 MP CCD Silver
- Optical zoom: 3x Digital zoom: 6x
- Alkaline
