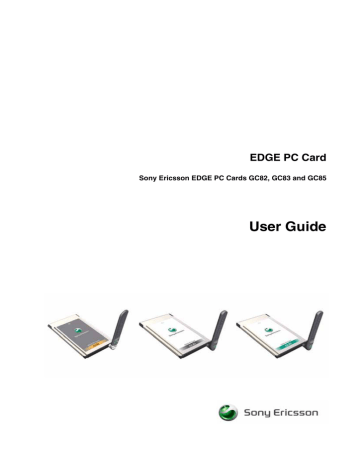

EDGE PC Card

Sony Ericsson EDGE PC Cards GC82, GC83 and GC85

User Guide

2

Content

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Software Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Services Available Over the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

EDGE PC Card Hardware Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Start Using Wireless Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Wireless Manager Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Wireless Manager Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Windows Log on Using GPRS/EDGE Dial-up Connection . . . . . . . . . . . . . 19

Create a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

GPRS/EDGE Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

CSD Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Modify a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Delete a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using your Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Browse the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Send and Receive emails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Wireless Manager Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . 25

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Wireless Manager Telephony Settings Screen . . . . . . . . . . . . . . 27

Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Networks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Forward Calls (Divert). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Restrict Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Wireless Manager SMS Messages Screen. . . . . . . . . . . . . . . . . . 33

SMS Manager Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Wireless Manager Phone Book Screen . . . . . . . . . . . . . . . . . . . . 37

The Phone Book Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Phone Book Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Wireless Manager Online Services Screen . . . . . . . . . . . . . . . . . 41

Contents

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Wireless Manager Icon Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Software Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

SIM Card Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Sony Ericsson Support Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Guidelines for Safe and Efficient Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

License Agreement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Term . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Limitation of liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Disputes and Governing Law . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Appendix A - Connection Parameters . . . . . . . . . . . . . . . . . . . . . 64

General Connection Parameters for CSD and GPRS . . . . . . . . . . . . . . . . 64

CSD Specific Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

TCP/IP Optimisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Contents 3

Sony Ericsson EDGE PC Cards GC82, GC83 and GC85

First edition (May 2004)

This manual is published by Sony Ericsson Mobile Communications AB, without any warranty.

Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by

Sony Ericsson at any time and without notice. Such changes will, however, be incorporated into new editions of this manual.

This manual is copyrighted work of Sony Ericsson Mobile Communications AB, Sweden.

The programs referred to herein are copyrighted and trademarked works of Sony Ericsson

Mobile Communications AB, Sweden. Reproduction in whole or in part, including utilization in machines capable of reproduction or retrieval, without the express written permission of the copyright holders is prohibited. Reverse engineering is also prohibited.

All other product or service names mentioned in this manual are trademarks of their respective companies.

All rights reserved.

© Sony Ericsson Mobile Communications AB, 2004

Publication number: EN/LZT 123 7915 Rev C

4 Contents

Introduction

Congratulations and thank you for buying a Sony Ericsson EDGE PC Card. EDGE PC Cards are standard size type II PC cards, they enable laptop users to have mobile access to the internet or corporate network with flexibility and high speed, including ‘always online’ capability via GPRS/

EDGE. The EDGE PC Card is very simple to install and use; the software provided allows you to select the best data service available so that the EDGE PC Card is always available for data transfer.

Edge PC Card

GC82

GC83

GC85

Band (MHz)

850/1900

850/1800/1900

900/1800/1900

Regions supported

This efficient dual band EDGE PC Card is primarily for the North American market, but it can be used anywhere GSM 850/1900 MHz

Networks are available.

The triple band GC83 will be available in the American markets and will give roaming possibilities for travellers to Europe and Asia.

The triple band GC85 provides global coverage in all five continents. GC85 will be available in the

European and Asia Pacific markets.

The EDGE PC Card enables your laptop PC to:

• Browse the Internet

• Send and receive e-mails

• Receive information services in real time

• Access files, databases and discussion groups

• Send and receive SMS text messages

• Edit SIM card entries

Note:

Before using your EDGE PC Card you MUST read Guidelines for Safe and Efficient Use on page 47.

Hardware Overview

The GC82, GC83 and GC85 are standard type II Cardbus PC card. The card is standard length and only the antenna protrudes outside the PC card slot.

The amount of power drawn from the laptop battery is dependant upon a number of factors including

status, distance to the base station and number of timeslots used. See Technical Specifications on page 50

for a general guide to power consumption.

Before using the Edge PC card, you must install the software on your computer and assemble the

components packaged with the phone, see EDGE PC Card Hardware Set Up on page 9.

Introduction 5

SIM Card

When you subscribe to a mobile network operator, you are issued with a SIM card (Subscriber Identity

Module card). The SIM contains your personal subscriber data. You need to insert a SIM into your

EDGE PC Card before it will work.

Software Overview

Wireless Manager

You can use the Wireless Manager to:

• Display GC82, GC83 or GC85 status information

• Create or modify connection settings

• Connect to the Internet or a corporate network

• Manage EDGE PC Card settings

• Manage SIM card and PC phone books

• Send and receive SMS messages

Using the EDGE PC Card with your Applications

Data Programs

You can use the EDGE PC Card as a modem to provide Intranet/Internet connectivity for a wide range of applications.

Documentation

The EDGE PC Card’s documentation is designed to enhance your understanding of its capabilities.

The following guides are provided:

• A printed Quick Start Guide aimed at getting you operational as quickly as possible.

• An online User’s Guide (this document) containing a comprehensive description of the EDGE

PC Card functionality. You can read the guide on the computer screen or print it onto either

European A4 or American Letter sized paper.

The User’s Guide is located on EDGE PC Card CD-ROM as Adobe Acrobat PDF files. The EDGE

PC Card CD-ROM also contains Adobe Acrobat Reader

®

which you can install if necessary.

Illustrations

The illustrations in this manual were obtained using the EDGE PC Card on a Microsoft Windows

®

2000 operating system. The dialogs that appear on your PC may differ depending on the version of

Windows

®

in use.

6 Introduction

Getting Started

Checklist

Make sure the following items are in the box when you unpack it:

• Aluminium protective case for storing the EDGE PC Card and its antenna

• GC82, GC83 or GC85 PC Card

• Antenna

• Quick Start Guide

• CD-ROM

The CD contains; drivers, software, documentation and a readme file

System Requirements

This section lists the network subscriptions, hardware and software requirements for running the

EDGE PC Card.

Network and Subscription

The network subscription you use in conjunction with your EDGE PC Card depends on the functions and features your network operator can provide. Contact your network operator or service provider to make sure the options you require are available. Make sure that data options are included in your subscription, as these are usually optional services.

Note:

Mobile operators often provide a number of connectivity options via GPRS such as WAP and

Internet. Verify the service you require, such as Internet, email or corporate VPN (Virtual Private

Network) service is available through your mobile operator and enabled on your subscription.

The functionality of the different subscriptions available from networks operators are discussed below:

Circuit Switched Data (CSD)

CSD is the original GSM network data transfer method, used in the past for WAP. Almost all GSM networks have this capability at 9.6 kbps. It is possible for the network to upgrade the speed to 14.4 kbps.

The EDGE PC Card operates at this higher speed where available.

Note:

GC85 does not have CSD connectivity. An upgrade will be available to add this functionality to the GC85, contact your service operator for more details.

General Packet Radio Service (GPRS)

GPRS is a type of network connection which provides “always on” mobility. The connection set up is fast and, once connected, applications may send and receive data whenever required. In today’s

GPRS networks, the EDGE PC Card receives data at speeds up to 53.6 kbps and transmits at speeds up to 26.8 kbps.

Getting Started 7

Installation

The Wireless Manager CD-ROM contains the software required to operate your EDGE PC Card.

The software is simple to set up and operate, but before you begin you will need to make sure that the services you require are included on your SIM card subscription. For an explanation of the services

that are available see Network and Subscription on page 7. Contact the organization that supplied

you with your SIM card and request that the specific services (EDGE, GPRS, CSD or SMS) you require are added to your subscription.

The CD-ROM contains the following software:

• Wireless Manager

• User Documentation

• On-line Help

• ReadMe text file containing the latest information about the EDGE PC Card

EDGE PC Card Hardware Set Up

1.

Collect your EDGE PC Card, antenna and SIM card together.

2.

Insert your SIM card into the slot on the back of EDGE PC Card, with the gold contacts facing downwards.

Note:

The cut corner of the SIM card must be placed into the PC card as demonstrated below, the gold contacts should face downwards.

3.

Connect the antenna to the end of the EDGE PC Card.

If the antenna obstructs the use of your keyboard, try turning it to a horizontal position for better service.

To use the PCMCIA slot for another device, remove the EDGE card as instructed in Safe Removal

of the EDGE PC Card on page 13, then insert the other device.

When the EDGE PC Card isn't in use it is recommended that you store it in the protective carrier box provided. The unit, especially the antenna could be damaged if it remains in PC.

Installation 9

Important!

Do not insert the card into the laptop until you have installed the software from the CD-ROM.

Simply cancel the New Hardware wizard if the card is accidentally inserted prior to software installation.

Installing the Software

1.

Insert the EDGE PC Card CD-ROM in your CD drive.

After a few seconds a Sony Ericsson splash screen is displayed.

Note:

If the CD-ROM does not autorun, select Star

t

Run and type D:\Setup.exe into the Run dialog. (Where D is your CD drive.)

2.

The Wireless Manager is installed in the same language as your Windows installation, or English

if your Windows language is not available. See Supported Languages on page 56 for more details.

3.

The InstallShield Wizard for Sony Ericsson Wireless Manager opens; follow the instructions on screen. When installation is complete click Finish.

4.

Insert the EDGE PC Card. Make sure the EDGE PC Card is fully inserted.

GPRS

PC C ard M odem

GC82

5.

After a few seconds, the New Hardware Wizard opens and installs the necessary drivers onto your PC from the EDGE PC Card CD. The wizard may require you to locate a specific driver file.

If this happens a dialog opens, click Browse and select:

Component

EDGE PC Card CD-ROM

Location

EDGE PC Card Drivers on a

Windows 98SE or ME machine

D:\Driver\Driver9x

EDGE/GPRS Drivers on a

Windows 2000/XP machine

D:\Driver\Driver2k

In the above table D is referred to as your CD drive.

10 Installation

Note:

When installing on Windows 98SE, Windows may prompt for the original Windows 98 CD-ROM to be inserted. If the CD-ROM is not inserted when requested, Windows will subsequently reboot with error messages relating to missing files. Therefore, it is strongly recommended that the

Windows 98SE CD-ROM is available before installation starts.

Select the driver file requested by the Wizard and click Open. The Hardware Wizard finishes the installation.

6.

Select Programs

Sony Ericsson

Wireless Manager to start using your EDGE PC Card.

7.

The EDGE PC Card and Wireless Manager are ready for use.

Note:

If you are prompted to reboot the laptop during software installation, you may find that the

Wireless Manager attempts to start before all of the drivers are installed. The reason this occurs is the New Hardware Wizard is still busy installing the 3 device drivers. The Wireless

Manager splash screen appears, followed by a warning dialog saying “You must have a EDGE

PC Card Wireless Modem installed to run this application. Please install a EDGE PC Card

Wireless Modem and try again”. If this occurs:

1. Click Ok.

2. Wait for the New Hardware Wizard to complete the driver installation.

3. Reboot the laptop.

Wireless Manager.

Installation 11

Start Using Wireless Manager

1. To start Wireless Manager select Start

Programs Sony Ericsson Wireless Manager

or select your desktop shortcut .

2. If requested, enter your SIM Card/Phone Lock PIN and click OK. It is only necessary to enter the PIN number once during a PC session.

You are allowed three attempts to enter the correct PIN code. If you fail to enter the SIM PIN correctly it is blocked and if you fail to enter the Phone Lock PIN correctly your EDGE PC Card is locked. Contact your network operator for an unblock code (PUK). Enter the unblock code into the Card Blocked dialog and enter a new PIN code and confirm it.

To set the SIM Card PIN and Phone Lock PIN, see Locks on page 28.

3. The Radio dialog opens, select the required state for your EDGE PC Card radio transmission.

See Wireless Manager Preferences on page 15 for more details.

4. The Wireless Manager opens, displaying the Status screen. Connectivity details are displayed

on this screen, the current signal strength and GPRS availability should be listed. See Wireless

Manager Status Screen on page 25, for more details.

5. The Wireless Manager Icon is displayed in the system tray of your PC.

Wireless Manager Icon

The Wireless Manager Icon shows the current status of the EDGE PC Card, which is typically the current network signal strength and the GSM/GPRS/EDGE service status, similar to a mobile phone

display. If you right click on the Wireless Manager Icon a menu is displayed, see The Wireless

Manager Icon Menus on page 14 for details on the menu options.

Place your mouse cursor over the Wireless Manager Icon to display text indicating:

• GSM or GPRS/EDGE Service availability

• Network name

• Connection information

Three standard Windows

®

operating system icons also appear in the system tray when the EDGE PC

Card is inserted in your PC and connected. They are the Sony Ericsson Wireless WAN Adapter icon, Dial-up Networking icon and the PC card icon. The icons will appear in the following order

if you follow Installing the Software on page 10.

Sony Ericsson Wireless WAN

PC Card icon

Wireless

Manager Icon

Adapter icon (connected)

Dial-up

Networking icon

1:07 PM

PC Card icon

Wireless

Manager Icon

Sony Ericsson Wireless WAN

Adapter icon (disconnected)

Dial-up

Networking icon

2:07 PM

12 Start Using Wireless Manager

Making Windows Network Connections Visible

The Windows connection icons, displayed in the system tray, normally disappear once a connection is made. This means that you may not necessarily see an icon corresponding to each of the icons for your GPRS/EDGE and CSD.

To make the icon visible, follow the steps described below.

• Right click the appropriate icon and select Open Network Connections. Alternatively select Start Settings Network Connections.

• A dialog opens displaying all the network and dial-up connections available on your PC.

Right click the one you want to edit.

• Click the Show icon in taskbar when connected box. Click OK to close the dialog.

When you have an active connection use your mouse to hover over the icon to view connectivity details.

PC Card icon

Indicates that a PC card is present and allows the user to see certain properties and also to stop/remove the card.

Safe Removal of the EDGE PC Card

You must stop the EDGE PC Card before attempting to remove it.

1. Close any active EDGE PC Card Networking Connections.

2. Exit Wireless Manager.

3. Click on the PC Card icon. All the currently connected devices are listed.

Select Stop Sony Ericsson GC82/83/85 EGPRS Modem.

4. A dialog is displayed telling you it is safe to remove the card.

5. The EDGE PC Card can now be removed safely.

Important!

Incorrect removal of the EDGE PC Card can damage the card.

Wireless Manager Icon Status

The Wireless Manager Icon displays the status of the EDGE PC Card network connection.

Radio is set to off or the Wireless Manager has disconnected the EDGE PC Card

The radio transmitter is enabled, but there is no GSM or GPRS service available

The EDGE PC Card has GSM service and indicates a signal strength of 3 out of 5 bars. CSD and SMS may be used, provided these are supported by the subscription. GPRS/EDGE is not available

The EDGE PC Card has GSM and GPRS/EDGE service.

If EDGE connectivity is available there is no visible indication of this in the

Wireless Manager

Wireless Manager is waiting for the EDGE PC Card to be inserted

Start Using Wireless Manager 13

The Wireless Manager Icon Menus

Right click one of the following icons to see the EDGE PC Card GPRS/EDGE menu options.

The EDGE PC Card GPRS/EDGE menu is displayed .

or or or

14

Note:

Some of these menu options are disabled, depending on the current state of the EDGE PC Card.

Note:

EDGE capability is not indicated by the EDGE PC Card GPRS/EDGE icons.

The Wireless Manager Icon menu options are described below.

Open Wireless Manager

Select Open Wireless Manager or double click on the Wireless Manager icon to open the Wireless

Manager.

Radio Status

This menu option is dynamic. It monitors the current state of the EDGE PC Card radio transmitter and gives you the option to switch to the opposite state, for example, if your EDGE PC Card Radio transmitter is on the menu option reads Turn Radio Off.

You can also set the status of the radio transmitter by selecting Turn Radio On/Off in the Wireless

Manager menu.

Connect/Disconnect

If you are disconnected the menu gives you the option to connect with the last EDGE PC Card used.

If you are connected the menu gives you the option to disconnect.

Help

Opens the Wireless Manager Online Help. You can also launch the Online Help from the Wireless

Manager Help Menu. Pressing F1 in any of the Wireless Manager dialogs opens the relevant help screen.

About

Displays a dialog that contains Wireless Manager software information.

Hide to Tray

Select the Hide to Tray option to close the Wireless Manager window, leaving only the Wireless

Manager Icon visible in the system tray. Use the Open Wireless Manager to view the software again.

Exit

Closes the Wireless Manager application, the Wireless Manager Icon will remain in the system tray

if you have set it to run in the background. See Wireless Manager Preferences below for more details.

Start Using Wireless Manager

Wireless Manager Preferences

You can change the general behavior of the Wireless Manager by selecting specific options in the

Preferences... dialog.

1. From the File menu, select Preferences. The Preferences dialog opens, the Radio Power tab is displayed.

Radio Power Tab

You can use this tab to manage the state of the radio transmitter.

Enable Radio immediately when card inserted

You should normally leave this checkbox turned off. When enabled, the Windows driver turns the radio transmitter on when the card is inserted and leaves it enabled even when the card is not in use. You should check this option if your

Windows logon requires you to log on using a dial-up

connection, see Windows Log on Using GPRS/EDGE

Dial-up Connection on page 19 for more details. When

you click OK to activate this option the Wireless Manager displays the following dialog.

When this option is selected, the Wireless Manager radio power startup and shutdown choices are disabled.

Start Using Wireless Manager 15

The radio mode you specify at Wireless Manager start-up appears selected on the Radio tab.

On

Off

Ask Me

Turn Radio Off

Reset card

When the Wireless Manager is running in radio on mode it is registered to the network connections can be made and SMS sent and received. The radio can be enabled in several ways;

• Select Radio On when the Wireless Manager starts.

• Specify the required radio state in

Preferences Radio Power.

See Wireless Manager Preferences on page 15 for more

details.

Radio Off indicates that the EDGE PC Card will not register to the mobile network. You may perform noncommunication related activities such as phone book maintenance, but you must turn on the radio in order to make a connection or to send/receive SMS.

Triggers a dialog to be displayed every time the PC is turned on. The dialog asks you if the radio transmitter should be turned on or off during the active PC session.

This is also called Aeroplane mode, because it prevents the radio transmitter automatically turning on. This is a useful feature in areas where radio transmitters are not allowed; aircrafts, hospitals or blasting areas.

At shutdown the radio is turned off.

Turns the radio off and resets the card.

Text Messaging Tab

You can use this tab to enable reception of specific message classes from the SMS Cell Broadcast service and to set the SMS received audio alarm to on or off. Select the radio buttons to activate the options.

Example of SMS Cell Broadcast message types:

Code: Cell Broadcast Message

000 Index

010

020

News Flashes

Hospitals

030

040

Long-distance road reports

Weather

To enter multiple SMS Cell Broadcast message types separate each entry with a comma, for example: 000, 034, 076.

Note:

SMS Cell Broadcast message types are network operator specific. Contact your network operator for more details.

This screen also allows you to set a validity period for the SMS messages that you are sending. For example, if a message you send cannot be delivered because the recipient doesn't have their phone on, the validity period sets a time limit on how long the service center should keep attempting delivery.

16 Start Using Wireless Manager

Notifications Tab

Click the Notifications tab. From here you can decide if you want to:

• display a splash screen every time Wireless Manager is opened.

• display a splash screen every time Wireless Manager is closed.

• display a program end confirmation box.

Select the check box to activate the options.

GPRS Connection Tab

Establish GPRS connection at startup

Select this option to automatically connect to your chosen network when Wireless Manager is started.

Wireless Manager waits until GPRS is registered and then it establishes the specified GPRS connection.

Simply select the name of the connection to be established from the drop down list.

To automatically connect when you start or restart your PC see the example below. If you need to

connect at Windows log on see Windows Log on Using GPRS/EDGE Dial-up Connection on page 19.

Example: If you want your EDGE PC Card to be available and a GPRS internet connection to be automatically established when you boot your laptop:

- Set Preferences

Miscellaneous Run this program when

Windows Starts

- Set Preferences

GPRS Connection Establish GPRS Connection

At Startup and select the GPRS connection required.

Miscellaneous Tab

Click the Miscellaneous tab.

Start Using Wireless Manager 17

Hide to tray when minimized

If enabled, when the Wireless Manager is minimized, it removes any window from the taskbar, and only shows the small icon in the system tray. To re-open the main window, double-click the tray icon, or select open from the icon menu.

Run this program when Windows starts

If enabled, the Wireless Manager starts when Windows is started. If an EDGE PC Card is detected, the Wireless Manager runs. If not, the program closes (and runs in the background if permitted).

When used with Establish GPRS connection at startup, this allows a GPRS session to be

automatically connected when the user logs on, see Windows Log on Using GPRS/EDGE Dial-

up Connection on page 19 for more details.

Minimize when Windows starts

If enabled, the Wireless Manager starts when a user logs on to Windows, it appears as an icon in the task bar only. If an EDGE PC Card is detected, the Wireless Manager runs and connects. If not, the program closes (and runs in the background if permitted).

Allow this program to run in the background

If enabled, the Wireless Manager runs in the background, waiting for a EDGE PC Card to be inserted. When the card is detected, the Wireless Manager automatically opens and begins normal operations.

It releases control of the card, so it may be stopped and removed, and runs in the background.

You can start the program again from the Start menu, double-clicking the system tray icon, or by re-inserting the EDGE PC Card.

You can stop Wireless Manager running in the background by right clicking on the PC screen and selecting Exit.

If you attempt to start Wireless Manager with no EDGE PC Card inserted a warning dialog is displayed, informing you that the EDGE PC Card is not present, and Wireless Manager switches back to background mode.

Hide tray icon when no card inserted

If this option is selected, Wireless Manager runs in background mode, the Wireless Manager icon is not displayed in the system tray. If the card is inserted, the icon reappears and the Wireless

Manager is started.

Show menu item for Modem Software Update

If this option is checked, a File Modem Software Update... menu item is enabled. Selecting this menu command prepares the modem to receive a software update from the Sony Ericsson

Update Service. More information about this service can be found at http://www.sonyericsson.com/.

18 Start Using Wireless Manager

Examples: If you want to activate your EDGE PC Card when the laptop is booted, so that it is ready to make a connection and send/receive SMS:

- Set Preferences

Miscellaneous

Run this program when Windows Starts.

If you want your EDGE PC Card to be available and a GPRS internet connection to be automatically established when you boot your laptop:

- Set Preferences

GPRS Connections Establish GPRS Connection At

Startup.

- Select the GPRS connection required.

If you remove the EDGE PC Card during usage and want it to be automatically reactivated when you re-insert it:

- Set Preferences

Miscellaneous Allow this program to run in the

background.

Note: If you have Establish GPRS connection at Startup set, then the connection will also be automatically established when you insert the card.

If you want to start the laptop with the EDGE PC Card removed and have it automatically activated when it is later inserted:

- Set Preferences

Miscellaneous

Run this program when Windows Starts.

- Set Preferences

Miscellaneous Allow this program to run in the

background.

Windows Log on Using GPRS/EDGE Dial-up Connection

The EDGE PC Card supports the Windows Log on using dial-up connection feature.

To log on to Windows using a dial-up connection the EDGE PC Card must be inserted and the radio enabled before you log on. To enable the radio prior to logon, select Enable radio immediately

when card inserted checkbox in the Radio Power preferences tab, see Radio Power Tab on page 15

for more details.

Important!

Never start your PC in this mode if you are in a location where mobile devices shouldn’t be used, for example, on an aeroplane, in hospital or near a blast site.

Only check this option if you need to log on to a Windows Domain via a wireless dial-up connection.

This will permit the EDGE PC Card to register with the network and establish a connection when the

Windows logon screen is displayed.

Note:

It is not possible to display network status or signal strength during the Windows logon procedure, so you should allow enough time for the EDGE PC Card to find and register with the wireless network prior to attempting to log on.

The dial-up connections available to the Windows Logon must have been created by a user account with Administrator privilege and designated For all users. This must be done using the Windows

Network Connection Wizard, because the Wireless Manager can only create connections for the current user ID.

Normally the Windows Logon using dial-up connection will be using a CSD session to a corporate network, so that the logon credentials can be validated by a Windows Domain Server.

Start Using Wireless Manager 19

There may be special circumstances where a GPRS dial-up connection is required for logon.

To create a GPRS dial-up connection, follow these steps:

1. Create the Windows dial-up connection using the Windows Network Connection Wizard.

For the telephone number, use *99***3#.

2. Set the GPRS context parameters in the EDGE PC Card using the following AT commands.

Type the AT Commands into the Windows Hyperterminal program.

AT+CGDCONT=3,“IP”,“<AccessPointName>”,“”,0,0 where <AccessPointName> is the name of the special GPRS access point for your corporate

GPRS service.

Note:

In this example, we used GPRS Context 3. There are 10 possible contexts supported by the

EDGE PC Card (1..10). Context ID 2 is reserved for use by connections created by the

Wireless Manager. The context definition is stored in nonvolatile memory in the EDGE PC card and only needs to be set up once. Cards could be set up, for example, by the IT Manager using a different laptop.

Refer to the AT Command Manual or contact your service provider for further assistance.

20 Start Using Wireless Manager

Create a Connection

Your mobile operator may have entered predefined customised connection settings for you. Check

the connection drop-down menu for any existing entries, if they are available go directly to Using

your Connection on page 23.

select

Connection Wizard. The Connection Wizard opens.

2. Select the radio button next to Create a new connection, enter a name, for example

‘My Connection’, click Next.

Note:

Your connection name should not exceed 16 characters for it to be fully visible in Wireless

Manager.

3. The Type of Connection dialog opens. From here you select the type of connection you require:

• For GPRS/EDGE see steps 4 to 8

• For CSD see steps 9 to 12

GPRS/EDGE Connection

4. Select GPRS/EDGE. Select your Network Operator from the Choose Network drop down list.

If your Network Operator isn’t listed selected <Other>. Click Next.

See Network and Subscription on page 7 for more information on GPRS.

Note:

Type the first letter of the Network Operator you require into the field to list all the operators that start with that letter.

5. If the Access Point Name dialog opens, check the APN displayed (for some operators it is deliberately blank). If you selected <Other> enter the APN for your operator. Contact your

Network Operator if necessary to find out the correct APN.

6. To modify the selected APN’s settings, Click Advanced.... See Appendix A - Connection

Parameters on page 64, for descriptions of the updateable parameters in the Advanced dialog.

The Secondary APN information is only used in special customised cases where the information will be filled in for you. Otherwise the tick-box must be left un-ticked and secondary APN name blank. Click Apply to save any changes before closing the dialog. Click Next.

Note:

Your connection will automatically switch to EDGE when the network is available, allowing your PC Card to work at faster speeds.

7. If the operator you have selected in step 4 does not require a User ID and Password leave this dialog blank if it is displayed. If you have to logon to your service provider, enter you User ID and Password into the specific fields. If you want to enter your User ID and Password every time you connect tick the box provided. Click Next.

Note:

Some versions of Windows

®

deliberately change the number of asterisks that represent a password and place asterisks in the password field when the password is blank in order to make the display secure.

8. Click Finish to create your connection or Back to review your settings.

Create a Connection 21

CSD Connection

9. Select CSD. Select your service provider from the Choose Network drop down list. If your service provider isn’t listed select <Other> or <North America> depending on your location.

Click Next.

10. If you selected a Network Operator from the Choose Network drop down list, the telephone number dialog should be automatically filled in.

If you selected <Other> or <North America> from the Choose Network drop down list; enter the number you need to dial to connect to your Network Operator in the Telephone Number field; include your country and area code. Ensure Use Area Code and Country Code is de-selected.

Note:

Contact your Network Operator for a telephone number if necessary.

11. Click Advanced.... You can specify your preferred CSD network connection speed from the drop down list and the method you want to use to connect to the network, on the Speed tab of the Advanced dialog. Click Next.

Note:

If you are unsure which speed to choose from the Speed tab, start with Analogue 9600,and check to see if it works. Once your connection works on Analog, you can try the V110/V120 settings. V110/V120 connects faster than analog. When roaming you may need to repeat this procedure to adapt your settings to the capability of the network.

12. Select the Options tab in the Advanced dialog to specify a callback number, if required. Callback is a service that allows the call direction to be reversed. If you want to watch the progress of a callback in a terminal window click the Show Terminal

Window After Dialing box.

See Appendix A - Connection Parameters on page 64, for

descriptions of the updateable parameters in the Advanced dialog.

Click Apply to save any changes before closing the dialog.

22 Create a Connection

13. If you need a User ID and Password to logon to your service provider enter them into the specific fields. If you don’t need a username and password leave the fields blank. Click Next.

Note:

Some versions of Windows

®

deliberately change the number of asterisks that represent a password and place asterisks in the password field when the password is blank in order to make the display secure.

14. Click Finish to create your connection or Back to review your settings.

Modify a Connection

1. Select Modify a Connection. The Select a Connection drop down menu is activated.

Click on the menu and select the connection you want to modify.

2. Click Next.

3. Change settings as required.

Delete a Connection

1. Select Delete a Connection. The Select a Connection drop down menu is activated.

Click on the menu and select the connection you want to delete.

2. Click Next. The Success dialog is displayed. Click Finish to close the Connection Wizard.

Using your Connection

To Connect

1. Open Wireless Manager.

2. If requested enter your SIM Card PIN and click OK. The Status screen is displayed.

3. Select the connection you require from the drop down list and click Connect.

If requested enter your User ID and Password.

To disconnect an active connection

1. Click Disconnect on the Status screen.

The Wireless Manager ends the connection.

Alternatively:

Right click on the Wireless Manager icon in the system tray and select Disconnect.

Note:

You can also use the Preferences dialog to set up auto connection when the Wireless Manager

is opened. See Wireless Manager Preferences on page 15 for more details.

Create a Connection 23

Browse the Internet

You can connect to the Internet using a CSD or GPRS/EDGE connection:

1. Open your preferred connection from the Status screen. See Using your Connection on page 23

for details on opening a connection.

2. Start your Internet browser. You are online and can browse the Internet.

Send and Receive emails

You will need an email program installed on your PC in order to send and receive emails. You can send and receive emails using a CSD or GPRS/EDGE connection:

1. Open your preferred connection from the Status screen. See Connection on page 26 for details

on opening a connection.

2. Start your email program. You are online and can send and receive emails.

24 Create a Connection

Wireless Manager Status Screen

The Status Screen is displayed when Wireless Manager opens. You can also open the Status screen by clicking

The Status screen shows detailed SIM card and network status information.

The left side of the screen shows graphical icons, representing:

• Receive signal strength

• GPRS/EDGE service status

• Unread SMS Text Message

SMS

status (or SIM Full indication ).

See Wireless Manager SMS Messages Screen on page 33 for more details.

• Connection status

The left side of the screen also displays:

• The current Network Status, e.g. searching, radio off

• The connection progress messages

The right side of the Status screen displays connection details. When a connection is established, the connection statistics (duration, bytes transmitted, bytes received) are displayed and updated at regular intervals.

Note:

Statistics display is not supported on Window 98(SE) or Me platforms. To view statistic data when using these operating systems hover your mouse cursor over the standard Windows

Dial-up Networking icon.

Wireless Manager Status Screen 25

Connection

To connect, cancel or disconnect a GPRS/EDGE or CSD data session use the Connect/Disconnect drop down menu. The menu displays all the connections you have defined, so you can quickly select the required connection.

The Connect/Disconnect button, located underneath the drop down menu, changes it’s appearance depending on the state of the EDGE PC Card connection. The button allows you to:

• Initiate a connection (Connect)

• Cancel connection attempt (Cancel)

Disconnect (Hang-up) an existing session

To create a connection see Create a Connection on page 21.

Note:

You can also launch or terminate a CSD dialup networking sessions directly from the Windows

Network Connections icon.

26 Wireless Manager Status Screen

Wireless Manager Telephony Settings Screen

The Telephony Settings screen allows you view and change the GSM settings of the EDGE PC Card.

The functions of the Telephony Settings screen are very similar to the settings that you have access to via a mobile phone’s display.

Note:

Your EDGE PC Card has to be inserted into your computer to make changes to the settings.

1. Click or select View

Telephony Settings.

The window is divided into two areas: the navigation area on the left and the information area on the right.

When you have selected a setting in the navigation area, Wireless Manager retrieves the current setting information from the EDGE PC Card and displays the information in the right area.

Phone Numbers

My numbers

You can list all your own numbers here. The numbers are for personal reference only and have no operational effect on the EDGE PC Card.

Voice line 1 and 2:

The voice number or numbers issued with your SIM card that you use for normal voice calls.

If you have line 2 (alternate line service) enter in the Voice Line 2 number field.

Wireless Manager Telephony Settings Screen 27

Data:

The number used to make a data call to the EDGE PC Card (Mobile Terminated).

Fax:

Fax is not supported by the EDGE PC Card.

SMS Service Centre

When you send a text message it goes to your operator's service centre, they then forward it to the correct recipient. The SMS service centre is identified by a telephone number.

Note:

The SMS Service Centre number is normally read automatically from your SIM card.

To Set or change the service centre address:

1. Enter your operator's service centre phone number in the Number text box.

2. Click Apply to transfer the setting to your EDGE PC Card.

Locks

Phone lock

The phone lock protects the EDGE PC Card against unauthorized use if it is stolen and used with another SIM card. Phone Lock is not activated when you buy the EDGE PC Card.

You can use this screen to change the default security code (0000) to any four to eight digit personalized code.

You can set the Phone Lock Status to one of the following states:

On - A brief message Phone lock is displayed each time you turn on the computer.

The Enter phone lock code dialog opens. Enter your code into the dialog and click OK.

Off - The EDGE PC Card is not locked.

Automatic - If the Automatic setting is selected, the message Phone lock only appears when a different SIM card is inserted into the EDGE PC Card. After the security code has been entered correctly, the EDGE PC Card can be used with the new SIM card.

Note:

The Phone Lock code has four to eight digits and is shown as asterisks upon entry in the dialog.

To Change the Phone Lock code:

2. The Change the Phone Lock Code dialog opens. Make the required changes and click OK.

3. Click Apply when you have finished, to transfer the changes back to your EDGE PC Card.

This may take a few seconds.

SIM lock

Some SIM cards are protected with a PIN (Personal Identity Number) at the time of purchase.

If the SIM card lock is activated, you have to enter the PIN every time you turn on your PC and open Wireless Manager. If you enter your PIN incorrectly three times in succession, the SIM card is blocked and you need a PUK code, from your network operator, to unblock the SIM card.

28 Wireless Manager Telephony Settings Screen

• To activate the SIM card lock, select the On radio button.

Caution!

Only activate the SIM card lock if you know the PIN code.

• To cancel the SIM card lock, select the Off radio button.

Note:

You have to use your PIN code to turn the SIM card lock off.

To Change the PIN Code:

2. Enter your old PIN code, followed by your new four to eight digit PIN code. Confirm the new code by entering it again.

3. Click OK.

Note:

The SIM card lock only protects your subscription and not your EDGE PC Card from unauthorized use. If you change your SIM card, the EDGE PC Card will still work with a new SIM card.

4. Click Apply when you have finished to transfer the changes back to your EDGE PC Card.

This may take a few seconds.

Networks

Current Network

You can select which network you want to use by going to Networks and then choosing Current

Network.

Searching for the available networks:

• Click Retrieve, the current network appears in the box with all the other currently available networks.

The available networks will fall into one of the following three categories:

• The home network.

• Available networks, networks that your home mobile operator has a roaming agreement with.

• Forbidden networks, you can’t use these networks except for emergency calls. If your home network and a forbidden network come to an agreement that allows you to use the forbidden network, you can select this network even though it is forbidden.

Wireless Manager Telephony Settings Screen 29

Choosing another network:

1. Uncheck Automatically choose a network for me.

2. Select the network that you want to use.

3. Click Apply to transfer the setting to your EDGE PC Card.

The message Please wait appears briefly on the screen. If you are not allowed to use the network that you have chosen, Forbidden is displayed.

Note:

GPRS is commonly available in GSM networks, but fewer roaming agreements are in place.

You may therefore need to explicitly select one of the available networks in order to use GPRS when abroad. Check with your home operator to find out which networks are GPRS roaming partners in the country or region in which you want to roam.

Preferred Network

Note:

This option is only available if your operator provides it.

A list of preferred networks is stored on the SIM card. This is typically set up by your mobile operator as part of SIM manufacture. Preferred roaming partners are placed in the list so that you have the greatest range of available services when roaming. When the home network is not available, the EDGE

PC Card will check the available networks against the preferred network list and select the one placed highest. Automatic network selection must be enabled.

If you want to add a new network:

1. Click Add, a new dialog with all the networks known to the EDGE PC Card appears on the screen.

2. Select the network that you want to add and click OK.

3. Click Apply to transfer the setting to your EDGE PC Card’s SIM card.

If you want to delete a network from the list:

1. Select the network that you want to delete.

2. Click Remove.

3. Click Apply to transfer the setting to your EDGE PC Card’s SIM card.

If you want to re-arrange the order of the networks listed:

1. Select the network that you want to move.

2. Click the Move Up or Move Down arrows to rearrange the order.

3. Click Apply to transfer the setting to your EDGE PC Card’s SIM card.

Note:

If the list of preferred networks is full, the Add button is disabled (grey).

Forward Calls (Divert)

Note:

The EDGE PC Card does not make or answer voice calls. The forward function enables you to send a voice call to an alternative number where it can be answered. For example, the mobile network voicemail service. However you can make and answer data calls, providing you have appropriate software on your PC to handle them.

30 Wireless Manager Telephony Settings Screen

Voice

Fax

Data

You can use the forwarding service to forward your voice calls to another phone number.

Note:

The Call forward service may not be available on all networks.

Selecting a call forward setting:

1. To obtain your current call forwarding settings from the network, click Retrieve.

2. Make your changes and select in which situation you want to forward your incoming calls.

You can select from four different diversion options:

Always: this forwards all incoming calls to the phone number that you have entered in the text box

– When busy

– No reply

Not reachable: for example, when your phone is turned off

3. If you know which phone number to forward your calls to, type the number in the text box next to the forward option you have chosen.

Or

Click to choose a phone number from your phone book.

4. Click Apply to transfer them to your EDGE PC Card. This may take a few seconds.

Your Line 1 forward setting has now been stored in the network.

The EDGE PC Card does not support fax, but you can forward incoming fax calls to another number.

Note:

The Call divert service may not be available on all networks. Also, if you are using the Call restricting function, this may influence Call divert.

Selecting a fax divert setting:

1. To obtain your current fax divert settings from the network, click Retrieve.

2. Select Always if you want to divert all the incoming calls to a specific phone number.

3. If you know which phone number to divert your calls to, type the number in the text box next to Always.

Or

Click to choose a phone number from your phone book.

4. Click Apply to transfer your settings to your EDGE PC Card. This may take a few seconds.

Your fax divert setting has now been stored in the network.

If you want to route your incoming data calls to another number, you can use the Call forward service.

Note:

The Call forward service may not be available on all networks. Also, if you are using the Call restricting function, this may influence Call forward.

Wireless Manager Telephony Settings Screen 31

Selecting a data forward setting:

1. To obtain your current data forwarding settings from the network, click Retrieve.

2. Select Always if you want to forward all the incoming calls to a specific phone number.

3. Select the Always check box and enter the destination number or click to choose a phone number from your phone book. Click OK.

4. Click Apply to transfer your settings to your EDGE PC Card. This may take a few seconds.

Your data forward setting has now been stored in the network.

Restrict Calls

Restricting a certain type of call means that this type of call cannot be made to or from your EDGE

PC Card. You can restrict different types of outgoing and incoming calls.

The following restrictions can be set:

• all outgoing calls.

• all outgoing international calls.

• all outgoing international calls except to your own country.

• all incoming calls.

• all incoming calls when you are abroad (when roaming).

A password, issued with your subscription, is required to turn a call restrict on or off.

Contact your network operator for further information.

Setting up Call restriction

To Change the call restrict status:

1. Click on the type of call you wish to restrict (e.g. Data).

2. To get your current call restrict settings from the network, click Retrieve.

3. Tick the boxes next to the call types that you want to restrict.

4. Only select one outgoing and one incoming option.

5. When you have finished, click Apply.

6. Type your restriction password into the dialog and click OK.

Note:

Data Call Restriction applies to CSD Data calls. There is no equivalent function to restrict

GPRS/EDGE connections.

32 Wireless Manager Telephony Settings Screen

Wireless Manager SMS Messages Screen

The Wireless Manager’s SMS Messages screen enables you to view, compose, edit, save, copy, delete, reply or forward SMS messages from your EDGE PC Card to other mobile devices.

Note:

To use Message functionality SMS must be included in your subscription, contact your network operator for more details.

The SMS Messages screen is split in to a left and right area.

The left area displays the folders; SIM SMS, Saved Messages, Sent Items and Unsent Items.

The right area displays the contents of the selected folder. The top half of the right pane displays a list of received messages, sorted by date and the bottom half of the screen displays the content of a selected messages, this is referred to as the Information View.

The folders and their names are static, therefore you cannot change them.

Click to display the contents of the SIM Inbox. When Wireless Manager is opened any new SMS in the SIM Inbox are uploaded to the PC automatically.

A status flag indicates whether a message is read or unread.

If a new SMS arrives when the Wireless Manager is open

SMS

is displayed on the

Status screen and the SMS audio sound is played, if enabled in the Setting dialog.

See Wireless Manager Preferences on page 15.

If you want to keep an SMS, use the copy or move menu options to place it in the

Saved folder. Click on the folder icon to display the contents of the Saved folder.

Wireless Manager SMS Messages Screen 33

A copy of each SMS that you have sent is stored in this folder. Click on the folder icon to display them.

Any composed messages that have not been sent are displayed when you click on this icon.

SMS stored in this folder can be edited or sent when the EDGE PC Card is inserted.

Any SMS message that fail during transmission are also stored here; you can resend them at any time.

Each time the SMS Messages screen receives a new SMS message from the SIM it checks the status of the SIM Inbox. If the SIM Inbox is full, a SIM Full icon is displayed in the left pane of the screen,

see SIM Inbox is Full: on page 36.

Note:

For all the SMS Messages screen menu options to operate the EDGE PC Card must be registered successfully on a network. You must have a GSM signal to Send SMS, the button is disabled (grey) if you don’t have a signal.

Class 0 messages

If you receive a Class 0 message, it will appear in a pop-up dialog, which you can save or dismiss.

If you choose to save the message it will be stored in you Saved Messages folder.

SMS Manager Functionality

To Send an SMS:

1. Select Create New Message... from the Messages menu or click .

2. The New Message dialog opens.

3. Enter the recipient’s mobile phone number in the To: field or select a number from a phone book by clicking Lookup...

To send an SMS to multiple numbers, hold down Ctrl when selecting the numbers from the phone book.

4. Type your message into the Message: field.

5. If required you can click the Calculate SMS blocks to see how many SMSs your message will be split into. Also you can check the Request Status Report to get confirmation when the SMS arrives at its destination (if this service is supported by your network).

6. Click Send to send the SMS or Cancel to close the dialog without sending the SMS.

To Edit a Message:

When you are working with a message, you can edit the text by cutting, copying and pasting.

Moving Text:

1. Select the text you want to move (the text can be in another PC application).

2. Select Cut from the Edit menu or Ctrl and X on the keyboard.

3. Place the cursor where you want to insert the text and select Paste from the Edit menu or Ctrl and V on the keyboard.

Note:

If you want to copy text, select Copy (Ctrl and C) from the Edit menu instead of Cut

(Ctrl and X).

34 Wireless Manager SMS Messages Screen

Reply to an SMS:

1. Select the folder where the message is located.

2. From the list, select the message to which you wish to reply. The contents of the message are displayed in the information view.

3. Select Reply in the Messages menu. A dialogue appears. The To: field is automatically filled in and the original message is displayed in the Message: field.

4. If required you can click the Calculate SMS blocks to see how many SMSs your message will be split into. Also you can check the Request Status Report to get confirmation when the SMS arrives at its destination.

5. Type your reply and click Send.

To Forward an SMS:

1. Select the folder where the message is located.

2. From the list, select the message you want to forward. The contents of the message are displayed in the information view.

3. Select Forward in the Messages menu or click (forward icon), a dialogue box opens.

4. Enter the phone number in the To: field or click Lookup... to select a number from a phone book.

To send an SMS to multiple numbers, hold down Ctrl when selecting the numbers from the phone book.

5. If required you can click the Calculate SMS blocks to see how many SMSs your message will be split into. Also you can check the Request Status Report to get confirmation when the SMS arrives at its destination.

6. Click Send.

Delete an SMS:

1. Select the folder where the message is located.

2. From the list, select the message you want to delete. The contents of the message are displayed in the information view.

3. Select Delete from the Edit menu, or press the Delete button on your keyboard.

4. A confirmation message box opens, click Yes to delete the message.

Note:

To delete all messages, click Select All from the Edit menu before you select Delete.

Folder Management:

Sorting SMS:

1. Select the folder where the messages you want to sort are located.

2. Click the Date column heading to sort the SMS in ascending or descending date order.

Wireless Manager SMS Messages Screen 35

Moving SMS:

1. Select the folder where the message you want to move is located.

2. From the list, select the message. The contents of the message are displayed in the information view.

3. Click Move to from the Messages menu. A progress dialog is displayed informing you that the SIM card is being updated.

4. The selected message is moved.

Note:

To move all messages, click Select All from the Edit menu before you select Move to.

Copy an SMS:

1. Select the folder where the message you want to copy is located.

2. From the list, select the message. The contents of the message are displayed in the information view.

3. Click Copy to from the Messages menu. A progress dialog is displayed informing you that the

SIM card is being updated.

4. The selected message is copied.

Note:

To copy all messages, click Select All from the Edit menu before you select Copy to.

SIM Inbox is Full:

When the Wireless Manager detects the SIM SMS storage is full, it displays on the Status screen and in the SMS Messages screen. You must move or delete some SMS messages from the SIM Inbox to free storage space so that you can continue receiving new SMS messages from the network. To do this you can either:

• Move your SMS from SIM SMS to Saved Messages

• Right click on an SMS in SIM SMS and select delete.

36 Wireless Manager SMS Messages Screen

Wireless Manager Phone Book Screen

The Wireless Manager Phone Book screen helps you to organize your EDGE PC Card’s SIM

Phone Book.

The Phone Book Screen

A SIM Phone Book can easily become disorganized; you can use the Phone Book screen to manage your SIM Phone Book entries.

You can add new numbers, edit existing numbers, export and import entries.

1. Click to display the Phone Book screen.

2. Icons appear in the left pane representing the SIM Phone Book and Saved Phone Book

. You can manage your Phone Book entries by copying entries to the SIM Phone Book or the Saved Phone Book.

3. Click on the icon to display the Phone Book entries in the right pane.

Note:

Your EDGE PC Card must be inserted to display this information.

Wireless Manager Phone Book Screen 37

Phone Book Functionality

To Add a Number:

1. Select Add New in the Phone Book menu or click

2. The New Phone Book Entry dialog opens.

on the toolbar or key Ctrl and N.

3. Enter the name and phone number.

4. Click OK to save the entry or Cancel to close the dialog.

Note:

Phone Book numbers are limited to 20 digits (including +) and names are limited to 18 alphanumeric characters.

New entries are added to the next available SIM index position.

To Modify a number:

1. Select the number you want to modify.

2. Select Modify... in the Phone Book menu.

3. The Edit Phone Book Entry dialog opens.

4. The fields in the dialog display the current entry’s name and number.

5. Edit the information.

6. Click OK to save the entry or Cancel to close the dialog

If the modified entry is in the SIM Phone Book the changes are automatically sent to the SIM.

To Find Entries:

1. Select Find in the Phone Book menu or key Ctrl and F.

2. The Find dialog opens. Enter the text or number you want to search for in the Look for field.

The entry can be complete or incomplete.

3. Click Find. The Wireless Manager searches both Phone Books; when a match is found it is displayed in the right pane. Click Find Next to search again.

4. Click Close when you have finished searching.

To Copy an Entry:

1. Select an entry from the SIM Phone Book or the Saved Phone Book.

2. Select Copy To in the Phone Book menu. The Copy To option is followed by the name of the Phone Book you haven’t selected the entry from.

3. A duplicate entry is made in the specified Phone Book. The new entry is assigned the next available position in the destination Phone Book.

38 Wireless Manager Phone Book Screen

To Move an Entry:

1. Select an entry.

2. Select Move To in the Phone Book menu. The Move To option is followed by the name of the

Phone Book you have selected the entry from.

3. The entry is moved from its current Phone Book and placed in the selected one. The new entry is assigned the next available position in the destination Phone Book.

To Import an Entry or Phone Book:

1. Select Import from the Phone Book menu.

2. Select the Replace Existing Phone Book or Merge with existing Phone Book radio button.

3. Click and browse to find the file you want to import.

Note:

The file must be a text file in comma separated value (CSV) format. Any invalid lines or files will be ignored.

4. Click OK in the browse dialog. The path and file name are displayed in the Import File Name field.

5. Click Import to complete the import procedure.

To Export an Entry or Phone Book:

1. Highlight the entries or open the Phone Book you want to export.

2. Select Export from the Phone Book menu.

3. Select All to export the entire Phone Book, or Selected Items to export the highlighted entries.

4. Type a name for the file into the Export File Name field.

5. Click and identify the save location.

Wireless Manager Phone Book Screen 39

Note:

The file will be saved as a text file in comma separated value (CSV) format.

6. Click OK in the browse dialog. The path and file name are displayed in the Export File Name field.

7. Click Export to complete the procedure.

Delete a number

1. Select the number that you want to delete.

2. Select Delete, from the Edit menu.

3. A confirmation dialog opens, click Yes to delete the number.

Note:

If you want to delete all numbers, select Select All from the Edit menu before clicking Delete.

To Send a New SMS Message:

1. Select an entry from a Phone Book.

2. Select Create New Message from the Messages menu.

3. A new SMS Message dialog is opened and pre-addressed with the selected entries details.

40 Wireless Manager Phone Book Screen

Wireless Manager Online Services Screen

Online Services is a customized service offered by network operators. This service is network or subscription dependant. The Online Services screen provides a mechanism that allows applications that exist on the SIM to interact and operate with the EDGE PC Card. Typical services offered by network operators include:

• sports scores

• news

• financial data

• horoscopes

• interactive text game messages

Online Services are placed on your SIM card by your operator. Wireless Manager detects if these services are on the SIM card and displays the if they are.

1. Click to display the Online services screen. You can also select to display the Online

Services screen from the View menu.

The screen displays a menu of the online services offered by your network operator.

Click on the category you require and click Select.

More detailed choices are sometimes displayed, if necessary select the required option and click Select.

The response may take various forms, depending on the network operator. For example, the news headlines might be sent as an SMS, which will be delivered to the SMS inbox.

Online Services menus are sometimes used to provide a list of voice-based services such as directory enquiries. If one of these is selected, you will not be connected because the EDGE PC Card does not support voice calls.

Note:

Contact your operator to find out which services are available for your account.

Wireless Manager Online Services Screen 41

Troubleshooting

This chapter lists some problems that you might encounter while using your EDGE PC Card. Some problems require you to contact your service provider, but most of the problems you can easily correct yourself.

Wireless Manager Icon Errors

appears in the task bar

Indicates that the Radio is turned off. Right click the CMI, select Radio Settings from the sub menu, select On.

appears in the task bar

Indicates that the EDGE PC Card cannot find a network, there is no network within range or the received signal is too weak.

You have to move to get a stronger signal.

A signal is present but you can’t connect to the GPRS network

Indicates that a GSM network is present, but no GPRS service is available. This can be caused by: no GPRS service in the area, you are roaming on a network for which no GPRS roaming agreement exists or there is a temporary fault on the network.

Contact your network operator for more details.

appears in the task bar

EDGE PC Card isn't present, please insert.

Software Errors

Grey menu options in the software applications

Grey text indicates a function that is temporarily unavailable, for example due to your subscription or due to a certain setting which has not been turned on.

Error Messages

General

Modem not responding....

Error

Dial-Up fails

Check that the radio is turned on.

Try to connect again.

42 Troubleshooting

SIM Card Errors

Wrong PIN/

Wrong PIN2

Codes do not match

PIN blocked/

PIN2 blocked

You have entered your PIN or PIN2 incorrectly. Enter the correct

PIN or PIN2, and click OK. See SIM lock on page 28.

When you want to change a security code (for example your PIN) you have to confirm the new code by entering it again. This error occurs when the two codes, that you have entered do not match.

See Phone lock on page 28.

You have entered your PIN or PIN2 incorrectly three times

in succession. To unblock, see SIM lock on page 28.

PUK blocked – contact operator

You have entered your personal unblocking key code (PUK) incorrectly 10 times in succession. Contact your network operator or service provider.

Error Codes

Windows

®

98

Error 619:

The port is disconnected during dial-up

An ISDN mode (V110 or V120) has been selected when creating a connection, but is not supported by the network.

Select Analogue mode when creating the connection in the

Connection Wizard.

Error 629:

The port was disconnected by the remote machine during dial-up

Telephony settings are set to pulse dialling, change to tone dialling.

Check the dialling settings for the current location (In Control

Panel Phone and Modem Option Dialling Rules

Location

Edit) and change the Dial using setting to tone, or (if Pulse is a necessity), create a new location called EDGE

Anywhere and set the dialling to Tone. EDGE anywhere location

should then be used whenever you use the EDGE PC Card.

Error 630:

The port was disconnected due to hardware failure during dial-up

A Dial-up networking connection is already connected.

Close the connected dial-up and try again.

Error 645:

Internal authentication error during dial-up

Incorrect APN or CID selected for network.

Modify your Dial-up Connection, see Create a Connection on page

21 for more details. Make sure that the APN file contains the name

of the access point your network operator is using. The Dialup Wizard should do this automatically, if you are experiencing problems contact your network operator.

Troubleshooting 43

Error 650: The

Remote Access server is not responding during dial-up

Incorrect User ID and/or password. Re enter correctly.

Error 720:

No PPP control protocols configured during dial-up

The service is not supported by the SIM, usually appears when you are trying to connect to GPRS Internet. Contact service provider to enable GPRS Internet access on SIM card

Windows

®

2000

Error 619:

The port is disconnected during dial-up

An ISDN mode (V110 or V120) has been selected when creating a connection, but is not supported by the network.

Select Analogue mode when creating the connection in the

Connection Wizard.

Error 691:

Access denied, user name and password incorrect on the domain during dial-up

The domain name entry is incorrect.

Correct the domain name entry or delete if not required.

Error 718:

The card was unable to dial during dial-up

This error indicates a PPP conversation started, but it was terminated because the remote server did not respond within an appropriate time. This can be caused by poor line quality or a problem with the server (ISP). This error can occur when your modem has connected to the ISP and has sent a username and password, but there is no response from the server.

Wait a few minutes and try again.

All Windows

®

Operating Systems

Error 734: The PPP link control protocol was terminated during dial-up

Error 678: Computer you are dialing is not responding during dial-up

The APN entry is incorrect, the signal is weak or the connection is lost whilst dialling.

If you are experiencing problems contact your network operator and check the APN.

Either: Service is not supported by SIM (usually for CSD) or the computer is not answering.

Check SIM settings with your service provider if necessary.

Make sure that the server you are dialing is OK.

If you are unsure which speed to choose from the Speed tab, start with Analogue 9600, and check to see if it works. Once your connection works on Analog, you can try the V110/V120 settings to see if faster speeds are available. V110/V120 also connects faster than analog. When roaming you may need to repeat this procedure to adapt your settings to the capability of the local network operator.

44 Troubleshooting

Connection Failed or Activation Failed.

Please contact your

Service Provider.

No specific reason for failure is available. Wait a few minutes and try again. If you continue to get this error check your connection settings or call your service provider for help.

Connection Failed. Invalid

APN. Please check and enter the APN again.

The APN entry is incorrect, the signal is weak or the connection is lost whilst dialing. If you are experiencing problems contact your network operator and check the

APN.

Connection Failed. Invalid

User Name or Password.

Please check and enter the User Name and/or

Password in your connection profile.

Choose to modify your connection in the Connection Wizard.

Go to the User ID screen and re enter the User Name and

Password given to you by your service provider. If you were not supplied with a User Name and Password leave the fields blank. Contact your service provider if you continue to have problems.

Connection Failed. Invalid

Profile. Please check and re-enter your connection profile information, and try again. If the problem continues please contact your Service Provider.

Your service provider doesn't recognise you. Check the setting you have entered to create your connection. If you still get the error contact your service provider and check you have GPRS Internet enabled on your subscription and then setting you should enter to create a connection.

Disconnected from

Network

You have been disconnected from the network. Wait a few minutes and try again. If the problem persists contact your service provider.

Connection failed.

Temporary Network problem.

Please try again. If the problem continues please contact your Service

Provider.

This error indicates a PPP conversation started, but it was terminated because the remote server did not respond within an appropriate time. This can be caused by poor line quality or a problem with the server (ISP). This error can occur when your modem has connected to the ISP and has sent a username and password, but there is no response from the server.

Wait a few minutes and try again.

Connection Failed. Not authorised to access network. Please contact your Service Provider.

Your service provider doesn't think your authorised to access their network. Check the setting you have entered to create your connection. If you still get the error contact your service provider and check your subscription.

Connection Failed. SIM is invalid for GPRS service.

Please contact your

Service Provider.

Contact your service provider and request the GPRS

Internet subscription is activated for your SIM.

Connection Failed. Access to network not allowed.

Please contact your

Service Provider.

Your service provider is not allowing you to access their network. Check the setting you have entered to create your connection. If you still get the error contact your service provider and check your subscription.

Connection Failed.

Roaming not allowed.

Please contact your

Service Provider.

Contact your service provider to get your roaming activated.

Troubleshooting 45

Connection Failed. Please try again. If the problem continues please contact your Service Provider.

You couldn’t connect to the network. Wait a few minutes and try again. If the problem persists contact your service provider.

Connection Failed. Service not supported. Please try again. If the problem continues please contact your Service Provider.

Your service provider is not allowing you to access their network. Contact your service provider and check you have the subscriptions required activated for your SIM.

Connection Failed.

Network Problem. Please try again. If the problem continues please contact your Service Provider.

You couldn’t connect to the network. Wait a few minutes and try again. If the problem persists contact your service provider.

46 Troubleshooting

Additional Information

Sony Ericsson Support Web Site

At www.sonyericsson.com/support you can find help and tips in a few clicks. The support site gives you access to:

• the latest software updates

• tips on how to use your EDGE PC Card efficiently

• function guides

• additional help

Guidelines for Safe and Efficient Use

Please read this information before using your GC82, GC83 or GC85.

Recommendations

• Always treat your product with care and keep it in a clean and dust-free place.

• Do not expose your product to liquid or moisture or humidity.

• Do not expose your product to extreme high or low temperatures.

• Do not expose your product to open flames or lit tobacco products.

• Do not drop, throw or try to bend your product.

• Do not paint your product.

• Do not use your product near medical equipment without requesting permission.

• Do not use your product when in, or around aircraft, or areas posted “turn off two-way radio”.

• Do not use your product in an area where a potentially explosive atmosphere exists.

• Do not place your product or install wireless equipment in the area above your car’s air bag.

• Do not attempt to disassemble your product. Only Sony Ericsson authorised personnel should perform service.

Antenna

Only use an antenna that has been specifically designed by Sony Ericsson for your EDGE PC Card.

Use of unauthorised or modified antennas could damage your EDGE PC Card and may violate regulations, causing loss of performance and SAR levels above the recommended limits (see below).

Efficient Use

Do not cover the antenna when in use, as this affects call quality and may cause the EDGE PC Card to operate at a higher power level than needed, thus shortening talk and standby times.

Additional Information 47

Radio Frequency (RF) Exposure and SAR

Your PC Card is a low-power radio transmitter and receiver (transceiver). When it is turned on, it emits low levels of radio frequency energy (also known as radio waves or radio frequency fields).

Governments around the world have adopted comprehensive international safety guidelines, developed by scientific organizations, e.g. ICNIRP (International Commission on Non-Ionizing Radiation

Protection) and IEEE (The Institute of Electrical and Electronics Engineers Inc.), through periodic and thorough evaluation of scientific studies. These guidelines establish permitted levels of radio wave exposure for the general population. The levels include a safety margin designed to assure the safety of all persons, regardless of age and health, and to account for any variations in measurements.

Specific Absorption Rate (SAR) is the unit of measurement for the amount of radio frequency energy absorbed by the body when using a transceiver. The SAR value is determined at the highest certified power level in laboratory conditions, but the actual SAR level of the transceiver while operating can be well below this value. This is because the transceiver is designed to use the minimum power required to reach the network.

Variations in SAR below the radio frequency exposure guidelines do not mean that there are variations in safety. While there may be differences in SAR levels among mobile phones, all Sony Ericsson PC

Cards are designed to meet radio frequency exposure guidelines.

Before a PC Card is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations as required by the FCC for each model. For body worn operation, this PC Card has been tested and meets FCC RF exposure guidelines for fixed and mobile use when the PC Card is installed in a PCMCIA card slot of a standard Laptop PC with the original antenna.

Sony Ericsson has not measured, and makes no representation about, the body worn SAR levels when the PC Card is used in any portable host equipment or when any changes to the original product has been made.

More information on radio frequency exposure and SAR can be found on: www.sonyericsson.com.

Personal Medical Devices

EDGE PC Cards may affect the operation of cardiac pacemakers and other implanted equipment.

If a minimum distance of 15 cm (6 inches) is kept between the EDGE PC Card and the pacemaker, the risk of interference is limited. If you have any reason to suspect that interference is taking place, immediately turn off your EDGE PC Card. Contact your cardiologist for more information.

For other medical devices, please consult the manufacturer of the device.

Children

DO NOT ALLOW CHILDREN TO PLAY WITH YOUR EDGE PC CARD OR ITS ANTENNA.

THEY COULD HURT THEMSELVES OR OTHERS, OR COULD ACCIDENTALLY DAMAGE

THE EDGE PC CARD OR ANTENNA. YOUR EDGE PC CARD OR ITS ANTENNA MAY

CONTAIN SMALL PARTS THAT COULD BE DETACHED AND CREATE A CHOKING

HAZARD.

Disposing of the Product

Your EDGE PC Card should not be placed in municipal waste. Please check local regulations for disposal of electronic products.

48 Additional Information

Emergency Calls

EDGE PC Cards manufactured by Sony Ericsson do not support voice calls, hence their use for essential communications (e.g. medical emergencies) is not possible.

Inserting and removing the SIM card – precautions against electrostatic discharge (ESD)

Do not touch the SIM card connectors. As a precaution, always make sure that the EDGE PC Card is already in your hand before you insert or remove the SIM card.

Additional Information 49

Technical Specifications

Product name

System

GC82 GC83 GC85

GSM 850

GSM 1900

Services supported

SIM Card

Type

Number

CSD, GPRS/EDGE,

SMS

Speech services are not supported

Small plug-in card,

3V type

SIM Lock supported

Regular (non-GPRSaware) and GPRSaware SIMs supported

FAA-1041011-BV

* feature will be available later, via upgrade

GSM 850

GSM 1800

GSM 1900

CSD, GPRS/EDGE,

SMS

Speech services are not supported

Small plug-in card,

3V and 1.8V type

SIM Lock supported

Regular (non-GPRSaware) and GPRSaware SIMs supported

FAF-1031011-BV

GSM 900

GSM 1800

GSM 1900

*CSD, GPRS/EDGE,

SMS

Speech services are not supported

Small plug-in card,

3V type

SIM Lock supported

Regular (non-GPRSaware) and GPRSaware SIMs supported

FAF-1021011-BV

Exterior Description

Size

Weight

Battery

Antenna

16-bit PCMCIA PC Card, Type II.

85.6 mm long x 54.0mm wide x 5.0 mm thick

44g including antenna, excluding SIM card

Powered via the PC card slot i.e. uses laptop battery

50 ohm interface; Antenna supplied

50 Additional Information

Ambient Temperatures

Operating

Storage

-10 to 55 degrees C

-20 to 65 degrees C

Electrical Characteristics

Supported Voltages

Nominal Operating Voltage

Average Standby Current/Power (Radio off)

Average Idle Current/Power (Attached to network)

Data Transfer Current/Power

3.3V

±

10%

3.3V

< 10mA

< 33mW

< 20mA

< 66mW

< 600mA/< 2W Average

< 1A maximum instantaneous peak

Operating System Support

Supported Operating

Systems

Minimum PC

Specification

Microsoft Windows

Microsoft Windows

®

®

98 (SE)

Microsoft Windows

®

Me

Microsoft Windows

®

2000 (SP4)

XP

Processor size as recommended by Microsoft for the version of Windows

®

in use

PC Card slot

30 MB free disk space

GSM Performance and technical characteristics

Dimension

Frequency

Range

Channel

Spacing

Number of

Channels

Modulation

GSM 850 GSM 900

E-GSM 900

GSM 1800 GSM 1900

TX: 824 – 849 MHz

RX: 869 – 894 MHz

TX: 880 –914 MHz

RX: 925 – 959 MHz

TX: 1710 – 1785 MHz

RX: 1805 – 1880 MHz

TX: 1850 – 1910 MHz

RX: 1930 – 1990 MHz

200 kHz 200 kHz 200 kHz 200 kHz

124 Carriers * 8

(TDMA)

GMSK/8-PSK

175 Carriers * 8

(TDMA)

GMSK/8-PSK

374 Carriers * 8

(TDMA)

GMSK/8-PSK

299 Carriers * 8

(TDMA)

GMSK/8-PSK

Additional Information 51

Power

Classes

Class 4 (2W) for

GSM/GPRS and

EGPRS/MCS 1-4

(GMSK);

Class E2 (0.5W) for

EGPRS/MCS 5-9

(8-PSK)

Class 4 (2W) for

GSM/GPRS and

EGPRS/MCS 1-4

(GMSK);

Class E2 (0.5W) for

EGPRS/MCS 5-9

(8-PSK)

Class 1 (1W) for

GSM/GPRS and

EGPRS/MCS 1-4

(GMSK);

Class E2 (0.4W) for

EGPRS/MCS 5-9

(8-PSK)

50

50

50

Class 1 (1W) for

GSM/GPRS and

EGPRS/MCS 1-4

(GMSK);

Class E2 (0.4W) for

EGPRS/MCS 5-9

(8-PSK)

50

Transmitter

Output

Impedance

Transmitter

Spurious

Emission

According to GSM specification

According to GSM specification

According to GSM specification

According to GSM specification

GSM Features Supported

ME SIM Lock

Online Services

(SIM-AT)

USSD

Speech Coding

Yes

View in the Wireless Manager

Support is provided via AT commands; No MMI is provided

Not applicable (EDGE PC Card does not support speech services)

52 Additional Information

CSD technical data

Standards

CSD Data Rates

Compression

Error Correction

AT commands industry standard ETSI 07.05, 07.07 and

07.10, V.25ter command set supported

9.6 kbps or 14.4 kbps depending on the GSM network

MNP5 (Increases data rate up to 2x depending on data type)

V.42bis (Increases data rate up to 4x depending on data type)

GSM network support required for compression

End to End MNP2 and LAPM (V.42)

RLP

Requires GSM Network support

According to V.110 and V.120

GSM/ISDN

Note:

CSD functionality will be available via an upgrade for the GC85.

GPRS technical data

GPRS Specification

SMG

Data Rates

Mode of Operation

Attach Modes

Network modes

R Reference Point

IP Connectivity

SMS over GPRS

QoS

SMG31bis

Multislot class 10 supported (see table below).

Coding schemes: CS-1, CS-2, CS-3 and CS-4

Class B (attaches to both GSM and GPRS at the same time; data connection is established using CS (CSD or GPRS) The user may select CSD or GPRS modes via Dial-Up Networking configurations in Windows

®

GPRS Attach

GPRS Detach

Combined Attach (CS+GPRS) (CCCH)

Combined Detach (CCCH)

Combined Attach (CS+GPRS) (PCCCH)

Combined Detach (PCCCH)

Network Mode 1

Network Mode 2

Network Mode 3

Physical layer: RS232 virtual COM port

Authentication mechanisms PAP and CHAP supported

PDP type IP is supported

IPv4, terminated in Windows

®

DUN

Mobile Originated and Mobile Terminated

Support for all 4 classes.

QoS Negotiation

Additional Information 53

PDP Context

SIM

Compression

GPRS Encryption

GPRS Frequency

Hopping

GPRS IP allocation

Up to 10 PDP context details are stored in EDGE PC Card memory.

PDP Context description edited via supplied Wizard or AT command.

Number of parallel PDP Context activated (both MO and MT):1

Number of PDP Context with traffic in parallel:1

PDP Context modification (e.g. QoS renegotiation).

Network initiated PDP Context modification.

Network initiated PDP Context deactivation.

Collision of MS and Network initiated PDP Context activation.

Support for GPRS aware as well as non-GPRS-aware SIMs

TCP/IP Header Compression

V42bis

GEA1

Supported

Dynamic

Static

GPRS Maximum Data Rates

CS-1

9.05 kbps

4 + 1 RX

36.2

TX

9.05

3 + 2 RX

27.15

TX

18.1

CS-2

13.4 kbps

CS-3

15.6 kbps

53.6 62.4

13.4

40.2

26.8

15.6

46.8

31.2

CS-4

21.4 kbps

85.6

21.4

64.2

42.8

Speed achieved depends on the Coding Scheme supported by the GSM Network. The speeds given are maximums, Sony Ericsson cannot guarantee how fast your network will operate.

Data rate is the payload per slot: header plus data.

EDGE Technical Data

Modulation Coding

Schemes

EDGE features

MCS-1 to MCS-9

Link Adaptation

Incremental Redundancy

54 Additional Information

EDGE Maximum Data Rates

Coding

Scheme

MCS-1

MCS-2

MCS-3

MCS-4

MCS-5

MCS-6

MCS-7

MCS-8

MCS-9

Data Rate per slot

10.60

13.00

16.60

19.40

24.05

31.25

47.45

57.05

61.85

Rx

4 + 1

Tx

42.40

52.00

66.40

77.60

10.60

13.00

16.60

19.40

96.20

24.05

125.00

31.25

189.80

47.45

228.20

57.05

247.40

61.85

Rx

31.80

39.00

49.80

58.20

72.15

93.75

142.35

171.15

185.55

3 + 2

Tx

21.20

26.00

33.20

38.80

48.10

62.50

94.90

114.10

123.70

Speed achieved depends on the Coding Scheme supported by the GSM Network. The speeds given are maximums, Sony Ericsson cannot guarantee how fast your network will operate.

Data rate is the payload per slot, header plus data.

SMS Technical Data

Concatenated SMS

SMS Cell Broadcast

SMS Immediate

Display

SMS interface

Yes.

Supported in Wireless Manager and by AT

Commands (excluding Cell ID)

Supported in Wireless Manager and by AT

Commands.

Wireless Manager, Communications Suite, pocket PC Suite.

AT Command

Software Upgrade

PC Card firmware upgrade

PC Communications

Suite upgrade

Via Internet, www.sonyericsson.com/support or at Sony Ericsson Service Points

Internet download

Additional Information 55

Supported Languages

Product support

Quick Start Guide

PC Software

User’s Guide (PDF)

GC82

English (EN)

French (FR)

Spanish (ES)

AT Commands

Manual

English

GC83

English

French (FR)

Spanish (ES)

English

GC85

English

Danish (DA)

Dutch (NL)

Finnish (FI)

French (FR)

German (DE)

Greek (EL)

Hungarian (HU)

Italian (IT)

Norwegian (NO)

Polish (PL)

Brazilian Portuguese (PB)

Portuguese (PT)

Russian (RU)

Spanish (ES)

Swedish (SV)

Thai (TH)

Turkish (TR)

Chinese Simplified (ZS)

Chinese Traditional (ZT)

English

56 Additional Information

License Agreement

License

Any use of the enclosed compact disc, diskette or any other media including upgrades thereof

(“the Software”) shall be in accordance with the below stated license terms and conditions. By opening the sealed Software package and/or using the Software you agree to be bound by the terms and conditions stated below. These terms and conditions are binding and create a legal obligation (the

“License Agreement”) between you (the “Licensee”) and Sony Ericsson Mobile Communications

AB (the “Vendor”).

The Software licensed hereunder may be delivered in an inseparable package also containing other software programs than this particular Software (e.g. bundled with other software). As a safeguard you should not in any way use the other software programs before reading the specific license terms and conditions of such other software.

License

You are hereby granted a non-transferable, non-exclusive right to use (“License”) the Software.

You may only (a) use this Software on one single computer at a time; (b) physically transfer the

Software from one computer to another if the Software is used only on one computer at a time and provided you remove any copies of the Software from the computer from which the Software is being transferred and/or on which it was originally used; (c) if necessary, make copies of the Software solely for purposes of backup. The copyright notice must always be reproduced and included on a label on any backup copy.

You may not according to the EC Council Directive of May 14, 1991 on the legal protection of computer programs (91/250/EEG) (the “Software Directive”) distribute any copy of this Software or its documentation to others; nor modify, rent, lease or grant any rights to this Software whatsoever to another person or entity. In addition, you may not translate, reverse engineer, decompile, disassemble, reproduce or otherwise alter or modify the Software, its source code, documentation nor disclose any information designated as confidential or proprietary at the time of disclosure or, information which by its nature, is confidential or proprietary.

Term

Your License remains effective from the date of your cash receipt/proof of payment until terminated.

You can terminate your License at any time by destroying the Software together with all copies of the Software in whichever form they may be. Your License will automatically terminate without prior notice if you fail to comply with any term or condition of this Agreement. In the event of termination of your License you must immediately destroy all copies of the Software in whichever form they may be.

Limited Warranty

Sony Ericsson Mobile Communications AB, S-221 88 Lund, Sweden, (Sony Ericsson), provides this

Limited Warranty for your PC Card and original accessory delivered with your PC Card (hereinafter referred to as “Product”).

Should your Product need warranty service, please return it to the dealer from whom it was purchased, or contact your local Sony Ericsson Customer Care Centre (national rates may apply) or visit www.sonyericsson.com to get further information.

Additional Information 57

58

Our Warranty

Subject to the conditions of this Limited Warranty, Sony Ericsson warrants this Product to be free from defects in design, material and workmanship at the time of its original purchase by a consumer, and for a subsequent period of one (1) year.

What We Will Do

If, during the warranty period, this Product fails to operate under normal use and service, due to defects in design, materials or workmanship, Sony Ericsson authorised distributors or service partners, in the country/region* where you purchased the Product, will, at their option, either repair or replace the Product in accordance with the terms and conditions stipulated herein.

Sony Ericsson and its service partners reserve the right to charge a handling fee if a returned Product is found not to be under warranty according to the conditions below.

Please note that your personal settings/downloads might be lost when the Product is repaired or replaced.

Conditions

1. The warranty is valid only if the original proof of purchase issued to the original purchaser by an, for this Product, Sony Ericsson authorised dealer, specifying the date of purchase and serial number**, is presented with the Product to be repaired or replaced. Sony Ericsson reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the Product from the dealer.

2. If Sony Ericsson repairs or replaces the Product, the repaired or replaced Product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units. Replaced parts or components will become the property of

Sony Ericsson.

3. This warranty does not cover any failure of the Product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with the Sony Ericsson instructions for use and maintenance of the Product. Nor does this warranty cover any failure of the Product due to accident, software or hardware modification or adjustment, acts of God or damage resulting from liquid. A rechargeable battery can be charged and discharged hundreds of times. However, it will eventually wear out ñ this is not a defect. When the talk-time or standby time is noticeably shorter, it is time to replace your battery.

Sony Ericsson recommends that you use only batteries and chargers approved by Sony Ericsson.

4. Since the cellular system on which the Product is to operate is provided by a carrier independent from Sony Ericsson, Sony Ericsson will not be responsible for the operation, availability, coverage, services or range of that system.

5. This warranty does not cover Product failures caused by installations, modifications, or repair or opening of the Product performed by a non-Sony Ericsson authorised person.

6. The warranty does not cover Product failures which have been caused by use of accessories or other peripheral devices which are not Ericsson or Sony Ericsson branded original accessories intended for use with the Product.

7. Tampering with any of the seals on the Product will void the warranty.

8. THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR ORAL, OTHER

THAN THIS PRINTED LIMITED WARRANTY. ALL IMPLIED WARRANTIES, INCLUDING

WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS

LIMITED WARRANTY. IN NO EVENT SHALL SONY ERICSSON OR ITS LICENSORS

BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE

WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR COMMERCIAL

LOSS, TO THE FULL EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.

Additional Information

Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you.

The warranty provided does not affect the consumer's statutory rights under applicable legislation in force, nor the consumer's rights against the dealer arising from their sales/ purchase contract.

* European Union (EU)

If you have purchased your Product in an EU country you can have your Product serviced, under the conditions set out above, within the warranty period in any EU country where an identical Product is sold by an authorised Sony Ericsson distributor. To find out if your Product is sold in the EU country you are in, please call the local Sony Ericsson Customer Care Centre. Please observe that certain services may not be possible elsewhere than in the country of original purchase, for example due to the fact that your Product may have an interior or exterior which is different from equivalent models sold in other EU countries. It may not be possible to repair SIM-locked Products.

** In some countries/regions additional information is requested. If so, this is clearly shown on the valid proof of purchase.

Vendor warrants the media on which the Software is provided, to be free from defects in materials and workmanship under normal use for ninety (90) days after the date of your cash receipt/proof of payment. The Vendor's and its suppliers' entire liability and your exclusive remedy under this warranty will at Vendor's option be (and provided you return the Software to an authorized reseller/supplier together with a copy of your cash receipt/proof of payment), to replace the disc(s)/ diskette(s) or refund the purchase price and terminate this Agreement including the License.

Except for the above express limited warranties, Vendor and its suppliers do not provide nor do you receive any warranties or conditions whether express, implied, statutory or otherwise and Vendor and its suppliers specifically disclaim any implied warranties of satisfactory quality and/or fitness for a particular purpose. If your jurisdiction does not allow limitations on implied warranties to consumers, the above limitation may not apply to you.

Vendor does not warrant that your use of the Software will be uninterrupted or error free. You assume full responsibility for the selection of this Software and your selected hardware and for the Software and hardware together achieving your intended results, as well as for any installation or use of or result obtained from the Software.

Intended use

The Software shall be used in accordance with the instructions and for its intended use and purpose only. The Software or part thereof may not be used in e.g. life support systems, nuclear facility applications, nor for the purposes of missile technology, chemical or biologized industry, flight navigation or communication of air, ground support equipment or other similar business or for any other purpose where any failure by the Software to perform may result in personal injury, death, damage to tangibles or the environment.

Limitation of liability

In no event shall Vendor or its suppliers be liable for any indirect or consequential losses or damages whatsoever irrespective of the cause for such losses or damages, including loss of data, loss of business profits or revenue, or any business interruption arising out of the use of or inability to use this Software.

Vendor and its suppliers' total liability under this Agreement shall be limited to the amount actually paid by Licensee for the Software.

Additional Information 59

Disputes and Governing Law

The validity, construction and performance of this Agreement shall be governed by the laws of Sweden.

All disputes, differences or questions between the parties with respect to any matter arising out of or relating to this Agreement shall be finally settled under the Rules of Conciliation and Arbitration of the

International Chamber of Commerce, in Stockholm, by three (3) arbitrators appointed in accordance with the said Rules. The proceeding shall be conducted in the English language.

60 Additional Information

Declaration of Conformity

We, Sony Ericsson Mobile Communications AB of

Nya Vattentornet

S-221 88 Lund, Sweden

declare under our sole responsibility that our product,

Sony Ericsson type FAF-1031011-BV, and in combination with our accessories, to which this declaration relates is in conformity with the appropriate standards 3GPP TS 51.010-1, EN 301489-7 and EN 60950, following the provisions of, Radio Equipment and Telecommunication Terminal Equipment directive 99/5/EC with requirements covering EMC directive 89/336/EEC, and Low voltage directive 73/23/EEC.

0682

Research Triangle Park NC, May 2004

Place and date of issue

Anders Franzén

Corporate Vice President M2M Com

We fulfil the requirements of the R& TTE Directive (99/5/EC).

Declaration of Conformity 61

Declaration of Conformity

We, Sony Ericsson Mobile Communications AB of

Nya Vattentornet

S-221 88 Lund, Sweden

declare under our sole responsibility that our product,

Sony Ericsson type FAF-1021011-BV, and in combination with our accessories, to which this declaration relates is in conformity with the appropriate standards 3GPP TS 51.010-1, EN 301489-7 and EN 60950, following the provisions of, Radio Equipment and Telecommunication Terminal Equipment directive 99/5/EC with requirements covering EMC directive 89/336/EEC, and Low voltage directive 73/23/EEC.

0682

Research Triangle Park NC, August 2004

Place and date of issue

Anders Franzén

Corporate Vice President M2M Com

We fulfil the requirements of the R& TTE Directive (99/5/EC).

62 Declaration of Conformity

FCC Statement

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) The device must accept any interference received, including interference that may cause undesired operation.

GC82 PC Card:

FCC-ID: PY7F1041011

IC: 4170B- F1041011

GC83 PC Card:

FCC-ID: PY7FF031011

IC: 4170B- FF031011

GC85 PC Card:

FCC-ID: PY7FF021011

IC: 4170B- FF021011

FCC Statement 63

Appendix A - Connection Parameters

General Connection Parameters for CSD and GPRS

Required

Telephone number or

Access Point

Name (APN)

Bearer capability:

CSD or GPRS?

CSD Network

Speed

Username

Password

IP assignment:

Server / Static

DNS assignment:

Server / Static

Useful information

Number you need to dial to reach your service provider. Use the full number including country code and area code, e.g. +46 33 555 2525.

Or

The APN server resource to contact, for example,

Interent.operator.net - to connect to the Internet via the mobile operator’s or your corporate Intranet via a VPN.

You will need to know the bearer capability provided by your service provider, so you can select the appropriate option during set up.

If you intend to create connections via CSD contact your network operator and check the supported speeds.

The username your service provider gave you when the account was set up. Some dial-up accounts do not require a Username, in this case leave the field blank.

Password associated with the username, given to you by the service provider.

Some dial-up accounts do not require a Password, in this case leave the field blank.

An ‘address’ that the service provider knows you by and uses to route information to and from your EDGE PC Card. Your IP address will either be:

Server - assigned by the service provider when you connect.

Static - assigned once by the service provider or the IT Manager.

If your IP address is Static you must enter it into Own IP address fields which is available when you select Details in the Connection APN dialog.

This tells the EDGE PC Card where to find the service provider’s DNS

Service. DNS translates addresses such as www.sonyericsson.com to the numeric IP address so that the information can be accessed.

Like IP assignment above, the DNS can be static or allocated by the service provider when you connect. If static is selected additional fields need to be completed containing the static information.

Own IP address

Primary DNS

Secondary DNS

Access Point

Name (APN)

Only required if the IP assignment is static.

Format example: 123.9.45.3.

Do not enter any leading 0s when typing in IP address.

Only required if the DNS assignment is static.

Format example:123.9.45.2

Only required if the DNS assignment is static.

Format example: 123.9.45.1

If the APN is set to default you will have to enter the name of the access point your network operator is using.

64 Appendix A - Connection Parameters

CSD Specific Parameters

Required

Preferred

Connection

Speed (bits/s)

Connection

Mode

Compression

Callback

Number

Useful information

Select your preferred network connection speed from the drop down list provided:

9600 or14400.

Select the method you want to use to connect to the network from the options provided: analogue, ISDN V.110 or ISDN V.120

Use to speed up data transfer. You can select to Enable Data Compression and Header Compression.

Enter the number the a callback should be made to. You can only use

Callback if you are connecting to a source that gives permission for callbacks to be made, for example your company server.

TCP/IP Optimisation

To take full advantage of the high bandwidth of the PC Card, the TCP/IP window size parameter

TCPWindowSize should be changed from the default Windows setting of 16k for Windows 2000, or 64k for Windows XP. Sony Ericsson recommends a TCP/IP packet size of 43200 for optimum performance with the PC Card. An MTU size of 1450 is also considered optimal for EDGE networks.

These settings are made automatically when the Wireless Manager is installed. They may be viewed and, if necessary, changed in the properties of the Sony Ericsson Wireless WAN network adaptor.

Select Start

Settings

Network and Dial-up Connections, locate the Sony Ericsson Wireless

WAN adaptor in the list, right-click on it and select Properties.

Click Configure on the Advanced tab. If directed by your network operator, you may change the settings by selecting TCPWindowSize or MTU and changing the value. Changes to these settings require the network adaptor to be restarted. It is recommended that the laptop is rebooted.

Appendix A - Connection Parameters 65

If you have previously optimised TCPWindowSize, for example as directed by a broadband internet service provider, then check whether that setting is global or specific to the network adaptor over which the broadband connection is made. It is preferable that all TCPWindowSize settings are specific to the network adaptor involved, since this ensures that each individual connection is correctly optimised.

In some cases it is necessary to set TCPWindowSize globally. Further information and a utility to do this is available at www.sonyericsson.com/support.

66 Appendix A - Connection Parameters

Glossary

Bearer

Path over which data flows. Specifically in CSD the type of telephony link from the GSM network to the server -

V PSTN or ISDN.

bps

Bits per second - rate of data flow.

COM Port

Defines a serial/RS-232 port within the Windows

® environment. May be physical (COM1 port on the rear of the PC) or virtual (COM5 port communicating with a PC card modem)

CS

Circuit Switched. Connection from A to B which has a fixed bandwidth and is maintained over a period of time, for example a voice telephone call.

CS-1 to CS-4

Coding Scheme. Determines the data rate per timeslot in GPRS.

CSD

Circuit Switched Data. CSD is a GSM service providing a CS data connection at a rate of 9.6 or 14.4 kbps.

DUN

Dial-Up Networking.

EDGE

Enhanced Data rates for Global Evolution.

e-GSM

Extended GSM. New frequencies specified by the

European Radio Communications Committee (ERC) for

GSM use when additional spectrum is needed (Networkdependent). It allows operators to transmit and receive just outside GSM’s core 900 frequency band. This extension gives increased network capability.

ETSI

European Telecommunications Standards Institute. www.etsi.org

GGSN

Gateway GPRS Support Node.

GPRS

General Packet Radio Services.

GSM

Global System for Mobile Communications. GSM is the world’s most widely-used digital mobile phone system, now operating in over 160 countries around the world.

GSM 900

The GSM system family includes GSM 900, GSM 1800 and GSM 1900. There are different phases of roll-out for the GSM system and GSM phones are either phase 1 or phase 2 compliant.

GSM 1800

Also known as DCS 1800 or PCN, this is a GSM digital network working on a frequency of 1800 MHz. It is used in Europe and Asia-Pacific.

GSM 1900

Also known as PCS. Refers to a GSM system running in the 1900MHz band. Used in the USA and Canada, for instance.

HTML

HyperText Markup Language.

HTTP

HyperText Transfer Protocol.

ISDN

Integrated Services Digital Network. Can provide circuitswitched data connections in multiples of 64 kbps.

ISP

Internet Service Provider.

kbps

Kilobits per second - rate of data flow.

Glossary 67

LAN

Local Area Network.

ME

Mobile Equipment.

MO

Mobile Origination. For example, an SMS message sent from a mobile terminal.

MMI

Man-Machine Interface.

MS

Mobile Station.

MT

Mobile Termination.

PC

Personal Computer.

PCS

Personal Communications Services, often used to describe

GSM1900 networks.

PC Card

A card having physical and electrical characteristics specified by PCMCIA providing extra functionality when inserted into a laptop PC. Typical examples are modems and network cards. Type refers to the thickness of the card. The EDGE PC Card is type II.

PCMCIA

Personal Computer Memory Card International

Association – defines specifications for PC Cards. www.pcmcia.org.

PDP

Packet Data Protocol.

Phone book

A memory in the SIM card where phone numbers can be stored and accessed by name or position.

PSTN

Public Switched Telephone Network, for example ordinary analogue phone line for speech and/or computer modem.

RADIUS

Remote Access Dial-In Service. Facility at the ISP or corporation to manage remote data connections.

RX

Receive

SC

Service Centre (for SMS).

Service Provider

A company that provides services and subscriptions to EDGE PC Card users.

SIM card

Subscriber Identity Module card – a card that must be inserted in any GSM-based mobile terminal. It contains subscriber details, security information and memory for a personal directory of numbers. The card can be a small plug-in type or credit card-sized, but both types have the same functions. The EDGE PC Card uses the small plugin card.

SMS

Short Message Service. Allows messages of up to 160 characters to be sent and received via the network operator's message centre to a EDGE PC Card.

TCP/IP

Transmission Control Protocol/Internet Protocol.

TCP/IPv4

TCP/IP Version 4. Most widely implemented form of

TCP/IP today having a 4 byte address format such as

212.161.127.136.

TE

Terminal Equipment. Generic term for GSM terminals such as phones and PC cards.

Terminal Adaptor

Generic term for the equipment terminating a digital comms line such as an ISDN2 line. The EDGE PC Card is a

Terminal Adaptor since it interfaces to GSM digital data services.

TLS

Transport Layer Security. Used by Web browsers, for example.

68 Glossary

TX

Transmit

Type II

Refers to thickness of a PC Card as defined in the specification from PCMCIA.

URL

Uniform Resource Locator.

USSD

Unstructured Supplementary Services Data. Narrow-band

GSM data service. For example entering *79*1234# might return the stock price for stock 1234.

V.110

ETSI standard for data over an ISDN circuit.

V.120

ETSI standard for data over an ISDN circuit.

VPN

Virtual Private Network.

WWW

World Wide Web.

XML

Extensible Markup Language.

Glossary 69

Index

A

Assembling the Unit 9

C

Circuit Switched Data (CSD) 7

Connection Details 26

CSD technical data 53

D

Deleting a SMS 35

Documentation 6

E

EDGE Technical Data 54

Enhanced Data Rates for Global Evolution (EDGE) 8

Exporting a Phonebook 39

G

General Packet Radio Service (GPRS) 7

GPRS Maximum Data Rates 54, 55

GPRS technical data 53

GSM Features Supported 52

GSM Performance 51

H

Hardware Overview 5

SIM Card 6

I

Importing a Phonebook 39

Installation 9

Internet services 8

L

Locks 28

N

Network and Subscription 7

Circuit Switched Data (CSD) 7

General Packet Radio Service (GPRS) 7

Short Message Service (SMS) 8

O

Operating System Support 51

P

Phone Numbers 27

R

Radio Status 14

S

Sending a New SMS Message 40

Sending an SMS 34

Short Message Service (SMS) 8

SMS Technical Data 55

Software installation 10

Software Overview 6

Using the EDGE PC Card with your Applications 6

Wireless Manager 6

System Requirements

Network and Subscription 7

T

Telephony Settings 27

Locks 28

W

Wireless Connection information

Status 13

Wireless Connection Information Menu

Connect 14

Exit 14

Help 14

Open 14

Radio Status 14

Wireless Manager 6

Wireless Manager Icon 12

Wireless Manager Status Screen 25

Working with Phonebooks 38

70 Index

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
