NTE56028 TRIAC, 40 Amp

NTE56028 TRIAC, 40 Amp
NTE56028
TRIAC, 40 Amp

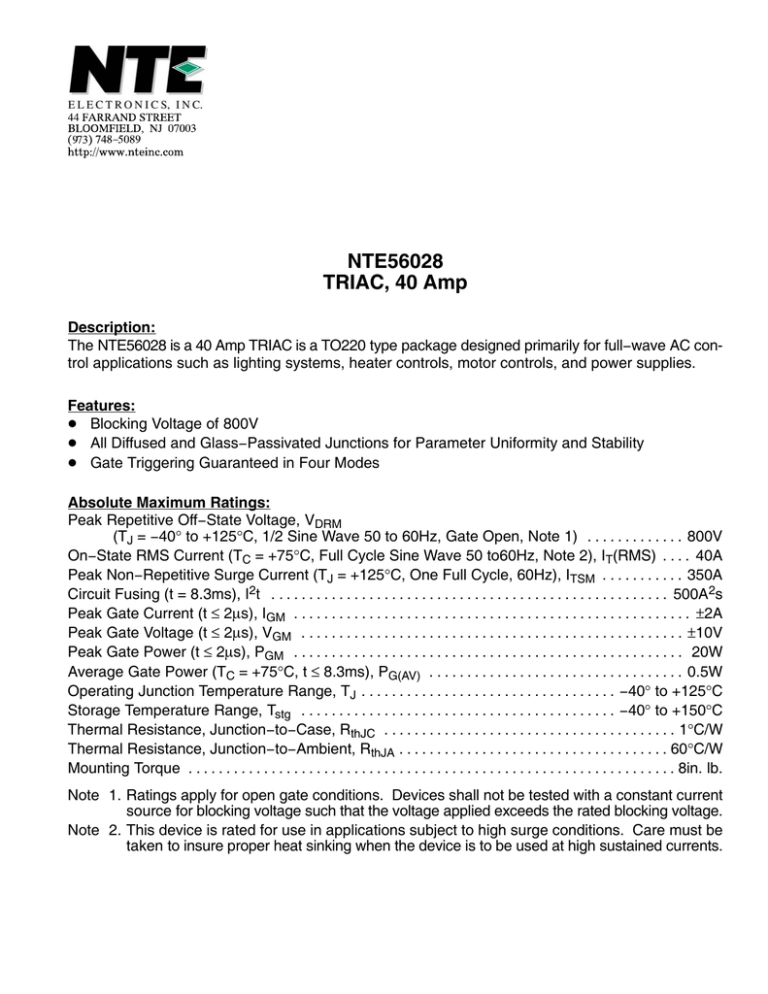

Description:
The NTE56028 is a 40 Amp TRIAC is a TO220 type package designed primarily for full−wave AC control applications such as lighting systems, heater controls, motor controls, and power supplies.
Features:
D Blocking Voltage of 800V
D All Diffused and Glass−Passivated Junctions for Parameter Uniformity and Stability
D Gate Triggering Guaranteed in Four Modes
Absolute Maximum Ratings:
Peak Repetitive Off−State Voltage, VDRM
(TJ = −40° to +125°C, 1/2 Sine Wave 50 to 60Hz, Gate Open, Note 1) . . . . . . . . . . . . . 800V
On−State RMS Current (TC = +75°C, Full Cycle Sine Wave 50 to60Hz, Note 2), IT(RMS) . . . . 40A
Peak Non−Repetitive Surge Current (TJ = +125°C, One Full Cycle, 60Hz), ITSM . . . . . . . . . . . 350A
Circuit Fusing (t = 8.3ms), I2t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500A2s
Peak Gate Current (t ≤ 2µs), IGM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2A
Peak Gate Voltage (t ≤ 2µs), VGM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10V
Peak Gate Power (t ≤ 2µs), PGM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20W
Average Gate Power (TC = +75°C, t ≤ 8.3ms), PG(AV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5W
Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40° to +125°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40° to +150°C
Thermal Resistance, Junction−to−Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1°C/W
Thermal Resistance, Junction−to−Ambient, RthJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60°C/W
Mounting Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8in. lb.
Note 1. Ratings apply for open gate conditions. Devices shall not be tested with a constant current
source for blocking voltage such that the voltage applied exceeds the rated blocking voltage.
Note 2. This device is rated for use in applications subject to high surge conditions. Care must be
taken to insure proper heat sinking when the device is to be used at high sustained currents.
Electrical Characteristics: (TC = +25°C and either polarity of MT1 to MT2 voltage unless
otherwise specified)
Parameter
Symbol
Peak Forward Blocking Current
IDRM
Peak Reverse Blocking Current
IRRM
Peak On−State Voltage
VTM
Gate Trigger Current (Continuous DC)
MT2 (+), G (+); MT2 (−), G (−);
MT2 (+), G (−)
IGT
Test Conditions
Min
Typ
Max
Unit
VDRM = 800V, TJ = +25°C
−
−
10
µA
VDRM = 800V, TJ = +125°C
−
−
2
mA
VRRM = 800V, TJ = +25°C
−
−
10
µA
VRRM = 800V, TJ = +125°C
−
−
2
mA
ITM = 56A (Peak), Note 3
−
1.40
1.85
V
VD = 12V, RL = 100Ω,
−
25
50
mA
−
40
75
mA
−
1.1
2.0
V
−
1.3
2.5
V
0.2
−
−
V
0.2
−
−
V
MT2 (−), G (+)
Gate Trigger Voltage (Continuous DC)
MT2 (+), G (+); MT2 (−), G (−);
MT2 (+), G (−)
VGT
VD = 800V, RL = 100Ω,
MT2 (−), G (+)
Gate Non−Trigger Voltage
MT2 (+), G (+); MT2 (−), G (−);
MT2 (+), G (−)
VGD
VD = 800V, TJ = +125°C, RL = 10k,
MT2 (−), G (+)
Holding Current
IH
VD = 12V, Gate Open
−
30
75
mA
Gate Controlled Turn−On Time
tgt
VD = 800V, ITM = 56A (Peak),
IGT = 200mA
−
1.5
−
µs
VD = 800V, Exponential Waveform,
TC = +125°C
−
50
−
V/µs
VD = 800V, ITM = 56A (Peak),
Commutating di/dt = 13.4A/ms,
Gate Unenergized, TC = +75°C
−
5
−
V/µs
Critical Rate of Rise of Off−State
Voltage
dv/dt
Critical Rate 0f Rise of Commutation
Voltage
dv/dt(c)
Note 3. Pulse Width ≤ 2ms, Duty Cycle ≤ 2%.
.420 (10.67)
Max
.110 (2.79)
.147 (3.75)
Dia Max
.500
(12.7)
Max
.250 (6.35)
Max
.070 (1.78) Max
MT1
.100 (2.54)
.500
(12.7)
Min
Gate
MT2/Tab*
* NOTE: Tab may be isolated.
