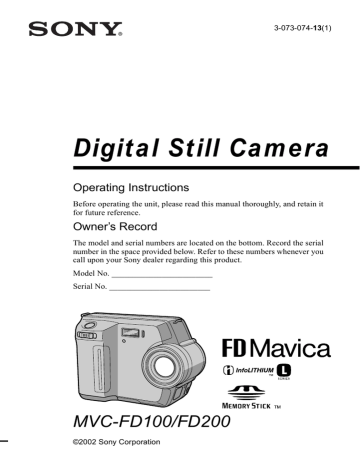

Digital Still Camera
Operating Instructions
Before operating the unit, please read this manual thoroughly, and retain it
for future reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record the serial
number in the space provided below. Refer to these numbers whenever you
call upon your Sony dealer regarding this product.
Model No. ________________________
Serial No. ________________________
MVC-FD100/FD200
©2002 Sony Corporation
Regulatory Information
.
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
For the Customers in the
U.S.A.
Declaration of Conformity
Trade Name:
SONY
Model No.:
MVC-FD100
Responsible Party:Sony Electronics Inc.
Address:
16450 W. Bernardo Dr,
San Diego, CA 92127
U.S.A.
Telephone Number: 858-942-2230
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference received,
including interference that may cause
undesired operation.
Declaration of Conformity
This symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the
product’s enclosure that
may be of sufficient
magnitude to constitute a
risk of electric shock to
persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the
appliance.
If you have any questions about this product,
you may call:
Sony Customer Information Center
1-800-222-SONY (7669)
The number below is for the FCC related
matters only.
2
Trade Name:
SONY
Model No.:
MVC-FD200
Responsible Party:Sony Electronics Inc.
Address:
16450 W. Bernardo Dr,
San Diego, CA 92127
U.S.A.
Telephone Number: 858-942-2230
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference received,
including interference that may cause
undesired operation.
CAUTION
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
Notes:
• This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help.
The supplied interface cable must be used
with the equipment in order to comply
with the limits for a digital device pursuant
to Subpart B of Part 15 of FCC Rules.
• This product contains mercury. Disposal of
this product may be regulated if sold in the
United States. For disposal or recycling
information, please contact your local
authorities or the Electronics Industries
Alliance (http://www.eiae.org).
For the Customers in the
U.S.A. and Canada
RECYCLING LITHIUM-ION
BATTERIES
Lithium-Ion batteries are
recyclable.
You can help preserve our
environment by returning your
used rechargeable batteries to
the collection and recycling location nearest
you.
For more information regarding recycling of
rechargeable batteries, call toll free
1-800-822-8837, or
visit http://www.rbrc.org/.
Caution:Do not handle damaged or leaking
Lithium-Ion batteries.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT
USE THIS POLARIZED AC PLUG WITH
AN EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
NOTICE FOR THE
CUSTOMERS IN THE UNITED
KINGDOM
A moulded plug complying with BS 1363 is
fitted to this equipment for your safety and
convenience.
Should the fuse in the plug supplied need to
be replaced, a 5 AMP fuse approved by
ASTA or BSI to BS 1362, (i.e. marked with
or
mark) must be used.
If the plug supplied with this equipment has
a detachable fuse cover, be sure to attach the
fuse cover after you change the fuse. Never
use the plug without the fuse cover. If you
should lose the fuse cover, please contact
your nearest Sony service station.
For the Customers in
Germany
Directive:EMC Directive 89/336/EEC.92/
31/EEC
This equipment complies with the EMC
regulations when used under the following
circumstances:
• Residential area
• Business district
• Light-industry district
(This equipment complies with the EMC
standard regulations EN55022 Class B.)
Attention for the Customers in
Europe
This product has been tested and found
compliant with the limits sets out on the
EMC Directive for using connection cables
shorter than 3 meters (9.8 feet).
The electromagnetic fields at the specific
frequencies may influence the picture of this
camera.
3
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\02war.fm]
masterpage:Left
01cov.book Page 4 Thursday, November 29, 2001 1:20 PM
Be sure to read the following
before using your camera
Operating instructions
Before operating the unit, please read this
manual thoroughly, and retain it for future
reference.
As you read through this manual, buttons
and settings on the camera are shown in
capital letters.
e.g. Press DISPLAY.
Trial recording
Before you record one-time events, you may
want to make a trial recording to make sure
that the camera is working correctly.
No compensation for contents of
the recording
The recorded images cannot be
compensated if recording or playback
cannot be performed due to a trouble of your
camera or recording medium.
Notes on image data compatibility
of the “Memory Stick”
• This camera conforms with the Design rule
for Camera File system universal standard
established by the JEITA (Japan
Electronics and Information Technology
Industries Association). You cannot play
back on your camera still images recorded
on other equipment (DCR-TRV890E/
TRV900/TRV900E, DSC-D700, DSCD770) that does not conform with this
universal standard. (These models are not
sold in some areas.)
• Playback of images recorded with your
camera on other equipment and playback
of images recorded or edited with other
equipment on your camera are not
guaranteed.
Do not shake or strike the camera
In addition to malfunctions and inability to
record images, this may render the floppy
disks or the “Memory Stick”s unusable or
image data breakdown, damage or loss may
occur.
LCD screen, finder (only models
with a finder) and lens
• The LCD screen and the finder are
manufactured using extremely highprecision technology so over 99.99% of
the pixels are operational for effective use.
However, there may be some tiny black
points and/or bright points (white, red,
blue or green in color) that constantly
appear on the LCD screen and the finder.
These points are normal in the
manufacturing process and do not affect
the recording in any way.
• Be careful when placing the camera near a
window or outdoors. Exposing the LCD
screen, the finder or the lens to direct
sunlight for long periods may cause
malfunctions.
Do not get the camera wet
When taking pictures outdoors in the rain or
under similar conditions, be careful not to
get the camera wet. If moisture
condensation occurs, refer to page 83 and
follow the instructions on how to remove it
before using the camera.
Back up recommendation
To avoid the potential risk of data loss,
always copy (back up) data to a disk.
When the camera is used for long
periods
Note that the camera body may become hot.
Precaution on copyright
Television programs, films, video tapes, and
other materials may be copyrighted.
Unauthorized recording of such materials
may be contrary to the provision of the
copyright laws.
4
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\02war.fm]
masterpage:Right
01cov.book Page 5 Thursday, November 29, 2001 1:20 PM
Introduction
Check images after recording
Recording still images:
page 18
Playing back still images:
page 24
Deleting images (DELETE):
page 75
Capture images with your computer
You can copy images onto your computer and view and modify images or attach
images to e-mail on your computer using the supplied USB cable and application
software.
Viewing images using a computer: page 27
Recording still images for e-mail (E-MAIL): page 61
Records a moving picture
The digital still camera can record a moving picture for maximum 60 seconds. Your
camera does not record sound.
Recording moving images: page 23
Select from various recording modes
Creating Clip Motion Files: page 59
Recording text documents (TEXT): page 62
Recording still images as uncompressed files (TIFF): page 63
5
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\01covTOC.fm]
masterpage:Left
01cov.book Page 6 Thursday, November 29, 2001 1:20 PM
Table of contents
Introduction ..................................... 5
Getting started
Identifying the parts ........................ 7
Preparing the power supply ............ 9
Setting the date and time ............... 14
Inserting a floppy disk .................. 16
Inserting a “Memory Stick” .......... 17
Basic operations
B Recording
Recording still images .................. 18
Recording moving images ............ 23
B Playback
Playing back still images .............. 24
Playing back moving images ........ 25
Viewing images using a computer 27
Image file storage destinations and
image file names ..................... 38
Viewing images using
“ImageMixer” ......................... 42
Advanced operations
Before performing
advanced operations
How to use the PLAY/STILL/
MOVIE selector ..................... 48
How to use the control button ....... 48
How to change the menu settings .... 50
B Various recording
Setting the image size
(IMAGE SIZE) ....................... 57
Creating Clip Motion Files ........... 59
Recording still images for e-mail
(E-MAIL) ............................... 61
Recording text documents (TEXT) . 62
Recording still images as
uncompressed files (TIFF) ..... 63
Recording images in macro .......... 64
Setting the distance to the subject . 64
Using the PROGRAM AE function ... 65
Adjusting the exposure
(EXPOSURE) ......................... 67
Adjusting the white balance
(WHITE BALANCE) ............. 68
Recording the date and time on the
still image (DATE/TIME) ...... 69
Enjoying picture effects
(PICTURE EFFECT) ............. 69
B Various playback
Playing back six images at once
(INDEX) ................................ 70
Enlarging a part of the still image
(Zoom and trimming) ............ 71
Playing back the still images in order
(SLIDE SHOW) ..................... 72
Viewing images on a TV screen ... 73
B Editing
Preventing accidental erasure
(PROTECT) ............................ 74
Deleting images (DELETE) .......... 75
Changing the recorded still image
size (RESIZE) ......................... 76
Copying images (COPY) .............. 77
Copying all the information on your
floppy disk (DISK COPY) ..... 79
Selecting still images to print
(PRINT MARK) ..................... 80
Format ........................................... 81
B As an external drive
Using the camera as an external drive
of a computer .......................... 82
Additional information
Precautions .................................... 83
On “Memory Stick”s .................... 85
Using your camera abroad ............ 85
About “InfoLITHIUM” battery
pack ........................................ 86
Troubleshooting ............................ 88
Warning and notice messages ....... 93
Self-diagnosis display ................... 95
Specifications ................................ 96
LCD screen indicators .................. 97
Index ............................................. 99
6
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\03pre.fm]
masterpage:Right
01cov.book Page 7 Thursday, November 29, 2001 1:20 PM
Getting started
Identifying the parts
See the pages in parentheses for details of operation.
Getting started
7
1
2
3
4
8
5
9
6
0
A Self-timer lamp (21)
G Lens
B Flash (22)
H Lens cap (supplied)
C Shutter button (18, 23)
I VIDEO OUT jack (73)
D Zoom lever (20)
J DC IN cover/DC IN jack (10, 13)
E Photocell window for flash
Do not block while recording.
F Tripod receptacle (bottom
surface)
Use a tripod with a screw length of
less than 5.5 mm (7/32 inch). You
cannot firmly secure the camera to
tripods having longer screws, and
may damage the camera.
7
model name1[MVC-FD92]
[3-066-742-12(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\03pre.fm]
masterpage:Left
01cov.book Page 8 Thursday, November 29, 2001 1:20 PM
w;
Attaching the
shoulder strap
qa
wa
qs
ws
wd
qd
wf
qf
wg
qg
qh
qj
qk
ql
wh
wj
wk
wl
K Photocell window for LCD
screen
The LCD screen becomes brighter
when exposed to sunlight.
L LCD screen
M PLAY/STILL/MOVIE selector
(48)
T Hooks for strap
U POWER ON/OFF (CHG)
(Charge) lamp (10)
V Access lamp (18, 19)
W DISK EJECT lever (16)
X POWER switch (14)
N LCD BACKLIGHT switch (20)
Y Floppy disk slot (16)
O
Z “Memory Stick” cover/
“Memory Stick” slot (17)
(Flash) button/
(Flash) lamp (22)
P FOCUS button (64)
Q PROGRAM AE button (65)
R DISPLAY button (21)
wj USB cover/USB jack (29)
wk Battery cover (9)
wl MS /FD (“Memory Stick”/floppy
disk) selector
S Control button (48)
8
model name1[MVC-FD92]
[3-066-742-12(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\03pre.fm]
masterpage:Right
01cov.book Page 9 Thursday, November 29, 2001 1:20 PM
Preparing the power supply
Getting started
Installing the battery pack
Your camera operates only with the NP-F330 (supplied)/F550 (optional)
“InfoLITHIUM” battery pack* (L series). See page 86 for more information about
“InfoLITHIUM” battery pack.
1
1
2
3
2
2
1
Battery
eject lever
1
Open the battery cover.
Slide the battery cover in the direction of the arrow.
2
Install the battery pack.
Press and hold the battery eject lever and then insert the battery pack with the v
mark facing toward the battery compartment.
3
Close the battery cover.
To remove the battery pack
Open the battery cover. Slide the battery eject lever rightward, and remove the
battery pack.
Be careful not to drop the battery pack when removing it.
Battery eject lever
* What is “InfoLITHIUM”?
“InfoLITHIUM” is a lithium ion battery pack which can exchange information such as battery
consumption with compatible video equipment. “InfoLITHIUM” L series battery packs have the
mark. “InfoLITHIUM” is a trademark of Sony Corporation.
9
model name1[MVC-FD92]
[3-066-742-12(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\03pre.fm]
masterpage:Left
01cov.book Page 10 Thursday, November 29, 2001 1:20 PM
Charging the battery pack
When the camera is turned on, you cannot charge the battery pack. Be sure to turn off
the power of the camera.
2 To DC IN jack
AC-L10A/L10B
AC power adaptor
1
Battery pack
Power cord
(mains lead)
3
To a wall outlet (wall socket)
1
Insert the battery pack into your camera.
2
Open the DC IN cover and connect the AC power adaptor to the DC
IN jack of your camera with the v mark facing up.
3
Connect the power cord (mains lead) to the AC power adaptor and
then to a wall outlet (wall socket).
The POWER ON/OFF (CHG) lamp (orange) on the right of the LCD screen
lights up when charging begins. When the POWER ON/OFF (CHG) lamp goes
off, full charge is completed.
After charging the battery pack
Disconnect the AC power adaptor from the DC IN jack on your camera.
Battery remaining indicator
The LCD screen on the camera shows the remaining time for which you can still
record or play back images.
This indication may not be entirely accurate depending on the conditions of use and
the operating environment.
We recommend charging the battery pack in an ambient temperature of between
10°C to 30°C (50°F to 86°F).
10
model name1[MVC-FD92]
[3-066-742-12(1)]
Auto power-off function
If you do not operate the camera for about three minutes when using a battery pack,
the camera turns off automatically to prevent wearing down the battery pack. To use
the camera again, slide the POWER switch down to turn on the camera again.
Note on the POWER ON/OFF (CHG) lamp during charging
The POWER ON/OFF (CHG) lamp may flash:
• When a malfunction occurs in the battery pack.
The POWER ON/OFF (CHG) lamp does not light up:
• When the battery pack is not installed properly.
Charging time
Battery pack
NP-F330 (supplied)
NP-F550
Full charge (min.)
Approx. 150
Approx. 210
This represents the time required to charge a completely discharged battery pack
using the supplied AC-L10/L10B AC power adaptor in an environment where the
ambient temperature is 25°C (77°F).
The number of images that can be recorded/played back and battery
life
The tables show approximate guidelines for the length of time the camera can be used
when you record in Normal mode with the LCD BACKLIGHT switch ON in an
environment where the ambient temperature is 25°C (77°F), and the battery pack is
fully charged. The guidelines for the number of images that can be recorded or
played back shown below allow for changing a floppy disk or “Memory Stick” as
necessary. Please note that the numbers and time shown in the following table,
“Recording still images under average conditions,” are only for recording with a
“Memory Stick.” Actual results may differ slightly from these, depending on the
conditions of use.
11
Getting started
NP-F330 (supplied)/F550 (optional) battery pack
When you record images in an extremely cold location or using the LCD screen, the
operating time becomes short. When using the camera in an extremely cold location,
place the battery pack in your pocket or other place to keep it warm, then insert the
battery pack into the camera just before recording. When using a pocket heater, take
care not to let the heater directly contact the battery.
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\03pre.fm]
masterpage:Left
Recording still images
Under average conditions*1)
Image size
1600×1200
(MVC-FD200)
1280×960
(MVC-FD100)
NP-F330 (supplied)
Number of
Battery life
images
(min.)
NP-F550 (optional)
Number of
Battery life
images
(min.)
Approx. 150
Approx. 75
Approx. 340
Approx. 170
Approx. 150
Approx. 75
Approx. 340
Approx. 170
*1)
Recording under the following conditions:
— Recording one image every 30 seconds.
— Alternatively sliding the zoom lever to the W and T sides fully for each recording.
— Using the flash once in every two recordings.
— Turning the camera on and off once in every 10 recordings.
Recording continuously*2)
Storage media
Floppy disk
“Memory Stick”
NP-F330 (supplied)
Number of
Battery life
images
(min.)
Approx. 750 Approx. 70
Approx. 1600 Approx. 80
NP-F550 (optional)
Number of
Battery life
images
(min.)
Approx. 1600 Approx. 150
Approx. 3400 Approx. 170
*2)
Recording under the following conditions:
— The image size is set to 640×480.
— Flash mode is set to
(No flash).
— Recording every five seconds when using floppy disks and every three seconds
when using a “Memory Stick.”
Playing back*3) still images
Storage media
Floppy disk
“Memory Stick”
NP-F330 (supplied)
NP-F550 (optional)
Number of
Battery life
Number of
Battery life
images
(min.)
images
(min.)
Approx. 2200 Approx. 80 Approx. 4800 Approx. 170
Approx. 3000 Approx. 100 Approx. 6900 Approx. 230
*3)
Playing back single images in order, one approximately every two seconds
Recording moving images
Recording continuously (when the image size is set to 160×112)
Storage media
Floppy disk
“Memory Stick”
Battery life (min.)
NP-F330 (supplied)
NP-F550 (optional)
Approx. 85
Approx. 180
Approx. 90
Approx. 190
12
model name1[MVC-FD100/FD200]
[3-073-074-12(1)]
Note
The battery life and number of images will be decreased when using at low temperature, using
the flash, turning the power on/off frequently, or using the zoom.
Getting started
Using the AC power adaptor
1
AC-L10A/L10B
AC power adaptor
To DC IN jack
Power cord
(mains lead)
2
To a wall outlet (wall socket)
1 Open the DC IN cover and connect the AC power adaptor to the DC
IN jack of your camera with the v mark facing up.
2 Connect the power cord (mains lead) to the AC power adaptor and
then to a wall outlet (wall socket).
Using your camera abroad
For details, see page 85.
When using the AC power adaptor
Be sure to use it near a wall outlet (wall socket). If a malfunction occurs, disconnect
the plug from the wall outlet (wall socket).
Note
Do not short the DC plug of the AC power adaptor with a metallic object, as this may cause a
malfunction.
13
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\03pre.fm]
masterpage:Left
01cov.book Page 14 Thursday, November 29, 2001 1:20 PM
Setting the date and time
When you first use your camera, set the date and time. If these are not set, the
CLOCK SET screen appears whenever you turn on your camera.
POWER ON/OFF
(CHG) lamp
1
2–8
Control button
1
Press and hold the green button and slide the POWER switch in the
direction of the arrow to turn on power.
The POWER ON/OFF (CHG) (green) lamp lights up.
2
Press v on the control button.
The menu bar appears on the LCD screen.
EFFECT FILE
SELECT
OK
3
CAMERA SETUP
MENU BAR OFF
Select [SETUP] with B on the control button,
then press the center z.
VIDEO OUT
/LANGUAGE
CLOCK SET
BEEP
LCD BRIGHT
EFFECT FILE CAMERA SETUP
SELECT
CLOSE
4
Select [CLOCK SET] with v/V on the control button, then press the
center z.
VIDEO OUT
/LANGUAGE
CLOCK SET
BEEP
LCD BRIGHT
EFFECT FILE
SELECT
OK
CLOCK SET
Y/M/D
M/D/Y
D/M/Y
2002 1 1
1 2:0 0:0 0AM
2002 / 1 / 1 12 : 00 AM
ENTER
CANCEL
CAMERA SETUP
SELECT
OK
14
model name1[MVC-FD92]
[3-066-742-12(1)]
5 Select the desired date display format with
CLOCK SET
Y/M/D
M/D/Y
D/M/Y
2002 / 1 / 1 12 : 00 AM
ENTER
CANCEL
SELECT/ADJUST
OK
6 Select the year, month, day, hour or minute
item you want to set with b/B on the control
button.
The item to be set is indicated with v/V.
CLOCK SET
Y/M/D
M/D/Y
D/M/Y
2002 / 1 / 1 12 : 00 AM
ENTER
CANCEL
SELECT/ADJUST
OK
7 Set the numeric value with v/V on the
control button, then press the center z to
enter it.
After entering the number, v/V moves to the next
item. If you selected [D/M/Y] in step 5, set the
time on a 24-hour cycle.
CLOCK SET
Y/M/D
M/D/Y
D/M/Y
2002 / 7 / 1 12 : 00 AM
ENTER
CANCEL
SELECT/ADJUST
OK
8 Select [ENTER] with B on the control button,
then press the center z at the desired
moment to begin clock movement.
The date and time are entered.
CLOCK SET
Y/M/D
M/D/Y
D/M/Y
2002 / 7 / 4 10 : 30 PM
ENTER
CANCEL
SELECT
OK
To cancel the date and time setting
Select [CANCEL] with v/V/b/B on the control button, then press the center z.
15
Getting started
v/V on the control button, then press the
center z.
Select from [Y/M/D] (year/month/day), [M/D/Y]
(month/day/year), or [D/M/Y] (day/month/year).
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\03pre.fm]
masterpage:Left
01cov.book Page 16 Thursday, November 29, 2001 1:20 PM
Inserting a floppy disk
2
EJECT lock
1
1
DISK EJECT lever
Check that the write protect tab is set to the recordable position for
recording.
Recordable/erasable
Unrecordable/unerasable
2
Insert the floppy disk until it clicks.
Usable floppy disks
• Size: 3.5-inch
• Type: 2HD (1.44 MB)
• Format: MS-DOS format (512 bytes × 18 sectors)
Notes
• Do not insert the media other than the floppy disks described above.
• You cannot use the optional MSAC-FD2M/FD2MA Floppy Disk Adaptor for Memory Stick.
• If the access lamp is lit, data is being read or written. Never remove the floppy disk, turn off
the power, or change the setting of the MS/FD selector while the access lamp is lit. Otherwise,
the image data could be damaged or lost.
Removing the floppy disk
While sliding the EJECT lock to the left, slide down the DISK EJECT lever.
16
model name1[MVC-FD92]
[3-066-742-12(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\03pre.fm]
masterpage:Right
01cov.book Page 17 Thursday, November 29, 2001 1:20 PM
Inserting a “Memory Stick”
See page 85 for details about “Memory Stick”.
2
Getting started
1
3
“Memory Stick” cover
1
Open the “Memory Stick” cover.
2
Insert the “Memory Stick.”
Insert the “Memory Stick” with the B mark facing toward the “Memory Stick”
slot as illustrated until it clicks.
3
Close the “Memory Stick” cover.
Removing the “Memory Stick”
Open the “Memory Stick” cover, then push the “Memory Stick” once lightly.
Notes
• Insert the “Memory Stick” firmly until it clicks, otherwise a message such as “MEMORY
STICK ERROR” will be displayed.
• If the access lamp is lit, data is being read or written. Never remove the “Memory Stick,” turn
off the power, or change the setting of the MS/FD selector while the access lamp is lit.
Otherwise, the image data could be damaged or lost.
• You cannot record or edit images on a “Memory Stick” if the write-protect switch is set to the
LOCK position.
Connector
Write-protect
switch
LOCK
Label space
The position and shape of the write-protect switch may differ depending on the types of
“Memory Stick” used.
17
model name1[MVC-FD92]
[3-066-742-12(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:L0-0_Left
01cov.book Page 18 Thursday, November 29, 2001 1:20 PM
Basic operations
B Recording
Recording still images
Still images are recorded in JPEG format.
Slide the POWER switch down to turn on the power and insert a floppy disk or a
“Memory Stick” in your camera.
3, 4
Access lamp
1 2
1
Set the PLAY/STILL/MOVIE selector to STILL.
2
Select the recording media using the MS/FD selector.
MS: When recording on the “Memory Stick.”
FD: When recording on the floppy disk.
3
Press and hold the shutter button halfway down.
The image has not been recorded yet at this time. The camera automatically
adjusts the exposure and focus in accordance with the subject and recording
conditions. When the camera finishes the automatic adjustments, the AE/AF
lock indicator z stops flashing, then lights up and is followed by beeps,
and the camera is ready for recording.
If you release the shutter button, the recording will be canceled.
AE/AF lock indicator (green)
flashes t lights up
18
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right
01cov.book Page 19 Thursday, November 29, 2001 1:20 PM
4
Press the shutter button fully down.
The shutter clicks. “RECORDING” appears on the LCD screen, and the image
will be recorded on the floppy disk or the “Memory Stick.” When
“RECORDING” disappears from the LCD screen, you can start the next
recording.
B Recording
RECORDING
RECORDING
For the number of images you can record on a floppy disk or a
“Memory Stick”
See page 58.
Notes
• When recording bright subjects, the color of the LCD screen may change after the
AE/AF is locked. However, this will not affect the recorded image.
• While the image is being recorded on a floppy disk or a “Memory Stick,” the access
lamp lights. When this lamp is lit, do not shake or strike the camera. Also, do not
turn the power off, not change the position of the MS/FD selector, or not remove
the battery pack/floppy disk/“Memory Stick.” Otherwise, an image data breakdown
may occur and the floppy disk or the “Memory Stick” may become unusable.
• When you press the shutter button fully down at once, the camera starts recording
after the automatic adjustment is complete. However, the recording cannot be
carried out if the flash is required for the recording and the
lamp (page 8) is
flashing.
Checking the last recorded image (Quick Review)
You can check the last recorded image by clearing the menu bar from the screen
(page 49) and pressing b on the control button.
To return to the normal recording mode
Press the shutter button lightly, or select [RETURN] with b/B on the control button
and then press the center z.
To delete the image
1 Select [DELETE] in the Quick Review screen using b/B on the control button
and press the center z.
2 Select [OK] using v/V on the control button and press the center z.
19
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Left
01cov.book Page 20 Thursday, November 29, 2001 1:20 PM
Adjusting the brightness of the LCD screen
Adjust the brightness with the [LCD BRIGHT] item in the menu settings (page 56).
This adjustment does not affect the brightness of the images recorded on the floppy disk
or the “Memory Stick.”
LCD BACKLIGHT switch
To turn off the LCD backlight
Set the LCD BACKLIGHT switch to OFF to save the battery.
Using the zoom feature
Zoom lever
T side: for
telephoto
(subject
appears closer)
W side: for wideangle (subject
appears farther
away)
If you cannot get a sharp focus on a close subject
Slide the zoom lever to the W side and move closer to the subject until the focus is
sharp (page 64).
Minimum focal distance to the subject
W side: About 25 cm (9 7/8 inches)
T side: About 80 cm (31 1/2 inches)
To record even closer subjects, see page 64.
20
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right
01cov.book Page 21 Thursday, November 29, 2001 1:20 PM
Digital zoom function
This camera has a digital zoom function.
Digital zoom enlarges the image by digital processing, and it starts to function when
the zoom exceeds 3×.
W
T
The T-side of the bar shows the
digital zooming zone.
B Recording
Using digital zoom
• The maximum zoom magnification is 6×.
• Digital zooming deteriorates the picture quality. When digital zoom is not
necessary, set [DIGITAL ZOOM] to [OFF] in the menu settings (page 54).
Note
Digital zoom does not work for moving images.
The indicators on the LCD screen during recording
Press DISPLAY to turn on/off the indicators on the LCD screen. See page 97 for a
detailed description of the indicators.
DISPLAY
Notes
• You cannot turn off the
(self-timer) indicator and some of the indicators used in advanced
operations.
• The indicators on the LCD screen are not recorded.
Using the self-timer
When you use the self-timer function, the subject is recorded approximately 10
seconds after you press the shutter button.
Self-timer lamp
Shutter button
Control button
21
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Left
01cov.book Page 22 Thursday, November 29, 2001 1:20 PM
Select
on the LCD screen using b/B/v/V on the control button and press the
center z.
The
(self-timer) indicator appears on the LCD screen, and the subject is recorded
approximately 10 seconds after you press the shutter button. The self-timer lamp
flashes until the subject is recorded.
To cancel the self-timer
To cancel the self-timer, press v on the control button to display the menu bar and
on the LCD
select
and press the center z on the control button to clear
screen.
Recording images with the flash
The initial setting is AUTO (no indication). In this mode, the flash is automatically
activated when the surroundings are dark. To change the flash mode to other than
AUTO, press
(Flash) several times until the desired flash mode indicator appears
on the LCD screen.
(Flash)
Each time you press the button, the indicator changes as follows.
t t
t (No indication)
(No indication) t
Auto red-eye reduction : The flash strobes before recording to reduce the redeye phenomenon.
Forced flash : The flash strobes regardless of the surrounding brightness.
No flash : The flash does not strobe.
You can change the amount of the flash light with [FLASH LEVEL] in the menu
settings (page 54).
Notes
• The recommended shooting distance of the built-in flash is 0.5 to 2.0 m (1 2/3 to 6 2/3 feet)
when [ISO] in the menu is [AUTO].
• Attaching a conversion lens (optional) may block the light from the flash and the shadow of the
lens may be recorded.
• Auto red-eye reduction may not produce the desired red-eye reduction effects depending on
individual differences, the distance to the subject, if the subject does not see the pre-strobe, or
other conditions.
• The flash effect is not obtained easily when you use forced flash in a bright location.
22
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right
01cov.book Page 23 Thursday, November 29, 2001 1:20 PM
Recording moving images
Moving images are recorded in MPEG format. Your camera does not record sound.
Slide the POWER switch down to turn on the power and insert a floppy disk or a
“Memory Stick” in your camera.
3
B Recording
1 2
1
Set the PLAY/STILL/MOVIE selector to MOVIE.
2
Select the recording media using the MS/FD selector.
MS: When recording on the “Memory Stick.”
FD: When recording on the floppy disk.
3
Press the shutter button fully down.
“REC” appears on the LCD screen, and the moving image is recorded on the
floppy disk or the “Memory Stick.”
If you press the shutter button momentarily
The image is recorded for 5 seconds. The recording time can be set to 10 or 15
seconds with [REC TIME SET] in the menu settings (page 53).
If you hold the shutter button down
The image is recorded while the shutter button is held down for up to 60
seconds. However, when [IMAGE SIZE] in the menu settings is set to
[320×240], the maximum recording time is 15 seconds (page 57).
Adjusting the brightness of the LCD screen, zooming or using the self-timer
See pages 20 to 22.
LCD screen indicators during recording
Press DISPLAY to turn on/off the indicators on the LCD screen.
These indicators are not recorded. See page 97 for a detailed description of the indicators.
23
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Left3
01cov.book Page 24 Thursday, November 29, 2001 1:20 PM
B Playback
Playing back still images
Slide the POWER switch down to turn on the power and insert a floppy disk or a
“Memory Stick” in your camera.
Access lamp
2
3, 4
Control button
1
1
Set the PLAY/STILL/MOVIE selector to PLAY.
The last recorded image (still or moving) appears on the LCD screen.
2
Select the playback media using the MS/FD selector.
MS: When playing back images in the “Memory Stick.”
FD: When playing back images in the floppy disk.
3
Press v on the control button to display the menu bar on the LCD
screen.
4
Select the desired still image with the
control button.
Press v/V/b/B on the control button to select
"b/B" on the LCD screen, then press b/B.
"b: To display the preceding image.
B": To display the next image.
"b/B"
60min
INDEX DELETE
SELECT
640
FILE
6/8
TOOL SETUP
FILE BACK/NEXT
When the menu bar is not displayed
You can directly select and play back the image with b/B on the control button.
Notes
• You might not be able to correctly play back images recorded with this camera on other equipment.
• You may not be able to play back images whose image sizes are larger than the maximum
image size that can be used with this camera for recording.
LCD screen indicators during still image playback
Press DISPLAY to turn on/off the indicators on the LCD screen.
See page 98 for a detailed description of the indicators.
24
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right4
01cov.book Page 25 Thursday, November 29, 2001 1:20 PM
Playing back moving images
Slide the POWER switch down to turn on the power and insert a floppy disk or a
“Memory Stick” in your camera.
Access lamp
2
3–5
Control button
B Playback
1
1
Set the PLAY/STILL/MOVIE selector to PLAY.
The last recorded image (still or moving) appears on the LCD screen.
2
Select the playback media using the MS/FD selector.
MS: When playing back images in the “Memory Stick.”
FD: When playing back images in the floppy disk.
3
Press v on the control button to display the menu bar on the LCD
screen.
4
Select the desired moving image with the
control button.
Moving images are displayed one size smaller
than still images.
Press v/V/b/B on the control button to select
"b/B" on the LCD screen, then press b/B.
"b: To display the preceding image.
B": To display the next image.
"b/B"
60min
INDEX DELETE
SELECT
160
FILE
6/8
TOOL SETUP
FILE BACK/NEXT
25
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Left4
01cov.book Page 26 Thursday, November 29, 2001 1:20 PM
5
Select the B (playback) button on the
LCD screen with v/V/b/B on the control
button, then press the center z.
The moving image is played back.
During playback, B (playback) changes to X
(pause).
B (playback)/
X (pause) button
60min
6/8
0:05
160
INDEX DELETE FILE
SELECT
OK
TOOL
SETUP
Playback bar
To pause playback
Select X (pause) on the LCD screen with v/V/b/B on the control button, then press
the center z.
When the menu bar is not displayed
You can directly select the image with b/B on the control button, and play back the
image by pressing the center z. When you press the center z during playback,
playback is paused.
LCD screen indicators during moving image playback
Press DISPLAY to turn on/off the indicators on the LCD screen.
See page 98 for a detailed description of the indicators.
26
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right4
01cov.book Page 27 Thursday, November 29, 2001 1:20 PM
Viewing images using a
computer
You can view or edit image data recorded with your camera using software installed
in your computer. You can also attach the image data to e-mail.
Viewing images using a floppy disk drive
Example: For Windows Me users
Turn on your computer and insert a floppy disk in the floppy disk
drive of your computer.
2
Open “
3
Double-click a file to be viewed.
See “Image file storage destinations and image file names” (page 38) for
details.
It is recommended that you copy a moving image file to the hard disk of your
computer before viewing it. If you view the file directly from a floppy disk, the
image may break off.
My Computer” and double-click “
3 1/2 Floppy (A:).”
Viewing images on a computer using the USB cable
This section describes the method for viewing images on a computer using the
supplied USB cable.
The USB cable is used to connect the camera to a computer so that operations can
be performed on image files recorded in a floppy disk or a “Memory Stick” from the
computer.
In order to use the USB cable, a USB driver must be installed in the computer
beforehand.
Be sure to also refer to the operation manuals for your computer and the application
software.
Viewing images on Windows: page 28
Viewing images on Macintosh: page 34
Notes on using your computer: page 37
Notes
• Data recorded with your camera is stored in the following formats. Make sure that applications
that support these file formats are installed on your computer.
—Still images (other than TEXT mode, uncompressed mode, and Clip Motion): JPEG format
—Moving images: MPEG format
—Uncompressed mode still images: TIFF format
—TEXT mode/Clip Motion: GIF format
• Depending on your application software, the file size may increase when you open a still image
file.
27
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Playback
1
• When you copy an image to the camera from your computer, which was modified with
retouching software and was converted to another file format, the “FILE ERROR” message
may appear and you may be unable to open the image.
• Depending on your application software, only the first frame of the Clip Motion file may be
played back.
Communications with your computer (for Windows only)
Communications between your camera and your computer may not recover after
recovering from Suspend or Sleep.
• Microsoft, Windows and Windows Media are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
• Macintosh, Mac OS and QuickTime are either registered trademarks or trademarks of Apple
Computer, Inc.
• All other product names mentioned herein may be the trademarks or registered trademarks of
their respective companies. Furthermore, “™” and “®” are not mentioned in each case in this
manual.
• In this manual, the Windows 2000 Professional is referred to as “Windows 2000”, and
Windows Millennium Edition is referred to as “Windows Me”, and Windows XP Home Edition
and Windows XP Professional are referred to as “Windows XP.”
Viewing images on Windows
Recommended computer environment
OS:
Microsoft Windows 98, Windows 98SE, Windows 2000 Professional,
Windows Millennium Edition, Windows XP Home Edition, Windows XP
Professional
The above OS must be installed at the factory.
Operation is not assured in an environment upgraded to the operating systems
described above.
CPU: MMX Pentium 200 MHz or faster
Display: Resolution of 800×600 dots or higher, High Color (16-bit color, 65 000
colors) or more
The USB connector must be provided as standard.
Windows Media Player (recommended) must be installed to play back moving
pictures.
Notes
• If you connect two or more devices that use USB to a single computer or use a hub, operation is
not guaranteed.
• Some USB devices may not operate if they are connected to the computer at the same time as
your camera.
• Operations are not guaranteed for all the recommended computer environments mentioned
above.
28
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right4
01cov.book Page 29 Thursday, November 29, 2001 1:20 PM
General procedure for viewing images
Step 1
Installing the USB driver to the computer (page 29)
Perform this step only when you view images on your computer for the
first time.
Step 2
Connecting your camera to your computer using the USB cable
(page 30)
Step 3
Viewing images on Windows (page 32)
For Windows XP users
The operation below is explained using Windows Me. The window screen and
operation method may be different depending on the type of OS.
Step 1 Installing the USB driver to the computer
Before connecting your camera to your computer, install the USB driver to the
computer. The USB driver is included with the application software in the CD-ROM
which is supplied with your camera.
For Windows 98, Windows 98SE, Windows 2000, and Windows Me
users
Do not connect your camera to your computer yet. Be sure to
complete installation of the USB driver before connecting your
camera to the computer. If you connect the USB cable first, you will
be unable to install the USB driver properly.
See “If the Removable Disk does not appear” (page 33) for corrective measures if the
USB cable was connected before installing the driver and the driver software could
not be installed correctly.
29
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Playback
You do not have to install a USB driver. Windows XP recognizes the camera as a
drive as soon as it is connected it to the computer using the USB cable. Begin the
procedure from Step 2.
Before operation
If you are using Windows 2000, log in as an administrator and then install the USB
driver.
1 Turn on your computer and allow Windows to load.
Close all applications you are running on your computer.
2 Insert the supplied CD-ROM in the CD-ROM drive of your
computer.
The title screen appears after a moment.
If the title screen does not appear
1 Double-click “My Computer” on the Desktop.
2 Double-click the CD-ROM (“ImageMixer (E:)*”).
∗ The drive symbol ((E:), etc.) may differ depending on your computer.
Note
Set the display to 800×600 dots or higher and High Color (16-bit color, 65 000 colors) or
more. If it is set to less than 800×600 dots and 256 colors, the installation window does not
appear.
3 Click “USB Driver” on the screen.
The “Welcome to the InstallShield Wizard for Sony USB Driver” window
appears.
4 Follow the on-screen messages to install the USB driver.
5 Eject the CD-ROM from the computer.
6 Select “Yes, I want to restart my computer now” and click “Finish.”
Your computer restarts and you can connect your camera to your computer.
Step 2 Connecting your camera to your computer using the USB
cable
You can connect your camera to your computer after Windows is loaded.
1 Insert a floppy disk or a “Memory Stick” in your computer and set
the MS/FD selector in accordance with the media you have
inserted.
30
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right4
01cov.book Page 31 Thursday, November 29, 2001 1:20 PM
2
Connect the AC power adaptor to your camera and turn on your
camera.
3
Use the supplied dedicated USB cable to connect the USB jack
(mini-B) on your camera to the USB connector on your computer.
Computer
To the USB jack
Push the connector in
as far as it will go.
“USB MODE” appears on the LCD screen of your camera.
When you connect the camera for the first time, the operation automatically
starts to allow your computer to recognize the camera. Be sure to wait until the
operation finishes.
See “If the Copy Wizard appears” (page 33) if you are using Windows XP.
Cautions
• If you connect your camera to a computer with two or more USB jacks, do not connect
any other USB device excepting a keyboard and/or mouse.
• If you have a desktop computer, use the USB jack on the rear panel of the computer.
When you disconnect the USB cable from your computer,
when you remove a floppy disk or a “Memory Stick” from the
camera being connected to the computer using the USB
cable, and when you switch the MS/FD selector
For Windows 2000, Windows Me, and Windows XP users
1 Double-click the “Remove hardware” icon displayed at the lower
right of the desktop screen.
2 Click “Sony DSC” and click “Stop.”
3 Confirm the drive to be removed and click “OK.”
4 Click “OK.”
5 Perform operations such as disconnecting the USB cable.
For Windows 98 and Windows 98SE users
Perform only step 5 above.
31
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Playback
To the USB
connector USB cable (supplied)
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Left4
01cov.book Page 32 Thursday, November 29, 2001 1:20 PM
Step 3 Viewing images on Windows
You can view the images recorded in your camera while the camera is connected to
your computer.
1
Open “My Computer” on Windows and double-click the newly
recognized drive “Removable Disk” (E:)*.
The folder in a floppy disk or a “Memory Stick” is displayed.
If “Removable Disk” is not displayed, see “If the Removable Disk does not
appear” (page 33).
∗ The drive symbol ((E:), etc.) may differ depending on your computer.
2
Select an image file to be viewed from the folder and double-click
the file.
See “Image file storage destinations and image file names” (page 38) for
further information.
Viewing an image of a floppy disk
Desired file type
Double-click in this order
t Image file
E-mail image
“E-mail” folder
Other files
Image file
Viewing an image of a “Memory Stick”
Desired file type
Still image
Moving image*
Double-click in this order
t “100msdcf” folder t Image file
“Mssony” folder t “Moml0001” folder t Image file*
“Dcim” folder
Clip Motion
“Dcim” folder
E-mail image
TIFF image
(uncompressed)
“Mssony” folder t “Imcif100” folder t Image file
t “100msdcf” folder t Image file
∗ Copying a file to the hard disk of your computer before viewing it is recommended. If
you view the file directly from a floppy disk or a “Memory Stick,” the image may break
off.
To copy the image data to your computer
Open a folder that contains the image data to be copied, and drag and drop the image
data to the “My Documents” (example) folder.
Caution
If you copy an image with the same filename to the same folder in your computer, a
confirmation message for overwriting the original image data will appear. If you
want to delete the original image and copy an image you want to drag and drop, click
“Yes.” If you want to keep the original image, click “No” and change the filename of
the image you want to drag and drop.
32
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right4
01cov.book Page 33 Thursday, November 29, 2001 1:20 PM
If the Copy Wizard appears (for Windows XP users)
Use the following procedure to copy an image data from your camera to your
computer.
1 Click “Copy pictures to a folder on my computer using Microsoft
Scanner and Camera Wizard,” and then click “OK.”
2 Follow the instructions displayed on the screen to copy an image.
Select “My Documents” (example) as the copy destination.
To copy another image, click “Finish”, disconnect the USB cable, and connect it
again. Then, repeat the procedure in the Copy Wizard screen.
If the Removable Disk does not appear
1 Open “Device Manager” on your computer.
For Windows 2000 users:
Select “My Computer” t “Control Panel” t “System” open “Hardware” tab,
and then click “Device Manager.”
For Windows 98, Windows 98SE, Windows Me users:
Select “My Computer” t “Control Panel” t “System” and click “Device
Manager.”
2 Check whether a USB driver is already installed.
1
2
1 Click “Other Devices.”
2 Check for “ Sony DSC” or “
Sony Handycam” with a question mark.
33
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Playback
Delete a driver registered unintentionally while your camera is connected to your
computer. See “Step 2 Connecting your camera to your computer using the USB
cable (page 30)” for the connecting method. Perform all steps below to install the
USB driver properly.
3 If there is a device indicated with a question mark, delete it.
1 Click “ Sony DSC” or “ Sony Handycam”.
2 Click “Remove.” The “Confirm Device Removal” screen appears.
3 Click the “OK” button.
4 Turn off your camera and disconnect the dedicated USB cable from
the camera and computer.
5 Install the USB driver provided on the supplied CD-ROM.
See “Step 1 Installing the USB driver to the computer (page 29).”
Viewing images on Macintosh
Recommended Computer environment
OS:
Mac OS 8.5.1/8.6/9.0/9.1/9.2, Mac OS X(v10.0/v10.1)
The above OS must be installed at the factory.
However, note that the upgrade to Mac OS 9.0/9.1 should be used for the
following models.
— iMac with the Mac OS 8.6 factory pre-installed and a slot loading type
CD-ROM drive
— iBook or Power Mac G4 with the Mac OS 8.6 factory pre-installed
Mac OS X(v10.0/v10.1) users can use a USB connection only when a
“Memory Stick” is used.
Display: Resolution of 800×600 dots or higher, 32 000-color mode or higher
The USB connector must be provided as standard.
QuickTime 3.0 or newer must be installed to play back moving pictures.
Notes
• If you connect two or more devices that use USB to a single computer or use a hub, operation is
not guaranteed.
• Some USB devices may not operate if they are connected to the computer at the same time as
your camera.
• Operations are not guaranteed for all the recommended computer environments mentioned
above.
General procedure for viewing images
Step 1 Installing the USB driver to the computer (page 35)
Perform this step only when you view the images on your computer for
the first time.
Step 2 Connecting your camera to your computer using the USB cable
(page 36)
Step 3 Viewing images on Macintosh (page 36)
34
filename[D:\My Documents\_upload
job\3073074121\3073074121MVCFD100UC\02GB-MVCFD100UC\04BAS.FM]
masterpage:Right4
For Mac OS 9.1/9.2 Mac OS X(v10.0/v10.1) users
You do not have to install a USB driver. Macintosh recognizes the camera as a drive
as soon as it is connected it to the Macintosh using the USB cable. Begin the
procedure from Step 2.
Step 1 Installing the USB driver to the computer
Before connecting your camera to your computer, install the USB driver to the
computer. The USB driver is included with the application software in the CD-ROM
which is supplied with your camera.
Set the display to 800×600 dots or higher and 32 000-color mode or higher.
1 Turn on your computer and allow the Mac OS to load.
B Playback
2 Insert the supplied CD-ROM in the CD-ROM drive of your
computer.
The CD-ROM window (Pixela ImageMixer) appears.
3 Double-click the “Setup Menu” icon in the CD-ROM window.
The “PIXELA ImageMixer for Sony” appears.
4 Click “USB Driver” button (folder button).
The folder containing the six Sony USB driver related files opens.
5 Select the following two files and drag and drop them to the
system folder. When the message is displayed, click “OK.”
• Sony USB Driver
• Sony USB Shim
6 Restart your computer.
35
model name1[MVC-FD100/FD200]
[3-073-074-12(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Left4
01cov.book Page 36 Thursday, November 29, 2001 1:20 PM
Step 2 Connecting your camera to your computer using the USB
cable
See page 30 for the procedure to connect your camera to your computer using the
USB cable.
When you disconnect the USB cable from your computer,
when you remove a floppy disk or a “Memory Stick” from the
camera being connected to the computer using the USB
cable, and when you switch the MS/FD selector
Drag and drop the floppy disk or the “Memory Stick” icon into the recycle bin and
then perform operations such as disconnecting the USB cable.
For Mac OS X(v10.0) users
Turn off your computer first and then perform operations such as disconnecting the
USB cable.
Step 3 Viewing images on Macintosh
You can view the images recorded in your camera while the camera is connected to
your computer.
For Mac OS X(v10.0/v10.1) users
You can use only a “Memory Stick” with a computer running Mac OS X(v10.0/
v10.1). Even if you insert a floppy disk, Mac OS X(v10.0/v10.1) cannot recognize it.
To use data saved on a floppy disk, copy it to a “Memory Stick” first (page 77).
1
Double-click the newly recognized icon on the desktop.
The folders in a floppy disk or a “Memory Stick” are displayed.
2
Select and double-click the desired image file from the folder.
See “Image file storage destinations and image file names” (page 38) for
further information.
Viewing an image of a floppy disk
Desired file type
Double-click in this order
t Image file
E-mail image
“E-mail” folder
Other files
Image file
36
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right4
01cov.book Page 37 Thursday, November 29, 2001 1:20 PM
Viewing an image of a “Memory Stick”
Desired file type
Double-click in this order
t “100msdcf ” folder t Image file
Moving image* “Mssony” folder t “Moml0001” folder t Image file*
Still image
“Dcim” folder
Clip Motion
“Dcim” folder
t “100msdcf ” folder t Image file
E-mail image
TIFF image
“Mssony” folder t “Imcif100” folder t Image file
(uncompressed)
To copy image data to your computer
Open the folder that contains an image data you want to copy, and drag and drop the
image data to the hard disk icon.
The image file is copied to the hard disk.
Notes on using your computer
Floppy disk and “Memory Stick”
• Be sure to format a floppy disk and a “Memory Stick” using your camera (page 81).
You cannot format a floppy disk or a “Memory Stick” from a computer connected
using the USB cable.
• Use the DOS/V format 2HD type floppy disk. A computer cannot correctly
recognize a floppy disk other than this type.
• Do not compress the data on the “Memory Stick.” Compressed files cannot be
played back on your camera.
37
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Playback
∗ Copying a file to the hard disk of your computer before viewing it is recommended. If
you view the file directly from a floppy disk or a “Memory Stick,” the image may break
off.
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Left
01cov.book Page 38 Thursday, November 29, 2001 1:20 PM
Image file storage destinations
and image file names
Image files recorded with your camera are grouped in folders by recording mode.
Images in a floppy disk and ones in a “Memory Stick” have different file names. The
meanings of the file names are as follows.
When using floppy disks
sss stands for any number within the range from 001 to 999.
f stands for one of the following characters below.
S: Still image file recorded at 640×480 size
F: Still image file of more than 640×480 size
V: Moving image file recorded at 160×112 size
W:Moving image file recorded at 320×240 size
T: Still image file recorded in TEXT mode
C: Clip Motion file recorded in NORMAL mode
M:Clip Motion file recorded in MOBILE mode
For Windows Me users (The drive recognizing the floppy disk
is [A:].)
Storage destination containing still image,
moving image, TEXT mode image and Clip
Motion image data
Folder containing E-MAIL mode image data
38
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right4
01cov.book Page 39 Thursday, November 29, 2001 1:20 PM
Location
3 1/2 Floppy
[A:]
Meaning
• Still image file recorded normally
• Still image file recorded in E-MAIL
mode (page 61)
MVC-sssf.411
• INDEX display file
This file can only be played back on
your camera.
MVC-sssf.MPG
• Moving image file
• Still image file recorded in
— TEXT mode (page 62)
— Clip Motion (page 59)
MVC-sssf.THM
• Index image file recorded in
— TEXT mode (page 62)
— Clip Motion (page 59)
• Small-size image file recorded in
E-MAIL mode (page 61)
B Playback
E-MAIL
folder
File
• The numerical portions of the following files are the same.
— An image file recorded in E-MAIL mode and its corresponding small-size
image file
— An image file recorded in TEXT mode and its corresponding index image file
— An image file recorded with Clip Motion and its corresponding index image file
• INDEX display files recorded in the TEXT mode or Clip Motion mode are played
back only on this camera.
39
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Left
01cov.book Page 40 Thursday, November 29, 2001 1:20 PM
When using “Memory Stick”s
ssss stands for any number within the range from 0001 to 9999.
For Windows Me users (The drive recognizing the camera is
[D:])
Folder containing still image recorded in
normal mode, TEXT mode image and Clip
Motion image data
Folder containing E-MAIL mode and TIFF
mode image data
Folder containing moving image data
Folder
100msdcf
File
Meaning
• Still image file recorded normally
• Still image file recorded in
— E-MAIL mode (page 61)
— TIFF mode (page 63)
• Clip Motion file recorded in NORMAL
mode (page 59)
CLP0ssss.THM
• Index image file of Clip Motion file
recorded in NORMAL mode
• Clip Motion file recorded in MOBILE
mode (page 59)
MBL0ssss.THM
• Index image file of Clip Motion file
recorded in MOBILE mode
• Still image file recorded in TEXT mode
(page 62)
TXT0ssss.THM
• Index image file of still image file
recorded in TEXT mode
40
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right4
01cov.book Page 41 Thursday, November 29, 2001 1:20 PM
Folder
Imcif100
Moml0001
File
Meaning
• Small-size image file recorded in
E-MAIL mode (page 61)
DSC0ssss.TIF
• Uncompressed image file recorded in
TIFF mode (page 63)
MOV0ssss.MPG
• Moving image file recorded normally
Tips
The digital still camera saves recorded images as digital data. The format of the
saved data is called as the file format. The formats that can be used with this
camera are as follows:
JPEG format
Most digital still cameras, operating systems of computers, and browser
software adopt this format. This format is able to compress files without
appreciable deterioration. However, if the image is compressed and saved on
repeated occasions, the image will deteriorate. This camera records still images
using the JPEG format for normal recording.
GIF format
Using this format, the image will not deteriorate even if the image is compressed
and saved on repeated occasions. This format limits the number of colors used
to 256 colors. This camera records still images using the GIF format in Clip
Motion (page 59) or TEXT mode (page 62).
TIFF format
Stores shooting images without compression, so the image does not deteriorate.
Most of operating systems and applications correspond to this format. This
camera records still images using the TIFF format for the TIFF mode (page 63).
MPEG format
This format is very typical for moving images. This camera records moving
images in the MPEG format during the recording.
41
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Playback
The numerical portions of the following files are the same.
— A small-size image file recorded in E-MAIL mode and its corresponding image
file
— An uncompressed image file recorded in TIFF mode and its corresponding
image file
— An image file recorded in TEXT mode and its corresponding index image file
— An image file recorded with Clip Motion and its corresponding index image file
Viewing images using
“ImageMixer”
Installing “PIXELA ImageMixer Ver.1.0 for Sony”
You can easily view a still image and/or moving image recorded by your camera
using the “PIXELA ImageMixer Ver.1.0 for Sony” provided on the CD-ROM
supplied with your camera.
The system requirements of your computer are indicated in the operation manual
supplied with the CD-ROM.
Before operation
If you are using Windows 2000 and Windows XP, log in as an administrator.
1 Turn on your computer.
Close all applications you are running on your computer.
2 Insert the supplied CD-ROM in the CD-ROM drive of your
computer.
The title screen appears after a moment.
If the title screen does not appear
1 Double-click “My Computer” on the Desktop.
2 Double-click the CD-ROM (“ImageMixer (E:)*).
∗ The drive symbol ((E:), etc.) may differ depending on your computer.
3 Select “PIXELA ImageMixer Ver.1.0 for Sony” in the title screen.
For Windows users
1 Click “PIXELA ImageMixer” and install the software in
accordance with the instructions displayed on the screen.
After confirming the information in the “Readme.txt” screen displayed at
the end of installing process, close this screen and click “Finish.”
If you are using Windows XP, skip steps 2 to 4 below. Go to
step 4.
2 Click “DirectX” in the title screen.
The “Microsoft DirectX8.0 Setup” screen appears.
3 Click “Yes.”
The “DirectX(R) Setup” screen appears.
4 Click “Install.”
The installation starts. When the installation finishes, click “OK” and
restart your computer.
42
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right4
01cov.book Page 43 Thursday, November 29, 2001 1:20 PM
For Macintosh users
Click the button of the language (such as English) of the version to be installed
in the title screen and then install the software in accordance with the
instructions displayed in the screen.
4
Remove the CD-ROM from the computer.
To copy image data to your computer using “ImageMixer”
For Mac OS X(v10.0/v10.1) users
You can use only a “Memory Stick” with a computer running Mac OS X(v10.0/
v10.1). Even if you insert a floppy disk, Mac OS X(v10.0/v10.1) cannot recognize it.
To use data saved on a floppy disk, copy it to a “Memory Stick” first (page 77).
Cautions
• Sometimes an displayed image may be interrupted when you view it on your computer using
the USB cable.
• The screen display of your camera is not copied to your computer.
If you encounter a trouble
Close “ImageMixer” and restart it to retry.
1
Prepare your camera and computer.
1 Turn on your computer.
2 Insert a floppy disk or a “Memory Stick” in your computer and
set the MS/FD selector in accordance with the media you have
inserted.
3 Connect the AC power adaptor to your camera and turn on your
camera.
4 Connect your camera to your computer using the USB cable.
“USB MODE” appears on the LCD screen of your camera.
43
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Playback
Use the following procedure of “PIXELA ImageMixer” to copy a still image or
moving image data recorded in your camera.
The procedure below is explained using screens displayed by Windows. You can
copy the image using a similar procedure for Macintosh also.
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Left
01cov.book Page 44 Thursday, November 29, 2001 1:20 PM
2
Start “ImageMixer” on your computer.
For Windows users
Open the nested windows in the following order: “Start” t “Program” t
“Pixela” t “ImageMixer” t “PIXELA ImageMixer Ver.1.0 for Sony”.
For Macintosh users
Click “PIXELA ImageMixer Ver.1.0 for Sony” in the installed folder.
“ImageMixer” starts and the main screen is displayed.
3
Click the Capture Environment
displayed on the left edge of the
screen.
The screen for copying an image is displayed.
4
Select a folder that contains an image to be copied.
Click the Import File Mode button
displayed on the left of the screen and
select a folder that contains an image to be viewed from the folder list window.
A list of the images stored in the selected folder is displayed in the file
thumbnail list window.
If the image is stored in a floppy disk or a “Memory Stick” set in your camera,
select “Removable Disk (E:)*”.
∗ The drive symbol ((E:), etc.) may differ depending on your computer.
Import
File Mode
button
Folder list Thumbnail list
window
window
Capture
button
Preferences
button
Album list
window
44
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right4
01cov.book Page 45 Thursday, November 29, 2001 1:20 PM
Click the Preferences button
at the top right of the screen.
The “Capturing/Recording Preferences” screen appears.
6
Select a folder in which the copied image is stored.
Click “Browse” for “Destination of Captured/Recorded Files” and click “My
Documents” (example) in the “Browse for Folder” screen that is displayed.
Then, click “OK.”
After you finish the setting, click the button
at the bottom right of the
screen.
7
Click an album in the album list window.
Select an album in which you want to save a file.
8
Click to select an image to be copied to your computer.
You can select two or more images by clicking the images while holding down
the Control key for Windows (Option key for Macintosh).
9
Click the Capture button
at the upper right of the screen.
The image is copied to your computer.
You can also copy the image by dragging and dropping it from the file
thumbnail list window to the album.
45
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Playback
5
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Left
01cov.book Page 46 Thursday, November 29, 2001 1:20 PM
Viewing images using “ImageMixer”
You can use “ImageMixer” to view the image copied to your computer.
1
Click the Album Environment button
in the main screen or
image copy screen.
Select an album that contains an image you want to view.
The screen for viewing images appears.
Album
Environment
button
2
File Menu
button
Double-click the image to be viewed.
The selected image is displayed.
To return to the image list display screen
Click the close button
displayed on the upper right of the screen.
To print the image
1 Click an image to be printed in the image list display screen.
2 Click the File Menu button
and click “Print” on the displayed
menu.
The “Print Layout Settings” screen appears.
3 Set the layout.
Set the layout you prefer. Normally, click the Print Image Only
the screen.
button under
4 Click the print setup button
at the lower right of the screen.
The “Print Setup” screen appears. Set the paper size and printing direction and
click “OK.”
46
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\04bas.fm]
masterpage:Right4
01cov.book Page 47 Thursday, November 29, 2001 1:20 PM
5 Click the print button
at the lower right of the screen.
The “Print” screen appears. Click “OK.”
The image is printed.
If the image is not printed
Confirm whether the printer setting is correct.
See the operating instructions supplied with your printer for further information.
Viewing the on-line help of “PIXELA ImageMixer Ver.1.0 for Sony”
You can find detailed information about procedures and functions of “PIXELA
ImageMixer Ver.1.0 for Sony.”
B Playback
For Windows users
1
Click the Help button
at the upper right of the screen.
The “ImageMixer Help” screen appears.
2
You can access the information you want from the table of
contents or click a link displayed in blue characters (site address).
For Macintosh users
Use your web browser to open the manual.html file in the folder in which
ImageMixer Ver.1.0 for Sony is installed.
To close the on-line help
Click the button
Sony”
for closing the window of “PIXELA ImageMixer Ver.1.0 for
If you have any questions about “PIXELA ImageMixer Ver.1.0
for Sony”
ImageMixer Ver.1.0 for Sony is a trademark of PIXELA corporation.
Refer to the information web site at: “http://www.imagemixer.com”.
47
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\05bef.fm]
01cov.book Page 48 Thursday, November 29, 2001 1:20 PM
Advanced operations
Before performing advanced
operations
This section describes the basic control methods that are frequently used for
“Advanced operations.”
How to use the PLAY/STILL/MOVIE selector
The PLAY/STILL/MOVIE selector selects whether you can use your camera to
record or play back and edit images. Set the selector as follows before starting to
operate your camera.
PLAY STILL MOVIE
PLAY:
STILL:
MOVIE:
To play back or edit
images
To record still images
and Clip Motion images
To record moving
images
How to use the control button
The control button is used to select the buttons, images and menus displayed on the
LCD screen of your camera and modify the settings. The operation methods that are
frequently used for “Advanced operations” are described below.
Select
Set (enter)
48
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\05bef.fm]
01cov.book Page 49 Thursday, November 29, 2001 1:20 PM
Turning on/off the operation buttons (menu bar) on the LCD screen
Press v to display the menu bar
on the LCD screen.
INDEX DELETE FILE
SELECT
OK
Press V to clear the menu bar
from the LCD screen.
TOOL SETUP
MENU BAR OFF
Menu bar
Note
You cannot clear the menu bar on the INDEX screen (page 70).
Selecting items or images on the LCD screen
2
Press v/V/b/B on the control
button to select the item you
want to set or the image you
want to display.
The color of the selected item or the
frame of the selected image
changes from blue to yellow.
Press the center z on the
control button to enter the
item.
Repeat steps 1 and 2 to execute
each function.
INDEX DELETE FILE
SELECT
OK
TOOL SETUP
MENU BAR OFF
VIDEO OUT
/LANGUAGE
CLOCK SET
BEEP
LCD BRIGHT
INDEX DELETE FILE
SELECT
CLOSE
TOOL
SETUP
The “Advanced operations” section of this manual refers to
selecting and entering items by the above procedure as
“Select [item name].”
49
model name1[MVC-FD100/200]
[3-073-074-11(1)]
Before performing advanced operations
1
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\05bef.fm]
01cov.book Page 50 Thursday, November 29, 2001 1:20 PM
How to change the menu settings
Some of the advanced operations for your camera are executed by selecting menu
items displayed on the LCD screen with the control button.
1–3
Control button
PLAY/STILL/MOVIE selector
1
Press v on the control button to display the menu bar.
The menu bar appears as follows according to the position of the PLAY/STILL/
MOVIE selector.
STILL/MOVIE
PLAY (INDEX mode)
PLAY (single mode)
EFFECT FILE
SELECT
OK
2
CAMERA SETUP
MENU BAR OFF
INDEX DELETE FILE
SELECT
OK
TOOL SETUP
MENU BAR OFF
Select the desired item with v/V/b/B on the
control button, then press the center z.
The color of the selected item changes from blue to
yellow, and when you press the center z, the settings
that can be set for its item are displayed.
Note
MVC–001F 2002 7 4 10:30PM
DELETE FILE
TOOL SETUP
SELECT
SINGLE DISPLAY
VIDEO OUT
/LANGUAGE
CLOCK SET
BEEP
LCD BRIGHT
INDEX DELETE FILE
SELECT
OK
NTSC
TOOL
SETUP
The displayed items are changed according to the position
of the MS/FD selector.
3
Select the desired setting with v/V/b/B on the control button, then
press the center z.
To cancel the setup
Press V on the control button repeatedly until the LCD screen returns to the menu bar
display in step 1. To clear the menu bar, press V again.
50
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\05bef.fm]
01cov.book Page 51 Thursday, November 29, 2001 1:20 PM
Menu settings
Menu items that can be modified differ depending on the positions of the PLAY/
STILL/MOVIE selector or the MS/FD selector. The LCD screen shows only the
items you can operate at the moment. Initial settings are indicated with x.
(self-timer)
Records with the self-timer (page 21).
EFFECT
Item
P. EFFECT
Description
PLAY/STILL/
MOVIE selector
SOLARIZE Sets the image special effects (page 69). STILL
B&W
MOVIE
SEPIA
NEG.ART
x OFF
DAY &
TIME
Sets whether to insert the date and time STILL
into the image (page 69).
DATE
x OFF
FILE
Item-1
Item-2
Setting
FORMAT OK
DISK
TOOL
(When the
MS/FD
selector is
set to FD.)
CANCEL
DISK
COPY
CANCEL
Description
PLAY/STILL/
MOVIE selector
Formats a floppy disk (page 81). PLAY
Once you format a floppy disk, STILL
all of the data, including
MOVIE
protected images are deleted. Be
sure to check for images before
you format a floppy disk.
Cancels formatting of a floppy
disk.
OK
Copies all data stored in a floppy
disk to another disk (page 79).
CANCEL
Cancels the disk copy.
Goes back to the [DISK TOOL]
item.
51
model name1[MVC-FD100/200]
[3-073-074-11(1)]
Before performing advanced operations
DATE/
TIME
Setting
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\05bef.fm]
01cov.book Page 52 Thursday, November 29, 2001 1:20 PM
Item
FORMAT
(When the
MS/FD
selector is
set to MS.)
FILE
NUMBER
Setting
OK
Formats a “Memory Stick.” Once you
format the “Memory Stick,” all of the
data, including protected images are
deleted. Be sure to check for images
before you format a “Memory Stick.”
CANCEL
Cancels formatting of a “Memory
Stick.”
SERIES
Assigns numbers to files in sequence
even if the floppy disk or the “Memory
Stick” is changed. Note that file
numbers are not in sequence between a
floppy disk and a “Memory Stick.”
x NORMAL
Resets the file number that starts from
001 or 0001 each time the floppy disk or
the “Memory Stick” is changed.
CLIP
MOTION
SIZE
(When the
MS/FD
selector is
set to FD.)
Description
Sets the image size and number of
frames for creating GIF format
animation (page 59).
160×120
(NORMAL)
Up to 10 frames can be recorded.
80×72
(MOBILE)
Up to 2 frames can be recorded.
CANCEL
Cancels Clip Motion.
MVC-FD100 Selects the image size when recording
still images.
x 1280×960
1280(3:2)
1024×768
640×480
MVC-FD200
x 1600×1200
1600 (3:2)
1600 (ECM)
1024×768
640×480
PLAY/STILL/
MOVIE selector
PLAY
STILL
MOVIE
STILL
MOVIE
STILL
STILL
52
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\05bef.fm]
01cov.book Page 53 Thursday, November 29, 2001 1:20 PM
Item
SIZE
(When the
MS/FD
selector is
set to MS.)
SIZE
REC MODE
Setting
MVC-FD100
x 1280 (FINE)
PLAY/STILL/
MOVIE selector
Selects the image size when recording
still images.
STILL
Selects the MPEG image size when
recording moving images.
MOVIE
1280(3:2) F
1024 (FINE)
640 (FINE)
MVC-FD200
x 1600 (FINE)
1600 (3:2)F
1024 (FINE)
640 (FINE)
320×240
x 160×112
Records a TIFF (uncompressed) file in STILL
addition to the JPEG file when the MS/
FD selector is set to MS.
TEXT
Records a GIF file in black-and-white.
E-MAIL
Records a small-size (320×240) JPEG
file in addition to the selected image
size.
15 sec
Records an image using the normal
recording mode.
Selects the recording time for moving
images.
MOVIE
INTERVAL
Sets the slide show interval.
x 3 sec/5 sec/10 sec/30 sec/1 min
PLAY
REPEAT
A slide show can be repeated. (When
using the floppy disk, a slide show is up
to approx. 20 minutes.)
x ON/OFF
START
Starts the slide show.
CANCEL
Cancels the slide show settings or
execution.
ON
Marks the still images to be printed
(page 80).
10 sec
x 5 sec
SLIDE
SHOW
(Only in
PLAY
(single)
mode)
PRINT
MARK
x OFF
PROTECT
ON
x OFF
PLAY
Unmarks the print mark of the still
images.
Protects images against accidental
erasure (page 74).
PLAY
Releases protection of images.
53
model name1[MVC-FD100/200]
[3-073-074-11(1)]
Before performing advanced operations
TIFF
x NORMAL
REC TIME
SET
Description
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\05bef.fm]
01cov.book Page 54 Thursday, November 29, 2001 1:20 PM
CAMERA
Item
Setting
Description
PLAY/STILL/
MOVIE selector
ISO
400
200
100
x AUTO
STILL
Selects the ISO film speed. When
recording under dark conditions or
recording a fast-moving subject, use a
high-number setting. To record highquality images, use a low-number
setting. (You can select this item only
when the PROGRAM AE function is
canceled or spot light-metering mode is
set.)
DIGITAL
ZOOM
x ON
Uses a digital zoom.
OFF
SHARPNESS +2 to –2
WHITE
BALANCE
FLASH
LEVEL
STILL
Does not use a digital zoom.
STILL
Adjusts the sharpness of the image.
The
indicator appears (except when
the setting is 0).
IN DOOR Sets the white balance (page 68).
OUT DOOR
HOLD
x AUTO
HIGH
Makes the flash level higher than
normal.
STILL
MOVIE
STILL
x NORMAL Normal setting.
LOW
EXPOSURE +2.0EV to
–2.0EV
Makes the flash level lower than normal.
Adjusts the exposure before recording.
STILL
MOVIE
TOOL
Item
COPY
(When the
MS/FD
selector is
set to FD.)
COPY
(When the
MS/FD
selector is
set to MS.)
Setting
FD t FD
Description
Copies the image to a floppy disk.
PLAY/STILL/
MOVIE selector
PLAY
FD t MS Copies the image to a “Memory Stick.”
CANCEL
Cancels copying of the image (page 78).
MS t MS Copies the image to a “Memory Stick.” PLAY
MS t FD Copies the image to a floppy disk.
CANCEL
Cancels copying of the image (page 78).
54
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\05bef.fm]
01cov.book Page 55 Thursday, November 29, 2001 1:20 PM
Item
Setting
Description
PLAY/STILL/
MOVIE selector
MVC-FD100 Changes the recorded image size in
1280×960 PLAY (single) mode (page 76).
1024×768
640×480
CANCEL
MVC-FD200
1600×1200
1024×768
640×480
CANCEL
PLAY
RESIZE
(When the
MS/FD
selector is
set to MS.)
MVC-FD100 Changes the recorded image size in
1280 (FINE) PLAY (single) mode (page 76).
1024 (FINE)
640 (FINE)
CANCEL
MVC-FD200
1600 (FINE)
1024 (FINE)
640 (FINE)
CANCEL
PLAY
SETUP
Item
DEMO
Setting
x STBY/ON
OFF
VIDEO
OUT
Description
PLAY/STILL/
MOVIE selector
STILL
Displayed only when you use the AC
power adaptor in STILL or MOVIE
MOVIE
mode. When [ON] is selected, a
demonstration will start if you do not
operate your camera for about 10
minutes. To stop the demonstration, turn
off your camera.
NTSC
Sets the video output signal to NTSC
mode (e.g., the U.S.A., Japan).
PAL
Sets the video output signal to PAL
mode (e.g., Europe).
PLAY
STILL
MOVIE
/
x ENGLISH Displays the menu items in English.
LANGUAGE
/JPN Displays the menu items in Japanese.
PLAY
STILL
MOVIE
CLOCK
SET
PLAY
STILL
MOVIE
—
Sets the date and time (page 14).
55
model name1[MVC-FD100/200]
[3-073-074-11(1)]
Before performing advanced operations
RESIZE
(When the
MS/FD
selector is
set to FD.)
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\05bef.fm]
01cov.book Page 56 Thursday, November 29, 2001 1:20 PM
Item
BEEP
Setting
PLAY/STILL/
MOVIE selector
PLAY
STILL
MOVIE
SHUTTER Turns on the shutter sound only. (The
shutter sound is heard when you press
the shutter button.)
x ON
OFF
LCD
BRIGHT
Description
Turns on the beep/shutter sound (when
you press the control button/shutter
button).
Turns off the beep/shutter sound.
Adjusts the LCD screen brightness
using −/+ on the LCD screen.
PLAY
STILL
MOVIE
INDEX (Only in PLAY (single) mode)
Displays six images at a time (PLAY (INDEX) mode).
DELETE (Only in PLAY (single) mode)
Setting
Description
OK
Deletes the displayed image.
CANCEL
Cancels deleting of the image.
PLAY/STILL/MOVIE
selector
PLAY
(Return) (Only in PLAY (INDEX) mode)
Returns to PLAY (single) mode.
56
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\06adv.fm]
masterpage:Right
01cov.book Page 57 Thursday, November 29, 2001 1:20 PM
B Various recording
Setting the image size
(IMAGE SIZE)
1
2, 3
1
Set the PLAY/STILL/MOVIE
selector to STILL or MOVIE.
2
Select [FILE] and then
[IMAGE SIZE] from the menu.
3
Select the desired image size.
Still image sizes:
Moving image sizes:
320×240, 160×112
• MVC-FD200
When the MS/FD selector is
set to FD
1600×1200: 2.0 mega pixels
1600 (3:2)*
1600 (ECM)
1024×768: 0.8 mega pixels
640×480: 0.35 mega pixels
57
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Various recording
• MVC-FD100
When the MS/FD selector is
set to FD
1280×960: 1.2 mega pixels
1280 (3:2)*
1024×768: 0.8 mega pixels
640×480: 0.35 mega pixels
When the MS/FD selector is
set to MS
1280 (FINE): 1.2 mega pixels
1280 (3:2)*F
1024 (FINE): 0.8 mega pixels
640 (FINE): 0.35 mega pixels
When the MS/FD selector is
set to MS
1600 (FINE): 2.0 mega pixels
1600 (3:2)*
1024 (FINE): 0.8 mega pixels
640 (FINE): 0.35 mega pixels
(FINE): The images recorded on
a “Memory Stick” have a higher
picture quality. The size of a file
that can be recorded on a
“Memory Stick” is also larger
than that of a floppy disk.
(ECM): The picture quality is
lower, but more images can be
recorded. If picture quality is
more important than the number
of images to be recorded, select
[1600×1200].
* Your camera will record an
image using a 3:2 ratio so that it
matches the horizontal and
vertical ratio 3:2 of print paper.
Therefore, there will be no
margin when the image is printed
in the print paper. Please note
that the top and bottom of the
recording range displayed on the
LCD screen (horizontal and
vertical ratio 4:3) is cut off when
the image is recorded in your
camera.
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\06adv.fm]
masterpage:Left
01cov.book Page 58 Thursday, November 29, 2001 1:20 PM
The number of images or the time that you can record on a floppy disk or a
“Memory Stick” (8 MB)
MVC-FD100
Image size
Usage
1280×960
Printing in post card size
Number of images to be recorded or time*1)
Floppy disk
“Memory Stick”
Approx. 6
Approx. 12
1280 (3:2)
Printing in 3:2 ratio
Approx. 6
Approx. 12
1024×768
Home page, etc.
Approx. 10
Approx. 20
640×480
Attaching to e-mail
Approx. 30
Approx. 48
320×240*2) Viewing on computer
Approx. 15 sec.
Approx. 80 sec.
(Approx. 15 sec.)*3)
160×112*2) Attaching to e-mail
Approx. 60 sec.
Approx. 320 sec.
(Approx. 60 sec.)*3)
MVC-FD200
Image size
Usage
Number of images to be recorded or time*1)
Floppy disk
“Memory Stick”
1600×1200 Printing in size A4
Approx. 4
Approx. 8
1600 (3:2)
Printing in 3:2 ratio
Approx. 4
Approx. 8
1600
(ECM)
Recording a large
number of images
Approx. 8
–
1024×768
Home page, etc.
Approx. 10
Approx. 20
640×480
Attaching to e-mail
Approx. 30
Approx. 48
320×240*2) Viewing on computer
Approx. 15 sec.
Approx. 80 sec.
(15 sec.)*3)
160×112*2) Attaching to e-mail
Approx. 60 sec.
Approx. 320 sec.
(60 sec.)*3)
*1) When REC MODE is set to NORMAL.
*2) Image size of a moving image.
*3) The maximum recording time in continuous recording.
Recording time and number of images to be recorded
The recording time and the number of images to be recorded may differ from the
above values depending on the recording conditions.
Notes
• If you try to record 55 images or more on a floppy disk, even if the remaining disk capacity is
sufficient, “DISK FULL” appears on the LCD screen and you cannot record any more images.
• If you try to record 3001 images or more on a “Memory Stick,” even if the remaining memory
capacity of the “Memory Stick” is sufficient, “NO MEMORY SPACE” appears on the LCD
screen and you cannot record any more images.
• When the TEXT mode is selected, the number of images that can be recorded will be the same
as that of [1600×1200] even if you select [1600 (ECM)] for image size.
58
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\06adv.fm]
masterpage:Right
01cov.book Page 59 Thursday, November 29, 2001 1:20 PM
Tips
The size of the image is indicated by the
pixel unit. The higher the number of
pixels, the more information is included.
So, an image that is saved using a large
number of pixels is suitable for a largeformat print and one that is saved using a
smaller number of pixels is suitable for
attaching to an E-mail. Normally, an
image is recorded in the ratio of four to
three to fit the monitor ratio. This camera
can also record the image in the ratio of
three to two to accommodate the most
common printing paper size. This is the
same ratio as the one used in photodeveloping shops.
Creating Clip Motion
Files
Clip Motion is an animation function
that plays back still images in
succession. Clip Motion images are
played back on this camera at
approximately 0.5 s intervals. The
images are stored in GIF format, which
is convenient for creating home pages
or attaching images to an e-mail.
4, 5
1
1280×960
2, 3
1280 (3:2)
Set the PLAY/STILL/MOVIE
selector to STILL.
2
Select [FILE] and then [CLIP
MOTION] from the menu.
3
Select the desired mode.
160×120 (NORMAL)
Clip Motion of up to 10 frames can
be recorded.
This is suitable for use on home
pages, etc.
80×72 (MOBILE)
Clip Motion of up to 2 frames can
be recorded.
This is suitable for use with
portable data terminals.
CANCEL
This cancels the creation of Clip
Motion.
59
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Various recording
1
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\06adv.fm]
masterpage:Left
01cov.book Page 60 Thursday, November 29, 2001 1:20 PM
4
Record the image for the first
frame.
160
5
6
2/10
Record the image for the next
frame.
Image recording can be repeated
up to the maximum number of
recordable frames.
The frame images are
automatically recorded on the
floppy disk or the “Memory Stick”
when you select [FINISH] or after
recording the maximum number of
frames.
Notes
• Reading and writing data takes more time
than normal image recording.
• Due to the limitations of the GIF format,
the number of colors for Clip Motion
images is reduced to 256 colors or less.
Therefore, the picture quality may
deteriorate for some images.
• The file size is reduced in MOBILE mode,
so the picture quality deteriorates.
• GIF files not created on this camera may
not be displayed correctly.
To stop Clip Motion creation
Select [RETURN] after step 3.
Note that if you record even one frame,
you cannot stop Clip Motion creation.
The number of Clip Motion frames
that you can record on a floppy
disk or a “Memory Stick” (8 MB)
Image size
Number of images
Floppy disk “Memory Stick”
160×120
(NORMAL)
Approx.
7*
Approx.
40*
80×72
(MOBILE)
Approx.
54**
Approx.
400**
∗ When recording 10 frames per Clip
Motion file
∗∗ When recording 2 frames per Clip
Motion file
60
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\06adv.fm]
masterpage:Right
01cov.book Page 61 Thursday, November 29, 2001 1:20 PM
MVC-FD200
Recording still
images for e-mail
(E-MAIL)
Image size
The E-MAIL mode records a smallsize (320×240) image at the same time
as a still image. Small-size images are
convenient for e-mail transmission,
etc. Images in E-MAIL mode are
recorded in the JPEG format.
3
Number of images
Floppy disk “Memory Stick”
1600×1200 Approx. 3
Approx. 8
1600 (3:2)
Approx. 3
Approx. 8
1600
(ECM)
Approx. 7
–
1024×768
Approx. 8
Approx.
20
640×480
Approx.
22
Approx.
43
To return to normal
recording mode
1
2
Set the PLAY/STILL/MOVIE
selector to STILL.
2
Select [FILE], [REC MODE],
and then [E-MAIL] from the
menu.
3
Record the image.
B Various recording
1
Select [NORMAL] in step 2.
The number of images that you
can record on a floppy disk or a
“Memory Stick” (8 MB) in E-MAIL
mode
MVC-FD100
Image size
Number of images
Floppy disk “Memory Stick”
1280×960
Approx. 5
Approx.
12
1280 (3:2)
Approx. 5
Approx.
12
1024×768
Approx. 8
Approx.
20
640×480
Approx.
22
Approx.
43
61
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\06adv.fm]
masterpage:Left
01cov.book Page 62 Thursday, November 29, 2001 1:20 PM
MVC-FD200
Recording text
documents (TEXT)
Image size
Number of images*
Floppy disk “Memory Stick”
Text is recorded in GIF format to
provide a clear image.
1600×1200
Minimum
4
Minimum
24
1600 (3:2)
Minimum
5
Minimum
26
1600
(ECM)
Minimum
4
–
1024×768
Minimum
11
Minimum
54
640×480
Minimum
28
Minimum
121
3
1
1
2
Set the PLAY/STILL/MOVIE
selector to STILL.
2
Select [FILE], [REC MODE],
and then [TEXT] from the
menu.
3
Record the image.
∗ The maximum number of recordable
images depends on the document
condition, such as the amount of text
portions.
To return to normal
recording mode
Select [NORMAL] in step 2.
The number of images that you
can record on a floppy disk or a
“Memory Stick” (8 MB) in TEXT
mode
MVC-FD100
Image size
Number of images*
Floppy disk “Memory Stick”
1280×960
Minimum
7
Minimum
36
1280 (3:2)
Minimum
8
Minimum
40
1024×768
Minimum
11
Minimum
54
640×480
Minimum
28
Minimum
121
Notes
• If the subject is not evenly illuminated, you
may be unable to record a clear image.
• Writing and reading data take more time
than normal recording.
• When TEXT mode is selected, you cannot
use the PROGRAM AE function.
62
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\06adv.fm]
masterpage:Right
01cov.book Page 63 Thursday, November 29, 2001 1:20 PM
MVC-FD200
Recording still
images as
uncompressed files
(TIFF)
This mode simultaneously records still
images in both TIFF format
(uncompressed) and JPEG format
(compressed) when using a “Memory
Stick.”
Since this mode records images
without compressing data, the quality
of picture will hardly deteriorate. Use
this mode when you want to print
images with photograph picture
quality.
4
Image size
Number of images
1600×1200
1
1600 (3:2)
1
To return to normal
recording mode
Select [NORMAL] in step 3.
Notes
• JPEG images are recorded using the image
size selected in the [IMAGE SIZE] menu
(page 57). Images are automatically
recorded using the image size [1280×960]
unless [1280 (3:2)] is selected for MVCFD100.
Images are automatically recorded using
the image size [1600×1200] unless [1600
(3:2)] is selected for MVC-FD200.
• Writing data takes more time than in
normal recording.
1
Set the PLAY/STILL/MOVIE
selector to STILL.
2
3
Set the MS/FD selector to MS.
4
Record the image.
B Various recording
2
3
1
Select [FILE], [REC MODE],
and then [TIFF] from the
menu.
The number of images that you
can record on a “Memory Stick”
(8 MB) in TIFF mode
MVC-FD100
Image size
Number of images
1280×960
1
1280 (3:2)
2
63
model name1[MVC-FD100/200]
[3-073-074-11(1)]
Recording images in
macro
Setting the distance
to the subject
Use this mode when you record a small
subject such as flower or insect from
close up.
The focus is automatically adjusted.
This function is useful when you
record a subject by presetting the
recording distance in accordance with
the distance to the subject or the auto
focus does not work well.
1
2
1
Set the PLAY/STILL/MOVIE
selector to STILL or MOVIE.
2
Press FOCUS repeatedly
until the
(macro) indicator
appears on the LCD screen.
With the zoom lever set to the W
side, you can shoot a subject that is
about 3 cm (1 3/16 inch) away
from the lens surface in macro
mode.
To return to normal
recording mode
Press FOCUS repeatedly until both the
and 9 indicators disappear.
Notes
• You cannot record images in macro with
the following PROGRAM AE modes:
—Landscape mode
—Panfocus mode
• You cannot record images in macro if the
indicator appears.
64
1
2
1
Set the PLAY/STILL/MOVIE
selector to STILL or MOVIE.
2
Press FOCUS repeatedly
until a sharp focus is
achieved.
The manual focus indicator
appears on the LCD screen. You
can select from six focus settings:
(macro), 0.5 m, 1.0 m, 3.0 m,
7.0 m, and ∞ (infinity).
To reactivate auto focusing
Press FOCUS repeatedly until both the
and 9 indicators disappear.
Notes
• Focal point information may not
completely show the correct distance. Use
the information as a guide.
• Focal point information does not show the
correct distance when attaching the
conversion lens (optional).
• If you shoot a subject within 0.8 m
(31 1/2 inches) while the zoom lever is set
to T side, you cannot get a clear focus. In
such cases, the focal point information
flashes. Move the zoom lever to the W side
until the indicator stops flashing.
• You cannot use this function if you have
selected the Panfocus mode in the
PROGRAM AE function.
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\06adv.fm]
masterpage:Right
01cov.book Page 65 Thursday, November 29, 2001 1:20 PM
Using the PROGRAM
AE function
Spot light-metering mode
Select this mode when there is
backlight or when there is strong
contrast between the subject and
the background, etc. Position the
point you want to record at the spot
light-metering cross hair.
LCD screen
1
2
1
Set the PLAY/STILL/MOVIE
selector to STILL.
2
Press PROGRAM AE
repeatedly to select the
desired PROGRAM AE mode.
Spot light-metering
cross hair
To cancel PROGRAM AE
Twilight mode
Twilight plus mode
Increases the effectiveness of the
twilight mode function.
Landscape mode
Focuses only on a distant subject to
record landscapes, etc.
Panfocus mode
Changes the focus quickly and
simply from a close subject to a
distant subject.
Press PROGRAM AE repeatedly until
the indicator on the LCD screen goes
out.
Notes
• You can focus only on distant subjects in
Landscape mode.
• In Panfocus mode, the zoom position is set
to the W side and focus is fixed.
• When you record in Twilight plus mode,
we recommend that you use a tripod to
prevent shaking.
• Set the forced flash
when you use the
flash in the following modes:
– Twilight mode
– Twilight plus mode
– Landscape mode
• You cannot use the PROGRAM AE
function when the moving or still image of
TEXT mode is recorded.
• The ISO film speed is set to AUTO when a
PROGRAM AE function other than the
spot light-metering mode is set.
65
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Various recording
Suppresses the blurring of colors
of a bright subject in a dark place
so that you can record the subject
without losing the dark atmosphere
of the surroundings.
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\06adv.fm]
masterpage:Left
01cov.book Page 66 Thursday, November 29, 2001 1:20 PM
Tips
Under normal recording conditions, the
camera automatically makes various
adjustments, such as those for the focus,
iris, exposure, and white balance, as it
shoots. However, you may not be able to
carry out your desired shooting
depending on shooting conditions. The
PROGRAM AE function provides you
with near-optimum adjustments to suit
your shooting situation.
66
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\06adv.fm]
masterpage:Right
01cov.book Page 67 Thursday, November 29, 2001 1:20 PM
Tips
Adjusting the
exposure
(EXPOSURE)
1
Normally, the camera automatically
adjusts the exposure. If the color of the
image is too dark or bright as shown
below, we recommend that you adjust the
exposure manually. When recording a
backlighted subject or a subject in the
snow, set the exposure toward +, and
when recording a subject with extremely
bright illumination such as a spotlight, set
it toward –.
2, 3
Set the PLAY/STILL/MOVIE
selector to STILL or MOVIE.
2
Select [CAMERA] and then
[EXPOSURE] from the menu.
3
Select the desired exposure
value.
Adjust the exposure value while
checking the brightness of the
background. You can select values
ranging from +2.0 EV to −2.0 EV
in steps of 1/3 EV.
Set the exposure toward –
B Various recording
1
Set the exposure toward +
Note
If a subject is under extremely bright or dark
situations, or the flash is used, the exposure
adjustment may not be effective.
67
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\06adv.fm]
masterpage:Left
01cov.book Page 68 Thursday, November 29, 2001 1:20 PM
Adjusting the white
balance (WHITE
BALANCE)
When the white balance mode is set to
AUTO, your camera automatically sets
white balance in accordance with the
recording conditions and adjusts the
balance of all colors in an image. If
you want to fix the recording
conditions or record an image in
specific lighting conditions, you can
set the desired white balance mode.
1
To reactivate auto adjustment
Select [AUTO] in step 3.
Tips
The image is affected by the lighting
conditions. The image looks blue under
sunlight in the summer, and looks red
under mercury lamps. Human eyes can
resolve these problems. However, the
camera cannot resolve the problem
without making adjustments. Normally,
the camera adjusts automatically, but if
the image appears in strange colors, we
recommend that you change the white
balance mode.
2, 3
1
Set the PLAY/STILL/MOVIE
selector to STILL or MOVIE.
2
Select [CAMERA] and then
[WHITE BALANCE] from the
menu.
3
Select the desired white
balance setting.
IN DOOR (n)
• Places where the lighting
condition changes quickly
• Under bright lighting such as
photography studios
• Under sodium or mercury lamps
OUT DOOR (
)
Recording a sunrise/sunset, night
scene, neon signs, or fireworks
HOLD (HOLD)
Retains the adjusted white balance
value
AUTO (No indicator)
Adjusts the white balance
automatically
68
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\06adv.fm]
masterpage:Right
01cov.book Page 69 Thursday, November 29, 2001 1:20 PM
Recording the date
and time on the still
image (DATE/TIME)
4
1
Enjoying picture
effects (PICTURE
EFFECT)
2, 3
1
2, 3
1
Set the PLAY/STILL/MOVIE
selector to STILL.
2
Select [EFFECT] and then
[DATE/TIME] from the menu.
1
Set the PLAY/STILL/MOVIE
selector to STILL or MOVIE.
3
Select the date and time.
2
Select [EFFECT] and then
[P. EFFECT] from the menu.
3
Select the desired mode.
DAY & TIME
Superimposes the date, hour, and
minute.
Superimposes the year, month, and
day.
OFF
Does not superimposes the date
and time.
4
Record the image.
The date and time do not appear on
the LCD screen during shooting.
These appear during playback
only.
SOLARIZE
The light contrast is clearer and the
picture looks like an illustration.
B&W
The picture is monochrome (black
and white).
SEPIA
The picture is sepia-toned like an
old photograph.
NEG.ART
The color and brightness of the
picture are reversed as in a
negative.
OFF
Does not use the picture effect
function.
2002
7
4
To cancel picture effect
Notes
Select [OFF] in step 3.
• When [DATE] is selected in step 3, the
date is imposed in the order set by the
CLOCK SET item (page 14).
• The date and time are not imposed onto
Clip Motion images.
69
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Various recording
DATE
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\07adv.fm]
masterpage:Left
01cov.book Page 70 Thursday, November 29, 2001 1:20 PM
To display the next
(previous) index screen
Select v/V at the lower-left on the
B Various playback
Playing back six
images at once
(INDEX)
LCD screen.
Displays the previous index
screen.
Displays the next index screen.
To return to normal playback
(single image)
1
1
2
2
Set the PLAY/STILL/MOVIE
selector to PLAY.
Select [INDEX] on the LCD
screen.
Six images are displayed at once
(index screen).
Only the first frame of Clip Motion
files is displayed.
• Select the desired image with the
control button.
• Select
(Return).
Note
When viewing an image recorded in Clip
Motion or TEXT mode on the INDEX
screen, the image may appear different from
the actual image.
MVC-001F 2002 7 4 12:30PM
DELETE FILE
TOOL SETUP
SELECT
SINGLE DISPLAY
This shows the position of the
currently displayed images relative
to all the recorded images.
The following marks are displayed
on each image according to the
image type and settings.
: Moving image file
: E-mail file
: Print mark
- : Protect mark
TEXT: TEXT file
TIFF: TIFF file
CLIP: Clip Motion file
(No mark): Normal recording (no
settings)
70
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\07adv.fm]
masterpage:Right
01cov.book Page 71 Thursday, November 29, 2001 1:20 PM
Notes
Enlarging a part of the
still image (Zoom and
trimming)
3
1
4
Set the PLAY/STILL/MOVIE
selector to PLAY.
2
Display the image to be
enlarged.
3
Zoom in/out the image with
the zoom lever.
The zoom scaling indicator
appears on the LCD screen.
4
Press the control button
repeatedly to select the
desired portion of the image.
v : The image moves downward
V : The image moves upward
b : The image moves rightward
B : The image moves leftward
B Various playback
1
• You cannot trim moving images, still
images recorded in Clip Motion, TEXT
mode, or uncompressed images.
• Zoom scaling is up to 5× regardless of the
original image size.
• The quality of enlarged images may be
deteriorated.
• The original data is left even if you enlarge
the image.
• The enlarged image is recorded as the
newest file.
To return to the normal size
Zoom out with the zoom lever until the
zoom scaling indicator ( ×1.1)
disappears from the screen, or simply
press the center z.
To record an enlarged image
(trimming)
1 Enlarge the image.
2 Press the shutter button. The image
is recorded at 640×480 size and the
image on the LCD screen returns to
the normal size after recording.
71
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\07adv.fm]
masterpage:Left
01cov.book Page 72 Thursday, November 29, 2001 1:20 PM
Playing back the still
images in order
(SLIDE SHOW)
This function plays back the recorded
still images one after another.
This function is useful for checking the
recorded images or for presentations,
etc.
1
To cancel the slide show
Select [CANCEL] in step 2 or 3.
To skip to the next/previous
image during the slide show
Select \b/B\ at the lower-left on the
LCD screen.
Note
The interval setting time may vary
depending on the image size.
2, 3
1
Set the PLAY/STILL/MOVIE
selector to PLAY.
2
Select [FILE] and then [SLIDE
SHOW] from the menu.
Set the following items.
INTERVAL
You can select from 1 min (one
minute), 30 sec (30 seconds),
10 sec (10 seconds), 5 sec
(5 seconds), or 3 sec (3 seconds).
REPEAT
ON: Plays back images
continuously in a loop until
[RETURN] is selected (the slide
show stops automatically after
approximately 20 minutes* when
the image is played back from a
floppy disk).
OFF: After all images have been
played back, the slide show ends.
∗ The slide show does not end until all
the images are played back, even if it
takes more than 20 minutes.
3
Select [START].
The slide show begins.
72
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[D:\WORKS\Mavica\2nd\3066742111MVCFD92UC\02GBMVCFD92UC\07adv.fm]
masterpage:Right
01cov.book Page 73 Thursday, November 29, 2001 1:20 PM
Viewing images on a
TV screen
You can play back the recorded images
by connecting your camera to the TV.
Before connecting your camera, be
sure to turn off the TV, connect the
VIDEO connecting cable, and turn on
the TV.
Set the TV/VIDEO
switch to
“VIDEO”.
To VIDEO
INPUT jack
VIDEO
connecting
cable
(supplied)
To VIDEO OUT jack
Connect the VIDEO
connecting cable to the
VIDEO OUT jack of your
camera and to the VIDEO
INPUT jack of the TV.
2
Turn on the TV and start
playback on your camera.
The playback image appears on the
TV screen.
B Various playback
1
Note
• You cannot use a TV that has an antenna
(aerial) connector only.
• When viewing a still image on the TV, the
black band may appear around the image.
73
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\08adv.fm]
masterpage:Left
01cov.book Page 74 Thursday, November 29, 2001 1:20 PM
B Editing
Preventing accidental
erasure (PROTECT)
This function is used to prevent any
valuable images that you have
recorded from being erased
accidentally.
The - (protect) indicator appears on
protected images.
Note:
If you format a floppy disk or a “Memory
Stick”, all images are erased even when they
are protected.
2
Select [FILE], [PROTECT],
and then [ALL] or [SELECT]
from the menu.
3
When you select [ALL]
Select [ON].
All the images in the floppy disk or
the “Memory Stick” are protected.
When you select [SELECT]
Select all the images to be
protected with the control button,
then select [ENTER]. The selected
images are protected.
SELECT
1
2, 3
In single mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the image to be
protected.
2
Select [FILE], [PROTECT],
and then [ON] from the menu.
The displayed image is protected
and the - indicator appears.
PROTECT
OK
0001-0006/0040
ENTER CANCEL
To release protection
If you selected [ALL] in step 2, select
[OFF]. If you selected [SELECT] in
step 2, select the images to be
unprotected with the control button,
then select [ENTER].
To release protection
Select [OFF] in step 2.
In INDEX mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the INDEX screen.
74
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\08adv.fm]
masterpage:Right
01cov.book Page 75 Thursday, November 29, 2001 1:20 PM
3
Deleting images
(DELETE)
You can delete the images that are no
longer required.
Protected images cannot be deleted.
1
When you select [ALL]
Select [ENTER].
All the unprotected images are
deleted.
When you select [SELECT]
Select all the images to be deleted
with the control button, then select
[ENTER]. The
(delete)
indicator appears on the selected
images and these images are
deleted.
2, 3
In single mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the image to be
deleted.
2
Select [DELETE] and then
[OK] from the menu.
The image is deleted.
In INDEX mode
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the INDEX screen.
2
Select [DELETE] and then
[ALL] or [SELECT] from the
menu.
DELETE
OK
0001-0006/0040
ENTER CANCEL
To cancel deleting
Select [CANCEL] in step 2 or 3.
Note
If there are files on the “Memory Stick”
with names having the same last 4 digits as
the file name of the image to be deleted,
these files are also deleted at the same time.
B Editing
1
SELECT
75
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\08adv.fm]
masterpage:Left
01cov.book Page 76 Thursday, November 29, 2001 1:20 PM
Changing the
recorded still image
size (RESIZE)
Use this function when you need a
small-size image to attach it to an
E-mail. The original image is retained
even after resizing. The resized image
is recorded as the newest file.
1
2, 3
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the image of which
you want to change the size.
2
Select [TOOL] and then
[RESIZE] from the menu.
3
Select the desired size.
• MVC-FD100:
When the MS/FD selector is
set to FD
1280×960, 1024×768, 640×480
When the MS/FD selector is
set to MS
1280 (FINE), 1024 (FINE),
640 (FINE)
To cancel changing the size
Select [CANCEL] in step 3.
Notes
• You cannot change the size of images
recorded in TEXT mode, moving images,
uncompressed images, or Clip Motion
images.
• When you change from a small size to a
large size, the picture quality deteriorates.
• If you resize the recorded still image, the
space remaining on a floppy disk or a
“Memory Stick” will decrease.
• You may not be able to resize a recorded
still image if there is insufficient space
remaining on a floppy disk or a “Memory
Stick.”
• You cannot resize the recorded still image
to an image size of 3:2.
• If you resize a 3:2 size recorded still image
to another size, a black band will be
displayed above and below the resized
image.
• You cannot resize the recorded still image
in the index screen.
• MVC-FD200:
When the MS/FD selector is
set to FD
1600×1200, 1024×768, 640×480
When the MS/FD selector is
set to MS
1600 (FINE), 1024 (FINE),
640 (FINE)
The resized image is recorded,
then the display returns to the
image display before resizing.
76
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\08adv.fm]
masterpage:Right
01cov.book Page 77 Thursday, November 29, 2001 1:20 PM
4
Copying images
(COPY)
Copies images to another floppy disk
or “Memory Stick.”
In single mode
2
• When the MS/FD selector is
set to MS.
MS t MS
Copies to the “Memory Stick”
MS t FD
Copies to the floppy disk
1
5
3, 4
1
Select the media using the
MS/FD selector.
2
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the image to be
copied.
3
Select [TOOL], and then
[COPY] from the menu.
Select the media that the
image will be copied onto.
• When the MS/FD selector is
set to FD.
FD t FD
Copies to the floppy disk
FD t MS
Copies to the “Memory Stick”
When you select [FD t MS] or
[MS t FD], the camera
automatically starts copying if the
floppy disk and “Memory Stick”
are inserted.
5
Insert or change the floppy
disk or the “Memory Stick”
following the messages on
the LCD screen.
“RECORDING” appears. When
copying is completed,
“COMPLETE” appears.
To end copying, select [EXIT].
After “COMPLETE” appears in step 5,
select [CONTINUE] and repeat step 5
above.
77
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Editing
To continue copying the
image to other floppy disks
or “Memory Stick”s
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\08adv.fm]
masterpage:Left
01cov.book Page 78 Thursday, November 29, 2001 1:20 PM
In INDEX mode
5
When you select [ALL]*
Select [OK].
∗ [ALL] can be selected only when
selecting [FD t FD] or [FD t
MS].
2
When you select [SELECT]**
Select all the images to be copied
with the control button. The
mark appears on the selected
images and then select [ENTER].
∗∗ When selecting [MS t FD], the
1
6
3, 4, 5
1
Select the media using the
MS/FD selector.
2
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the INDEX screen.
3
Select [TOOL], and then
[COPY] from the menu.
4
Select the media that the
image will be copied onto.
• When the MS/FD selector is
set to FD.
FD t FD
Copies to the floppy disk
FD t MS
Copies to the “Memory Stick”
• When the MS/FD selector is
set to MS.
MS t MS
Copies to the “Memory Stick”
MS t FD
Copies to the floppy disk
necessary number of floppy disks
appears after selecting [ENTER].
Select [OK] again.
6
Insert or change the floppy
disk or the “Memory Stick”
following the messages on
the LCD screen.
“RECORDING” appears. When
copying is completed,
“COMPLETE” appears.
To end copying, select [EXIT].
To continue copying the
image to other floppy disks
or “Memory Stick”s
After “COMPLETE” appears in step 6,
select [CONTINUE] and repeat step 6.
When selecting [MS t FD], if the
amount of total images that will be
copied is too large to copy to one
floppy disk, the images will be copied
using multiple floppy disks.
To cancel copying partway
Select [CANCEL].
78
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\08adv.fm]
masterpage:Right
01cov.book Page 79 Thursday, November 29, 2001 1:20 PM
Notes
• You cannot copy uncompressed images.
• You cannot copy the image that is bigger
than 1.4 MB.
• You cannot copy the images that the total
amount of the images is bigger than
1.4 MB. If “NOT ENOUGH MEMORY”
appears or
flashes on the INDEX
screen, cancel some images to copy and try
again.
• If you eject and insert the floppy disk or
the “Memory Stick” without selecting
[EXIT] after “COMPLETE” appears, the
image will be copied.
• The number of floppy disks that is needed
for copying is as a guide, which is
displayed when selecting [MS t FD].
Copying all the
information on your
floppy disk (DISK
COPY)
You can copy to another disk not only
the images you have recorded with
your camera but also various files you
have created in other software with
your computer.
Notes
• Once you carry out DISK COPY, all
information saved on the recipient floppy
disk is erased to be replaced by newly
written data including the protected image
data. Check the contents of the recipient
disk before copying the disk.
• Be sure to use the floppy disk that has been
formatted by this camera to carry out
DISK COPY (page 81).
1, 4
3
1
2
Set the MS/FD selector to FD,
then insert the floppy disk to
be copied.
2
Select [FILE], [DISK TOOL],
[DISK COPY], and then [OK]
from the menu.
“DISK ACCESS” appears.
3
When “CHANGE FLOPPY
DISK” is displayed, eject the
floppy disk.
“INSERT FLOPPY DISK”
appears.
79
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Editing
1
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\08adv.fm]
masterpage:Left
01cov.book Page 80 Thursday, November 29, 2001 1:20 PM
4
Insert another floppy disk.
“RECORDING” appears. When
copying is completed,
“COMPLETE” appears.
To end copying, select [EXIT].
To continue copying to other
floppy disks
After “COMPLETE” appears in step 4,
select [CONTINUE] and repeat steps 3
and 4 above.
Selecting still images
to print (PRINT MARK)
You can mark a print mark on still
images recorded with your camera.
This mark is convenient when you
have images printed at a shop that
conforms with the DPOF (Digital Print
Order Format) standard.
To cancel copying partway
1
Select [CANCEL].
2, 3, 4
Note
If you eject and insert the floppy disk
without selecting [EXIT] after
“COMPLETE” appears, DISK COPY will
be carried out onto the floppy disk.
In single mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY and display
the image you want to print.
2
Select [FILE], [PRINT MARK],
and then [ON] from the menu.
The
(print) mark is marked on
the displayed image.
To unmark the print mark
Select [OFF] in step 2.
In INDEX mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the INDEX screen.
2
Select [FILE], [PRINT MARK],
and then [SELECT] from the
menu.
3
Select the images to be
marked with the control
button.
80
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\08adv.fm]
masterpage:Right
01cov.book Page 81 Thursday, November 29, 2001 1:20 PM
4
Select [ENTER].
The
marks on the selected
images change from green to
white.
PRINT MARK
SELECT
OK
0001-0006/0100
ENTER CANCEL
Format
When you format a floppy disk or a
“Memory Stick,” all data stored on the
floppy disk or the “Memory Stick” will
be deleted. Check the contents of the
floppy disk or the “Memory Stick”
before formatting.
Note
Even if images are protected, these images
will be deleted.
To unmark selected print
marks
Select the images to be unmarked in
step 3 with the control button, then
select [ENTER].
To unmark all the print
marks
Select [FILE], [PRINT MARK],
[ALL], and then [OFF] from the menu.
The
marks on all images are
removed.
1
2
3
Select the floppy disk or the
“Memory Stick” using the
MS/FD selector.
2
Insert only the floppy disk or
the “Memory Stick” you want
to format.
Be sure to insert only the media
you want to format.
3
Select [FILE] from the menu.
• When formatting a floppy disk
Select [DISK TOOL],
[FORMAT], and then [OK] from
the menu.
• When formatting a “Memory
Stick”
Select [FORMAT], and then
[OK] from the menu.
To print out using the FVP-1
Mavica Printer
Set PRESET SELECT SW to PC on
the printer.
Notes
• You cannot mark moving images, Clip
Motion images or images recorded in
TEXT mode.
• If you mark an image recorded in TIFF
mode with a print mark, only the
uncompressed image is printed, and the
JPEG image recorded at the same time is
not printed.
To cancel formatting
Select [CANCEL] in step 3.
81
model name1[MVC-FD100/200]
[3-073-074-11(1)]
B Editing
1
Notes
• Format the floppy disk or the
“Memory Stick” only using this
camera. You cannot format the
floppy disk or the “Memory Stick”
using a computer via the USB cable.
• When you format, be sure to use a fully
charged battery pack or the AC power
adaptor as the power source.
B As an external drive
Using the camera as
an external drive of a
computer
Once you connect the camera to a
computer using the USB cable, you
can use the camera as a floppy disk/
“Memory Stick” drive of a computer.
Install the USB driver to the computer
beforehand (pages 29, 35).
Example:
For Windows 98, Windows
98SE, Windows 2000,
Windows Me and Windows
XP Users
1
Select the drive type using
the MS/FD selector on this
camera.
When used as the floppy disk
drive, set the MS/FD selector to
FD.
When used as the “Memory Stick”
drive, set the MS/FD selector to
MS.
2
Connect the AC power
adaptor and turn on the
camera.
3
Connect the camera to the
computer using the supplied
USB cable.
82
4
Open “My Computer” on
Windows and check the icon
“Removable Disk,” then use
the camera as an external
drive.
Note
• When using Windows 2000, Windows Me,
or Windows XP, see also page 31.
• The drive symbol ((D:), etc.) may differ
depending on your computer.
• If you are using Mac OS X(v10.0/v10.1),
you can use only a “Memory Stick” with a
computer running Mac OS X(v10.0/
v10.1). Even if you insert a floppy disk,
Mac OS X(v10.0/v10.1) cannot recognize
it. To use data saved on a floppy disk,
copy it to a “Memory Stick” first
(page 77).
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Right
01cov.book Page 83 Thursday, November 29, 2001 1:20 PM
Additional information
Precautions
On cleaning
Cleaning the LCD screen
Wipe the screen surface with a
cleaning cloth (optional) or an LCD
cleaning kit (optional) to remove
fingerprints, dust, etc.
Cleaning the camera surface
Clean the camera surface with a soft
cloth slightly moistened with water,
then wipe the surface dry. Do not use
any type of solvent such as thinner,
alcohol or benzene as this may damage
the finish or the casing.
After using your camera at the
seashore or other dusty locations
On floppy disks
To protect data recorded on floppy
disks, note the following:
• Avoid storing floppy disks near
magnets or magnetic fields such as
those of speakers and televisions.
Otherwise, permanent erasure of disk
data may result.
• Avoid storing floppy disks in areas
subject to direct sunlight or sources
of high temperature, such as a
heating device. Floppy disk warping
or damage may result, rendering the
disk useless.
• Avoid contact with the disk’s surface
by opening the disk shutter plate. If
the disk’s surface becomes
blemished, data may be rendered
unreadable.
On operating temperature
Your camera is designed for use
between the temperatures of 0°C to
40°C (32°F to 104°F). Recording in
extremely cold or hot places that
exceed this range is not recommended.
On moisture condensation
If the camera is brought directly from a
cold to a warm location, or is placed in
a very damp room, moisture may
condense inside or outside the camera.
Should this occur, the camera will not
operate properly.
Moisture condensation occurs
easily when:
• The camera is brought from a cold
location such as a ski slope into a
warmly heated room.
• The camera is taken from an airconditioned room or car interior to
the hot outdoors, etc.
How to prevent moisture
condensation
When bringing the camera from a cold
place to a warm place, seal the camera
in a plastic bag and allow it to adapt to
conditions at the new location over a
period of time (about an hour).
83
model name1[MVC-FD100/200]
[3-073-074-11(1)]
Additional information
Clean your camera carefully.
Otherwise, the salty air may corrode
the metal fittings or dust may enter the
inside of your camera, causing a
malfunction.
• Avoid getting liquids on the floppy
disk.
• Be sure to use a floppy disk case to
ensure protection of important data.
• Even when you use a 3.5-inch 2HD
floppy disk, image data may not be
recorded and/or displayed depending
on the using environment. In this
case, use a disk of other brand.
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Left
01cov.book Page 84 Thursday, November 29, 2001 1:20 PM
If moisture condensation occurs
Immediately eject the floppy disk, then
turn off the camera and wait about an
hour for the moisture to evaporate.
Note that if you attempt to record with
moisture remaining inside the lens, you
will be unable to record clear images.
On AC power adaptor
• Unplug the unit from the wall outlet
(wall socket) when you are not using
the unit for a long time. To
disconnect the power cord (mains
lead), pull it out by the plug. Never
pull the power cord (mains lead)
itself.
• Do not operate the unit with a
damaged cord (mains lead) or if the
unit has been dropped or damaged.
• Do not bend the power cord (mains
lead) forcibly, or place a heavy object
on it. This will damage the cord
(mains lead) and may cause fire or
electrical shock.
• Prevent metallic objects from coming
into contact with the metal parts of
the connecting section. If this
happens, a short may occur and the
unit may be damaged.
• Always keep metal contacts clean.
• Do not disassemble the unit.
• Do not apply mechanical shock or
drop the unit.
• While the unit is in use, particularly
during charging, keep it away from
AM receivers and video equipment.
AM receivers and video equipment
disturb AM reception and video
operation.
• The unit becomes warm during use.
This is not a malfunction.
• Do not place the unit in locations that
are:
— Extremely hot or cold
— Dusty or dirty
— Very humid
— Vibrating
On battery pack
• Use only the specified charger with
the charging function.
• To prevent accident from a short
circuit, do not allow metal objects to
come into contact with the battery
terminals.
• Keep the battery pack away from
fire.
• Never expose the battery pack to
temperatures above 60°C (140°F),
such as in a car parked in the sun or
under direct sunlight.
• Keep the battery pack dry.
• Do not expose the battery pack to any
mechanical shock.
• Do not disassemble nor modify the
battery pack.
• Attach the battery pack to the camera
securely.
• Charging while some capacity
remains does not affect the original
battery capacity.
On the built-in rechargeable
lithium battery
Your camera is supplied with a built-in
rechargeable lithium battery installed
to retain the date/time and various
settings, regardless of the setting of the
POWER switch. The built-in
rechargeable lithium battery is always
charged as long as you are using your
camera. The battery, however, will get
discharged gradually if you do not use
your camera. It will be completely
discharged in about one month if you
do not use your camera at all. Even if
the built-in rechargeable lithium
battery is not charged, it will not affect
the camera operation. To retain the
date and time, etc., charge the battery if
the battery is discharged.
84
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Right
01cov.book Page 85 Thursday, November 29, 2001 1:20 PM
Charging the built-in rechargeable
lithium battery:
• Connect your camera to house
current (mains) using the AC power
adaptor supplied with your camera,
and leave your camera with the
power turned off for more than 24
hours.
• Or install the fully charged battery
pack in your camera, and leave your
camera with the power turned off for
more than 24 hours.
If any problem occurs, unplug your
camera and contact your nearest Sony
dealer.
On “Memory Stick”s
There are two types of “Memory
Stick”s: general “Memory Stick”s and
“MagicGate Memory Stick”s that are
equipped with the MagicGate*
copyright protection technology.
You can use both types of “Memory
Stick” with your camera. However,
because your camera does not support
the MagicGate standards, data
recorded with your camera is not
subject to MagicGate copyright
protection.
∗ MagicGate is copyright protection
technology that uses encryption
technology.
• It is recommended that you make a backup
copy of your important data.
• Do not remove the “Memory Stick” while
reading or writing data.
• Data may be damaged if:
—you remove the “Memory Stick” or turn
off your camera while reading or writing
data.
—you use the “Memory Stick” in a
location subject to the effects of static
electricity or noise.
• Do not attach any other material than the
supplied label on the labeling position.
• When you carry or store the “Memory
Stick,” put it in its supplied case.
• Do not touch the terminals of a “Memory
Stick” with your hand or a metal object.
• Do not strike, bend or drop the “Memory
Stick.”
• Do not disassemble or modify the
“Memory Stick.”
• Do not allow the “Memory Stick” to get
wet.
• Do not use or keep “Memory Stick”s in
locations that are:
—Extremely hot such as in a car parked in
the sun or under the scorching sun.
—Under direct sunlight.
—Very humid or subject to corrosive
gases.
“Memory Stick”,
, “MagicGate
Memory Stick” and
are
trademarks of Sony Corporation.
“MagicGate” and
are trademarks of Sony Corporation.
Using your camera
abroad
Power sources
You can use your camera in any
country or area with the supplied
battery charger within 100 V to 240
V AC, 50/60 Hz. Use a commercially
available AC plug adaptor [a], if
85
model name1[MVC-FD100/200]
[3-073-074-11(1)]
Additional information
“Memory Stick” is a new compact,
portable and versatile IC recording
medium with a data capacity that
exceeds a floppy disk. “Memory Stick”
is specially designed for exchanging
and sharing digital data among
“Memory Stick” compatible products.
Because it is removable, “Memory
Stick” can also be used for external
data storage.
Notes
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Left
01cov.book Page 86 Thursday, November 29, 2001 1:20 PM
necessary, depending on the design of
the wall outlet (wall socket) [b].
AC-L10A/L10B
Watching the playback picture on
TV
If you want to view the playback
picture on a TV, you need a TV having
a video input jack and a video
connecting cable.
The color system of the TV must be
the same as that of your digital still
camera. Check the following list:
NTSC system
Bahama Islands, Bolivia, Canada,
Central America, Chile, Colombia,
Ecuador, Guyana, Jamaica, Japan,
Korea, Mexico, Peru, Surinam,
Taiwan, the Philippines, the U.S.A.,
Venezuela, etc.
PAL system
Australia, Austria, Belgium, China,
Czech Republic, Denmark, Finland,
Germany, Holland, Hong Kong,
Hungary, Italy, Kuwait, Malaysia, New
Zealand, Norway, Poland, Portugal,
Singapore, Slovak Republic, Spain,
Sweden, Switzerland, Thailand, United
Kingdom, etc.
PAL-M system
Brazil
PAL-N system
About “InfoLITHIUM”
battery pack
What is the “InfoLITHIUM” battery
pack?
The “InfoLITHIUM” battery pack is a
lithium-ion battery pack that has
functions for communicating
information related to operating
conditions between your camera and
the AC adaptor/charger (optional).
The “InfoLITHIUM” battery pack
calculates power consumption
according to the operating conditions
of your camera and displays the
remaining battery time in minutes. If
you use the AC adaptor/charger
(optional), it will calculate and display
the operation time and charging
completion time also.
Charging the battery pack
• Be sure to charge the battery pack
before you start using your camera.
• We recommend charging the battery
pack in an ambient temperature of
between 10°C to 30°C (50°F to 86°F)
until the POWER ON/OFF (CHG)
lamp goes out, indicating that the
battery pack is fully charged. If you
charge the battery pack outside of
this temperature range, you may not
be able to efficiently charge the
battery pack.
• After charging is completed, either
disconnect the AC power adaptor
from the DC IN jack on your camera
or remove the battery pack.
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Guiana, Iran, Iraq,
Monaco, Russia, Ukraine, etc.
86
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Right
01cov.book Page 87 Thursday, November 29, 2001 1:20 PM
Effective use of the battery pack
Remaining battery time indicator
• If the power goes off although the
battery remaining indicator indicates
that the battery pack has enough
power to operate, charge the battery
pack fully again so that the indication
on the battery remaining indicator is
correct. Note, however, that the
correct battery indication sometimes
will not be restored if it is used in
high temperatures for a long time or
left in a fully charged state, or the
battery pack is frequently used.
Regard the remaining battery time
indication as the approximate
shooting time.
• The E mark indicating there is little
remaining battery time sometimes
flashes depending on the operating
conditions or ambient temperature
and environment even if the
remaining battery time is 5 to 10
minutes.
How to store the battery pack
• If the battery pack is not used for a
long time, do the following
procedure once per year to maintain
proper function.
1. Fully charge the battery.
2. Discharge on your camera.
3. Remove the battery from your
camera and store it in a dry, cool
place.
• To use the battery pack up on your
camera, leave the POWER switch to
on in PLAY mode until the power
goes off without a floppy disk or a
“Memory Stick” inserted.
Battery life
• The battery life is limited. Battery
capacity decreases little by little as
you use it more and more, and as
time passes. When the battery
operating time is shortened
considerably, a probable cause is that
the battery pack has reached the end
of its life. Please buy a new battery
pack.
• The battery life varies according to
how it is stored and operating
conditions and environment for each
battery pack.
87
model name1[MVC-FD100/200]
[3-073-074-11(1)]
Additional information
• Battery performance decreases in
low-temperature surroundings. So,
the time that the battery pack can be
used is shorter in cold places. We
recommend the following to use the
battery pack longer:
— Put the battery pack in a pocket
close to your body to warm it up,
and insert it in your camera
immediately before you start
taking shots.
— Use the large capacity battery
pack (NP-F550, optional).
• Frequently using the LCD panel or
frequently operating the zoom wears
out the battery pack faster. We
recommend using the large capacity
battery pack (NP-F550, optional).
• Be certain to turn the POWER switch
to off when not taking shots or
playing back on your camera.
• Procure spare batteries that can last
two or three times longer than the
expected recording time. Also, make
a trial recording before you record
the actual images.
• Do not expose the battery pack to
water. The battery pack is not waterresistant.
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Left
01cov.book Page 88 Thursday, November 29, 2001 1:20 PM
Troubleshooting
If you experience trouble with your camera, first check the following items. Should
your camera still not operate properly after you have made these checks, consult your
Sony dealer or local authorized Sony service facility. If code displays (C:ss:ss)
appear on the LCD screen, the self-diagnosis display function is working
(page 95).
Symptom
Cause and/or Solution
Your camera does not
work.
• You are not using an “InfoLITHIUM” battery pack.
t Use an “InfoLITHIUM” battery pack (page 9).
• The floppy disk is not inserted properly.
t Eject the disk, and insert it again (page 16).
• The battery level is too low. (The
indicator
appears.)
t Charge the battery pack fully (page 10).
• The AC power adaptor is not connected securely.
t Connect it securely to the DC IN jack and a wall
outlet (wall socket) (pages 10, 13).
• The malfunction occurs inside the camera.
t Turn off the power, and turn on after one
minute, then check that the camera works
properly.
Your camera cannot
record images.
• The PLAY/STILL/MOVIE selector is set to PLAY.
t Set it to STILL or MOVIE (pages 18, 23).
• No floppy disk is inserted into your camera.
t Insert a floppy disk (page 16).
• The tab on the disk is set to the unrecordable
position.
t Set it to the recording position (page 16).
• No “Memory Stick” is inserted into your camera.
t Insert a “Memory Stick” (page 17).
• The write-protect switch on the “Memory Stick” is
set to LOCK.
t Set it to the recording position.
The picture is out of focus.
• Your camera is not in macro recording mode when
you shoot a subject that is about 3 to 25 cm
(1 3/16 to 9 7/8 inches) away from the lens.
t Set the macro recording mode (page 64).
t Move the zoom lever to the W side.
The resizing function does
not work.
• You cannot resize moving images, text images, Clip
Motion images, and uncompressed images.
88
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Right
01cov.book Page 89 Thursday, November 29, 2001 1:20 PM
Cause and/or Solution
You cannot display a print
mark.
• You cannot display print marks on moving images,
text images and Clip Motion images.
The picture is noisy.
• Your camera is placed near a TV or other
equipment that uses strong magnets.
t Move your camera away from the TV, etc.
The picture is too dark.
• You are shooting a subject with a light source
behind the subject.
t Adjust the exposure (page 67).
• The brightness of the LCD screen is too low.
t Adjust the brightness of the LCD screen
(page 20).
The flash does not work.
• The flash is set to
.
t Set the flash to (no indication),
, or
(page 22).
• The camera is in one of the following PROGRAM
AE modes: Twilight, Twilight plus, or Landscape.
t Cancel the PROGRAM AE function or set the
flash to
(pages 22, 65).
• The PLAY/STILL/MOVIE selector is set to
MOVIE.
t Set it to STILL.
The date and time are
recorded incorrectly.
• The date and time are not set correctly.
t Set the correct date and time (page 14).
Vertical streaks appear
when you are shooting a
very bright subject.
• This is called the smear phenomenon.
t This is not a malfunction.
The zoom does not work.
• PROGRAM AE is set to the Panfocus mode.
t Cancel the Panfocus mode (page 65).
Digital zoom does not
work.
• You cannot use digital zoom when recording
moving pictures.
• Digital zoom is set to [OFF].
t Set digital zoom to [ON] at the menu.
The image is in
monochrome.
• You shot the image in TEXT mode.
t Cancel the TEXT mode (page 62).
• The picture effect is set to B&W.
t Cancel the B&W mode (page 69).
The image cannot be
played back on a
computer.
t Consult the computer or software manufacturer.
89
model name1[MVC-FD100/200]
[3-073-074-11(1)]
Additional information
Symptom
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Left
01cov.book Page 90 Thursday, November 29, 2001 1:20 PM
Symptom
Cause and/or Solution
The moving image breaks
off when you play back an
image on a computer.
• You are playing back the file from the floppy disk
or the “Memory Stick.”
t Copy the file to the hard disk of the computer
and then play back the file from the hard disk
(page 32).
Your camera cannot delete
an image.
• The image is protected.
t Cancel the protection (page 74).
The power turns off
suddenly.
• With the PLAY/STILL/MOVIE selector set to
STILL or MOVIE, if you do not operate the camera
for about three minutes while the power is on, the
camera turns off automatically to prevent wearing
down the battery pack.
t Turn on the camera.
• The battery pack is discharged.
t Replace it with a fully charged battery pack.
The image does not
appear on the TV screen.
• The VIDEO OUT setting of your camera is
incorrect.
t Change the setting (page 55).
The slide show function
stops automatically.
• The slide show function stops after about
20 minutes when using a floppy disk.
t To continue the slide show, select [START]
again (page 72).
You cannot use the
PROGRAM AE function.
• Your camera is set to TEXT mode or the PLAY/
STILL/MOVIE selector is set to MOVIE.
t Set the PLAY/STILL/MOVIE selector to STILL
and change the setting (pages 53, 54).
The macro function does
not work.
• PROGRAM AE is set to the Panfocus mode.
t Cancel the Panfocus mode (page 65).
90
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Right
01cov.book Page 91 Thursday, November 29, 2001 1:20 PM
Cause and/or Solution
Your computer does not
recognize your camera.
• The battery level is low.
t Use the AC power adaptor (page 13).
• The camera is turned off.
t Turn on the camera.
• The USB cable is not connected firmly.
t Disconnect the USB cable, and connect it again
firmly. Make sure that “USB MODE” is
displayed on the LCD screen (page 30).
• The USB connectors on your computer are
connected to other equipment besides the keyboard,
the mouse, and your camera.
t Disconnect the USB cables except for the ones
connected to the keyboard, the mouse, and your
camera.
• The position of the MS/FD selector is not set to the
proper position for the media being used.
t Set the MS/FD selector to the proper position.
• The USB driver is not installed.
t Install the USB driver (page 29).
• For Windows 98, Windows 98SE, Windows
2000 and Windows Me users
Since the camera is connected to a computer using
the USB cable before installing the USB driver, the
drive is not recognized properly by the computer.
t Delete the drive which is not recognized
properly, then install the USB driver. For details,
see the procedure on page 33.
Battery packs
Symptom
Cause and/or Solution
The battery pack cannot
be charged.
• The power of the camera is turned on.
t Turn off the power of the camera (page 10).
The battery life is short.
• You are recording/playing back images under
extremely cold temperatures.
• The battery pack is not charged enough.
t Charge the battery pack fully.
• The battery pack is dead.
t Replace the battery pack with a new one.
91
model name1[MVC-FD100/200]
[3-073-074-11(1)]
Additional information
Symptom
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Left
01cov.book Page 92 Thursday, November 29, 2001 1:20 PM
Symptom
Cause and/or Solution
The indication of the
battery remaining time is
not proper, or the power is
immediately turned off
even if the battery
remaining indicator
indicates that the battery
level is sufficient.
• You are using the camera for many hours under
extremely hot or cold temperatures.
• The battery pack is dead.
t Replace the battery pack with a new one
(page 9).
• The battery level is too low.
t Install the fully charged battery pack (pages 9,
10).
• A deviation has occurred in the remaining battery
time.
t Charge the battery pack fully (page 10).
The POWER ON/OFF
(CHG) lamp flashes when
charging a battery pack.
• A malfunction has occurred in the battery pack.
t Contact your Sony dealer or local authorized
Sony service facility.
The POWER ON/OFF
(CHG) lamp does not light
up when charging a
battery pack.
• The AC power adaptor is not connected.
t Connect the power cord firmly to a wall outlet
(wall socket) (page 10).
• The battery pack is not installed properly.
t Install it properly (page 9).
• Charging of the battery pack is complete.
92
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Right
01cov.book Page 93 Thursday, November 29, 2001 1:20 PM
Warning and notice messages
Various messages appear on the LCD screen. Check the corresponding descriptions
in the following list.
Message
Meaning
DRIVE ERROR
There is trouble with the disk drive.
SYSTEM ERROR
Turn the power off and on again.
No disk is inserted.
NO MEMORY STICK
No “Memory Stick” is inserted.
FORMAT ERROR
• The floppy disk loaded is not MS-DOS
formatted (512 bytes × 18 sectors).
• Failed to format the “Memory Stick.”
• The Floppy Disk Adaptor for Memory
Stick is inserted.
MEMORY STICK ERROR
The inserted “Memory Stick” cannot be
used with your camera, or the “Memory
Stick” is damaged or not inserted
correctly.
DISK PROTECT
The tab on the disk is set to the
unrecordable position.
MEMORY STICK LOCKED
The write-protect switch on the
“Memory Stick” is set to the LOCK
position.
Additional information
NO DISK
DISK FULL
The disk is full.
NO MEMORY SPACE
The capacity of the “Memory Stick” is
not sufficient to record images.
NO FILE
No image is recorded in a floppy disk or
a “Memory Stick.”
FILE ERROR
Trouble has occurred during playback.
FILE PROTECT
The image is protected.
DISK ERROR
A 2DD floppy disk is inserted, or there is
trouble with the disk.
DIRECTORY ERROR
A directory with the same name already
exists.
NOT ENOUGH MEMORY
The remaining capacity of the floppy
disk or the “Memory Stick” is not
enough to copy the image.
93
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Left
01cov.book Page 94 Thursday, November 29, 2001 1:20 PM
Message
Meaning
IMAGE SIZE OVER
You tried to play back images with an
image size larger than the maximum
playback size of this camera.
INVALID OPERATION
You are playing back a file that was
created on equipment other than your
camera.
for “InfoLITHIUM” battery only
The battery is not the “InfoLITHIUM”
type.
-
The image is protected.
The battery level is too low. When the
remaining time is about 5 to 10 minutes,
E may flash depending on the battery
pack used, operating conditions, or the
environment.
94
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Right
01cov.book Page 95 Thursday, November 29, 2001 1:20 PM
Self-diagnosis display
Your camera has a self-diagnosis display. This
function displays the camera condition on the
LCD screen with a combination of a letter and
four digits of numbers. If this appears, check the
following code chart. The code informs you of the
camera’s current condition. The last two digits
(indicated by ss) will differ depending on the
state of the camera.
Self-diagnosis display
• C: ss: ss
You can correct the problem by
yourself.
• E: ss: ss
Contact your Sony dealer or local
authorized Sony service facility.
Cause and/or Corrective Action
C:32:ss
• There is trouble with the disk drive.
t Turn the power off and on again.
C:13:ss
• An unformatted floppy disk or
“Memory Stick” is inserted.
t Format the floppy disk or the
“Memory Stick.” (page 81)
• A floppy disk or a “Memory Stick” not
compatible with this camera is inserted.
t Change the floppy disk or the
“Memory Stick.” (pages 16, 17)
E:61:ss
E:91:ss
• A camera malfunction that you cannot
repair has occurred.
t Contact your Sony dealer or local
authorized Sony service facility and
inform them of the 5-digit
indication. (example: E:61:10)
If you are unable to rectify the problem even if you try corrective actions a
few times when C:ss:ss is indicated, contact your Sony dealer or local
authorized Sony service facility.
95
model name1[MVC-FD100/200]
[3-073-074-11(1)]
Additional information
Code
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Left
01cov.book Page 96 Thursday, November 29, 2001 1:20 PM
Specifications
System
LCD screen
Image device
6.64 mm (1/2.7 type)
Color CCD
Effective pixels number
of camera
MVC-FD100:
Approx. 1 228 000 pixels
MVC-FD200:
Approx. 1 976 000 pixels
Lens
3× zoom lens
f = 6.4 – 19.2 mm (9/32 –
25/32 inches)
(41 – 123 mm
(1 5/8 – 4 7/8 inches) when
converted into a 35 mm still
camera)
F = 3.8 – 3.9
Exposure control
Automatic exposure
White balance
Automatic, Indoor, Outdoor,
Hold
Data system
Movie: MPEG
Still: JPEG, GIF (in TEXT
mode, Clip Motion), TIFF
MPEG
Recording medium
Floppy disk:
3.5-inch 2HD MS-DOS
format (1.44 MB)
“Memory Stick”
Flash
Recommended recording
distance (ISO set to AUTO):
0.5 m to 2.0 m (1 2/3 feet to
6 2/3 feet)
LCD panel
6.2 cm (2.5 type)
TFT (Thin Film Transistor
active matrix) drive
Total number of dots
123 200 (560×220) dots
Input and Output
connector
VIDEO OUT
Minijack
Video: 1 Vp-p, 75 Ω,
unbalanced, sync negative
USB jack
mini-B
General
Application
Sony battery pack NP-F330
(supplied)/F550 (Optional)
Power requirements
7.2 V
Power consumption
(During shooting and
LCD backlight is on)
MVC-FD100: 3.5 W
MVC-FD200: 3.6 W
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to +60°C (–4°F to
+140°F)
Dimensions (Approx.)
142 × 104 × 77 mm (5 1/2 ×
4 × 3 inches) (w/h/d)
Mass (Approx.)
645 g (1 lb 7 oz)
(including NP-F330 battery
pack, floppy disk and lens
cap, etc.)
AC-L10A/L10B
AC power adaptor
Power requirements
100 to 240 V AC, 50/60 Hz
Rated output voltage
DC 8.4 V, 1.5 A in operating
mode
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
−20°C to +60°C (−4°F to
+140°F)
Dimensions (Approx.)
125×39×62 mm (5×1 9/16×
2 1/2 inches) (w/h/d)
Mass (Approx.)
280 g (10 oz)
NP-F330 battery
pack
Battery type
Lithium ion
Maximum output
voltage
DC 8.4 V
Mean output voltage
DC 7.2 V
Capacity
5.0 Wh (700 mAh)
Operating temperature
0°C to 40°C (32°F to 104°F)
Dimensions (Approx.)
38.4×20.6×70.8 mm
(1 9/16×13/16×2 7/8 inches)
(w/h/d)
Mass (Approx.)
70 g (2 oz)
Accessories
AC-L10A/L10B
AC power adaptor (1)
Power cord (mains lead) (1)
USB cable (1)
NP-F330 battery pack (1)
VIDEO connecting cable (1)
Shoulder strap (1)
Lens cap (1)
Lens cap strap (1)
CD-ROM (SPVD-008 USB
Driver) (1)
Operating instructions (1)
Design and specifications
are subject to change
without notice.
96
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Right
01cov.book Page 97 Thursday, November 29, 2001 1:20 PM
LCD screen indicators
The indicators during recording
1
2
3
qa
qs
qd
qf
4
5
6
7
8
9
0
120min
10
REC 0:03
5s
1024 3:2
+1.0EV
DATE
SOLARIZE
ISO100
EFFECT FILE
OK
SELECT
B Focus mode indicator/Macro
indicator
C Battery remaining indicator
D Flash level indicator/Flash
mode indicator
O Remaining disk capacity/
Remaining memory capacity
indicator
: Floppy disk
: “Memory Stick”
P Recording time indicator
E PROGRAM AE indicator/Zoom
indicator
Q Self-diagnosis function
indicator/Recording time
indicator
F White balance indicator
R Self-timer indicator
G DATE/TIME indicator
S Spot light-metering indicator
H Picture effect indicator
T Menu bar and guide menu
They appear by pressing v on the
control button and disappear by
pressing V.
I ISO film speed indicator
J EV level indicator
K AE/AF lock indicator
L Recording mode/Clip Motion
indicator
M Image size indicator
N Number of recorded images
97
model name1[MVC-FD100/200]
[3-073-074-11(1)]
Additional information
A Sharpness indicator
CAMERA SETUP
MENU BAR OFF
qg
qh
qj
qk
ql
w;
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\09add.fm]
masterpage:Left
01cov.book Page 98 Thursday, November 29, 2001 1:20 PM
The indicators during still image playback
120min
1
2
3
4
5
MVC-011F
11/12
1024
2002
A Protect indicator/Zoom scaling
indicator
B Print mark indicator
C Recording mode/Clip Motion
indicator
D Image size indicator
E File name*
F Remaining disk capacity/
Remaining memory capacity
indicator
7
4 12:00AM
6
7
8
9
: Floppy disk
: “Memory Stick”
G Number of stored images on a
floppy disk or a “Memory
Stick”
H Image number
I Recording date of the playback
image*
∗ When the menu bar is displayed, this
indicator disappears from the screen.
The indicators during moving image playback
120min
1
2
3
4
5
160
INDEX DELETE FILE
SELECT
OK
A Moving image file indicator
B Image size indicator
C Playback button/pause button
B is displayed during stop, and X
during playback.
D Image searching buttons
E Menu bar and guide menu
6/8
0:10
6
7
8
9
0
TOOL SETUP
MENU BAR OFF
F Remaining disk capacity/
Remaining memory capacity
indicator
: Floppy disk
: “Memory Stick”
G Counter
H Image number/number of
stored images on a floppy disk
or a “Memory Stick”
I Playback image
J Playback bar
98
model name1[MVC-FD100/200]
[3-073-074-11(1)]
filename[G:\_Upload\3073074111\307307411MVCFD100UC\02GBMVCFD100UC\01covIX.fm]
masterpage:Right
01cov.book Page 99 Thursday, November 29, 2001 1:20 PM
I
Index
A
,
AC power adaptor.....10 13
Adjusting brightness
Image...........................67
LCD screen..................20
Auto power-off function ..11
B
Battery pack
Charging ......................10
Installing........................9
Remaining time ...........10
Usable time..................11
BEEP................................56
,
,
J
, ,
JPEG ................. 18 27 41
M
C
Charging ..........................10
Cleaning...........................83
Clip Motion......................59
CLOCK SET....................14
Control button..................48
COPY...............................77
D
DELETE ..........................75
DEMO..............................55
DIGITAL ZOOM .....21 54
DISK COPY ....................79
DISK TOOL ....................51
DPOF ...............................80
,
E
Editing
COPY ..........................77
DELETE......................75
PROTECT ...................74
E-MAIL ...........................61
EXPOSURE.....................67
F
FILE NUMBER...............52
FLASH LEVEL ...............54
Floppy disk
Copying .......................79
Format .........................81
Inserting.......................16
Number of recordable
images
............58 60 61
62 63
Usable type..................16
FORMAT.........................81
Full charge .......................10
,
G
Copying .......................77
Deleting .......................75
File name .....................38
Print mark....................80
Protect .........................74
Size ..............................57
INDEX screen..................70
Indicators on the LCD
screen...........................97
“InfoLITHIUM” battery
pack ........................9 86
ISO film speed ..........54 65
, , ,
, , ,
GIF............. 27 41 59 62
Macro recording...............64
Manual focusing ..............64
“Memory Stick”
Copying .......................77
Format .........................81
Inserting.......................17
Number of recordable
images
............58 60 61
62 63
Menu ................................50
MOBILE mode ................59
Moisture condensation.....83
Moving image
Playback ......................25
Recording ....................23
MPEG .......................23 27
,
, , ,
,
N
Number of recordable
images
Battery pack ................11
Clip Motion .................60
E-mail mode ................61
Image size....................58
TEXT mode.................62
TIFF mode...................63
P
PICTURE EFFECT .........69
PLAY/STILL/MOVIE
selector ........................48
Playing back
INDEX screen .............70
Moving images............25
Slide show ...................72
Still images..................24
Viewing images on a TV
screen..................73
Viewing images using
a computer..........27
Power source
AC power adaptor .......13
Battery pack...................9
PRINT MARK.................80
PROGRAM AE ...............65
PROTECT........................74
R
REC MODE.....................53
Recording
Clip Motion .................59
E-mail mode ................61
In macro.......................64
Moving image .............23
Still image ...................18
TEXT mode.................62
TIFF mode...................63
With flash ....................22
RESIZE............................76
S
Self timer .........................21
Self-diagnosis display ......95
Setting the date and time..14
SHARPNESS...................54
Single display...................70
SLIDE SHOW .................72
Still image
Playback ......................24
Recording ....................18
T
TEXT mode .....................62
TIFF .................................63
U
USB..................................27
Using flash .......................22
Using your camera
abroad ..........................85
V
Viewing images using
a computer ..................27
W
Warning messages ...........93
WHITE BALANCE.........68
Z
Zoom................................20
99
