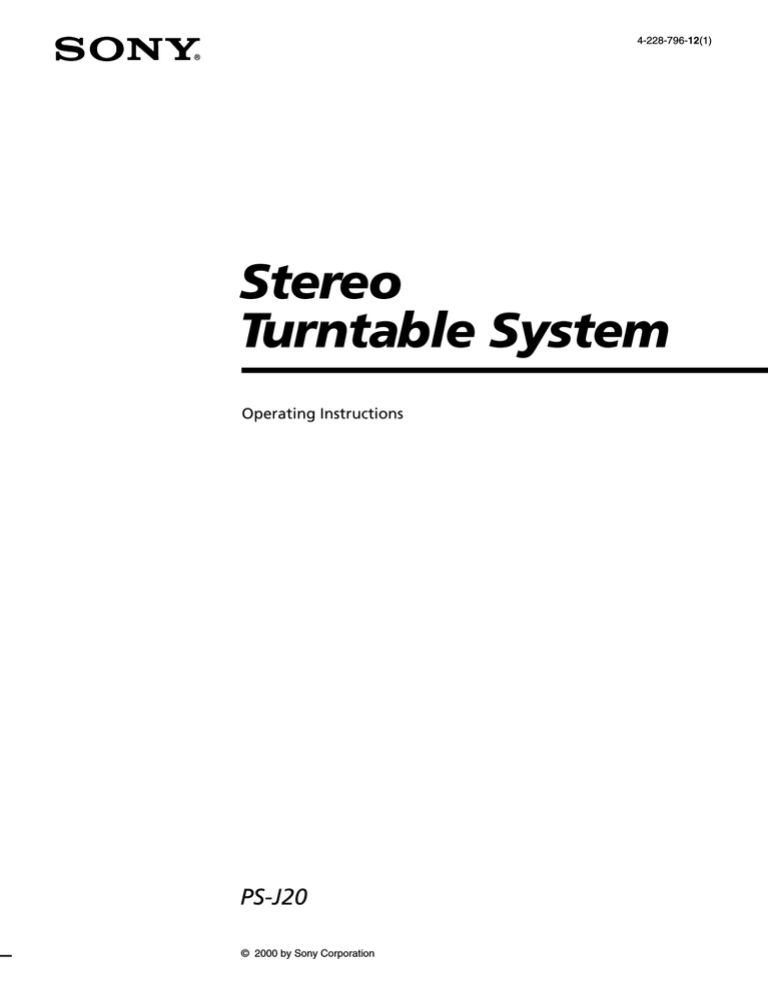

4-228-796-12(1)
Stereo
Turntable System
Operating Instructions
PS-J20
© 2000 by Sony Corporation
WARNING
To reduce the risk of fire
or electric shock, do not
expose this apparatus to
rain or moisture.
Do not install the
appliance in a confined
space, such as a bookcase
or built-in cabinet.
To prevent fire, do not cover the
ventilation of the apparatus with news
papers, table-cloths, curtains, etc. And
don’t place lighted candles on the
apparatus.
To prevent fire or shock hazard, do not
place objects filled with liquids, such as
vases, on the apparatus.
For the customers in the
U.S.A.
This symbol is intended to alert the user
to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.
This symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
You are cautioned that any changes or
modification not expressly approved in
this manual could void your authority
to operate this equipment.
2
For the customers in Canada
CAUTION
TO PREVENT ELECTRIC SHOCK, DO
NOT USE THIS POLARIZED AC PLUG
WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE
EXPOSURE.
NOTICE FOR THE
CUSTOMERS IN THE UNITED
KINGDOM
A moulded plug complying with
BS1363 is fitted to this equipment for
your safety and convenience.
Should the fuse in the plug supplied
need to be replaced, a fuse of the same
rating as the supplied one and approved
by ASTA or BSI to BS1362, (i.e., marked
with mark
or mark) must be used.
If the plug supplied with this equipment
has a detachable fuse cover, be sure to
attach the fuse cover after you change
the fuse. Never use the plug without the
fuse cover.
If you should lose the fuse cover, please
contact your nearest Sony service
station.
Precautions
On safety
• Before operating the unit, check that
the operating voltage of your unit is
identical with that of your local
power supply.
• Should any solid object or liquid fall
into the cabinet, unplug the unit and
have it checked by qualified
personnel before operating it any
further.
• Unplug the unit from the wall outlet
if it is not to be used for an extended
period of time. To disconnect the
cord, pull it out by the plug. Never
pull the cord itself.
• The unit is not disconnected from the
AC power source (mains) as long as it
is connected to the wall outlet, ever if
the unit itself has been turned off.
• The nameplate indicating operating
voltage, power consumption, etc. is
located on the rear exterior.
On placement
• Place the unit on a level surface.
• Avoid placing the unit near electrical
appliances (such as a television, hair
dryer, or fluorescent lamp) which
may cause hum or noise.
• Place the unit where it will not be
subject to any vibration, such as from
speakers, slamming of doors, etc.
• Keep the unit away from direct
sunlight, extremes of temperature,
and excessive dust and moisture.
• Use caution when placing the unit on
surfaces that have been specially
treated (with wax, oil, polish, etc.) as
staining or discoloraion of the surface
may result.
On repacking
Keep the carton and packing materials.
They provide an ideal container to
transport the unit.
If you have any question or problem
concerning your unit that is not covered
in this manual, please consult your
nearest Sony dealer.
Welcome!
Thank you for purchasing the Sony
Stereo Turntable System. Before
operating the unit, please read this
manual thoroughly and retain it for
future reference.
Convention
The following icon is used in this
manual:
z
Indicates hints and tips for
making the task easier.
TABLE OF CONTENTS
Getting Started
Unpacking 3
Assembling the Turntable 4
Setting the Voltage Selector (Only on models supplied with a
voltage selector) 4
Hooking up the Turntable 5
Operations
Playing a Record 6
Additional Information
Maintenance 7
Troubleshooting 8
Specifications 8
Parts and Controls 9
Unpacking
Check that you received the following items with your turntable:
• Rubber mat (1)
• 45 r/min adaptor (1)
3
Getting Started
Assembling the Turntable
Setting the Voltage Selector
(Only on models supplied with
a voltage selector)
Check that the voltage selector is set to the local power
line voltage. If not, set the selector to the correct
position using a screwdriver.
1
1
1
Remove the dust cover.
2
Remove the lid, and set the voltage selector to the
local power line voltage using a screwdriver.
Place the rubber mat on the platter.
To make sure it operates properly, rotate the platter
clockwise once or twice with your hand.
Notes on installation
• Place the turntable on a level surface.
• Avoid placing the unit near electrical appliances (such as a
television, hair dryer, or fluorescent lamp) which may
cause hum or noise.
• Place the turntable where it will not be subject to any
vibration, such as from speakers, slamming of doors, etc.
• Keep the unit away from direct sunlight, extremes of
temperature, and excessive dust and moisture.
110–120V
220–240V
3
4
Replace the lid and close the dust cover.
Getting Started
Hooking up the Turntable
The phono cables and earth lead come attached to the
rear of the cabinet.
1
Connect the cable with the red plug to the right
PHONO IN R input jack on the amplifier and
connect the cable with the white plug to the left
PHONO IN L input jack.
Amplifier
L
PHONO
IN
R
2
Set MM.AMP. on the bottom panel according to
the amplifier connection as follows:
For connection to
Set MM.AMP. to
PHONO IN jacks
OFF
AUX IN or LINE IN jacks
ON
Mains lead hookups
Connect the mains lead to an AC wall outlet after
completing all of the previous connections.
to a wall outlet
Note
Install this system so that the power cord can be
unplugged from the wall socket immediately in the
event of trouble.
5
Operations
To stop playing
Playing a Record
Press REJECT.
To pause playback
4,6
3
5
3
1
2
Set the cueing lever backward to raise stylus off the
record during playback.
To listen to a different part of the record
1
2
3
REJECT
Set the cueing lever backward to raise stylus
during playback.
Move the tone arm to the position you desire.
Set the cueing lever forward.
To play a 17-cm record
1
Place a record on the platter.
Note
Place only one record on the platter at a time. If two or
more records are stacked on the platter, the stylus will
not make proper contact with the grooves and the
quality of reproduction will be impaired.
6
2
Press SPEED to select the speed.
3
Remove the protective cover from the cartridge,
and release the stopper from the tone arm.
4
Set the cueing lever backward.
5
Move the tone arm to the desired position over
the record.
6
Set the cueing lever forward.
The tone arm descends slowly to the record and
playback begins.
7
Adjust the volume on your amplifier.
Place the supplied 45 r/min adaptor on the spindle.
When you have finished using the adaptor, put it back
in the adaptor tray.
Additional Information
Maintenance
Stylus and Record Care
In order to prevent premature stylus and record wear,
the stylus and record should be cleaned before
playback.
To clean the stylus, brush it from back to front using a
good quality stylus cleaning brush. Do not clean the
stylus with your finger tip. When using a fluid stylus
cleaner, make sure not to moisten the stylus too much.
To clean your records, wipe thoroughly using a good
quality record cleaner.
Cleaning the Cabinet and Dust Cover
Clean the cabinet and dust cover periodically using a
soft dry cloth. If stains are difficult to remove, use a
cloth moistened with a mild detergent solution. Do not
use solvents such as alcohol, benzine or thinner, since
they will damage the finish.
Replacing the Stylus
The life expectancy of the stylus tip is about 400 hours.
To preserve maximum sound quality and avoid
damage to your records, we recommend replacing the
stylus within this time limit.
Additional replacement styli (CN-234) are available
from your Sony dealer.
To replace the stylus
1
2
3
Turn off the amplifier.
While holding the cartridge, detach the stylus
assembly as illustrated.
Insert the new stylus into the cartridge.
7
Additional Information
Troubleshooting
Before going through the check list below, first make
sure that:
• The power cord is securely connected.
• The speaker cords are securely connected.
Should any problem persist after you have made these
checks, consult your nearest Sony dealer.
Specifications
Motor and Platter
Drive system
Motor
Platter
Speeds
Wow and flutter
Signal to noise ratio
Belt-drive
DC servo motor
18.5cm, molded aluminum alloy
33 1/3 and 45 r/min, 2 speed
Less than 0.25% (WRMS)
More than 45 dB (DIN-B) with supplied
cartridge
The tone arm skips, skates or does not advance.
b The turntable is not level. Place the turntable on a
level surface.
b The record is dirty or scratched.
Clean the record with a commercially available
record cleaning kit, or replace the record.
Poor sound quality, excessive noise, intermittent sound,
etc…
b The stylus is dirty or worn. Remove dust on the
stylus using a stylus cleaning brush, or replace the
worn stylus (see page 7).
b Dust or dirt has collected on the record. Clean the
record using a good quality record cleaner.
Rumble or low-frequency howl*.
b The turntable is placed too close to speakers. Move
speakers away from the turntable.
Platter does not rotate.
b Make sure the power cord is inserted all the way into
an AC wall outlet.
Sound is too low or distorted.
b The turntable is not connected to the PHONO inputs
on the amplifier (see page 5).
b Set MM.AMP. ON/OFF to the appropriate position
(see page 5).
* This phenomenon, called “acoustic feedback”, occurs
when vibrations from the speakers are transmitted
through the air or via solid objects (such as shelves, a
cabinet, or the floor) to the turntable where they are
picked up by the stylus, amplified and reproduced
through the speakers.
8
Tone Arm
Type
Effective arm length
General
Power requirements
Power consumption
Dimensions
Mass
Static balanced integrate straight arm
204 mm
U.S.A. and Canadian models: 120V AC,
60 Hz
Europe model: 220 – 230 V AC, 50/60
Hz
Other countries: 110 – 120/220 – 240 V
AC, 50/60 Hz
5W
Approx. 280 x 87 x 314 mm (w/h/d)
(11 x 3 7/16 x 12 3/8 inches)
2kg (4 lb 6 oz)
Supplied Accessories
45 r/min adaptor (1)
Rubber mat (1)
Design and specifications are subject to change without notice.
Additional Information
Parts and Controls
1
2
3
4
5
6
7
Voltage selector (inside) (except USA and Europe
models)
Spindle
Rubber mat
Platter
SPEED button
Cartridge
8
9
0
qa
qs
qd
qf
Dust cover
45 r/min adaptor
Hinge
Cueing lever
Tone arm
Arm stand
Finger lift
REJECT button
8
1
2
3
9
0
4
qa
5
qs
6
qd
7
qf
9
10
11
Sony Corporation
Printed in Malaysia
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
