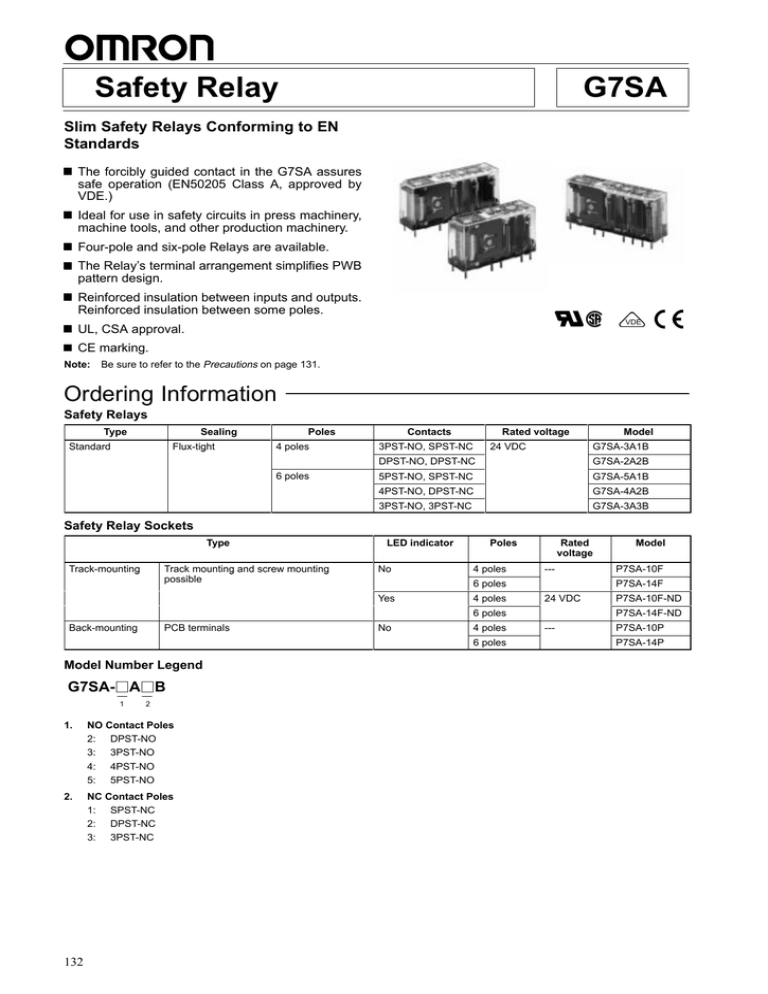

Safety Relay
G7SA
Slim Safety Relays Conforming to EN
Standards
The forcibly guided contact in the G7SA assures
safe operation (EN50205 Class A, approved by
VDE.)
Ideal for use in safety circuits in press machinery,
machine tools, and other production machinery.
Four-pole and six-pole Relays are available.
The Relay’s terminal arrangement simplifies PWB
pattern design.
Reinforced insulation between inputs and outputs.
Reinforced insulation between some poles.
RC
UL, CSA approval.
X
VDE
CE marking.
Note:
Be sure to refer to the Precautions on page 131.
Ordering Information
Safety Relays
Type
Sealing
Standard
S
a da d
Flux-tight
u g
Poles
4 poles
o es
6 poles
o es
Contacts
Rated voltage
24 VDC
C
3PST-NO, SPST-NC
Model
G7SA-3A1B
DPST-NO, DPST-NC
G7SA-2A2B
5PST-NO, SPST-NC
G7SA-5A1B
4PST-NO, DPST-NC
G7SA-4A2B
3PST-NO, 3PST-NC
G7SA-3A3B
Safety Relay Sockets
Type
Track-mounting
ac
ou
g
Track
ac mounting
ou
ga
and
d sc
screw
e mounting
ou
g
possible
ibl
LED indicator
No
o
Poles
4 poles
Rated
voltage
---
6 poles
Yes
es
4 poles
PCB
C terminals
e
as
No
o
4 poles
6 poles
Model Number Legend
G7SA-jAjB
1
2
1.
NO Contact Poles
2: DPST-NO
3: 3PST-NO
4: 4PST-NO
5: 5PST-NO
2.
NC Contact Poles
1: SPST-NC
2: DPST-NC
3: 3PST-NC
132
P7SA-10F
P7SA-14F
24 VDC
C
6 poles
Back-mounting
ac
ou
g
Model
P7SA-10F-ND
P7SA-14F-ND
---
P7SA-10P
P7SA-14P
G7SA
G7SA
Specifications
Ratings
Coil
Rated
voltage
24 VDC
Note:
Rated current
Coil resistance
4 poles: 15 mA
6 poles: 20.8 mA
4 poles: 1,600 Ω
6 poles: 1,152 Ω
Must-operate
voltage
75% max. (V)
Must-release
voltage
10% min. (V)
Max.
voltage
110% (V)
Power consumption
4 poles: Approx. 360 mW
6 poles: Approx. 500 mW
1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of ±15%.
2. Performance characteristics are based on a coil temperature of 23°C.
3. The value given for the maximum voltage is for voltages applied instantaneously to the Relay coil (at an ambient temperature of
23°C) and not continuously.
Contacts
Resistive load (cos φ =1)
Load
Rated load
6 A at 250 VAC, 6 A at 30 VDC
Rated carry current
6A
Max. switching voltage
250 VAC, 125 VDC
Max. switching current
6A
Max. switching capacity (reference value)
1,500 VA, 180 W
Characteristics
Safety Relay Sockets
Model
P7SA-14j
Note:
Continuous current
6 A (see note 1)
Dielectric strength
2,500 VAC for 1 min. between poles
Insulation resistance
100 MΩ min. (see note 2)
1. If the P7SA-1jF is used between 55 and 85°C, reduce the continuous current (from 6A) by 0.1 A for every degree.
2. Measurement conditions: Measurement of the same points as for the dielectric strength at 500 VDC.
3. When using the P7SA-1jF-ND at 24 VDC, use at an ambient operating temperature from –25 to 55°C.
Safety Relays
Contact resistance
100 mΩ max. (The contact resistance was measured with 1 A at 5 VDC using the
voltage-drop method.)
Operating time (see note 2)
20 ms max.
Response time (see note 2)
10 ms max. (The response time is the time it takes for the normally open contacts to open
after the coil voltage is turned OFF.)
Release time (see note 2)
20 ms max.
Maximum
a
u operating
ope a g
f
frequency
Mechanical
36,000 operations/hr
Rated load
1,800 operations/hr
Insulation resistance
100 MΩ min. (at 500 VDC)
(The insulation resistance was measured with a 500-VDC megger at the same places that the
dielectric strength was measured.)
Dielectric strength (see notes 3, 4)
Between coil contacts/different poles: 4,000 VAC, 50/60 Hz for 1 min
(2,500 VAC between poles 3–4 in 4-pole Relays or poles 3–5, 4–6, and 5–6 in 6-pole Relays.)
Between contacts of same polarity: 1,500 VAC, 50/60 Hz for 1 min
Vibration resistance
Shock
S
oc resistance
es s a ce
Life
e expectancy
e pec a cy
10 to 55 Hz, 1.5-mm double amplitude
Destruction
1,000 m/s2
Malfunction
100 m/s2
Mechanical
10,000,000 operations min. (at approx. 36,000 operations/hr)
Electrical
100,000 operations min. (at the rated load and approx. 1,800 operations/hr)
Min. permissible load (see note 5)
(reference value)
5 VDC, 1 mA
Ambient temperature (see note 6)
Operating: –40°C to 85°C (with no icing or condensation)
Storage:
–40°C to 85°C (with no icing or condensation)
Ambient humidity
Operating: 35% to 85%
Storage:
35% to 85%
Weight
4 poles: Approx. 22 g
6 poles: Approx. 25 g
Approved standards
EN61810-1 (IEC61810-1), EN50205, UL508, CSA22.2 No. 14
Note:
1. The values listed above are initial values.
133
G7SA
G7SA
2. These times were measured at the rated voltage and an ambient temperature of 23°C. Contact bounce time is not included.
3. Pole 3 refers to terminals 31–32 or 33–34, pole 4 refers to terminals 43–44, pole 5 refers to terminals 53–54, and pole 6 refers to
terminals 63–64.
4. When using a P7SA Socket, the dielectric strength between coil contacts/different poles is 2,500 VAC, 50/60 Hz for 1 min.
5. Min. permissible load is for a switching frequency of 300 operations/min.
6. When operating at a temperature between 70°C and 85°C, reduce the rated carry current (6 A at 70°C or less) by 0.1 A for each
degree above 70°C.
Dimensions
Note:
All units are in millimeters unless otherwise indicated. The diagrams are drawn in perspective.
Safety Relays
Terminal Arrangement/
Internal Connection Diagram
(Bottom View)
G7SA-3A1B
G7SA-3A1B
G7SA-2A2B
13 max.
Printed Circuit Board
Design Diagram
(Bottom View)
(±0.1 tolerance)
40 max.
Ten, 1.4 dia.
24 max.
0.5
1
0.5
3.5
G7SA-2A2B
Note:
Terminals 23-24, 33-34, and 43-44 are normally open. Terminals 11-12 and 21-22 are
normally closed.
Terminal Arrangement/
Internal Connection Diagram
(Bottom View)
G7SA-5A1B
G7SA-5A1B
G7SA-4A2B
G7SA-3A3B
Printed Circuit Board
Design Diagram
(Bottom View)
(±0.1 tolerance)
13 max.
Fourteen, 1.4 dia.
50 max.
24 max.
G7SA-4A2B
0.5
0.5
1
3.5
G7SA-3A3B
Note:
134
Terminals 23-24, 33-34, 53-54, and 63-64 are
normally open. Terminals 11-12, 21-22, and
31-32 are normally closed.
G7SA
G7SA
Safety Relay Sockets
Terminal Installation/Internal Connection Diagram
(Top View)
Track-mounting Socket
P7SA-10F, P7SA-10F-ND
22.5 max.
G7SA-3A1B
Mounted
G7SA-2A2B
Mounted
* This display circuit is
available only for
“-ND” models.
60.5 max.
Ten, M3
9 max.
Mounting Hole Placement
(Top View)
Two, 4 dia. or M3.5
Note: Terminals 23-24,
33-34, and 43-44
are normally
Diagram open. Terminals
11-12 and 21-22
are normally
closed.
72 max.
LED
indicator
9 max.
Note:
4 dia.
The socket is shown with
the finger cover removed.
Note:
6
Only the -ND Sockets have LED indicators.
Track-mounting Socket
P7SA-14F, P7SA-14F-ND
30 max.
Fourteen,
M3
Terminal Arrangement/Internal Connection Diagram
(Top View)
G7SA-5A1B
G7SA-4A2B
G7SA-3A3B
Mounted
Mounted
Mounted
60.5 max.
9 max.
Mounting Hole Placement Diagram
(Top View)
Two, 4 dia. or M3.5
72 max.
LED
indicator
* This display circuit is
available only for
“-ND” models.
Note: Terminals 23-24,
33-34, 43-44,
53-54, and 63-64
are normally
open. Terminals
11-12, 21-22, and
31-32 are normally closed.
9 max.
4 dia.
Note:
The socket is shown with
the finger cover removed.
Note:
6
Only the -ND Sockets have LED indicators.
135
G7SA
G7SA
P7SA-10P Back-mounting Socket (for PCB)
50 max.
Terminal Arrangement/Internal Mounting Hole Placement
(Bottom View)
Connection Diagram
(Bottom View)
(±0.1 tolerance)
15 max.
G7SA-3A1B
Mounted
Three, 3.2 dia.
(for M3 tapping screws)
41.5 max.
G7SA-2A2B
Mounted
Ten, 1.1 dia.
Three, 2.6 dia.
(for M3 tapping screws)
Note:
Terminals 23-24, 33-34, and 43-44 are normally open. Terminals 11-12 and 21-22
are normally closed.
P7SA-14P Back-mounting Socket (for PCB)
Terminal Arrangement/Internal
Connection Diagram
(Bottom View)
60 max.
15 max.
Mounting Hole Placement
(Bottom View)
(±0.1 tolerance)
G7SA-5A1B
Mounted
Fourteen,
1.1 dia.
41.5 max.
Three, 3.2 dia.
(for M3 tapping
screws)
G7SA-4A2B
Mounted
Three, 2.6 dia.
(for M3 tapping screws)
G7SA-3A3B
Mounted
Note:
136
Terminals 23-24, 33-34, 43-44, 53-54, and 63-64 are normally open. Terminals 11-12, 21-22,
and 31-32 are normally closed.
G7SA
G7SA
Precautions
Safety Relays
Cleaning
A Safety Relay is a Relay with which a safety circuit can be configured.
The G7SA is not of enclosed construction. Therefore, do not wash
the G7SA with water or detergent.
Wiring
Forcibly Guided Contacts (from EN50205)
Use one of the following wires to connect to the P7SA-10F/10FND/14F/14F-ND.
Stranded wire:
0.75 to 1.5 mm2
Solid wire:
1.0 to 1.5 mm2
Tighten each screw of the P7SA-10F/10F-ND/14F/14F-ND to a
torque of 0.98 N S m securely.
Wire the terminals correctly with no mistakes in coil polarity, otherwise the G7SA will not operate.
If an NO contact becomes welded, all NC contacts will maintain a
minimum distance of 0.5 mm when the coil is not energized. Likewise if an NC contact becomes welded, all NO contacts will maintain
a minimum distance of 0.5 mm when the coil is energized.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. J120-E1-1A
137
