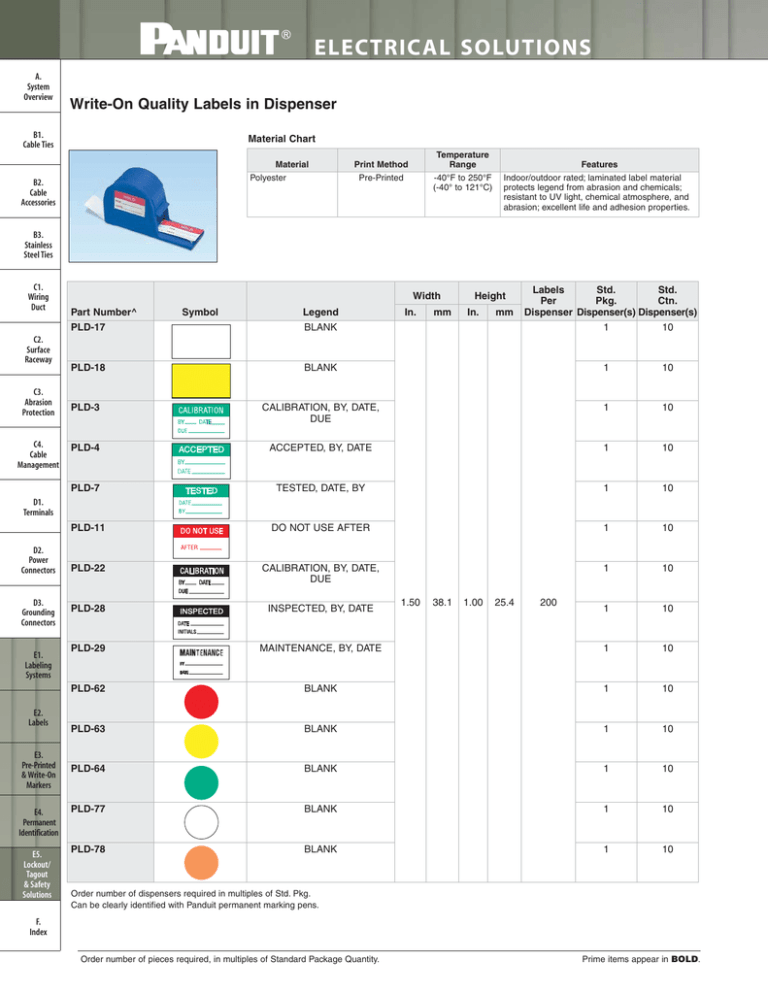

Write-On Quality Labels in Dispenser
B1.
Cable Ties
Material Chart
Material
Polyester
B2.
Cable
Accessories
Temperature
Range
-40°F to 250°F
(-40° to 121°C)
Print Method
Pre-Printed
Features
Indoor/outdoor rated; laminated label material
protects legend from abrasion and chemicals;
resistant to UV light, chemical atmosphere, and
abrasion; excellent life and adhesion properties.
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
Width
Part Number^
PLD-17
Symbol
Legend
BLANK
In.
mm
Height
In.
mm
Labels
Std.
Std.
Per
Pkg.
Ctn.
Dispenser Dispenser(s) Dispenser(s)
1
10
PLD-18
BLANK
1
10
PLD-3
CALIBRATION, BY, DATE,
DUE
1
10
PLD-4
ACCEPTED, BY, DATE
1
10
PLD-7
TESTED, DATE, BY
1
10
PLD-11
DO NOT USE AFTER
1
10
PLD-22
CALIBRATION, BY, DATE,
DUE
1
10
PLD-28
INSPECTED, BY, DATE
1
10
PLD-29
MAINTENANCE, BY, DATE
1
10
PLD-62
BLANK
1
10
PLD-63
BLANK
1
10
PLD-64
BLANK
1
10
PLD-77
BLANK
1
10
PLD-78
BLANK
1
10
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
1.50
38.1
1.00
25.4
200
Order number of dispensers required in multiples of Std. Pkg.
Can be clearly identified with Panduit permanent marking pens.
F.
Index
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
