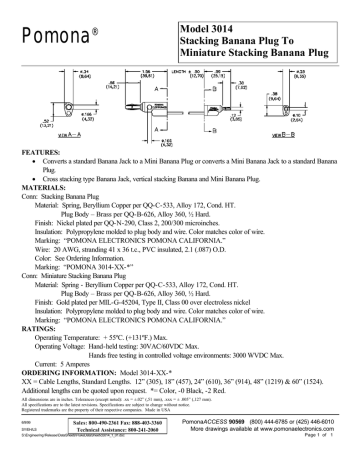

Pomona
®
Model 3014
Stacking Banana Plug To
Miniature Stacking Banana Plug
FEATURES:
• Converts a standard Banana Jack to a Mini Banana Plug or converts a Mini Banana Jack to a standard Banana
Plug.
• Cross stacking type Banana Jack, vertical stacking Banana and Mini Banana Plug.
MATERIALS:
Conn: Stacking Banana Plug
Material: Spring, Beryllium Copper per QQ-C-533, Alloy 172, Cond. HT.
Plug Body – Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Insulation: Polypropylene molded to plug body and wire. Color matches color of wire.
Marking: “POMONA ELECTRONICS POMONA CALIFORNIA.”
Wire: 20 AWG, stranding 41 x 36 t.c., PVC insulated, 2.1 (.087) O.D.
Color: See Ordering Information.
Marking: “POMONA 3014-XX-*”
Conn: Miniature Stacking Banana Plug
Material: Spring - Beryllium Copper per QQ-C-533, Alloy 172, Cond. HT.
Plug Body – Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish: Gold plated per MIL-G-45204, Type II, Class 00 over electroless nickel
Insulation: Polypropylene molded to plug body and wire. Color matches color of wire.
Marking: “POMONA ELECTRONICS POMONA CALIFORNIA.”
RATINGS:
Operating Temperature: + 55ºC. (+131ºF.) Max.
Operating Voltage: Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 3000 WVDC Max.
Current: 5 Amperes
ORDERING INFORMATION: Model 3014-XX-*
XX = Cable Lengths, Standard Lengths. 12” (305), 18” (457), 24” (610), 36” (914), 48” (1219) & 60” (1524).
Additional lengths can be quoted upon request. *= Color, -0 Black, -2 Red.
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
S:\Engineering \Release\DataSheets\FlukeDataSheet\d3014_1_01.doc
PomonaACCESS 90569 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
