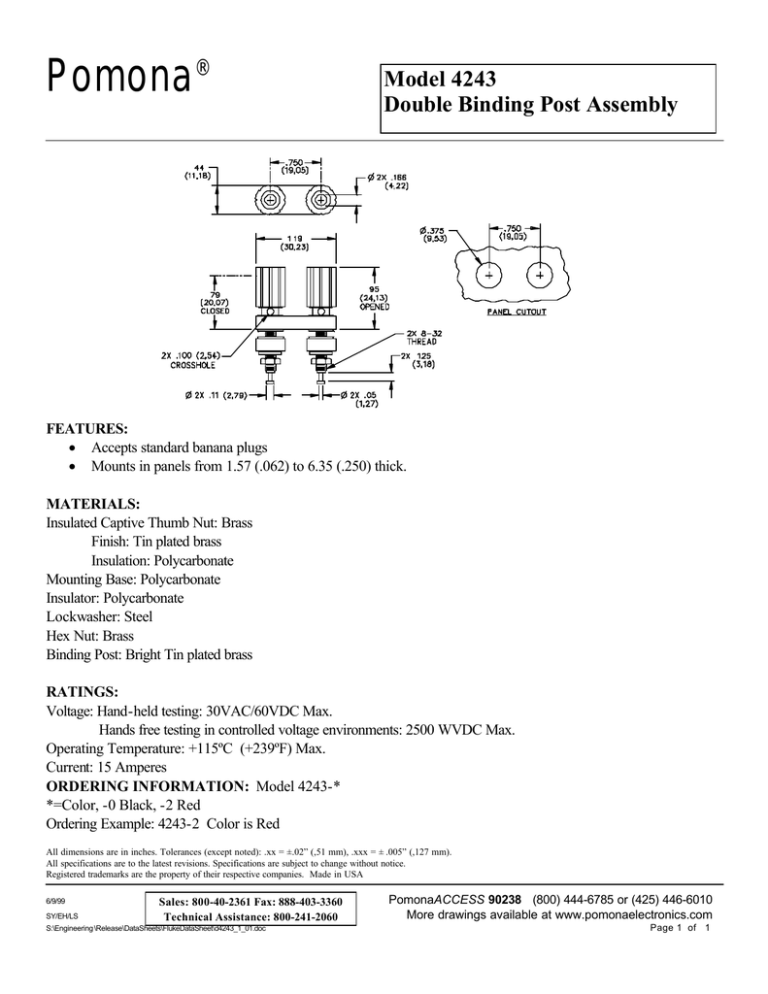

Pomona®
Model 4243
Double Binding Post Assembly
FEATURES:
• Accepts standard banana plugs
• Mounts in panels from 1.57 (.062) to 6.35 (.250) thick.
MATERIALS:
Insulated Captive Thumb Nut: Brass
Finish: Tin plated brass
Insulation: Polycarbonate
Mounting Base: Polycarbonate
Insulator: Polycarbonate
Lockwasher: Steel
Hex Nut: Brass
Binding Post: Bright Tin plated brass
RATINGS:
Voltage: Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 2500 WVDC Max.
Operating Temperature: +115ºC (+239ºF) Max.
Current: 15 Amperes
ORDERING INFORMATION: Model 4243-*
*=Color, -0 Black, -2 Red
Ordering Example: 4243-2 Color is Red
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-40-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
S:\Engineering \Release\DataSheets\FlukeDataSheet\d4243_1_01.doc
PomonaACCESS 90238 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
