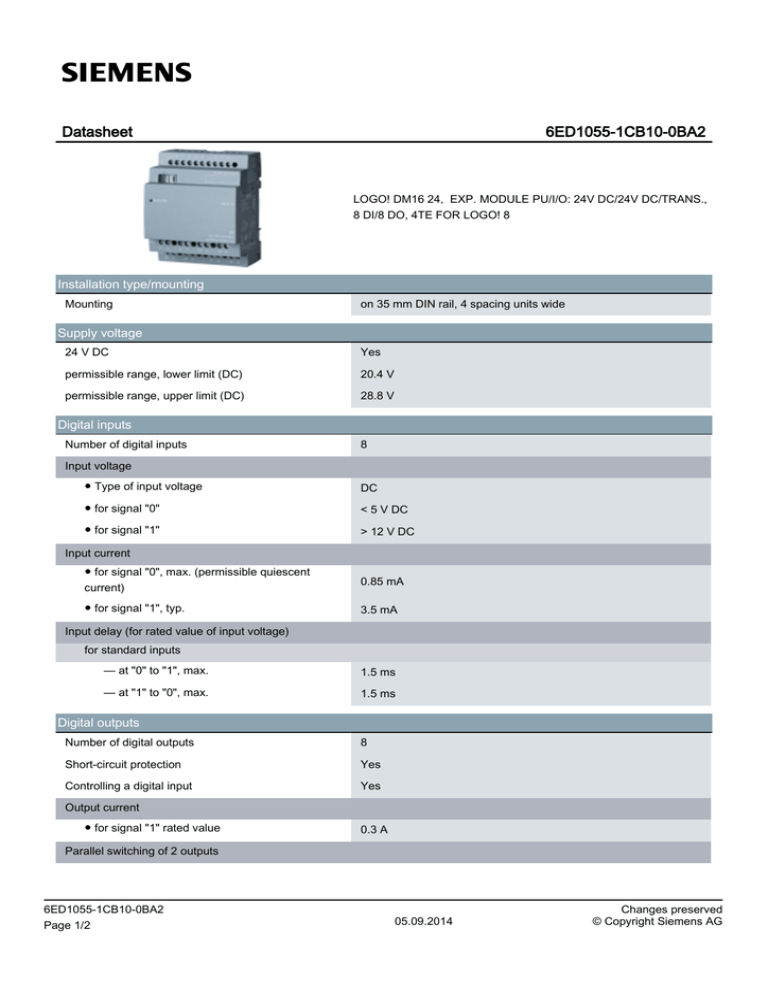

Datasheet
6ED1055-1CB10-0BA2
LOGO! DM16 24, EXP. MODULE PU/I/O: 24V DC/24V DC/TRANS.,
8 DI/8 DO, 4TE FOR LOGO! 8
Installation type/mounting
Mounting
on 35 mm DIN rail, 4 spacing units wide
Supply voltage
24 V DC
Yes
permissible range, lower limit (DC)
20.4 V
permissible range, upper limit (DC)
28.8 V
Digital inputs
Number of digital inputs
8
Input voltage
● Type of input voltage
DC
● for signal "0"
< 5 V DC
● for signal "1"
> 12 V DC
Input current
● for signal "0", max. (permissible quiescent
current)
0.85 mA
● for signal "1", typ.
3.5 mA
Input delay (for rated value of input voltage)
for standard inputs
— at "0" to "1", max.
1.5 ms
— at "1" to "0", max.
1.5 ms
Digital outputs
Number of digital outputs
8
Short-circuit protection
Yes
Controlling a digital input
Yes
Output current
● for signal "1" rated value
0.3 A
Parallel switching of 2 outputs
6ED1055-1CB10-0BA2
Page 1/2
05.09.2014
Changes preserved
© Copyright Siemens AG
● for uprating
No
Switching frequency
● with resistive load, max.
10 Hz
● with inductive load, max.
0.5 Hz
EMC
Emission of radio interference acc. to EN 55 011
● Emission of radio interference acc. to EN 55
011 (limit class B)
Yes
Degree and class of protection
IP20
Yes
Standards, approvals, certificates
CSA approval
Yes
UL approval
Yes
FM approval
Yes
developed in accordance with IEC 61131
Yes
acc. to VDE 0631
Yes
Marine approval
● Marine approval
Yes
Ambient conditions
Operating temperature
● min.
0 °C
● max.
55 °C
Dimensions
Width
71.5 mm
Height
90 mm
Depth
58 mm
last modified:
21.08.2014
6ED1055-1CB10-0BA2
Page 2/2
05.09.2014
Changes preserved
© Copyright Siemens AG
