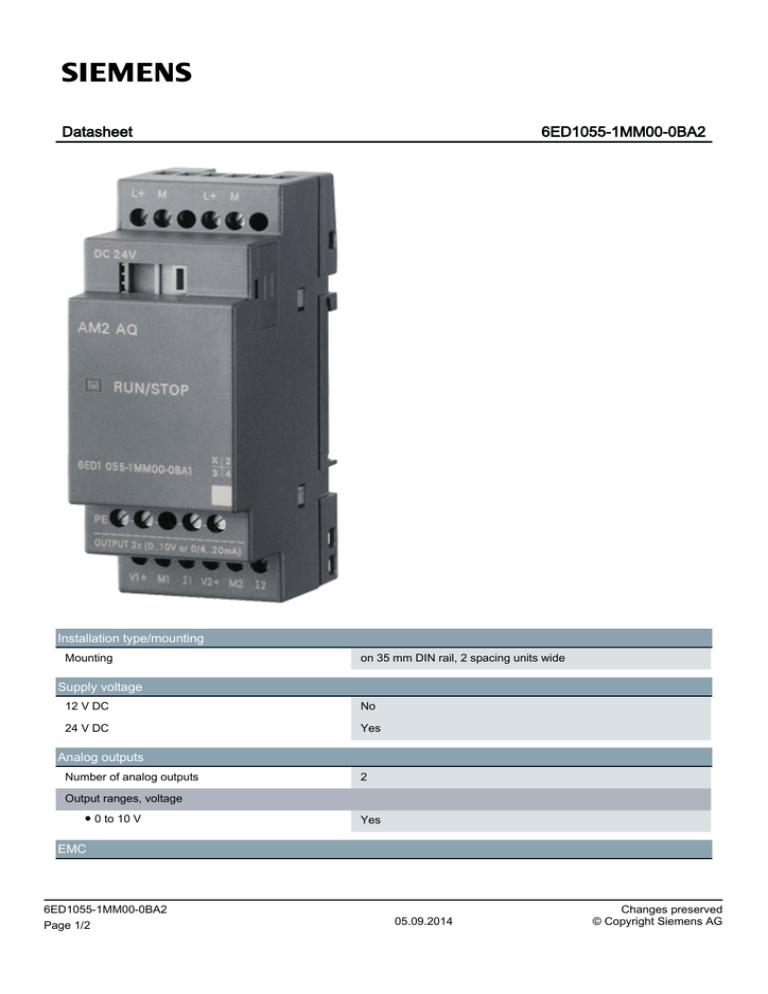

Datasheet
6ED1055-1MM00-0BA2
Installation type/mounting
Mounting
on 35 mm DIN rail, 2 spacing units wide
Supply voltage
12 V DC
No
24 V DC
Yes
Analog outputs
Number of analog outputs
2
Output ranges, voltage
● 0 to 10 V
Yes
EMC
6ED1055-1MM00-0BA2
Page 1/2
05.09.2014
Changes preserved
© Copyright Siemens AG
Emission of radio interference acc. to EN 55 011
● Emission of radio interference acc. to EN 55
011 (limit class B)
Yes
Degree and class of protection
IP20
Yes
Standards, approvals, certificates
CSA approval
Yes
UL approval
Yes
FM approval
Yes
developed in accordance with IEC 61131
Yes
acc. to VDE 0631
Yes
Marine approval
● Marine approval
Yes
Ambient conditions
Operating temperature
● min.
0 °C
● max.
55 °C
Dimensions
Width
35.5 mm
Height
90 mm
Depth
58 mm
last modified:
21.08.2014
6ED1055-1MM00-0BA2
Page 2/2
05.09.2014
Changes preserved
© Copyright Siemens AG
