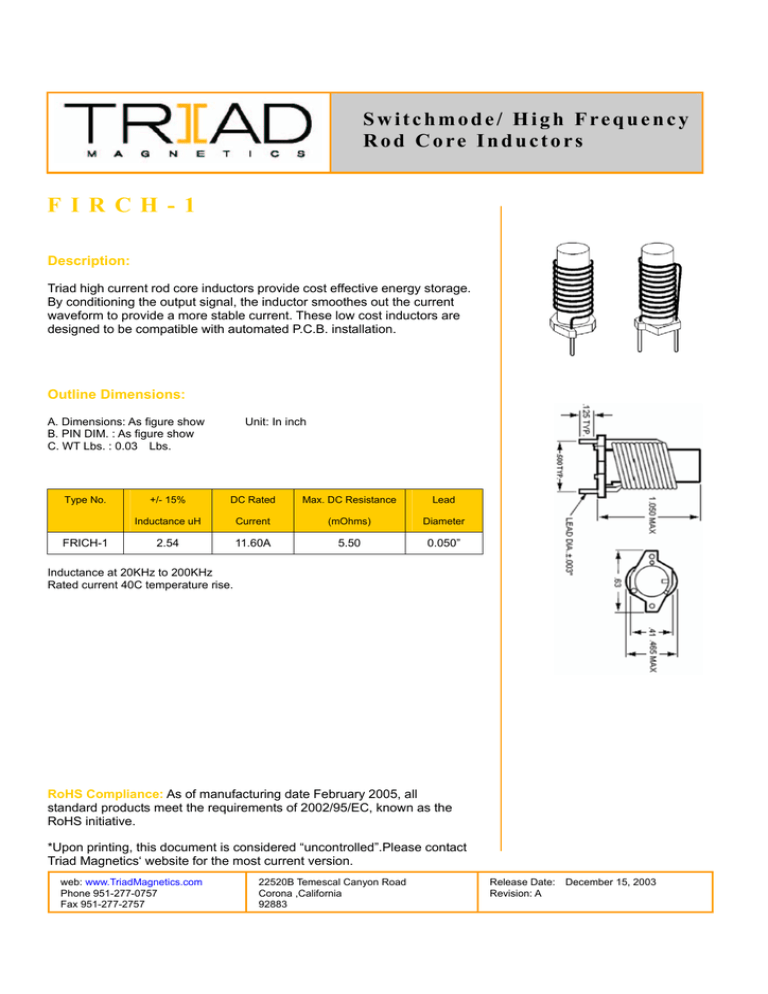

F I R C H - 1

F I R C H - 1
Switchmode/ High Frequency
Rod Core Inductors
FIRCH-1
Description:
Triad high current rod core inductors provide cost effective energy storage.
By conditioning the output signal, the inductor smoothes out the current
waveform to provide a more stable current. These low cost inductors are
designed to be compatible with automated P.C.B. installation.
Outline Dimensions:
A. Dimensions: As figure show
B. PIN DIM. : As figure show
C. WT Lbs. : 0.03 Lbs.
Type No.
FRICH-1
Unit: In inch
+/- 15%
DC Rated
Max. DC Resistance
Lead
Inductance uH
Current
(mOhms)
Diameter
2.54
11.60A
5.50
0.050”
Inductance at 20KHz to 200KHz
Rated current 40C temperature rise.
RoHS Compliance: As of manufacturing date February 2005, all
standard products meet the requirements of 2002/95/EC, known as the
RoHS initiative.
*Upon printing, this document is considered “uncontrolled”.Please contact
Triad Magnetics‘ website for the most current version.
web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
22520B Temescal Canyon Road
Corona ,California
92883
Release Date:
Revision: A
December 15, 2003
