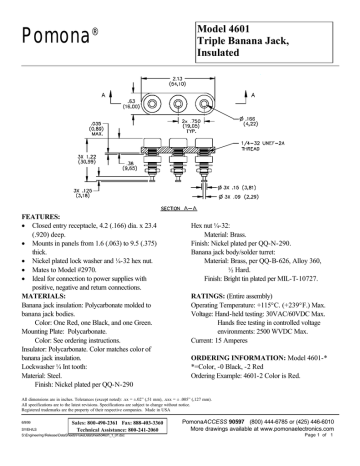

Pomona ® Model 4601 Triple Banana Jack,

Pomona ® Model 4601 Triple Banana Jack,
Pomona
®
FEATURES:
• Closed entry receptacle, 4.2 (.166) dia. x 23.4
(.920) deep.
• Mounts in panels from 1.6 (.063) to 9.5 (.375)
thick.
• Nickel plated lock washer and ¼-32 hex nut.
• Mates to Model #2970.
• Ideal for connection to power supplies with
positive, negative and return connections.
MATERIALS:
Banana jack insulation: Polycarbonate molded to
banana jack bodies.
Color: One Red, one Black, and one Green.
Mounting Plate: Polycarbonate.
Color: See ordering instructions.
Insulator: Polycarbonate. Color matches color of
banana jack insulation.
Lockwasher ¼ Int tooth:
Material: Steel.
Finish: Nickel plated per QQ-N-290
Model 4601
Triple Banana Jack,
Insulated
Hex nut ¼-32:
Material: Brass.
Finish: Nickel plated per QQ-N-290.
Banana jack body/solder turret:
Material: Brass, per QQ-B-626, Alloy 360,
½ Hard.
Finish: Bright tin plated per MIL-T-10727.
RATINGS: (Entire assembly)
Operating Temperature: +115°C. (+239°F.) Max.
Voltage: Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage
environments: 2500 WVDC Max.
Current: 15 Amperes
ORDERING INFORMATION: Model 4601-*
*=Color, -0 Black, -2 Red
Ordering Example: 4601-2 Color is Red.
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
S:\Engineering \Release\DataSheets\FlukeDataSheet\d4601_1_01.doc
PomonaACCESS 90597 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
