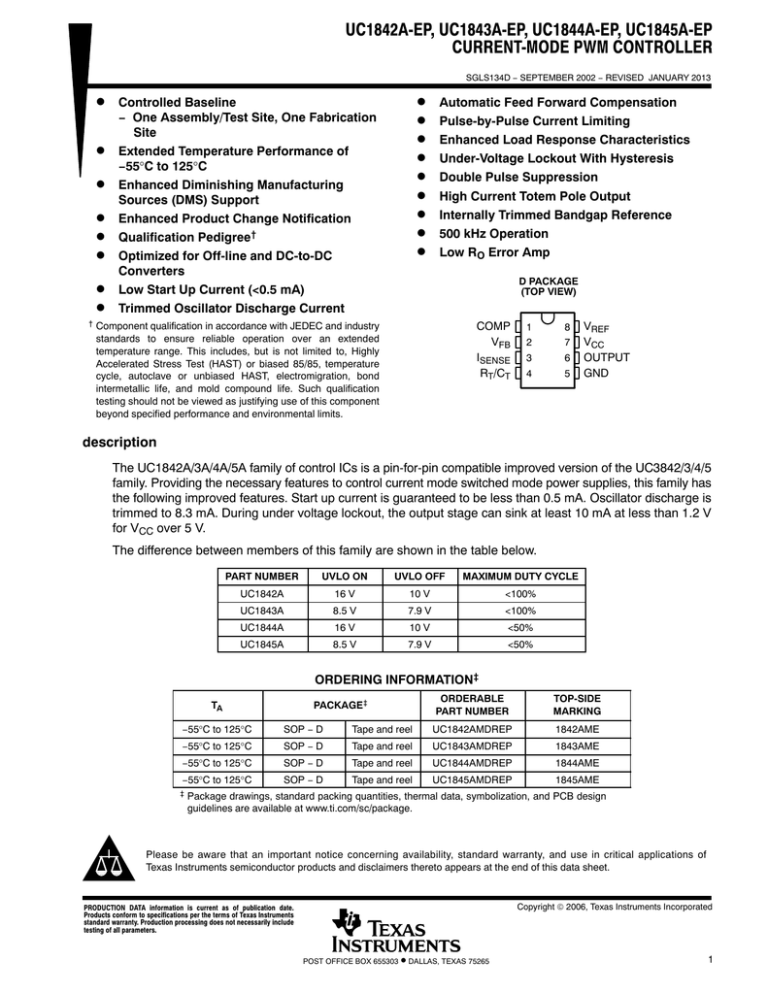

UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP CURRENT-MODE PWM CONTROLLER D

UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP CURRENT-MODE PWM CONTROLLER D
UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP
CURRENT-MODE PWM CONTROLLER
SGLS134D − SEPTEMBER 2002 − REVISED JANUARY 2013
D Controlled Baseline
D
D
D
D
D
D
D
†
D
D
D
D
D
D
D
D
D
− One Assembly/Test Site, One Fabrication
Site
Extended Temperature Performance of
−55°C to 125°C
Enhanced Diminishing Manufacturing
Sources (DMS) Support
Enhanced Product Change Notification
Qualification Pedigree†
Optimized for Off-line and DC-to-DC
Converters
Low Start Up Current (<0.5 mA)
Trimmed Oscillator Discharge Current
Automatic Feed Forward Compensation
Pulse-by-Pulse Current Limiting
Enhanced Load Response Characteristics
Under-Voltage Lockout With Hysteresis
Double Pulse Suppression
High Current Totem Pole Output
Internally Trimmed Bandgap Reference
500 kHz Operation
Low RO Error Amp
D PACKAGE
(TOP VIEW)
COMP
VFB
ISENSE
RT/CT
Component qualification in accordance with JEDEC and industry
standards to ensure reliable operation over an extended
temperature range. This includes, but is not limited to, Highly
Accelerated Stress Test (HAST) or biased 85/85, temperature
cycle, autoclave or unbiased HAST, electromigration, bond
intermetallic life, and mold compound life. Such qualification
testing should not be viewed as justifying use of this component
beyond specified performance and environmental limits.
1
8
2
7
3
6
4
5
VREF
VCC
OUTPUT
GND
description
The UC1842A/3A/4A/5A family of control ICs is a pin-for-pin compatible improved version of the UC3842/3/4/5
family. Providing the necessary features to control current mode switched mode power supplies, this family has
the following improved features. Start up current is guaranteed to be less than 0.5 mA. Oscillator discharge is
trimmed to 8.3 mA. During under voltage lockout, the output stage can sink at least 10 mA at less than 1.2 V
for VCC over 5 V.
The difference between members of this family are shown in the table below.
PART NUMBER
UVLO ON
UVLO OFF
MAXIMUM DUTY CYCLE
UC1842A
16 V
10 V
<100%
UC1843A
8.5 V
7.9 V
<100%
UC1844A
16 V
10 V
<50%
UC1845A
8.5 V
7.9 V
<50%
ORDERING INFORMATION‡
PACKAGE‡
TA
ORDERABLE
PART NUMBER
TOP-SIDE
MARKING
−55°C to 125°C
SOP − D
Tape and reel
UC1842AMDREP
1842AME
−55°C to 125°C
SOP − D
Tape and reel
UC1843AMDREP
1843AME
−55°C to 125°C
SOP − D
Tape and reel
UC1844AMDREP
1844AME
−55°C to 125°C
SOP − D
Tape and reel
UC1845AMDREP
1845AME
‡
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design
guidelines are available at www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright © 2006, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
1
UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP
CURRENT-MODE PWM CONTROLLER
SGLS134D − SEPTEMBER 2002 − REVISED JANUARY 2013
block diagram
NOTES: 1. Toggle flip flop used only in 1844A and 1845A.
Ordering Information
UC 184
4
A
M
D
R
EP
ENHANCED PLASTIC INDICATOR
TAPE and REEL INDICATOR
PACKAGE
D = Plastic SOIC
MILITARY TEMPERATURE RANGE INDICATOR
IMPROVED PERFORMANCE INDICATOR
PRODUCT OPTION
2 through 5
2
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP
CURRENT-MODE PWM CONTROLLER
SGLS134D − SEPTEMBER 2002 − REVISED JANUARY 2013
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)†‡
VCC voltage (low impedance source) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 V
VCC voltage (ICC mA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . self limiting
Output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±1 A
Output energy (capacitive load) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 μJ
Analog Inputs (pins 2, 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to 6.3 V
Error Amp Output Sink current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 mA
Power Dissipation at TA < 25_C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 W
Package thermal impedance, θJA (see Note 1): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65_C to 150_C
Maximum junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150_C
Lead temperature soldering 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . 260_C
†
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
‡
Unless otherwise indicated, voltages are reference to ground and currents are positive into and negative out of the specified terminals.
NOTE 1: Long term high-temperature storage and/or extended use at maximum recommended operating conditions may result in a reduction
of overall device life. See http://www.ti.com/ep_quality for additional information on enhanced plastic packaging.
electrical characteristics, TA = −55_C to 125_C for the UC184xAM-EP, VCC = 15 V (see Note 1),
RT = 10 kΩ, CT = 3.3 nF, and TA = TJ (unless otherwise stated)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNITS
Reference Section
Output voltage
TJ = 25_C, IO = 1 mA
Line regulation voltage
Load regulation voltage
Temperature stability
See Notes NO TAG and NO TAG
Total output variation voltage
Line, Load, Temp.
Output noise voltage
f = 10 Hz to 10 kHz,
See Note NO TAG
TJ = 25_C
Long term stability
1000 hours, See Note 2
TA = 125_C
4.95
5
5.05
VIN = 12 V to 25 V
6
20
mV
IO = 1 mA to 20 mA
6
25
mV
0.2
0.4
mV/_C
5.1
V
4.9
Output short-circuit current
50
V
μV
5
25
mV
−30
−100
−180
mA
47
52
57
kHz
0.2%
1%
Oscillator Section
Initial accuracy
See Note NO TAG
Voltage stability
VCC = 12 V to 25 V
Temperature stability
TA = MIN to MAX, See Note 2
5%
Amplitude peak-to-peak
V pin 4,
1.7
Discharge current
V pin 4 = 2 V
V, See Note 3
TJ = 25_C
See Note 2
TJ = 25_C
7.8
TJ = Full range
7.5
8.3
V
8.8
8.8
mA
NOTES: 1. Adjust VCC above the start threshold before setting at 15 V.
2. Not production tested.
3. This parameter is measured with RT = 10 kΩ to VREF. This contributes approximately 300 μA of current to the measurement. The
total current flowing into the RT/C pin will be approximately 300 μA higher than the measured value.
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
3
UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP
CURRENT-MODE PWM CONTROLLER
SGLS134D − SEPTEMBER 2002 − REVISED JANUARY 2013
electrical characteristics, TA = −55_C to 125_C for the UC184xAM-EP, VCC = 15 V (see Note 1),
RT = 10 kΩ, CT = 3.3 nF, and TA = TJ (unless otherwise stated)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNITS
Error Amplifier Section
Input voltage
COMP = 2.5 V
2.45
Input bias current
Open loop voltage gain (AVOL)
VO = 2 V to 4 V
Unity gain bandwidth
See Note 2
PSRR
VCC = 12 V to 25 V
Output sink current
FB = 2.7 V, COMP = 1.1 V
Output source current
FB = 2.3 V, COMP = 5 V
VOUT high
FB = 2.3 V, RL = 15 kΩ to GND
VOUT low
FB = 2.7 V, RL = 15 kΩ to VREF
TJ = 25_C
2.5
2.55
V
−0.3
−1
μA
65
90
dB
0.7
1
MHz
60
70
dB
2
6
mA
−0.5
−0.8
mA
5
6
V
0.7
1.1
V
2.85
3
3.15
V/V
0.9
1
1.1
V
Current Sense Section
Gain
See Note 3 and Note 4
Maximum input signal
COMP = 5 V, See Note 3
PSRR
VCC = 12 V to 25 V, See Note 3
70
−2
−10
μA
ISENSE = 0 V to 2 V, See Note 2
150
300
ns
IOUT = 20 mA
0.1
0.4
IOUT = 200 mA
15
2.2
Input bias current
Delay to output
dB
Output Section (OUT)
Low level output voltage
Low-level
High level output voltage
High-level
IOUT = −20 mA
13
13.5
IOUT = −200 mA
12
13.5
V
V
Rise time
CL = 1 nF, See Note 2
TJ = 25_C
50
150
ns
Fall time
CL = 1 nF, See Note 2
TJ = 25_C
50
150
ns
UVLO saturation
VCC = 5 V, IOUT = 10 mA
0.7
1.2
V
Undervoltage Lockout Section
Start threshold
Minimum operation voltage after turn on
NOTES: 1.
2.
3.
4.
4
UC1842A,
UC1844A
15
16
17
UC1843A,
UC1845A
7.8
8.4
9
UC1842A,
UC1844A
9
10
11
UC1843A,
UC1845A
7
7.6
8.2
Adjust VCC above the start threshold before setting at 15 V.
Not production tested.
Parameter measured at trip point of latch with VFB at 0 V.
Gain is defined by:
DVCOMP ; 0 v VSENSE v 0.8 V.
A=
DVSENSE
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
V
V
UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP
CURRENT-MODE PWM CONTROLLER
SGLS134D − SEPTEMBER 2002 − REVISED JANUARY 2013
electrical characteristics, TA = −55_C to 125_C for the UC184xAM-EP, VCC = 15 V (see Note 1),
RT = 10 kΩ, CT = 3.3 nF, and TA = TJ (unless otherwise stated)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNITS
PWM Section
Maximum duty cycle
UC1842A, UC1843A
94%
96%
100%
UC1844A, UC1845A
47%
48%
50%
Minimum duty cycle
0%
Total Standby Current
Start-up current
Operating supply current
FB = 0 V, SENSE = 0 V
VCC internal zener voltage
ICC = 25 mA
30
0.3
0.5
mA
11
17
mA
34
V
NOTES: 1. Adjust VCC above the start threshold before setting at 15 V.
PARAMETER MEASUREMENT INFORMATION
Error Amp can source and sink up to 0.5 mA and sink up to 2 mA.
Figure 1. Error Amp Configuration
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
5
UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP
CURRENT-MODE PWM CONTROLLER
SGLS134D − SEPTEMBER 2002 − REVISED JANUARY 2013
PARAMETER MEASUREMENT INFORMATION
During UVLO, the Output is low.
Figure 2. Under Voltage Lockout
Peak Current (Is) is determined by the following formula:
IsmaxȀ 1V
RS
A small RC filter may be required to suppress switch transients.
Figure 3. Current Sense Circuit
6
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP
CURRENT-MODE PWM CONTROLLER
SGLS134D − SEPTEMBER 2002 − REVISED JANUARY 2013
PARAMETER MEASUREMENT INFORMATION
Error Amplifier Open-Loop Frequency Response
Output Saturation Characteristics
Figure 5
Figure 4
APPLICATION INFORMATION
Oscillator Frequency vs Timing Resistance
Maximum Duty Cycle vs Timing Resistor
Figure 6. Oscillator
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
7
UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP
CURRENT-MODE PWM CONTROLLER
SGLS134D − SEPTEMBER 2002 − REVISED JANUARY 2013
APPLICATION INFORMATION
High peak currents associated with capacitive loads necessitate careful grounding techniques. Timing and bypass capacitors should be
connected close to pin 5 in a single point ground. The transistor and 5k potentiometer are used to sample the oscillator waveform and apply an
adjustable ramp to pin 3.
Figure 7. Open-Loop Laboratory Text Fixture
A fraction of the oscillator ramp can be resistively summed
with the current sense signal to provide slope compensation
for converters requiring duty cycles over 50%.
Note that capacitor, C, forms a filter with R2 to suppress the
leading edge switch spikes.
Figure 8. Slope Compression
8
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP
CURRENT-MODE PWM CONTROLLER
SGLS134D − SEPTEMBER 2002 − REVISED JANUARY 2013
APPLICATION INFORMATION
Power Supply Specifications
1.
2.
3.
4.
5.
Input Voltage
95VAC to 130VAC (50 Hz/60 Hz)
Line Isolation
3750 V
Switching Frequency 40 kHz
Efficiency, Full Load
70%
Output Voltage:
A. +5V, ±5%; 1A to 4A Load
B. +12V, ±3%; 0.1A to 0.3A Load Ripple voltage: 100 mV P-P Max
C. −12V, ±3%; 0.1A to 0.3A Load Ripple voltage: 100 mV P-P Max
Figure 9. Off-Line Flyback Regulator
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
9
PACKAGE OPTION ADDENDUM
www.ti.com
23-Aug-2015
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
UC1842AMDREP
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-55 to 125
1842AME
UC1843AMDREP
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-55 to 125
1843AME
UC1843AMDREPG4
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-55 to 125
1843AME
UC1844AMDREP
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-55 to 125
1844AME
UC1845AMDREP
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-55 to 125
1845AE
UC1845AMDREPG4
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-55 to 125
1845AE
V62/03625-01YE
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-55 to 125
1842AME
V62/03625-02YE
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-55 to 125
1843AME
V62/03625-03YE
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-55 to 125
1844AME
V62/03625-04YE
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-55 to 125
1845AE
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
23-Aug-2015
(3)
MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4)
There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5)
Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6)
Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish
value exceeds the maximum column width.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
OTHER QUALIFIED VERSIONS OF UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP :
• Catalog: UC1842A, UC1843A, UC1844A, UC1845A
• Space: UC1842A-SP, UC1843A-SP, UC1844A-SP, UC1845A-SP
NOTE: Qualified Version Definitions:
• Catalog - TI's standard catalog product
• Space - Radiation tolerant, ceramic packaging and qualified for use in Space-based application
Addendum-Page 2
PACKAGE MATERIALS INFORMATION
www.ti.com
24-Aug-2015
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
Package Package Pins
Type Drawing
SPQ
Reel
Reel
A0
Diameter Width (mm)
(mm) W1 (mm)
B0
(mm)
K0
(mm)
P1
(mm)
W
Pin1
(mm) Quadrant
UC1842AMDREP
SOIC
D
8
2500
330.0
12.4
6.4
5.2
2.1
4.0
12.0
Q1
UC1843AMDREP
SOIC
D
8
2500
330.0
12.4
6.4
5.2
2.1
4.0
12.0
Q1
UC1844AMDREP
SOIC
D
8
2500
330.0
12.4
6.4
5.2
2.1
4.0
12.0
Q1
UC1845AMDREP
SOIC
D
8
2500
330.0
12.4
6.4
5.2
2.1
4.0
12.0
Q1
Pack Materials-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
24-Aug-2015
*All dimensions are nominal
Device
Package Type
Package Drawing
Pins
SPQ
Length (mm)
Width (mm)
Height (mm)
UC1842AMDREP
SOIC
D
8
2500
367.0
367.0
35.0
UC1843AMDREP
SOIC
D
8
2500
367.0
367.0
35.0
UC1844AMDREP
SOIC
D
8
2500
367.0
367.0
35.0
UC1845AMDREP
SOIC
D
8
2500
367.0
367.0
35.0
Pack Materials-Page 2
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest
issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale
supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of
non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.
Products
Applications
Audio
www.ti.com/audio
Automotive and Transportation
www.ti.com/automotive
Amplifiers
amplifier.ti.com
Communications and Telecom
www.ti.com/communications
Data Converters
dataconverter.ti.com
Computers and Peripherals
www.ti.com/computers
DLP® Products
www.dlp.com
Consumer Electronics
www.ti.com/consumer-apps
DSP
dsp.ti.com
Energy and Lighting
www.ti.com/energy
Clocks and Timers
www.ti.com/clocks
Industrial
www.ti.com/industrial
Interface
interface.ti.com
Medical
www.ti.com/medical
Logic
logic.ti.com
Security
www.ti.com/security
Power Mgmt
power.ti.com
Space, Avionics and Defense
www.ti.com/space-avionics-defense
Microcontrollers
microcontroller.ti.com
Video and Imaging
www.ti.com/video
RFID
www.ti-rfid.com
OMAP Applications Processors
www.ti.com/omap
TI E2E Community
e2e.ti.com
Wireless Connectivity
www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2015, Texas Instruments Incorporated
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
