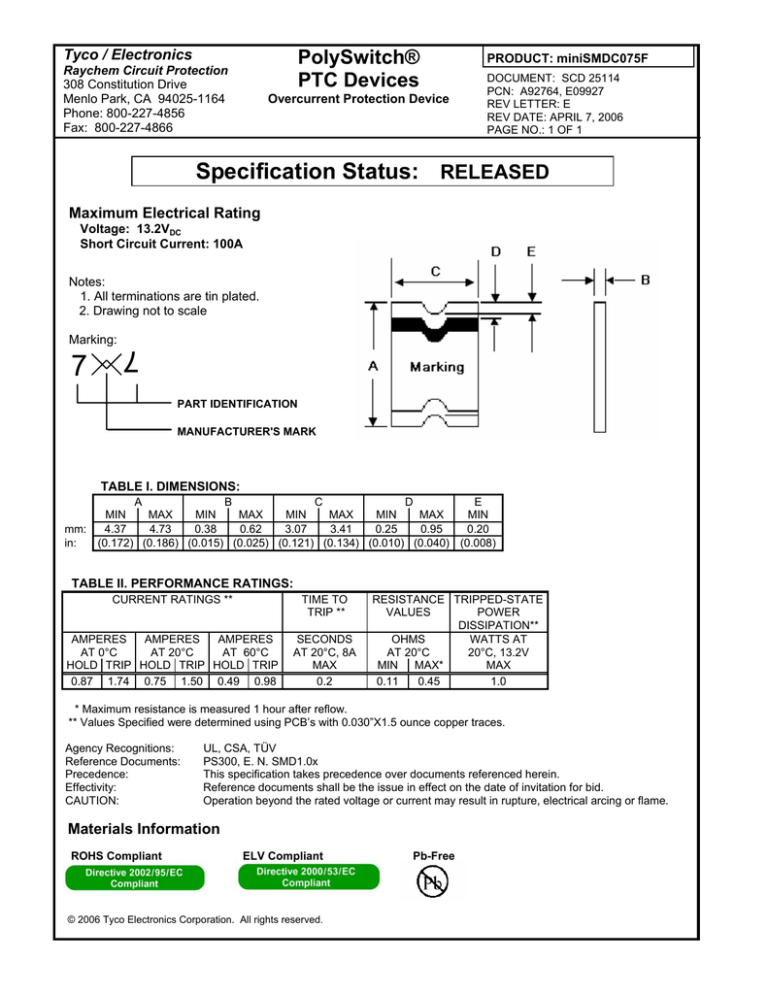

Tyco / Electronics
PolySwitch®
PTC Devices
Raychem Circuit Protection
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
Fax: 800-227-4866
Overcurrent Protection Device
PRODUCT: miniSMDC075F
DOCUMENT: SCD 25114
PCN: A92764, E09927
REV LETTER: E
REV DATE: APRIL 7, 2006
PAGE NO.: 1 OF 1
Specification Status: RELEASED
Maximum Electrical Rating
Voltage: 13.2VDC
Short Circuit Current: 100A
Notes:
1. All terminations are tin plated.
2. Drawing not to scale
7
7
Marking:
PART IDENTIFICATION
MANUFACTURER'S MARK
TABLE I. DIMENSIONS:
A
B
C
D
E
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
MIN
mm:
4.37
4.73
0.38
0.62
3.07
3.41
0.25
0.95
0.20
in:
(0.172) (0.186) (0.015) (0.025) (0.121) (0.134) (0.010) (0.040) (0.008)
TABLE II. PERFORMANCE RATINGS:
CURRENT RATINGS **
TIME TO
TRIP **
AMPERES
AMPERES
AMPERES
AT 0°C
AT 20°C
AT 60°C
HOLD TRIP HOLD TRIP HOLD TRIP
0.87 1.74 0.75 1.50 0.49 0.98
SECONDS
AT 20°C, 8A
MAX
0.2
RESISTANCE TRIPPED-STATE
VALUES
POWER
DISSIPATION**
OHMS
WATTS AT
AT 20°C
20°C, 13.2V
MIN MAX*
MAX
0.11
0.45
1.0
* Maximum resistance is measured 1 hour after reflow.
** Values Specified were determined using PCB’s with 0.030”X1.5 ounce copper traces.
Agency Recognitions:
Reference Documents:
Precedence:
Effectivity:
CAUTION:
UL, CSA, TÜV
PS300, E. N. SMD1.0x
This specification takes precedence over documents referenced herein.
Reference documents shall be the issue in effect on the date of invitation for bid.
Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.
Materials Information
ROHS Compliant
ELV Compliant
© 2006 Tyco Electronics Corporation. All rights reserved.
Pb-Free
