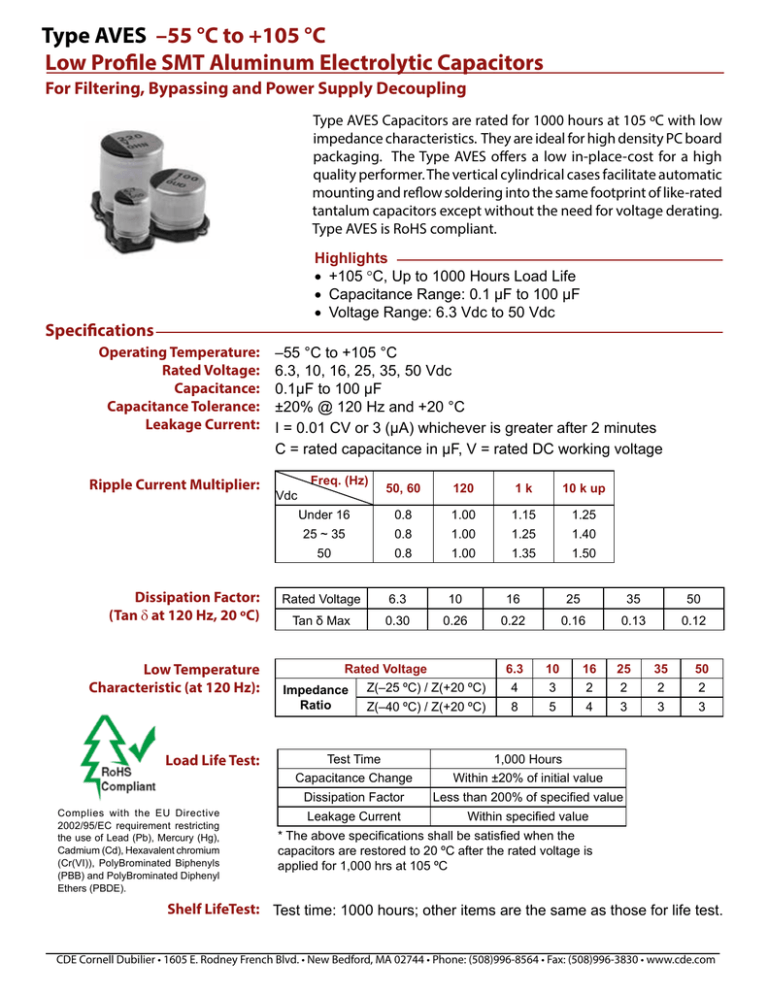

Type AVES –55 °C to +105 °C

Type AVES –55 °C to +105 °C
Type AVES –55 °C to +105 °C
Low Profile SMT Aluminum Electrolytic Capacitors
For Filtering, Bypassing and Power Supply Decoupling
Type AVES Capacitors are rated for 1000 hours at 105 ºC with low
impedance characteristics. They are ideal for high density PC board
packaging. The Type AVES offers a low in-place-cost for a high
quality performer. The vertical cylindrical cases facilitate automatic
mounting and reflow soldering into the same footprint of like-rated
tantalum capacitors except without the need for voltage derating.
Type AVES is RoHS compliant.
Highlights
• +105 °C, Up to 1000 Hours Load Life
• Capacitance Range: 0.1 µF to 100 µF
• Voltage Range: 6.3 Vdc to 50 Vdc
Specifications
Operating Temperature:
Rated Voltage:
Capacitance:
Capacitance Tolerance:
Leakage Current:
Ripple Current Multiplier:
Dissipation Factor:
(Tan d at 120 Hz, 20 ºC)
Low Temperature
Characteristic (at 120 Hz):
Load Life Test:
Complies with the EU Directive
2002/95/EC requirement restricting
the use of Lead (Pb), Mercury (Hg),
Cadmium (Cd), Hexavalent chromium
(Cr(VI)), PolyBrominated Biphenyls
(PBB) and PolyBrominated Diphenyl
Ethers (PBDE).
–55 °C to +105 °C
6.3, 10, 16, 25, 35, 50 Vdc
0.1µF to 100 µF
±20% @ 120 Hz and +20 °C
I = 0.01 CV or 3 (µA) whichever is greater after 2 minutes
C = rated capacitance in µF, V = rated DC working voltage
Vdc
Freq. (Hz)
50, 60
120
1k
10 k up
Under 16
0.8
1.00
1.15
1.25
25 ~ 35
0.8
1.00
1.25
1.40
50
0.8
1.00
1.35
1.50
Rated Voltage
6.3
10
16
25
35
50
Tan δ Max
0.30
0.26
0.22
0.16
0.13
0.12
Rated Voltage
Impedance
Ratio
6.3
10
16
25
35
50
Z(–25 ºC) / Z(+20 ºC)
4
3
2
2
2
2
Z(–40 ºC) / Z(+20 ºC)
8
5
4
3
3
3
Test Time
1,000 Hours
Capacitance Change
Within ±20% of initial value
Dissipation Factor
Less than 200% of specified value
Leakage Current
Within specified value
* The above specifications shall be satisfied when the
capacitors are restored to 20 ºC after the rated voltage is
applied for 1,000 hrs at 105 ºC
Shelf LifeTest: Test time: 1000 hours; other items are the same as those for life test.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
Type AVES –55 °C to +105 °C
Low Profile SMT Aluminum Electrolytic Capacitors
Outline Drawing, Case Code & Dimensions Table
ØD ± 0.5
-
B ± 0.2
+
L
A ± 0.2
0.4 ±0.2
0.3 Max
Case Ø D
L
Code (mm)
(mm)
W
C ±0.2
P
C ±0.2
A
B
C
(mm) (mm) (mm)
W
P ±0.2
(mm)
(mm)
B
4.0 5.3 ±0.2 4.3
4.3
2.0
0.5 to 0.8
1.0
C
5.0 5.3 ±0.2 5.3
5.3
2.3
0.5 to 0.8
1.5
D
6.3 5.3 ±0.2 6.6
6.6
2.7
0.5 to 0.8
2.0
Part Numbering System
AVES
106
Series Capacitance
AVES
M
16
B
12T
–F
Packaging
RoHS
Capacitance
Voltage
Case
104 = 0.1 µF
Tolerance
06 = 6.3 Vdc
Code
105 = 1.0 µF
M = ±20%
10 = 10 Vdc
B=B
106 = 10.0 µF
16 = 16 Vdc
107 = 100.0 µF
25 = 25 Vdc
108 = 1000.0 µF
50 = 50 Vdc
Information
Compliant
12 = Carrier Tape
Width (mm)
T = Tape & Reel
Ratings
Catalog
Part Number
Max
DCL
2 min.
(µA)
Max
DF
120 Hz 20 ºC
Max
Ripple Current
120 Hz 105 °C
(mA)
Case
Code
Size
DxL
(mm)
Quantity
per Reel
(each)
22
33
47
100
AVES226M06B12T-F
AVES336M06C12T-F
AVES476M06C12T-F
AVES107M06D16T-F
3.0
3.0
3.0
6.3
0.30
0.30
0.30
0.30
21
30
46
61
B
C
C
D
4 x 5.3
5 x 5.3
5 x 5.3
6.3 x 5.3
2000
1000
1000
1000
10
22
33
47
100
AVES106M10B12T-F
AVES226M10C12T-F
AVES336M10C12T-F
AVES476M10D16T-F
AVES107M10D16T-F
3.0
3.0
3.3
4.7
10.0
0.26
0.26
0.26
0.26
0.26
15
25
31
43
65
B
C
C
D
D
4 x 5.3
5 x 5.3
5 x 5.3
6.3 x 5.3
6.3 x 5.3
2000
1000
1000
1000
1000
Cap
(µF)
Max
ESR
120 Hz 20 ºC
(ohms)
6.3 Vdc ( 8 Vdc Surge)
22.6
15.1
10.6
5.0
10 Vdc ( 13 Vdc Surge)
43.1
19.6
13.1
9.2
4.3
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
Type AVES –55 °C to +105 °C
Low Profile SMT Aluminum Electrolytic Capacitors
Catalog
Part Number
Max
DCL
2 min.
(µA)
10
22
33
47
100
AVES106M16B12T-F
AVES226M16C12T-F
AVES336M16D16T-F
AVES476M16D16T-F
AVES107M16D16T-F
3.0
3.5
5.3
7.5
16.0
4.7
10
22
33
47
AVES475M25B12T-F
AVES106M25C12T-F
AVES226M25D16T-F
AVES336M25D16T-F
AVES476M25D16T-F
3.0
3.0
5.5
8.3
11.8
4.7
AVES475M35B12T-F
3.0
10.0
22.0
AVES106M35C12T-F
AVES226M35D16T-F
3.5
7.7
.10
.22
.33
.47
1.0
2.2
3.3
4.7
10.0
22.0
AVES104M50B12T-F
AVES224M50B12T-F
AVES334M50B12T-F
AVES474M50B12T-F
AVES105M50B12T-F
AVES225M50B12T-F
AVES335M50B12T-F
AVES475M50C12T-F
AVES106M50D16T-F
AVES226M50D16T-F
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
5.0
11.0
Cap
(µF)
Max
DF
120 Hz 20 ºC
Max
ESR
120 Hz 20 ºC
( ohms )
16 Vdc ( 20 Vdc Surge)
0.22
36.5
0.22
16.6
0.22
11.1
0.22
7.8
0.22
3.6
25 Vdc (31 Vdc Surge)
0.16
56.4
0.16
26.5
0.16
12.1
0.16
8.0
0.16
5.6
35 Vdc (44 Vdc Surge)
0.13
45.9
0.13
21.6
0.13
9.8
50 Vdc (63 Vdc Surge)
0.12
1989.4
0.12
904.3
0.12
602.8
0.12
423.3
0.12
198.9
0.12
90.4
0.12
60.3
0.12
42.3
0.12
19.9
0.12
9.0
Max
Ripple Current
120 Hz 105 °C
(mA)
Size
DxL
(mm)
Quantity
per Reel
(each)
16
28
40
47
70
4 x 5.3
5 x 5.3
6.3 x 5.3
6.3 x 5.3
6.3 x 5.3
2000
1000
1000
1000
1000
12
21
36
44
60
4 x 5.3
5 x 5.3
6.3 x 5.3
6.3 x 5.3
6.3 x 5.3
2000
1000
1000
1000
1000
14
4 x 5.3
2000
23
50
5 x 5.3
6.3 x 5.3
1000
1000
2
3
4
5
7
10
12
17
26
51
4 x 5.3
4 x 5.3
4 x 5.3
4 x 5.3
4 x 5.3
4 x 5.3
4 x 5.3
5 x 5.3
6.3 x 5.3
6.3 x 5.3
2000
2000
2000
2000
2000
2000
2000
1000
1000
1000
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
Type AVES –55 °C to +105 °C
Low Profile SMT Aluminum Electrolytic Capacitors
Recommended Land Patterns by case size for AVES series
B
A
B
C
Case
Code
B
C
D
Case
Size
4x5.3
5x5.3
6.3x5.3
Land Dimensions (mm)
C
B
A
1.6
2.6
1
1.6
3
1.4
1.6
3.5
1.9
Series
AVES, AVEZ
AVES, AVEZ
AVES, AVEZ
Recommended Soldering Methods
Recommended Reflow Soldering Profile:
Parts should be subjected to just one reflow soldering process.
Soldering with a solder iron should be performed with a maximum soldering iron tip temperature
of 350±5°C for 3 to 4 seconds.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
Type AVES –55 °C to +105 °C
Low Profile SMT Aluminum Electrolytic Capacitors
Notice and Disclaimer: All product drawings, descriptions, specifications, statements, information and data
(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer
is responsible for checking, confirming and verifying the extent to which the Information contained in this
datasheet or other publication is applicable to an order at the time the order is placed. All Information given
herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation
or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based
on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”) has
of operating conditions that such Cornell Dubilier company regards as typical for such applications, but
are not intended to constitute any guarantee, warranty or representation regarding any such matter – and
Cornell Dubilier specifically and expressly disclaims any guarantee, warranty or representation concerning
the suitability for a specific customer application, use, storage, transportation, or operating environment.
The Information is intended for use only by customers who have the requisite experience and capability to
determine the correct products for their application. Any technical advice inferred from this Information or
otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given
gratis (unless otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability
for the advice given or results obtained. Although Cornell Dubilier strives to apply the most stringent quality
and safety standards regarding the design and manufacturing of its products, in light of the current state
of the art, isolated component failures may still occur. Accordingly, customer applications which require a
high degree of reliability or safety should employ suitable designs or other safeguards (such as installation
of protective circuitry or redundancies or other appropriate protective measures) in order to ensure that the
failure of an electrical component does not result in a risk of personal injury or property damage. Although
all product-related warnings, cautions and notes must be observed, the customer should not assume that all
safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be
required.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
