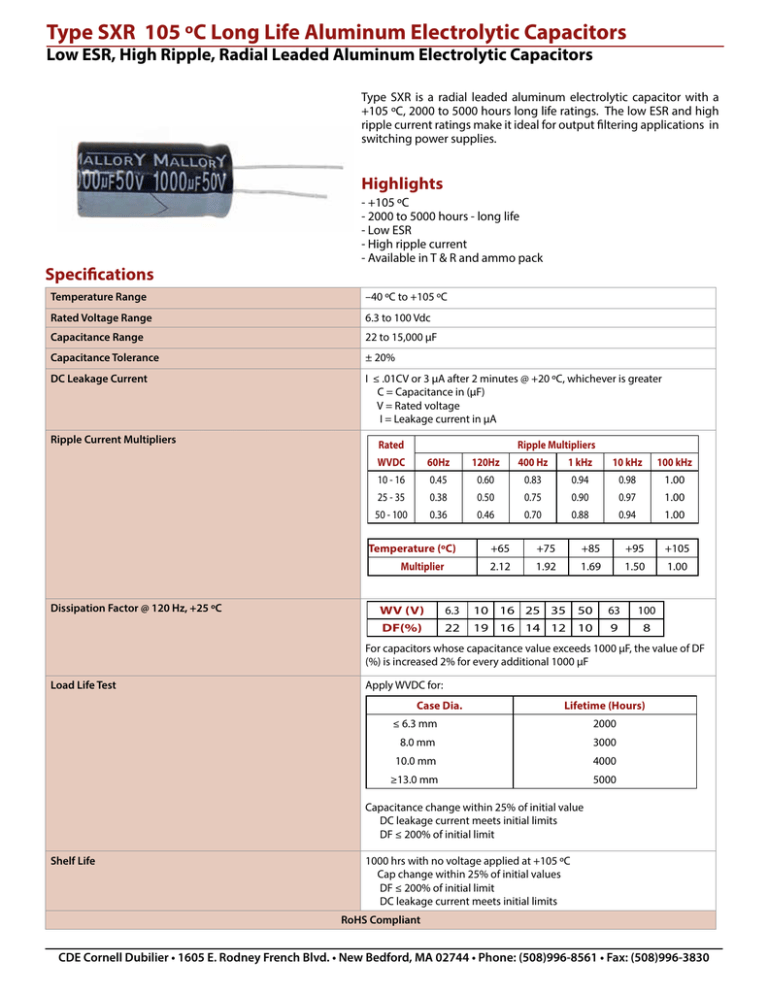

Type SXR 105 ºC Long Life Aluminum Electrolytic Capacitors

Type SXR  105 ºC Long Life Aluminum Electrolytic Capacitors
Type SXR 105 ºC Long Life Aluminum Electrolytic Capacitors
Low ESR, High Ripple, Radial Leaded Aluminum Electrolytic Capacitors
Type SXR is a radial leaded aluminum electrolytic capacitor with a
+105 ºC, 2000 to 5000 hours long life ratings. The low ESR and high
ripple current ratings make it ideal for output filtering applications in
switching power supplies.
Highlights
Specifications
- +105 ºC
- 2000 to 5000 hours - long life
- Low ESR
- High ripple current
- Available in T & R and ammo pack
Temperature Range
–40 ºC to +105 ºC
Rated Voltage Range
6.3 to 100 Vdc
Capacitance Range
22 to 15,000 µF
Capacitance Tolerance
± 20%
DC Leakage Current
I ≤ .01CV or 3 µA after 2 minutes @ +20 ºC, whichever is greater
C = Capacitance in (µF)
V = Rated voltage
I = Leakage current in µA
Ripple Current Multipliers
Rated
Ripple Multipliers
WVDC
60Hz
120Hz
400 Hz
1 kHz
10 kHz
100 kHz
10 - 16
0.45
0.60
0.83
0.94
0.98
1.00
25 - 35
0.38
0.50
0.75
0.90
0.97
1.00
50 - 100
0.36
0.46
0.70
0.88
0.94
1.00
Temperature (ºC)
Multiplier
Dissipation Factor @ 120 Hz, +25 ºC
+65
+75
+85
+95
+105
2.12
1.92
1.69
1.50
1.00
WV (V)
6.3
10 16 25 35
50
63
100
DF(%)
22
19 16 14 12
10
9
8
For capacitors whose capacitance value exceeds 1000 µF, the value of DF
(%) is increased 2% for every additional 1000 µF
Load Life Test
Apply WVDC for:
Case Dia.
Lifetime (Hours)
≤ 6.3 mm
2000
8.0 mm
3000
10.0 mm
4000
≥13.0 mm
5000
Capacitance change within 25% of initial value
DC leakage current meets initial limits
DF ≤ 200% of initial limit
Shelf Life
1000 hrs with no voltage applied at +105 ºC
Cap change within 25% of initial values
DF ≤ 200% of initial limit
DC leakage current meets initial limits
RoHS Compliant
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type SXR 105 ºC Long Life Aluminum Electrolytic Capacitors
Low ESR, High Ripple, Radial Leaded Aluminum Electrolytic Capacitors
Part Numbering System
SXR
Type
SXR
101
Capacitance
M
100
S
Capacitance
Rated
Tolerance
Voltage
T
Lead
Packaging
Configuration
(µF)
(%)
(Vdc)
A = Tape & Ammo
1 = Lead cut
1R0 = 1
K = ±10
6R3 = 6.3
E = Different Characteristic
2 = Lead form
100 = 10
M = ±20
010 = 10
R = Tape & Reel
4 = Lead crimp & cut (form)
100 = 100
S = Standard
101 = 100
102 = 1000
Outline Drawing
Outline Dimensions
PVC Sleeve
(Millimeters)
+
+
S 0.5
d 0.05
L
15 Min.
Case vented on
diameters 6.3 and greater
5
D
Vinyl sleeve adds .5 Max. to diameter
and 2.0 Max. to length
Ratings
Cap
Max ESR
Max Ripple
Catalog
100 kHz
100 kHz
Part Number
25 ºC
105 ºC
Diameter
Length
Lead Space
Lead Dia.
(Ω)
(mA)
(D)
(L)
(S)
(d)
(µF)
Size in. (mm)
6.3 Vdc (8 Volts Surge)
120
SXR121M6R3ST
2.43
154
.197 (5.0)
.433 (11.0)
.079 (2.0)
.0197 (0.5)
150
SXR151M6R3ST
1.95
210
.236 (6.0)
.433 (11.0)
.098 (2.5)
.0197 (0.5)
220
SXR221M6R3ST
1.33
260
.315 (8.0)
.433 (11.0)
.138 (3.5)
.0236 (0.6)
330
SXR331M6R3ST
0.88
350
.315 (8.0)
.433 (11.0)
.138 (3.5)
.0236 (0.6)
470
SXR471M6R3ST
0.62
510
.394 (10.0)
.472 (12.0)
.197 (5.0)
.0236 (0.6)
680
SXR681M6R3ST
0.43
635
.394 (10.0)
.630 (16.0)
.197 (5.0)
.0236 (0.6)
820
SXR821M6R3ST
0.36
650
.394 (10.0)
.630 (16.0)
.197 (5.0)
.0236 (0.6)
1000
SXR102M6R3ST
0.29
860
.394 (10.0)
.787 (20.0)
.197 (5.0)
.0236 (0.6)
1200
SXR122M6R3ST
0.24
860
.394 (10.0)
.787 (20.0)
.197 (5.0)
.0236 (0.6)
1500
SXR152M6R3ST
0.20
1030
.394 (10.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
3300
SXR332M6R3ST
0.10
1280
.472 (12.0)
1.38 (35.0)
.197 (5.0)
.0236 (0.6)
4700
SXR472M6R3ST
0.08
1770
.472 (12.0)
1.38 (35.0)
.197 (5.0)
.0236 (0.6)
6800
SXR682M6R3ST
0.07
1810
.630 (16.0)
1.26 (32.0)
.295 (7.5)
.0315 (0.8)
8200
SXR822M6R3ST
0.06
2030
.630 (16.0)
1.40 (36.0)
.295 (7.5)
.0315 (0.8)
10000
SXR103M6R3ST
0.05
2320
.630 (16.0)
1.57 (40.0)
.295 (7.5)
.0315 (0.8)
15000
SXR153M6R3ST
0.04
2460
.709 (18.0)
1.57 (40.0)
.295 (7.5)
.0315 (0.8)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type SXR 105 ºC Long Life Aluminum Electrolytic Capacitors
Low ESR, High Ripple, Radial Leaded Aluminum Electrolytic Capacitors
Cap
Max ESR
Max Ripple
Catalog
100 kHz
100 kHz
Part Number
25 ºC
105 ºC
Diameter
Length
Lead Space
Lead Dia.
(Ω)
(mA)
(D)
(L)
(S)
(d)
(µF)
Size in. (mm)
10 Vdc (13 Volts Surge)
100
SXR101M010ST
2.52
180
.236 (6.0)
.433 (11.0)
.098 (2.5)
.0197 (0.5)
120
SXR121M010ST
2.10
210
.236 (6.0)
.433 (11.0)
.098 (2.5)
.0197 (0.5)
150
SXR151M010ST
1.68
240
.236 (6.0)
.433 (11.0)
.098 (2.5)
.0197 (0.5)
220
SXR221M010ST
1.15
300
.315 (8.0)
.433 (11.0)
.138 (3.5)
.0236 (0.6)
330
SXR331M010ST
0.76
400
.315 (8.0)
.472 (12.0)
.138 (3.5)
.0236 (0.6)
470
SXR471M010ST
0.54
500
.394 (10.0)
.472 (12.0)
.197 (5.0)
.0236 (0.6)
680
SXR681M010ST
0.37
650
.394 (10.0)
.630 (16.0)
.197 (5.0)
.0236 (0.6)
820
SXR821M010ST
0.31
860
.394 (10.0)
.787 (20.0)
.197 (5.0)
.0236 (0.6)
1000
SXR102M010ST
0.25
970
.394 (10.0)
.787 (20.0)
.197 (5.0)
.0236 (0.6)
1200
SXR122M010ST
0.21
1030
.394 (10.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
1500
SXR152M010ST
0.18
1150
.394 (10.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
2200
SXR222M010ST
0.13
1320
.472 (12.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
3300
SXR332M010ST
0.09
1770
.512 (13.0)
1.42 (36.0)
.197 (5.0)
.0236 (0.6)
4700
SXR472M010ST
0.08
1810
.630 (16.0)
1.26 (32.0)
.295 (7.5)
.0315 (0.8)
6800
SXR682M010ST
0.06
2030
.630 (16.0)
1.42 (36.0)
.295 (7.5)
.0315 (0.8)
10000
SXR103M010ST
0.05
2460
.709 (18.0)
1.57 (40.0)
.295 (7.5)
.0315 (0.8)
16 Vdc (20 Volts Surge)
100
SXR101M016ST
2.12
230
.315 (8.0)
.630 (16.0)
.138 (3.5)
.0197 (0.5)
120
SXR121M016ST
1.77
260
.315 (8.0)
.433 (11.0)
.138 (3.5)
.0236 (0.6)
150
SXR151M016ST
1.42
300
.315 (8.0)
.433 (11.0)
.138 (3.5)
.0236 (0.6)
220
SXR221M016ST
0.97
400
.315 (8.0)
.433 (11.0)
.138 (3.5)
.0236 (0.6)
330
SXR331M016ST
0.64
500
.394 (10.0)
.472 (12.0)
.197 (5.0)
.0236 (0.6)
470
SXR471M016ST
0.45
650
.394 (10.0)
.630 (16.0)
.197 (5.0)
.0236 (0.6)
680
SXR681M016ST
0.31
860
.394 (10.0)
.787 (20.0)
.197 (5.0)
.0236 (0.6)
820
SXR821M016ST
0.26
1030
.394 (10.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
1000
SXR102M016ST
0.21
1150
.394 (10.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
1200
SXR122M016ST
0.18
1120
.472 (12.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
1500
SXR152M016ST
0.15
1320
.472 (12.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
2200
SXR222M016ST
0.11
1540
.472 (12.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
3300
SXR332M016ST
0.08
1980
.472 (12.0)
1.57 (40.0)
.197 (5.0)
.0236 (0.6)
4700
SXR472M016ST
0.07
2030
.630 (16.0)
1.42 (36.0)
.295 (7.5)
.0315 (0.8)
6800
SXR682M016ST
0.05
2240
.709 (18.0)
1.42 (36.0)
.295 (7.5)
.0315 (0.8)
8200
SXR822M016ST
0.05
2460
.709 (18.0)
1.57 (40.0)
.295 (7.5)
.0315 (0.8)
.315 (8.0)
.630 (16.0)
.138 (3.5)
.0197 (0.5)
25 Vdc (32 Volts Surge)
100
SXR101M025ST
1.86
300
120
SXR121M025ST
1.55
350
.315 (8.0)
.433 (11.0)
.138 (3.5)
.0236 (0.6)
150
SXR151M025ST
1.24
400
.394 (10.0)
.472 (12.0)
.197 (5.0)
.0236 (0.6)
220
SXR221M025ST
0.84
500
.394 (10.0)
.472 (12.0)
.197 (5.0)
.0236 (0.6)
330
SXR331M025ST
0.56
650
.394 (10.0)
.630 (16.0)
.197 (5.0)
.0236 (0.6)
470
SXR471M025ST
0.40
860
.394 (10.0)
.787 (20.0)
.197 (5.0)
.0236 (0.6)
680
SXR681M025ST
0.27
1150
.394 (10.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
820
SXR821M025ST
0.23
1120
.472 (12.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
1000
SXR102M025ST
0.19
1320
.472 (12.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
1200
SXR122M025ST
0.15
1400
.472 (12.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
1500
SXR152M025ST
0.13
1540
.472 (12.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
2200
SXR222M025ST
0.10
1980
.472 (12.0)
1.57 (40.0)
.197 (5.0)
.0236 (0.6)
3300
SXR332M025ST
0.07
2030
.630 (16.0)
1.42 (36.0)
.295 (7.5)
.0315 (0.8)
4700
SXR472M025ST
0.06
2460
.709 (18.0)
1.57 (40.0)
.295 (7.5)
.0315 (0.8)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type SXR 105 ºC Long Life Aluminum Electrolytic Capacitors
Low ESR, High Ripple, Radial Leaded Aluminum Electrolytic Capacitors
Cap
Max ESR
Max Ripple
Catalog
100 kHz
100 kHz
Part Number
25 ºC
105 ºC
Diameter
Length
Lead Space
Lead Dia.
(Ω)
(mA)
(D)
(L)
(S)
(d)
(µF)
Size in. (mm)
35 Vdc (44 Volts Surge)
100
SXR101M035ST
1.59
400
.394 (10.0)
.472 (12.0)
.197 (5.0)
.0236 (0.6)
120
SXR121M035ST
1.33
510
.394 (10.0)
.472 (12.0)
.197 (5.0)
.0236 (0.6)
150
SXR151M035ST
1.06
550
.394 (10.0)
.472 (12.0)
.197 (5.0)
.0236 (0.6)
220
SXR221M035ST
0.72
650
.394 (10.0)
.630 (16.0)
.197 (5.0)
.0236 (0.6)
330
SXR331M035ST
0.48
860
.394 (10.0)
.787 (20.0)
.197 (5.0)
.0236 (0.6)
470
SXR471M035ST
0.34
1150
.394 (10.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
680
SXR681M035ST
0.23
1320
.472 (12.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
820
SXR821M035ST
0.19
1400
.472 (12.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
1000
SXR102M035ST
0.16
1540
.472 (12.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
1200
SXR122M035ST
0.13
1770
.472 (12.0)
1.38 (35.0)
.197 (5.0)
.0236 (0.6)
1500
SXR152M035ST
0.12
1980
.472 (12.0)
1.57 (40.0)
.197 (5.0)
.0236 (0.6)
2200
SXR222M035ST
0.08
2030
.630 (16.0)
1.40 (36.0)
.295 (7.5)
.0315 (0.8)
3300
SXR332M035ST
0.47
2460
.709 (18.0)
1.57 (40.0)
.295 (7.5)
.0315 (0.8)
68
SXR680M050ST
1.95
400
.394 (10.0)
.472 (12.0)
.197 (5.0)
.0236 (0.6)
100
SXR101M050ST
1.33
635
.394 (10.0)
.630 (16.0)
.197 (5.0)
.0236 (0.6)
120
SXR121M050ST
1.11
650
.394 (10.0)
.630 (16.0)
.197 (5.0)
.0236 (0.6)
150
SXR151M050ST
0.88
860
.394 (10.0)
.787 (20.0)
.197 (5.0)
.0236 (0.6)
220
SXR221M050ST
0.60
1030
.394 (10.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
330
SXR331M050ST
0.40
1150
.394 (10.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
470
SXR471M050ST
0.28
1320
.472(12.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
680
SXR681M050ST
0.20
1770
.472 (12.0)
1.38 (35.0)
.197 (5.0)
.0236 (0.6)
50 Vdc (63 Volts Surge)
820
SXR821M050ST
0.16
1980
.472 (12.0)
1.57 (40.0)
.197 (5.0)
.0236 (0.6)
1000
SXR102M050ST
0.13
1810
.630 (16.0)
1.26 (32.0)
.295 (7.5)
.0315 (0.8)
1200
SXR122M050ST
0.11
2030
.630 (16.0)
1.40 (36.0)
.295 (7.5)
.0315 (0.8)
1500
SXR152M050ST
0.10
2320
.630 (16.0)
1.57 (40.0)
.295 (7.5)
.0315 (0.8)
63 Vdc (79 Volts Surge)
47
SXR470M063ST
2.26
305
.394 (10.0)
.472 (12.0)
.197 (5.0)
.0236 (0.6)
68
SXR680M063ST
1.56
500
.394 (10.0)
.630 (16.0)
.197 (5.0)
.0236 (0.6)
100
SXR101M063ST
1.06
550
.394 (10.0)
.630 (16.0)
.197 (5.0)
.0236 (0.6)
120
SXR121M063ST
0.88
620
.394 (10.0)
.787 (20.0)
.197 (5.0)
.0236 (0.6)
150
SXR151M063ST
0.71
795
.394 (10.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
220
SXR221M063ST
0.48
890
.472 (12.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
330
SXR331M063ST
0.32
1320
.472 (12.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
470
SXR471M063ST
0.23
1450
.472 (12.0)
1.38 (35.0)
.197 (5.0)
.0236 (0.6)
680
SXR681M063ST
0.16
1790
.630 (16.0)
1.26 (32.0)
.295 (7.5)
.0315 (0.8)
1000
SXR102M063ST
0.11
2200
.709 (18.0)
1.40 (36.0)
.295 (7.5)
.0315 (0.8)
1200
SXR122M063ST
0.09
2370
.709 (18.0)
1.57 (40.0)
.295 (7.5)
.0315 (0.8)
100 Vdc (125 Volts Surge)
22
SXR220M100ST
4.22
305
.394 (10.0)
.472 (12.0)
.197 (5.0)
.0236 (0.6)
33
SXR330M100ST
2.81
500
.394 (10.0)
.630 (16.0)
.197 (5.0)
.0236 (0.6)
47
SXR470M100ST
1.98
600
.394 (10.0)
.787 (20.0)
.197 (5.0)
.0236 (0.6)
68
SXR680M100ST
1.37
795
.394 (10.0)
.984 (25.0)
.197 (5.0)
.0236 (0.6)
100
SXR101M100ST
0.93
905
.394 (10.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
120
SXR121M100ST
0.77
1040
.472 (12.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
150
SXR151M100ST
0.62
1200
.472 (12.0)
1.18 (30.0)
.197 (5.0)
.0236 (0.6)
220
SXR221M100ST
0.42
1440
.630 (16.0)
1.26 (32.0)
.295 (7.5)
.0315 (0.8)
330
SXR331M100ST
0.28
1790
.709 (18.0)
1.40 (36.0)
.295 (7.5)
.0315 (0.8)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type SXR 105 ºC Long Life Aluminum Electrolytic Capacitors
Low ESR, High Ripple, Radial Leaded Aluminum Electrolytic Capacitors
Taping & Packaging
Fig. 1 - Formed Taping
Fig. 2 - Straight Taping (5Φ, 6.3Φ, 8Φ)
Fig. 3- Straight Taping (Under 10Φ, 12Φ, 13Φ)
Fig. 4- Straight Taping (16Φ, 18Φ)
Standard Lead Spacing of Taped Components is 5mm
Other Lead Spacing is Available by Special Order
Code
D
A
d
P
P0
P1
P2
Tolerance
0.5
1.0
±0.05
±1.0
±0.2
±0.7
±1.3
4 ~ 6.3
7.0
0.45
12.7
12.7
3.85
5~8
12.5
0.5
12.7
12.7
5, 6.3
12.5
0.5
12.7
8
12.5
0.5
12.7
10
12, 13
16, 18
21.0
26.0
26.0
0.6
0.6
0.8
12.7
15.0
30.0
Item
Capacitor
Diameter
D
(mm)
4
5
6.3
8
10 (12 L)
10 (16 L)
10 (20 L)
12, 13
16
Ammo Pack Box
Dimensions (mm)
A±5
B Max
C±3
Quantity
Per
Ammo Pack Box
250340 54
250340 54
290340 54
250340 54
290 340
54
350 340
59
340 340
71
340 340
71
34034071
2,500
2,000
2,000
1,000
750
900
900
500
250
F
W
H
H0
D0
t
ih
±0.5
Min.
±0.75
±0.5
±0.2
±0.2
Max.
6.35
+0.8
-0.2
5.0
W0
18.0
12.5
18.5
16.0
4.0
0.7
2.0
3.85
6.35
5.0
18.0
12.5
18.5
16.0
4.0
0.7
2.0
12.7
5.1
6.35
2.5
18.0
12.5
18.5
4.0
0.7
2.0
12.7
4.6
6.35
3.5
18.0
12.5
18.5
4.0
0.7
2.0
12.7
15.0
15.0
3.85
5.0
3.75
6.35
7.5
7.5
5.0
5.0
7.5
18.0
18.0
18.0
12.5
12.5
12.5
18.5
18.5
18.0
4.0
4.0
4.0
0.7
0.7
0.7
2.0
2.0
2.0
Ammo Pack
Ammo Pack boxes are shipped 5
to the outer packing carton
Fig.
1
2
3
4
Tape And Reel Quantities
Case
Diameter
Reel
Reel Qty. D ( mm)
Width
(Pcs.)
4
5
6
8
10 (12L)
10 (16L)
12, 13
16
44
44
44
44
44
50
-
-
1500
1300
1100
750
600
600
-
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Notice and Disclaimer: All product drawings, descriptions, specifications, statements, information and
data (collectively, the “Information”) in this datasheet or other publication are subject to change. The
customer is responsible for checking, confirming and verifying the extent to which the Information contained in this datasheet or other publication is applicable to an order at the time the order is placed. All
Information given herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability
for certain applications are based on the knowledge that the Cornell Dubilier company providing such
statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards
as typical for such applications, but are not intended to constitute any guarantee, warranty or representation regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,
warranty or representation concerning the suitability for a specific customer application, use, storage,
transportation, or operating environment. The Information is intended for use only by customers who
have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference
to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),
and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although
Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design
and manufacturing of its products, in light of the current state of the art, isolated component failures may
still occur. Accordingly, customer applications which require a high degree of reliability or safety should
employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies
or other appropriate protective measures) in order to ensure that the failure of an electrical component
does not result in a risk of personal injury or property damage. Although all product-related warnings,
cautions and notes must be observed, the customer should not assume that all safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be required.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
