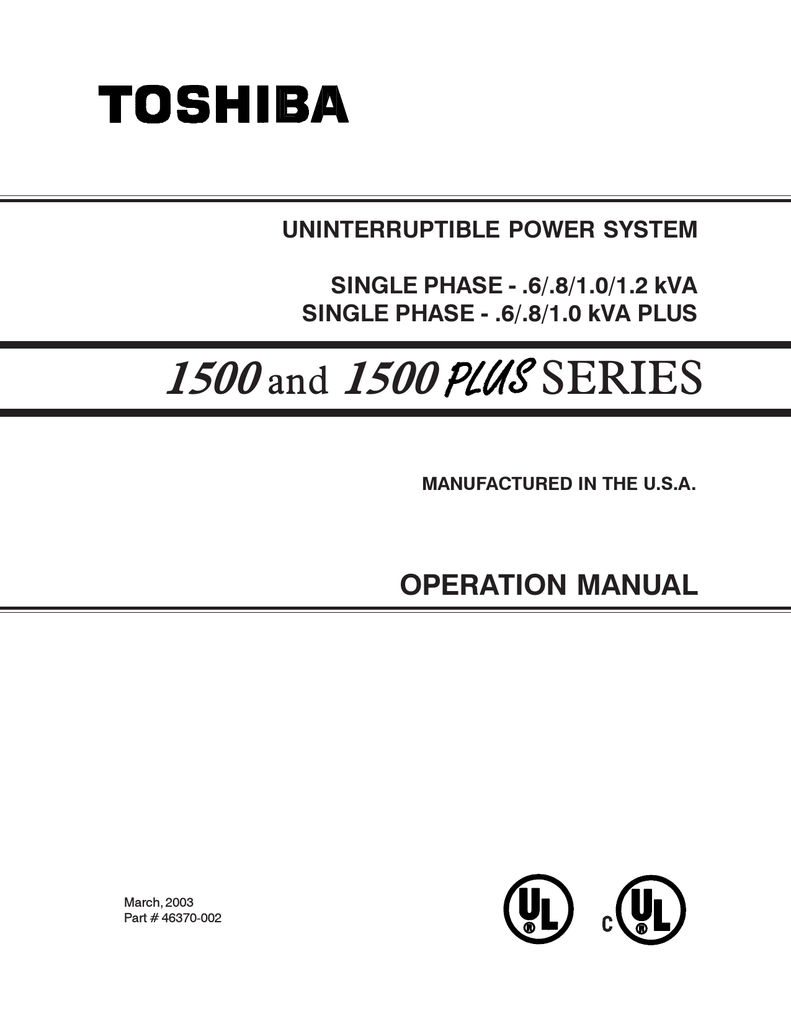

TOSHIBA

UNINTERRUPTIBLE POWER SYSTEM

SINGLE PHASE - .6/.8/1.0/1.2 kVA

SINGLE PHASE - .6/.8/1.0 kVA PLUS

1500 and

1500 SERIES

MANUFACTURED IN THE U.S.A.

OPERATION MANUAL

March, 2003

Part # 46370-002

TOSHIBA

NOTE

The instructions contained in this manual are not intended to cover all of the details or variations in equipment, nor to provide for every possible contingency to be met in connection with installation, operation, or maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser's purposes, the matter should be referred to the local

Toshiba sales office.

The contents of this instruction manual shall not become a part of or modify any prior or existing agreement, commitment, or relationship. The sales contract contains the entire obligation of Toshiba International Corporation's UPS Division.

The warranty contained in the contract between the parties is the sole warranty of

Toshiba International Corporation's UPS Division and any statements contained herein do not create new warranties or modify the existing warranty.

Any electrical or mechanical modifications to this equipment, without prior written consent of Toshiba International

Corporation, will void all warranties and may void UL listing or other safety certification. Unauthorized modifications also can result in personal injury, death, or destruction of the equipment.

UNINTERRUPTIBLE POWER SUPPLY

If additional information or technical assistance is required call Toshiba's marketing department toll free at (800) 231-1412 or write to: Toshiba International Corporation,

13131 W. Little York Road, Houston, TX 77041-9990.

Please complete the following information for your records and to remain within this equipment manual:

Model Number:

Serial Number:

Date of Installation:

Inspected By:

TOSHIBA

CONTENTS

SECTION PAGE

Disclaimer ................................................................................................. i

Contents ................................................................................................ ii-iii

Introduction ............................................................................................. iv

General Safety Instructions .................................................................... v

Important Safety Instructions.............................................................. vi-vii

1.0

Product Description ............................................................................... 1-1

1.1

Theory of Operation ........................................................................ 1-1

1.2

Application and Use ........................................................................ 1-1

1.3

Power Backup ................................................................................. 1-1

1.4

Power Conditioning ......................................................................... 1-1

2.0

Inspection/Storage/Disposal ................................................................. 2-1

2.1

Inspection of the new UPS equipment ........................................... 2-1

2.2

Storage of UPS equipment ............................................................. 2-1

2.3

Disposal .......................................................................................... 2-1

3.0

Precautions ............................................................................................ 3-1

3.1

Installation Precautions (General) .................................................. 3-1

3.2

Prestart Precautions ....................................................................... 3-2

3.3

Operating Precautions .................................................................... 3-2

4.0

Specifications ......................................................................................... 4-1

4.1

Standard Series Specifications ....................................................... 4-1

4.2

Plus Series Specifications (with isolation transformer)................... 4-3

5.0

Operating the UPS ................................................................................. 5-1

5.1

Operation Modes ............................................................................ 5-1

5.1.1 AC Input Mode (normal operation) ........................................ 5-1

5.1.2 Battery Backup Mode ............................................................ 5-1

5.1.3 Circuit Bypass Mode .............................................................. 5-2

5.2

System Protection Features ........................................................... 5-2

TOSHIBA

CONTENTS (Cont'd)

SECTION PAGE

5.0

Operating the UPS (cont'd) .................................................................... 5-1

5.3

Operation Monitoring ...................................................................... 5-3

5.3.1 Visual Indicator Functions...................................................... 5-3

5.3.2 Audible Alarm Functions ........................................................ 5-3

5.3.3 Visual and Audible Indicator Function Chart ......................... 5-3

5.4

Front Panel Layout.......................................................................... 5-4

5.5

UPS On Line Mode Display ............................................................ 5-4

5.6

Battery Recharging ......................................................................... 5-5

5.7

Battery Backup Time ....................................................................... 5-6

5.8

Battery Low Voltage Tolerances ..................................................... 5-6

5.9

Battery Check Function................................................................... 5-6

5.10 System Reset .................................................................................. 5-6

6.0

UPS Control Interface ............................................................................ 6-1

6.1

DB25 Connector Pinout .................................................................. 6-1

6.2

RS-232C Communication Interface ................................................ 6-2

6.2.1 UPS Shutdown (via RS-232C) .............................................. 6-2

6.3

Dry Contact Interface ...................................................................... 6-2

7.0

Troubleshooting Procedures................................................................. 7-1

7.1

Non-Fatal Fault Mode ..................................................................... 7-1

7.2

Fatal Fault Mode ............................................................................. 7-2

8.0

Preventive Maintenance/Parts Replacement........................................ 8-1

8.1

Preventive Maintenance ................................................................. 8-1

8.2

Parts Replacement ......................................................................... 8-1

8.3

Fuse Rating Chart ........................................................................... 8-2

9.0

External Dimensions/Panel Layout/Shipping Weights ........................ 9-1

9.1

External Dimensions ....................................................................... 9-1

9.2

Panel Layout ................................................................................... 9-2

9.3

Shipping Weights ............................................................................ 9-2

iii

TOSHIBA

INTRODUCTION

Thank you for purchasing the 1500/1500 Plus Series UPS. This Series features the very latest state of the art microprocessor technology and also uses IGBT transistors for fast, high power and low noise PWM (pulse width modulation) switching. Also, the Plus Series features a low impedance transformer to provide isolation even during bypass operation.

It is the intent of this manual to provide a guide for throughout with warning symbols. and operation of this electrical equipment.

safely

installing, operating, and maintaining the UPS. This operation manual contains a section of general safety instructions and is marked

Read this operation manual

thoroughly before installation

All safety warnings must be followed

to ensure personal safety.

Follow all precautions

to attain proper equipment performance and longevity.

General safety instructions are found on page v and important safety instructions are found on pages vi, vii, and viii. Read and save these instructions for future reference.

The manual is divided into major sections of interest. Section 1 contains the product description with the theory of operation and applications. All of the initial inspection, storage, installation, operating, and prestart precautions can be found in Sections 2 and 3.

Section 4 contains the equipment standard specifications.

Section 5 outlines the operating modes, protective features, battery recharging, battery low voltage tolerances, alarm and panel indicator functions.

Section 6 shows the control interface pin configurations.

Sections 7 and 8 are devoted to troubleshooting procedures, preventative maintenance techniques and periodic parts replacement. A fuse rating chart is also shown.

Section 9 shows front, rear, and side panel layout views with dimensional data. Labels, connector and switch placement, and shipping weights are also shown.

We hope that you find this operation manual informative and easy to use. If additional information or technical assistance is needed, please call toll free (800) 231-1412 or write to: Toshiba

International Corporation, 13131 W. Little York Road, Houston, TX 77041-9990.

Again, thank you for the purchase of this product.

TOSHIBA INTERNATIONAL CORPORATION

TOSHIBA

GENERAL SAFETY INSTRUCTIONS

Warnings in this manual appear in any of four ways:

1) Danger - The danger symbol is a lightning bolt mark enclosed in a triangle which precedes the 3/16" high letters spelling the word "DANGER". The danger symbol is used to indicate imminently hazardous situations, locations, and conditions which, if not avoided, WILL result in death, serious injury, and/or severe property damage.

DANGER

2) Warning - The warning symbol is an exclamation mark enclosed in a triangle which precedes the 3/16" high letters spelling the word "WARNING". The warning symbol is used to indicate potentially hazardous situations and conditions which, if not avoided

COULD result in serious injury or death. Severe property damage COULD also occur.

WARNING

Caution - The caution symbol is an exclamation mark enclosed in a triangle which precedes the 3/16" high letters spelling the word "CAUTION". The caution symbol is used to indicate potentially hazardous situations and conditions which, if not avoided may result in injury. Equipment damage may also occur.

CAUTION

Attention warnings - The attention warning symbol is an exclamation mark enclosed in a triangle which precedes the 3/16" high letters spelling the word "ATTENTION". The

Attention warning symbol is used to indicate situations and conditions that can cause operator injury and/or equipment damage:

ATTENTION

Other warning symbols may appear along with the Danger and Caution symbol and are used to specify special hazards. These warnings describe particular areas where special care and/or procedures are required in order to prevent serious injury and possible death:

1) Electrical warnings - The electrical warning symbol is a lighting bolt mark enclosed in a triangle. The Electrical warning symbol is used to indicate high voltage locations and conditions that may cause serious injury or death if the proper precautions are not observed:

2) Explosion warnings - The explosion warning symbol is an explosion mark enclosed in a triangle. The Explosion warning symbol is used to indicate locations and conditions where molten, exploding parts may cause serious injury or death if the proper precautions are not observed:

TOSHIBA

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS-

This manual contains important instructions that should be followed during the installation and maintenance of the UPS and it's batteries. Use for models UE1A1A006C6, UE1A1A006C6T, UE1A1A008C6, UE1AIA008C6T, UE1A1A010C6,

UE1A1A010C6T, UE1A1A012C6.

- The maximum ambient temperature in which this UPS unit should be operated or stored is

104 °F (40 °C).

- The nominal battery voltage range is indicated in Section 5.6.

- Servicing of the batteries should only be performed by a qualified Toshiba Representative who is knowledgeable of batteries and the required precautions. Keep unauthorized personnel away from batteries.

- When replacing batteries, use the same number and type of one of the following sealed, lead-acid batteries (do not mix types of batteries):

Model Capacity

600 VA / 600 VA Plus

800 VA / 800 VA Plus

1000 VA / 1000 VA Plus

1200 VA

Manufacturer

Yuasa

Type

NP4-12FR

HPH5-12FR

Quantity

CAUTION

Misuse of this equipment could result in human injury and equipment damage. In no event will Toshiba Corporation be responsible or liable for either indirect or consequential damage or injury that may result from the use of this equipment.

CAUTION

Do not dispose of the batteries in a fire. The batteries may explode.

CAUTION

Do not open or mutilate the batteries. Released electrolyte is harmful to the eyes and skin and could also be toxic.

WARNING

This unit contains sealed lead acid batteries. Lack of preventative maintenance could result in batteries exploding and emitting gasses and/or flame. Annual preventative maintenance must be performed by an authorized, trained technician.

WARNING

Failure to replace a battery before it becomes exhausted may cause the case to crack, possibly releasing electrolytes from inside the battery, and resulting in secondary faults such as odor, smoke, and fire.

TOSHIBA

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Installation and servicing of batteries should be performed by personnel knowledgeable of batteries and the required precautions. Keep unauthorized personnel away from the batteries.

WARNING

Proper maintenance to the battery system of this unit must be done by a qualified service technician, this is essential to the safety and reliability of your UPS system. Refer to service manual.

DANGER

A battery can present a risk of electrical shock and high short circuit current.

The following precautions should be observed when working with batteries:

1) Verify that the UPS is off and that the power cord is disconnected from the power source.

2) Remove watches, rings or other metal objects.

3) Use tools with insulated handles to prevent inadvertent shorts.

4) Wear rubber gloves and boots.

5) Do not lay tools or metal parts on top of batteries.

6) Determine if the battery is inadvertently grounded. If inadvertently grounded, remove source of ground.

Contact with any part of a grounded battery can result in electrical shock.

The likelihood of such shock will be reduced if such grounds are removed during installation and maintenance.

7) Verify circuit polarities prior to making connections.

8) Disconnect charging source and load prior to connecting or disconnecting terminals.

9) VRLA batteries contain an explosive mixture of hydrogen gas. Do not smoke, cause a flame or spark in the immediate area of the batteries. This includes static electricity from the body.

10) Do not attempt to open the batteries in order to add water or sample the specific gravity of the electrolyte. The batteries are valve regulated lead acid type and such servicing is not possible without damaging the battery.

11) Use proper lifting means when moving batteries and wear all appropriate safety clothing and equipment.

12) Do not dispose of lead acid batteries except through channels in accordance with local, state and federal regulations.

vii

TOSHIBA

INSTRUCTIONS IMPORTANTES CONCERNANT

LA SÉCURITÉ

CONSERVER CES INSTRUCTIONS

Cette notice contient des instructions importantes concernant la sécurité.

ATTENTION

Une battery peut présenter un risque de choc électrique, de brûlure par transfert d' énergie.

ATTENTION

Pour le remplacement, utiliser le même nombre de batteries du modéle suivant.

Model Capacity

600 VA / 600 VA Plus

800 VA / 800 VA Plus

1000 VA / 1000 VA Plus

1200 VA

Manufacturer

Yuasa

Type

NP4-12FR

NPH5-12FR

Quantity

ATTENTION

L' élimination des batteries est règlementèe. Consulter les codes locaux

à cet effet.

viii

TOSHIBA

1.0

Product Description

1.1

Theory of Operation

An uninterruptible power supply is a system that is installed between the commercial power and the load equipment. It is used during short-term blackouts or brownouts. The

UPS provides steady ac output power during these commercial power interruptions.

This power is provided for a long enough time so that the load can be shutdown in an orderly fashion. This prevents loss of data and possible damage to both hardware and software.

1.2

1.3

1.4

During normal operation the UPS uses commercial ac power. In addition, it also takes in all of the high voltage spikes and transients caused by switching and faults, and all of the common mode and normal mode noise which is associated with commercial ac power. The UPS converts it all to flat dc power. From this dc power, the UPS charges its batteries and generates its own extremely high quality ac waveform output. The result of this process is maximum power conditioning.

If the ac power supplied to the UPS drops below a specified voltage level, the unit's batteries automatically begin supplying power instead of receiving it. This insures that the loads connected to the UPS continue to receive power with no interruption. When ac input power becomes available again, operation returns to normal. The unit's batteries begin to recharge so they will be ready for the next power interruption.

Application and Use

Toshiba's 1500 and 1500 Plus Series of on-line uninterruptible power supply (UPS) systems provide continuous computer-grade ac power in a compact, high performance, and energy efficient unit. The UPS unit assures safe and reliable operation of critical office equipment. This can range from word processors and personal computers to mini-computers and local area networks. All units feature an audible alarm which sounds if the battery voltage drops below standard during use. This is an additional aid to help in retaining the valuable office data banks. All units allow for computer interfacing and an external battery pack option (see specifications).

Power Backup

When an electrical power failure occurs, the UPS unit's internal maintenance-free batteries automatically supply back-up power to the load without interruption. For example, when used to support a computer, the UPS back-up assures enough additional time to complete the activity and store data. This allows an orderly shutdown after a power failure has occurred.

Power Conditioning

When commercial power is present, the UPS supplies conditioned power to the load while maintaining its batteries in a charged condition. The UPS protects against the normal everyday problems associated with heavy use of raw commercial ac power, including power sags, surges, signal interference, and spikes. This protection keeps power-line problems from reaching the loads where they can cause equipment to operate erratically, hard-disk crashes, or cause damage to hardware and software.

1 - 1

TOSHIBA

2.0

Inspection/Storage/Disposal

2.1

Inspection of the new UPS equipment

Upon receipt of the UPS, a careful inspection for shipping damage should be made.

After Uncrating:

1) Check the unit for loose, broken, bent or otherwise damaged parts. If damage has occurred during shipment, keep all original crating and packing materials for return to shipping agent. Warranty will not apply to units which are damaged during shipment.

2.2

2.3

2) Check to see that the rated capacity and the model number specified on the nameplate conform to the order specifications.

Storage of UPS equipment.

If the UPS equipment is to be subject to long or short term storage the following guidelines should be used.

Avoid:

1) Storage in sites subject to extreme changes in temperature or high humidity.

2) Storage in sites subject to exposure of high levels of dust or metal particles

3) Storage on inclined floor surfaces or in sites subject to excessive vibration.

Before storing:

1) Charge the units batteries.

2) Place the STOP/RUN switch in the STOP position.

Storing:

1) Store within a temperature range of -20° to 40° C (-4° to 104° F).

2) For best results, store the UPS in the original shipping container and place on a wood or metal pallet.

3) The optimum storage temperature is 21° C (70° F). Higher ambient temperatures cause UPS batteries to need recharging more frequently.

After storing:

1) If stored in an ambient temperature under 20° C (68° F); recharge the batteries every 9 months.

2) If stored in an ambient temperature of 20° to 30° C (68° to 86° F); recharge the batteries every 6 months.

3) If stored in an ambient temperature of 30° to 40° C (86° to 104° F); recharge the batteries every 3 months.

Disposal

Please contact your state environmental agency for details on disposal of electrical components and packaging in your particular area.

It is illegal to dump lead-acid batteries in landfills or to dispose of them improperly.

Please help our Earth by contacting the environmental protection agencies in your area, the battery manufacturer, or call Toshiba toll-free at (800) 231-1412 for more information about recycling.

2 - 1

TOSHIBA

3.0

Precautions

3.1

Installation Precautions (General)

CAUTION

1) Install the unit in a well ventilated location; allow at least 10 cm (4 inches) on all sides for air ventilation and for maintenance.

2) Install the unit in a stable, level, and upright position which is free of vibration.

3) Install the unit where the ambient temperature is within the correct operating range (see Specifications Section 4.0).

4) Do not install the UPS in areas that are subject to high humidity.

5) Do not allow direct sunlight to shine on the unit.

6) Do not install the UPS in areas which are subject to contamination such as high levels of airborne dust, metal particles, or inflammable gas.

7) Avoid installation near sources of electrical noise and always make sure that the unit ground is intact to prevent electrical shock and to help reduce electrical noise.

8) Do not install where water or any foreign object may get inside the UPS.

9) This UPS generates and can radiate radio-frequency energy during operation.

Although RFI noise filters are installed inside the unit, there is no guarantee that the UPS will not influence some sensitive devices which are operating close by. If such interference is experienced, the UPS should be installed farther away from the affected equipment and/or powered from a different source than that of the affected equipment.

3 - 1

TOSHIBA

3.0

Precautions

3.2

Prestart Precautions

CAUTION

1) Before connecting the UPS to a power source; move the operation switch

(STOP/RUN), on the front panel (See sections 9.1), to the STOP position.

3.3

Operating Precautions

CAUTION

1) The UPS should not be powered up until the entire operation manual has been reviewed.

2) The input power source voltage and frequency must be within the specified ranges (See Specification sections 4.1 and 4.2). Voltages and frequencies outside of the permissible tolerance ranges may cause internal protection devices to activate.

3) The UPS should not be used with a load whose rated input is greater than the rated UPS output.

4) Do not use the UPS to provide power to motors that require high starting current or a long starting time such as vacuum cleaners and machine tools (oversizing for lock rotor current required).

5) Do not insert metal objects or combustible materials in the unit's ventilation slots.

6) Do not place, hang, or paste any objects on the top or on the exterior surfaces of the UPS.

7) Always use caution when connecting or disconnecting load equipment.

The UPS may be supplying power to the output load receptacles

through the bypass circuit. This can occur when the STOP/RUN switch is in the STOP position and the unit is connected to a source of supply power (see Circuit-bypass Mode section 5.1.3).

3 - 2

TOSHIBA

4.0

Specifications

4.1

Standard Series Specifications

MODEL NUMBER UE1A1A006C6 UE1A1A008C6 UE1A1A010C6

Input

Battery

Output

CAPACITY 600 VA (0.42 kW) 800 VA (0.56 kW)

Input voltage Single phase, 120 Vac, +10% to -30% (*)

Input frequency 45 to 65 Hz

800 VA Input capacity 600 VA

Input power factor Approximate unity (0.95 to 1.0)

Battery rated voltage 60 Vdc

1000 VA (0.7 kW)

1000 VA

Battery backup time when fully charged 12 min. at full load (**) 8 min. at full load (**) 7 min. at full load (**) with 0.7 power factor at 77° F (25° C) 30 min. at half load (**) 20 min. at half load (**) 18 min. at half load (**)

Recharge time Maximum 24 hrs to 100% (90% recharge after 8 hrs) (***)

Type of batteries Sealed lead-acid

Output voltage Single-phase, 120 volts

Output voltage regulation Within +/- 3%, steady state

Output frequency 50/60 Hz +/- 0.5% in free-running mode (line sync range +/- 1Hz)

Output voltage waveform Computer-grade sine wave with less than 3.0% total harmonic distortion with linear load

Rated load power factor 0.7 lagging (0.6 to 1.0)

Voltage transient characteristic +/- 8% under 100% load step change

Rated output current (rms) 5.0A

6.7A

8.3A

Environment

Switches

Interfaces

Options

Maximum output current (peak) 15.0A

Inverter overload capacity 150% for 30 seconds

Crest factor 3.0

20.0A

Operating temperature 32 to 104° F (0 to 40° C), optimal at 77° F (25° C)

Storage temperature -4 to 104° F (-20 to 40° C)

Operating humidity 30 to 90%, no condensation

Altitude(****) Less than 3000 ft (1000 m) above sea level

25.0A

External dimensions 8.00W x 20.38D x 10.00H in (203W x 518D x 254H mm)

Net weight 40.3 lb (18.3 kg) 40.3 lb (18.3 kg) 43.7 lb (19.8 kg)

Acoustical noise 50 dB at max. output, measured 3.3 ft (1 m) from front panel

Efficiency (ac-dc-ac) 85% 85% 87%

Bypass switch Automatic bypass is provided when the run switch is in the stop position, if a fault occurs, or if an overload occurs (transfer time is approximately 4 msec)

IBM (TM) AS/400

LAN Manager See section 6.0 for details.

Fault detect and input power loss

RS232 ASCII

Software for unattended computer shutdown Contact Toshiba for details on this option

External battery pack Contact Toshiba for details on this option

(*) Output capacity reduced when input voltage is between -15% and -30% of nominal.

(**) Battery backup time may vary depending on the operating conditions including ambient temperature at the installation site.

(***) An initial charge time of 24 hrs. is necessary to obtain proper battery performance level before unit is used for battery backup.

(****) Above 3000 ft (1000 m), output capacity reduced.

4 - 1

TOSHIBA

4.0

Specifications

4.1

Standard Series Specifications (Cont'd)

MODEL NUMBER UE1A1A012C6

Input

Battery

Output

Environment

Switches

Interfaces

Options

CAPACITY 1200 VA (0.84 kW)

Input voltage Single phase, 120 Vac, +10% to -30% (*)

Input frequency 45 to 65 Hz

Input capacity 1200 VA

Input power factor Approximate unity (0.95 to 1.0)

Battery rated voltage 60 Vdc

Battery backup time when fully charged 5 min. at full load (**) with 0.7 power factor at77° F (25° C) 12 min. at half load (**)

Recharge time Maximum 24 hrs to 100% (90% recharge after 8 hrs) (***)

Type of batteries Sealed lead-acid

Output voltage Single-phase, 120 volts

Output voltage regulation Within +/- 3%, steady state

Output frequency 50/60 Hz +/- 0.5% in free-running mode (line sync range +/- 1Hz)

Output voltage waveform Computer-grade sine wave with less than 3.0% total harmonic distortion with linear load

Rated load power factor 0.7 lagging (0.6 to 1.0)

Voltage transient characteristic +/- 8% under 100% load step change

Rated output current (rms) 10.0A

Maximum output current (peak) 30.0A

Inverter overload capacity 150% for 30 seconds

Crest factor 3.0

Operating temperature 32 to 104° F (0 to 40° C), optimal at 77° F (25° C)

Storage temperature -4 to 104° F (-20 to 40° C)

Operating humidity 30 to 90%, no condensation

Altitude(****) Less than 3000 ft (1000 m) above sea level

External dimensions 8.00W x 20.38D x 10.00H in (203W x 518D x 254H mm)

Net weight 43.7 lb (19.8 kg)

Acoustical noise 50 dB at max. output, measured 3.3 ft (1 m) from front panel

Efficiency (ac-dc-ac) 87%

Bypass switch Automatic bypass is provided when the run switch is in the stop position, if a fault occurs, or if an overload occurs (transfer time is approximately 4 mS)

IBM (TM) AS/400

LAN Manager See section 6.0 for details.

Fault detect and input power loss

RS232 ASCII

Software for unattended computer shutdown Contact Toshiba for details on this option

External battery pack Contact Toshiba for details on this option

(*) Output capacity reduced when input voltage is between -15% and -30% of nominal.

(**) Battery backup time may vary depending on the operating conditions including ambient temperature at the installation site.

(***) An initial charge time of 24 hrs. is necessary to obtain proper battery performance level before unit is used for battery backup.

(****) Above 3000 ft (1000 m), output capacity reduced.

4 - 2

TOSHIBA

4.0

Specifications

4.2

Plus Series Specifications (w/ isolation transformer)

MODEL NUMBER UE1A1A006C6T UE1A1A008C6T UE1A1A010C6T

Input

Battery

Output

Environment

Switches

Interfaces

Options

CAPACITY 600 VA (0.42 kW) 800 VA (0.56 kW)

Input voltage Single phase, 120 Vac, +10% to -30% (*)

Input frequency 45 to 65 Hz

Input capacity 600 VA

Input power factor Approximate unity (0.95 to 1.0)

800 VA

1000 VA (0.7 kW)

1000 VA

Battery rated voltage 60 Vdc

Recharge time Maximum 24 hrs to 100% (90% recharge after 8 hrs) (***)

Type of batteries Sealed lead-acid

Output voltage Single-phase, 120 volts

Output voltage regulation Within +/- 3%, steady state

Output frequency(*****) 50/60 Hz +/- 0.5% in free-running mode (line sync range +/- 1Hz)

Output voltage waveform Computer-grade sine wave with less than 3.0% total harmonic distortion with linear load

Common mode Less than 0.5V peak

Normal mode Less than 10V peak

Rated load power factor 0.7 lagging (0.6 to 1.0)

Voltage transient characteristic +/- 8% under 100% load step change

Rated output current (rms) 5.0A

6.7A

Maximum output current (peak) 15.0A

20.0A

Inverter overload capacity 150% for 30 seconds

8.3A

25.0A

Crest factor 3.0

Operating temperature 32 to 104° F (0 to 40° C), optimal at 77° F (25° C)

Storage temperature -4 to 104° F (-20 to 40° C)

Operating humidity 30 to 90%, no condensation

Altitude(****) Less than 3000 ft (1000 m) above sea level

External dimensions 8.00W x 20.38D x 10.00H in (203W x 518D x 254H mm)

Net weight 57.5 lb (26.1 kg) 57.5 lb (26.1 kg) 60.9 lb (27.6 kg)

Acoustical noise 50 dB at max. output, measured 3.3 ft (1 m) from front panel

Efficiency (ac-dc-ac) 83% 83% 85%

Bypass switch Automatic bypass is provided when the run switch is in the stop position, if a fault occurs, or if an overload occurs (transfer time is approximately 4 msec)

IBM (TM) AS/400

LAN Manager See section 6.0 for details.

Fault detect and input power loss

RS232 ASCII

Software for unattended computer shutdown Contact Toshiba for details on this option

External battery pack Contact Toshiba for details on this option

(*) Output capacity reduced when input voltage is between -15% and -30% of nominal.

(**) Battery backup time may vary depending on the operating conditions including ambient temperature at the installation site.

(***) An initial charge time of 24 hrs. is necessary to obtain proper battery performance level before unit is used for battery backup.

(****) Above 3000 ft (1000 m), output capacity reduced.

(*****) Output voltage and capacity derated for 50 Hz output.

4 - 3

TOSHIBA

5.0

Operating the UPS

5.1

Operation Modes

5.1.1

AC Input Mode (normal operation)

Bypass circuit

Power input plug

Fuse

UPS main circuit

5-15P

Transformer

(Plus Series)

UPS batteries

Power flow in AC input mode

UPS receptacles

(rear panel)

5-15R

= power flow

The above illustration shows circuit power flow in the ac input mode. The UPS unit's rectifier, included in a boost chopper circuit, converts ac input power to dc power. This dc power runs the unit's transistor inverter and charges the batteries.

The boost chopper circuit maintains a constant voltage, with current limiting, for charging the batteries and assures proper sine waveform generation for the output current. The unit's batteries are maintained in a constantly charged state when the UPS is in the normal operation mode. On the front panel, LED's labeled

"On Line" and "AC Input" should be on and the "Fault" LED should be off

(See Section 9.2 Panel Layout).

Power input plug

5-15P

5.1.2

Battery Backup Mode

Bypass circuit

UPS receptacles

(rear panel)

Fuse

UPS main circuit

Transformer

(Plus Series)

UPS batteries

Power flow in battery backup mode

5-15R

= power flow

The above illustration shows circuit power flow in battery backup mode. When commercial ac power failures occur, the UPS's batteries instantly begin supplying dc voltage to the UPS's main inverter circuit. This circuit changes (inverts) the dc power into ac power. The ac power is available at the unit's output receptacles.

This back-up process will continue until the UPS's battery voltage drops below a specific minimum level. When this occurs, the batteries will stop supplying power to the load. This minimum level is the rated minimum voltage (Vmin). The rated battery voltage chart in section 5.6 (See Section 5.7 for battery backup time) shows (Vmin). On the front panel, LED's labeled AC Input and Fault should be off. The On Line and Backup LEDs should be on (See Section 9.2 Panel

Layout).

5 - 1

TOSHIBA

5.0

Operating the UPS

5.1

Operation Modes

5.1.3

Circuit-bypass mode

Bypass circuit

Power input plug

Fuse

UPS main circuit

5-15P

UPS receptacles

(rear panel)

Transformer

(Plus Series)

5-15R

UPS batteries

= power flow

Power flow in circuit-bypass mode.

If the UPS unit is severely overloaded or develops an internal fault, the power flow is automatically switched from the unit's main circuit to the bypass circuit mode.

Power flow through the bypass is shown in the above illustrations. This changeover occurs automatically in approximately 4 milliseconds. The switching period is not long enough to cause interruptions to occur in most UPS equipment loads.

The energy flow must be transferred manually from the UPS's bypass

circuit back to the inverter circuit after first correcting the fault. Toggle the

STOP/RUN switch (on the unit's front panel) first to STOP and then back to RUN.

This procedure resets the UPS and transfers back to inverter. During circuitbypass mode the AC-Input LED is ON, the On-Line LED is OFF, and the Fault

LED may be ON or OFF.(See Section 9.2 Panel Layout).

5.2

System Protection Features

The schematic shown below depicts the electrical locations of the protection devices on the UPS.

Input

Abnormal

Overcurrent

Input

Fuse

Rectifier/

Charger/

Chopper

Inverter

Transformer

(Plus Series)

Low Battery

Level

Batteries

Overheating

Current Limit

Overload

Overvoltage/

Undervoltage

Output

5 - 2

TOSHIBA

5.0

Operating the UPS

5.3

Operation Monitoring

5.3.1

Visual Indicator Functions

The following LED (light emitting diode) indicators are located on the front panel

(see Section 9.2 "Panel Layout"). Refer to these lamps for visual information about the operating condition of the UPS (see Section 5.3.3 "Visual and Audible

Indicator Function Chart").

1) AC Input: This green LED lights when normal ac input power is being supplied to the UPS unit.

2) On Line: This green LED lights when the inverter output voltage is normal.

3) Fault: This red LED lights when an abnormal operating condition is detected. Operation of the unit's inverter is inhibited until the fault has been corrected and the system reset (see Section 5.10 "System Reset").

5.3.2

Audible Alarm Functions

The UPS is equipped with an audible alarm system which activates under various operating conditions. Sound patterns are used to indicate these conditions (see

Section 5.3.3 "Visual and Audible Indicator Function Chart"). Alarms for the battery backup mode or low battery voltage will stop automatically when AC input voltage is restored. Alarms for a fault condition will continue to sound until the

UPS has been reset (see Section 5.10 "System Reset").

5.3.3

Visual and Audible Indicator Function Chart

Condition Cause

Audible

Alarm

Pattern

Overcurrent (OC) Problem in chopper or inverter circuit.

DC Bus Overvoltage (DCOV) DC Bus > 115% of rated.

Ouput Overvoltage (OV) V out > 110% of rated.

OFF

Visual

Indicators

UPS

Operation

1) "Fault" LED 1) Auto is ON

2) "On Line" transfer to bypass

LED is OFF 2) Chopper

3) "AC Input" stopped

LED is ON 3) Inverter stopped

Undervoltage (UV) V out < 85% of rated.

1.5s

Overheat (OH)

Overload (OL)

Heatsink exceeds 90º C.

Output current and overload specifications have been exceeded.

.5s .5s

OFF

Battery problem

Normal battery backup operation

Low battery voltage

Problem in battery circuit.

Loss of AC power

Battery voltage too low,

Shutdown imminent.

5s 70s

1s .5s

OFF

1) Replace

Battery

LED is ON

1) Bypass or

On-Line mode.

OFF

1) "Fault" LED 1) Chopper is OFF

LED is ON

3) "AC Input"

LED is OFF running

2) "On Line" 2) Inverter running

OFF

5 - 3

TOSHIBA

5.0

Operating the UPS

5.4

Front Panel Layout

ON LINE (green lamp)

Lights green when the UPSs inverter is supplying power to the load.

AC INPUT (green lamp)

Lights green when normal ac input power is being supplied to the UPS

Unit.

FAULT (red lamp)

Lights red when the UPS unit has tripped in the fault mode.

REPLACE BATTERY (red lamp)

Lights red to indicate batteries may need to be replaced.

5.5

UPS On-Line Mode Display

The following chart shows normal operating conditions when the UPS On-Line lamp is green.

Output Display Status Explanation

Normal

When output current is between 30% and 100%, the green lamps light in

15% increments (from bottom to top) to indicate relative output value

(This sample display shows output current at

45% to 60% of rated current).

Overload

All the green lamps will light and the red Overload lamp will flash. If the load exceeds 135% of the max.

rated output the red

Overload lamp will light continuously.Remove

overload as quickly as possible to prevent fault

(fault timeouts vary depending on overload condition).

= Flashing LED

Output

Battery

Backup

Low

Battery

During

Battery

Backup

Display Status

= Steady-lit LED

Explanation

During battery backup all

green lamps flash and the

red Backup lamp is lit continuously. As the batteries discharge, the green lamps extinguish from top to bottom to indicate remaining battery capacity (This sample display shows battery voltage between 75% and

90% of battery capacity).

All green lamps are off and the red Backup lamp is lit continuously or flashing.

5 - 4

TOSHIBA

5.0

Operating the UPS (Cont'd)

5.6

Battery Recharging

The graph below shows the typical voltage requirements for recharging the UPS unit's batteries.

Current

Voltage

0.4 amp (A)

Vmax.

Charging current

Battery charge voltage

Vmin.

Discharge shut-off point

Fully charged

Time

Period 1

Period 2 Period 3

The recharge process usually consists of three periods. During the first period, the current is maintained at approximately 0.4 amperes. In the second period, the constantvoltage control starts and the current gradually decreases as the batteries continue to charge. In the third period, a slight current flows into the batteries to keep them fully charged. After a complete discharge, a full recharge usually requires 24 hours (90% recharge in 8 hours).

The chart depicted below shows the rated maximum and minimum battery voltages, and the charge current for each of the sizes.

Rated battery voltages

Model

600 VA / 600 VA Plus

800 VA / 800 VA Plus

1000 VA / 1000 VA Plus

1200 VA

Vmax.

68.2

Vmin.

48.0

Charge

0.4 (A)

5 - 5

TOSHIBA

5.0

Operating the UPS

5.7

Battery Backup Time

The UPS unit's batteries provide about 5-12 minutes of back-up time depending on the capacity of the UPS. These times are valid when a unit is operating under full load. When the units are operating at half load, the batteries can power the load equipment about 3 times longer. The exact length of these times will depend on the UPS model used, condition of the batteries, amount of load, temperature and other variables. See battery backup time in the standard specifications Sections 4.1 through 4.2.

5.8

Battery Low Voltage Tolerances

Excessive discharge will cause the UPS unit's battery voltage to drop. The chart shown below lists the voltage level at which each UPS unit's low-voltage alarm will sound and also at what level the low-voltage condition will cause the unit to automatically shut down.

UPS Capacity

Nominal voltage in Vdc

Alarm voltage in Vdc

Shutdown voltage

600VA

60.0

800VA 1000VA 1200VA 600VA 800VA 1000VA

Plus Plus Plus

60.0

52.8

48.0

52.8

48.0

52.8

48.0

52.8

48.0

52.8

48.0

52.8

48.0

52.8

48.0

5.9

Battery Check Function

Part of the UPS start-up procedure is an automatic 'Battery Check' to see if a problem exists in the battery circuit. When the UPS is started it will begin operation in the bypass mode. An automatic voltage level test of the batteries is made while operating in the bypass mode for five seconds. A failure of this first test will activate visual and audible alarms (see section 5.3.3 "battery problem"). If this test is passed, then the UPS will autotransfer from bypass mode to on line operating mode. A ten second automatic voltage check of the batteries is made after the UPS has auto-transferred from bypass to on line mode. Normal on line operation continues if the second test is passed. If the second test fails, then the "Fault" LED will flash and up to three additional automatic battery voltage checks are made at 3 hour intervals while the inverter continues to operate. If the batteries are found to be normal during one of these three tests then the "Fault" LED will stop flashing and normal inverter operation will continue. A failure of the third and final check will activate visual and audible alarms (see section 5.3.3 "battery problem") causing an auto-transfer back to bypass. If the batteries are indicated "bad" then

STOP the UPS and allow a 24 hour charge on the batteries before restarting.

5.10

System Reset

The UPS is reset by moving the STOP/RUN switch from "run" to "stop" and then back to "run". Use the reset procedure to transfer from bypass back to inverter after a fault occurs. Some faults may only be cleared by shutting down the UPS, waiting for all LED's on the front panel to go off, and then restarting the UPS.

5 - 6

TOSHIBA

6.0

UPS Control Interface

6.1

DB25 Connector Pinout

RS-232C serial communication and Dry Contacts are both standard features available through a DB25 female connector located on the back panel of the UPS (see Section 9.1).

The RS-232C serial communication interface allows control of the UPS from a personal computer running special Toshiba software. The computer is connected to the UPS through a serial RS-232C communication port. The Dry Contact interface is available as open or closed contacts. An adapter is available from Toshiba for splitting the RS-232C and Dry Contact interfaces into two separate DB9 connectors. Contact Toshiba for more information on this option. The following chart shows the pin assignments for the DB25 connector.

Symbol

+9V

RXD_UPS

TXD_UPS

TXD_AUX

RXD_AUX

SNMPSIG1

RS_Common

SNMPSIG2

DTR

DSR

RTS

CTS

Dry_Common

Backup_O

Backup_C

Low_Battery

Inverter

Bypass

Fault

SD_Signal

SD_Common

Pin

Description

Supply used by Slide-In Options cards (-)

Supply used by Slide-In Options cards (+)

UPS receive line

UPS transmit line

Auxiliary transmit line

Auxiliary receive line

(not used)

SNMP option card function

Common line for RS-232C communication

SNMP option card function

UPS data terminal ready

UPS data set ready

UPS request to send

UPS clear to send

(not used)

Common line for Dry Contact signals

Open during Battery Backup

Closed during Battery Backup

Closed during Low Battery

Closed during On-Line mode

Closed during Bypass mode

Closed during Fault

(not used)

Shutdown command signal line

Shutdown command common line

6 - 1

TOSHIBA

6.0

UPS Control Interface

6.2

RS-232C Serial Communication Interface

The available data from the UPS, via RS-232C communication, is shown below:

Operating conditions

UPS operating status

(described as yes or no)

'Fault details

(described as occurred or not occurred)

Output voltage

Output current

Battery voltage

Input frequency

Output frequency

Utility power OK

Low battery voltage detected

UPS in BYPASS mode

UPS in NORMAL mode

Input and output frequency synchronized

UPS fault occurred

DC bus overcurrent

DC bus overvoltage

DC bus undervoltage

Input overcurrent

Overheat

Overload being timed

Overload (allowable time exceeded)

Output overvoltage (during NORMAL mode)

Output undervoltage (during NORMAL mode)

6.2.1

UPS Shutdown (via RS-232C)

When the UPS is operating from its internal batteries, a shutdown order can be sent to the UPS telling it to turn OFF after a user-specified amount of time. This function can allow you to stop discharging the UPS batteries after an orderly system shutdown has been completed. The UPS can be programmed to turn

OFF up to 8 minutes after the shutdown command is given. This command can be cancelled before the specified time has elapsed.

6.3

Dry Contact Interface

The Dry Contact interface uses pins 16 trough 22. Pins 24 and 25 are used for the shutdown function. The following schematic shows the contact state and pin assignments for each signal output along with the associated DB25 connector pinout.

16 Dry Contact common

}

Battery Backup

19 Battery voltage low

20 UPS on

21 Bypass on

22 Fault detect signal

Notes:

1) Pin switches are shown in their inactive states

(ex. if battery voltage is low then pin 19 will be connected to pin 16)

2) Contacts are rated as follows: dc: 48V, 0.1A

ac: 30Vrms (42V-peak)

0.07A(0.1A-peak)

6 - 2

TOSHIBA

7.0

Troubleshooting Procedures

Faults are those abnormal conditions that can occur and cause the unit to shutdown normal operation. The faults are detected by the protection circuitry (see System Protection Features

Section 5.2) in the unit. The UPS Fault lamp will light red. "Troubleshooting" involves monitoring the bar graph lamps on the front panel and then interpreting the readout by using the fault mode display charts.

7.1

Non-Fatal Fault Mode

Non-fatal faults may or may not cause the unit to shut down. These faults normally will cause the UPS to transfer to bypass mode. Use "System Restart" procedures (see

Section 5.10) to transfer the UPS back to On Line mode. Use the following chart to decode the display. All non-fatal faults will cause the red Fault LED to flash.

Non-Fatal Fault Mode Display Chart

Fault Display status Probable cause Corrective action

Output low voltage

Output overvoltage

Inverter fault or short circuit in UPS output

Resonance with load equipment

Remove cause of short circuit. If none is found, contact your

Toshiba service representative.

Remove load equipment one piece at a time.

DC undervoltage

Cooling fin overheating

Battery problem

Output overload

Chopper fault Contact your Toshiba service representative.

Cooling fan outage or closed cooling airflow path

Check for airflow restriction. If none is found, contact your

Toshiba service representative.

Battery damaged or something wrong in the not be connected)

Contact your Toshiba battery circuit (battery may service representative.

Capacity of load equipment to high

Review UPS rating or reduce load equipment.

7 - 1

TOSHIBA

7.0

Troubleshooting Procedures

7.2

Fatal Fault Mode

Fatal faults may or may not cause the UPS to shutdown. Use "System Reset" procedures

(see Section 5.10) to transfer UPS back to On Line mode. Use the following chart to decode the display. All fatal faults will cause the red Fault LED to light continuously.

Fatal Fault Mode Display Chart

Fault Display status Probable cause Corrective action

DC overcurrent

Inverter fault

DC overvoltage

Chopper fault

Contact your Toshiba service representative.

Input overcurrent

Chopper fault

UPS system error

Trouble with the control

PWB

= Flashing LED

= Steady-lit LED

7 - 2

TOSHIBA

8.0

Preventive and Scheduled Maintenance/Parts Replacement

8.1

Preventive Maintenance

Toshiba's 1500 and 1500 Plus Series of uninterruptible power systems have been designed to provide years of trouble-free operation requiring a minimum of preventive maintenance.

The best preventive measure that the UPS user can take is to keep the area around the unit, particularly the air inlet vents, clean and free of moisture and dust accumulations.

If the atmosphere of the installation site is very dusty, use a vacuum cleaner to periodically remove dust accumulations from the system. Schedule authorized service centers to perform internal parts inspections annually.

CAUTION

Before performing any maintenance, the technician should be familiar with and follow the important safety instructions located on pages vi and vii.

WARNING

Proper maintenance of the battery system of this unit by a qualified service technician is essential to the safety and reliability of your UPS system. Refer to service manual.

8.2

Parts Replacement

The following list shows intervals for periodic maintenance and replacement of certain

UPS parts.

1) Batteries: VRLA batteries are maintenance free with respect to electrolyte only.

The charging voltage, temperature, performance and connection resistance must be monitored periodically. Necessary corrective actions must be made in order to assure safe reliable power is supplied by the UPS. The aforementioned items affect the life of batteries, so replacement should be done once every 3 to 5 years at a minimum. All of the batteries must be replaced at the same time.

Quarterly maintenance a) Visual checks

1) Leakage

2) Corrosion on positive terminal b) Check battery temperature at the negative terminal.

c) Measure and record the system float charging voltage.

d) Measure and record the individual units float charging voltage.

Semi-Annual maintenance a) Repeat the quarterly checks.

b) Perform a 10 second high rate (e.g. 100 amp) load test on the individual batteries.

c) Optionally test for the purpose of trending the battery over time.

d) Re-torque all inter-battery connecting hardware (if applicable).

e) Perform inter-battery connector resistance checks.

Aluminum electrolytic capacitors: Replace once every 5 years.

Fuses: Replace once every 7 years (see output fuse rating chart on the following page).

Cooling fan: Replace once every 3 years.

8 - 1

8.0

Preventive and Scheduled Maintenance/Parts Replacement

8.3

Fuse Rating Chart

The following chart shows the recommended fuses for all UPS sizes.

Fuse rating

Model

600 VA

800 VA

1000 VA

1200 VA

600 VA Plus

800 VA Plus

1000 VA Plus

Amp rating

15.0A

Fuse model no.

LittleFuse 314015

TOSHIBA

8 - 2

TOSHIBA

9.0

External Dimensions/Shipping Weights/Panel Layout

9.1

External Dimensions

8.00

Input power cord connector

Fuse

Run/Stop switch.

0: Stop

1: Run

10.00

Slide-in

Option

Card

Front

View

Air Vents

20.38

Output

Receptacles

Rear

View Computer

Interface

Connector

Side

View

9 - 1

9.0

External Dimensions/Shipping Weights/Panel Layout

9.2

Panel Layout

TOSHIBA

9.3

Shipping Weights

UPS

Model

600 VA

800 VA

1000 VA

1200 VA

600 VA Plus

800 VA Plus

1000 VA Plus

Pounds

Shipping Weight

Kilograms

48.8

22.2

52.2

66.0

69.4

23.7

30.0

31.5

9 - 2

TOSHIBA

TOSHIBA INTERNATIONAL CORPORATION

INDUSTRIAL DIVISION

13131 West Little York Rd., Houston Texas 77041

Tel: [800] 231-1412 Fax: [713] 466-8773 Telex: 762078

Printed in U.S.A.

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF

Toshiba 1500 Power Supply User Manual

OPERATION MANUAL

Any electrical or mechanical modifications to this equipment, without prior written consent of Toshiba International

Corporation, will void all warranties and may void UL listing or other safety certification. Unauthorized modifications also can result in personal injury, death, or destruction of the equipment.

safely

Read this operation manual

All safety warnings must be followed

Follow all precautions

General safety instructions are found on page v and important safety instructions are found on pages vi, vii, and viii. Read and save these instructions for future reference.

SAVE THESE INSTRUCTIONS-

Related manuals
