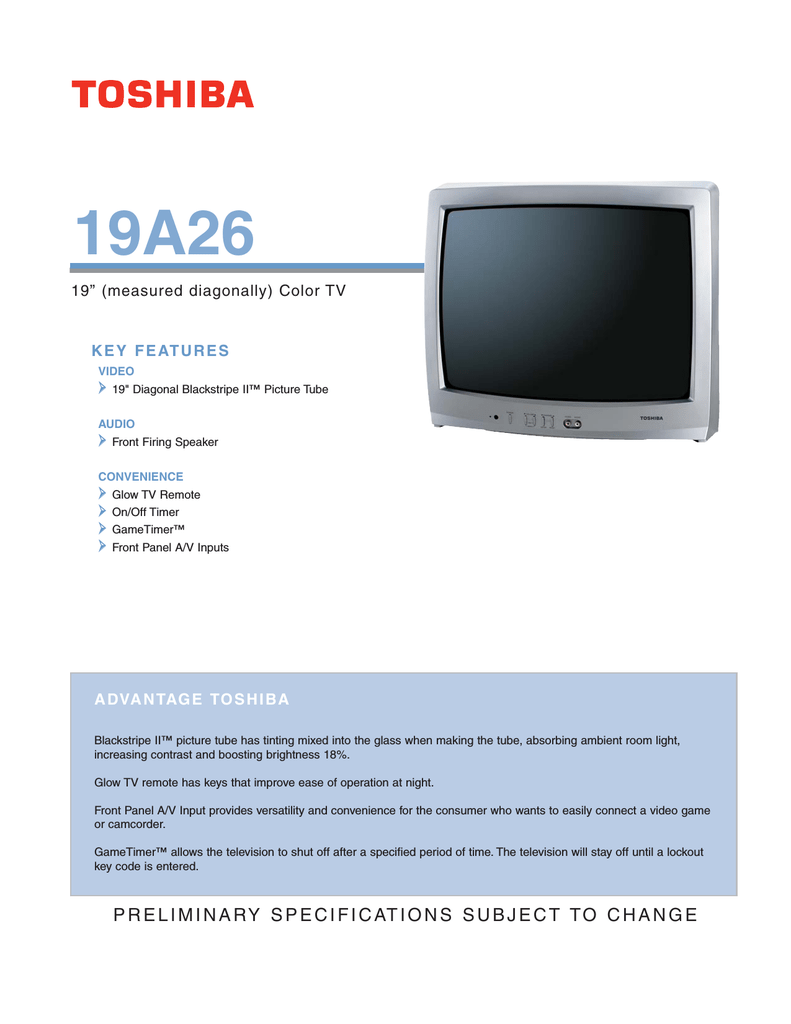

Toshiba 19A26 CRT Television User Manual

19A26
19” (measured diagonally) Color TV
K E Y F E AT U R E S
VIDEO
19" Diagonal Blackstripe II™ Picture Tube
AUDIO
Front Firing Speaker
CONVENIENCE
Glow TV Remote
On/Off Timer
GameTimer™
Front Panel A/V Inputs
A DVA N TAG E TO S H I BA
Blackstripe II™ picture tube has tinting mixed into the glass when making the tube, absorbing ambient room light,
increasing contrast and boosting brightness 18%.
Glow TV remote has keys that improve ease of operation at night.
Front Panel A/V Input provides versatility and convenience for the consumer who wants to easily connect a video game
or camcorder.
GameTimer™ allows the television to shut off after a specified period of time. The television will stay off until a lockout
key code is entered.
P R E L I M I N A RY S P E C I F I C AT I O N S S U B J E C T TO C H A N G E
19A26
TECHNOLOGY
& BENEFITS
CONVENIENCE
Tri-Lingual On-Screen Display - All TV functions can be
easily operated using the remote control to access
Toshiba's advanced on-screen display. This full-featured
system can be operated in English, French or Spanish.
Channel Return - Pressing this button returns you to the
last channel you were viewing, which simplifies switching
back and forth between two programs.
AUDIO VIDEO
CRT Type
BlackStripe II™
SOUND:
Audio Wattage (Total)
1.5 W
CONVENIENCE:
Remote Control
CONVENIENCE
AUDIO
Front Firing Speaker delivers the best sound by keeping
the sonic image directly in front of the viewer.
S P E C I F I C AT I O N S
Glow TV
Tri-Lingual Icon On-Screen Display
X
Off / Sleep / Game Timer
X
On Timer
X
Closed Captioning
X
V-Chip
X
Channel Return
X
Channel Lock
X
Video Lock
X
JACK PACK:
TERMINALS
VIDEO
Blackstripe II™ Picture Tube - All picture tubes have a
shadow mask behind the glass that helps create the
picture. Blackstripe II™ picture tubes utilize a special
compound in the shadow mask to absorb unnecessary light
emissions. And to reduce reflection, tinting is built into the
glass—not sprayed on as it is by some manufacturers—
when the cathode ray tube is being created. Together, these
improvements provide increased contrast and an 18%
increase in brightness over standard tubes.
Inputs:
RF Input
X
Front Panel A/V Inputs
X
CABINET:
W x H x D (in inches)
Weight (lbs)
UPC
19 1/4 x 16 3/8 x 18 1/4
38.5
022265213339
Video Lock - This feature allows lock out of either all
video inputs or all inputs plus channels 3 and 4, preventing
viewing of sources connected to selected inputs.
http://www.tacp.toshiba.com Customer Service: 800.631.3811
Marketing Communications © Toshiba America Consumer
Products, L.L.C. 82 Totowa Road, Wayne, NJ 07470 (2006). All
Rights Reserved (04/06.02) BlackStripe II and GameTimer are
trademarks of Toshiba America Consumer Products, L.L.C..
Product design and specification subject to change or modification
without notice.
