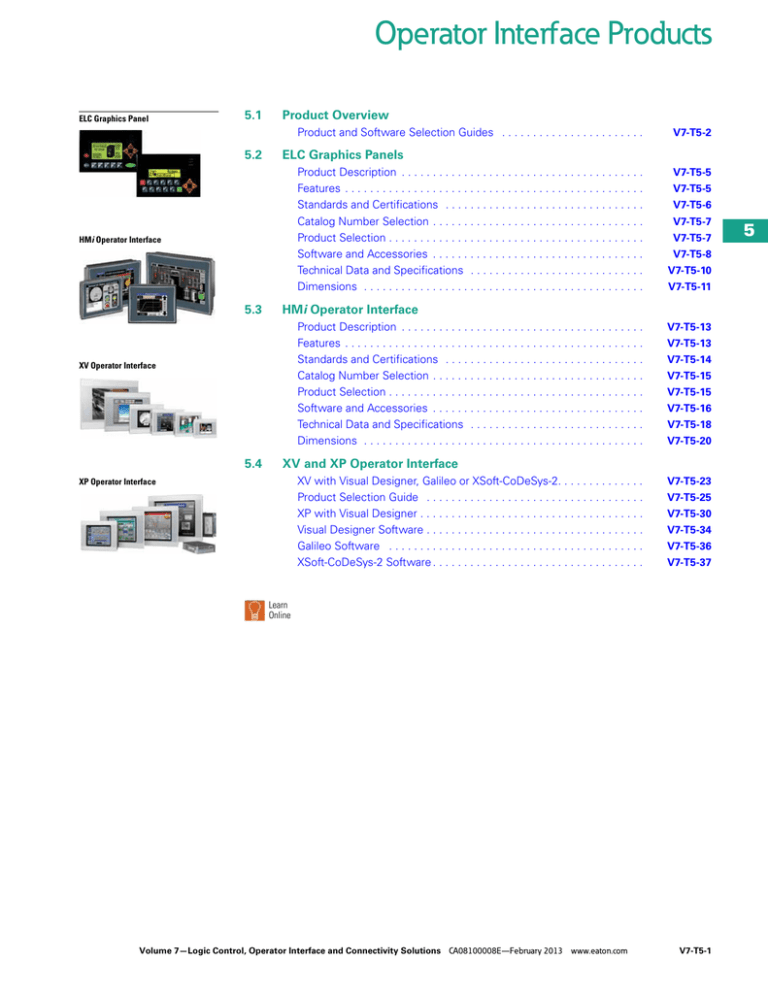

Operator Interface Products 5 5.1 Product Overview

Operator Interface Products 5 5.1 Product Overview

Operator Interface Products

ELC Graphics Panel

HMi Operator Interface

XV Operator Interface

XP Operator Interface

5.1

Product Overview

Product and Software Selection Guides . . . . . . . . . . . . . . . . . . . . . . .

5.2

ELC Graphics Panels

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Standards and Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Catalog Number Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Software and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Technical Data and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.3

HMi Operator Interface

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Standards and Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Catalog Number Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Software and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Technical Data and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.4

XV and XP Operator Interface

XV with Visual Designer, Galileo or XSoft-CoDeSys-2. . . . . . . . . . . . . .

Product Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

XP with Visual Designer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Visual Designer Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Galileo Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

XSoft-CoDeSys-2 Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-2

V7-T5-5

V7-T5-5

V7-T5-6

V7-T5-7

V7-T5-7

V7-T5-8

V7-T5-10

V7-T5-11

V7-T5-13

V7-T5-13

V7-T5-14

V7-T5-15

V7-T5-15

V7-T5-16

V7-T5-18

V7-T5-20

V7-T5-23

V7-T5-25

V7-T5-30

V7-T5-34

V7-T5-36

V7-T5-37

Learn

Online

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-1

5.1

Operator Interface Products

Product Overview

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Product and Software Selection Guides

Operator Interfaces and Programming Software Selection Guide

Description

Screen size

Screen options

Interface

Communication ports

Simultaneous protocols

Ethernet drivers

Upload/download

Operating system

Third-party software support

Screen saver

Screen size

Screen options

Interface

Communication ports

Simultaneous protocols

Ethernet drivers

Upload/download

Operating system

Third-party software support

Screen saver

ELC-GP Graphics Panel

Page V7-T5-5

Two-line and four-line

Monochrome

Keypad only

2 serial

1

Serial cable

Proprietary

HMi Operator Interface

Page V7-T5-13

3.5-inch, 5.7-inch, 7.0-inch, 8.0-inch and 10.4-inch

65k color TFT

Resistive touchscreen only or touchscreen and keypad

3 serial; USB; Expansion port for Ethernet or Local I/O, onboard Ethernet VU models

3 or 4

Yes

Serial, Ethernet, and/or USB

Proprietary

Yes

Operator Interfaces and Programming Software Selection Guide, continued

Description XV Operator Interface XP Operator Interface

Page V7-T5-23

3.5-inch, 5.7-inch, 7.0-inch, 8.4-inch and 10.4-inch

Page V7-T5-30

8.4-inch, 10.4-inch, 12.1-inch, 15.0-inch and blind node (no screen)

Color TFT, 64k colors; resolutions from QVGA (320 x 240) to WVGA (800 x 480) Color TFT, 16 million colors; resolutions from SVGA (800 x 600) to

UVGA (1600 x1200)

Resistive touchscreen

Ethernet, RS-232 and/or RS-485, USB; CANopen or PROFIBUS DP,

SmartWire-DT, USB and RS-485 on CoDeSys mod els

Infrared, non-reflective safety glass

2 serial; 2 Ethernet; removable CompactFlash; 4 USB; VGA

3 on Visual Designer, varies for Galileo and XSoft-CoDeSys-2

Yes

Serial, Ethernet, USB

Windows CE 5.0 Professional

Yes

5 or 8

Yes

Serial, Ethernet, USB

Windows XP Embedded (protected)

Yes

Yes

V7-T5-2 Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

Product Overview

5.1

Software Product Selection Guide

Description Visual Designer XSoft-CoDeSys-2

1

Galileo HMiSoft ELCSoftGP

Overview

Catalog ID

Development software seat license VISUALDCE (CE hardware)

VISUALDXP5 (5-pack of

VISUALDXP)

VISUALDCE5 (5-pack of

VISUALDCE)

VISUALDXP (PCs, XPe, and CE hardware)

SW-XSOFT-CODESYS-2-S 2

SW-XSOFT-CODESYS-2-M 3

Runtime software for a PC

Time-Saving Editor Features

Feature-rich software package with SCADA functionality and

Web serving capabilities that can be run on XV, XP, ePro PS operator interfaces or personal computers

Feature-rich software package with integrated logic and visualization that can be run on specific XV operator interface models

Intuitive visualization tool. Use

Galileo on XV-102-H_ units or on XV units running CoDeSys when a stronger visualization package is needed

Use HMi Soft to create, edit, upload and download applications to the HMi family of operator interfaces

VISUALRTPC N/A

SW-GALILEO-S

SW-GALILEO-M

HMISOFT

N/A

Online and offline simulation

Macro capability

VB scripting

Multi-language

System/internal variables

Auto-scale application to different resolution/screen size

• • • Scripting

(IF, THEN, ELSE, GOTO)

Graphics library

Master pages

User-created controls

• Screen groups

Customizable application symbols •

Full math evaluation •

Reusable controls, images and pages

Advanced search and replace

• Via indirect tag and/ or PLC assignments

Advanced context sensitive help

Conversion of legacy PanelMate™ configurations

Optional PanelBuilder™ conversion utility

Online configuration/editing

• One

• Screen groups

• With macros

• Base screen

• With macros

Use ELCSoftGP to create, edit, upload and download applications to ELC

Graphics Panels

ELCSOFTGP

N/A

Notes

1

2

See the logic section of the catalog for details on the logic features in the XSoft-CoDeSys-2 software package.

Includes XSoft-CoDeSys-2 software for developing applications, runtime software for the XV Series. Single User License.

3

Includes XSoft-CoDeSys-2 software for developing applications, runtime software for the XV Series. Multi User License.

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-3

5.1

Operator Interface Products

Product Overview

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Software Product Selection Guide, continued

Description Visual Designer

Runtime Features

Clock synchronization with controller •

Sound actions or control

Security

Pop-up screens

Animated graphics

Real-time trending

Recipes

Report generation

Timer scheduling

Calendar scheduling

Notification of data and events via e-mail/text messaging

Data archiving

Archive to shared network drive

Alarm and event archiving

Historical trending

• Advanced multi-level

• And group screens

Import/export from XML or CSV

Database interface

Vision system interfaces •

Secure document and Web network browser

• ADO.net compliant

XSoft-CoDeSys-2

1

Galileo

• Configured via visualization screens

— •

• DDE

• With user created passwords

No (–)

Automatic scaling of Web clients

Remote desktop

Launch/control third-party applications

Embedded PLC logic

• VNC and RemoteClient

• VNC and RemoteClient

• VNC and RemoteClient

— • —

Note

1

See the logic section of the catalog for details on the logic features in the XSoft-CoDeSys-2 software package.

HMiSoft ELCSoftGP

• VU Remote

• •

• Multi-level

•Using Excel and VU Server —

• —

V7-T5-4 Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

ELC Graphics Panels

5.2

ELC Graphics Panels

Product Description

ELC Graphics Panels are simple to program and easily connect to ELC products.

ELC graphics panels make modifying an application quick and easy. With more than

30 objects that can be placed anywhere on the display, these tough panels also communicate to other major controllers. These graphics panels have two serial ports that can be used simultaneously to communicate. Transfer applications to or from these graphics panels using the handy transfer module. Ten programmable functions keys on the outdoor rated display provide easy-to-change pages, input numeric values, enter alpha-numeric passwords, set, reset and more. Create alarms, password protect, import bitmaps and use many different fonts.

Features

Protocols

Supported Protocols

Protocol

Eaton ELC

Eaton D50/D32LT, D320

Eaton MVX ASCII

Eaton MVX RTU

Modbus ASCII

Modbus RTU

Allen-Bradley DF1

Mitsubishi FX Series

Mitsubishi FX2N Series

Koyo K-Sequence

LG 200S

OMRON C-Series

Siemens S7-200 Series

ASCII Slave Mode

And more...

Contents

Description Page

ELC Graphics Panels

Standards and Certifications . . . . . . . . . . . . . . .

Catalog Number Selection . . . . . . . . . . . . . . . . .

V7-T5-6

V7-T5-7

Product Selection . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-7

Technical Data and Specifications . . . . . . . . . . .

V7-T5-10

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-11

Drawings

Online

An Eaton

Green Solution

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-5

5.2

Operator Interface Products

ELC Graphics Panels

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

ELC Graphics Panel Features

Item

Display screen

Screen

Color

Backlight

Resolution

Display range

Contrast adjustment

Language font

Font size (ASCII)

ALARM indication LED

RS-232 LED (yellow)

RS-485 LED (green)

Program memory

External interface

Serial communication port

RS-232 (COM1)

9 PIN D-SUB male

Extension communication port

RS-485 (COM2)

5-pin removal terminal

(RS-485 or RS-422)

Extension slot

Power

Standards and Certifications

UL 508 cUL (CSA C22.2 No. 14)

CE (Low Voltage Directive);

Class 1 Div 2 Groups A, B,

C, D

RoHS

ELC-GP02

STN-LCD

Monochromatic

The backlight automatic turn off time is 1–99 minutes

(0 = do not to turn off)

(backlight life is 50 thousand hours at 25°C)

160 x 32 pixels

72 mm (W) x 22 mm (H)

15-step contrast adjustment

ASCII: characters (including European fonts)

Taiwan: (BIG 5 code) traditional Chinese character font

China: (GB2324-80 code) simplified Chinese character font

5 x 8, 8 x 8, 8 x 12, 8 x 16

1. Power-on indication (flash three times)

2. Flash for communication error or other alarm

3. Special indication by user programming

Flashes when communicating

Flashes when communicating

256 KB flash memory

Data length: 7 or 8 bits

Stop bits: 1 or 2 bits

Parity: None/Odd/Even

Baud rate: 4800 bps–115,200 bps

Data length: 7 or 8 bits

Stop bits: 1 or 2 bits

Parity: None/Odd/Even

Baud rate: 4800 bps–115,200 bps

The slot for program copy card

24 Vdc input

V7-T5-6

ELC-GP04

STN-LCD

Monochromatic

The backlight automatic turn off time is 1–99 minutes

(0 = do not to turn off)

(backlight life is 50 thousand hours at 25°C)

128 x 64 pixels

67 mm (W) x 32 mm (H)

10-step contrast adjustment

ASCII: characters (including European fonts)

Taiwan: (BIG 5 code) traditional Chinese character font

China: (GB2324-80 code) simplified Chinese character font

5 x 8, 8 x 8, 8 x 12, 8 x 16

1. Power-on indication (flash three times)

2. Flash for communication error or other alarm

3. Special indication by user programming

Flashes when communicating

Flashes when communicating

256 KB flash memory

Data length: 7 or 8 bits

Stop bits: 1 or 2 bits

Parity: None/Odd/Even

Baud rate: 4800 bps–115,200 bps

Data length: 7 or 8 bits

Stop bits: 1 or 2 bits

Parity: None/Odd/Even

Baud rate: 4800 bps–115,200 bps

The slot for program copy card

24 Vdc input

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

ELC Graphics Panels

Catalog Number Selection

ELC-GP Graphics Panel

ELC-GP

Series

ELC-GP = ELC Graphics Panel

ELC-GP 02

Display

02 = Monochromatic, two-line

04 = Monochromatic, four-line

Product Selection

ELC-GP04

Graphics Panels

Description

Panels

160 x 32 pixels, 10 function keys, monochrome

128 x 64 pixels, 10 function keys, monochrome

Spare Parts Kit

Includes several power connectors, battery doors, gaskets, mounting clips, etc.

Catalog Number

ELC-GP02

ELC-GP04

ELC-GPSPKIT

5.2

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-7

5.2

Operator Interface Products

ELC Graphics Panels

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Software and Accessories

ELCSoftGP Programming Software

System Requirements

Operating Systems—Windows 2000, Windows XP

ELCSoftGP Programming Software configures all ELC graphic panels. With ELCSoftGP, applications can be created, edited, downloaded and uploaded. Move programs from one controller to a different one with ease.

ELCSoftGP

ELCSoftGP Editing Environment

Description

Programming software for GP units

Catalog Number

ELCSOFTGP

ELC-GPXFERMOD Program Transfer Module

The ELC-GPXFERMOD is a multifunction device that provides the ability to back up an application already loaded onto one of the ELC-GP units. It will store all system settings such as baud and ID, as well as passwords and the application itself. Once stored in the module, the application and settings can be transferred to another ELC-GP unit of the same model number.

ELC-GPXFERMOD

ELC-GPXFERMOD

Description

Program transfer module

Catalog Number

ELC-GPXFERMOD

ELC-CBPCELC_

Description

1 meter cable to connect between the HMi and Eaton Logic Controller (ELC)

3 meter cable to connect between the HMi and Eaton Logic Controller (ELC)

Catalog Number

ELC-CBPCELC1

ELC-CBPCELC3

V7-T5-8 Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

ELC Graphics Panels

ELC-CBPCGP3 Cable

Use this cable to download or upload applications between a PC and the ELC-GP graphics panels. This cable can also be used to transfer a program from an ELC-GP to another ELC-GP.

9

Pin definition of 9 PIN D-SUB RS-232:

ON PC (RS-232)

5

ON ELC-GP02/04

1

6

6

1 5

9

9 PIN D-SUB

PC COM Port

9 PIN D-SUB Female

Rx

Tx

GND

2

3

5

9 PIN D-SUB

GP02/04 COM Port

9 PIN D-SUB Female

3

2

5

Tx

Rx

GND

PC to ELC-GPxx Cable

Description

Cable, PC to ELC-GP, 9.8 ft (3m)

Catalog Number

ELC-CBPCGP3

5.2

Power Supplies

All ELC modules operate from 24 Vdc. These power supplies provide a convenient way to provide robust DC voltage.

ELC-PS01

ELC Power Supplies

Description

Power supply, 24 watt, 1 amp

Catalog Number

ELC-PS01

L

N

24V

0V

POWER

ELC-PS01

ELC-PS02

L

N

24V

0V

POWER

ELC-PS02

Power supply, 48 watt, 2 amp

ELC-PS02

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-9

5.2

Operator Interface Products

ELC Graphics Panels

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

ELC Power Supply

Item

Dimensions W x H x D in inches (mm)

Input power

Output volts

Output current (A)

Watts

Technical Data and Specifications

ELC Graphics Panels

Description

Environmental

Transportation and storage

Temperature

Operating

Temperature

Humidity

Communication interface

Vibration

Impact

Weight

Cooling method

Electrical/EMC Approvals

Electrostatic discharge immunity

Radiated immunity

Electrical fast transient

Radiated emission

Other Approvals

Waterproof class of front panel

UV resistant

Specification

–4° to 140°F (–20° to 60°C)

32° to 122°F (0° to 50°C)

20–90% RH (noncondensing)

COM1: RS-232; COM2: RS-485/RS-422

0.5 mm displacement, 10–55 Hz, X, Y, Z three directions and two hours for each direction

10G, 11 ms, from X, Y, Z three directions and three times for each direction

0.53 lbs (0.24 kg)

Natural air cooling

EN61000-4-2/1995

EN61000-4-3/1995

EN61000-4-4/1995

CISPR22, Class A

UL Type 4X outdoor rated

UL 746C

ELC-PS01

1.44 x 3.54 x 2.36

(36.5 x 90 x 60)

100–240 Vac 50/60 Hz

24 Vdc

1A

24

ELC-PS02

2.17 x 3.54 x 2.36

(55 x 90 x 60)

100–240 Vac 50/60 Hz

24 Vdc

2A

48

V7-T5-10 Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

ELC Graphics Panels

Dimensions

Approximate Dimensions in Inches (mm)

ELC-GP04

3.82

(97.0)

Left

ALARM

RS-232

RS-485

Up

Pg Up

Right

Pg Dn

Down

Esc

Shift

F0

F5

F1

F6

F2

F7

F3

F8

F4

F9

Enter

5.79

(147.0)

1.20

(30.5)

.14

(3.5)

1.40

(35.5)

5.31

(135.0)

3.35

(85.0)

Cut-Out Dimensions

5.2

3.35

(85.0)

5.31 ~ 5.37

(135 ~ 136.5)

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-11

5.2

Operator Interface Products

ELC Graphics Panels

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Approximate Dimensions in Inches (mm)

ELC-GP02

3.82

(97.0)

1.20

(30.5)

ALARM

RS-232

RS-485

Esc

F5

5

F0

0

F6

6

F1

1

F7

7

F2

2

F8

F3

3

F9

8 9

F4

4

Enter

Left

Up

Pg Up

Pg Dn

Down

Right

ELC-GPXFERMOD

5.79

(147.0)

5.31

(135.0)

2.00 (50.9)

V7-T5-12

.14

(3.5)

1.40

(35.5)

.78 (19.8)

.39 (10.0)

3.35

(85.0)

3.35

(85.0)

Cut-Out Dimensions

5.31 ~ 5.37

(135 ~ 136.5)

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

HMi Operator Interface

5.3

HMi Operator Interface

Contents

Description Page

HMi Operator Interface

Features

Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-14

Standards and Certifications . . . . . . . . . . . . . . .

V7-T5-14

Catalog Number Selection . . . . . . . . . . . . . . . . .

V7-T5-15

Product Selection . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-15

Technical Data and Specifications . . . . . . . . . . .

V7-T5-18

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-20

Drawings

Online

An Eaton

Green Solution

Product Description

Positioned between the ELC graphics panels and the XV series of operator interfaces,

HMi is the workhorse of the industry. Ideal for machinery

OEMs, the HMi series provides the most value with the latest technology and advanced feature set in an economical hardware and software package. All units offer RS-232, RS-485 and

RS-422 communications.

The 7-, 8- and 10-inch units also offer Ethernet communication options.

Features

Auto-scale application from

10 to 4 inches

Screen and backlight saver

Pop-up screens

Animated graphics

Conditional visibility

Application lock for IP protection

Data archiving

Multi-language

Eight levels of security

Ethernet communication drivers

Ethernet, COMM port and

USB upload/download

USB ports for data storage

Three serial ports

Up to four simultaneous protocols

Math and logic functions

CSV import/export tags and recipes

Macro capability

Alarm/event recording and viewing

Real-time and historical trending

Online and offline simulation

HMi VU Exclusive Features

VU server

VU remote

Multi-link

Onboard Ethernet on some models

Audio and SD on some models

Supports USB mouse and other industrial pointing devices

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-13

5.3

Operator Interface Products

HMi Operator Interface

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Standards and Certifications

CE

UL cUL

C-Tick

RoHS

Protocols

Supported Protocols

Manufacturer and Protocol

Allen-Bradley

MicroLogix

SLC 5

DH485

Ethernet/IP (Micro, Compact and

ControlLogix, SCL 5

Cimon

BP Series Loader Protocol

CP Series Loader Protocol

XP Series Loader Protocol

Copley

Stepnet

Danfoss

VLT 2800 (FC Protocol)

Delta

Delta DVP PLC

Delta DVP EH/SA ES/EX/SS (V5.1)

Delta Controller ASCII

Delta Controller RTU

Delta DVP TCP/IP

Eaton

ELC Series Serial

ELC Series TCP/IP

GVX—RTU

GVX—ASCII

MVX—RTU

MVX—ASCII

NFX—RTU

NFX—ASCII

Eaton Controller ASCII

Eaton Controller RTU

EasyPLC 800/MFD (EasyCom)

Emerson

EC20 Series

Facon

FB Series

Manufacturer and Protocol

Festo

Festo PLC

FuFeng

APC

Fuji Electric

Frenic Inverter

GE Fanuc

Series 90 SNP

Hitachi

EH Series Procedure 1

EH Series Procedure 2

Hust

Hust CNC Controller

Hust CNC Controller v2

IDEC

Micro Smart

Jetter

JC Series

Nano Series

Keyence

KV/KZ Series

Koyo

DL/SU Series

K-Sequence

Lenze

LECOM-A/B Protocol

LG

Master-K 120S/200S

Glofa GM6 CNET

Master-K CNET

XGT CNET

LiYan

LYPLC EX

V7-T5-14

Manufacturer and Protocol

M2i

M2i Master

M2i Slave

Matsushita

FP Series

Mirle

FAMA SC

Mitsubishi

FX Series

FX2N

FX3U

FX Series Computer Link

A Series/J71UC24

A2A/A2AS/A2USH

A1SH/A3N/A2ASH CPU Port

Q Series CPU Port

Q Series Ethernet

Q Series Computer Link

J2s Series

MKS

BY125

CT150

MC700/720

Modbus

ASCII (Master)

984 RTU (Master)

RTU 2W (Master)

ASCII Hex Address (Master)

RTU Hex Address (Master)

ASCII nW (Master)

RTU nW (Master)

ASCII (Slave)

RTU (Slave)

TCP/IP

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Manufacturer and Protocol

Modicon

TSX Micro (Uni-Telway)

TSX Premium (Uni-Telway 1-1)

NEZA (Uni-Telway)

TWIDO

Moeller

PS3 Series

PS4 Series

NIKKI DENSO

NCS-FI/FS Series

Omron

C Series

CJ1 Series

TPM1A

Parker

Compax 3

SIEMENS

S7 200

S7 300 (with PC Adapter)

S7 300 (without PC Adapter)

S7 300 (Direct MPI)

S7 300 (ISO TCP)

S7 1200 (ISO TCP)

Taian

TP02

Ti

Ti435

Vigor

M Series

VIPA

S7 300 (with PC Adapter)

YOKOGAWA

ACE

Operator Interface Products

HMi Operator Interface

Catalog Number Selection

HMi Operator Interface

HMi

Series

HMI = HMi Series

HMIVU = HMi VU Series

Display

04 = 3.5-inch LCD

06 = 5.6-inch LCD

07 = 7.0-inch LCD

08 = 8.0-inch LCD

10 = 10.4-inch LCD

10W = 10.1-inch-wide LCD

HMIVU 07 CU NB E

Options

CE = Color TFT with expansion port

CU = Color TFT without expansion port

Options

E = On-board Ethernet and audio out

Options

Blank = HMi Series only with function buttons

NB = HMi VU Series no function buttons

Product Selection

HMI_

HMi Products

Description

4-inch color TFT touchscreen with function butto ns

8-inch color TFT with expansion slot and function but tons

10-inch color TFT with expansion slot and function butt ons

HMi VU Products

Description

6-inch color TFT, no function buttons, no Ethernet

7-inch color TFT, no function buttons, on-board Ethernet

8-inch color TFT, no function buttons, on-board Ethernet

10-inch color TFT, no function buttons, on-board Ethernet

Catalog Number

HMI04CU

HMI08CE

HMI10CE

Catalog Number

HMIVU06CUNB

HMIVU07CUNBE

HMIVU08CUNBE

HMIVU10WCUNBE

5.3

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-15

5.3

Operator Interface Products

HMi Operator Interface

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Software and Accessories

HMiSoft Programming Software

For use with the of HMi and

HMi VU series touchscreens.

This easy to use Windows based software can run on Windows XP and

Windows 7 32-bit and 64-bit systems.

Ethernet and serial communication drivers

Up to four simultaneous protocols

Screen manager

Over 70 on-screen objects

HMi Editor

Pop-up screens

Animated graphics

Conditional visibility

Built-in picture library

Create your own picture library

Multi-language

Eight levels of security

Macro editing with math and logic functions

CSV import/export tags and recipes

HMi Editor

Description

Programming software for HMi and HMi VU models

HMi Screen Management

HMiSoft Editor

Note

1 Exclusive HMiVU features.

V7-T5-16

Alarm/event recording and viewing

Store archived data, alarms and events to USB

Real-time and historical trending

Auto-scale application from

10 to 4 inches

On and offline simulation

Upload/download applications over USB, serial or Ethernet

Application lock for IP protection

Screen and backlight saver

Multi-link allows sharing of

PLC data over Ethernet

1

VU Server optional download

1

VU Remote optional download

1

Catalog Number

HMISOFT

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

HMi Operator Interface

Adapter Plate

Description

6-inch HMi adapter plate for PM1000

Kits

Description

HMi spare parts kits (includes several power connectors, battery doors, gaskets, mounting clips, etc.)

Replacement Gaskets

Description

4-inch HMi replacement gasket (2/kit)

6-inch HMi and 7-inch HMi VU replacement gasket (2/kit)

8-inch HMi replacement gasket (2/kit)

10-inch HMi replacement gasket (2/kit)

Cable

Description

1 meter cable to connect between the HMi and Eaton Logic Controller (ELC)

3 meter cable to connect between the HMi and Eaton Logic Controller (ELC)

Power Supply

Description

1 amp 24 Vdc power supply

2 amp 24 Vdc power supply

Catalog Number

APPM1HMI6

Catalog Number

HMI-SPKIT

Catalog Number

HMI04-GASKET

HMI06-GASKET

HMI08-GASKET

HMI10-GASKET

Catalog Number

ELC-CBPCELC1

ELC-CBPCELC3

Catalog Number

ELC-PS01

ELC-PS02

5.3

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-17

5.3

Operator Interface Products

HMi Operator Interface

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Technical Data and Specifications

HMi Operator Interface

Description

Display type

Display color

Screen pixels

NIT rating

LCD module

Backlight life

Display size

Operating system

MCU

Memory

Program

History

Recipe

Alarm

Data registers

Volatile

Non-volatile

Backup memory (bytes)

USB host 3

Expansion port

USB client for programming

Serial COM port

COM1

COM2

COM3

Function key

Perpetual calendar (RTC)

Cooling method

Enclosure ratings

Agency certifications

Operating voltage

Power consumption 5

Operating temp.

Storage temp.

Ambient humidity

Shock

Vibration resistance

Specification

HMI04CU

TFT LCD

65536 colors

320 x 240 pixels

300 cd/m

2

LED backlight

30,000 hours half-life at 25°C

1

3.5-inch (70.1 x 52.6 mm)

Real Time OS

32-bit RISC micro-controller/206.4 MHz

3M

120K

64K

4K

64K

1K

128K

Yes

Yes

Yes

2

HMI08CE

TFT LCD

65536 colors

640 x 480 pixels

400 cd/m

2

CCFL backlight

50,000 hours half-life at 25°C

1

8-inch (162.2 x 121.7 mm)

Real Time OS

32-bit RISC micro-controller/206.4 MHz

7M

360K

128K

16K

64K

1K

512K

Yes

Yes

Yes

HMI10CE

TFT LCD

65536 colors

640 x 480 pixels

330 cd/m

2

2CCFL backlight

50,000 hours half-life at 25°C

1

10.4-inch (215.2 x 162.4 mm)

Real Time OS

32-bit RISC micro-controller/206.4 MHz

7M

360K

128K

16K

64K

1K

512K

Yes

Yes

Yes

Backup battery

Backup battery life

Buzzer

Dimensions

(W) x (H) x (D) in inches (mm)

Panel cutout

(W) x (H) in inches (mm)

Weight in lbs (kg)

RS-232

RS-422/RS-485

RS-232

4 user defined keys + 1 system key

Built-in

Natural air circulation

IP65/NEMA 4X (indoor only)

CE/UL/cUL/C-Tick

3.36W

32° to 122°F (0° to 50°C)

–4° to 140°F (–20° to 60°C)

30G at 11 ms

Three years or more at 25°C

5.54 x 4.13 x 1.76

(140.8 x 104.8 x 44.8)

4.68 x 3.65

(118.8 x 92.8)

0.62 (0.310)

RS-232

RS-232/RS-422/RS-485

RS-232/RS-422/RS-485

6 user defined keys + 1 system key

Built-in

3V lithium battery CR2032 x 1/battery life: 5 years

3 years or more at 25°C

Multitone frequency (2K to 4K Hz)/85dB

9.57 x 7.01 x 2.06

(243.1 x 178.1 x 52.4)

9.11 x 6.55

(231.4 x 166.4)

2.52 (1.147)

RS-232

RS-232/RS-422/RS-485

RS-232/RS-422/RS-485

7 user defined keys + 1 system key

Built-in

Natural air circulation

IP65/NEMA 4X (indoor only)

Natural air circulation

IP65/NEMA 4X (indoor only)

CE/UL/cUL/C-Tick CE/UL/cUL/C-Tick

DC +24V (–10% to +15%) (use isolated power supply) 4

14W

32° to 122°F (0° to 50°C)

15W

32° to 122°F (0° to 50°C)

–4° to 140°F (–20° to 60°C) –4° to 140°F (–20° to 60°C)

10% to 90% RH (0° to 40°C), 10% to 55% RH (41° to 50°C) pollution degree 2

30G at 11 ms 30G at 11 ms

IEC61131-2 compliant

5 Hz < f < 9 Hz = continuous: 1.75 mm/occasional: 3.5 mm

9 Hz < f < 150 Hz = continuous: 0.5g/occasional: 1.0g

X, Y, Z directions for 10 times

3 years or more at 25°C

11.70 x 8.74 x 2.01

(297.1 x 222.1 x 51.1)

11.23 x 8.28

(285.2 x 210.2)

3.79 (1.721)

Notes

1

2

3

4

5

The half-life of backlight is defined as original luminance being reduced by 50% when the maximum driving current is supplied to HMi.

The life of LED backlight shown is an estimated value under 25°C normal temperature and humidity conditions.

Program memory is used for recipes.

USB Host port can provide up to 5V/500mA of power. Supports USB memory devices and certain USB printers.

Use isolated power supply (not applicable for HMI08CE and HMI10CE).

The value of the power consumption indicates the electrical power consumed by HMi without peripheral devices.

In order to ensure the normal operation, it is recommended to use a power supply which the capacity is 1.5 to 2 times the value of the power consumption.

V7-T5-18 Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

HMi Operator Interface

5.3

HMi VU Operator Interface

Description

Specification

HMIVU06CUNB

LCD Module

Display type

Display color

Resolution

Backlight

Brightness NIT rating

Display size

Operation system

MCU

NOR Flash ROM

5.6-inch TFT LCD

65536 colors

320 x 234 pixels

LED backlight

(20,000 hours half-life at 25°C)

1

200 DC/m

2

113.28 x 84.70 mm

Real Time OS

32-bit RISC micro-controller

Flash ROM 8MB

OS System: 2MB

User Application: 6MB

HMIVU07CUNBE

7-inch TFT LCD

65536 colors

800 x 600 pixels

LED backlight

(10,000 hours half-life at 25°C)

1

200 DC/m

2

141 x 105.75 mm

Real Time OS

32-bit RISC micro-controller

Flash ROM 128MB

OS System: 30MB

Backup: 16MB

User Application: 82MB

64M bytes

16M bytes

HMIVU08CUNBE

8-inch TFT LCD

65536 colors

800 x 600 pixels

LED backlight

(10,000 hours half-life at 25°C)

1

250 DC/m

2

162 x 121.5 mm

Real Time OS

32-bit RISC micro-controller

Flash ROM 128MB

OS System: 30MB

Backup: 16MB

User Application: 82MB

64M bytes

16M bytes

HMIVU10WCUNBE

10.1-inch widescreen TFT LCD

65536 colors

1024 x 600 pixels

LED backlight

(10,000 hours half-life at 25°C)

1

200 DC/m

2

226 x 128.7 mm

Real Time OS

32-bit RISC micro-controller

Flash ROM 128MB

OS System: 30MB

Backup: 16MB

User Application: 82MB

64M bytes

16M bytes

SDRAM

Backup memory

Sound effect output

Buzzer

AUX

Ethernet interface

Memory card

USB

16M bytes

128K bytes

Multi-tone frequency (2–4 kHz)/85dB Multi-tone frequency (2–4 kHz)/85dB Multi-tone frequency (2–4 kHz)/85dB Multi-tone frequency (2–4 kHz)/85dB

N/A Stereo output Stereo output Stereo output

N/A

N/A

1 USB Host 2 Ver 1.1

1 USB Client Ver 1.1

SD card (supports SDHC)

1 USB Host 2 Ver 2.0

1 USB Client Ver 1.1

IEEE 802.3, IEEE 802.3u 10/100 Mbps auto-sensing has built-in isolated power circuit

3

SD card (supports SDHC)

1 USB Host 2 Ver 2.0

1 USB Client Ver 1.1

SD card (supports SDHC)

1 USB Host 2 Ver 2.0

1 USB Client Ver 1.1

Serial COM port

COM1

COM2

COM3

Perpetual calendar (RTC)

Cooling method

Safety approval

Waterproof degree

Operation voltage

Voltage endurance

Backup battery

Backup battery life

Operation temp.

Storage temp.

Ambient humidity

4

Power consumption

Vibration resistance

4

RS-232

(supports hardware flow control)

RS-232/RS-485

RS-422/RS-485

Built-in

Natural air circulation

CE/UL

IP65/NEMA 4X (indoor use only)

DC +24V (–10 to +15%)

Please use isolated power supply

3.0W

3V lithium battery CR2032 x 1

0° to 50°C

–20° to 60°C

RS-232

(supports hardware flow control)

RS-232/RS-422/RS-485

(has built-in isolated power circuit)

3

RS-232/RS-422/RS-485

(has built-in isolated power circuit) 3

RS-232

(supports hardware flow control)

RS-232/RS-422/RS-485

(has built-in isolated power circuit)

3

RS-232/RS-422/RS-485

(has built-in isolated power circuit) 3

Built-in

Natural air circulation

CE/UL

Built-in

Natural air circulation

CE/UL

IP65/NEMA 4X (indoor use only)

DC +24V (–10 to +15%)

(has built-in isolated power circuit)

3

IP65/NEMA 4X (indoor use only)

DC +24V (–10 to +15%)

(has built-in isolated power circuit)

3

AC500V for 1 minute (between charging [DC24 terminal] and FG terminals)

RS-232

(supports hardware flow control)

RS-232/RS-422/RS-485

(has built-in isolated power circuit)

3

RS-232/RS-422/RS-485

(has built-in isolated power circuit) 3

Built-in

Natural air circulation

CE/UL

IP65/NEMA 4X (indoor use only)

DC +24V (–10 to +15%)

(has built-in isolated power circuit)

3

7.68W

3V lithium battery CR2032 x 1

7.8W

3V lithium battery CR2032 x 1

12W

3V lithium battery CR2032 x 1

Varies based on temperature and conditions. Approximately 3 years or more at 25°C.

0° to 50°C 0° to 50°C 0° to 50°C

–20° to 60°C –20° to 60°C –20° to 60°C

10%~90% RH [0° to 40°C], 10%~55% RH [41° to 50°C]

Pollution Degree 2

IEC 61131-2 Compliant

5 Hz < f < 9 Hz = continuous: 1.75 mm/occasional: 3.5 mm

9 Hz < f < 150 Hz = continuous: 0.5g/occasional: 1.0g

X, Y, Z directions for 10 times

Dimensions

(W) x (H) x (D) mm

Panel cutout

(W) x (H) mm

Weight

184 x 144 x 50

172.4 x 132.4

Approx. 670g

184 x 144 x 50

172.4 x 132.4

Approx. 800g

227.1 x 174.1 x 61

219.4 x 166.5

Approx. 1228g

272 x 200 x 61

261.3 x 189.3

Approx.1520g

Notes

1

The half-life of backlight is defined as original luminance being reduced by 50% when the maximum driving current is supplied to HMi. The life of LED backlight shown is an estimated value under 25°C normal temperature and humidity conditions

2

3

USB Host port can provide up to 5V/500 mA of power.

The withstand voltage of the isolated power circuit is 1500V peak for 1 minute.

4

The value of the power consumption indicates the electrical power consumed by HMi only without connecting to any peripheral devices. In order to ensure the normal operation, it is recommended to use a power supply where the capacity is 1.5~2 times the value of the power consumption.

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-19

5.3

Operator Interface Products

HMi Operator Interface

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Dimensions

Approximate Dimensions in Inches (mm)

HMI04

1.44

(36.7)

.06~.12

(1.6~3.0)

5.54

(140.8)

POWER

HMI08CE

POWER

HMI10CE

POWER

F1

F2

F3

F4

SYS

4.13

(104.8)

9.57

(243.1)

11.70

(297.1)

F3

F4

F1

F2

F5

F6

SYS

7.01

(178.1)

F5

F6

F7

F3

F4

F1

F2

SYS

1.75

(44.4)

.06~.12

(1.6~3.0)

1.70

(43.1)

.06~.12

(1.6~3.0)

8.74

(222.1)

V7-T5-20

6.1

(.24)

6.1

(.24)

4.64

(117.8)

.12 (3.0) R

Typ.

Cut-Out Dimensions

9.11

(231.4)

Cut-Out Dimensions

11.22

(285.2)

3.61

(91.8)

Cut-Out Dimensions

.12 (3.0) R

Typ.

6.55

(166.4)

.12 (3.0) R

Typ.

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

8.27

(210.2)

Operator Interface Products

HMi Operator Interface

5.3

Approximate Dimensions in Inches (mm)

HMIVU06

0.063 (1.6) to 0.24 (6.0)

7.24 (184.0)

5.67

(144.0)

HMIVU07

7.24 (184.0)

0.063 (1.6) to 0.24 (6.0)

5.67

(144.0)

6.79 (172.4)

6.79 (172.4)

5.21

(132.4)

5.21

(132.4)

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-21

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5.3

Operator Interface Products

HMi Operator Interface

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Approximate Dimensions in Inches (mm)

HMIVU08

0.063 (1.6) to 0.24 (6.0)

8.94 (227.1)

HMIVU10

10.71 (272.0)

6.85

(174.1)

0.063 (1.6) to 0.24 (6.0)

7.88

(200.0)

V7-T5-22

8.64 (219.4)

10.29 (261.3)

6.56

(166.5)

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

7.45

(189.3)

Operator Interface Products

XV and XP Operator Interface

5.4

XV Operator Interface

Contents

Description Page

XV with Visual Designer, Galileo or XSoft-CoDeSys-2

Catalog Number Selection . . . . . . . . . . . . . . . . .

V7-T5-27

Product Selection . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-27

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-28

Technical Data and Specifications . . . . . . . . . . .

V7-T5-29

XP with Visual Designer . . . . . . . . . . . . . . . . . . . . .

V7-T5-30

Visual Designer Software . . . . . . . . . . . . . . . . . . . .

V7-T5-34

Galileo Software . . . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-36

XSoft-CoDeSys-2 Software . . . . . . . . . . . . . . . . . . .

V7-T5-37

XV with Visual Designer, Galileo or XSoft-CoDeSys-2

Product Description

XV with Visual Designer

Positioned between the HMi and the XP series of operator interface, the XV series is ideal for applications requiring extensive connectivity and the advanced features available in Visual Designer without the expense associated with more powerful open platforms.

The XV models were designed with OEMs in mind featuring an attractive bezel and slim and light weight housing. The clip mount design simplifies installation.

XV with Galileo

The XV Series with Galileo offers a global visualization software package for all applications in system and machine building. It is designed to optimize performance on the XV platform. Galileo can also run as the visualization package on XV CoDeSys units when a stronger visualization tool is required.

XV with XSoft-CoDeSys

The XV series with XSoft-

CoDeSys combines powerful logic and visualization capabilities into a single device. It is ideal for OEM applications where low component count and ease of program development and remote administration is critical.

The XV Models with XSoft-

CoDeSys offer multiple field bus options built directly onboard the unit to provide an overall solution optimized both for size and cost.

Features

XV with Visual Designer

XV Series operator interface with Windows CE operating system

3.5-, 5.7-, 7.0- (widescreen),

8.4- and 10.4-inch screen sizes

Cost effective plastic or metal housing

Resistive touch with flush bezel

Ethernet and serial ports on all models

Visual Designer XP or CE development software

Pre-installed Visual

Designer runtime and

Web serving licenses

XV with Galileo only units

3.5-, 5.7- and 7.0-inch

(widescreen)

Plastic housing

Resistive touch with flush bezel

Ethernet on all models

RS-232 or RS-485 serial ports available

Prelicensed for Galileo

Run Time (GRS)

XV with XSoft-CoDeSys

XV Series operator interface with Windows CE operating system

3.5-, 5.7-, 7.0- (widescreen),

8.4- and 10.4-inch screen sizes

Cost effective plastic or metal housing

Resistive touch with flush bezel

Ethernet and serial ports on all models

PROFIBUS, CANopen and

SmartWire-DT optional

XSoft-CoDeSys-2 programming software

Pre-licensed for CoDeSys run time

Standards and Certifications

CE

UL cUL

RoHS

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-23

5.4

Operator Interface Products

XV and XP Operator Interface

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Selecting the right model for your application

The XV product offered with Visual Designer, Galileo or XSoft-CoDeSys offers the highest level of flexibility for one operator interface product.

Galileo provides a visualization environment designed around the needs of machine building

OEMs. Use Galileo when designing high-performance machines in the OEM space.

Visual Designer provides a fully integrated SCADA and

HMI platform. Use Visual

Designer when Web enabling, remote access, database and connectivity, and when one operator software package is required across XV and XP platforms.

XSoft-CoDeSys turns the

XV into a fully integrated

Logic and OI platform

(HMI-PLC). Use XSoft-

CoDeSys to unleash the

PLC functionality on an XV.

With optional communication interfaces like SmartWire-DT,

CANopen and PROFIBUS,

Eaton welcomes you into the

Lean Automation space.

Software Suite

PLC

HMI

Take advantage of the best of both worlds with Galileo and

XSoft-CoDeSys together.

Combining the power of these two software platforms provides limitless possibilities on an HMI/PLC platform.

V7-T5-24 Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

XV and XP Operator Interface

5.4

Product Selection Guide

Series

Model XV-102

Screen Size

Housing material

Operating system

3.5, 5.7, 7.0

Plastic

Windows XPe

5

XV and XP Operator Interface with Visual Designer

XV

5.7, 8.4, 10.4 8.4, 10.4, 12.1, 15.0

XP

Blind Node (no display)

5

XP-702

5

Metal Metal

WinCE 5.0 Professional

5

Touchscreen technology

Communication ports

Development software

Resistive

1 Ethernet, 1 or 2 serial, 0 or 1 USB

Visual Designer (VISUALDCE or VISUALDXP)

Infrared, non-reflective safety glass

2 Ethernet, 2 serial, 4 USB

Visual Designer (VISUALDXP)

N/A

5

5

Pre-licensed tags, drivers, Web sessions 1500 tags, 3 drivers, 1 Web session Standard models 4000 tags, 5 drivers, 1 Web session

Field upgradeable max tags, drivers, Web sessions 4000 tags, 3 drivers, 1, 2, 4, or 8

Web sessions simultaneously

Enterprise models 64,000 tags, 8 drivers, 1 Web session

64,000 tags, 8 drivers, 1, 2, 4, 8, 16, 32, 64, 128, or 256

Web sessions simultaneously

5

5

Alarm online/history Yes Yes

Trend online/history

Scripting

Yes

Yes (VB Script)

Yes

Yes (VB Script)

5

5

Scheduler Yes Yes

Recipe Yes Yes

5

Reports Yes Yes

OPC, TCP/IP, and communication drivers

Web Server and Web Thin Client support

Full remote access

Yes

Yes

Yes

Yes

Yes

Yes

5

5

Local/remote database interface

Ability to run third-party software

ActiveX and .NET controls

Yes

No

No

Yes

Yes

Yes

5

5

Full document viewing No Yes

Windows media player No Yes

5

Vision system interfaces

Network camera monitoring

No

No

Yes

Yes

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-25

5.4

Operator Interface Products

XV and XP Operator Interface

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

XV Series with Galileo Only Run Time Option (Not Available on XP Series)

Series

Model

Screen Size

XV

Model XV-102-H

3.5, 5.7, 7.0

Housing material

Operating system

Touchscreen

Communications ports

Optional field buses

Development software

Alarm online/historical

Trend online/historical

Scripting

Scheduler

Recipe

Reports

Full remote access

Ability to run third-party software

Vision system interfaces

Multi-language support

PLC variable import

Plastic

WinCE 5.0 standard

Resistive

1 Ethernet, 1 RS-232, or 1 RS-485, 1 USB

N/A

Galileo

Yes

Yes

Structured text

No

Yes

No

Yes

No

Yes

Yes

Yes

XV Series with CoDeSys Run Time (Not Available on XP Series)

Series

Model XV-102

Screen Size 3.5, 5.7, 7.0

Housing material

Operating system

Touchscreen

Communications ports

Optional field buses

Development software

IEC-61131-3 logic programming

Integrated screen design

Integrated field bus configuration

Alarm online/historical

Trend online/historical

Scripting

Scheduler

Recipe

Reports

OPC, TCP/IP and communication driver

Web Server and Web Thin Client support

Full remote access

Local/remote data base access

Ability to run third-party software

ActiveX and .NET controls

Full document viewing

Windows media player

Vision system interfaces

Network camera monitoring

XV

XV-152

5.7, 8.4, 10.4

Plastic Metal

WinCE 5.0 Standard

Resistive

1 Ethernet, 1 or 2 serial, 0 or 1 USB

PROFIBUS, CANopen, SmartWire-DT

XSoft-CoDeSys-2

(LD, ST, SFC, IL, FBD, CFC) Yes

Yes

Yes

Yes

Yes

Structured Text

Yes

Yes

No

Yes (OPC Server for PC)

Yes

Yes

Limited (DDE)

No

No

No

No

No

No

V7-T5-26 Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

XV and XP Operator Interface

5.4

Catalog Number Selection

XV Operator Interface

XV

Family

XV = Microsoft Windows

CE operating system

Performance Class

102 = CE, plastic housing, 2nd gen

152 = CE, metal housing, 2nd gen

XV – 102 – B3 – 35TQRG – 10

Features

Base Unit Variant

1

B = Retentive memory

D = Retentive memory, USB host, RS-232

E = Retentive memory, USB host, SmartWire-DT

H = Galileo only unit, USB host

Features

Additional COMM Options

3 = 1-RS-232

4 = 1-RS-485

6 = 1-CANopen

8 = 1-PROFIBUS

E = 1-SmartWire-DT

Display Size

35 = 3.5-inch

57 = 5.7-inch

70 = 7.0-inch

84 = 8.4-inch

10 = 10.4-inch

Branding and Bezel

10 = Standard blank front bezel with

Eaton branded product label

Display Technology

TQR = TFT (QVGA) resistive

TVR = TFT (VGA) resistive

TWR = TFT (widescreen) resistive

OS Build

C = XSoft-CoDeSys/Galileo

G = CE Professional OS and

Visual Designer runtime

1500 tags 2

L = Galileo only unit

Product Selection

XV Operator Interface

XV Operator Interface with Visual Designer

Description

XV 3.5-inch TFT, plastic housing, resistive touch, Ethernet and RS-232

XV 3.5-inch TFT, plastic housing, resistive touch, Ethernet and RS-485

XV 5.7-inch TFT, plastic housing, resistive touch, Ethernet, RS-232, RS-485

XV 7.0-inch TFT wide screen, plastic housing, resistive touch, Ethernet, RS-232, RS-485

XV 5.7-inch TFT, metal housing, resistive touch, Ethernet, RS-232, RS-485

XV 8.4-inch TFT, metal housing, resistive touch, Ethernet, RS-232, RS-485

XV 10.4-inch TFT, metal housing, resistive touch, Ethernet, RS-232, RS-485

Catalog Number

XV-102-B3-35TQRG-10

XV-102-B4-35TQRG-10

XV-102-D4-57TVRG-10

XV-102-D4-70TWRG-10

XV-152-D4-57TVRG-10

XV-152-D4-84TVRG-10

XV-152-D4-10TVRG-10

Notes

1 All 1xx performance class units have 400 MHz processor, 64 MB DRAM, 1 x 10/100 Ethernet, and 1 x USB device.

2

Standard software on embedded hardware. These XV models have a Microsoft Windows CE 5.0 Professional operating system and are pre-licensed with Visual Designer runtime for up to 1500 tags, 3 simultaneous communication drivers, and 1 Web session. Field upgrades are available for up to 4000 tags, 3 drivers, and 2, 4 or 8 simultaneous Web sessions.

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-27

5.4

Operator Interface Products

XV and XP Operator Interface

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Accessories

V7-T5-28

XV Operator Interface with XSoft-CoDeSys

Description

XV 3.5-inch TFT plastic housing, resistive touch, CANopen

XV 3.5-inch TFT plastic housing, resistive touch, PROFIBUS

XV 3.5-inch TFT plastic housing, resistive touch, SmartWire-DT

XV 5.7-inch TFT plastic housing, resistive touch, CANopen

XV 5.7-inch TFT plastic housing, resistive touch, PROFIBUS

XV 5.7-inch TFT plastic housing, resistive touch, CANopen, SmartWire-DT

XV 5.7-inch TFT plastic housing, resistive touch, PROFIBUS, SmartWire-DT

XV 7.0-inch TFT plastic housing, resistive touch, CANopen

XV 7.0-inch TFT plastic housing, resistive touch, PROFIBUS

XV 7.0-inch TFT plastic housing, resistive touch, CANopen, SmartWire-DT

XV 7.0-inch TFT plastic housing, resistive touch, PROFIBUS, SmartWire-DT

XV 5.7-inch TFT metal housing, resistive touch, CANopen

XV 5.7-inch TFT metal housing, resistive touch, PROFIBUS

XV 5.7-inch TFT metal housing, resistive touch, CANopen, SmartWire-DT

XV 5.7-inch TFT metal housing, resistive touch, PROFIBUS, SmartWire-DT

XV 8.4-inch TFT metal housing, resistive touch, CANopen

XV 8.4-inch TFT metal housing, resistive touch, PROFIBUS

XV 8.4-inch TFT metal housing, resistive touch, CANopen, SmartWire-DT

XV 8.4-inch TFT metal housing, resistive touch, PROFIBUS, SmartWire-DT

XV 10.4-inch TFT metal housing, resistive touch, CANopen

XV 10.4-inch TFT metal housing, resistive touch, PROFIBUS

XV 10.4-inch TFT metal housing, resistive touch, CANopen, SmartWire-DT

XV 10.4-inch TFT metal housing, resistive touch, PROFIBUS, SmartWire-DT

XV Operator Interface with Galileo Only

Description

XV 3.5-inch TFT plastic housing, resistive touch, Ethernet RS-232

XV 3.5-inch TFT plastic housing, resistive touch, Ethernet RS-485

XV 5.7-inch TFT plastic housing, resistive touch, Ethernet RS-232

XV 5.7-inch TFT plastic housing, resistive touch, Ethernet RS-485

XV 7.0-inch TFT plastic housing, resistive touch, Ethernet RS-232

XV 7.0-inch TFT plastic housing, resistive touch, Ethernet RS-485

XV Family Accessories

Description

SD memory card for all XV models

Spare part kit for XV-102 models—1 power connector, 8 mounting brackets,

1 sealing strip, 1 touch pen

Spare part kit for XV-152 models—1 power connector, 8 mounting brackets,

1 sealing strip, 1 touch pen

Catalog Number

XV-102-B6-35TQRC-10

XV-102-B8-35TQRC-10

XV-102-BE-35TQRC-10

XV-102-D6-57TVRC-10

XV-102-D8-57TVRC-10

XV-102-E6-57TVRC-10

XV-102-E8-57TVRC-10

XV-102-D6-70TWRC-10

XV-102-D8-70TWRC-10

XV-102-E6-70TWRC-10

XV-102-E8-70TWRC-10

XV-152-D6-57TVRC-10

XV-152-D8-57TVRC-10

XV-152-E6-57TVRC-10

XV-152-E8-57TVRC-10

XV-152-D6-84TVRC-10

XV-152-D8-84TVRC-10

XV-152-E6-84TVRC-10

XV-152-E8-84TVRC-10

XV-152-D6-10TVRC-10

XV-152-D8-10TVRC-10

XV-152-E6-10TVRC-10

XV-152-E8-10TVRC-10

Catalog Number

XV-102-H3-35TQRL-10

XV-102-H4-35TQRL-10

XV-102-H3-57TVRL-10

XV-102-H4-57TVRL-10

XV-102-H3-70TWRL-10

XV-102-H4-70TWRL-10

Catalog Number

MEMORY-SD-A1-S

ACC-TP-57-KG-1 XV-102

ACC-TP-10-12-RES-1

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

XV and XP Operator Interface

5.4

Technical Data and Specifications

XV Operator Interface

Series

Model

Screen Size

XV Midrange Operator Interface

XV-102

3.5-Inch 5.7-Inch 7.0-Inch

Operating system

Touchscreen technology

Display, colors

Resistive

Color TFT, 64k colors

QVGA 320 x 240

WinCE 5.0 Professional/Standard

Resistive

Color TFT, 64k colors

VGA 640 x 480

Resistive

Color TFT, 64k colors

WVGA 800 x 480 Pixel resolution (landscape) portrait mode also available

Brightness (cd/m

2

)

Backlight

250 250 250

LED, selectable dimming LED, selectable dimming LED, selectable dimming

Lifespan of backlight (half-life) 40,000 hrs

Processor 32 bit RISC, 400 MHz

40,000 hrs

32 bit RISC, 400 MHz

40,000 hrs

32 bit RISC, 400 MHz

Volatile memory

Non-volatile memory

64 MB DRAM

125 KB NVRAM/64 MB

NAND, 1 SD card slot

64 MB DRAM 64 MB DRAM

125 KB NVRAM/64 MB NAND/

2 MB NOR, 1 SD card slot

Real time clock

Communication ports

Slots for COMM modules

Power supply rated voltage

Continuous current consumption

(max. amps)

Starting current inrush (A

2 s)

0.2

1.5

Yes

Ethernet 10/100, RS-485 or RS-232 USB Device

Yes

None

Yes

Ethernet 10/100, RS-485, RS-232

USB Host, USB Device

None None

24 Vdc nominal (–20%/+25%) with polarity protection

0.4

0.4

1.5

1.5

Ambient conditions

Operation—relative humidity, noncondensing

Storage/transport—relative humidity, noncondensing

Shock

Vibration

0 to 50°C, 10 to 95%

–20 to 60°C, 10 to 95%

0 to 50°C, 10 to 95%

–20 to 60°C, 10 to 95%

0 to 50°C, 10 to 95%

–20 to 60°C, 10 to 95%

IEC 60068-2-27 15g for 11 ms duration

IEC 60068-2-6

5–9 Hz: 3.5 mm displacement

9–60 Hz: 0.15 mm displacement

60–150 Hz: 2g acceleration

CE, UL/cUL, CSA (pending), RoHS Agency certifications and standards

Protection type

Front

Rear

Housing material

Dimensions W x H x D (mm)

Mounting cutout W x H (mm)

IP65, NEMA 4X (indoor)

IP20, NEMA 1

Plastic

136 x 100 x 30

123 x 87

0.7 (0.3)

No

IP65, NEMA 4X (indoor)

IP20, NEMA 1

Plastic

170 x 130 x 39

157 x 117

1.3 (0.6)

No

IP65, NEMA 4X (indoor)

IP20, NEMA 1

Plastic

210 x 135 x 38

197 x 122

1.3 (0.6)

No

Approximate weight lbs (kg)

Ability to run third-party software

Visual Designer development software

Pre-licensed tags, drivers, Web sessions (Visual Designer models)

Field upgradeable max tags, drivers, Web sessions (Visual

Designer Models)

XSoft-CoDeSys-2 development software

Galileo development software

VISUALDCE or VISUALDXP

1500 tags, 3 drivers, 1 Web session

4000 tags, 3 drivers, 1, 2, 4, or 8 Web sessions simultaneously

SW-XSOFT-CODESYS-2-S (seat)

SW-XSOFT-CODESYS-2-M (multi-seat)

SW-GALILEO-S (seat)

SW-GALILEO-M (multi-seat)

XV-152

5.7-Inch

Resistive

Color TFT, 64k colors

VGA 640 x 480

8.4-Inch 10.4-Inch

WinCE 5.0 Professional/Standard

Resistive

Color TFT, 64k colors

VGA 640 x 480

Resistive

Color TFT, 64k colors

VGA 640 x 480

350 350 350

LED, selectable dimming LED, selectable dimming LED, selectable dimming

40,000 hrs

32 bit RISC, 400 MHz

64 MB DRAM

40,000 hrs

32 bit RISC, 400 MHz

40,000 hrs

32 bit RISC, 400 MHz

64 MB DRAM 64 MB DRAM

125 KB NVRAM/64 MB NAND/

2 MB NOR, 1 SD card slot

Yes Yes Yes

Ethernet 10/100, RS-485, RS-232 USB Host, USB Device

None

0.4

1.5

None None

24 Vdc nominal (–20%/+25%) with polarity protection

0.6

0.6

0 to 50°C, 10 to 95%

1.5

0 to 50°C, 10 to 95%

IEC 60068-2-27 15g for 11 ms duration

IEC 60068-2-6

5–9 Hz: 3.5 mm displacement

9–60 Hz: 0.15 mm displacement

60–150 Hz: 2g acceleration

CE, UL/cUL, CSA (pending), RoHS

VISUALDCE or VISUALDXP

1.5

0 to 50°C, 10 to 95%

–20 to 60°C, 10 to 95% –20 to 60°C, 10 to 95% –20 to 60°C, 10 to 95%

IP65, NEMA 4X (indoor) IP65, NEMA 4X (indoor) IP65, NEMA 4X (indoor)

IP20, NEMA 1 IP20, NEMA 1 IP20, NEMA 1

Metal

212 x 156 x 53

198 x 142

2.9 (1.3)

No

Metal

275 x 208 x 53

261 x 194

4.3 (2.1)

No

Metal

345 x 260 x 54

329 x 238

6.1 (3.0)

No

1500 tags, 3 drivers, 1 Web session

4000 tags, 3 drivers, 1, 2, 4, or 8 Web sessions simultaneously

SW-XSOFT-CODESYS-2-S (seat)

SW-XSOFT-CODESYS-2-M (multi-seat)

SW-GALILEO-S (seat)

SW-GALILEO-M (multi-seat)

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-29

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5.4

Operator Interface Products

XV and XP Operator Interface

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

XP Operator Interface

XP with Visual Designer

Product Description

The XP models were designed for performance. This series is perfect for OEMs who require extensive connectivity, the advanced features available in Visual Designer, have large or high speed applications, or need an open platform for running thirdparty software. The unique infrared touchscreen with scratch resistant safety glass is ideal for harsh environments where traditional touchscreens are easily damaged. The two externally accessible solid state CompactFlash

® drives provide both easy access and reliability. Protect

Mode, available only on

Eaton’s XP embedded operator interface products, protects the operating system from unwanted changes providing improved up-time and reliability.

Features

XP Series operator interface with Windows XP Embedded operating system

8.4-, 10.4-, 12.1- and 15.0inch screen sizes as well as blind node

Infrared touch screen, safety glass and metal housing for demanding environments

Multiple Ethernet, serial, and USB ports on all models

All solid state media increases reliability

Open architecture compatible with third-party software and hardware

Non-corruptible OS with

Protect Mode

®

increases security and minimizes emergency and preventative maintenance downtime

Visual Designer XP development software

Pre-installed Visual

Designer runtime and

Web serving licenses

Contents

Description Page

XV with Visual Designer, Galileo, or XSoft-CoDeSys-2 . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-23

XP with Visual Designer

Catalog Number Selection . . . . . . . . . . . . . . . . . .

V7-T5-31

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-31

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-32

Technical Data and Specifications . . . . . . . . . . . .

V7-T5-32

Visual Designer Software . . . . . . . . . . . . . . . . . . . .

V7-T5-34

Galileo Software . . . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-36

XSoft-CoDeSys-2 Software . . . . . . . . . . . . . . . . . . .

V7-T5-37

Standards and Certifications

CE

UL cUL

RoHS

V7-T5-30 Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

XV and XP Operator Interface

5.4

Catalog Number Selection

XP Operator Interface

XP

XP – 702 – F0 – 84TSIK – 10

Family

XP = X86 Microsoft Windows

XPe operating system

Performance Class

702 = XPe, metal housing,

2nd gen

Features

Base Unit Variant

1

E = 1 GHz Celeron with 1 GB RAM

4 GB C drive CF and 1 GB D drive CF

F = 1.8 GHz Pentium with 2GB RAM

4 GB C drive CF and 1 GB D drive CF

Features

Additional COMM Options

0 = No additional communication options

Branding and Bezel

00 = No bezel (blind node)

10 = Standard blank front bezel with

Eaton branded product label

Display Size

84 = 8.4-inch

10 = 10.4-inch

12 = 12.1-inch

15 = 15.0-inch

BOX = Blind node

(no display)

Display Technology

TSI = TFT (SVGA) Infrared

TXI = TFT (XVGA) Infrared

Blank = No display

OS Build

2

J = XPe OS and License

Visual Designer Runtime

4000 tags

K = XPe OS and License

Visual Designer Runtime

64,000 tags

Product Selection

Series Information

All XP models have a Microsoft Windows XP embedded operating system and are pre-licensed with Visual Designer runtime. The standard models are licensed for 4000 tags, 5 simultaneous communication drivers and 1 Web session. The enterprise models are licensed for 64,000 tags,

8 simultaneous communication drivers and 1 Web session. Field upgrades are available for up to 64,000 tags, 8 drivers, and 2, 4, 8, 16, 32, 64, 128 or 256 simultaneous Web sessions.

XP Operator Interface

XP Operator Interface

Description

XP 8.4-inch TFT, 1 GHz Celeron, 1 GB RAM, 4 GB C drive, 1 GB D drive, 4000 tags, 5 drivers, 1 Web session

XP 10.4-inch TFT, 1 GHz Celeron, 1 GB RAM, 4 GB C drive, 1 GB D drive, 4000 tags, 5 drivers, 1 Web session

XP 12.1-inch TFT, 1 GHz Celeron, 1 GB RAM, 4 GB C drive, 1 GB D drive, 4000 tags, 5 drivers, 1 Web session

XP 15.0-inch TFT, 1 GHz Celeron, 1 GB RAM, 4 GB C drive, 1 GB D drive, 4000 tags, 5 drivers, 1 Web session

XP blind node (no display), 1 GHz Celeron, 1 GB RAM, 4 GB C drive, 1 GB D drive, 4000 tags, 5 drivers, 1 Web session

XP 8.4-inch TFT, 1.8 GHz Pentium, 2 GB RAM, 4 GB C drive, 1 GB D drive, 64k tags, 8 drivers, 1 Web session

XP 10.4-inch TFT, 1.8 GHz Pentium, 2 GB RAM, 4 GB C drive, 1 GB D drive, 64k tags, 8 drivers, 1 Web session

XP 12.1-inch TFT, 1.8 GHz Pentium, 2 GB RAM, 4 GB C drive, 1 GB D drive, 64k tags, 8 drivers, 1 Web session

XP 15.0-inch TFT, 1.8 GHz Pentium, 2 GB RAM, 4 GB C drive, 1 GB D drive, 64k tags, 8 drivers, 1 Web session

XP blind node (no display), 1.8 GHz Pentium, 2 GB RAM, 4 GB C drive, 1 GB D drive, 64k tags, 8 drivers, 1 Web session

Notes

1 All 7xx Performance Class units have 1 x 10/100, 1 x 10/100/1000 Ethernet, 4 x USB Host V2.0, 2 x RS-232.

2

Standard software on embedded hardware.

Catalog Number

XP-702-E0-84TSIJ-10

XP-702-E0-10TSIJ-10

XP-702-E0-12TXIJ-10

XP-702-E0-15TXIJ-10

XP-702-E0-BOXJ-00

XP-702-F0-84TSIK-10

XP-702-F0-10TSIK-10

XP-702-F0-12TXIK-10

XP-702-F0-15TXIK-10

XP-702-F0-BOXK-00

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-31

5.4

Operator Interface Products

XV and XP Operator Interface

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Accessories

XP Operator Interface

Description

Hard drive, 80 GB minimum for all XP models for application or data storage

Industrial grade hard drive, 80 GB minimum for all XP models for application or data storage

XP700 externally mounted fan for all XP models (included with 1.8 GHz Enterprise models)

CompactFlash memory card, minimum 4 GB

XP-702 spare part kit for all XP models—1 power connector, 8 mounting brackets, 1 sealing strip

Catalog Number

HDU-A7-S XP700

HDU-A7-SI XP700

ACC-FAN-700-S

MEMORY-CF-A8-S

ACC-TP-57-RES-1

Technical Data and Specifications

XP Operator Interface

Series

Model

Screen Size

XP Performance Operator Interface

XP-702

8.4-Inch 10.4-Inch

Operating system

Touchscreen technology

Display, colors

Pixel resolution (landscape)—

Portrait mode also available

Brightness (cd/m

2

)

Backlight

Lifespan of backlight

(half-life)

Processor

Standard models

Enterprise models

Windows XPe

SVGA 800 x 600

400

2 CCFL

50,000 hrs

1 GHz Celeron M

1.8 GHz Pentium M

Volatile memory

Standard models

Enterprise models

Non-volatile memory

Standard models

1

Enterprise models

1

Real time clock

Communication ports

Slots for COMM modules

Power supply rated voltage

1 GB

2 GB

Yes

1 x PCI 32-bit

12.1-Inch

Windows XPe Windows XPe

Infrared, non-reflective safety glass

Color TFT, selectable 16 million, 64k, or 256 colors

SVGA 800 x 600 XGA 1024 x 768

400

2 CCFL

50,000 hrs

1 GHz Celeron M

1.8 GHz Pentium M

1 GB

2 GB

400

2 CCFL

50,000 hrs

1 GHz Celeron M

1.8 GHz Pentium M

1 GB

2 GB

15.0-Inch

Windows XPe

XGA 1024 x 768

400

4 CCFL

50,000 hrs

1 GHz Celeron M

1.8 GHz Pentium M

1 GB

2 GB

4 GB min C drive (OS), 1 GB min D drive

4 GB min C drive (OS), 1 GB min D drive

Yes Yes Yes

1 x PCI 32-bit

Ethernet 1 x 10/100 and 1 x 10/100/1000; 2 x RS-232; 4 x USB 2.0 Host

1 x PCI 32-bit 1 x PCI 32-bit

24 Vdc nominal (–15%/+20%) with polarity protection

Note

1 All are removable CompactFlash.

V7-T5-32

Blind Node (no display)

Windows XPe

N/A

VGA and DVI-D output

800 x 600 to 1920 x 1200

N/A

N/A

N/A

1 GHz Celeron M

1.8 GHz Pentium M

1 GB

2 GB

Yes

1 x PCI 32-bit

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

XV and XP Operator Interface

5.4

XP Operator Interface, continued

Series

Model

Screen Size

XP Performance Operator Interface

XP-702

8.4-Inch 10.4-Inch 12.1-Inch 15.0-Inch Blind Node (no display)

Continuous current consumption (maximum amps)

Standard models

Enterprise models

Starting Current Inrush (A

2 s)

2.0

3.1

2.0

Ambient conditions

Operation—relative humidity, noncondensing

0 to 50°C, 10 to 95%

–20° to 60°C, 10 to 95% Storage/transport—relative humidity, noncondensing

Shock

Vibration

5–9 Hz

9–60 Hz

60–150 Hz

Agency certifications and standards

Protection type

Front

Rear

Housing material

Dimensions W x H x D (mm) 275 x 208 x 102/140

Mounting cutout W x H (mm) 261 x 194

Approximate weight lbs (kg)

Development software

Ability to run third-party software

Pre-licensed tags, drivers,

Web sessions

Standard models

Enterprise models

Field upgradeable max tags, drivers, Web sessions

IEC 60068-2-6

3.5 mm displacement

0.15 mm displacement

1g acceleration

IP65, NEMA 4X (indoor)

IP20, NEMA 1

Metal

2.0

3.1

2.0

0 to 50°C, 10 to 95%

–20° to 60°C, 10 to 95%

IEC 60068-2-6

3.5 mm displacement

0.15 mm displacement

1g acceleration

IP65, NEMA 4X (indoor)

IP20, NEMA 1

Metal

345 x 260 x 91/129

329 x 238

2.1

3.2

2.0

0 to 50°C, 10 to 95%

–20° to 60°C, 10 to 95%

IEC 60068-2-27 15g for 11 ms duration

IEC 60068-2-6

3.5 mm displacement

0.15 mm displacement

1g acceleration

CE, UL/cUL, CSA (pending), RoHS

IP65, NEMA 4X (indoor)

IP20, NEMA 1

Metal

361 x 279 x 98/136

344 x 262

4000 tags, 5 drivers, 1 Web session

2.1

3.2

2.0

0 to 50°C, 10 to 95%

–20° to 60°C, 10 to 95%

IEC 60068-2-6

3.5 mm displacement

0.15 mm displacement

1g acceleration

IP65, NEMA 4X (indoor)

IP20, NEMA 1

Metal

427 x 322 x 101/139

410 x 315

64,000 tags, 8 drivers, 1 Web session

64,000 tags, 8 drivers, 1, 2, 4, 8, 16, 32, 64, 128, or 256 Web sessions simultaneously

1.4

2.8

2.0

0 to 50°C, 10 to 95%

–20° to 60°C, 10 to 95%

IEC 60068-2-6

3.5 mm displacement

0.15 mm displacement

1g acceleration

IP20, NEMA 1

IP20, NEMA 1

Metal

264 x 194 x 58/96

N/A

6.4/7.3 (3.2/3.6) 8.3/9.1 (4.1/4.5) 9.5/10.3 (4.7/5.1) 12.8/13.6 (6.3/6.7) 3.9/4.7 (1.9/2.3)

Visual Designer (VISUALDXP) Visual Designer (VISUALDXP) Visual Designer (VISUALDXP) Visual Designer (VISUALDXP) Visual Designer (VISUALDXP)

Yes Yes Yes Yes Yes

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-33

5.4

Operator Interface Products

XV and XP Operator Interface

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Visual Designer Software

Visual Designer Software

Product Description

Advanced GUI Development,

Made Easy

Time-saving solutions, lower costs.

With application development expense often outweighing the hardware expense, the demand to quickly design and implement advanced GUI solutions is greater than ever.

Even advanced features such as data archiving, recipe management, multi-language,

SQL database access, and

Web serving are made easy through an elegant and modern user interface. Visual

Designer’s ease-of-use and time-saving features lower your total installed cost.

Features

Visual Designer is a software development package optimized for OEMs. New tools streamline the application development process, and the creation of

Web-based applications has never been easier. In addition to basic monitor and control functionality, Visual Designer is packed with advanced features streamlining the design of sophisticated applications.

Contents

Description Page

XV with Visual Designer, Galileo, or XSoft-CoDeSys-2 . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-23

XP with Visual Designer . . . . . . . . . . . . . . . . . . . . .

V7-T5-30

Visual Designer Software

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-35

Galileo Software . . . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-36

XSoft-CoDeSys-2 Software . . . . . . . . . . . . . . . . . . .

V7-T5-37

Advanced Features

Pop-ups and group screens

Full mathematical and logical evaluation

Web browsing and document viewing

Remote access and control without having to install software to the remote PC

Database interfacing

Historical alarms and events

Historical data archiving and trending

Recipe management

Multi-language

VB scripting

Report generation

Scheduling

Resolution conversion

E-mailing and text messaging

Launch and control of thirdparty applications

Advanced Development

Features

Conversion of legacy

PanelMate configurations

Optional PanelBuilder conversion utility

Online configuration/ editing

Advanced search and replace

Automatic scaling of Web clients

Customizable application symbols

Reusable controls, images, and screens via indirect tag and/or PLC assignments

System Requirements

Windows XP and Windows 7

32-bit and 64-bit

systems

V7-T5-34 Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

XV and XP Operator Interface

5.4

Fully connected, Web-enabled

Today’s operator interface applications range from basic monitor and control to high-end, featurerich HMI software with Supervisory Control and Data Acquisition (SCADA). Customers demand communications capability with any network, PLC, Web client, and database. The answer: Eaton’s

Web-enabled Visual Designer operator interface software.

Web-based thin client

Zero admin client—no need to install software on the remote PC

Supports multiple simultaneous and independent Web clients

Simplified security—the same local user accounts and passwords for viewing and control also apply remotely

Connectivity

Extensive list of over 240 native communication drivers for PLCs, drives, and many other industrial and commercial devices

Visual Designer software can interface to any relational database—access both local and enterprise functions such as MRP/ERP through databases such as

Microsoft

®

Access, Fox Pro,

SQL Server, Oracle

®

,

PI System

®

and many others

Other connectivity tools provide redundancy capabilities, Real-Time Data

Exchange, Centralized Alarm

Management, and more

Open platform

Visual Designer Software can host third-party

ActiveX

®

and .NET controls and Visual Basic

®

programs

In addition to Eaton’s

Operator Interface families,

Visual Designer’s runtime may be licensed on any 32 or 64-bit Windows PC

Interoperability

Software is designed to open standards such as

XML, OPC, ActiveX, .NET,

ODBC, ADO, SOAP, DDE and more

Product Selection

Visual Designer

Visual Designer Software

Description

Visual Designer Development Software License Key

For CE hardware

For PCs, XPe, and CE hardware

For CE hardware, 5-pack of VISUALDCE

For PCs, XPe, and CE hardware, 5-pack of VISUALDXP

For a PC Runtime software license with a maximum of 64k tags, 8 drivers, 1 Web session

Visual Designer development software and PC runtime software licenses for a max of 64k tags, 8 drivers, 1 Web session

Software Updates and Upgrades

Update to current version Visual Designer development software for CE hardware

Update to current version Visual Designer development software PCs/XPe/CE

Update to current version of Visual Designer runtime license for PCs

Upgrade from Visual Designer CE 1500 tag to 4000 tag runtime

Upgrade from Visual Designer XPe 4000 tag, 5 driver to 64k tag, 8 driver runtime license

Upgrade from Visual Designer development software CE to CE plus PC and XPe (64k tag, 8 drivers)

Visual Designer PanelBuilder conversion utility optional plug-in (requires Visual Designer software)

Visual Designer 1 additional Web thin client license for Internet Explorer

Visual Designer 3 additional Web thin client licenses for Internet Explorer

Visual Designer 7 additional Web thin client licenses for Internet Explorer

Peace of mind

All of these capabilities— combined with Eaton’s commitment to provide free technical support for both OI hardware and software— make it quick and easy to purchase, develop and deploy

XV and XP operator interface solutions.

Catalog Number

VISUALDCE

VISUALDXP

VISUALDCE5

VISUALDXP5

VISUALRTPC

VISUALRTDEVPC

VISUALDUPCE

VISUALDUPXP

VISUALRTUPPC

VISUALRT4KCE

VISUALRT64KXP

VISUALDCE2XP

VISUALDPBCU

VISUALWEB1

VISUALWEB3

VISUALWEB7

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-35

5.4

Operator Interface Products

XV and XP Operator Interface

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Galileo Software

Galileo Software

Product Description

The Intuitive Visualization Tool

Galileo is an easy to learn yet powerful and extensive project design environment that can be used ideally in all system and machine building applications close to the machine and process.

Galileo is designed for use in all sectors and offers comprehensive project design tools. Galileo provides a full range of functions without any graduated restrictions on tags or screens, and is optimized for our XV operator interface panels.

Features

Easy to learn and intuitive graphical user interface with a project overview window

User-friendly project design with project simulation on development PC

Different user interface styles

Drag and drop positioning of objects, WYSIWYG (what you see is what you get)

Simple, clear user guidance

Tabular object properties, easy and fast assignment of attributes—copy and paste

Convenient series assignment of texts and images to tags

Many graphical objects such as bar graph, slide adjuster, graph plotter, curve chart, camera

Anti-aliased gauge display

Enhanced password handling with complex password and aging

Extensive recipe handling

Alarm handling with time stamp, history and diagnostics support with image display

Contents

Description Page

XV with Visual Designer, Galileo, or XSoft-CoDeSys-2 . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-23

XP with Visual Designer . . . . . . . . . . . . . . . . . . . . .

V7-T5-30

Visual Designer Software . . . . . . . . . . . . . . . . . . . .

V7-T5-34

Galileo Software

XSoft-CoDeSys-2 Software . . . . . . . . . . . . . . . . . . .

V7-T5-37

Multi-line display of alarm entries

Online language selection

Unicode support (also

Asian character sets)

Text import/export in XML format (example, Excel

®

)

Brilliant image display, up to 65536 colors

Import of 15 different image formats

Dynamic objects

Object parameter list, any number of data objects in a screen

Dynamic unit of measure selection (example, °C–°F, inch–mm)

Direct printing on panel

(reports, forms)

Many specific objects and system functions

Simple import of PLC variables

Full functionality always available, no graduated performance level

System Requirements

Windows XP and Windows 7

Product Selection

Galileo Development

Software

Description

Catalog

Number

Single-seat license

SW-GALILEO-S

Multiple-seat license

SW-GALILEO-M

V7-T5-36 Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

Operator Interface Products

XV and XP Operator Interface

5.4

XSoft-CoDeSys-2 Software

Contents

Description Page

XV with Visual Designer, Galileo, or XSoft-CoDeSys-2 . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-23

XP with Visual Designer . . . . . . . . . . . . . . . . . . . . .

V7-T5-30

Visual Designer Software . . . . . . . . . . . . . . . . . . . .

V7-T5-34

Galileo Software . . . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T5-36

XSoft-CoDeSys-2 Software

XSoft-CoDeSys-2 Software

Product Description

Combined Logic and

Visualization Development

IEC 61131-3 Logic

Programming

Ladder Diagram (LD)

Structured Text (ST)

Sequential function chart

(SFC)

Function block diagram

(FBD)

Freely definable function block chart/continuous function chart (CFC)

Instruction List (IL)

Target Visualization

Integrated design of Operator

Interface screens for the XV series. Visualization and logic developed as part of the same project. Simplifies screen design and always keeps the Logic and visualization in synch.

Web Visualization

Optionally XSoft-CoDeSys-2 can automatically generate

XML-based runtime screens to make the screens from the

XV accessible remotely using a Web browser with a

JavaScript plug-in such as

Internet Explorer

®

, Firefox

® and others.

Features

Project Development

Automatic variable declaration

On line editing

Pop-up variable and function search/pick tools

Automatic formatting and color coding of logic/ declaration text

Re-usable Visual-Logic

Function Blocks

Debugging and commissioning

XSoft-CoDeSys-2 offers you a number of important functions for debugging, testing and commissioning your XV applications quickly and efficiently.

All these features are available as soon as you log on to the XV (online mode) over an Ethernet connection.

Simulation

Users can also test the application when the XV is not connected to the process.

This is possible thanks to the integrated online simulation feature. Simulation supports both the screens and logic that have been designed using XSoft-CoDeSys.

Advanced Features

Up to 16 time and/or event driven tasks per project

Each task can include multiple logic programs or subroutines

Programs and screen designs can be exported and imported to support reuse

Powerful, built-in function block libraries

Ability to create userdefined function blocks

Fieldbus Configurator for CANopen, PROFIBUS-

DP and SmartWire-DT device I/O

Ethernet and serial communication function blocks (OPC server, UDP,

TCP/IP, FTP client/ server,

Modbus Master/Slave, email, SMS, and more)

8-level password protection

Web access selectable per screen

System function libraries

(OS Storage Card, and more)

Online and historical alarms

Online and historical trends

System Requirements

Windows XP and Windows 7

32-bit

systems

Product Selection

XSoft-CoDeSys-2

XSoft-CoDeSys-2 Software

Description Catalog Number

Single Seat License

Multiple Seat License (3)

SW-XSOFT-CODESYS-2-S

SW-XSOFT-CODESYS-2-M

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

Volume 7—Logic Control, Operator Interface and Connectivity Solutions

CA08100008E—February 2013 www.eaton.com

V7-T5-37

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
