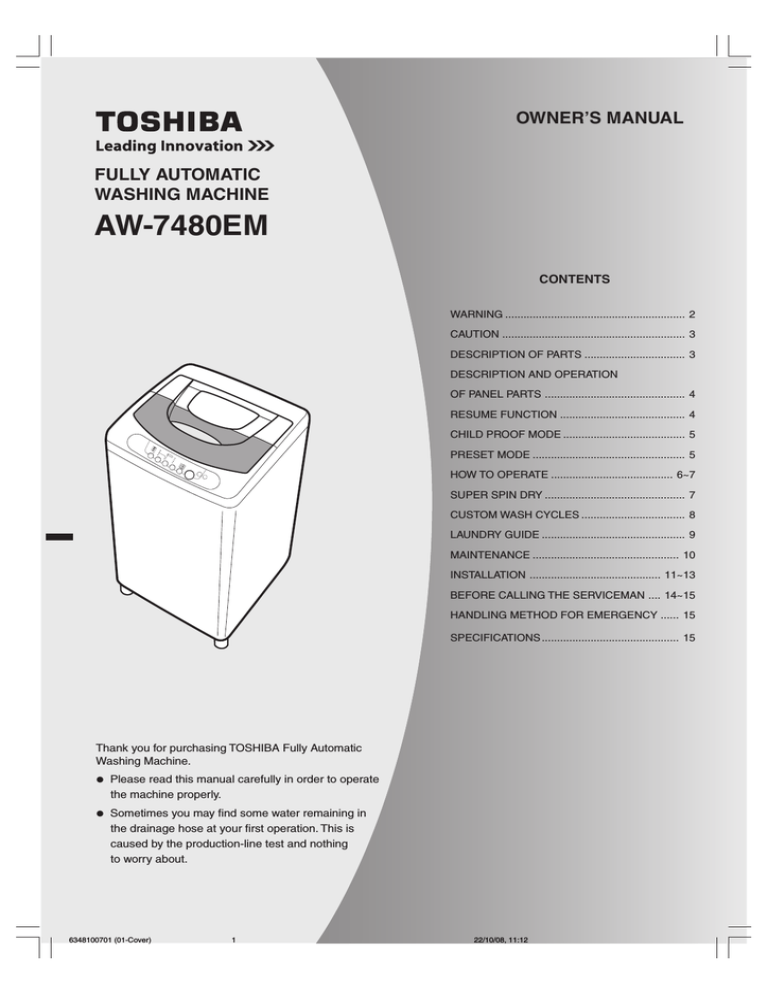

OWNER’S MANUAL
FULLY AUTOMATIC
WASHING MACHINE
AW-7480EM
CONTENTS
WARNING ........................................................... 2
CAUTION ............................................................ 3
DESCRIPTION OF PARTS ................................. 3
DESCRIPTION AND OPERATION
OF PANEL PARTS .............................................. 4
RESUME FUNCTION ......................................... 4
CHILD PROOF MODE ........................................ 5
PRESET MODE .................................................. 5
HOW TO OPERATE ........................................ 6~7
SUPER SPIN DRY .............................................. 7
CUSTOM WASH CYCLES .................................. 8
LAUNDRY GUIDE ............................................... 9
MAINTENANCE ................................................ 10
INSTALLATION ........................................... 11~13
BEFORE CALLING THE SERVICEMAN .... 14~15
HANDLING METHOD FOR EMERGENCY ...... 15
SPECIFICATIONS ............................................. 15
Thank you for purchasing TOSHIBA Fully Automatic
Washing Machine.
•
•
Please read this manual carefully in order to operate
the machine properly.
Sometimes you may find some water remaining in
the drainage hose at your first operation. This is
caused by the production-line test and nothing
to worry about.
6348100701 (01-Cover)
1
22/10/08, 11:12
WARNING
WARNING: This indicates an important item where incorrect operation may lead to injury or death.
Never attempt to touch laundry in the spin basket until the motion of the
basket stops completely.
Laundry in the basket may become wrapped around the hand, even when the basket is only
moving slowly.
Use particular caution when children are present.
Never operate washing machine by young children and infirm person.
This washing machine is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge unless they have been adequately supervised by a responsible person to
ensure that they can use the washing machine safety.
Never allow children to look into the basket or play around the washing machine.
Young children should be supervised to ensure that they do not play with the
washing machine.
Do not place the stand or box near the washing machine.
Children may fall into the tub and get injured or drowned.
Never disassemble or modify the machine.
It can cause fire or electrical shock or malfunctions that lead to injuries.
Consult the store you bought the machine.
Use proper power source which indicated in the rating label of the machine.
It can cause fire or electrical shock.
Failure to use a proper power source may result in the electrical outlet becoming excessively hot, leading to fire.
Unplug the power cord from the electrical outlet before attempting to service the washing machine.
Do not handle the power cord with wet hands.
It can cause electrical shock or malfunctions that lead to injuries.
Never use damaged electrical cords or plugs or loose socket.
It can cause electrical shock or malfunctions that lead to injuries or fire.
Do not damage the electrical power cord.
Do not attempt to damage, cut, or modify the power cord, or subject it to excessive bending, pulling, twisting, or binding. Also, do
not yank the metal portion, place heavy objects on the cord, or pinch the cord. Doing so may damage the cord, resulting in fire or
electrical shock.
Do not install in a bathroom or in area exposed to the elements.
Doing so may result in electrical shock or shorts.
Do not allow water to come into direct contact with the various parts of the outer body.
Doing so may result in electrical shock or shorts.
Do not place flammable materials in the basket.
Do not put kerosene, gasoline, benzene, thinners, alcohols, or the like, or any laundry articles soaked in such materials, in the
basket.
It can cause explosion or fire.
Wipe away any buildup of dust or grime on the prongs of the power-cord plug.
Buildup of dust or grime may cause fire.
Do not close the fire on plastic parts.
It can cause fire.
Make sure that water drains properly.
Using the washing machine with faulty drainage may cause water to back up within the machine, leading to electrical short or fire.
2
6348100701 (02-06)
2
22/10/08, 11:13
CAUTION
CAUTION: This indicates an important item where incorrect operation may lead to injury or material damage.
Do not pull the cord when unplug the appliance.
Hold the plug body to unplug.
It can cause electrical shock or malfunctions that lead to injuries.
Do not use water with temperatures over 50°C.
Water that is too hot can cause malfunctions and deformation of the machine, which may result in electrical shock.
Do not attempt to wash or rinse waterproofed sheets, mats, or clothing.*
Doing so may cause abnormal vibration or injury during the spin cycle.
*: This includes raincoats, fishing gear (jackets and waders), ski wear, sleeping bags, etc.
Do not climb or place heavy objects on the washing machine.
Doing so may result in injury due to bending or breakage.
Pull out the power plug if you do not plan to use the machine for a long time.
Failure to do so may result in electrical shock or shorts due to deterioration of the insulation.
Do not place the hands or other objects under the washing machine while in operation.
Moving parts may cause injury.
Before use, make sure the faucet in open, and the connection with water supply hose is not loose or
leakage water.
Looseness of screws, hose connections, or other areas may cause water leakage or other damage.
The opening must not be obstructed by carpeting when the washing machine is installed on a carpet
floor.
DESCRIPTION OF PARTS
Lid
Water Intake Valve
Shower cover
Pulsator
(Hybrid Screw Type)
Softener Dispenser
Lint Collector
Bleach Dispenser
Basket (WASH/SPIN)
Hose Hanger
Control Panel
Power Cord
Power Switch
Plug
Caution:
If the supply cord is
damaged, it must
be replaced by the
manufacturer or its
service agent or a
similarly qualified
person in order to
avoid a hazard.
Adjustable Leg
Both front legs
Accessories
Drainage Hose
Water supply hose
Drainage hose
Drainage hose band
3
6348100701 (02-06)
3
12/11/08, 8:53 AM
DESCRIPTION AND OPERATION OF PANEL PARTS
PROCESS DISPLAY
CHILD PROOF MODE DISPLAY
“START/HOLD” button
• Operating process is indicated by
• Check this to see if the CHILD
• Press this pad when you want to start.
• Press this pad when you want to hold.
flashing. Remaining process is
indicated by lightening.
PROOF mode is ON (lit) or
warning (flashing).
“POWER” button
“COURSE” button
“PRESET” button
• You can select the program
• You can set/reset the CHILD
PROOF mode.
• You can set the time until
• Press this button to power off/on.
• Power is automatically turned off about 15
seconds after the end of operation, or about
10 minutes later if the operation is not on.
suitable for the laundry.
washing finished.
WATER LEVEL
“SUPER SPIN DRY” button
“SELECT” button
Auto-Set Mode
• The water level is set linearly by adjusting to
• Select either the WASH,
RINSE, or SPIN cycle as you
desire.
DETERGENT GUIDE
• The amount of supply using the measure spoon accompanying
•
•
the compact detergent is displayed.
•
•
One spoonful of detergent denotes about 55L of water consumption
Depending on the kind of detergents, amount of water consumption
by one spoonful changes. Adjust the detergent volume according to
the particular detergent in use.
•
the washing volume. If the water level is
assigned at the point with no particular
indication, then the nearest level lights up.
In this auto-set mode, the set water level
illuminates when water supply finishes.
By pressing the "START/HOLD" button while
water is in the wash basket, the highest
water level lights up.
Button Setting
By pressing the
button, a desired
water level can be obtained.
Illumination shifts to the direction where the
higher water level is indicated as the result of
pushing the
button.
While using the "tub cleaning" program, the
water level will be automatically at High and
the
button cannot be used.
RESUME FUNCTION (POWER FAILURE RECOVERY)
If a power failure occurs during operation, the washer memorizes the remaining
process. After the electricity recovers, you can resume it.
1 Turn the POWER on.
The progress and course indicators of the remaining process will be flashing,
and the buzzer sounds for 5 seconds.
2
1
2
Press the
button.
NOTE • For “PRESET MODE” , if the power failure occurs before the machine starts
operating, the machine will cancel the preset time. Therefore, you have to
reset the time.
• Press the
button to clear the remaining process.
4
6348100701 (02-06)
4
22/10/08, 11:13
CHILD PROOF MODE (if you have small children)
CHILD PROOF mode
This model is equipped with CHILD PROOF mode. After this mode is set to ON, the washer will alarm you if the lid is opened
during operation. If you find accident such as falling of child into wash tub, please take necessary safety action
urgently.
If there is small children who requires attention, set this mode ON.
WARNING: Pay attention to small children. Do not leave the lid opened. Do not leave the washer filled with water. Never allow
children to look into the basket or play around the washer. Do not place the stand or box etc. near the washer.
HOW TO USE CHILD PROOF MODE
If the CHILD PROOF mode is set to ON and the lid is opened while the washer is in operation, it beeps the buzzer, stops water
supply and stops wash/spin operation. If there is water in the tub, the washer drains water. (The buzzer keeps beeping
alarming unexpected operation is happening).
CHILD PROOF INDICATOR
TO SET/RESET CHILD PROOF MODE
with pressing “PRESET” button
press “START/HOLD” button
If there is small child, set this mode ON.:
if this mode is set to ON and the lid opened during operation, the
buzzer beeps, the indicator flashes, the washer stops water supply
and stops wash/spin operation, and drains water from wash tub
approximately 5 seconds of the lid opening.
• If the CHILD PROOF mode is set off temporary, do not forget to
turn the CHILD PROOF mode ON again.
• When started operation with lid opened and the CHILD PROOF
mode on, the washer will beeps and drains water.
• The washer memorizes the last setting of CHILD PROOF mode
when powered off.
• The CHILD PROOF mode is set to “OFF” when shipped out from
the factory.
TO SET CHILD PROOF MODE:
1 With pressing “PRESET” button, press
“START/HOLD” to turn the CHILD PROOF
mode on.
* Buzzer beeps and the CHILD PROOF
indicator lights on. (Check the indicator lights
on.)
TO TURN CHILD PROOF MODE OFF:
2 With pressing “PRESET” button, press
“START/HOLD” to turn the CHILD PROOF mode.
* Buzzer beeps and the CHILD PROOF
indicator turns off.
TO PUT ADDITIONAL LAUNDRY/
DETERGENT:
Open the lid, throw laundry/detergent into the wash
tub and close the lid quickly. (The washer starts
draining approx. 5 seconds after the lid opening.)
WHEN THE WASHER IS BEEPING AND
STARTS DRAINING WATER.
Check for safety.
Press POWER button to OFF.
PRESET MODE
How to use preset mode
1
2
2
3
1
3
TO SET/RESET PRESET MODE
• Turn
the POWER off when you want to
delete memory. If you wish to change
preset time, turn the POWER off. And then
set to new preset time.
TO CONFIRM PRESET TIME
• Display
•
preset time when you open the
wash lid, or press PRESET button.
Finished time is different between preset
and actual time with water pressure and
drain condition.
4
Turn the POWER on.
Put the laundry in the basket and select your favorite cycle or water level.
Set the custom wash cycle.
Press PRESET button for preset time.
•
•
Change 9, 6 to off with pressing.
9-hour is indicated by lightening.
6-hour is indicated by flashing.
Press
button.
•
Check to turn the water faucet on.
Put in the detergent according to the detergent guide and then close the lid.
POWDER DETERGENT
LIQUID DETERGENT
Spread a handkerchief on the
laundry, and then put on the
detergent not to spill from the
handkerchief.
Pour the liquid detergent into the
bleach dispenser.
CAUTION
Cause by remained detergent as
follows:
• Wet detergent.
• Wet clothes or put in detergent
directly on clothes.
5
6348100701 (02-06)
5
22/10/08, 11:13
HOW TO OPERATE
Preparation
3
4
2
1
1
Set drainage hose for drain.
2
Set the water supply hose correctly.
3
Turn the water faucet on.
• Make sure that there are no sign of water leakage at water tap or inlet
valve.
4
Connect the power plug.
"REGULAR" "SOAK" "SPEED" "HEAVY" "DELICATE"
1
2
3
CONDENSED WASH
The washer starts flowing water at the low level to absorb the concentrated detergent into the laundry in order to remove the dirt efficiently.
1
"REGULAR" cycle
2
Put the laundry in the basket.
• In case of much laundry, soak the laundry completely in the water to
prevent the splash on feeding water.
• In case of selecting "SUPER SPIN DRY", please see page 7 for
details.
3
Press
Water level, water current and time are automatically selected according to the quantity
and type of laundry detected automatically.
Put the laundry evenly and confirmly.
If it is not, the lower water level may be set.
"SOAK" cycle
This method is used to wash clothing which
easily absorbs stain and clothes with
noticeable stains.
• The time requirement is 1 hour.
• Rinsing is set to "OVERFLOW RINSE".
once, "OVERFLOW
When you press
RINSE" will be canceled.
Turn the POWER on.
• Turn the POWER on, "REGULAR" cycle and "CONDENSED WASH"
is selected automatically.
button to select "REGULAR" "SOAK" "SPEED" "HEAVY"
or "DELICATE".
4
Press
•
button.
The pulsator automatically detects the laundry amount, and indicates
the amount of concentrated detergent suitable for the laundry amount.
5
Put in the detergent according to the detergent guide.
It is especially for light soiled clothes.
It washes with regular water current mode
and shorter washing time.
6
Close the lid.
• If you start the lid opening, cycle stops before spin.
• Avoid your finger caught when closing the lid.
"HEAVY" cycle
Cycle end
"SPEED" cycle
It is especially for heavy soiled clothes.
It washes with stronger water current mode
and longer washing time.
"DELICATE" cycle
This course is for delicate clothes such as
blouse or lingerie to wash gentlely with very
mild water flow.
Cloth Weight : 2kg or less.
The power turn off automatically.
• A "beep" sound will be heard when operation is finished.
∗ If you add the laundry during washing, be sure to press
button.
After stopping the basket, put the laundry in it.
∗ If the CHILD PROOF mode is set to ON, and the lid is opened while the
machine is in operation, the buzzer beeps and the CHILD PROOF indicator
flashes then the machine starts draining water.
If you wish to turn off the end buzzer sound
• You can turn off the buzzer sound.
• With pressing "COURSE" button, press to turn on the power switch.
After buzzer beeps 3 times, the end buzzer disabled.
• As you reset, set the same way.
∗ Once you set it, the washing machine will remember the mode set,
With pressing
Press
and no need to set each time.
6
6348100701 (02-06)
6
12/11/08, 8:53 AM
HOW TO OPERATE
When you need to dry clothes or shorten their
indoor drying time.
WASHING OF BLANKET
4-1 4-2
5
3
1
Type and amount which may be washed.
Single size
(140 cm x 200 cm or less)
100% synthetic fiber
type: Mayer, Tuft, Down cloth
Weight: 2.8 kg or less
• All wool blankets and regular electric blankets should
NEVER be washed.
Washable electric blankets should be washed according to
the washing instruction given in the user’s manual that accompany them when purchased.
• If the blanket will not go into washing net because of fiber
length of thickness, it cannot be washed.
• Remove
0c
waste or
thread from blanket.
Fold the blanket in
140 cm
two lengthwise.
Fold it once again the same way.
20
•
m
Folding blankets
SUPER SPIN DRY
Allow the
hem of the
blanket to extend about
10 cm.
Insert a blanket to the net
4
2
1
The amount of laundry/once of spin
Less than 1.5 kg
Setting time for spinning
•
You can manually set the time of spinning according to the
following guide:
If you would like to shorten the time of drying clothes in the
room: 30 min.
If you would like to dry the synthetic clothes: 90 min.
The clothes which cannot be performed spin
drying
•
•
•
•
•
“SUPER SPIN DRY” program will use a long time to spin
with high speed and will stop every 30 minutes to loosen
the laundry in the basket. Please do not spin the following
clothes:
Easily color bleeding clothes.
Easily wrinkled clothes (e.g. blouse, 100% cottons, or shirts).
Easily transformable clothes.
Waterproofed clothes.
• Roll up the blanket.
• Roll the blanket up
1
Turn the POWER on and put the laundry in the
basket.
•
2
Press the
loosely
except Mayer type blanket.
Place the blanket into the
blanket net hem-side first,
and close the fastener.
Washing period may become longer with drainage condition.
1
2
Turn the POWER on.
Put the detergent and press the START button.
Put the detergent amount matches for HIGH in spite of
displaying detergent volume for LOW.
• After operate 3 and 4 minutes and a detergent melts,
cut the POWER off.
• Do not use soap powder.
3
Put the blanket in basket.
• Place the blanket in net and put into the basket with the
fastenerside on top.
• Dip a blanket in washing liquid sufficiently.
4
Set the regular cycle.
5
3
Press
once to set to “OVERFLOW RINSE”.
Press
to set 45L water level.
4
•
button and select the desired time.
30 min. is indicated by lightening.
90 min. is indicated by flashing.
Press the
•
5
At the set of “TUB CLEANING” without “SPIN” cycle,
you cannot select “SUPER SPIN DRY”.
Press the
•
•
button to select the program.
button.
The pulsator will operate before the water is let into the
basket. The washer will estimate the amount of laundry
and display the detergent amount (while the lid is open).
Put the detergent as the display and close the lid.
• If the lid is open during the operation, the washer will
stop before washing and spinning.
After the operation: the buzzer will beep when the washer
completes the operation.
• Turn off the faucet and clean the lint collector.
Close the lid and press the START button.
Take the blanket out after washing completed.
• Open the blanket net fastener and put at the center of the
blanket. Then take out the blanket from net.
7
6348100701 (07-10)
7
22/10/08, 11:17
CUSTOM WASH CYCLES
"OVERFLOW RINSE" cycle
OVERFLOW RINSE cycle compared to normal washing, is one
rinse more (total 3 times) and last rinse becomes overflow rinse.
• When set once, it is written in memory and starts with overflow
rinse from the next time.
3
1
2
You can select the operation that you want — such
as spin only or rinsed water reuse.
The process cannot be changed after pushing the START.
Turn the POWER supply off and on in order to change course.
1
Turn the POWER on.
Put the laundry in the basket and select your favorite cycle or water level.
2
Set the custom wash cycle.
Regular washing
WASH
RINSE
OVERFLOW RINSE
SPIN
WASH
RINSE
SPIN
Removing clothes without spinning to prevent
wrinkling, or reusing the
softener.
WASH
and
RINSE
Washing the easily
wrinkled clothes without
spinning.
Reusing the softener.
WASH
RINSE
OVERFLOW RINSE
Washing clothes with
different soil separately
and spinning.
WASH
SPIN
Performing rinse which
have only been washed.
(Spinning will star t
before rinse)
RINSE
and
SPIN
Rinsing perfectly and
spinning only. (Spinning
will start before washing.)
RINSE
OVERFLOW RINSE
SPIN
Rinsing perfectly at the
regular washing cycle.
At the RINSE cycle, the
water is automatically
added.
WASH
RINSE
OVERFLOW RINSE
SPIN
Re-using washed water.
Melting a detergent
WASH
only
WASH
RINSE
OVERFLOW RINSE
SPIN
Press once
Press twice
Performing rinse only for
ar ticles which have
been washed.
(Spinning will star t
before rinsing)
RINSE
only
Rinsing the washed
clothes perfectly.
(Spinning will star t
before washing.)
RINSE
OVERFLOW RINSE
Spin only for handwashed articles.
(Draining before spinning.)
SPIN
only
Draining water from the
tub.
DRAIN
only
3
WASH
RINSE
OVERFLOW RINSE
SPIN
WASH
RINSE
OVERFLOW RINSE
Press 3 times SPIN
WASH
RINSE
OVERFLOW RINSE
Press 4 times SPIN
WASH
RINSE
OVERFLOW RINSE
Press 6 times SPIN
WASH
RINSE
OVERFLOW RINSE
Press 7 times SPIN
WASH
RINSE
OVERFLOW RINSE
Press 8 times SPIN
WASH
RINSE
OVERFLOW RINSE
Press 9 times SPIN
WASH
RINSE
OVERFLOW RINSE
Press 10 times SPIN
WASH
RINSE
OVERFLOW RINSE
Press 5 times SPIN
Close the lid and press the START button.
• To use drain only, leave the lid open.
After error display appears, turn the power off.
If you wish to change the shower rinse to the static rinse
SHOWER RINSE CYCLE means during stirring,
flowing water and rinsing are executed
simultaneously.
When flowing water amount is
small, the tank may not be
filled up.
For the shower rinse, it needs twice for the process.
But for the static rinse, it needs only once.
1
Press
2
Press the
button.
button and hold for 5 seconds.
The buzzer sound will be heard and the course will be set within 5
seconds. After that, turn off the washer.
NOTE • Never press
and
button in the same time.
• Follow this instruction for the shower rinse, and the buzzer sound will
be heard.
• After the setting, the washer will keep the setting in memory. So it is not
necessary to reset every time.
8
6348100701 (07-10)
8
12/11/08, 8:54 AM
LAUNDRY GUIDE
Recommended detergent amount
• Put the laundry in the washer basket, push the START button, rotate the
pulsator without water to detect the laundry amount.
Then it indicates the amount of detergent required.
Example
Put 1 spoon of the detergent.
• Indicates one measuring spoon of the concentrated detergent is required.
Caution
Amount
/spoon
The estimated amount of washing
Detergent
(Normal Type)
Manual Water
Level Setting
Powder
cup
Liquid
• The detergent spoon size may vary from
different manufactures and the brands.
Softener
Normal
Type
Concentrated
Type
45L
Approx. 30g
Approx. 30mL Approx. 30mL
Approx. 10mL
34L
Approx. 23g
Approx. 23mL Approx. 23mL
Approx. 7mL
22L
Approx. 15g
Approx. 15mL Approx. 15mL
Approx. 5mL
• If there is water in the basket before
•
starting, the water level is set high without
detecting the laundry amount.
When the pulsator moves without water,
there may be sound come from the clothes
buttons. Don’t worry about clothes
damages. If it is necessary, put delicate
buttons inside of the clothes to avoid
damage.
• The detergent amount differs with the type of the detergent.
• Too much detergent causes frothily or insufficient rinse.
• The water level slightly differs according to the particular type of laundry.
When using liquid detergent and bleach
Caution
Liquid detergent and bleach
Pour liquid detergent into the bleach dispenser with watered down
double.
Pour it into the bleach dispenser slowly, being careful not to split it,
while the water fills for the wash cycle.
When using powered bleach, add it directly into the basket.
• Colored and dyed fabrics may lose their color if washed
•
•
in bleach, so be sure to consult the instructions on the
bleach container before washing.
Do not apply chloric bleach directly to laundry items.
Do not allow bleach to spill on the control panel. If you
spill bleach, wipe it away.
When using softener
1
2
Add softener to the softener dispenser at the top of the basket,
and close the softener dispenser lid.
• If the basket is situated so that filling with softener is difficult,
turn the basket to counter-clockwise to a more accessible spot.
Wash as described on page 5 ~ 7.
• Softener will be dispensed automatically.
• The amount of softener varies with the
brands. Follow the instruction on the
softener label.
Caution
• You cannot see the softener poured into the dispenser
•
•
•
•
while rinsing. Because it moves to the three parts in
the case for using the centrifugal force at spinning.
Softener effectiveness is reduced when OVERFLOW
RINSE is used.
Do not open the lid while spinning. The softener
dispensation timing will be thrown off and effectiveness
reduced.
Do not leave the washing machine idle for long periods
while filled with softener.
Pour the concentrate softener after watering down triple.
If you feel the water amount is less or much
Water level is automatically set
to suit the laundry amount. If you
feel the water amount is less or
much, you can adjust it by
following.
If you feel the water amount is much.
If you feel the water amount is less.
Turn the POWER on with pressing WATER LEVEL button.
Adjust by pressing START
Adjust by pressing SELECT
Pressing 2 times
(reduce 6L)
Pressing 1 times
(reduce 3L)
Pressing 1 times
(increase 3L)
Pressing 2 times
(increase 6L)
Turn off the POWER. (Finished adjusting)
* Set it once, it is written in memory. You don’t have to set it on each laundry.
9
6348100701 (07-10)
9
22/10/08, 11:18
MAINTENANCE
Lint collector
Clean the lint collector after every use.
1 Remove the lint collector by lifting it up.
When the machine has stopped in a place
in which it is difficult to lift the lint collector
out, turn the basket by hand to a more
convenient place and remove the lint
collector.
2 Remove the lint by turning
the lint collector inside out.
3 Replace the lint collector.
• In the event that the net is
damaged,consult your
nearest dealer.
Softener case
Catch
Remove and clean after every ten usages.
Installation
Removal
1 Fit in the bottom.
1 Hold down the each.
2 Then press in the top until the
2 And pull toward you.
catch catches.
Caution
Softener case
• Water in the case may freeze in cold weather.
If this occurs, remove the case, immerse in warm water (less than 40°C) for 10 minutes, and replace after dried well.
Washing machine body and panel
Before performing any maintenance on your washing machine, be sure to remove the electrical plug from its power source.
The main body and control panel may be cleaned by wiping with a soft cloth soaked in water.
(Hard-to-remove dirt may be cleaned by wiping with a soft cloth soaked in a mind detergent.)
Caution: Never clean the body or control panel with benzine, thinner, cleanser, or other chemical cleaners. Use of such
chemicals can discolor or damage parts.
Cleaning the tub
"TUB CLEANING" course
The dirt from clothes or wastewater on the wash/spin basket will cause the
smell or the problem of water draining. Such dirt from the washing process
will then make the laundry dirty. If you are in such case, please use "Tub
Cleaning" program once a month. Or in case the clothes have been
starched, please use the "Tub Cleaning" program to remove the dirt of the
starch from the basket.
• Normally use detergent.
• The amount of detergent must be more than the guided Standard
Detergent Amount.
• Do not use "Tub Cleaning" program continuously.
• If there is a great amount of dirt inside the basket, you had better use
the chlorine-type basket cleaner for the washing machine.
Please follow the instruction labeled on the cleaner bag.
L "Tub Cleaning" Process
Water Intake and stir
about 5 min
Soaking
about 20 min
Washing (Tub cleaning) about 3 min
1 Turn the POWER on.
2 Press the COURSE button and select
TUB CLEANING.
3 Press the START button.
• During the "Tub Cleaning" program,
only the TUB CLEANING indicator will
light on.
4 When the pulsator (spinning board)
starts to spin, add the chlorine-type
whitening detergent about 300 ml. to
the basket.
• Do not put any clothes in the basket
during the "Tub Cleaning" program.
5 Close the lid.
• If the lid is opened during the operation,
the operation will stop before the
draining and rinsing process.
Draining water and spin about 4 min
Water Intake and stir
about 5 min
Rinsing
about 3 min
Finish "Tub Cleaning" process.
• Beeping when the operation is finished.
Draining water and spin about 1 min
10
6348100701 (07-10)
10
22/10/08, 11:18
INSTALLATION
Choosing an installation location
Install your washing machine in a level, stable place.
• It is dangerous to place the washing machine in an
unstable location, since it may move during vibration.
• It will increase the sound produced by the machine when it
vibrates during use.
Avoid place where the machine is exposed to direct sunlight.
• Plastic parts may become deformed or discolored.
When you move washing machine, hold the handles on
the sides.
There are moving parts, electrical parts and steel plates
which may cause electrical shock or injury.
• Never touch on the cabinet bottom by hands.
Never lift at the cabinet bottom by hands.
Avoid places where the machine may become frozen
during cold weather.
When the machine is covered.
Do not use the cover made of chloric vinyl. Sometimes it
damages resinous parts and painted surface. When you use
the cover made of chloric vinyl, put the cloth between the
machine and the cover.
Allow a space of at least 5 cm from the sides and rear of
the machine to the nearest vertical object.
• When placed too near to walls or other objects, the
vibration of the machine during operation may cause them
to shake.
Allow 5 cm
Installing the bottom cover
Put the bottom cover into the bottom of the washing machine, and fix the bottom cover with screws.
1 Lay down the washing machine
2 Align the bottom cover with
3 Fasten the screws on 6 positions.
on a flat object such as a corrugated board
the taps of the hooks of the
so that the front side is down.
bottom cover left & right. (4 taps)
F R ONT
F R ONT
B OT TOM C OV E R (LE F T )
B OT TOM C OV E R (R IG HT ) S UP P OR T P LAT E
Installation
Adjust the legs so that the body of your washing machine is level. (The two legs are adjustable.)
1
After loosening the adjusting
nut, adjust the leg to the proper
height by turning it. Then
tighten the adjusting nut securely once again.
2
When the leg height is difficult to
adjust because of floor slope or
unevenness, place a board of
sufficient thickness to prevent
breakage under the affected legs
to allow adjustment to a level position.
3
A weight attached to a string may be used
to check to ensure that your washing
machine is level. The distance is less than
1 cm between A and B
Leg nut
Loosen
String
Tighten
Leg
Raise
Lower
Check the distance
11
6348100701 (11-15)
11
22/10/08, 11:19
INSTALLATION
Installing the ground pin
• The ground pin in the plug should be connected to the proper point of the socket for grounding.
Installing the drainage hose
Moving the hook
Drainage hose extension
• When inserting the drainage hose into a wash pan or
•
• Insert the drainage hose
•
•
• Pay close attention to the height of the drainage hose and
onto a drain pipe, the hook may be moved to facilitate
the installation.
When hooking the hose hook
into the slot provided on the
body of your washing machine,
move the hook back to its initial
Hook
position.
Drainage hose
•
articles over which it passes. If the drainage hose is too
high, proper drainage may not be obtained.
The length of the
drainage hose may be
3 m or less
extended to as much
as 3 m if kept the same
level.
Drainage hose cap
Hose band
in as far as it will go, then
use the accessory hose
band to secure it tightly.
Secure the hose tightly.
An improperly secured
Drainage hose
Drain pipe
hose may cause leakage.
When attaching the drainage
Gap
3 cm or
hose to a wash pan, etc.,
greater
either leave a gap between
the end of the hose and the
adjacent surface, or cut the
hose diagonally to ensure
Cut diagonally
proper drainage.
Drainage hole
Caution:
• If the level of the threshold and the drainage hose is high,
the washing machine may not be drained.
15 cm or less
• Be careful not to rub the drainage hose. Do not insert the
drainage hose under the washing machine. They may be
damaged the drainage hose.
Concrete block
Allowing the flat end of the
hose to come in contact
with the flat surface of the
washing machine will
impair drainage.
Drainage
hose
Moving the drainage hose
The drainage hose can be installed on either the right or left side.
The connector port for the drainage hose is found on the right side of the washing machine, but it can be changed without
disconnecting the internal hose from the drainage valve.
1
Remove the back cover, then
grip the stopper securing the
internal hose with your fingers
and pull it up.
2
Turn the nut for the drainage
hose connector port
counterclockwise.
3
Pull the internal hose from
inside the washing machine to
detach.
4
Remove the hose hole cap on
the left-hand side, from inside
the washing machine align the
internal hose with the notch in
the connector port and fit into
place, then from outside put the
nut in place and turn clockwise
to secure.
5
Stopper
Turn the stopper 180°C without removing from
hose. Insert the stopper into the securing hole
on the left side of the outer shell and press
down to secure the internal hose.
Drainage valve
Nut
Tap
Hose hole cap
Upper and lower notches
in the hose hole
Outer shell
Nut
Stopper
6
Attach the back cover, and fit the hose hole
cap over the hose hole on the right-hand side.
7
After moving the drainage hose, be sure to
testoperate the washing machine, ensuring
that there are no water leaks or unusual
noises.
12
6348100701 (11-15)
12
22/10/08, 11:19
INSTALLATION
Attaching the water supply hose to the faucet
Branching
water pipe
If you attach the water supply hose completely, it may cause a water leakage.
Faucet shape
Wall-mounted
shaped
Caution
• The old inlet hose should not be reused.
• If the faucets are not suited, please contact your
dealer.
• Do not connect the hot water supplying
convenience.
Hose union
• In order to provide a permanent source of
water for your washing machine, it is suggested
that a branching water pipe (available separately) be used.
Wall-mounted faucets are best.
Square
faucet
Movable
faucet
Multi-home
faucet
The distance is needed
1.6 cm or more
Hose Union
Attaching the hose union
1 Push the lock lever of the water
supply hose. Pulling the sleeve down,
lower the entire hose to disconnect
the hose union.
2 Check the diameter of the faucet.
When the faucet mouth is large,
loose the screws and remove the
inside ring to facilitate, attachment.
3 Loose 4 screws of the hose union,
push the hose union to the water
faucet.
4 Tighten the four screws evenly
around the faucet. In this time check
the gap is approx. 4 mm between the
nozzle and the ring.
5
6
Lock
lever
Water
supply
hose
Sleeve
Inside
ring
Ring
Approx.
4 mm
Joint
seal
Remove the seal from the union
Ring
and turn to the arrow destination
the nozzle to tighten securely.
Check the gap is approx. 1 to 3
Approx.
1 to 3 mm
mm between the nozzle and the
Nozzle
ring.
• If the gap is wide, it may cause the water leak.
• If it cause the water leakage during operation,
tighten the nozzle more securely.
Caution
• If you attach the hose union again because of
moving house etc., loose the gap is approx. 4 mm
between the nozzle and the
ring. Then attach it according
above methods. They are
Approx.
4 mm
preventable the water leakage.
Caution
• Check to ensure that the water
supply hose is properly installed by
turning the water on and checking for
leakage.
If there is leakage, connect it from the
Water supply
hose
first.
• If you remove the water supply hose
after supplying water, water may
splash. Refer to the following
— “Removing the water supply hose”.
4 Tighten the hose nut
on the end of the
water supply hose
Nozzle
securely to the water
intake valve.
Connecting the water supply hose
1 Pull the sleeve down, then insert
the water supply hose.
2 Separate the sleeve until a click is
heard, then push it up.
3 Check to ensure that the lock
lever is hung on the nozzle. Next,
check to ensure that the water
supply hose does not come off by Lock
lever
pulling down on it.
Sleeve
Hose nut
Water intake
valve
If the filling water becomes not good
The water inlet may be blocked by foreign
objects. Remove the water supply hose
and clean the filter with a brush.
• If you remove the water supply carelessly, water may splash. Therefore, use
the following procedure.
Filter
Water
intake valve
Removing the water supply hose
1 Turn the water faucet off.
2 Turn the power switch ON and press
the START/HOLD pad.
3 After indicating the water level,
loosen the hose nut of the machine
top and remove it.
In case of water may freeze
Drain all water from the
basket, drainage hose
and water supply hose
after using the machine.
If the water is frozen
1 Remove the water supply hose and pour in warm water (under 40°C).
2 Fill warm water (under 40°C) into the basket until the pulsator is
completely covered. Leave it for 30 minutes. Then check to see whether
the pulsator can be turned by hand.
under 40°C
13
6348100701 (11-15)
13
22/10/08, 11:19
BEFORE CALLING THE SERVICEMAN
WHEN
does not operate
CHECK
TREATMENT
• Is there a power outage?
• Is the circuit breaker or fuses cut off?
• Is the machine’s plug properly inserted into
an AC socket?
making noise
• Is the power switch ON?
• Is there the inclination of the laundry?
• Is your washing machine installed on
an
Please confirm whether a power failure or fuse
breaker is cut. Then draw out power supply
plug, insert once again and turn the power
switch on.
Please correct the inclination or non stability
of laundry in the washing machine.
inclined or uneven surface?
• Are
there match sticks, hairpins or metal
objects being washed with the laundry?
• Is
there a foreign object caught under the
pulsator?
• Groan sounds during water supply.
water leak
does not beep the
end buzzer
• Is the faucet shape suited?
Remove them.
Remove the center screw, lift the pulsator out
and remove the foreign object.
Water intake valve buzzes.
Adjust the inside ring of the hose union or
change faucet shape (Refer to p.13)
• Are the hose coupling and the nozzle loose?
Re-attaching the water (Refer to p.13)
• Is the water inlet nut loose?
• Is the water supply hose connector clogged?
Re-attaching the water supply hose (Refer to
p.13)
• If you turn the power on and press START
•
pad immediately, it may not beep the end
buzzer.
Is the end buzzer turned off?
Reset the end buzzer sound to turn on referring to "If you wish to turn off the end buzzer
sound. (p. 6)"
Error Indication List
In the case the buzzer sounds and the select display flash alternatively.
The display of "LINEAR WATEL LEVEL" indicates the error condition as shown below.
WHEN
CHECK
TREATMENT
• Is the drainage hose properly connected to the machine?
• Is the drainage hose bent?
• Is the drainage hose laid down?
• Is the drain water frozen?
• Is the outlet of the drainage hose sunk in water?
• Is the drainage hose clogged?
• Is there not the inclination of the laundry?
• Is your washing machine installed on an incline or uneven
surface?
Open and close the lid once and
then press the START button.
Please repair the inclination of a
washing machine and non
stability of a washing machine.
Then close the lid.
• Is the water faucet turned on?
• Is the water supply frozen or shut?
• Is the inlet net of the water intake valve choked with dust?
Open and close the lid once and
then press the START button.
• Is the lid opened?
Close the lid.
14
6348100701 (11-15)
14
28/10/08, 10:12
BEFORE CALLING THE SERVICEMAN
The following are not malfunctions.
When:
Check:
The first time you use your washing machine,
a small amount of water may drain out of the
drainage hose.
• This is merely water lift over from the performance inspection performed
on your washing machine before it was shipped from the factory.
During operation the control panel gets warm.
• Because of the electronic parts radiate heat.
The pulsator rotates bit by bit.
• Because of preventing the laundry unbalancing, it rotates bit by bit.
During washing and rinsing, lamps flickers.
• It is the cause of the power source wiring in a house. If fluorescence light
be changed, it may improve condition.
During spinning, suddenly supplying the
water or rinsing.
Sloshing sounds of remaining water coming
from your washing machine after SPIN cycle
has been completed.
• Because load unbalance occurred and safety switch operated. The spin
will cycle resume after supplying water, rotating and correcting the
unbalanced load.
• They
are made by water retained by the machine for the purpose of
maintaining balance and do not indicate malfunction.
• Spinning rate of fully automatic washing machine is lower than that of
Spin extraction is not enough.
twin tub washing machine. Sometimes spinning is uneven like thick parts
of blanket.
After pausing the machine during the spin
cycle, it will not starts immediately.
If operates the machine at spinning on and
off.
After water supply shut off or water with iron
rust appears.
• There
are a short pause before the machine begins to spin as the
drainage valve opens sufficienty.
• You
may hear intermittent motor sound ("coon" sound) in spinning
process occurs, this is a sound which occurs in order to control rotation,
and not a malfunction.
• Wait
for water becomes clean. Returning type bleach can be used
(hydrohiter etc.) when iron rust adhered to the white colored clothes. Avoid
using the bleach for colored articles.
• If the CHILD PROOF mode is set to ON, and the lid is opened while the
The buzzer does not stop.
machine is in operation, the buzzer beeps. Check inside the washing
machine. Press POWER to turn it off.
HANDLING METHOD FOR EMERGENCY
When the machine takes on abnormal operation, please disconnect the power plug and send it to our service agency for
handling. Never disassemble the machine by yourself, for safety reasons.
SPECIFICATIONS
Type
Washing
system
Fully automatic washer
Vortex type
Overall
dimension 563 (Width) x 535 (Depth) x 920 (Height)
Weight
27kg
Rated period of operation
Regular cycle 43 min.
Standard amount of water
45L high water level
Standard water consumption
Rated capacity
(Dry clothes weigth)
98L
6.5kg
Water tap pressure
0.03~1MPa
15
6348100701 (11-15)
15
22/10/08, 11:19
MANUFACTURED BY
TOSHIBA CONSUMER PRODUCTS (THAILAND) CO., LTD.
6348100701 (01-Cover)
2
6348100701
22/10/08, 11:12

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
