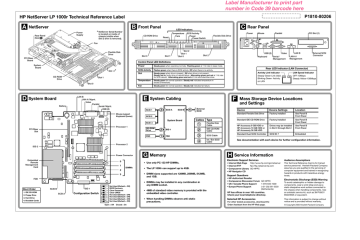

HP NetServer LP 1000r Technical Reference Label
A
P1810-80206
B
NetServer
* NetServer Serial Number
Power
Supply
Rear Panel
(See C )
Front Panel
is located on inside of
chassis (visible when
Slot 2 drive is removed).
CD-ROM Drive
C
LED Indicators
Reset
Temperature
Fans
SCSI Activity
Power
Power Switch
Rear Panel
Power
Flexible Disk Drive
Mouse
Parallel
PCI Slot (1)
Fan
Flexible Disk
Drive
Slot 0
PCI Riser
Board
Slot 1
Slot 2
Slot 1
Slot 0
USB (2)
Slot 2
Keyboard
LAN B
Video
Serial /
Management
LAN A /
Management
External SCSI
Connector
Control Panel LED Definitions
System
Board
Slot 2
CD-ROM
Drive
*
Battery
Steady green when operating normally. Flashing green at 1 Hz rate in sleep mode.
SCSI Activity
Flashes green when there is SCSI activity. Off when there is no activity.
Slot
Steady green when drive is present. Off when drive is not present.
Steady red for faulty drive or rebuild failure. Alternating green and red at 1 Hz rate
for SCSI rebuild. Alternating green and red at 3 Hz rate indentifies drive.
Slot 1
Slot 0
D System Board
Power
Temperature
Steady green for normal operation. Steady red indicates temperature in
excess of threshold.
Fan
Steady green for normal operation. Steady red indicates fan failure.
E
LAN B
LAN A / Mgmt.
Video
Parallel
Serial / Mgmt.
USB (2)
3
SCSI A
PCI Riser
Slot
F
SCSI B
4
External
SCSI
System Board
Cables
Power Connector
Embedded
Remote
Management
Card
0
1
2
1
CD-ROM
Drive
2
IDE-1
2
IDE CD-ROM
Cable
FDD
1
FDD
3
SCSI Cable
4
Int / Ext SCSI
Cable
G
Memory
• Use only PC 133 HP DIMMs.
DIMMs
3
FDD
• The LP 1000r can support up to 4GB.
• DIMM sizes supported are 128MB, 256MB, 512MB,
and 1GB.
• DIMMs may be installed in any combination in
Boot Order
2. Floppy Drive
3. Hard Drive
4. Bootable Cards
SCSI A
Configuration Switch
OPEN
1. IDE CD-ROM
IDE-1
SCSI B
Not Used (Default = Off)
BIOS Recovery
Clear Password
Clear CMOS
Not Used (Default = Off)
Not Used (Default = Off)
Not Used (Default = Off)
Not Used (Default = Off)
Open = Off
Closed = On
Type
Flexible Disk
Cable
Processor 2
IDE-2
LED
LED
any DIMM socket.
• 4MB of standard video memory is provided with the
embedded video controller.
• When handling DIMMs observe anti-static
precautions.
LAN Speed Indicator
OFF-10Mbps
Steady Yellow-100Mbps
Mass Storage Device Locations
and Settings
Device
Device Settings
Location
Standard Flexible Disk Drive
Factory installed
See Panel B
Front Panel
Standard IDE CD-ROM Drive
Factory Installed
See Panel B
Front Panel
HP Accessory 9 GB HDD or
HP Accessory 18 GB HDD or
HP Accessory 36 GB HDD
Drives may be installed
in Slot 0 through Slot 2
See Panel B
Front Panel
Standard Dual SCSI Controller
SCSI ID 7
Embedded
SCSI 2
SCSI 3
Processor 1
Activity Link Indicator
Steady Green-Link Valid
Blinking Green- Activity
on LAN
System Cabling
SCSI 1
Mouse (upper)
Keyboard (lower)
Rear LED Indicator (LAN Connector)
See documentation with each device for further configuration information.
H
Service Information
Electronic Support Services
• Internet Web Page
http://www.hp.com/go/netserver
• Internet FTP
ftp://ftp.netserver.hp.com
• Compuserve Library GO HPPC
• HP Navigator CD
Support Questions
• HP-Authorized Reseller
• Compuserve Discussion Forum GO HPPC
• US / Canada Phone Support
1-970-635-1000
• Europe Phone Support
(+31-20) 581-3330
(Netherlands)
HP has offices in over 100 countries.
Check your local telephone directory.
Selected HP Accessories
For other tested accessories, download the
Order Assistant from the HP Web page.
Audience Assumptions
This Technical Reference Card is for trained
service personnel. Hewlett-Packard Company
assumes you are qualified in the servicing of
computer equipment and trained in recognizing
hazards in products with hazardous energy
levels.
Electrostatic Discharge (ESD) Warning
To avoid catastrophic or hidden damage to
components, wear a wrist strap and use a
static-dissipative work surface connected to
the chassis when handling components. Use
an antistatic service kit, such as 3M ® 8501/
8502/8505 or equivalent.
This information is subject to change without
notice and is provided without warranty.
© Copyright 2000 Hewlett-Packard Company
