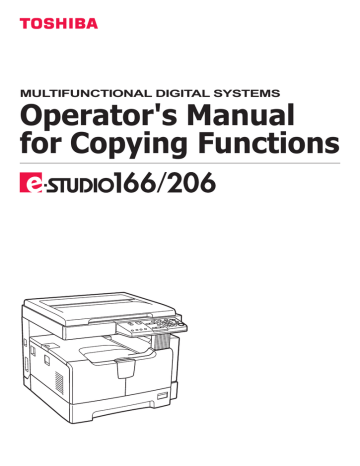

MULTIFUNCTIONAL DIGITAL SYSTEMS
Operator's Manual for Copying Functions
Preface
Thank you for purchasing the TOSHIBA multifunctional digital systems e-STUDIO166/206.
We have provided you with this manual for the operation of this equipment.
This operator’s manual describes the following: y How to use this equipment y How to inspect and carry out maintenance on this equipment y How to remedy mechanical and copying problems
Be sure to read this manual before using the e-STUDIO166/206. Keep this manual handy and retain it for future reference.
Preface 1
Notice to Users
After a suitable place has been selected for the installation of the e-STUDIO166/206, please do not change it. Avoid excessive heat, dust, vibration and direct sunlight. Also, provide proper ventilation as the copier emits a small amount of ozone.
Warning:
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
Working environment
From EMC (Electromagnetic Compatibility) point of view, the operation of this product is being restricted in following environments: y Medical Environments: This product is not certified as a medical product according to the Medical
Product Directive 93/42/EEC.
y Domestic environments (e.g. a private living room with TV / Radio sets in the nearby surrounding area) because this is a so called EMC class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures!
Any consequences resulting from the use of this product in restricted working environments are not the responsibility of TOSHIBA TEC.
The consequences of the use of this product in restricted working environments may be an electromagnetic interference with other devices or machines in the nearby surrounding area. This can result into malfunction including data loss / data error pertaining to this product or the other devices / machines involved in the electromagnetic interference.
Furthermore, for general safety reasons, the use of this product in environments with explosive atmospheres is not permitted.
CE compliance
This product is labelled with the CE mark in accordance with the provisions of the applicable European
Directives, notably the Low Voltage Directive 73/23/EEC and the Electromagnetic Compatibility Directive 2004/108/EEC for this product and the electric accessories.
CE marking is the responsibility of TOSHIBA TEC GERMANY IMAGING SYSTEMS GmbH, Carl-
Schurz-Str. 7, 41460 Neuss, Germany, phone +49-(0)-2131-1245-0.
For a copy of the related CE Declaration of Conformity please contact your dealer or TOSHIBA TEC.
For Germany only
Machine Noise Information
Ordinance 3. GPSGV: The maximum sound pressure level is equal or less than 70 dB(A) according to
EN ISO 7779
2 Notice to Users
Following information is for EU-member states only:
This product is marked according to the requirement in EU-Directive 2002/96/EC.
(Directive on Waste electrical and electronic equipment - WEEE)
The use of the symbol indicates that this product may not be disposed as unsorted municipal waste and has to be collected separately. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
For more detailed information about the take-back and recycling of this product please contact your supplier where you purchased the product.
Notice to Users 3
Before Reading This Manual
Lineup of our manuals
These manuals are provided for the operation of the e-STUDIO166/206. Select and read the manual best suited to your needs. This manual is the Operator’s Manual for Copying Func-
tions.
Operator’s Manual for Copying Functions (Booklet, This manual)
This manual describes the basic operations, mainly copying functions, of this equipment. It also describes safety precautions to ensure correct and safe use of this equipment. Be sure to read this before you use the equipment.
Operator’s Manual for TOSHIBA Viewer (PDF file)
This manual describes how to use the co-packed application software “TOSHIBA Viewer”.
Various functions such as printing, scanning and setup can be used with a computer connected to this equipment with a USB.
To read manuals in the PDF file format
The operator’s manual in the PDF (Portable Document Format) can be displayed/printed using
Adobe Reader or Adobe Acrobat Reader. If neither is installed in your computer, download one of them. This can be done via the website of Adobe Systems Incorporated.
4 Before Reading This Manual
How to read this manual
Signal in this manual
To ensure correct and safe use of this equipment, this operator’s manual describes safety precautions according to the three levels shown below.
You should fully understand the meaning and importance of these items before reading this manual.
Indicates a potentially hazardous situation which, if not avoided, could result in death, serious injury, or serious damage, or fire in the equipment or surrounding assets.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, partial damage of the equipment or surrounding assets, or loss of data.
Indicates information to which you should pay attention when operating the equipment.
Other than the above, this manual also describes information that may be useful for the operation of this equipment with the following signage:
Describes handy information that is useful to know when operating the equipment.
Pages describing items related to what you are currently doing. See these pages as required.
Description of original/paper direction
Paper or originals of A4 size can be placed either in a portrait direction or in a landscape direction. In this manual, “-R” is added to this paper size when this size of paper or original is placed in a landscape direction.
e.g.) A4 size original on the original glass
Placed in a portrait direction: A4 Placed in a landscape direction: A4-R
Paper or originals of A3 or B4 size can only be placed in a landscape direction, therefore “-R” is not added to these sizes.
Before Reading This Manual 5
Trademarks
y Microsoft and Windows are the trademarks of Microsoft Corporation in the US and other countries.
y Adobe, Acrobat, Adobe Reader and Adobe Acrobat Reader are the trademarks of Adobe
Systems Incorporated.
y Other company or product names shown in this manual may be a brand name or a trademark of each company.
©2007 TOSHIBA TEC CORPORATION All rights reserved
Under the copyright laws, this manual cannot be reproduced in any form without prior written permission of TOSHIBA TEC CORPORATION. No patent liability is assumed, however, with respect to the use of the information contained herein.
6 Before Reading This Manual
CONTENTS
Before Reading This Manual .......................................................................4
TOSHIBA Quality Is Second to None........................................................11
Features of e-STUDIO166/206 ...................................................................13
Environmental Information........................................................................20
Chapter 1 PREPARATION
Description of Each Component...............................................................22
Preparation 1 - Turning Power ON............................................................29
Saving energy when not in use - Energy saving mode - .........................30
Preparation 2 - Placing Copy Paper..........................................................31
Acceptable media types ..........................................................................31
Recommended paper ..............................................................................32
Placing paper in drawers .........................................................................33
Preparation 3 - Registering Size of Paper Placed ...................................37
Registering standard size (A3, A4, A4-R, A5-R, B4) ...............................37
Registering other standard sizes .............................................................38
Chapter 2 HOW TO MAKE COPIES
Placing originals on the original glass .....................................................43
Placing booklet-type originals such as books or catalogues ...................44
Using Automatic Document Feeder (optional).........................................45
Placing originals on Automatic Document Feeder (optional)...................46
Stopping/Resuming copying....................................................................48
Interrupting copying and making another copy - Interrupt copy - ............49
Preparation - Registering paper size placed on bypass tray ...................51
CONTENTS 7
Bypass copying on standard size paper..................................................55
Chapter 3 COPYING FUNCTIONS
Automatic paper selection (APS).............................................................61
Manual paper selection ...........................................................................62
Zooming In/Out Copy Image......................................................................64
Automatic magnification selection (AMS) ................................................64
Specifying both the sizes of the original and the copy paper ..................66
Specifying reproduction ratio manually....................................................67
Copying in Same Page Order as Originals - Sort Copying - .................69
Chapter 4 SETTINGS AND MANAGEMENT OF EQUIPMENT
Switching Operation Sound On/Off ..........................................................74
Checking Total Number Copied ................................................................75
Chapter 5 TROUBLESHOOTING
When Message Lamp is Lit/Blinking ........................................................78
Checking position of paper jams .............................................................81
Paper jams within Automatic Document Feeder (optional) .....................82
Paper jams on bypass tray ......................................................................84
Paper jam behind transfer unit ................................................................85
Paper jams within fuser unit ....................................................................86
Paper jams within Paper Feed Unit (optional) .........................................88
Replacing Toner Cartridge ........................................................................89
Before Calling Service Technician............................................................94
Original/Copy paper-related items...........................................................95
Chapter 6 MAINTENANCE AND INSPECTION
8 CONTENTS
Cleaning transfer charger ......................................................................102
Chapter 7 SPECIFICATIONS AND OPTIONS
e-STUDIO166/206 Specifications ............................................................106
Continuous copying speed ....................................................................107
CONTENTS 9
10 CONTENTS
TOSHIBA Quality Is Second to None
Recommended toner cartridges
To assure optimal printing performance, we recommend that you use TOSHIBA toner cartridges.
If you use a TOSHIBA-recommended toner cartridge, you can utilize the following two check functions of this equipment:
Cartridge detecting function:
This function checks if the toner cartridge is correctly installed and notifies you if it is not.
Toner remaining check function:
This function notifies you when there is little toner remaining in the cartridge.
Any copying or printing operation is available even if you are using a toner cartridge other than the one we recommend. In that case, however, the equipment cannot detect whether the toner cartridge is installed or not and therefore the toner lamp is lit even if the toner cartridge is correctly installed. You cannot utilize the toner remaining check function either.
If you are using a toner cartridge other than the one we recommend and you feel annoyed by this lighting lamp, contact your service representative. Your service technician will cancel the cartridge detecting function set by default. Remember once this function has been cancelled, you will not be able to utilize the two functions mentioned above even if you change the cartridge to the one we recommend.
TOSHIBA Quality Is Second to None 11
Supplies / Parts
Dependability
Genuine TOSHIBA supplies are subjected to the strictest of inspections so that every supply you receive will perform at optimal levels.
High Productivity
Genuine TOSHIBA supplies are created to meet the demands of our competitive world and provide high-speed reliable copies when you need them.
Stable Image Quality
Genuine TOSHIBA supplies are designed to provide consistently stable image output.
Copier Friendly Supplies
Genuine TOSHIBA supplies are designed to help to keep the equipment and all its parts in trouble-free working order. Reduction of machine wear is due to TOSHIBA’s intimate knowledge of the equipment’s characteristics ensuring the highest standard of care.
Perfectly Suited Supplies
From the beginning TOSHIBA supplies and machines were made for each other. Whenever
TOSHIBA designs a new machine, it also designs a new toner that is made just for that machine. By using genuine TOSHIBA supplies with TOSHIBA equipment, you are guaranteed optimum performance.
Toner
Optimum Image Quality
TOSHIBA toner is manufactured using ultra-fine quality materials under precisely controlled conditions to ensure that your TOSHIBA equipment will continually generate sharp high-quality images.
Cost Advantage
Genuine TOSHIBA toner provides value. Only the proper amount of toner is used during the reproduction process, thereby enabling the machine to continue to operate until all the toner has been used. In this way you get the full value from each cartridge used.
Environmental Harmony
Genuine TOSHIBA toner is manufactured with the environment in mind. To protect our planet for the benefit of future generations, we use embossed or plastic labels making our toner cartridges fully recyclable. In addition, dust and ozone levels have been reduced to improve the working environment.
User Friendly
Before approving our toners for sale, we test them to be sure that they pass the strictest of health standards. This takes all the worry out of handling the toner.
General
Service and Support Benefits
TOSHIBA’s Service technicians are certified to keep your equipment performing at optimum levels. To ensure continuous image quality, utilize an authorized TOSHIBA Service provider to care for and perform periodical maintenance on your equipment.
12 TOSHIBA Quality Is Second to None
Features of e-STUDIO166/206
The e-STUDIO166/206 is a space-saving, black-and-white copier. The copying speed of the e-STUDIO166 is 16 copies per minute
*1
and that of the e-STUDIO206 is 20 copies per minute
*1
.
Both of them can be a printer when they are connected to your PC with a USB cable.
*2
Lightweight and space-saving equipment with more emphasis on basic functions
y The receiving tray is relocated to the equipment’s inner side, occupying as little space as possible.
y Its weight has been trimmed to approx. 33.7 kg.
*3 y Operability of the control panel has been upgraded with larger buttons.
y
A wide range of paper sizes from A3 to A5-R are acceptable.
y Copy images can be zoomed out or in between 25% and 200%.
y The automatic copy density mode is adopted to detect the density of the original and automatically adjust it to the most suitable one for the copy image.
y The bypass tray equipped as a standard unit makes copying on various media types such as overhead transparencies possible.
y
Scanning data with a TWAIN driver is enabled as a standard function.
Functions extended by various options
y The Automatic Document Feeder (ADF) dramatically saves time when you need to copy massive amounts of originals.
y The Paper Feed Unit (PFU) adds one more drawer.
y Electronic sorting
*4
is realized with the Expansion Memory.
Ecological energy-saving design
y
The toner recycling system in which used toner is recovered and reused is adopted.
y Its warm-up time has become be approx. 25 seconds.
*5 y The low power mode, which reduces unnecessary electric power by having the fuser unit temperature lowered while the equipment is left inactive, is adopted.
y The sleep mode, which maintains the smallest possible power consumption during the equipment’s inactive period after it has not been used within a specified period of time, is adopted.
*1 These speeds are realized in the non-sort mode, when A4 originals placed in a portrait direction are continuously copied and the Automatic Document Feeder (optional) is not used.
*2 When this equipment is used as a printer, the co-packed software needs to be installed into your PC.
*3 This is the weight of the equipment itself (without any options).
*4 Electronic sorting is a function to have the copies exit and be sorted into the same page order as that of the originals in each set.
*5 This is the value when the room temperature is 20 °C or more at rated power input.
Features of e-STUDIO166/206 13
General Precautions
When installing or moving
Warning
y This equipment requires 220 to 240 V AC, 8 A 50/60 Hz electric power.
Do not use a power supply with a voltage other than that specified.
Avoid multiple connections in the same outlet. This could cause a fire or give you an electric shock. If you are considering increasing the number of outlets, contact an electrician.
y Always connect this equipment to an outlet with an earth connection to avoid the danger of fire or electric shock in case of short-circuiting. Contact your service representative for the details. Be sure to use a 3-conductor, grounded wall outlet.
In areas, where a 2-pin plug is used, the equipment must be grounded for safety. Never ground it to a gas pipe, a water pipe, or any other object not suitable for grounding.
y Plug the power cable securely into the outlet. If it is not plugged in properly, it could heat up and cause a fire or give you an electric shock.
y Do not damage, break or attempt to repair the power cable.
The following things should not be done to the power cable.
- Twisting it
- Bending it
- Pulling it
- Placing anything on it
- Making it hot
- Situating it near radiators or other heat sources
This could cause a fire or give you an electric shock. If the power cable is damaged, contact your service representative.
y Do not install the equipment by yourself or try to move it once it has been installed. This could result in an injury or damage to the device. Contact your service representative if the equipment needs to be installed or moved.
y Pull the plug out from the outlet more than once a year to clean around the prongs. Accumulating dust and dirt could cause a fire due to the heat released by electric leakage.
14 General Precautions
Caution
y Avoid placing the equipment in a place unsuitable for its weight and also make sure the surface is level.
Remember that if the equipment falls over, serious injuries could result.
Weight of the equipment: approx. 33.7 kg.
y When removing the plug from the outlet, do not pull the power cable. Always hold the plug when removing it from the outlet. If the power cable is pulled, the wires may become broken and this could cause a fire or give you an electric shock.
y Make sure that the ventilation holes are not blocked up.
If the temperature within the equipment becomes too high, a fire could result.
Other points
y The socket outlet shall be installed near the equipment and shall be easily accessible.
y Make sure that there is enough space around the system to facilitate changing of parts, maintenance and clearing paper jams.
If there is insufficient space, some operations, such as bypass feeding, will become difficult and the equipment could even break down.
To insure optimal operation, allow clearances of at least 80 cm on the right, and 10 cm on the left and behind.
10 cm
10 cm
80 cm y Be sure to fix the power cable securely so that no one trips over it.
y Adverse environmental conditions may affect the safe operation and performance of the equipment, and the equipment could break down.
- Avoid locations near windows or with exposure to direct sunlight.
- Avoid locations with drastic temperature fluctuations.
- Avoid too much dust.
- Avoid locations that suffer from vibration.
y Allow the air to flow freely and make sure of ventilation.
With inadequate ventilation, the unpleasant odor released by the ozone will begin to dominate the atmosphere.
General Precautions 15
When using the equipment
Warning
y Do not take off the cover of the equipment; otherwise you could be injured or get an electric shock.
y Do not remove or connect the plug with wet hands, as this could give you an electric shock.
y Do not place any container with liquid (flower vases, coffee cups, etc.) on or near the equipment. This could cause a fire or give you an electric shock.
y Keep paper clips and staples away from the air vent. If not, a fire could result or you could get an electric shock.
y If the equipment becomes excessively hot, smoke comes out of it or there is an odd smell or noise, proceed as follows.
Turn the power OFF and remove the plug from the outlet, then contact your service representative.
y If the equipment will not be used for more than one month, remove the plug from the outlet for safety purposes during that time.
If an insulation failure occurs, this could cause a fire or give you an electric shock.
Caution
y Do not place heavy objects (4 kg or more) on the original glass and do not press on it with force. Breaking the glass could cause personal injury.
y Do not place heavy objects (4 kg or more) on the equipment. If the objects fall off, this could cause injury.
y Be careful not to let your fingers be caught when closing the drawer. This could injure you.
y Do not touch the fuser unit or the metal area around it. Since they are very hot, you could be burned or the shock could cause you to get your hand injured in the machine.
y Be careful not to let your fingers be caught between the equipment and the side cover. This could injure you.
y Do not touch the hinge (= a connecting part) on the rear side of the Automatic Document
Feeder (optional). This could catch and injure your fingers when you open or close the Automatic Document Feeder (optional).
16 General Precautions
Position of Certification label, etc.
Explanatory label
Identification label
Warning label
Warning for high-temperature areas
(fuser unit)
Warning for high-temperature areas
(ventilation holes)
General Precautions 17
Other points
y Do not turn the power OFF with jammed paper left inside the equipment. This could cause malfunctions when the main switch is turned ON next time.
y Be sure to turn the power OFF when leaving the office or if there is a power failure.
y Be careful because the paper exit area and paper just after exiting are hot.
y Do not place anything other than paper on the receiving tray. This could disturb a normal operation and cause malfunctions.
y Do not touch the photoconductive drum surface or the transfer charger. This could cause image problems.
During maintenance or inspection
Warning
y Never attempt to repair, disassemble or modify the equipment by yourself. You could cause a fire or get an electric shock.
Always contact your service representative for maintenance or repair of the internal parts of the equipment.
y Do not let liquids such as water and oil get into the system when cleaning the floor. This could cause a fire and give you an electric shock.
Caution
y Always keep the plug and outlet clean. Prevent them from accumulating dust and dirt. This could cause a fire and give you an electric shock due to the heat released by electric leakage.
Other points
y Do not use such solvents as thinner or alcohol when cleaning the surface of the equipment.
- This could warp the shape of the surface or leave it discoloured.
- When using a chemical cleaning pad to clean it, pay attention to any cautionary points.
When handling supplies
Warning
y Never attempt to incinerate toner cartridges. This could cause an explosion. Do not dispose of used toner cartridges. Contact your service representative.
18 General Precautions
Disclaimer Notice
The following notice sets out the exclusions and limitations of liability of TOSHIBA TEC CORPO-
RATION (including its employees, agents and sub-contractors) to any purchaser or user (‘User’) of the e-STUDIO166/206, including its accessories, options and bundled software (‘Product’).
1. The exclusion and limitations of liability referred to in this notice shall be effective to the fullest extent permissible at law. For the avoidance of doubt, nothing in this notice shall be taken to exclude or limit TOSHIBA TEC CORPORATION’s liability for death or personal injury caused by TOSHIBA TEC CORPORATION’s negligence or TOSHIBA TEC CORPORA-
TION’s fraudulent misrepresentation.
2. All warranties, conditions and other terms implied by law are, to the fullest extent permitted by law, excluded and no such implied warranties are given or apply in relation to the Products.
3. TOSHIBA TEC CORPORATION shall not be liable for any loss, cost, expense, claim or damage whatsoever caused by any of the following:
(a) use or handling of the Product otherwise than in accordance with the manuals, including but not limited to Operator’s Manual, User’s Guide, and/or incorrect or careless handling or use of the Product;
(b) any cause which prevents the Product from operating or functioning correctly which arises from or is attributable to either acts, omissions, events or accidents beyond the reasonable control of TOSHIBA TEC CORPORATION including without limitation acts of God, war, riot, civil commotion, malicious or deliberate damage, fire, flood, or storm, natural calamity, earthquakes, abnormal voltage or other disasters;
(c) additions, modifications, disassembly, transportation, or repairs by any person other than service technicians authorized by TOSHIBA TEC CORPORATION; or
(d) use of paper, supplies or parts other than those recommended by TOSHIBA TEC COR-
PORATION.
4. Subject to paragraph 1, TOSHIBA TEC CORPORATION shall not be liable to Customer for:
(a) loss of profits; loss of sales or turnover; loss of or damage to reputation; loss of production; loss of anticipated savings; loss of goodwill or business opportunities; loss of customers; loss of, or loss of use of, any software or data; loss under or in relation to any contract; or
(b) any special, incidental, consequential or indirect loss or damage, costs, expenses, financial loss or claims for consequential compensation; whatsoever and howsoever caused which arise out of or in connection with the Product or the use or handling of the Product even if TOSHIBA TEC CORPORATION is advised of the possibility of such damages.
TOSHIBA TEC CORPORATION shall not be liable for any loss, cost, expense, claim or damage caused by any inability to use (including, but not limited to failure, malfunction, hang-up, virus infection or other problems) which arises from use of the Product with hardware, goods or software which TOSHIBA TEC CORPORATION has not directly or indirectly supplied.
Disclaimer Notice 19
Environmental Information
ENERGY STAR
®
programme
Toshiba Tec Corporation, as a member of the Energy Star Programme, confirms that this product meets the Energy Star Programme requirements.
The Energy Star Programme aims at the promotion of the development and wider usage of office equipment including energy-efficient computers in order to address environmental issues such as global warming. Manufacturers that participate in this Programme can attach the Energy
Star logo to products after confirming that they meet the energy saving standards of this Programme. Also, these standards and logo are commonly used within the U.S. Environmental Protection Agency (EPA) and participating countries.
20 Environmental Information
1.
PREPARATION
This chapter describes what you need to know before using this equipment, such as how to turn the power
ON or how to set copy paper.
Preparation 3 - Registering Size of Paper Placed................................................37
1 PREPARATION
Description of Each Component
Front / Right side
1
2
3
10
4
9
8
5
6
7
1. Platen Cover
Place an original on the original glass and start copying with this cover closed.
2. Automatic Document Feeder (optional, MR-2017)
A stack of originals placed on this are scanned one sheet after another. Maximum 100 sheets (or stack height 16 mm) of originals can be placed in one go.
(The maximum number of sheets can be placed may vary depending on the media type of the originals.)
P.46 “Placing originals on Automatic Document Feeder (optional)”
P.82 “Paper jams within Automatic Document Feeder (optional)”
3. Operator’s Manual pocket (Back side) (optional, KK-1660)
Keep the Operator’s Manual in this.
4. Side cover
5. Bypass tray
Use this to make copies on special media types such as thick paper, overhead transparencies or tracing paper.
P.84 “Paper jams on bypass tray”
6. Paper feed cover (of the Paper Feed Unit (optional))
7. Paper size indicator
8. Paper Feed Unit (optional, MY-1027)
Use this to add one more drawer to the equipment. A maximum of 250 sheets of plain paper can be placed in one go.
22 Description of Each Component
9. Drawer
Maximum 250 sheets of plain paper can be placed in one go.
10. Front cover
Open this cover when you replace the toner cartridge.
P.89 “Replacing Toner Cartridge”
Left side / Inner side
11
10
9
8
7
6
1
2
5
3
4
1. Original glass
Use this to copy three-dimensional originals, book-type originals and special paper such as overhead transparencies or tracing paper, as well as plain paper.
2. Control panel
Use this to perform copying, key in the copy quantity, or set other functions.
3. Toner cartridge
P.11 “Recommended toner cartridges”
P.89 “Replacing Toner Cartridge”
4. Power switch
Turn the power of the equipment ON or OFF with this.
P.29 “Preparation 1 - Turning Power ON”
5. Paper exit stopper
Use this to prevent the exiting paper from falling. Open this when you make a large amount of copies on a larger size of paper (e.g. A3, B4).
6. AC-IN terminal
Use this to connect the co-packed power cable and the equipment.
Description of Each Component 23
1 PREPARATION
7. USB terminal (4-pin)
With this terminal, the equipment can be connected to your PC using a commercially available USB cable.
y Use a USB2.0 Hi-Speed certified cable: USB cable supporting the USB2.0 Hi-Speed mode (480 Mbps of transfer speed) certified by the USB Implementers Forum.
y Connect the equipment with a PC directly by the USB cable. When it is connected with a
PC via a USB hub, the equipment may not be recognized.
8. Receiving tray
9. Scanning area
The data of originals transported from the Automatic Document Feeder (optional, MR-2017) are scanned here.
10. Original scale
Use this to check the size of an original placed on the original glass.
11. Platen sheet
24 Description of Each Component
Configuration of options
The options listed below are available. Contact your service technician or service representative for the details.
Automatic Document Feeder
(MR-2017)
Platen Cover (included)
(KA-1640PC)
Operator's Manual Pocket
(Back side) (KK-1660)
Expansion Memory
(GC-1240)
Main body
Paper Feed Unit
(MY-1027)
Description of Each Component 25
1 PREPARATION
Control panel
1 2 3 4 5 6 7 8 9 10 11
21 20 19 18 17 16 15 14 13
1. [SORT] button/lamp
Use this to use the sorting function.
P.69 “Copying in Same Page Order as Originals - Sort Copying -”
12
The sorting functions are available only when originals are placed on the Automatic Document Feeder (optional, MR-2017). These functions also require the Expansion Memory
(optional, GC-1240).
2. Media type setting button/lamps
Use this button to switch the media type of paper placed on the bypass tray.
3. [DATA] lamp
The lamp blinks when print data are being received from a PC connected to the equipment.
4. Message lamps
Each of five lamps shows you the current status of the equipment.
For the meaning of each lamp and countermeasure of each status, see the following page:
P.78 “When Message Lamp is Lit/Blinking”
5. Zoom buttons/lamp
Use them to set reproduction ratio. The lamp above the duction ratio is 100%.
For how to zoom in or out copy image, see the following page:
P.64 “Zooming In/Out Copy Image”
button is lit when the repro-
26 Description of Each Component
6. LED display
Use this to display the number of copies set. The reproduction ratio appears here when the copy qty. / zoom display selecting button (7) is pressed.
7. Copy qty. / zoom display selecting button/lamp
The display of (6) is switched between copy quantity and reproduction ratio each time you press this button. The lamp beside the “%” mark is lit when the reproduction ratio appears.
8. [INTERRUPT] button/lamp
Use this to interrupt the copy job in process and perform another one (= interrupt copying).
For the details of interrupt copying, see the following page:
P.49 “Interrupting copying and making another copy - Interrupt copy -”
9. [ENERGY SAVER] button/lamp
Use this to let the equipment enter into the energy saving mode when the equipment is not used. The lamp is lit when the equipment is in the energy saving mode.
For the details of the energy saving mode, see the following page:
P.30 “Saving energy when not in use - Energy saving mode -”
10. [FUNCTION CLEAR] button/lamp
Use this to clear all setting changes.
11. [CLEAR/STOP] button
Use this to stop the copy job in process or return the copy quantity keyed in to “1”.
12. [START] button/lamp
Use this to start copying. Copies can be made when the lamp is lit. It blinks when the equipment is waiting for copying to be started.
For basic copy operations, see the following page:
13. Digital keys
Use them to key in any number such as copy quantity.
14. Original mode button/lamps
Use this button to set the image quality of copy according to that of an original.
For the details of image quality, see the following page:
15. Density adjustment buttons/lamps
Use this button to adjust the density of copy image. The [AUTO] lamp below the
(automatic copy density mode) button is lit when the density is being automatically adjusted.
For the details of density adjustment, see the following page:
P.71 “Adjusting Density Level”
16. Paper jam position lamps
The lamp blinks when an original or copy paper is jammed. The position where the lamp is blinking shows where the paper jam has occurred.
Description of Each Component 27
1 PREPARATION
17. [DRAWER] button/lamps
Use this button to select a drawer or the bypass tray to be used as a paper source. The lamp of the paper source currently selected is lit. The lamp blinks when the selected drawer or tray is running out of paper.
When paper in the drawer or on the bypass tray has run out, see the following page to add paper:
P.31 “Preparation 2 - Placing Copy Paper”
18. Original setting lamp
The lamp is lit when originals are placed on the Automatic Document Feeder (optional).
This lamp blinks in the following situations:
- When the original needs to be placed on the original glass (When the [START] button is pressed without the original cover being opened after copies are made)
- When the originals need to be placed on the Automatic Document Feeder (optional)
(When a paper jam in the Automatic Document Feeder is released)
- When the Automatic Document Feeder (optional) on which the originals are placed is raised.
19. [COPY] button/lamps
Use this button to select the size of paper to be used. The lamp of the paper size currently selected blinks when this size of paper is not placed in the drawer or on the bypass tray.
See the following page for details:
20. [ORIGINAL] button/lamps
Use this button to specify the size of an original.
P.66 “Specifying both the sizes of the original and the copy paper”
21. APS/AMS selecting button/lamps
Automatic paper selection (APS): The equipment detects the size of original and automatically selects the same size of copy paper.
Automatic magnification selection (AMS): Set the size of copy paper to be used in advance.
The equipment then detects the size of original and automatically selects the most suitable reproduction ratio to the copy paper.
P.64 “Automatic magnification selection (AMS)”
APS and AMS are available only when originals are placed on the Automatic Document
Feeder (optional, MR-2017).
28 Description of Each Component
Preparation 1 - Turning Power ON
Turning power ON
1
Open the power switch cover, and then press the power switch to
“ ” (ON) side.
The equipment starts warming itself up. The warm-up time takes approx. 25 seconds.
When the warm-up has finished, the [START] lamp is lit to show that the equipment is ready for copying.
If you place an original and press the [START] button during the warm-up, copying automatically starts when the warm-up has finished (= auto job start). The [START] lamp keeps blinking from when you press the [START] button to when the warm-up finishes.
2
Key in the access code if the equipment is managed under the access code function.
Key in the 3-digit access code, and then press the [START] button. Then the equipment is ready for copying.
y If the access code function is enabled, press the [FUNCTION CLEAR] button after any operation has been finished to prevent unauthorized use of the equipment.
y For the details of the access code setting, ask your service technician.
Turning power OFF
Open the power switch cover, and then press the power switch to “ ” (OFF) side.
Preparation 1 - Turning Power ON 29
1 PREPARATION
Saving energy when not in use - Energy saving mode -
To reduce power consumption, the equipment automatically enters into the energy saving mode when a specified period of time has passed since its last use. You can also turn the equipment into this mode manually.
The period of time at which the equipment enters into this mode is set at 20 minutes at the shipment from the factory.
To turn the equipment into the energy saving mode manually
Press the [ENERGY SAVER] button on the control panel.
The equipment is now in the energy saving mode. The [ENERGY SAVER] lamp is lit.
Cancelling the energy saving mode
Press the [ENERGY SAVER] button. The energy saving mode is canceled.
The energy saving mode can be cancelled also in the following cases: y When the Platen Cover or the Automatic Document Feeder (optional) is raised y When this equipment and a PC are connected with a USB cable y When printing is performed from a PC connected with this equipment y When TOSHIBA Viewer is operated with a PC connected with this equipment
30 Preparation 1 - Turning Power ON
Preparation 2 - Placing Copy Paper
Place copy paper in an appropriate paper source before you start copying.
Acceptable media types
Standard size plain paper (64 to 80 g/m
2
) can be used for the drawers in the equipment and the
Paper Feed Unit (optional). See the table below for the details.
Feeder Media type
Drawers of the equipment and
Paper Feed
Unit
(optional)
Plain paper
(64 - 80 g/m
2
)
Bypass tray Plain paper
(64 - 80 g/m
2
)
*2
THICK PAPER 1
(81 - 105 g/m
2
)
THICK PAPER 2
(106 - 163 g/m
2
)
Tracing paper
(75 g/m
2
)
Sticker labels
Transparencies
*3
A/B format:
Paper size
A3, A4, A4-R, B4, B5, B5-R, FOLIO
LT format:
LD, LG, LT, LT-R, COMP, 13"LG
A/B format:
A3, A4, A4-R, A5-R, B4, B5, B5-R, FOLIO
LT format:
LD, LG, LT, LT-R, ST-R, COMP, 13"LG
A4 only
Maximum sheet capacity
*1
250 sheets (64 g/m
2
)
250 sheets (80 g/m
2
)
100 sheets (64 g/m
100 sheets (80 g/m
1 sheet
(81 - 105 g/m
1 sheet
1 sheet
1 sheet
1 sheet
2
)
(106 - 163 g/m
2
)
2
)
2
)
*1 “Maximum sheet capacity” refers to the maximum number of sheets when TOSHIBA-recommended paper is used. See the following page for the TOSHIBA-recommended paper:
*2 50 to 63 g/m
2
paper can be used if it is set on the bypass tray sheet by sheet.
*3 Be sure to use the overhead transparencies that TOSHIBA recommends. When transparencies other than the TOSHIBA-recommended ones are used, this could cause an equipment malfunction.
y You cannot mix various paper sizes in one drawer.
y “LT format” is the standard size for only use in North America.
Abbreviations for LT format sizes:
LT: Letter, LD: Ledger, LG: Legal, ST: Statement, COMP: Computer
Preparation 2 - Placing Copy Paper 31
1 PREPARATION
Recommended paper
To ensure the best copy performance, TOSHIBA recommends the paper types listed below. If you want to use paper other than that we recommend, contact your service technician.
Media type
Plain paper
THICK PAPER 1
THICK PAPER 2
Tracing paper
Sticker labels
Transparencies
*1
Product name
TGIS Paper/Neusiedler
Colour Copy/Neusiedler
Colour Copy/Neusiedler
Colour Copy/Neusiedler
Colour Copy/Neusiedler
75 g/m
2
tracing paper
3478/Zweckform-Avery
PP2500/3M
80 g/m
2
90 g/m
2
100 g/m
2
120 g/m
2
160 g/m
2
*1 Be sure to use the overhead transparencies that TOSHIBA recommends. When transparencies other than the TOSHIBA-recommended ones are used, this could cause an equipment malfunction.
Paper types not acceptable
Do not use the types of paper listed below since they may cause paper jams.
y Damp paper y Creased paper y Wrinkled paper or paper prone to be curled y
Paper whose surface is extremely smooth or rough
Do not use the types of paper listed below since they may cause an equipment malfunction.
y Paper whose surface is specially treated y Paper once printed with other copiers or printers
Storing paper
Observe the following cautions when storing copy paper: y Wrap copy paper in its wrapping paper to prevent it from gathering dust.
y Do not expose copy paper to direct sunlight.
y
Store copy paper in a damp-free place.
y Store copy paper on a flat surface to prevent it from being creased or bent.
32 Preparation 2 - Placing Copy Paper
Placing paper in drawers
Follow the procedure below to place copy paper in the drawer.
For the acceptable paper, see the following page:
1
Turn the power of the equipment ON.
2
Pull out the drawer carefully.
Pull out the drawer until it comes to a stop.
3
Press down the paper plate.
Press it down until you hear a click sound and it is no longer lifted up.
Preparation 2 - Placing Copy Paper 33
1 PREPARATION
4
Pull out the trailing guide (A), and then reinstall the guide at the position of the desired paper size.
A
The paper size is indicated on the bottom inner surface of the drawer.
5
While pushing the green knob of the side guides fully, widen the gap between them.
Widen the gap with both hands.
34 Preparation 2 - Placing Copy Paper
6
Place paper in the drawer.
y The maximum number of sheets can be placed in one go is 250 (80 g/m
2
). Be sure that the stack height of paper is not higher than the line indicated at the inner side of the guide.
y Fan the paper well before placing it in the drawer, otherwise multiple feeding could occur.
y Place the paper face up. You may tell its “face” by the note on its wrapping paper.
7
Adjust the side guides to the desired paper size.
Be sure that a gap of approx. 0.5 mm (less than 1.0 mm in total) is left between the paper and each side guide (shown as “A” in the picture). If the gap is inappropriate, this could cause a paper misfeed.
A
Preparation 2 - Placing Copy Paper 35
1 PREPARATION
8
Be sure that the stack of paper fits completely under the latches of the side guides.
9
Change the paper size indicator to match the size of paper placed.
10
Push the drawer straight into the equipment slowly until it comes to a stop.
Do not let your fingers be caught when closing the drawer.
This could cause injury.
Register the paper size into the equipment.
When you place paper, register the size of the paper into the equipment. Be sure that the size is registered correctly, or it could cause a paper jam.
For the registration of paper size, see the following page:
P.37 “Preparation 3 - Registering Size of Paper Placed”
Be sure to register the paper size when you have changed the paper size in the drawer, as well as when you place paper in the corresponding drawer for the first time.
36 Preparation 2 - Placing Copy Paper
Preparation 3 - Registering Size of Paper Placed
When you place paper in a drawer for the first time or when you place paper whose size is different from that of the paper which has been placed in the drawer, the new paper size needs to be registered into the equipment.
Registration of standard sizes (A3, A4, A4-R, A5-R, B4) differs from that of standard sizes other than these.
Registering standard size (A3, A4, A4-R, A5-R, B4)
In this section, A4 size is registered in the drawer of the equipment as an example.
1
Press and hold the [COPY] and [DRAWER] buttons simultaneously for more than two seconds.
“Fnc” appears on the LED display.
2
Press the [DRAWER] button several times until the lamp of the drawer in which you placed paper is lit.
Preparation 3 - Registering Size of Paper Placed 37
1 PREPARATION
3
Press the [COPY] button several times until the lamp of the paper size you placed in the drawer is lit.
If the [FUNCTION CLEAR] button is pressed at this step, the size is not registered and the equipment will return to its normal status.
4
Press the [START] button.
The paper size has been registered.
Registering other standard sizes
When standard size paper other than A3, A4, A4-R, A5-R or B4 is placed, register this size as
“OTHER” size. Key in the code number of the paper size to register it as “OTHER” size.
See the table below for the code number of each size.
Paper size
B5
B5-R
LD
LG
LT
Code No.
05
06
08
09
10
*1 ST-R and A5-R can be placed only on the bypass tray.
Paper size
LT-R
ST-R
*1
FOLIO
COMP
13"LG
Code No.
11
12
13
14
16
38 Preparation 3 - Registering Size of Paper Placed
In this section, LT size is registered in the drawer of the equipment as an example.
1
Press and hold the [COPY] and [DRAWER] buttons simultaneously for more than two seconds.
“Fnc” appears on the LED display.
2
Press the [DRAWER] button several times until the lamp of the drawer in which you placed paper is lit.
3
Press the [COPY] button several times until the [OTHER] lamp is lit.
“Fxx” appears in the LED display. (Two digits come at “xx”.)
Preparation 3 - Registering Size of Paper Placed 39
1 PREPARATION
4
Key in the code number of the paper placed in the drawer.
e.g.) Placing LT size (= code number “10”)
If the [FUNCTION CLEAR] button is pressed at this step, the size is not registered and the equipment will return to its normal status.
5
Press the [START] button.
The paper size has been registered as “OTHER” size.
40 Preparation 3 - Registering Size of Paper Placed
2.
HOW TO MAKE COPIES
This chapter describes basic copy operations.
2 HOW TO MAKE COPIES
Placing Originals
Acceptable originals
Booklets, three-dimensional objects and some types of special media can be placed on the original glass, as well as plain paper. When the Automatic Document Feeder (optional) is used, a stack of plain paper originals can be automatically scanned one by one.
Setting position
Original glass
Type of originals
Plain paper
Special media types
*2
Booklets
3-dimensional objects
Plain paper
Maximum size
297 mm x 432 mm
Acceptable sizes for automatic size detection
*1
Not acceptable for automatic size detection
Remarks
*3
Automatic
Document Feeder
(optional)
A3, A4, A4-R, A5-R, B4, B5,
B5-R of standard sizes
*4, *5, *6
*1 The automatic size detection function is not enabled for LT format. (LT format is a standard paper size for North America.)
*2 “Special media types” refers to special paper which is not acceptable for the Automatic Document
Feeder (optional), such as overhead transparencies or tracing paper.
*3 Do not place heavy objects (4 kg or more) and do not press on it with force.
*4 Its paper weight should be between 50 g/m
2
and 127 g/m
2
.
*5 Some media types may not be used.
*6 A5 size originals must be placed in a landscape direction.
When the built-in memory has become full during scanning
When the built-in memory in the equipment has become full during the scanning of the copy job, scanning stops even if the number of sheets scanned so far has not exceeded the maximum value. In this case, the [FUNCTION CLEAR] lamp blinks and the [START] lamp is lit.
Press the [START] button to copy and cause the data scanned so far to exit. Press the
[FUNCTION CLEAR] button to delete all the data scanned so far.
42 Placing Originals
Placing originals on the original glass
Plain paper or some special media types which are not acceptable for the Automatic Document
Feeder (optional), such as overhead transparencies or tracing paper, should be placed on the original glass.
Do not place heavy objects (4 kg or more) and do not press on it with force.
Breaking the glass could injure you.
1
Raise the Platen Cover or the Automatic Document Feeder
(optional).
2
Place the original face down on the original glass and align it against the left rear corner of the glass.
When copying highly transparent originals
When copying highly transparent originals such as overhead transparencies or tracing paper, place a blank sheet of paper (A), the same size as the original or larger, over the original (B).
A
B
3
Lower the Platen Cover or the Automatic Document Feeder
(optional) carefully.
Placing Originals 43
2 HOW TO MAKE COPIES
Placing booklet-type originals such as books or catalogues
Place a book-type original on the original glass.
Do not place heavy objects (4 kg or more) and do not press on it with force.
Breaking the glass could injure you.
1
Raise the Platen Cover or the Automatic Document Feeder
(optional).
2
Open the desired page of the original and place it face down.
Align it against the left rear corner of the glass.
3
Lower the Platen Cover or the Automatic Document Feeder
(optional) carefully.
y Do not try to lower the Platen Cover or the Automatic Document Feeder (optional) forcibly when the original is very thick. There will be no problem in copying even if they are not fully lowered.
y Do not look fully at the original glass since intensive light may leak out during copying.
44 Placing Originals
Using Automatic Document Feeder (optional)
When a stack of originals are placed on the Automatic Document Feeder (optional), the originals are automatically scanned one by one. The following types of originals are available:
Media types
Plain paper
Maximum size
Maximum number of sheets acceptable
297 mm x 432 mm 100 sheets
(or stack height 16 mm)
Paper weight
50 - 127 g/m
2 y Some media types may not be used.
y The maximum number of sheets acceptable varies depending on the media types of the originals.
y A5 size originals must be placed in a landscape direction.
y Sizes which the Automatic Document Feeder (optional) can detect automatically are A3, A4,
A4-R, A5-R, B4, B5 and B5-R.
Precautions for Automatic Document Feeder (optional)
Do not use the following types of original since such types may cause a paper jam or damage to the equipment: y Extremely wrinkled, folded or curled ones y Ones with carbon paper y Taped, pasted or cut-out ones y Clipped or stapled ones y Ones with holes or tears y Damp ones y Overhead transparencies or tracing paper y Coating paper (e.g. coated with wax) y Ones with many holes punched (e.g. loose leaf paper)
The following types of originals are usable but need extra care: y Ones which cannot be made to slide with the fingers or whose surface is specially treated
(they may not be able to be separated from each other at feeding) y Folded or curled ones (should be smoothed out before being used)
When black streaks appear on the copied image
If the scanning area or the guide area is dirty, image problems such as black streaks on the copied image may occur. Weekly cleaning of these areas is recommended.
Placing Originals 45
2 HOW TO MAKE COPIES
Placing originals on Automatic Document Feeder (optional)
1
Align all the originals.
2
Place them face up and align the side guides to the original length.
y The top sheet of the originals will be scanned first.
y The total sheets of originals placed must not exceed 100 (50 to 80 g/m
2
) or the stack height of the originals must not exceed 16 mm regardless of their sizes.
When placing a large amount of originals with a long width
Pull out the original stopper so that the exiting originals will not fall. When replacing this stopper, lift it slightly and push it in.
46 Placing Originals
Making Copies
Follow the procedure below to make copies.
The reproduction ratio or density of the copied image can be set. See the following page for the details:
1
Check if paper is placed in the drawer.
For the acceptable types and sizes of paper, see the following pages:
P.33 “Placing paper in drawers”
2
Place the original.
For acceptable originals or how to place originals, see the following pages:
P.46 “Placing originals on Automatic Document Feeder (optional)”
P.43 “Placing originals on the original glass”
P.44 “Placing booklet-type originals such as books or catalogues”
3
Key in the desired number of copies (= copy quantity) when you copy more than one set.
e.g.) 5 sets
If you want to correct the copy quantity keyed in, press the [CLEAR/STOP] button, and then key in the correct number.
4
Select the copy modes as required.
5
Press the [START] button.
Copying starts. The paper will exit with its copied side down.
The paper exit area and exiting paper are hot immediately after the exit. Handle them with care.
Making Copies 47
2 HOW TO MAKE COPIES
When the number of sheets exiting has exceeded 250
To prevent exiting paper from falling off the receiving tray, the equipment causes copying to pause when approx. 250 sheets of paper have continuously exited. At this time the [START] lamp is lit and the [FUNCTION CLEAR] lamp blinks on the control panel. Also the paper jam position lamp ( ) at the middle is lit.
Remove the paper from the receiving tray, and then press the [START] button. Copying resumes.
Press the [FUNCTION CLEAR] button to end the copy job.
When the paper has run out
When the paper in the drawer has run out during copying, the copying stops and the paper empty lamp blinks.
The [DRAWER] lamp corresponding to the one whose paper has run out blinks.
Add paper to the drawer and press the [START] button. Copying then resumes.
Stopping/Resuming copying
Press the [CLEAR/STOP] button to stop scanning or copying.
1
Press the [CLEAR/STOP] button during scanning or copying.
Scanning or copying stops. Press the [CLEAR/STOP] button again to end the copy job.
2
Press the [START] button to resume the copy job.
48 Making Copies
Interrupting copying and making another copy - Interrupt copy -
You can interrupt scanning or copying of one job and make another copy job (= interrupt copying). The copy quantity or functions applied to the interrupted job are stored in the memory of this equipment, so that you will not need to set them again when the interrupted job resumes.
Interrupt copying is available only when the originals are placed on the Automatic Document
Feeder (optional) and the sort functions are used.
1
Press the [INTERRUPT] button.
The [INTERRUPT] lamp blinks, and the lamp will be fully lit after a while.
When the [INTERRUPT] button is pressed during scanning, the [INTERRUPT] lamp blinks, and then the lamp will be fully lit after the scanning has finished.
2
Replace the original with a new one.
3
Select the copy modes as required, and then press the [START] button.
Interrupt copying starts.
4
After you have finished interrupt copying, press the [INTERRUPT] button.
The copying status returns to the one before the interruption.
5
Press the [START] button.
The job interrupted will resume.
Making Copies 49
2 HOW TO MAKE COPIES
Using Bypass Tray
Place paper on the bypass tray when you use the following media types as copy paper: y Thick paper (81 to 163 g/m
2
) y Special media types such as tracing paper, sticker labels or overhead transparencies y Standard size paper which cannot be placed in a drawer (e.g. A5-R)
Using the bypass tray is recommended also for copying on standard-size paper other than those placed in the drawers. The following sizes are available for bypass copying:
Media type
Plain paper
(64 - 80 g/m
2
)
*2
THICK PAPER 1
(81 - 105 g/m
2
)
THICK PAPER 2
(106 - 163 g/m
2
)
Tracing paper
(75 g/m
2
)
Sticker labels
Transparencies
*3
A/B format:
Paper size
A3, A4, A4-R, A5-R, B4, B5, B5-R, FOLIO
LT format:
LD, LG, LT, LT-R, ST-R, COMP, 13"LG
A4 only
Maximum sheet capacity
*1
100 sheets (64 g/m
2
)
100 sheets (80 g/m
2
)
1 sheet
(81 - 105 g/m
2
)
1 sheet
(106 - 163 g/m
2
)
1 sheet
1 sheet
1 sheet
*1 “Maximum sheet capacity” refers to the maximum number of sheets when TOSHIBA-recommended paper is used. See the following page for the TOSHIBA-recommended paper:
*2 50 to 63 g/m
2
paper can be used if it is set on the bypass tray sheet by sheet.
*3 Be sure to use the overhead transparencies that TOSHIBA recommends. When transparencies other than the TOSHIBA-recommended ones are used, this could cause an equipment malfunction.
50 Using Bypass Tray
Preparation - Registering paper size placed on bypass tray
Register the size of the paper into the equipment in advance.
The registration procedure for other paper sizes is different from the standard sizes (A3, A4, A4-
R, A5-R and B4).
P.52 “Registering other standard sizes”
Registering standard size (A3, A4, A4-R, A5-R, B4)
In this section, the registration procedure is described with A4 size paper placed on the bypass tray as an example.
1
Press and hold the [COPY] and [DRAWER] buttons simultaneously for more than two seconds.
“Fnc” appears on the LED display.
2
Press the [DRAWER] button several times until the lamp of the bypass tray is lit.
Using Bypass Tray 51
2 HOW TO MAKE COPIES
3
Press the [COPY] button several times until the lamp of the paper size you placed on the bypass tray is lit.
If the [FUNCTION CLEAR] button is pressed at this step, the size is not registered and the equipment will return to its normal status.
4
Press the [START] button.
The paper size has been registered.
Registering other standard sizes
When standard size paper other than A3, A4, A4-R, A5-R or B4 is placed, register this size as
“OTHER” size. Key in the code number of the paper size to register it as “OTHER” size.
See the table below for the code number of each size.
Paper size
B5
B5-R
LD
LG
LT
Code No.
05
06
08
09
10
Paper size
LT-R
ST-R
FOLIO
COMP
13"LG
Code No.
11
12
13
14
16
52 Using Bypass Tray
In this section, the registration procedure is described with LT size paper placed on the bypass tray as an example.
1
Press and hold the [COPY] and [DRAWER] buttons simultaneously for more than two seconds.
“Fnc” appears on the LED display.
2
Press the [DRAWER] button several times until the lamp of the bypass tray is lit.
3
Press the [COPY] button several times until the [OTHER] lamp is lit.
“Fxx” appears in the LED display. (Two digits come at “xx”.)
Using Bypass Tray 53
2 HOW TO MAKE COPIES
4
Key in the code number of the paper placed on the bypass tray.
e.g.) Placing LT size (= code number “10”)
If the [FUNCTION CLEAR] button is pressed at this step, the size is not registered and the equipment will return to its normal status.
5
Press the [START] button.
The paper size has been registered as “OTHER” size.
54 Using Bypass Tray
Bypass copying on standard size paper
Standard size paper can be used for bypass copying. In this section, the procedure is described with A4 size thick paper (90 g/m
2
) placed on the bypass tray as an example.
Register the size of the paper into the equipment in advance.
P.51 “Preparation - Registering paper size placed on bypass tray”
1
Place paper straight on the bypass tray face down. Then align the side guides to the paper length while holding (A).
A y
Be sure that the stack height of paper does not exceed the indicators of the side guides.
y
Fan the stack of paper well before placing it on the bypass tray.
y Do not push the paper forcibly into the entrance of the bypass feeder. This could cause a paper misfeed.
When you place paper of a larger size, pull out the paper holder before you start bypass copying.
Using Bypass Tray 55
2 HOW TO MAKE COPIES
2
Check if the lamp of the paper size placed on bypass tray is lit. If not, press the [COPY] button several times until the lamp of the desired paper size is lit.
3
Press the media type setting button until the lamp of the media type placed on the bypass tray is lit.
You can select the media type from the following three:
THICK PAPER 1: Thick paper (81 to 105 g/m
2
)
THICK PAPER 2: Thick paper (106 to 163 g/m
2
), sticker labels
TRANSPARENCY: Overhead transparencies y You do not need to select the media type when you use plain paper (64 to 80 g/m
2
) or tracing paper.
y If you select a different media type from the one you placed on the bypass tray, this could cause a paper jam or the quality of the copied image could be lowered.
4
Place the original.
56 Using Bypass Tray
5
Select the other copy modes as required, and then press the
[START] button.
Copying starts.
When you make copies on overhead transparencies using the bypass tray, pick up the transparencies which have exited onto the receiving tray one by one. If the transparencies pile up, they may become curled and not be good for projection.
y When the paper on the bypass tray has run out during copying, copying continues with the paper of the same size in the drawer as the one on the bypass tray. (If the size of the paper on the bypass tray has not been registered in advance, however, copying stops. In this case, add paper to the bypass tray and press the [START] button to resume copying.) y When bypass copying has finished, the [FUNCTION CLEAR] lamp blinks. Press the
[FUNCTION CLEAR] button so that the paper size setting for the bypass tray will be cleared. Press the [FUNCTION CLEAR] button again so that bypass copying will be switched to copying with drawer feeding.
Using Bypass Tray 57
3.
COPYING FUNCTIONS
This chapter describes various functions related to copy operations, such as how to make enlargement or reduction copies, or how to adjust the quality of copy images.
Copying in Same Page Order as Originals - Sort Copying -...............................69
3 COPYING FUNCTIONS
Default Settings
Initial settings established when the equipment is powered on before any of the user functions are changed are called default settings. Each setting returns to its default when the power is turned ON, when the energy saving mode is cancelled, and when the [FUNCTION CLEAR] button is pressed.
Each default setting of this equipment at the time of the installation is shown below.
Item
Reproduction ratio
Copy quantity
Paper selection
Density adjustment
Image mode
Sorting
Contents
25 - 200%
1 - 999
Automatic paper selection (APS)
*1
,
Manual paper selection
Automatic copy density mode, Manual copy density mode
TEXT/PHOTO, PHOTO, TEXT
Non-sort copying, sort copying
*2
Default setting at installation
100%
1
Automatic paper selection (APS)
Automatic copy density mode
TEXT/PHOTO
Non-sort copying
*1 The automatic paper selection (APS) can be set only when the Automatic Document Feeder (optional) is used.
*2 Sort copying can be set only when the Expansion Memory (optional) is used.
If you need to change the default settings listed above, contact your service representative.
60 Default Settings
Paper Selection
You can select the size of copy paper in two ways; one is automatic paper selection in which the equipment automatically selects copy paper of the same size as the original, and the other is manual paper selection in which you can select the desired paper size manually.
Automatic paper selection (APS):
The equipment detects the size of the original placed and automatically selects copy paper of the same size as the original. This function is enabled only when standard size originals (A3, A4,
A4-R, A5-R, B4, B5, B5-R) are used and also the Automatic Document Feeder (optional) is used.
Manual paper selection:
You can select the desired size of copy paper manually. This function can be used in a case the
APS cannot be used, such as when originals are non-standard sizes or overhead transparencies, or when an original is placed on the original glass.
Automatic paper selection (APS) can be used only when you place originals on the Automatic
Document Feeder (optional).
Automatic paper selection (APS)
When you place a standard size original on the Automatic Document Feeder (optional), the equipment detects its size and automatically selects copy paper of the same size as the original.
The standard sizes the equipment can detect are as follows: A3, A4, A4-R, A5-R, B4, B5, B5-R
The equipment may not be able to correctly detect the size of the originals listed below. Use manual paper selection for the following originals: y Highly transparent ones (e.g. overhead transparencies, tracing paper) y Wholly dark ones or ones with dark borders y Non-standard size ones (e.g. newspapers, magazines)
1
Place paper in the drawer.
Register the size of the paper into the equipment in advance.
P.37 “Preparation 3 - Registering Size of Paper Placed”
2
Place the original on the Automatic Document Feeder.
Paper Selection 61
3 COPYING FUNCTIONS
3
Press the APS/AMS selecting button and select APS. (The APS lamp is lit.)
When the Automatic Document Feeder (optional) is not installed, the APS/AMS selecting button is not enabled.
4
Select the other copy modes as required, and then press the
[START] button.
Manual paper selection
Select the paper size with this method when an original is placed on the original glass, and also when you use the following originals whose sizes may not be detected correctly with automatic paper selection: y Highly transparent ones (e.g. overhead transparencies, tracing paper) y
Wholly dark ones or ones with dark borders y Non-standard size (e.g. newspapers, magazines)
In this method, if the desired size of copy paper is not placed in the drawer, replace the paper already placed in the drawer with the desired one, or place the desired size of paper on the bypass tray.
P.33 “Placing paper in drawers”
1
Place paper in the drawer.
2
Place the original.
62 Paper Selection
3
Press the [DRAWER] button several times until the lamp of the desired drawer is lit.
e.g.) Selecting the drawer of the equipment
4
Select the other copy modes as required, and then press the
[START] button.
Paper Selection 63
3 COPYING FUNCTIONS
Zooming In/Out Copy Image
You can set the reproduction ratio of the copy image in the following three ways:
Automatic magnification selection (AMS):
Specify the size of the copy paper in advance. As the original is placed, the equipment then detects the size of the original and sets the reproduction ratio most suited to the size of copy paper automatically. This function is enabled only when standard size originals (A3, A4, A4-R,
A5-R, B4, B5, B5-R) are used and also the Automatic Document Feeder (optional) is used.
Specifying both the sizes of the original and the copy paper:
When you specify the sizes of both the original and the copy paper, the equipment automatically sets the reproduction ratio most suited to both of these sizes. This function can be used in case
AMS cannot be, such as when the originals are overhead transparencies, or when an original is placed on the original glass.
Specifying reproduction ratio manually:
Specify the reproduction ratio manually with the Zoom buttons (zooming out: in: ) from 25% to 200%.
, zooming
Automatic magnification selection (AMS)
Specify the copy paper size to be used in advance. The equipment then detects the size of the original and automatically sets the most suitable reproduction ratio for the size of copy paper, as the original is placed.
y Automatic magnification selection (AMS) can be used only when you place originals on the
Automatic Document Feeder (optional).
y The standard sizes the equipment can detect are as follows: A3, A4, A4-R, A5-R, B4, B5,
B5-R
Automatic magnification selection (AMS) may not work correctly for the size of originals listed below. Use other methods to set the reproduction ratio for the following originals: y Highly transparent ones (e.g. overhead transparencies, tracing paper) y Wholly dark ones or ones with dark borders y Non-standard size (e.g. newspapers, magazines)
64 Zooming In/Out Copy Image
1
Place paper in the drawer.
2
Press the [COPY] button several times until the lamp of the desired paper size is lit.
e.g.) Selecting A4 size
You can select the desired paper size with the [DRAWER] button in the same procedure.
3
Press the APS/AMS selecting button until the AMS lamp is lit.
4
Place the original on the Automatic Document Feeder (optional).
The equipment detects the size of the original, and then the most suitable reproduction ratio to the copy paper size is set.
5
Select the other copy modes as required, and then press the
[START] button.
If the [FUNCTION CLEAR] lamp is blinking and copying stops
The direction of the original placed is not correct. Press the [FUNCTION CLEAR] button to exit the original. Then rotate the original by 90 degrees to place it in the correct direction.
Zooming In/Out Copy Image 65
3 COPYING FUNCTIONS
Specifying both the sizes of the original and the copy paper
1
Place paper in the drawer.
2
Place the original.
3
Press the [ORIGINAL] button several times until the lamp of the desired original size is lit.
e.g.) Selecting B4 for the original
4
Press the [COPY] button several times until the lamp of the desired paper size is lit.
e.g.) Selecting A4 for copy paper y You can select the desired paper size with the [DRAWER] button in the same procedure.
y When standard size paper other than A3, A4, A4-R, A5-R or B4 is placed, register this size as “OTHER” size in advance.
P.38 “Registering other standard sizes”
The most appropriate reproduction ratio for both the sizes of the original and the copy paper is set.
5
Select the other copy modes as required, and then press the
[START] button.
66 Zooming In/Out Copy Image
Specifying reproduction ratio manually
1
Place paper in the drawer.
2
Place the original.
3
Press the Copy qty. / zoom display selecting button.
The reproduction ratio appears on the LED display.
4
Press the (zooming out) or desired reproduction ratio appears.
(zooming in) button until the
One press of each button increases or decreases the reproduction ratio by 1%. When you keep pressing either of them, the reproduction ratio also keeps changing. The reproduction ratio can be set from 25% to 200%.
y Press the y Press the
button to return it to 100%.
and reproduction ratio).
y Press the and reproduction ratio).
buttons simultaneously to set it 25% (the minimum
buttons simultaneously to set it 200% (the maximum
Zooming In/Out Copy Image 67
3 COPYING FUNCTIONS
5
Press the [COPY] button several times until the lamp of the desired paper size is lit.
e.g.) Selecting A4 for copy paper y You can select the desired paper size with the [DRAWER] button in the same procedure.
y When standard size paper other than A3, A4, A4-R, A5-R or B4 is placed, register this size as “OTHER” size in advance.
P.38 “Registering other standard sizes”
6
Select the other copy modes as required, and then press the
[START] button.
68 Zooming In/Out Copy Image
Copying in Same Page Order as Originals - Sort Copying -
When you make several sets of copies, the copies can be made to exit in the same order as the originals in each set. This is called sort copying. You can use this function only when the originals are placed on the Automatic Document Feeder (optional).
Copied and sorted in 2 sets
1
2
3
Copied in 2 sets without being sorted
1
2
3
1
2
3
1
2
3
1
1
2
2
3
3
The Automatic Document Feeder and Expansion Memory (both optional) are required for sort copying.
1
Place paper in the drawer.
2
Place the original.
3
Press the [SORT] button.
The [SORT] lamp is lit and sort copying is enabled.
4
Select the other copy modes as required, and then press the
[START] button.
Copying in Same Page Order as Originals - Sort Copying - 69
3 COPYING FUNCTIONS
Selecting Image Mode
You can select the most suitable quality of the copied image in the following three modes depending on the originals:
TEXT/PHOTO: Originals with text and photographs mixed
PHOTO: Originals with photographs
TEXT: Originals with text only or with text and fine illustrations only
“TEXT/PHOTO” is set by default at the installation of the equipment.
1
Place paper in the drawer.
2
Place the original.
3
Press the original mode button until the lamp of the desired mode is lit.
e.g.) Original with photographs
4
Select the other copy modes as required, and then press the
[START] button.
70 Selecting Image Mode
Adjusting Density Level
The automatic copy density mode, which automatically selects the most suitable density level for the copied image by detecting that of the original, is set by default at the installation of the equipment. You can also adjust the density level as desired manually (=manual copy density mode) in the following procedure:
1
Place paper in the drawer.
2
Place the original.
3
Press the density adjustment buttons ( to adjust the density to the desired level.
(light) or (dark))
The density level can be set within 7 stages. One press of each button increases or decreases the density level by one stage. When you keep pressing either of them, the density level also keeps changing.
4
Select the other copy modes as required, and then press the
[START] button.
To return it to the automatic copy density mode
Press the (AUTO) button.
Adjusting Density Level 71
4.
SETTINGS AND MANAGEMENT OF
EQUIPMENT
This chapter describes how to switch ON or OFF the operation sound and how to check the total number of sheets you have copied with this equipment.
4 SETTINGS AND MANAGEMENT OF EQUIPMENT
Switching Operation Sound On/Off
You can switch the operation sound of the equipment on or off.
1
Press the (light) and more than two seconds.
(dark) buttons simultaneously for
“Fnc” appears on the LED display.
The density adjustment lamps show the sound status as follows:
All lamps on: Sound on
All lamps off: Sound off
2
Press the (AUTO) button to switch the sound on or off.
3
Press the [START] button.
The equipment returns to its normal status.
74 Switching Operation Sound On/Off
Checking Total Number Copied
You can check the total number of sheets ever copied or printed. The total number of sheets appears on the LED display.
1
Press the button for more than two seconds.
The upper digits of the total number appear on the LED display. The total number is shown blinking.
e.g.) The total number is 12,527
2
Switch the display to check the rest of the total number.
Press the (zooming out) or (zooming in) button to switch the display.
3
Press any button other than the have finished checking.
or button when you
The equipment returns to its normal status.
The total number of sheets cannot be reset.
Checking Total Number Copied 75
5.
TROUBLESHOOTING
This chapter describes how to release a paper jam, how to replace a toner cartridge and how to settle other trouble.
5 TROUBLESHOOTING
When Message Lamp is Lit/Blinking
Message lamps on the control panel are lit or blink depending on the status of the equipment.
Each lamp shows the following status:
1
2
3
4
5
1. Cover open lamp
This blinks when any cover of the equipment, such as the front cover, the side cover or the upper cover of the Automatic Document Feeder (optional), is not securely closed. Close it securely.
2. Paper empty lamp
This blinks when the paper in a drawer or on the bypass tray has run out. Add paper. For how to place paper, see the following pages for the details:
P.33 “Placing paper in drawers”
3. Toner lamp
This shows you the current status of the toner cartridge by means of the cartridge detecting function and the toner remaining check function (only when a TOSHIBA-recommended toner cartridge is used) as follows:
Lit: There is now little toner left in the toner cartridge, or the toner cartridge is not installed correctly.
Blinking: The toner in the toner cartridge has run out.
y When the toner lamp is lit, there is still a little toner remaining in the toner cartridge. Do not replace the toner cartridge until the toner lamp starts blinking.
y
It occasionally happens that the toner lamp may not light because the toner remaining in the cartridge does not lie evenly.
y
When the toner lamp is lit, it is advisable to purchase a new TOSHIBA-recommended cartridge to prepare for its replacement.
y When the toner lamp is blinking and the toner in the toner cartridge has run out, replace the toner cartridge with a new one.
P.89 “Replacing Toner Cartridge”
78 When Message Lamp is Lit/Blinking
When a toner cartridge other than the one we recommend is used, neither the cartridge detecting function nor the toner remaining check function can be utilized. In this case, the toner lamp blinks even if the toner cartridge is installed in the equipment.
See the following for the difference between when using a TOSHIBA-recommended toner cartridge and another type:
Recommended toner cartridges
To assure an optimal printing performance, we recommend that you use TOSHIBA toner cartridges.
If you use a TOSHIBA-recommended toner cartridge, you can utilize the following two check functions of this equipment:
Cartridge detecting function: This function checks if the toner cartridge is correctly installed and notifies you if it is not.
Toner-remaining check function: This function notifies you when there is little toner remaining in the cartridge.
Any copying or printing operation is available even if you are using a toner cartridge other than the one we recommend. In that case, however, the equipment cannot detect whether the toner cartridge is installed or not and therefore the toner lamp is lit even if the toner cartridge is correctly installed. You cannot utilize the toner remaining check function either.
If you are using a toner cartridge other than the one we recommend and you feel annoyed by this lighting lamp, contact your service representative. Your service technician will cancel the cartridge detecting function set by default. Remember once this function has been cancelled, you will not be able to utilize the two functions mentioned above even if you change the cartridge to the one we recommend.
When Message Lamp is Lit/Blinking 79
5 TROUBLESHOOTING
4. Paper jam lamp
This blinks when an original or a sheet of copy paper is jammed.
For how to release paper jams, see the following page:
5. Service call lamp
This is lit or blinks when the support of your service technician is needed. Contact your service representative.
When the key of the digital keys and the [CLEAR/STOP] button are pressed simultaneously, an error code (consisting of a letter of the alphabet and numbers) appears on the LED display. Contact your service representative with this code.
Never attempt to repair, disassemble or modify the equipment by yourself.
This could cause an electric shock, a fire or serious injury.
Contact your service representative when the equipment is in an abnormal condition or any malfunction is found.
80 When Message Lamp is Lit/Blinking
Paper Jams
Checking position of paper jams
When an original or a sheet of copy paper has jammed within the equipment, copying stops and the paper jam lamp blinks.
Additionally, the paper jam position lamp blinks to show you where the paper jam has occurred.
Check the position and release the jammed paper.
1
2
3
1. Automatic Document Feeder (optional) ( P.82)
2. Bypass tray ( P.84) / Transfer unit ( P.85) / Fuser unit ( P.86)
3. Paper Feed Unit (optional) ( P.88)
Release the jammed paper, and then press the [START] button. Copying resumes.
When paper jams occur frequently
When paper jams occur frequently, they may be due to one of the causes listed below. Check the following items when they occur frequently: y Originals which are not acceptable for the Automatic Document Feeder (optional) are placed.
P.45 “Precautions for Automatic Document Feeder (optional)”
y Paper which is not acceptable for the equipment is used.
P.32 “Paper types not acceptable”
y The sizes of paper placed in the drawer or on the bypass tray are not registered into the equipment properly.
P.37 “Preparation 3 - Registering Size of Paper Placed”
P.51 “Preparation - Registering paper size placed on bypass tray”
y More jammed paper is still remaining after the release of a paper jam.
y There is no gap between the side guides and the paper in the drawer, or the gap is too wide.
y The stack height of the paper is exceeding the indicators in the drawer.
Paper Jams 81
5 TROUBLESHOOTING
When releasing jammed paper
Observe the following precautions when you release jammed paper:
Do not tear jammed paper.
Pull out jammed paper carefully with both hands, trying not to tear it. If you release it forcibly, the jammed paper will be torn and it will make the release difficult. If it is torn, be sure that the torn part is not left inside the equipment.
Do not touch the fuser unit or the metal part around the unit.
When you release paper jammed within the fuser unit, do not touch the fuser unit or the metal part around the unit. This could cause burns, or injury to your hands if you touch the inside of the equipment.
Do not touch the photoconductive drum.
When you release the paper jammed within the transfer unit or the fuser unit, be careful not to touch the photoconductive drum. This could stain the copy images.
Paper jams within Automatic Document Feeder (optional)
1
Raise the lever, and then open the upper cover.
82 Paper Jams
2
Release the jammed original.
3
Turn the dial to release the jammed original.
4
Open the transport guide.
Paper Jams 83
5 TROUBLESHOOTING
5
Raise the guide plate under the transport guide, and then release the original jammed under the guide plate.
6
Close the transport guide, and then close the upper cover.
Paper jams on bypass tray
1
Pull out the paper jammed on the bypass tray.
Check the lower part of the transport guide in the paper feeding area.
Paper may be jammed under the transport guide behind the transfer unit. Check if any paper is jammed.
P.85 “Paper jam behind transfer unit”
84 Paper Jams
Paper jam behind transfer unit
Be careful not to let your fingers be caught between the equipment and the side cover.
This could injure you.
1
Open the side cover.
2
Pull the transfer unit toward you carefully to lay it down while holding up the green lever.
3
Release the jammed paper.
Be sure not to touch the photoconductive drum when releasing the jammed paper.
Paper Jams 85
5 TROUBLESHOOTING
4
Open the transport guide of the paper feeding area and check if any paper is jammed under this guide. Clear the paper if there is any.
5
Close the transfer unit and the side cover.
Paper jams within fuser unit
y Be careful not to let your fingers be caught between the equipment and the side cover.
This could injure you.
y
Do not touch the fuser unit or the metal part around the unit.
This could cause burns, or injury to your hands if you touch the inside of the equipment.
1
Open the side cover, and then lay down the transfer unit. Then press down the two fuser pressure release levers (green) until they come to a stop.
Press down the levers fully until they stop.
86 Paper Jams
2
Open the transport guide while holding the knob (A).
A
3
Release the jammed paper.
Pull the jammed paper up or down as shown below depending on the position of the paper.
Be sure not to touch the photoconductive drum when releasing the jammed paper.
Pulling it up Pulling it down
4
Return the transport guide to its original position, and then close the transfer unit and the side cover.
Paper Jams 87
5 TROUBLESHOOTING
Paper jams within Paper Feed Unit (optional)
1
Open the paper feed cover of the unit.
2
Release the jammed paper.
3
Close the paper feed cover of the unit.
88 Paper Jams
Replacing Toner Cartridge
When the toner in the toner cartridge has run out, replace the toner cartridge following the procedure below.
y Before inserting a new toner cartridge, check the product name of the cartridge. If you can see “T-1640”, this cartridge is usable.
y Do not dispose of used toner cartridges. Contact your service representative.
y Do not touch the parts on the circuit board mounted on the toner cartridge because they may be damaged.
Never attempt to incinerate toner cartridges. This could cause an explosion.
1
Open the front cover.
2
Hold down the green lever.
Replacing Toner Cartridge 89
5 TROUBLESHOOTING
3
Pull out the toner cartridge.
Never attempt to incinerate toner cartridges. This could cause an explosion.
Do not dispose of used toner cartridges. Contact your service representative.
4
Shake the new toner cartridge well to loosen the toner inside.
5
Remove the protective sheet from the end of the cartridge.
90 Replacing Toner Cartridge
6
Pull out the seal in the direction of the arrow.
7
Insert the toner cartridge along the rail.
y Before inserting the toner cartridge, check if the green lever is raised and raise it if not.
y Insert the toner cartridge until you hear a click sound.
8
Clean the charger.
Hold the cleaning knob of the charger and pull it out toward you carefully until it comes to a stop. Then reinsert it in its original position carefully. Repeat this procedure two or three times.
Check if the cleaning knob is fully inserted after cleaning.
Replacing Toner Cartridge 91
5 TROUBLESHOOTING
9
Open the side cover.
10
Pull the transfer unit toward you carefully to lay it down while holding up the green lever.
11
Remove the transfer charger cleaner from the front pocket of the transfer unit.
92 Replacing Toner Cartridge
12
Wipe the transfer charger wire with the transfer charger cleaner.
(1) Insert the transfer charger cleaner into the front end of the transfer charger.
(2) Push the cleaner onto the front wall, and then check if the cleaner pad has contacted with the transfer charger wire.
(3) Clean the wire from its front end to the other end in two reciprocating motions.
(4) Remove the cleaner from the front end of the transfer charger after cleaning.
13
Return the transfer charger cleaner into the cleaner pocket, and then close the transfer unit.
14
Close the side cover.
15
Close the front cover.
The equipment starts supplying toner.
Replacing Toner Cartridge 93
5 TROUBLESHOOTING
Before Calling Service Technician
When you encounter trouble using this equipment, check the items listed below.
General operation
Phenomenon
The equipment does not operate at all.
The equipment does not operate even when you press any of the buttons.
Scanning stops before it is finished. (The [START] lamp is lit and the [FUNCTION
CLEAR] lamp is blinking.)
Copying stops before it is finished. (The [START] lamp and the middle paper jam position lamp ( ) are lit and the [FUNCTION CLEAR] lamp is blinking.)
Printing stops before it is finished. (The [START] lamp and the middle paper jam position lamp ( ) are lit and the “Out of paper” error dialog box is displayed in the
TOSHIBA Viewer.)
“ALP” appears on the LED display.
“SLP” appears on the LED display.
Even when the equipment is connected with a PC by a
USB cable, the equipment is not recognized.
Usual cause
The power cable is not plugged in securely.
One or more of the message lamps is lit or blinking.
The equipment is in the energy saving mode.
The access code needs to be keyed in (when the equipment is managed under the access code function).
It has been a short time since the power was turned
ON.
The built-in memory of the equipment has become full.
Approx. 250 sheets of paper have continuously exited and the equipment stops copying to prevent the copied paper from overflowing from the tray.
Approx. 250 sheets of paper have continuously exited and the equipment stops printing to prevent printed paper from overflowing from the tray.
Countermeasure
Plug in the power cable securely.
Check which lamp is lit or blinking and take any countermeasure accordingly.
P.78 “When Message Lamp is Lit/
Press the [ENERGY SAVER] button to cancel this mode.
P.30 “Saving energy when not in use -
Key in the 3-digit access code.
(For the details of the access code setting, ask your service technician.)
Wait for the completion of warm-up and then try again.
Press the [START] button to copy the data scanned so far. Press the [FUNCTION
CLEAR] button to delete the data scanned so far.
Remove the paper from the receiving tray, and then press the [START] button. Copying resumes. Press the [FUNCTION
CLEAR] button to end the copy job.
Remove the paper from the receiving tray, press the [START] button, and then click the [OK] button in the “Out of paper” error dialog box in the TOSHIBA Viewer. Printing resumes.
The equipment is in the low power mode.
The equipment is in the sleep mode.
The equipment automatically enters into this mode when a specified period of time has passed since its last use. Copying is enabled.
The equipment automatically enters into this mode when a specified period of time has passed since its last use. Warm-up starts either when print data are received or when any button on the control panel is pressed. Copying is enabled when the warm-up has finished.
Use a USB2.0 Hi-Speed certified cable.
This cable is not certified according to the USB2.0 Hi-
Speed.
The equipment is connected with a PC via a USB hub.
When the equipment is connected with a
PC via a USB hub, the equipment may not be recognized. Connect it with a PC directly by a USB cable.
94 Before Calling Service Technician
Toner-related items
Phenomenon
The toner lamp is lit.
Usual cause
There is only a little toners remaining in the toner cartridge.
Countermeasure
This is not an equipment malfunction.
(There is still some toner in the toner cartridge. Do not replace the toner cartridge until the toner lamp starts blinking.)
Install the toner cartridge correctly.
The toner cartridge is not installed. Or it is not installed correctly.
A toner cartridge not recommended by TOSHIBA is being used.
Use a TOSHIBA-recommended toner cartridge. If you use a toner cartridge other than the one we recommend and you feel annoyed by this lighting lamp, contact your service representative.
P.11 “Recommended toner cartridges”
Replace the toner cartridge with a new one.
Contact your service representative.
The toner lamp is blinking.
The toner lamp does not light even when the toner has almost run out.
The equipment does not become ready for copying after the toner cartridge is inserted.
The toner in the toner cartridge has run out.
The toner-remaining check function has been disabled since the purchase of the equipment.
The toner cartridge inserted is not usable for this equipment.
Check the product name of the toner cartridge. If you can see “T-1640”, this cartridge is usable.
Original/Copy paper-related items
Phenomenon
An original jams.
Copy paper jams.
Multiple feeding occurs.
Usual cause
An original not acceptable for the equipment is being used.
Copy paper not acceptable for the equipment is being used.
The size of the copy paper in the drawer or on the bypass tray is not registered properly in the equipment.
Jammed paper is located in a place you cannot see easily.
There is no gap between the side guides and paper in the drawer. Or the gap is too wide.
Paper is clinging to each other.
Countermeasure
Check if the original is acceptable for the equipment.
P.45 “Precautions for Automatic Document Feeder (optional)”
Check if the copy paper is acceptable for the equipment.
P.32 “Paper types not acceptable”
Register the size of the placed copy paper properly.
P.37 “Preparation 3 - Registering Size of Paper Placed”
P.51 “Preparation - Registering paper size placed on bypass tray”
Use the paper jam position lamp to recheck the position where the paper jam has occurred.
Adjust the gap between the side guides and the paper properly.
P.33 “Placing paper in drawers”
Fan the paper well and place it again.
Before Calling Service Technician 95
5 TROUBLESHOOTING
Image trouble
Phenomenon
The density of the copy image is light.
The density of the copy image is dark.
Usual cause
Toner has run out.
The copy density is set lighter.
The transfer charger wire is dirty.
The copy density is set darker.
Countermeasure
The toner lamp blinks when toner has run out. Replace the toner cartridge if it is blinking.
P.89 “Replacing Toner Cartridge”
Make the density darker if you use the manual copy density mode. Or use the automatic copy density mode.
Clean the transfer charger wire.
P.102 “Cleaning transfer charger”
Make the density lighter if you use the manual copy density mode. Or use the automatic copy density mode.
Lower them fully to block outside light.
The copied image is stained.
The Automatic Document
Feeder (optional) or the
Platen Cover is not lowered fully.
The original glass, platen sheet, scanning area or guides are dirty.
The copy density is set darker.
The copy image is fogged.
Clean them.
Highly transparent originals such as OHP films or tracing paper are used.
There is a slight gap between the original glass and the original.
The copy paper is damp.
Make the density lighter if you use the manual copy density mode. Or use the automatic copy density mode.
Place a blank sheet of paper, the same size as the original or larger, over the original.
Lower the Platen Cover or the Automatic
Document Feeder (optional) fully so that the original will contact with the original glass.
Replace with dry copy paper.
The density level of the copy image is uneven in a horizontal direction.
The transfer charger wire is dirty.
Clean the transfer charger wire.
P.102 “Cleaning transfer charger”
The copy image is partially missing.
The size or direction of the copy paper and the original, or the reproduction ratio is not set properly.
Use copy paper of the same size as the original or set the reproduction ratio suitable to the copy paper size.
96 Before Calling Service Technician
Phenomenon
The copy image has black streaks in a horizontal direction.
Usual cause
The scanning area or guides are stained.
The charger is dirty.
Countermeasure
Clean them.
Clean the charger.
The copy image has white streaks in a horizontal direction.
The transfer charger wire is dirty.
Clean the transfer charger wire.
P.102 “Cleaning transfer charger”
Before Calling Service Technician 97
6.
MAINTENANCE AND INSPECTION
This chapter describes how to clean this equipment to ensure you get the best possible copy performance.
6 MAINTENANCE AND INSPECTION
Daily Inspection
We recommend a weekly cleaning of the following items to assure you the best scanning performance: y Be sure not to scratch the parts to be cleaned.
y Do not use solvent such as thinner or benzene to clean machinery. This could cause deformation or tarnishing.
y When using chemical cleaning pads, observe the precautions pertaining to the product.
2
3
4
1
1. Scanning area
Wipe with a sheet of soft dry cloth or soft cloth dampened in water and squeezed tightly. Do not use alcohol or solvent.
2. Original glass
3. Guides
4. Platen sheet
Clean in the following procedure according to the level of staining:
- Wipe with a soft dry cloth.
- Wipe with a soft cloth dampened in water and squeezed tightly.
- Wipe with a soft cloth dampened in alcohol and squeezed tightly, and then wipe with a soft dry cloth.
- Wipe with a soft cloth dampened in diluted mild detergent and squeezed tightly. Then wipe with a soft cloth dampened in water and squeezed tightly. Then wipe with a soft dry cloth.
100 Daily Inspection
Cleaning charger
If the inside of the charger is dirty, staining may appear on the copied image. Clean the charger following the procedure below.
1
Open the front cover.
2
Clean the charger.
Hold the cleaning knob of the charger and pull it out toward you carefully until it comes to a stop. Then reinsert it in its original position carefully. Repeat this procedure two or three times.
Check if the cleaning knob is fully inserted after cleaning.
3
Close the front cover.
Daily Inspection 101
6 MAINTENANCE AND INSPECTION
Cleaning transfer charger
When the transfer charger wire is dirty, white steaks or unevenness of the density may appear on copied images, or the density of the whole image may be lowered. Clean the transfer charger wire following the procedure below.
Be careful not to let your fingers be caught between the equipment and the side cover.
This could injure you.
1
Open the side cover.
2
Pull the transfer unit toward you carefully to lay it down while holding up the green lever.
3
Remove the transfer charger cleaner from the front pocket of the transfer unit.
102 Daily Inspection
4
Wipe the transfer charger wire with the transfer charger cleaner.
(1) Insert the transfer charger cleaner into the front end of the transfer charger.
(2) Push the cleaner onto the front wall, and then check if the cleaner pad has contacted with the transfer charger wire.
(3) Clean the wire from its front end to the other end in two reciprocating motions.
(4) Remove the cleaner from the front end of the transfer charger after cleaning.
5
Return the transfer charger cleaner into the cleaner pocket, and then close the transfer unit.
6
Close the side cover.
Daily Inspection 103
7.
SPECIFICATIONS AND OPTIONS
7 SPECIFICATIONS AND OPTIONS
e-STUDIO166/206 Specifications
Model name
Type
Original glass
Printing (copying) system
Developing system
Fusing method
Photosensor type
Original scanning system
DP-1660/2060
Desktop type
Fixed
Indirect electrophotographic method
2-component magnetic brush developing
2 halogen lamps
OPC
Flat surface scanning system
(When the Automatic Document Feeder is installed: Fixed scanning system by feeding the original)
Original scanning sensor
Scanning light source
Resolution
Linear CIS sensor
LED
Scanning 600 dpi x 600 dpi
Writing 2400 dpi x 600 dpi (Smoothing process)
Acceptable originals
Acceptable original size
Acceptable copy paper size
Drawer
Bypass
Sheets, books and 3-dimensional objects
Max. A3
A3, A4, A4-R, B4, B5, B5-R, FOLIO, LD, LG, LT, LT-R, COMP,
13"LG
A3, A4, A4-R, A5-R, B4, B5, B5-R, FOLIO, LD, LG, LT, LT-R, ST-R,
COMP, 13" LG
Acceptable copy paper weight
Bypass
64 - 80 g/m
2
64 - 80 g/m
2
(for continuous feed)
50 - 163 g/m
2
(for single feed)
Warm-up time
First copy time (A4 portrait)
Continuous copy speed
Multiple copying
Excluded image width
Reproduction ratio
Copy
Printer
Approx. 25 seconds
Approx. 7.6 seconds
See P.107 “Continuous copying speed”
Up to 999 copies (digital key entry)
Leading edge: 3.0±2.0 mm, Trailing edge: 2.0±2.0 mm,
Both edges: 2.0±2.0 mm
Leading edge: 5.0±2.0 mm, Trailing edge: 5.0±2.0 mm,
Both edges: 5.0±2.0 mm
Actual size 100±0.5%
Zoom 25 - 200% (in 1% increments)
Storage capacity
Paper supply
Drawer
Bypass
Drawer
Max. 250 sheets or until the memory is full (TOSHIBA’s own chart)
250 sheets (80 g/m
2
)
100 sheets (80 g/m
2
)
Approx. 250 sheets (64 g/m
2
)
Loading capacity for the receiving tray
Toner density adjustment
Exposure control
USB interface
Environment (for normal use)
Magnetic auto-toner system
Automatic plus manual selection from 7 exposure steps
USB2.0 (Hi-Speed)
Temperature: 10 º - 30 ºC, Humidity: 20 - 85% (No condensation)
Power requirements
Power consumption
Dimensions (equipment only)
Weight
Space occupied (equipment only)
220 - 240 V±10%, 8 A (50/60 Hz)
1.6 kW or less (including optional equipments)
600 mm (W) x 643 mm (D) x 462.5 mm (H)
Approx. 33.7 kg (equipment including drum)
948 mm (W) x 643 mm (D) y These specifications vary depending on the copying conditions and the environment.
y Specifications and appearance are subject to change without notice in the interest of product improvement.
106 e-STUDIO166/206 Specifications
Continuous copying speed
Paper size
A4, A5-R
*1
, B5, LT, ST-R
*1
A4-R, B5-R, LT-R
B4, FOLIO, LG, COMP, 13"LG
A3, LD
Feeder
Drawer
Bypass tray
Drawer
Bypass tray
Drawer
Bypass tray
Drawer
Bypass tray
e-STUDIO166
13
13
11
11
16
16
15.5
15.5
sheets/min.
e-STUDIO206
13
13
11
11
20
20
15.5
15.5
*1 A5-R and ST-R can be placed only on the bypass tray.
y The values above are measured when originals are set on the original glass, 100% and nonsort multiple copies are made.
y TOSHIBA-recommended paper is used for the values of the specifications above.
y The bypass copying speed is as listed above when specifying the paper size.
y This specification varies depending on the copying conditions and the environment.
e-STUDIO166/206 Specifications 107
7 SPECIFICATIONS AND OPTIONS
Specifications of Options
Automatic Document Feeder
Model name
Copy sides
Number of originals
(A4)
Feeding speed
Acceptable originals
MR-2017
1-side
100 originals (50 - 80 g/m
2
) or 16 mm or less in height (more than 80 g/m
2
)
Paper weight
Power source
Dimensions
Weight
Power consumption
45.5 - 182 mm/s
A3, A4, A4-R, A5-R, B4, B5, B5-R, FOLIO, LD, LG, LT, LT-R, ST-R, COMP
(A5 and ST size are not acceptable.)
50 - 127 g/m
2
Power supplied from the equipment
600 mm (W) x 513 mm (D) x 135 mm (H)
Approx. 11.0 kg
30 W max.
Paper Feed Unit
Model name
Acceptable paper size
Paper weight
Maximum capacity
Dimensions
Weight
MY-1027
A3, A4, A4-R, B4, B5, B5-R, FOLIO, LD, LG, LT, LT-R, COMP,
13"LG (Non-standard sizes are not acceptable.)
64 - 80 g/m
2
250 sheets (80 g/m
2
)
530 mm (W) x 577 mm (D) x 125 mm (H)
Approx. 5.0 kg
TOSHIBA-recommended paper is used for the values above. Specifications and appearance are subject to change without notice in the interest of product improvement.
108 Specifications of Options
Packing List
Packing list Operator’s Manual
Power cable
Photoconductive drum
Set-up report
CD-ROM (2 pcs.)
Packing List 109
INDEX
A
Acceptable originals
.................................... 42
Access code
............................................... 29
AC-IN terminal
............................................ 23
AMS
.......................................................... 64
APS
........................................................... 61
APS/AMS selecting button/lamps
Automatic copy density mode
Automatic Document Feeder
Automatic magnification selection (AMS)
Automatic paper selection (APS)
B
Before calling service technician
Bypass copying
.......................................... 50
Bypass copying (standard size paper)
Bypass tray
..........................................22
C
Cartridge detecting function
Certification label
........................................ 17
Charger
................................................... 101
Cleaning
.................................................. 100
Cleaning (charger)
.................................... 101
Cleaning (transfer charger)
CLEAR/STOP button
................................... 27
Configuration of options
............................... 25
Continuous copying speed
Control panel
........................................23
COPY button/lamps
.................................... 28
Copy qty. / zoom display selecting button/lamp
............................................. 27
Copy quantity
............................................. 47
Cover open lamp
........................................ 78
D
Daily inspection
........................................ 100
DATA lamp
................................................ 26
Default settings
........................................... 60
Density adjustment buttons/lamps
Density level
............................................... 71
Description of each component
Digital keys
................................................ 27
Disclaimer notice
........................................ 19
Drawer
....................................................... 23
DRAWER button/lamps
............................... 28
E
ENERGY SAVER button/lamp
Energy saving mode
.................................... 30
F
Features
.................................................... 13
Front cover
................................................. 23
FUNCTION CLEAR button/lamp
Fuser unit
...................................................86
G
General precautions
....................................14
I
Image mode
...............................................70
Inspection
.................................................100
INTERRUPT button/lamp
Interrupt copy
..............................................49
L
LED display
................................................27
M
Making copies
.............................................47
Manual paper selection
................................62
Media type
...............................31
Media type setting button/lamps
Message lamps
.................................... 26
O
Operation sound
..........................................74
Operator’s Manual pocket
............................22
ORIGINAL button/lamps
...............................28
Original glass
....................................... 23
Original mode button/lamps
Original scale
..............................................24
Original setting lamp
....................................28
Original stopper
...........................................46
Out of paper
...............................................48
P
Packing list
...............................................109
Paper
............................................ 31
Paper empty lamp
.......................................78
Paper exit stopper
.......................................23
Paper feed cover
.........................................22
Paper Feed Unit
..........................................22
Paper jam
...................................................81
Paper jam (Automatic Document Feeder)
Paper jam (bypass tray)
...............................84
Paper jam (fuser unit)
..................................86
Paper jam (Paper Feed Unit)
Paper jam (transfer unit)
...............................85
Paper jam lamp
...........................................80
Paper jam position lamps
Paper selection
...........................................61
Paper size indicator
.....................................22
Paper types not acceptable
Placing copy paper
......................................31
Placing originals
................................... 42
Placing paper in drawers
..............................33
Platen Cover
...............................................22
Platen sheet
...............................................24
Power switch
....................................... 23
INDEX 111
Precautions for Automatic Document Feeder
............................................................... 45
R
Receiving tray
............................................. 24
Recommended paper
