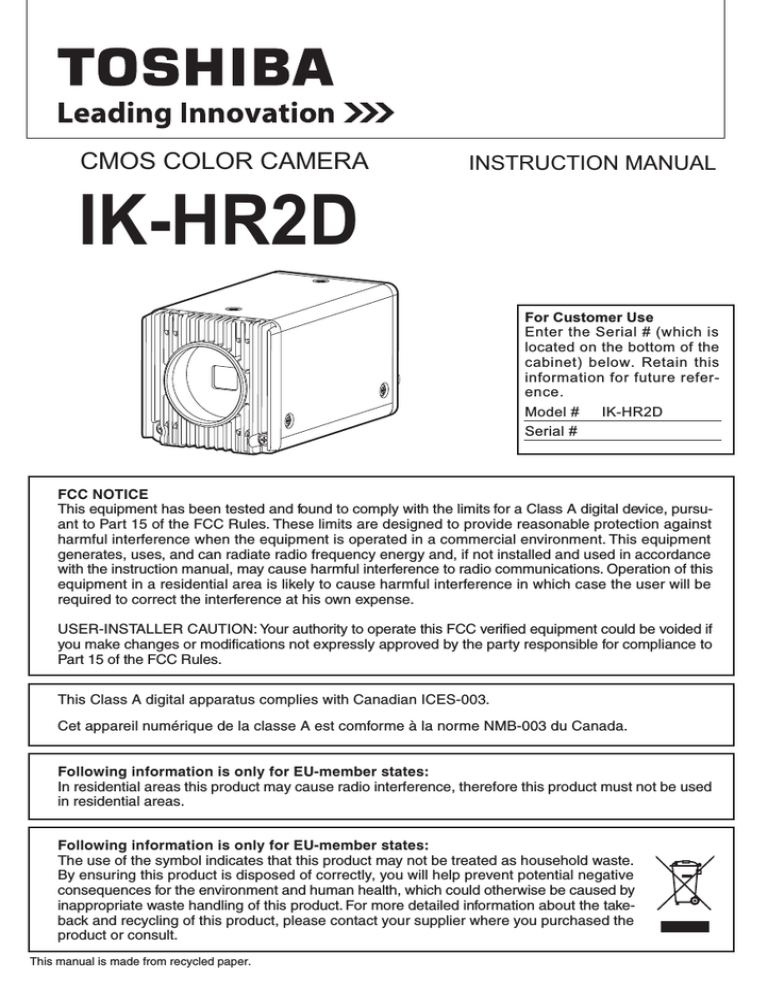

Toshiba IK-HR2D Camera Accessories User Manual

CMOS COLOR CAMERA
INSTRUCTION MANUAL
IK-HR2D
For Customer Use
Enter the Serial # (which is
located on the bottom of the
cabinet) below. Retain this
information for future reference.
Model #
Serial #
IK-HR2D
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
USER-INSTALLER CAUTION: Your authority to operate this FCC verified equipment could be voided if
you make changes or modifications not expressly approved by the party responsible for compliance to
Part 15 of the FCC Rules.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est comforme à la norme NMB-003 du Canada.
Following information is only for EU-member states:
In residential areas this product may cause radio interference, therefore this product must not be used
in residential areas.
Following information is only for EU-member states:
The use of the symbol indicates that this product may not be treated as household waste.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about the takeback and recycling of this product, please contact your supplier where you purchased the
product or consult.
This manual is made from recycled paper.
SAFETY PRECAUTIONS
Safety icons
This manual contains safety instructions that must be observed in order to avoid potential
hazards that could result in personal injuries, damage to your equipment, or loss of data.
These safety cautions have been classified according to the seriousness of the risk, and the
icons highlight these instructions as follows:
Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
Stop operation immediately if any abnormality or defect occurs.
Use during an abnormal condition; such as emitting smoke, burning odors, damage
from dropping, invasion of foreign objects, etc. may result in fire and/or electrical
shock. Immediately disconnect the power source and contact your dealer.
Avoid installing in a shower room or a bathroom.
This may result in fire and/or electrical shock.
Do not operate in places where the product may get wet.
This may result in fire and/or electrical shock.
Do not repair, disassemble and/or modify by yourself.
This may result in fire and/or electrical shock. Always be sure to contact your
dealer for internal repair, check and cleaning of the product.
Use the specified power supply.
Otherwise, fire or electrical shock may occur.
Do not place anything on top of the unit.
Foreign materials, such as metals or liquids, getting into the product may result
in fire and/or electrical shock.
Do not put the product on an unstable, slanted or vibrating surface.
The product dropping or falling may result in serious injury.
Do not touch the product or any connection cables during a thunderstorm.
This may result in electrical shock.
2
Note the following instructions when installing.
• Do not cover the product with any material.
• Do not place the product on any inflammable material such as a carpet or
blanket.
• Do not place the product in a confined space, as this may cause heat to
build up inside the product.
Failure to follow the above cautions may result in fire.
Do not place the product in direct sunshine and/or high temperature.
Temperature build up inside the product may result in fire.
Avoid placing in humid, smoky, or dusty places.
This may result in fire and/or electrical shock.
Do not point the lens directly at the sun and/or intensive light such as direct sunlight, etc.
Focusing of the light may result in eye injury and/or fire.
Ask your dealer to perform a periodical check and internal cleaning (approx.
once every five years).
Dust inside the product may result in fire. For service and cleaning cost, please
consult your dealer.
Disclaimer
We disclaim any responsibility and shall be held harmless for any damages or losses incurred by the
user in any of the following cases:
1. Fire, earthquake or any other act of God; acts by third parties; misuse by the user, whether intentional or accidental; use under extreme operating conditions.
2. Malfunction or non-function resulting in indirect, additional or consequential damages, including
but not limited to loss of expected income and suspension of business activities.
3. Incorrect use not in compliance with instructions in this instruction manual.
4. Malfunctions resulting from misconnection to other equipment.
5. Repairs or modifications made by the user or caused to be made by the user and carried out by
an unauthorized third party.
6. Notwithstanding the foregoing, Toshiba’s liabilities shall not, in any circumstances, exceed the
purchase price of the product.
Copyright and Right of Portrait
There may be a conflict with the Copyright Law and other laws when a customer uses, displays,
distributes, or exhibits an image picked up by the camera without permission from the copyright
holder. Please also note that transfer of an image or file covered by copyright is restricted to use
within the scope permitted by the Copyright Law.
Protection of Personal Information
Images taken by the camera that reveal the likeness of an individual person may be considered
personal information. To disclose, exhibit or transmit those images over the internet or otherwise,
consent of the person may be required.
3
Limitation of Usage
The product is not designed for any “critical applications.” “Critical applications” means life support
systems, exhaust or smoke extraction applications, medical applications, commercial aviation, mass
transit applications, military applications, homeland security applications, nuclear facilities or systems
or any other applications where product failure could lead to injury to persons or loss of life or
catastrophic property damage. Accordingly, [Toshiba/TAIS] disclaims any and all liability arising out of
the use of the product in any critical applications.
Trademarks and Registered Trademarks
Microsoft, Windows, Windows Vista, and DirectX are registerd trademarks of Microsoft Corporation.
Intel, Pentium is a registered trademark of Intel Corporation.
TABLE OF CONTENTS
SAFETY PRECAUTION ............................................................................... 2
Disclaimer ..................................................................................................... 3
Copyright and Right of Portrait ..................................................................... 3
Protection of Personal Information ............................................................... 3
Limitation of Usage ....................................................................................... 4
Trademarks and Registerd Trademarks ....................................................... 4
1 CAUTIONS ON USE AND INSTALLATION ............................................ 6
2 COMPONENTS ....................................................................................... 6
3
4
5
NAMES AND FUNCTIONS...................................................................... 7
CONNECTION........................................................................................ 8
4.1 Standard Connection .................................................................................................. 8
4.2 Cautions on Connection.............................................................................................. 8
4.3 Connection on Rear Panel.......................................................................................... 9
OPERATION............................................................................................ 10
5.1 White Balance.............................................................................................................. 10
5.2 Gain ............................................................................................................................. 12
5.3 Switching video signal output ..................................................................................... 12
5.4 Display video with USB .............................................................................................. 13
6
7
ITEMS CONTROLLED BY THE ON SCREEN DISPLAY ........................ 14
MODE SETTING BY THE ON SCREEN DISPLAY ................................ 15
7.1 Using the Menus .........................................................................................................
7.2 Scene File ...................................................................................................................
7.3 Menus .........................................................................................................................
(1) SHUTTER (Electronic shutter) ....................................................................................
(1.1) Changing the setting in AUTO mode...................................................................
(1.2) Changing the setting in MANUAL mode ..............................................................
(1.3) Changing the setting in SS (Synchro Scan) mode ..............................................
(2) GAIN (Video gain) .......................................................................................................
(2.1) Changing gain in MANUAL mode........................................................................
4
15
16
16
16
17
18
19
20
20
(3) WHT BAL (White Balance) ..........................................................................................
(3.1) Changing the setting in AWB (Automatic White Balance) mode ........................
(3.2) Changing the setting in ATW (Automatic Tracking White balance) mode .........
(3.3) Changing gain in MANUAL mode .......................................................................
(4) PROCESS ..................................................................................................................
(4.1) Changing gamma correction ON/OFF ................................................................
(4.2) Changing gamma correction level......................................................................
(4.3) Changing detail (outline) gain..............................................................................
(4.4) Changing DTL B.FREQ (detail boost frequency)...............................................
(4.5) Changing master pedestal .................................................................................
(5) MATRIX(Matrix color correction) ................................................................................
(5.1) Changing Matrix color correction ON/OFF .........................................................
(5.2) Changing MATRIX setting ..................................................................................
(6) OPTION......................................................................................................................
(6.1) Changing a type of output monitors ...................................................................
(7) Returning to factory settings .......................................................................................
8
9
20
20
22
23
24
24
24
25
25
25
26
26
26
27
27
27
BEFORE MAKING SERVICE CALL........................................................ 28
SPECIFICATIONS .................................................................................. 28
10 EXTERNAL APPEARANCE DIAGRAM................................................ 29
Warranty
5
1. CAUTIONS ON USE AND INSTALLATION
•
•
Handling the unit.
•
•
Install the camera in a location free from noise.
If the camera or the cables are located near power
utility lines or a TV, etc. undesirable noise may appear on the screen. In such a case, try to change
the location of the camera or the cable wiring.
•
Operating ambient temperature and humidity.
•
Do not use the camera in places where temperature and humidity exceed the specifications. Picture quality will deteriolate and internal parts may
be damaged.
•
When not using the camera for extended
periods of time.
•
Switch the control unit off and disconnect the
power supply.
•
Moire
A moire pattern is an interference pattern
generated when two repetitive line patterns
overlap. This is not a malfunction. Eliminating the
repetitive line patterns, or aligning the two
patterns, will eliminate the moire.
Handling of the protection cap.
Keep the protection cap away from children as
they may pose a choking hazard. The protection
cap protects the image sensing plane when the
lens is removed from the camera head, do not
discard.
Be particularly careful when using in places exposed to direct sunlight. When shooting in hot
places, depending on the conditions of the object
and the camera (for example when the gain is increased), noise in the form of vertical strips or
white dots may occur.
This is not a malfunction.
•
Do not shoot intense light.
When intense light enters, vertical stripes or
transverse band may appear on the screen. This
is not a malfunction. Ghosts may occur when
there is an intense light near the object. In this
case, change the shooting angle.
Do not drop, jolt, or vibrate, as this may result in
damage to the unit. This may cause problems.
Treat the camera cables carefully to prevent
cable problems, such as breaks in the cable and
loose connections.
Avoid using or storing the camera in the following places:
When cleaning the camera.
Unplug the power source before cleaning. Clean
with a soft dry cloth only. Do not use any chemicals
or chemically treated cloths. Chemicals may
damage coatings, printing or the paint work.
When cleaning the lens, use lens cleaning paper.
Installation without a tripod.
Before installing the camera, make sure that the
location can withstand the total weight of the
camera.
If this is not the case, reinforce the area to
prevent the unit from dropping, which may result
in damage to the unit or personal injury.
Places filled with highly flammable gas.
Places near gasoline, benzene, or paint thinner.
Places subject to strong vibration.
•
Places containing chemicals (such as pesticides),
rubber or vinyl products for extended periods of
time.
This camera is for indoor use only.
2. COMPONENTS
1 Camera ................................................................................................................... 1
2 Accessories
a Instruction manual ........................................................................................ 1
6
3. NAMES AND FUNCTIONS
2 DC IN 12V terminal
1 Prism faceplate
5 DISP button
7 MENU UP button
9 DATA UP (AWB) button
10
DATA DOWN button
8 MENU DOWN button
6 PAGE button
4 DVI-D terminal
3 USB terminal
[ Front ]
11
[ Rear ]
12
Rear
[ Bottom ]
䐖 Prism faceplate
The protection cap is attached on the lens mount portion. After removing the cap,
mount the lens. Be careful not to scratch or touch the optical area.
䐗 DC IN 12V terminal
Accepts a DC power input (12V).
䐘 USB Terminal
USB terminal. It is used when displaying video on a computer or recording video
into a computer.
䐙 DVI-D terminal
Outputs DVI-D to connect to a DVI monitor.
䐚 DISP button
Used to display or clear the Menu (OSD).
䐛 PAGE button
Used when switching to the menu and when selecting the menus.
䐜 MENU UP button
Select the function to be confirmed or changed on the menu.
䐝 MENU DOWN button
Select the function to be confirmed or changed on the menu.
䐞 DATA UP (AWB) button
Changes the value of the function selected by the MENU (UP/DOWN) button. (Also
used when using AWB.)
䐟 DATA DOWN button
Changes the value of the function selected by the MENU (UP/DOWN) button.
䐠 Mounting holes M3
Used to attach the camera to a mount. When using a tripod, attach the mounting
bracket (option) to these holes.
䐡 Mounting holes M2
Used to attach the camera to a mount.
7
4
CONNECTION
4
1 Standard Connection
Lens (option)
DVI terminal
IK-HR2D
Less than 11 mm
[0.433”]
DVI cable
(not supplied)
DVI monitor
(not supplied)
USB terminal
DC IN 12V
DC power supply
Tri-pod adapter (option)
(option)
USB cable
(not supplied)
PC
(not supplied)
4
2 Cautions on Connection
࣭When connecting the camera cables, be sure to turn off the CMOS color camera and any other equipment
connected to it.
࣭For DC power supply connecting to DC IN 12V terminal, use UL listed and/or CSA approved ungrounded
type AC adaptor with the specifications described below.
Power supply voltage
Current rating
Ripple voltage
Connector
㸸 12V DC s10%
㸸 More than 830mA
㸸 Less than 50mV (p-p)
㸸 HR10A-7P-4S by HIROSE electronics Co. Ltd
Pins 1, 2 㸸12V
Pins 3, 4 㸸GND
࣭ We suggest using a mega pixel C mount lens. When using other lenses, the best camera
performance may not be obtained.
(For example, low resolution may occur, focus may be lost through the range of a zoom lens, and flare,
ghost may occur.)
Furthermore, in order to avoid damaging the mounting portion of the camera head, use a lens which has
projection dimension from the mounting base of less than 0.433" (11mm.)
* This camera’s video output signal will not automatically sense the resolution of the DVI monitor it is
connected to. If a monitor does not support this camera’s output mode, it will not display anything.
Please be sure to switch the output mode of this camera in accordance with the monitor resolution.
Refer to the item “5.3 Switching video signal output” for the operation.
* About DVI standard
There are three types of DVI connectors: DVI-I (Integrated : digital and analog), DVI-D (digital only),
and DVI-A (analog only).
Please use a DVI-D cable (commercially available) to connect this camera.
* To display video with USB, use a computer which installs a USB 2.0 terminal and USB Video Class
Driver.
8
* Recommended PC:
O
S : Windows® XP SP2 - SP3
Windows Vista®
Windows® 7
C P U : Intel® Pentium® compatible (x86 or x64) CPU
1 GHz or more.
Memory : 512 MB or more
* Please be aware that this camera will depend on the computer, environment, or cables and unless
these are compatible, the camera may not operate correctly.
* Please be aware that the PC will be required to run DirectX® as the API (Application Program
Interface) to interface with the video from the camera. For the correct use and application of this
software, please refer to the API user manual.
* This camera may not operate correctly when used concurrently with other USB devices.
* This camera does not operate with bus power of the computer. Please use DC power.
* Please connect this camera directly to a USB socket of a computer. It may not operate correctly
through a USB hub.
* This camera does not support USB 1.1 or previous standards.
4
3 Connection on Rear Panel
This camera has the following connection terminals on it's rear panel:
• DC IN 12V terminal
• USB terminal
• DVI-D terminal
Please connect the appropriate cables for the connections required.
Rear panel view
1
2
1
4
3
5
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
DC IN 12V terminal
1
2
3
+12V
+12V
GND
4
GND
USB terminal
1
2
3
4
5
V bus
DD+
ID
GND
DVI-D terminal
1
2
3
4
5
6
7
8
Data2Data2+
Data2 Shield (GND)
NC
NC
NC
NC
NC
9
10
11
12
13
14
15
16
Data1Data1+
Data1 Shield (GND)
NC
NC
+5V
GND
Hot Plug Detect
17
18
19
20
21
22
23
24
Data0Data0+
Data0 Shield (GND)
NC
NC
Clock Shield (GND)
Clock+
Clock-
* Please use cables which support mini USB (type B) to connect the camera with the USB
terminal. Connect a cable correctly, or it may be damaged.
9
5
OPERATION
䐖 Refer to the item "4. CONNECTION", and connect the equipment correctly.
䐗 Turn on the connected equipment and the camera.
䐘 Aim the lens at the object, adjust the lens iris adjustment, focus adjustment, etc.
䐙 Refer to the item “5.1 White Balance”, make the adjustment.
䐚 Please see “5.2 Gain”, “5.3 Switching video signal output” and “7. MODE SETTING BY THE ON
SCREEN DISPLAY” to carry out necessary operations.
䐛 Please see “5.4 Displaying video with USB” to carry out an operation when using the USB output.
5
1 White Balance
For white balance adjustment of this unit, ATW (Automatic Tracking White balance), AWB (Automatic
White Balance) and MANUAL (Manual white balance) adjustments are provided. Refer to the item “7.3 (3)
WHT BAL (White Balance)”, select the desired mode.
Outline
Features
Notes
ATW
䟺 Automatic Tracking
White Balance䟻
䟻
The camera measures the
object color temperature and
adjusts the white balance
automatically.
AWB
䟺 Automatic White Balance䟻
䟻
Adjust white balance by
displaying the white object
inside the area set by AWB
menu and pressing the
[DATA UP] button.
MANUAL
䟺 Manual White Balance䟻
䟻
Adjust the white balance
manually using the WHT
BAL menu while shooting
the white object.
Tracks variations of color
Measurement accuracy is
temperature and adjusts white higher than ATW. This
balance automatically.
mode is effective when
shooting under less variations of color temperature.
Artificial white balance setting.
The manual adjustment is
most effective under shooting
conditions with no color
temperature variation.
If illumination is low, white
balance may not be corrected.
Adjustment is performed by
confirming with a monitor.
(1) AWB(Automatic White Balance)
䐖 Set the MODE to AWB on the WHT BAL menu.
Perform the C.TEMP (color temperature conversion) setting, if necessary.
(Refer to the item “7.3 (3) WHT BAL (White Balance)”.)
3200K䠌Appropriate for indoor shooting.
5600K䠌Appropriate for outdoor shooting.
䐗 If the color bar pattern is displayed on the screen or if the index menu/menu is displayed, press the [DISP]
button to disable the color bar pattern or the character display on the menu.
䐘 Shoot a known white object entirely in the area set by the AWB menu (refer to the item “7.3 (3) (3.1) (d)
Confirming the contents of the zone area selected by AWB” ) and press [DATA UP] button for approx. 1 second.
䐙 The character AWB blinks on the screen when the AWB starts.
䐚 The character AWB stops blinking when the AWB finishes, and the result is displayed for approx. 1 second.
10
Display
Meaning
AWB OK
Automatic white balance adjustment finished correctly.
AWB NG
Automatic white balance adjustment cannot be performed because the video level is
too low.
Adjust the video level by increasing the illumination or opening the lens iris.
LEVEL LOW
AWB NG
LEVEL HIGH
AWB NG
C. TEMP LOW
Automatic white balance adjustment cannot be performed because the video level is
too high.
Adjust the video level by decreasing the illumination or closing the lens iris.
Automatic white balance adjustment cannot be performed because the color
temperature is too low.
If the C.TEMP is set to 5600K, set to 3200K.
If the message appears with the C.TEMP set to 3200K, change the illumination or
use a color temperature conversion filter.
AWB NG
C. TEMP HIGH
Automatic white balance adjustment cannot be performed because the color
temperature is too high.
If the C.TEMP is set to 3200K, set to 5600K.
If the message appears with the C.TEMP set to 5600K, change the illumination or
use the color temperature conversion filter.
AWB NG
Automatic white balance adjustment cannot be performed for other reasons. Such as
no white area is included in an object, etc.
(2) MANUAL(Manual white balance)
䐖 Set the MODE to MANUAL on the WHT BAL menu.
(Refer to the item “7.3 (3) WHT BAL (White Balance)”.)
䐗 Shoot a known white object, set the white balance by adjusting the levels of R GAIN and B GAIN on the
menu, confirming with a monitor or a vector scope.
(Refer to the item “7.3 (3) (3.3) Changing gain in MANUAL mode”.)
11
5
2 Gain
When the image is dark even if the lens iris is open, change the gain (video gain) to get the desired video level.
For gain adjustment of the unit, MANUAL (Manual), OFF (0 dB) modes are provided. Select the mode on
the GAIN menu. (Refer to the item “7.3 (2) GAIN (Video gain)”.)
(1) MANUAL(Manual gain)
Gain adjustment is performed on the GAIN menu. The adjustment range is from 0 to 18dB in 1dB steps.
(Refer to the item “7.3 (2) (2.1) Changing gain in MANUAL mode”.)
(2) OFF
Gain is fixed at 0 dB.
Note:
White, red, green, or blue dots may occur when the gain is increased. This is not a malfunction, just
certain characteristics of the CMOS sensor becoming more visible.
5
3 Switching video signal output
By turning on the power while the control buttons on the rear panel are pressed, the video signal output
of the DVI-D terminal can be switched. When the video signal output is switched, a mode is displayed
on the screen for about 5 seconds.
e.g. “1080p 59.94”
Mode
1080/59.94p
Resolution
How to operate
1920×1080/59.94Hz (progressive)
Turn on power while pressing [DISP]
1080/50p
1920×1080/50Hz (progressive)
Turn on power while pressing [PAGE]
1080/59.94i
1920×1080/59.94Hz (interlace)
Turn on power while pressing [MENU UP]
1080/50i
720/59.94p
720/50p
1920×1080/50Hz (interlace)
Turn on power while pressing [MENU DOWN]
1280×720/59.94Hz (progressive)
Turn on power while pressing [DATA UP]
1280×720/50Hz (progressive)
Turn on power while pressing [DATA DOWN]
Note:
Resolution specified by the computer to which a USB cable is connected has priority while
displaying/recording video from the USB terminal.
Please disconnect the USB cable before switching the video signal output.
12
5
4 Display video with USB
䞉㻌 Connect a USB terminal of the camera and a USB terminal of the computer with a USB cable.
䞉㻌 Turn on the power of both the camera and the computer.
䞉㻌 Run the viewer software.
* Please use a cable supporting mini-USB (B type) for the USB terminal of the camera.
* To display video captured by the camera, viewer software supporting USB Video Class is required
separately.
䚷
* In case of Windows® XP SP2 or SP3, the built-in viewer software can be used.
The procedure for using the viewer software is described below:
䞉㻌 Click Start Menu 䊻 My Computer
䞉㻌 Double click USB Video Device icon, and the video will be displayed.
The following can be controlled by USB from a computer. Some viewer software may not support this
function.
Resolution䠖
䚷䚷䐟1920×1080䚷YUY2䚷Approximately 5fps
䚷䚷䐠1280×720䚷YUY2䚷Approximately 10fps
Exposure time䠖
䚷䚷AUTO ON䠖The electronic shutter is set to AUTO mode.
䚷䚷AUTO OFF䠖The electronic shutter is set to MANUAL mode.
In Manual mode the exposure time can be set between OFF to 1/4000s.
White balance䠖
䚷䚷AUTO ON䠖The White balance is set to ATW mode.
䚷䚷AUTO OFF䠖The White balance is set to AWB mode.
The color temperature can be set to 3200K or 5600K in the AWB mode.
Note:
࣭When displaying video with USB, resolution is changed to the one specified by the computer
(viewer), regardless of the resolution set in “5.3 Switching video signal output”.
࣭When the resolution is set by the computer (viewer), the DVI output mode appears in the upper
right of screen for about 5 seconds.
e.g. “1080p 59.94”
Note that the displayed mode is not a USB output mode.
࣭When the computer (viewer) sets resolution to 1920 × 1080 while you are using the camera in the
720p mode, the DVI output mode will also be changed to the 1080p mode.
࣭The exposure time and white balance set during video display with USB will be stored.
Next time, at the beginning of video display with USB, the new setting will be reflected regardless
of the current camera setting.
13
6
ITEMS CONTROLLED BY THE ON SCREEN DISPLAY
Item
Available selections
Electronic shutter
MODE
AUTO level
AUTO peak : average
AUTO response speed
AUTO area
Gain
White balance
Process
Matrix color correction
AUTO, MANUAL, SS
-100
0
100
00 10
05 05
10 00
1
10 20
PRESET A, PRESET B, PRESET C,
PRESET D, PRESET E
MANUAL speed
OFF, 1/100s, 1/125s, 1/250s, 1/500s,
1/1000s, 1/2000s, 1/4000s
Syncro. scan
15/1125H 1123/1125H (when 1080 is set)
10/750H 748/750H (when 720 is set)
MODE
MANUAL, OFF
MANUAL gain
0dB 18dB
MODE
AWB, ATW, MANUAL
Color temperature
3200K, 5600K
-10
0
10
AWB R PAINT
-10
0
10
AWB B PAINT
AWB area
PRESET A, PRESET B, PRESET C,
PRESET D, PRESET E
-10
0
10
ATW R PAINT
-10
0
10
ATW B PAINT
-100
0
100
MANUAL R GAIN
-100
0
100
MANUAL B GAIN
Gamma correction
ON, OFF
Gamma correction level -10
0
10
Detail gain
-7
7
0
Detail boost frequency
HIGH, NORMAL, LOW
Master pedestal
0
127
-128
Color correction ON/OFF ON, OFF
-15
0
15
R hue
-15
0
15
R gain
-15
0
15
G hue
-15
0
15
G gain
-15
0
15
B hue
-15
0
15
B gain
-15
0
15
Ye hue
-15
0
15
Ye gain
-15
0
15
Cy hue
-15
0
15
Cy gain
-15
0
15
Mg hue
Mg gain
-15
0
15
Option
Monitor
Preset value (Factory setting)*1
File A File B File C File D File E
MANUAL MANUAL AUTO AUTO AUTO
0
0
0
0
0
05 05 05 05 05 05 05 05 00 10
10
10
20
20
10
PRESET A PRESET A PRESET A PRESET A PRESET A
OFF*2 OFF*2 OFF*2 OFF*2 OFF*2
1123/1125H 1123/1125H 1123/1125H 1123/1125H 1123/1125H
748/750H 748/750H 748/750H 748/750H 748/750H
OFF*3 OFF*3 OFF*3 OFF*3 OFF*3
0dB
0dB
0dB
0dB
0dB
AWB AWB ATW AWB AWB
3200K 5600K 3200K 5600K 5600K
0
0
0
0
0
0
0
0
0
0
PRESET A PRESET A PRESET A PRESET A PRESET A
0
0
0
0
ON
0
0
HIGH
0
ON
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
ON
0
0
HIGH
0
ON
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
ON
0
0
HIGH
0
ON
0
0
0
0
0
0
0
0
0
0
0
0
PC
PC, TV
*1: Scene file A is selected as the factory setting.
*2: 1/60s (when 59.94 Hz is set) or 1/50s (when 50 Hz is set)
*3: Gain 0 dB
14
0
0
0
0
ON
0
0
HIGH
0
ON
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
ON
0
0
HIGH
0
ON
-2
15
0
0
10
10
0
15
0
15
-15
15
7
MODE SETTING BY THE ON SCREEN DISPLAY
Various settings can be controlled on the unit by using the on screen menu displayed on the monitor. The
contents once set are memorized in the scene files (A, B, C, D, E) selected, so if the power turns off, it is
unnecessary to set the values again when using the unit next time. When the setting is performed, select
the menu of the item to be set.
Note:
The characters displayed while operating the on screen display menu (OSD) or auto white balance
(AWB) are output from the camera control unit as an image superimposed on the picture. Once the
picture is recorded, you cannot separate characters from the picture nor remove only the displayed
characters from the recorded signal. Be careful of operating the OSD and AWB while taking picture.
7
1 Using the Menus
When the unit is powered on, the normal screen showing only the video signal appears. Change the
output to each screen (video signal output, color bar screen, index menu, and menus) by using the
[DISP], [PAGE], [MENU UP], [MENU DOWN], [DATA UP], and [DATA DOWN] buttons.
* A menu is selected when pushing the [PAGE] button after moving the “䊲” on the screen by the
[MENU UP], [MENU DOWN] button while the Index menu is displayed.
* When Index menu is displayed, the DVI output mode appears in the upper right of the screen.
Note: The displayed mode is not a USB output mode.
POWER ON
Video signal output
Color bar screen
DISP
DISP
Index menu
DISP
PAGE
DISP
PAGE
PAGE
Menus
1.SHUTTER
AUTO
MANUAL
SS
2.GAIN
PAGE
MANUAL
OFF
3.WHT BAL
PAGE
AWB
ATW
4.PROCESS
PAGE
GAMMA
ON
GAMMA
OFF
MANUAL
15
5.MATRIX
PAGE
ON
OFF
6.OPTION
PAGE
PAGE
7
2 Scene File
Five scene files (A, B, C, D, E) are available as user memories for this unit. These are chosen depending
on shooting conditions. By pressing [DATA UP], [DATA DOWN] buttons while [DISP] button is pressed
and the index menu is displayed, the camera operation is changed immediately from the currently
selected scene file to the next. By pressing [DATA UP], [DATA DOWN] buttons while the Index menu is
displayed, the camera operation is changed immediately from the currently selected scene file to the
next.
䠭DATA UP䠯
FILE A ࠉ ࠉ FILE B ࠉ ࠉ FILE C ࠉ ࠉ F I LE D ࠉ ࠉF I LE E
䠭DATA DOWN䠯
Note:
Scene file does not contain the data of set "OPTION."
(Refer to the item "7.3 Menus" (6) "OPTION" for the "OPTION" setting.)
7
3 Menus
䝿 Select the menu to change the setting by referring to the item “7.1 Using the Menus”.
䝿 When the [MENU UP], [MENU DOWN] buttons are pressed, the “䊲” on the screen moves up and down.
Move the “䊲” to the item whose setting you wish to change.
1
SHUTTER䟺Electronic shutter䟻
The electronic shutter has three modes; AUTO, MANUAL, SS(Synchro Scan).
Press the “Page” button to enter the Shutter Page. Use the “Data Up/Down” buttons to select the Shutter
Mode.
䠭DATA UP䠯
A UTO ࠉ ࠉ MA NUA L ࠉ ࠉ S S
䠭DATA DOWN䠯
AUTO
䠌 The exposure time is controlled automatically to obtain the video level set.
MANUAL
䠌 It is possible to select the exposure time from eight speed settings; OFF (1/60s:59.94Hz
SS
䠌
setting, 1/50s:50Hz setting), 1/100s,1/125s, 1/250s, 1/500s, 1/1000s, 1/2000s, 1/4000s.
Shutter speed can be set by the horizontal scanning time (1H) unit.
Note:
࣭When setting a rapid shutter speed, sensitivity degrades according to the speed.
When a discharging light such as fluorescent lamp, etc. is used for the illumination,
the flicker may be large.
࣭When an object is moving rapidly, the monitor may display the image distorted and/or
blurred. Also, under the discharging light such as fluorescent lamp, etc., horizontal
striped light and dark patterns may be displayed on the screen. Depending on the
timing of flash and/or strobe firing, the contrast may be displayed on the screen. This
is not a malfunction but just a certain character of the rolling shutter system.
࣭When the shutter speed setting is high, the hue may change depending on shooting
conditions or objects.
16
䟺1䠀
䠀1䟻
䟻 Changing the setting in AUTO mode
Move up and down
by pressing
MENU UP,DOWN
Select the desired
value by pressing
DATA UP,DOWN
Shutter mode
--
1
SHUTTER --
MODE
LEVEL
PEAK AVE
SPEED
AREA
AUTO, MANUAL, SS
Video level adjustment
<FILE A>
-100 to 100
Peak and average ratio adjustment
AUTO
0
05 05
10
PRESET A
00
10 to 10
Automatic shutter response speed adjustment 1 to 20
Automatic shutter area selection
PRESET A, PRESET B, PRESET C, PRESET D, PRESET E
< MODE = AUTO>
(a) Changing the video level in the automatic shutter mode
䐖 Move the “䊲” to LEVEL by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the video level by pressing [DATA UP], [DATA DOWN] buttons.
The value increases by pressing [DATA UP]
-100
0
100
The value decreases by pressing [DATA DOWN]
(b) Changing the automatic shutter detection (ratio between peak and average value)
䐖 Move the “䊲” to PEAK/AVE by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the ratio between peak and average value by pressing [DATA UP], [DATA DOWN] buttons.
(Peak:Average)
The peak value increases by pressing [DATA UP]
0 0 :1 0
05:05
10:00
The peak value decreases by pressing [DATA DOWN]
(c) Changing the automatic shutter response speed
䐖 Move the “䊲” to SPEED by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the response speed by pressing [DATA UP], [DATA DOWN] buttons.
The response speed becomes faster by pressing [DATA UP]
1
10
00
20
The response speed becomes slower by pressing [DATA DOWN]
17
(d) Changing the automatic shutter zone area
䐖 Move the “䊲” to AREA by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the measurement light area by pressing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
PRESET A
PRESET B
PRESET C
PRESET D
䠭DATA DOWN䠯
PRESET E
The available picture area is divided into 64 rectangles. The user can choose one of 5 presets.
The shaded rectangles represents the area/pattern where the sampling is taken from.
PRESET A
PRESET B
PRESET C
PRESET D
PRESET E
䟺1䠀
䠀2䟻
䟻 Changing the setting in MANUAL mode
Move up and down
by pressing
MENU UP,DOWN
Select the desired
value by pressing
DATA UP,DOWN
Shutter mode
--
1
MODE
MANUAL
SHUTTER --
<FILE A>
MANUAL
OFF
AUTO, MANUAL, SS
Shutter speed setting
OFF, 1/100s, 1/125s, 1/250s, 1/500s, 1/1000s,
1/2000s, 1/4000s
Shutter speed when OFF is set
When 59.94Hz is set:1/60s
When 50Hz is set:1/50s
< MODE = MANUAL>
18
(a) Changing the shutter speed
䐖 Move the “䊲” to MANU by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the shutter speed by pressing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
OFF
1/100s
1/125s
1/250s
1/500s
1/1000s
䠭DATA DOWN䠯
1/2000s
1/4000s
Note:
The shutter speed can be set in every effective scanning line (1080/720).
The figures of shutter speed in the menu screen are approximate. The accurate shutter speed is
calculated using the following mathematical formula.
Shutter speed (s) = 1/67433 (Hz) × n (n : 15 to 1123 (integral number)) (when 1080/59.94p and 1080/59.94i are set)
= 1/56250 (Hz) × n (n : 15 to 1123 (integral number)) (when 1080/50p and 1080/50i are set)
= 1/44955 (Hz) × n (n : 10 to 748 (integral number)) (when 720/59.94p is set)
= 1/37500 (Hz) × n (n : 10 to 748 (integral number)) (when 720/50p is set)
䟺1䠀
䠀3䟻
䟻 Changing the setting in SS (Synchro Scan) mode
Move up and down
by pressing
MENU UP,DOWN
Select the desired
value by pressing
DATA UP,DOWN
Shutter mode
--
1
SHUTTER --
MODE
SYNCHRO SCAN
<FILE A>
AUTO, MANUAL, SS
Synchro scan setting
15/1125H
1123/1125H (when 1080p/1080i is set)
10/750H
748/750H (when 720p is set)
SS
1123/1125H
< MODE = SS >
(a) Changing the shutter speed setting
䐖 Move the “䊲” to SYNCHRO SCAN by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the shutter speed by pressing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
15/1125H ࠉ1123/1125H (when 1080p/1080i is set)
10/750H ࠉ748/750H (when 720p is set)
䠭DATA DOWN䠯
Note:
The shutter speed can be set in every effective scanning line (1080/720).
19
2
GAIN (Video gain)
GAIN has two modes; MANUAL, OFF.
Move the “䊲 ” to MODE, press the [DATA UP], [DATA DOWN], and select one of the two modes :
MANUAL, OFF. In the OFF mode, gain is fixed to 0dB.
䟺2䠀
䠀1䟻
䟻 Changing gain in MANUAL mode
Move up and down
by pressing
MENU UP,DOWN
--
2
GAIN
MODE
MANUAL
Select the desired
value by pressing
DATA UP,DOWN
--
<FILE A>
Gain mode
MANUAL
0dB
MANUAL, OFF
Manual gain setting
0dB to 18dB (1dB step)
䐖 Move the “䊲” to MANUAL by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of manual gain by pressing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
0dB
18dB
䠭DATA DOWN䠯
䟺3䟻
䟻 WHT BAL(White Balance)
The WHT BAL has three modes; AWB, ATW, MANUAL.
Move the “ 䊲” to MODE, press the [DATA UP], [DATA DOWN], and select one of the three modes :
AWB, ATW, MANUAL.
䟺3䠀
䠀1䟻
䟻 Changing the setting in AWB(Automatic White Balance) mode
Move up and down
by pressing
MENU UP,DOWN
Select the desired
value by pressing
DATA UP,DOWN
White balance mode setting
--
3
WHT BAL --
MODE
R PAINT
B PAINT
C TEMP
AREA
<FILE A>
AWB
0
0
3200K
PRESET A
AWB, ATW, MANUAL
R PAINT adjustment
-10 to 10
B PAINT adjustment
-10 to 10
Color temperature setting
3200K, 5600K
AWB area
PRESET A, PRESET B, PRESET C, PRESET D, PRESET E
20
(a) Changing R PAINT
䐖 Move the “䊲” to R PAINT by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of red paint by pressing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
- 10
Red is decreased.
ࠉRed is increased.
0
10
ࠉ [DATA DOWN]
(b) Changing B PAINT
䐖 Move the “䊲” to B PAINT by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of blue paint by pressing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
- 10
Blue is decreased.
ࠉBlue is increased.
0
10
ࠉ [DATA DOWN]
(c) Changing color temperature setting
䐖 Move the “䊲” to C.TEMP by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select either 3200K or 5600K by pressing [DATA UP], [DATA DOWN] buttons.
(d) Confirming the contents of the zone area selected by AWB
䐖 Move the “䊲” to AREA DISP by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired area by pressing [DATA UP], [DATA DOWN] buttons.
The available picture area is divided into 64 rectangles. The user can choose one of 5 presets.
The shaded rectangles represents the area/pattern where the sampling is taken from.
PRESET A
PRESET B
PRESET C
PRESET E
21
PRESET D
䟺3䠀
䠀2䟻
䟻 Changing the setting in ATW(Automatic Tracking White balance) mode
Move up and down
by pressing
MENU UP,DOWN
--
3
Select the desired
value by pressing
DATA UP,DOWN
WHT BAL --
MODE
R PAINT
B PAINT
<FILE A>
ATW
0
0
White balance mode
AWB, ATW, MANUAL
R PAINT adjustment
-10 to 10
B PAINT adjustment
-10 to 10
(a) Changing R PAINT
䐖 Move the “䊲” to R PAINT by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of red paint by pressing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
- 10
Red is decreased.
ࠉRed is increased.
0
10
ࠉ [DATA DOWN]
(b) Changing B PAINT
䐖 Move the “䊲” to B PAINT by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of blue paint by pressing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
- 10
Blue is decreased.
ࠉBlue is increased.
0
10
ࠉ [DATA DOWN]
22
䟺3䠀
䠀3䟻
䟻 Changing gain in MANUAL mode
Move up and down
by pressing
MENU UP,DOWN
--
3
Select the desired
value by pressing
DATA UP,DOWN
WHT BAL --
MODE
R GAIN
B GAIN
C TEMP
<FILE A>
MANUAL
0
0
3200K
White balance mode
AWB, ATW, MANUAL
Red gain adjustment
-100 to 100
Blue gain adjustment
-100 to 100
Color temperature setting
3200K, 5600K
(a) Changing the red gain
䐖 Move the “䊲” to R GAIN by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of red gain by pressing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
- 1 00
Red is decreased.
ࠉRed is increased.
0
100
ࠉ [DATA DOWN]
(b) Changing the blue gain
䐖 Move the “䊲” to B GAIN by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of blue gain by pressing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
- 1 00
Blue is decreased.
ࠉBlue is increased.
0
100
ࠉ [DATA DOWN]
(c) Changing color temperature setting
䐖 Move the “ 䊲” to C.TEMP by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select either 3200K or 5600K by pressing [DATA UP], [DATA DOWN] buttons.
23
䟺4䟻
䟻 PROCESS
Move up and down
by pressing
MENU UP,DOWN
Select the desired
value by pressing
DATA UP,DOWN
Gamma correction
--
4
PROCESS --
GAMMA ON/OFF
GAMMA
DTL GAIN
DTL B.FREQ
M PED
ON, OFF
Gamma correction level setting
<FILE A>
Detail gain setting
ON
0
0
HIGH
0
-10 to 10
-7 to 7
Detail boost frequency
Master pedestal setting
HIGH, NORMAL, LOW
-128 to 127
䟺4䠀
䠀1䟻
䟻 Changing gamma correction ON/OFF
䐖 Move the “䊲” to GAMMA ON/OFF by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select either ON or OFF by pressing [DATA UP], [DATA DOWN] buttons.
Move up and down
by pressing
MENU UP,DOWN
--
4
Select the desired
value by pressing
DATA UP,DOWN
PROCESS --
GAMMA ON/OFF
DTL GAIN
DTL B.FREQ
M PED
<FILE A>
OFF
0
HIGH
0
Gamma correction
ON, OFF
Detail gain setting
-7 to 7
Detail boost frequency
Master pedestal setting
HIGH, NORMAL, LOW
-128 to 127
Menu when GAMMA OFF is selected.
䟺4䠀
䠀2䟻
䟻 Changing gamma correction level
䐖 Move the “䊲” to GAMMA by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of gamma correction level by pressing [DATA UP], [DATA DOWN] buttons.
Correction amount
becomes larger.
10
[DATA UP]
- 10
Correction amount
becomes smaller.
0
[DATA DOWN]
* When OFF is selected in GAMMA ON/OFF selection line, the gamma correction level cannot
be changed.
24
䟺 4䠀
䠀3䟻
䟻 Changing detail (outline) gain
䐖 Move the “䊲” to DTL GAIN by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of the detail gain by pressing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
-7
The detail decreases.
ࠉThe detail increases.
0
7
ࠉ [DATA DOWN]
䟺 4䠀
䠀4䟻
䟻 Changing DTL B.FREQ (detail boost frequency)
This setting adjusts the thickness of the image outline.
䐖 Move the “䊲” to DTL B.FREQ by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the detail boost frequency by pressing [DATA UP], [DATA DOWN] buttons.
Thick outline
[DATA UP]
LOW
NORMA L
Thin outline
HIGH
[DATA DOWN]
䟺 4䠀
䠀5䟻
䟻 Changing master pedestal
䐖 Move the “䊲” to M. PED by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of the master pedestal by pressing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
- 128
M. PED decreases.
ࠉM. PED increases.
0
127
ࠉ [DATA DOWN]
25
䟺5䟻
䟻 MATRIX(Matrix color correction)
Move up and down
by pressing
MENU UP,DOWN
Red hue setting
--
5
MATRIX --
Red gain setting
MATRIX
ON
Green hue setting
R
R
G
G
B
B
0
0
0
0
0
0
Green gain setting
Blue hue setting
Blue gain setting
Select the desired
value by pressing
DATA UP,DOWN
HUE
GAIN
HUE
GAIN
HUE
GAIN
<FILE A>
Matrix color correction
ON, OFF
Yellow hue setting
Yellow gain setting
Ye
Ye
Cy
Cy
Mg
Mg
HUE
GAIN
HUE
GAIN
HUE
GAIN
0
0
0
0
0
0
Cyan hue setting
Cyan gain setting
Magenta hue setting
Magenta gain setting
䟺 5䠀
䠀1䟻
䟻 Changing Matrix color correction ON/OFF
䐖 Move the “䊲” to MATRIX by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select either ON or OFF by pressing [DATA UP], [DATA DOWN] buttons.
䟺5䠀
䠀2䟻
䟻 Changing MATRIX setting
䐖 Move the “䊲” to the desired item by pressing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of color by pressing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
-15
0
15
[DATA DOWN]
* When matrix color correction is set to OFF, the color cannot be adjusted.
26
䟺6䟻
䟻 OPTION
Select the desired
value by pressing
DATA UP,DOWN
--
6
OPTION
MONITOR
--
<FILE A>
MONITOR
PC
PC, TV
䟺 6䠀
䠀1䟻
䟻 Changing a type of output monitors
Select either PC or TV by pressing [DATA UP], [DATA DOWN] buttons.
䝿 PC: When using PC as an output monitor.
䝿 TV: When using TV as an output monitor.
Note:
Select PC or TV depending on the DVI monitor you use. If TV is selected, the brightness on the
monitor will be increased. This setting has nothing to do with the USB video output.
䟺7䟻
䟻 Returning to factory settings
The current setting can be returned to the factory default status (preset status).
(1) If the color bar pattern or characters are displayed on the screen, press the [DISP] button to disable the
color bar pattern and character display.
(2) Press [MENU DOWN] and [DATA DOWN] buttons simultaneously for approx. 1 second.
(3) The preset operation starts. When the preset operation finishes, the character PRESET OK is displayed
for approx. 1 second.
* Only one scene file at a time can be returned to the factory default status. Follow the instruction as
above for every scene file when all scene files are required to be returned to the factory default
status/settings.
27
8. BEFORE MAKING SERVICE CALL
Symptom
No picture
Items to be checked
䡗 Is power supplied correctly?
䡗 Is the lens iris adjusted correctly?
䡗 Are the camera and video cables connected correctly?
䡗 Is the shutter mode set correctly?
䡗 Does the video output from the camera match with the input signals from
the monitor?
Unstable picture
Noise problem
Poor color
䡗 Is the cable connector loose?
䡗 Are the other cables connected correctly?
䡗 Is the monitor adjusted correctly?
䡗 Is the white balance of the camera adjusted correctly?
(in modes other than automatic tracking)
䡗 Is the matrix color correction set correctly?
䡗 Is the illumination sufficient?
9. SPECIFICATIONS
Image sensor
Output pixels
Signal system
Scan frequency
Sensitivity
Minimum illumination
Output signal
Sync system
White balance
Gain
Scene file
Lens mount
Power supply
Power consumption
Weight
External dimension
Operating temperature
Operating humidity
1/3 inch color CMOS sensor (Rolling shutter)
Horizontal : 1920, Vertical : 1080
1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Horizontal : 67.43 kHz, Vertical : 59.94 Hz
Horizontal : 56.25 kHz, Vertical : 50 Hz
Horizontal : 33.72 kHz, Vertical : 59.94 Hz
Horizontal : 28.13 kHz, Vertical : 50 Hz
Horizontal : 44.96 kHz, Vertical : 59.94 Hz
Horizontal : 37.50 kHz, Vertical : 50 Hz
F 4 standard (2000 lx, 3000K)
8 lx standard (50 IRE, F1.4, gain 㸩18 dB,
gamma setting ON (setting value 0), 3000 K)
DVI (Digital RGB) DVI-D terminal
USB Video Class 1.1 mini-USB terminal (in conformity with USB 2.0)
Internal
ATW䟺Automatic tracking white balance䟻, AWB䟺Automatic white balance䟻,
MANUAL䟺Manual䟻
MANUAL (Manual), OFF (0 dB)
A, B, C, D, E
C mount
12V DC㼳10%
Approx. 4.1 W
Approx. 148 g (0.326 lbs)
44(W) × 44(H) × 78(D) mm (1.73”(W) 㽙㻃1.73”(H) 㽙㻃3.07”(D) )
0 䉔 to 40 䉔 (32㼲F to 104 㼲F)
Less than 90% (non condensing)
Design and specifications are subject to change without notice.
28
10. EXTERNAL APPEARANCE DIAGRAM
Unit : mm [inch]
26 [1.02]
2-M3 Depth 3
[0.118]
5 [0.2]
78 [3.07]
10.65 [0.42]
6.3 [0.25]
44 [1.73]
22 [0.87]
44 [1.73]
32.51[1.28]
[Front]
[Rear]
56 [2.2]
4-M2 Depth 3 [0.118]
4-M3 Depth 3 [0.118]
26 [1.02]
25 [0.98]
26 [1.02]
5 [0.2]
25 [0.98]
25 [0.98]
29
#4-40UNC
Limited Warranty –TOSHIBA CMOS Color Camera
The Imaging Systems Division of Toshiba America Information Systems, Inc. ("ISD") makes the following limited warranties
with regard to this CMOS Color Camera ("Product"). These limited warranties extend to the Original End-User ("You[r]").
One (1) Year Limited Warranty of Labor and Parts
ISD warrants that this Product will perform in accordance with specifications for a period of one (1) year from the date of
purchase by the Original End-User. During this one (1) year period, ISD will repair or replace the Product, if it does not
perform as warranted. In order to take advantage of this Limited Warranty, You must: (a) deliver the Product to an ISD
Authorized Service Provider ("ASP"); and (b) pay all transportation and insurance charges for shipment of the Product to the
ASP. ISD reserves the right to substitute factory refurbished parts in place of those in need of repair.
Instruction Manual (Owner’s Manual):
You should read the Instruction Manual (Owner’s Manual) thoroughly before operating this Product. Before seeking warranty
service, you should check the troubleshooting guide in the Instruction Manual (Owner’s Manual) and follow the instructions to
correct the problem.
Your Responsibilities
This Limited Warranty is subject to the following conditions:
1. You must provide the bill of sale or proof of purchase at the time that warranty service is required.
2. You must notify an ASP within thirty (30) days after You discover that the Product does not perform in accordance with
specifications during the Limited Warranty period.
3. All warranty servicing of this product must be made by an ISD Authorized Service Provider.
4. You must pack the Product in its original carton using the original packing material, then insert the original carton
containing the Product into another carton with additional packing material before shipping the Product to an ASP.
DISCLAIMERS:
ALL OTHER EXPRESS OR IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. SOME STATES DO
NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE AND EXCLUSIVE
REMEDY SHALL BE THE REPAIR OR REPLACEMENT OF THE PRODUCT. IN NO EVENT WILL ISD OR ITS PARENT
COMPANY OR ANY ASP BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT. THIS LIMITATION APPLIES TO DAMAGES OF ANY KIND, INCLUDING ANY
DIRECT OR INDIRECT DAMAGES, LOST PROFITS, LOST SAVINGS OR OTHER SPECIAL, INCIDENTAL, EXEMPLARY
OR CONSEQUENTIAL DAMAGES, WHETHER FOR BREACH OF CONTRACT, TORT OR OTHERWISE, OR WHETHER
ARISING OUT OF THE USE OF OR INABILITY TO USE SUCH PRODUCT, EVEN IF TAIS, ITS PARENT COMPANY, OR
AN ASP HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY OTHER PARTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES
FOR SOME PRODUCTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
