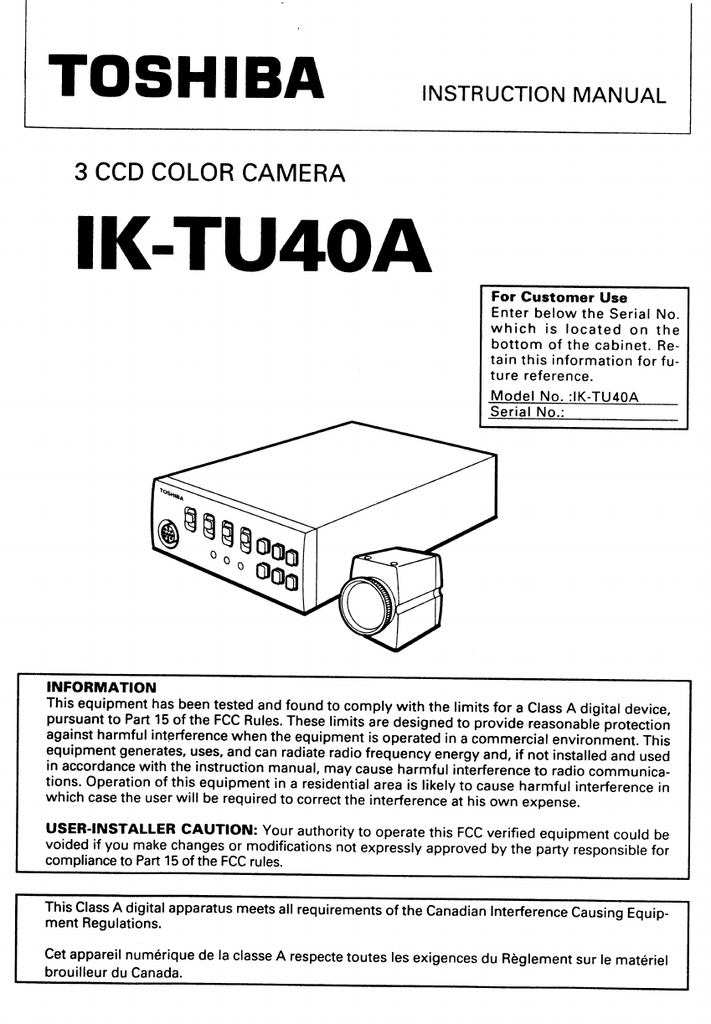

 TO S H | ВА INSTRUCTION MANUAL
3 CCD COLOR CAMERA
K-TU40A
For Customer Use
Enter below the Serial No.
which is located on the
bottom of the cabinet. Re-
tain this information for fu-
ture reference.
Model No. :1K-TU40A
Serial No.:
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communica-
tions. Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
USER-INSTALLER CAUTION: Your authority to operate this FCC verified equipment could be
voided if you make changes or modifications not expressly approved by the party responsible for
compliance to Part 15 of the FCC rules.
This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equip-
ment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
-
TABLE OF CONTENTS
1. COMPONENTS............ e... .ercaceeracereeeeeneneneneneneneeneennaneneanrreanerenrarecareneeerececaneranes 4
2. SPECIFICATIONS .…...…..……cccccecccecerererererenarrererererererrrerererrrerece encre cn rrr se renrnnannne 4
3. ITEMS CONTROLLED BY USING ON SCREEN DISPLAY... 5
4. NAMES AND FUNCTIONS...........eeeeeeeeaennaaniocene near rnenarnenenanen nana enaneraoeseacecen. 6
5. CONNECTION A 8
5.1 Standard Connection ..................... e... e... error enn nene e rene eeeeeeeenee eee. 8
5.2 Cautions on Connection ....................e.eeeeeieee rene one ocean eee eeneneneneneae 8
5.3 Connection on Back Panel ....................e.e.eee.eeaeararr ener enana anne erenae 9
6. OPERATION .................eeemeeececacerrerer ren enero nenerererena nana eeorrrenerenenareneaeec enema. 10
6.1 Automatic Black Balance ...................eeeerermeeeiiceri reee reee. 10
6.2 White Balance .....................eeeecerreeneriri enero eran rra rereaeeeneeanecemee. 10
6.3 Scene File .....................e.eecircecece nene erronea rneceneerenereaneaeaeeencercaceneee 12
6.4 Gain... ea nernenarieeonenesananecececaceneeneee rear en aaron r rare ener cananea area erereneneraee 12
6.5 Shading Correction ...................... e eee sees ean 12
7. MODE SETTING BY ON SCREEN DISPLAY -.........nrcceeeeeeeeeeeeereecceccerenecen. 14
7.1 Using the Menus....................e.ee.eeeneccccccece cnc e es 14
7.2 Menus -...............eeeeeerrereoreccccaceraee rr ece reee nao are orene na rrrereeeaarneneoarereamea mee 16
(1) SHUTTER (Electronic shutter) .........................e.. DD TDI 16
(1.1) Changing each setting in AUTO mode ........................... e... recen. 16
(1.2) Changing each setting in MANU mode.........................e.reecemeceees 18
(1.3) Changing each setting in SS (syncro. scan) mode..................... 18
(1.4) Changing each setting in 1 PULSE MOdeE 19
(2) GAIN (VIdEO GAIN) …….........…...……rrersssssaserrerararencerenresaeasanaanena ana ne annee 19
(2.1) Changing the maximum gain in AUTO
(Automatic gain control) mode …….….….…..….…….…...........…ssresrrereree 19
(2.2) MANU (manual) mode menu ……….…………....…..…………………… marraneceeccsases rence 20
(2.3) NORM (0 dB) mode menu....................ereneen ener nene eee 20
(3) WHT BAL (white balance) ...........................000r0rene nene nene rrerrearenenes 20
(3.1) ATW (Automatic Trace White Balance) mode menu ................... 20
(3.2) Changing the AWB (Automatic White Balance) mode setting... 20
(3.3) MANU (manual) mode menu ...................eeeeneneee eee 21
(4) PROCESS (Process) ...................eeeerenriieiiiner ere ene rre rare na rara nereranereanaceeceee. 22
(4.1) Changing the gamma correction ON/OFF .............................e.... 22
(4.2) Changing gamma correction level res 22
(4.3) Changing black gamma correction level .................................—.—.. 23
(4.4) Changing two-dimension low pass filter ..................—.................. 23
(4.5) Changing detail (outline) gain .................................. ie. ieeereeeeeeanees 23
(4.6) Changing detail boost frequency ......................... 2... EEEEG 23
(4.7) Changing master pedestal .............................. ie Dee 24
(5.1) INT SCFEEN ade EEE e erases ee eases seen 24
(5.2) Changing EXT setting .............................e mier een eee eee 24
(6) OPTION -..................—ereencoanerennenre renacer irene recen rreanenesneaneeeranareeeereeeenes 25
(6.1) Changing OUTPUT 1 output .......................... eee enero 25
(6.2) Changing OUTPUT 2 output ................. eee ee eee 25
(6.3) Changing Negative/Positive inversion switch 25
(6.4) Changing detail signal output ......................—...... e... ener ee 25
(6.5) Changing shading .....................eexvie eee eee eee eee eee, 26
(6.6) Changing G SYNC cout, 26
(7) Setting USER area ..................evremeii eee eres 26
(8) Setting to factory setting status .............................e..eee as 27
7.3 External Sync ................2eeeemnesiire e ne eee ee eases eee 27
(1) External sync signal input conditions .............................. naanenoooanane. 27
(2) External sync frequency range ....................ie2eeeeeeeree eres 28
(3) Using the camera with external sync signal................................e.... 28
(3.1) H (horizontal) phase adjustment ........................ e... es 28
(3.2) SC (Sub carrier) phase adjustment .........................eeeeeen 28
7.4 1 PULSE .............…..……corecreorecerenerienmenrenseerraneereranserran reee rana anne 28
7.5 Syncro. Scan Operation ...................eenee e eee eee arenero 29
(1) Setting by 1H................... e. secre inn ener eee enero. 29
(2) Setting by the frame ecco 29
8. CAUTIONS ON USE AND INSTALLATION -.................eeenerecnnerenenene reos 30
9. BEFORE MAKING A SERVICE CALL -..............2 eee eee eee 30
. -
°
(1) Camera head (without lens, protection cap attached) 1
(2) Camera control unit... cesse 1
(3) ACCESSOFIES area 1
(a) Instruction manual .................... 2... ee arar eee re rereereaareo ee 1
(b) Warranty card ..
2. SPECIFICATIONS
Power supply
DC12V +10%
Power consumption
7.4W
Pick-up system
RGB, 3 CCD, Micro prism system
Image sensor
1/3 inch IT-CCD
Effective pixels
Horizontal: 768 pixels, Vertical: 494 pixels
Scanning system
2:1 interlace
Scan frequency
Horizontal: 15.734kHz, Vertical: 59.94Hz
Sync system
Internal/External (automatic switching)
Horizontal resolution
750 TV lines
Sensitivity F8 (2000 Ix, 3000K)
Minimum ilumination 10 Ix. (F2.2, Sensitivity +18 dB, 3000K)
SN ratio 62 dB standard
Lens mount
C mount (flange back: 17.526 mm in-air)
Ambient operating
32 ~ 104°F ( 0 ~ 40°C)
temperature
Ambient humidity Less than 90%
Weight Camera head: Approx. 2.1 oz (60g),
Camera control unit: Approx. 1.48 Ibs (670g)
Camera head: 1.277 (W) x 1.57” (H) x 1.58” (D)
External dimension
(except for protruded
portions)
(32.5 (W) x 40 (H) x 40.2 (D) mm)
Camera control unit: 4.33” (W) x 1.57” (H) x 6.14” (D)
(110 (W) x 40 (H) x 156 (D) mm)
Scene file (user memories)
А, В, С
White balance
ATW (Automatic tracing white balance),
AWB (Automatic white balance), MANU (Manual)
Gain
AUTO (Automatic gain control),
MANU (Manual), NORM (0 dB)
Output signal
VBS: 75Q unbalanced, BNC connector, NTSC standard
Y/C: 75Q unbalanced, S terminal
RGB or Y/PR/PB: 756Q unbalanced, D sub 9 pin connector
VBS or Y/C: 75€Q2 unbalanced, D sub 9 pin connector
External sync input
VBS/BB: 75Q unbalanced, Sync negative BNC connector
SYNC 0.286V, Burst 0.286V
HD or VD: 2 ~ 5V(p-p) Negative
Sync signal output
SYNC: 2.5 + 1V(p-p), 75Q unbalanced
HD or VD: 5V V(p-p), Negative,
Loaf impedance: More than 10 kQ
1 pulse trigger
TRIGGER: L level: Less than 0.5V, H level: 4 - 5V, Positive
Index output:
INDEX: L level: Less than 0.5V, H level: 4 ~ 5V
Negative , Load impedance: More than 10 kQ
Remote interface: Serial data interface (RS-232C standard)
EXC-T406 (Camera cable 21°10” (6.5m))
EXC-T403 (Camera cable 9’ 9” (3m))
Option (Optional parts)
3. ITEMS CONTROLLED BY USING ON SCREEN DISPLAY
Preset value
Item Available selections (Factory
setting)
MODE AUTO, MANU, SS, 1 PULSE MANU
AUTO level -99 ~ 00 ~ 99 00
AUTO peak (average) | 00:10 ~ 05:05 ~ 10:00 05: 05
AUTO response speed | 01 ~ 05 ~ 10 05
© | AUTO area PRESET A, PRESET B, PRESET C, PRESET D,
5 USER PRESET A
с (USER area is possible to set in 64 zones.)
© | MANU speed OFF, 1/100s, 1/250s, 1/500s, 1/1000s, 1/2000s, OFF
с 1/4000s, 1/10000s
© | Syncro. FLD 001/525H ~ 260/525H, OFF, OFF
НН | scan 001FRM ~ 255FRM |
FRM 001/525H - 260/525H, OFF, —
001FRM - 256FRM
1 PULSE 0.06ms ~ 16ms 16ms
Storage mode FLD, FRM FLD
AUTO maximum gain 00 dB - 18 dB 09dB
mn Offset —10 - 00 - 10 00
= PRESET A, PRESET B, PRESET C, PRESET D,
< | Area USER PRESET A
(User area is possible to set in 64 zones.)
aia correction ON, OFF ON
Gamma correction level —10 - 00 - 10 00
Black gamma LOW, NORM, HIGH NORM
PE low pass ON, OFF OFF
Detail gain —5 (OFF) - 0-5 0
Detail boost frequency LOW, NORM, HIGH NORM
Master pedestal -50 ~ 00 ~ 50 00
0 H phase adjustment -99 ~ 00 ~ 99 00
XS| SC 0/180 0, 180 0
| SC phase adjustment | -99 ~ 00 ~ 99 00
1 RGB, Y/PR/PB RGB
OUTPUT 2 VBS, Y/C VBS
Negative/Positive NEGA, POSI POSI
Detail signal output ON, OFF OFF
Shading correction ON, OFF OFF
G SYNC ON, OFF ON
. a
4. NAMES AND FUNCTIONS
® Prism faceplate
@ Mounting screws
Li
Bottom
@ GAIN switch
DISPLAY button
MENU UP (SHD) button
(2s) (a}«;——@ DATA UP (AWB) button
DATA DOWN
of lo |
@ Lens mount (O) Cameracable terminal
Front Side Rear
W.B. switch
© FILE switch
POWER light
— —|— | —|— |
7 POWER LED o oler FILE WB. GAN a © (AWB)
MERA ON e Aw oS) ofS)
® Camera cable ZOO В ВВ: mos MENU DATA
terminal O7 „| САМ v [7
Manual WB controls
a À (ABB)
Jo.
y
7 a e —
@ GAIN adjustment
controls
(ABB) button
@ MENU DOWN button
O PAGE button
Front
O S-VIDEO terminal
@) DC IN/SYNC terminal TT
O RGB terminal
O IN 12V DC IN/SYNC S- VIDEO EXT SYNC VIDEO
@ EXT.SYNC terminal
@ VIDEO terminal
50006 6
HDD REMOTE
о . Pp Ce a a a -
7 Tr
@ REMOTE terminal
@ HD/VD switch
Rear
D Prism faceplate
@ Lens mount
(9 Camera cable terminal
@ Mounting screws
® None
O Camera cable terminal
© POWER LED
POWER switch
© FILE switch
W.B. switch
@ GAIN switch
@ Manual WB controls
© GAIN adjustment controls
DISPLAY button
(5 PAGE button
MENU UP (SHD) button
@ MENU DOWN button
DATA UP (AWB) button
DATA DOWN (ABB) button
@ DC IN 12V terminal
@ DC IN/SYNC terminal
@ S-VIDEO terminal
@ EXT. SYNC terminal
@ VIDEO terminal
69 RGB terminal
@ HD/VD switch
@ REMOTE terminal
The protection cap is attached on the lens mount por-
tion. After removing the cap, mount the lens. Be careful
not to scratch or touch the optical area.
C mount lens is mounted.
The camera cable is connected.
Screw holes to fix the camera head mount. (M3 depth of
camera section: 4mm)
The camera cable is connected.
Lights when the power is turned on.
Turns on or off the power supply.
Switch the scene files. (A/B/C)
Switch the white balance mode. (ATW/AWB/MANU)
Switch the gain mode. (AUTO/MANU/NORM)
Adjust R and B gains when the white balance switch
is set to MANU.
Adjust video signal gain when the gain switch @ is set to
MANU.
Used when switching the display.
Used when switching to the menu and when selecting
the menus.
Select the function to be confirmed or changed on the
menu. (Also used when performing the shading correc-
tion.)
Select to confirm the function or to change the menu.
Changes the value of the function selected by the MENU
(UP/DOWN) button. (Also used when using AWB.)
Changes the value of the function selected by the MENU
(UP/DOWN) button. (Also used when using ABB.)
Accept a DC power input (12V).
When DC IN 12V terminal @ is not used, accept DC12V
input. HD and VD signals are input/output. (The input/
output is switched by the HD/VD switch 69.) When 1 pulse
operation is used, the trigger signal is input and the in-
dex signal is output.
Outputs Y (luminance) and C (color) signals.
Used when the camera output signal is synchronized by
the external signal. (BNC connector)
VBS output. Connected to a monitor, VTR, etc. (BNC con-
nector)
Used as the connector terminal for Y/C or VBS output 2,
or A, RGB or Y/PR/Pg output, or SYNC output.
Switch put/output of HD, VD signals at DC IN/SYNC
terminal €).
Switch terminal resistor when HD and VD signals are
input.
Used when controlling functions of the camera by RS-
232C.
Coaxial
Lens - VIDEO cable 75Q
amera
Camera cable control unit DC IN 12V
(option) == — o
Camera .
head Monitor
DC power
supply
a
Power supply voltage:
Current rating:
Ripple voltage:
Connector:
obtained.
0.157” (4 mm).
|
When connecting the camera cables, be sure to turn off the camera control unit
and the other equipment connected.
For DC power supply connecting to DC IN 12V terminal, use UL listed and/or CSA
approved ungrounding type AC adaptor with the specifications described below.
DC12V + 10%
More than 830mA, less than 2.54
Less than 50mV(p-p)
HR10A-7P-4S by HIROSE electronics Co. Ltd.
Pins 1, 2: 12V
Pins 3, 4: GND
N
_
* We suggest to use a C mount lens for 3CCD camera.
When using other lens, the best camera performance of this camera may not be
(For example, low resolution may occur, focus may be lost through the range of
a zoom lens, and flare ghost shading may occur.)
Furthermore, in order to avoid damaging the mounting portion of the camera
head, use a lens which projection dimension from the mounting base is less than
Less than 0.157"
(4mm)
* |f the screw оп the camera connector portion of the camera cable looses, noise
may appear on the screen. So be sure to tighten the connector fully.
J
Back panel view
DC IN 12V DC IN/SYNC S-VIDEO EXT.SYNC VIDEO
4 3
10 03 о 0
ВСВ ‚DVD REMOTE
Ho
OA ооо Cueca) OO E (2000 E
VOTE о ООО
= | | pre
DC IN 12V DC IN/SYNC S-VIDEO
+ 1 GND
+12V 2 +12V
GND 3 GND (for INDEX)
GND 4 INDEX
5 GND (for HD)
6 HD (IN/OUT)
7 VD (IN/OUT)
8 GND (for TRIGGER)
9 TRIGGER
10 | GND
11 +12V
12 | GND (for VD)
RGB REMOTE
1 GND (for VBS, Y/C) 1 NC
2 GND for R/G/B, Y/Pr/Ps) 2 TXD
3 R/PR OUT 3 RXD
4 G/Y OUT 4 DSR
5 B/Ps OUT 5 GND
6 VBS/Y OUT 6 DTR
7 SYNC OUT 7 CTS
8 GND (for SYNC) 8 RTS
9 -/C OUT 9 NC
* When using the REMOTE terminal, please consult with your dealer.
6. OPERATION
@® Referring to the item “5. CONNECTION”, connect each equipment correctly.
O Turn on the connected equipment and the camera.
© When using the camera for the first time and when replacing the camera cable and the
camera head, be sure to operate the ABB adjustment in advance, referring to the item
“6.1 Automatic Black Balance”.
@ Facing the lens to the object, operate the lens iris adjustment, focus adjustment, etc.
® Referring to the item “6.2 White Balance”, operate the adjustment.
® Referring to the items “6.3 Scene File, 6.4 Gain, 7. MODE SETTING BY ON SCREEN
DISPLAY”, select the necessary items.
Black balance adjustment is necessary to get the correct black picture level.
* Close the lens iris.
Disable the color bar pattern or the character display by pushing the [DISP] button, if
necessary.
Hold the [DATA DOWN] button for approx. 1 second.
When the black balance adjustment operation starts, the character ABB blinks on the
screen.
When the black balance adjustment operation finishes, the character ABB ends blink-
ing and the result appears for approx. 1 second.
For the white balance adjustment for this camera, ATW (Automatic Trace White balance),
AWB (Automatic White Balance) and MANU (manual white balance) adjustments are pro-
vided. Select the desired mode by the [W.B.] switch.
Display Meaning
ABB OK Automatic black balance adjustment finishes correctly.
Automatic black balance adjustment cannot be performed
ABB NG bec the lens iris i
CLOSE LENS ecause the lens iris is open.
Close the lens iris.
ABB NG Automatic black balance adjustment cannot be performed.
Operate the automatic black balance again.
ATW AWB MANU
(Automatic Trace (Automatic White (Manual White
White balance) Balance) Balance)
Camera measures Adjust white Adjust the white
Outline
the object color
temperature and
adjust the white
balance automati-
cally .
balance by display-
ing the white object
inside the area set
by AWB menu and
pressing the [DATA
UP] button.
balance manually
using the white
balance adjustment
controls while
shooting the white
object.
ATW AWB MANU
(Automatic Trace (Automatic White (Manual White
White balance) Balance) Balance)
Traces variations of Measurement Artificial white
color temperature
and adjusts the
white balance
accuracy is higher
than ATW. This
mode is effective
balance setting can
be set. The manual
adjustment is most
Features automatically. when shooting effective under
under less variations | shooting condition
of color tempera- with no color
ture. temperature
variation.
If an illumination is When the shutter Adjustment is
low, white balance speed is of the 1 performed by
may not be cor- pulse mode, AWB is confirming with a
rected. When the not available. monitor or a vector
Notes shutter speed is in scope.
the 1 pulse or the
long period expo-
sure mode, ATW is
not available.
OD AWB
- Set [WB] switch to AWB.
* Disable the color bar pattern or the characters by pushing the [DISP] button, if nec-
essary.
* Shoot a known white object entirely in the area set by the AWB menu (refer to the
item “7.2 (3.2) (b) Changing AWB measurement light area”.) and push [DATA UP]
button for approx. 1 second.
« The character AWB blinks on the screen when the AWB starts.
* The character AWB ends blinking when the AWB finishes, and the result is dis-
played for approx. 1 second.
Display Meaning
AWB OK Automatic white balance adjustment finishes correctly.
Automatic white balance adjustment cannot be performed
AWB NG . .
because the video level is too high or too low.
LEVEL NG .
Set the video level properly.
Automatic white balance adjustment cannot be performed
AWB NG because the color temperature is too low.
C. TEMP LOW Change the illumination or use a color temperature conversion
filter.
Automatic white balance adjustment cannot be performed
AWB NG because the color temperature is too high.
C. TEMP HIGH Change the illumination or use the color temperature conver-
sion filter. |
AWB NG Automatic white balance adjustment cannot be performed
NOT AVAILABLE | because the shutter speed mode is 1 pulse mode.
Automatic white balance adjustment cannot be performed for
AWB NG other reasons. Such as no white area is included in an object,
etc.
1°
@ MANU
+ Set the [WB] switch to MANU.
» Shoot a known object, adjust the white balance using the white balance adjusting
controls with a screwdriver, confirming with a monitor or a vector scope.
Three scene files (A, B, C) are user memories for camera setup. These are selectable
depending on shooting conditions. By switching [FILE] switch, the camera operation is
changed immediately. (Refer to the item “7. MODE SETTING BY ON SCREEN DISPLAY.).
When the picture image is dark even if the lens iris is open, change the gain (video gain)
to get proper video level.
For the gain adjustment of the camera, AUTO (Automatic gain control), MANU (Manual),
NORM ( 0 dB) modes are provided. Select by the [GAIN] switch.
© AUTO
* When the output is low, the gain is automatically adjusted to a suitable video level.
* The maximum value of the gain is 18 dB, possible to be set within 0 - 18 dB in 1 dB
step. For the setting method, please refer to the item “7.2 Menus”.
* Measurement light area is same as the automatic shutter . (please refer to the item
7.2 (1.1) Changing each setting in AUTO mode”.)
@ MANU
* Gain adjustment is performed by the GAIN adjusting control.
The adjusting range is 0 dB to 18 dB.
* When confirming the gain value set, refer to the item “7.2 (2.2) MANU (manual)
mode menu”.
® NORM
Gain is fixed to 0 dB.
Due to the lens used or the environmental condition, color shading may occur at the
upper and lower side of the screen. In this case, the automatic shading correction can
decrease the color shading.
* Turn the SHADING on. When it is off, the automatic shading correction cannot be per-
formed. When changing the setting, refer to the item “7.2 (6.5) Changing shading”.
+ When the shutter speed mode is set to 1 PULSE or the long period exposure mode, the
automatic shading correction cannot be performed.
+ Disable the color bar and the characters by pushing the [DISP] button, if necessary.
* Push the [MENU UP] button for approx. 1 second.
* When the automatic shading correction operation starts, the character SHD blinks.
* When the automatic shading correction operation terminates, the character SHD ends
blinking and the result is displayed for approx. 1 second.
Display Meaning
SHD OK Automatic shading correction operation terminates correctly.
Automatic shading correction operation terminates.
However, the most proper value cannot be selected in the
SHD LIMIT correction value range. So the value is set to the most proper
value within the correction range.
Automatic shading correction cannot be performed because
SHD NG
the video level is too high or too low.
LEVEL NG
Set the video level properly.
SHD NG Automatic shading correction operation cannot be performed
NOT AVAILABLE because the shutter speed mode is the 1 pulse mode or the
long period exposure mode.
The automatic shading correction is effective when the lens iris or zoom ratio is fixed.
Use the camera with SHADING OFF for variable lens conditions.
. a
7. MODE SETTING BY ON SCREEN DISPLAY
Various settings can be controlled on the camera by using the on screen menu displayed
on the monitor. The contents once set are memorized in the scene files (A, B, C) selected,
so if the power turns off, it is unnecessary to set again when using the camera next time.
When the setting is performed, select the menu of the item to be set.
When the power turns on, the normal screen showing only the video signal appears.
Change the output to each screen (video signal output, color bar screen, Index menu,
menus, and area menu) by using the [DISP], [PAGE], [MENU UP], and [MENU DOWN]
buttons.
(A menu is selected when pushing the [PAGE] button after moving the “—” on the screen
by the [MENU UP], [MENU DOWN] button while the Index menu is displayed.)
POWER SW
ON
Video signal output
—eo9 —
Color bar screen Index menu
DATA
(057) UP/DOW
3.WHT BAL
4.PROCESS
DATA
UP/DOW The screen is changed to the area
screen by selecting AUTO in the 1.
Area SHUTTER menu and AWB in the 3.
menu WHT BAL menu in the setting screen
For more details, refer to the item "7.2
Each menu".
* Select the menu to change the setting by referring the item “7.1 Using the Menu”".)
* When the [MENU UP], [MENU DOWN] buttons are pushed, the “>” on the screen
moves up and down. Move the “>>” to the item to change.
(1) SHUTTER (Electronic shutter)
The electronic shutter has four modes; AUTO, MANU, SS (Syncro. Scan), 1 PULSE.
Move the “>” to one of the modes and push the [DATA UP], [DATA DOWN], and select
mode among
AUTO, MANU, SS, 1 PULSE.
AUTO<—>MANU<— SS<— 1PULSE
Г =)
AUTO:
MANU:
SS:
(Syncro Scan)
1 PULSE:
The exposure time is controlled automatically to obtain the video level set.
Possible to select the exposure time among eight kinds of speed; OFF (1/
60s), 1/100s, 1/250s, 1/500s, 1/1000s, 1/2000s, 1/4000s, 1/10000s.
Note:
When setting a rapid shutter speed, sensitivity degrades according
to the speed. When a discharging light such as fluorescent lamp,
etc. is used for the illumination, the flicker may be large.
Shutter speed can be set by the horizontal scanning time (1H) unit or by the
frame unit.
Outputs 1 field picture image by exposing the CCD immediately after the
trigger pulse is fed from an external circuit.
(1.1) Changing each setting in AUTO mode
Move up and Set by pushing
down by pushing DATA UP,
MENU UP, DOWN DOWN.
+
— * Shutter mode (AUTO, MANU, SS, 1PULSE)
_- * Automatic shutter level adjustment (-99 - 99)
— > MODE,
AREA
AREA
LEVEL 00
PEAK/ AVE 05:05 (01-10)
SPEED ET
1 EZ * Peak average ratio adjustment (00:10 - 10:00)
— | » Automatic shutter response speed adjustment
PRESET A 4— 4 ¢ Automatic shutter area selection
| DISP OFF PRESET A, PRESET B, PRESET C, PRESET D,
FLD/FRM FLD — USER
<
> « Automatic shutter area display selection
MODE = AUTO > » FLD/FRM SW (FLD, FRM)
(a) Changing the video level in the automatic shutter mode.
@ Set the “>” to LEVEL by pushing [MENU UP], [MENU DOWN] buttons.
@ Set the video level by pushing [DATA UP], [DATA DOWN] buttons.
—— The value increases by pushing [DATA UP].
—99 <----> 00 <----> 99
<— The value decreases by pushing [DATA DOWN].
(b)
(c)
(d)
(e)
(f)
Changing the automatic shutter detection
(ratio between peak and average value)
D Set the “>” to PEAK/AVE by pushing [MENU UP], [MENU DOWN] buttons.
O Set the ratio between peak and average value by pushing [DATA UP], [DATA DOWN]
buttons.
(Peak : Average value) ——> The peak value increases by pushing [DATA UP].
00:10 <----> 05:05 <----> 10:00
<— The peak value decreases by pushing [DATA DOWN].
Changing the automatic shutter response speed
D Set the “>” to SPEED by pushing [MENU UP], [MENU DOWN] buttons.
@ Set the response speed by pushing [DATA UP], [DATA DOWN] buttons.
—> The response speed becomes quick by pushing [DATA UP].
01 <---> 05 <---> 10
<— The response speed becomes slow by pushing [DATA DOWN].
Changing the automatic shutter zone area
( Set the “>” to AREA by pushing [MENU UP], [MENU DOWN] buttons.
O Set the measurement light area by pushing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
= PRESET AX PRESET BS PRESET C % PRESET D % USER
[DATA DOWN]
PO RO TT
i 1 i i
I O I Custom
| ı 1 I selection
| | 1 i
Lo — — — 1 L- — — = = mm 1 | — = = }
PRESET A PRESET B PRESET C PRESET D USER
Confirming the contents of the measurement light area selected
by the automatic shutter
( Set the “>” to AREA DISP by pushing [MENU UP], [MENU DOWN] buttons.
O Area screen appears by pushing [DATA UP], [DATA DOWN] buttons.
When AREA is set to USER, the setting can be changed on the area menu. When
changing the area, refer to the item “7.2 (7) Setting USER area”.
O Push the [DISP] button to return to the menu.
Changing the CCD storage mode
D Set the “>” to FLD/FRM by pushing [MENU UP], IMENU DOWN] buttons.
® Select either FLD (field) or FRM (frame) by pushing [DATA UP], [DATA DOWN]
buttons.
(1.2) Changing each setting in MANU mode
Move up and Set by pushing
down by pushing DATA UP
MENU UP, DOWN DOWN.
+ +
MODE A any+-—}+ * Shutter mode (AUTO, MANU, SS, 1PULSE)
MANU 1/100008<—f— + Shutter spdde setting
FLD/FRM A+ | OFF 11008: 12505, 1/500S, 1/10005,1/20008,
1/40005, 1/10000$
De FLD/FRM SW (FLD, FRM)
<MODE = MANU>
(a) Changing the shutter speed
D Set the “>” to MANU by pushing [MENU UP], [MENU DOWN] buttons.
@ Set the shutter speed by pushing [DATA UP], [DATA DOWN] buttons.
—— [DATA UP]
OFF $ 1/100841/250S $ 1/500S 4 1/1000S $ 1/20006 $ 1/4000S + 1/10000S
<— [DATA DOWN]
(b) Changing CCD storage mode
D Set the “>” to FLD/FRM by pushing [MENU UP], [MENU DOWN] buttons.
@ Select either FLD (field) or FRM (frame) by pushing [DATA UP], [DATA DOWN]
buttons.
(1.3) Changing each setting in SS (syncro. scan) mode
down by pushing DATA UP,
MENU UP, DOWN DOWN.
_— * Shutter mode (AUTO, MANU, SS, 1PULSE)
-- 1 SHUTTER -- LT * Syncro. scan setting
—> MODE ss ——| 001/525H
SYNCHRO SCAN OFF A
FLD/FRM FLD
V
260/525H
OFF
V
FLD: 001 FRM, FRM: 002FRM
<MODE = SS> N FLD: 255FRM'FRM: 256FRM
* FLD/FRM SW (FLD, FRM)
(a) Changing the shutter speed setting
© Set the “—" to SYNCHRO SCAN by pushing [MENU UP], [MENU DOWN] buttons.
O Select the shutter speed by pushing [DATA UP], [DATA DOWN] buttons.
—> [DATA UP]
001/525H<--> 260/525H<—>OFF <—> 001FRM<->255FRM at FLD
% [DATA DOWN] 002FRM 256FRM at FRM
Long time exposure
(b) Changing CCD storage mode
D Set the “—" to FLD/FRM by pushing [MENU UP], [MENU DOWN] buttons.
O Select either FLD (field) or FRM (frame) by pushing [DATA UP], [DATA DOWN]
buttons.
(1.4) Changing each setting in 1 PULSE mode
Move up and Set by pushing
down by pushing DATA UP
MENU UP, DOWN DOWN.
+ i
-- 1 SHUTTER —--
—»>MODE 1PULSE <——f— *« Shutter mode (AUTO, MANU, SS, 1PULSE)
EXPOSURE l6ómS<— — ——— . .
* IPULSE exposure time setting
(0.06mS - 16mS)
0.06mS - 0.38mS (0.02mS step)
0.4MS - 0.9mS (0.1mS step)
1mS ~ 16mS (1mS step)
<MODE = 1PULSE>
(a) Changing 1 PULSE exposure time setting
@ Set the “—" to EXPOSURE by pushing [MENU UP], [MENU DOWN] buttons.
O Set the exposure time by pushing [DATA UP], [DATA DOWN] buttons.
—> [DATA UP]
0.06mS<-> 0.33ImMmS< > 0.4mS <--->0.9mS <—>1mS<---->16mS
(0.02mS step) (0.1mS step) (1mS step)
<— [DATA DOWN]
(2) GAIN (Video gain)
Display the [GAIN] switch position.
AUTO <—> MANU <—> NORM
(2.1) Changing the maximum gain in AUTO (Automatic gain control) mode
Set by pushing
DATA UP,
DOWN.
море 3 САШО e ——t *[GAIN] switch position
> MAX GAIN 18dB<«——— + Automatic maximum gain setting
(0 - 18dB, 1dB step)
© Set by pushing [DATA UP], [DATA DOWN] buttons.
— > The gain increases by pushing [DATA UP].
00dB<---------------= >18dB
<—— The gain decreases by pushing [DATA DOWN].
(2.2) MANU (manual) mode menu
The GAIN set by the GAIN control is displayed . (Front panel)
(2.3) NORM (0 dB) mode menu
GAIN ----
NORM<——t— *[GAIN] switch position
(3) WHT BAL (white balance)
[W.B] (white balance) switch position is displayed.
ATW «<— AWB <— MANU
(3.1) ATW (Automatic Trace White Balance) mode menu
3 WHT
MODE
BAL
ATW «— ——
— *[W.B] Switch position
(3.2) Changing the AWB (Automatic White Balance) mode setting
Move up and
down by pushing
MENU UP, DOWN
Set by pushing
DATA UP,
DOWN.
A
I
— * [W.B] switch position
3 WHT
MODE
— >» OFFSET
AREA
AREA DISP
BAL —-- a
rw”
00
PRESET A
OFF ha
_ + AWB offset setting
+: Orange direction,
—: Cyan direction 10-10
> * AWB area
PRESET A, PRESET B, PRESET C, PRESET D,
USER
« AWB area display
(a) Changing AWB offset (tint)
@® Set the “>” to OFFSET by pushing [MENU UP], [MENU DOWN] buttons.
O Set the offset amount by pushing [DATA UP], [DATA DOWN] buttons.
—> Red increases by pushing [DATA UP].
—10 <----> 00 <----> 10
<— Blue increases by pushing [DATA DOWN].
(b) Changing AWB zone area
D Set the “—" to AREA by pushing [MENU UP], [MENU DOWN] buttons.
@ Select the area by pushing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
= PRESET A% PRESET B%$ PRESET C “$ PRESET D $ USER<-
[DATA DOWN]
Poe Roo a
I в I
I ı 1 I Custom
| I 1 I selection
I od I
- -— Lo — — — — md L-- = — |
PRESET A PRESET B PRESET C PRESET D USER
(c) Confirming the contents of the zone area
selected by AWB
D Set the “>” to AREA DISP by pushing [MENU UP], [MENU DOWN] buttons.
@ Set the screen to area display menu by pushing [DATA UP], [DATA DOWN] buttons.
When the AREA is set to USER, the AREA is set by the area display menu. When
setting the area, refer to the item “7.2 (7) Setting the USER area”.
(O Push the [DISP] button to return to the menu.
(3.3) MANU (manual) mode menu
-—- 3 WHT BAL —--
MODE MANU «+ ———t— * [IW.B] switch position
(4) PROCESS (Process)
Move up and Set by pushing
down by pushing DATA UP, .
MENU UP, DOWN DOWN. — * Gamma correction ON/OFF
4 1 Gamma correction level setting
(10 ~ 10)
-- 4 PROCESS 0 | « Black level gamma (LOW, NORM, HIGH)
—®» GAMMA ON/OFF ON
GAMMA 00 и
BLACK GAMMA NORM — * Two dimension low pass filter (ON/OFF)
2D LPF one" | | Detail aain setti
DTL CAIN 0 — —| etail gain setting
DTL B.FRO NORM<—— t— « Detail boost frequency setting
M. PED *>— | (LOW, NORM, HIGH)
* Master pedestal setting
(4.1) Changing the gamma correction ON/OFF
(OD Set the “>” to GAMMA ON/OFF by pushing [MENU UP], [MENU DOWN] buttons.
© Select either ON or OFF by pushing [DATA UP], [DATA DOWN] buttons.
When ON is selected, menu will show the GAMMA and BLACK GAMMA selec-
tions.
When OFF is selected, GAMMA, BLACK GAMMA, and 2D LPF disappear. So the
setting for GAMMA, BLACK GAMMA, and 2D LPF cannot be made. (2D LPF setting
turns OFF.)
Move up and Set by pushing
down by pushing DATA UP,
MENU UP, DOWN DOWN.
E ——
4 PROCESS o Gamma correction ON/OFF
GAMMA ON/OFF OFF . . . .
DTL GAIN 0«—— 4 * Detail gain setting
DTL B.FRQ NORM<4—————— « Detail boost frequency setting
M. PED Mess (LOW, NORM, HIGH)
> * Master pedestal setting
Menu when GAMMA OFF is selected.
(4.2) Changing gamma correction level
(D Set the “>” to GAMMA by pushing [MENU UP], [MENU DOWN] buttons.
@ Set the gamma correction level by pushing [DATA UP], [DATA DOWN] buttons.
—— Correction amount becomes large.
—10 <----> 00 <----> 10
<— Correction amount becomes small.
(When OFF is selected in GAMMA ON/OFF selection line, the display GAMMA
turns off automatically. So the gamma correction level change cannot be changed.)
(4.3) Changing black gamma correction level
© Set the “>” to BLACK GAMMA by pushing [MENU UP], [MENU DOWN] buttons.
@ Select black gamma correction by pushing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
= LOWSNORMS HIGH
[DATA DOWN]
(When OFF is selected in GAMMA ON/OFF selection line, the display GAMMA
turns off automatically. So the gamma correction level change cannot be changed.)
(4.4) Changing two-dimension low pass filter
@ Set the “—" to 2D LPF by pushing [MENU UP], [MENU DOWN] buttons.
@ Select either ON or OFF by pushing [DATA UP], [DATA DOWN] buttons.
When ON is selected, the cross color noise in VBS output is reduced.
Note:
Select OFF in step 2 described above when using signals other than the
VBS output.
When OFF is selected in the GAMMA ON/OFF line or when DTL OUT ON
is selected in the OPTION menu, the display 2D LPF turns off automati-
cally. So 2D LPF change cannot be performed. (2D LPF is set to OFF.)
(4.5) Changing detail (outline) gain
@ Set the “—” to DTL GAIN by pushing [MENU UP], [MENU DOWN] buttons.
O Set the detail gain by pushing [DATA UP], [DATA DOWN] buttons.
—> The detail increases by pushing [DATA UP].
—5B <----> 00 <----> 5
(DTL OFF)
<— The detail decreases by pushing [DATA DOWN].
(When DTL OUT ON is selected in OPTION menu, the display DTL GAIN turns off
automatically. So DTL GAIN change cannot be performed.)
(4.6) Changing detail boost frequency
(O Set the “>” to DTL B.FREQ by pushing [MENU UP], [MENU DOWN] buttons.
@ Set the detail boost frequency by pushing [DATA UP], [DATA DOWN] buttons.
[DATA UP]
— LOWSNORMS HIGH=
[DATA DOWN]
(4.7) Changing master pedestal
@ Set the “—" to M. PED by pushing [MENU UP], [MENU DOWN] buttons.
O Set the master pedestal by pushing [DATA UP], [DATA DOWN] buttons.
—> M.PED rises by pushing [DATA UP].
50 <----> 00 <----> 50
<—— M. PED decreases by pushing [DATA DOWN].
(When DTL OUT ON is selected in OPTION menu, the display M. PED turns off
automatically. So the M. PED change cannot be performed.)
Move up and Set by pushing Move up and
down by pushing DATA UP, down by pushing
MENU UP, DOWN DOWN. MENU UP, DOWN DOWN.
+ —— = ——
Set by pushing
DATA UP,
-- 4 PROCESS —-- -- 4 PROCESS --
—» GAMMA ON/OFF ON —> GAMMA ON/OFF OFF
GAMMA 00 DIL B.FRO NORM
BLACK GAMMA NORM
DTL B.FRO NORM
Menu when DTL OUT ON is selected in OPTION menu.
(5) SYNC (sync)
When an external sync signal is input, the display changes from INT (internal sync) to
EXT (external sync) automatically.
INT <=— EXT
(5.1) INT screen
---- 5 SYNC ----
MODE INT<— ——f— + Sync system display
(5.2) Changing EXT setting
Move up and Set by pushing
down by pushing DATA UP,
MENU UP, DOWN DOWN.
+ 1
---- 5 sync ----
MODE EXT
——H PHASE 00 — * Phase adjustment
SC 0/180 0 H PHASE -99 ~99
SC PHASE 00 SC 0/180 0, 180
SC PHASE -99 ~ 99
(a) Adjusting horizontal phase
( Set the “>” to H PHASE by pushing [MENU UP], [MENU DOWN] buttons.
@ Adjust the horizontal phase by pushing [DATA UP], [DATA DOWN] buttons.
— — > [DATA UP]
—99 <----> 00 <----> 99
<— [DATA DOWN]
(b) Performing coarse adjustment of sub carrier phase
@ Set the “>” to SC 0/180 by pushing [MENU UP], [MENU DOWN] buttons.
O Select either 0 or 180 by pushing [DATA UP], [DATA DOWN] buttons.
(c) Adjusting sub carrier phase
D Set the “>” to SC PHASE by pushing [MENU UP], [MENU DOWN] buttons.
@ Adjust the sub carrier phase by pushing [DATA UP], [DATA DOWN] buttons.
(6) OPTION
Move up and Set by pushing
down by pushing DATA UP,
MENU UP, DOWN DOWN.
+ Ns
|— * OUTPUT 1
--- 6 OPTION ---
> OUTPUTI pop TT * OUTPUT 2
OUTPUT VBS — * Nega/Posi inversion SW
NEGA/ POSI POST
SHADING N<——(— « Automatic shading correction ON/OFF
G SYNC ONe— |
— + G SYNC ON/OFF
(6.1) Changing OUTPUT 1 output
(D Set the “>” to OUTPUT 1 by pushing [MENU UP], [MENU DOWN] buttons.
@ Select either RGB or Y/PR/PB by pushing [DATA UP], [DATA DOWN] buttons.
When Y/PR/PB is selected, the display G SYNC turns off automatically. So G SYNC
change cannot be performed.
Move up and Set by pushing
down by pushing DATA UP,
MENU UP, DOWN DOWN.
= ——
--- 6 OPTION --- |-- * OUTPUT 1
> OUTPUTL Y /PR/PRA |. OUTPUT 2
OUTPUT? VBS 4— | . ,
NEGA / POST POSI— ——(— * Nega/Posi inversion SW
DTL OUT OE it DTL OUT ON/OFF
SHADING os |
— + Automatic shading correction ON/OFF
Menu when selecting Y/PR/PB
(6.2) Changing OUTPUT 2 output
( Set the “—" to OUTPUT 2 by pushing [MENU UP], [MENU DOWN] buttons.
@ Select either VBS or Y/C by pushing [DATA UP], [DATA DOWN] buttons.
(6.3) Changing Negative/Positive inversion switch
@ Set the “—" to NEGA/POSI by pushing [MENU UP], [MENU DOWN] buttons.
@ Select either NEGA (negative) or POSI (positive) by pushing [DATA UP], [DATA
DOWN] buttons.
(6.4) Changing detail signal output
D Set the “>” to DTL OUT by pushing [MENU UP], [MENU DOWN] buttons.
O Select either ON (detail signal only is output) or OFF (video signal) by pushing
[DATA UP], [DATA DOWN] buttons.
(6.5) Changing shading
( Set the “>” to SHADING by pushing [MENU UP], [MENU DOWN] buttons.
O Select either ON or OFF by pushing [DATA UP], [DATA DOWN] buttons.
When ON is selected, the automatic shading correction can be performed by [MENU
UP] button. When performing the automatic shading correction, refer to the item
“6.5 Shading Correction”. (Page 12)
(6.6) Changing G SYNC
D Set the “>” to G SYNC by pushing [MENU UP], [MENU DOWN] buttons.
@ Select either ON or OFF by pushing [DATA UP], [DATA DOWN] buttons.
(When Y/Pr/Pp is selecd, G SYNC disappears.)
(7) Setting USER area
- When USER is selected for the AREA of the automatic shutter or for AWB, the light
measurement zones can be changed.
* The USER area is composed of 64 zones with 8 (vertical) x 8 (horizontal) areas, and
each area can be set to ON/OFF.
© Set the output to area menu.
Set the output to the area menu by referring to the item “7.2 (1.1) (e) Confirming the
contents of the measurement light area selected by automatic shutter” and “7.2 (3.2)
(c) Confirming the contents of the zone area selected by AWB”.
2e
® Move the “0” to the zone to be appeared.
The display “0” moves up, down, left and right by pushing [MENU UP], [MENU DOWN],
[DATA UP], [DATA DOWN] buttons.
[MENU UP]
©
f
[DATA DOWN] O+—— O —O [DATA UP]
[MENU DOWN]
® Select ON/OFF for the zone.
Select ON (effective) or OFF (ineffective) by pushing [PAGE] button.
When ON is selected, the display “[ 7” appears on the screen and when OFF is se-
lected, “[ ]” turns off.
@ Push [DISP] button to return to the menu.
Note:
When OFF is selected for all 64 division areas, the automatic shutter func-
tion and AWB function are not performed correctly. So do not select OFF for
all.
(8) Setting to factory setting status
The content set can be returned to the factory default status (preset status) for each file.
@ Select a file to set to the factory default status by [FILE] switch.
O Disable the color bar display and the characters by pushing [DISP] button, if nec-
essary.
© Push [MENU DOWN] and [DATA DOWN] buttons simultaneously for approx. 1
second.
@ When the preset operation starts, the character PRESET blinks.
® When the preset operation finishes, the character PRESET disappears.
When using the camera with an external sync signal, input VBS (composite video signal)
or BB (Black Burst) to “EXT. SYNC” terminal on the rear of the camera control unit, or
input HD and VD to DC IN/SYNC terminal. When the external sync signal is input, the
camera automatically switches its sync from the internal sync to the external sync. When
inputting HD and VD, set the HD/VD switch on the rear of the camera control unit to IN.
(1) External sync signal input conditions
VB, BB : SYNC section 0.286 + 0.1V
(75Q unbalanced) Burst section 0.286 + 0.1V
HD : 2 ~5V(p-p) Negative
VD : 2 ~5V(p-p) Negative
(2) External sync frequency range
For NTSC standard frequency: Within +50ppm
(3) Using the camera with external sync signal
Adjust H (horizontal) phase and SC (sub carrier) phase if necessary to match the output of
multiple cameras. When adjusting H (horizontal) phase and SC (sub carrier) phase, refer
to the item “7.2 (5.2) Changing EXT setting”.
(3.1) H (horizontal) phase adjustment Ext |
Observe the external sync signal and the video A, sync. signal
signal output waveform of the camera with a dual
trace oscilloscope, and adjust H phase so that the Match :
H phase matches. the phase. :
Camera
(3.2) SC (Sub carrier) phase adjustment Ah, video output
When using the camera with external sync, the
sub carrier signal phase of the video output signal of the camera can be adjusted. Per-
form a coarse adjustment for 0° and 180° in SC 0/180 and then perform a fine adjustment
in SC PHASE. Using a vector scope for the phase adjustment will provide more accuracy.
Single exposure of the CCD is controlled when inputting the trigger pulse (TRIGGER)
from DC IN/SYNC terminal and then output 1 field picture image.
Trigger pulse level: Low Level : less than 0.5V, High level: 4 ~ 5V
Trigger signal fetch timing : Rising period
Trigger pulse width : More than 2 us
Trigger pulse interval : More than 50 ps
Trigger pulse input impedance : More than 15 kQ
(Time from trigger pulse input to start of electric charge: Within 2ps)
+5V
15k Q
1kQ
Trigger input
TC4S584F
1 PULSE operation timing chart
* When the exposure period is within SYNC interval.
Trigger pulse I
(Trigger) kK> Exposure period
Video output AA —
Index output Н: 4 = Бу
(INDEX) | |
L: Less than 0.5V
* When the exposure period is over SYNC interval.
Trigger pulse |
(Trigger) <> Exposure period
Video output 11 2 —
Index output
(INDEX) | | H:4-5V
L: Less than 0.5V
The shutter speed can be set by the horizontal scanning period (1H) or by the frame. Also,
CCD integration mode can be set.
(1) Setting by 1H
260/525H - 001/525H stands for the setting by the 1H and the shutter speed can be set by
the 1H (63.565). This function is used for flicker reduction when shooting non-synchro-
nous sources such as VGA monitors.
(2) Setting by the frame
001FRM ~ 255FRM (at field storage) and 002FRM ~ 256FRM (at frame storage) stand for
the setting (long period exposure) by the frame.
(a) Field storage period
The video signal stored during the frame period set is output as 1 field video image at
a frame interval specified.
Video signal — МА, || 1 A
Index output H:4-5V
(INDEX) LL dd L: Less than 0.5V
(at 2FRM setting)
(b) Frame storage period
The video signal stored during the frame period set is output as 1 frame video image
in a frame interval.
Video signal AZ, | 7 ZA
Index output H: 4 ~5V
(INDEX) L L: Less than 0.5V
(at 2FRM setting)
9. BEFORE MAKING A SERVICE CALL
Carefully handle the units.
Do not drop or give a strong shock or vibra-
tion to the camera. This may cause prob-
lems. Treat the camera cables carefully to
prevent cable problems such as cable break-
down and loosened connections.
Do not shoot intense light.
If there is an intense light at a location on
the screen such as a spot light, a blooming
and smearing may occur.
Do not aim the camera at the sun. If an in-
tense light enters, vertical stripes may ap-
pear on the screen.
Lens treatment.
Do not look at the sun through the lens.
Handling of the camera head and pro-
tection cap.
Keep the camera head and the protection cap
away from children. Children may put them
into mouth or swallow them accidentally.
The protection cap protects the image sens-
ing plane when the lens is removed from the
camera head, do not throw away.
Do not touch internal parts.
Tampering with the internal parts may cause
operation failure or injury.
Operating ambient temperature and hu-
midity.
Do not use the camera in places where tem-
perature and humidity exceed the specifica-
tions. Picture quality will lower and internal
parts may be damaged.
Do not splash water.
Install the camera in a location free from
water splash. If splashed, turn off the cam-
era power switch and stop supplying
power, then consult with your dealer.
Install the camera in a location free
from noise.
If the camera or the cables are located near
power utility lines or a TV, etc. undesirable
noise may appear on the screen. In such a
case, try to change the location of the cam-
era or the cable wiring.
When not using the camera for a long-
time.
Turn off the camera power switch and stop
supplying power.
Should you notice any trouble.
If an abnormality occurs such as no picture
obtained, turn the camera power switch off
and stop supplying power, then consult
with the dealer. Using the camera without
checking the cause of the trouble may lead
to further damage or unexpected accident.
When cleaning the camera
Always turn off the power and make a
cleaning with a piece of dry cloth. If neces-
sary, gently wipe with a cloth dampened
with thinned detergent. Do not use benzine,
alcohol, thinner, etc. If used, coating and
printed letters may be discolored. When
cleaning the lens, use a lens cleaning pa-
per, etc.
Symptom
Items to be checked
No picture * Is the power supplied correctly?
* Is the lens iris adjusted correctly?
* Are the cables connected correctly?
* Is the shutter mode set correctly?
Poor color * Is the monitor (TV) adjusted correctly?
* Is the white balance of the camera adjusted correctly?
(in modes other than automatic trace)
* Is the illumination dark?
* Is the SC phase adjusted correctly? (External sync)
Noise appears * Is the camera connector of the camera cable loosened?
30
10. EXTERNAL APPEARANCE DIAGRAM
Unit: mm [inch]
© 20
“1e 10.797]
И Y
— И
olin 2-M3
y = 0 screw
11 156
[0.43] 7 [6.14]
[0.28]
OPOWEFFILE we GAIN DISP (SHD) (AWB)
EE 08%
© 514 4 298
LV
| al
— a _-
py д TT р 7
<
wl® | 3
“e ©
22
о
22 22 22
БУ\С
NO.4-40UNC
O
a 0, 60 оо bo
O O
JE Y 099009 ооо
Nl о о oO oO
— hand O oO O oO
E 24 24 | J do DO 20908
ee 094] 1094] 090009 09000
о O O o
o о
11.8
[0.46]
31

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
