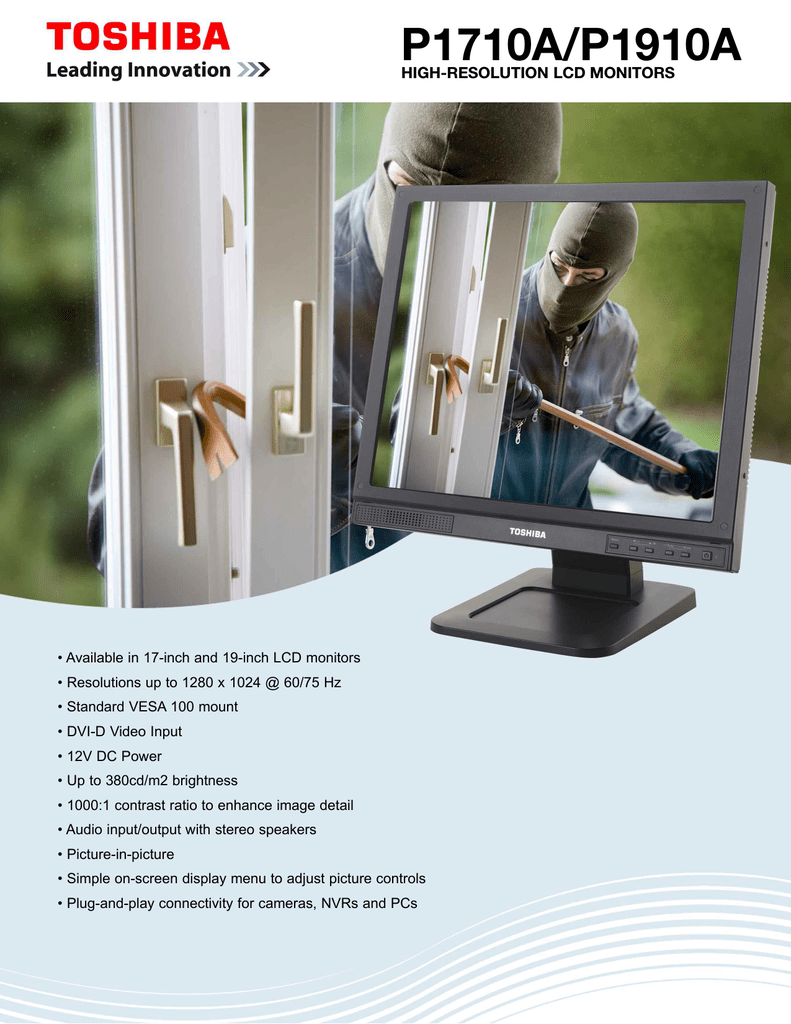

P1710A/P1910A
HIGH-RESOLUTION LCD MONITORS
• Available in 17-inch and 19-inch LCD monitors
• Resolutions up to 1280 x 1024 @ 60/75 Hz
• Standard VESA 100 mount
• DVI-D Video Input
• 12V DC Power
• Up to 380cd/m2 brightness
• 1000:1 contrast ratio to enhance image detail
• Audio input/output with stereo speakers
• Picture-in-picture
• Simple on-screen display menu to adjust picture controls
• Plug-and-play connectivity for cameras, NVRs and PCs
P1710A/P1910A
MODEL NUMBER
Panel Size
Aspect Ratio
Resolution / Scan
P1710A
17.0”
5:4
P1910A
19.0”
5:4
640 x 480 @ 60/73/75
800 x 600 @ 56/60/72/75
1024 x 768 @ 60/70/75
1280 x 1024 @ 60/75
Brightness
Contrast
Panel Viewing Angle (H/V)
Response Time
Display color
Sync. Format
Frequency (Horizontal)
Frequency (Vertical)
Interfaces
Video Interface
Termination
Graphic Interface
Audio Interface
Built-in Speakers
PIP (Picture in Picture)
OSD Language
VESA Mounting
Weight
Dimensions (W x H x D)
Safety & EMI
Power supply
Current Consumption (max.)
Temp (Oper.)
Humidity
Accessories
High Resolution LCD Monitors
380cd/m2 (Typ.)
250cd/m2 (Typ.)
1000:1 (Typ.)
170° / 170° (Typ.)
5ms (Typ.)
16.7M
NTSC / PAL
VGA/DVI: 31.5K - 80KHz,
Video: 15750 / 15625Hz (NTSC/ PAL)
VGA/DVI: 56Hz -75Hz, --Video: 50 / 60Hz
Video Input x 2 (BNC), Video Output x 2 (BNC)
75 ohm (Auto Termination)
Analog RGB Input x 1 (D-Sub 15), Digital RGB (DVI-D) Input x 1
Audio Input x 1, Audio Output (volume engaged) x 1
1W x 1
Yes
English, Traditional Chinese, Simplified Chinese,French, German, Spanish, Italian
VESA 100
10.2lb (4.6kg)
10.9lb (4.8kg)
15.2 x 16.0 x 9.4 inch (386 x 407 x 240 mm)
16.7 x 17.2 x 9.4 inch (424 x 437 x 240 mm)
AC adapter: UL, CUL, FCC/B, Monitor: FCC/B
12V DC ± 10 %
12V DC / 3A
12V DC / 2A
32° F – 104° F (0° C-40° C)
20% ~ 80%
Pedestal, AC Adapter, Power cord, VGA cable, User’s Manual
