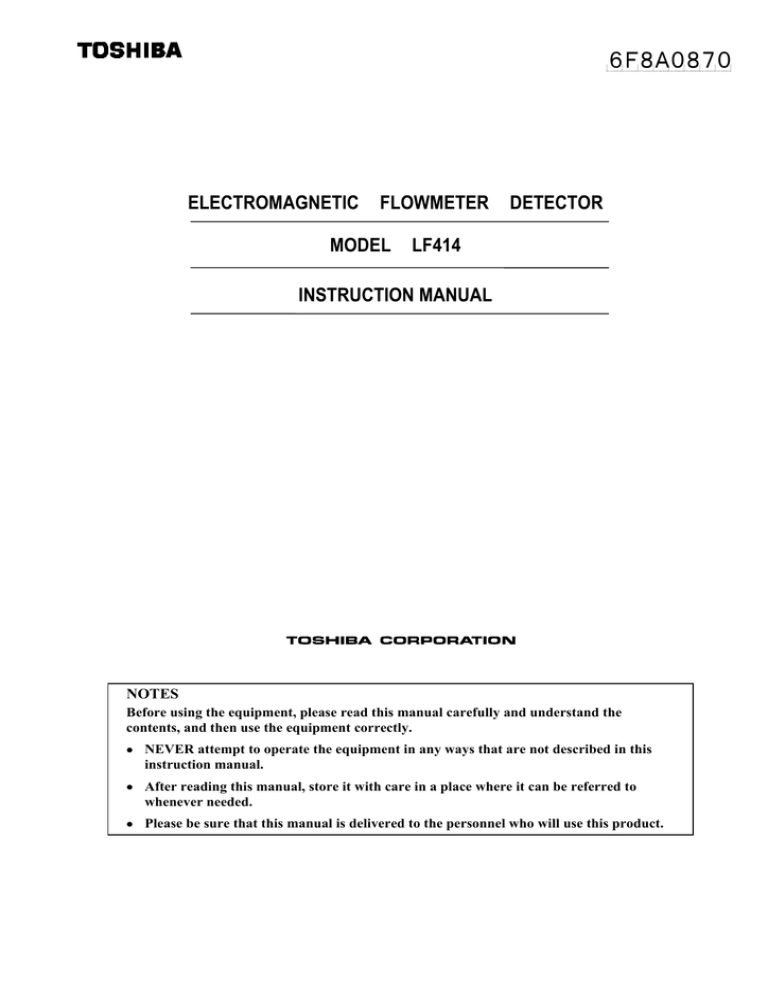

ELECTROMAGNETIC FLOWMETER DETECTOR

MODEL LF414

６Ｆ８Ａ０８７０

INSTRUCTION MANUAL

NOTES

Before using the equipment, please read this manual carefully and understand the contents, and then use the equipment correctly.

• NEVER attempt to operate the equipment in any ways that are not described in this

instruction manual.

• After reading this manual, store it with care in a place where it can be referred to

whenever needed.

• Please be sure that this manual is delivered to the personnel who will use this product.

６Ｆ８Ａ０８７０

NOTICE

We thank you very much for your purchase of our LF414 series electromagnetic flowmeter detector.

Integral type LF414/LF600F, LF414/LF610F

Separate type detector LF414

This instruction manual describes the notes on using an electromagnetic flowmeter detector, installation, configuration and maintenance. It is intended for the personnel in charge of installation, operation and maintenance.

To use this product properly and safely, read this manual (6F8A0870) carefully before using this product. After reading this manual, store it in a place where it can be referred to whenever needed.

This manual uses the following markers to identify the integral type or separate type when it describes items specific to the integrated type or separate type. Items without this marker are common items to the integral type and separate type.

Integral type LF414/LF600F, LF414/LF610F:

Integral

Separate type detector LF414:

Separate

Toshiba LF414 electromagnetic flowmeter detectors can be used in combination with various types of electromagnetic flowmeter converters (LF600F, LF610F, LF602F and LF612F).

For the notes on usage, connecting, wiring, installation, configuration and maintenance of the combined converter, check the model number of the combined converter and read the instruction

manual of the relevant converter.

About Safety Precautions

Read the Safety Precautions described at the front carefully and understand the contents before using this product.

The “Safely symbols” used in the “Safety Precautions” are shown in a location such as in the margin to the left of the corresponding commentary in the main text.

NOTES

1. The reproduction of the contents of this Manual in any form, whether wholly or in part, is not permitted without explicit prior consent and approval.

2. The information contained in this Manual is subject to change or review without prior notice.

3. Be sure to follow all safety, operating and handling precautions described in this

Manual and the regulations in force in the country in which this product is to be used.

5th Edition Apr, 2008

First Edition September, 2005

－ １ －

６Ｆ８Ａ０８７０

SAFETY PRECAUTIONS

Safety signs and labels affixed to the product and/or described in this manual give important information for using the product safely. They help prevent damage to property and obviate hazards for persons using the product.

Make yourself familiar with signal words and symbols used for safety signs and labels. Then read the safety precautions that follow to prevent an accident involving personal injury, death or damage to property.

Explanation of signal words

The signal word or words are used to designate a degree or level of hazard seriousness.

The signal words used for the product described in this manual are WARNING and CAUTION.

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor to moderate injuries or in property damage.

Safety symbols

The following symbols are used in safety signs and labels affixed to a product and/or in the manual for giving safety instructions.

Indicates an action that is prohibited. Simply DON’T do this action.

The prohibited action is indicated by a picture or text inside or next to the circle

Indicates an action that is mandatory. DO this action.

The mandatory action is indicated by a picture or text inside or next to the circle.

Indicates a potential hazard. The potentially hazardous situation is indicated by a picture or text inside or next to the triangle.

－ ２ －

SAFETY PRECAUTIONS

Safety Precautions for Installation and Wiring

WARNING

„ Do not disconnect while circuit is live unless location is known to be nonhazardous.

６Ｆ８Ａ０８７０

DON

’T

Live part of electric circuit or a high temperature department can cause explosion.

„ Do not modify or disassemble the enclosure.

DON

’T

Strength degradation and defects of enclosure can cause explosion.

„ Do not use parts of other products.

DON

’T

Protective performance degradation for hazardous location can cause explosion.

„ Do not touch live circuits until assembly of all components is not over.

DON

’T

Protective performance degradation for hazardous location can cause explosion.

„ Install per the National Electrical Code for the US (NEC, ANSI/NFPA 70) and the

Canadian Electrical code for Canada (CEC, CAN/CSA-C22.1) and the drawing

3S8A2532,3S8A2533 (Refer to Appendix 1.).

DO

Unsuitable conduit connections for hazardous location can cause explosion.

－ ３ －

６Ｆ８Ａ０８７０

SAFETY PRECAUTIONS (continued)

Safety Precautions for Installation and Wiring

„ Install a switch and fuse to isolate the

CAUTION

„ Use an appropriate device to carry and install the LF414/LF600F, LF610F and LF414. LF414/LF600F, LF610F and LF414 from mains power.

Power supply from mains power can cause electric shock or

circuit break-down.

DO

„ Turn off mains power before conducting wiring work.

Wiring while power is applied

If this product falls to the ground, injury, or malfunction of or damage

DO

to the product, can be caused.

„ Do not modify or disassemble the

LF414/LF600F, LF610F and LF414 unnecessarily.

Modifying or disassembling this can cause electric shock.

DO

„ Turn off mains power before working on pipes.

Working on pipes while power is applied can cause

electric shock.

DO

„ Do not conduct wiring work with bare

hands.

DON’T

product can cause

electric shock,

malfunction of or

damage to this product.

„ Ground the LF414/LF600F, LF610Fand LF414

independently from power equipment.

(100 ohm or less ground resistance)

DO

Operating this product without grounding can cause

electric shock or malfunction.

Use crimped terminal lugs for the terminal board and GND terminal.

DON’T

Remaining electric charge even if power is turned off can still cause electric shock.

„ Do not work on piping and wiring with wet

hands.

DO

Loose connections can cause

electric shock, fire from

excessive current or system

malfunction.

Wet hands may result in

electric shock.

DON’T

The label shown left is placed near the terminal board for power supply on the converter.

(A black border and symbol on yellow triangle)

Be alert to electric shock.

－ ４ －

６Ｆ８Ａ０８７０

SAFETY PRECAUTIONS (continued)

Safety Precautions for Maintenance and Inspection

CAUTION

„ Do not conduct wiring work with wet hands. „ Do not conduct wiring work when power is

applied.

Wet hands may result in

electric shock.

DON’T

„ Do not use a fuse other than the one

specified.

DON’T

Using a fuse other than the one specified can cause system

failure, damage or malfunction.

Wiring while power is applied can cause electric shock.

DON’T

„ Do not touch the LF414/LF600F, LF610F and

LF414 main body when high temperature

fluid is being measured.

The fluid raises the main body

DON’T

temperature and can cause burns when touched.

Use a rated fuse as follows:

Fuse rating:

• 1A/250V for 100 to 240Vac or 110Vdc

• 2A/150V for 24 Vdc

Dimensions: Diameter 5 mm × 20 mm

Melting time characteristic: Medium Acting

(Normal blow)

The label shown left is placed near the terminal board for power input of the converter. (A black border and symbol on yellow triangle)

Be alert to electric shock.

Usage limitation

This product is not manufactured for applying to a system requiring safety directly involved

human life as follows. Please contact your nearest Toshiba reprehensive if there is a possibility of using this product for such use.

- Main control systems of nuclear power plants, safety protection systems in nuclear

facilities or other important systems requiring safety

- Medical control systems relating to life support

Warranty and Limitation of Liability

Toshiba does not accept liability for any damage or loss, material or personal, caused as a direct or indirect result of the operation of this product in connection with, or due to, the occurrence of any event of force majeure (including fire or earthquake) or the misuse of this product, whether intentional or accidental.

－ ５ －

Handling Precautions

６Ｆ８Ａ０８７０

To obtain the optimum performance from the LF600F, LF610F, LF602F and LF612F converter for years of continuous operation, observe the following precautions.

(1) Do not store or install the flowmeter in:

・

Places where there is direct sunlight.

・Places where there is snow and ice

Infrared switches may not function correctly.

・Places where excessive vibration or mechanical shock occurs.

・Places where high temperature or high humidity conditions obtain.

・Places where corrosive atmospheres exist.

・Places submerged under water.

・Places where there is a sloped floor.

To put the flowmeter temporarily on the floor,

place it carefully with something, such as a block, to support it so that the flowmeter

will not topple over.

・

Places where there is following factors.

Factors to impede infrared switch to operate properly

・Intense light such as direct sunlight and reflected sunlight by window glass or metal plate

・Place where brightness changes suddenly such as ON/OFF of lighting

・Dense smoke or steam near the control panel

・Those attached on the control panel such as rain (dew drop), snow, ice, mud and oil, and haze due to their attachment

・Light reflecting object near the control panel, or reflecting object such as metal plate placed opposing to the control panel

When any of above factors is considered, take a measure for the proper operation of infrared switch such as to place a cover or to secure a space for at least a person to stand in front of the control panel.

When unable to avoid above factors, operate the EMF converter removing the factor by covering the control panel by hand so that light does not shine on it, by cleaning those attached on the control panel, or by standing in-between the reflecting object and the control panel to block the light.

(2) Wire cables correctly and securely.

Be sure to ground at the converter side (grounding resistance 100Ω or less).

Avoid a common ground used with other equipment where earth current may flow. An

independent ground is preferable

(3) Select cable paths away from electrical equipment (motors, transformers, or radio transmitters), which causes electromagnetic or electrostatic interference.

(4) The apparatus should not be provided with the cable connections.

Please prepare yourself for the cable connections which could be used in Division2 hazardous locations.

The cable lead-in section must be tightened securely to keep air tightness.

－ ６ －

６Ｆ８Ａ０８７０

Handling Precautions (continued)

(5) If the inside of the converter and detector's terminal box are wetted or humidified, it may cause insulation deterioration, which can result in fault or noise occurrence. So do not conduct wiring in the open air on rainy days.

Also, be careful not to wet down the converter and detector's terminal box even in the case of indoor wiring, and complete wiring work in a short period of time.

(6) Observe the following precautions when you open the converter housing cover:

• Do not open the cover in the open air unprotected against rain or wind. This can cause electric

shock

or cause

damage to the

flowmeter electronics.

•

Do not open the cover under high ambient temperature or high humidity

conditions or in corrosive atmospheres. This can cause deterioration of system

accuracy or cause damage to the flowmeter electronics.

(7) Since a varistor is built in converter, do not conduct a withstand voltage test for the

converter.

In addition, the voltage for checking the insulation of the converter must be 250VDC

or lower.

(8) This product may cause interference to radio and television sets if they are used near the installation site. Use metal conduits etc. for cables to prevent this interference.

(9) Radio transmitters such as transceivers or cellular phones may cause interference to the flowmeter if they are used near the installation site. Observe the following precautions when using them:

• Close a transmitter cover before using a transceiver.

•

Do not use a transceiver whose output power is more than 5 W.

•

Move the antenna of a transceiver or a cellular phone at least 50 cm away from the flowmeter and signal cables when using it.

• Do not use a radio transmitter or a cellular phone near the flowmeter while it is operating online. The transmitter or cellular phone’s output impulse noise may interfere with the flowmeter.

• Do not install a radio transmitter antenna near the flowmeter and signal cables.

(10) For reasons of flowmeter failure, inappropriate parameters, unsuitable cable connections or poor installation conditions, the flowmeter may not operate properly. To prevent any of these problems causing a system failure, it is recommended that you

have preventive measures designed and installed on the flowmeter signal receiving

side.

(11) For installation and connection of the converter, check the model number of

converter and read the instruction manual of the relevant converter.

* We assume no responsibility for nonconformity caused by violation of precautions described in this manual or used in violation of the installation method and the operation method stipulated in a relevant ordinance or other regulations.

－ ７ －

６Ｆ８Ａ０８７０

Table of Contents

SAFETY PRECAUTIONS ····················································································· 2

Handling Precautions ······························································································ 6

1. Product Inspection and Storage ······································································ 9

1.1 Product Inspection ······················································································· 9

1.2 Storage ········································································································ 9

2. Overview ·········································································································· 10

3. Names of Parts ································································································· 11

4. Installation ······································································································· 20

4.1 Notes on Selecting the Installation Location ············································· 21

4.2 Mounting Procedure ···················································································· 21

4.3 Piping Connections ··················································································· 25

4.4 Grounding ································································································· 28

5. Wiring ·············································································································· 30

5.1 Cables ········································································································ 31

5.2 External Device Connections and Grounding ············································ 32

5.3 Notes on Wiring ······················································································ 32

5.4 Wiring ····································································································· 33

6. Operation ········································································································· 36

7. Maintenance and Troubleshooting ································································· 37

7.1 Maintenance ······························································································ 38

7.2 Troubleshooting ························································································ 39

8. Principle of Operation ··················································································· 42

9. Specifications ·································································································· 43

9.1 Flowmeter Specifications ··········································································· 43

9.2 Type Specification Code ············································································ 46

10. Outline Dimensions ························································································· 48

Appendix 1 (A system block diagram) ································································· 52

－ ８ －

６Ｆ８Ａ０８７０

1. Product Inspection and Storage

1.1 Product Inspection

LF414 series electromagnetic flowmeter is shipped in a cardboard container filled with shock-absorbing materials. Open the package carefully and check as follows:

„ Make sure the following items are included in the package.

For the integral type (when a converter and detector are united)

Electromagnetic flowmeter main unit --------------------------------- 1 unit

Instruction manual---------------- One each for the converter and detector

Integral

For the separate type (when a converter and detector are separated)

Separate

Electromagnetic flowmeter converter---------------------------------- 1 unit

Electromagnetic flowmeter detector ----------------------------------- 1 unit

Instruction manual---------------Once each for the converter and detector

„ Inspect the flowmeter for indications of damage that may have occurred during shipment.

„ Make sure the type and specifications of the flowmeter are in accordance with the ordered

specifications.

If you cannot find the items listed above or any problem exists, contact your nearest Toshiba representative.

1.2 Strage

To store the electromagnetic flowmeter after opening the package, select a storing place as follows and keep it under the conditions described below:

CAUTION

(1) Avoid places where there is direct sunlight, rain or wind.

(2) Store the product in a well-ventilated place. Avoid places of extremely high humidity or

extremely high or low temperature. The following environment is recommended:

•

Humidity range: 10 to 90% RH (no condensation)

•

Storage temperature: –25 to +65° C

(3) Avoid places where vibrations or mechanical shock occur.

(4) If the cover of the converter is left open while being stored, gradual deterioration of circuit isolation can be caused. Therefore don’t open the cover until it is connected with wires.

(5) To put the flowmeter temporarily on the floor, place it carefully with something, such as

block orstopper, to support it so that the flowmeter will not topple over.

－ ９ －

６Ｆ８Ａ０８７０

2. Overview

The LF414/LF600F, LF414/LF610F and LF414 electromagnetic flowmeter can be use in the following hazardous (classified) locations.

ClassⅠ, Division 2, Groups A, B, C and D,

ClassⅡ, Division 2, Groups E, F and G

ClassⅢ

This product is a converter used for electromagnetic flowmeters that measure the volumetric flow rate of conductive fluid using Faraday's law of electromagnetic induction.

You can bring out the functions of the converter when you place it in the converter housing you prepare and use it in combination with a fluid rate measurement detector.

The converter sends out a signal to drive the detector excitation coil, which generates a magnetic field inside the detector. The converter receives the signal electromotive force obtained by the detector. The signal electromotive force is proportional to the generated flow rate in the fluid using Faraday's law of electromagnetic induction. After carrying out its operation, the converter converts the signal electromotive force to an analog signal output and displays the status, as a flow rate value.

Features

With a linear relationship between the flow rate and output signal, the electromagnetic flowmeter is used as an easy-to-read indicator. In addition to this feature, it has the following outstanding features:

(1) Wide flow velocity range setting, such as a flow velocity range of 0~0.1 and 0~10m/s, is achieved.

(2) The unique Noise Sentry filter circuit enables you to obtain stable output automatically.

(3) Full graphic LCD that enables display of a large amount of information

With a large amount of a maximum of 14 characters x 8 lines, you can easily set up various displays including bar graphs and alarm indications.

The backlight display allows you to read the indicator easily.

(4) Use of infrared switches

Use of infrared switches allows you to perform various operations, without opening the converter housing cover.

(5) Intelligent functions

The widely used HART protocol communications system is used as a standard feature.

This product supports PROFIBUS

*2

communication (optionally available).

* 1 HART protocol: “HART” stands for Highway Addressable Remote Transducer and is a communication protocol recommended by HCF (HART communication

Foundation) for industrial sensors.

* 2 PROFIBUS:PROFIBUS, which stands for PROCESS FIELDBUS, is a field bus that is approved by international standard IEC61158. The electromagnetic flowmeter supports PRFIBUS PA for process automation.

－ １０ －

６Ｆ８Ａ０８７０

3. Names of Parts

IMPORTANT

The apparatus should not be provided with the cable connections.

Please prepare yourself for the cable connections which could be used in Division2 hazardos l i

3.1 Appearance

3.1.1 Appearance of LF414/LF600F, LF414/LF610F

(1) Meter size of 1/2 inch (15mm)

Integral

For the detail of the converter, check the LF600F,

LF610F converter's instruction manual.

Terminal block cover

Ground terminal for converter

Ground terminal for detector

Flow direction arrow

Detector

Grounding ring

Window for electrode

Figure 3.1.1 Appearance of LF414/LF600F, LF610F

Meter size 1/2inch(15mm)

－ １１ －

６Ｆ８Ａ０８７０

(2) Meter size of 1inch (25mm)

For the detail of the converter, check the LF600F,

LF610F converter's instruction manual.

Terminal block cover

Ground terminal for converter

Ground terminal for detector

Detector

Grounding ring

Flow direction arrow

Window for electrode

Figure 3.1.2 Appearance of LF414/LF600F, LF610F

Meter size 1 inch(25mm)

－ １２ －

６Ｆ８Ａ０８７０

(3) Meter size of 1 1/2 to 4 inch (40 to 100mm)

For the detail of the converter, check the LF600F ,

LF610F converter's instruction manual.

Terminal block cover

Ground terminal for converter

Ground terminal for detector

Detector

Flow direction arrow

Grounding ring

Figure 3.1.3 Appearance of LF414/LF600F, LF610F

Meter size 1 1/2 to 4 inch (40 to 100mm)

－ １３ －

６Ｆ８Ａ０８７０

(4) Meter size of 6 and 8 inch (150 and 200mm)

For the detail of the converter, check the LF600F,

LF610F converter's instruction manual.

Terminal block cover

Lifting Lugs

*Only 8 inch (200mm)

provided.

Ground terminal for converter

Ground terminal for detector

Flow direction arrow

Grounding ring

Detector

Figure 3.1.1 Appearance of LF414/LF600F, LF610F

Meter size 6 and 8 inch(150 and 200mm)

－ １４ －

3.1.2 Appearance of LF414

(1) Meter size of 1/2 inch (15mm)

Separate

Excitation cable

3/4 - 14 NPT

Signal cable

3/4 - 14 NPT

Terminal Box

Ground terminal for detector

Detector

Flow direction arrow

Grounding ring

Window for electrode

Figure 3.1.2 Appearance of LF414

Meter size 1/2inch(15mm)

６Ｆ８Ａ０８７０

Terminal Box Cover

－ １５ －

(2) Meter size of 1inch (25mm) for Excitation cable

3/4 - 14 NPT for Signal cable

3/4 - 14 NPT

Terminal Box

Flow direction arrow

Ground terminal for detector

Detector

Grounding ring

Window for electrode

Figure 3.1.2 Appearance of LF414

Meter size 1 inch(25mm)

６Ｆ８Ａ０８７０

Terminal Box Cover

－ １６ －

６Ｆ８Ａ０８７０

(3) Meter size of 1 1/2 to 4 inch (40 to 100mm)

Excitation cable

3/4 - 14 NPT

Signal cable

3/4 - 14 NPT

Terminal Box

Flow direction arrow

Detector

Ground terminal for detector

Grounding ring

Figure 3.1.3 Appearance of LF414

Meter size 1 1/2 to 4 inch (40 to 100mm)

Terminal Box Cover

－ １７ －

６Ｆ８Ａ０８７０

(4) Meter size of 6 and 8 inch (150 and 200mm)

Excitation cable

3/4 - 14 NPT

Signal cable

3/4 - 14 NPT

Terminal Box

Ground terminal for detector

Terminal Box Cover

Flow direction arrow

矢印銘板

Grounding ring

Detector

Figure 3.1.4 Appearance of LF414

Meter size 6 and 8 inch(150 and 200mm)

Lifting lugs

*Only 8 inch (200mm)

provided.

－ １８ －

６Ｆ８Ａ０８７０

3.2 Construction of the terminal blocks

3.2.1 Terminal Block Construction of LF414/LF600F, LF414/LF610F Type

For details of the converter, check the LF600F, LF610Fconverter's instruction manual.

Integral

3.2.2 Terminal Block Construction of LF414 Type

Separate

Signal cable terminal Excitation cable terminal

Figure 3.2.2 Terminal Block of LF414

－ １９ －

4. Installation

Safety Precautions for Installation

WARNING

„ Do not live active circuits under environment of explosive atmospheres.

６Ｆ８Ａ０８７０

DON’T

Live part of electric circuit or a high temperature department can cause explosion.

„ Do not use parts of other products.

DON’T

Protective performance degradation for hazardous location can cause explosion.

„ Do not active live circuits While assembly of all components is not over.

DON’T

Protective performance degradation for hazardous location can cause explosion.

„ Install per the National Electrical Code for the US (NEC, ANSI/NFPA 70) and the

Canadian Electrical code for Canada (CEC, CAN/CSA-C22.1) and the drawing

3S8A2532,3S8A2533 (Refer to Appendix 1.).

Unsuitable conduit connections for hazardous location can cause explosion.

DO

„ Ground the LF414/LF600F, LF610F and

LF414 independently from power equipment. (100 ohm or less ground resistance)

DO

Operating this product without grounding can cause electric

shock or malfunction.

„ Install a switch and fuse to isolate the

LF414/LF600F, LF610F and LF414 from mains power.

Power supply from mains power can cause electric shock or

circuit break-down.

DO

„ Do not work on piping and wiring with wet

hands.

Wet hands may result in electric

shock

DON’T

CAUTION

„ Use an appropriate device to carry and install

the LF414/LF600F, LF610F and LF414 .

DO

If his product falls to the ground, injury, or malfunction of or damage to the product, can be caused.

„ Do not modify or disassemble the

LF414/LF600F, LF610F and LF414 unnecessarily.

DON’T

Modifying or disassembling this product can cause electric shock,

malfunction or damage to this product.

The label shown left is placed near the terminal board for power supply to the converter.

Be alert to electric shock

－ ２０ －

６Ｆ８Ａ０８７０

4.1 Notes on Selecting the Installation Location

1. Avoid places within the immediate proximity of equipment producing electrical interference (such as

motors, transformers, radio transmitters, electrolytic cells, or other equipment causing

electromagnetic or electrostatic interference).

2. Avoid places where excessive pipe vibration occurs.

3. Avoid places where fluid is pumped in a pulsating manner.

4. Avoid places where there is direct sunlight. If this is unavoidable, use an appropriate shade

5. Avoid places where corrosive atmospheres or high humidity conditions occur.

6. Avoid places where there may be limited access such as pipes installed next to high ceilings or

constricted areas where clearance for installation or maintenance work is not provided.

7. Design piping so that the detector pipe is always filled with fluid, whether the fluid is flowing or not.

Separate

8. The detector has no adjustable piping mechanism. Install an adjustable short pipe where needed.

9. Chemical injections should be conducted on the downstream side of the flowmeter.

10. The maximum length of the cable that connects the detector and converter is 300m. Select the converter installation location so that the distance between the detector and converter does not exceed

300m.

4.2 Mounting Procedure

4.2.1 Pipe checks

(1)Before installing pipes, check for any leaning, misplacement or eccentricity as illustrated in Figure 4.1.

An attempt to unreasonably connect pipes that are inclined may lead to a detector breakdown or fluid leakage. Connecting pipes in an eccentric state may also cause wear and tear of linings and grounding rings, as well as measurement errors.

Before installing pipes, make sure to flush the interior of the pipes to remove deposited material..

Eccentricity

Inclination

(a) Pipe leaning (b) Pipe axis misplacement (or eccentricity)

Figure 4.1 Pipe leaning and axis misplacement

－ ２１ －

６Ｆ８Ａ０８７０

(2) Preventing an Empty Pipe Condition

Fix the relevant pipes installed on both sides of the detector by attaching fittings, etc. to support the pipe. By supporting the pipes, not only the pipe vibration is reduced but also the damage to the pipes by the electromagnetic flowmeter's weight and the fluid mass (see Figures 4.2 and 4.3).

Pipe support fittings Pipe support fittings

Figure 4.2 Example of Pipe Fixing Procedure

Figure 4.3 Model Diagram of Unsupported Pipes

－ ２２ －

６Ｆ８Ａ０８７０

4.2.2 Installation Procedure

To mount the LF414, place it between the upstream and downstream pipe flanges and tighten

it with flange bolts and nuts. See Figure 4.4 and follow the procedure below:

1. Insert two lower mounting bolts through the clearance holes in the upstream (or downstream) pipe flange.

2. Install a packing next to the upstream (or downstream) flange face and the other packing next to the downstream (or upstream) pipe flange. The two mounting bolts can now be guided through the clearance holes in the downstream packing and flange.

3. Place the LF414 flowmeter detector between the two flange packings, with the flowmeter detector body above the two bolts. The flowmeter must be oriented in accordance with the flow direction arrow.

4. Install the two upper mounting bolts through the clearance holes in the upstream and downstream packings and flanges. Then install the remaining mounting bolts depending on the flange pattern used.

5. Thread nuts on both ends of the 4 (or more) mounting bolts, finger tight. (See Table 4.1 Bolt length and

tightening torque)

6. While centering the flowmeter with the longitudinal axis of the pipeline, tighten the nuts with a

wrench diagonally across in even increments. (See Table 4.1 Bolt length and tightening torque)

Note that the flowmeter detector pipe axis must be aligned with the pipeline axis on both upstream and downstream sides. This is essential to have stable characteristics of flow measurement (especially for flowmeters with meter sizes of 50 mm or less).

IMPORTANT

When high-temperature fluid is being measured, radiant heat from the detector pipe surface and adjoining pipes may cause the ambient temperature of the converter to go above 60 °C. If the ambient temperature goes above 60° C, try to lower the temperature by measures such as wrapping heat-insulating materials over the detector pipe and adjoining pipes.

Figure 4.4 LF414 flowmeter detector piping connections

－ ２３ －

６Ｆ８Ａ０８７０

Table 4.1 Bolt length and Nut tightening torque

ANSI class 150

Meter size

Through Bolts

Tightening

P.C.S

Dia- meter

Length

[mm] torque

[N･m]

15mm 1/2” 4 1/2” 150

12 to 15

25mm 1” 4 1/2” 170

21 to 26

40mm 1 1/2” 4 1/2” 195 32 to 40

50mm 2” 4 5/8” 215

52 to 65

80mm 3” 4 5/8” 225

71 to 88

100mm 4” 8 5/8” 235 52 to 65

P.C.S

4

4

4

8

8

8

ANSI class 300

Through Bolts

Dia- meter

1/2”

5/8”

3/4”

5/8”

3/4”

3/4”

Length

[mm]

155

180

215

220

240

255

Tightening torque

[N･m]

25 to 31

53 to 66

96 to 120

52 to 65

85 to 106

125 to 156

150mm

104 to 130

12 3/4”

200mm

146 to 183

12 7/8”

DIN/BS 10, DIN/BS 16

Meter size

15mm 4

Through Bolts

P.C.S

Dia- meter

M12

Length

[mm]

150

Tightening torque

[N･m]

16 to 19

P.C.S

4

JIS 10K

Through Bolts

Dia- meter

M12

375 138 to 173

460 227 to 284

Length

[mm]

150

Tightening torque

[N･m]

10 to 13

25mm

40mm

50mm

80mm

100mm

150mm

200mm

4

4

4

8

8

M12

M16

M16

M16

M16

165

190

205

210

220

27 to 34

58 to 72

78 to 98

54 to 67

79 to 99

8 M20 340 164 to 205

(DIN/BS 10)

8 M20 410 146 to 183

4

4

4

8

8

8

12

M16

M16

M16

M16

M16

M20

M20

170

190

200

210

215

340

410

22 to 28

32 to 40

43 to 53

27 to 34

37 to 46

70 to 88

60 to 75

200mm

(DIN/BS 16)

－ ２４ －

６Ｆ８Ａ０８７０

4.3 Piping Connections

(1a) Ideal Upstream Straight Pipe Length Installation Requirements

If various joints are used upstream of the detector outlet, the straight pipe length as shown in Table 4.2 is required.

Table 4.2 Required straight pipe length on the upstream side

(1) 90°bent

(2) Tee

(3) Diffuser

L=5D L=10D

L

L

L

(4) Fully opened sluice valve

L

(5) Other valves (not fully opened)

L

L: Required straight pipe length—straight pipe length plus half length of the detector.

D: Nominal bore size (diameter)

NOTES

The length of a reducer, if connected, can be counted as a part of the straight pipe length.

No straight pipe length is needed on the downstream side. If a butterfly valve is installed downstream of the detector, do not let the valve plate protrude into the pipe of the detector

(1b) Optional “Mount Anywhere” Installation

Mount-Anywhere

Technology:

With Toshiba’s unique, patented magnetic field distribution technology, the meter is highly immune to upstream flow disturbances. A minimum of 1D (diameter) length of upstream straight pipe from the flange is required to maintain the performance

NOTE specification.

The test results were obtained and demonstrated at Toshiba’s flow calibration facility,

Fuchu Japan.

－ ２５ －

６Ｆ８Ａ０８７０

(2) Pipe Orientation

The detector may be installed in horizontal, vertical or sloping pipe runs as shown in

Figure 4.5. However, except for horizontal installation, fluid should flow from lower to upper directions. If no air bubble, vertical down flow application are acceptable under pressured piping conditions. See Figure 4.5.

Flow direction

Detector

(a)

(c)

(b)

(a) Horizontal pipe installation

(b) Vertical pipe installation

(c) Sloping pipe installation

Figure 4.5 Detector Piping Orientation

Ground surface

The electrodes should be positioned horizontally relative to the ground surface in any piping installation. See Figure 4.6.

Detector

A

A'

Electrodes

Cross-section A - A'

Figure 4.6 Installation position of the detector

Ground surface

－ ２６ －

６Ｆ８Ａ０８７０

(3) Flow Direction

Install the detector in accordance with the flow direction arrow on the detector.

See Figure 4.7.

Flow direction arrow

Figure 4.7 Flow direction arrow on the detector

(4) Preventing an Empty Pipe Condition

Design an upright pipe run (Figure 4.8) or sufficient head pressure (Fig. 4.9) at the downstream detector outlet if there is a possibility of the detector pipe becoming emptied.

Vertical pipe run

Detector

Figure 4.8 Detector with an upright pipe run at downstream outlet

Detector

Figure 4.9 Detector with sufficient head pressure at downstream outlet

－ ２７ －

６Ｆ８Ａ０８７０

4.4 Grounding

„ Do not wire cables and replace parts when power is supplied.

CAUTION

„ Do not work on piping and wiring with wet hands.

DON’T

Wiring work and replacing parts in the power-on state may cause electric shock.

DON’T

Wet hands may result in electric shock.

Integral

(1) Grounding of the LF414/LF600F, LF414/LF610F type

Ground as shown in Figure 4.10. Make the grounding wire as short as possible. Use grounding

wire material of IV wire 5.5mm

2 or more. Do not share a grounding wire with other

instruments where grounding current may flow. (An independent grounding is preferable.)

Conductive material pipe

Example: Metal, etc.

Piping of non-conductive material

Example: Resin or metal piping whose inside is resin-lined, etc.

Grounding terminal

Grounding wire

• If the piping material is conductive, connect the grounding wires to the both ends of the piping flange.

• If the piping material is non-conductive, perform

100Ω or less grounding (grounding resistance 100Ω or less). grounding resistance

Figure 4.10 Grounding the LF414/LF600F, LF414/LF610F Type

－ ２８ －

６Ｆ８Ａ０８７０

Separate

(2) Grounding of the LF414 type

Ground the external grounding terminal of the detector and the FG terminal of the converter (or external grounding terminal of the converter) securely (grounding resistance 100Ω or lower).

Use grounding wire material of IV wire 5.5mm

2

or more. Do not share a grounding wire with other instruments where grounding current may flow. (An independent grounding is

preferable.)

If it is difficult to perform grounding work at the detector side because of a pit installation or other reasons, use a 3-core cable for the excitation cable and connect the E terminal of the detector to the E terminal of the converter. (The E terminal of the converter is internally connected with the

FG terminal and the converter case.)

Converter terminal block

Shield twisted

Input signal cable

A G X

B E Y FG

Grounding terminal

(100 ohm or less ground resistance)

Excitation cable

Converter terminal block

Shield twisted

Input signal cable

A G X

B E Y FG

Grounding terminal

(100 ohm or less ground resistance)

Excitation cable

Shield twisted

Shield twisted

Grounding terminal

Grounding terminal

G E

A B X Y

Converter terminal block

G E

Converter

A B X Y terminal block

Figure 4.11 (a)

(100 ohm or less ground resistance)

Wiring between Detector and Converter (For grounding the detector, see Figure 4.12 below.)

Conductive material piping

Example: Metal, etc.

Figure 4.11 (b)

Wiring between Detector and Converter

(when grounidng of the detector is difficut)

Non-conductive material piping

Example: Resin product or metal piping whose inside is resin lined

Grounding terminal

Grounding wire

• If the piping material is conductive, connect the grounding wires to the both ends of the piping flange.

Grounding terminal

Grounding wire

(100 ohm or less ground resistance)

• If the piping material is non-conductive, perform grounding resistance 100Ω or less.

Figure 4.12 Grounding the LF414 Type Detector

－ ２９ －

６Ｆ８Ａ０８７０

5.Wiring

Safety Precautions for Wiring

WARNING

„ DO NOT DISCONNECT WHILE CIRCUIT IS LIVE UNLESS LOCATION IS KNOWN

TO BE NONHAZARDOUS.

DON’T

Live part of electric circuit or a high temperature department can cause explosion.

„ Do not active live circuits While assembly of all components is not over.

DON’T

Protective performance degradation for hazardous location can cause explosion.

„ Install per the National Electrical Code for the US (NEC, ANSI/NFPA 70) and the

Canadian Electrical code for Canada (CEC, CAN/CSA-C22.1) and the drawing

3S8A2532,3S8A2533 (Refer to Appendix 1.).

Unsuitable conduit connections for hazardous location can cause explosion.

DO

－ ３０ －

６Ｆ８Ａ０８７０

CAUTION

„ Install a switch and fuse to isolate the „ Turn off mains power before conducting wiring

LF414/LF600F, LF610F and LF414 from mains power.

Power supply from mains power can

DO

cause electric shock or circuit

break-down.

„ Do not work on piping and wiring with wet

hands. work.

Wiring while power is applied can cause

electric shock.

DO

„ Ground the LF600F, LF610 independently from

power equipment. (100 ohm or less ground

resistance)

DON’T

Wet hands may result in electric

shock

Operating this product without grounding can cause electric shock or malfunction.

DO

„ Do not conduct wiring work with bare hands.

„ For the power supply wiring and grounding wiring,

DON’T

Remaining electric charge even if power is turned off can still cause

electric shock. use crimping terminals with insulated sleeve.

There is a risk of electric shock due to

DO

drop-off or loosing, and a risk of fire and

equipment trouble due to heat generation.

Do not modify or disassemble the LF600F,

LF610F, LF602F and LF612F

unnecessarily.

DON’T

Modifying or disassembling this product can cause electric shock,

malfunction of or damage to this

product.

The label shown left is placed near the power supply terminal on the converter.

Be alert to electric shock.

Flowmeter accuracy may be affected by the way wiring is executed. Proceed with correct wiring taking

the precautions in following pages.

－ ３１ －

６Ｆ８Ａ０８７０

Notes on wiring

CAUTION

(1) Select the cable runs away from electrical equipment (motors, transformers, or radio

transmitters) which causes electromagnetic or electrostatic interference.

(2) Deterioration of flowmeter circuit insulation occurs if the converter interior or cable ends get wet or humidified. This in turn causes malfunction of flowmeter or noise problems. Avoid a rainy day if

the flowmeter is to be installed outdoors. Even indoors, prevent water from splashing over the flowmeter. Try to finish the wiring as quickly as possible

(3) The converter has an arrestor installed inside. Therefore, do not conduct a withstand voltage test

for the converter. To check the insulation of the converter, use a voltage of 250Vdc or less.

(4) After wiring, be sure to install the terminal block protection cover.

Separate

(5) Because the excitation cable and flow rate signal cable transmit very delicate signals, pass each of them separately through a thick steel conduit tube, keep them away from the large current wiring as far as possible, and do not install them in parallel.

5.1 Cables

Use the kind of cables shown in Table 5.1 to wire the converter.

Table 5.1 Installation Cables

Nominal

Power cable

3-core vinyl sheathed cable or 2-core vinyl sheathed cable al area

2 mm²

Finished outer diameter

Description

11~13mm

CVV JIS C 3401 or equivalent

Separate

Output signal cable

The number of conductors the cable contains differs depending on the specification of the output signal cable.

Use a shielded cable of finished outer diameter 11 to 13mm and nominal cross-sectional area 1.25mm

2

.

CVV-S JIS -258-C or equivalent

Flow rate signal cable

2-core shielded chloroprene cabtyre cable

( Rubber covered cable )

Excitation cable

3-core chloroprene cabtyre cable

( Rubber covered cable )

0.75 mm

2

11~13mm

2 mm

2

1.25 m

2

11~13mm

2PNCT-S

JIS C 3327 or equivalent

2PNCT

JIS C 3327 or equivalent

Separate

－ ３２ －

６Ｆ８Ａ０８７０

5.2 External Device Connections and Grounding

For the notes on connecting, wiring and installation of the combined converter, check the model number of the combined converter and read the instruction manual of the relevant converter.

5.3 Notes on Wiring

5.3.1 Notes on Instrumentation-Converter Wiring

• To avoid 2-point grounding, ground the shield of output cable basically at the receiving side.

• Use a grounding wire of IV wire 5.5mm

2 or more. The size of the external grounding terminal screws is

M4. Do not share a grounding wire with other instruments where grounding current may flow. (An

independent grounding is preferable.)

• Power cable

When a 3-core cable is used: Ground with the FG terminal.

When a 2-core cable is used: Use an external grounding terminal and make the cable as short as possible.

5.3.2 Notes on Wiring of the Separate type (LF414)

Separate

• The detector is shipped with a flow rate signal cable and excitation cable. Be sure to use those cables coming with the detector.

Note: When the cable length exceeds 300m, cables may not be supplied. Check whether the

cable is supplied with the specs.

• The allowable cable length between the detector and converter varies depending on the conductivity of the operating fluid. Refer to the instruction manual of the combined detector.

• When connecting with the detector, wire the cables in the order of the excitation cable and flow rate signal cable.

• Because the input cables transmit very delicate signals, pass the excitation cable and input signal cable

separately through a thick steel conduit tube, keep them away from the large current wiring as far

as possible, and do not install them in parallel.

• When replacing the flow rate signal cable and excitation cable, also refer to the instruction manual of the relevant detector. Order the detector terminal box cover packing from Toshiba.

－ ３３ －

６Ｆ８Ａ０８７０

5.4 Wiring

5.4.1 Terminal Treatment of Cables

Follow the procedures below to treat the terminals (at the converter side) of various cables and install the cables to the terminal block. Use appropriate cables based on the description in Section 5.1 "Cables." Crimp a round type insulated crimp-type terminal to the end of the cables.

(1) Power cable, current output cable, digital I/O cables

The necessary cables should be ordered from the person responsible for the installation. Strip the sheath of each conductor as shown in Figure 5.1 and attach a crimping terminal with insulated sleeve to it. The size of the crimping terminal is as follows:

Integral type LF600F, LF610F: M4

Separate type LF602F, LF612F: M3.5

• Connect the power cable to terminal blocks L1 and L2.

• Connect the current output cable to terminal blocks + and -.

• Connect the digital I/O cable to terminal blocks D1, D01, D02 and COM, as required.

Crimping terminal

LF600F, LF610F type: M4

LF602F, LF612F type: M3.5

25~45mm

Figure 5.1 Terminal Treatment of Power Cable, Current Output Cable and Digital I/O cable

(2) Excitation cable

Separate

Strip the sheath from the end of each conductor as shown in Figure 5.2, attach an M3.5 crimping terminal with insulated sleeve, and connect it to the terminal blocks X and Y. Connect the red conductor to terminal block E.

M3.5 crimping terminal

X Black

E Red

Y White

25~45mm

Figure 5.2 Terminal Treatment of Excitation Cable

－ ３４ －

６Ｆ８Ａ０８７０

(3) Connecting the input signal cable

Separate

Strip the sheath from the end of each conductor of a 2-core individually shielded cable as shown in Figure

5.4. Twist those shields and cover them with a thermal contraction tube or vinyl tube not to make contact with the case or core wires. Then attach an M3.5 crimping terminal with insulated sleeve as shown in Figure

5.3. Connect a crimping terminal to the A and B terminals on the terminal block and connect to each G terminal of the detector and converter.

M3.5 crimping terminal

Thermal contraction tube or vinyl tube

A Black

G Shield

B White

25~45mm

Figure 5.3 Terminal Treatment of Flow Rate Signal Cable

●

Notes on signal cable shield processing work

When stripping an external sheath, intermediate and insulated sheath, be careful not to scratch or cut the internal conductors and shield mesh. Do not disjoint the shield mesh but treat it as shown in Figure 5.9.

Coated wire a. Open the shield mesh with a pencil or the like. b. Pull out the internal coated wires from the hole of the shielded mesh.

Shield mesh c. Pull out all internal coated wires and extend the shield mesh wire.

Figure 5.4 Treating the Signal Cable Shield Mesh

－ ３５ －

６Ｆ８Ａ０８７０

5.4.2 Cable Connection

Connect and install the terminal-treated cables to the terminal block.

*Connect the cables to the terminal block securely. A loose connection may cause incorrect measurement. After connecting a cable, try to pull it to check whether it has been connected securely.

Referring to combined converter's manuals of "Connections and Grounding", connect each cable to the terminal block. Tighten the screws of the terminal block tightly to ensure a secure connection. A loose connection may cause incorrect measurement. After connecting a cable, try to pull it to see whether it has

been connected securely.

Phillips screwdriver

* The appropriate torque for tightening the terminal board screw is 1.2 N.m.

Terminal block

Figure 5.5 Connecting a Cable to Terminal Block

－ ３６ －

６Ｆ８Ａ０８７０

6. Operation

„ Do not touch the terminal board when

CAUTION

„ Do not touch the main body when high power is supplied. temperature fluid is being measured.

Touching the terminal board The fluid raises the main body when power is supplied can temperature and can cause burns.

DON’T

cause electric shock.

DON’T

Preparatory check

Follow the procedure described below to prepare before starting the flow measurement (described with regard to the entire flowmeter).

System Check

Check the items listed below

„ Check the wiring between the converter and related instruments.

„ Make sure all the bolts of connection flanges on which the flowmeter is mounted securely tightened.

„ Make sure the direction of flow arrow is in accordance with actual flow.

„ Make sure the flowmeter is grounded with 100 ohm or less ground resistance.

„ Make sure the housing covers are securely tightened.

Placing System On-Stream

„ Let the fluid go through the detector pipe. (Note 1)

„ When the detector is filled with the fluid, stop the fluid and keep it still in the detector pipe.

Supplying Electric Power

„ Make sure the power supply is as specified.

Checking Converter Parameters

„ Check the configuration parameter settings. Refer to combined converter's manual.

Zero Adjustment

„ Wait for 30 minutes to warm up the flowmeter. Then making sure the fluid holds still in the detector pipe, starts the zero adjustment. Refer to combined converter's manual.

On-line measurement

„ After checking the items and conducting the zero adjustment as listed above, let the fluid go through the detector pipe. Output (4–20 mA dc) directly proportional to the flow rate can be obtained.

Note 1: If the detector pipe is not filled with the fluid to be measured, the flow rate will be indefinite and unable to be measured. Before using the flowmeter , be sure to fill the detector pipe the fluid to be measured.

－ ３７ －

６Ｆ８Ａ０８７０

7. Maintenance and Troubleshooting

Safety precaution for Maintenance and Troubleshooting

WARNING

„ Do not disconnect while circuit is live unless location is known to be nonhazardous.

DON’T

Live part of electric circuit or a high temperature department can cause explosion.

„ Do not modify or disassemble the enclosure.

DON’T

Strength degradation and defects of enclosure can cause explosion.

„ Do not use parts of other products.

DON’T

Protective performance degradation for hazardous location can cause explosion.

„ Do not live circuits While assembly of all components is not over.

DON’T

Protective performance degradation for hazardous location can cause explosion.

„ Install per the National Electrical Code for the US (NEC, ANSI/NFPA 70) and the

Canadian Electrical code for Canada (CEC, CAN/CSA-C22.1) and the drawing

3S8A2532,3S8A2533 (Refer to Appendix 1.).

DO

Unsuitable conduit connections for hazardous location can cause explosion.

„ Do not conduct wiring work when

power is applied.

CAUTION

„ Do not touch the LF414/LF600F, LF610F

and LF414 main body when high temperature fluid is being measured.

DON’T

Wiring while power is applied can cause electric shock.

DON’T

The fluid raises the main body temperature and can cause burns.

－ ３８ －

６Ｆ８Ａ０８７０

7.1 Maintenance

„ Cleaning

„ Adhesion might be created in the detectore over a long period of time when used on certain

materials.

Try to confirm whether to cause the adhesion in the detector pipe when the phenomenon is seen, and and an abnormality (ex. decreasing indication, etc.) is confirmed.

Please clean with a soft brush etc. and remove any unnecessary build up inside the meter. When using it in the line to which such a phenomenon occurs easily, it is recommended that the detector pipe be cleaned regularly.

Use new gaskets when reinstalling the flowmeter detector in the pipeline.

„ Mag-Prover Built-In Calibrator

The converter LF60*F and LF61*F has a built-in reference signal calibration and verification circuit that allows you to re-verify the original magmeter flow lab calibration without the need for external devices. This reference signal

can be used to check the zero and span of the converter for the purpose of instrumentation maintenance

or periodical inspection. Refer to combined converter's manual.

„ Operative life

The operative life of this flowmeter is 10 years from the date of shipment.

The life of the flowmeter differs depending on the environmental conditions and the way it was used. To extend the life of the flowmeter, inspect the flowmeter periodically and clean or replace components if necessary.

„ Product disposal

The electromagnetic flowmeter must be disposed of, according to the rules and regulations of your local government.

Especially if you dispose of electrolytic capacitors to replace parts, have it done by an agency which is licensed to handle industry waste materials.

„ Fuse

Integral

The fuse can be taken out by unscrewing the cap of the fuse holder. Check that the fuse is not

damaged. The fuse has to be replaced periodically. The recommended replacement period is 3 years.

Type of fuse used:

Glass tube fuse , Medium Acting type (normal blow) 1 piece

Rating:

1A/250 V for 100 to 240 Vac and 110Vdc power supply

Dimensions:

2A/150V for 24Vdc power supply

Diameter 5 mm × 20 mm

Note: Use a fuse that complies with the Electrical Appliance and Material Safety Law.

„ Check/Replacement of the display unit

When characters displayed on the LCD display become thin or blots come out, please adjust the setting of

Integral

LCD's display density. If the display is still not improved, the display unit comes to the end of its life. Please

replace the display unit with a new one. In order to use the display unit stably for a long time, it is preferable to replace it early. For inspection and replacement, please contact your nearest Toshiba representative.

„ Power supply unit

(also used for excitation board)

Integral

Electronic components deteriorate faster when the ambient temperature is high. The life of the power

supply unit in the converter is 9 to 10 years if the ambient temperature is 40°C, and 5 to 6 years if it is

50° C. To extend the life of the flowmeter, we recommend you replace the power supply unit early.

Contact your nearest Toshiba representative for a flowmeter inspection or unit replacement.

－ ３９ －

６Ｆ８Ａ０８７０

7.2 Troubleshooting

If a problem occurs while using the LF414/LF600F, LF414/LF610F and LF414, follow the flowcharts described below.

You may find a way to solve the problem. The flowcharts are based on three symptoms (1) to (3).

If you cannot solve the problem, contact your nearest Toshiba representative.

7.2.1 Flow rate is not indicated

START

Are power supplies correct

for each device?

YES

Are power and I/O cables

installed correctly?

YES

Is the fuse burnt?

NO

NO

NO

YES

Use the correct power supply for each

device.

Install the cables correctly.

Refer to Chapter 5,

“Wiring.”

Replace the fuse with a new one.

Set correctly.

Refer to combined converter's manual.

Is the flow range correctly set?

NO

YES

Is the flow direction match with the arrow mark on the

detector?

YES

NO

Install the detector correctly.

Refer to Chapter 4,

“Installation”

Contact your nearest Toshiba

representative.

－ ４０ －

7.2.2 Flow rate indicated is not correct

START

６Ｆ８Ａ０８７０

Is the flow range correctly

set?

YES

NO

Is zero point correctly set?

NO

YES

Is the excitation current value as stated on the

flow direction tag?

YES

NO

Is the inside wall of detector

pipe contaminated?

YES

NO

Is the output load resistance

as specified?

NO

YES

Are there two load resistors connected to the output in parallel?

NO

YES

Set correctly.

Refer to combined converter's manual.

Perform the zero adjustment.

Refer to combined converter's manual.

Set correctly.

Refer to combined converter's manual.

Clean the inside of the detector pipe.

Design the output circuit so that output

750

Ω

.

load resistance is less than the

Connect the two load resistors in series, if necessary.

Is accuracy calculated as follows?

(Measured flow rate)-(Actual flow rate)

Actual flow rate

×

100%

NO

YES

Calculate as shown on the left.

Contact your nearest Toshiba

representative.

－ ４１ －

7.2.3 Flow rate indication is not stable

START

Is power supply voltage

within the specified range?

YES

NO

６Ｆ８Ａ０８７０

Use a power supply within the

specified range.

Connect each cable securely to the

terminal board.

Are cables securely connected?

NO

YES

Is the flowmeter grounded

with 100Ωor less ground

resistance?

YES

Is the detector pipe filled

with fluid?

YES

Is the fluid carrying bubbles?

NO

NO

YES

NO

Is there high-voltage or large current cable or equipment

near the flowmeter?

NO

YES

Contact your nearest Toshiba

representative.

Ground the flowmeter with a copper braid or wire(5.5

mm² minimum) to a good earth ground

.

(100

Ω

or less ground resistance)

Design piping so that the detector

pipe is filled with fluid all the time.

Design piping so that the fluid does

not carry bubbles.

Install the flowmeter away from equipment producing electromagnetic

or electro- static interference. operating fluid, the flow is indefinite and measurement is impossible. Be sure to fill the detector tube with operating fluid before starting measurement.

－ ４２ －

６Ｆ８Ａ０８７０

8. Principle of Operation

The operating principle of the electromagnetic flowmeter is based on Faraday's Law of electromagnetic induction and it is designed to measure the volumetric flow rate of fluid. An insulated pipe of diameter D is placed vertically to the direction of a magnetic field with flux density B (see Figure 14.1).

When an electrically conductive fluid flows in the pipe, an electrode voltage E is induced between a pair of electrodes placed at right angles to the direction of magnetic field.

The electrode voltage E is directly proportional to the average fluid velocity V.

The following expression is applicable to the voltage.

E = induced electrode voltage [V]

E = K × B × D × V [V] ........ (Eq. 14.1)

Volumetric flow rate Q [m

3

/s] is:

π × D²

Q = × V ................(Eq. 14.2)

4

Using the Equation 14.1 and 14.2

E = K × B × D × × Q

π × D²

E = × Q ............(Eq. 14.3)

π × D

K = constant

B = magnetic flux density [T]

D = meter pipe diameter [m]

V = fluid velocity [m/s]

Therefore, volumetric flow rate is directly proportional to the induced voltage.

Square-Wave Excitation

Figure 8.1 Principle of Operation

The LF414/LF600F, LF414/LF610F and LF414 uses the square-wave excitation method, which provides long-term stable operation. With square-wave excitation, the LF414/LF600F, LF414/LF610F and LF414 offers reliable measurement without being affected by electrostatic or electromagnetic interference, or electrochemical polarization between the electrodes and the fluid to be measured.

－ ４３ －

６Ｆ８Ａ０８７０

9. Specifications

The flowmeter specifications and the type specification code used when ordering the flowmeter

are described in this chapter.

9.1Specifications

Meter size: 1/2, 1, 1 1/2, 2, 3, 4, 6, 8 inch

(15, 25, 40, 50, 80, 100, 150, 200mm)

Measurement range in terms of flow velocity:

0 – 1.0 ft/s to 0 – 32.8 ft/s ( 0 – 0.3 m/s to 0 – 10 m/s).

0 – 0.3 ft/s to 0 – 1.0 ft/s (0 – 0.1 m/s to 0 – 0.3 m/s) range is available optionally.

System accuracy combined with TOSHIBA converter:

Accuracy: ±0.2 % of Rate*

* This pulse output error result is established under standard operating conditions at Toshiba's flow calibration facility,

Fuchu Japan. (NIST Traceable).

* Individual meter measurement error may vary up to ±0.5% of Rate at 1.64 ft/s (0.5m/s) or more and ±0.3% of rate

±0.039 inch/s (1mm/s) at 1.64 ft/s (0.5m/s)or less.

* Current output: plus ± 8µA (0.05% of span.)

* Refer to individual calibration data for each individual meter's measurement error.

Fluid conductivity: 5 µS/cm minimum

Fluid temperature: 14 to 356 °F (–10 to +180 °C) (Ceramic Tube detector)

(248 °F (120 °C) above is separate type)

14 to 248 °F (–10 to +120 °C) (Teflon PFA Lining detector)

Ambient temperature: –4 to 140°F (–20 to +60 °C)

Fluid pressure: –15 to 300psi, or –1.0 to 20 bar (– 0.1 to 2.0MPa)

Heat shock resistance: for ceramic tube detector

Heating: ΔT ≦ 150 °C/0.5 s (Note)

Cooling: ΔT ≦ 100 °C/0.5 s (Note)

Note: Meaning that the ceramic tube detector withstands the shock of sudden heating (temperature difference 150 °C or less per 0.5 seconds) or sudden cooling (temperaturedifference 100 °C or less per 0.5 seconds).

Connection flange standard: See Table 9.2 Type Specification Code.

Principal materials

Case・・・・・・ Stainless steel : meter sizes 1” to 4” (25 to 100 mm)

Carbon steel : meter size 1/2”, 6” and 8” (15 mm,150mm, and 200mm)

Lining・・・・・ Ceramic : standard for meter sizes 1/2” to 4” (15 to 100 mm)

Teflon PFA : standard for meter sizes 6” and 8” (150 mm,200mm)

Electrodes・・・・ 316L stainless steel (standard)

Grounding rings・・316 stainless steel (standard)

See Table 9.2 Type Specification Code for optional materials and other related information.

－ ４４ －

６Ｆ８Ａ０８７０

Coating: No coating (for meter sizes 25 to 100 mm),

Phthalic acid resin coating, pearl-gray colored (standard for meter size 15,150, 200mm)

Structure: IP67 and NEMA 4X Watertight ( Standard )

Cable connection port: 3/4-14NPT male screw for both signal cable and exciting cable

Cable length:

Allowable cable length between the converter and the detector varies with the electrical conductivity of fluid. See Figure 9.1

Separate

300

200

100

50

30

20

〔m〕

10

5

3

3 5 10 20 30 50 100 200

Figure 9.1 Electrical Conductivity vs. Cable Length

－ ４５ －

６Ｆ８Ａ０８７０

Flow and calibration velocity range:

It calibration by standard Range shown in the table below when Range is not specified.

It calibration when there is specification by flowing quantity Range in which the customer is specified. Is this specification Range flowing quantity of Figure 9.1. Please confirm becoming in the upper bound value from the flow velocity chart.

Meter size

(mm)

Standard Flow rate

Volume (m

3

(m/s)

15

25

40

50

80

2

6

15

25

60

3.144

3.395

3.316

3.537

3.316

To select the meter size: See Figure 9.2 and find meter sizes within the velocity of 0.1 to 10 m/s for a specified full-scale (measuring range high limit) flow. Select one that has its full-scale velocity between 1 and 3 m/s.

Make sure the full-scale flow rate used for the final planning stage stays

10 within 10 m/s in terms of flow velocity.

100

15 25 40 50 80 150 200 mm

流

速

〔m/s〕

1

0.3

0.1

10

-2

10

-1

Flow volume

Meter size

1 10

1

10

2

流量〔m 3 /h〕

3

/h)

Figure 9.2 Flow velocity vs. flow volume

SI Unit

Flow velocity range

15mm

25mm

40mm

50mm

80mm

100mm

150mm

200mm

10

3

10

4

0.1m/s 0.3m/s 1m/s 10m/s

0.0631m

3

/h 0.1908m

3

/h 0.6361m

3

/h 6.361m

3

/h

0.1767m

3

/h 0.5301m

3

/h 1.767m

3

/h 17.67m

3

/h

0.4523m

3

/h 1.357m

3

/h 4.523m

3

/h 45.23m

3

/h

0.7067m

3

/h 2.120m

3

/h 7.067m

3

/h 70.67m

3

/h

1.809m

3

/h 5.428m

3

/h 18.09m

3

/h 180.9m

3

/h

2.827m

3

/h 8.482m

3

/h 28.27m

3

/h 282.7m

3

/h

6.361m

3

/h 19.08m

3

/h 63.61m

3

/h 636.1m

3

/h

11.31m

3

/h 33.93m

3

/h 113.1m

3

/h 1131m

3

/h

－ ４６ －

６Ｆ８Ａ０８７０

US Unit

Flow volume

Meter size

1/2 inch

1 inch

1 1/2 inch

2 inch

3 inch

4 inch

6 inch

8 inch

Flow velocity range

0.328ft/s 0.98ft/s 3ft/s 10ft/s 32.8ft/s

0.2801 gal/min 0.8403 gal/min 2.561 gal/min 8.538 gal/min 28.01 gal/min

0.7781 gal/min 2.334 gal/min 7.115 gal/min 23.72 gal/min 77.81 gal/min

1.992 gal/min 5.975 gal/min 18.21 gal/min 60.71 gal/min 199.2 gal/min

3.112 gal/min 9.337 gal/min 28.46 gal/min 94.86 gal/min 311.2 gal/min

7.967 gal/min 23.90 gal/min 72.85 gal/min 242.8 gal/min 796.7 gal/min

12.45 gal/min 37.35 gal/min 113.8 gal/min 379.4 gal/min 1,245 gal/min

28.01 gal/min 84.03 gal/min 256.1 gal/min 853.8 gal/min 2,801 gal/min

49.80 gal/min 149.4 gal/min 455.3 gal/min 1,518 gal/min 4,980 gal/min

－ ４７ －

６Ｆ８Ａ０８７０

9.2 Type Specification Code

Table 9.2 Type Specification Code

L F 4

1

Specification Code

1 2 3 4 5 6 7 8 9 10 11

Electromagnetic Flowmeter

Style

Wafer type

Description

15mm to

100mm

４

G

H

J

K

L

D

E

F

Division 2 Hazardous Location

Meter size

15mm ( 1/2" )

25mm ( 1" )

40mm ( 1 1/2" )

50mm ( 2" )

80mm ( 3" )

100mm ( 4" )

150mm ( 6" )

200mm ( 8" )

A

B

C

D

E

F

G

H

J

K

L

F

B

C

D

E

Hazardous location

cFMus, Division 2 approved

Detector/Converter combined type

Detector/Converter separate type

ANSI 150

ANSI 300

BS PN 10

BS PN 16

DIN PN 10

DIN PN 16

JIS 10K

JIS 16K

JIS 20K

316L stainless steel

Ti (titanium)

Pt-Ir (platinum/iridium)

Ta (tantalum)

Hastelloy C

A

B

C

C

D

E

F

G

H

A

B

C

A

B

C

Alkali-resistant ceramic (alumina) (standard)

Acid-resistant ceramic (alumina)

Teflon PFA

Grounding Ring Material

316 stainless steel

316L stainless steel

Ti (titanium)

Ta (tantalum)

Pt-Ir (platinum/iridium)

Hastelloy C

Flow and calibration velocity range

0.3 to 10 m/s (standard range calibration)

0.3 to 10 m/s (specified range calibration)

0.1 to 10 m/s (specified range calibration)

Excitation and Signal Cables

not provided

30m cable, provided

other lengths, provided

○

△

△

○

△

△

○

△

△

△

△

△

A

B

C

D

Coating

no coating ( Standard for meter size 25mm to 100mm )

phthalic acid resin coating pearl-gray colored

( Standard for meter size 15mm, 150mm and 200mm )

black tar epoxy resin, thickness 0.3 mm

black tar epoxy resin, thickness 0.5 mm

○

△

△

△

○：Standard △：Option －：Not available

○

△

△

△

△

○

○

○

○

○

○

○

○

○

○

○

△

150mm and

200mm

△

△

△

△

○

○

○

○

○

○

○

○

○

○

―

―

○

○

△

△

○

△

△

○

△

△

△

△

△

―

○

△

△

－ ４８ －

Table 9.3 Type Specification Code (Exciting Cable and Signal Cable)

1 2 3 4 5 6 7 8

A C C

Description

Nominal cross-sectional area of Exciting cable (Note 1)

A

B

1.25 mm²

2 mm²

0

5

0

5

8

9

0

5

4

5

6

7

1

2

3

0

0

5

0

0

3

3

2

2

1

1

0

0

0

0

0

0

0

0

0

0

5

6

4

4

A

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

3

0

0

0

0

Nominal cross-sectional area of Signal cable (Note 2)

0.75 mm²

Cable length

1 m

2 m

3 m

4 m

5 m From 1 to 10 meters (3.3 to 32.8 feet),

6 m Cable can be ordered in 1 meter increments.

7 m

8 m

9 m

10 m

15 m

20 m

25 m

30 m From 10 to 50 meters (32.8 to 164 feet),

35 m cable can be ordered in 5 meters increments.

40 m

45 m

50 m

60 m

From 50 to 300 meters (164 to 984 feet), cable can be ordered in 10 meters increments.

300 m

Notes:

1. Exciting cable is a 3-wire chloroprene sheathed cable. For a nominal cross- sectional area of 1.25 mm², the overall diameter will be 12 mm (15/32 inch): for 2 mm², 13 mm(1/2 inch).

2. Signal cable is a 2-wire shielded chloroprene sheathed cable with a nominal cross-sectional area of 0.75 mm² and an overall diameter of 12 mm (15/32 inch).

3. Relation between exciting cable length and its nominal cross-sectional area and overall diameter is as follows.

Exciting cable length Nominal cross-sectional area Overall diameter

1 to 200 m

210 to 300 m

1.25 mm²

2 mm²

12 mm

13 mm

６Ｆ８Ａ０８７０

－ ４９ －

10. Outline Dimensions

10.1 Outline dimensions of LF414/LF600F, LF414/LF610F

(1) Meter size of 1/2 inch (15mm)

Integral

225

(35)

64

Waight : approx 5kg

(2) Meter size of 1inch (25mm)

(35)

225

87

Waight : approx 5kg

143

70

143

80

６Ｆ８Ａ０８７０

－ ５０ －

(3) Meter size of 1 1/2 to 8 inch (40 to 200mm)

225

(35)

143

L1

Meter size

(mm)

Overall lengeth

L1

40

50

80

100

110

110

Hight

(L2)

264

280

306

Diamete of flange

φD1

85

102

127

Weight

(kg) approx 6 approx 7 approx 8

６Ｆ８Ａ０８７０

－ ５１ －

10.2 Outline dimensions of LF414

(1) Meter size of 1/2 inch (15mm)

Separate

６Ｆ８Ａ０８７０

Waight : approx 3kg

(2) Meter size of 1inch (25mm)

Waight : approx 3kg

－ ５２ －

(3) Meter size of 1 1/2 to 8 inch (40 to 200mm)

６Ｆ８Ａ０８７０

Meter size

(mm)

Overall lengeth

L1

40

50

80

100

110

110

Hight

(L2)

190

207

232

Diamete of flange

φD1

Weight

(kg)

－ ５３ －

６Ｆ８Ａ０８７０

Appendix 1

1-1 A system block diagram for LF414/LF600F, LF414/LF610F

－ ５４ －

2-1 A system block diagram for LF414

６Ｆ８Ａ０８７０

－ ５５ －

６Ｆ８Ａ０８７０

Write down the address and phone number of the distributor from which you purchased this product, the product code, SER.NO. and so on.

Distributor Address

Name

Phone number （ ） －

Product code LF

SER.NO.

－ ５６ －

６Ｆ８Ａ０９０８
