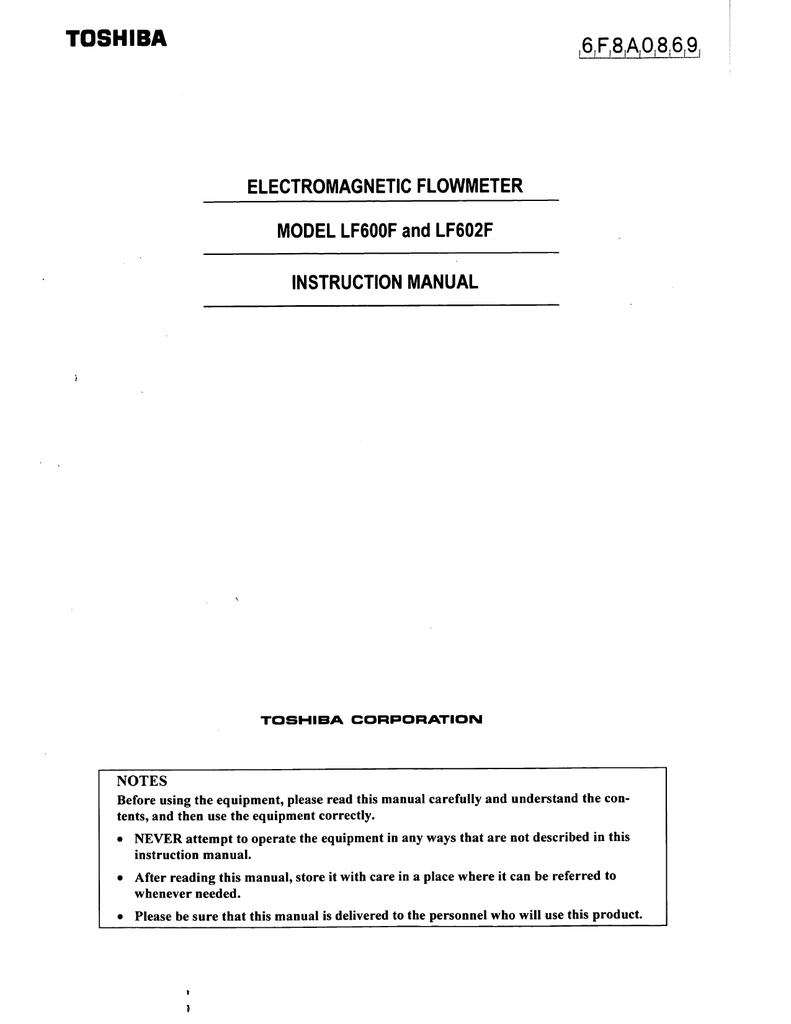

TOSHIBA 6F8A0869
ELECTROMAGNETIC FLOWMETER
MODEL LF600F and LF602F
INSTRUCTION MANUAL
TOSHIBA CORPORATION
NOTES
Before using the equipment, please read this manual carefully and understand the con-
tents, and then use the equipment correctly.
e NEVER attempt to operate the equipment in any ways that are not described in this
instruction manual.
e After reading this manual, store it with care in a place where it can be referred to
whenever needed.
e Please be sure that this manual is delivered to the personnel who will use this product.
TOSHIBA
NOTICE
We thank you very much for your purchase of our LF600F series electromagnetic flow-
meter converter.
Integral type converter LF600F
Separate type converter LF602F
This instruction manual describes the notes on using an electromagnetic flowmeter con-
verter, installation, configuration and maintenance. It is intended for the personnel in charge
of installation, operation and maintenance.
To use this product properly and safely, read this manual (6F8A0869) carefully before using
this product. After reading this manual, store it in a place where it can be referred to
whenever needed.
“About a PROFIBUS communication function, please read instruction manual 6F8A0873.
This manual uses the following markers to identify the integral type or separate type when it
describes items specific to the integrated type or separate type. Items without this marker are
common items to the integral type and separate type. |
Integral type converter LF600F: 6
LF600F
Separate type converter LF602F: =
LF602F
Toshiba LF60*F electromagnetic flowmeter converters can be used in combination with vari-
ous types of electromagnetic flowmeter detectors (LF414, LF434 and LF494).
For the notes on usage, piping, installation, configuration and maintenance of the com-
bined detector, check the model number of the combined detector and read the instruc-
tion manual of the relevant detector.
About Safety Precautions
Read the Safety Precautions described at the front carefully and understand the contents
before using this product.
~The “Safely symbols” used in the “Safety Precautions” are shown in a location such as
in the margin to the left of the corresponding commentary in the main text.
NOTES
1. The reproduction of the contents of this Manual in any form, whether wholly or in
part, is not permitted without explicit prior consent and approval.
2. The information contained in this Manual is subject to change or review without
prior notice.
3. Be sure to follow all safety, operating and handling precautions described in this
Manual and the regulations in force in the country in which this product is to be
used.
10th Edition June, 2007
First Edition September, 2005
TOSHIBA 6F8A0869
SAFETY PRECAUTIONS
Safety signs and labels affixed to the product and/or described in this manual give important
information for using the product safely. They help prevent damage to property and obviate
hazards for persons using the product.
Make yourself familiar with signal words and symbols used for safety signs and labels. Then
read the safety precautions that follow to prevent an accident involving personal injury, death or
damage to property.
Explanation of signal words
The signal word or words are used to designate a degree or level of hazard seriousness. -
The signal words used for the product described in this manual are WARNING and CAUTION.
A W ARN | N G Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
A C AUTI ON Indicates a potentially hazardous situation, which, if not avoided,
may result in minor to moderate injuries or in property damage.
Notes:
1 “Series injury” refers to an injury such as loss of sight, physical damage, burns (high
temperature or low temperature) electric shock, bone fracture and poisoning and the
after effect of the injury remains or the injury requires hospitalization or long periods
of outpatient treatment. |
2 “Minor to moderate injuries” refers to burns, electric shocks, and so on, that do not oblige
the injured person to be hospitalized or go to a hospital for a long period of time for A
medical treatment. “Property damage” includes all kinds of damage to property,
equipment or materials.
Safety symbols
The following symbols are used in safety signs and labels affixed to a product and/or in the
manual for giving safety instructions.
Indicates an action that is prohibited. Simply DON’T do this action.
The prohibited action is indicated by a picture or text inside or next to the circle
Indicates an action that is mandatory. DO this action.
The mandatory action is indicated by a picture or text inside or next to the circle.
Indicates a potential hazard. The potentially hazardous situation is
indicated by a picture or text inside or next to the triangle.
> e“
Color explanation
WARNING A Background color: Yellow and Red, Border: Black, Picture display: Black
CAUTION A Background color: Yellow, Border: Black, Picture display: Black
TOSHIBA 6,F8A0869
SAFETY PRECAUTIONS (continued)
Safety Precautions for Hazardous Locations
/N\ WARNING
EH Do not disconnect while circuit is live unless location is known to be nonhazardous.
Live part of electric circuit or a high temperature department can cause explosion.
O
1%
<
—
E Do not modify or disassemble the enclosure.
©
Strength degradation and defects of enclosure can cause explosion.
о
ON’
ad
E Do not use parts of other products.
N Protective performance degradation for hazardous location can cause explosion.
DON’T
B Do not live circuits While assembly of all components is not over.
Protective performance degradation for hazardous location can cause explosion.
о
1%
<
—
EM Install per the National Electrical Code for the US (NEC, ANSI/NFPA 70) and the
Canadian Electrical code for Canada (CEC, CAN/CSA-C22.1) and the drawing
3S8A2532,3S8A2533 (Refer to Appendix 2.).
Unsuitable conduit connections for hazardous location can cause explosion.
TOSHIBA 6F8A0869
SAFETY PRECAUTIONS (continued)
Safety Precautions for Installation and Wiring
/N\ CAUTION
E Install a switch and fuse to isolate the B Use an appropriate device to carry and install
LF600F and LF602F from mains power. the LF600F and LF602F.
Power supply from mains power O If this product falls to the ground,
can cause electric shock or injury, or malfunction of or damage
DO circuit break-down. DO to the product, can be caused.
E Turn off mains power before Ш Do not modify or disassemble the LF600F and
conducting wiring work. LF602F unnecessarily.
Wiring while power is applied ‘ Modifying or disassembling this
can cause electric shock. product can cause
electric shock, malfunction of or
DO DON'T
damage to this product.
B Turn off mains power before working on E Ground the LF600F and LF602F independently
from power equipment.
(100 ohm or less ground resistance)
Operating this product
without grounding can cause
Working on pipes while power
is applied can cause
© 3
D
D
N
DO electric shock. DO electric shock or malfunction.
B Do not conduct wiring work with bare ~ Use crimped terminal lugs for the terminal
hands. board and GND terminal.
Remaining electric charge Loose connections can cause
even if power is turned off can electric shock, fire from
' still cause electric shock. excessive current or system
DON'T DO malfunction.
EH Do not work on piping and wiring with wet
hands.
Wet hands may result in
electric shock.
DON'T
The label shown left is placed near the terminal board for
power supply on the converter.
| (A black border and symbol on yellow triangle)
Be alert to electric shock.
TOSHIBA 6F8A0869
SAFETY PRECAUTIONS (continued)
Safety Precautions for Maintenance and Inspection
/\ CAUTION
№ Ро not conduct wiring work with wet hands. |} Do not conduct wiring work when power is
applied.
Wet hands may result in Wiring while power is applied can
electric shock. S cause electric shock.
DONT DON'T
m Do not use a fuse other than the one M Do not touch the LF600F main body when
specified. | high temperature fluid is being measured.
Using a fuse other than the one The fluid raises the main body
specified can cause system N temperature and can cause burns
DON'T failure, damage or malfunction. DON'T when touched.
Бе == = = == = = = = = = = = = = ок омы жк овен окон о нок оо == = = = = = = = = = = = = == = = коек ово = = = = = = = = = = =
Use a rated fuse as follows:
Fuse rating: | The label shown left is placed near
(M0.8A(T)/250V for 100 to 240Vac or 110Vdc the terminal board for power input.
@2A/150V for 24 V de Л\ (A black border and symbol on
Dimensions: Diameter 5 mm x 20 mm
Melting time characteristic: (DTime Lag Be alert to electric shock.
@Medium-Arcing (Normal blow)
yellow triangle)
Usage limitation
This product is not manufactured for applying to a system requiring safety directly involved
human life as follows. Please contact you're nearest Toshiba reprehensive if there is a possibility
of using this product for such use.
- Main control systems of nuclear power plants, safety protection systems in nuclear
facilities or other important systems requiring safety
- Medical control systems relating to life support
Warranty and Limitation of Liability
Toshiba does not accept liability for any damage or loss, material or personal, caused as a direct
or indirect result of the operation of this product in connection with, or due to, the occurrence of
any event of force majored (including fire or earthquake) or the misuse of this product, whether
intentional or accidental.
TOSHIBA 6F 840869
Handling Precautions
To obtain the optimum performance from the LF600F and LF602F converter for years of
continuous operation, observe the following precautions.
(1) Do not store or install the flowmeter in:
e places where there is direct sunlight.
e places where there is snow and ice
Infrared switches may not function correctly.
e places where excessive vibration or mechanical shock occurs.
e places where high temperature or high humidity conditions obtain.
e places where corrosive atmospheres obtain.
e places submerged under water.
e place where there is slop floor. To put the flowmeter temporarily on the floor, place it
carefully with something, such as stopper, to support it so that the flowmeter will
not topple over.
o Places where there is following factors.
€ Factors to impede infrared switch to operate properly
* Intense light such as direct sunlight and reflected sunlight by window glass or metal plate
* Place where brightness changes always such as ON/OFF of lighting
* Dense smoke or steam near the control panel
* Those attached on the control panel such as rain (dew drop), snow, ice, mud and oil, and
haze due to their attachment
* Light reflecting object near the control panel, or reflecting object such as metal plate placed
opposing to the contro! panel
When any of above factors is considered, take a measure for the proper operation of
infrared switch such as to place a cover or to secure a space for at least a person to stand in
front of the control panel. |
When unable to avoid above factors, operate the EMF converter removing the factor by
covering the control panel by hand so that light does not shine on it, by cleaning those
attached on the control panel, or by standing in-between the reflecting object and the
control panel to block the light.
(2) Wire cables correctly and securely.
Be sure to ground at the converter side (grounding resistance 100 or less).
Avoid a common ground used with other equipment where earth current may flow. An
independent ground is preferable
(3) Select cable paths away from electrical equipment (motors, transformers, or radio
transmitters), which causes electromagnetic or electrostatic interference.
(4) The cable glands is not provided in the conduit port of this apparatus.
Because 1/2-14NPT screw holes are processed to this place, please prepare yourself for the
cable glands which could be used in Division2 hazardous locations.
The cable lead-in section must be tightened securely to keep air tightness.
TOSHIBA 6,F8A0869
Handling Precautions (continued)
(5) Ifthe inside of the converter or cable terminals are wetted or humidified, it may cause
insulation deterioration, which can result in fault or noise occurrence. So do not conduct
* wiring in the open air on rainy days.
Also, be careful not to wet down the converter even in the case of indoor wiring, and
complete wiring work in a short period of time.
(6) Observe the following precautions when you open the converter housing cover:
Do not open the cover in the open air unprotected against rain or wind. This can
cause electric shock or cause damage to the flowmeter electronics.
e Do not open the cover under high ambient temperature or high humidity
conditions or in corrosive atmospheres. This can cause deterioration of system
accuracy or cause damage to the flowmeter electronics.
(7) Since a varistor is built in converter, do not conduct a withstand voltage test for the
converter.
In addition, the voltage for checking the insulation of the converter must be 250VDC
or lower.
(8) This product may cause interference to radio and television sets if they are used near
the installation site. Use metal conduits etc. for cables to prevent this interference.
(9) Radio transmitters such as transceivers or cellular phones may cause interference to the
flowmeter if they are used near the installation site. Observe the following precautions
when using them:
e Close a transmitter cover before using a transceiver.
e Do not use a transceiver whose output power is more than S W.
e Move the antenna of a transceiver or a cellular phone at least 50 cm away from the
flowmeter and signal cables when using it. |
* Do not use a radio transmitter or a cellular phone near the flowmeter while it is
operating online. The transmitter or cellular phone’s output impulse noise may interfere
with the flowmeter.
* Do not install a radio transmitter antenna near the flowmeter and signal cables.
(10) For reasons of flowmeter failure, inappropriate parameters, unsuitable cable
connections or poor installation conditions, the flowmeter may not operate properly.
To prevent any of these problems causing a system failure, it is recommended that
you have preventive measures designed and installed on the flowmeter signal
receiving side.
(11) For piping and installation of the combined detector, check the model number of
detector and read the instruction manual of the relevant detector.
* We assume no responsibility for nonconformity caused by violation of precautions described
in this manual or used in violation of the installation method and the operation method
stipulated in a relevant ordinance or other regulations.
TOSHIBA 6F8A086,9
Table of Contents
1. Product Inspection and Storage 11
1.1 Product Inspection 11
1.2 Storage 11
2. Overview 12
3. Names of Parts 13
3.1 Appearance 13
3.1.1 Appearance of LF600F Type 13
3.1.2 Appearance of LF602F Type 14
3.2 Construction of the terminal blocks 15
3.2.1 Terminal Block Construction of LF600F Type 15
3.2.2 Terminal Bock Construction of LF602F Type 16
4. Installation 17
4.1 Notes on Selecting the Installation Location 18
4.2 How to Install 19
4.2.1 LF600F Type 19
4.2.2 LF602F Type 19
5. Wiring 21
5.1 Cables 22
5.2 External Device Connections and Grounding 23
5.2.1 LF600F Type 23
5.2.1 LF602F Type 24
5.3 Notes on Wiring 25
5.3.1 Notes on Instrumentation—Converter Wiring 25
5.3.2 Notes on Wiring of the LF602F Type 25
5.4 Wiring 26
5.4.1 Grounding 26
5.4.2 Terminal Treatment of Cable 28
5.4.3 Cable Connection ; 30
5.5 Digital I/O Connections 31
6. Operation 32
6.1 Preparatory check 32
6.2 Zero Adjustment 33
7. LCD Display and Controls 34
7.1 Name and Function of Each Part of LCD Display 34
7.2 Display Format 36
7.3 Basic operations 42
7.3.1 Mode Change 42
7.3.2 Setting and Calibration 46
7.4 Configuration Items Selection Table 50
7.5 Password input 52
TOSHIBA OF8A0869
8. Configuration Parameter Setting 53
8.1 Configuration Items 53
8.2 Check/Change of Parameters 54
8.2.1 Menu Configuration Selection Screen .54
8.2.2 Exciting Current Value 55
8.2.3 Meter Size 57
8.2.4 Exciting Frequency 59
8.2.5 Flow Direction Setting 61
8.2.6 Password Setting 63
8.2.7 Address Setting .65
8.2.8 Indicating Unit 65
8.2.9 Custom Coefficient Setting 69
8.2.10 Custom Unit Setting 70
8.2.11 LCD Density Adjustment 72
8.2.12 Switch Position Setting 73
8.2.13 Span (range) 76
8.2.14 Damping Constant 83
8.2.15 Low Cutoff .................———.—.—w—.w... 84
8.2.16 Current Output Setting Used When an Alarm Occurs 85
8.2.17 Display Low Cut Setting 86
8.2.18 Output Low Limit Setting 88
8.2.19 Still Water Zero Adjustment 89
8.2.20 Digital 1/0 90
8.2.21 Count Rate (Pulse Rate), Pulse Width Setting Mode, Pulse Width .93
8.2.22 Preset Count Value 96
8.2.23 Preset Point Output Function 97
8.2.24 Flow Rate High, Low, High—High and Low-Low limit Alarm Setting 98
8.2.25 Empty Alarm Setting 100
8.2.26 Self-diagnosis ON/OFF Setting 101
8.2.27 Alarm Output Preset Function Setting 102
8.2.28 Rate-Of-Change Limit and Control Limit Time 103
8.2.29 Fixed-Value Output 105
8.2.30 Zero Offset Adjustment 108
8.2.31 Parameter initial settings list 110
9. Calibration 111
9.1 Calibration Items 111
9.2 Calibration Using Converter Signal Source 112
9.2.1 0 % Flow Rate Calibration (zero point calibration) 112
9.2.2 50 % Flow Rate Calibration 113
9.2.3 100 % Flow Rate (Span) Calibration 113
9.2.4 Checking the Excitation Current Value 113
10. Digital 1/O Functions 114
10.1 Digital 1/0 Specifications 115
10.2 Totalizer and Pulse Output 116
10.3 Multi-range Functions 120
10.4 High/Low, High—high or Low-low Limit Alarm 125
10.5 Preset Count Output 127
10.6 Remote Zero Adjustment 130
TOSHIBA 6F8A0869
10.7 Remote Selection of Fixed Value Output 131
10.8 Converter Failure Alarm 132
10.9 Multiple range high/low limit alarm function (option) 133
11. Communications Function 135
11.1 Connections with the HHT Terminal 136
11.2 Procedures for Communication with HHT 137
11.3 Cautionary Notes on Communications 138
12. Self-Diagnostics and Alarms 139
12.1 Self-diagnostics. 139
12.2 Output Status for Errors and Alarms 142
13. Maintenance and Troubleshooting 143
13.1 Maintenance 144
13.2 Troubleshooting 145
13.2.1 Flow rate is not indicated. 145
13.2.2 Flow rate indication is not correct. 146
13.2.3 Flow rate indication is not stable. 147
13.2.4 When switch operation is unable 148
14. Principle of Operation 149
15. Specifications | 150
15.1 Specifications. | 150
15.2 Model Number Table 150
16. Outline Drawing 153
16.1 LF600F Type..... 153
16.2 LF602F Type 154
Appendix 1 ( Factory default standard value table ) ..........................e....0. reee ree ee ene DN nceconeeeeoee rene... 155
APP@NAÎX À....……cssrrsesssensenesneenenesenn(ennnnnnnnnnnnnnMnnnnnnnnnnnnnenÛnnennennetnsnnsnnennsnentnntennsnnnennnnnnsnnbesnÊsnnnnnsnnnnnnnsûnnn 157
2-1 A system block diagram for LF600F ..........................—2.2.m.e0meeeeee e DDD eee 157
2-2 A system block diagram for LF6O2F .........................=—.262e000. 0. een De eee DDD DO Leer eee Deere. 158
Appendix 3 (Electromagnetic Compatibility and Low Voltage Safety) ........................c...e.0000000e eee De 159
TOSHIBA 6,F8A0869
1. Product Inspection and Storage
1.1 Product Inspection
LF60*F series electromagnetic flowmeter is shipped in a cardboard container filled with
shock-absorbing materials. Open the package carefully and check as follows:
M Make sure the following items are included in the package.
For the integral type (when a converter and detector are united)
©
LF600F
Electromagnetic flowmeter main unit 1 unit
Instruction manual One each for the converter and detector
For the separate type (when a converter and detector are separated)
| | [Electromagnetic flowmeter converter 1 unit
Electromagnetic flowmeter detector 1 unit
LF602F [Instruction manual Once each for the converter and detector
For a converter unit only
—T| |Electromagnetic flowmeter converter One unit
Instruction manual -One for the converter
LF602F
№ Inspect the flowmeter for indications of damage that may have occurred during shipment.
M Make sure the type and specifications of the flowmeter are in accordance with the ordered
specifications.
If you cannot find the items listed above or any problem exists, contact you're nearest Toshiba
representative.
1.2 Storage
To store the electromagnetic flowmeter after opening the package, select a storing place as
follows and keep it under the conditions described below:
/\ CAUTION
(1) Avoid places where there is direct sunlight, rain or wind.
(2) Store the product in a well-ventilated place. Avoid places of extremely high humidity or
extremely high or low temperature. The following environment is recommended:
e Humidity range: 10 to 90% RH (no condensation)
e Storage temperature: —25 to +65° C
(3) Avoid places where vibrations or mechanical shock occur.
— (4) Ifit leaves the cover of converter open while being stored, gradual deterioration of circuit
isolation can be caused. And then don’t open the cover until it is connected with wires.
(5) To put the flowmeter temporarily on the floor, place it carefully with something, such as
stopper, to support it so that the flowmeter will not topple over.
— 1 —
TOSHIBA 6F8A0869
2. Overview
The LF600F and LF602F electromagnetic flowmeter converter can be use in the following
hazardous (classified) locations.
Class I , Division 2, Groups À, B, C and D,
Class II, Division 2, Groups E, F and G
Class IH
This product is a converter used for electric flowmeters that measure the volumetric flow rate of
conductive fluid using Faraday's law of electromagnetic induction.
You can bring out the functions of the converter when you place it in the converter housing you
prepare and use it in combination with a fluid rate measurement detector.
The converter sends out a signal to drive the detector exciting coil, which generates a magnetic
field inside the detector. The converter receives the signal electromotive force obtained by the
detector, as signal electromotive force in proportion to the generated flow rate in the fluid using
Faraday's law of electromagnetic induction. After carrying out operation, the converter converts
the signal electromotive force to an analog signal instrumentation unified signal output and
displays the status, as a flow rate value.
Features
With a linear relationship between the flow rate and output signal, the electromagnetic flowmeter
is featured as an easy-to-read indicator. In addition to this feature, it has the following outstanding
features:
(1) Wide flow velocity range setting, such as a flow velocity range of 0~0.1 and 0~10m/s, is
(2)
3)
4)
(5)
achieved.
The unique noise filter-out circuit and arithmetic operation processor enables you to obtain
stable output.
Full graphic LCD that enables display of a large amount of information
* With a large amount of a maximum of 14 characters x 8 lines, you can easily check various
displays including bar graphs and alarm indications.
* The backlight allows you to read the indicator easily.
Use of infrared switches
* Use of infrared switches allows you to perform various operations, without opening the
converter housing cover.
Intelligent functions
* The widely used HART protocol communications system is used as a standard feature.
* This product supports PROFIBUS” communication by option.
* | HART protocol: “HART” stands for Highway Addressable Remote Transducer and is a
communication protocol recommended by HCF (HART communication
Foundation) for industrial sensors.
* 2 PROFIBUS: PROFIBUS, which stands for PROCESS FIELDBUS, is a kind of field bus
that is approved by international standard IEC61158. The electromagnetic
flowmeter supports PRFIBUS PA for process automation.
TOSHIBA 6F8A0869
3. Names of Parts
IMPORTANT
The cable glands is not provided in the conduit port of this apparatus.
Please prepare yourself for the cable glands, which could be used in Division2 hazardous locations.
3.1 Appearance
3.1.1 Appearance of LF600F Type
©)
LF600F
Terminal block cover
Converter Display section Control key
| (Control panel)
for power cable
for current output cable
Raised portion
Detector | Arrow nameplate
Figure 3.1.1 Appearance of LF600F
TOSHIBA 6F8A0869
3.1.2 Appearance of LF602F Type
U
LF602F
Display section
/ Cover installation screw
® a Y e a
| a
=
0.0 ® Е | Converter cover
se. TOSHIBA
| © | | ® В Control key
| [ Г [1 ONCE panel)
| "Raised portion
for excitation cable | for output cable
_\ ; Ground terminal
у и
pe or]
for flow rate signal for option
cable
09
©
Figure 3.1.2 Appearance of LF602F
TOSHIBA — 6F,8A0869,
3.2 Construction of the terminal blocks
3.2.1 Terminal Block Construction of LF600F Type
When you remove the terminal block cover shown in the figure "Appearance of LF600F Type", you
can see the converter terminal block as shown below.
6
LF600F
Current output terminal or
PROFIBUS* terminal
Digital output terminals *Option
Signal common
~
Fuse
COM |
Internal grounding 5 : J
terminal DI | ©
- N
J
Power supply terminals | ) '\-/ External grounding terminal
Digital input terminal
/1\ CAUTION
The label shown left is placed near the terminal
board for power supply to this equipment.
Be alert to electric shock.
Figure 3.2.1 Terminal Block Construction of LF600F
TOSHIBA
6F8A0869
3.2.2 Terminal Bock Construction of LF602F Type
О
LF602F
/1\ CAUTION
ZA
The label shown left is placed near the terminal
board for power supply to this equipment.
Be alert to electric shock.
Detector connection terminal
u J
Л T
- [80-250VAC
— POWER N
|
poz [por | + |[Li(+)|/L2(—)
NAN Хх
Y от | сом | — | смо | Ев -D 0BATY250V |
[sta] FX C FET —— FL I
e | | CN Fuse holder
Digital input terminal
Digital output terminal
oo supply terminal Internal grounding terminal
4-20mADC current
output terminal External grounding terminal
Digital I/O common
Figure 3.2.2 Terminal Block Construction of LF602F
TOSHIBA 6,r,8A0,8,6,9,
4. Installation
Safety Precautions for Installation
NA WARNING
B Do not live circuits under environment of explosive atmospheres.
SQ Live part of electric circuit or a high temperature department can cause explosion.
DON’T |
E Do not use parts of other products.
N Protective performance degradation for hazardous location can cause explosion.
DON’T
EH Do not live circuits While assembly of all components is not over.
N Protective performance degradation for hazardous location can cause explosion.
DON’T
№ Install per the National Electrical Code for the US (NEC, ANSI/NFPA 70) and the
Canadian Electrical code for Canada (CEC, CAN/CSA-C22.1) and the drawing
3S8A2532,3S8A2533 (Refer to Appendix 2.).
O Unsuitable conduit connections for hazardous location can cause explosion.
DO
E Ground the LF600F and LF602F B Use an appropriate device to carry and install
independently from power equipment. the LF600F and LF602F.
(100 ohm or less ground resistance)
Operating this product without If his product falls to the ground,
grounding can cause electric injury, or malfunction of or damage to
the product, can be caused.
DO shock or malfunction. DO
@ Install a switch and fuse to isolate the E Do not modify or disassemble the LF600F and
LF600FF and LF602FF from mains power. LF602F unnecessarily.
Power supply from mains Modifying or disassembling this product
power can cause electric can cause electric shock, malfunction *
shock or circuit break-down. or damage to this product.
DO DON'T
EH Do not work on piping and wiring with
The label shown left is placed
wet hands. | ! wn left is pl
Wet hands may result in near the terminal board tor power
. supply to the converter.
electric shock |
Be alert to electric shock
DON'T
TOSHIBA 6F8A0869
4.1 Notes on Selecting the Installation Location
This product is designed for the following environment.
+ Indoor and outdoor installation - Ambient temperature: —20to +60°C
* Altitude: Up to 2000m * Humidity range: 10 to 90%(no condensation)
* Regulation of power voltage: + 10%
* Pollution degree 2 * Structure: IP67 (NEMA 4X)
О
LF602F
Do not store or install the flowmeter in :
1.
SM SS HN
Places within the immediate proximity of equipment producing electrical interference (such as
motors, transformers, radio transmitters, electrolytic cells, or other equipment causing
electromagnetic or electrostatic interference).
Places where there is direct sunlight.
Places where excessive vibration or mechanical shock occurs.
Places where high temperature or high humidity conditions obtain.
Places where corrosive atmospheres obtain.
Places submerged under water.
Place where there is slop floor. To put the flowmeter temporarily on the floor, place it
carefully with something, such as stopper, to support it so that the flowmeter will not
topple over.
Places of too great an elevation or constricted areas where clearance for installation or
maintenance work is not provided.
The standard length of the cable that connects the detector and converter is 30m. Select the
converter installation location so that the distance of the detector and converter will not exceed
30m.
10. Places where there is following factors.
* Factors to impede infrared switch to operate properly
* Intense light such as direct sunlight and reflected sunlight by window glass or metal plate
* Place where brightness changes always such as ON/OFF of lighting
* Dense smoke or steam near the control panel
* Those attached on the control panel such as rain (dew drop), snow, ice, mud and oil, and haze due
to their attachment
* Light reflecting object near the control panel, or reflecting object such as metal plate placed
opposing to the control panel
When any of above factors is considered, take a measure for the proper operation of infrared switch
such as to place a cover or to secure a space for at least a person to stand in front of the control
panel.
When unable to avoid above factors, operate the EMF converter removing the factor by covering
the control panel by hand so that light does not shine on it, by cleaning those attached on the control
panel, or by standing in-between the reflecting object and the control panel to block the light.
TOSHIBA 6,F,8A0869,
4.2 How to Install
4.2.1 LF600F Type
The LF600F type converter is used as one united body. The LF600F type is not installed by itself.
For how to install the LF600F type converter and a detector, check the type of the combined
LF600F detector and follow the instruction manual of the relevant detector.
4.2.2 LF602F Type
The LF602F type can be installed on a wall or to a pipe stand. Install the converter so that the
О front of the cover is positioned on the vertical plane. Be sure to install it so that the conduit
LF602F Opening of the converter will face the bottom.
Figure 4.1 shows examples of installation to a panel and wall. Figure 4.2 shows an example of
installation to a pipe stand.
74 4-p11 installation hole Panel/Wall surface, etc.
> a
4-11 bolt
'{' Panel .or wall mounting dimensions
74 J 4.910 hole or M10
Figure 4.1 Examples of Installation to Panel and Wall unit: mm.
TOSHIBA 6F8A08639
178
unit: mm
50A pipe (28 pipe), etc.
Figure 4.2 Example of Pipestand Mounting
TOSHIBA
6,F8A0869,
5. Wiring
/N\ WARNING
TO BE NONHAZARDOUS.
DON’T
EH DO NOT DISCONNECT WHILE CIRCUIT IS LIVE UNLESS LOCATION IS KNOWN
Live part of electric circuit or a high temperature department can cause explosion.
DON'T
E Do not live circuits While assembly of all components is not over.
N Protective performance degradation for hazardous location can cause explosion.
E Install per the National Electrical Code for the US (NEC, ANSI/NFPA 70) and the
Canadian Electrical code for Canada (CEC, CAN/CSA-C22.1) and the drawing
3S8A2532,3S8A2533 (Refer to Appendix 2.).
Unsuitable conduit connections for hazardous location can cause explosion.
/\ CAUTION
EM Install a switch and fuse to isolate the
LF600F and LF602F from mains power.
Power supply from mains power
can cause electric shock or circuit
break-down.
DO
Bm Turn off mains power before conducting wiring
work.
Wiring while power is applied can cause
electric shock.
DO
E Do not work on piping and wiring with
wet hands.
Wet hands may result in electric
shock
DON'T
E Ground the LF600F independently from power
equipment. (100 ohm or less ground resistance)
© Operating this product without grounding
can cause electric shock or malfunction.
DO
B Do not conduct wiring work with bare
hands.
O
DON'T
Remaining electric charge even if
power is turned off can still cause
electric shock.
ΠFor the power supply wiring and grounding wiring,
use crimping terminals with insulated sleeve.
There is a risk of electric shock due to
drop-off or loosing, and a risk of fire and
equipment trouble due to heat generation.
DO
Do not modify or disassemble the LF600F
and LF602F unnecessarily.
Modifying or disassembling this
product can cause electric shock,
malfunction of or damage to this
DON'T product.
The label shown left is placed near
the power supply terminal on the
converter.
Be alert to electric shock.
ZA
Flowmeter accuracy may be affected by the way wiring is executed. Proceed with correct
wiring taking the precautions in following pages.
21 —
TOSHIBA 6/F,.8A0,8,6,9,
Notes on wiring
/\ CAUTION
(1) Select the cable runs away from electrical equipment (motors, transformers, or radio
transmitters) which causes electromagnetic or electrostatic interference.
(2) Deterioration of flowmeter circuit insulation occurs if the converter interior or cable ends get
wet or humidified. This in turn causes malfunction of flowmeter or noise problems. Avoid a
rainy day if the flowmeter is to be installed outdoors. Even indoors, prevent water from
splashing over the flowmeter. Try to finish the wiring as quickly as possible
(3) The converter has an arrestor installed inside. Therefore, do not conduct a withstand voltage
test for the converter. To check the insulation of the converter, use a voltage of 250Vdc or
less.
(4) After wiring, be sure to install the terminal block protection cover.
(5) Because the excitation cable and flow rate signal cable transmit very delicate signals, pass each
U of them separately through a thick steel conduit tube, keep them away from the large current
y
LF602F wiring as far as possible, and do not install them in parallel.
5.1 Cables
Use the kind of cables shown in Table 5.1 to wire the converter.
Table 5.1 Installation Cables
Nominal Finished
Name Cable name cross-sectional “outer Description
area diameter
CVV -JIS C 3401,
IEC60695,
3-core vinyl sheathed cable or 2 _ IEC60754,
Power cable | 7. core vinyl sheathed cable 2 mm (1-13mm | \EC60227
|EC60245
or equivalent
The number of conductors the cable contains differs depending on
Output signal | the specification of the output signal cable. CVV-S JIS -258-C
cable Use a shielded cable of finished outer diameter 11 to 13mm and | or equivalent
nominal cross-sectional area 1.25mm2,
2PNCT-S
Flow rate | 2-core shielded chloroprene 11~13m
[] 0.75 mm? JIS C 3327
signal cable | cabtyre cable m or equivalent
LF602F — CT
= Excitation 3-core shielded chloroprene 2 mm? 11~13m ec 3397
2 :
cabtypre cable 1.25 т m or equivalent
LF602F
TOSHIBA 6F8A0869
5.2 External Device Connections and Grounding
5.2.1 LF600F Type
6 The terminal board connections of an integral type converter LF600F are shown in Figure 5.1.
Proceed with wiring as described in Section 5.4, “Wiring Procedure.” |
LF600F | [Instrumentation panel: Customer]
(Receiving side)
—%
TN
| “a | Current output
Ground terminal , (4-20mAdc)
| pr] or PROFIBUS
O O.BATY250V Qér o |
IV wire + XY |. “ Ly Digital output 1
5.5mm? or more (1) 001 XH o и” \ | i | 1 Common for DI/DO
NS x) com ) т | Digital output 2
DO? e E.
| В i | [== Одна! три!
=”. L2 NX ® GND 2 a 7 (20 to 30 Vdc)
AA =) XN
(100 ohm or less SD © NOTE:
\
ground resistance) | (© NN To avoid 2-point grounding,
ground the shield of the output
O | O lar | cable basically at the receiving
side.
Output signal cable
Converter uni (CVV-5)
JA
> (100 ohm or less
_ ground resistance)
NOTE: a E.
777
(100 ohm or less
ground resistance)
le Power supply
| No Wiring breaker
TT Power cable (CVV) | (double-pole/single-throw)
* For a 2-core cable, L1
and L2 only.
e When 3-core power cabel is used, do
not ground from the external
grounding terminal.( grouding at the
receving side only).
Only when a 2-core power cable is
used, perform from the external
grounding terminal.
ee calle —— GA EE o —
o an an ee EE EE |
FE
ud _-000
Figure 5.1 External Wiring Schematic Diagram
* Use a heavy copper braid or wire (cross-sectional area 3.5 mm’ minimum) to ground the
terminal and make it as short as possible as shown in Figure 5.1 for grounding.
Also, Avoid a common ground where earth current may flow. (An independent ground 1S
preferable.)
* The converter has no power switch. Install the power switch at the system side. Be sure to use a
double-pole/single-throw (both disconnection) wiring breaker.
TOSHIBA 6F8A0869
5.2.2 LF602F Type
The terminal board connections of separate type converter LF602F are shown in Figure 5.1.
Proceed with wiring as described in Section 5.4, “Wiring Procedure.”
U J
О
LF602F
NOTE:
e When 3-core power cable is
used, do not ground from the
external grounding terminal.
Perform grounding at the
receiving side only.
e Only when a 2-core power
cable is used, perform
grounding from the external
grounding terminal.
TT (100 ohm or less
ground resistance)
Grounding terminal
Power cable (CVV)
* For a 2-core cable, L1 and
L2 only.
Signal cable NU
(2-core shielded LD
cabtypre cable)
,
". +
- .
A
Tone
т
-
Thick steel con-
duit tube
se 5 qe ERE.
an NH KF особое,
+ ..
nana PP A osease dhesrant"
Excitation cable
(3-core cabtypre =
NOTE: Please refer to instruction] — 1/0 cable (CVV-S)
manual of detector about connec-
tion to detector.
. .
"tönen. ie Ever nt
[Instrumentation panel:
Customer]
*
|
.
777 Г —
Grounding wire Digital output 2 Current output Power
Digital input $ (4-20mAdc) supply
(20 to 30Vdc)
White Digital output 1 777
NOTE: To avoid 2-point Signal common 100 ohm or |
grounding, ground the shield of (100 ohm or 1ess
. ground resistance)
the output cable basically at
the receiving side.
Shielded wire Black White
Connected detector
Figure 5.2 External Wiring Schematic Diagram
4 — 24 —
TOSHIBA 6,F8A0869,
5.3 Notes on Wiring
5.3.1 Notes on Instrumentation-Converter Wiring
LF602F
o
To avoid 2-point grounding, ground the shield of output cable basically at the receiving side.
Use a grounding wire of IV wire 5.5mm?’ or more. The size of the external grounding terminal screws is
M4. Do not share a grounding wire with other instruments where grounding current may flow. (An
independent grounding is preferable.)
Power cable
When a 3-core cable is used: Ground with the FG terminal.
When a 2-core cable is used: Use an external grounding terminal and make the cable as short as possible.
Note that, for a replacement from the Toshiba electromagnetic flowmeter converter LF220 type, the
cable grounding position differs.
01) 5.3.2 Notes on Wiring of the LF602F Type
The detector is shipped with a flow rate signal cable and excitation cable. Be sure to use those cables
coming with the detector.
Note: When the cable length exceeds 30m, cables may not be supplied. Check whether the
cable is supplied with the specs.
The allowable cable length between the detector and converter varies depending on the conductivity of
the operating fluid. Refer to the instruction manual of the combined detector. |
When connecting with the detector, wire the cables in the order of the excitation cable and flow rate
signal cable.
Because the input cables transmit very delicate signals, pass the excitation cable and input signal cable
separately through a thick steel conduit tube , keep them away from the large current wiring as
far as possible, and do not install them in parallel.
When replacing the flow rate signal cable and excitation cable, also refer to the instruction manual of the
relevant detector. Order the detector terminal box cover packing from Toshiba or a Toshiba distributor.
TOSHIBA
6, F 8A0869,
5.4 Wiring
IMPORTANT
The cable glands is not provided in the conduit port of this apparatus.
Please prepare yourself for the cable glands which could be used in Division2 hazardous locations.
/N CAUTION
power is supplied.
O
DON'T
№ Do not wire cables and replace parts when
Wiring work and
replacing parts in the
power-on state may cause
electric shock.
hands.
O
DON'T
E Do not work on piping and wiring with wet
Wet hands may result in electric
shock.
5.4.1 Grounding
(1) Grounding the LF600F type
LF600F — Ground as shown in Figure 5.3. Make the grounding wire as short as possible. Use grounding wire
material of IV wire 5.5mm’ or more. Do not share a grounding wire with other instruments
where grounding current may flow. (An independent grounding is preferable.)
Conductive material pipe
Example: Metal, etc.
e If the piping material is conductive, connect
the grounding wires to the both ends of the
piping flange.
Grounding terminal
Grounding wire
Е
Г
Piping of non-conductive material
Example: Resin or metal piping whose
inside is resin-lined, etc.
UDI UY UU IU)
grounding resistance
100 ohm or less
e |f the piping material is non-conductive, perform
grounding (grounding resistance 10092 or less).
Figure 5.3 Grounding the LF600F Type
TOSHIBA
6F8A0869
(2) Grounding the LF602F type
Ground the external grounding terminal of the detector and the FG terminal of the converter (or ex-
ternal grounding terminal of the converter) securely (grounding resistance 100Q or lower). Use
grounding wire material of IV wire 5.5mm’ or more. Do not share a grounding wire with other
instruments where grounding current may flow. (An independent grounding is preferable.)
If it is difficult to perform grounding work at the detector side because of a pit installation or other
reasons, use a 3-core cable for the excitation cable and connect the E terminal of the detector to the E
terminal of the converter. (The E terminal of the converter is internally connected with the FG termi-
LF602F
nal and the converter case.)
Converter A G KI | ©
ma BE UN | | FG
\
— [| J
Shield twisted «17 :£ „” N
- Grounding terminal
(100 ohm or less
Input signal ground resistance)
cable
Excitation cable
Shield twisted + :.b.: ¡hb ,
pe Grounding terminal
1 Detector
NOTE: Please refer to instruction| terminal
manual of detector about connec-| block
tion to detector.
(100 ohm or less
Figure 5.4 (a)
ground resistance)
Wiring between Detector and Converter (For
grounding the detector, see Figure 5.5 below.)
Grounding terminal
Conductive material piping
Example: Metal, etc.
A |
Shield twisted hy WL:
Input signal
cable
Shield twisted
не Во
«ods
> р
a
Converte] A IG X ©
Soo | BIYE [NM FG
К \! \ |
\ X m
(100 ohm or less
ground resistance) -
2 Excitation cable
Grounding terminal
NOTE: Please refer to instruction
manual of detector about connec-
tion to detector.
Detector
terminal
block
/
|
Figure 5.4 (b)
Wiring between Detector and Converter
(when grounidng of the detector is difficut)
AL
Grounding
wire
anion Са
La
Non-conductive material piping
Example: Resin product or metal piping whose inside is resin lined
e Ifthe piping material is conductive, connect the
grounding wires to the both ends of the piping flange.
Grounding wire
Tn.
—
-
—
LB)
resistance 1000 or less.
Figure 5.5 Grounding the Separate Type Detector
iin
If the piping material is non-conductive, perform grounding
Grounding wire
(100 ohm or less
ground resistance)
27
TOSHIBA 6,F8A0869
5.4.2 Terminal Treatment of Cables
Follow the procedures below to treat the terminals (at the converter side) of various cables and install
the cables to the terminal block. Use appropriate cables based on the description in Section 5.1
"Cables." Crimp a round type insulated crimp-type terminal to the end of the cables.
(1) Power cable, current output cable, digital I/O cables
The necessary cables should be ordered from the person responsible for the installation. Strip the
sheath of each conductor as shown in Figure 5.6 and attach a crimping terminal with insulated
sleeve to it. The size of the crimping terminal is as follows:
Integral type LF600F: M4
Separate type LF602F: M3.5
e Connect the power cable to terminal blocks LI and L2.
e Connect the current output cable to terminal blocks + and -. |
e Connect the digital VO cable to terminal blocks D1, D01, D02 and COM, as required.
о LF600F type: M4
С terminal
imping termina Lifer type: M3.5
—
Figure 5.6 Terminal Treatment of Power Cable, Current Output Cable
and Digital ГО cable
(2) Excitation cable
U Strip the sheath from the end of each conductor as shown in Figure 5.7, attach an M3.5 crimping
LF602F terminal with insulated sleeve, and connect it to the terminal blocks X and Y. Connect the red
conductor to terminal block E.
ANS crimping terminal
X Black |
E Red ei rs
Y White. @ f=
25~45mm
Figure 5.7 Terminal Treatment of Excitation Cable
TOSHIBA 6F8A0869
(3) Connecting the input signal cable:
О Strip the sheath from the end of each conductor of a 2-core individually shielded cable as shown in
LF602F Figure 5.9. Twist those shields and cover them with a thermal contraction tube or vinyl tube not to
make contact with the case or core wires. Then attach an M3.5 crimping terminal with insulated
sleeve as shown in Figure 5.8. Connect a crimping terminal to the A and B terminals on the terminal
block and connect to each G terminal of the detector and converter.
M3.5 crimping terminal
Thermal contraction tube or vinyl tube
y_ q hl -
pen e
CO YY TA
LT a,
2 >. LA
25~45mm
<— — +»
Figure 5.8 Terminal Treatment of Flow Rate Signal Cable
O Notes on signal cable shield processing work
When stripping an external sheath, intermediate and insulated sheath, be careful not to scratch or
cut the internal conductors and shield mesh. Do not disjoint the shield mesh but treat it as shown in
Figure 5.9.
E CEE a. Open the shield mesh with a pincette or the like.
Coated wire
LN = b. Pull out the internal coated wires from the hole of the
e a ICONS shielded mesh.
Shield mesh
c. Pull out all internal coated wires and extend the shield mesh wire.
E e
ECE J CY
eee
==
I
0
Stree eee dee!
Figure 5.9 Treating the Signal Cable Shield Mesh
TOSHIBA 6F.8A08639
5.4.3 Cable Connection
(1) Connect and install the terminal-treated cables to the terminal block.
*Connect the cables to the terminal block securely. A loose connection may cause incorrect
measurement. After connecting a cable, try to pull it to check whether it has been connected
securely.
Referring to Section 5.2 "External Device Connections and Grounding", connect each cable to the
terminal block. Tighten the screws of the terminal block tightly to ensure the secure connection.
A loose connection may cause incorrect measurement. After connecting a cable, try to pull it to see
whether it has been connected securely.
Phillips screwdriver
* The appropriate torque for tightening
the terminal board screw is 1.2 N.m.
Terminal block
Figure 5.10 Connecting a Cable to Terminal Block
TOSHIBA 6F8A0869,
5.5 Digital 1/0 Connections
Digital I/O terminals consist of contact output terminals (DO1 and DO2), voltage signal input
terminal (DI, optional), and signal common terminal (COM). Each terminal (DO1, DO2 and DI) is
isolated from internal circuits. Terminal (COM) is the signal common for the other three terminals
(DO1, DO2 and DD).
Functions can be assigned for each terminal with the LCD control keys. See Chapter 10, “Digital 1/0
Functions.”
To connect an electromagnetic relay or counter to the contact output terminal (DOI or DO2), put a
surge-absorbing diode into the input circuit of the relay or counter. See Figure 5.11 for an example of
electromagnetic counter connection.
*1...Digital output D02 and voltage signal input DI are optional.
Note2
Solidstate relay
Note2 > —L | и
Photo-coupler и \
Transistor open collector
> Note2
Resistor
a
Converter
ESSE een COM DI 002 001 y---------------------------
Note1
Power supply — | Surge-absorbing diode
24 V de — _
Y
+ x
N Electromagnetic counter
Note3
(Power supply-built-in electronic counter)
Figure 5.11 Electromagnetic Counter Connection Example
Note 1: Use a surge-absorbing diode of the rating: current rating 1A and voltage rating 200 V
minimum.
Note 2: In the case of standard specification (digital input DI, no output DO2), the semiconductor
contact point, photo coupler and resistor are not built in. Leave DI and DO2 disconnected.
Note 3: When a power supply-built-in electronic counter is used, the serge-absorbing diode is
not required.
TOSHIBA 6, F, 8A0869
6. Operation
/N\ CAUTION
E Do not touch the terminal board when power is | M Do not touch the main body when high temperature
supplied. fluid is being measured.
Touching the terminal board when The fluid raises the main body
power is supplied can cause temperature and can cause bums.
DON'T electric shock. DON'T
6.1 Preparatory check
Follow the procedure described below to prepare before starting the flow measurement
(described with regard to the entire flowmeter).
System Check
Check the items listed below
Check the wiring between the converter and related instruments.
Make sure all the bolts of connection flanges on which the flowmeter is mounted
securely tightened.
Make sure the direction of flow arrow is in accordance with actual flow.
Make sure the flowmeter is grounded with 100 ohm or less ground resistance.
Make sure the converter housing covers are securely tightened.
Placing System On-Stream
Let the fluid go through the detector pipe. (Note 1)
When the detector is filled with the fluid, stop the fluid and keep it still in the detector pipe.
Supplying Electric Power
Make sure the power supply is as specified.
Checking Converter Parameters
Check the configuration parameter settings. Refer to Chapter 7, “LCD Display and
Controls,” Chapter 8, “Configuration Parameter Setting,” and Chapter 11,
“Communications Function.”
Zero Adjustment
Wait for 30 minutes to warm up the flowmeter. Then making sure the fluid holds still in the
detector pipe, starts the zero adjustment.
Refer to 6.2, “Zero Adjustment.”
On-line measurement
After checking the items and conducting the zero adjustment as listed above, let the fluid go
through the detector pipe. Output (4-20 mA dc) directly proportional to the flow rate can be
obtained.
Note 1: If the detector pipe is not filled with the fluid to be measured, the flow rate will be
indefinite and unable to be measured. Before using the flowmeter , be sure to fill the detector
pipe the fluid to be measured.
TOSHIBA 6F8A08639
6.2 Zero Adjustment
To conduct zero adjustment of the flowmeter, the fluid in the detector pipe must be held still.
There are three different ways to start the zero adjustment:
(1) Pressing a combination of control keys for the model with LCD display
See 8.2.19 “Still Water Zero Adjustment”
(2) Sending a command signal from a HART communications device (a communication
device such as hand-held terminal AF900 is required)
See the instruction manual of hand-held terminal you use.
(3) PROFIBUS communication (a communication device for PROFIBUS is required)
See the instruction manual of communication device you use.
TOSHIBA 6F,8A0,8,6,9,
7. LCD Display and Controls
7.1 Name and Function of Each Part of LCD Display
The LDC display and infrared switches (hereafter, called "control key") in front of the converter
allows you to view or set various constants such as measured values and parameters.
> LCD Displav
Control key
LF600
Figure 7.1 Display section of LF600
Control key
LCD Display
(1
LF602
0 09
Figure 7.2 Display section of LF602
Instructions
The operation principle of infrared switch is to irradiate infrared to the front of control panel and
detect the reflection from finger when operating.
Normal operation is impeded depending on the conditions such as disturbing light from surroundings
or stain attached to the control panel. When unable to avoid such condition, operate the EMF
converter in the following manner.
Remove the factor to impede proper operation of infrared switch as below:
* Cover the control panel by hand so that light does not shine on it
* Clean the stain attached on the control panel
* Clean the stain on the finger or the gloves to operate the EMF converter, or wear gloves in light color
- When there is a reflecting object placed opposing to the control panel, stand in-between the reflecting
object and the control panel to block the light
Following are considered as the factors to impede infrared switch to operate properly.
- Intense light such as direct sunlight and reflected sunlight by window glass or metal plate
* Place where brightness changes always such as ON/OFF of lighting
+ Dense smoke or steam near the control panel
* Those attached on the control panel such as rain (dew drop), snow, ice, mud and oil, and haze due to
their attachment
* Operation of the control panel by hands wearing gloves in dark color or stained fingers and gloves
* Light reflecting object near the contro! panel, or reflecting object such as metal plate placed opposing
to the control panel
TOSHIBA 6F8A0869
O LCD display
An $-line x 14-character liquid crystal display. The backlit display enables an easy-to-read
indication even under poor lighting conditions. Instantaneous flow rates or totalized flow in the
measurement mode, or configuration parameters in the setting mode can be displayed. (Number of
LCD display dots: 128 x 128 dots)
FLOW
0010.00 |e
MáS
TOTAL FLOW
8099.99 |.
FOR CNT M3
— БЕЙ -
1
в
NN
@ Control key indicator
Indicates the function (on the current screen) of the key switches around the LCD. This
indicator is usually turned off. It turns on when you hold down any of the three control keys
for 3 seconds or longer.
© Measured value main display
Displays a measured value of the type the operator has selected. In the main display, a
numeric value is displayed in large size.
© Measured vale sub display
Displays a measured value/setting value of the type the operator has selected. Or displays an
error message. When an error message is displayed, no measured value/setting value is
displayed (error message-precedence display).
O Setting switch
The control keys allow you to perform converter control and setting, without opening the
converter housing.
These three controls keys function differently depending on the current display screen.
The functions of these control keys are displayed on the display screen.
In this product, the display method can be changed according to the converter installation
direction. For example, if the control keys are installed so that they are located above the display,
they can be displayed appropriately as shown below, by changing the display method.
Lou SET] | FLOW FLOW
0010.00 | В 0010.00) | 0010. 00 =
m/s T|TOTAL FLOW TOTAL FLOW |T
TOTAL FLOW 88099. 99 00899. 99
88899. 99 FOR CNT n3 FOR CNT п3
FOR CNT m3
Above the control keys Left of the control keys Right of the control keys
TOSHIBA
7.2 Display Format
6, F, ЗАО, 8,6, 9
In the measurement mode, measured data is displayed for the item set by the main display setting
(MAIN DSP) and sub display setting (SUB DSP).
(For display setting, see 8.1.5 "Display Setting.")
[Format of main display]
* Flow rate value display
F
L
0
W
0
—
0 1
>
М
Unit: The unit is displayed right aligned (up 10.7 digits)
Numeric value: Up to 7 digits including a decimal point are
displayed. (Up to 9999999)
4 significant digits: For the set span
Flow direction: When the flow direction is forward direction,
* Total count value display
“ ” (blank) is displayed. When the flow direction is reverse
direction: — is displayed.
Toit ait] e
99939 9
Flo[R] [CNT
"CNT" is displayed during total counting.
Numeric value: Up to 99999999.
In the case of forward flow direction, "FOR" is displayed.
In the case of reverse flow direction, "REV" is displayed.
* Total flow value display
TOTAL Е
CINICICIR 9
F OR СМТ |
mu
Flow rate unit: Displayed right aligned (up to 5 digits).
"CNT" is displayed during total counting.
Numeric value: Up to 8 digits including a decimal point are
displayed. (Up to 99999999)
Displayed to the least significant digit of the set pulse rate.
Total value for the forward flow direction: "FOR" is displayed.
Total value for the reverse flow direction: "REV" is displayed.
TOSHIBA
6,F.8A0869,
- Total difference flow value display
DIF TIOITIAIL
0/0 999,199
- CINIT mil
=
| _— Flow rate unit: Displayed right aligned (up to 5 digits).
"CNT" is displayed during total counting.
Numeric value: Up to 8 digits including a decimal point are
displayed. (Up to 99999999)
Displayed to the least significant digit of the set pulse rate.
Sign: When the difference flow rate is in the forward direction: +
(plus) display
When the difference flow rate is in the reverse direction: — (minus)
display
Note: The total flow value and the total difference flow value are displayed to the least significant
digit of the set count rate.
Example: When the set count rate is 0.0001 т
- Percent display
The total flow / total difference flow display becomes [000.0000m’| and the value
increases in the unit of 0.0001 m”.
If the values reaches [999.9999 m’| the display changes to |1000.000 m’ at the next
count
In the end, the display becomes 99999999 mi.
When the set count rate is 10 m’
The display becomes (00000000 m'| and the value increases in the unit of 10 m”.
PERC
100.0
MECO
L Unit: Fixed to"%".
Numeric value: A percent value of max.125.0% is displayed.
Displayed to one decimal place (0.1%).
The sign position is fixed.
* Custom value display
CUS
0
- 010
|
Unit: The unit consists of a maximum of 7 digits.
Numeric value: Up to 7 digits including a decimal point are
displayed. (Up to 9999999)
5 significant digits: value obtained by multiplying m3/min
by the set coefficient
Sign:
In the case of forward direction: “+”
In the case of reverse direction: “—”
TOSHIBA 6.F8A0869
* Range display
RANGE
ne
Poe
xX)
0.00
m|/|s
_/
x Unit: Displayed right aligned (up to 7 digits)
Numeric value: Span value of the range used.
Range used
In the range display, the range currently being used is displayed (any one of ranges 1 to 4). The screen
example above shows that range 1 is currently being used.
If multiple ranges have been set, the range displayed is switched automatically as the range used is
changed.
* During communication
During HART communication, a mark is displayed in the rightmost column of the item name display
field in the main display section. During PRFIBUS communication, nothing is displayed.
PERCENT м
- 100.00
—— Displayed during HART communication.
TOSHIBA 6F8A0869
[Format of sub display]
* Flow rate value display
ЕСО М
+0,0|1/0/.j0 0,
Unit: The unit is displayed right aligned (up to 7 digits).
Numeric value: Up to 7 digits including a decimal point are
displayed.
(Up to 9999999)
4 significant digits: For the set span
Flow direction:
Forward diction:“ W”(blank) is displayed.
Reverse direction: “—”is displayed.
- Total count value dis
TIO TAL
“CNT” is displayed during total counting.
Numeric value: Up to 99999999
In the case of total value for the forward flow
direction, "FOR" is displayed.
In the case of the total value for the reverse flow
direction, "REV" is displayed.
* Total flow value display
TOTAL FL
009 99. 99
FOR CNT] m |
\ j Le A
| No Flow rate unit: Displayed right aligned (up to 5 digits).
"CNT" is displayed during total counting.
Numeric value: Up to 8 digits including a decimal point are displayed.
(Up to 99999999)
Displayed to the least significant digit of the set pulse rate.
In the case of total value for the forward direction, "FOR" is displayed.
In the case of total value for the reverse direction, "REV" is displayed.
- Total difference flow value display
DF TOTAL
- 0 0191991. 9 9,
СМТ m |;
1 a Y Flow rate unit: Displayed right aligned (up to 5 digits).
"CNT" is displayed during total counting.
Numeric value: Up to 8 digits including a decimal point are
displayed.
(Up to 99999999)
Displayed to the least significant digit of the set pulse rate.
Sign: When the difference flow rate is for the forward
direct: + (plus) display. When the difference flow rate is for
the reverse direction: - (minus) is displayed.
— 39 —
TOSHIBA
6F8A086S9
- Percent
РЕ | К | С |Е|№|Т
100
* Range display
Unit: Fixed to "%".
Numeric value: A value of 125.0% to -125.0 is displayed.
Displayed to one decimal place (0.1%).
The sign position is fixed.
R
A
N
00 0
m
/
S
| Unit: Displayed right aligned (up to 7 digits).
Numeric value: Span value of the range used
Range used
In the range display, the range currently being used is displayed (any one of ranges 1 to 4). The screen
example above shows that range 1 is currently being used.
If multiple ranges have been set, the displayed range is switched automatically as the range used is
changed.
- Bar graph display
Fil N:G:E:]1
|
Tr |
| 121. 01 mi/s
e =
Y Y
The measured value is displayed as a bar graph (12 digits, 100 dots).
The left of the graph is RL and the left of the graph is RH.
a scale is displayed in increments of 25% inside the graph.
Range unit.
Range H: Span value of the range currently being used.
Display of the range used
TOSHIBA 6, 3A08,6,9,
* In the percent value display in the case of range type, percent display, and graph indication, the %
value to be displayed depends on the flow direction. However, the % value in the graph indication is
displayed as shown in the table below.
Range type Input signal % value in percent % value in graph 4-20mA output
display display
Forward direction only Forward 50% 50% 12mA
direction 50% BN
Forward direction only Reverse —50% 0% 4mA (lower limit)
direction 50% LL
Forward/Reverse Forward 50% - 50% 12mA
direction 50% E |
Forward/Reverse Reverse —50% 50% 12mA
direction 50% _
- Custom value display
CUS TOM
-0 010. 010
X X X / YY Y
— — Unit: The unit consists of max.7 digits.
Numeric value: Up to 7 digits including a decimal point are displayed.
(Up to 9999999)
5 significant digits: Value obtained by multiplying m3/min by the set
coefficient.
Sign: "+" for the forward direction, "—” for the reverse direction.
TOSHIBA 6F8A0869
7.3 Basic operations
7.3.1 Mode Change
The converter provides the setting mode and calibration mode, in addition to the measurement mode.
When you want to move to the setting mode or calibration mode, use the "SET" key. To return to the
measurement mode, select "MEAS MODE" from menu items (A to N).
Measurement mode:
measures the process flow and displays and outputs the measured process values. The
flowmeter can measure the flow velocity, flow rates, or totalized flow. The flowmeter first goes
into this mode when power is turned on.
Setting mode:
used to check or change various configuration parameters used in the measurement mode.
These parameter values are displayed while checking or changing these values but the flowmeter
outputs the measured process values as in the measurement mode. See 7.4, “Configuration Items
Selection Table” and 8.2, “Checking or Changing Parameters” for details.
Configuration items are from Al, A2, A3 to M1.
Calibration mode:
used to check the converter internal circuits. The internally generated simulation signal is used
to check the measuring span and excitation current value. The current output of the
flowmeter changes in accordance with the simulation signal. The status of each digital output is
held to the value just before the system moved into the calibration mode.
See 7.4, “Configuration Items Selection Table” and Chapter 9, “Calibration” for details.
Configuration items are from N1 to N4.
TOSHIBA 6F8A0869
OChange mode flow
[SET] [SEL] [ENT] in the flow chart describe the switch operation, and by pressing the switches
described below, you are allowed to move to the items, which are directed by arrows. ———»
FLOW
Measurement 001.000
mode m/s Key is turned off when you return to the measurement mode. _
> TOTALCNT
00000100
If code is not 111 FOR Hold down center key for 3 seconds or longer.
* Release the key after the screen has changed.
ENTER 111 Keeping on pressing the key returns to measurement
The screen of input code is displayed.
to This code is key code to enter setting mode.
м * ужжжж” 15 software version. There is not software version to
жжЖжЖ
(UP) [SEL] [SET] the converter before version V0115.
Р If code is 111
Y
FLOW
001.000
m/s
TOTAL CNT и
00000100 | The (CNT]/[SET] key is displayed.
FOR A
[CNT] [SET]
Г [SET] BASIC: Basic parameters only are displayed.
Y DETAILED: All parameters are displayed.
MENU SELECT
—> BASIC
DETAILED
Setting mode SEL] [ENT] +
(Menu display) Select an item by [SEL] key.
DN [ENT]
----------------r-----------------------------------------------" =
| MEAS MODE [ENT] [SEL] SEL]:
| EX CURRENT A: A. 1
' METER Sue —MEAS MODE MEpE-ManE |
» EX CURRENT —EX|
| FLOW DIRCTN METER SIZE > ME! —MEAS MODE
| PASSWORD EX FREQ EX EX CURRENT
/ ADDR SET FLOW DIRCTN Fld METER SIZE | [ENT]*
[UP] [DWN] [ENT] PASSWORD PAS EN : >
[UP] [DWN] RE мт ool PASSWORD |
: ADDR SET
: MEAS MODE [ENT] [SEL] [SEL] [ENT] |
MANUAL ZERO SEL] '
N: N: = |
| —MEAS MODE MEL NO ! ENT!
+ MANUAL ZERO MA m MEAS MODE | [ENT]
| ” MANUAL ZERO |
' [UP] [DWN] [ENT]
| [UP]. [DWN] |
[SEL] [ENT] [SEL |
| [SEL] [ENT]
o 4D al Sm Em le ES SE wh ER ER EE EE ER WR EE сын EER Er EE WR SM ER mE mr SE SE ER EE EE dr Te SE SE ED сч ЧА ER ER EE WR EE EE EE EE EE Me ES E de ств SE E ES EE EE ER ARE че ею WE WR WE EE ES EE am E EE ==
* When the mode shifts to measurement mode from setting mode, confirmation message is displayed.
You can cancel operation then.
43
TOSHIBA 6F8A0869
OMode switching
The electromagnetic flowmeter usually operates in the measurement mode.
When you need to perform parameter setting, calibration and adjustment, you enter the setting mode.
To enter the setting mode, hold down center key for 3 seconds or longer.
Holding down the desired key for 3 seconds or longer will display screen of code input. When "111"
was input with this screen, [SET] and [CNT] (for switch operation) are displayed in the measurement
screen. When the code except "111" was input, label is not displayed.
Please operate it as follows after label was displayed.
[SET] key You enter the setting mode (the menu configuration setting screen is displayed).
[CNT] key The screen is switched to the total count control screen, enabling you to
manipulate the total counter.
Note: If password has been set, the password input screen appears when you move from the
measurement mode to the menu configuration setting screen (when you press the [SET] key) and
when you move to the total count control screen (when you press the [CNT] key).
If the password you enter does not match, you will be unable to change some of the parameters.
Also you will be unable to clear the total count when you are manipulating the total counter.
OFunction of operation time-out
When a converter is state of the setting mode, and there is not operation more than 1 minute, mode
returns to the measurement mode automatically.
Menu display A:
MEAS MODE
—EX CURRENT
METER SIZE
EX FREQ .
FLOW DIRECTN
PASSWORD
ADDR SET measurement mode
[SEU [ENT] automaticall
Parameter confirmation A1: y
display EX CURRENT
0.19000
A
[EXT] [ENT]
Parameter change display A1: Mode does not
EX CURRENT return to the
0.1900 measurement mode
A
[UP] [SEL] [SET]
TOSHIBA
If code is not 111
Password is correct.
FLOW
001.000
m/s
TOTAL CNT
00000100
FOR
|4 down the center key for 3 seconds or longer.
ENTER 111
000
\жжжж
[UP] [SEL] [SET]
|" code is 111
FLOW
001.000
m/s
TOTAL CNT [CNT]
00000100
FOR
[CNT] [SET]
[SET]
У
INPUT PASS NPUT PASS
000 [00
[UP] [SEL] [SET] [UP] [SEL] [SET]
accessible.
Y Y
MENU SELECT
—BASIC
DETAILED
[SEL] [ENT]
* Vasa" is software version. There is not software version
to the converter before version V0115.
Password is incorrect: Only
some of the parameters are
Password is correct.
Password is incorrect;
[CLR] key is not displayed.
COUNT CTRL
TOTAL CNT
100
FOR
[STA] [CLR] [EXT]
COUNT CTRL
TOTAL CNT
100
FOR
[STA] [EXT]
Start / Stop / Clear of
counter is possible.
Start / Stop of
counter is possible.
45 —
TOSHIBA 6F8A0869
7.3.2 Setting and Calibration
Process as follows to select the desired items, to check or change the item setting value.
“Key operation” indicates the key to be pressed.
When you are incrementing the numeric counter by pressing the [UP] key or when you are
incrementing or decrementing the numeric and alphabet counter by pressing the [UP] key/[DWN]
key. you can perform continuous operation by holding down the relevant key (Holding down the key
causes the numeric or alphabetic character count to be increased/decreased).
TOSHIBA 6F8A086,9,
@ Moving to the menu display
Key operation Display example Description
FLOW Measured value being displayed (measurement
002.000 mode)
m/s
RANGE1
5.000
m/s
[CNT] [SET]
MENU SELECT Pressing the [SET] button when you are in the
— BASIC measurement mode takes you to the menu
[SET] DETAILED configuration selection screen.
Select BASIC or DETAILED configuration.
[SEL] [ENT]
Al Pressing the [ENT] key in the menu configuration
MEAS MODE selection screen takes you to the menu display
EX CURRENT screen.
METER SIZE The cursor is positioned on an alphabetical
[ENT] EXFREQ character representing a group name ([A] in this
FLOW DIRCTN example).
PASSWORD
ADDR SET * This screen is an example of display that appears
[UP] [DWN] [ENT] | when you select the DETAILED menu.
: Pressing the [UP] key when the cursor is positioned
MEAS MODE on an alphabetical character causes the
MAIN DISP alphabetical character to be incremented. (Pressing
SUB DISP the [DWN] key causes the alphabetical character to
[UP] CUSTOM DATA be decremented.)
CUSTOM UNIT
LCD ADJUST In addition, the display contents are switched to the
SW POSITION menu list associated with the alphabetical character.
[UP] [DWN] [ENT]
B: When you press the [ENT] key, the cursor on the
MEAS MODE alphabetical character disappears and an arrow
— MAIN DISP mark is displayed in the item list display field.
SUB DISP
[ENT] CUSTOM DATA In addition, the [UP] key changes to the [SEL] key.
CUSTOM UNIT |
LCD ADJUST
SW POSITION
[SEL] [ENT]
B: Every time you press the [SEL] key, the arrow mark
MEAS MODE comes down one line at a time. Pressing the [SEL]
MAIN DISP key further when the arrow mark is positioned on
SUB DISP the bottom item line causes the arrow mark to
[SEL] CUSTOM DATA return to the top item line.
— CUSTOM UNIT
LCD ADJUST
SW POSITION
[SEL] [ENT]
B4: When you press the [ENT] key, the setting screen
CUSTOM UNIT for the setting item that the arrow mark points to
[ENT] XOUYYY appears and enables you to set/check the
parameter.
[EXT] [ENT]
TOSHIBA
6F8A0869
OChecking/setting of setting value
Key operation Display example Description
C: Menu display for group C
MEAS MODE
RANGE TYPE Use the [SEL] key to move the arrow mark to
— RANGE RANGE 1.
RANGE 2
RANGE 3
RANGE 4
RANGE HYS
[SEL] [ENT]
C2: Use the [ENT] key to select the item you want to
RANGE1 check/change.
2.000
mis The screen is changed to a screen where the
[ENT] current setting value is displayed, enabling you to
check the setting value.
[EXT] [ENT] Pressing the [EXT] key will return you to the menu
screen.
C2: When you press the [ENT] key, the cursor appears
RANGE on the setting value and you are ready to change
2.0000 the setting value.
m/s
[ENT]
[U P] [SEL] [SET]
C2: Ready to change the setting value.
RANGE1
#00000 Pressing the [UP] key increments the numeric
mis character in the place where the cursor is currently
positioned. (Holding down this key causes the
[UP] increment operation to be continued.)
[U P] [SEL] [SET]
* Pressing the [UP] key when the cursor is
positioned below the unit will change the unit to the
next one. In addition, when you set a natural
number, a decimal point appears in addition to
numeric characters (except for the most significant
digit).
TOSHIBA
6/F,8A0,8,6,9
Key operation
Display example
Description
C2: Ready to change the setting value.
RANGE1
3100000 Pressing the [SEL] key causes the cursor to move
[SEL] mis to the next digit.
[UP] [SEL] [SET]
C2: Ready to change the setting value.
RANGE1
[UP] 8.00000 You can change the setting value by using the [UP]
[SEL] mis and [SEL] keys.
In this example, 5.000 m/s is selected.
[UP] [SEL] [SET]
C2: Pressing the [SET] key causes the data to be set
RANGE temporarily. The cursor disappears and a
5.00000 confirmation message is displayed.
[SET] / ms
OK?
[NO] [SET]
C2: If you want to cance! the data change here, for
RANGE1 example, because the temporarily set data is
200000 incorrect, press the [NO] key, which causes the
[NO] mis temporarily set data to return to the original setting
value and enables you to change the setting value
again.
[UP] [SEL] [SET]
C2; Pressing the [SET] key when data is temporarily set
RANGE causes the data to be determined and set.
5.000 After the data is set, the cursor disappears,
SET mis enabling you to check the setting value.
[SET] *In the case of the flow velocity unit, the value is
automatically rounded to 3 decimal places. In the
case of the actual flow rate unit, the value is
[EXT] [ENT] automatically rounded to 3 significant digits.
С: Pressing the [EXT] key returns you to the menu
MEAS MODE display screen.
— RANGE TYPE
RANGE 1
[EXT] RANGE 2
RANGE 3
RANGE 4
RANGE HYS
[SEL] [ENT]
С. By pressing the [SEL] key to move an arrow mark to
MEAS MODE and pressing the [ENT] key,
[SEL] MEAS MODE confirmation message is displayed.
[ENT] OK? If [NO] key is pushed, operation of shift to
` measurement mode is canceled.
[N 0] [SET]
FLOW By pressing the [SEL] key, you can terminate the
002.000 setting mode and return to the
m/s measurement mode.
[SET] RANGE!
5.000
m/s
— 49
TOSHIBA 6F8A086,9,
7.4 Configuration Items Selection Table
The check/change menu for each constant to be set for the converter is expanded as shown in the table
below.
Details of each item are described in the configuration items (A to M) in Chapter 8 "Configuration
Parameter Setting."
OBasic configuration (When the menu configuration is BASIC)
When you select "BASIC" in the menu configuration selection screen, the check/change menu for each
constant setting is expanded as shown in the table blow.
0 1 2 3
B | Main display setting | Sub display setting
C Range type Range 1
D e O Damping constant Low cut value
F Digital output 1 Digital output 2 Digital input 1
G Count rate setine width, Pulse width
When the operation mode is switched from the measurement mode to the setting mode, group B is
displayed first in the case of basic configuration. >
After that, the screen changes as follows:
Group B (start screen) + Group C + Group D + Group F & Group G & Group B
—:When the [U P] key is pressed (the group is incremented).
—:When the [DWN] key is pressed (the group is decremented).
TOSHIBA
6,F8A0869
O Detailed configuration
When you select "DETAILED" in the menu configuration selection screen, the check/change menu
for each constant setting is expanded as shown in the table below.
0 1 2 3 4 5 6
Exciting current| Meter size *1 Exciting Flow direction | Password *1 Address
setting *1 frequency *1 setting *1 setting *1
Main display | Sub display Custom Custom LCD density | Switch position
setting setting | (coefficient) *1 (unit) *1 adjustment setting
Range type *1 | Range 1 *1 Range 2 *1 Range 3 *1 Range 4 *1 Range
hysteresis *1
Damping Low cut value | Current output | Display low cut | Output low limit
constant setting upon Yes/No setting *1
alarm
occurrence *1
Still water
zero point
adjustment
Digital Digital Digital DO1 alarm DO2 alarm DI control
output 1 *1| output2 *1 input 1 *1 | output state *1 | output state *1 | signal level
setting *1
Reto e Count rate *1 Pulse width | Pulse width*1
setting mode *1
mode
Preset count | Preset output
value *1 setting *1
High limit alarm| High limit value | Low limit alarm | Low limit value
ON/OFF *1 setting *1 ON/OFF *1 setting *1
High high limit | High high limit | Low low limit | Low low limit
alarm ON/OFF | value setting | value ON/OFF | value setting
1 1 1 *1
Fluid empty | Self-diagnosis | Alarm output
alarm *1 Yes/No *1 preset “1
Limit rate Limit time
Fixed output *1| Fixed current | Fixed pulse *1
*1
Manual zero
0% 50% 100% Exciting
Flow value Flow value Flow value current
calculation *1 |calculation *2 |calculation *1 display *2
Note 1 If you enter a wrong password, you are allowed to check the setting value and to perform
calibration for the items with *1 mark in the table. However you are not allowed to change
the setting and perform calibration for these items.
Note 2 The items with*2, you are only allowed to check the calibration value.
~ Note 3 For function A2, you are only allowed to check the setting value.
51
TOSHIBA 6F8A0869,
7.5 Password input
The converter provides the password function to prevent some functions that affect the flow rate
measurement from being set or adjusted. For the limited functions, see Chapter 5 "Items Protected with
Password.
* If a password '000' is set, the password input screen does not appear. If a password other than '000' is
set, you can enter your password following the procedures below.
* You can also use the following procedures to enter a password for releasing adjustment menu
protection.
O An example of entering a password (when the password is 123)
Key operation Display example Description
FLOW The measured value being displayed (measurement
002.000 mode)
m/s
RANGE1
5.000
m/s
[CNT] [SET]
INPUT PASS When you switch the measurement mode to the
setting mode by pressing the [SET] key, the
doo | password input screen is displayed if the password
[SET] has been set.
[UP] [SEL] [SET]
INPUT PASS Press the [UP] key to increment the digit in a place
where the cursor is positioned (Holding down this
fo key causes this increment operation to be
[UP] continued.)
In this example, 1 is set.
[UP] [SEL] {SET}
INPUT PASS Pressing the [SEL] key changes the position of the
cursor. By pressing the [UP] and [SEL] keys,
128 change the password to 123.
[UP]
[SEL]
[UP] [SEL] [SET]
MENU SELECT Pressing the [SET] key causes the password to be
—BASIC written and the menu configuration selection screen
DETAILED to appear.
[SET] The menu configuration selection screen appears,
regardless of whether the entered password is
[SEL] [ENT] correct or wrong. However, if the entered password
is wrong, you are not allowed to change the setting
value or perform calibration. For more information,
see Chapter 5 "Items Protected with Password."
TOSHIBA 6F8A0869
8. Configuration Parameter Setting
8.1 Configuration items
To check/change menu for each constant to be set for the converter, first select the desired
configuration item as described in 7.3.2. The configuration items are listed below. See each section for
detailed procedure.
No. Function item Display example
8.2.2 Exciting current setting EX CURRENT
8.2.3 Meter size METER SIZE
8.2.4 Exciting frequency EX FREQ
8.2.5 Flow direction setting FLOW DIRCTN
8.2.6 Password PASSWORD
8.2.7 Address setting ADDR SET
8.2.8 Display setting MAIN DSP / SUB DSP
8.2.9 Custom coefficient setting CUSTOM DATA
8.2.10 Custom unit setting CUSTOM UNIT
8.2.11 LCD density adjustment LCD ADJUST
8.2.12 Switch position setting SW POSITION
RANGE TYPE,
8.2.13 Span (Range) RANGE1 (-RANGE4),
RANGE HYS
8.2.14 Damping constant DAMPING
8.2.15 Low cut value LOW CUT
8.2.16 Output at alarm occurrence ALM mA SET
8.2.17 Display low cut Yes/No DSP LOW CUT
8.2.18 Output low limit setting LOW LIMIT
8.2.19 Still water zero point adjustment ZERO ADJUST
od DO1 FUNCTN, DI FUNCTN,
8.2.20 Digital input/output DO1 ALM STS, DI DET LV
Count rate
8.2.21 Pulse width setting mode PY NOT PLS MODE,
Pulse width
8.2.22 Preset count value PRESET CNT
8.2.23 Preset output state PRESET FNC
| H ALM SET /H ALM VAL,
8224 High/Low limit alarm ON/OFF L ALM SET / L ALM VAL,
a High high/Low low limit alarm ON/OFF HH ALM SET / HH ALM VAL,
| | LL ALM SET / LL ALM VAL,
18.225 Fluid empty alarm EMPTY ALM
| 8.2.26 Self-diagnosis Yes/No SELF CHECK
8.2.27 Alarm output preset ALM PRESET
8.2.28 | mitrate LIMIT RATE / LIMIT TIME
Limit time
. FIXED OUT, FIXED CURR,
8.2.29 Fixed output FIXED PULSE
8.2.30 Manual zero MANUAL ZERO
TOSHIBA 6F8A0869
8.2 Check/Change of Parameters
8.2.1 Menu Configuration Selection Screen
(OMenu configuration selection screen
This screen allows you to select the menu construction you want to use.
For the menu contents to be expanded according to the selected configuration, see 7.4 "Configuration
Items Selection Table."
BASIC: Only the basic parameters are displayed.
Nothing is displayed in the other parameter display field.
DETAILED: All parameters are displayed.
TOSHIBA
0,580,869,
8.2.2 Exciting Current Value
The exciting current value can be checked/changed by the following procedures.
Be sure to match the exciting current value with the value specified for the
combined detector.
Specifying any other value may cause an error.
Shown below is an example of changing the exciting current value from 0.1900A to 0.2150A.
Key operation
Display example
Description
A: In the configuration items selection screen, select
MEAS MODE "EX CURRENT."
—EX CURRENT
METER SIZE
EX FREQ
FLOW DIRECTN
PASSWORD
ADDR SET
[SEL] [ENT]
STEP1 A1: The currently set exciting current value (in this
EX CURRENT example 0.1900A) is displayed.
0.20000
[ENT] A Then press the [ENT] key.
* Pressing the [EXT] key returns you to the menu
[EXT] [ENT] screen.
STEP2 A1: The switch name display at the bottom changes.
EX CURRENT ( three keys [UP], [SEL] and [SET])
81900 At the same time, the cursor appears.
[ENT] A (The digit in the place the cursor position is
currently positioned is reverse-displayed.)
[U P] [SEL] [SET] Then press the [SEL] key.
STEP3 A1: You can continue to change the setting value.
| EX CURRENT Press the [SEL] key to move the cursor to the digit
0.1900 you want to change.
[SEL] A
Then press the [UP] key.
[U P] [SEL] [SET]
STEP4 A1: You can continue to change the setting value.
EX CURRENT
| 0.2900 Pressing the [UP] key increments the digit in the
[UP] A place the cursor is currently positioned. (Holding
down this key causes this increment operation to be
continued).
[U P| [SEL] [SET]
TOSHIBA 6, F8A0869
Key operation Display example Description
STEPS A1: Repeat this operation to change the setting value to
EX CURRENT 0.2150A.
0.2180
[SEL] [UP] A When the value changes to the desired value, press
the [SET] key to set the numeric value temporarily.
[U P] [SEL] [SET]
STEP6 A1: Pressing the [SET] key displays a message asking
EX CURRENT you to confirm whether the setting is OK.
0.2150 If OK, press the [SET] key. If you need to redo the
[SET] A setting, press the [NO] key.
OK?
| NO] [SET]
STEP7-1 A1: Pressing the [No] key when you are asked "OK?"
EX CURRENT causes the numeric value to return to the previous
8.1900 - value and enables you to redo the setting.
[NO] A |
[U P} [SEL] [SET]
STEP7-2(=END) | At: Pressing the [SET] key when you are asked "OK?"
EX CURRENT causes the setting value to be determined.
0.2150 Then if you press the [EXT] key, you return to the
[SET] A menu screen.
If you press the [ENT] key, you can restart electric
current value change operation from a state of
(Note) The exciting current value must be a value from 0.0000A and 0.2500A.
If you set an exciting current value higher than 0.2500A, *HIGH OVER SPEC.* is displayed
and the set value is returned to the value before change. In this case you have to set a value
once again.
TOSHIBA
6, F.8A086 9
8.2.3 Meter Size
Proceed as follows to check or change the meter size of the detector.
Key operation Display example Description
A: Select “METER SIZE” in the configuration item
MEAS MODE selection screen.
EX CURRENT
—METER SIZE
EX FREQ
FLOW DIRECTN
PASSWORD
ADDR SET
[SEL] [ENT]
STEP1 A2: The currently set meter size (50mm in this example) is
METER SIZE displayed.
50
[ENT] mm Then press the [ENT] key.
* Pressing the [EXT] key returns you to the menu screen.
[EXT] [ENT]
STEP2 A2: The switch name display at the bottom changes.
METER SIZE (Three keys [UP], [DWN] and [SET] are displayed)
At the same time, the cursor appears.
[ENT] mm
Then press either [UP] or [DWN].
[U P] [DWN] [SET]
STEPS A2: You can continue to change the setting value.
METER SIZE Pressing [UP] or [DWN] key changes the selection item.
[UP]: Selection item count increases
[UP]/[DWN] mm [DWN]: Selection item count decreases
[U P] [DWN] [SET]
STEP4 A2: Repeat this operation to change the setting value to
METER SIZE 150mm.
When the desired selection item appears, press the [SET]
[UP]/[DWN] mm key to temporarily set the item.
[U P] [DWN] [SET]
STEPS A2: Pressing the [SET] key displays a message asking you to
METER SIZE confirm whether the setting is OK or not.
150 IF OK, press the [SET] key. If you need to redo the setting,
[SET] mm press the [NO] key.
OK?
[N O] [SET]
TOSHIBA
Note |:
Note 2:
Note 3:
6F8A0869
Key operation Display example Description
STEP6-1 A2: Pressing the [NO] key when you are asked “OK?”
METER SIZE causes the number value to return to the previous
value and enables you to redo the setting.
[NO] mm
[U P] [SEL] [SET]
STEP6-2(=END) A2: Pressing the [SET] key when you are asked "OK?" con-
METER SIZE firms the setting at this point.
150 Then if you press the [EXT] key, you return to the menu
[SET] mm screen.
If you press the [ENT] key, you can go to the frequency
change operation starting from the condition of 150mm.
[EXT] [ENT]
The meter size display loops as shown below:
O—»2.5mm — 4mm —» 6mm — 15mm = = = >600mm —©
@ —»0.1inch—0.16inch =» 0.25inch—»0.5inch = — = —24inch ——D
The range unit and the count rate will be forcefully set as shown below when the meter size
is changed. Set each parameter again, if necessary.
Range unit
и n
m/s
Count rate
If the count rate goes out of the setting range when the meter
size is changed, the set value will be forcefully set to zero.
The exciting frequency setting may become inappropriate for the set value when the meter
size of the detector is changed. If the exciting frequency is the value shown below when the
meter size is changed, the exciting frequency will be forcefully changed.
Setting meter size Set exciting frequency | Forcefully set exciting frequency
(mm) (inch)
2.5~200 0.1-8 — Not forcefully set
250 - 450 10 - 18 24Hz 12Hz
500, 600 20, 24 12Hz, 24Hz 6Hz
TOSHIBA 6F8A0869
8.2.4 Exciting Frequency
You can select an exciting frequency of 6Hz, 12Hz or 24Hz.
Since each exciting frequency value has its own characteristics, you should select an appropriate
exciting frequency (24Hz is set at shipment. Depending on the characteristics of the detector, a
large frequency may result in excitation failure. When a large frequency value is set and it changes
the indicator value, decrease the frequency to a value that will not change the indicator value.)
Exciting frequency 6Hz 12Hz 24Hz
Zero-point stability El Good
Response ———; e— Good
Withstand fluid noise —— ZN Good
Shown below is an example of changing the exciting frequency from 24Hz to 12Hz.
Key operation Display example Description
A: Select "EXFREQ" in the configuration item selection
MEAS MODE screen.
EX CURRENT
METER SIZE
—EX FREQ
FLOW DIRECTN
PASSWORD
ADDR SET
[SEL] [ENT]
STEP1 АЗ: The currently set exciting frequency value (24Hz in
EXFREQ 4 this example) is displayed.
[ENT] Hz Then press the [ENT] key.
* Pressing the [EXT] key returns you to the menu
[EXT] [ENT] screen.
STEP2 АЗ: The switch name display at the bottom changes
EX FREQ (three keys [UP], [DWN] and [SET])
At the same time, the cursor appears.
[ENT] Hz
Then press the [UP] or [DWN] key.
[U P] [DWN] [SET]
STEP3 A3: You can continue to change the setting value.
EX FREQ Pressing the [UP] or [DWN] key switches the
E selection item.
[UPJ/[DWN] Hz [U P]: The selection item is incremented.
[DWN]: The selection item is decremented.
JU PI (OWN) [SET]
TOSHIBA 6F8A0869
Key operation Display example Description
STEP4 A3: Repeat this operation to change the setting value to
EX FREQ 12Hz.
|
[UP)/[DWN] Hz When the value changes to the desired selection
item, press the [SET] key to set the item
temporarily.
[U P] [DWN] [SET]
STEPS A3: Pressing the [SET] key displays a message asking
EX FREQ you to confirm whether the setting is OK.
12 If OK, press the [SET] key. If you need to redo the
[SET] Hz setting, press the [NO] key.
OK?
[№ О} [SET] :
STEP6-1 A3: Pressing the [No] key when you are asked "OK?"
EX FREQ causes the numeric value to return to the previous
value and enables you to redo the setting.
[NO] Hz
[U P] [SEL] [SET]
STEP6-2(=END) | AS. Pressing the [SET] key when you are asked "OK?"
EX FREQ causes the setting value to be determined.
12 Then if you press the [EXT] key, you return to the
[SET] Hz menu screen.
If you press the [ENT] key, you can restart
frequency value change operation from a state of
EXT] [ENT] 12Hz
——— > 6Hz —— 12Hz — —— ”24Hz
(Note 1) The exciting frequency is displayed cyclically, as shown below.
60
TOSHIBA 6F8A0869
8.2.5 Flow Direction Setting
In the converter, you can set the flow direction of fluid arbitrarily.
O Flow direction setting
Selection item Contents
NORMAL When the fluid flows in the direction of the arrow indicating the
flow direction that is attached to the detector, the indicator
value and electric current output value increase.
SWITCH When the fluid flows in the reverse direction of the arrow
indicating the flow direction that is attached to the detector,
the indicator value and electric current output value increases.
Key operation Display example Description
А: Select "FLOW DIRECTN" in the configuration item
MEAS MODE selection screen.
EX CURRENT
METER SIZE
EX FREQ
— FLOW DIRCTN
PASSWORD
ADDR SET
[SEL] [ENT]
STEP1 Ad: The currently set flow direction (NORMAL in this
FLOW DIRCTN example) is displayed.
NORMAL
[ENT] Then press the [ENT] key.
* Pressing the [EXT] key returns you to the menu
[EXT] [ENT] screen.
STEP2 Ad: The switch name display at the bottom changes
FLOW DIRCTN (three keys [UP], [DWN] and [SET])
(eR At the same time, the cursor appears.
[ENT] |
[U P] [DWN] [SET] Then press the [UP] or [DWN] key.
STEP3 Ad: You can continue to change the setting value.
FLOW DIRCTN Pressing the [UP] or [DWN] key switches the
selection item.
[UP)/[DWN] [U PJ: The selection item is incremented.
[DWN]: The selection item is decremented.
[U PJ [DWN] [SET]
TOSHIBA
6,F,8A0869,
Key operation
Display example
Description
STEP4 A4: By this operation, change the setting to SWITCH.
FLOW DIRCTN
When the desired selection item is displayed, press
[UPY[DWN] the [SET] key to set the item temporarily.
[U P] [DWN] [SET]
STEPS Ad: Pressing the [SET] key displays a message asking
FLOW DI
Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF

advertisement
