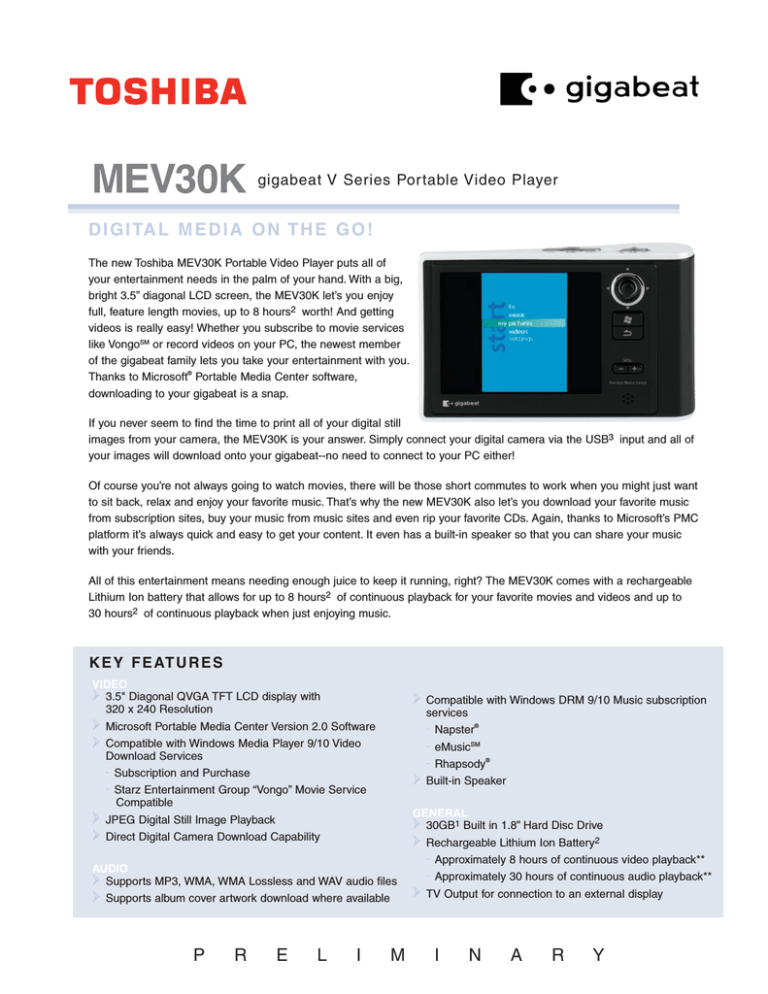

Toshiba MEV30K MP3 Player User Manual

MEV30K
gigabeat V Series Portable Video Player
D I G I TA L M E D I A O N T H E G O !
The new Toshiba MEV30K Portable Video Player puts all of
your entertainment needs in the palm of your hand. With a big,
bright 3.5” diagonal LCD screen, the MEV30K let’s you enjoy
full, feature length movies, up to 8 hours2 worth! And getting
videos is really easy! Whether you subscribe to movie services
like VongoSM or record videos on your PC, the newest member
of the gigabeat family lets you take your entertainment with you.
Thanks to Microsoft® Portable Media Center software,
downloading to your gigabeat is a snap.
If you never seem to find the time to print all of your digital still
images from your camera, the MEV30K is your answer. Simply connect your digital camera via the USB3 input and all of
your images will download onto your gigabeat--no need to connect to your PC either!
Of course you’re not always going to watch movies, there will be those short commutes to work when you might just want
to sit back, relax and enjoy your favorite music. That’s why the new MEV30K also let’s you download your favorite music
from subscription sites, buy your music from music sites and even rip your favorite CDs. Again, thanks to Microsoft’s PMC
platform it’s always quick and easy to get your content. It even has a built-in speaker so that you can share your music
with your friends.
All of this entertainment means needing enough juice to keep it running, right? The MEV30K comes with a rechargeable
Lithium Ion battery that allows for up to 8 hours2 of continuous playback for your favorite movies and videos and up to
30 hours2 of continuous playback when just enjoying music.
K E Y F E AT U R E S
VIDEO
3.5" Diagonal QVGA TFT LCD display with
320 x 240 Resolution
Microsoft Portable Media Center Version 2.0 Software
Compatible with Windows Media Player 9/10 Video
Download Services
Subscription and Purchase
Starz Entertainment Group “Vongo” Movie Service
Compatible
Direct Digital Camera Download Capability
Supports album cover artwork download where available
P
R
E
L
I
-
Napster®
eMusicSM
Rhapsody®
Built-in Speaker
GENERAL
30GB1 Built in 1.8” Hard Disc Drive
JPEG Digital Still Image Playback
AUDIO
Supports MP3, WMA, WMA Lossless and WAV audio files
Compatible with Windows DRM 9/10 Music subscription
services
M
Rechargeable Lithium Ion Battery2
-
Approximately 8 hours of continuous video playback**
Approximately 30 hours of continuous audio playback**
TV Output for connection to an external display
I
N
A
R
Y
MEV30K
S P E C I F I C AT I O N S
COLOR
AUDIO SUPPORT
Black
Format
WMA LOSSLESS, WMA(DRM10/9), MP3, WAV
DRM
VIDEO/PHOTO SUPPORT
LOGO PROGRAMS
BATTERY2
WMDRM9 / WMDRM10 (Subscription/Download)
VIDEO FORMAT
WMV
STILL FORMAT
JPEG
PMC
VER2.0
PLAYSFORSURE
VER1.2
BATTERY
RECHARGEABLE LI-ION BATTERY 3.7V, 2400mAh
CONTINUOUS PLAYBACK TIME (AUDIO)
APPROX. 30 HOURS2 (128kbps WMA TRACKS)
CONTINUOUS PLAYBACK TIME (VIDEO)
8.0 HOURS2 (500kbps WMV)
FULL-CHARGE TIME
APPROX. 3 HOURS with AC adapter only
STORAGE
STORAGE MEDIA (INTERNAL)
DISPLAY
COLOR PANEL
3.5 inch Diagonal Low Temperature Polysilicone TFT
RESOLUTION
QVGA (320 x 240 dots)
COLORS
I/O CONNECTORS
HEADPHONE / REMOTE / VIDEO out
USB
OTHER FUNCTIONS
1.8"HDD (30GB)
65,536 COLORS
YES (3.5 Φ: L,R,REMOTE/V-OUT)
USB miniAB (USB 2.0 HOST/DEVICE)
DC IN
YES (5V/3A MAX.)
DIGITAL CAMERA BACKUP
YES (MSC & MTP)
SPEAKER
YES (does not support MAC)
Equalizer
YES (7 Modes (w/Flat) )
HIT (Harmonics Improvement Technology)
Languages
UI (DEVICE)
GENERAL
POWER VOLTAGE
YES2
7 Language (Japanese, English, French, German, Spanish,
Simplified Chinese and Traditional Chinese)
DIMENSIONS APPROX.
WEIGHT APPROX.
OPERATING CONDITIONS
MAX. OUTPUT (AUDIO)
FREQUENCY RESPONSE (AUDIO)
S/N RATIO (AUDIO)
PC SYSTEM REQUIREMENTS
OPERATING SYSTEM
CPU
7.94 OZ.
TEMPERATURE 41-95 F, HUMIDITY: 30-80% (RH), (NO CONDENSATION)
20mW+20mW (16Ù)
20Hz to 20,000Hz
95dB or HIGHER
Windows XP Home Edition, XP Professional, XP Media Center Edition
300MHz Processor or more (1.5GHz Processor or more recommended)
RAM
128MB or more
HARD DISK SPACE
100MB or more
INTERFACE
OTHERS
PC APPLICATIONS
SUPPLIED ACCESSORIES
3.7V / 5V
4.9 X 3.0 X 0.7 INCH -- MAX. 0.8 INCH
USB PORT (2.0/1.1)
CD-ROM DRIVE
WINDOWS MEDIA PLAYER10
USB CABLE
USB CONVERSION CABLE
AC ADAPTER
AC ADAPTER CORD
AV CABLE
HEADPHONE
CD-ROM
PRINTED MATERIALS
YES (A-miniB)
YES (miniA-A)
YES (MULTI-VOLTAGE)
YES (A-Type)
YES
YES
WMP10, OWNERS MANUAL, ADOBE ACROBAT READER
QUICK START GUIDE, SAFETY PRECAUTION, LIMITED WARRANTY
1 GB means one billion bytes when referring to hard drive storage capacity.
2 Battery life and number of charge cycles will vary depending on use and settings. Rechargeable battery has a limited service life and may eventually need
to be replaced. Continuous audio playback is based on Harmonics Improvement Technology being set to the “off” position.
3 USB input is compatible only with digital cameras that support the “USB Mass Storage Classification”.
