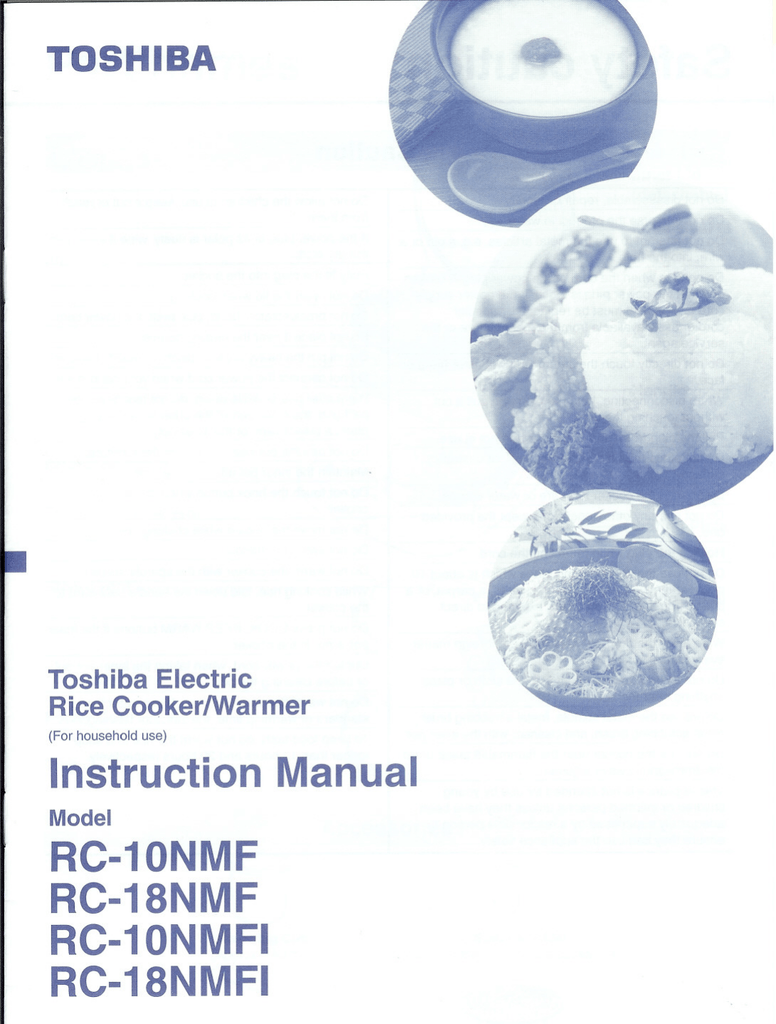

TOSHIBA

Toshiba Electric

Rice Cooker/Warmer

(For household use)

Instruction Manual

Model

RC-10NMF

RC-18NMF

RC-10NMFI

RC-18NMFI

,

.

r

....

Safety caution

&

Caution

Do not disassemble, repair or modify.

Do not immerse the product in water.

Do not attempt to use the metal articles, e.g. a pin or a wire, into the hole.

Do not use when the cord or the power plug is broken, or when the power plug is loose. If the power supply cord is broken. It must be replaced by special cord or ass'y available from the manufacture or the service agent.

Do not directly touch the steam vent with your hand or face.

When disconnecting, hold the plug and pull it out without touching the cord.

Pull the plug from the AC outlet when not in use.

Do not place the unit on the hot, soft, or unstable surface.

Do not use the cooker near fire or water source.

Do not use any other inner pot except the provided one.

Holding the plug while retracting the cord.

Do not use the cooker in the place which is about 10 cm near the wall, on the paper, clothes, a carpet, or a plastic bag, etc. and the place exposed to direct sunlight.

Wipe away the drops of water and the foreign matter every time.

Do not cover the steam vent with the cloth or place anything near the vent.

Do not use the metal spatula, metal-scrubbing brush, nylon-scrubbing brush, and cleanser with the inner pot.

Do not use the cooker near the flammable place or an electromagnetic wave adjuster.

This appliance is not intended for use by young children or infirmed persons unless they have been adequately supervised by a responsible person to ensure they can use the appliance safely.

Do not allow the children to use, keep it out of reach from them.

If the power plug or its polar is dusty, wipe it away with the dry cloth.

Fully fit the plug into the socket.

Do not open the lid when cooking.

Do not break/scratch, bend, pull, twist, the power cord.

Do not place it near the heating source.

Do not put the heavy objects, pinch, or modify the cord.

Do not connect the power cord when your hand is wet.

Right after use or while using, do not touch the hot part (e.g. the inner part of the outer lid, a heating plate, a steam vent, or the inner pot)

Do not use the pot near the wall or the furniture.

Maintain the inner pot after cooling it off.

Do not touch the hook button when moving the cooker.

Do not move the cooker while cooking rice.

Do not swing the handle.

Do not warm the cooker with the spatula inside it.

While cooking rice, fold down the handle backward to the cooker.

Do not press COOK, KEEP WARM buttons if the inner pot is not in the cooker.

Unplug the power cord, when taking the inner pot out or before cleaning the pot.

Do not warm rice over 30 hours. It is greater than standard of warming time, the indicator flashing.

To keep food tasty, do not warm the rice and soup longer than 12 hours and 30 hours respectively.

2

Part names

Body

InnerPot

Outer Lid

Inner Lid

(detachable)

Inner Gasket

Hook Button

Operation Panel

Temperature Sensor

Steam Vent

Power Cord

Plug

Accessories

Spatula holder

Measuring Cup

Insert it in the hook on the cooker's side.

(Approx.180 ml.)

~

3

.

i"" 0"1

~:

.

: . ~.....

Food

Steamer

Handle

Spatula

Holder Hook

Heating Plate

Warning Label

Part names

Control Panel

Display Panel

Function

Indicator

Cook I Keep

Warm Button

Cancel Button

Mixed Rice Button

Timer Button

Hr.Button

Function

Indicator

Congee Button

Menu Button

Min. Button

Rice Cooker - Cooking

Time

Cooking

Button

Type 1.0 L

Water level Amount of Rice Standard

Scale

(Cup) Cooking Time

White Rice 1-5.5

(Minutes)

38-51 White Rice COOK

White Rice COOK

(Rapid Cook) (Press twice)

White Rice

Mixed Rice MIXED RICE Mixed Rice

1-5.5

1-5.5

34-43

44-48

Glutinous Rice

COOK Glutinous Rice 1-3 37-46

Congee

CONGEE

Congee

0.5-1 76-80

Type 1.8 L

Amount of Rice Standard

(Cup)

2-10

Cooking Time

(Minutes)

42-54

2-10 38-46

2-10

2-6

1-3

45-58

39-46

78-83

4

Preparation

D

:r.1

I

1

Measure the rice with the measuring cup provided.

2

Quickly rinse the rice until the water becomes clear.

CD Firstly, fill enough water and mix the rice and water and rinse the rice, then pour out the water immediately.

@ Scrub and rinse the rice repeatedly with water until the water becomes reasonably clear.

. The rice can be rinsed in the inner pot.

3

Fill in or pour out water according to the water level scale of the cooking means you want.

.

Please level the surface of the rice and fill in or pour out water on a flat surface.

.

Fill in or pour out water according to the cooking means and the cups of the rice. And adjust the amount of water according to the type of the rice and your personal taste.

. Example: Cooking 3 cups of rice.

4

Place the inner pot inside the body and close the outer lid.

.

Please wipe away the water drops and dirt on the outer of the inner pot, the temperature sensor, the cooking heating plate and the inner lid.

.

In order to make the inner pot close contact the cooking heating plate, please turn the inner pot twice or three times in the directions as shown by the arrows.

.

Make sure that the steam vent works properly.

5

Fit the power plug into the socket.

.

Please hold the plug while fit or remove the power plug into the socket.

6

Make sure that the time on the display window was set precisely with the present time.

5

How to adjust the clock

Example: To adjust the current time to 8:31 a.m.

t

1

r:

,

. I"".J

1

Hold down the Hrs button for more than

1 second.

3

1

2

The clock display flashes.

2

2

Press the Hrs button to adjust the Hour readings and press the Min button to adjust the Minute readings.

.

For Min button, if the button is held down and not released the setting pace will be 10 minutes.

3

Press the CANCEL button.

Clock adjustment is complete and the time counts.

The clock display flashes.

The clock display unflashes.

- -

I

NOTE

.

The lithium battery installed inside the cooker will last for 4-5 years at the room temperature of 20°C with the power plug connected. With the lithium battery, the current time can still display and the set time is still stored in the memory even though the power plug is disconnected.

If the display lights off or 0:00 flashes on the display, it means that the battery expired.

Even if the current time and the set time disappear, the cooker can cook rice as usual.

(Pressing CANCEL button will stop the flashing of 0:00.)

Never drop the lithium battery into water or charge, disassemble or heat it.

. The clock cannot be set during COOK, WARM and TIMER mode.

.

The clock cannot be set if the power plugs (at the power supply side and the body side) are not fully inserted.

. While the clock display is flashing, the clock will not go ahead.

.

Time display is 24 Hrs.

.In

the operation of the Hrs button, at

0:00 the sound "beep luo luo" will be heard and at 12:00 the sound

"beep luo luo" will be heard twice. In the operation of the Min button, the sound "beep luo luo" will be heard at 00 minute and the long "bee pee" sound will be heard at 10, 20, 30, 40 and 50 minutes.

6

How to preset time

TOSHIBA

-- _00<:0:' -

CANCEL - iIftMI

~

I

'7:3lJ

I

3

2

1

Example: To set the timer for cook white rice in 7:30 a.m.

Press the TIMERbutton.

The TIMER indicator flashing.

1

:

I r.~ I

.

The last preset timer flashing.

2

2

Press the Hrs button and Min button to adjust the preset time.

.If the preset time is the same as the last one, this step can be omitted.

. Time display is 24 Hrs.

. Minutebutton willbe added every 10 minutes.

3

Press the COOK button.

. Forcookingas cookingmenu selected.

.

During preset time, hold down the Hrs button to display the current time.

The timer is set up successfully.

The TIMER indicator flashing.

~ ; ....

TIfv1~R

The COOK indicator lights up.

The TIMER indicator lights up.

o .

COOK TIMER

The preset time in setting.

-

I._'LI

The preset time for this time.

-

I._'LI

The "Beep" sounds for 5 times

The KEEP WARM indicator lights up.

.

KEEP WARM

The time that has elapsed forwarming.

( h : hour)

Warming

7

How to cook

(WhiteRice,MixedRice,QuickCookandCongee)

NOTE

. For rapid cook only.

.

Rapid cook refers to the cooking method that first shortens the cooking time. Generally, the rice cooked by this method tastes firmer and has a little water on its surface.

.

Use this method when the amount of rice is less than 4 cups for Type 1.0L and 6 cups for Type 1.8L.

Press the COOK button once.

.

For rapid cook, please press this button twice.

.

In rapid cook, the rapid Indicator will light up.

The COOK indicator lights up. V Current time o

COOK

-

.

,-,

I-f I-f

I cooking

..

The COOK indicator is flashing.

T

The time (in minutes) remains for cooking.

.

In rapid cook, the rapid Indicator will flash.

.

In rapid cook, the time will show 8 minutes ahead.

Steaming

After "Beep" sounds for 5 times

-.. The KEEP WARM indicator will light up.

.

KEEP WARM

"Y The time that has elapsed for warming.

( h : hour)

Warming

8

How toe 00 k

(Fermentation, Baking/Soup, Boiling Egg and Warming Soup)

I r

Example: Ferment cooking

1

1~11 Select (Fermentation) press button

8

[-

50]

FERMENTATION BAKING1

SOUP

BOILING

EGG

WARMING

SOUP

~)

2

Set time cooking by press button

8

[-

60]

FERMENTATION BAKING1

BOILfjG

EGG

WARMING

SOUP SOUP

(

( )

)

(Sample time setting 60 minutes)

3

Start (Cooking) press button

[

_::...

]

Screen displays cooking

EGG

BOILING ill

WARMING

SOUP

FERMENTATION BAKING1

SOUP

~)

;

.

.

I

When cooking is finished, it sounds (Beep)

The machine will be cut off automatically.

for 5 times.

.

.

. Selectcookingmenuby MENUbutton.

COOK indicator will flashing.

displays menu (

-

) running change will occur.

.If

the Min button is held down and not released the time setting will be added

10 minutes.

.

The COOK indicator light up.

. The remainingtimefor cookingshow

59 minutes.

9

How to keep warm

Cooked rice will run into warming automatically.

Start warming

&

I

Press

bunon

(

-'::..

J to warming

.

.

The keep warm and reheat indicator will light up.

Screen displays running time.

( h : hour)

Stop warming

I

Press buUon

(

~'a

)

to cancel-P warmfunction.

.

The keep warm indicator will light off.

NOTE

.

During warming or reheat function press hour button, screen will display present time.

. Do not warm and leave scoop in pot. Because it causes smell or color changeable.

.

Do not warm rice over 30 hours. It is greater than standard of warming time, the indicator flashing and shown

30 hours.

.

Use warming menu for rice which is less than half of pot. If rice is over, heat is not unsuitable.

. Rice is extremely hard, pouring water for 1-2 teaspoon can solve this problem. Rice will be soft.

.

Do not heat cold rice because heat is not unsuitable.

10

Maintenance and Specification

Maintenance

How to detach

1

Holdthe holders at the bottom edges of the inner gasket and pull it towards you.

. Donotdetachtheinner

~

.

'.

'.

'.

.'.

'c-,,' .

=

.

gasket ifit is not necessary because it may be loose.

How to reassemble

"

.

.

'"'

'

..

.

1

Fit the upper part of the inner gasket to the slot on the outer lid.

. Hold the holders and lift the inner gasket up following the direction of the'" mark fit it to reassemble.

. Reassemble only when the inner gasket is completely dry.

2

Push the holders to the outer lid firmly.

. Ensure the inner gasket fit firmly to the outer lid.

If it does not, the outer lid cannot be closed.

.

'

'

,"

'.

.

~.

'i

~

"

,.

~~

:;io!

~.

.

.

. Please clean the inner gasket after cooking the rice.

. Do not bend or twist the inner gasket It may not fit to the outer lid or the steam may leak out.

Upper parto!

inner gasket

Holders

Outer lidslot

How to detach

1

Turn the steam vent cap following the arrow direction.

Steam

{#f~ w.:~

~1 it upwards.

How to reassemble

2

Close the cap by aligning the mark with the groove, then turn the cap following the arrow direction.

. Turnthe cap untilthe clicking sound is heard.

Steam vent cap ~

~

Q)

)12>

Groove

Mark

After cooking rice

Clean them with a sponge and mild dish detergent.

Clean it with a sponge and mild dish detergent.

.

Clean the inner gasket as well.

Wash the steam vent thorou hi .

( Wipe away the dirt and stain with a damD cloth.

When dirty

Wipe away the dirt and stain with a damp cloth.

. Do notwashthe potbody thoroughly.

. Do notwet

. Donot wet the controlpanel and the outer lid.

. Do not pourthe waterdirectly to the pot.

If there is some grains stuck on the heating plate firmly, rub it off with fine sandpaper

(No. 600).

Remove some grains of rice with a cotton bud.

Remove some dirt with a cotton bud.

Caution: To prevent damage to the appliance do not use alkaline cleaning agents when cleaning, use a soft cloth and mild detergent

Specifications

Model

Power Supply

RC-10

RC-18

220 - 240 V a.c. 50-60 Hz

* For the power supply 220V a.c. 50Hz

Power Consumption (W)

Cooking time

600,560.

780,680.

Dimension (Cm)

Width

Depth Height

25.5

32.8

21.5

28.0

35.2

24.9

11

Weight

(Kg)

3.7

4.5

TOSHIBA

.

NRNL 10000000013
