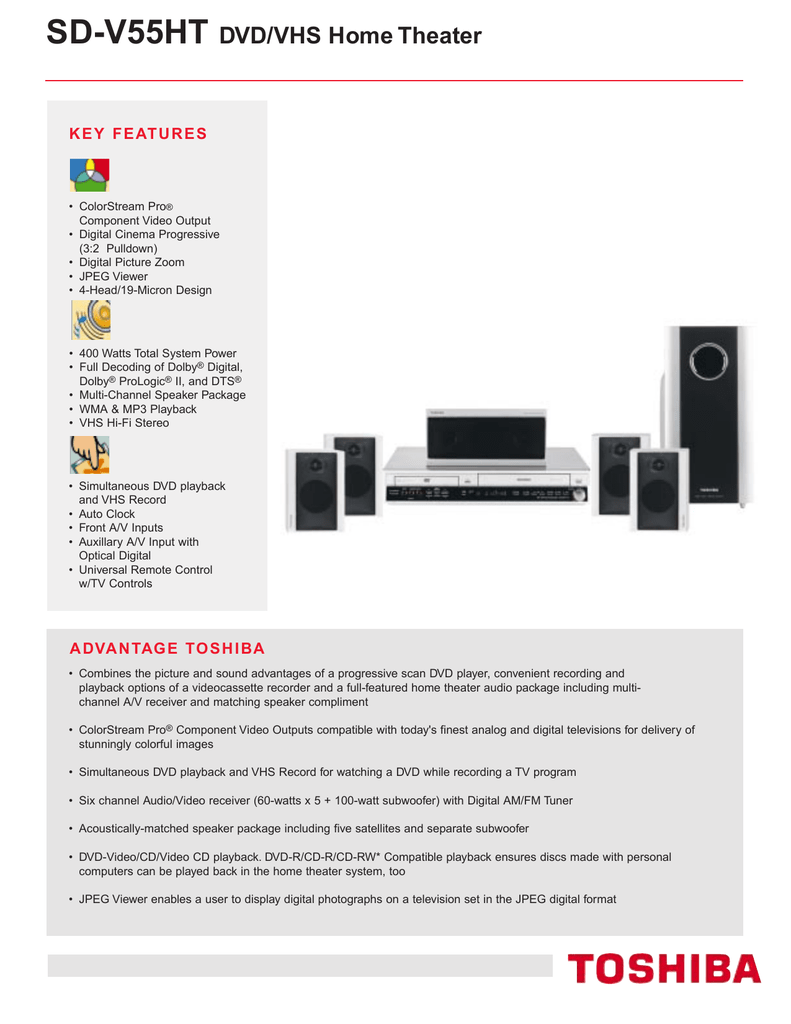

Toshiba SD-V55HT MP3 Player User Manual

SD-V55HT
DVD/VHS Home Theater
K E Y F E AT U R E S
• ColorStream Pro®
Component Video Output
• Digital Cinema Progressive
(3:2 Pulldown)
• Digital Picture Zoom
• JPEG Viewer
• 4-Head/19-Micron Design
• 400 Watts Total System Power
• Full Decoding of Dolby® Digital,
Dolby® ProLogic® II, and DTS®
• Multi-Channel Speaker Package
• WMA & MP3 Playback
• VHS Hi-Fi Stereo
• Simultaneous DVD playback
and VHS Record
• Auto Clock
• Front A/V Inputs
• Auxillary A/V Input with
Optical Digital
• Universal Remote Control
w/TV Controls
A DVA N TAG E TO S H I BA
• Combines the picture and sound advantages of a progressive scan DVD player, convenient recording and
playback options of a videocassette recorder and a full-featured home theater audio package including multichannel A/V receiver and matching speaker compliment
• ColorStream Pro® Component Video Outputs compatible with today's finest analog and digital televisions for delivery of
stunningly colorful images
• Simultaneous DVD playback and VHS Record for watching a DVD while recording a TV program
• Six channel Audio/Video receiver (60-watts x 5 + 100-watt subwoofer) with Digital AM/FM Tuner
• Acoustically-matched speaker package including five satellites and separate subwoofer
• DVD-Video/CD/Video CD playback. DVD-R/CD-R/CD-RW* Compatible playback ensures discs made with personal
computers can be played back in the home theater system, too
• JPEG Viewer enables a user to display digital photographs on a television set in the JPEG digital format
SD-V55HT
TECHNOLOGY & BENEFITS
VIDEO
ColorStream Pro® Component Video Outputs - These outputs allow the highest quality video signal to be sent from the DVD player to a component video
equipped progressive scan TV. When this connection is utilized with today's HDcompatible sets, typical NTSC artifacts-like video noise, dot crawl, and flickerare virtually eliminated, resulting in a low-noise, highly detailed picture with
unequaled color purity.
Digital Cinema Progressive (3/2 Pulldown) - Delivers the smoothest, most
film-like images to any progressive scan television, such as an HD-compatible
one, and ensures maximum resolution.
JPEG Viewer -Enables the display of digital photographs captured in the JPEG
format. Simply load the CD with your favorite photos and create custom slide
shows with a few simple clicks of the player's remote control.
4-Head/19-Micron Head System - Offers superior slow motion effects over conventional 2 head VCR designs. Toshiba's 19-Micron Heads match precisely the
width of the SP and EP azimuths and read only the signal recorded on each
azimuth (not adjoining tracks). The benefit is significantly enhanced SLP and EP
performance so good, it rivals the quality of tapes recorded in the SP Mode.
S-VHS Quasi Playback - This features will allow tapes that were recorded in a
Super VHS deck to be played back in the Toshiba deck without a significant
reduction in quality.
AUDIO
Full Decoding of Dolby® Digital, Dolby® ProLogic® II, and DTS® - Since all
of the audio decoding is done internally by the SD-V55HT, you are assured that
all of today's most popular formats are processed including the signature Dolby®
Digital , Digital Theater Systems (DTS®), as well as Dolby's latest matrix surround system, ProLogic® II - offering a full-bandwidth stereo surround output.
WMA & MP3 Playback - Recordable Compact Discs (CD-R & CD-RW) with
music stored in either the Windows Media™ Audio or MP3 file formats can be
enjoyed.
Six Channel Audio/Video Receiver - The SD-V55HT packs a punch with 400
total watts of power. 60-watts per channel for all five main channels (Left,
Center, Right, Left Rear, Right Rear), and additional 100-watt output is reserved
for the sixth (subwoofer) channel.
System Designed Speaker Package - Acoustically timbre-matched satellite
speakers ensures the smoothest sound reproduction within the sound stage.
The subwoofer, with its dedicated low-frequency amplifier housed in the center
unit, faithfully reproduces the low frequency information of today’s finest digital
soundtracks.
VHS Hi-Fi Stereo - Delivers the highest quality stereo sound from tapes recorded with a high fidelity soundtrack. This provides the ability for the internal Dolby®
ProLogic II surround sound decoder to reproduce the surround sound content
encoded on the tapes.
CONVENIENCE
Auto Clock - This feature ensures that your VCR never blinks "12:00" again. A
special data stream in your local broadcast source (where available) automatically sets the clock display and keeps it accurate-even when time changes to
daylight savings and back.
VHS Recordings From The DVD Player
Provided the selected DVD disc has not been encoded with the
Macrovision copy protection system, you can record DVDs to VHS without
color distortion.
S P E C I F I C AT I O N S
SD-V55HT
Speakers
DVD
Satellites
Disc Qty
1
Disc Play
DVD-Video/CD/CD-R/CD-RW*/VCD/DVD-R
Video D/A
10-Bit/27MHz
Resolution
Audio D/A
®
Speaker Cable
®
Component Video Output
Subwoofer
2-Way
7"
Color coded for all 6 speakers
ColorStream Pro
Radio Antenna
AM Loop and FM
500 Lines
Remote Control
Universal Remote DVD/VCR w/ TV Controls
24-bit/96kHz
®
Terminals
Dolby Digital/DTS Compatible
x
Y/Pr/Pb
1 rear (DVD only)
WMA & MP3 Playback
x
S-Video
1 rear (DVD only)
JPEG Viewer
x
RCA Video Out
Digital Picture Zoom
x
RCA Video In
Fast Scan (2x, 4x, 8x, 20x), Slow Motion
x
L-R Audio Out
Parental Lock
x
L-R Audio Inputs
Multi-Camera Angle Select, Multi-Language Select
x
Toslink Digital Audio Input
Multi-Subtitle Select
x
RF Output
1 rear
RF Input
1 rear
VCR
Video Heads
Resolution
Record Speeds
AM/FM Antenna
1 each
Main Unit Dimensions
17 x 3-1/2 x 14-1/4 inches
125-Channel MTS/SAP Tuner
x
Auto Channel Setup
x
OSD Language
x
English/French/Spanish
RECEIVER
Power Output
Front/Center/Rear - 60-Watts/Channel,
Subwoofer - 100-Watts
Function Selection
CD/DVD, VCR, TUNER, VIDEO 1, VIDEO 2
Channel Level Adjustments
®
®
x
®
Dolby Digital/Dolby ProLogic II, DTS
Tuner Presets
1 rear
4
x
Auto Clock, 8 Event/1 Month Programming
1 rear (both)
1 front & 1 rear
240 Lines
SP/SLP
Hi-Fi VHS Stereo
®
1 rear (both)
1 front & 1 rear
x
30
UPC Code
022265411360
*CD-R/CD-RW discs recorded by CD-DA method can be played back. Some
CD-R/CD-RW discs may be incompatible due to laser pick-up and disc
design. DVD-R discs recorded by DVD Video method can be played. Some
DVD-R discs may be incompatible due to laser pick-up and disc design.
WMA, MP3 and JPEG discs may be incompatible due to different recording
format or condition of disc.
http://www.tacp.toshiba.com Customer Service: 800.631.3811
Marketing Communications © Toshiba America Consumer Products, L.L.C.
82 Totowa Road, Wayne, NJ 07470 (2004). All Rights Reserved (02/04.02)
Dolby is a registered trademark of Dolby Laboratories. DTS is a registered
trademark of Digital Theater Systems. ColorStream Pro is a registered trademark of Toshiba America Consumer Products. TosLink is a registered trademark of Toshiba Corporation. Product design and specification subject to
change or modification without notice.
