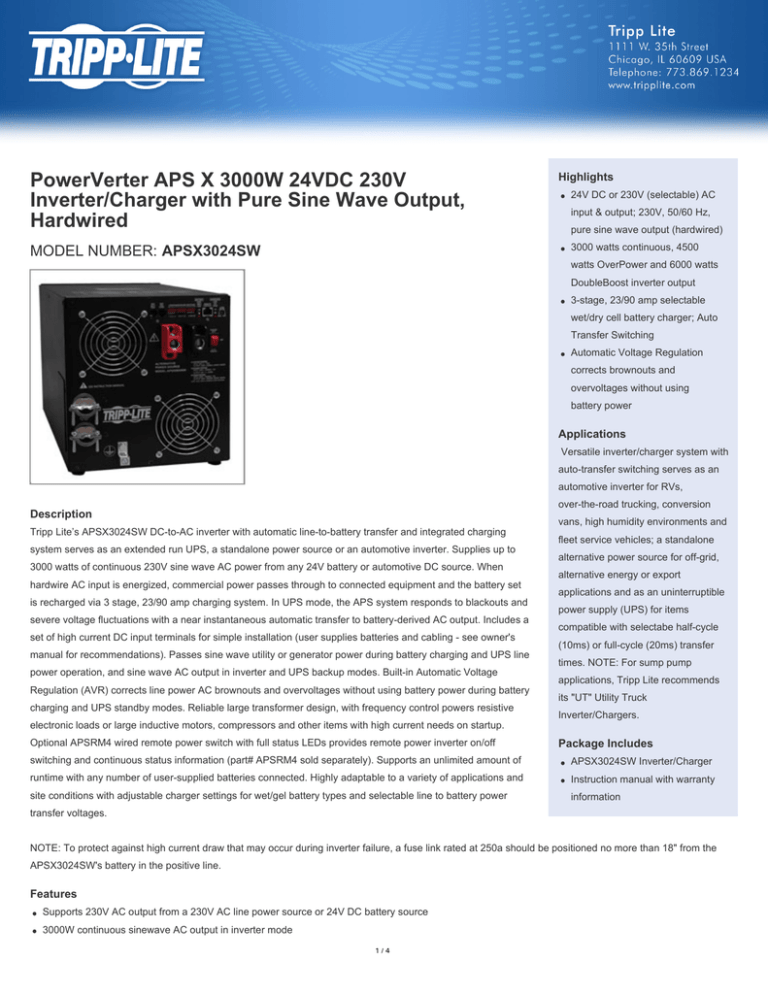

PowerVerter APS X 3000W 24VDC 230V Hardwired
PowerVerter APS X 3000W 24VDC 230V
Inverter/Charger with Pure Sine Wave Output,
Hardwired
Highlights
24V DC or 230V (selectable) AC
input & output; 230V, 50/60 Hz,
pure sine wave output (hardwired)
3000 watts continuous, 4500
MODEL NUMBER: APSX3024SW
watts OverPower and 6000 watts
DoubleBoost inverter output
3-stage, 23/90 amp selectable
wet/dry cell battery charger; Auto
Transfer Switching
Automatic Voltage Regulation
corrects brownouts and
overvoltages without using
battery power
Applications
Versatile inverter/charger system with
auto-transfer switching serves as an
automotive inverter for RVs,
over-the-road trucking, conversion
Description
vans, high humidity environments and
Tripp Lite’s APSX3024SW DC-to-AC inverter with automatic line-to-battery transfer and integrated charging
system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to
3000 watts of continuous 230V sine wave AC power from any 24V battery or automotive DC source. When
hardwire AC input is energized, commercial power passes through to connected equipment and the battery set
is recharged via 3 stage, 23/90 amp charging system. In UPS mode, the APS system responds to blackouts and
severe voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a
set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's
manual for recommendations). Passes sine wave utility or generator power during battery charging and UPS line
power operation, and sine wave AC output in inverter and UPS backup modes. Built-in Automatic Voltage
Regulation (AVR) corrects line power AC brownouts and overvoltages without using battery power during battery
charging and UPS standby modes. Reliable large transformer design, with frequency control powers resistive
fleet service vehicles; a standalone
alternative power source for off-grid,
alternative energy or export
applications and as an uninterruptible
power supply (UPS) for items
compatible with selectabe half-cycle
(10ms) or full-cycle (20ms) transfer
times. NOTE: For sump pump
applications, Tripp Lite recommends
its "UT" Utility Truck
Inverter/Chargers.
electronic loads or large inductive motors, compressors and other items with high current needs on startup.
Optional APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off
Package Includes
switching and continuous status information (part# APSRM4 sold separately). Supports an unlimited amount of
APSX3024SW Inverter/Charger
runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and
Instruction manual with warranty
site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power
information
transfer voltages.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 250a should be positioned no more than 18" from the
APSX3024SW's battery in the positive line.
Features
Supports 230V AC output from a 230V AC line power source or 24V DC battery source
3000W continuous sinewave AC output in inverter mode
1/4
Double Boost output supports momentary start-up loads up to 200% of the continuous rating for up to 10 seconds (see specification chart) - OverPower
output supports longer duration overloads to 150% for up to 60 seconds
3-stage, selectable 23/90 amp battery charger with adjustable settings for wet/gel battery types
3-position operating mode switch supports "AUTO" mode to enable automatic transfer between DC and AC modes, CHARGE-ONLY to maintain a full
battery charge when AC is present without auto transfer and SYSTEM OFF settings
Set of 6 front panel LEDs display continuous status information
Set of 4 dip switches support AC input selection of 230V, selectable 50 /60Hz frequency, and selectable full or half cycle transfer times
Set of 4 dip switches support wet/gel battery charging profiles, adjustable 260/270V (230V) high voltage auto transfer during overvoltages and selectable
150/60V / 170/180V (230V) AC low voltage auto transfer during brownouts
Set of 4 additional dip switches support battery equalization program and battery charger low / high settings
Automatic overload and thermal (overheating) shutoff
Front panel remote control connector enables remote off/on switching (APSRM4 sold separately)
Load sensing control dial enables adjustable load threshold required to automatically turn the inverter on and off in DC mode as load conditions change
Automatic Generator Starter jack enables user configuration of automatic generator start-up as inverter batteries drop to 23.0 VDC and generator shutoff
as inverter batteries are recharged to 28.2 VDC.
Remote battery temperature sensing connection function prolongs battery life by adjusting the charge float voltage level based on battery temperature
Specifications
OVERVIEW
Style
Heavy-duty with built-in battery charger
OUTPUT
Frequency Compatibility
50 / 60 Hz
Output Receptacles
Hardwire
Output (Watts)
3000
Continuous Output Capacity (Watts)
3000
Peak Output Capacity (Watts)
6000
Output Nominal Voltage
230V
Output Voltage Regulation
LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC):
Maintains sine wave output voltage of 230 VAC (+/-5%).
Output Frequency Regulation
50/60 Hz (+/- 0.3 Hz)
INPUT
Nominal Input Voltage(s) Supported
230V AC
Recommended Electrical Service
DC INPUT: Requires 24VDC input source capable of delivering 145A for the required duration (when used at full
continuous capacity - DC requirements increase during OverPower and DoubleBoost operation).
Maximum Input Amps
28
Input Connection Type
DC INPUT: Set of DC bolt-down terminals. AC INPUT: Hardwire via built in terminal strip with cover plate
Voltage Compatibility (VAC)
230
2/4
Voltage Compatibility (VDC)
24
BATTERY
Expandable Battery Runtime
Runtime is expandable with any number of user supplied wet or gel type batteries
DC System Voltage (VDC)
24
Battery Pack Accessory (Optional)
98-121 sealed lead acid battery (optional)
Battery Charge
Selectable 23 / 90 amp
VOLTAGE REGULATION
Voltage Regulation Description
Includes automatic voltage regulation to correct brownouts and overvoltages back to usable levels
Overvoltage Correction
Overvoltages are automatically reduced by 10%
Brownout Correction
Brownouts are automatically boosted by 10% and 20%
LEDS ALARMS & SWITCHES
Switches
3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant
on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in
inverter mode. In AC uninterrupt
Front Panel LEDs
Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7
levels reported). See manual for sequences.
PHYSICAL
Shipping Dimensions (hwd / in.)
20.080 x 18.430 x 22.520
Shipping Dimensions (hwd / cm)
51.00x46.81 x 57.20
Shipping Weight (lbs.)
87
Shipping Weight (kg)
39.46
Unit Dimensions (hwd / in.)
10.08 x 8.90 x 12.40
Unit Dimensions (hwd / cm)
25.60 x22.606 x 31.496
Unit Weight (lbs.)
64.8
Unit Weight (kg)
29.39
Material of Construction
Metal
ENVIRONMENTAL
Relative Humidity
0-95% non-condensing
Operating Temperature
32-104 Fahrenheit / 0-40 Celcius
LINE / BATTERY TRANSFER
Transfer Time (Line Power to
Battery Mode)
Dip-switch selectable 20 millisecond (full cycle) / 10 millisecond (half-cycle) transfer times which are compatible with
many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications
3/4
Low Voltage Transfer to Battery
Power
In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 170V AC (user
adjustable to 180V).
High Voltage Transfer to Battery
Power
In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 260V (user
adjustable to 270 - see manual).
SPECIAL FEATURES
Remote Control Capability
Yes
TVSS Grounding
Main grounding lug connects inverter/charger to earth or vehicle chassis ground
WARRANTY
Product Warranty Period (U.S. &
Canada)
2-year limited warranty
Product Warranty Period
(International)
2-year limited warranty
Product Warranty Period (Mexico)
2-year limited warranty
Product Warranty Period (Puerto
Rico)
2-year limited warranty
© 2015 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
4/4
