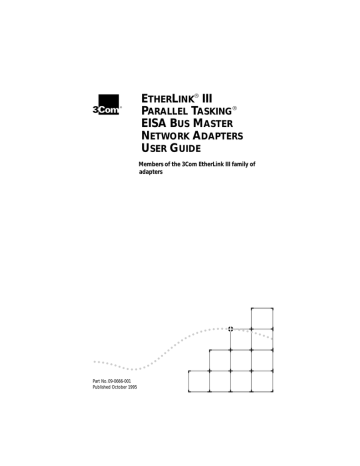

E

P

THER

L

INK

ARALLEL

T

III

ASKING

EISA B

US

M

ASTER

N

ETWORK

A

DAPTERS

U

SER

G

UIDE

Members of the 3Com EtherLink III family of adapters

Part No. 09-0666-001

Published October 1995

3Com Corporation

5400 Bayfront Plaza

Santa Clara, California

95052-8145

© 3Com Corporation, 1995. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without permission from 3Com Corporation.

3Com Corporation reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3Com Corporation to provide notification of such revision or change.

3Com Corporation provides this documentation without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time.

UNITED STATES GOVERNMENT LEGENDS:

If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following restricted rights:

For units of the Department of Defense:

Restricted Rights Legend:

Use, duplication or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) (1) (ii) for restricted Rights in Technical Data and Computer

Software clause at 48 C.F.R. 52.227-7013. 3Com Corporation, 5400 Bayfront Plaza, Santa Clara,

California 95052-8145.

For civilian agencies:

Restricted Rights Legend:

Use, reproduction or disclosure is subject to restrictions set forth in subparagraph (a) through (d) of the Commercial Computer Software - Restricted Rights Clause at

48 C.F.R. 52.227-19 and the limitations set forth in 3Com’s standard commercial agreement for the software. Unpublished rights reserved under the copyright laws of the United States.

The software described in this documentation is furnished under a license agreement included with the product either as a separate document or on the software distribution diskette in a root directory file named LICENSE.TXT. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you.

3Com registered trademarks are registered in the United States and may or may not be registered in other contries.

3Com, EtherDisk, EtherLink, EtherLink II, EtherLink Plus, Parallel Tasking, SmartAgent, SoftHub, and

Transcend are registered trademarks of 3Com Corporation. 3TECH and AutoLink are trademarks of

3Com Corporation. 3ComFacts is a service mark of 3Com Corporation.

Microsoft, MS-DOS, Windows, and Windows NT are trademarks of Microsoft Corporation. IBM, AT,

Personal System/2, Micro Channel, and OS/2 are trademarks of International Business Machines

Corporation. UL is a trademark of Underwriters Laboratories Inc. Novell and NetWare are trademarks of Novell, Inc. CompuServe is a trademark of CompuServe, Inc. Anixter is a trademark of Anixter Bros., Inc. AT&T is a trademark of American Telephone and Telegraph Company. UNIX is a trademark of UNIX Systems Laboratories. Pentium is a trademark of Intel Corporation. Other brand and product names may be registered trademarks or trademarks of their respective holders.

Manual revised by John Jeter. Edited by Nancy Kurahashi. Technical illustrations by Tim Buckreus.

Production by Becky Whitmer.

®

L

IFETIME

W

ARRANTY

3Com’s EtherLink

, TokenLink

III 16/4, Fast EtherLink,

FDDILink

, and 3Com Impact

ISDN ISA adapters have a Lifetime Warranty.

To ensure the very best 3Com service and support, take the time to complete the product registration card.

Any defective 3Com adapter will be repaired or replaced, at 3Com’s option, for as long as the adapter resides in its original IBM

Personal Computer,

Personal System/2

, or compatible computer (driver software is covered by the standard 90-day limited software warranty).

Customers in the countries shown below should send the completed registration card to the appropriate address. Customers in other non-U.S. locations should send the registration card to the U.S. address on the front of the card.

Asia

3Com Asia Ltd., Marketing Department

Room 2506-07, 25/F., Citibank Tower

Citibank Plaza, Central

Hong Kong

Australia, New Zealand

3Com Australia, Marketing Department

99 Walker Street

Level 7

North Sydney

New South Wales 2060

Australia

Belgium, Netherlands, Luxembourg

3Com Benelux B.V., Marketing Department

Nevelgaarde 8-9

3436 ZZ

Nieuwegein

Netherlands

France, Israel

3Com France, Marketing Department

Immeuble McKinley

BP 965

1, Avenue de l’Atlantique

91976 Les Ulis Courtaboeuf Cedex

France

Germany, Austria, Switzerland

3Com GmbH, Marketing Department

Gustav-Heinemann-Ring 123

D-81739 Muenchen

Munich

West Germany

Italy, Greece, Spain, Portugal, Malta

3Com Mediterraneo Srl,

Marketing Department

Via Michelangelo Buonarroti, 1

20093 Cologno Monzese MI

Italy

Japan

3Com Japan, Marketing Department

Shinjuku Sumitomo Building 23F

2-6-1 Nishi Shinjuku, Shinjuku-ku

Tokyo 163-02

Japan

Sweden, Finland, Norway, Denmark

3Com Nordic, Marketing Department

Torshamsgatan 39

Box 1110

164 22 KISTA

Sweden

United Kingdom, Eire

3Com UK Ltd., Marketing Department

Pacific House

Third Avenue

Globe Park Marlow-on-Thames

Buckinghamshire, SL7 1YL

England

C

ONTENTS

A

BOUT

T

HIS

G

UIDE

Introduction 1

How to Use This Guide 1

Conventions 2

1

I

NTRODUCTION

Features 1-2

2

I

NSTALLING THE

EISA A

DAPTER

Inspecting the Adapter 2-2

Installing the Boot PROM 2-2

Inserting the Adapter 2-2

Confirming Adapter Installation 2-4

Connecting to the Network 2-5

Connecting to the On-board Transceiver 2-5

Connecting to Thin Ethernet Cable 2-5

Connecting to Twisted-pair Cable 2-6

Connecting to an External Transceiver 2-6

Auto Select Media Type 2-8

3

C

ONFIGURING THE

A

DAPTER

EtherDisk Diskette 3-2

Configuring the Adapter 3-2

Using a NOS Other Than Windows 95 3-2

Using Windows 95 3-3

Software Option Settings 3-4

Media Type 3-5

Network Driver Optimization 3-5

Full Duplex 3-5

Changing the Settings 3-6

4

L

OADING

N

ETWORK

D

RIVERS

Locating the Network Drivers 4-2

Accessing DOS 4-2

Loading NetWare ODI Drivers 4-3

One Adapter in a Client 4-3

AutoLink Requirements 4-4

AutoLink Installation 4-4

Multiple Adapters in a Client 4-7

Finding the Adapter’s Slot Number 4-9

One Adapter in a Server 4-10

Driver Installation with NetWare 4-10

Multiple Adapters in a Server 4-11

Finding the Adapter’s Port Address for Multiple Adapters 4-12

Driver Installation with NetWare 4-13

Loading Windows 95 Drivers 4-14

Loading Drivers in Non-NetWare Environments 4-15

NDIS Drivers 4-15

Additional Drivers 4-16

Using Transcend PC Link SmartAgent Software 4-16

Desktop Management Interface 4-17

5

P

ERFORMING

T

ROUBLESHOOTING AND

D

IAGNOSTIC

T

ESTS

Troubleshooting with the Diagnostic Tests 5-2

Starting the Diagnostic Program 5-3

Running the Group 1 Tests 5-4

Running the Group 2 Test 5-5

Assembling a Loopback Plug 5-5

Starting the Group 2 Test 5-5

Running the Group 3 Test 5-6

Setting Up an Echo Server 5-6

Starting the Group 3 Test 5-7

Getting Help If a Test Fails 5-8

Changing the Test Setup 5-10

Miscellaneous Checks 5-11

Link Beat LED 5-11

A

S

PECIFICATIONS

Adapter Specifications A-1

RJ-45 Connector Pin Assignments A-2

AUI Connector Pin Assignments A-2

Cable Requirements A-3

B

T

ECHNICAL

S

UPPORT

On-line Technical Services B-1

3Com Bulletin Board Service B-1

Access by Modem B-1

World Wide Web Site B-2

ThreeComForum on CompuServe B-2

3ComFacts Automated Fax Service B-2

Support from Your Network Supplier B-3

Returning Products for Repair B-4

G

LOSSARY

I

NDEX

L

IMITED

W

ARRANTY

FCC C

LASS

B C

ERTIFICATION

S

TATEMENT

CISPR B C

OMPLIANCE

CE N

OTICE

F

IGURES

1-1

1-2

3C592 Adapter Backplates 1-2

Procedure Overview 1-3

2-1

2-2

2-3

2-4

2-5

Hardware Installation Overview 2-1

PCI and EISA Bus Slots in an EISA Computer 2-3

Connecting Thin Ethernet Cable 2-5

Slide Latch 2-7

Connecting the AUI Cable 2-7

3-1

3-2

3-3

3-4

3-5

Adapter Configuration Overview 3-1

Auto Installation Screen 3-7

Main Menu 3-7

Multiple Adapter Option Configuration 3-9

Changing Adapter Options 3-9

4-1

4-2

4-3

Overview of Loading Network Drivers 4-1

AutoLink Information Screen 4-6

Main Menu 4-6

5-1

5-2

Troubleshooting Overview 5-1

Assembling a Loopback Plug 5-5

A-1

RJ-45 Connector Pin Assignments A-2

T

ABLES

1

2

Text Conventions 2

Notice Icons 2

1-1

3C592 EISA Adapter Cable and Connector Specifications 1-2

2-1

Connectors for 3C592 EISA Adapters 2-5

3-1

Software Configuration Options 3-4

4-1

Accessing DOS 4-3

5-1

Diagnostic Programs 5-7

A-1

AUI Connector Pin Assignments A-2

A

BOUT

T

HIS

G

UIDE

Introduction

This guide describes how to install the following 3Com

EtherLink

III Parallel Tasking

10 Mbps EISA bus master network adapters:

3C592-COMBO (10BASE-T, thin coax, and thick coax) adapter

3C592-TPO (10BASE-T) adapter

Also included is information about installing network drivers, troubleshooting the adapter, and using the diagnostic tests if an adapter malfunction occurs.

Throughout this guide, the product number 3C592 designates both members of the EtherLink III family of

10 Mbps EISA adapters.

How to Use This Guide

The following table shows where to find specific information in this guide.

If you are looking for:

Information about the 3Com EISA bus master network adapters

Instructions for installing the adapter

Turn to:

Chapter 1

Procedures for connecting the adapter to the network

Instructions for configuring the adapter with the EISA configuration utility

Chapter 2

Chapter 2

Chapter 3

Procedures for changing software option settings

Instructions for installing network drivers

Chapter 3

Chapter 4

Details on troubleshooting and running the diagnostic tests Chapter 5

Information on adapter specifications, pin assignments, and cabling requirements

Appendix A

Information on 3Com’s technical support services Appendix B

2

A

BOUT

T

HIS

G

UIDE

Conventions

The following tables list text and icon conventions that are used throughout this guide.

Table 1

Text Conventions

Convention

Text represented as screen display

Text represented as

commands

Keys

Description

This typeface is used to represent displays that appear on your terminal screen, for example:

NetLogin:

This typeface is used to represent commands that you enter, for example:

print autolink.log

When specific keys are referred to in the text, they are called out by their labels, such as “the Return key” or

“the Escape key,” or they may be shown as [Return] or [Esc].

If two or more keys are to be pressed simultaneously, the keys are linked with a plus sign (+), for example:

Press [Ctrl]+[Alt]+[Del].

Table 2 Notice Icons

Icon Type Description

Information Note Information notes call attention to important features or instructions.

Caution Cautions alert you to personal safety risk, system damage, or loss of data.

Warning Warnings alert you to the risk of severe personal injury.

1

I

NTRODUCTION

The 3Com

EtherLink

III Parallel Tasking

 adapters described in this guide are members of a family of third-generation Ethernet adapters. This family includes the

32-bit bus master Extended Industry Standard Architecture

(EISA)10 Mbps Ethernet network adapters. This guide contains installation and diagnostic information about the following EISA adapters:

3C592-COMBO (RJ-45, BNC, AUI connectors)

3C592-TPO (RJ-45 connector)

The two adapters are functionally identical; they differ only in the layout of the components on each board and the type of media supported on the backplates, as shown in Figure 1-1.

The name “3C592 EISA adapter” is used in this guide to refer to both EtherLink III 10 Mbps EISA adapters unless otherwise specified.

The bus master drivers supplied with this adapter are compatible with the Fast EtherLink 10/100BASE-T EISA adapter. The bus master drivers shipped on the 3C59X

EtherDisk diskette are compatible with the 3Com 3C59X family of EISA and PCI bus master adapters; they are not backward-compatible with the 3Com 3C5X9 family of

EtherLink III adapters.

The 3C592 EISA adapter connects your EISA-compliant personal computer to an Ethernet network wired with

IEEE 802.3 standard 10BASE2 or 10BASE5 coaxial cable, or

10BASE-T twisted-pair cable. The cable specification for each adapter type is shown in Table 1-1.

1-2

C

HAPTER

1: I

NTRODUCTION

RJ-45 connector

LED

LED

RJ-45 connector

AUI connector

BNC connector

Figure 1-1 3C592 Adapter Backplates

Table 1-1 3C592 EISA Adapter Cable and Connector Specifications

Adapter Type

3C592-TPO

3C592-COMBO

Cable Specification

10BASE-T

10BASE-T

Thin coax (10BASE2)

Thick coax (10BASE5)

Connector Types

RJ-45

RJ-45

BNC

AUI

The 3C592 EISA adapter can only be installed in computers containing EISA expansion slots.

Features

The 3C592 EISA adapter supports the following features:

AutoLink

auto installation software, which installs and configures all Novell

NetWare

DOS ODI client software into your operating system

Automatic adapter recognition for computers running the

Windows

95 network operating system

Features

1-3

Auto Select Media Type capability, which enables drivers to automatically detect the type of media connector that connects the adapter to the network

Network management support through Transcend

PC Link

SmartAgent

software

The Desktop Management Interface (DMI), which increases the manageability of PCs by standardizing how information relating to PCs is made available and how it is accessed

LED notification of link integrity and polarity reversal

The procedures described in this guide are shown in

Figure 1-2.

1

Install the adapter in an EISA slot.

2

3

Configure the Adapter using the

EISA configuration utility.

Load network drivers.

(NetWare or other)

4

Troubleshoot the adapter.

(optional)

Figure 1-2 Procedure Overview

2

I

NSTALLING THE

EISA

A

DAPTER

This chapter describes how to install the 3C592 EISA adapter in your computer. An overview of these procedures is shown in Figure 2-1.

1

Inspect the adapter.

2

3

Install the boot PROM.

(optional)

Insert the adapter.

4

Connect to the network.

5

Go to Chapter 3,

“Configuring the Adapter.”

Figure 2-1 Hardware Installation Overview

After installing the adapter, you can load the network drivers, as described in Chapter 4. If necessary, you can change the software option default settings, as explained in Chapter 3.

2-2

C

HAPTER

2: I

NSTALLING THE

EISA A

DAPTER

Inspecting the Adapter

CAUTION: Each adapter is packed in a clear plastic

antistatic container to protect it during shipment. To avoid damaging any static-sensitive components after removal from the container, be sure to reduce any static electricity on your person. One way to do this is to touch the metal chassis of your computer. You can maintain grounding by wearing a wrist strap attached to the chassis.

1 Open the shipping container and carefully remove its contents.

The package should contain the following items:

3Com EtherLink III Parallel Tasking EISA bus master adapter

EtherLink III Parallel Tasking EISA Bus Master Network

Adapters User Guide

3C59X EtherDisk

diskette

2 Verify that you have received all items, and inspect each item for damage.

If you find any damage, contact your network supplier and the carrier that delivered the package.

Installing the Boot PROM

The boot PROM is optional and can be purchased separately.

If you are installing it onto the adapter, follow the instructions that accompanied the boot PROM.

Inserting the Adapter

To insert the adapter into the computer, follow these steps:

1 Turn off the computer and disconnect the unit from its power source.

2 Remove all jewelry from your hands and wrists.

Inserting the Adapter

2-3

3 Select an appropriate expansion slot and remove its expansion cover plate.

4 Insert the adapter in the EISA slot and secure the screw.

If you have a computer with slots other than EISA slots, be sure to insert the 3C592 EISA adapter only in an EISA slot.

Figure 2-2 compares the size of the slots in an EISA computer that has PCI slots. EISA slots are longer than PCI slots and deeper than ISA slots.

EISA slot

PCI slot

Figure 2-2 PCI and EISA Bus Slots in an EISA Computer

The adapter backplate should be flush with the computer chassis. Be sure that the connector fingers of the adapter are completely seated in the slot.

5 Replace the computer cover and reconnect all previously connected cables.

If you are installing multiple EtherLink EISA adapters in a computer, you must run the EISA configuration program after you install each adapter. See the discussions about installing multiple EISA adapters in Chapter 4.

2-4

C

HAPTER

2: I

NSTALLING THE

EISA A

DAPTER

Confirming Adapter Installation

If you are installing the 3C592 EISA adapter in a computer running Windows 95, you can confirm the adapter’s installation by following these steps:

1 After starting Windows 95, double-click the

My Computer icon.

2 Double-click the

Control Panel icon.

3 Double-click the

System icon.

The System Properties box appears, detailing your system setup.

4 Click the

Device Manager tab.

A list of devices appears, arranged by type.

5 Click the

Network Adapters tab.

The name of the installed 3Com adapter appears, as shown below:

3Com EtherLink III Bus-Master EISA Ethernet

Adapter

This confirms the adapter’s installation.

6 Double-click the adapter’s name to display a description of the adapter and its current status.

The next dialog box confirms that the adapter is working properly.

7 Click the

Cancel button to leave each dialog box and return to the Control Panel.

For on-line help information about any of the fields in the display boxes, click the question mark (?) in the upper right corner of the box and move the question mark cursor to the field of interest and click again.

Connecting to the Network

2-5

Connecting to the Network

You must connect the adapter to the network before installing the drivers.

This section describes how to connect different types of network cables to the 3C592 EISA adapters. Table 2-1 lists the types of network cable connectors that are found on 3C592

EISA adapters.

Table 2-1 Connectors for 3C592 EISA Adapters

Cable Type

Thick coaxial

Twisted-pair

Thin coaxial

Connector

AUI

RJ-45

BNC

Transceiver Type

External

On-board TP

On-board coax

Connecting to the On-board Transceiver

Each 3C592 EISA adapter is equipped with an on-board transceiver to allow easy connection to the network.

Connecting to Thin Ethernet Cable

The 3C592-COMBO adapter is factory-set to use the on-board transceiver as the default with thin Ethernet cable.

1 Connect the T connector to the adapter’s BNC connector

(see Figure 2-3).

AUI connector

RJ-45 connector

BNC connector

Thin Ethernet cable

Figure 2-3 Connecting Thin Ethernet Cable

2-6

C

HAPTER

2: I

NSTALLING THE

EISA A

DAPTER

2 Align the T connector’s slots with the pegs on the BNC connector.

3 Push the T connector in and twist it clockwise until it stops.

The next step is to load the drivers, as explained in Chapter 3.

Connecting to Twisted-pair Cable

The 3C592-COMBO and 3C592-TPO adapters are both equipped with an on-board transceiver for connection to twisted-pair cable.

1 Make sure that the connector on your cable is wired appropriately for standard 10BASE-T adapter cards.

Refer to Appendix A for RJ-45 connector pin assignments.

2 Align the RJ-45 connector on the end of the twisted-pair cable with the notch on the adapter’s plug and insert it into the adapter socket.

The next step is to load the drivers, as explained in Chapter 3.

Connecting to an External Transceiver

You can install AUI-equipped adapters and, by employing an external transceiver, use either thin or thick coax, fiber-optic, or twisted-pair cabling. Follow these steps to connect to an external transceiver:

1 Locate the adapter’s AUI connector and move the slide latch to the open position, as shown in Figure 2-4.

2 Connect the AUI cable or transceiver to the AUI connector on the adapter, as shown in Figure 2-5.

3 Move the slide latch to the closed position to lock the cable in place.

4 Connect the other end of the AUI cable to the external transceiver.

Connecting to the Network

2-7

The next step is to load the drivers, as explained in Chapter 3.

If you are running Windows 95, you can confirm the network connection by double-clicking the Network Neighborhood icon. The presence of the Entire Network icon in the display box confirms the network connection.

Slide latch

AUI connector

Closed

Open

.

Figure 2-4 Slide Latch

AUI connector

RJ-45 connector

BNC connector

AUI cable

Figure 2-5 Connecting the AUI Cable

2-8

C

HAPTER

2: I

NSTALLING THE

EISA A

DAPTER

Auto Select Media Type

The Auto Select Media Type function is implemented by all drivers contained on the 3C59X EtherDisk diskette supplied with the 3C592 EISA adapter. This includes NetWare ODI drivers and NDIS 2.01 drivers. It also includes NDIS 3.0 drivers for

Windows for Workgroups, Windows 95, and Windows NT

.

The NDIS drivers function with 386 and later processors.

If you have one of these drivers installed, as soon as you connect a network cable to the system, the Auto Select

Media Type function will detect the type of cable making the connection and automatically select that media type. If you change the type of network cable connected to the adapter, you must reload the driver in order for the Auto Select Media

Type function to detect the cable type.

If the driver is unable to detect what type of cable is connected or whether there is any cable connected, the Auto

Select Media Type function defaults to the type of connector that is stored internally in the EEPROM. The default setting for the 3C592-COMBO adapter is 10BASE-T (twisted-pair).

3

C

ONFIGURING THE

A

DAPTER

This chapter explains how to configure the 3C592 EISA adapter using the EISA configuration diskette that came with your computer and the EtherDisk diskette supplied with the adapter. The configuration process is shown in Figure 3-1.

1

Configure the adapter using the

EISA configuration utility.

2

3

Copy the .CFG file from the EtherDisk diskette.

Change software option settings.

(optional)

4

Go to Chapter 4,

“Loading Network Drivers.”

Figure 3-1 Adapter Configuration Overview

3-2

C

HAPTER

3: C

ONFIGURING THE

A

DAPTER

EtherDisk Diskette

The EtherDisk diskette supplied with the 3C592 EISA adapter contains the following:

An adapter configuration file (!TCM5920.CGF) used by the

EISA configuration utility on the EISA diskette

The Configuration and Diagnostic Program for running diagnostics on the adapter and changing the Media Type,

Network Driver Optimization, or Full Duplex settings (if desired) after initial configuration

Adapter drivers and instructions for driver installation

Configuring the Adapter

You must run the EISA configuration utility program as part of the adapter configuration process.

If your computer is running Windows 95, skip the next section and follow the instructions in the section “Using Windows 95.”

If you are using a network operating system (NOS) other than

Windows 95, follow the instructions in the next section.

Using a NOS Other Than Windows 95

To run the EISA configuration utility program, follow these steps:

1 Install the 3C592 EISA adapter in your EISA computer.

(Refer to Chapter 2 for instructions.)

Make sure the adapter is firmly seated in the slot.

2 Insert the EISA configuration diskette provided with your computer into the floppy drive.

The EISA configuration diskette that came with your computer contains a utility program that automatically configures the

EISA adapter.

3 Turn on the power.

Configuring the Adapter

3-3

4 Follow the on-line prompts and the instructions that accompanied your EISA computer and then run the EISA configuration utility.

The sequence of configuration steps required for some EISA computers may vary from the steps explained here. Consult the EISA configuration utility manual provided by the manufacturer of your computer for more details.

5 When the EISA configuration utility asks for a .CFG file to copy, remove the EISA configuration diskette.

6 Insert the EtherDisk diskette and press [Enter].

The configuration file !TCM5920.CFG is copied from the

EtherDisk diskette.

7 When the adapter has been successfully configured, follow the displayed instructions to save and exit the program.

Then proceed to Chapter 4, “Loading Network Drivers.”

Using Windows 95

If you are running Windows 95, after installing the adapter run the EISA configuration utility program by following these steps:

1 Turn on the computer.

The computer displays a message notifying you that a new hardware device (the 3Com EtherLink III EISA adapter) has been detected.

The message asks you to run the system (EISA) configuration utility.

2 Follow one of the instructions below:

If your computer supplies this utility on its hard disk, follow the instructions displayed on the screen to run the utility.

Alternatively, insert the EISA configuration utility diskette provided with your computer and follow the instructions displayed on the screen.

3 When the adapter has been successfully configured, proceed to Chapter 4, “Loading Network Drivers.”

3-4

C

HAPTER

3: C

ONFIGURING THE

A

DAPTER

Software Option Settings

The EISA configuration program automatically configures the following parameters on your EISA adapter:

Slot Number/Port Address

Interrupt Request Level

Boot PROM Enable/Disable

If you need to change the factory-set Media Type,

Network Driver Optimization, or Full Duplex options, use the

EtherDisk diskette Configuration and Diagnostic Program.

Table 3-1 lists the default setting and the available settings for the options that you can change. Refer to the on-line help

(press [F1] when each option is highlighted) for more information about each of the settings.

When you run the EtherDisk

diskette Configuration and

Diagnostic Program to change software options, make sure that network drivers or memory managers have not been loaded. If you are using MS-DOS 6.0 or above, you can avoid loading the drivers by pressing [F5] as soon as DOS loads. If you are using an earlier version of DOS, you must boot from a

DOS diskette.

Table 3-1 Software Configuration Options

Option

Media Type

Default Setting

Auto Select

(for 3C592-COMBO)

Available Settings

On-board Coax (BNC)

On-board TP (RJ-45)

External (AUI)

Auto Select

N/A On-board TP

(for 3C592-TPO)

Network Driver Optimization Normal

Full Duplex Disabled

Normal

Minimized CPU Utilization

Maximized Network Performance

Enabled

Disabled

Software Option Settings

3-5

Media Type

A variety of media types are available, depending upon the adapter as indicated in Table 3-1. For information about the

Auto Select setting, refer to the section “Auto Select Media

Type” in Chapter 2.

Network Driver Optimization

This option specifies whether to optimize the network driver for a normal environment, minimize CPU utilization, or maximize network performance environment. You may choose to use a larger percentage of CPU resources under

DOS in order to improve network throughput.

In multitasking environments, choosing the Minimized CPU

Utilization option saves the resources of the CPU for other tasks.

If no other applications are making major demands on CPU resources, you may choose the Maximized Network Performance option.

Full Duplex

Full duplex refers to data communication sent and received at the same time. Full duplex operation is possible when used in an environment where the switch supports it. Do not enable the Full Duplex option unless your switching hub is set for full duplex.

CAUTION: Setting the adapter to full duplex in a hub that

only supports half duplex may bring down the network.

3-6

C

HAPTER

3: C

ONFIGURING THE

A

DAPTER

Changing the Settings

To change the software option settings, follow these steps:

1 Make sure the 3C592 EISA adapter has been properly installed in your computer.

CAUTION: If this computer is an operating server, notify all

users of the server to save their work and log out from the network before you begin. The Configuration and Diagnostic

Program disrupts the normal operation of servers and workstations, so work that is not saved may be lost.

2 Boot your computer under DOS, version 3.1 or later.

3 Place the

EtherDisk diskette in a floppy drive on your computer and make that drive the active drive. For example:

A: [Enter]

4 Type at the prompt:

INSTALL [Enter]

5 The first time you use the EtherDisk diskette, a license screen appears. To accept the terms and conditions of the

3Com end-user software license agreement, type the following:

Y

6 When the Auto Installation screen appears, as shown in

Figure 3-2, press [Enter].

7 When the main menu appears with a list of options, as shown in Figure 3-3, select

Configuration/Diagnostic/

Troubleshooting.

8 When the Configuration and Diagnostic screen appears, select Configuration and Diagnostic Program.

Software Option Settings

3-7

EtherDisk-3C59X Fast EtherLink/EtherLink III Bus Master Adapter Family v.X.X

ESC=Cancel

3Com's auto installation software (AutoLink) automatically configures your adapter and workstation for use as a NetWare client. To use AutoLink:

* Have only one 3Com Bus Master adapter installed

* Use NetWare v2.X, v3.1X, or v4.X as your network operating system

* Have DOS on the client being installed

AutoLink edits your AUTOEXEC.BAT and CONFIG.SYS files and saves the old versions. Select General Information/Release Notes in the main menu for information on AutoLink server support. To manually set up your adapter or for information/drivers for other NOSs, use the options under Standard

Installation and Configuration in the main menu.

This option will install a complete DOS ODI client.

(C) Copyright 1995, 3Com Corporation. All Rights Reserved

[ENTER]=Continue

[ESC]=Exit Program

Figure 3-2 Auto Installation Screen

EtherDisk-3C59X Fast EtherLink/EtherLink III Bus Master Adapter Family v.X.X

ESC=Cancel F1=Help

M A I N M E N U

Auto Installation with Configuration (AutoLink)

NetWare DOS ODI Client

Standard Installation and Configuration

Network Drivers ...

Configuration/Diagnostic/Troubleshooting ...

General Information/Release Notes

Program & information for configuring/testing/troubleshooting adapters

(C) Copyright 1995, 3Com Corporation. All Rights Reserved

[ENTER]=Execute Function

[

↑↓

]=Scroll

[F1]=Help [ESC]=<Cancel>

Figure 3-3 Main Menu

3-8

C

HAPTER

3: C

ONFIGURING THE

A

DAPTER

9 If you have multiple adapters installed, as shown in Figure 3-4, use the arrow keys to select the desired adapter and press

[Enter].

10 If you have a single adapter installed, the

Configure Adapter

option appears already highlighted on the

Install pull-down menu. Press [Enter].

A screen similar to the one shown in Figure 3-5 appears.

In the value set for the I/O Port Address parameter, the 1000 indicates slot number 1. A setting of 2000 would mean slot number 2; 3000, slot number 3, and so forth.

11 Press [Tab] to highlight the main dialog box, and use the arrow keys to highlight one of the parameter options. Press

[Enter].

A second dialog box appears.

The Boot PROM, I/O Port Address, and Interrupt Level parameters are for information only. To change them, you must use the EISA configuration utility that came with your computer.

12 Use the arrow keys to scroll through the list of settings for that option. Select a setting and press [Enter].

13 Continue this procedure with any of the other options.

Refer to the on-line help (press [F1] when the option is highlighted) for more information about each of the settings.

14 Press [Tab] to highlight OK. Press [Enter].

You must highlight OK and press [Enter] to save the settings. If you

want to use the same settings on other adapters, you can save the

configuration settings to a file. Select Save under File Options in

the Adapter Configuration dialog box. For example, type:

D:\CONFIG\3C592.SET

This saves the settings to the default file 3C592.SET in the

CONFIG directory in drive D. Refer to the on-line help (press

[F1]) for more information.

Software Option Settings

3-9

Quit Install Test

Configuration and Diagnostic Program

View Select

Select Adapter

Installed Adapters

3Com 3C592-COMBO in Slot 2: Node Address = 0060BC001358

3Com 3C592-TPO in Slot 3: Node Address = 0060BC001368

F1=Help

Select the adapter to be configured and/or tested.

Select Cancel

(C) Copyright 1995, 3Com Corporation. All Rights Reserved

[ENTER]=<Select>

[Alt]+<Highlighted Key>=Execute Function [

↑↓

]=Scroll

[TAB]=Next Field [SHIFT+TAB]=Previous Field [F1]=Help [ESC]=<Quit>

Figure 3-4 Multiple Adapter Option Configuration

Quit Install Test

Configuration and Diagnostic Program

View Select

Adapter Configuration

A d apter Configuration

Network Driver Optimization

Full Duplex

Boot PROM

Media Type

I/O Port Address

Interrupt Level

Normal

Disabled

Disabled (EISA)

Auto Select

1000h (EISA)

5 (EISA)

F1=Help

A uto Configure M odify F ile Options OK C ancel

(C) Copyright 1995, 3Com Corporation. All Rights Reserved

[ENTER]=<Auto Configure> Automatically Configures the Adapter

[Alt]+<Highlighted Key>=Execute Function

[TAB]=Next Field [SHIFT+TAB]=Previous Field [F1]=Help [ESC]=Cancel

Figure 3-5 Changing Adapter Options

4

L

OADING

N

ETWORK

D

RIVERS

This chapter describes how to load the network drivers required to let the 3C592 EISA adapter operate with your network operating system. Figure 4-1 shows an overview of these procedures.

1

Locate network drivers.

2

3

Access DOS.

Load the drivers.

A

NetWare

(Client/server)

B

Windows 95 Non-NetWare

(NDIS or other)

Figure 4-1 Overview of Loading Network Drivers

If you are running NetWare 2.x, 3.1x, or 4.x, you can use

3Com’s AutoLink

auto installation feature, which automatically loads all the NetWare DOS ODI client software, including drivers. Follow the instructions in the section

“Loading NetWare ODI Drivers.”

If you are running Windows 95, you must import the driver from the EtherDisk diskette. Follow the instructions in the section “Loading Windows 95 Drivers” later in this chapter.

4-2

C

HAPTER

4: L

OADING

N

ETWORK

D

RIVERS

If you are running any other network operating system, follow the driver loading instructions in the section “Loading

Drivers in Non-NetWare Environments” later in this chapter.

Locating the Network Drivers

The 3C59X EtherDisk diskette contains the latest versions of the network drivers available when 3Com shipped the adapter.

It also contains other important information concerning the

3C592 EISA adapter.

The drivers on the 3C59X EtherDisk diskette (3C59X drivers)

are compatible with the following bus master adapters:

Fast EtherLink EISA 10/100BASE-T (3C597) adapters,

Fast EtherLink PCI 10/100BASE-T (3C595) adapters,

EtherLink III EISA 10 Mbps (3C592) adapters, and EtherLink III

PCI 10 Mbps (3C590) adapters. The 3C59X drivers are not backward-compatible with the 3C5X9 family of EtherLink III adapters (ISA, EISA, or MCA). The latest version of the

EtherDisk diskette is available on 3Com’s Bulletin Board

Service (BBS). For information on accessing the BBS, refer to

Appendix B, Technical Support.”

To obtain NOS drivers not included on the 3C59X EtherDisk diskette, access Document 9071 in 3Com’s 3ComFacts

fax service. Document 9071 provides a list of available drivers and drivers in development along with information on where these drivers can be obtained.

Accessing DOS

The 3Com program for installing drivers is a DOS-based program that loads network drivers, modifies some adapter parameters, and runs diagnostic tests on the adapter. If you are using an operating interface other than DOS, such as

OS/2

, Windows 3.x, or Windows 95, you must exit from that interface before installing the drivers. Table 4-1 describes how to access DOS from various operating systems.

Loading NetWare ODI Drivers

4-3

Table 4-1 Accessing DOS

Operating System Procedure

OS/2 1 Boot your computer from a plain DOS diskette.

2 Type install

at the DOS command prompt to run the 3Com install program.

Windows 3.x

Windows 95

1 Exit Windows completely (select File, Exit

Windows, OK).

2 Type install

at the DOS command prompt to run the 3Com install program.

1 Turn on your computer.

2 Press [F4] as soon as you see this message:

Starting Windows 95

3 Type install

at the DOS command prompt to run the 3Com install program.

Loading NetWare ODI Drivers

This section describes the following conditions under which you can use NetWare drivers:

One adapter in a client

Multiple adapters in a client

One adapter in a server

Multiple adapters in a server

One Adapter in a Client

To load the driver for a single adapter in a NetWare DOS ODI environment, follow the instructions in this section. The

3Com DOS ODI driver is 3C59X.COM.

3Com’s AutoLink auto installation software automatically installs all necessary NetWare DOS ODI client software, including drivers. The software also modifies the CONFIG.SYS and AUTOEXEC.BAT files. It automatically logs on to the server and updates the client software if your system administrator has already configured a 3Install account on your server.

Instructions for configuring a 3Install account are

4-4

C

HAPTER

4: L

OADING

N

ETWORK

D

RIVERS contained in the README.TXT file located in the

\QINSTALL\SERVER directory on the 3C59X EtherDisk diskette.

If no 3Install account exists, the drivers will be loaded from the diskette (rather than from the server). In this case, they may not be the most current versions.

DOS ODI client drivers that support the 3Com EISA adapter support shared interrupts. However, since there is no industry standard to support shared interrupts, other adapters may support them differently, or not at all. If another EISA adapter does not support shared interrupts, contact its manufacturer for a shared interrupt driver.

AutoLink Requirements

To use the AutoLink feature to install the NetWare DOS ODI driver, your computer must meet the following requirements:

Use the Novell NetWare 2.x, 3.1x, or 4.x network operating system

Have only one 3C592 EISA adapter installed

Be intended for use as a NetWare DOS ODI client

If this does not describe your network environment, refer to the appropriate section later in this chapter.

AutoLink Installation

To use the AutoLink program to install NetWare DOS ODI client software on a PC with a single adapter, complete the following steps.

You can use the AUTOLINK.CFG file to modify the AutoLink process. The AUTOLINK.CFG file in the root directory contains default settings and descriptions of other control parameters.

1 Make sure that you have booted the computer under DOS, version 3.1 or later, and that your computer is connected to the network (refer to Chapter 2).

Loading NetWare ODI Drivers

4-5

2 Insert the 3C59X

EtherDisk diskette in a floppy drive on your computer and make that drive the active drive.

For example, if the diskette drive is A, type the following command:

A: [Enter]

3 At the prompt, type:

INSTALL [Enter]

Alternatively, at the prompt, type:

AUTOLINK [Enter]

If you type AUTOLINK instead of INSTALL, you will bypass the

EtherDisk diskette menu program (skipping steps 5 and 6)

and advance to step 7.

4 The first time you use the diskette to install an adapter, a license screen appears. To accept the terms and conditions of the 3Com end-user software license agreement, type the following:

Y

To view the full text of the license agreement, press [F1].

Once you have agreed to the terms and conditions of the

3Com license agreement, the license information screen will not appear again.

The Auto Installation Information screen appears, as shown in

Figure 4-2.

5 Read the screen and press [Enter].

6 When the main menu screen shown in Figure 4-3 appears, select NetWare DOS ODI Client, and press [Enter].

Auto installation may take a few minutes. Several messages appear while the AutoLink program is running. A final message indicating successful installation appears.

4-6

C

HAPTER

4: L

OADING

N

ETWORK

D

RIVERS

EtherDisk-3C59X Fast EtherLink/EtherLink III Bus Master Adapter Family v.X.X

ESC=Cancel

3Com's auto installation software (AutoLink) automatically configures your adapter and workstation for use as a NetWare client. To use AutoLink:

* Have only one 3Com Bus Master adapter installed

* Use NetWare v2.X, v3.1X, or v4.X as your network operating system

* Have DOS on the client being installed

AutoLink edits your AUTOEXEC.BAT and CONFIG.SYS files and saves the old versions. Select General Information/Release Notes in the main menu for information on AutoLink server support. To manually set up your adapter or for information/drivers for other NOSs, use the options under Standard

Installation and Configuration in the main menu.

This option will install a complete DOS ODI client.

(C) Copyright 1995, 3Com Corporation. All Rights Reserved

[ENTER]=Continue

[ESC]=Exit Program

Figure 4-2 AutoLink Information Screen

EtherDisk-3C59X Fast EtherLink/EtherLink III Bus Master Adapter Family v.X.X

ESC=Cancel F1=Help

M A I N M E N U

Auto Installation with Configuration (AutoLink)

NetWare DOS ODI Client

Standard Installation and Configuration

Network Drivers ...

Configuration/Diagnostic/Troubleshooting ...

General Information/Release Notes

Program & information for configuring/testing/troubleshooting adapters

(C) Copyright 1995, 3Com Corporation. All Rights Reserved

[ENTER]=Execute Function

[

↑↓

]=Scroll

[F1]=Help [ESC]=<Cancel>

Figure 4-3 Main Menu

Loading NetWare ODI Drivers

4-7

If you experience problems that occur only when using the

AutoLink program, display or print the AUTOLINK.LOG file.

The AUTOLINK.LOG file contains a log of all the events that occurred during the AutoLink installation and configuration process.

a To display the file, type:

type autolink.log | more

b To print the file, type:

print autolink.log

7 When the auto installation process is finished, remove the diskette and reboot the computer.

When you do this, the computer will boot as a NetWare DOS

ODI client.

This concludes the procedure for installing a single adapter in a NetWare DOS ODI client using the AutoLink feature.

Multiple Adapters in a Client

You can install multiple EISA adapters when you initially set up your EISA computer, or you can add a second EISA adapter to a computer in which a single adapter was previously installed.

In either case, you must run the EISA configuration program as an integral part of the EISA adapter installation procedure.

Use multiple adapters in a client only if you plan to run multiple protocols. For information on running multiple protocols, refer to the documentation accompanying your operating system.

Before proceeding, make sure you know each adapter’s slot number. Refer to the next section, “Finding the Adapter’s Slot

Number.”

You must use the adapter’s slot number when installing one or more adapters in a client.You must use the adapter’s

port

address when installing one or more adapters in a server.

4-8

C

HAPTER

4: L

OADING

N

ETWORK

D

RIVERS

If you are running NetWare and you have installed multiple

3C592 EtherLink EISA adapters in an EISA-compliant computer, follow these steps to install the NetWare ODI client driver:

1 Make sure your computer is turned off. Install the first adapter.

2 Connect the network cable to the adapter.

3 Insert the EISA configuration utility diskette and turn on the computer.

4 Run the EISA configuration program.

5 When the program has finished:

a Save the configuration.

b Remove the EISA configuration diskette and exit the program.

c Restart the computer.

6 Insert the

EtherDisk diskette and run the AutoLink program.

Refer to the sections “AutoLink Requirements” and “AutoLink

Installation” earlier in this chapter for instructions.

7 When the AutoLink installation is complete, remove the diskette, reboot the computer, and physically connect it to the server if you have not already done so.

8 Turn off the computer, install the second adapter, and connect the network cable to the adapter.

9 Insert the EISA configuration utility diskette and turn on the computer.

10 Run the EISA configuration program.

11 When the program has finished:

a Save the configuration.

Loading NetWare ODI Drivers

4-9

b Remove the EISA configuration diskette and exit the program.

c Restart the computer.

12 Access the C:\NWCLIENT subdirectory.

13 Edit the NET.CFG file, which is in the NWCLIENT subdirectory, as follows:

a In the LINK DRIVER 3C59X section of the NET.CFG file, add the following:

Slot 3

FRAME ETHERNET_802.2

b Repeat step 13a for the second adapter:

Slot 5

FRAME ETHERNET_II

The slot numbers shown above are examples; yours may be different.

Each frame type must be different, as shown in the previous examples. Refer to Novell’s DOS ODI client manual for information on the frame types to use.

14 Reboot the computer.

Finding the Adapter’s Slot Number

When working in a NetWare environment with multiple adapters in a client computer, you must know each adapter’s slot number. To find an adapter’s slot number after inserting the adapters, follow these steps.

1 Access the main menu on the EtherDisk diskette.

a Boot the computer under DOS.

b Insert the EtherDisk diskette in a floppy drive and make that drive the active one.

c At the prompt, type:

INSTALL [Enter]

The main menu appears.

4-10

C

HAPTER

4: L

OADING

N

ETWORK

D

RIVERS

2 Select

Configuration/Diagnostic/Troubleshooting, and press

[Enter].

3 Select

Configuration and Diagnostic Program and press

[Enter].

4 The next screen lists the installed adapters. Write down their slot numbers.

5 Exit the program.

If you are using an ODI driver with multiple adapters already installed and you have not updated the NET.CFG file, specify which adapter you want the driver to recognize by adding the slot number to the NET.CFG file using the SLOT XXXX parameter, where XXXX is the slot number.

One Adapter in a Server

If you are running NetWare and have installed a single adapter in an EISA computer that is functioning as a server, follow the instructions in this section to load the NetWare 4.x server driver.

The 3C59X EtherDisk diskette contains a NetWare 4.x server driver (3C59X.LAN) and the NetWare Loadable Modules

(NLMs) that enable the NetWare 4.x driver to be used with

NetWare 3.11, 3.12, or 4.0x software. These files are found in the subdirectories in the \NETWARE subdirectory.

Driver Installation with NetWare

To load the 4.x server driver, follow these steps:

1 Copy the contents of the appropriate \NETWARE\SERVER subdirectory to the boot partition of the server’s hard disk.

The 3C59X EtherDisk diskette contains the NetWare 4.x server driver and the NetWare Loadable Modules (NLMs) that enable the NetWare 4.x driver to be used with NetWare 3.11, 3.12,

4.0x, or 4.1 software.

Loading NetWare ODI Drivers

4-11

For complete details on loading the NetWare 4.x server driver for your NetWare version, refer to the README files, which are in the \NETWARE\SERVER subdirectory on the EtherDisk diskette. The readme files are named as shown below:

README.40X

README.41

README.311

README.312

2 When you start the server, enter the following commands:

For NetWare 3.11:

LOAD C:LSLENH.NLM [Enter]

LOAD C:3C59X.LAN PORT=XXXX [Enter]

BIND IPX TO 3C59X NET=XXXX [Enter]

For NetWare 3.12, 4.0x, or 4.x:

LOAD C:3C59X.LAN PORT=XXXX [Enter]

BIND IPX TO 3C59X NET=XXXX [Enter]

where XXXX is the adapter’s port address. (To determine the port address, multiply the slot number by 1000 hex. If the adapter is installed in slot number three, for example, multiply

3 by 1000 hex = 3000 hex.)

When running the 3C59X.LAN driver with NetWare 3.11 you must update the MONITOR.NLM file that accompanied NetWare 3.11 with the MONITOR.NLM file from Novell. For the latest NLMs, contact Novell.

Multiple Adapters in a Server

If you are running NetWare and have installed multiple adapters in an EISA computer that is functioning as a server, follow the instructions in this section to load the NetWare 4.x server driver.

The 3C59X EtherDisk diskette contains a NetWare 4.x server driver

(3C59X.LAN) and the NetWare Loadable Modules (NLMs) that enable the NetWare 4.x driver to be used with NetWare 3.11, 3.12, or 4.0x software. These files are found in the \NETWARE\SERVER subdirectory.

4-12

C

HAPTER

4: L

OADING

N

ETWORK

D

RIVERS

Finding the Adapter’s Port Address for Multiple

Adapters

To find the appropriate adapter’s port address when installing more than one adapter in a NetWare server, follow these steps.

You must use the adapter’s

port address when installing one or more adapters in a server. You must use the adapter’s

slot

number when installing one or more adapters in a client.

1 Access the main menu on the

EtherDisk diskette.

a Boot the computer under DOS.

b Insert the EtherDisk diskette in a floppy drive and make that drive the active one.

c At the prompt, type:

INSTALL [Enter]

The main menu appears.

2 Select Configuration/Diagnostic/Troubleshooting, and press [Enter].

3 In the next screen, select

Configuration and Diagnostic

Program, and press [Enter].

If multiple adapters have been installed, the screen that appears will list them.

4 Select the adapter whose port address you want.

5 Select

View in the menu bar, and press [Enter].

The screen that appears contains the desired I/O port address. Make a note of the address.

6 Repeat steps 3 and 4 for each adapter.

7 Exit the program.

Loading NetWare ODI Drivers

4-13

Driver Installation with NetWare

To load the 4.x server driver, follow these steps:

1 Copy the contents of the appropriate \NETWARE subdirectory to the boot partition of the server’s hard disk.

2 When you start the server, enter the following commands:

For NetWare 3.11:

LOAD C:LSLENH.NLM [Enter]

LOAD C:3C59X.LAN PORT=XXXX NAME=X [Enter]

LOAD C:3C59X.LAN PORT=XXXX NAME=Y [Enter]

BIND IPX TO X NET=XXXX

BIND IPX TO Y NET=XXXX

For NetWare 3.12, 4.0x, or 4.x:

LOAD C:3C59X.LAN PORT=XXXX NAME=X [Enter]

LOAD C:3C59X.LAN PORT=XXXX NAME=Y [Enter]

BIND IPX TO X NET=XXXX

BIND IPX TO Y NET=XXXX

where XXXX is the adapter’s port address and NAME X and Y are names that you assign to help distinguish the multiple adapters. (To determine the port address, refer to the previous section “Finding the Adapter’s Port Address for

Multiple Adapters.”)

If the load sequence above is not followed, the system will not operate correctly. Make sure that the PORT XXXX parameter is completed for all adapters.

When running the 3C59X.LAN driver with NetWare 3.11, you must update the MONITOR.NLM file that accompanied NetWare 3.11 with the MONITOR.NLM file from Novell. For the latest NLMs, contact Novell.

4-14

C

HAPTER

4: L

OADING

N

ETWORK

D

RIVERS

Loading Windows 95 Drivers

If you have Windows 95 running on your computer, you must load the driver from the EtherDisk diskette. Follow these steps:

1 After inserting the 3C592 EISA adapter, connecting it to the network, and running the configuration utility program, reboot your computer.

Windows 95 will notify you that new hardware has been found and is located in slot number “X.”

2 When you are prompted to select the driver you want to install for your new hardware, select this option:

Driver from disk by hardware manufacturer

3 Click OK.

4 You are prompted to insert the manufacturer’s disk into the drive selected.

a Insert the EtherDisk diskette and click OK.

b In the panel at the bottom of the dialog box, type the drive name and the path name from which Windows 95 should copy the manufacturer’s files.

(An information file on the diskette tells Windows 95 where to find the information it needs, for example A:\.)

5 Click OK.

This imports the driver from the EtherDisk diskette.

For on-line help information about any of the fields in the

Windows 95 display boxes, click the question mark (?) in the upper right corner of the box and move the cursor to the field of interest and click once again.

Loading Drivers in Non-NetWare Environments

4-15

Loading Drivers in Non-NetWare Environments

To load drivers in a non-NetWare environment, follow these steps:

1 Access the main menu as described in the section

“AutoLink Installation” earlier in this chapter.

2 Select Network Drivers in the main menu.

3 Select the appropriate driver for your network operating system from the menu choices.

The menu program copies the selected driver to a specified disk drive.

4 Refer to the on-line readme files on the 3C59X

EtherDisk diskette for information about working in other network operating systems. Refer also to your network operating system manuals for additional information.

NDIS Drivers

If you have loaded NDIS drivers in a computer with multiple

3Com adapters, you must specify the port address for each adapter, as documented in the PROTOCOL.INI file on the

3C59X EtherDisk diskette. The file is located on the startup diskette or the hard drive.

To install a second adapter when running Windows NT

, do not change the PROTOCOL.INI file. Instead, repeat the procedure used to install the first adapter.

The 3C59X EtherDisk diskette can be used as an OEM import diskette for Windows for Workgroups or Windows NT.

The path to the OEM files should point to \NDIS\WFW or

\NDIS\WINNT35, respectively.

4-16

C

HAPTER

4: L

OADING

N

ETWORK

D

RIVERS

The NDIS drivers are as follows:

NDIS 2.0x EL59X.DOS

EL59X.OS2

NDIS 3.0x

Windows for Workgroups

Windows NT, version 3.5

Windows 95

EL59X.386

EL59X.SYS

EL59X.VXD

Additional Drivers

Access 3Com’s Bulletin Board Service as described in

Appendix B, “Technical Support,” or contact your 3Com reseller for information on UNIX

and other drivers.

Using Transcend PC Link SmartAgent Software

3Com’s SmartAgent driver agents, which provide network management capabilities for adapters and PCs, are available with Transcend PC Link SmartAgent software or on 3Com’s bulletin board service (BBS). (For information on 3Com’s BBS, refer to Appendix B, “Technical Support.”) The driver agents occupy less than 6 KB on client PCs. They are fully

SNMP-compliant when used with SmartAgent SoftHub

/DOS or SoftHub/NLM software, one copy of which is included with each copy of Transcend PC Link SmartAgent, Transcend

WorkGroup Manager, or Transcend Enterprise Manager software. For more information on WorkGroup Manager software, contact your authorized 3Com representative.

Desktop Management Interface

4-17

Desktop Management Interface

3Com’s support of the Desktop Management Interface (DMI) makes the management of PCs and 3C592 EISA adapters easier.

Support of DMI allows any DMI-compatible management application to access 3Com adapter information.

3Com’s SmartAgent driver agents can take full advantage of the Management Information File (MIF) that is included with the DMI software. DMI supports NetWare ODI DOS and NDIS

DOS drivers.

For information about DMI software and instructions on how to install it, access 3Com’s BBS, as described in Appendix B.

5

P

ERFORMING

T

ROUBLESHOOTING AND

D

IAGNOSTIC

T

ESTS

This chapter explains how to isolate and solve 3C592 EISA adapter problems. Figure 5-1 illustrates how the procedures in this chapter might be used.

Make sure that the adapter is correctly installed. (See

Chapter 2 for installation instructions.)

1

Access DOS.

2

Start the diagnostic program.

3

Configure the diagnostic tests.

(optional)

4

Run the diagnostic tests.

5

6

Resolve problems.

(if required)

Call technical support if problems persist.

Figure 5-1 Troubleshooting Overview

5-2

C

HAPTER

5: P

ERFORMING

T

ROUBLESHOOTING AND

D

IAGNOSTIC

T

ESTS

Troubleshooting with the Diagnostic Tests

The diagnostic tests on the 3C59X EtherDisk diskette check the adapter’s operation and permit the isolation of faults. You can run the diagnostic tests after installing one or more

3C592 EISA adapters, or when a fault is suspected. If the tests in their default configuration do not isolate the problem, you can change the test parameters to meet specific situations.

When the DOS operating system first loads, it executes the

AUTOEXEC.BAT and CONFIG.SYS files. These files are user-definable files that set up the computer environment.

They may also load memory managers and drivers into memory.

Always run diagnostic tests with no device drivers or memory managers (EMM386.EXE and HIMEM.SYS) installed. To avoid loading the drivers or memory managers, you can bypass the

AUTOEXEC.BAT and CONFIG.SYS files. If you are running

under DOS 6.2, pressing [F5] while starting the computer will bypass these two files. If you are using DOS 6.x in a plain DOS

environment, you can bypass the CONFIG.SYS and

AUTOEXEC.BAT files by holding down the right [Shift] key

while starting the computer. If you are using an earlier version of DOS, you must boot from a DOS diskette.

The diagnostic tests are divided into three groups, designated Group 1, Group 2, and Group 3.

Group 1 tests check the physical components and circuitry on the adapter.

The Group 2 test (for the 3C592-COMBO adapter only, not the

3C592-TPO adapter) checks the adapter’s ability to transmit and receive data via the internal transceiver.

The Group 3 test (the Echo Exchange Test) tests the adapter’s ability to transmit and receive data while on the network.

Starting the Diagnostic Program

5-3

If the adapter passes all tests successfully, hardware failure is ruled out. If a problem still remains, look at cabling, software, and other issues that affect functionality on the network.

After running the diagnostic tests, you should reboot your computer to communicate on the network.

Starting the Diagnostic Program

To use the 3C59X EtherDisk diskette Configuration and

Diagnostic Program, follow these steps:

1 Access the main menu on the

EtherDisk diskette.

a Boot the computer under DOS.

If you are running Windows 95, reboot the computer and press [F4] when you see the message:

Starting Windows 95

b Insert the EtherDisk diskette in a floppy drive and make that drive the active one.

c At the prompt, type:

INSTALL [Enter]

The main menu appears.

2 Select

Configuration/Diagnostic/Troubleshooting, and press

[Enter].

3 In the next screen, select

Configuration and Diagnostic

Program, and press [Enter].

If you are testing multiple adapters, a screen listing all installed adapters appears. Highlight the adapter you want to test and press [Enter]. A screen appears, showing the selected

adapter with the Install menu item highlighted.

4 Continue with the instructions given in the next section,

“Running the Group 1 Tests.”

5-4

C

HAPTER

5: P

ERFORMING

T

ROUBLESHOOTING AND

D

IAGNOSTIC

T

ESTS

You can also run the tests from the command line. At the system prompt, type:

3C59XCFG RUN

Running the Group 1 Tests

The Group 1 tests include:

Register Access Test

EEPROM Test

FIFO Loopback Test

Ethernet Core Loopback Test

Encoder/Decoder Loopback Test

Interrupt Test

For a description of each Group 1 test, access help by pressing

[F1]. When the help screen appears, tab to the Index button

and press [Enter]. Use the arrow keys to move through the

Index listings. Select Test Definitions and press [Enter].

To run the Group 1 tests, follow these steps:

1 Under the

Test pull-down menu, select Run Tests.

Press [Enter].

The Run Tests dialog box appears, with the Start button highlighted.

2 Press [Enter] to start the tests.

Group 1 tests run ten times (default setting) unless you specify otherwise. The test results are displayed on the screen in the Results column.

To run the tests continuously, go to the Repetitions box on the Test Setup screen, and select Continuous (and deselect

Halt on Error in the Errors box). To access the Test Setup screen, select Test in the menu bar, and then select Test Setup in the drop-down menu. Press [Enter].

Starting the Diagnostic Program

5-5

Running the Group 2 Test

The Group 2 test is called the Network Loopback Test. It tests the 3C592-COMBO adapter’s ability to transmit and receive data via the internal transceiver. This test requires installation of a loopback plug at the adapter’s BNC transceiver connection.

Or, you can run the test on a nonproduction network on which only the computer being tested is operating.

CAUTION: Running the Group 2 test while connected to an

active network can cause intermittent failures.

Assembling a Loopback Plug

If you do not have a loopback plug, you may be able to get one from your authorized network supplier, or you can make your own. To assemble the loopback plug, connect two

50-ohm network cable terminators to a T connector, as shown in Figure 5-2. You can purchase the terminators from your network supplier (3Com part number 3C535).

Terminator

T connector

Terminator

Figure 5-2 Assembling a Loopback Plug

Starting the Group 2 Test

To run the Group 2 test on a 3C592 EISA adapter, follow these steps:

1 Connect the loopback plug to the round BNC connector on the back of the adapter.

2 Start the Configuration and Diagnostic Program, as described earlier in this chapter.

5-6

C

HAPTER

5: P

ERFORMING

T

ROUBLESHOOTING AND

D

IAGNOSTIC

T

ESTS

3 Select

Test Setup from the Test menu.

4 Enable the Group 2 test. Select OK and press [Enter].

5 Go to the Run Tests dialog box to start the tests.

6 After the test is completed:

a Exit the Configuration and Diagnostic Program.

b Remove the loopback plug.

Running the Group 3 Test

The Group 3 test is called the Echo Exchange Test. It tests the adapter’s ability to transmit and receive data while on the network.

CAUTION: Running the Group 3 test while connected to an

active network can cause intermittent failures. To avoid this, connect to an inactive network on which only the computer being tested and the echo server are operating.

To run the Group 3 test on the network, you need a second computer set up as an echo server. The echo server receives packets from the adapter being tested and echoes them back to the adapter. The second computer must be equipped with a 3Com adapter.

Setting Up an Echo Server

If your echo server contains a 3C592 EISA adapter, select

Echo Server under the Test menu, and click the Start button to make the computer an echo server.

If you are setting up an echo server using a 3Com adapter other than a 3C592 EISA adapter, follow these steps:

1 Select a computer to use as an echo server.

2 Insert the

EtherDisk diskette in a floppy drive.

The diagnostic program comes on the EtherDisk diskette that accompanied the adapter.

Starting the Diagnostic Program

5-7

3 Start the diagnostic program on the echo server.

The diagnostic program that you use depends on the adapter that is installed in the echo server. After the system prompt of the drive containing the Configuration and Diagnostic

Program, enter the name of the appropriate program (for example, 3C523) from Table 5-1.

Table 5-1 Diagnostic Programs

Diagnostic

Program Name

3C503.EXE

3C505.EXE

3C507.EXE

3C5X9CFG.EXE

3C523.EXE

3C523TP.EXE

3C527.EXE

3C59XCFG.EXE

Adapter in the Echo Server

EtherLink II

or II TP, EtherLink II/16 or II/16 TP

EtherLink Plus

EtherLink 16 or EtherLink 16 TP

EtherLink III family

EtherLink/MC

EtherLink/MC TP

EtherLink/MC 32

EtherLink III EISA, EtherLink III PCI, Fast EtherLink

PCI, and Fast EtherLink EISA

The diagnostic programs listed above come on the EtherDisk diskette that accompanied the adapter.

4 Select Echo Server Setup on the main menu.

The program notifies you that your computer is now set up as an echo server.

Starting the Group 3 Test

To run the Group 3 test on a 3C592 EISA adapter, follow these steps:

1 Start the Configuration and Diagnostic Program.

This program must be on the computer containing the adapter you want to test.

2 Select

Test Setup from the Test menu.

3 Select Group 3 from the Group Select box.

5-8

C

HAPTER

5: P

ERFORMING

T

ROUBLESHOOTING AND

D

IAGNOSTIC

T

ESTS

4 Enable the Group 3 test by selecting the

Enable Group button.

5 Select

OK and press [Enter].

6 Go to the Run Tests dialog box and select

Start to start the tests.

7 After the test is completed:

a Exit the program on the echo server.

b Exit the Configuration and Diagnostic Program.

Getting Help If a Test Fails

If any test fails, you can get additional information as follows:

Select the test that failed in the Run Tests dialog box and press [Enter].

Select the Zoom button and press [Enter].

If the diagnostic tests fail, the adapter may not be defective.

The problem may be incorrect option settings, option settings that conflict with the settings of other adapters, or improper installation. Follow the steps below to test the adapter further.

CAUTION: Make sure to turn the power off before inserting

or removing the adapter from the computer.

1 Make sure the board is seated correctly in the slot.

Check the adapter installation by reviewing the installation instructions in Chapter 2.

2 Inspect all cables and connections.

If you are using thin Ethernet cable, make sure that you have a T connector attached to the adapter and all other adapters on the network. Make sure that the thin Ethernet segment is terminated at both ends with a 50-ohm terminator.

Getting Help If a Test Fails

5-9

3 Make sure that you booted your computer under DOS version 3.1 or later, and that no device drivers or memory managers are loaded.

4 If you are running the Group 2 test (only on the 3C592-COMBO adapter), make sure that the loopback plug is securely attached to the adapter’s BNC connector and that the adapter is attached to a properly cabled nonproduction network.

If this test fails, try another loopback plug.

5 If you are running the Group 3 test, make sure that the adapter is connected to a properly cabled and inactive network and that an echo server is set up on the network.

6 Make sure that the settings for the adapter’s options are not the same settings used in the computer or on any other adapter boards installed in the computer.

If you need help, select Configuration/Diagnostic/

Troubleshooting on the 3C59X EtherDisk diskette main menu.

Then select Configuration and Diagnostic Program. When the next screen appears, press [F4] to display the adapter’s configuration values.

7 Install the adapter in another EISA slot and run the diagnostic tests again.

The original slot may be defective.

8 Replace the failed adapter with a working adapter and run the diagnostic tests again.

Use the same option settings as those used on the failed adapter. If the working adapter passes all tests, the original adapter is probably defective. For details on repair procedures, refer to Appendix B, “Technical Support.”

9 Install the adapter in another functioning computer and run the tests again.

Your computer may be defective. If the adapter passes the tests in the second computer, contact the reseller or manufacturer of the original computer.

5-10

C

HAPTER

5: P

ERFORMING

T

ROUBLESHOOTING AND

D

IAGNOSTIC

T

ESTS

10 If you experience problems that occur only when using the AutoLink program, display or print the AUTOLINK.LOG file. The AUTOLINK.LOG file contains a log of all the events that occurred during the AutoLink installation and configuration process.

a To display the file, type:

type autolink.log | more

b To print the file, type:

print autolink.log

Changing the Test Setup

To change the test parameters, follow these steps:

1 Choose

Test Setup from the Test menu in the main window of the Configuration and Diagnostic Program, or choose the

Test Setup button in the Run Tests dialog box.

2 Press [Tab] to highlight any of the fields within the Test

Setup dialog box.

3 To change a setting in any field, follow these steps:

a In the Group Select box, use the arrow keys to select a test group.

For more information on the Group 2 or Group 3 tests, refer to the appropriate sections earlier in this chapter.

b In the Group X Tests box, use the arrow keys to highlight a test. Press the [Space Bar] to enable or disable an individual test.

c In the Repetitions box, specify the number of times you want to run the tests, or use the arrow keys to select the

Continuous option.

d In the Errors box, press the [Space Bar] to select or deselect the Halt on Error parameter.

4 When you are satisfied with the new test setup, select the

OK button and press [Enter].

Miscellaneous Checks

5-11

5 To run the tests, choose

Run Tests from the Test menu and select the Start button.

CAUTION: Do not use an active network to run the Group 2

or Group 3 tests.

Miscellaneous Checks

Check for specific hardware problems, such as broken traces or loose and/or broken solder connections.

If you have installed the adapter correctly and you still experience problems, check the software.

Make sure that you have installed the correct drivers for the network operating system you are running (refer to

Chapter 4, “Loading Network Drivers”).

If any problem persists, refer to Appendix B, “Technical

Support.”

Link Beat LED

The 3C592 EISA adapters have an LED for the link beat (see

Figure 1-1). The link beat LED confirms that there is an active connection between the adapter and the hub.

When you first install the adapter and power up the computer, the LED lights, but the link beat is inactive. For the link beat to be active (enabled), you need to have run the

Group 3 test or have loaded the network drivers.

If you are experiencing any problems, first make sure that your hub complies with the 10BASE-T specifications and then check the LED. The meaning of LED activity is given below:

If the LED is on, the link beat is working.

If the LED is off, the link beat has not been established or there is a problem with the connection between the adapter and the hub.

If the LED is blinking, the cable polarity is reversed.

A

S

PECIFICATIONS

This appendix lists the specifications, connector pin assignments, and cable requirements for the 3C592 EISA adapters.

Adapter Specifications

Network Interface

3C592-TPO

3C592-COMBO

Ethernet IEEE 802.3i 10BASE-T industry standard for a 10 Mbps baseband CSMA/CD local area network

IEEE 802.3i 10BASE-T and Ethernet

IEEE 802.3 industry standard for a

10 Mbps CSMA/CD local area network

Physical Dimensions

Length:

Height:

18.2 cm (7.1 in)

10.76 cm (4.2 in)

Environmental Operating Range

Operating temperature: 0˚ to 70˚ C (32˚ to 158˚ F)

Humidity: 10 to 90% noncondensing

Power Requirements

Operating voltage: +12 V @ 400 mA and

+5 V @ 250 mA

A-2

A

PPENDIX

A: S

PECIFICATIONS

RJ-45 Connector Pin Assignments

Figure A-1 shows the RJ-45 connector pin assignments.

R D – ( 6 )

R D + ( 3 )

T D – ( 2 )

T D + ( 1 )

3

2

5

4

1

8

7

6

12 345678

Figure A-1 RJ-45 Connector Pin Assignments

AUI Connector Pin Assignments

Table A-1 lists the pin assignments for the AUI (attachment unit interface) connector.

Table A-1 AUI Connector Pin Assignments

6

7

4

5

8

2

3

Pin

1

Function

Collision shield

Collision +

Transmit +

Receive shield

Receive +

Power return

Not used

Not used

12

13

14

15

Pin

9

10

11

Function

Collision –

Transmit –

Transmit shield

Receive –

+12 volts

Voltage shield

Not used

Cable Requirements

A-3

Cable Requirements

In order to maintain compliance with the limits of a Class B digital device, 3Com requires that you use quality interface cables when connecting to this device. Changes or modifications not expressly approved by 3Com could void the user’s authority to operate this equipment. Examples of supported cable types are shown below:

For unshielded twisted-pair (UTP) connections (100 ohm):

Level 3 LAN and high-speed data cable, for example,

Anixter

CM-00424BAG-3 or equivalent

Level 4 extended distance LAN cable, for example, Anixter

CM-00424BAG-4 or equivalent

Level 5 data grade media cable, for example, AT&T

type

2061, 1061, or equivalent

For thin coax connections:

RG58 A/U or C/U (50 ohm

±

4)

For thick coax connections:

RG59 B/U (50 ohm)

B

T

ECHNICAL

S

UPPORT

3Com provides easy access to technical support information through the variety of services described in this appendix.

On-line Technical Services

3Com offers worldwide product support seven days a week,

24 hours a day, through the following on-line systems:

3Com Bulletin Board Service (3ComBBS)

World Wide Web site

ThreeComForum on CompuServe

3ComFacts

SM

automated fax service

3Com Bulletin Board Service

3ComBBS contains patches, software, and drivers for all 3Com products, as well as technical articles. This service is available via modem or ISDN seven days a week, 24 hours a day.

Access by Modem

To reach the service, set your modem to 8 data bits, no parity, and 1 stop bit. Call the telephone number nearest you:

Country

Australia

France

Data Rate

up to 14400 bps up to 14400 bps

Germany

Hong Kong up to 9600 bps up to 14400 bps

Italy (fee required) up to 9600 bps

Japan up to 14400 bps

Singapore

Taiwan

U.K.

U.S.

up to 14400 bps up to 14400 bps up to 14400 bps up to 14400 bps

Telephone Number

(61) (2) 955 2073

(33) (1) 69 86 69 54

(49) (89) 627 32 188 or (49) (89) 627 32 189

(852) 537 5601

(39) (2) 273 00680

(81) (3) 3345 7266

(65) 534 5693

(886) (2) 377 5838 or (886) (2) 377 5840

(44) (144) 227 8278

(1) (408) 980 8204

B-2

A

PPENDIX

B: T

ECHNICAL

S

UPPORT

World Wide Web Site

Access the latest networking information on 3Com’s World

Wide Web site by entering our URL into your Internet browser:

http://www.3Com.com/

This service features news and information about 3Com products, customer service and support, 3Com’s latest news releases, selected articles from 3TECH

, 3Com’s award-winning technical journal, and more.

ThreeComForum on CompuServe

ThreeComForum is a CompuServe-based service containing patches, software, drivers, and technical articles about all

3Com products, as well as an interactive forum for technical questions. To use ThreeComForum, you need a CompuServe account.

To use ThreeComForum:

1 Log on to CompuServe.

2 Enter

go threecom

3 Press [Return] to see the ThreeComForum main menu.

3ComFacts Automated Fax Service

3Com Corporation’s interactive fax service, 3ComFacts, provides data sheets, technical articles, diagrams, and troubleshooting instructions on 3Com products 24 hours a day, seven days a week.

Call 3ComFacts using your touch-tone telephone.

International access numbers are:

Country

Hong Kong

U.K.

U.S.

Fax Number

(852) 537 5610

(44) (1442) 27 8279

(1) (408) 727 7021

Support from Your Network Supplier

B-3

Country

Australia

Belgium

Denmark

Finland

France

Germany

Italy

Local numbers are available within the following countries:

Fax Number

800 123853

0800 71279

800 17319

98 001 4444

05 90 81 58

0130 8180 63

1678 99085

Country

Netherlands

Norway

Portugal

Fax Number

06 0228049

800 11062

05 05 442607

Russia (Moscow Only) 956 0815

Spain 900 964445

Sweden

U.K.

020 792954

0800 626403

Support from Your Network Supplier

If additional assistance is required, contact your network supplier. Many suppliers are authorized 3Com service partners who are qualified to provide a variety of services, including network planning, installation, hardware maintenance, application training, and support services.

When you contact your network supplier for assistance, have the following information ready:

Diagnostic error messages

A list of system hardware and software, including revision levels

Details about recent configuration changes, if applicable

If you are outside the U.S. and Canada, contact your local

3Com sales office to find your authorized service provider:

Country Telephone Number Country

Australia (Sydney) (61) (2) 959 3020

(Melbourne) (61) (3) 653 9515

Mexico

Netherlands

Belgium

Brazil

Canada

France

Germany

(continued)

(32) (2) 7164880

(55) (11) 546 0869

(905) 882 9964

(33) (1) 69 86 68 00

(49) (89) 6 27 32 0

Singapore

South Africa

Spain

Sweden

Taiwan

Telephone Number

(525) 531 0591

(31) (3) 402 55033

(65) 538 9368

(27) (11) 803 7404

(34) (1) 3831700

(46) (8) 632 91 00

(886) (2) 577 4352

B-4

A

PPENDIX

B: T

ECHNICAL

S

UPPORT

Country

Hong Kong

Italy

Japan

Telephone Number Country

(852) 868 9111

Telephone Number

United Arab Emirates (971) (4) 349049

(39) (2) 273 02041

(81) (3) 33457251

U.K.

(44) (1628) 897000

Returning Products for Repair

A product sent directly to 3Com for repair must first be assigned a Return Materials Authorization (RMA) number.

A product sent to 3Com without an RMA number will be returned to the sender unopened, at the sender’s expense.

To obtain an RMA number, call or fax:

Country

U.S. and Canada

Europe

Telephone Number

(800) 876 3266, option 2

(44) (1442) 278000

Outside Europe, U.S. and Canada (1) (408) 492 1790

Fax Number

(408) 764 7120

(44) (1442) 236824

(1) (408) 764 7290

G

LOSSARY

10BASE2

The IEEE standard for a 10 megabit per second baseband network on thin coaxial cable.

10BASE5

The IEEE standard for a 10 megabit per second baseband network on thick coaxial cable.

10BASE-T

The IEEE standard for a 10 megabit per second baseband network on twisted-pair cable.

AUI

Attachment Unit Interface Connector. Also called the DIX

(DEC

-Intel

-Xerox

) connector. This is a female 15-pin

D connector used with an external transceiver.

AUI cable

Also known as the transceiver cable. The AUI cable is used to connect an external transceiver to a computing device.

AutoLink

3Com autoinstallation and autoconfiguration software for

NetWare DOS clients. It automatically configures the adapter by selecting the correct interrupt level and I/O Base Address, checking for the network connection, and detecting the correct frame type.

Auto Select Media Type

A 3Com utility that detects the type of network cable connected to the adapter and automatically selects that connection for data transmission. This function is implemented by all NetWare ODI, Windows for Workgroups,

NDIS 2.01, and Windows NT and Windows 95 drivers.

2

G

LOSSARY

Backbone

The main transmission medium used to interconnect the workgroup areas of a network. It is usually coaxial or fiber-optic.

Backplane

A motherboard assembly in a PC with connectors and printed circuit traces into which printer circuit boards are inserted.

Bus

An electronic pathway along which signals are transmitted from one area of a computer to another.

Bus master adapter

An adapter that contains its own processor, which allows the adapter to operate independently of the computer’s main processor.

Coaxial cable

An electrical wire consisting of two primary electrical elements: an outer braided wire that acts as a ground and an inner one used to carry signals.

Configuration

The software settings that allow different hardware components of a computer system to communicate with one another.

Driver

A program, usually resident in server or workstation memory, that controls the network hardware (such as adapters or controllers) or implements the protocol stacks through which higher-level applications communicate with the network hardware.

Echo server

A computer set up to function as an “echo” to the primary computer. An echo server receives packets from the adapter being tested and echoes them back to the adapter.

G

LOSSARY

3

EISA

Extended Industry Standard Architecture. The EISA 32-bit extended AT personal computer bus architecture is backward-compatible with the 16-bit ISA architecture.

EMM386

Expanded Memory Manager. A dual-purpose memory manager that comes with MS-DOS. It provides access to the upper memory area, which enables you to free conventional memory by running device drivers in upper memory.

EMM386 also uses extended memory to simulate expanded memory. Refer to Microsoft documentation for additional information.

Ethernet

A local area network standard defining a physical medium and its method of placing data, or packet signaling, on a cable. Access to the cable is based on CSMA/CD (carrier sense multiple access with collision detection).

ISA

Loopback

A type of diagnostic test in which the transmitted signal is returned to the sending device after passing through all, or a portion of, a data communications link or network. A loopback test permits the comparison of a returned signal with the transmitted signal.

NDIS

Industry Standard Architecture. A 16-bit extension of the original IBM

Computer AT

PC bus architecture. The IBM Personal

bus.

Network Driver Interface Specification. Defines the LAN

Manager network driver architecture and interfaces that let a

DOS or OS/2 system support network adapters. This architecture provides a standardized way to write drivers for network adapters.

4

G

LOSSARY

NetWare

A series of network operating systems and related products made by Novell, Inc.

ODI driver

Open Data-Link Interface. A MAC-level specification developed by Novell and Apple

. Drivers complying with this specification can work with NetWare 2.x, 3.x, and 4.x. Like

NDIS, ODI drivers support multiple protocols and adapters, and can be unloaded from memory to conserve conventional DOS RAM space.

Parallel Tasking

Third-generation Ethernet adapter architecture. Parallel

Tasking technology accelerates data transfer by processing data packets simultaneously instead of sequentially. For example, when transmission is the task, the Parallel Tasking architecture begins to write data to the network even before an entire frame has been loaded into the adapter’s buffer memory. This permits complete parallelism in all data transfers.

Server

In a client-server computing environment, a device that provides access to network services, such as printers or applications.

Transceiver

A hardware device that links a node to a network cable and functions as both a transmitter and a receiver.

Twisted-pair

Wiring similar to that found in the telephone system, consisting of two insulated wires loosely twisted around each other to help cancel out induced noise in balanced circuits.

I

NDEX

Symbols

!TCM5920.CFG file 3-3

.CFG files 3-3

Numerics

10 Mbps Ethernet network adapter 1-1

10BASE2 coaxial cable 1-1

10BASE5 coaxial cable 1-1

10BASE-T twisted-pair cable 1-1

3C592 EISA 10 Mbps adapters 1-1

3C592-TPO and 3C592-COMBO adapters 1-1, 1-2 backplates 1-2 connectors for 2-5 network interface A-1

3C59X drivers 4-2, 4-10, 4-11

3C59X.COM driver 4-3

3C59X.LAN server driver 4-10, 4-11, 4-13

3C5X9 drivers 4-10

3Com Bulletin Board Service

(3ComBBS) B-1

3Com sales offices B-3

3ComFacts 4-2, B-2

A

accessing DOS 4-2 adapter backplates 1-2 adapter management 4-16 adapters 3-8

3C592-COMBO 1-1, 2-5, 5-5

3C592-TPO 1-1, 2-6 backplates 1-2 configuring 3-1 connecting to the network 2-5 features 1-2 finding port address 4-12 inserting 2-2 installing drivers 4-1 introduction 1-1 multiple 3-8, 4-7, 4-11, 5-3 troubleshooting

5-1 unpacking

2-2 address, port

4-7, 4-12 attachment unit interface (AUI) connector

1-2, 2-6 pin assignments

A-2

Auto Select Media Type

1-3, 2-8, 3-4

AUTOEXEC.BAT file

4-3, 5-2

AutoLink auto installation software

1-2, 4-1, 4-3, 4-4

AUTOLINK.CFG file

4-4

AUTOLINK.LOG file

4-7, 5-10

B

backplates 1-2

BNC connector 1-2, 2-5 boot PROM 2-2 bulletin board service B-1 bus master EISA adapter 1-1

C

cable requirements A-3 specifications 1-2 changing diagnostic test parameters 5-10 software options 3-4 coaxial cable 2-6, A-3

10BASE2 1-1

10BASE5 1-1 command line, using 5-4

CompuServe B-2

CONFIG.SYS file 4-3, 5-2 configuration adapter 3-2

EISA 4-8

Network Driver Optimization 3-4 software options 3-4

Configuration and Diagnostic

Program 3-4, 3-6, 5-3 main menu 4-6

2

I

NDEX configuring the adapter 3-2 connecting to the network 2-5 connectors 2-5

AUI 1-2, 2-6

BNC 1-2, 2-6

RJ-45 1-2, 2-6

T 2-5

D

Desktop Management Interface

(DMI) 1-3, 4-17 diagnostic tests 5-2 changing parameters 5-10 failed 5-8

Group 1 5-2, 5-4

Group 2 5-2, 5-5

Group 3 5-2, 5-6 help 5-8 running under Windows 95 5-3 starting 5-3

DOS ODI client 1-2, 4-4, 4-5, 4-7

DOS ODI client driver 4-1, 4-3

DOS, accessing 4-2 driver agents 4-16 drivers 4-1 compatibility 4-2 information on availability B-1 loading

NDIS 4-15 non-NetWare 4-15

Windows 95 4-14 location 4-2

NDIS 4-15

Windows for Workgroups 4-16

Windows NT 4-16

NetWare 4-3 non-NetWare 4-15

E

Echo Exchange Test

5-6 echo server

5-6

EEPROM Test

5-4

EISA bus master adapter

1-1 configuration diskette

3-2

EL59X.386 driver

4-16

EL59X.DOS driver

4-16

EL59X.SYS driver

4-16

Encoder/Decoder Loopback Test

5-4 end-user software license agreement 4-5

EtherDisk diskette 3-2, 4-10, 5-3

EtherLink III Parallel Tasking EISA adapter 1, 1-1

Ethernet Core Loopback Test 5-4 expansion slot 2-3 external transceiver 2-6

F

Fast EtherLink 10/100 EISA adapter 1-1 fax service. See 3ComFacts fiber-optic cable 2-6

FIFO Loopback Test 5-4

Full Duplex option 3-5

G

Group 1 tests

5-2, 5-4

Group 2 test

5-2, 5-5, 5-6

Group 3 test

5-6, 5-7

H

help

2-4, 4-14, 5-4

I

icon conventions 2

IEEE 802.3 standard 1-1 inspecting the adapter 2-2 installation adapter 2-2 boot PROM 2-2

Interrupt Test 5-4

L

link beat LED 1-3, 5-11 loopback plug, assembling 5-5

LSLENH.NLM file 4-11, 4-13

M

Management Information File

(MIF)

4-17 memory managers

3-4

MONITOR.NLM file

4-11, 4-13 multiple adapters

3-8, 4-7, 4-11, 5-3

I

NDEX

3

N

NDIS drivers 4-15

NetWare

4.x server drivers 4-10, 4-13

DOS ODI client driver 4-1, 4-3, 4-4 environment 4-3 with multiple adapters 4-10, 4-11

NetWare Loadable Modules

(NLMs) 4-10, 4-11

NETWARE\SERVER subdirectory 4-11 network cables, connecting fiber-optic 2-6 thick coaxial 2-5, 2-6, A-3 thin coaxial 2-5, 2-6, A-3 twisted-pair 2-5, 2-6, A-3

Network Driver Optimization option 3-4 network drivers installation 4-1 network interface specifications A-1

Network Loopback Test 5-5 network supplier support B-3 non-NetWare environment 4-15

O

on-board transceiver

2-5 on-line help

2-4, 3-8, 4-14 on-line technical services

B-1 operating voltage requirements

A-1

OS/2

4-3

P

physical dimensions

A-1 pin assignments

A-2 port address

4-11, 4-12, 4-13 power requirements

A-1

PROTOCOL.INI file

4-15

Q

QINSTALL\SERVER directory 4-4

R

readme files 4-11

Register Access Test 5-4 returning products for repair B-4 reversed polarity 5-11

RJ-45 connector 1-2, 2-6 pin assignments A-2

S

saving configuration settings

3-8 settings changing

3-4 saving

3-8 shared interrupts

4-4 slide latch

2-6 slot number

4-9

SmartAgent driver agents

1-3, 4-16 software configuration options

3-4 specifications, adapter

A-1

T

T connector

2-5, 5-5 technical support

B-1 tests, diagnostic. See diagnostic tests text conventions

2 thick Ethernet cable

2-6, A-3 thin Ethernet cable

2-5, 2-6, A-3

ThreeComForum

B-2 transceiver external

2-6 on-board

2-5

Transcend PC Link SmartAgent software

4-16 troubleshooting

5-1 diagnostic tests

5-2 hardware

5-8 tips

5-8, 5-11 twisted-pair cable

1-1, 2-6, A-3

U

UNIX driver 4-16 unshielded twisted-pair connections A-3

4

I

NDEX

W

Windows 3.X

4-3

Windows 95 1-2, 3-3, 4-1 confirming adapter installation 2-4 driver loading 4-14 running diagnostic tests 5-3

Windows for Workgroups 4-16

Windows NT 4-16

Z

Zoom

5-8

LIMITED WARRANTY

HARDWARE: 3Com warrants its hardware products to be free from defects in workmanship and materials, under normal use and service, for the following lengths of time from the date of purchase from 3Com or its Authorized Reseller:

Internetworking products

Network adapters

Ethernet stackable hubs and unmanaged Ethernet fixed port repeaters

One year

Lifetime

Lifetime*

(One year if not registered)

*Power supply and fans in these stackable hubs and unmanaged repeaters One year

Other hardware products One year

Spare parts and spares kits 90 days

If a product does not operate as warranted during the applicable warranty period, 3Com shall, at its option and expense, repair the defective product or part, deliver to Customer an equivalent product or part to replace the defective item, or refund to Customer the purchase price paid for the defective product. All products that are replaced will become the property of 3Com.

Replacement products may be new or reconditioned. Any replaced or repaired product or part has a ninety (90) day warranty or the remainder of the initial warranty period, whichever is longer.

3Com shall not be responsible for any software, firmware, information, or memory data of

Customer contained in, stored on, or integrated with any products returned to 3Com pursuant to any warranty.

SOFTWARE: 3Com warrants that the software programs licensed from it will perform in substantial conformance to the program specifications therefor for a period of ninety (90) days from the date of purchase from 3Com or its Authorized Reseller. 3Com warrants the magnetic media containing software against failure during the warranty period. No updates are provided.

3Com's sole obligation hereunder shall be (at 3Com's discretion) to refund the purchase price paid by Customer for any defective software products, or to replace any defective media with software which substantially conforms to 3Com's applicable published specifications. Customer assumes responsibility for the selection of the appropriate applications program and associated reference materials. 3Com makes no warranty that its software products will work in combination with any hardware or applications software products provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software products will be corrected. For any third party products listed in the 3Com software product documentation or specifications as being compatible, 3Com will make reasonable efforts to provide compatibility, except where the non-compatibility is caused by a “bug” or defect in the third party's product.

STANDARD WARRANTY SERVICE: Standard warranty service for hardware products may be obtained by delivering the defective product, accompanied by a copy of the dated proof of purchase, to 3Com's Corporate Service Center or to an Authorized 3Com Service Center during the applicable warranty period. Standard warranty service for software products may be obtained by telephoning 3Com's Corporate Service Center or an Authorized 3Com Service Center, within the warranty period. Products returned to 3Com's Corporate Service Center must be pre-authorized by 3Com with a Return Material Authorization (RMA) number marked on the outside of the package, and sent prepaid, insured, and packaged appropriately for safe shipment.

The repaired or replaced item will be shipped to Customer, at 3Com's expense, not later than thirty (30) days after receipt by 3Com.

WARRANTIES EXCLUSIVE: IF A 3COM PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE,

CUSTOMER’S SOLE REMEDY SHALL BE REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE

PRICE PAID, AT 3COM’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE

AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, EITHER IN FACT OR BY

O P E R A T I O N O F L A W , S T A T U T O R Y O R O T H E R W I S E , I N C L U D I N G W A R R A N T I E S O F

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. 3COM NEITHER ASSUMES NOR

AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION

WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS.

3COM SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION

DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY

CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING,

UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE

INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT OR TORT (INCLUDING

NEGLIGENCE) SHALL 3COM BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR

PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER

FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS,EVEN IF

3COM OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

Some states do not allow the exclusion of implied warranties or the limitation of incidental or consequential damages for consumer products, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights which may vary from state to state.

GOVERNING LAW: This Limited Warranty shall be governed by the laws of the state of California.

3Com Corporation

5400 Bayfront Plaza

Santa Clara, CA 95052-8145

(408) 764-5000

FCC CLASS B CERTIFICATION STATEMENT

3Com Corporation

Model Nos: 3C592-TPO and 3C592-COMBO

FCC ID: DF63C592

Made in U.S.A.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1 this device may not cause harmful interference, and

2 this device must accept any interference received, including interference that may cause undesired operation.

WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules, and the Canadian Department of

Communications Equipment Standards entitled, “Digital Apparatus,” ICES-003. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from the one which the receiver is connected to.

Consult the dealer or an experienced radio/TV technician for help.

The user may find the following booklet prepared by the Federal Communications Commission helpful:

The Interference Handbook

This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Stock

No. 004-000-00345-4.

NOTE: In order to maintain compliance with the limits of a Class B digital device, 3Com requires that you use quality interface cables when connecting to this device. Changes or modifications not expressly approved by 3Com could void the user’s authority to operate this equipment. Refer to the manual for specifications on cabling types.

CISPR B COMPLIANCE

This device complies with the EMC directive of the European Community and meets or exceeds the following technical standard:

EN 55022 – Limits and Methods of Measurement of Radio Interference Characteristics of

Information Technology Equipment.

This device complies with the CISPR Class B standard.

WARNING: This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

CE NOTICE

Marking by the symbol indicates compliance of this equipment to the EMC directive of the European Community. Such marking is indicative that this equipment meets or exceeds the following technical standards:

EN 55022—“Limits and Methods of Measurement of Radio Interference Characteristics of

Information Technology Equiment.”

EN 50082-1—“Electromagnetic compatibility —Generic immunity standard Part 1: Residential, commercial, and light industry.”

IEC 801-2—“Electromagnetic compatibility for industrial-process measurement and control equipment Part 2: Electrostatic discharge requirements.”—Severity level 3.

IEC 801-3—“Electromagnetic compatibility for industrial-process measurement and control equipment Part 3: Radiated electromagnetic field requirements.”—Severity level 2.

IEC 801-4—“Electromagnetic compatibility for industrial-process measurement and control equipment Part 4: Electrical fast transient/burst requirements.”—Severity level 2.

A “Declaration of Conformity” in accordance with the above standards has been made and is on file at 3Com Corporation.
